Vibrational Vibes Slides Vibrational Vibes
Unlocking the Power of Resonance
Physics & Engineering: Lesson 1
The Burning Question
How can a small, steady breeze destroy a massive bridge made of steel and concrete?
"Everything in the universe has a rhythm. When you find it, you can move mountains—or break them."
Natural Frequency (\(f_0\))
Definition
The frequency at which a system tends to oscillate in the absence of any driving or damping force.
Determined by physical properties (mass, length, stiffness).
A wine glass, a guitar string, and a skyscraper all have one.
Imagine a Tuning Fork...
Forced Oscillations
When an External periodic force is applied to an oscillator.
Driving Frequency (\(f_d\))
The frequency of the external force pushing the system.
The Response
The system eventually vibrates at the driving frequency, not its own natural frequency.
The Resonance Peak
What happens when \(f_d = f_0\)?
Low Freq Resonance! High Freq
Amplitude increases dramatically as energy is transferred efficiently.
Investigation: Frequency Finder
Your Mission
Find the "Sweet Spot." You will drive a pendulum with small hand motions at different speeds.
Measure natural period (\(T_0\))
Calculate natural frequency (\(1/T_0\))
Drive it fast, drive it slow, drive it just right.
Target: Resonance
Frequency Finder Worksheet Frequency Finder
Lab Investigation: Forced Oscillations
NAME:
DATE:
Objective
In this lab, you will determine the natural frequency of a pendulum and investigate how varying the driving frequency impacts the system's amplitude. Your goal is to identify the precise frequency required to achieve resonance.
Part 1: Natural Frequency (\(f_0\))
Instructions: Measure the time for 10 full oscillations. Repeat three times and find the average.
Trial Time for 10 Oscillations (s) Period \(T_0\) (s) 1 2 3 Average Natural Period (\(T_0\)):
Calculate Natural Frequency (\(f_0\)):
Formula: \(f_0 = 1 / T_{avg}\)
\(f_0 =\) _________ Hz
Observation:
What happens to the amplitude if you displace the pendulum once and let it swing freely?
Part 2: The Driving Force
Now, hold the support point of the pendulum and move your hand horizontally by ~2cm in a periodic motion. You are now the driver.
Scenario A: Driving MUCH SLOWER than \(f_0\)
Drive the pendulum at roughly 0.5 Hz below your calculated \(f_0\).
Describe the Amplitude and Motion:
Scenario B: Driving AT the Natural Frequency (\(f_d \approx f_0\))
Match your hand frequency exactly to the rhythm you found in Part 1.
Describe the Amplitude and Motion:
Scenario C: Driving MUCH FASTER than \(f_0\)
Shake your hand rapidly (roughly 0.5 Hz above your calculated \(f_0\)).
Describe the Amplitude and Motion:
Synthesis & Analysis
1. Define Resonance based on your observations in Scenario B.
2. Phase Relationship: In which scenario did the pendulum's mass follow your hand perfectly? In which did it seem "out of sync"?
3. Engineering Connection: If you were designing a building, why would it be dangerous for the ground (during an earthquake) to shake at the building's natural frequency?
Vibrational Vibes Teacher Guide Vibrational Vibes
Lesson 1: Forced Oscillations & Resonance | Teacher Guide
Unit: SHM & Engineering
Duration
60-90 Minutes
Key Concept
Resonance (\(f_d = f_0\))
Complexity
High / Inquiry-Based
Instructional Strategy
This lesson uses a Predict-Observe-Explain (POE) framework. Instead of lecturing on resonance first, students discover it through physical play with pendulums. The teacher's role is to facilitate the connection between the "chaos" of hand-driven oscillations and the mathematical concept of matching frequencies.
Lab Setup & Materials
Each Group Needs:
Pendulum (string + heavy nut/washer)
Stopwatch (phones are fine)
Meter stick (for consistent string length)
Frequency Finder Worksheet
Teacher Tip:
Keep pendulum lengths around 30-50cm. Shorter strings result in natural frequencies that are too fast to drive manually; longer ones are too slow and take too much space.
Pacing & Flow
10 min
The Hook & Slide Deck
Introduce the concept of "Natural Frequency." Use the wine glass analogy or a tuning fork. Ask: "If everything has a rhythm, can we find it?"
15 min
Phase 1: Finding \(f_0\)
Students measure the natural period. Walk around to ensure they are counting 10 full oscillations (back and forth) and dividing by 10.
20 min
Phase 2: Driving the System
Crucial moment: Students must keep the hand displacement small (~2cm). If they move their hand too much, they are just "swinging" it. They should feel the pendulum "pull back" when off-resonance.
15 min
Synthesis Discussion
Bring the class together. Define resonance formally. Highlight that at resonance, the hand is 90 degrees out of phase with the mass.
Common Misconceptions
The "Magic" Force
Students often think resonance creates "extra energy" from nowhere. Clarify that resonance is just the maximum efficiency of energy transfer from the driver to the oscillator.
Driving vs. Initial Displacement
Clarify that "forced" means the external push keeps happening. Free oscillation (letting go) is NOT a forced oscillation.
Discussion Prompts
"Why does the pendulum stop moving almost entirely when you shake your hand extremely fast?"
Answer focus: Inertia. The mass doesn't have time to react before the force changes direction.
Bridge Breakdown Slides Bridge Breakdown
The Forensic Physics of Tacoma Narrows
Forensic Engineering: Lesson 2
Meet "Galloping Gertie"
"It was so unstable that people would drive across just for the thrill of the bounce."
Opened: July 1, 1940
Collapsed: November 7, 1940
Wind Speed: Only 42 mph
Archive Footage
Witness the final moments of Gertie
The Great Physics Myth
"It was just resonance!"
Most textbooks simplify this to "the wind matched the natural frequency of the bridge."
They are partially wrong.
(Wait, what? Let's dive deeper...)
The Real Culprit: Flutter
Aeroelastic Flutter
A self-excited oscillation. The bridge didn't just vibrate; it twisted and extracted energy from the steady wind.
The Vortex Effect
As the bridge tilted, it created swirling air (vortices) that pushed it further, creating a feedback loop.
DECK
Twisting creates its own force.
Forensic Report Briefing
You are now a Lead Structural Investigator. Your task is to analyze the 1940 footage and complete the "Bridge Breakdown Report."
Step 1
Identify the specific modes of motion (Translational vs Torsional).
Step 2
Calculate frequency from the video clips.
Step 3
Propose an engineering fix for the 1950 replacement.

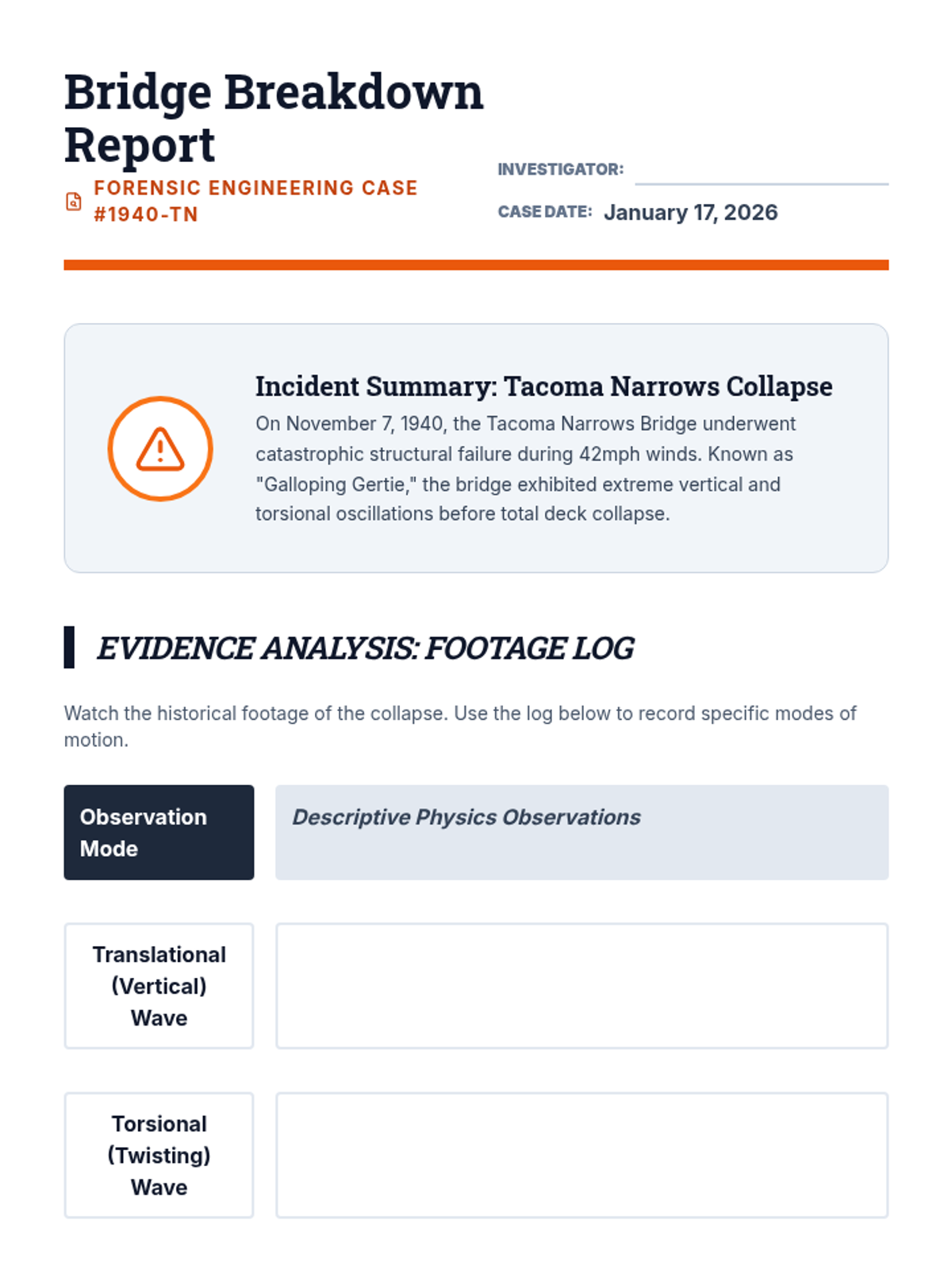

Bridge Breakdown Report Worksheet Bridge Breakdown Report
Forensic Engineering Case #1940-TN
Investigator:
Case Date:
January 17, 2026
Incident Summary: Tacoma Narrows Collapse
On November 7, 1940, the Tacoma Narrows Bridge underwent catastrophic structural failure during 42mph winds. Known as "Galloping Gertie," the bridge exhibited extreme vertical and torsional oscillations before total deck collapse.
Evidence Analysis: Footage Log
Watch the historical footage of the collapse. Use the log below to record specific modes of motion.
Observation Mode
Descriptive Physics Observations
Translational (Vertical) Wave
Torsional (Twisting) Wave
Forensic Mathematics
During the torsional (twisting) phase, a clock in the footage shows that the bridge completes 3 full twists in 15 seconds.
1. Calculate the Torsional Period (\(T\)):
\(T = \) ________ s
2. Calculate the Torsional Frequency (\(f\)):
\(f = \) ________ Hz
The Investigation Conclusion
3. Myth Analysis: Explain why "Resonance" (forced oscillation matching natural frequency) is a simplified explanation for this collapse. What was the role of the wind's steady force?
4. Aerodynamic Flutter: Research or recall the concept of "self-excitation." How does the bridge deck's motion actually contribute to the force that pushes it even further?
5. Engineering Redesign: The 1950 replacement bridge (New Tacoma Narrows) uses an open-truss design instead of solid girders. Why does this design prevent the collapse seen in "Gertie"?
Division of Structural Physics
Strictly Confidential: Engineering Eyes Only

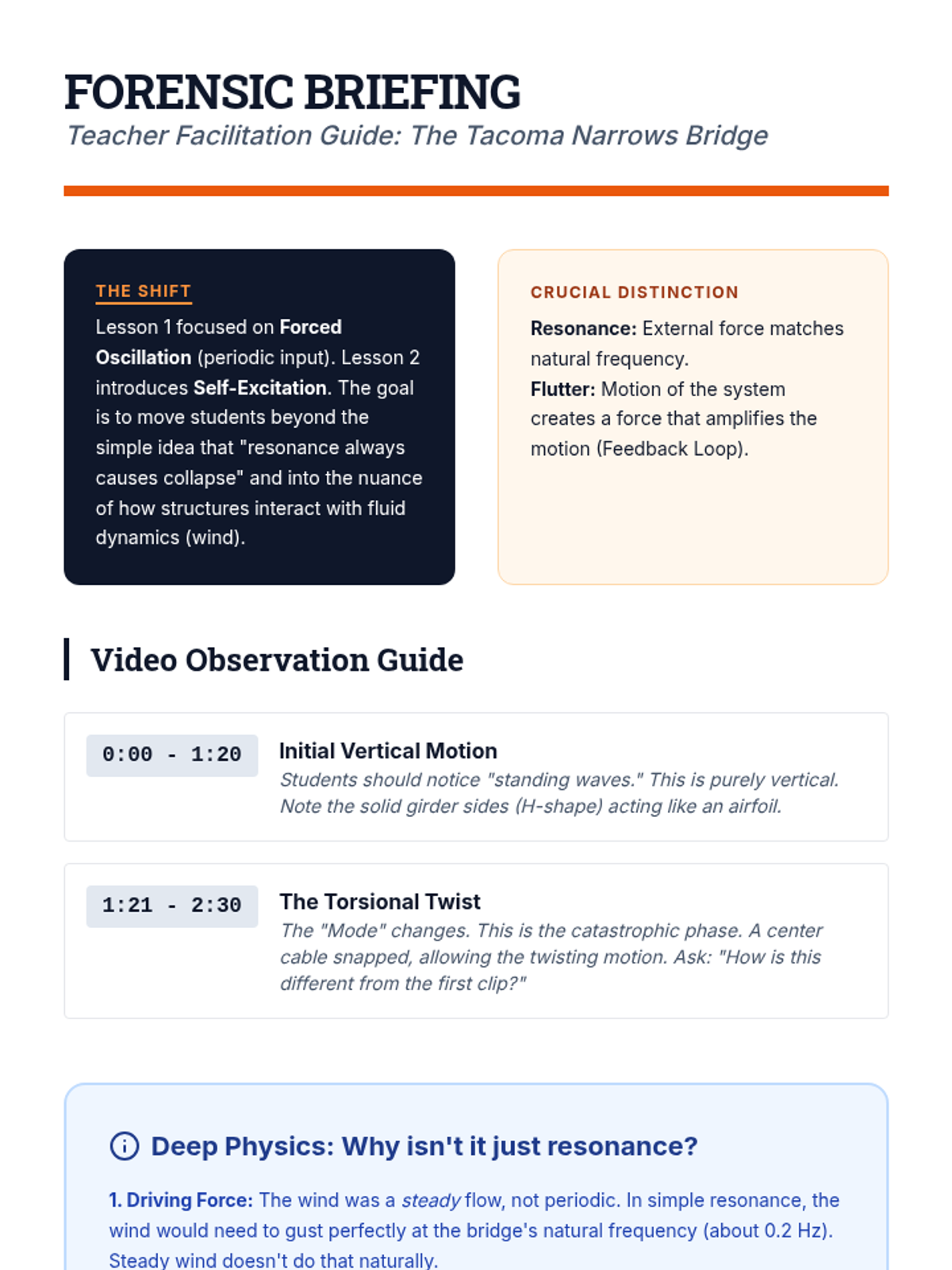

Bridge Breakdown Teacher Guide Forensic Briefing
Teacher Facilitation Guide: The Tacoma Narrows Bridge
The Shift
Lesson 1 focused on Forced Oscillation (periodic input). Lesson 2 introduces Self-Excitation . The goal is to move students beyond the simple idea that "resonance always causes collapse" and into the nuance of how structures interact with fluid dynamics (wind).
Crucial Distinction
Resonance: External force matches natural frequency.Flutter: Motion of the system creates a force that amplifies the motion (Feedback Loop).
Video Observation Guide
0:00 - 1:20
Initial Vertical Motion
Students should notice "standing waves." This is purely vertical. Note the solid girder sides (H-shape) acting like an airfoil.
1:21 - 2:30
The Torsional Twist
The "Mode" changes. This is the catastrophic phase. A center cable snapped, allowing the twisting motion. Ask: "How is this different from the first clip?"
Deep Physics: Why isn't it just resonance?
1. Driving Force: The wind was a steady flow, not periodic. In simple resonance, the wind would need to gust perfectly at the bridge's natural frequency (about 0.2 Hz). Steady wind doesn't do that naturally.
2. Feedback Loop: As the bridge twisted, it changed its angle relative to the wind. This created "Vortex Shedding." Basically, the bridge's own motion turned a steady wind into a periodic force. This is "Self-Excitation."
3. Aerodynamics: The bridge deck was a solid plate (H-girder). It caught the wind like a sail. Modern bridges use open trusses (letting wind through) or aerodynamic "wings" to keep the wind from catching.
Worksheet Key: Calculations
Math Section 1
3 full twists / 15 seconds5.0 seconds 0.2 Hz
Design Recommendation
Students should suggest: Adding weight (damping), changing the shape (aerodynamics), or increasing stiffness (tension cables).
Closing Discussion Question:
"If we can't stop the wind, how do we make the bridge 'ignore' it?"
The Great Fade Away Slides The Great Fade Away
Energy. Dissipation. Control.
DAMPING | Lesson 3
Where does the energy go?
In an "ideal" world, pendulums swing forever. In the real world, damping removes energy.
Definition: Damping
Any process where the energy of an oscillating system is dissipated, usually as heat, causing the amplitude to decrease over time.
Air Resistance
Friction (Heat)
Viscosity (Fluid)
Eddy Currents
Engineering Choice: 3 States
Under
System oscillates but the amplitude slowly dies away. Bouncy.
Example: Swing
Over
High resistance. No oscillation. System takes "forever" to return to equilibrium.
Example: Thick Honey
Critical
The Goldilocks state. Returns to equilibrium as fast as possible without oscillating.
Example: Car Shocks
The "Speed Bump" Problem
When you hit a bump, you want the car to stay stable.
Under-damped: The car bounces for miles.
Over-damped: The suspension is "dead." Hard hit.
Critical: Instant recovery. Smooth ride.
Coming Up: The Lab
We will use "sails" to create air resistance and graph the resulting decay.

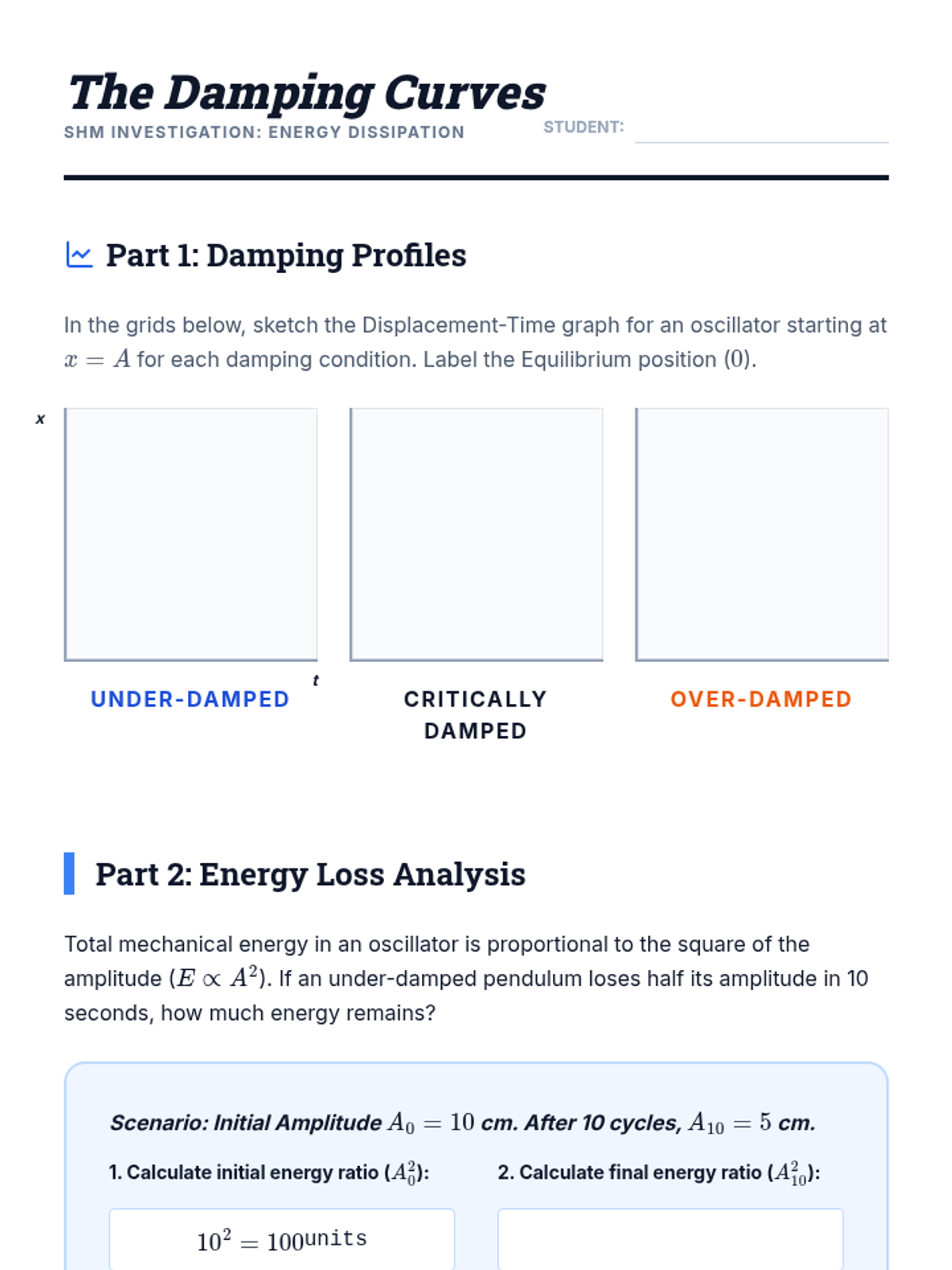

Damping Curves Worksheet The Damping Curves
SHM Investigation: Energy Dissipation
STUDENT:
Part 1: Damping Profiles
In the grids below, sketch the Displacement-Time graph for an oscillator starting at \(x = A\) for each damping condition. Label the Equilibrium position (\(0\)).
x t
Under-Damped
Critically Damped
Over-Damped
Part 2: Energy Loss Analysis
Total mechanical energy in an oscillator is proportional to the square of the amplitude (\(E \propto A^2\)). If an under-damped pendulum loses half its amplitude in 10 seconds, how much energy remains?
Scenario: Initial Amplitude \(A_0 = 10\) cm. After 10 cycles, \(A_{10} = 5\) cm.
1. Calculate initial energy ratio (\(A_0^2\)):
\(10^2 = 100\) units
2. Calculate final energy ratio (\(A_{10}^2\)):
Conclusion: What percentage of the initial energy was dissipated as heat?
Part 3: The Right Damping for the Job
Match the application to the preferred damping state and justify your choice.
Automobile Suspension (Shock Absorbers)
Type:
Reason:
Self-Closing Heavy Fire Door
Type:
Reason:
Precision Weighing Scale (Needle)
Type:
Reason:
Critical Thought Question:
Does damping change the period of an oscillator? (Hint: Think about how air resistance slows down a pendulum mass's average speed over a cycle).

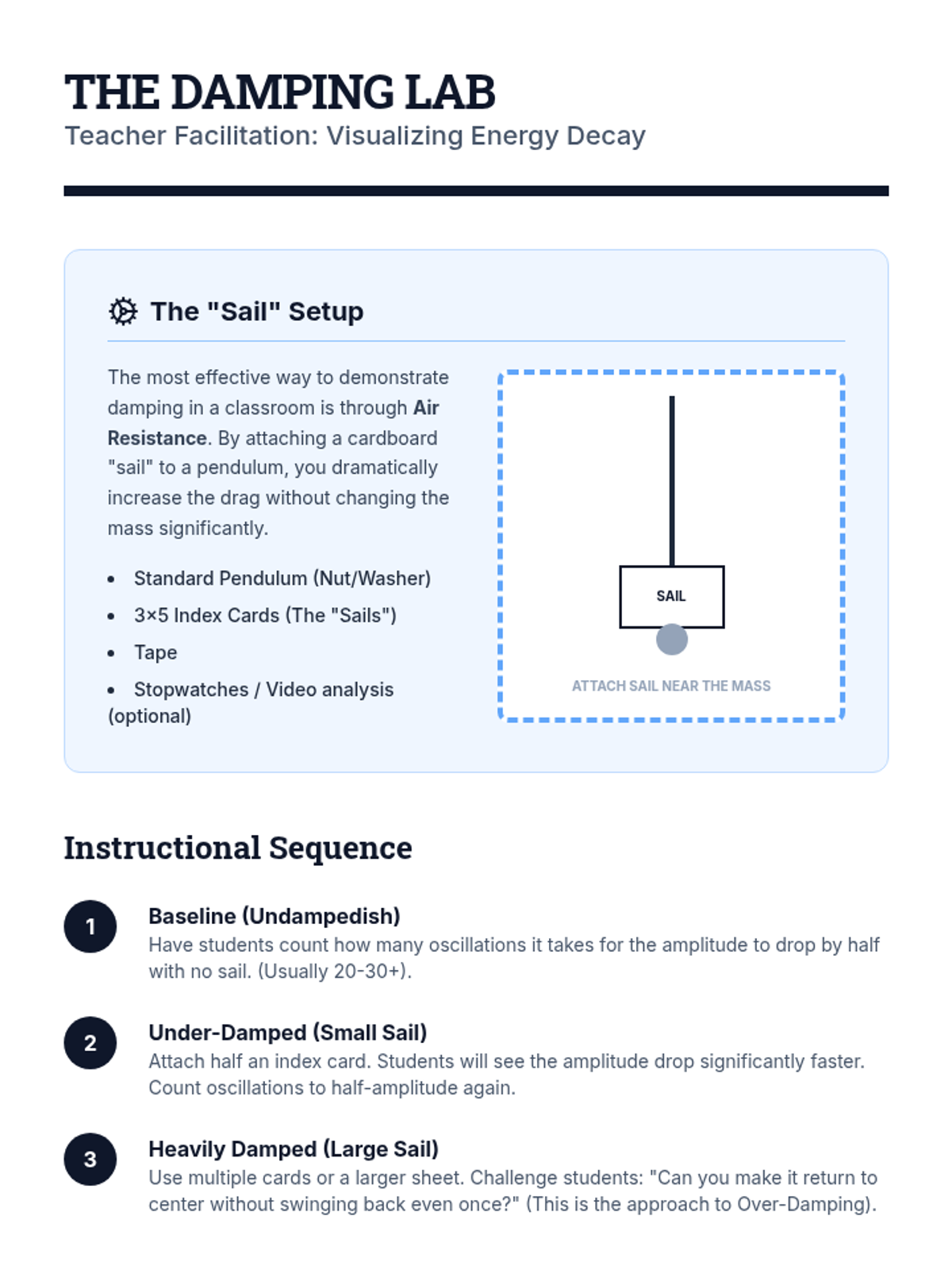

Investigating Damping Teacher Guide The Damping Lab
Teacher Facilitation: Visualizing Energy Decay
The "Sail" Setup
The most effective way to demonstrate damping in a classroom is through Air Resistance . By attaching a cardboard "sail" to a pendulum, you dramatically increase the drag without changing the mass significantly.
Standard Pendulum (Nut/Washer)
3x5 Index Cards (The "Sails")
Tape
Stopwatches / Video analysis (optional)
SAIL
Attach sail near the mass
Instructional Sequence
1
Baseline (Undampedish)
Have students count how many oscillations it takes for the amplitude to drop by half with no sail. (Usually 20-30+).
2
Under-Damped (Small Sail)
Attach half an index card. Students will see the amplitude drop significantly faster. Count oscillations to half-amplitude again.
3
Heavily Damped (Large Sail)
Use multiple cards or a larger sheet. Challenge students: "Can you make it return to center without swinging back even once?" (This is the approach to Over-Damping).
Energy Dissipation
Remind students that energy is not "gone," it has been transferred to the air molecules via collisions, slightly heating them up.
Frequency Shift
Advanced Note: Damping actually lowers the resonant frequency slightly. In heavy damping, the system slows down. (The "Damped Frequency").
Student Success Criteria
Identify
Can label under, over, and critical graphs.
Calculate
Understands the \(E \propto A^2\) relationship.
Predict
Knows which damping is best for car safety.
Giant Sway Stoppers Slides Giant Sway Stoppers
The Physics of Skyscraper Stability
Engineering Workshop: Lesson 4
The Skyscraper Problem
Super-tall buildings act like giant vertical pendulums.
High-altitude winds create periodic "buffeting."
Earthquakes create base-driven forced oscillations.
Result: Nausea for residents and structural fatigue.
Sway Mode
The Tuned Mass Damper (TMD)
How it Works
A massive weight (secondary oscillator) is hung inside the building. It is tuned to the same natural frequency as the building.
When the building sways left, the TMD sways right (out of phase), absorbing the building's kinetic energy and dissipating it through dampers.
728 TONS
Taipei 101
The Power of Cancellation
Kinetic Theft
As the building sways, it tries to move the TMD. Because they share a frequency, energy transfer is highly efficient. The TMD "steals" the vibration.
Counter-Force
Hydraulic cylinders connected to the TMD convert that stolen energy into heat, stopping the motion of both.
Workshop: The TMD Model
Your Task
Attach a secondary pendulum to a primary structural model. Tune the secondary mass to stop the primary from oscillating.
Match the frequencies.
Test with a driving force.
Observe energy transfer.
Structure
TMD

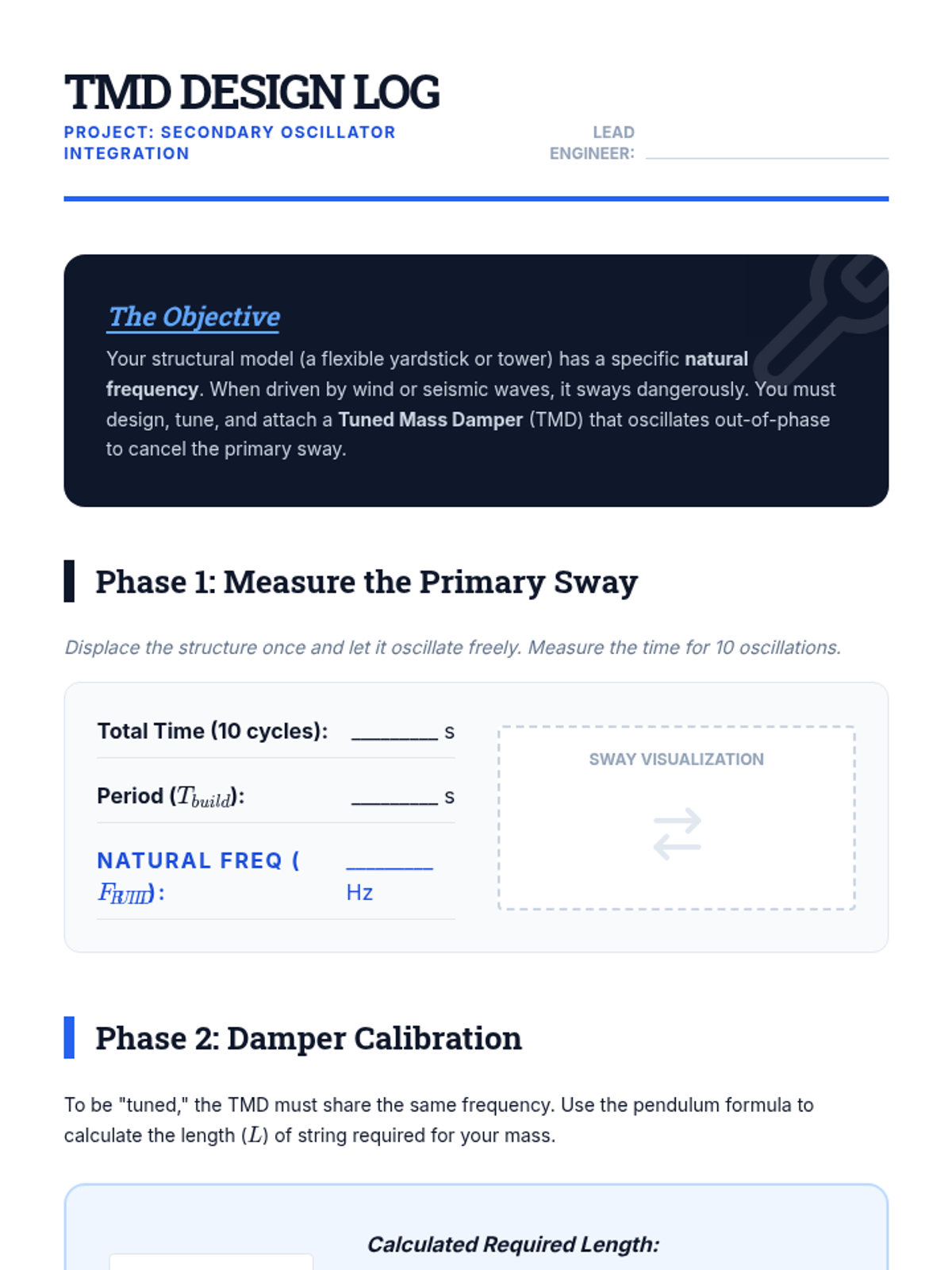

Pendulum Planner Worksheet TMD Design Log
Project: Secondary Oscillator Integration
LEAD ENGINEER:
The Objective
Your structural model (a flexible yardstick or tower) has a specific natural frequency . When driven by wind or seismic waves, it sways dangerously. You must design, tune, and attach a Tuned Mass Damper (TMD) that oscillates out-of-phase to cancel the primary sway.
Phase 1: Measure the Primary Sway
Displace the structure once and let it oscillate freely. Measure the time for 10 oscillations.
Total Time (10 cycles): _________ s
Period (\(T_{build}\)): _________ s
Natural Freq (\(f_{build}\)): _________ Hz
Sway Visualization
Phase 2: Damper Calibration
To be "tuned," the TMD must share the same frequency. Use the pendulum formula to calculate the length (\(L\)) of string required for your mass.
\(T = 2\pi\sqrt{\frac{L}{g}}\)
Calculated Required Length:
\(L = \) _________ cm
Phase 3: Stress Testing
Compare the building's response with and without the TMD attached when driven at its resonant frequency.
Configuration Maximum Sway (cm) Observation (Phase / Control) No TMD (Baseline) TMD Active (Calibrated)
Final Engineering Analysis
1. Energy Theft: Describe what you observed happen to the TMD mass as the building tried to oscillate. Where did the building's energy go?
2. Phase Relationship: When the building was swaying to the LEFT, which way was the TMD mass moving? Why is this essential for cancellation?
Shake Table Showdown Slides Shake Table Showdown
The Final Engineering Challenge
Can Your Tower Survive?
The Brief
The Objective
Build a structural tower (minimum 50cm tall) that can survive a magnitude 9 resonance on the shake table.
Must include a Damping System.
Must carry a "payload" (golf ball).
Cannot exceed 500g total mass.
Resonance is the Enemy
The table will shake at YOUR tower's natural frequency. You must out-damp the energy.
Your Engineering Arsenal
TMD
Hang a mass that oscillates out-of-phase to cancel the shake.
Base Isolation
Use rollers or springs to decouple the tower from the ground.
Structural Damping
Add cross-bracing and friction joints to absorb energy directly.
The Testing Loop
BUILD
SHAKE
FAIL
FIX
"Fail fast. Fail early. Engineers learn through failure."
Ready? Set. SHAKE.
Phase 1: Sweep
We will slowly increase the frequency from 0.5 Hz to 5.0 Hz to find your tower's natural peak.
Phase 2: Max Amp
Once resonance is found, we will increase amplitude until the tower fails or survives 60 seconds.
Good Luck, Engineers!

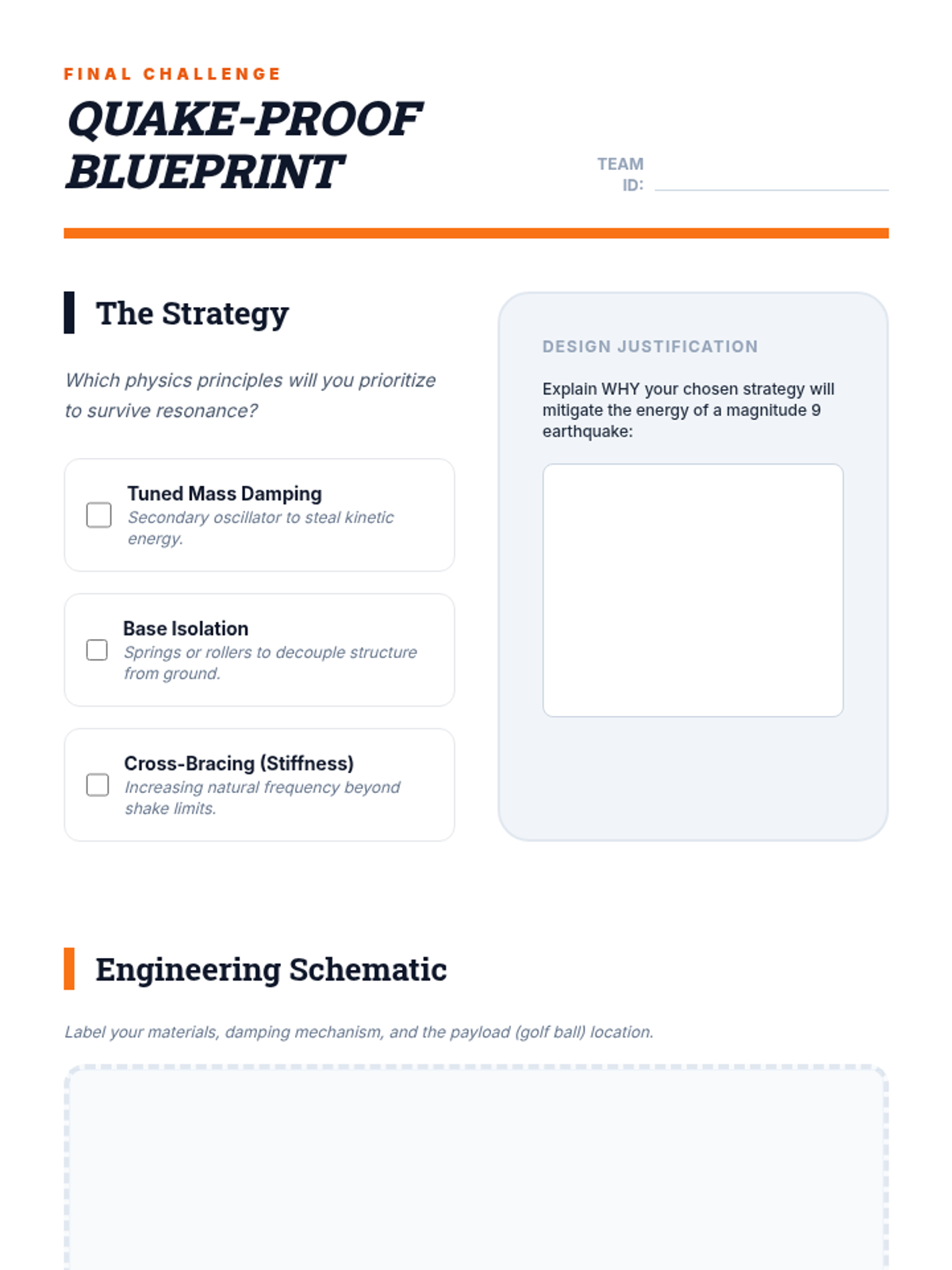

Quake Proof Blueprint Worksheet Final Challenge
Quake-Proof Blueprint
TEAM ID:
The Strategy
Which physics principles will you prioritize to survive resonance?
Tuned Mass Damping
Secondary oscillator to steal kinetic energy.
Base Isolation
Springs or rollers to decouple structure from ground.
Cross-Bracing (Stiffness)
Increasing natural frequency beyond shake limits.
Design Justification
Explain WHY your chosen strategy will mitigate the energy of a magnitude 9 earthquake:
Engineering Schematic
Label your materials, damping mechanism, and the payload (golf ball) location.
Spec Checklist
Height > 50cm
Mass < 500g
Payload Secured
Pre-Test Predictions
1. Predicted Natural Frequency (\(f_0\)):
Based on your structural stiffness and mass distribution.
2. Weakest Point Analysis:
If the tower fails, where will it fail first and why?

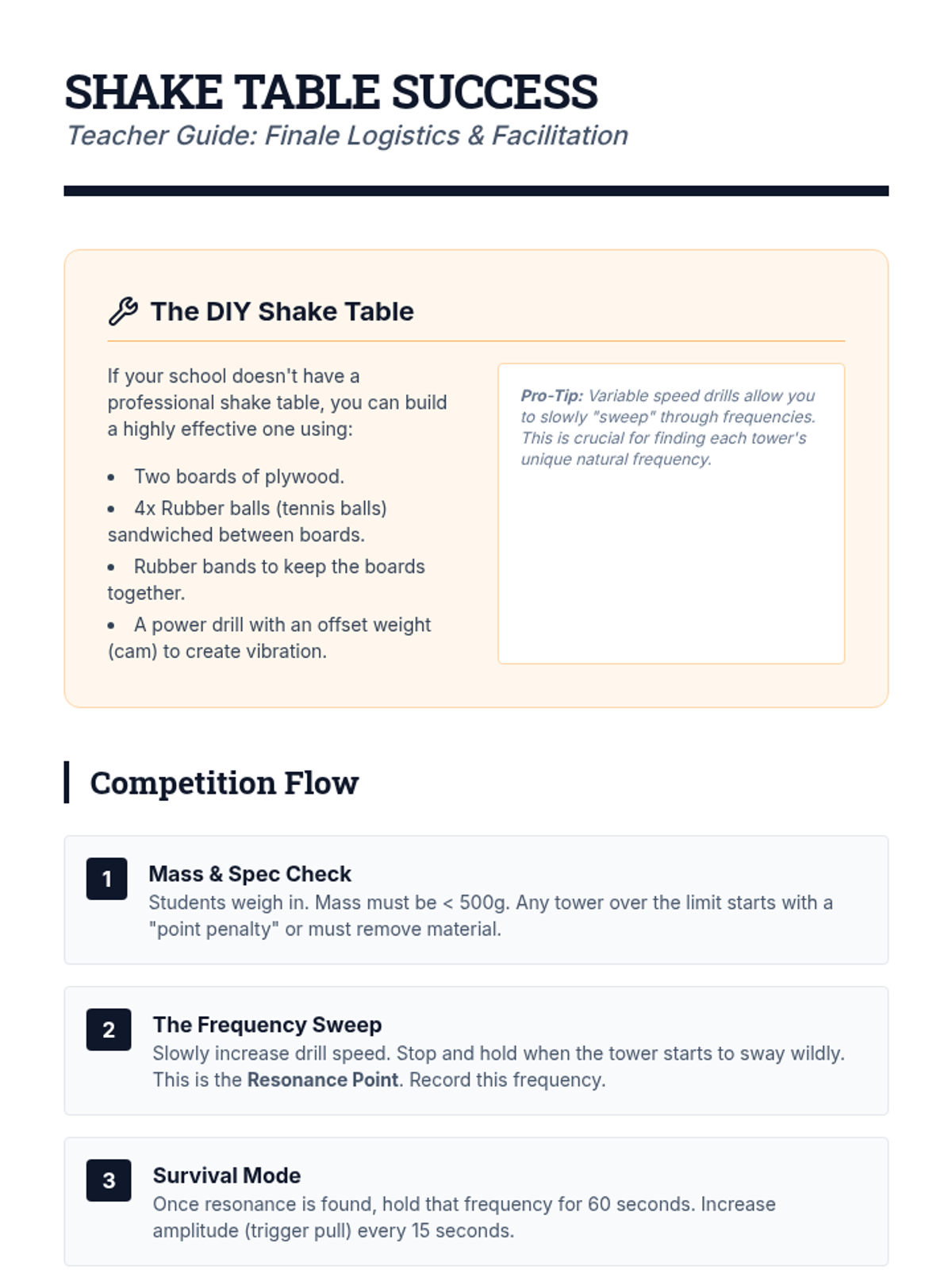

Shake Table Teacher Guide Shake Table Success
Teacher Guide: Finale Logistics & Facilitation
The DIY Shake Table
If your school doesn't have a professional shake table, you can build a highly effective one using:
Two boards of plywood.
4x Rubber balls (tennis balls) sandwiched between boards.
Rubber bands to keep the boards together.
A power drill with an offset weight (cam) to create vibration.
Pro-Tip: Variable speed drills allow you to slowly "sweep" through frequencies. This is crucial for finding each tower's unique natural frequency.
Competition Flow
1
Mass & Spec Check
Students weigh in. Mass must be < 500g. Any tower over the limit starts with a "point penalty" or must remove material.
2
The Frequency Sweep
Slowly increase drill speed. Stop and hold when the tower starts to sway wildly. This is the Resonance Point . Record this frequency.
3
Survival Mode
Once resonance is found, hold that frequency for 60 seconds. Increase amplitude (trigger pull) every 15 seconds.
Survival Scoring
Outcome Points Description Total Collapse 0 Tower falls over or breaks into pieces. Partial Failure 5 Tower stands, but payload (ball) is lost or joints snap. Structural Survival 15 Tower survives resonance with minimal damage. The "Taipei" Award 25 Tower survives and damping system clearly cancelled out motion.
The Final Debrief
"Look at the winning tower. Was it the strongest? Or was it the one that moved with the table the best? Engineering isn't about being unshakeable—it's about managing the energy."
