KMT Field Manual Packet KMT Field Manual
Kinetic Molecular Theory Postulates
Chemistry Unit 09
The Five Postulates
The Kinetic Molecular Theory (KMT) explains the behavior of gases based on the motion of their particles. Use the spaces below to record the core assumptions of an "Ideal Gas."
1. Particle Volume
2. Particle Motion
3. Particle Collisions
4. Particle Interactions
5. Kinetic Energy & Temp
The Squish Factor
Gases are highly compressible because the particles are far apart. Liquids and solids have particles packed tightly together.
Solid
🧊
Liquid
💧
Gas
☁️
Visualizing Vacuums
Sketch what a gas looks like at the molecular level. Show the distance between particles and their motion paths.
Inquiry Lab: Squish Dynamics
Comparing Compressibility of Matter
Procedure & Observations
1. Air-Filled Syringe
Fill syringe with 20mL of air. Cap the tip and push the plunger as hard as you can. Record observations.
2. Liquid Water Syringe
Repeat with 20mL of liquid water. Cap the tip and push. Record observations.
3. Ice-Filled Syringe
Repeat with a syringe containing ice. Push the plunger. Record observations.
Data Analysis
State of Matter Initial Volume (mL) Final Volume (mL) % Compressed Gas (Air) Liquid (Water) Solid (Ice)
Post-Lab Reasoning
Based on your data, why is gas the only state of matter that showed significant volume change? Connect this back to the **KMT Postulates** on page 1.
Vocabulary Check
Compressibility: The measure of how much the volume of matter decreases under pressure.
Volume (V): The space occupied by the gas particles.
Pressure (P): The force exerted by gas particles colliding with walls.
Word Wall Walkabout Worksheet Word Wall Walkabout
Kinetic Molecular Theory • Field Observation
Scientist:
Date:
Phase 1: Architect Pitches
As groups present their Word Tiles, record one unique insight or visual detail that helped you understand the term better.
Pitch #1: Term _________________
Pitch #2: Term _________________
Pitch #3: Term _________________
Pitch #4: Term _________________
Phase 2: KMT Scavenger Hunt
Explore the Word Wall. Find tiles that demonstrate the following KMT concepts and record the term name and a quick description of the visual evidence.
Evidence of Constant, Random Motion
Term & Visual Evidence:
Evidence of Elastic Collisions (No energy loss)
Term & Visual Evidence:
Explanation for Gas Compressibility
Term & Visual Evidence:
Relationship between Temp & Kinetic Energy
Term & Visual Evidence:
Phase 3: Synthesis Discussion
1. Identify one term on the Word Wall that you found confusing before today. How did a specific group's visual model clarify it for you?
2. Based on the Word Wall, why do gas particles exert pressure on the walls of their container? Use at least two KMT postulates in your explanation.
3. Reflection: If you could redesign your group's tile, what is one "KMT Connection" you would add to make it even more clear? Molecular Moshpit Activity Molecular Moshpit
KMT Role-Play Activity
Name:
Date:
Stage Directions
Today, you are no longer a student. You are a gas particle . To survive the moshpit, you must follow the laws of physics as dictated by Kinetic Molecular Theory (KMT).
1
Stay in constant, random, straight-line motion until you hit something.
2
Collisions are elastic —no energy is lost! Bounce back with the same speed.
3
No "clumping"! Gas particles do not attract or repel each other.
Energy Alert
Remember: Your speed is directly tied to the temperature of the system. Heat it up, and you better pick up the pace!
Scene 1: The Open Field (Low Pressure)
TEMP: ROOM
Instruction: Students move freely in the entire classroom space at a slow walking pace.
Observation: Frequency of Collisions
Observation: Ease of Movement
Scene 2: The Shrinking Room (High Pressure)
TEMP: ROOM
Instruction: Students must stay within a small 5x5 foot taped-off square but keep walking at the same pace.
What happened to the "pressure" (the frequency of hitting the walls or each other) when volume decreased?
KMT Connection: Why is gas so much easier to "compress" than a solid or liquid? (Think about the space between you).
Scene 3: The Inferno (High Temp)
TEMP: EXTREME
Instruction: Return to the full classroom space. Increase walking speed to a "fast walk." Collisions must be quick and energetic.
How did the "Force" of collisions change?
How does this explain why hairspray cans explode in fire?
Moshpit Master Review
1. POSTULATE: NO ATTRACTION
What would have happened in Scene 2 if you were "sticky" and attracted to other particles? Would you still behave like a gas?
2. POSTULATE: ELASTIC COLLISIONS
If collisions were NOT elastic (energy was lost), what would eventually happen to all the gas particles in a container?
Safety First: Keep feet on the floor at all times. Use "jazz hands" to simulate particle boundaries.
Gas Giants Vocab Sort Gas Giants Vocab Sort
Key Terms & Conceptual Links
Chemistry Mastery Task
Instructions
Cut out the cards below. Match the Vocabulary Term with its Scientific Definition and the KMT Connection (how the particles are behaving). Once verified by your teacher, glue them into your interactive notebook.
Kinetic Energy
The temperature at which the motion of particles theoretically ceases.
There are no collisions because there is no matter.
Compressibility
Results from billions of rapidly moving particles hitting an object.
Proportional to the Kelvin temperature of the substance.
Absolute Zero
A measure of how much the volume of matter decreases under pressure.
Happens at 0 K (-273.15 °C).
Gas Pressure
An empty space with no particles and no pressure.
Particles are far apart with empty space between them.
Vacuum
A collision in which total kinetic energy remains constant.
Energy is transferred between particles but not lost to surroundings.
Elastic Collision
The energy an object has because of its motion.
Particles collide with the walls of their container.
Sentence Stems for Discussion:
"I matched [Term] with this definition because..."
"The KMT connection for [Term] explains that..."
Kinetic Foundations Slides Unit 09: The Behavior of Gases
Kinetic Foundations
Postulates of the Kinetic Molecular Theory and the Nature of Gas Particles
The Imploding Tanker
How can air alone crush heavy steel?
Observation Task
A railroad tanker car is cleaned with steam (hot gas), sealed, and then left to cool. As the gas inside cools, the entire steel structure collapses inward.
Initial Model
In your packets, draw a model of the gas particles inside the tanker when it is hot vs. when it is cold .
Phenomenon Visualization
Postulates of KMT
Assumptions for the "Ideal Gas"
1
Zero Volume
Gas particles are so small their volume is considered negligible compared to the distance between them.
2
Constant Motion
Particles move in rapid, constant, random straight-line paths.
3
Elastic Crashing
Collisions between particles are perfectly elastic (no energy is lost).
4
No Attraction
Particles are not attracted to or repelled from one another.
5
Average KE
Average kinetic energy is directly proportional to absolute temperature (K).
The Four Horsemen
Quantifying Gas Behavior
P
Pressure
kPa, atm, mmHg
V
Volume
L, mL, cm³
T
Temperature
Must be in Kelvin!
n
Amount
Moles (mol)
Absolute Temp Reminder:
K = °C + 273
PhET KMT Virtual Lab Packet Molecular Simulator
PhET Virtual Lab: Kinetic Molecular Theory
Simulation Link
phet.colorado.edu/en/simulation/gases-intro
Investigator Name
Date
Phase 1: Setup & Predictions
1
Open the "Intro" screen, check the box for "Collision Counter", and click the "Particles" tab.
Blue particles are:
Red particles are:
2
Predict: Before moving forward, how will the particles respond?
Temperature Effect
If temperature is increased, the average speed of the particles will...
Mass Comparison
Heavy particles compared to light particles will move...
Phase 2: Heavy Particle Investigation
Action: Put ONE pump of Heavy (blue) gas particles into the container.
| Simulation Scenario | Wall Collisions
Observation Spotlight:
Describe how the particles behave over a span of about 30 seconds. Do they ever stop moving (while at room temp)?
Phase 3: Light Particle Investigation
Action: Reset simulation. Put ONE pump of Light (red) gas particles. Repeat process.
| Simulation Scenario | Wall Collisions
Phase 4: Modeling Energy
Action: Draw a particle diagram for each scenario. Use arrow length to indicate speed.
Room Temp Particles
Hot (High Temp) Particles
Cold (Low Temp) Particles
Phase 5: Initial Analysis
1. Define the experimental variables for this lab:
Independent Variable
Dependent Variable
Controlled (Constants)
2. Synthesis: What is the relationship between the Energy (motion) and the Temperature of the particles?
Pressure Dynamics
How do the wall collisions and the pressure readings compare? Is there a mathematical relationship?
Based on your findings, write a definition for "Gas Pressure" using the concepts of particle behavior and container boundaries.
Word Wall Architect Activity Wall Architects
Visual Vocabulary Design Challenge
Designer:
Lab Station:
The Blueprint
A static word wall is boring. Our classroom needs a Molecular Blueprint . Your team is responsible for designing one high-impact "Word Tile" for our collective wall. It must be readable from across the room and scientifically precise.
Must Include:
The Term (Large & Bold)
A "No-Nerd" Definition
A Particle Sketch
The KMT Connection
Evaluation:
Scientific Accuracy
Visual Clarity
Creativity of Metaphor
Effort/Neatness
Term Bank
Kinetic Molecular Theory Postulate Elastic Collision Compressibility Pressure Diffusion Random Motion
Phase 1: The Sketch Pad
Assigned Term:
"No-Nerd" Definition (Explain it to a 5th grader):
The KMT Connection (Which postulate does this link to?):
Explain how gas particles moving in straight lines, their lack of attraction, or their elastic energy creates this concept...
Visual Metaphor Sketch:
Don't just draw dots. Draw what is HAPPENING to the dots. Arrows for motion, bursts for collisions, etc.
✂️ Cut along the heavy dashed line for final display ✂️
Scientific Terminology
WRITE TERM HERE
Visual Representation
Simple Definition
The KMT Link
Sector: Kinetic Foundations
Design Unit:
GAS UNIT 01
Tire Pressure CER Activity Tire Pressure Argument
Claims, Evidence, and Reasoning (C-E-R)
Chemistry Unit 09
Name: ________________________
The Scenario
"A car drives for two hours on a hot Texas highway. When the driver started, the tire pressure was 32 psi. After the drive, the pressure gauge reads 38 psi. Why did the pressure increase?"
CLAIM
A direct statement that answers the question.
EVIDENCE
Scientific data or observations that support your claim.
REASONING
Explain HOW the evidence supports the claim using KMT Postulates.
Target TEKS: C.10B
Peer Review Initials: ______
PhET KMT Virtual Lab Packet Updated Molecular Simulator
PhET Virtual Lab: Kinetic Molecular Theory
Simulation Link
phet.colorado.edu/en/simulation/gases-intro
Investigator Name
Date
Phase 1: Setup & Predictions
1
Open the "Intro" screen, check the box for "Collision Counter", and click the "Particles" tab.
Blue particles are:
Red particles are:
2
Predict: Before moving forward, how will the particles respond?
Temperature Effect
If temperature is increased, the average speed of the particles will...
Mass Comparison
Heavy particles compared to light particles will move...
Phase 2: Heavy Particle Investigation
Action: Put ONE pump of Heavy (blue) gas particles into the container.
| Simulation Scenario | Wall Collisions
Observation Spotlight:
Describe how the particles behave over a span of about 30 seconds. Do they ever stop moving (while at room temp)?
Phase 3: Light Particle Investigation
Action: Reset simulation. Put ONE pump of Light (red) gas particles. Repeat process.
| Simulation Scenario | Wall Collisions
Phase 4: Modeling Energy
Action: Draw a particle diagram for each scenario. Use arrow length and thickness to indicate speed (longer/thicker = faster).
Room Temp Particles
Hot (High Temp) Particles
Cold (Low Temp) Particles
Phase 5: Initial Analysis
1. Define the experimental variables for this investigation:
Independent Variable
Dependent Variable
Controlled (Constants)
2. Based on your drawings and simulation data, what is the relationship between particle energy (motion) and temperature?
Pressure Dynamics
Look at your Wall Collisions data compared to the Pressure Reading. What pattern do you see? Why does this make sense?
Now, write a definition for "Gas Pressure" from a molecular perspective (use the words
Word Wall Walkabout Slides Review Phase
Molecular
Masterpieces
Peer Review & Collective Word Wall Construction
Today's Mission
Quality Assurance
Ensure every definition and sketch on our wall is scientifically accurate and easy to understand.
Knowledge Synthesis
Connect individual terms into a complete picture of Kinetic Molecular Theory.
Success Criteria
1
Can I read this from 15 feet away?
2
Does the sketch actually show particle behavior?
3
Is the KMT connection clear?
Round 1: The Architect Pitch
"Designers Speak, Critics Listen"
60 Seconds
Per Station
Architects (Creators):
Briefly explain your visual metaphor . Why did you draw the particles this way? How does it link to KMT?
Reviewers (Audience):
Ask ONE clarifying question. "Why did you use that specific word in your definition?" or "What do the arrows represent?"
Round 2: Scavenger Hunt
"Finding the Threads of KMT"
The Best Metaphor
Which station used a real-world object to explain a complex gas behavior? Why did it work?
The Key Connection
Find a term that links directly to Elastic Collisions . How did they show energy in their sketch?
The Clarification
Which poster was the hardest to understand? What one change would make it "crystal clear"?
The Final Blueprint
Look at our wall as a single system.
If we removed Diffusion , could we still explain how gas spreads? If we removed Elastic Collisions , would the tanker still implode?
Discussion Prompt
How do these 7 terms work together to describe a gas better than just "air"?
Next Step
Tape your tiles to the "Foundation Wall" in the back of the room!
Screen to Scratch Tanker Model Screen to Scratch
Modeling the Railroad Tanker Phenomenon
Phenomenon Tracker
1
Stop and Jot: Observations
Watch the video of the tanker imploding. At each time stamp, stop the video and jot down one observation about the state of the tank and the particles inside.
0:30 (Hot Steam added)
1:30 (Cooling process starts)
2:30 (Immediate Implosion)
2
Scratch Model: Pressure Imbalance
Using what you saw on the screen, draw a "Before and After" model. Show the density of particles and use vector arrows to represent the magnitude of pressure (force) hitting the walls from inside and outside.
TANKER: HOT STEAM (Inside)
TANKER: COOLED (Inside)
Think-Pair-Share: The Winner
Think independently for 1 minute: Why didn't the tank explode outward when it was full of hot steam?
Sentence Stems for Sharing:
• "I think the tank stayed intact initially because..."
• "The relationship between internal and external pressure was..."
• "When the gas cooled, the external atmosphere was able to..."

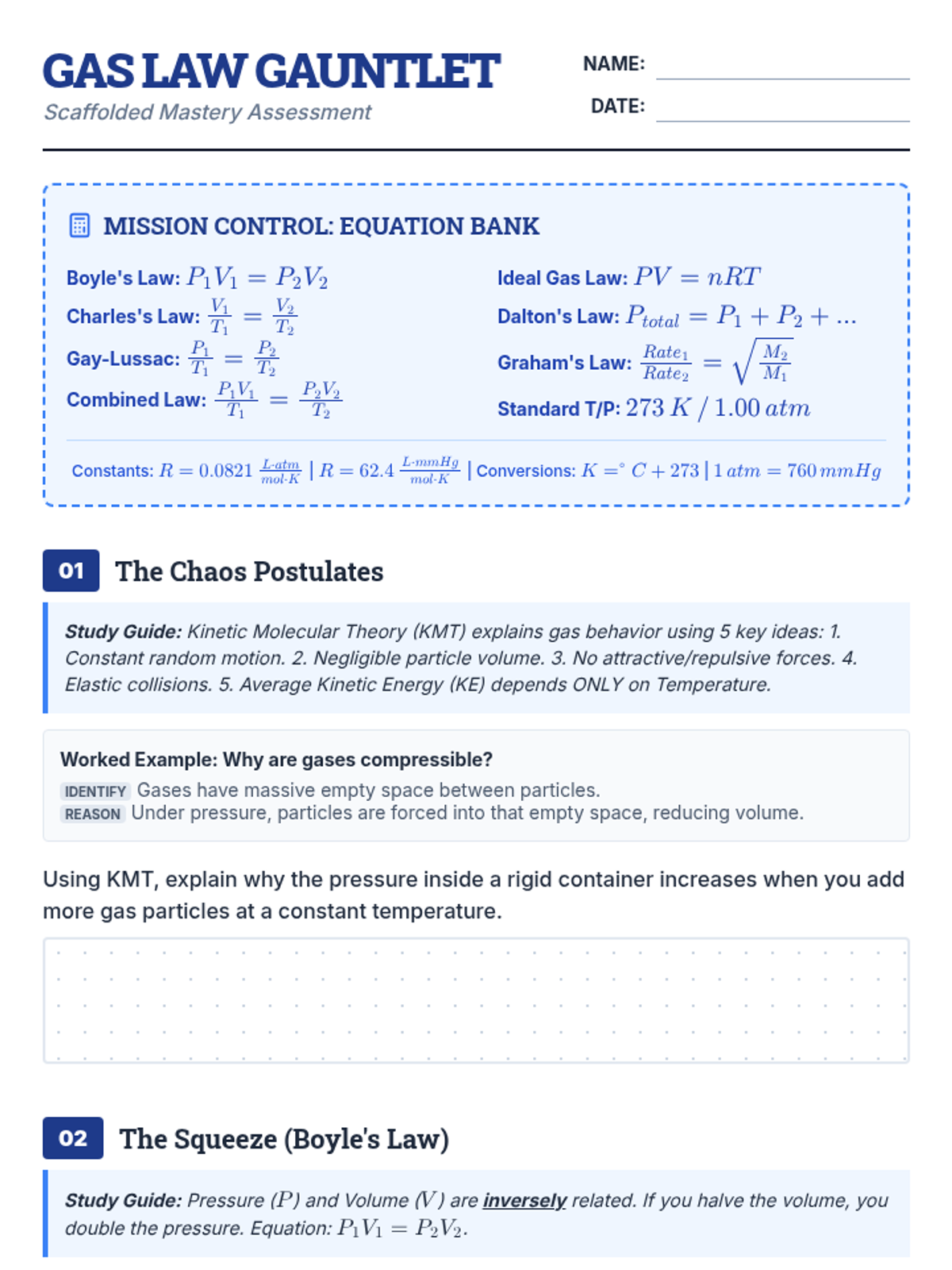

Gas Law Gauntlet Worksheet Gas Law Gauntlet
Scaffolded Mastery Assessment
NAME:
DATE:
Mission Control: Equation Bank
Boyle's Law: \( P_1V_1 = P_2V_2 \)
Charles's Law: \( \frac{V_1}{T_1} = \frac{V_2}{T_2} \)
Gay-Lussac: \( \frac{P_1}{T_1} = \frac{P_2}{T_2} \)
Combined Law: \( \frac{P_1V_1}{T_1} = \frac{P_2V_2}{T_2} \)
Ideal Gas Law: \( PV = nRT \)
Dalton's Law: \( P_{total} = P_1 + P_2 + \dots \)
Graham's Law: \( \frac{Rate_1}{Rate_2} = \sqrt{\frac{M_2}{M_1}} \)
Standard T/P: \( 273 \, K \, / \, 1.00 \, atm \)
Constants: \( R = 0.0821 \, \frac{L \cdot atm}{mol \cdot K} \) | \( R = 62.4 \, \frac{L \cdot mmHg}{mol \cdot K} \) | Conversions: \( K = ^\circ C + 273 \) | \( 1 \, atm = 760 \, mmHg \)
01
The Chaos Postulates
Study Guide: Kinetic Molecular Theory (KMT) explains gas behavior using 5 key ideas: 1. Constant random motion. 2. Negligible particle volume. 3. No attractive/repulsive forces. 4. Elastic collisions. 5. Average Kinetic Energy (KE) depends ONLY on Temperature.
Worked Example: Why are gases compressible?
Identify Gases have massive empty space between particles.
Using KMT, explain why the pressure inside a rigid container increases when you add more gas particles at a constant temperature.
02
The Squeeze (Boyle's Law)
Study Guide: Pressure (\( P \)) and Volume (\( V \)) are inversely related. If you halve the volume, you double the pressure. Equation: \( P_1V_1 = P_2V_2 \).
Worked Example: \( 2.0 \, L \) @ \( 1.0 \, atm \) compressed to \( 0.5 \, L \).
Givens \( P_1 = 1.0, \, V_1 = 2.0, \, V_2 = 0.5 \).
A weather balloon has a volume of \( 15.0 \, L \) at sea level (\( 1.00 \, atm \)). If it rises to an altitude where the pressure is \( 0.30 \, atm \), what will be its new volume (assuming constant temp)?
03
Thermal Expansion (Charles's Law)
Study Guide: Volume (\( V \)) and Temperature (\( T \)) are directly related. WARNING: Temperatures MUST be in Kelvin (\( K \)). Celsius (\( ^\circ C \)) will result in incorrect ratios.
Worked Example: \( 1.0 \, L \) @ \( 25^\circ C \) heated to \( 50^\circ C \).
Convert \( T_1 = 298 \, K, \, T_2 = 323 \, K \).
A syringe contains \( 20.0 \, mL \) of air at \( 20^\circ C \). If the syringe is placed in an ice bath at \( 0^\circ C \), what is the new volume? (Show Kelvin steps!)
KMT Logic Check Worksheet KMT Logic Check
Kinetic Molecular Theory Mastery Assessment
Status
In Progress
Investigator
Date
Lab Section
Instructions
Select the best answer for each question based on the five postulates of Kinetic Molecular Theory (KMT). Consider the behavior of ideal gas particles and how they relate to pressure, temperature, and volume.
01
According to KMT, how do gas particles move?
In set circular orbits around a central point
In constant, rapid, random straight-line motion
Only when they are attracted to other particles
Slowly and predictably throughout the container
02
Which statement describes the volume of gas particles compared to the volume of the container?
Particles occupy 50% of the total container volume
Particle volume is significant and cannot be ignored
The volume of individual particles is negligible (near zero)
Particles expand to fill exactly half of the container
03
When two gas particles collide, what happens to their total kinetic energy?
Total energy is lost as heat to the surroundings
The energy is destroyed during the collision
Energy is transferred, but the total remains constant
The particles stick together and stop moving
04
Temperature is a direct measure of what property of a gas?
The average potential energy of the particles
The total volume occupied by the gas particles
The average kinetic energy of the particles
The strength of intermolecular attractions
05
Which of the following describes the forces between ideal gas particles?
Strong gravitational pull between molecules
No significant attractive or repulsive forces
Permanent magnetic alignment of all particles
Constant repulsion that keeps them from touching
06
If the temperature of a gas sample increases, what must happen to the particles?
The particles decrease in size
The particles move at a faster average speed
The particles stop colliding with the walls
The particles become more attracted to each other
07
What causes the pressure exerted by a gas inside a container?
The weight of the particles resting on the bottom
Particles pushing each other away from the center
KMT Logic Check Answer Key KMT Logic Answer Key
Teacher Reference // Evaluation Guide
Status
Verified
Q1
B
Q2
C
Q3
C
Q4
C
Q5
B
Q6
B
Q7
C
Q8
B
Instructional Rationale
01-02
Postulates: Motion & Volume
Focus on the "ideal" nature of gases. Reinforce that particles travel in straight lines until collision and that the empty space between them is what defines gas behavior.
03-04
Energy & Temperature
Elastic collisions are key. Total KE is conserved. Temperature is defined purely as average KE (Kelvin scale is preferred for later calculations).
05-08
Interactions & Pressure
Ideal gases have zero attraction. This is why they don't liquefy in the "ideal" model. Pressure is the result of mechanical collisions against the container boundaries.
Common Misconceptions
Students often think gas particles "slow down" after collisions; remind them collisions are elastic .
Many believe pressure comes from particles pushing each other ; clarify it is collisions with the walls .
Watch for the idea that "cold" particles stop moving entirely; motion only stops at absolute zero.

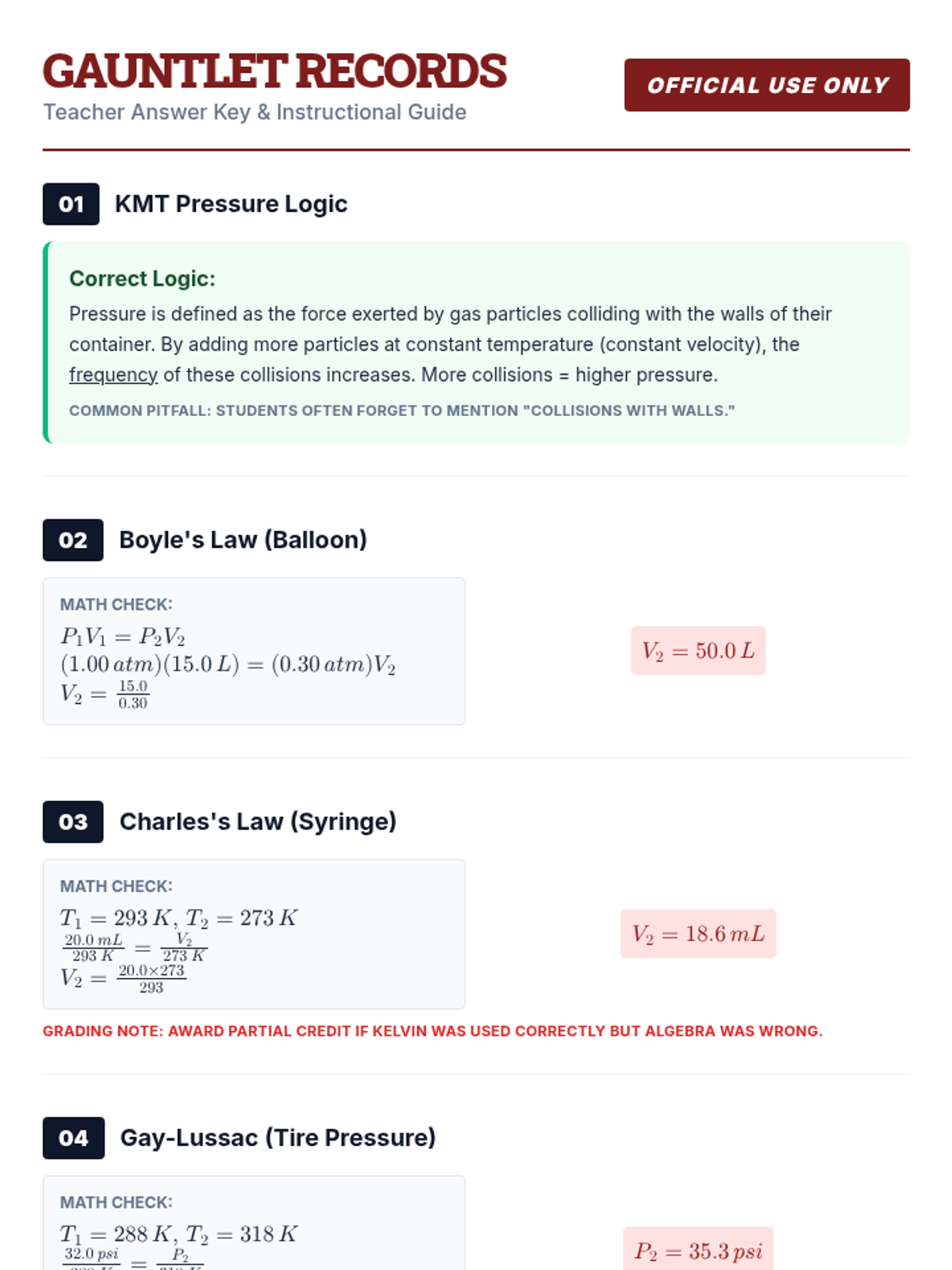

Gas Law Gauntlet Answer Key Gauntlet Records
Teacher Answer Key & Instructional Guide
Official Use Only
01
KMT Pressure Logic
Correct Logic:
Pressure is defined as the force exerted by gas particles colliding with the walls of their container. By adding more particles at constant temperature (constant velocity), the frequency of these collisions increases. More collisions = higher pressure.
Common Pitfall: Students often forget to mention "collisions with walls."
02
Boyle's Law (Balloon)
Math Check:
\( P_1V_1 = P_2V_2 \)
\( V_2 = 50.0 \, L \)
03
Charles's Law (Syringe)
Math Check:
\( T_1 = 293 \, K, \, T_2 = 273 \, K \)
\( V_2 = 18.6 \, mL \)
Grading Note: Award partial credit if Kelvin was used correctly but algebra was wrong.
04
Gay-Lussac (Tire Pressure)
Math Check:
\( T_1 = 288 \, K, \, T_2 = 318 \, K \)
\( P_2 = 35.3 \, psi \)
05
Combined Gas Law
Math Check:
\( \frac{(1.2)(2.5)}{298} = \frac{(P_2)(1.0)}{373} \)
\( P_2 = 3.75 \, atm \)
06
Ideal Gas Law
Math Check:
\( P = 1.50, \, n = 0.75, \, T = 308 \, K \)
\( V = 12.6 \, L \)
07
Dalton's Partial Pressure
Math Check:
\( P_{tot} = P_{He} + P_{Ne} + P_{Ar} \)
\( P_{Ar} = 300 \, mmHg \)
08
Graham's Law (Molar Mass)
Math Check:
\( 0.25 = \sqrt{\frac{2.0}{M_2}} \)
\( M_2 = 32.0 \, g/mol \)
Likely Gas: Oxygen (\( O_2 \))
09
Ideal Breakdown Logic
Correct Logic:
Gas Law Logic Slides Lesson 02: Mathematical Relationships
Gas Law Logic
Investigating the predictive relationships between Pressure, Volume, and Temperature.
Boyle's Law
P vs V
Charles's Law
V vs T
Gay-Lussac's
P vs T
Boyle's Law
Pressure and Volume
\( P_1 V_1 = P_2 V_2 \)
The Rule
Temperature and Moles are constant . As Volume decreases, Pressure increases. This is an inverse relationship.
Why? (KMT)
Smaller volume = less space for particles. Particles hit the walls more often , resulting in higher pressure.
High P
Low P
Graph: Hyperbola (L-Shape)
Charles's Law
Volume and Temperature
\( \frac{V_1}{T_1} = \frac{V_2}{T_2} \)
The Rule
Pressure and Moles are constant . As Temperature increases, Volume increases. This is a direct relationship.
Warning!
ALL temperature calculations MUST use Kelvin.
🎈
Hot air balloons work because hot air takes up more space and becomes less dense!
The Combined Law
\( \frac{P_1 V_1}{T_1} = \frac{P_2 V_2}{T_2} \)
When to use?
When P, V, and T are all changing at once. Only moles (n) are constant.
Trick!
If one variable is constant, just cross it out of the equation!
Practice
Solve for the unknown variable using cross-multiplication.

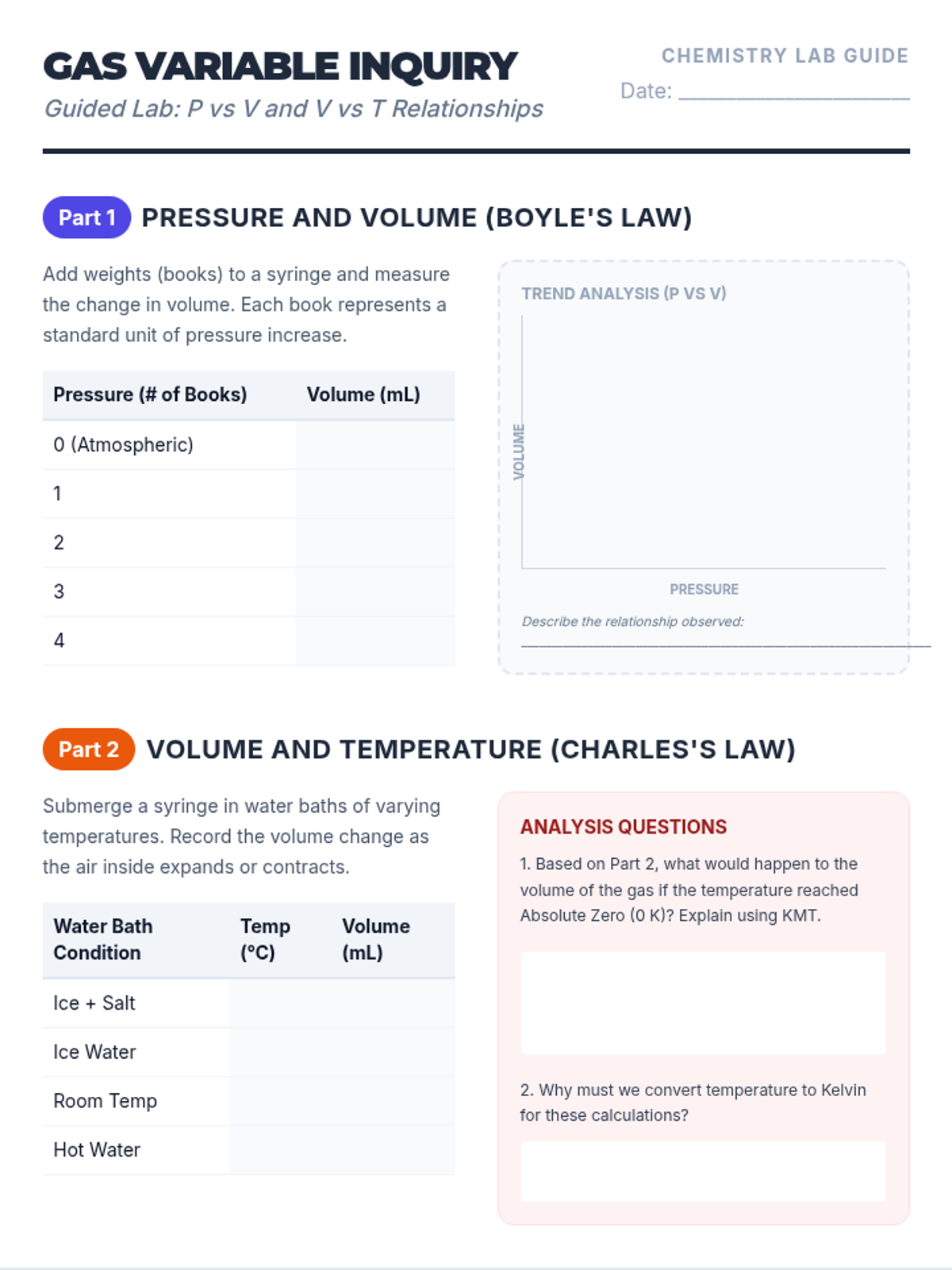

Gas Variable Inquiry Lab Gas Variable Inquiry
Guided Lab: P vs V and V vs T Relationships
Chemistry Lab Guide
Date: ________________________
Part 1
Pressure and Volume (Boyle's Law)
Add weights (books) to a syringe and measure the change in volume. Each book represents a standard unit of pressure increase.
Pressure (# of Books) Volume (mL) 0 (Atmospheric) 1 2 3 4
Trend Analysis (P vs V)
VOLUME
PRESSURE
Describe the relationship observed: ____________________________________________________________________
Part 2
Volume and Temperature (Charles's Law)
Submerge a syringe in water baths of varying temperatures. Record the volume change as the air inside expands or contracts.
Water Bath Condition Temp (°C) Volume (mL) Ice + Salt Ice Water Room Temp Hot Water
Analysis Questions
1. Based on Part 2, what would happen to the volume of the gas if the temperature reached Absolute Zero (0 K)? Explain using KMT.
2. Why must we convert temperature to Kelvin for these calculations?

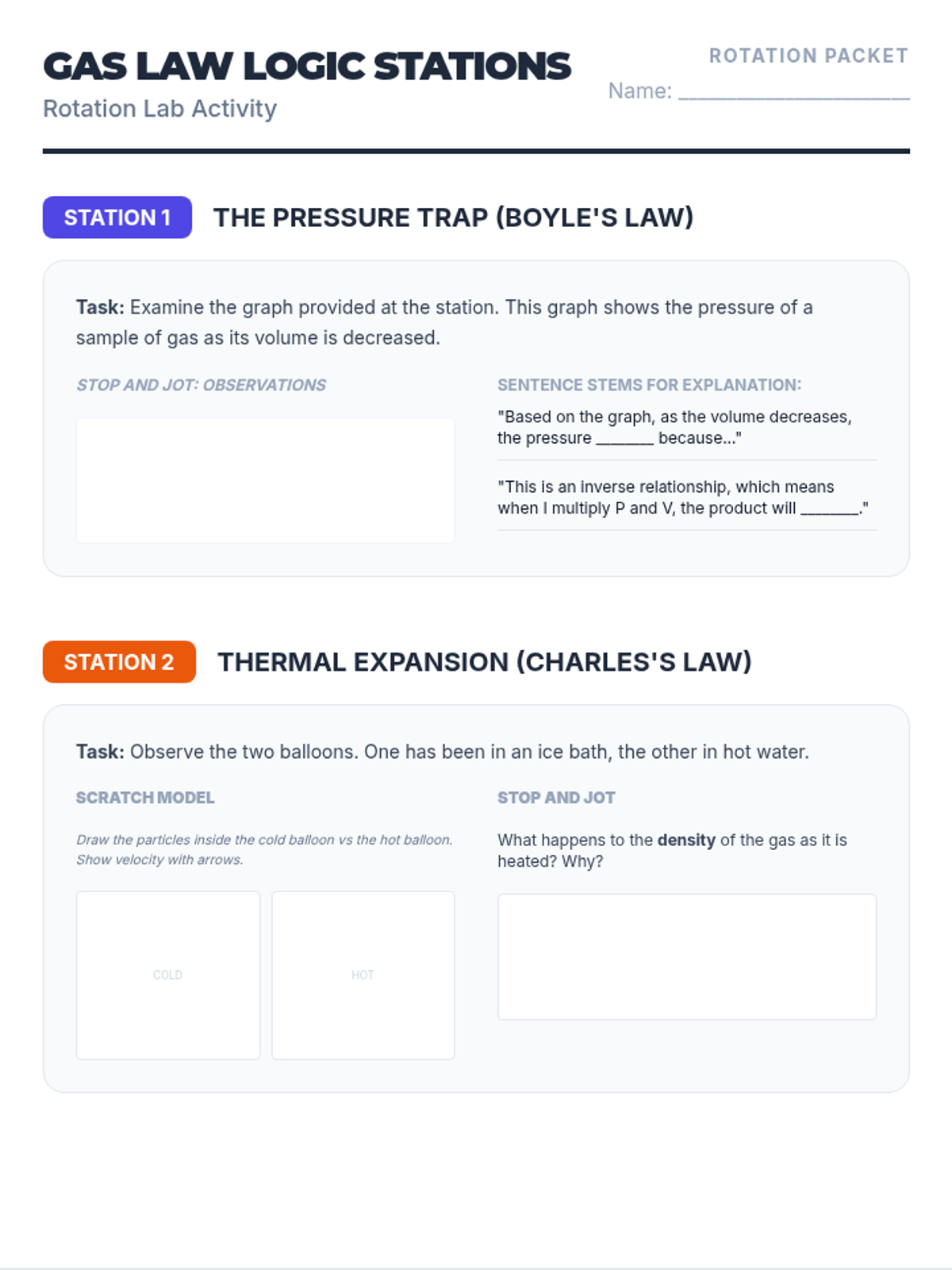

Gas Law Logic Stations Gas Law Logic Stations
Rotation Lab Activity
Rotation Packet
Name: ________________________
STATION 1
The Pressure Trap (Boyle's Law)
Task: Examine the graph provided at the station. This graph shows the pressure of a sample of gas as its volume is decreased.
Stop and Jot: Observations
Sentence Stems for Explanation:
"Based on the graph, as the volume decreases, the pressure ________ because..."
"This is an inverse relationship, which means when I multiply P and V, the product will ________."
STATION 2
Thermal Expansion (Charles's Law)
Task: Observe the two balloons. One has been in an ice bath, the other in hot water.
Scratch Model
Draw the particles inside the cold balloon vs the hot balloon. Show velocity with arrows.
COLD
HOT
Stop and Jot
What happens to the density of the gas as it is heated? Why?
STATION 3
The Master Mix (Combined Gas Law)
Task: A gas starts at STP (1.0 atm, 273 K) with a volume of 10.0 L. Solve for the final volume if the pressure triples and the temperature doubles.
List Your Variables:
P₁ = ______
P₂ = ______
V₁ = ______
V₂ = ______
T₁ = ______
T₂ = ______
Solve Here:
STATION 4
Think-Pair-Share: Gas Ethics
"The Scuba Dilemma"
A scuba diver is at a depth of 30 meters where the pressure is 4 times atmospheric pressure. They take a deep breath and then hold it while swimming rapidly to the surface.
Think & Share:
Predict what will happen to the volume of gas in the diver's lungs. Use the term **Boyle's Law** and **Sentence Stems** below to discuss with your partner.
Sentence Stems for your Discussion:
"As the diver swims upward, the external pressure ________..."
"According to Boyle's Law, this will cause the volume to ________..."
"The danger of holding their breath is that..."
"To prevent injury, the diver should ________ because..."
Ideal Interactions Slides Lesson 03: The Ideal Standard
Ideal Gases
PV = nRT
Calculating the state of a gas when all variables (Pressure, Volume, Temperature, and Amount) are present.
The Constant R
The "Glue" of the Gas Law
Atmospheres
If Pressure is in atm:
0.0821
L · atm / (mol · K)
Kilopascals
If Pressure is in kPa:
8.314
L · kPa / (mol · K)
Key Units Required:
Volume MUST be in Liters (L)
Temp MUST be in Kelvin (K)
Amount MUST be in Moles (n)

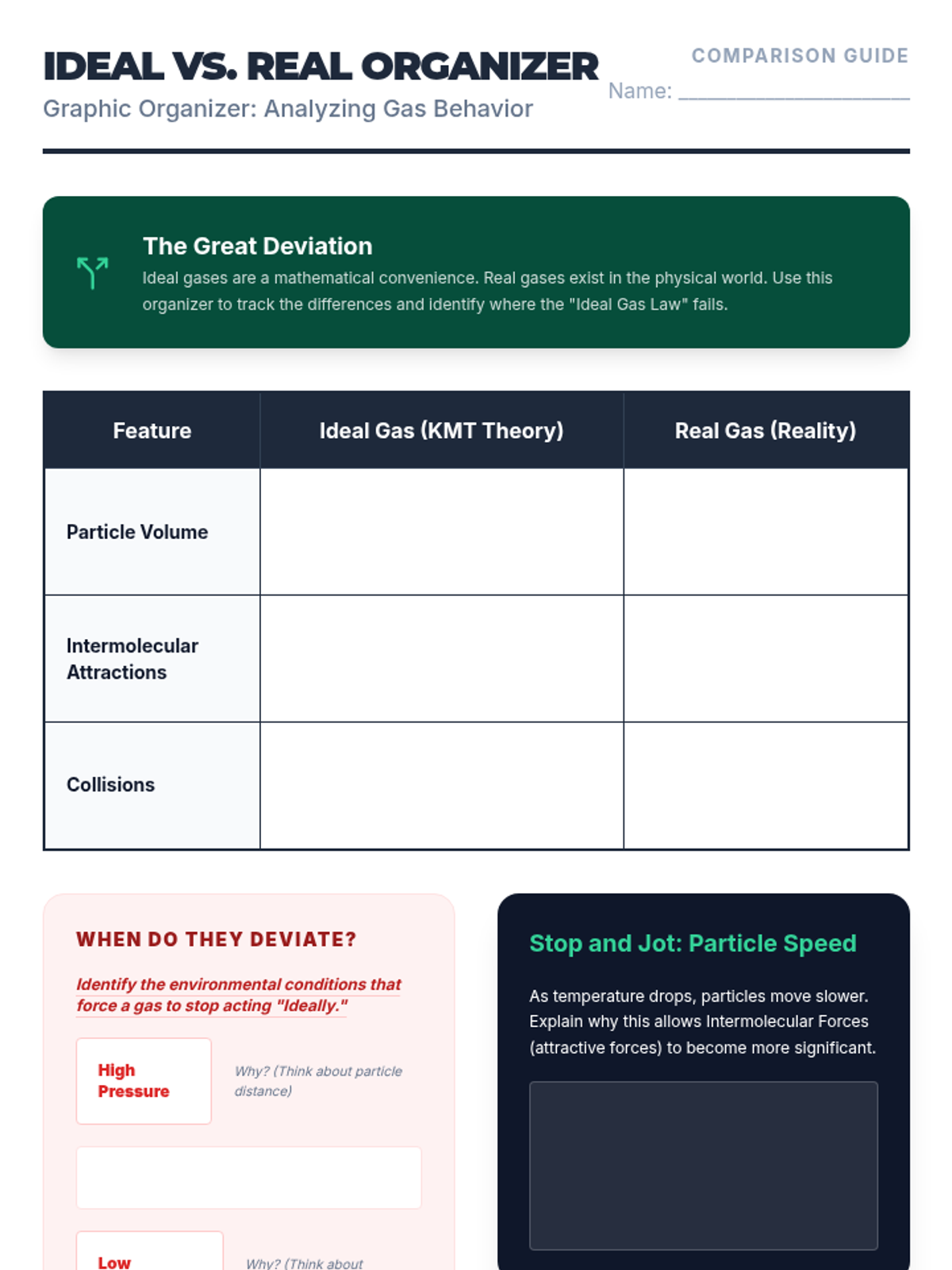

Real vs. Ideal
When do the rules break?
Ideal Gas
1 Follows KMT exactly.
2 Particles have zero volume.
3 No attraction between particles.
Real Gas
1 Actually have volume.
2 Have Intermolecular Forces (IMF).
3 Deviate most at Low Temp and High Pressure .
Ideal conditions = High Temp, Low Pressure

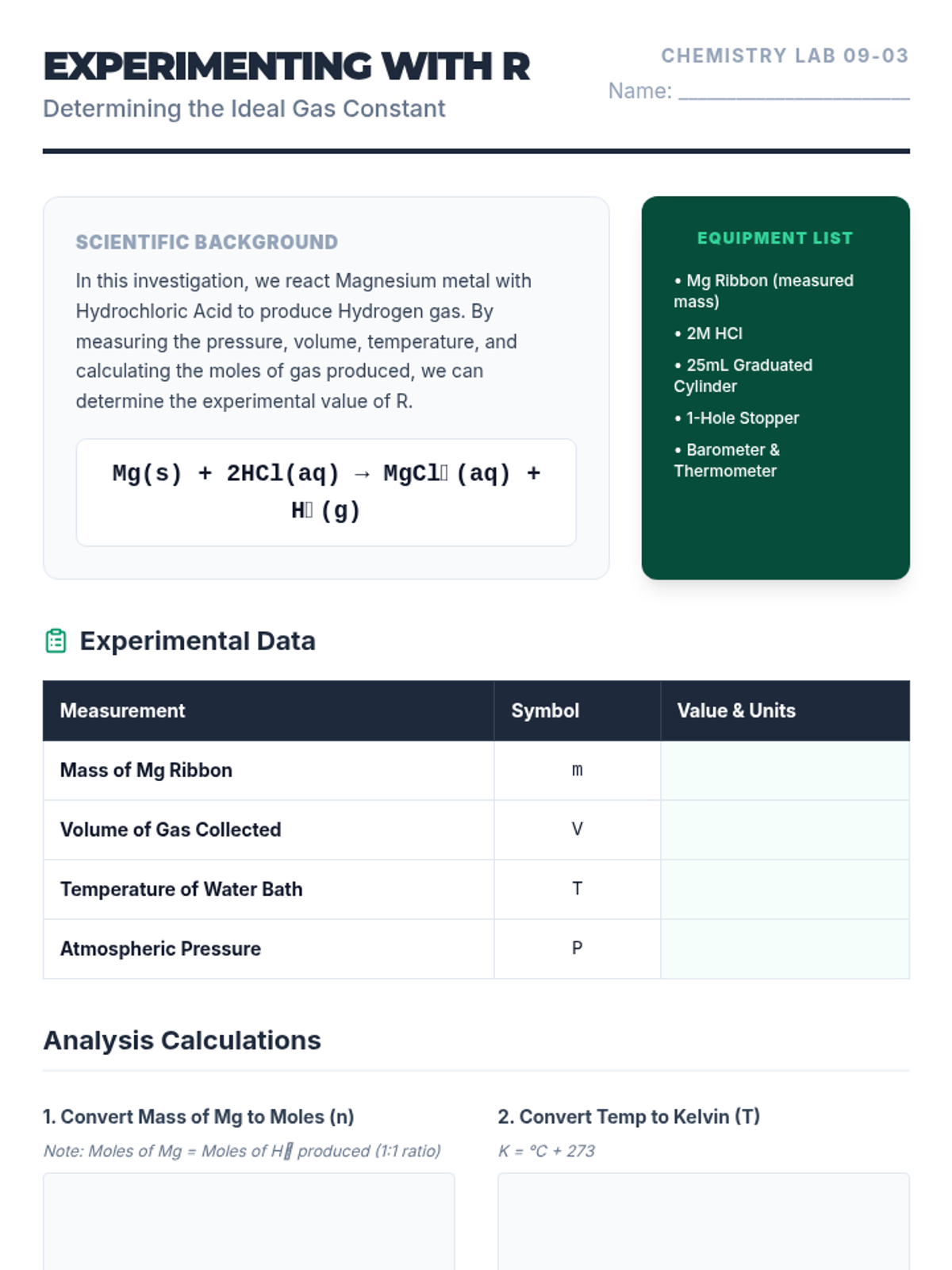

Lab: Finding R
We will react Magnesium ribbon with HCl to produce Hydrogen gas.
Our Mission
Measure the P, V, T, and moles (n) of the gas produced to calculate our own experimental value for the Ideal Gas Constant.
Calculation Key:
\( R = \frac{PV}{nT} \)
Compare to 0.0821 or 8.314
Finding R Lab Report Experimenting with R
Determining the Ideal Gas Constant
Chemistry Lab 09-03
Name: ________________________
Scientific Background
In this investigation, we react Magnesium metal with Hydrochloric Acid to produce Hydrogen gas. By measuring the pressure, volume, temperature, and calculating the moles of gas produced, we can determine the experimental value of R.
Mg(s) + 2HCl(aq) → MgCl₂(aq) + H₂(g)
Equipment List
• Mg Ribbon (measured mass)
• 2M HCl
• 25mL Graduated Cylinder
• 1-Hole Stopper
• Barometer & Thermometer
Experimental Data
Measurement Symbol Value & Units Mass of Mg Ribbon m Volume of Gas Collected V Temperature of Water Bath T Atmospheric Pressure P
Analysis Calculations
1. Convert Mass of Mg to Moles (n)
Note: Moles of Mg = Moles of H₂ produced (1:1 ratio)
2. Convert Temp to Kelvin (T)
K = °C + 273
3. Solve for R
Formula: R = (P × V) / (n × T)
Calculated R:
% Error (Standard R = 0.0821):
Ideal Gas Graphic Organizer Ideal vs. Real Organizer
Graphic Organizer: Analyzing Gas Behavior
Comparison Guide
Name: ________________________
The Great Deviation
Ideal gases are a mathematical convenience. Real gases exist in the physical world. Use this organizer to track the differences and identify where the "Ideal Gas Law" fails.
Feature Ideal Gas (KMT Theory) Real Gas (Reality) Particle Volume Intermolecular Attractions Collisions
When do they deviate?
Identify the environmental conditions that force a gas to stop acting "Ideally."
High Pressure
Why? (Think about particle distance)
Low Temperature
Why? (Think about Intermolecular Forces)
Stop and Jot: Particle Speed
As temperature drops, particles move slower. Explain why this allows Intermolecular Forces (attractive forces) to become more significant.
Sentence Stems for Summary:
• "Real gases differ from ideal gases because ________..."
• "A gas is most likely to behave ideally when ________..."
• "We use the ideal gas law anyway because ________..."
Mixtures and Movement Slides Lesson 04: Final Dynamics
Mix & Move
Dalton's Law of Partial Pressure, Diffusion, Effusion, and the Power of the Atmosphere.
Dalton's Law
Mixtures of Gases
The Rule
In a mixture of gases, the total pressure is the sum of the pressures of each individual gas.
\( P_{total} = P_1 + P_2 + P_3 + \dots \)
Visualizing Partial Pressure
N₂
O₂
Ar
Air
Partial Pressures add up to 101.3 kPa (Standard Pressure)
Particle Movement
How Gases Spread
Diffusion
The tendency of molecules to move toward areas of lower concentration until uniform.
Example: Smelling baking cookies from across the house. 🍪
Effusion
The process that occurs when a gas escapes through a tiny hole in its container.
Example: A helium balloon slowly shrinking over time. 🎈
Graham's Law Rule:
Lighter gases diffuse and effuse FASTER!
The Final Model
Revisiting the Tanker Implosion
Why did the tanker implode when it cooled?
Atmospheric Pressure
Air particles on the outside never stopped hitting the tank. When the inside gas cooled, its pressure dropped... and the atmosphere won.
Test Ready?
DCA assessment closes March 27, 2026
Review Time!

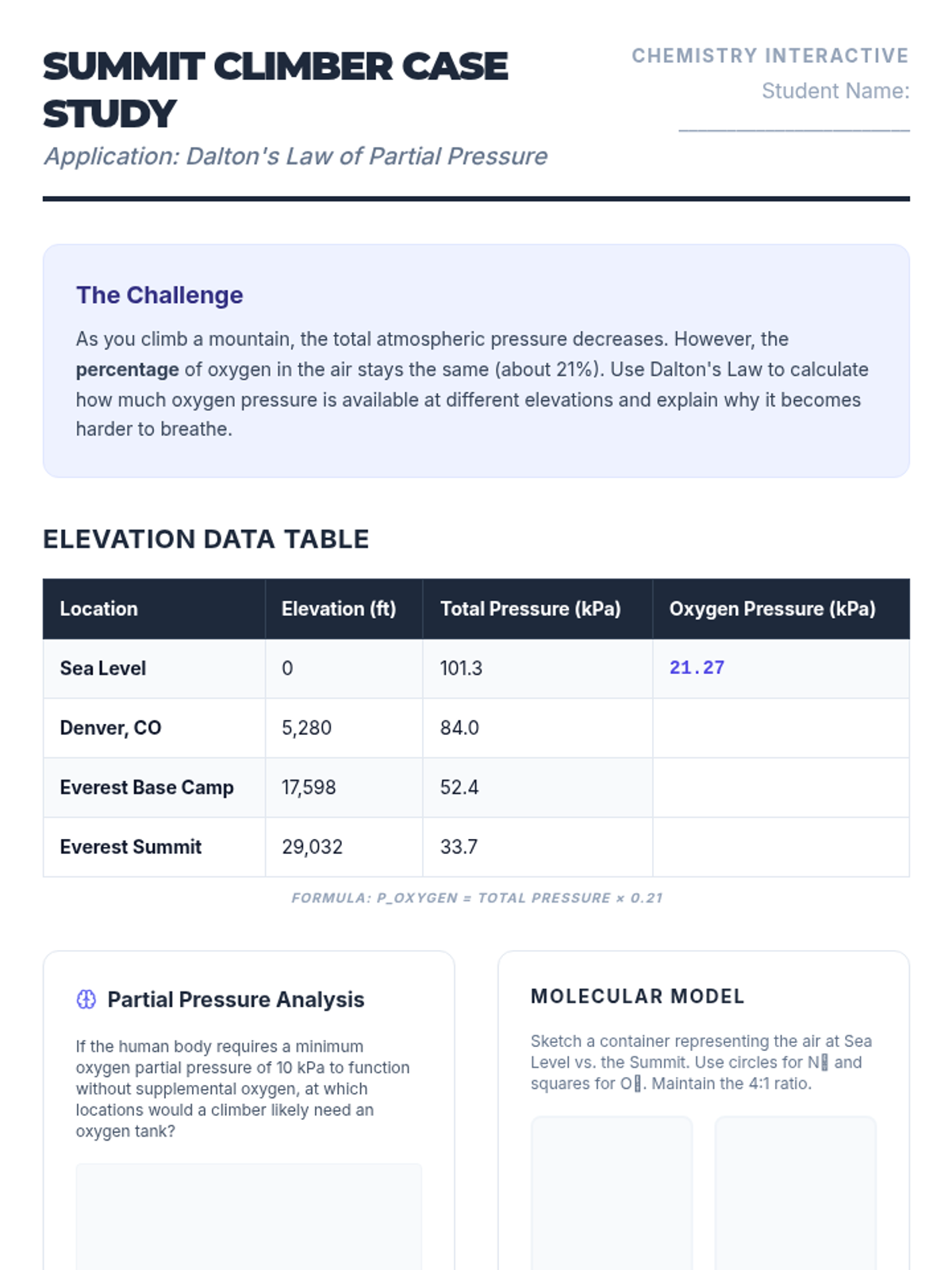

Summit Climber Case Study Summit Climber Case Study
Application: Dalton's Law of Partial Pressure
Chemistry Interactive
Student Name: ________________________
The Challenge
As you climb a mountain, the total atmospheric pressure decreases. However, the percentage of oxygen in the air stays the same (about 21%). Use Dalton's Law to calculate how much oxygen pressure is available at different elevations and explain why it becomes harder to breathe.
Elevation Data Table
Location Elevation (ft) Total Pressure (kPa) Oxygen Pressure (kPa) Sea Level 0 101.3 21.27 Denver, CO 5,280 84.0 Everest Base Camp 17,598 52.4 Everest Summit 29,032 33.7
Formula: P_oxygen = Total Pressure × 0.21
Partial Pressure Analysis
If the human body requires a minimum oxygen partial pressure of 10 kPa to function without supplemental oxygen, at which locations would a climber likely need an oxygen tank?
Diffusion Connection
Oxygen moves into your blood through **diffusion** (High pressure in lungs → Low pressure in blood).
Using this info, explain why breathing is physically harder at the summit of Everest even if you take deep breaths.
Molecular Model
Sketch a container representing the air at Sea Level vs. the Summit. Use circles for N₂ and squares for O₂. Maintain the 4:1 ratio.
SEA LEVEL (101.3 kPa)
SUMMIT (33.7 kPa)

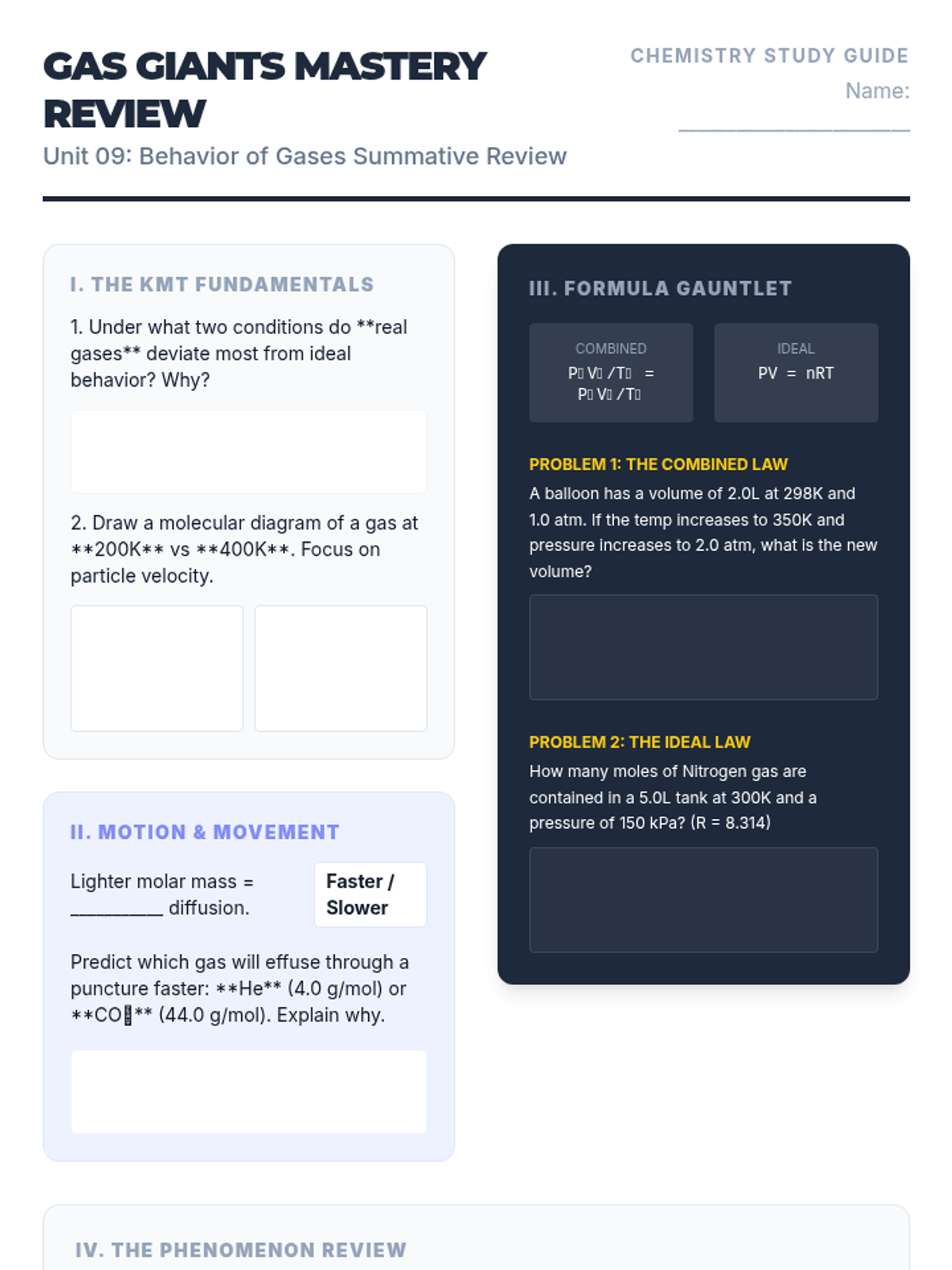

Gas Giants Mastery Review Gas Giants Mastery Review
Unit 09: Behavior of Gases Summative Review
Chemistry Study Guide
Name: ________________________
I. The KMT Fundamentals
1. Under what two conditions do **real gases** deviate most from ideal behavior? Why?
2. Draw a molecular diagram of a gas at **200K** vs **400K**. Focus on particle velocity.
II. Motion & Movement
Lighter molar mass = ___________ diffusion. Faster / Slower
Predict which gas will effuse through a puncture faster: **He** (4.0 g/mol) or **CO₂** (44.0 g/mol). Explain why.
III. Formula Gauntlet
Combined
P₁V₁/T₁ = P₂V₂/T₂
Ideal
PV = nRT
Problem 1: The Combined Law
A balloon has a volume of 2.0L at 298K and 1.0 atm. If the temp increases to 350K and pressure increases to 2.0 atm, what is the new volume?
Problem 2: The Ideal Law
How many moles of Nitrogen gas are contained in a 5.0L tank at 300K and a pressure of 150 kPa? (R = 8.314)
IV. The Phenomenon Review
Atmospheric Pressure
Explain the **Santa Ana Winds** using gas properties. When air moves from higher, cooler mountains down to lower, warmer valleys, why does the pressure and speed increase?
Chemistry DCA Prep Remember: Convert all Temp to Kelvin! Page 1 of 1

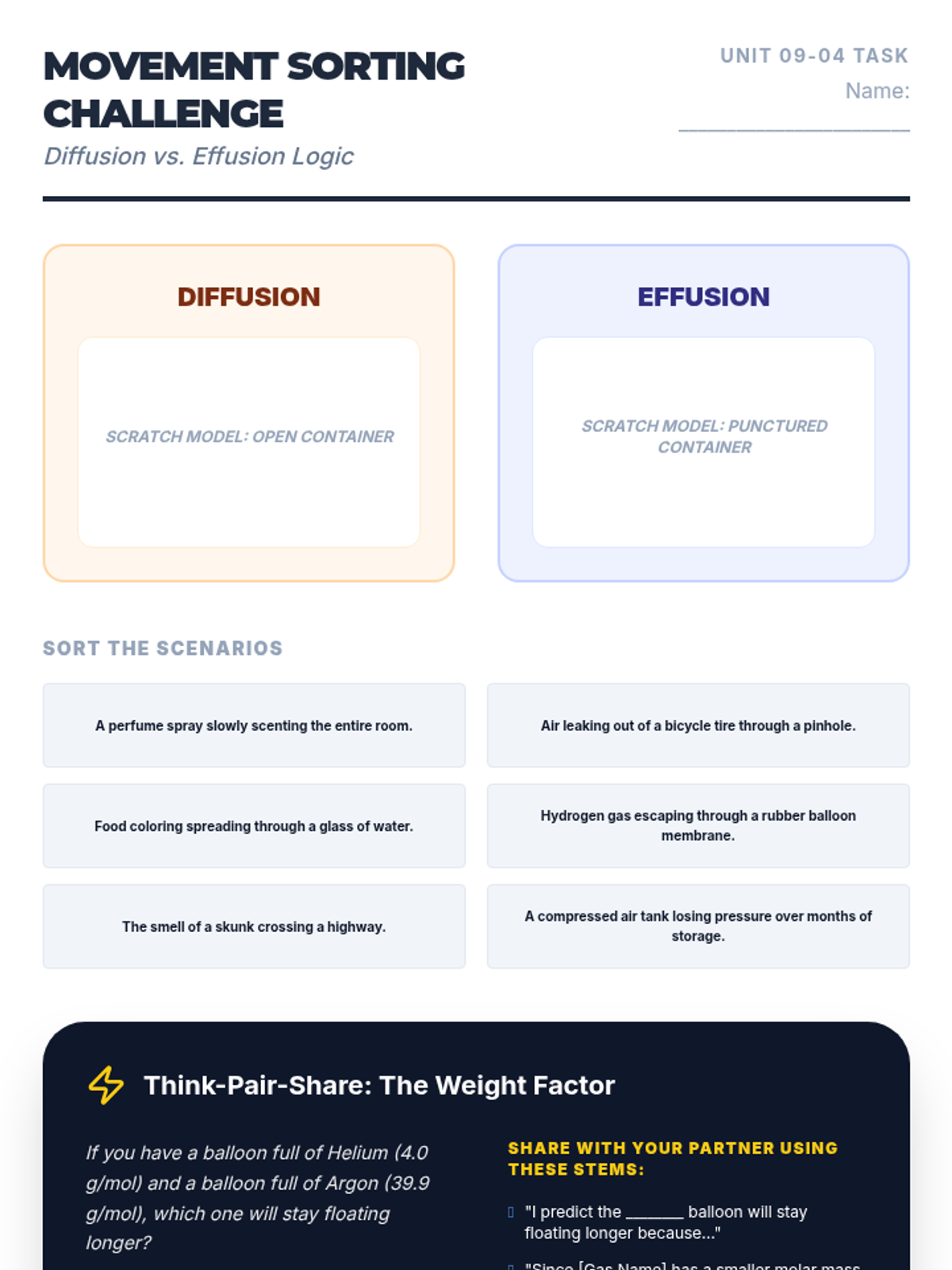

Movement Sorting Challenge Movement Sorting Challenge
Diffusion vs. Effusion Logic
Unit 09-04 Task
Name: ________________________
Diffusion
Scratch Model: Open Container
Effusion
Scratch Model: Punctured Container
Sort the Scenarios
A perfume spray slowly scenting the entire room.
Food coloring spreading through a glass of water.
The smell of a skunk crossing a highway.
Air leaking out of a bicycle tire through a pinhole.
Hydrogen gas escaping through a rubber balloon membrane.
A compressed air tank losing pressure over months of storage.
Think-Pair-Share: The Weight Factor
If you have a balloon full of Helium (4.0 g/mol) and a balloon full of Argon (39.9 g/mol), which one will stay floating longer?
Share with your partner using these stems:
➔ "I predict the ________ balloon will stay floating longer because..."
➔ "Since [Gas Name] has a smaller molar mass, it will ________ faster."
➔ "Graham's Law states that the rate of movement is inversely proportional to..."

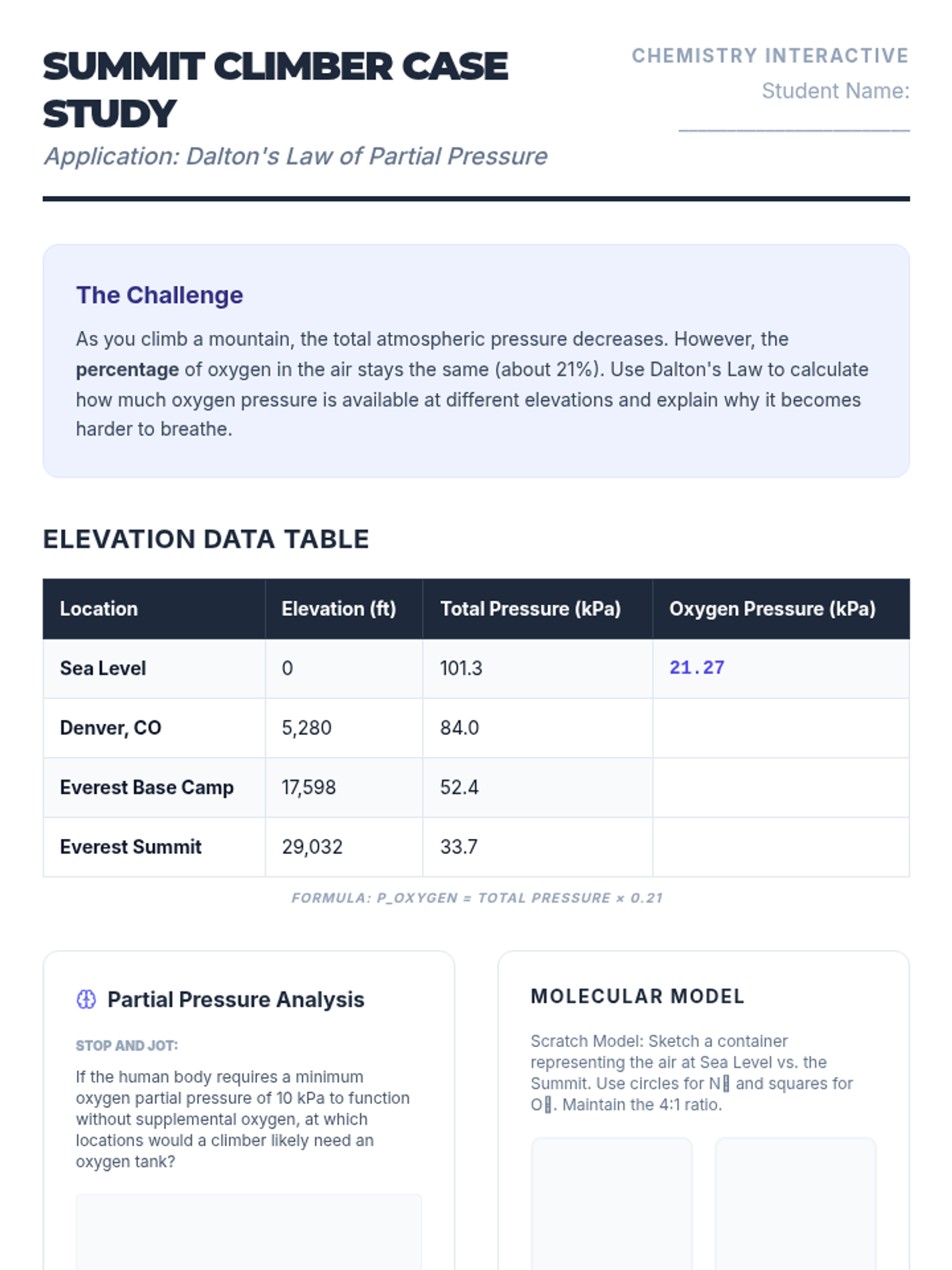

Summit Climber Case Study Updated Summit Climber Case Study
Application: Dalton's Law of Partial Pressure
Chemistry Interactive
Student Name: ________________________
The Challenge
As you climb a mountain, the total atmospheric pressure decreases. However, the percentage of oxygen in the air stays the same (about 21%). Use Dalton's Law to calculate how much oxygen pressure is available at different elevations and explain why it becomes harder to breathe.
Elevation Data Table
Location Elevation (ft) Total Pressure (kPa) Oxygen Pressure (kPa) Sea Level 0 101.3 21.27 Denver, CO 5,280 84.0 Everest Base Camp 17,598 52.4 Everest Summit 29,032 33.7
Formula: P_oxygen = Total Pressure × 0.21
Partial Pressure Analysis
Stop and Jot:
If the human body requires a minimum oxygen partial pressure of 10 kPa to function without supplemental oxygen, at which locations would a climber likely need an oxygen tank?
Think-Pair-Share: Diffusion Connection
Oxygen moves into your blood through **diffusion** (High pressure in lungs → Low pressure in blood). Using this info, explain why breathing is physically harder at the summit of Everest.
Sentence Stems for your Explanation:
"At the summit, the partial pressure of oxygen is ________..."
"Since the pressure gradient between the lungs and the blood is ________, the rate of diffusion will ________."
"This means that even if the climber takes deep breaths, the actual amount of oxygen entering the blood is ________."
Molecular Model
Scratch Model: Sketch a container representing the air at Sea Level vs. the Summit. Use circles for N₂ and squares for O₂. Maintain the 4:1 ratio.
SEA LEVEL (101.3 kPa)
SUMMIT (33.7 kPa)
