Electron Sea Slides PRESENTATION DECK
Visualizing the Electron Sea Model
"How can charged particles move through a solid lattice without breaking it?"
The Hook: Why don't metals shatter?
SLIDE 02
"If you hit an ionic crystal (like salt) with a hammer, it shatters into pieces. If you hit a piece of copper, it just dents. Why?"
Metallic Lattice Simulation
The Electron Sea Model
SLIDE 03
Key Components:
Cations
Metal nuclei and inner-shell electrons fixed in a rigid 3D lattice.
Delocalized Electrons
Valence electrons that are not bound to any specific atom. They are free to drift through the entire structure.
Conductivity
Mobile electrons carry charge efficiently across the lattice.
Malleability
Atoms can slide past each other because the "sea" adjusts instantly.
Luster
Free electrons absorb and re-emit light across a broad spectrum.
Metallic Structure Worksheet Metallic Structure Lab
Document: CHEM-MET-01W
Student:
Date:
Part 1: The Atomic Lattice
In metallic bonding, valence electrons are not shared between two specific atoms (covalent) or transferred (ionic). Instead, they are delocalized .
Observation Task:
Sketch a 2D representation of a Sodium (Na) metallic lattice. Label the metal cations and the delocalized valence electrons.
Part 2: Structure & Conductivity
Explain how the "sea of electrons" allows a metal to conduct electricity. Why does this model work for metals but not for ionic solids in their solid state?
Part 3: Malleability vs. Brittleness
Contrast the behavior of Sodium Chloride (NaCl) and Magnesium (Mg) when subjected to mechanical force. Use the bond type to explain why NaCl shatters while Mg bends.
Ionic (NaCl)
Sketch bonding interaction under stress
Metallic (Mg)
Sketch bonding interaction under stress
Structural Explanation:
Advanced Analysis
1. Why do metals generally have higher melting points as you move from Group 1 to Group 2 to Group 13? Connect your answer to the concentration of electrons in the "sea".
2. Predict what happens to the electrical conductivity of a metal as its temperature increases. Consider the vibration of the cations in the lattice.
Electron Sea Teacher Guide Teacher Guide & Answer Key
Visualizing the Electron Sea Model
UNIT 01 CHEM-MET-01-TG
Lesson Essentials
Key Concept:
Metals consist of a rigid lattice of cations surrounded by a fluid, delocalized "sea" of valence electrons that allows for mobility of charge and physical deformation.
Misconception Alert:
Students often think the cations move during conductivity. Clarify that only the valence electrons are mobile; the cations remain fixed in their lattice positions (though they vibrate).
Worksheet Key
Part 1: The Atomic Lattice (Sketch)
The sketch should show a regular grid of positive circles (Na+) and small dots or "e-" symbols scattered randomly between them. The electrons should not be paired or stuck to specific cations.
Part 2: Structure & Conductivity
"The delocalized electrons are free to drift through the entire lattice. When a potential difference (voltage) is applied, these electrons move toward the positive terminal, carrying current. In ionic solids, the ions are locked in a rigid lattice and cannot move to carry charge unless melted or dissolved."
Part 3: Malleability vs. Brittleness
NaCl shatters because shifting the lattice brings like-charges (Na+ to Na+, Cl- to Cl-) into contact, causing massive repulsion. Magnesium bends because the "electron sea" acts as a flexible glue; as cations slide, the electrons immediately reposition to keep them bonded.
Advanced Analysis Questions
Melting Points: Higher group numbers mean more valence electrons per atom (e.g., Al has 3 vs. Na has 1). A denser "sea" of electrons creates stronger electrostatic attractions between the cations and the delocalized electrons, requiring more energy to break.Temperature Effect: Conductivity decreases as temperature increases. Higher temperature causes the cations to vibrate more vigorously in place, which interferes with the smooth flow of delocalized electrons (increased resistance).
Instruction Tip
Use a bowl of marbles and water as a physical analogy. The marbles are cations; the water is the electron sea. When you move a marble, the water flows to fill the gap. Contrast this with a Lego structure (ionic) where moving one piece requires breaking a specific connection.

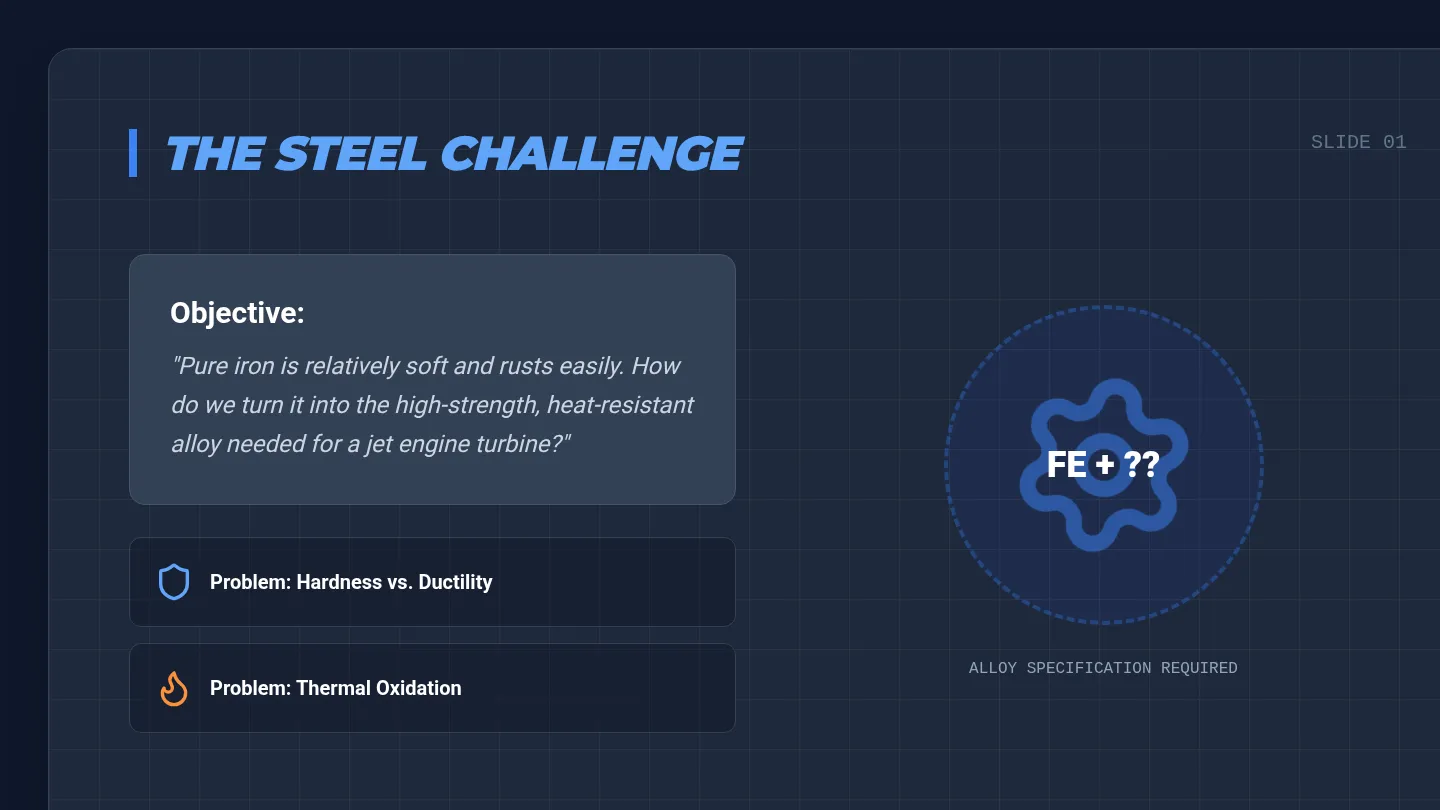

Alloy Engineering Slides The Steel Challenge
SLIDE 01
Objective:
"Pure iron is relatively soft and rusts easily. How do we turn it into the high-strength, heat-resistant alloy needed for a jet engine turbine?"
Problem: Hardness vs. Ductility
Problem: Thermal Oxidation
FE + ??
ALLOY SPECIFICATION REQUIRED
Alloy Architecture
SLIDE 02
1. Substitutional
Atoms of the solute element replace solvent atoms in the lattice. Atoms must be of similar size .
EXAMPLE: BRASS (Cu + Zn)
2. Interstitial
Smaller solute atoms fit into the holes (interstices) between larger solvent atoms.
EXAMPLE: STEEL (Fe + C)

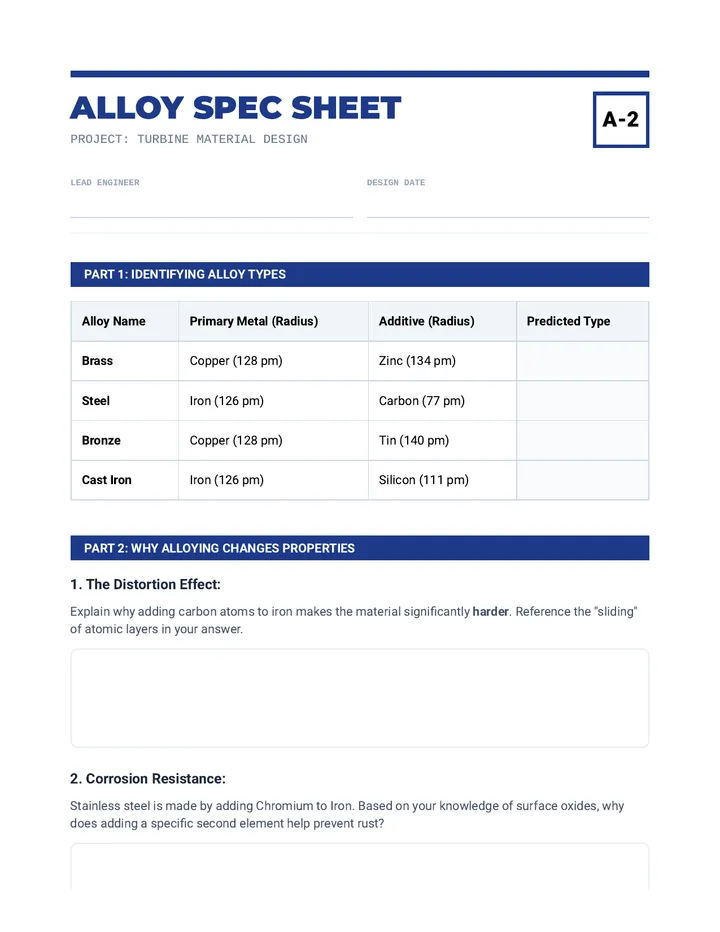

Alloy Spec Sheet Activity Alloy Spec Sheet
PROJECT: TURBINE MATERIAL DESIGN
A-2
Lead Engineer
Design Date
Part 1: Identifying Alloy Types
Alloy Name Primary Metal (Radius) Additive (Radius) Predicted Type Brass Copper (128 pm) Zinc (134 pm) Steel Iron (126 pm) Carbon (77 pm) Bronze Copper (128 pm) Tin (140 pm) Cast Iron Iron (126 pm) Silicon (111 pm)
Part 2: Why Alloying Changes Properties
1. The Distortion Effect:
Explain why adding carbon atoms to iron makes the material significantly harder . Reference the "sliding" of atomic layers in your answer.
2. Corrosion Resistance:
Stainless steel is made by adding Chromium to Iron. Based on your knowledge of surface oxides, why does adding a specific second element help prevent rust?
Part 3: The Turbine Challenge
"You are designing a turbine blade for a jet engine. It must withstand 1,500°C and maintain structural integrity under extreme centrifugal force."
Proposed Solvent:
NICKEL (Ni)
Stable FCC lattice, high melting point.
Available Solutes:
Chromium (Cr) Size: ~Same
Aluminum (Al) Size: ~Same
Boron (B) Size: Small
Select your additives and justify your choices for (A) preventing corrosion and (B) increasing hardness/creep resistance.
Alloy Spec Sheet Key Answer Key: Alloy Specs
Teacher Reference CHEM-MET-02-AK
Part 1: Predicated Types
Brass:
Substitutional
Solute/Solvent radii are very close (134 vs 128 pm).
Steel:
Interstitial
Carbon (77 pm) is much smaller than Iron (126 pm).
Bronze:
Substitutional
Tin (140 pm) is close enough to Copper (128 pm) to replace it.
Cast Iron:
Substitutional/Mixed
Silicon (111 pm) is usually substitutional in iron (126 pm).
Part 2: Mechanisms
1. The Distortion Effect:
In pure iron, the atoms are all the same size and arranged in uniform layers. When force is applied, these layers slide past each other easily (making it soft/ductile). Adding carbon atoms (interstitial) or different-sized substitutional atoms distorts the uniform layers. This distortion creates "speed bumps" that prevent the layers from sliding, making the metal harder and stronger.
2. Corrosion Resistance:
Chromium atoms on the surface of stainless steel react with oxygen to form a very thin, stable, and transparent layer of Chromium Oxide (\(Cr_2O_3\)). Unlike iron rust, which flakes off and exposes more metal, this chromium oxide layer is "passivating"—it sticks tightly to the surface and seals the interior iron from further oxygen/moisture.
Part 3: Turbine Design Rationale
Chromium Choice: Essential for preventing oxidation at high temperatures (1,500°C) by forming the passivating oxide layer.Boron Choice: Being small, it acts as an interstitial additive that pins grain boundaries, preventing "creep" (deformation under constant high stress at heat).Aluminum Choice: Often added to Nickel-based superalloys to form precipitates (\(\gamma'\) phase) that provide massive strength improvements. Network Covalent Slides The Allotrope Paradox
SLIDE 01
C
Pure Carbon
Same element, different architecture.
DIAMOND
Hardest material, insulator, transparent.
GRAPHITE
Soft lubricant, conductor, opaque.
Key Question:
"How can identical atoms produce such radically different physical properties?"
The Covalent Network Model
SLIDE 02
What is a Network Solid?
A solid in which all atoms are bonded by a continuous network of covalent bonds. There are no individual molecules.
1
Extremely High Melting Points (\(> 1500^\circ C\))
2
Insoluble in all common solvents
3
Rigid, brittle, and non-conductive (mostly)
Structure Comparison
Network (Diamond)
Every bond must break to melt the solid.
Molecular (\(CO_2\))
Only weak intermolecular forces break to melt.

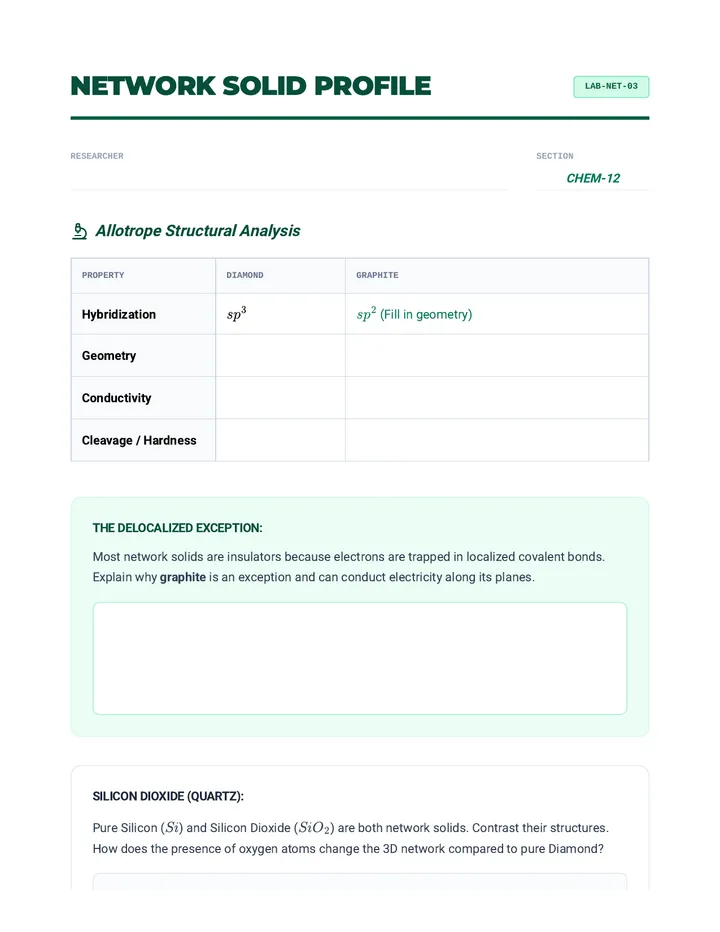

Network Solid Profile Worksheet Network Solid Profile
LAB-NET-03
Researcher
Section
CHEM-12
Allotrope Structural Analysis
Property Diamond Graphite Hybridization \(sp^3\) \(sp^2\) (Fill in geometry) Geometry Conductivity Cleavage / Hardness
The Delocalized Exception:
Most network solids are insulators because electrons are trapped in localized covalent bonds. Explain why graphite is an exception and can conduct electricity along its planes.
Silicon Dioxide (Quartz):
Pure Silicon (\(Si\)) and Silicon Dioxide (\(SiO_2\)) are both network solids. Contrast their structures. How does the presence of oxygen atoms change the 3D network compared to pure Diamond?
Thermodynamic Challenge
Explain in terms of bonding energy why melting a diamond (a network solid) requires nearly \(4000^\circ C\), while melting dry ice (\(CO_2\), a molecular solid) happens at \(-78^\circ C\).
Network Covalent Key Teacher Reference Key
Comparing Network Covalent Solids
Key Instructional Concept
The primary distinction students must grasp is **localized** vs. **delocalized** electrons within covalent networks. In Diamond, all 4 valence electrons are locked in \(sp^3\) sigma bonds. In Graphite, only 3 are locked in \(sp^2\) sigma bonds; the 4th is in a p-orbital that contributes to a delocalized \(\pi\)-system between layers.
Structural Analysis Key
Property Diamond Graphite Hybridization sp³ sp² Geometry Tetrahedral (Bond angle: 109.5°) Trigonal Planar (Bond angle: 120°) Conductivity None (Insulator); electrons are localized. High (along layers); delocalized pi-electrons. Cleavage Rigid 3D network; extremely hard. Weak London Dispersion forces between layers.
The Graphite Exception
"Because carbon only uses three of its four valence electrons for the hexagonal ring structure (\(sp^2\)), the fourth electron sits in a p-orbital perpendicular to the sheet. These p-orbitals overlap to form a massive delocalized system (like a giant benzene ring). This allows electrons to move freely across the sheet, making graphite a semi-metal conductor."
Silicon Dioxide (Quartz)
"Unlike Diamond, where C is bonded to 4 other C's, in Quartz (\(SiO_2\)), each Si atom is tetrahedrally bonded to 4 Oxygen atoms, and each Oxygen atom bridges 2 Si atoms. This results in an \(sp^3\) network that is much more open than diamond but remains incredibly stable and hard."
Thermodynamic Rationale
"To melt a diamond, you must break strong covalent bonds (approx. 347 kJ/mol) throughout the entire lattice. This requires immense thermal energy. In dry ice (\(CO_2\)), the strong covalent bonds inside the molecule stay intact, but you only need to overcome the weak intermolecular forces (London dispersion) between molecules to transition to gas/liquid."

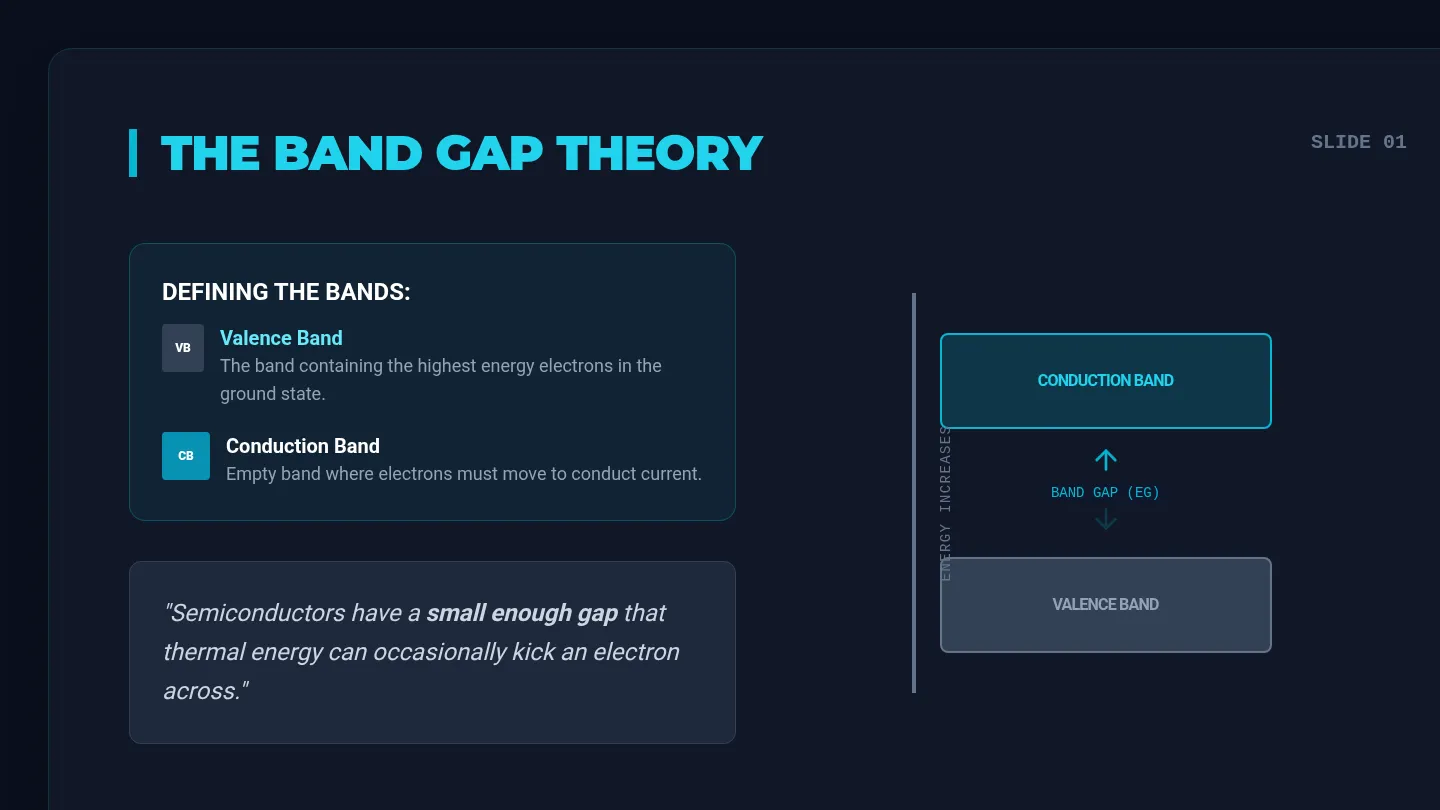

Semiconductor Doping Slides The Band Gap Theory
SLIDE 01
Defining the Bands:
"Semiconductors have a small enough gap that thermal energy can occasionally kick an electron across."
Energy Increases
Conduction Band
Band Gap (Eg)
Valence Band
Hacking Conductivity: Doping
SLIDE 02
n
N-Type (Negative)
Doped with Group 15 (e.g., Phosphorus). Extra valence electron is easily promoted to CB.
Mechanism:
Donates an extra electron to the lattice. Charge carrier = free electron.
p
P-Type (Positive)
Doped with Group 13 (e.g., Boron). Missing electron creates a "hole".
Mechanism:
Creates electron holes in the VB. Charge carrier = mobile "hole".
Band Gap Analysis Worksheet Band Gap Analysis
Project: Semiconductor Doping Simulation
System Operator:
Date:
Part 1: Identifying Conductivity Types
Sketch the Band Diagram (Valence Band, Conduction Band, and Gap) for the three types of materials below. Use arrows to show potential electron movement.
Metal (Conductor)
Semiconductor
Insulator
Part 2: Doping Mechanism
1. Silicon (Group 14) is doped with Antimony (Group 15).
A) Is this n-type or p-type? _________________
B) What is the majority charge carrier? _________________
Structural Explanation:
2. Silicon (Group 14) is doped with Gallium (Group 13).
A) Is this n-type or p-type? _________________
B) What is the majority charge carrier? _________________
Structural Explanation:
The Temperature Inversion
Most metals become LESS conductive as they get hotter. Semiconductors, however, often become MORE conductive as they get hotter. Explain why this happens using Band Theory.
Semiconductor Doping Key Answer Key: Silicon State
Semiconductors & Doping
TG-MET-04
Part 1: Band Diagram Keys
OVERLAP
Metal (Conductor):
The Valence Band and Conduction Band **overlap**. There is no energy barrier; electrons flow freely at all temperatures.
Semiconductor:
A **small band gap** (\(< 3 eV\)) exists. Electrons can be excited from VB to CB by heat, light, or doping.
Insulator:
A **large band gap** (\(> 5 eV\)) exists. It is nearly impossible to promote an electron into the conduction band.
Part 2: Doping Strategy
1. Silicon + Antimony:
"**N-type**; Majority carrier is **electrons**. Antimony has 5 valence electrons. 4 form covalent bonds with Silicon, leaving 1 extra electron that is weakly bound and easily promoted to the Conduction Band."
2. Silicon + Gallium:
"**P-type**; Majority carrier is **holes**. Gallium has only 3 valence electrons. It creates a vacancy (hole) in the valence band. Nearby electrons can 'jump' into this hole, making the hole appear to move through the lattice."
Teaching Point: Temperature Inversion
In semiconductors, higher temperatures provide enough thermal energy (\(k_BT\)) to excite significantly more electrons across the band gap into the conduction band. The increased number of charge carriers far outweighs the increased resistance from cation vibrations. In metals, the number of carriers is constant (bands already overlap), so the increased vibration of cations only serves to impede electron flow, increasing resistance.
Material Failure Slides The Titanic: Why did she break?
SLIDE 01
The Forensic Question:
"Modern analysis suggests the Titanic's hull rivets contained high amounts of **slag** (silicate impurities). How did this change the bonding response in freezing water?"
The Variables:
Temperature: \(-2^\circ C\)
Impact Force
Impurity Conc.
Brittle Fracture
DUCTILE-BRITTLE TRANSITION
METALLURGICAL FAILURE ANALYSIS
Bond-Level Failure
SLIDE 02
Ductile Flow
Metallic bonds allow planes of atoms to slide. The material necks and stretches before breaking. Energy is absorbed.
ELONGATION ZONE
Brittle Fracture
Bonds snap suddenly. No sliding occurs. Cracks propagate at the speed of sound. Energy is released catastrophically.
Forensic Metallurgy Worksheet Forensic Metallurgy
CASE-REF: RMS-T-1912
Investigating Officer
Date of Analysis
Part 1: The Evidence
"Metallurgical tests on steel plating recovered from the Titanic wreck site showed high concentrations of sulfur and phosphorus. In the freezing waters of the North Atlantic (\(-2^\circ C\)), the steel reached its **Ductile-to-Brittle Transition Temperature (DBTT)**."
Key Mechanism:
When the metal is above the DBTT, it absorbs impact by deforming (bending). When below DBTT, it shatters (cracking).
Part 2: Structural Analysis
1. Impurity Distortion:
Sulfur and phosphorus create small "pockets" of non-metallic slag within the iron lattice. How do these impurities serve as "crack initiation sites"?
2. Kinetic Energy & Bonding:
Metals are usually malleable because cations can slide. Why does cold temperature (low kinetic energy) inhibit this sliding and make the material more brittle?
Culminating Synthesis
In 5-6 sentences, connect the **Electron Sea Model** to the tragedy of the Titanic. Explain how the failure to maintain a purely delocalized, malleable bonding environment directly led to the ship's catastrophic hull breach.
Sign below to certify findings
Forensic Metallurgy Key Teacher Reference Key
Material Failure & Forensic Metallurgy
Pedagogical Objective
This lesson serves as the synthesis of the entire unit. Students must connect the microscopic (electron sea/alloys/lattice) to the macroscopic (shipwreck/fracture). The goal is to show that engineering is essentially "applied chemistry."
1. Impurity Distortion (Slag)
"Slag impurities (like iron sulfides) do not participate in metallic bonding. They create 'holes' or weak points in the metallic lattice. When stress is applied, it cannot be distributed evenly across the delocalized electron sea. Instead, the stress concentrates at the boundary between the metal and the slag particle, causing a crack to start (crack initiation)."
2. Kinetic Energy & Bonding
"At low temperatures, the lattice cations have less kinetic energy and vibrate less. This might seem like it would make the metal stronger, but it actually 'freezes' the dislocations in place. The energy required for atomic planes to slide past each other (the 'Peierls stress') increases significantly. If the planes can't slide, the metal cannot deform plastically to absorb energy; it simply snaps."
3. Synthesis Key (The Titanic Connection)
"A perfect metallic lattice is malleable because of the delocalized electron sea. The Titanic's rivets failed because they weren't 'perfect.' The inclusion of high-sulfur slag introduced regions of brittle, non-metallic bonding into the rivets. In the icy water, the steel transitioned to its brittle state. When the iceberg hit, the rivets didn't stretch or bend; they shattered like glass. The plates unzipped, and the ship sank. Chemistry dictates that the delocalized 'sea' is what makes metals safe; when we interrupt that sea with impurities and cold, we lose that safety."
Extension Discussion
Ask students: "Why didn't we see this failure during summer sea trials?" Discuss how the DBTT (Ductile-to-Brittle Transition Temperature) is a hidden property that only reveals itself under specific environmental conditions.
