Color Mystery Slides Color Mystery
Reflection and Absorption
The Red Apple Mystery
"You are in a dark room with a single green spotlight. You hold up a bright red apple. What color do you see?"
🍎
Essential Question
How does the interaction between light and matter shape our perception of color?
What is Reflection?
Bouncing Back
When light hits a surface and isn't absorbed, it bounces back into our eyes.
Seeing Color
The color we see is the wavelength of light that **reflects** off the object.
Specular Reflection (Mirror-like)
What is Absorption?
Absorption is when an object takes in the energy of certain wavelengths of light and converts it (usually to heat).
This is why dark shirts get hotter in the sun!
The Rule
If a color is **NOT** reflected, it is **ABSORBED**.
The Example
A blue book reflects blue light but absorbs red, orange, yellow, green, and violet.
The Extremes
WHITE
Reflects ALL visible wavelengths.
BLACK
Absorbs ALL visible wavelengths.
Chroma Detective Lab
1 Your Mission
Predict what happens when different colored light sources hit different colored objects. Test your hypotheses using the light boxes.
Equipment
RGB Light Boxes
Colored Cubes (R, G, B, Y)
Lab Data Sheet
Dark Room Setup
Chroma Detectives Lab Guide Chroma Detectives
Lab Investigation: Reflection & Absorption
Name:
Date:
The Case
Why does a red object look red in white light, but black in green light? Your mission is to determine how light sources interact with surface colors to create the perception of color.
Part 1: Predictions
Complete the following hypothesis before starting the lab:
If I shine a light on a object, I predict the object will appear because...
Part 2: Observations
Object Color Light Source Color Predicted Result Actual Observation RED Cube White RED Cube Green GREEN Cube Green BLUE Cube Red YELLOW Cube Blue
Part 3: Decoding the Physics
1. Explain why the Red Cube looked black under Green light.
Think about: reflection vs. absorption...
2. What specific wavelengths did the Yellow Cube reflect when white light hit it?
CRITICAL THINKING CHALLENGE
You are designing a solar panel that needs to absorb as much energy as possible. What color should you make the panels, and why? Refer to your observations about absorption.
Part 4: Visualizing the Light
Draw a diagram showing White Light hitting a Green Leaf . Label the reflected wavelengths and the absorbed wavelengths.
[ Drawing Area ]
Light and Color Teacher Brief Teacher Briefing
Lesson 01: Reflection & Absorption
PHYSICS UNIT
Lesson Goal
Students will explain that color perception is caused by specific wavelengths of light reflecting while others are absorbed.
Key Concept
"Reflection = What we see; Absorption = What the object keeps."
Materials
RGB Light Boxes (or flashlights with filters)
Purely colored objects (Red, Green, Blue, Yellow)
Darkened room/lab space
Instructional Flow
00-10 min
The Hook (Red Apple Mystery)
Use Slide 2 to present the red apple/green light scenario. Survey the room. Most students will guess "brown" or "dark red." Reality: It looks black because there is no red light to reflect.
10-20 min
Direct Instruction
Navigate through Slides 4-6. Emphasize that black isn't just a color; it's the **absence of reflected light**. Use the heat absorption analogy (black shirts in summer) to make it concrete.
20-45 min
Chroma Detective Lab
Groups rotate through light stations. Ensure rooms are as dark as possible to prevent ambient white light from ruining the "black" effect on colored objects.
Common Misconceptions
"Light changes color": Students often think the object changes color. Clarify that the light hasn't changed; the object just can't reflect what isn't there.White as a single color: Reinforce that white light is the presence of all colors.
Expert Facilitation Tips
When a student sees a red cube under green light look "black," ask them: "Where did the green light go if it's not bouncing into your eye?"
Answer: It was absorbed by the red pigment and turned into heat energy.
Expected Lab Results (Answer Key)
Red Cube / Green Light
Observation: Black
Reason: No red light present to reflect.
Blue Cube / Red Light
Observation: Black
Reason: Blue pigment absorbs red wavelengths.
Yellow Cube / Blue Light
Observation: Black
Reason: Yellow reflects R+G, but absorbs B.
Bending Beams Slides Bending Beams
Refraction and Lenses
Optical Magic?
"If you put a coin under a glass and then fill the glass with water, the coin seems to disappear."
Where did it go?
Is it magic, or just physics?
The Definition
Refraction
The bending of light as it passes from one medium (like air) into another medium (like water or glass).
Caused by change in **SPEED**
The Mud Analogy
Imagine a toy car driving from a smooth floor into a patch of thick mud at an angle.
The wheel that hits the mud first slows down, causing the car to pivot and turn.
Light does the exact same thing when it hits glass!
AIR (FAST)
GLASS (SLOW)
Convex Lenses
Converging
These lenses are thicker in the middle and bend light beams inward toward a single focal point.
Uses
Magnifying glasses, cameras, and your very own eyes!
()
Concave Lenses
)(
Diverging
These lenses are thinner in the middle and spread light beams outward.
Uses
Peepholes in doors, telescopes, and correcting nearsightedness.
Beam Tracing Lab
1 Safety First
Never shine lasers into eyes. Keep lasers pointed at the table or the screen.
The Goal
Map the path of three parallel beams through different lens shapes. Measure the focal point.
> EQUIPMENT_LIST
- Triple Laser Source
- Acrylic Lens Set (Convex/Concave)
- Protractor
- Ray Diagram Sheet

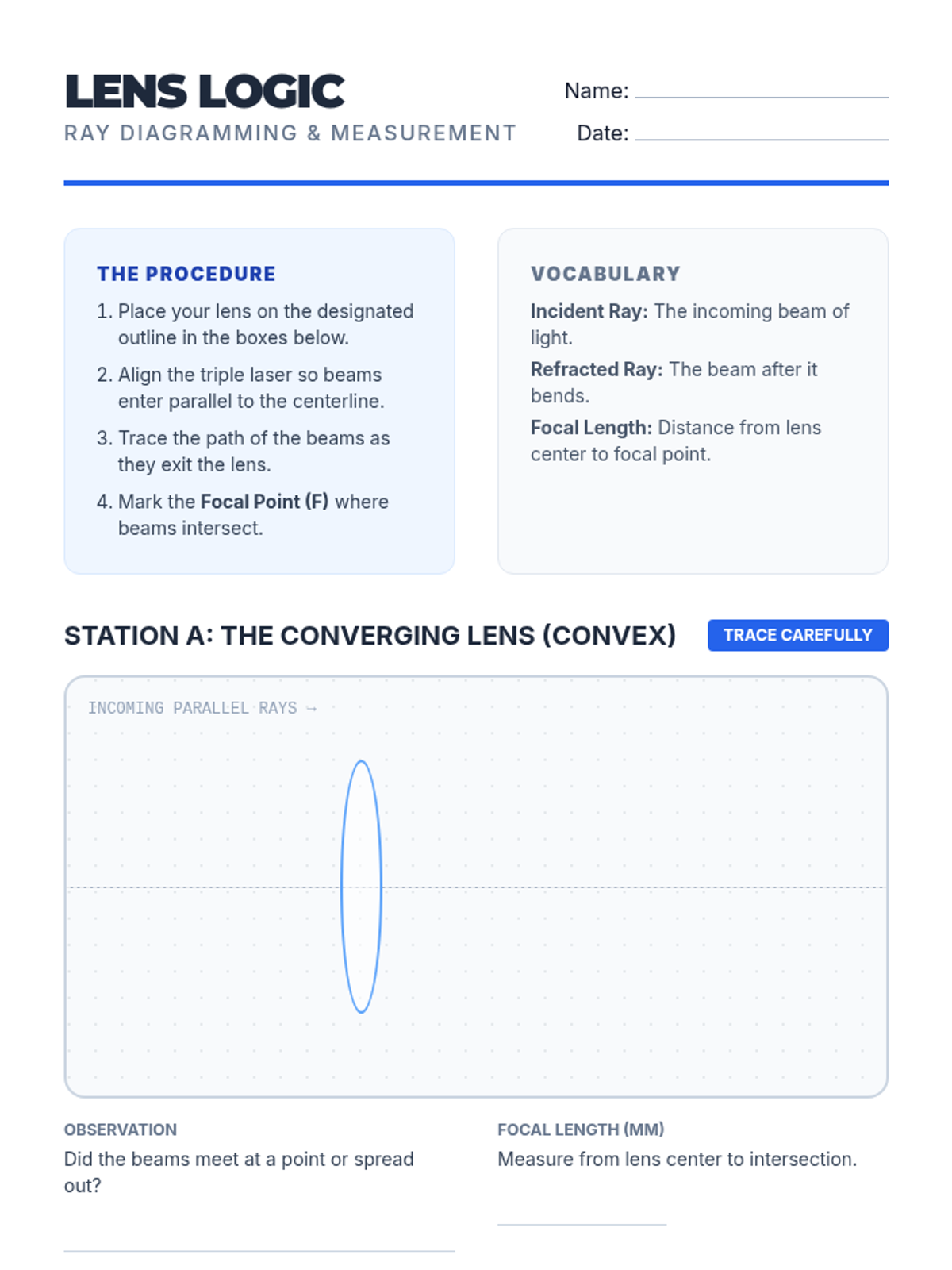

Lens Logic Diagram Set Lens Logic
Ray Diagramming & Measurement
Name:
Date:
The Procedure
Place your lens on the designated outline in the boxes below.
Align the triple laser so beams enter parallel to the centerline.
Trace the path of the beams as they exit the lens.
Mark the Focal Point (F) where beams intersect.
Vocabulary
Incident Ray: The incoming beam of light.Refracted Ray: The beam after it bends.Focal Length: Distance from lens center to focal point.
Station A: The Converging Lens (Convex)
Trace Carefully
Incoming Parallel Rays →
Observation
Did the beams meet at a point or spread out?
Focal Length (mm)
Measure from lens center to intersection.
Station B: The Diverging Lens (Concave)
Trace Carefully
Incoming Parallel Rays →
Analysis
Describe the direction the light beams took after passing through the concave lens.
The Disappearing Coin Explained
In the "Hook" experiment, light travels from the coin through the water , then the glass , and finally the air to your eye. Using what you learned about speed and bending, explain why the coin might "disappear" from view at a certain angle.

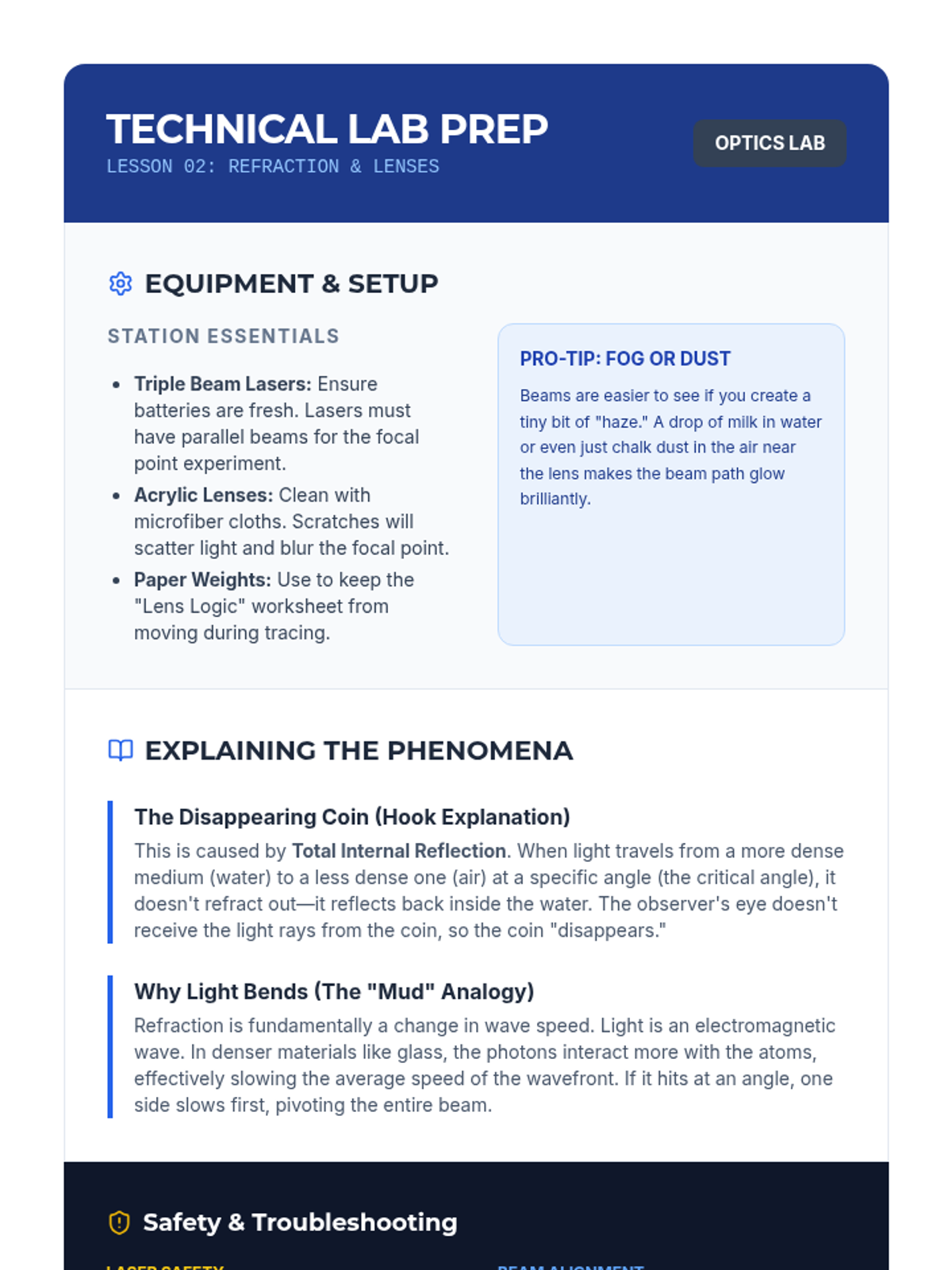

Optics Lab Prep Notes Technical Lab Prep
Lesson 02: Refraction & Lenses
OPTICS LAB
Equipment & Setup
Station Essentials
Triple Beam Lasers: Ensure batteries are fresh. Lasers must have parallel beams for the focal point experiment.Acrylic Lenses: Clean with microfiber cloths. Scratches will scatter light and blur the focal point.Paper Weights: Use to keep the "Lens Logic" worksheet from moving during tracing.
Pro-Tip: Fog or Dust
Beams are easier to see if you create a tiny bit of "haze." A drop of milk in water or even just chalk dust in the air near the lens makes the beam path glow brilliantly.
Explaining the Phenomena
The Disappearing Coin (Hook Explanation)
This is caused by Total Internal Reflection . When light travels from a more dense medium (water) to a less dense one (air) at a specific angle (the critical angle), it doesn't refract out—it reflects back inside the water. The observer's eye doesn't receive the light rays from the coin, so the coin "disappears."
Why Light Bends (The "Mud" Analogy)
Refraction is fundamentally a change in wave speed. Light is an electromagnetic wave. In denser materials like glass, the photons interact more with the atoms, effectively slowing the average speed of the wavefront. If it hits at an angle, one side slows first, pivoting the entire beam.
Safety & Troubleshooting
Laser Safety
Students must keep lasers flat on the desk. Monitor groups closely. Use Class 1 or 2 lasers only for classroom safety.
Beam Alignment
If beams don't meet at a point with the convex lens, the beams aren't parallel entering the lens. Reposition the laser source.
Expected Focal Lengths
Lens Type Standard Result Common Range Standard Convex Converges at Focal Point (F) 50mm - 100mm Standard Concave Diverges (Virtual Focal Point) N/A (Spreads out)
Rainbow Science Slides Rainbow Science
Prisms and the Spectrum
White Light Mystery
"Is white a color, or is it a mixture of ALL colors?"
Before 1666, people thought prisms actually "added" color to white light. Isaac Newton proved them wrong.
Dispersion
The Definition
Dispersion is the splitting of white light into its component colors as it passes through a prism.
Why? Because different wavelengths bend at different angles!
RED LIGHT
Longer wavelength = Bends LESS
VIOLET LIGHT
Shorter wavelength = Bends MORE
Meet ROY G. BIV
R
O
Y
G
B
I
V
Visible Light Spectrum
Nature's Prisms
A rainbow occurs when **raindrops** act as tiny prisms.
Light enters the drop
It refracts and disperses
It reflects off the back and returns to you
Spectrum Lab
Your Mission
Use a single prism to project a spectrum onto a white card. Measure the width of the rainbow and label the order of colors.
"Can you find the indigo? Is it a separate color or just dark blue?"
Step 1
Narrow your light source into a thin slit.
Step 2
Slowly rotate the prism until the 'fire' appears.
Prism Pathways Activity Sheet Prism Pathways
Dispersion & The Visible Spectrum
Name:
Date:
Observation Mission
Shine a thin beam of white light through your prism. Observe the spectrum produced on the white card. Identify the order of colors and measure how much the beam bends from its original path.
The Spectral Sequence
Record the colors in the exact order you see them, starting from the color that bent the LEAST to the color that bent the MOST.
1
Least Bent
2
3
4
5
6
7
Most Bent
Spectrum Analysis
1. Why does the prism split the light? What property of light is changing for each color?
2. Compare the "width" of the Red band vs the Blue band. Which appears wider or more distinct?
Replicating Newton
Isaac Newton did something clever: he used a **second prism** to see if he could split the colors even further, or if he could turn the rainbow back into white light. Draw what you think happens when a rainbow passes through an upside-down second prism.
Draw the light paths connecting the prisms
Quick Check
Which color of light travels the SLOWEST through the glass of the prism? (Hint: The one that bends the most!)
Red Light
Violet Light
Newtons Spectrum Discussion Guide Discussion Guide
Lesson 03: Prisms & White Light
FACILITATION
Historical Context
In 1666, it was widely believed that prisms "stained" white light to create colors. Newton used a crucial experiment to disprove this: he isolated a single color (red) from one prism and passed it through a second prism. If the prism "added" color, the red should have changed or split further. Instead, it stayed red. He then used a second prism to recombine all colors back into white light.
"Conclusion: White light is not the absence of color, but the presence of ALL colors."
Guided Discussion Prompts
Observation Question
"Why do we always see red at the 'top' and violet at the 'bottom' of a projected spectrum?"
Desired Answer: Because red light has a longer wavelength and is less affected by the change in speed, so it bends at a shallower angle than violet.
Critical Thinking Question
"If you looked at a rainbow through a prism, what would you see?"
Desired Answer: The rainbow would be further dispersed or shifted, but you wouldn't see "new" colors, just the same spectrum spread out more.
The "Indigo" Debate
"Why did Newton include 'Indigo' in the ROYGBIV spectrum? Does it look like a distinct color to you?"
Background: Newton believed in a connection between the 7 colors of the spectrum and the 7 notes in an octave. Most people today struggle to distinguish indigo from deep blue or violet.
Spectrum Data Key
Red 700nm (Longest / Least Bent)
Orange 620nm
Yellow 580nm
Green 530nm
Blue 470nm
Indigo 440nm
Violet 400nm (Shortest / Most Bent)
Troubleshooting Rainbows
If students see a "blob" of white light with only faint color on the edges, their incident beam is too wide. Have them use a card with a narrow 1mm slit to "clean up" the beam before it hits the prism.
Filter Fun Slides Filter Fun
Transmission and Subtraction
Secret Decoder
"You have a message written in red ink, covered by a messy scribble of blue ink. How can you read the secret word?"
RED FILTER
Reading the Hidden
S C R I B B L E
S E C R E T
Transmission
Transmission
When light passes through a material without being absorbed or reflected.
Transparent
Clear view (Glass, Air)
Translucent
Blurred view (Wax paper)
How Filters Work
The Selector
A filter only lets its **OWN** color pass through. It **ABSORBS** (subtracts) everything else.
Example
A green filter lets green light pass, but eats up red and blue!
GREEN FILTER
The Blackout Effect
What happens if you stack a **Red Filter** and a **Blue Filter**?
DARKNESS
Why? The red filter blocks blue. The blue filter blocks red. Result? No light gets through.
Ghost Message Challenge
The Goal
Identify the three hidden words on your "Ghost Page" by looking through different colored filters.
"Predict which filter will reveal the RED text. (Hint: It's NOT the red one!)"
Lab Rules
1. Only use filters on the page.
2. Record observations BEFORE removing the filter.
3. Can you combine two filters to see something new?

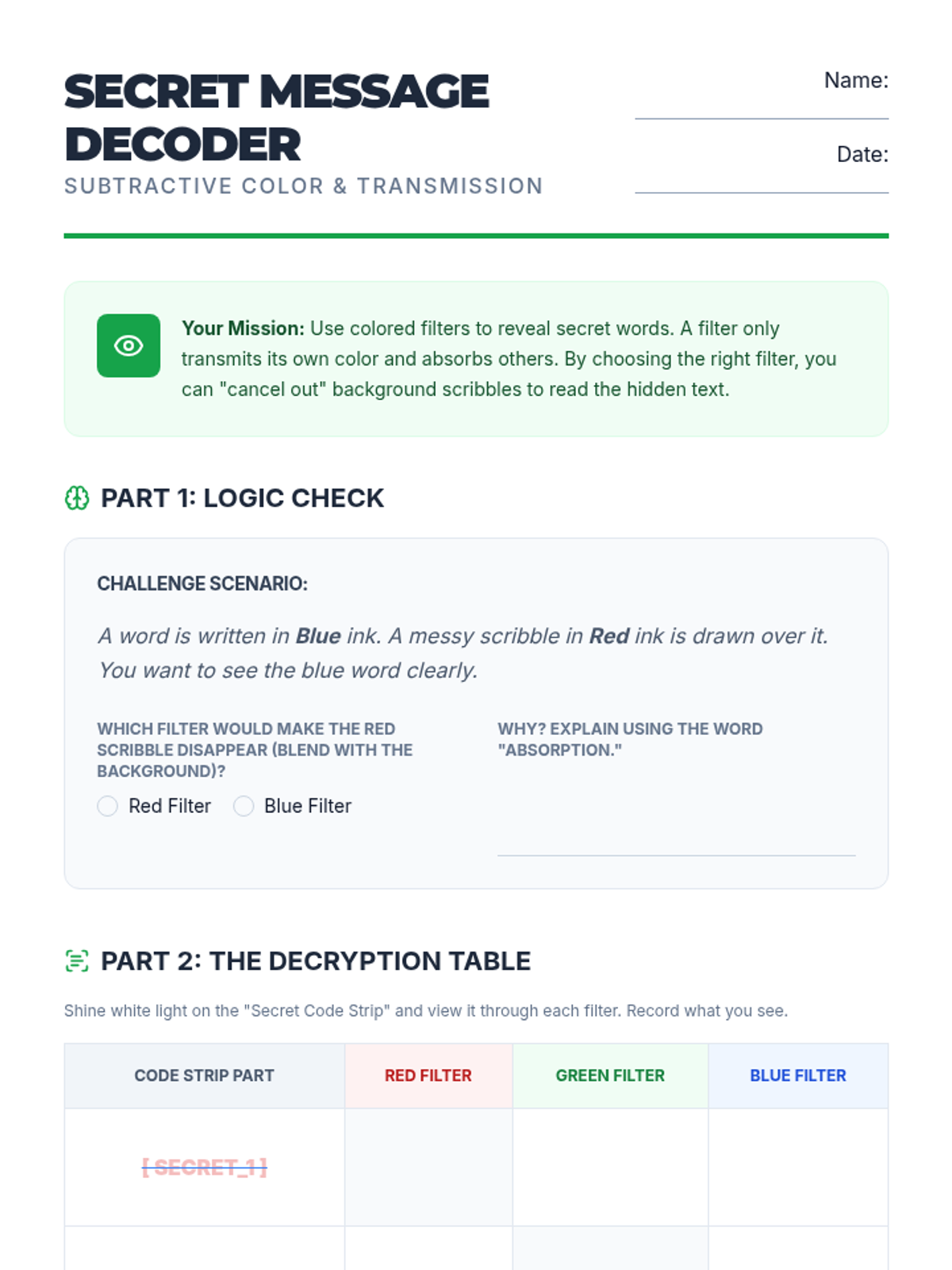

Secret Message Decoder Challenge Secret Message Decoder
Subtractive Color & Transmission
Name:
Date:
Your Mission: Use colored filters to reveal secret words. A filter only transmits its own color and absorbs others. By choosing the right filter, you can "cancel out" background scribbles to read the hidden text.
Part 1: Logic Check
Challenge Scenario:
A word is written in Blue ink. A messy scribble in Red ink is drawn over it. You want to see the blue word clearly.
Which filter would make the RED scribble disappear (blend with the background)?
Red Filter
Blue Filter
Why? Explain using the word "Absorption."
Part 2: The Decryption Table
Shine white light on the "Secret Code Strip" and view it through each filter. Record what you see.
Code Strip Part RED Filter GREEN Filter BLUE Filter [ SECRET_1 ] [ SECRET_2 ] [ SECRET_3 ]
Synthesis Analysis
The Sunglasses Dilemma
Why might wearing highly tinted Blue sunglasses be dangerous while driving and looking at a Red traffic light? Use your knowledge of transmission to explain.
3. What color light is transmitted by a Red Filter?
4. What colors are absorbed by a Red Filter?
Transmission Triage Answer Key Transmission Triage
Lesson 04: Filters & Transmission
ANSWER KEY
The Physics of Filters
Filters are **subtractive**. They remove wavelengths from the white light spectrum. A "Red Filter" is red because it blocks (absorbs) Green and Blue light, transmitting only Red. When we look at a Red scribble through a Red filter, the scribble effectively disappears because the paper (white) is now reflecting only red, and the ink (red) is also reflecting red. They match perfectly.
Key Learning Point:
"To see a hidden message, use a filter that matches the color of the background scribble, NOT the message."
Secret Decoder Answer Key
Red Filter
Cancels out Red Scribbles . Reveals Blue or Green text as dark/black.
Green Filter
Cancels out Green Scribbles . Reveals Red or Blue text as dark/black.
Blue Filter
Cancels out Blue Scribbles . Reveals Red or Green text as dark/black.
Sunglasses Case Study
Why Blue Sunglasses + Red Light = Danger?
A pure blue filter transmits blue light but absorbs red . If a driver wears highly saturated blue sunglasses, the red light from a traffic signal will be blocked (absorbed) by the lenses. To the driver, the red light may appear completely black or off , leading to a failure to stop.
Setup Tip
Ensure the "Secret Message" is written in a very light, pure color, and the "Scribble" is thick and vibrant. If the colors are too similar (e.g., Red and Orange), the filter won't work effectively.
Extension Idea
"What if you use two filters? (Cyan + Yellow)"
Result: Green. Because Cyan blocks red, and Yellow blocks blue. Only green is transmitted by both.
Eye of the Beholder Slides Eye of the Beholder
Physics Meets Biology
The Dress Mystery
"In 2015, the internet fought over a dress. Some saw Blue and Black. Others saw White and Gold."
Why can two people look at the same light and see different things?
The Biological Camera
The Lens (Convex)
A flexible, living convex lens that bends light to focus on the back of the eye.
The Retina (Sensor)
Where the light lands and is converted into electrical signals.
The Pupil (Aperture)
The opening that controls how much light gets in.
Detecting the Waves
RODS
Sensitive to light and dark. Great for night vision, but don't see color!
CONES
Sensitive to Red, Green, and Blue wavelengths. This is how we see the rainbow!
Perception is Construction
"Your eye collects light, but your brain 'tells' you what it means."
The brain automatically adjusts for lighting conditions (like shadows or yellow sunlight). This is why "The Dress" caused such confusion—different brains made different assumptions about the light source.
Case Study: Color Blindness
Some people are missing one or more types of cone cells . The most common is Red-Green color blindness.
"If the red cone is missing, how does the brain interpret a 650nm (red) wavelength?"
Activity
> Complete your Eye Diagram
> Map the signal path from Light → Retina → Brain
Biological Camera Organizer Biological Camera
Anatomy & Perception Organizer
Name:
Date:
Part 1: Labeling the Optical System
A
Cornea
Outer protective layer; starts bending light.
B
Pupil/Iris
Controls light intake (Aperture).
C
Lens
Convex shape; focuses light on retina.
D
Retina
Contains rod and cone cells.
E
Optic Nerve
Sends electrical signals to the brain.
Part 2: Rods vs. Cones
Sensor A: Rods
If you are walking in a dark forest at night, why can you see shapes but not colors?
Sensor B: Cones
There are three types of cone cells. Which three colors do they specifically detect?
Part 3: The Perception Flowchart
Complete the flowchart showing how a person perceives a Red Apple .
1. Light Source (White Light)
Apple reflects light.
Lens focuses light on .
cones are triggered.
Brain says "RED APPLE!"
Final Inquiry: Perception vs. Reality
Explain why "The Dress" (from the slides) looked different to different people. How does the Brain influence what we see, even if the Eye is collecting the same wavelengths?

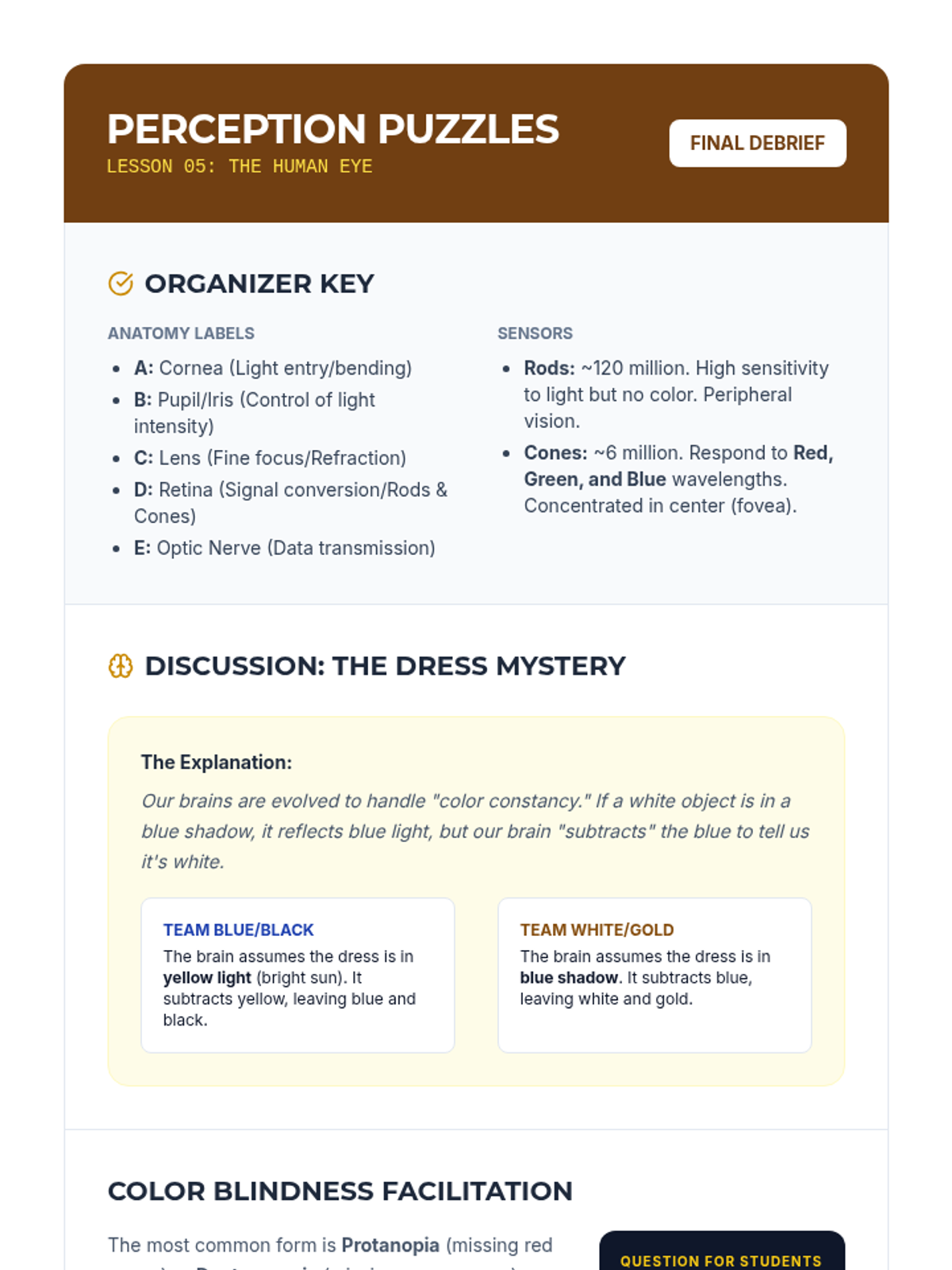

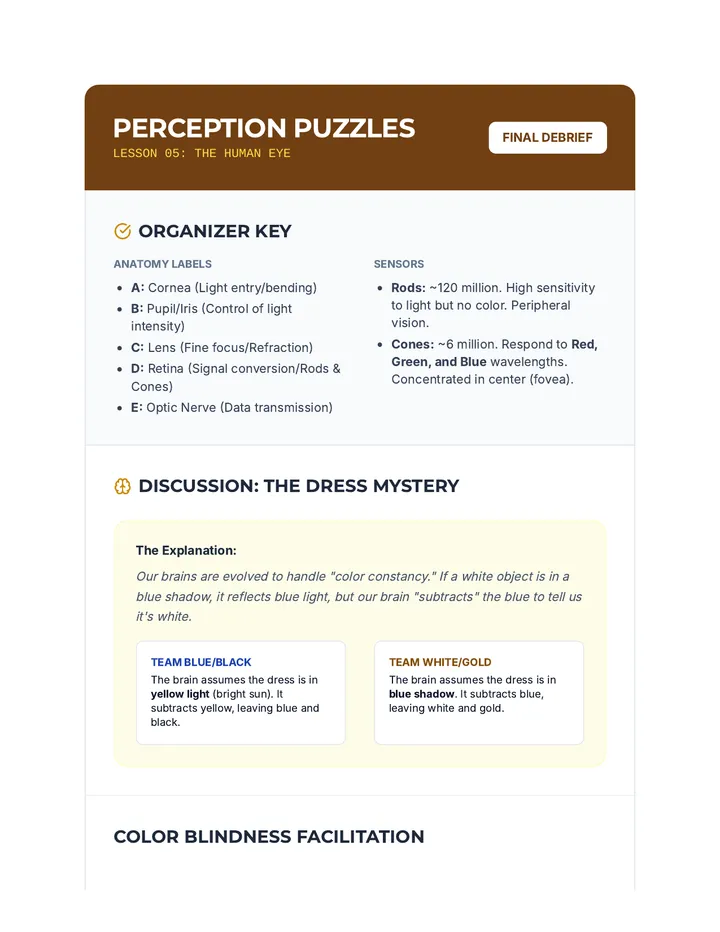

Perception Puzzle Case Studies Perception Puzzles
Lesson 05: The Human Eye
FINAL DEBRIEF
Organizer Key
Anatomy Labels
A: Cornea (Light entry/bending)B: Pupil/Iris (Control of light intensity)C: Lens (Fine focus/Refraction)D: Retina (Signal conversion/Rods & Cones)E: Optic Nerve (Data transmission)
Sensors
Rods: ~120 million. High sensitivity to light but no color. Peripheral vision.Cones: ~6 million. Respond to Red, Green, and Blue wavelengths. Concentrated in center (fovea).
Discussion: The Dress Mystery
The Explanation:
Our brains are evolved to handle "color constancy." If a white object is in a blue shadow, it reflects blue light, but our brain "subtracts" the blue to tell us it's white.
Team Blue/Black
The brain assumes the dress is in yellow light (bright sun). It subtracts yellow, leaving blue and black.
Team White/Gold
The brain assumes the dress is in blue shadow . It subtracts blue, leaving white and gold.
Color Blindness Facilitation
The most common form is Protanopia (missing red cones) or Deuteranopia (missing green cones). Because red and green wavelengths are relatively close, the brain relies on the blue cones and the remaining red/green cones to "guess" the color.
Question for Students
"If light is just a wave, why is color blindness a biological problem and not a physics problem?"
Answer: The wave is there (physics), but the detector is broken (biology).
Unit Summary
Lesson 1
Reflection
Lesson 2
Refraction
Lesson 3
Dispersion
Lesson 4
Transmission
