Naval Architect Challenge Answer Key Answer Key
NAVAL ARCHITECT CHALLENGE // SOLUTIONS
REF ID: ARCH-KEY-001
1. Engineering Glossary
BUOYANCY
The upward force exerted by a fluid...
DISPLACEMENT
The process where an object pushes water aside...
DENSITY
The mass per unit volume of a substance...
2. Buoyant Force Calculations
Probe Calculation:
Fb = ρ · V · g4,900 N
Displaced Mass Calculation:
Weight of displaced water = Mass · gravity24,500 N
3. Sink or Float Analysis
Condition Prediction Force Condition 1.2 > 1.0 SINK Fg > Fb 0.85 < 1.0 FLOAT Fb > Fg 1.0 = 1.0 NEUTRAL Fb = Fg
4. The Architect's Challenge
Qualitative Explanation:
While steel is denser than water, the ship is hollow. The average density of the ship (steel + the large volume of air inside) is lower than the density of water. This allows it to displace a volume of water whose weight is equal to the entire weight of the ship.
Minimum Volume Calculation:
Condition for floating: Mass of ship = Mass of water displaced2,000 m³
The hull must displace at least 2,000 cubic meters of water.
Buoyancy Blueprints Reading Guide Buoyancy Blueprints
Technical Reference Guide // Archimedes' Principle
REF-04-FLUIDS
The Legend of the Golden Crown
In the 3rd century BCE, King Hiero II of Syracuse suspected his goldsmith had cheated him. He feared the royal crown, supposed to be pure gold, had been secretly alloyed with cheaper silver. He tasked the mathematician Archimedes with proving the fraud without damaging the crown.
The solution came to Archimedes as he stepped into a full bathtub. He noticed that the more of his body he submerged, the more water overflowed. He realized that the volume of water displaced was exactly equal to the volume of the part of his body under the surface.
"Eureka!" (I have found it!) — Archimedes' legendary cry as he ran through the streets of Syracuse.
The Principle Defined
"Any object, wholly or partially immersed in a fluid, is buoyed up by a force equal to the weight of the fluid displaced by the object."
Key Concepts
Displacement: When an object enters water, it moves a volume of water equal to its own submerged volume.Buoyant Force (Fb): The net upward force generated by the pressure difference at different depths in the fluid.Force Balance: Flotation occurs when the upward buoyant force exactly matches the downward gravitational force (weight).
Mathematical Modeling
\[ F_b = \rho \cdot V \cdot g \]
ρ = Density V = Volume g = Gravity
Density: The Final Arbiter
Whether an object sinks or floats is ultimately determined by its average density relative to the fluid. Density (\(\rho\)) is the measurement of mass per unit of volume. If you pack more mass into a smaller space, you increase the density.
Negative Buoyancy
It Sinks
Object Density > Fluid Density. Gravity overpowers the buoyant force.
Neutral Buoyancy
It Hovers
Object Density = Fluid Density. Forces are perfectly balanced.
Positive Buoyancy
It Floats
Object Density < Fluid Density. The fluid supports the object's mass.
The Steel Ship Paradox
How do steel ships float?
Steel is roughly 8 times denser than water (\(7,850\) kg/m³ vs \(1,000\) kg/m³). A solid steel bolt sinks instantly. However, naval architecture turns this material property into a functional advantage through hull design .
By shaping steel into a hollow structure, we trap a massive volume of air inside. Since air is significantly less dense than water, the average density of the ship's entire volume becomes much lower than water.
"A ship will sink into the water only until it has displaced a weight of water equal to its own total weight."
Architectural Equilibrium
Ship Weight
=
Displaced Water
Technical Summary Table
Fluid Density (ρ) 1,000 kg/m³ (Freshwater)
Displacement Discovery The volume of an object is equal to the volume of fluid it displaces when fully submerged.
Submarine Function Submarines alter their average density by filling ballast tanks with water to dive or pumping in air to surface.
Buoyancy Blueprints Lesson Plan Revised Buoyancy Blueprints
Teacher Lesson Plan // 50-Minute Session
SUBJECT: PHYSICS / FLUID MECHANICS
Learning Objectives
Define Archimedes' Principle and the concept of buoyant force.
Calculate the buoyant force using fluid density and displaced volume.
Predict whether an object will sink or float based on density comparisons.
Explain how hull design allows dense materials (steel) to float.
Materials Needed
Buoyancy Blueprints Reading Guide
Naval Architect Challenge Worksheet (1 per student)
Calculators
Optional: Overflow can, graduated cylinder, and various weights for live demo.
Pacing Guide
10 MIN
Engage: The Eureka Moment
Open with the story of King Hiero's crown. Ask students: "If you have two identical-looking crowns, one pure gold and one mixed with silver, how could you tell the difference without melting them?" Introduce the concept of displacement.
Key Question: Why does a heavy person make the bathtub level rise more than a child does?
15 MIN
Explore: Technical Reference Guide
Distribute the Buoyancy Blueprints Reading Guide . Conduct a close reading or "Think-Pair-Share" focused on:
Displacement: Volume of object = Volume of fluid moved.The Formula: Review \(F_b = \rho \cdot V \cdot g\). Explicitly define each variable and its units.Density Comparisons: Discuss the "Steel Ship Paradox" as a class to bridge qualitative logic with quantitative physics.
15 MIN
Practice: Naval Architect Challenge
Students use the reading guide as a reference to complete the Naval Architect Challenge Worksheet . They will calculate buoyant forces and analyze flotation density.
Teacher Tip: Circulate and assist with Section 4. Ensure students understand that for a ship to float, its weight must equal the weight of the water it displaces.
10 MIN
Apply: Submarine Dive Logistics
Challenge students to explain how a submarine uses the principle to dive. Refer to the "Submarine Function" in the reading guide's summary table.
Summary Exit Ticket: Have students write down the one thing (mass or volume) that must change for a sinking ship to start floating again.
Differentiation Strategies
Naval Architect Challenge Worksheet Revised Naval Architect Challenge
UNIT 04: FLUID DYNAMICS // ARCHIMEDES' PRINCIPLE
DOC ID: ARCH-WP-001
Architect:
Launch Date:
1
Engineering Glossary
Match the correct term to its physical description. Write the term in the box provided.
The upward force exerted by a fluid that opposes the weight of an immersed object.
BUOYANCY DENSITY DISPLACEMENT
The process where an object pushes water aside to make room for its own volume.
The mass per unit volume of a substance; determines if an object sinks or floats.
2
Buoyant Force Calculations
Fb = ρ · V · g
ρ (Water) = 1,000 kg/m³
1. A research probe with a volume of 0.5 m³ is fully submerged in the ocean. Calculate the buoyant force acting on it.
Engineering workspace:
Final Result:
Newtons (N)
2. An object displaces 2,500 kg of water. According to Archimedes' Principle, what is the buoyant force in Newtons?
Engineering workspace:
Final Result:
Newtons (N)
3
Sink or Float Analysis
Compare densities to predict behavior and state the force condition (\(F_b > F_g\), etc.).
Object Density Fluid Density Prediction Force Condition 1.2 g/cm³ 1.0 g/cm³
|
| 0.85 g/cm³ | 1.0 g/cm³ |
|
|
| 1.0 g/cm³ | 1.0 g/cm³ |
|
|
4
The Architect's Challenge
A ship is built using 2,000,000 kg of steel (Density: 7,850 kg/m³). Explain using Archimedes' Principle why this ship can float in water, and calculate the minimum volume the hull must have to displace enough water to remain afloat.
Qualitative Explanation (Why does it float?):
Quantitative Calculation (Minimum Volume Needed):
Constraint: Assume the ship floats in fresh water (\(\rho = 1,000\) kg/m³).
Velocity of Venting Reading Guide Revised V2 Final Velocity of Venting
Technical Reference Guide // Torricelli's Law
REF-05-EFFLUX-MASTER-FINAL
The Science of Efflux
In fluid dynamics, efflux is the flow of a fluid out of a container through an opening (orifice). In 1643, Evangelista Torricelli discovered that the speed of this flow is directly proportional to the square root of the fluid height above the opening.
Torricelli's Theorem
"The speed of efflux of a fluid through a sharp-edged hole at a depth \( h \) is the same as the speed that a body would acquire in falling freely from a height \( h \)."
Technical Schematic
h v1 ≈ 0 v
Potential Energy \( U_g \) → Kinetic Energy \( K \)
Deriving the Law
Torricelli's Law is a simplified application of Bernoulli’s Principle . By analyzing energy at the surface (\( 1 \)) and the orifice (\( 2 \)):
\[ P_1 + \frac{1}{2}\rho v_1^2 + \rho gh_1 = P_2 + \frac{1}{2}\rho v_2^2 + \rho gh_2 \]
Assumptions
Container open: \( P_1 = P_2 = P_{atm} \).
Large tank: Surface velocity \( v_1 \approx 0 \).
Final Result
\[ v = \sqrt{2gh} \]
Core Concepts
1. Height is Velocity
The velocity depends only on vertical distance \( h \). It does not depend on mass or tank shape.
2. Free-Fall Equivalence
A stone dropped from height \( h \) hits at speed \( \sqrt{2gh} \). Water follows the same energy conversion logic.
Engineering Applications
Dam Engineering
Turbines are placed at max depth \( h \). Doubling \( h \) increases velocity by \( \sqrt{2} \approx 1.41 \).
Industrial Safety
Engineers use Torricelli's Law to design tank drainage systems, ensuring proper size of containment basins.
Summary Reference
Velocity Law \( v = \sqrt{2gh} \)
Key Variable Fluid Depth (h)
Check for Understanding
If the depth of water in a tank is quadrupled (\( 4 \times h \)), by what factor does the exit velocity increase? Show reasoning.
© NAVAL ENGINEERING RESEARCH GROUP // FLUID DYNAMICS DIV.
Efflux Engineering AP Physics 1 Worksheet Revised V2 Efflux Engineering
AP Physics 1 // Torricelli's Law
DOC ID: EFFL-AP-V6
Lead Engineer:
Timestamp:
1
Mechanical Foundations
Using the principle of Conservation of Mechanical Energy , describe the energy transformation that occurs as a packet of fluid moves from the surface (Point A) to the point of exit (Point B) at depth \( h \).
2
The NASA Testing Silo
Facility: Marshall Space Flight Center
A vertical testing silo is filled with propellant. The surface area of the silo is significantly larger than the discharge valve (\( A_{\text{tank}} \gg A_{\text{valve}} \)).
Technical Analysis:
Derive the exit velocity formula and compute the speed for a silo depth of \( h = 14.5 \text{ m} \). Assume \( g = 9.8 \text{ m/s}^2 \).
System Model: Silo-V1
h Point A Point B v
3
Analytical Calculation: Silo Derivation
Part A: Derivation [Show All Steps]
Use the Principle of Conservation of Energy (\( E_A = E_B \)) to derive the expression for exit velocity (\( v \)).
Part B: Numeric Solution [\( h = 14.5 \text{ m} \)]
Exit Velocity:
m/s
4
Hydroelectric Systems
"A hydroelectric turbine requires an intake velocity of at least \( 32 \text{ m/s} \) to operate efficiently."
Using your derived formula, calculate the minimum depth \( h \) below the reservoir surface required for the intake pipe. Show all steps.
Mathematical Solution Workspace:
Minimum Required Depth =
Calculated Meters
meters
© NAVAL ENGINEERING RESEARCH GROUP // AP PHYSICS 1

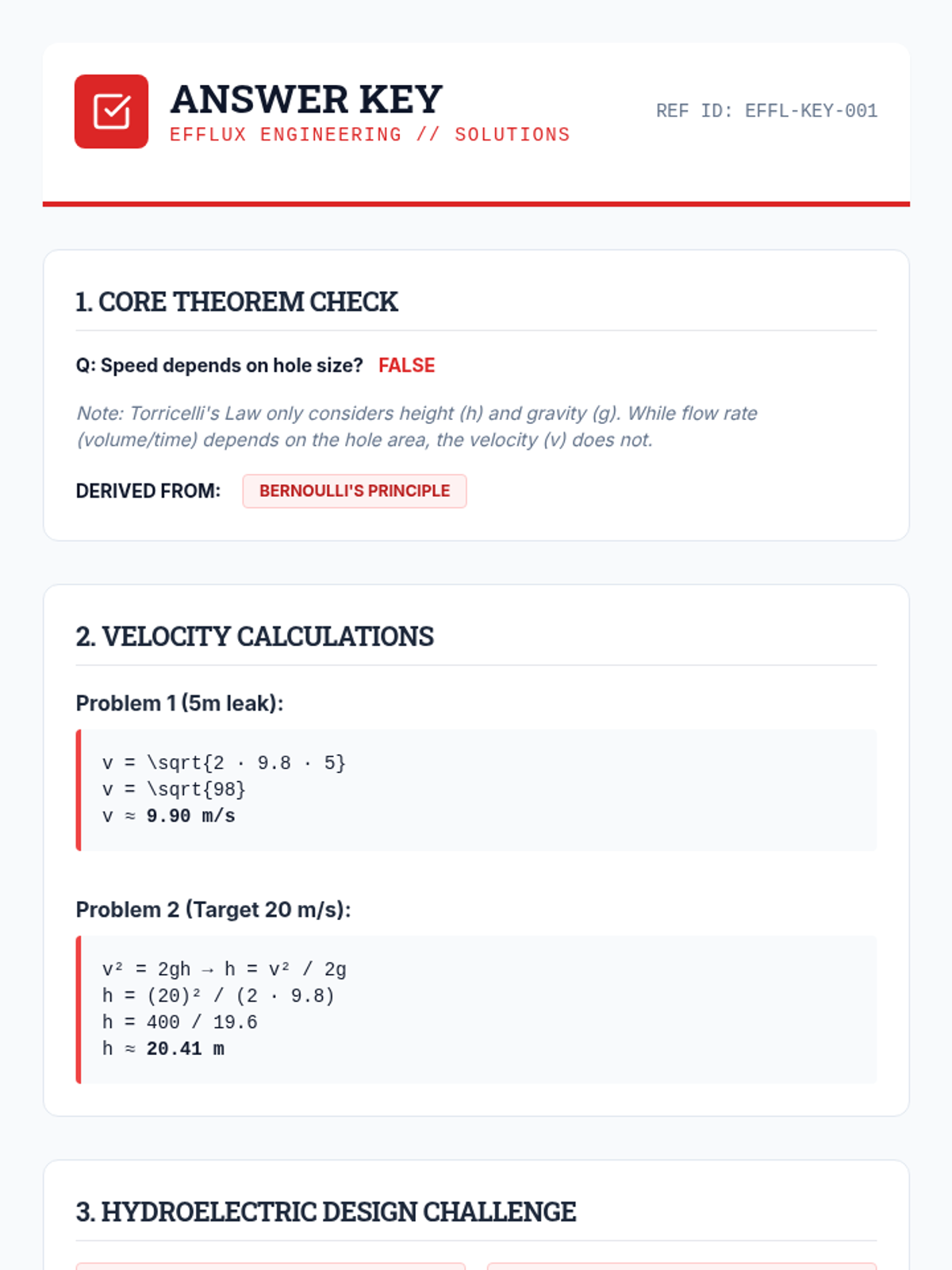

Efflux Engineering Answer Key Answer Key
EFFLUX ENGINEERING // SOLUTIONS
REF ID: EFFL-KEY-001
1. Core Theorem Check
Q: Speed depends on hole size? FALSE
Note: Torricelli's Law only considers height (h) and gravity (g). While flow rate (volume/time) depends on the hole area, the velocity (v) does not.
Derived From:
BERNOULLI'S PRINCIPLE
2. Velocity Calculations
Problem 1 (5m leak):
v = \sqrt{2 · 9.8 · 5}9.90 m/s
Problem 2 (Target 20 m/s):
v² = 2gh → h = v² / 2g20.41 m
3. Hydroelectric Design Challenge
20m: 19.8 m/s
70m: 37.0 m/s
Explanation:
The design with the 70m depth produces more energy. According to Torricelli's Law, velocity is proportional to the square root of height. Since kinetic energy is \(KE = \frac{1}{2}mv^2\), the much higher velocity at 70m depth results in significantly more kinetic energy available to spin the turbines.
4. Pressurized Tank Paradox
Tank B will have a higher velocity. In Bernoulli's equation, the \(P_1\) term for Tank B is significantly higher than atmospheric pressure (\(P_{atm}\)). When we solve for \(v_2\), this extra pressure increases the energy gradient between the surface and the orifice, resulting in a higher efflux speed than gravity alone would provide in Tank A.

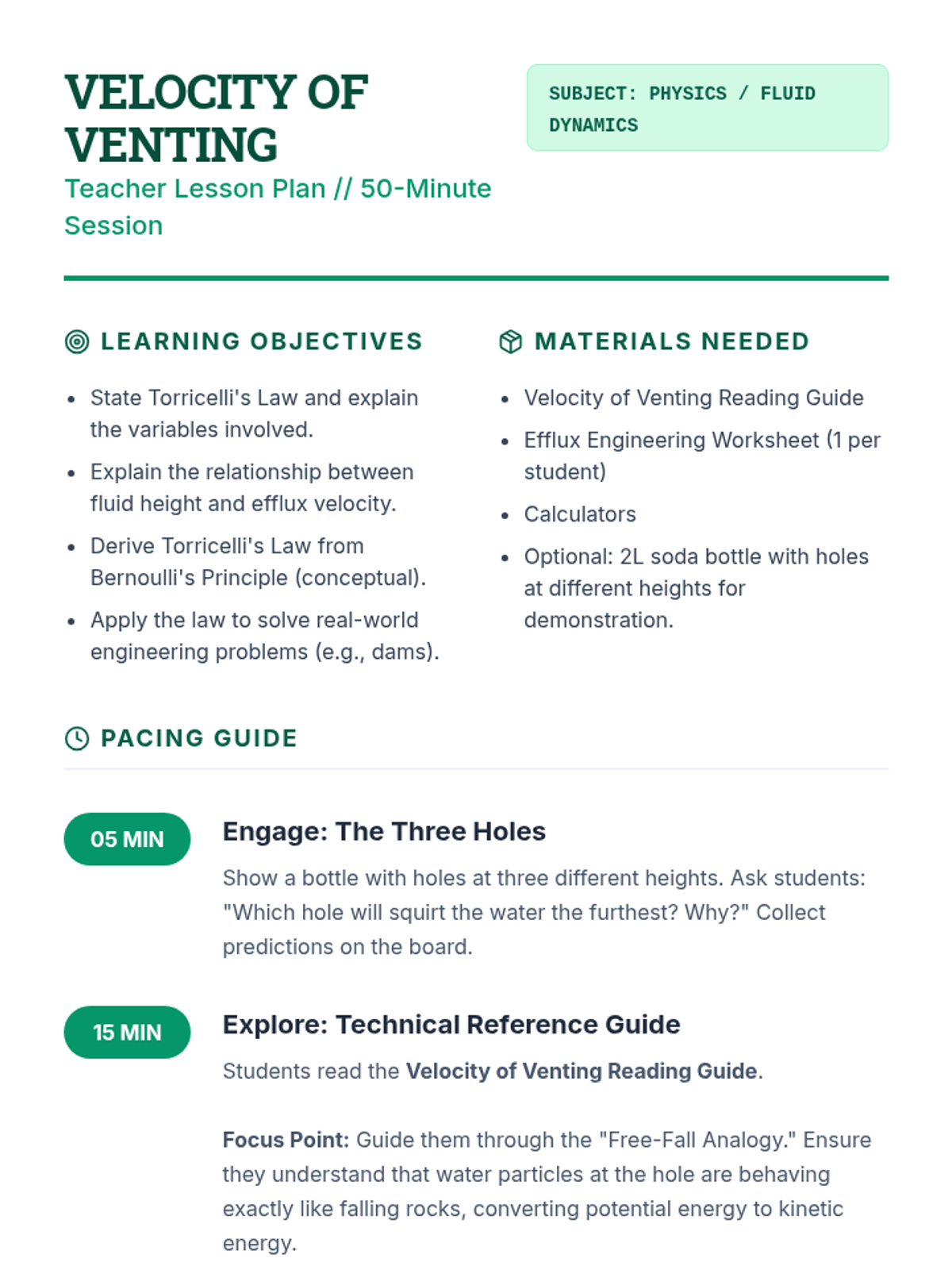

Velocity of Venting Lesson Plan Velocity of Venting
Teacher Lesson Plan // 50-Minute Session
SUBJECT: PHYSICS / FLUID DYNAMICS
Learning Objectives
State Torricelli's Law and explain the variables involved.
Explain the relationship between fluid height and efflux velocity.
Derive Torricelli's Law from Bernoulli's Principle (conceptual).
Apply the law to solve real-world engineering problems (e.g., dams).
Materials Needed
Velocity of Venting Reading Guide
Efflux Engineering Worksheet (1 per student)
Calculators
Optional: 2L soda bottle with holes at different heights for demonstration.
Pacing Guide
05 MIN
Engage: The Three Holes
Show a bottle with holes at three different heights. Ask students: "Which hole will squirt the water the furthest? Why?" Collect predictions on the board.
15 MIN
Explore: Technical Reference Guide
Students read the Velocity of Venting Reading Guide .
Focus Point: Guide them through the "Free-Fall Analogy." Ensure they understand that water particles at the hole are behaving exactly like falling rocks, converting potential energy to kinetic energy.
20 MIN
Practice: Efflux Engineering
Distribute the Efflux Engineering Worksheet .
Scaffold: For Question 2, show the algebraic step of squaring both sides to get \(v^2 = 2gh\) before isolating \(h\).
10 MIN
Apply: Dam Design Debate
Discuss Section 3 of the worksheet. Ask: "If we want to double the energy, do we need to double the height or quadruple the height?" (Answer: Quadruple, since \(v = \sqrt{2gh}\) and \(KE \propto v^2\)).
Differentiation Strategies
For Struggling Learners
Provide a table of square roots for common values of \(2gh\). Focus on the "Free-Fall" analogy as it is more intuitive than Bernoulli's Principle.
For Advanced Learners
Ask them to derive how the velocity changes as the tank empties (Time-dependent efflux). Introduce the "Vena Contracta" concept mentioned in the guide summary.

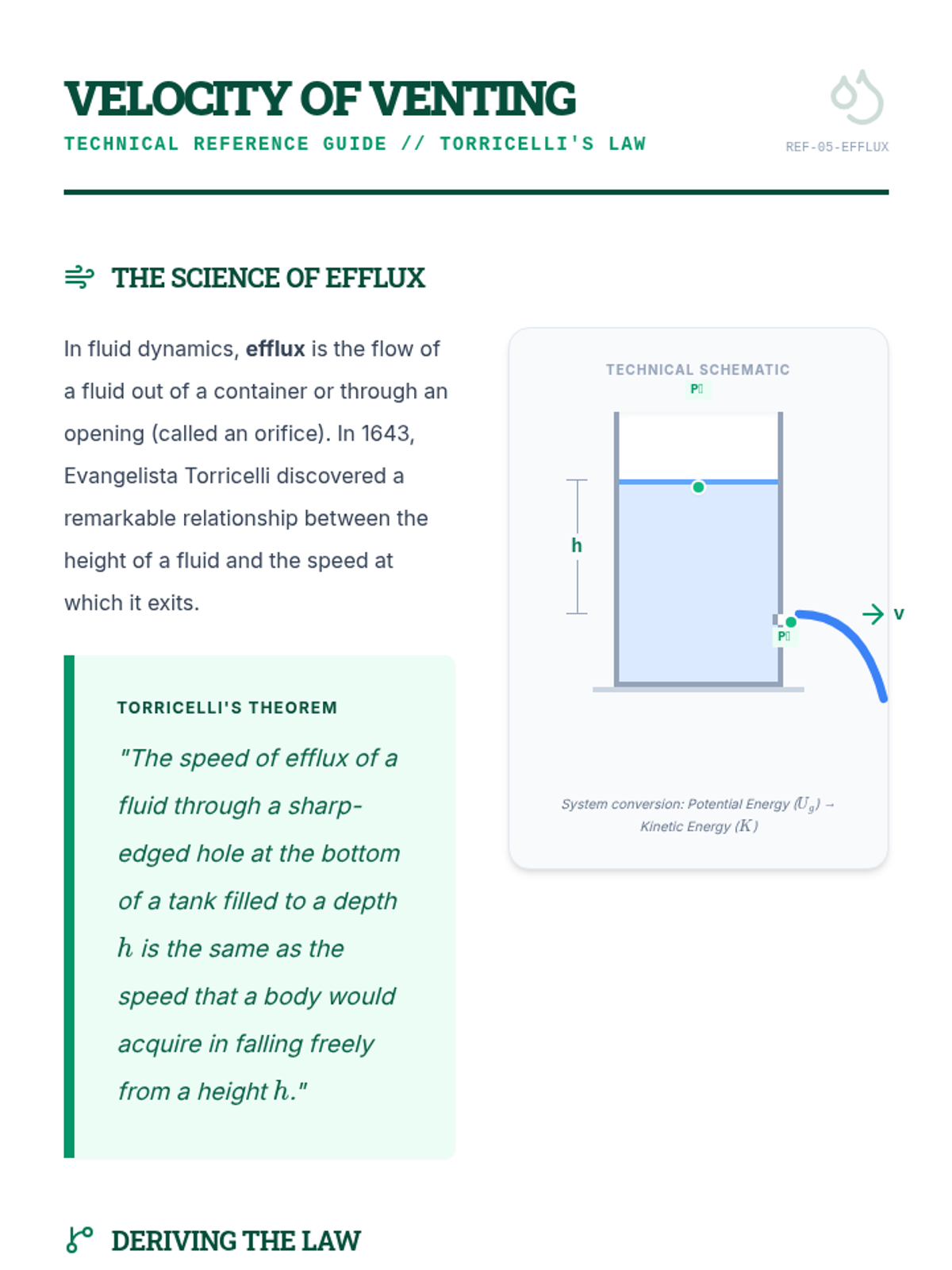

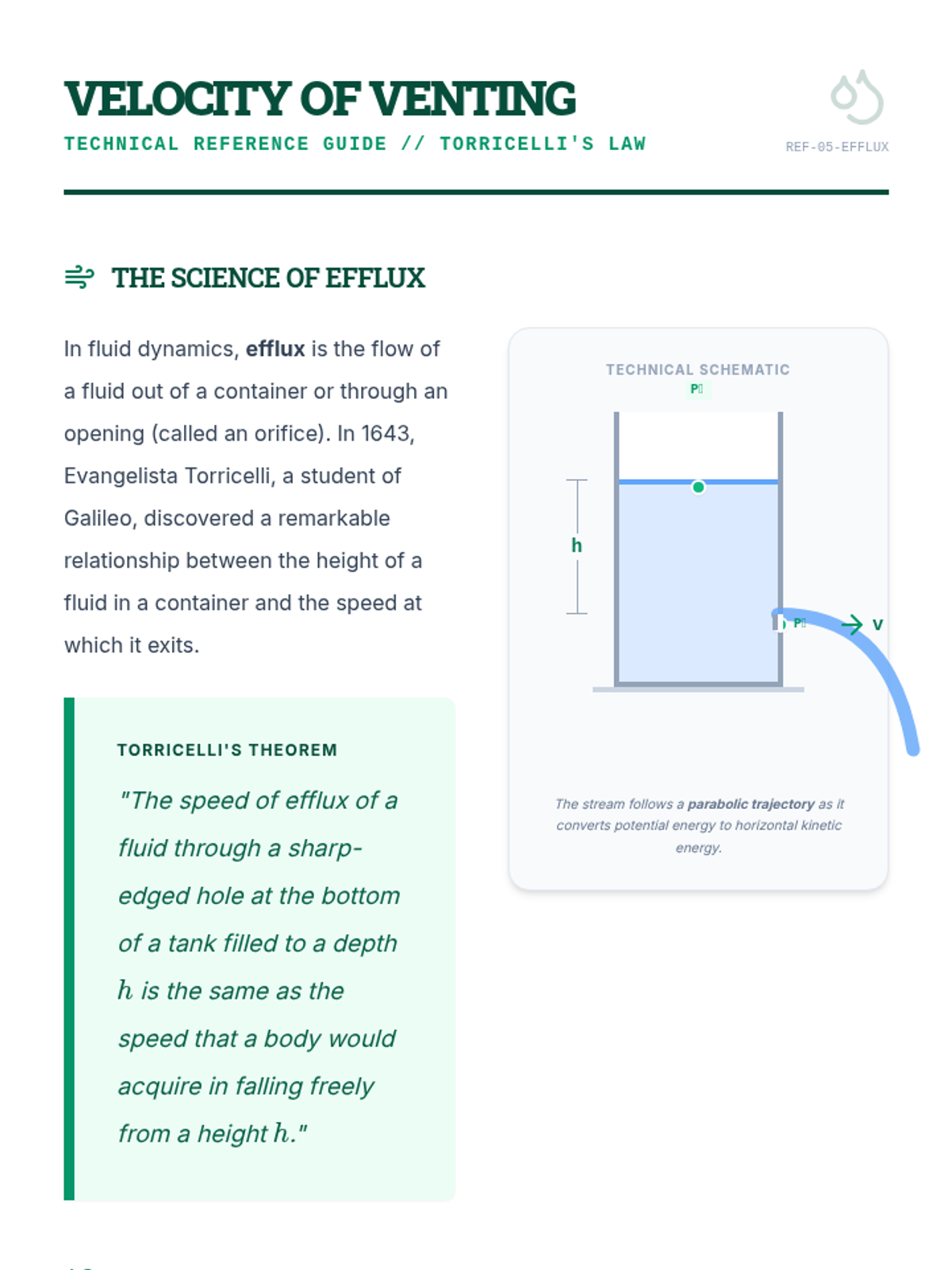

Velocity of Venting Reading Guide Revised V2 Velocity of Venting
Technical Reference Guide // Torricelli's Law
REF-05-EFFLUX
The Science of Efflux
In fluid dynamics, efflux is the flow of a fluid out of a container or through an opening (called an orifice). In 1643, Evangelista Torricelli, a student of Galileo, discovered a remarkable relationship between the height of a fluid in a container and the speed at which it exits.
Torricelli's Theorem
"The speed of efflux of a fluid through a sharp-edged hole at the bottom of a tank filled to a depth \(h\) is the same as the speed that a body would acquire in falling freely from a height \(h\)."
Technical Schematic
h
P₁
P₂
v
The stream follows a parabolic trajectory as it converts potential energy to horizontal kinetic energy.
Deriving the Law
Torricelli's Law is a specific application of Bernoulli’s Principle , which relates pressure, velocity, and height in a moving fluid. By analyzing energy at the surface (P₁) and the orifice (P₂), we find:
Energy Conservation (Bernoulli)
\[ P_1 + \frac{1}{2}\rho v_1^2 + \rho gh_1 = P_2 + \frac{1}{2}\rho v_2^2 + \rho gh_2 \]
Simplifying Assumptions
The container is open to the atmosphere at both the top and the orifice (\(P_1 = P_2 = P_{atm}\)).
The surface area of the tank is much larger than the hole, so the surface velocity is negligible (\(v_1 \approx 0\)).
Final Efflux Result
\[ v = \sqrt{2gh} \]
Derived velocity at exit orifice
Core Concepts
1. Height is Power
The velocity of the fluid depends only on the vertical distance between the surface and the hole. It does not depend on the mass of the fluid, the shape of the tank, or the fluid's density (assuming it is inviscid).
2. Free-Fall Analogy
If you dropped a stone from height \(h\), its speed when hitting the ground would be exactly \(\sqrt{2gh}\). Water exiting a tank at depth \(h\) follows this same conversion: all potential energy becomes kinetic energy.
3. Pressure Influence
If the tank is pressurized (sealed with compressed air), the efflux velocity will increase significantly as the internal pressure (\(P_1\)) adds more energy to the system, effectively acting like extra "height".
Engineering Applications
Dam Design
Hydroelectric dams place turbines as low as possible to maximize the fluid height (\(h\)), resulting in higher velocity and more power generation. Doubling height increases velocity by \(\sqrt{2}\).

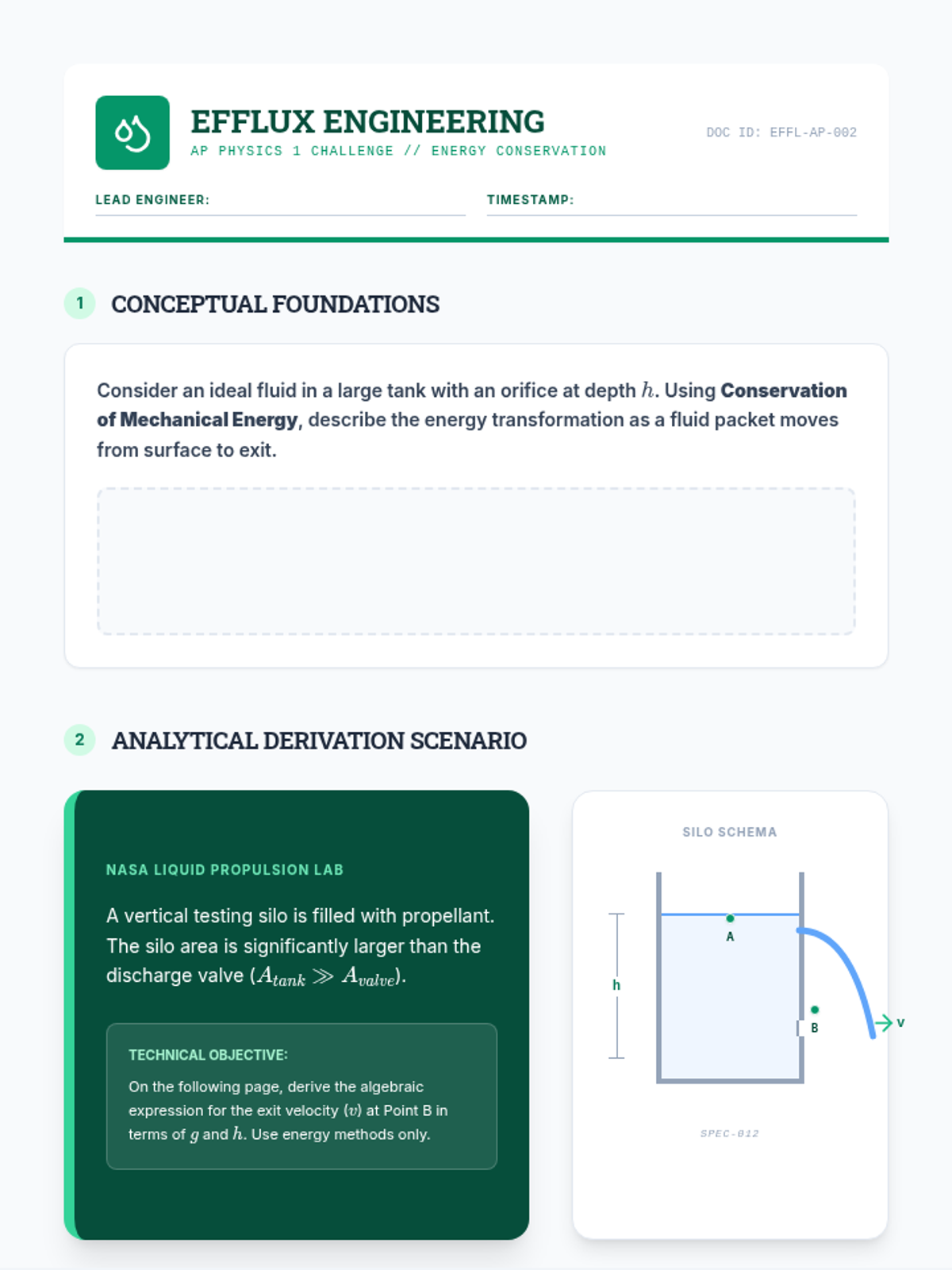

Efflux Engineering AP Physics 1 Worksheet Revised Efflux Engineering
AP Physics 1 Challenge // Energy Conservation
DOC ID: EFFL-AP-002
Lead Engineer:
Timestamp:
1
Conceptual Foundations
Consider an ideal fluid in a large tank with an orifice at depth \(h\). Using Conservation of Mechanical Energy , describe the energy transformation as a fluid packet moves from surface to exit.
2
Analytical Derivation Scenario
NASA Liquid Propulsion Lab
A vertical testing silo is filled with propellant. The silo area is significantly larger than the discharge valve (\(A_{tank} \gg A_{valve}\)).
Technical Objective:
On the following page, derive the algebraic expression for the exit velocity (\(v\)) at Point B in terms of \(g\) and \(h\). Use energy methods only.
Silo Schema
h
A
B
v
SPEC-012
2
Work Area: NASA Propulsion Silo
Part A: Mathematical Derivation
Show the full energy balance from Surface (A) to Exit (B).
Part B: Numeric Computation
Calculate \(v\) if \(h = 12.5\) m and \(g = 9.8\) m/s².
Exit Velocity \(v\) =
Value
m/s
3
Industrial Scale Application
A hydroelectric turbine requires an intake velocity of at least 35 m/s. Using your derived formula, calculate the minimum depth \(h\) below the reservoir surface for the intake pipe.
Algebraic Solution Workspace:
Minimum Height (\(h_{min}\)) =
Calculated depth
meters

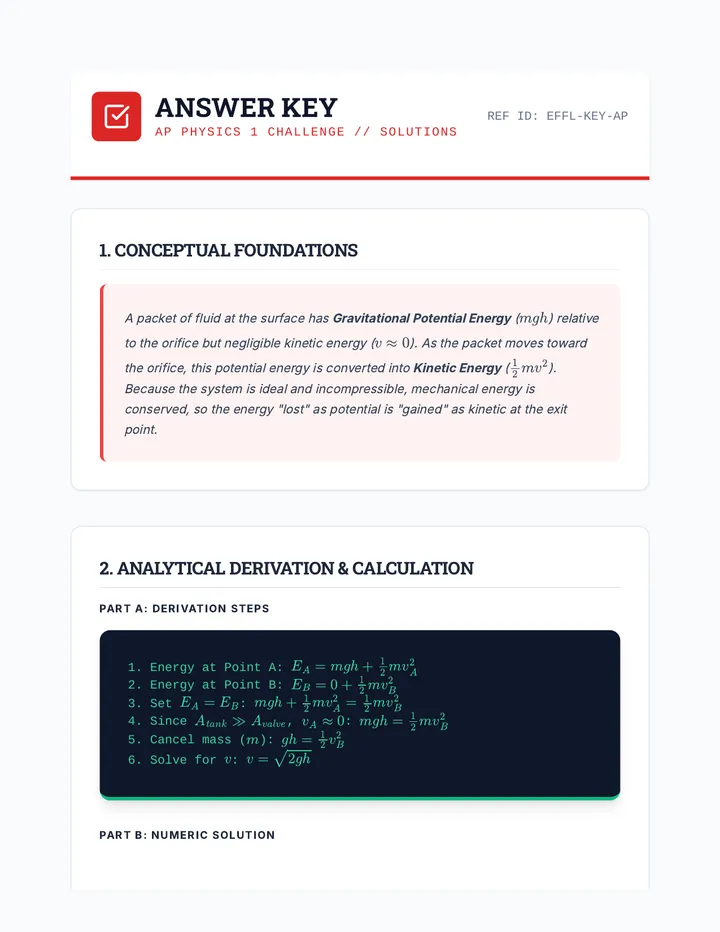

Efflux Engineering AP Answer Key Answer Key

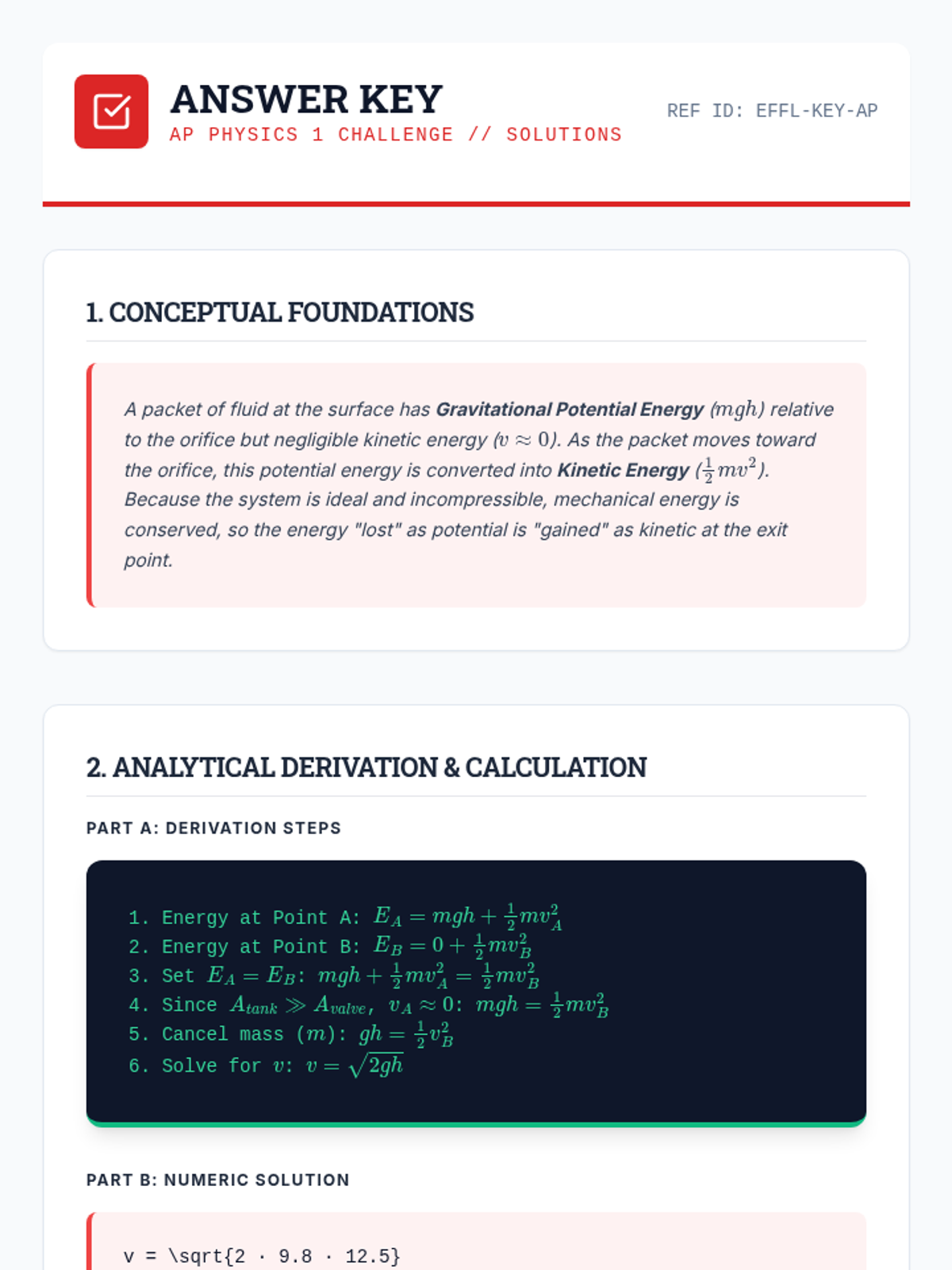

AP Physics 1 Challenge // SOLUTIONS
REF ID: EFFL-KEY-AP
1. Conceptual Foundations
A packet of fluid at the surface has Gravitational Potential Energy (\(mgh\)) relative to the orifice but negligible kinetic energy (\(v \approx 0\)). As the packet moves toward the orifice, this potential energy is converted into Kinetic Energy (\(\frac{1}{2}mv^2\)). Because the system is ideal and incompressible, mechanical energy is conserved, so the energy "lost" as potential is "gained" as kinetic at the exit point.
2. Analytical Derivation & Calculation
Part A: Derivation Steps
1. Energy at Point A: \(E_A = mgh + \frac{1}{2}mv_A^2\)\(v = \sqrt{2gh}\)
Part B: Numeric Solution
v = \sqrt{2 · 9.8 · 12.5}v ≈ 15.65 m/s
3. Industrial Scale Application
v = \sqrt{2gh} → v² = 2gh
Minimum Required Depth: 62.5 meters

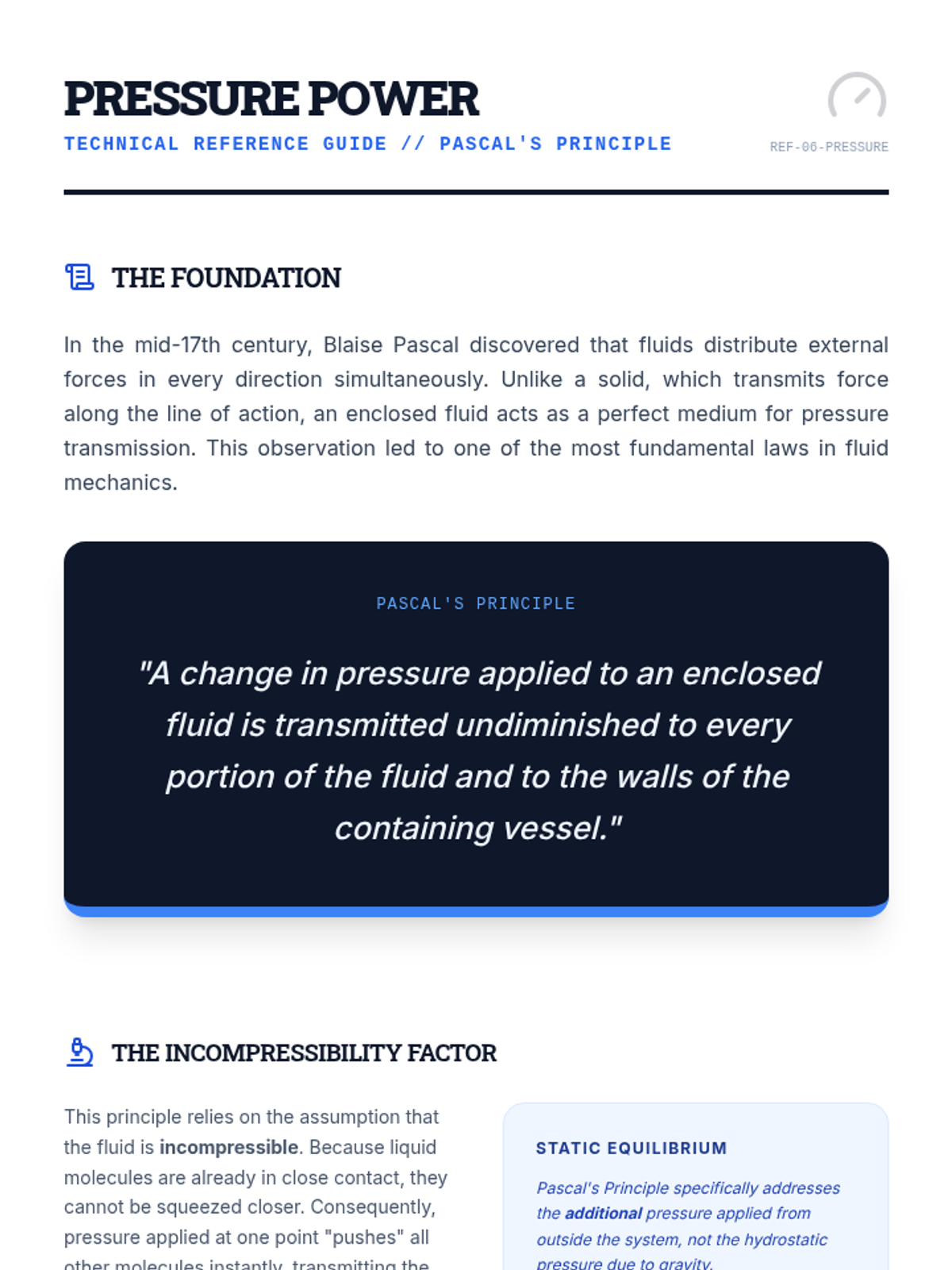

Pascal's Principle Reading Guide Pressure Power

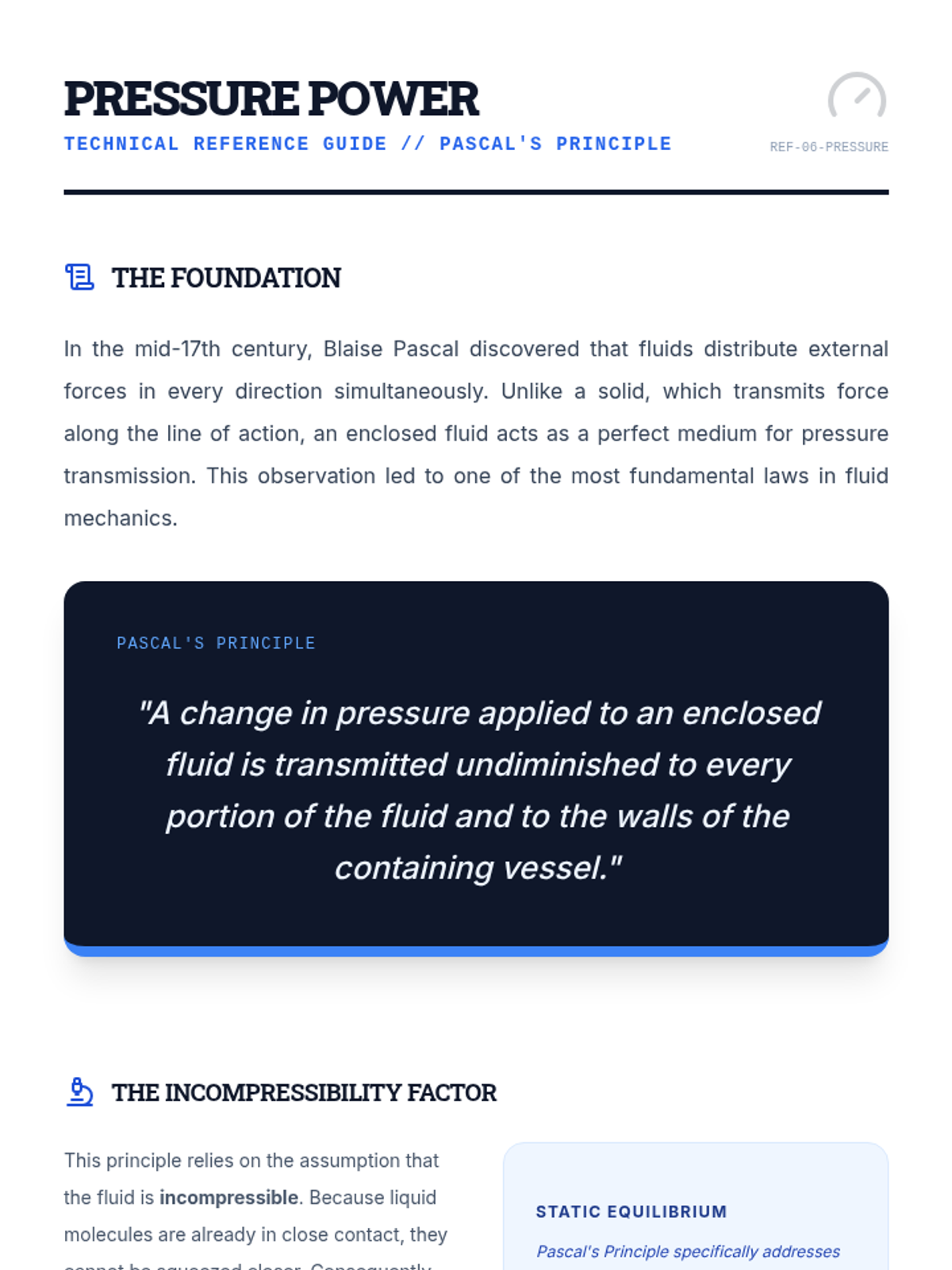

Technical Reference Guide // Pascal's Principle
REF-06-PRESSURE
The Foundation
In the mid-17th century, Blaise Pascal discovered that fluids distribute external forces in every direction simultaneously. Unlike a solid, which transmits force along the line of action, an enclosed fluid acts as a perfect medium for pressure transmission. This observation led to one of the most fundamental laws in fluid mechanics.
Pascal's Principle
"A change in pressure applied to an enclosed fluid is transmitted undiminished to every portion of the fluid and to the walls of the containing vessel."
The Incompressibility Factor
This principle relies on the assumption that the fluid is incompressible . Because liquid molecules are already in close contact, they cannot be squeezed closer. Consequently, pressure applied at one point "pushes" all other molecules instantly, transmitting the energy throughout the entire volume.
Static Equilibrium
Pascal's Principle specifically addresses the additional pressure applied from outside the system, not the hydrostatic pressure due to gravity.
The Hydraulic Multiplier
By connecting two pistons of different surface areas with an enclosed fluid, we create a machine that multiplies input force. Since the pressure (\(P\)) must be equal at both pistons (\(P_1 = P_2\)), a small force on a small area creates a large force on a large area.
Technical Schematic: Force Multiplication Equilibrium
FORCE F₁ Area A₁ FORCE F₂ Area A₂ UNDIMINISHED PRESSURE
The Equilibrium Equation
Because pressure is transmitted undiminished:
\[ \frac{F_1}{A_1} = \frac{F_2}{A_2} \]
Force Multiplication
Output force increases with the area ratio:
\[ F_2 = F_1 \cdot \left( \frac{A_2}{A_1} \right) \]
Mechanical Advantage: The ratio \( A_2/A_1 \) acts as a multiplier. Larger output pistons provide greater force output.
The Conservation of Energy
A hydraulic system multiplies force , but it cannot multiply work . The larger output force comes at a cost: distance.
Work Balance
Work (\(W = F \cdot d\)) must be conserved. If output force is higher, the output distance is proportionally smaller.
Energy In = Energy Out
\[ F_1 d_1 = F_2 d_2 \]
Volume Displacement
The volume of fluid pushed down (\(V_1\)) must equal the volume that rises (\(V_2\)).
V₁ = V₂
Pascal's Principle Reading Guide Revised Final Pressure Power
Technical Reference Guide // Pascal's Principle
REF-06-PRESSURE
The Foundation
In the mid-17th century, Blaise Pascal discovered that fluids distribute external forces in every direction simultaneously. Unlike a solid, which transmits force along the line of action, an enclosed fluid acts as a perfect medium for pressure transmission. This observation led to one of the most fundamental laws in fluid mechanics.
Pascal's Principle
"A change in pressure applied to an enclosed fluid is transmitted undiminished to every portion of the fluid and to the walls of the containing vessel."
The Incompressibility Factor
This principle relies on the assumption that the fluid is incompressible . Because liquid molecules are already in close contact, they cannot be squeezed closer. Consequently, pressure applied at one point "pushes" all other molecules instantly.
Static Equilibrium
Pascal's Principle specifically addresses the additional pressure applied from outside the system.
The Hydraulic Multiplier
By connecting two pistons of different surface areas with an enclosed fluid, we create a machine that multiplies input force. Since the pressure P must be equal at both pistons (P1 = P2 ), a small force on a small area creates a large force on a large area.
Technical Schematic: FIG 02-C // Force Multiplication
INPUT F1 Area A1 OUTPUT F2 Area A2 P1 = P2
Pressure Balance
In an enclosed system, pressure is uniform:
\[ P_1 = P_2 \]
\[ \frac{F_1}{A_1} = \frac{F_2}{A_2} \]
Force Multiplication
Output force scales with the area ratio:
\[ F_2 = F_1 \cdot \left( \frac{A_2}{A_1} \right) \]
Conservation of Energy
While a hydraulic system multiplies force , it cannot multiply work . If the output force is larger, the distance the output piston moves must be proportionally smaller.
Work Balance
Work (W = F · d ) is conserved.
Energy In = Energy Out
\[ F_1 d_1 = F_2 d_2 \]
Volume Displacement
Fluid volume (V ) is constant.
V1 = V2
\[ A_1 d_1 = A_2 d_2 \]
Engineering Applications
Brakes
Foot force is transmitted to stop wheels.
Lifts

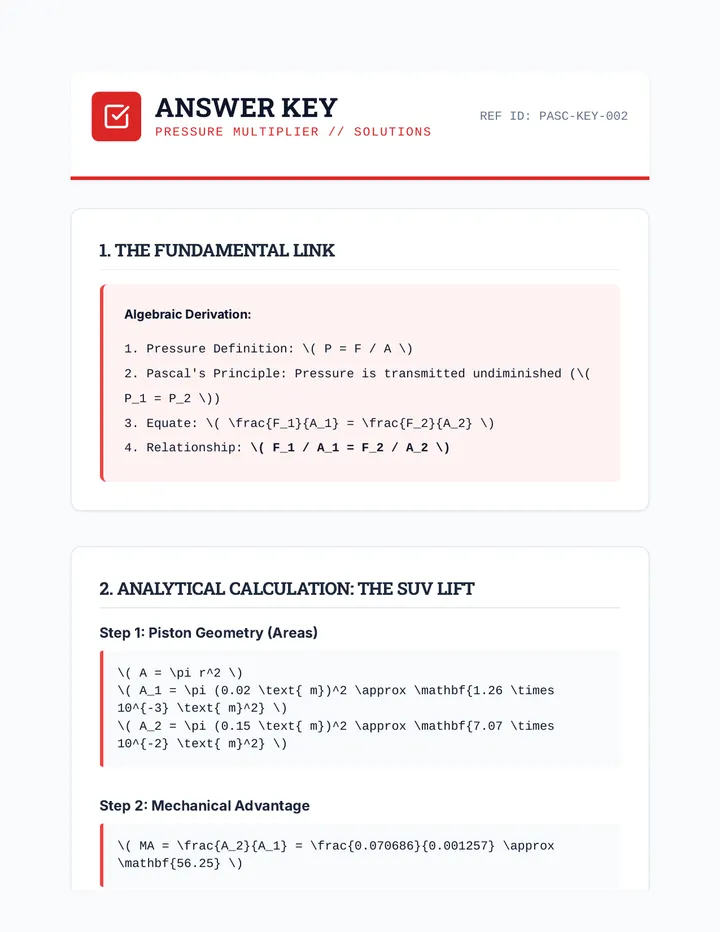

Pascal's Principle Answer Key Answer Key

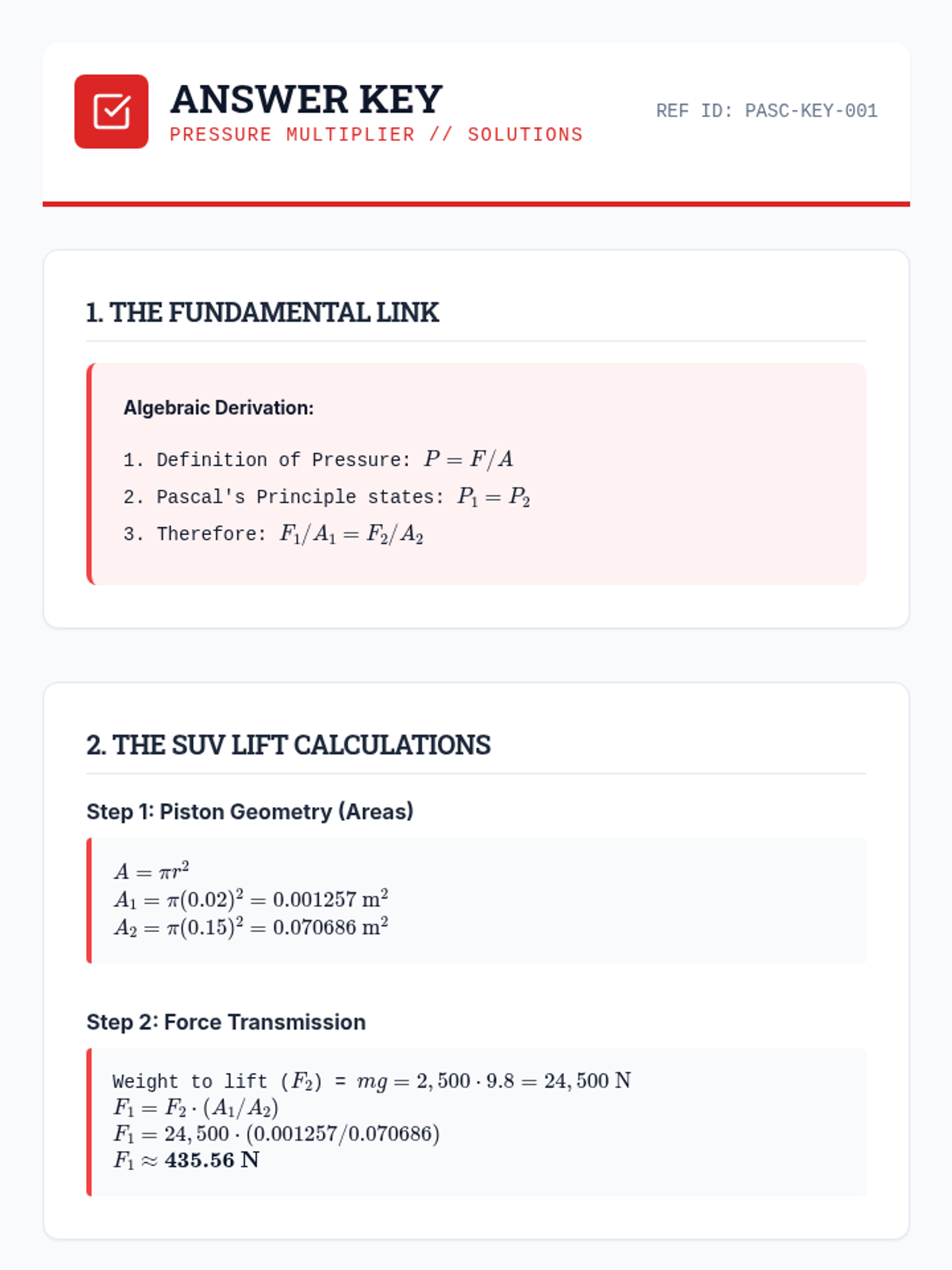

PRESSURE MULTIPLIER // SOLUTIONS
REF ID: PASC-KEY-002
1. The Fundamental Link
Algebraic Derivation:
1. Pressure Definition: \( P = F / A \)\( F_1 / A_1 = F_2 / A_2 \)
2. Analytical Calculation: The SUV Lift
Step 1: Piston Geometry (Areas)
\( A = \pi r^2 \)
Step 2: Mechanical Advantage
\( MA = \frac{A_2}{A_1} = \frac{0.070686}{0.001257} \approx \mathbf{56.25} \)
Step 3: Force Transmission
SUV Weight (\( F_2 \)) = \( mg = 2,500 \text{ kg} \cdot 9.8 \text{ m/s}^2 = 24,500 \text{ N} \)
3. The Distance Trade-Off
Work is conserved: \( W_{in} = W_{out} \implies F_1 d_1 = F_2 d_2 \).
\( d_1 = d_2 \cdot \frac{F_2}{F_1} = d_2 \cdot MA \)
Pascal's Principle Worksheet AP Physics 1 Pressure Multiplier

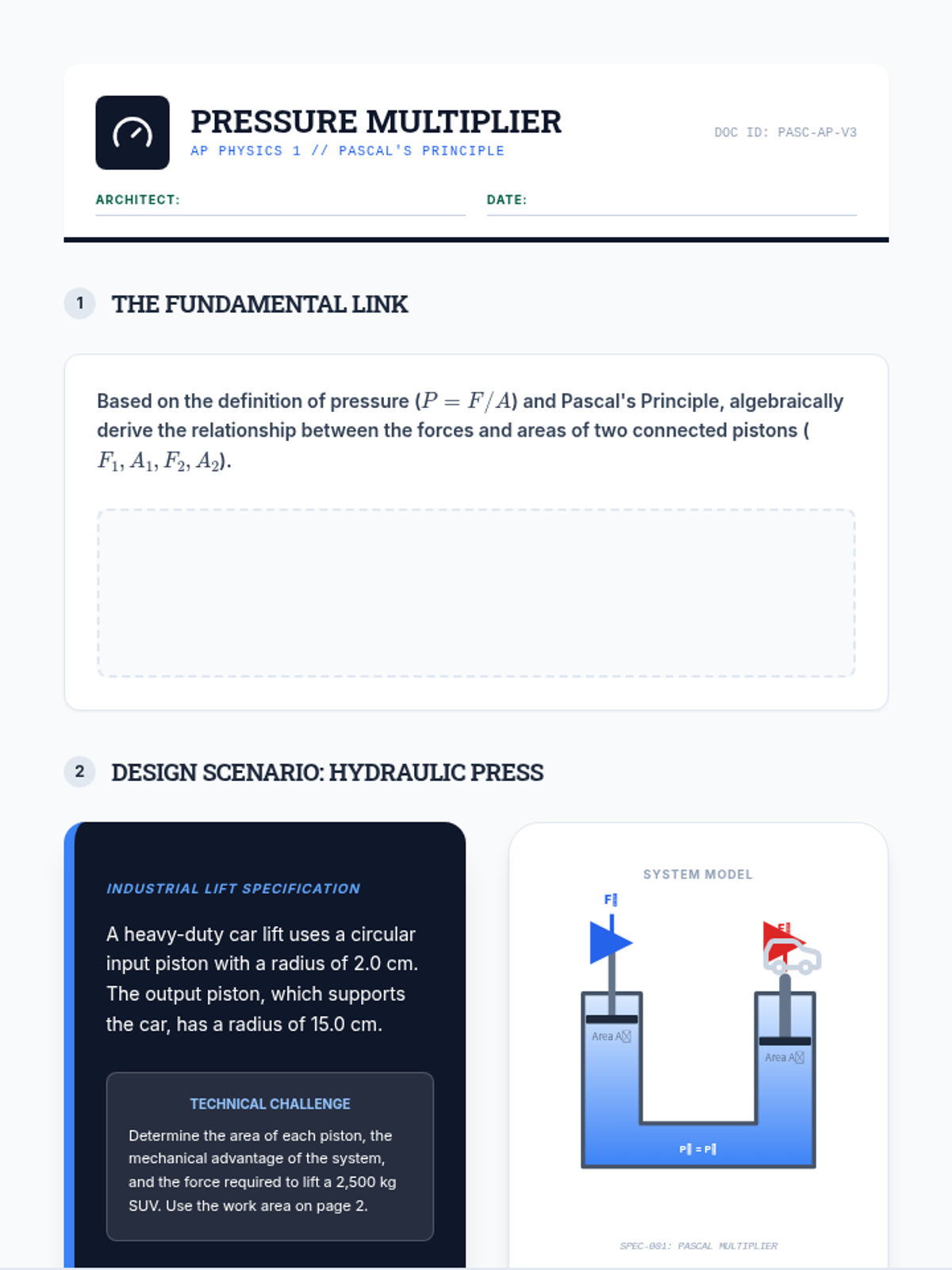

AP Physics 1 // Pascal's Principle
DOC ID: PASC-AP-V6
Architect:
Date:
1
The Fundamental Link
Based on the definition of pressure \( P = F/A \) and Pascal's Principle, algebraically derive the relationship between the forces and areas of two connected pistons (\( F_1, A_1, F_2, A_2 \)).
2
Design Scenario: Hydraulic Press
Industrial Lift Specification
A heavy-duty car lift uses a circular input piston with a radius of \( r_1 = 2.0 \) cm. The output piston, which supports the car, has a radius of \( r_2 = 15.0 \) cm.
Technical Challenge
Determine the area of each piston, the mechanical advantage of the system, and the force required to lift a 2,500 kg SUV. Show all steps on the following page.
System Model
F1 Area A1 F2 Area A2 P1 = P2
SPEC-001: PASCAL MULTIPLIER
3
Analytical Calculation: The SUV Lift
Step 1: Piston Geometry
Calculate the areas \( A_1 \) and \( A_2 \) in square meters (\( m^2 \)).
\( A_1 = \)
\( A_2 = \)
Step 2: Mechanical Advantage
Determine the theoretical mechanical advantage (MA) of the system.
MA =
Step 3: Force Transmission
Calculate the required input force \( F_1 \) to lift a 2,500 kg SUV (Assume \( g = 9.8 \text{ m/s}^2 \)).
Input Force \( F_1 = \)
Result in Newtons
N
4
The Distance Trade-Off
"While force is multiplied, work remains constant."
If the SUV must be lifted to a height of \( d_2 = 1.2 \) meters, how far must the input piston be pushed down (\( d_1 \))? Use the principle of conservation of energy to prove your answer.
Mathematical Solution Workspace:
Required Displacement \( d_1 = \)
Result in meters
meters

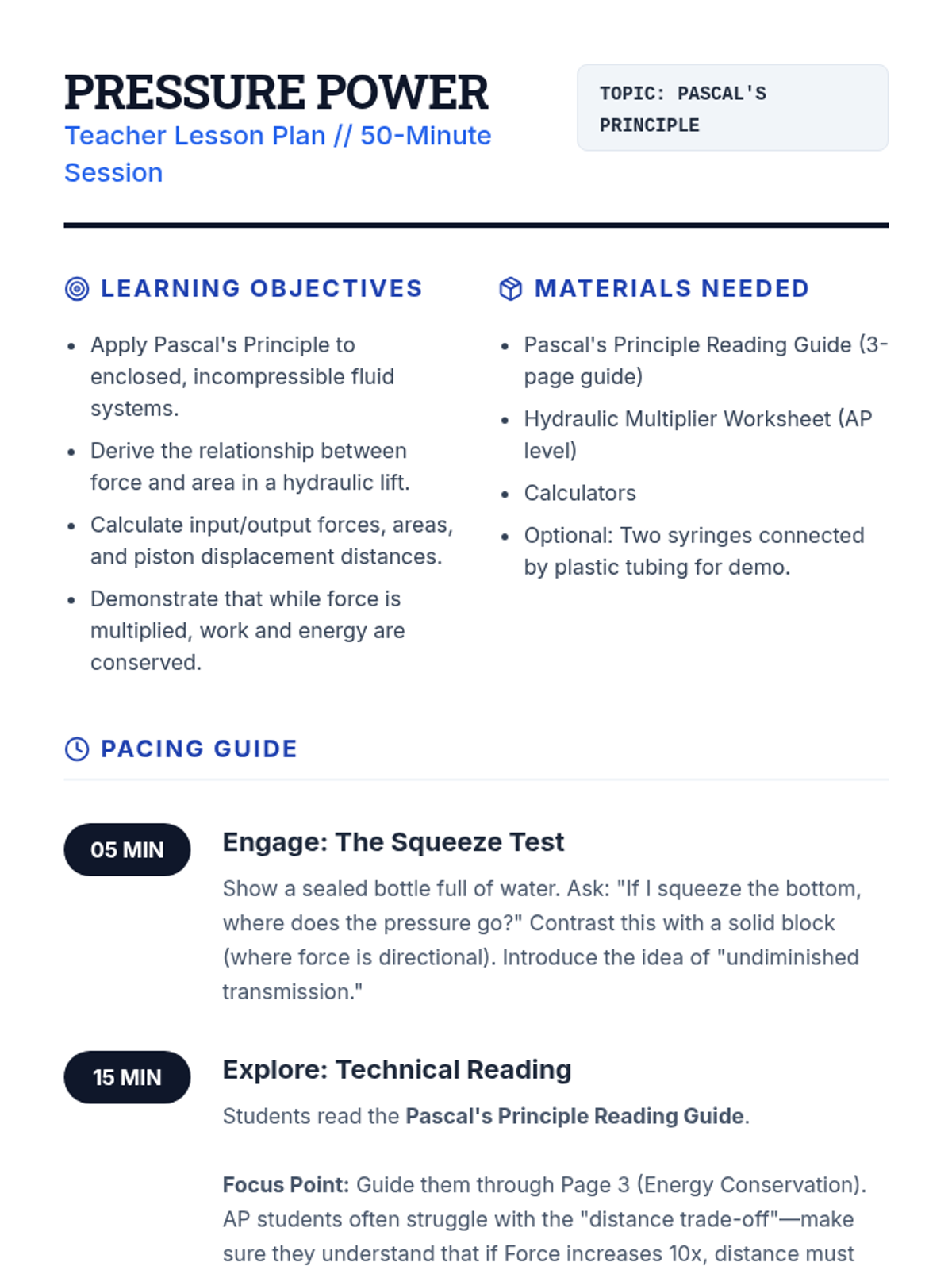

Pressure Power Lesson Plan Pressure Power
Teacher Lesson Plan // 50-Minute Session
Topic: Pascal's Principle
Learning Objectives
Apply Pascal's Principle to enclosed, incompressible fluid systems.
Derive the relationship between force and area in a hydraulic lift.
Calculate input/output forces, areas, and piston displacement distances.
Demonstrate that while force is multiplied, work and energy are conserved.
Materials Needed
Pascal's Principle Reading Guide (3-page guide)
Hydraulic Multiplier Worksheet (AP level)
Calculators
Optional: Two syringes connected by plastic tubing for demo.
Pacing Guide
05 MIN
Engage: The Squeeze Test
Show a sealed bottle full of water. Ask: "If I squeeze the bottom, where does the pressure go?" Contrast this with a solid block (where force is directional). Introduce the idea of "undiminished transmission."
15 MIN
Explore: Technical Reading
Students read the Pascal's Principle Reading Guide .
Focus Point: Guide them through Page 3 (Energy Conservation). AP students often struggle with the "distance trade-off"—make sure they understand that if Force increases 10x, distance must decrease by 10x.
20 MIN
Practice: The Multiplier Worksheet
Students work through the Hydraulic Multiplier Worksheet .
Teacher Tip: Watch for students forgetting to convert centimeters to meters or using Radius when the formula requires Area (\( \pi r^2 \)).
10 MIN
Apply: Car Lift Reflection
Ask: "If a car lift multiplies your weight by 50, but you have to pump a handle 50 times just to lift the car 1 inch, is the machine actually 'helping' you?" Discuss the definition of power vs. force.
Differentiation Strategies
For Scaffolding
Provide the area formula (\( A = \pi r^2 \)) explicitly on the board. Group students so they can compare their "Work In vs. Work Out" calculations for consistency.
For Extension
Ask them to factor in friction or fluid viscosity—how would these real-world variables change the "undiminished" part of the law?
Pascal's Principle Reading Guide Revised Pressure Power
Technical Reference Guide // Pascal's Principle
REF-06-PRESSURE
The Foundation
In the mid-17th century, Blaise Pascal discovered that fluids distribute external forces in every direction simultaneously. Unlike a solid, which transmits force along the line of action, an enclosed fluid acts as a perfect medium for pressure transmission. This observation led to one of the most fundamental laws in fluid mechanics.
Pascal's Principle
"A change in pressure applied to an enclosed fluid is transmitted undiminished to every portion of the fluid and to the walls of the containing vessel."
The Incompressibility Factor
This principle relies on the assumption that the fluid is incompressible . Because liquid molecules are already in close contact, they cannot be squeezed closer. Consequently, pressure applied at one point "pushes" all other molecules instantly, transmitting the energy throughout the entire volume.
Static Equilibrium
Pascal's Principle specifically addresses the additional pressure applied from outside the system, not the hydrostatic pressure due to gravity.
The Hydraulic Multiplier
By connecting two pistons of different surface areas with an enclosed fluid, we create a machine that multiplies input force. Since the pressure (\(P\)) must be equal at both pistons (\(P_1 = P_2\)), a small force on a small area creates a large force on a large area.
Technical Schematic: FIG 02-C // Hydraulic Equilibrium
INPUT F₁ AREA A₁ OUTPUT F₂ AREA A₂ PRESSURE P₁ = P₂
The Equilibrium Equation
Because pressure is transmitted equally throughout the fluid:
\[ \frac{F_1}{A_1} = \frac{F_2}{A_2} \]
Force Multiplication
The output force scales with the surface area:
\[ F_2 = F_1 \cdot \left( \frac{A_2}{A_1} \right) \]
The Conservation of Energy
In physics, the Law of Conservation of Energy is absolute. While a hydraulic system multiplies force , it cannot multiply work or energy . This trade-off is a fundamental concept in mechanical advantage.
Work Balance
Work (\(W = F \cdot d\)) must be conserved. If the output force is larger, the distance the output piston moves must be proportionally smaller.
Energy In = Energy Out
\[ F_1 d_1 = F_2 d_2 \]
Volume Displacement
Because liquids are incompressible, the volume of fluid pushed down (\(V_1\)) must exactly equal the volume that rises (\(V_2\)).

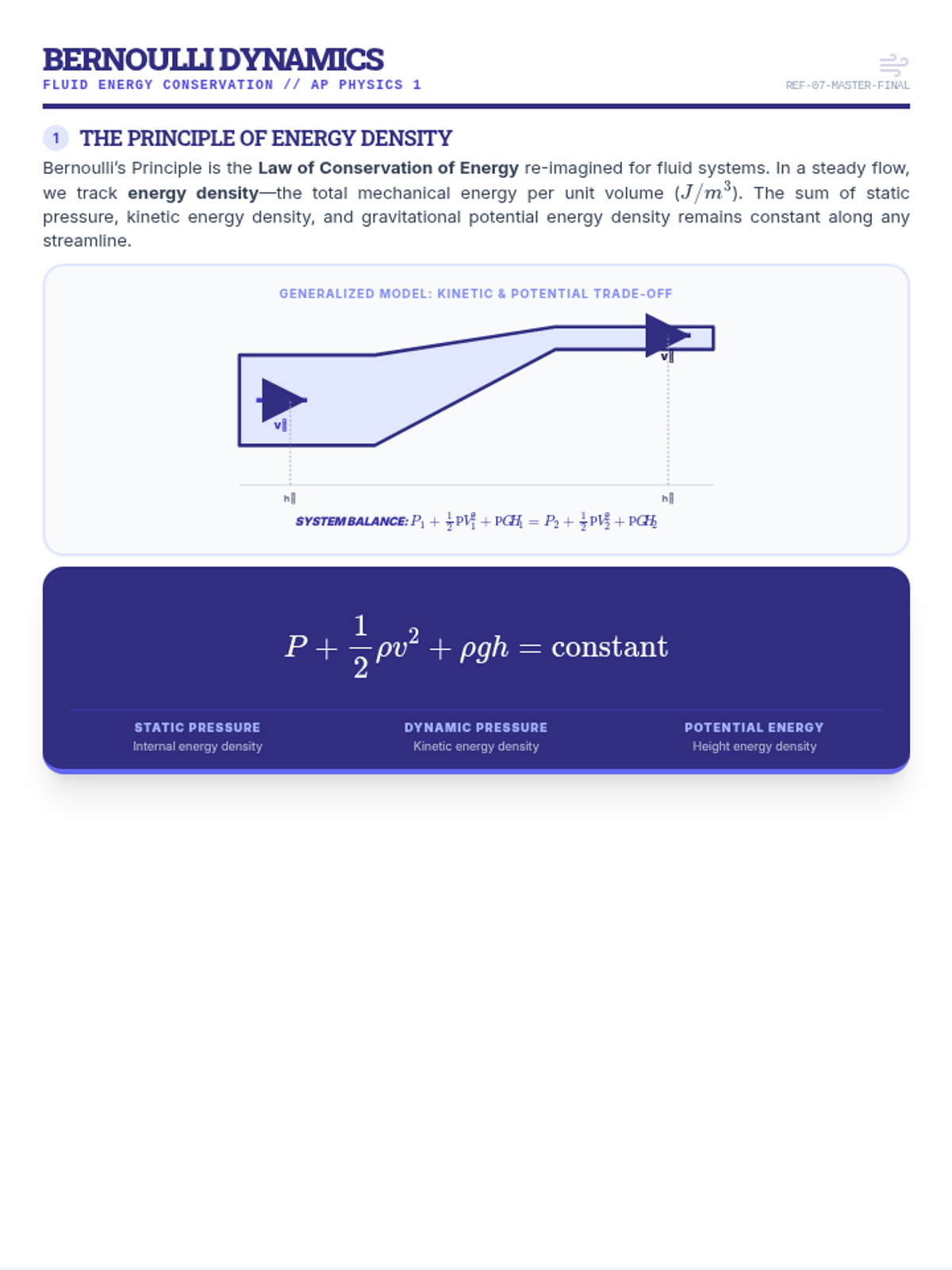

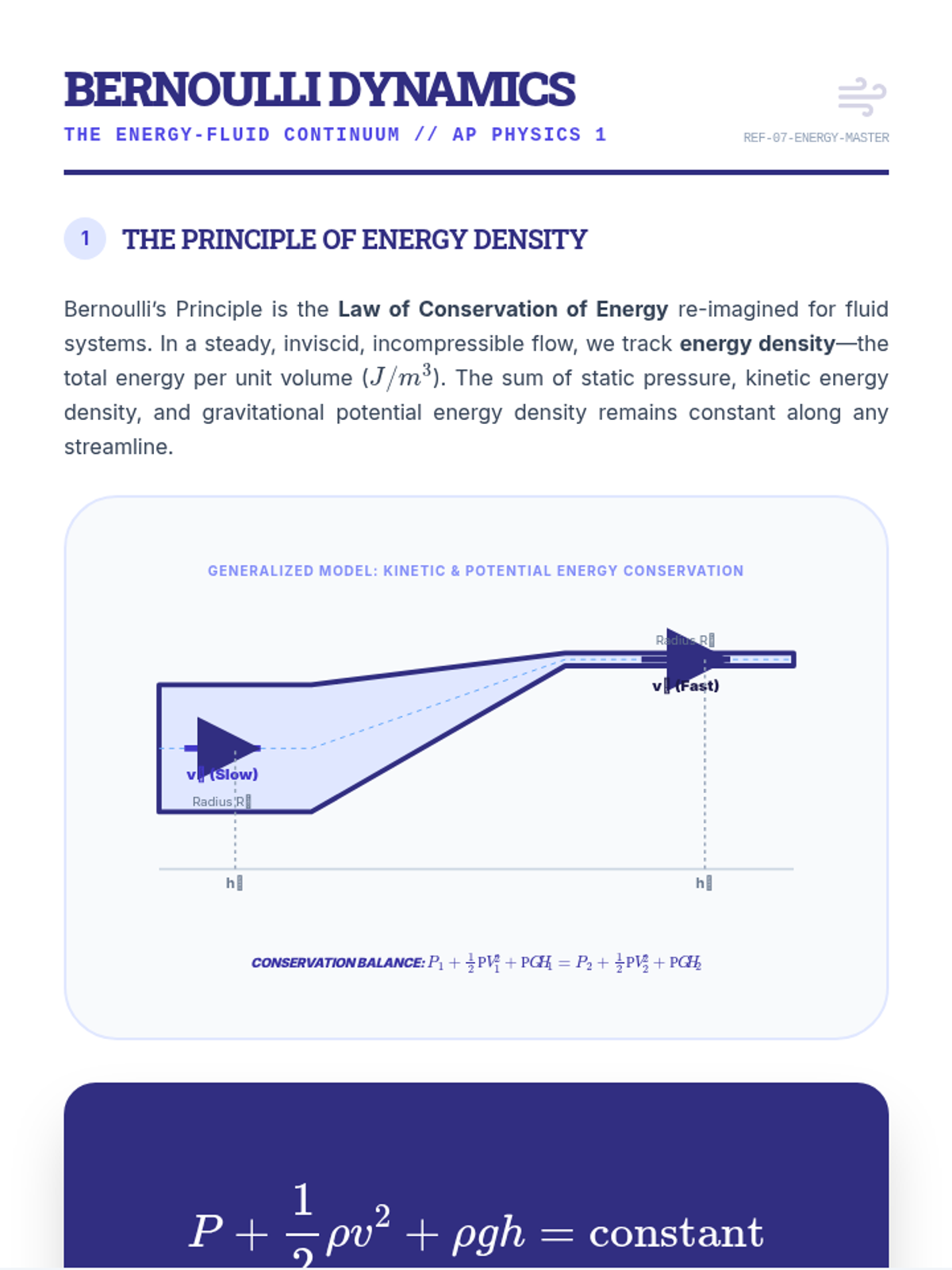

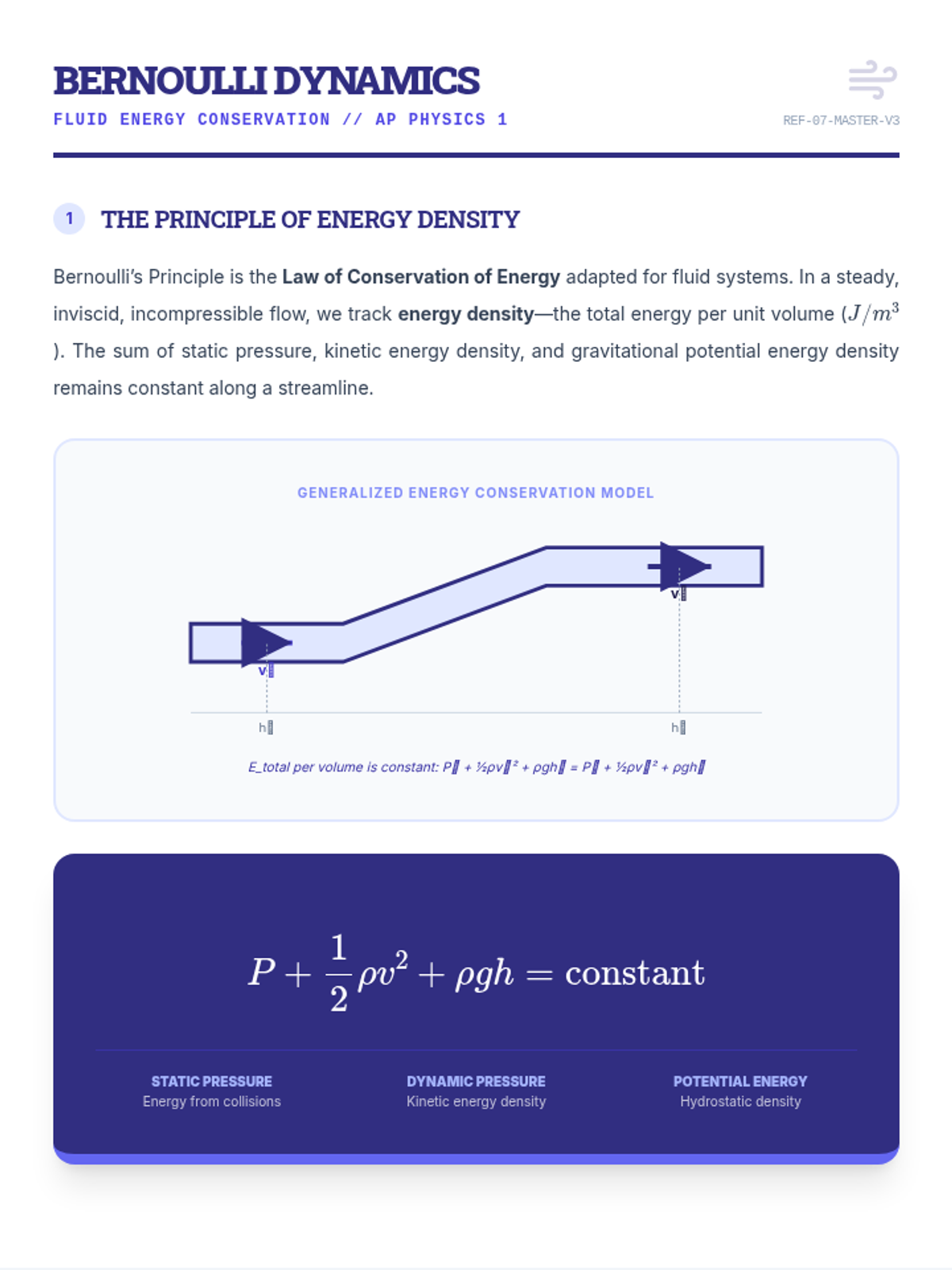

Bernoulli Dynamics Master Reading Guide Elaborate Final V2 Bernoulli Dynamics

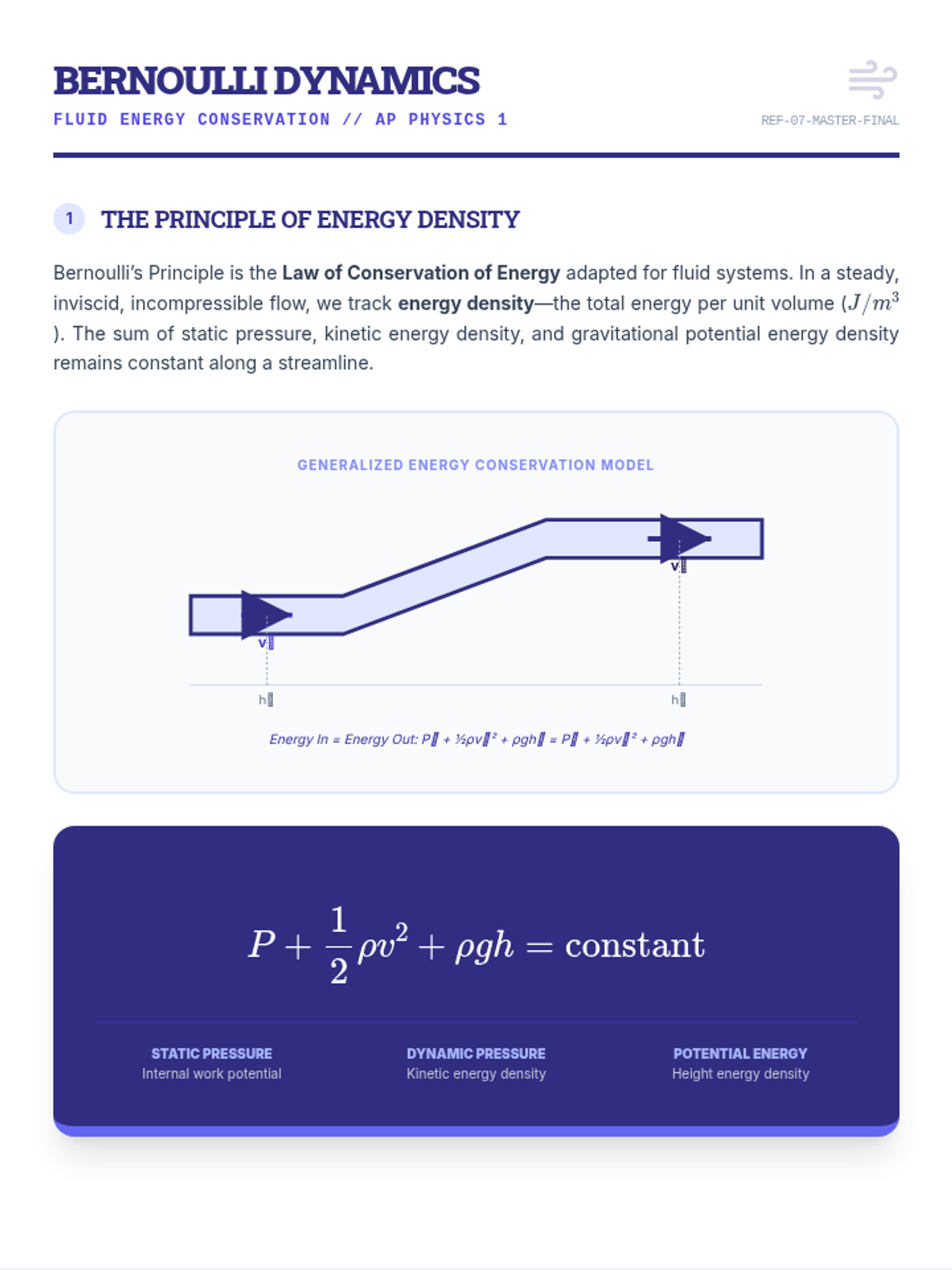

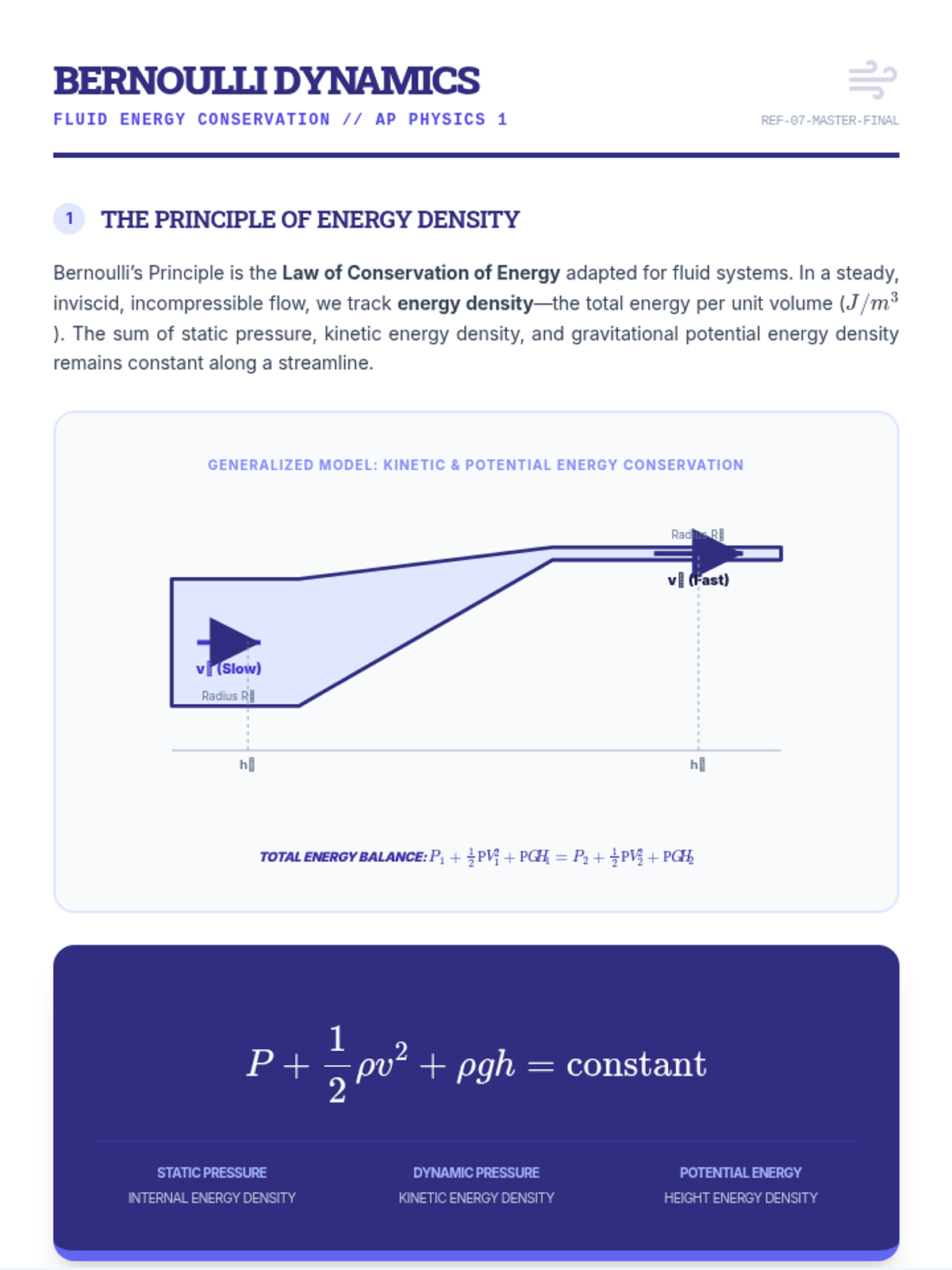

Fluid Energy Conservation // AP Physics 1
REF-07-MASTER-FINAL-V4
1
The Principle of Energy Density
Bernoulli’s Principle is the Law of Conservation of Energy re-imagined for fluid systems. In a steady flow, we track energy density —the total mechanical energy per unit volume \( \text{J/m}^3 \). The sum of static pressure, kinetic energy density, and gravitational potential energy density remains constant along any streamline.
Generalized Model: Kinetic & Potential Trade-off
v1 v2 h1 h2
\[ P_1 + \frac{1}{2}\rho v_1^2 + \rho gh_1 = P_2 + \frac{1}{2}\rho v_2^2 + \rho gh_2 \]
\[ P + \frac{1}{2}\rho v^2 + \rho gh = \text{constant} \]
Static Pressure
Internal energy density
Dynamic Pressure
Kinetic energy density
Potential Energy
Height energy density
Concept Connection: Energy Density Units
How can pressure (Force/Area) be equivalent to energy per unit volume (Energy/Volume)? Show the dimensional derivation.
2
The Pressure Paradox
In fluid dynamics, higher speed leads to lower pressure. This Venturi Effect occurs because fluid accelerating through a constriction must convert its potential energy (pressure) into kinetic energy.
Schematic FIG 03: Venturi Pressure Gradient
High P1 Low P2 Slower Flow Faster Flow
The Funnel Paradox
A ball is pulled into a funnel when air is blown through the bottom. High speed air creates a low pressure pocket that pulls the ball upward.
Shower Curtain Paradox
Water spray accelerates air inside the stall, lowering internal pressure. Higher static bathroom pressure outside pushes the curtain inward.
Check for Understanding
If the area of a pipe is halved, the velocity doubles (Continuity). Based on Bernoulli, what specific change occurs to the pressure?
3
Aerodynamic Lift
Airfoils generate lift by creating a pressure imbalance. The wing shape forces air over the top to travel at much higher velocities than the air underneath, resulting in a lower pressure zone on top.
Pressure Difference
Lift Equation
\[ P_{\text{bot}} - P_{\text{top}} = \frac{1}{2}\rho(v_{\text{top}}^2 - v_{\text{bot}}^2) \]
Mechanical Lift Force
\[ F_L = \Delta P \times \text{Area} \]
\[ v_{\text{top}} > v_{\text{bot}} \implies P_{\text{top}} < P_{\text{bot}} \]
Bernoulli Principle Reading Guide Bernoulli Dynamics

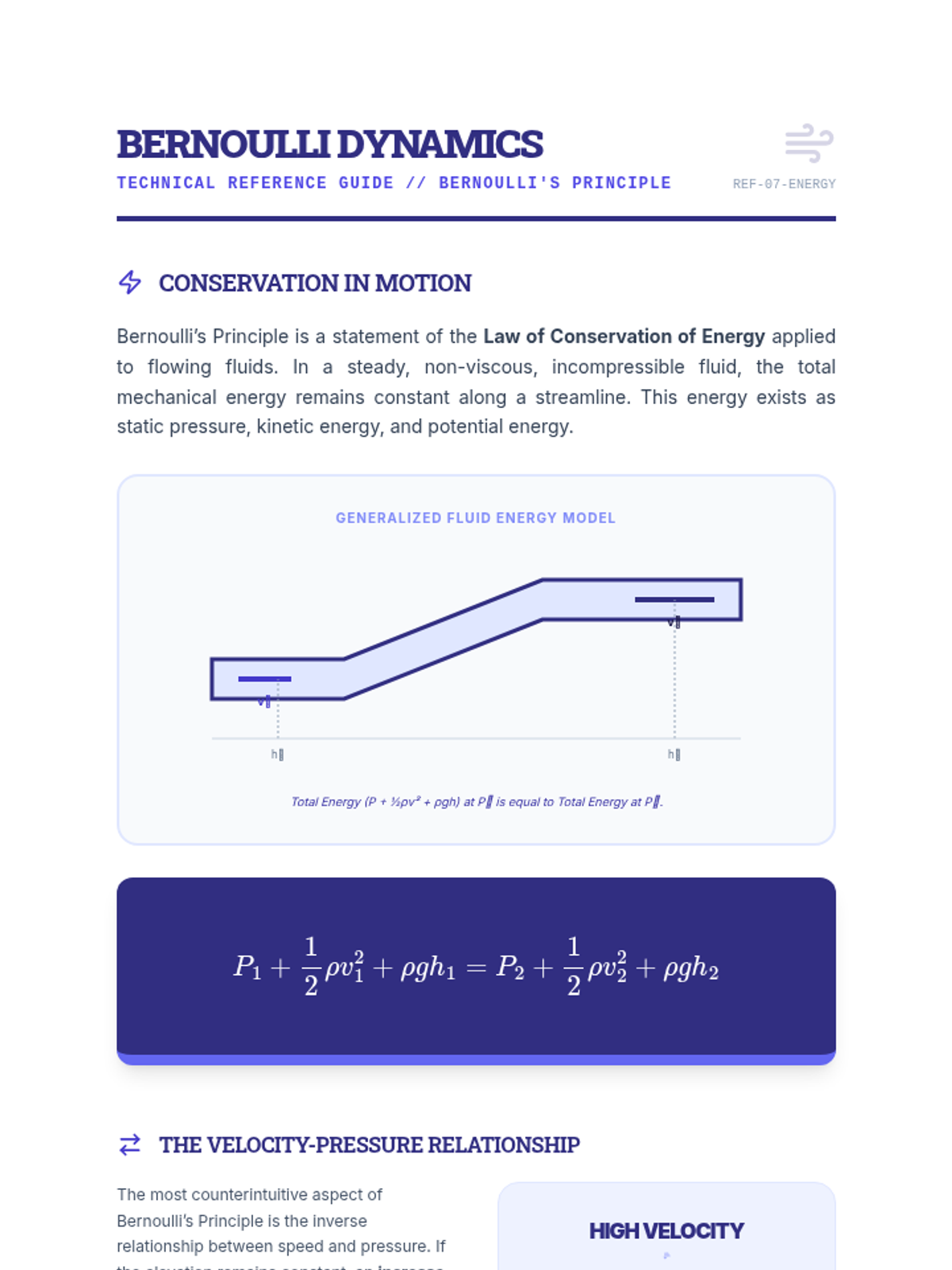

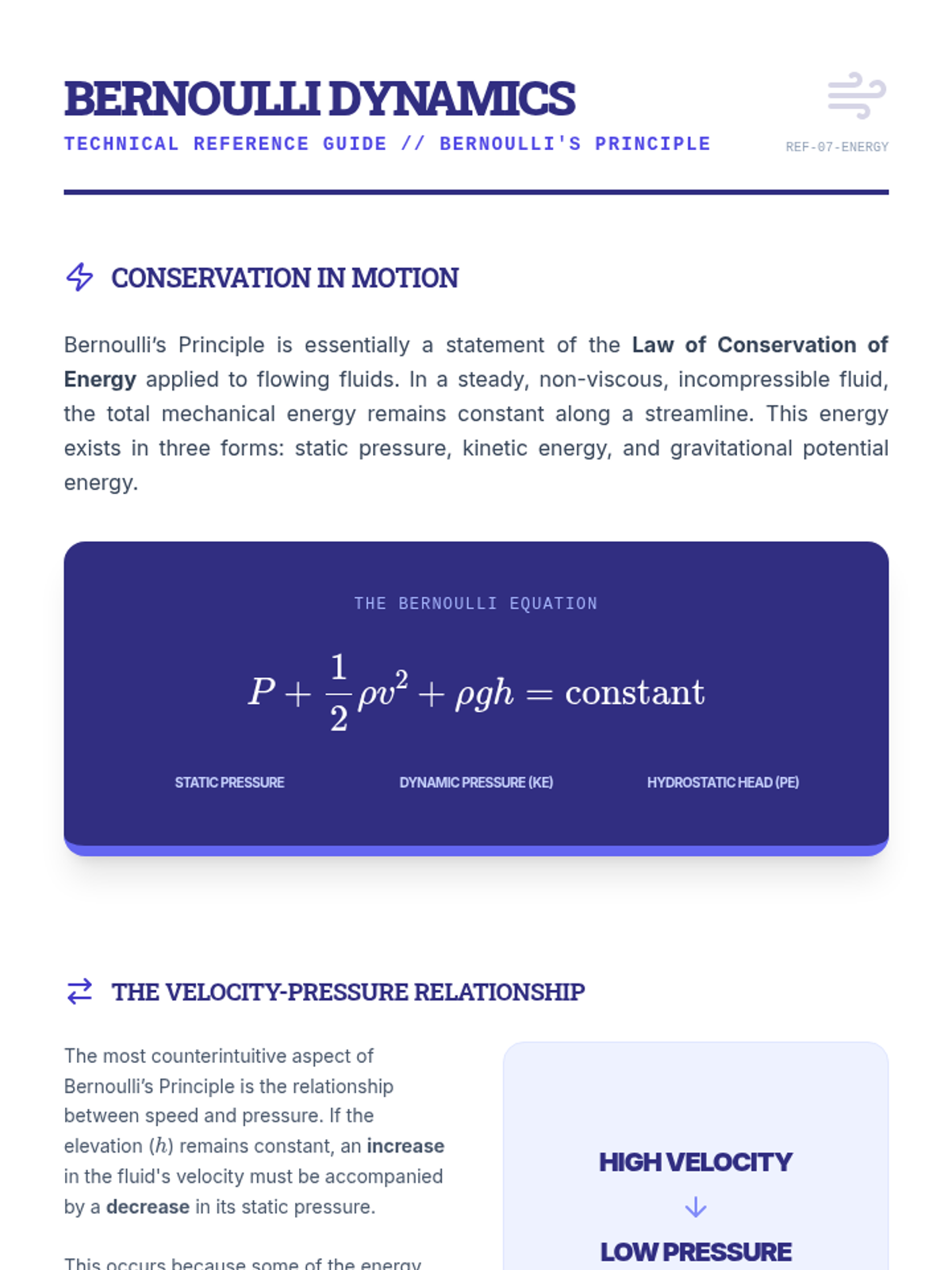

Technical Reference Guide // Bernoulli's Principle
REF-07-ENERGY
Conservation in Motion
Bernoulli’s Principle is essentially a statement of the Law of Conservation of Energy applied to flowing fluids. In a steady, non-viscous, incompressible fluid, the total mechanical energy remains constant along a streamline. This energy exists in three forms: static pressure, kinetic energy, and gravitational potential energy.
The Bernoulli Equation
\[ P + \frac{1}{2}\rho v^2 + \rho gh = \text{constant} \]
Static Pressure
Dynamic Pressure (KE)
Hydrostatic Head (PE)
The Velocity-Pressure Relationship
The most counterintuitive aspect of Bernoulli’s Principle is the relationship between speed and pressure. If the elevation (\(h\)) remains constant, an increase in the fluid's velocity must be accompanied by a decrease in its static pressure.
This occurs because some of the energy previously stored as static pressure must be converted into kinetic energy to move the fluid faster.
High Velocity
Low Pressure
The Venturi Effect
A prime example of this energy trade-off occurs in a constricted pipe, known as a Venturi tube . To maintain the same mass flow rate (Continuity Equation), fluid must speed up as it enters a narrower section. Bernoulli's Principle tells us that this high-speed fluid will have lower pressure than the slower fluid in the wider sections.
Technical Schematic: FIG 03-A // The Venturi Constriction
LOW v HIGH v P₁ P₂
Conclusion: P₂ < P₁ because v₂ > v₁
Continuity Constraint
For an incompressible fluid, the flow rate (\(Q = Av\)) is constant. Smaller Area (\(A\)) forces higher Velocity (\(v\)).
\( A_1 v_1 = A_2 v_2 \)
Energy Balance
The "loss" in potential energy (pressure) provides the "gain" in kinetic energy.
\( \Delta P + \frac{1}{2}\rho \Delta v^2 = 0 \)
Aerodynamics: Generating Lift
Airfoil design utilizes Bernoulli’s Principle to generate lift. An airplane wing is curved on the top and flatter on the bottom. This shape forces air over the top to travel faster than air underneath.
Pressure Differential
Air moving over the curved top travels at High Velocity , creating a Low Pressure zone.
Air moving underneath travels at Lower Velocity , maintaining Higher Pressure .

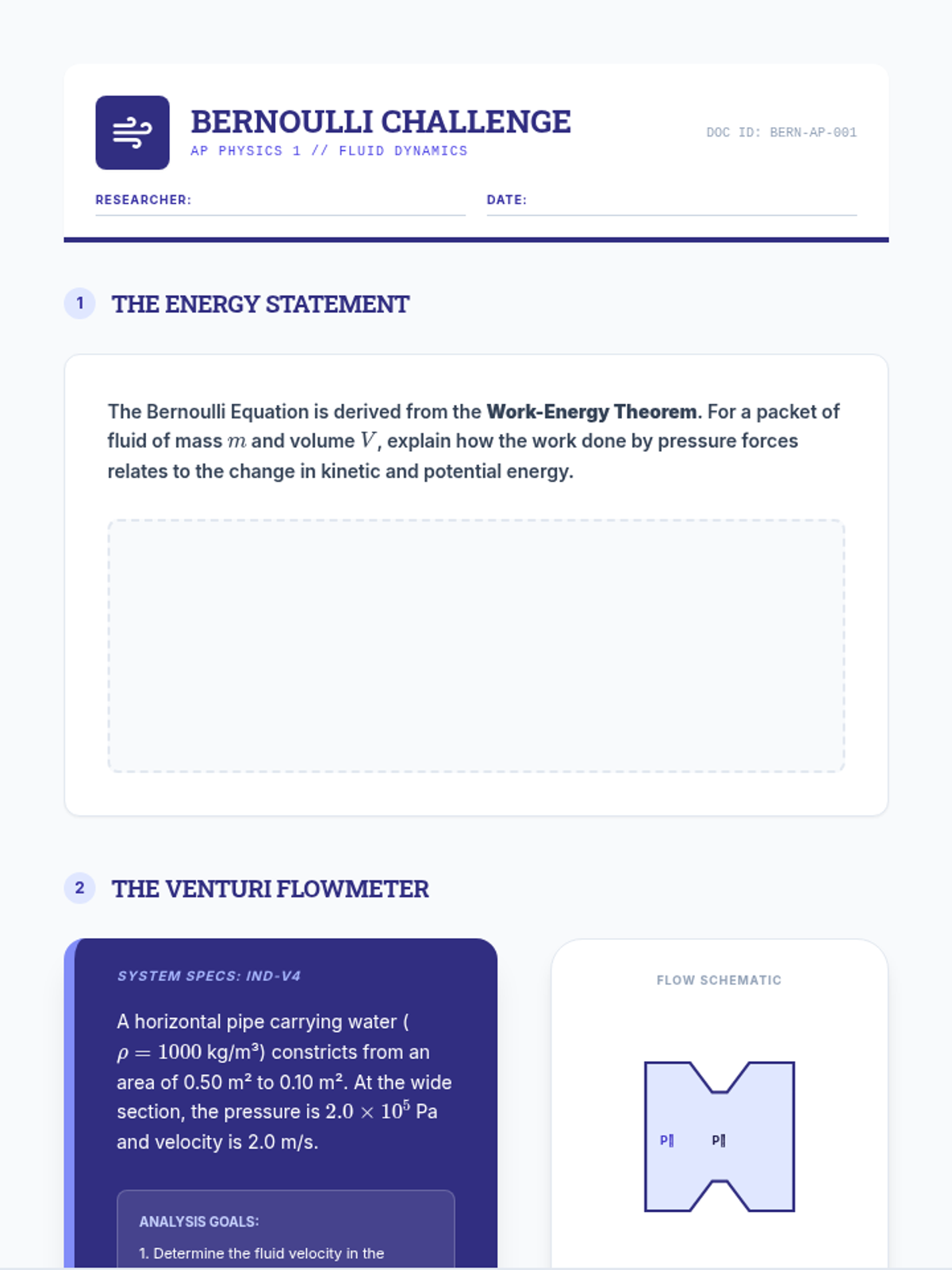

Bernoulli Challenge Worksheet AP Physics 1 Bernoulli Challenge
AP Physics 1 // Fluid Dynamics
DOC ID: BERN-AP-V4
Researcher:
Date:
1
The Energy Statement
The Bernoulli Equation is derived from the Work-Energy Theorem . For a packet of fluid of mass \( m \) and volume \( V \), explain how the work done by pressure forces relates to the change in kinetic energy (\( \Delta K \)) and potential energy (\( \Delta U \)).
2
The Venturi Flowmeter
System Specs: IND-V4
A horizontal pipe carrying water (\( \rho = 1000 \text{ kg/m}^3 \)) constricts from an area of \( 0.50 \text{ m}^2 \) to \( 0.10 \text{ m}^2 \). At the wide section, the pressure is \( 2.0 \times 10^5 \text{ Pa} \) and velocity is \( 2.0 \text{ m/s} \).
Analysis Goals:
1. Determine the fluid velocity in the constricted section.
Flow Schematic
P1 P2
FIG-03: Horizontal Venturi
3
Analytical Calculation: Flowmeter
Step 1: Continuity Equation
Solve for \( v_2 \) given \( A_1 = 0.50 \text{ m}^2 \), \( v_1 = 2.0 \text{ m/s} \), and \( A_2 = 0.10 \text{ m}^2 \).
Constricted Velocity \( v_2 = \)
m/s
Step 2: Bernoulli Application
Solve for \( P_2 \) given \( P_1 = 2.0 \times 10^5 \text{ Pa} \). Assume the pipe is horizontal (\( \Delta h = 0 \)).
Constricted Pressure \( P_2 = \)
Pa
4
Aerodynamic Lift Force
"Converting Pressure Difference to Mechanical Force"
The wings of a small aircraft have a total planform area of \( 25.0 \text{ m}^2 \). During level flight, air moves at \( 150 \text{ m/s} \) over the top surface and \( 135 \text{ m/s} \) across the bottom surface. Calculate the net upward lift force generated by Bernoulli's Principle alone. (Air density \( \rho_{\text{air}} = 1.29 \text{ kg/m}^3 \)).
Mathematical Solution Workspace:
Total Lift Force \( F_L = \)
Newtons

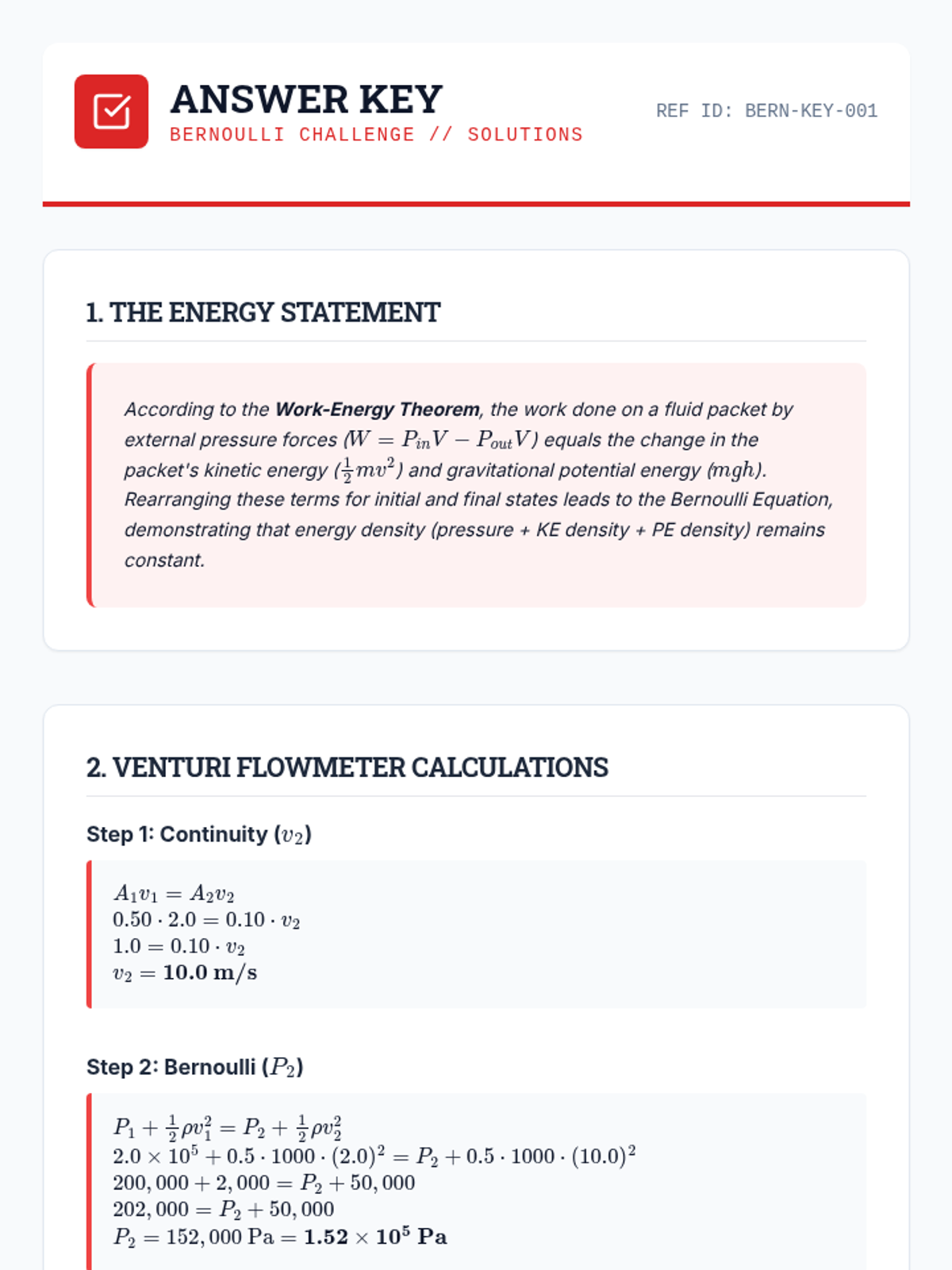

Bernoulli Challenge Answer Key Answer Key
BERNOULLI CHALLENGE // SOLUTIONS
REF ID: BERN-KEY-V2
1. The Energy Statement
According to the Work-Energy Theorem , the work done on a fluid packet by external pressure forces (\( W = P_{1}V - P_{2}V \)) equals the change in the packet's kinetic energy (\( \Delta K = \frac{1}{2}mv^2 \)) and gravitational potential energy (\( \Delta U = mgh \)). Rearranging these terms for initial and final states leads to the Bernoulli Equation, demonstrating that energy density (static pressure + kinetic energy density + potential energy density) remains constant along a streamline.
2. Venturi Flowmeter Calculations
Step 1: Continuity Equation (\( v_2 \))
\( A_1 v_1 = A_2 v_2 \)
Step 2: Bernoulli Equation (\( P_2 \))
\( P_1 + \frac{1}{2}\rho v_1^2 = P_2 + \frac{1}{2}\rho v_2^2 \)
3. Aerodynamic Lift Force
1. Pressure difference (\( \Delta P \)):
2. Total Lift Force (\( F_L \)):

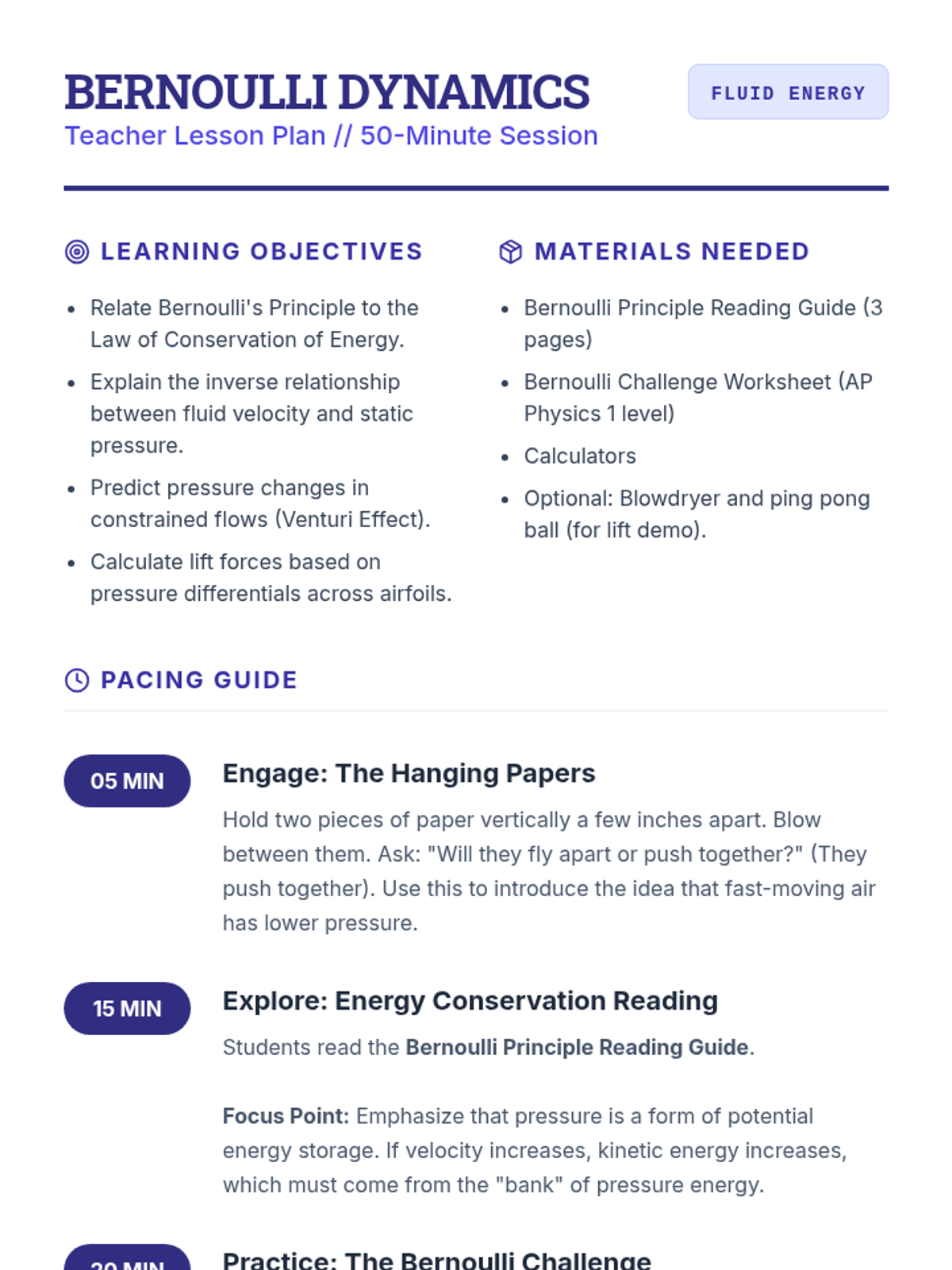

Bernoulli Dynamics Lesson Plan Bernoulli Dynamics
Teacher Lesson Plan // 50-Minute Session
Fluid Energy
Learning Objectives
Relate Bernoulli's Principle to the Law of Conservation of Energy.
Explain the inverse relationship between fluid velocity and static pressure.
Predict pressure changes in constrained flows (Venturi Effect).
Calculate lift forces based on pressure differentials across airfoils.
Materials Needed
Bernoulli Principle Reading Guide (3 pages)
Bernoulli Challenge Worksheet (AP Physics 1 level)
Calculators
Optional: Blowdryer and ping pong ball (for lift demo).
Pacing Guide
05 MIN
Engage: The Hanging Papers
Hold two pieces of paper vertically a few inches apart. Blow between them. Ask: "Will they fly apart or push together?" (They push together). Use this to introduce the idea that fast-moving air has lower pressure.
15 MIN
Explore: Energy Conservation Reading
Students read the Bernoulli Principle Reading Guide .
Focus Point: Emphasize that pressure is a form of potential energy storage. If velocity increases, kinetic energy increases, which must come from the "bank" of pressure energy.
20 MIN
Practice: The Bernoulli Challenge
Students work through the Bernoulli Challenge Worksheet .
Scaffold: For Section 3 (Lift), remind students that the Pressure Difference (\(\Delta P\)) acts on the entire Area of the wing to create the Lift Force.
10 MIN
Apply: The Curveball Reflection
Briefly discuss how a spinning baseball (Magnus Effect) uses Bernoulli's Principle to curve. Ask: "If a ball is spinning clockwise and moving forward, which side has faster air flow?"
Differentiation Strategies
Scaffolding
Provide the specific Bernoulli Equation with \(h_1 = h_2\) already crossed out for the horizontal pipe problem. Focus on the units of pressure (Pascals = N/m²).
Extension
Have advanced students calculate the stagnation pressure (total pressure) at the front tip of an aircraft wing where \(v = 0\) (Pitot tube concept).
Bernoulli Principle Reading Guide Revised V2 Bernoulli Dynamics
Technical Reference Guide // Bernoulli's Principle
REF-07-ENERGY
Conservation in Motion
Bernoulli’s Principle is a statement of the Law of Conservation of Energy applied to flowing fluids. In a steady, non-viscous, incompressible fluid, the total mechanical energy remains constant along a streamline. This energy exists as static pressure, kinetic energy, and potential energy.
The Bernoulli Equation
\[ P + \frac{1}{2}\rho v^2 + \rho gh = \text{constant} \]
Static Pressure
Dynamic Pressure (KE)
Hydrostatic Head (PE)
The Velocity-Pressure Relationship
The most critical aspect of Bernoulli’s Principle is the inverse relationship between speed and pressure. If the elevation remains constant, an increase in the fluid's velocity must be accompanied by a decrease in its static pressure.
This occurs because energy previously stored as static pressure is converted into kinetic energy to move the fluid faster.
High Velocity
Low Pressure
The Venturi Effect
A Venturi tube is a pipe with a constricted section. To maintain the same mass flow rate (Continuity Equation), fluid must speed up as it enters the narrower section. Bernoulli's Principle states that this high-speed fluid will have lower pressure than the slower fluid.
Technical Schematic: FIG 03-A // Flow Constriction
v₁ (Slow) v₂ (Fast) P₁ P₂
Observation: P₂ < P₁ because v₂ > v₁
Continuity
Flow rate (\(Q = Av\)) is constant. Smaller Area (\(A\)) requires higher Velocity (\(v\)).
\( A_1 v_1 = A_2 v_2 \)
Energy
The loss in static pressure energy powers the gain in kinetic energy.
\( \Delta P = -\frac{1}{2}\rho \Delta v^2 \)
Aerodynamics: Lift Force
Airfoils generate lift by creating speed differences. A wing shape forces air over the top to travel faster than air underneath, resulting in a low-pressure zone above the wing.
Pressure Differential
Top surface: High Velocity → Low Pressure .
Bottom surface: Lower Velocity → Higher Pressure .
Result: Net upward force (LIFT).
LOW P HIGH P
F_LIFT = (P_bottom - P_top) × AREA
Technical Summary Reference
Static vs Dynamic Static pressure + Dynamic pressure (\( \frac{1}{2}\rho v^2 \)) is constant.
Bernoulli Principle Reading Guide Revised V2 Final Bernoulli Dynamics
Technical Reference Guide // Bernoulli's Principle
REF-07-ENERGY
Conservation in Motion
Bernoulli’s Principle is a statement of the Law of Conservation of Energy applied to flowing fluids. In a steady, non-viscous, incompressible fluid, the total mechanical energy remains constant along a streamline. This energy exists as static pressure, kinetic energy, and potential energy.
Generalized Fluid Energy Model
v₁ v₂ h₁ h₂
Total Energy (P + ½ρv² + ρgh) at P₁ is equal to Total Energy at P₂.
\[ P_1 + \frac{1}{2}\rho v_1^2 + \rho gh_1 = P_2 + \frac{1}{2}\rho v_2^2 + \rho gh_2 \]
The Velocity-Pressure Relationship
The most counterintuitive aspect of Bernoulli’s Principle is the inverse relationship between speed and pressure. If the elevation remains constant, an increase in the fluid's velocity must be accompanied by a decrease in its static pressure.
This occurs because energy previously stored as static pressure is converted into kinetic energy to move the fluid faster.
High Velocity
Low Pressure
The Venturi Effect
A Venturi tube is a pipe with a constricted section. To maintain the same mass flow rate (Continuity Equation), fluid must speed up as it enters the narrower section. Bernoulli's Principle states that this high-speed fluid will have lower pressure than the slower fluid.
Technical Schematic: FIG 03-A // Flow Constriction
v₁ (Slow) v₂ (Fast) P₁ P₂
Observation: P₂ < P₁ because v₂ > v₁
Continuity
Flow rate (\(Q = Av\)) is constant. Smaller Area (\(A\)) requires higher Velocity (\(v\)).
\( A_1 v_1 = A_2 v_2 \)
Energy
The loss in static pressure energy powers the gain in kinetic energy.
\( \Delta P = -\frac{1}{2}\rho \Delta v^2 \)
Aerodynamics: Lift Force
Airfoils generate lift by creating speed differences. A wing shape forces air over the top to travel faster than air underneath, resulting in a low-pressure zone above the wing.
Pressure Differential
Top surface: High Velocity → Low Pressure .
Bottom surface: Lower Velocity → Higher Pressure .
Result: Net upward force (LIFT).
LOW P HIGH P
F_LIFT = (P_bottom - P_top) × AREA
Technical Summary Reference
Bernoulli Dynamics Master Reading Guide Bernoulli dynamics
Fluid Energy Conservation // AP Physics 1
REF-07-MASTER-V3
1
The Principle of Energy Density
Bernoulli’s Principle is the Law of Conservation of Energy adapted for fluid systems. In a steady, inviscid, incompressible flow, we track energy density —the total energy per unit volume (\(J/m^3\)). The sum of static pressure, kinetic energy density, and gravitational potential energy density remains constant along a streamline.
Generalized Energy Conservation Model
v₁ v₂ h₁ h₂
E_total per volume is constant: P₁ + ½ρv₁² + ρgh₁ = P₂ + ½ρv₂² + ρgh₂
\[ P + \frac{1}{2}\rho v^2 + \rho gh = \text{constant} \]
STATIC PRESSURE
Energy from collisions
DYNAMIC PRESSURE
Kinetic energy density
POTENTIAL ENERGY
Hydrostatic density
2
The Pressure Paradox
In fluid dynamics, higher speed leads to lower pressure. This Venturi Effect occurs because fluid accelerating through a constriction must convert its potential energy (pressure) into kinetic energy.
Schematic FIG 03: Venturi Pressure Gradient
High P₁ Low P₂ Slower Flow Faster Flow
The Funnel Effect
A ping-pong ball is pulled into a funnel when air is blown through the bottom. Fast air = Low pressure.
Shower Curtain Paradox
The spray accelerates air inside the stall, lowering internal pressure and pulling the curtain inward.
3
Aerodynamic Lift
Airfoils generate lift by creating a pressure imbalance. The wing shape forces air over the top to travel at much higher velocities than the air underneath.
Net Force Generation
Bernoulli Pressure
P_bot - P_top = ½ρ(v_top² - v_bot²)
Total Lift Force
F_L = ΔP × Wing Area
V_TOP > V_BOT → P_TOP < P_BOT
Transit Time Myth
Many believe air must meet at the back of the wing simultaneously. In fact, air over the top travels so fast that it reaches the back long before air underneath. This "circulation" is key to lift generation.
4
Engineering Instrumentation
The Pitot-Static Probe
Airplanes measure airspeed by capturing two distinct pressures: Total (at the stagnation point) and Static (parallel to flow).
Stagnation Port: At the tip. Fluid speed is zero, converting KE into pressure. Measures
Bernoulli Dynamics Master Reading Guide Revised V2 Bernoulli dynamics
Fluid Energy Conservation // AP Physics 1
REF-07-MASTER-FINAL
1
The Principle of Energy Density
Bernoulli’s Principle is the Law of Conservation of Energy adapted for fluid systems. In a steady, inviscid, incompressible flow, we track energy density —the total energy per unit volume (\(J/m^3\)). The sum of static pressure, kinetic energy density, and gravitational potential energy density remains constant along a streamline.
Generalized Energy Conservation Model
v₁ v₂ h₁ h₂
Energy In = Energy Out: P₁ + ½ρv₁² + ρgh₁ = P₂ + ½ρv₂² + ρgh₂
\[ P + \frac{1}{2}\rho v^2 + \rho gh = \text{constant} \]
STATIC PRESSURE
Internal work potential
DYNAMIC PRESSURE
Kinetic energy density
POTENTIAL ENERGY
Height energy density
2
The Pressure Paradox
In fluid dynamics, higher speed leads to lower pressure. This Venturi Effect occur because fluid accelerating through a constriction must convert its potential energy (pressure) into kinetic energy.
Schematic FIG 03: Venturi Pressure Gradient
High P₁ Low P₂ Slower Flow Faster Flow
The Funnel Paradox
A ball is pulled into a funnel when air is blown through the bottom. High speed air = Low pressure pocket.
Shower Curtain Paradox
The spray accelerates air inside the stall, lowering internal pressure. Higher static bathroom pressure pushes the curtain inward.
3
Aerodynamic Lift
Airfoils generate lift by creating a pressure imbalance. The wing shape forces air over the top to travel at much higher velocities than the air underneath.
Force imbalance
Bernoulli Pressure
P_bot - P_top = ½ρ(v_top² - v_bot²)
Mechanical Lift
F_L = ΔP × Wing Area
V_TOP > V_BOT → P_TOP < P_BOT
Laminar Flow Note
The air does not meet simultaneously at the trailing edge. Air over the curved top surface travels so fast it exits the wing far ahead of air from the bottom.
4
Engineering Instrumentation
The Pitot-Static Probe
This device measures airspeed by sensing Dynamic Pressure (\(P_T - P_S\)).
Total Pressure (\(P_T\)): Measured at the stagnation port. Air hits the port and stops (\(v=0\)), converting kinetic energy into pressure.
Bernoulli Dynamics Master Reading Guide Revised V2 Final Bernoulli Dynamics
Fluid Energy Conservation // AP Physics 1
REF-07-MASTER-FINAL
1
The Principle of Energy Density
Bernoulli’s Principle is the Law of Conservation of Energy adapted for fluid systems. In a steady, inviscid, incompressible flow, we track energy density —the total energy per unit volume (\(J/m^3\)). The sum of static pressure, kinetic energy density, and gravitational potential energy density remains constant along a streamline.
Generalized Model: Kinetic & Potential Energy Conservation
v₁ (Slow) Radius R₁ v₂ (Fast) Radius R₂ h₁ h₂
Total Energy Balance: \( P_1 + \frac{1}{2}\rho v_1^2 + \rho gh_1 = P_2 + \frac{1}{2}\rho v_2^2 + \rho gh_2 \)
\[ P + \frac{1}{2}\rho v^2 + \rho gh = \text{constant} \]
Static Pressure
Internal energy density
Dynamic Pressure
Kinetic energy density
Potential Energy
Height energy density
2
The Pressure Paradox
In fluid dynamics, higher speed leads to lower pressure. This Venturi Effect occurs because fluid accelerating through a constriction must convert its potential energy (pressure) into kinetic energy.
Schematic FIG 03: Venturi Pressure Gradient
High P₁ Low P₂ Slower Flow Faster Flow
The Funnel Paradox
A ball is pulled into a funnel when air is blown through the bottom. High speed air = Low pressure pocket.
Shower Curtain Paradox
The spray accelerates air inside the stall, lowering internal pressure. Higher static bathroom pressure pushes the curtain inward.
3
Aerodynamic Lift
Airfoils generate lift by creating a pressure imbalance. The wing shape forces air over the top to travel at much higher velocities than the air underneath.
Force imbalance
Bernoulli Pressure
P_bot - P_top = ½ρ(v_top² - v_bot²)
Mechanical Lift
F_L = ΔP × Wing Area
V_TOP > V_BOT → P_TOP < P_BOT
Laminar Flow Note
The air does not meet simultaneously at the trailing edge. Air over the curved top surface travels so fast it exits the wing far ahead of air from the bottom.
4
Engineering Instrumentation
The Pitot-Static Probe
This device measures airspeed by sensing Dynamic Pressure (\(P_T - P_S\)).
Bernoulli Dynamics Master Reading Guide Elaborate Final Bernoulli Dynamics
The Energy-Fluid Continuum // AP Physics 1
REF-07-ENERGY-MASTER
1
The Principle of Energy Density
Bernoulli’s Principle is the Law of Conservation of Energy re-imagined for fluid systems. In a steady, inviscid, incompressible flow, we track energy density —the total energy per unit volume (\(J/m^3\)). The sum of static pressure, kinetic energy density, and gravitational potential energy density remains constant along any streamline.
Generalized Model: Kinetic & Potential Energy Conservation
v₁ (Slow) Radius R₁ v₂ (Fast) Radius R₂ h₁ h₂
Conservation Balance: \( P_1 + \frac{1}{2}\rho v_1^2 + \rho gh_1 = P_2 + \frac{1}{2}\rho v_2^2 + \rho gh_2 \)
\[ P + \frac{1}{2}\rho v^2 + \rho gh = \text{constant} \]
Static Pressure
Internal potential energy density
Dynamic Pressure
Kinetic energy density
Hydrostatic Head
Height-based potential energy density
2
The Pressure Paradox
In fluid dynamics, higher speed leads to lower pressure. This Venturi Effect occur because fluid accelerating through a constriction must convert its potential energy (pressure) into kinetic energy. Bernoulli's Principle describes the exact energy "currency" exchange required to move mass through varying geometries.
Schematic FIG 03: Venturi Pressure Gradient
High P₁ Low P₂ Slower Flow Faster Flow
The Funnel Paradox
A ball is pulled into a funnel when air is blown through the bottom. High speed air passing around the ball creates a low pressure pocket. Atmospheric pressure on the outside pins the ball inside.
Shower Curtain Paradox
The water spray accelerates air inside the stall, lowering internal pressure relative to the room. The curtain is pushed inward by the higher static pressure of the bathroom air.
3
Aerodynamic Lift
Airfoils generate lift by creating a pressure imbalance. The wing shape forces air over the top to travel at much higher velocities than the air underneath, resulting in a quantifiable upward force.
Mechanical Force Imbalance
Bernoulli Pressure Differential
P_bot - P_top = ½ρ(v_top² - v_bot²)
Total Lift Force Vector
F_L = ΔP × Wing Area
V_TOP > V_BOT → P_TOP < P_BOT
Fact Check: The Transit Time Myth
Many believe air must meet at the back of the wing simultaneously. In fact, air over the top travels so fast it exits the wing far ahead of air from the bottom. This circulation is critical to sustaining the low-pressure zone.
