Bond Dissociation Slides Bond Dissociation
Fundamentals of Molecular Energy
The Spark Paradox
Why do we have to input energy (a spark) to start a fire, even though the fire releases a massive amount of energy?
"Before you can get the energy out, you have to pay the entry fee."
Discussion Question:
What is physically happening to the atoms in the fuel during that first spark?
The Thermodynamic Rulebook
Bond Breaking
Requires an input of energy to overcome the electrostatic attraction between atoms.
ENDOTHERMIC (+ΔH)
Bond Forming
Energy is released as atoms move to a lower, more stable potential energy state.
EXOTHERMIC (-ΔH)
What is BDE?
Bond Dissociation Energy (D) is the quantity of energy required to break one mole of a specific bond in the gas phase.
H — H
436
kJ/mol
C — H
413
kJ/mol
O = O
495
kJ/mol
A higher BDE indicates a stronger bond and a more stable molecule.
Potential Energy Wells
Think of a bond like a ball at the bottom of a well. To "break" it, you must push the ball up and out of the well (Input).
Going "Up" = Breaking (Absorption)
Going "Down" = Forming (Release)
Distance between Nuclei
Potential Energy
Depth = Bond Energy

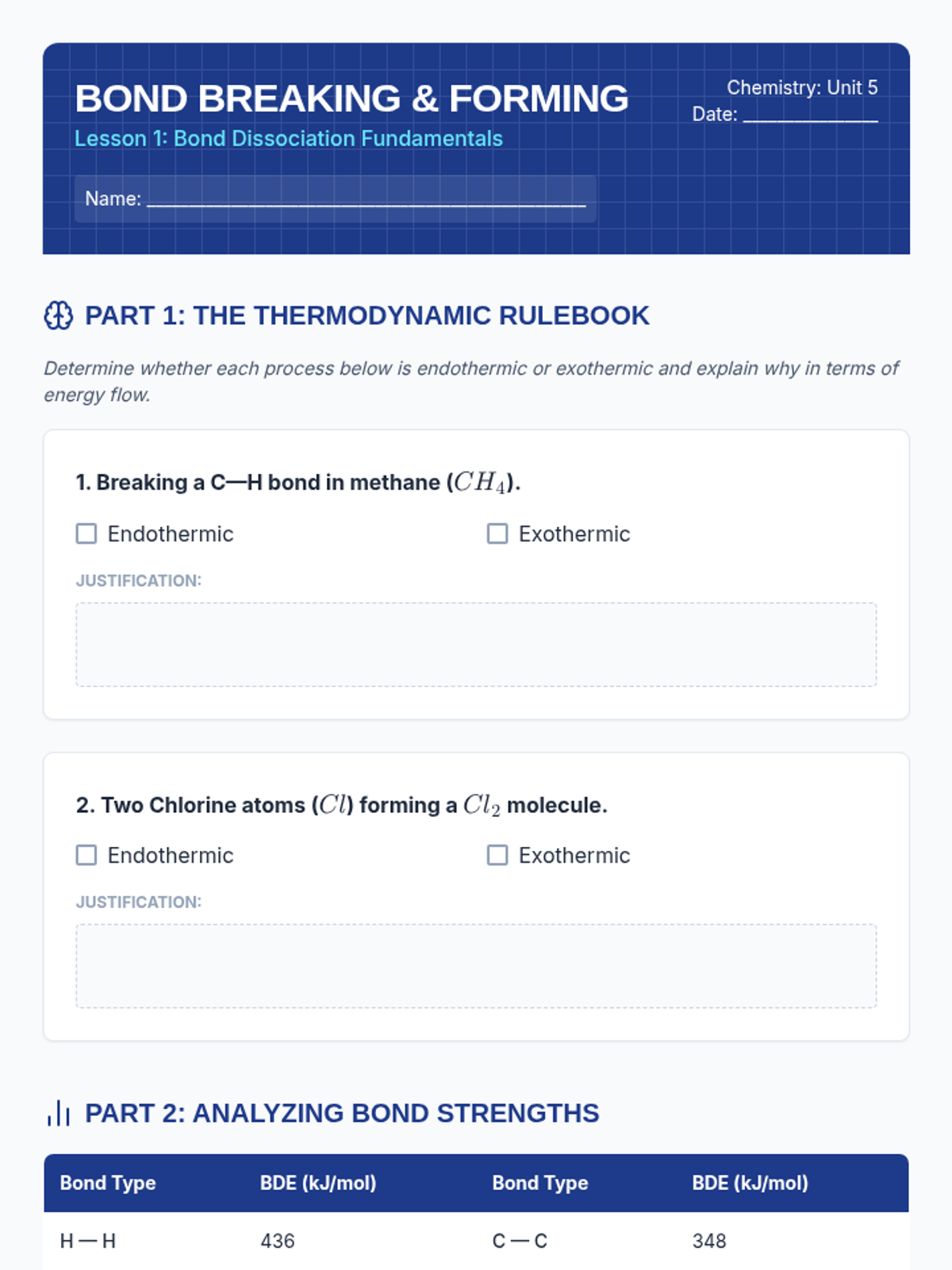

Bond Breaking Worksheet Bond Breaking & Forming
Lesson 1: Bond Dissociation Fundamentals
Chemistry: Unit 5
Date: ________________
Name: ____________________________________________________
Part 1: The Thermodynamic Rulebook
Determine whether each process below is endothermic or exothermic and explain why in terms of energy flow.
1. Breaking a C—H bond in methane (\(CH_4\)).
Endothermic
Exothermic
Justification:
2. Two Chlorine atoms (\(Cl\)) forming a \(Cl_2\) molecule.
Endothermic
Exothermic
Justification:
Part 2: Analyzing Bond Strengths
Bond Type BDE (kJ/mol) Bond Type BDE (kJ/mol) H — H 436 C — C 348 O = O 495 C = C 614 N ≡ N 941 C — O 358
3. Based on the table, which bond requires the most energy to break? Explain how this relates to its stability.
4. Compare the \(C—C\) single bond to the \(C=C\) double bond. What is the relationship between the number of shared electron pairs (bond order) and the energy required to break the bond?
Part 3: The Spark Revisited
A hydrogen fuel cell combines \(H_2\) and \(O_2\) to form water. This reaction is highly exothermic.
5. If bond formation releases energy, and bond breaking requires energy, why is the overall reaction exothermic?
Hint: Think about the magnitude of the energy released when \(H—O\) bonds form compared to the energy needed to break \(H—H\) and \(O=O\) bonds.

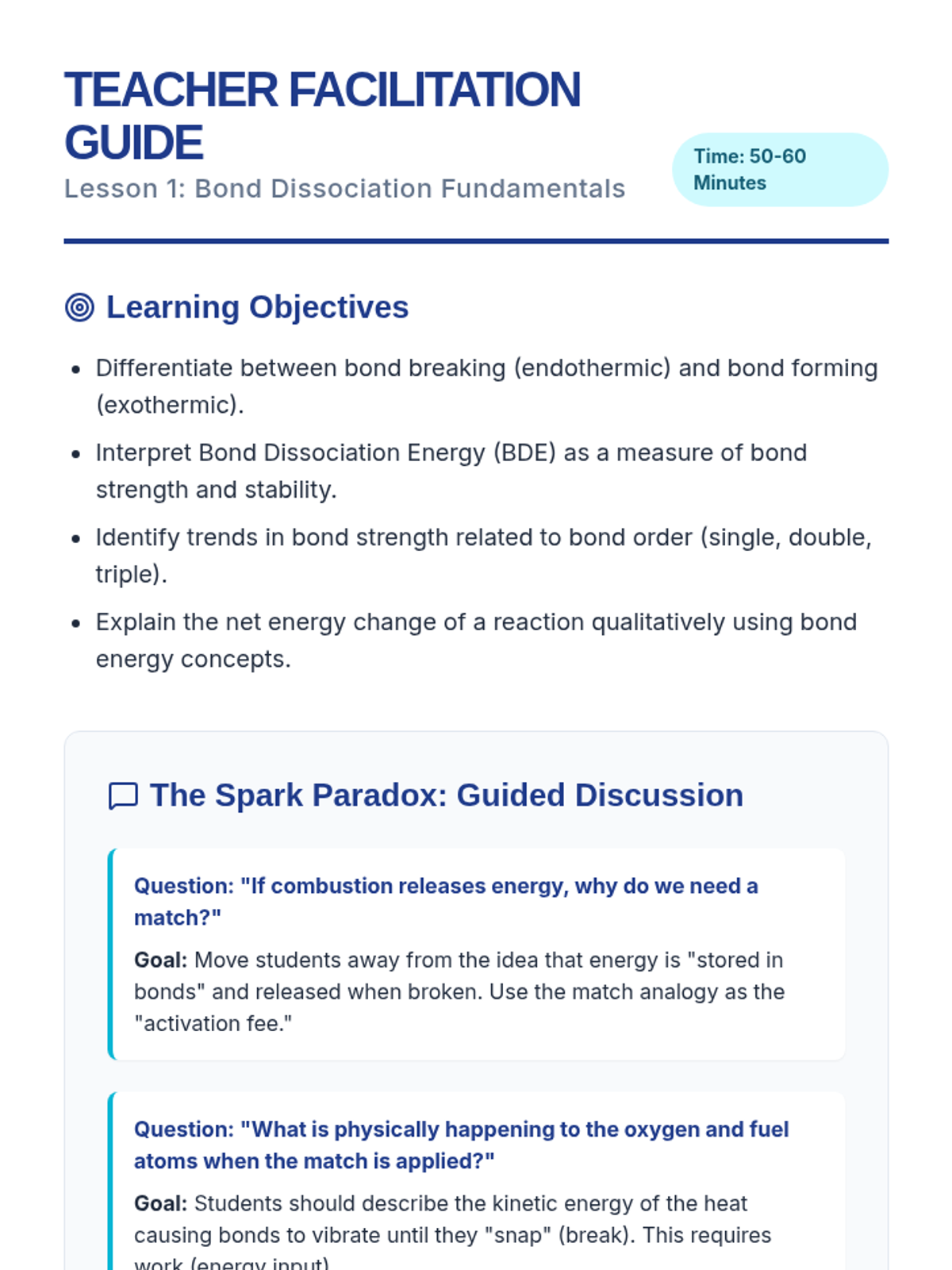

Fundamentals Teacher Guide Teacher Facilitation Guide
Lesson 1: Bond Dissociation Fundamentals
Time: 50-60 Minutes
Learning Objectives
Differentiate between bond breaking (endothermic) and bond forming (exothermic).
Interpret Bond Dissociation Energy (BDE) as a measure of bond strength and stability.
Identify trends in bond strength related to bond order (single, double, triple).
Explain the net energy change of a reaction qualitatively using bond energy concepts.
The Spark Paradox: Guided Discussion
Question: "If combustion releases energy, why do we need a match?"
Goal: Move students away from the idea that energy is "stored in bonds" and released when broken. Use the match analogy as the "activation fee."
Question: "What is physically happening to the oxygen and fuel atoms when the match is applied?"
Goal: Students should describe the kinetic energy of the heat causing bonds to vibrate until they "snap" (break). This requires work (energy input).
Critical Misconceptions
The "Fuel Tank" Fallacy
Students often think chemical bonds act like batteries that "pop" open and spray energy. They believe breaking bonds releases energy. Correct this immediately: breaking bonds ALWAYS costs energy.
Magnitude Confusion
Students may struggle with why an exothermic reaction exists if breaking bonds costs energy. Explain that the "payback" from forming stronger bonds is simply larger than the initial "investment."
Implementation Notes
Part 1: The Rulebook
Walk around as students complete Part 1. Listen for students saying "forming bonds takes energy." Stop the class and use a magnet analogy: pulling magnets apart takes effort (breaking), while they snap together naturally (forming).
Part 2: Data Trends
Ensure students notice that \(N \equiv N\) (941 kJ/mol) is significantly higher than \(N-N\) or \(N=N\). Use this to foreshadow Lesson 5's discussion on the stability of atmospheric nitrogen.
Enthalpy Calculation Slides Enthalpy Blueprints
Predicting Reaction Heat with Bond Data
The Master Equation
\[ \Delta H_{rxn} = \sum BE_{broken} - \sum BE_{formed} \]
Reactants (In)
Products (Out)
"Energy invested to break minus energy released during formation."
The Calculation Protocol
1
Draw
Draw Lewis structures for all reactants and products. Every bond counts.
2
Tally
Count the number of each bond type. Multiply by the coefficients in the balanced equation.
3
Compute
Subtract the sum of product bond energies from the sum of reactant bond energies.
Case Study: Methane (\(CH_4\))
CH₄ + 2O₂ → CO₂ + 2H₂O
Broken (Reactants)
4 x C—H (413 kJ/mol) = 1652
2 x O=O (495 kJ/mol) = 990
Total: 2642 kJ
Formed (Products)
2 x C=O (799 kJ/mol) = 1598
4 x O—H (463 kJ/mol) = 1852
Total: 3450 kJ
ΔH = 2642 - 3450 = -808 kJ/mol
Balancing the Energy Scale
If you don't balance the equation, you aren't counting all the atoms.
Common Mistake
Calculating bond energy for just 1 mole of \(H_2O\) when the reaction produces 2 moles.
Pro Tip
Always write out the coefficient next to the Lewis structure before you start math.

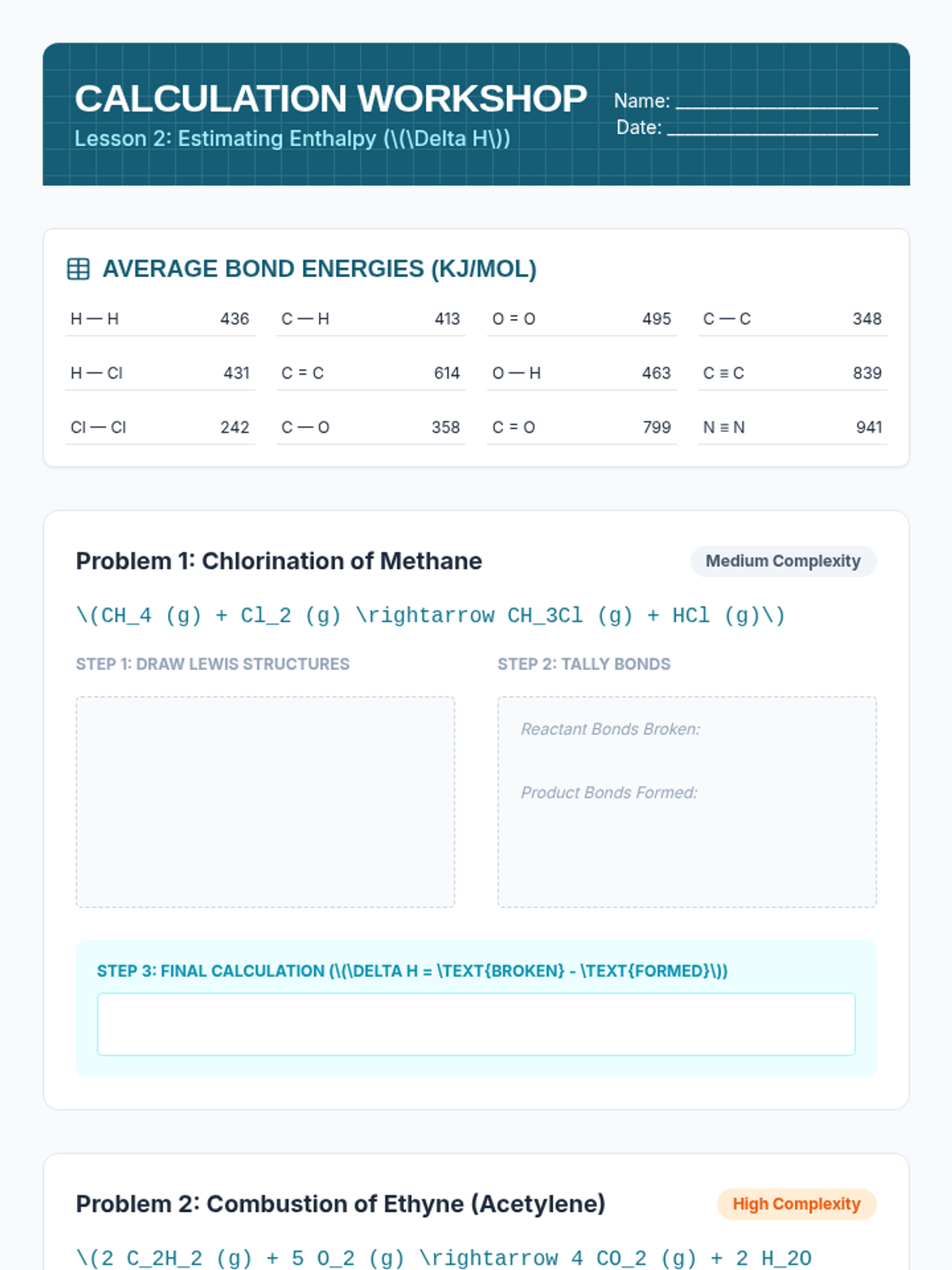

Calculation Lab Worksheet Calculation Workshop
Lesson 2: Estimating Enthalpy (\(\Delta H\))
Name: ________________________
Date: _________________________
Average Bond Energies (kJ/mol)
H — H 436
C — H 413
O = O 495
C — C 348
H — Cl 431
C = C 614
O — H 463
C ≡ C 839
Cl — Cl 242
C — O 358
C = O 799
N ≡ N 941
Problem 1: Chlorination of Methane
Medium Complexity
\(CH_4 (g) + Cl_2 (g) \rightarrow CH_3Cl (g) + HCl (g)\)
Step 1: Draw Lewis Structures
Step 2: Tally Bonds
Reactant Bonds Broken:
Product Bonds Formed:
Step 3: Final Calculation (\(\Delta H = \text{Broken} - \text{Formed}\))
Problem 2: Combustion of Ethyne (Acetylene)
High Complexity
\(2 C_2H_2 (g) + 5 O_2 (g) \rightarrow 4 CO_2 (g) + 2 H_2O (g)\)
Warning: Don't forget to multiply by the coefficients in the balanced equation!
Reactants: Show your Work
Products: Show your Work
Final Estimated \(\Delta H\)

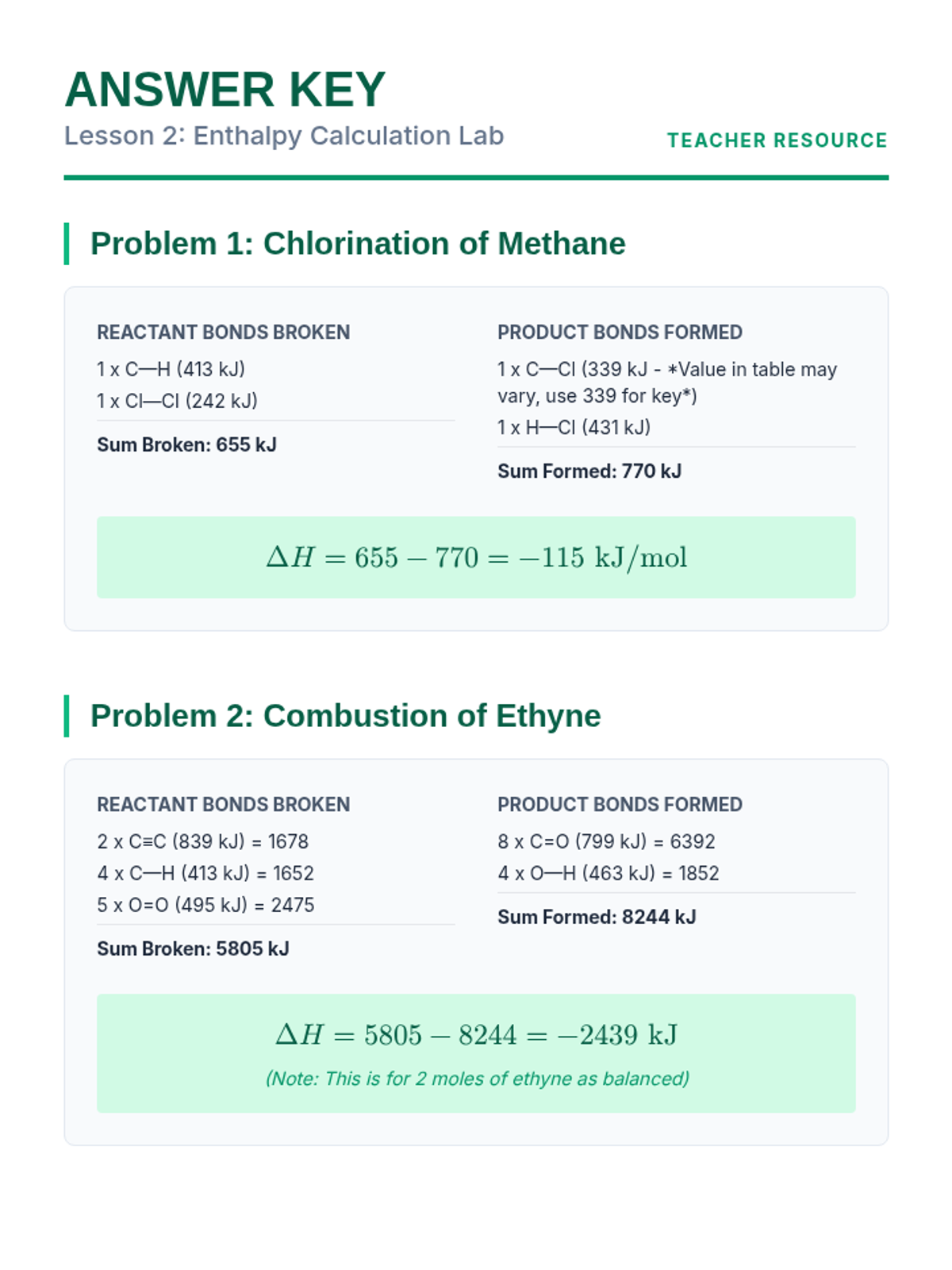

Bond Math Answer Key Answer Key
Lesson 2: Enthalpy Calculation Lab
Teacher Resource
Problem 1: Chlorination of Methane
REACTANT BONDS BROKEN
1 x C—H (413 kJ)
1 x Cl—Cl (242 kJ)
Sum Broken: 655 kJ
PRODUCT BONDS FORMED
1 x C—Cl (339 kJ - *Value in table may vary, use 339 for key*)
1 x H—Cl (431 kJ)
Sum Formed: 770 kJ
\(\Delta H = 655 - 770 = -115 \text{ kJ/mol}\)
Problem 2: Combustion of Ethyne
REACTANT BONDS BROKEN
2 x C≡C (839 kJ) = 1678
4 x C—H (413 kJ) = 1652
5 x O=O (495 kJ) = 2475
Sum Broken: 5805 kJ
PRODUCT BONDS FORMED
8 x C=O (799 kJ) = 6392
4 x O—H (463 kJ) = 1852
Sum Formed: 8244 kJ
\(\Delta H = 5805 - 8244 = -2439 \text{ kJ}\)
(Note: This is for 2 moles of ethyne as balanced)
Fuel Efficiency Slides Fueling the Future
Bond Energy & Energy Density
The Hydrogen Problem
Hydrogen (\(H_2\)) has the highest energy per gram of any fuel.
So why aren't all cars running on it?
"It's not just about the strength of the bonds; it's about how many you can pack into a gallon."
Storage & Density
Gasoline is a liquid at room temp; Hydrogen is a tiny, stubborn gas.
The Chemical Match-up
Octane (\(C_8H_{18}\))
Long hydrocarbon chains. Lots of \(C—C\) and \(C—H\) bonds to break.
Heat of Combustion -5470 kJ/mol
State Liquid
Ethanol (\(C_2H_5OH\))
Partially "pre-oxidized" with an \(O—H\) group. Less carbon per molecule.
Heat of Combustion -1367 kJ/mol
State Liquid
Energy Density vs Carbon Cycle
Renewability
Grown from plants that pull \(CO_2\) from the air.
Lower Density
Ethanol contains about 33% less energy per gallon than gasoline.
Modification
Engines must be tuned to handle different oxygen contents.
The "Oxygen Penalty"
Biofuels like ethanol often have oxygen already bonded to the carbon.
Crucial Concept
The \(C—O\) and \(O—H\) bonds in ethanol don't release as much energy when they react, because they are already "halfway" to the product state (\(CO_2\) and \(H_2O\)).
Energy Density Activity Fuel Analysis Lab
Lesson 3: Comparing Energy Densities
Name: ________________________
Objective
In this activity, you will use bond energy data to calculate and compare the energy released by 1 gram of different fuels. This allows us to evaluate "energy density" rather than just molar energy.
Fuel Name Formula Molar Mass (g/mol) Bonds to Break (Reactants) Hydrogen H₂ 2.02 1 x H—H Methane CH₄ 16.05 4 x C—H Ethanol C₂H₅OH 46.08 1 x C—C, 5 x C—H, 1 x C—O, 1 x O—H Octane C₈H₁₈ 114.23 7 x C—C, 18 x C—H
Part 1: The "Oxygen Penalty" in Biofuels
Octane is a pure hydrocarbon (\(C_8H_{18}\)), whereas Ethanol (\(C_2H_5OH\)) contains oxygen. Based on the "broken bonds" column, explain why Ethanol has a lower molar energy release than Octane.
Part 2: Gravimetric Energy Density Calculation
Calculate the energy released per gram (\(kJ/g\)) for Methane and Octane. Use the following total \(\Delta H_{rxn}\) (kJ/mol) values: Methane = -802 kJ/mol , Octane = -5074 kJ/mol .
Methane (\(CH_4\))
Answer: ________ kJ/g
Octane (\(C_8H_{18}\))
Answer: ________ kJ/g
Part 3: Critical Thinking
Hydrogen has an energy density of roughly 142 kJ/g . This is nearly 3x higher than octane. Why hasn't hydrogen replaced gasoline as the primary fuel for passenger vehicles? List two reasons related to physical state or storage.
Biofuel Teacher Guide Teacher Facilitation Guide
Lesson 3: Case Study - Fossil Fuels vs. Biofuels
Context for the Lesson
This lesson bridges pure bond-energy calculation with real-world energy economics. Students often wonder why we don't just use "the strongest fuel." This lesson helps them see that energy density (energy per unit mass or volume) is often more important than the energy of a single bond.
Key Concept 1
The Oxygen Penalty
Oxygen in a fuel molecule essentially acts as "dead weight." Because the carbon is already bonded to oxygen in alcohols (like ethanol), the oxidation reaction releases less energy because it is already "partially reacted."
Key Concept 2
Hydrogen's Volume Crisis
While hydrogen is king of mass density (kJ/g), it is terrible at volume density. At standard pressure, 1 gallon of gas has as much energy as a massive tank of hydrogen gas. Highlighting this physical reality is crucial.
Discussion Questions & Answers
"Why do long-chain hydrocarbons like octane make better fuels than methane?"
Answer: Octane is a liquid at room temperature, making it incredibly easy to transport and store compared to methane gas. Also, more carbon-carbon bonds per molecule leads to a higher energy density per gallon.
"Is Ethanol truly carbon-neutral?"
Teacher's Note: Chemically, the \(CO_2\) released was recently absorbed by the corn/sugar used to make it. However, the process of farming and refining it often uses fossil fuels. This is a great extension for environmental chemistry.
Calculation Key for Activity
Methane: 802 / 16.05 = 49.9 kJ/g
Octane: 5074 / 114.23 = 44.4 kJ/g
Ethanol: 1367 / 46.08 = 29.7 kJ/g
*Note: Methane is actually denser by mass, but octane is denser by volume.*
Precision Gap Slides The Precision Gap
Average vs. Experimental Enthalpy
Are all C—H bonds equal?
Think about the C—H bond in Methane (\(CH_4\)) vs. the C—H bond in Chloroform (\(CHCl_3\)).
The table says they both cost 413 kJ/mol to break.
The Reality:
The neighboring Chlorine atoms pull electrons away from the C—H bond, changing its strength.
439 kJ/mol
380 kJ/mol
The Limitation of Averages
Bond Energy Tables
These values are compiled by averaging the strength of that bond across thousands of different molecules.
"Good for quick estimates, bad for precision."
Standard Enthalpy (\(\Delta H_f^\circ\))
Determined through Hess's Law and calorimetry. These are the "true" values for a specific molecule.
"The gold standard for engineering."
Sample Discrepancy
Combustion of Propane
Bond Energy Estimate
-2044 kJ
Experimental (True)
-2220 kJ
The error is -176 kJ (about 8%).
Where did that energy go? To the specific molecular environment of propane.
Factors of Influence
Electronegativity
Nearby atoms (\(F\), \(Cl\), \(O\)) can polarize a bond, making it stronger or weaker than "average."
Steric Strain
Crowded atoms can physically push against each other, weakening the bonds holding them together.
Resonance
Bonds that are shared through resonance (like in benzene) have unique energies not found in standard tables.

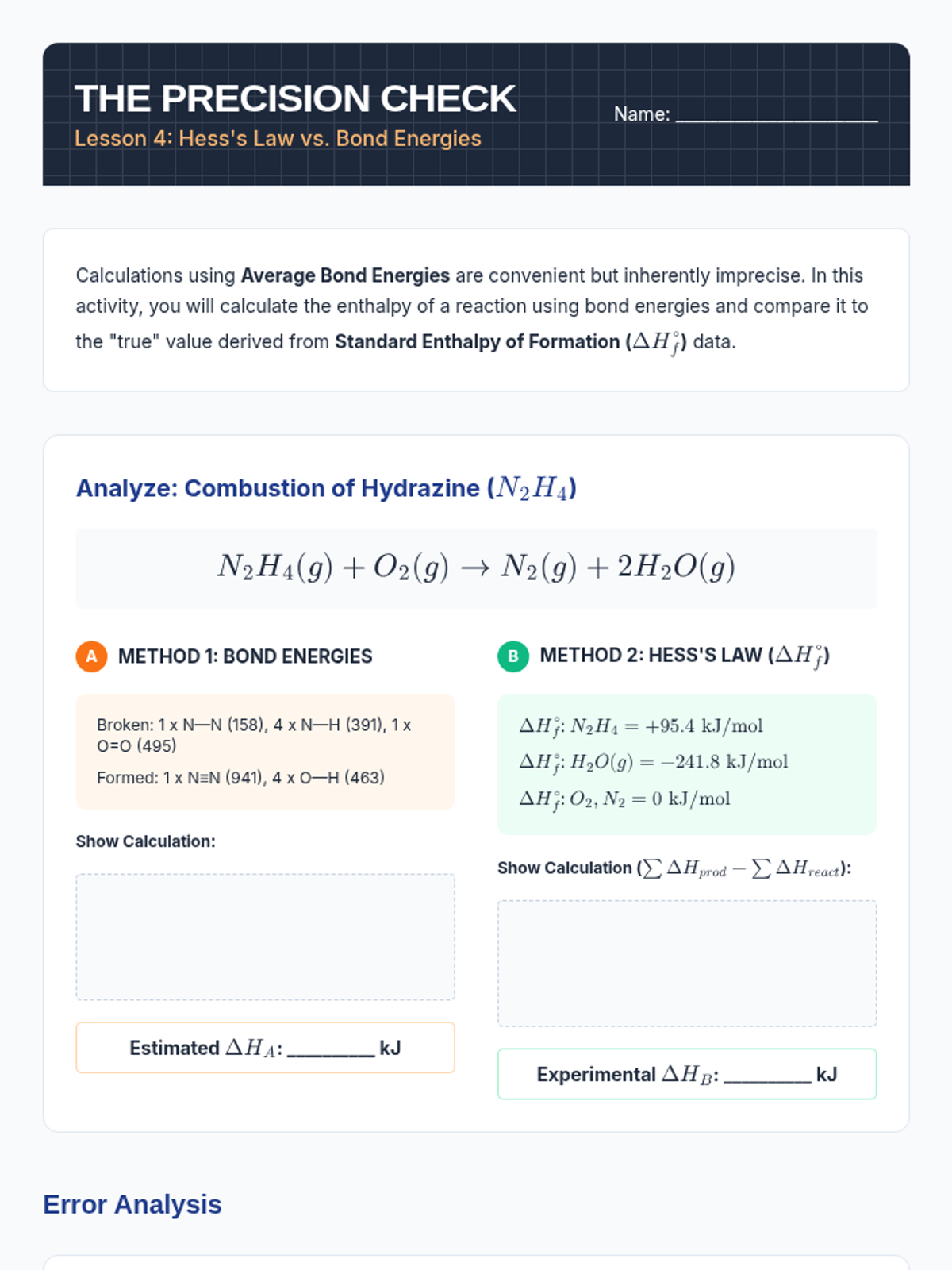

Data Discrepancy Worksheet The Precision Check
Lesson 4: Hess's Law vs. Bond Energies
Name: ________________________
Calculations using Average Bond Energies are convenient but inherently imprecise. In this activity, you will calculate the enthalpy of a reaction using bond energies and compare it to the "true" value derived from Standard Enthalpy of Formation (\(\Delta H_f^\circ\)) data.
Analyze: Combustion of Hydrazine (\(N_2H_4\))
\(N_2H_4 (g) + O_2 (g) \rightarrow N_2 (g) + 2 H_2O (g)\)
A
Method 1: Bond Energies
Broken: 1 x N—N (158), 4 x N—H (391), 1 x O=O (495)
Formed: 1 x N≡N (941), 4 x O—H (463)
Show Calculation:
Estimated \(\Delta H_A\): __________ kJ
B
Method 2: Hess's Law (\(\Delta H_f^\circ\))
\(\Delta H_f^\circ\): \(N_2H_4 = +95.4 \text{ kJ/mol}\)
\(\Delta H_f^\circ\): \(H_2O (g) = -241.8 \text{ kJ/mol}\)
\(\Delta H_f^\circ\): \(O_2, N_2 = 0 \text{ kJ/mol}\)
Show Calculation (\(\sum \Delta H_{prod} - \sum \Delta H_{react}\)):
Experimental \(\Delta H_B\): __________ kJ
Error Analysis
1. Calculate the percent error between your two values.
Formula: \(\frac{|Experimental - Estimate|}{Experimental} \times 100\)
2. In hydrazine, the N—N bond is 158 kJ/mol. In gaseous nitrogen (\(N_2\)), the N≡N bond is 941 kJ/mol. How does the triple bond's strength impact the reaction's safety and stability?
3. Synthesis: If you were an engineer designing a rocket engine for NASA, which value (A or B) would you use to calculate the fuel requirements? Justify your choice based on the concept of "molecular environment."

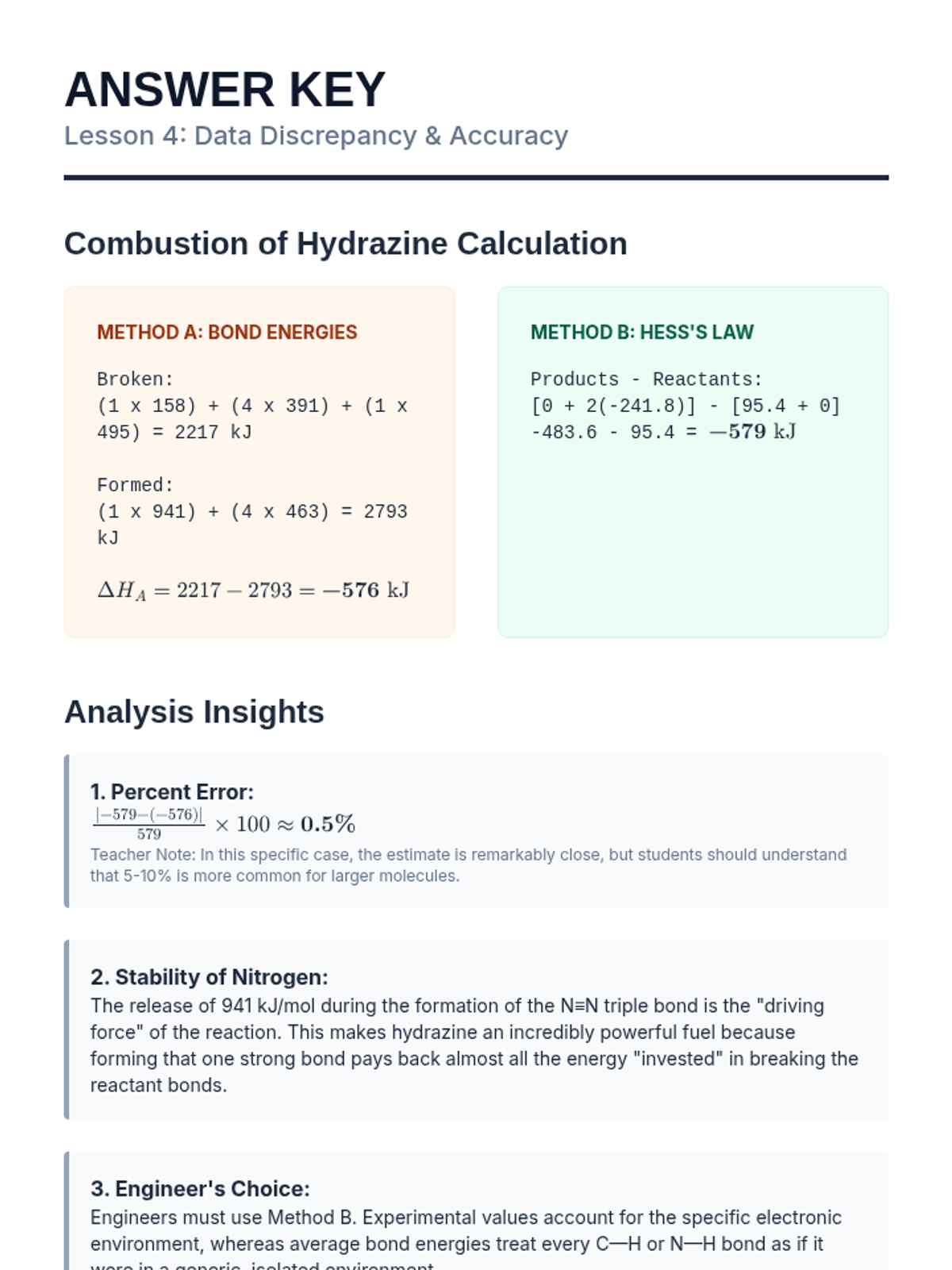

Accuracy Analysis Answer Key Answer Key
Lesson 4: Data Discrepancy & Accuracy
Combustion of Hydrazine Calculation
Method A: Bond Energies
Broken:
Formed:
\(\Delta H_A = 2217 - 2793 = \mathbf{-576 \text{ kJ}}\)
Method B: Hess's Law
Products - Reactants:
Analysis Insights
1. Percent Error:
\( \frac{|-579 - (-576)|}{579} \times 100 \approx \mathbf{0.5\%} \)
Teacher Note: In this specific case, the estimate is remarkably close, but students should understand that 5-10% is more common for larger molecules.
2. Stability of Nitrogen:
The release of 941 kJ/mol during the formation of the N≡N triple bond is the "driving force" of the reaction. This makes hydrazine an incredibly powerful fuel because forming that one strong bond pays back almost all the energy "invested" in breaking the reactant bonds.
3. Engineer's Choice:
Engineers must use Method B. Experimental values account for the specific electronic environment, whereas average bond energies treat every C—H or N—H bond as if it were in a generic, isolated environment.
Stability Slides Stability & Explosivity
The Final Thermodynamics Link
The Paradox of TNT
TNT (\(C_7H_5N_3O_6\)) has relatively weak chemical bonds.
So why is it so powerful?
"An explosion is just the rush from a high-energy, unstable 'hill' to a low-energy, stable 'valley'."
The Valley of Stability
Explosives form molecules like \(N_2\), \(CO_2\), and \(H_2O\)—the most stable molecules in existence.
The N≡N Triple Bond
Atmospheric nitrogen (\(N_2\)) is incredibly unreactive .
Bond Energy: 941 kJ/mol
Very deep potential energy well
Requires extreme heat (lightning) to break
N ≡ N
Relative Bond Strength
Why Molecules Explode
1. Weak Internal Bonds
Explosives often contain \(N—N\), \(N—O\), or \(O—O\) bonds. These are weak and easily broken.
2. Stable Product Bonds
The reaction forms \(N \equiv N\), \(C=O\), and \(O—H\). These release a massive amount of energy when they form.
Unstable Compound
"The energy comes from the products, not the explosive itself."
Summary of the Sequence
High Bond Energy
Hard to break, low potential energy, high stability.
Low Bond Energy
Easy to break, high potential energy, low stability.
Reaction Heat
Difference between what you "invest" (reactants) and what you "gain" (products).

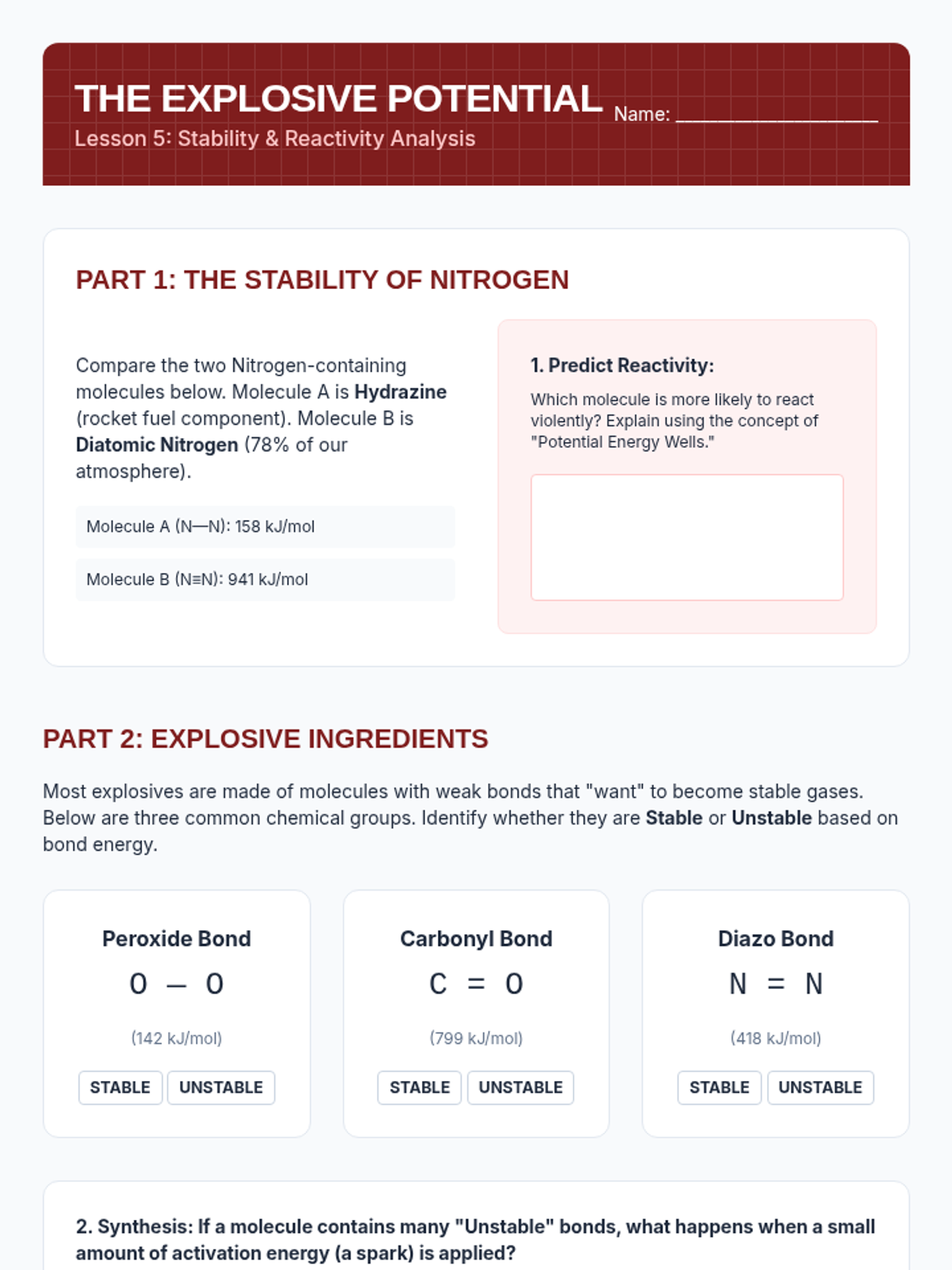

Reactive Compounds Challenge The Explosive Potential
Lesson 5: Stability & Reactivity Analysis
Name: ________________________
Part 1: The Stability of Nitrogen
Compare the two Nitrogen-containing molecules below. Molecule A is Hydrazine (rocket fuel component). Molecule B is Diatomic Nitrogen (78% of our atmosphere).
Molecule A (N—N): 158 kJ/mol
Molecule B (N≡N): 941 kJ/mol
1. Predict Reactivity:
Which molecule is more likely to react violently? Explain using the concept of "Potential Energy Wells."
Part 2: Explosive Ingredients
Most explosives are made of molecules with weak bonds that "want" to become stable gases. Below are three common chemical groups. Identify whether they are Stable or Unstable based on bond energy.
Peroxide Bond
O — O
(142 kJ/mol)
STABLE UNSTABLE
Carbonyl Bond
C = O
(799 kJ/mol)
STABLE UNSTABLE
Diazo Bond
N = N
(418 kJ/mol)
STABLE UNSTABLE
2. Synthesis: If a molecule contains many "Unstable" bonds, what happens when a small amount of activation energy (a spark) is applied?
Part 3: The Big Picture
"The energy of an explosion is not stored in the weak bonds of the TNT. It is actually provided by the formation of the extremely strong bonds of the products."
Do you agree or disagree with this statement? Defend your answer using everything you've learned about \(\Delta H = Broken - Formed\).

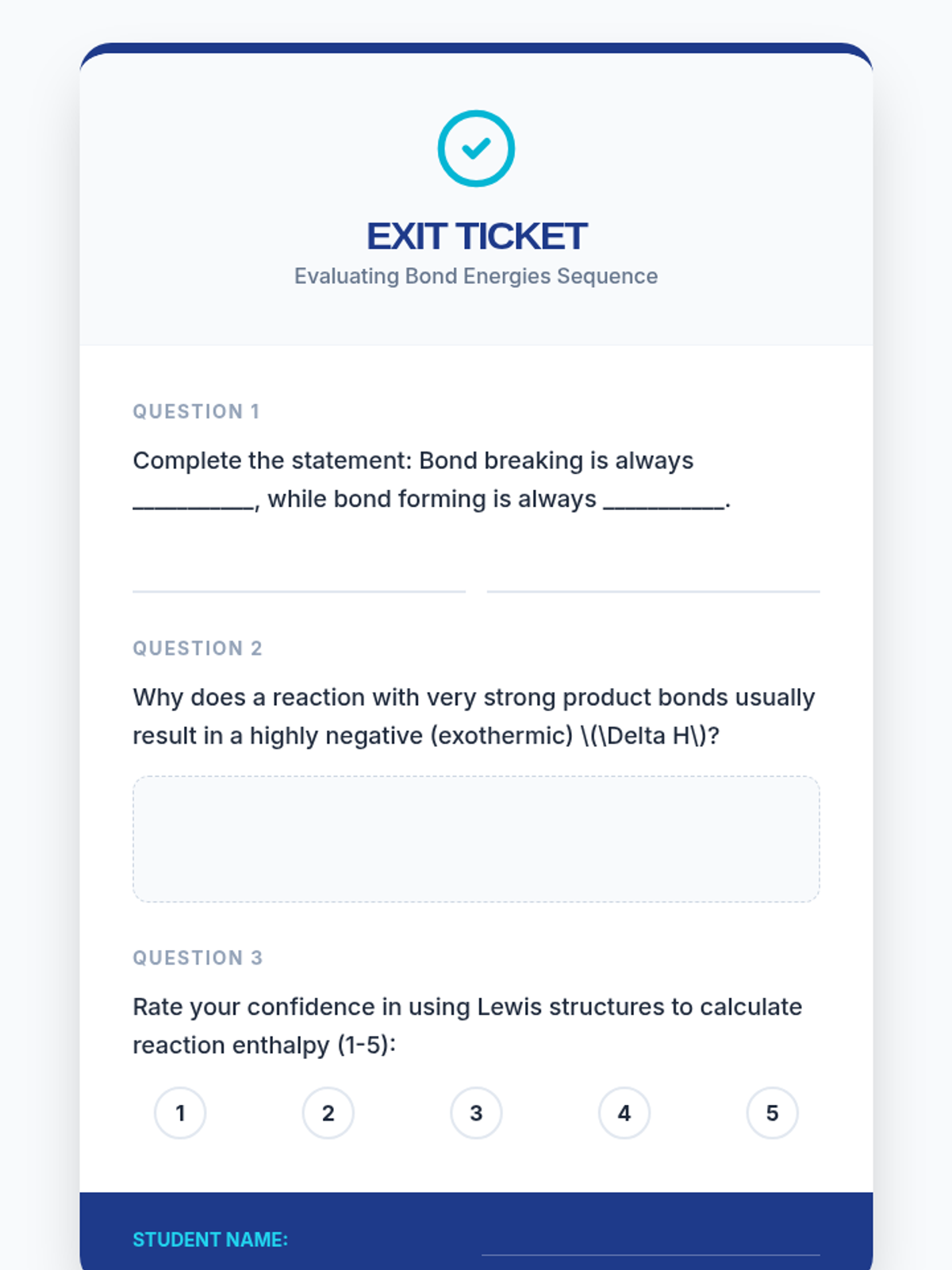

Bond Energy Exit Ticket Exit Ticket
Evaluating Bond Energies Sequence
Question 1
Complete the statement: Bond breaking is always ___________, while bond forming is always ___________.
Question 2
Why does a reaction with very strong product bonds usually result in a highly negative (exothermic) \(\Delta H\)?
Question 3
Rate your confidence in using Lewis structures to calculate reaction enthalpy (1-5):
1 2 3 4 5
Student Name:
