Acid Rain Alert Slides Acid Rain Alert
Environmental Chemistry Unit • Lesson 1
The Big Question
How can invisible chemicals in the air turn a gentle rain shower into something that can melt stone?
Think about: Old statues, bridge supports, and mountain ranges.
What is Acid Rain?
pH 4
pH 7
The Cause
Pollution from factories and cars releases sulfur and nitrogen gases into the air.
The Mix
These gases mix with water vapor in clouds to form weak acids.
Normal vs. Acid Rain
Pure Water pH 7.0
Normal Rain pH 5.6
Acid Rain pH 4.0 - 4.5
Evidence in the World
Statues "Melting"
Acid dissolves calcium carbonate in marble and limestone.
Ghost Forests
Acid leaches nutrients from soil and damages leaves, killing trees.
Dead Lakes
When pH drops below 5, most fish eggs cannot hatch.
Watch & Discuss
Case Study Video
Teachers: Show the provided case study video on acid rain formation and its impact on the Adirondack Mountains.
Who is Responsible?
If pollution in one city causes acid rain in a forest 500 miles away, who should pay to fix the damage?
Discuss in your groups
Acid Rain Case Study Worksheet Acid Rain Case Study
Environmental Chemist Log #01
Name:
Date:
Mission Briefing
You are investigating the effects of industrial pollution on a mountain ecosystem. Normal rain has a pH of about 5.6. In this area, the rain has been measured at a **pH of 4.2**. Observe the evidence below and analyze the chemical impact.
SITE A
The Town Square
Observations:
A marble statue from 1920. The facial features are blurred and the surface feels chalky. Streaks of white powder have collected at the base.
Analysis Question:
Why is the marble "melting" away?
SITE B
The High Peaks Forest
Observations:
Spruce trees are losing needles. The soil is low in calcium and magnesium. Some trees have "skeletal" branches with no leaves.
Analysis Question:
How does acid rain affect the tree's health?
Tracing the Pollution
Pollution doesn't stay in one place. Using the class map and presentation, draw a flowchart showing how pollution from a coal-burning factory travels to a mountain lake.
Factory Smoke
Dead Fish in Mountain Lake
Scientist's Reflection
1. Why is acid rain a "hidden" problem compared to a trash spill or a visible fire?
2. Propose one way humans could reduce the amount of acid rain being created.
Acid Rain Facilitation Guide TEACHER RESOURCE Lesson 01 Guide
Acid Rain Alert
Pacing: 60 Minutes
Subject: Chem/Earth Sci
Learning Objectives
Identify industrial pollution as the primary source of acid rain.
Describe the chemical process of pH lowering in rainwater.
Analyze the environmental and structural impacts of acidic precipitation.
Materials Needed
Slide Deck
Case Study Worksheets
Red Cabbage Juice (optional)
Regional Weather Map
Instructional Pacing
10 Minutes
The Hook: Melting Statues
Show slide 2. Ask: "Can rain melt a mountain?" Show images of weathered statues. Explain that while all rain is slightly acidic, "acid rain" is much more corrosive.
Prompt: "Look at the face of this statue. Why do you think it looks like it's crying or melting?"
20 Minutes
The Chemistry of Clouds
Use slides 3-4 to explain how SO₂ and NOₓ from factories mix with water vapor. Define the pH scale again (7 is neutral, lower is more acidic).
Key Misconception: Students often think acid rain is like battery acid that burns skin instantly. Clarify that it is weak acid, but accumulates over time.
20 Minutes
Evidence Investigation
Distribute the Case Study Worksheet. Students work in pairs to analyze Site A (Infrastructure) and Site B (Ecosystems). Circulate and ask students to trace the path from "Polluter" to "Victim".
10 Minutes
Synthesis & Closing
Discuss the "Who Pays?" question. This bridges chemistry with civic responsibility. Collect worksheets as a formative assessment.
Scaffolding
Provide a word bank for the flowchart (e.g., Emission, Evaporation, Precipitation, Runoff). Use pH color charts for visual learners.
Extension
Have students research "scrubbers" in factory smokestacks and how they use chemistry to clean the air before it leaves the building.
Dirt Detectives Slides Dirt Detectives
Environmental Chemistry Unit • Lesson 2
The Garden Mystery
Why do blueberries grow big and juicy in some dirt, but wither and die in others?
It's not just water and sun. It's the CHEMISTRY of the soil.
Soil pH: The Sweet Spot
ACIDIC
pH 4.5 - 5.5
Blueberries, Potatoes, and Azaleas love "sour" soil.
NEUTRAL
pH 6.0 - 7.0
Most vegetables (Tomatoes, Lettuce) and Grass love this range.
BASIC
pH 7.5 - 8.5
Asparagus and Clematis prefer "sweet" soil.
How to Test Soil pH
1
SCOOP
Fill your test tube halfway with the soil sample.
2
ADD
Add distilled water and 3 drops of indicator liquid.
3
SHAKE
Cap it tight and shake for 30 seconds. Then let it settle.
4
MATCH
Compare the color to your scientist chart.
Scientist Mission
You will test soil from 3 locations:
Your goal: Determine which plants would thrive in each location!
Soil Test Logbook Soil Scientist Logbook
Mission: Soil Quality Assessment
Investigator:
Station #:
Laboratory Protocol
1. Place 1 tablespoon of soil in the test tube. 2. Fill with distilled water to the 10mL line. 3. Add 3 drops of indicator. 4. Shake and wait 1 minute.
Sample Data & Observations
Sample Location Physical Appearance Indicator Color pH Level Site 1: Community Garden Site 2: Pine Forest Site 3: Factory Perimeter
The Plant Finder
pH 4.5-5.5: Blueberries
pH 6.0-7.0: Tomatoes
pH 7.5-8.5: Asparagus
Based on your results, where should we plant the blueberries? Why?
Scientific Hypothesis
Site 3 (Factory) had a very different pH than Site 1 (Garden). What environmental factor from Lesson 1 might be causing this change in the soil?

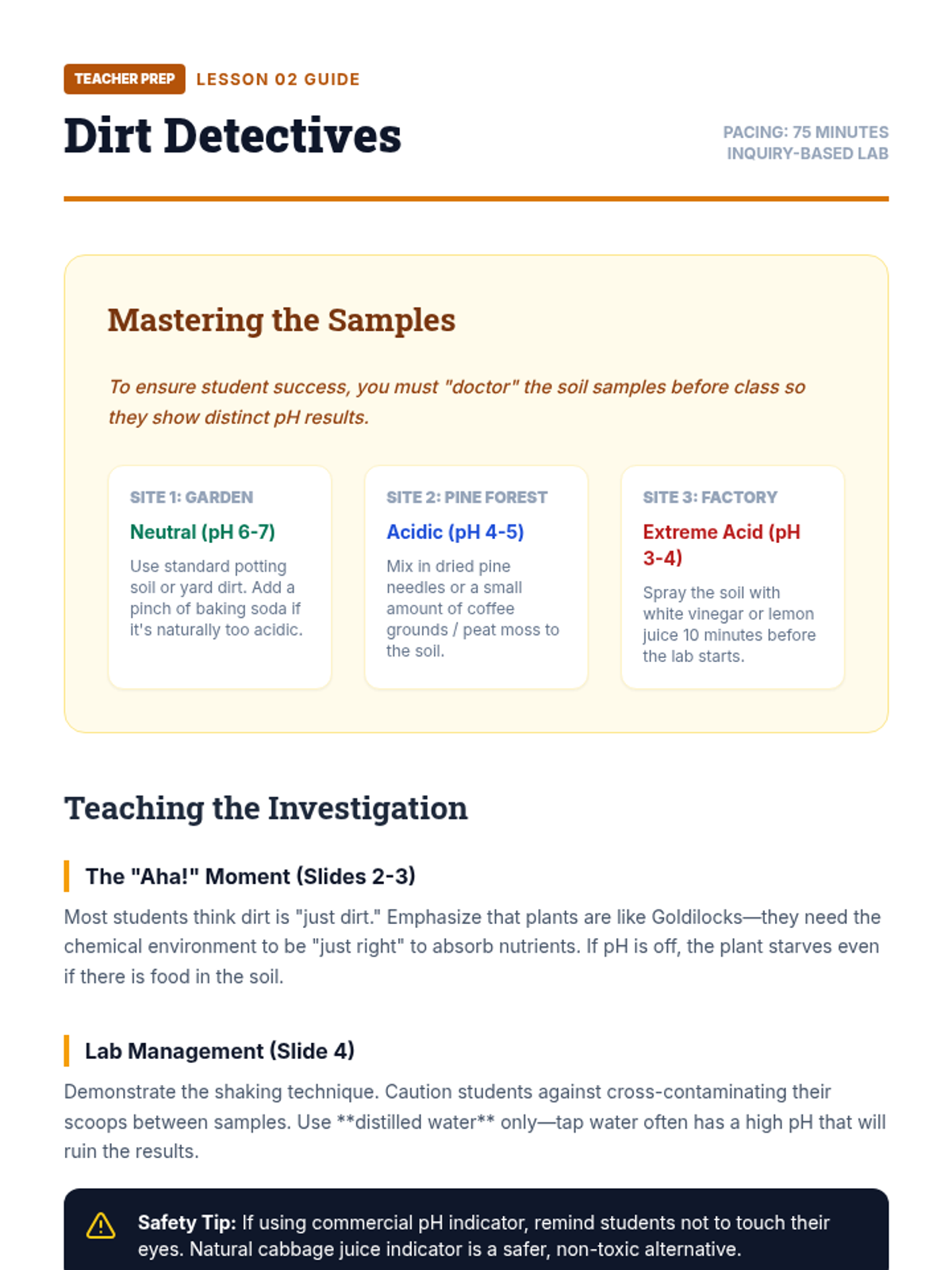

Dirt Detectives Teacher Guide TEACHER PREP Lesson 02 Guide
Dirt Detectives
Pacing: 75 Minutes
Inquiry-Based Lab
Mastering the Samples
To ensure student success, you must "doctor" the soil samples before class so they show distinct pH results.
Site 1: Garden
Neutral (pH 6-7)
Use standard potting soil or yard dirt. Add a pinch of baking soda if it's naturally too acidic.
Site 2: Pine Forest
Acidic (pH 4-5)
Mix in dried pine needles or a small amount of coffee grounds / peat moss to the soil.
Site 3: Factory
Extreme Acid (pH 3-4)
Spray the soil with white vinegar or lemon juice 10 minutes before the lab starts.
Teaching the Investigation
The "Aha!" Moment (Slides 2-3)
Most students think dirt is "just dirt." Emphasize that plants are like Goldilocks—they need the chemical environment to be "just right" to absorb nutrients. If pH is off, the plant starves even if there is food in the soil.
Lab Management (Slide 4)
Demonstrate the shaking technique. Caution students against cross-contaminating their scoops between samples. Use **distilled water** only—tap water often has a high pH that will ruin the results.
Safety Tip: If using commercial pH indicator, remind students not to touch their eyes. Natural cabbage juice indicator is a safer, non-toxic alternative.
Connecting the Lessons
Ask students: "Which site's pH was most affected by human activity?" They should identify Site 3. Challenge them to explain how the factory's air pollution (from Lesson 1) might have ended up in the soil at Site 3.
Scientist Reflection Questions
"If a farmer's soil becomes too acidic from acid rain, what could they add to the soil to neutralize it (bring the pH back up)?"
"Why do you think some plants evolved to actually like acidic soil while others like basic soil?"
Sour Seas Slides Sour Seas
The Chemistry of a Changing Ocean
A Magic Trick?
Can your breath actually change the color of the ocean?
Today, we simulate how carbon dioxide ($CO_2$) turns water acidic.
The Giant Sponge
1. The Source
Humans burn fossil fuels, releasing $CO_2$ into the atmosphere.
2. The Absorption
The ocean absorbs about 30% of all $CO_2$ we produce.
3. The Reaction
$CO_2$ + Water = Carbonic Acid. This lowers the pH of the sea.
Global Carbon Flow
The Victim: Calcium Carbonate
Marine animals like oysters, crabs, and corals use calcium carbonate to build their homes.
"Think of acid like a thief that steals the building blocks shells need to grow."
Acid + Shell = DISSOLVE
We will observe this reaction using shells in vinegar today.
Lab Station Setup
Part 1: The Breath
1 Water + Indicator
2 Blow bubbles with straw
3 Observe color change
Part 2: The Shell
1 Seashell + Vinegar
2 Look for tiny bubbles
3 Touch the shell later

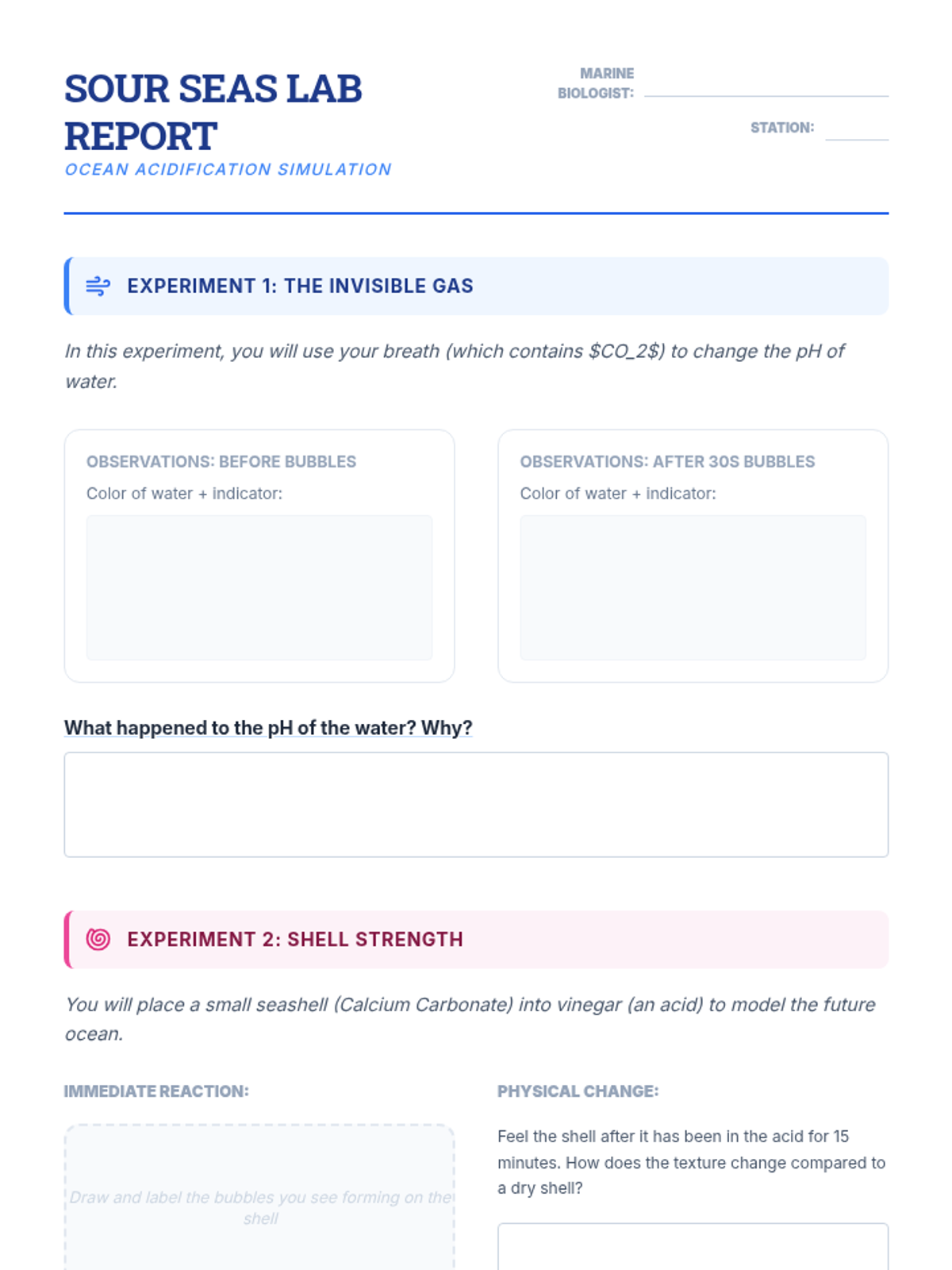

Sour Seas Lab Sheet Sour Seas Lab Report
Ocean Acidification Simulation
Marine Biologist:
Station:
Experiment 1: The Invisible Gas
In this experiment, you will use your breath (which contains $CO_2$) to change the pH of water.
Observations: Before Bubbles
Color of water + indicator:
Observations: After 30s Bubbles
Color of water + indicator:
What happened to the pH of the water? Why?
Experiment 2: Shell Strength
You will place a small seashell (Calcium Carbonate) into vinegar (an acid) to model the future ocean.
Immediate Reaction:
Draw and label the bubbles you see forming on the shell
Physical Change:
Feel the shell after it has been in the acid for 15 minutes. How does the texture change compared to a dry shell?
Biological Impact
If shells become thin and weak, how does that affect the following members of the ocean ecosystem?
Crabs/Lobsters:
Sea Turtles (Eat Shellfish):

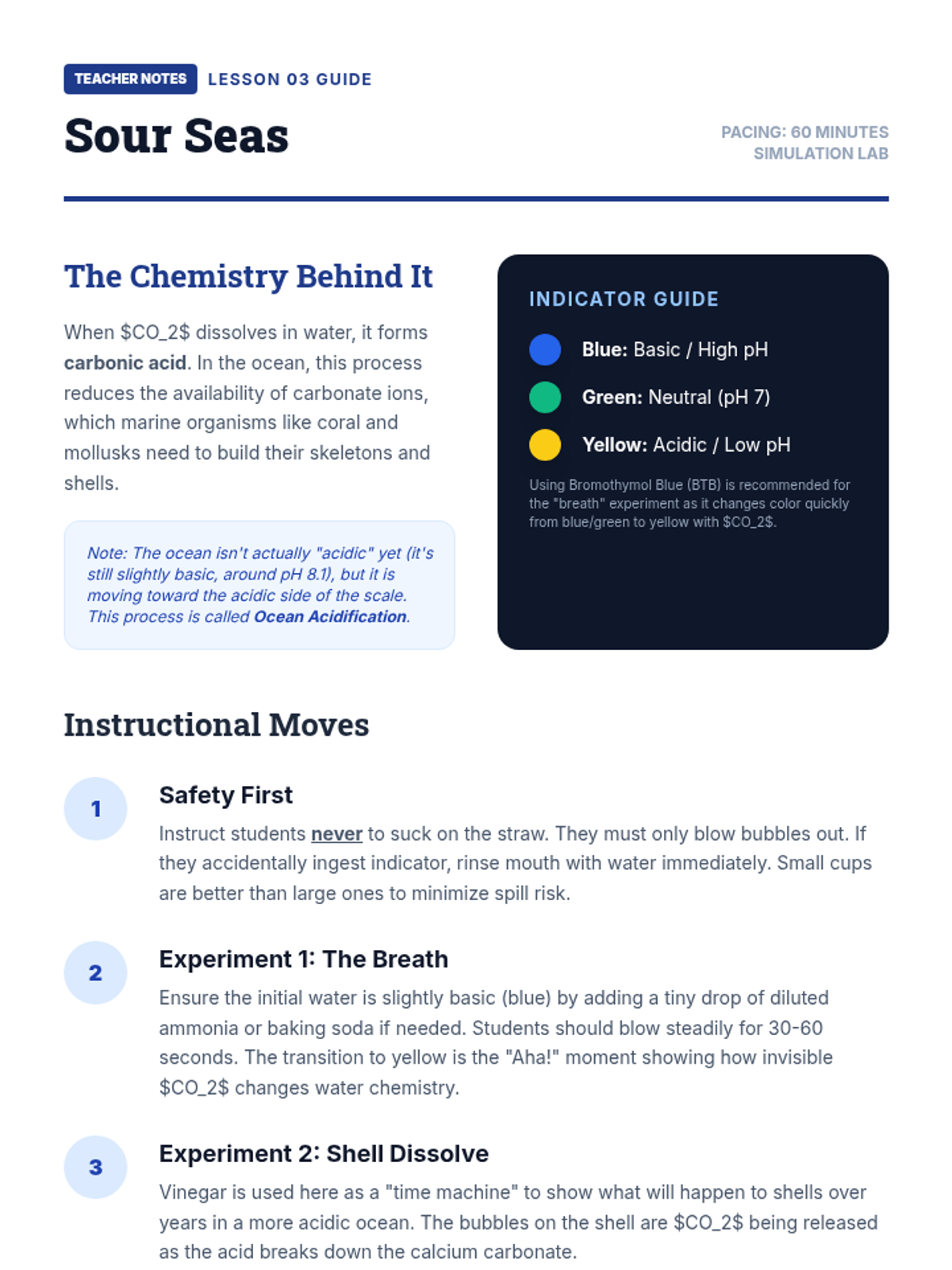

Sour Seas Teacher Notes TEACHER NOTES Lesson 03 Guide
Sour Seas
Pacing: 60 Minutes
Simulation Lab
The Chemistry Behind It
When $CO_2$ dissolves in water, it forms carbonic acid. In the ocean, this process reduces the availability of carbonate ions, which marine organisms like coral and mollusks need to build their skeletons and shells.
Note: The ocean isn't actually "acidic" yet (it's still slightly basic, around pH 8.1), but it is moving toward the acidic side of the scale. This process is called Ocean Acidification .
Indicator Guide
Blue: Basic / High pH
Green: Neutral (pH 7)
Yellow: Acidic / Low pH
Using Bromothymol Blue (BTB) is recommended for the "breath" experiment as it changes color quickly from blue/green to yellow with $CO_2$.
Instructional Moves
1
Safety First
Instruct students never to suck on the straw. They must only blow bubbles out. If they accidentally ingest indicator, rinse mouth with water immediately. Small cups are better than large ones to minimize spill risk.
2
Experiment 1: The Breath
Ensure the initial water is slightly basic (blue) by adding a tiny drop of diluted ammonia or baking soda if needed. Students should blow steadily for 30-60 seconds. The transition to yellow is the "Aha!" moment showing how invisible $CO_2$ changes water chemistry.
3
Experiment 2: Shell Dissolve
Vinegar is used here as a "time machine" to show what will happen to shells over years in a more acidic ocean. The bubbles on the shell are $CO_2$ being released as the acid breaks down the calcium carbonate.
Checking for Understanding
"If the ocean is a giant sponge for $CO_2$, why can't it just keep absorbing it forever?"
Water Healing Slides Water Healing
Chemistry & Engineering Challenge
The Engineering Question
We have identified the problems (Acid Rain, Acidic Soil, Sour Seas).
Can you invent a machine or a chemical recipe to "heal" broken water?
The Scientist's Toolkit
1. Filtration
Using physical layers to trap particles and pollution.
• Sand & Gravel
• Activated Charcoal
• Cotton Filters
2. Neutralization
Using BASES to raise the pH of acidic water back to neutral.
• Limestone (Calcium)
• Baking Soda
• Natural Minerals
Mission Brief
Goal
Take a sample of "Acidic Lake Water" (pH 4.0) and treat it until it reaches pH 6.5 - 7.5.
The Filter
You have 1 plastic bottle, sand, cotton, and charcoal. How will you layer them?
The Chemical
Will you add limestone pieces or baking soda solution to neutralize the acid?
READY? SET? ENGINEER!

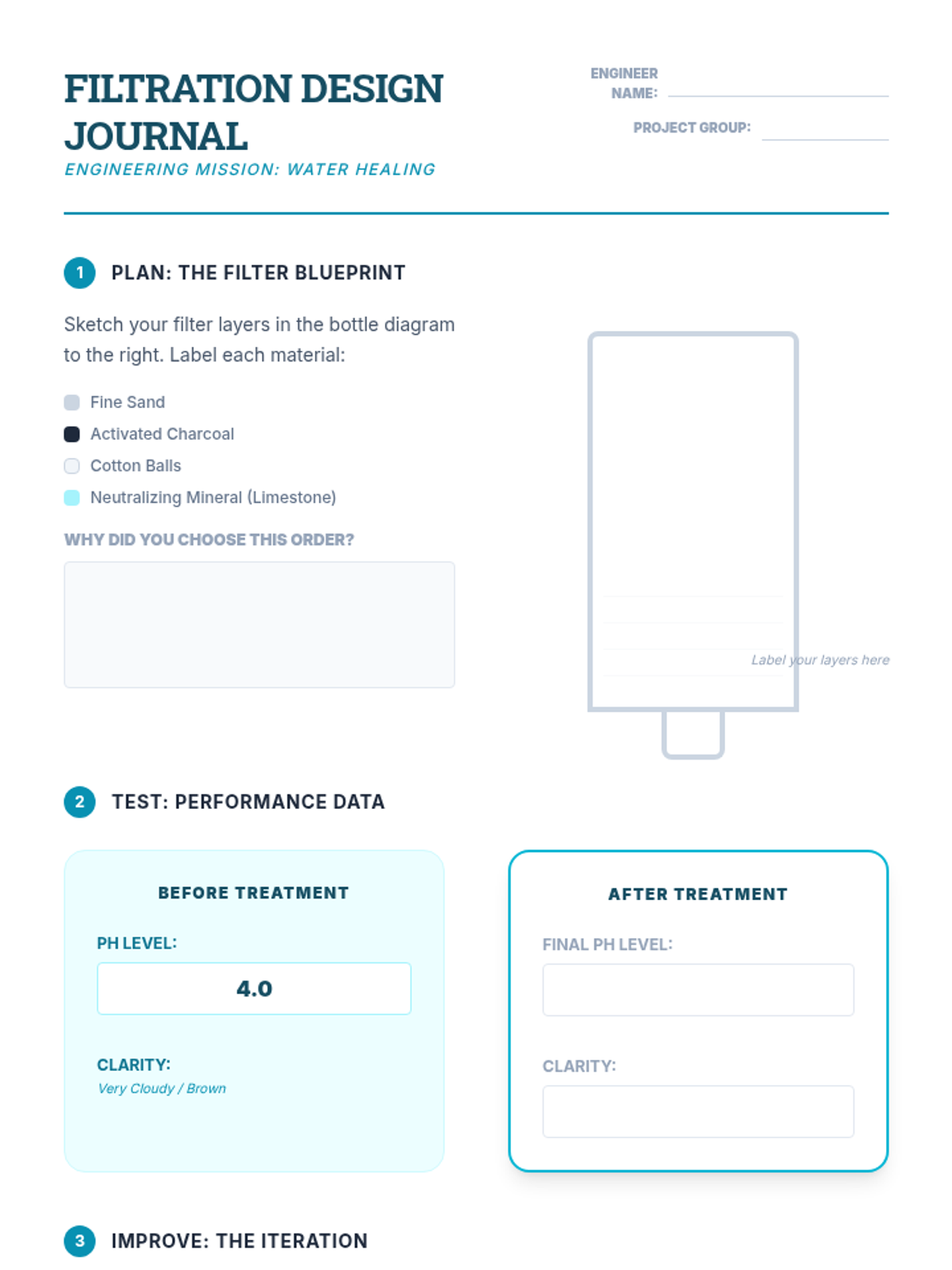

Filtration Design Journal Filtration Design Journal
Engineering Mission: Water Healing
Engineer Name:
Project Group:
1
Plan: The Filter Blueprint
Sketch your filter layers in the bottle diagram to the right. Label each material:
Fine Sand
Activated Charcoal
Cotton Balls
Neutralizing Mineral (Limestone)
Why did you choose this order?
Label your layers here
2
Test: Performance Data
Before Treatment
PH LEVEL:
4.0
CLARITY:
Very Cloudy / Brown
After Treatment
FINAL PH LEVEL:
CLARITY:
3
Improve: The Iteration
If you could build "Version 2.0" of your filter, what is the ONE thing you would change to improve the pH level?
Connection to Real World
Cities use limestone "scrubbers" in their water treatment plants to neutralize acid. Does your design work the same way? Explain why neutralizing the acid is just as important as removing the dirt particles.

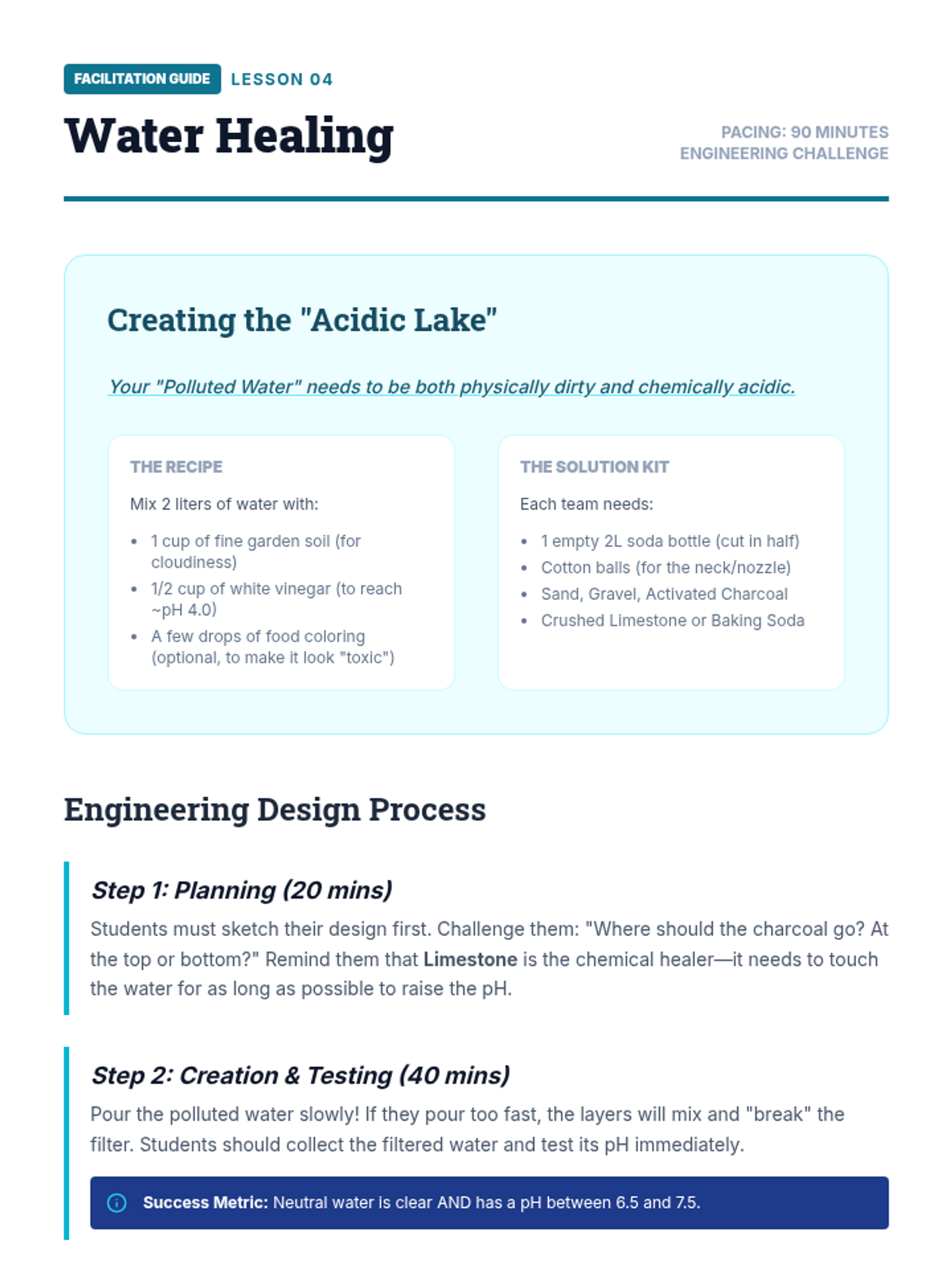

Water Healing Teacher Guide Facilitation Guide Lesson 04
Water Healing
Pacing: 90 Minutes
Engineering Challenge
Creating the "Acidic Lake"
Your "Polluted Water" needs to be both physically dirty and chemically acidic.
The Recipe
Mix 2 liters of water with:
1 cup of fine garden soil (for cloudiness)
1/2 cup of white vinegar (to reach ~pH 4.0)
A few drops of food coloring (optional, to make it look "toxic")
The Solution Kit
Each team needs:
1 empty 2L soda bottle (cut in half)
Cotton balls (for the neck/nozzle)
Sand, Gravel, Activated Charcoal
Crushed Limestone or Baking Soda
Engineering Design Process
Step 1: Planning (20 mins)
Students must sketch their design first. Challenge them: "Where should the charcoal go? At the top or bottom?" Remind them that Limestone is the chemical healer—it needs to touch the water for as long as possible to raise the pH.
Step 2: Creation & Testing (40 mins)
Pour the polluted water slowly! If they pour too fast, the layers will mix and "break" the filter. Students should collect the filtered water and test its pH immediately.
Success Metric: Neutral water is clear AND has a pH between 6.5 and 7.5.
Step 3: Debrief & Improve (30 mins)
Compare group results. If a group's pH stayed low (acidic), ask them why. Did they use enough limestone? Did the water move too quickly past the neutralizer?
Real World Tie-In
Mention that some regions "lime" entire lakes by dropping crushed limestone from helicopters to combat the effects of acid rain. This is a real-world application of the chemical neutralization they are doing today.
Planet Protectors Slides Planet Protectors
Environmental Capstone Project
The Mayor's Request
If you were the Mayor, and your town's river was becoming too acidic, what would you do?
You are the lead Environmental Scientist. We need your REPORT.
Your Body of Work
Gather your logs from the last 4 missions:
Acid Rain
The source of air pollution.
Soil Health
How pH impacts our food.
Sour Seas
The $CO_2$ impact on marine life.
Solutions
Engineering for clean water.
Report Components
1
The Warning
Explain how pH changes are harming the environment today using data.
2
The Engineering Fix
Describe your filtration/neutralization idea to protect water.
3
The Action Call
Propose ONE change humans can make (civic action) to stop pollution.
Persuade the Public!
Scientists:
The Planet is in Your Hands.
Use your Ecosystem Impact Report template to start your final investigation.
START REPORTING

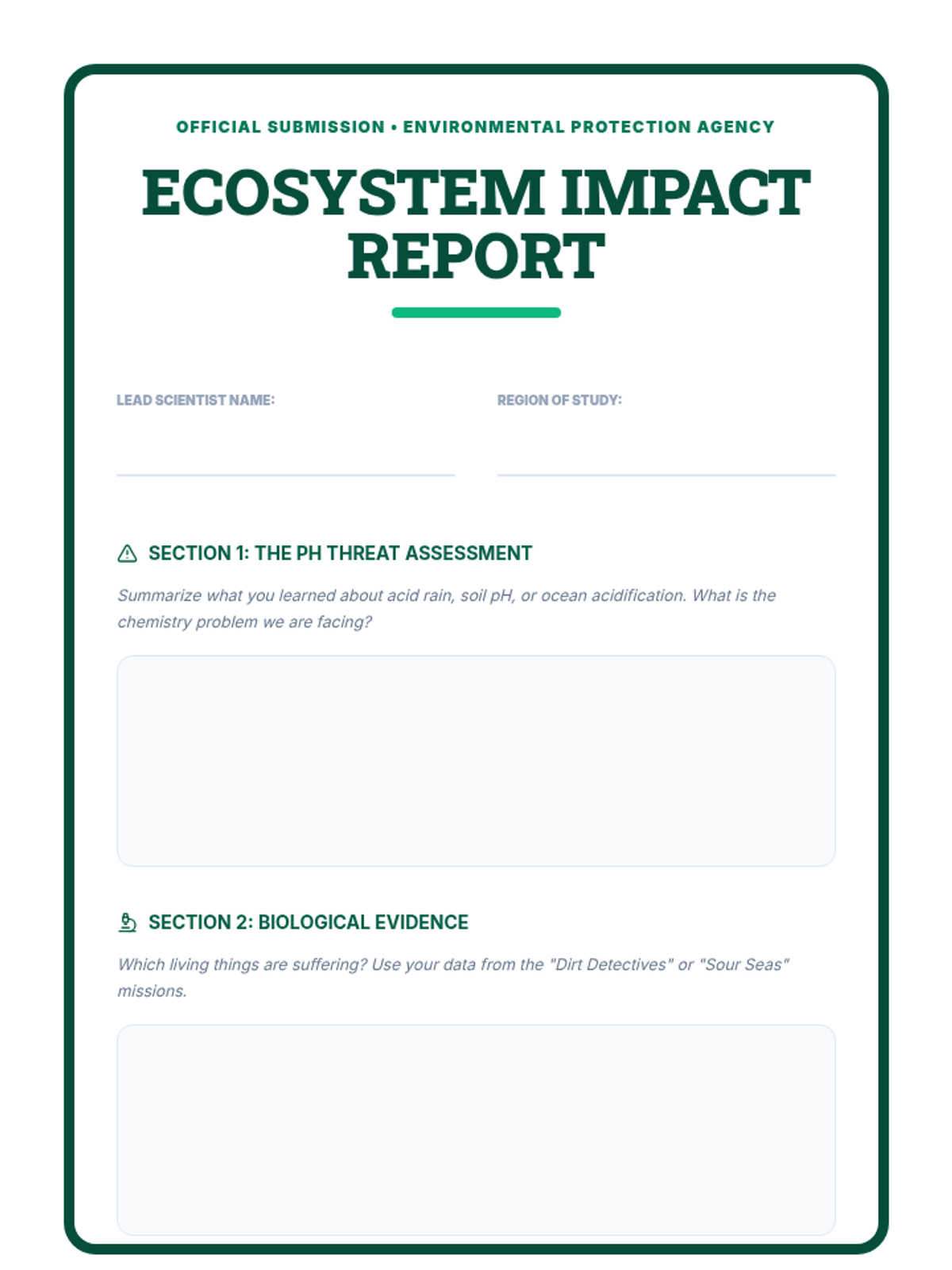

Planet Protectors Report Template Official Submission • Environmental Protection Agency
Ecosystem Impact Report
Lead Scientist Name:
Region of Study:
Section 1: The pH Threat Assessment
Summarize what you learned about acid rain, soil pH, or ocean acidification. What is the chemistry problem we are facing?
Section 2: Biological Evidence
Which living things are suffering? Use your data from the "Dirt Detectives" or "Sour Seas" missions.
Section 3: Engineering Proposal
Describe how we can use filtration or neutralization to clean our local water sources.
Section 4: Civic Action Call
If you were the Mayor, what is ONE rule or change you would implement in the town to stop this pollution at the source?
The Big Action Idea:
Official Certification:
Signed, Lead Environmental Scientist
"Protecting the pH of our Future"
Project Planet Protector • 2026
Planet Protectors Rubric and Guide ASSESSMENT GUIDE Capstone Project
Planet Protectors
Unit 1 Capstone
5th Grade Science
Project Purpose
This final report is designed for students to synthesize their chemistry knowledge (pH, acids/bases, neutralization) with ecological science (impact on organisms) and civic engineering. It moves them from "learners" to "communicators."
Scoring Rubric
Criteria Exceeds (4) Meets (3) Approaching (2) Chemistry Knowledge Accurately uses terms like pH, $CO_2$, and neutralization to explain environmental changes. Explains how pH changes but misses some chemical details. Identifies that pH is changing but can't explain why. Data Synthesis Connects findings from all 4 previous lessons into a cohesive argument. Connects findings from 2-3 lessons. Lists facts from labs but doesn't connect them. Engineering Solution Proposal is scientifically sound and uses neutralization principles correctly. Proposal uses filtration or neutralization logically. Proposal is vague (e.g., "clean the water"). Civic Action Proposes a specific, actionable change to stop pollution at the source. Proposes a general idea for helping the environment. Mentions helping the earth but lacks a clear action.
Implementation Tips
• Peer Review: Have students swap draft reports and check each other's "Chemistry Knowledge" section for accuracy.
• Portfolio: Ensure students have their previous 4 worksheets/logs on their desks before starting.
• Final Presentation: Encourage students to use a "Scientist Voice" when presenting their findings.
Extension Activity
Have students actually write their "Action Call" as a letter to their real local mayor or city council. Students can mail their reports to local environmental agencies for a "Real World Response."
