Micro Habitat Teacher Guide Teacher Instruction Guide
Micro Habitat Mapping
Hands-on Ecological Sampling & Outdoor Grid Analysis
Grades 6–12
Duration: 60–90 Mins
Lesson Purpose
Students will step outside the classroom to map miniature ecosystems using standard ecological sampling techniques. By constructing and studying 1m x 1m grid quadrats, students develop critical skills in quantitative observation, species identification, and analyzing biotic-abiotic interactions in real-world environments.
Focus: Grid Quadrat Sampling Setting: School Yard / Outdoors
Learning Objectives
• Construct and place a functional 1m² quadrat grid.
• Map micro-habitats, tracking percent cover of biotic/abiotic factors.
• Calculate species richness and density within a designated sector.
Materials Checklist (Per Group)
Teacher Preparation
Scout 3–4 contrasting outdoor zones (e.g., shady lawn, gravel path edge, garden bed, high-traffic walkway).
Define safety boundaries clearly and check the forecast.
Pre-assemble or prepare materials for DIY quadrats.
Lesson Pacing & Steps
10 Mins Classroom
The Power of the Grid (Engage)
Introduce ecological sampling. Challenge students: How do we count every weed, beetle, or rock in a forest without going crazy? Introduce the quadrat as a standard scientific window for reliable estimation.
15 Mins Prep Room
Quadrat Construction (Build)
Distribute meter sticks or PVC tubes. Guide teams of 3–4 to assemble their 1m² quadrats and string them to form four 50cm x 50cm sub-quadrats. Show them how grids simplify percent cover estimations.
35 Mins Outdoors
Field Sampling Protocol (Explore)
Take students to designated zones. Teams carefully drop their quadrats, record the abiotic microclimate (temperature, light, moisture), map physical items, catalog plant/insect species, and estimate cover percentage.
Unit: Ecosystem Dynamics Page 1 of 2
Teacher Instruction Guide
Field Facilitation & Pedagogy
Classroom & Field Setup
Next Gen Science Standards (NGSS)
Field Management & Safety Protocol
Establish Hard Boundaries
Before walking outside, designate visible boundaries (e.g., "Do not go beyond the basketball court fence or the brick garden retaining wall"). Keep all teams in clear line-of-sight.
Ecological Etiquette
Instruct students to avoid tearing living plants or crushing organisms on purpose. Remind them: "We are observers, not disruptors of this miniature habitat."
Outdoor Question Prompts
To encourage micro-observations:
"Get down low. How does the texture of the soil under the shade compare to the open turf? What is living under that dry leaf?"
To prompt ecological connection:
"If we came back here at midnight, how might this micro-habitat change? What about in winter?"
To help with estimation:
"If one mini-grid block represents 25% of your total area, what fraction of that single block is covered by grass? Let's do the math."
Common Misconceptions
Misconception: "Barren Is Empty"
Students assume dry soil or concrete blocks have no ecology. Challenge them to look for microscopic moss, lichen, ants, and micro-debris.
Misconception: "Percent Cover > 100%"
Students often sum individual tallies and get over 100%. Explain that layers (canopy grass over low clover over moss) can overlap, but base soil coverage always totals 100%.
Differentiation & Assessment Guidelines
Scaffolding (Support)
Focus strictly on abiotic vs. biotic categorizations (e.g., green plants vs. rocks). Avoid complex species classifications. Map only 1 of the 4 sub-grids.
Extension (Challenge)
Have teams calculate the Simpson's Diversity Index using their species tallies. Graph soil humidity levels vs. plant diversity index across the zones.
Formative Assessment
Check students' field maps for proportional accuracy. Ensure the reflection questions connect abiotic metrics (e.g., high shade) to biodiversity findings.
Unit: Ecosystem Dynamics Page 2 of 2

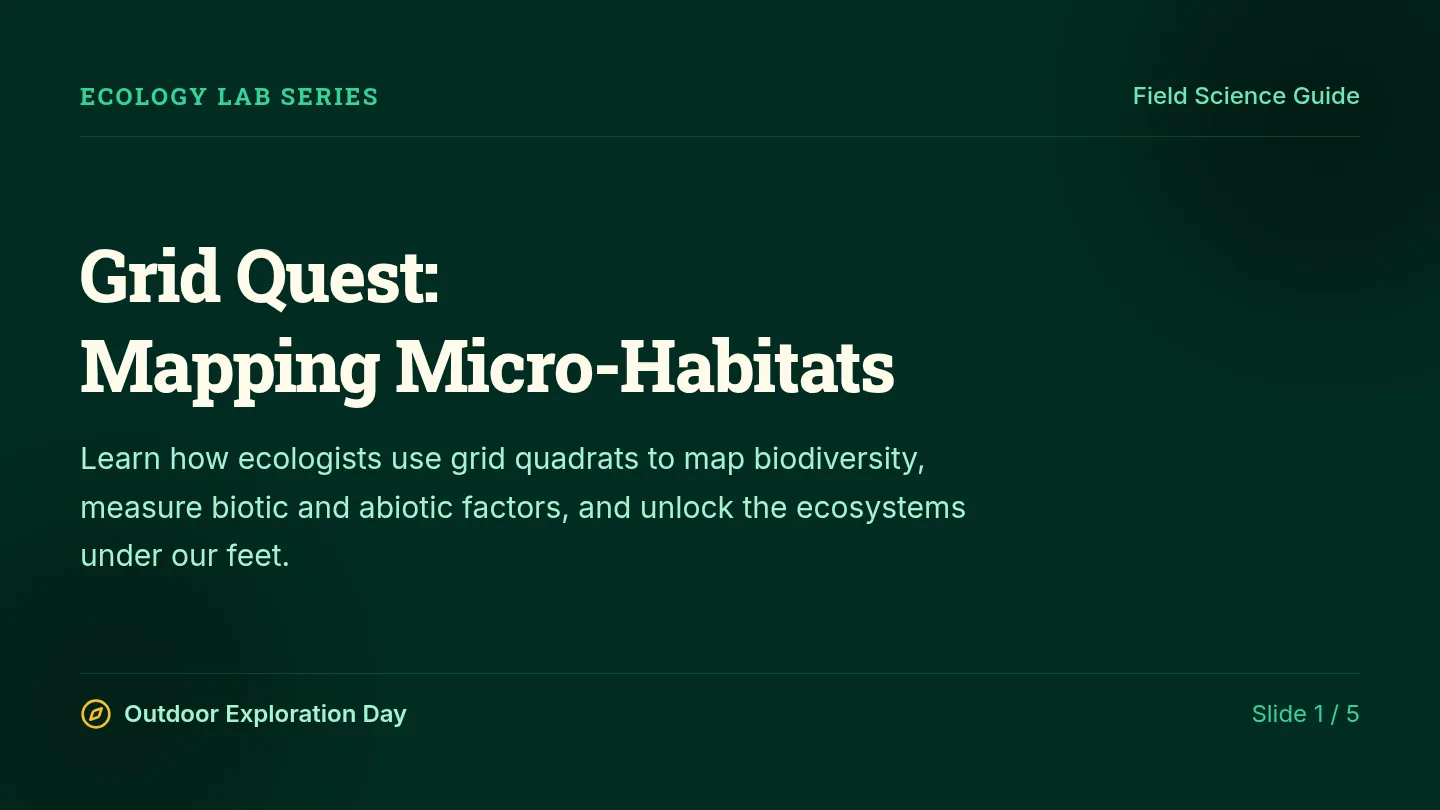

Micro Habitat Slides Ecology Lab Series Field Science Guide
Grid Quest:
Mapping Micro-Habitats
Learn how ecologists use grid quadrats to map biodiversity, measure biotic and abiotic factors, and unlock the ecosystems under our feet.
Outdoor Exploration Day
Slide 1 / 5
Ecology Concepts Section 1: Micro-Habitats
The Concept
What is a Micro-Habitat?
A micro-habitat is a tiny, localized area within a larger ecosystem that has its own unique set of environmental conditions.
Slight changes in light, moisture, soil, or temperature create unique conditions that support specialized communities.
Under a Rotting Log
High moisture, low light, ideal for fungi, isopods, and centipedes.
Crack in Concrete
High heat, minimal soil, extreme dryness, ideal for hardy weeds.
Zooming in on biodiversity Slide 2 / 5
Methodology Section 2: Scientific Sampling
Why Can't We Count Everything?
Ecologists can't realistically count every single plant, insect, or grain of sand in an entire forest or meadow.
Instead, we use sampling to make accurate, mathematical estimates of a larger area.
The Quadrat Method
1. The Frame
A square frame (usually 1 square meter) that defines the boundary of your observation zone.
2. The Sub-Grid
Dividing the frame into smaller squares makes counting and estimating percent cover highly accurate.
Scaling local data to regional insights Slide 3 / 5
Protocol Section 3: Outdoor Mission Steps
Your Outdoor Field Protocol
1
Secure & Set
Carry your assembled 1m² quadrat frame to your assigned zone. Gently lower it onto the surface without bending vegetation.
2
Measure Abiotic
Record outdoor climate data: light levels (sunny vs. shady), surface moisture (wet vs. bone dry), and surface type.
3
Map & Catalog
Sketch the features of each sub-grid on your Field Sheet. List species, count plant richness, and estimate total percent cover.
Be gentle with your ecosystem Slide 4 / 5
Field Math Section 4: Calculations
How to Estimate "Percent Cover"
Percent cover is the fraction of the quadrat grid physically occupied by a particular organism or substrate.
Tip: Group plants of the same species in your mind. If you squished them all into one corner, how many blocks would they fill?

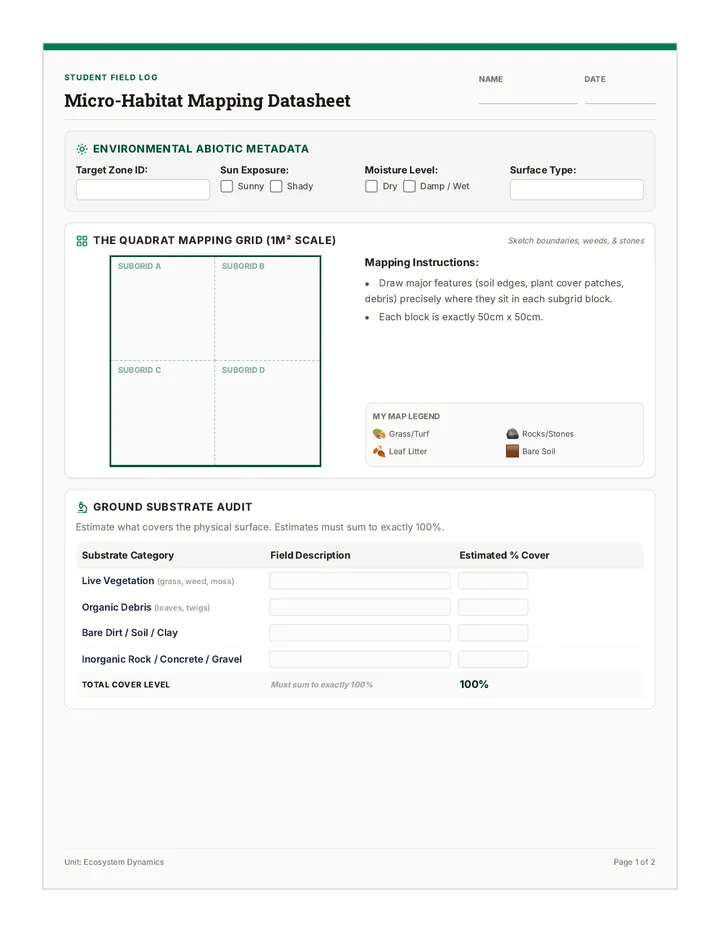

Micro Habitat Field Sheet Student Field Log
Micro-Habitat Mapping Datasheet
Name
Date
Environmental Abiotic Metadata
Target Zone ID:
Sun Exposure:
Sunny Shady
Moisture Level:
Dry Damp / Wet
Surface Type:
The Quadrat Mapping Grid (1m² scale)
Sketch boundaries, weeds, & stones
Subgrid A
Subgrid B
Subgrid C
Subgrid D
Mapping Instructions:
Draw major features (soil edges, plant cover patches, debris) precisely where they sit in each subgrid block.
Each block is exactly 50cm x 50cm.
My Map Legend
🎨 Grass/Turf
🪨 Rocks/Stones
🍂 Leaf Litter
🟫 Bare Soil
Ground Substrate Audit
Estimate what covers the physical surface. Estimates must sum to exactly 100%.
Substrate Category Field Description Estimated % Cover Live Vegetation (grass, weed, moss)
|
| Organic Debris (leaves, twigs) |
|
|
| Bare Dirt / Soil / Clay |
|
|
| Inorganic Rock / Concrete / Gravel |
|
|
| TOTAL COVER LEVEL | Must sum to exactly 100% | 100% |
Unit: Ecosystem Dynamics Page 1 of 2
Student Field Log
Biodiversity Catalog & Analysis
Field Session II
Biotic Species Inventory
Identify and log up to 4 different types of organisms found inside your quadrat frame.
Organism Type Visual Characteristics Abundance Tally Estimated Cover % Species A: (e.g. broad clover)
|
|
| Species B: (e.g. dandelion leaf) |
|
|
|
| Species C: (e.g. garden ant) |
|
|
|
| Species D: (e.g. lichen / moss) |
|
|
|
Field Calculations
Species Richness Index:

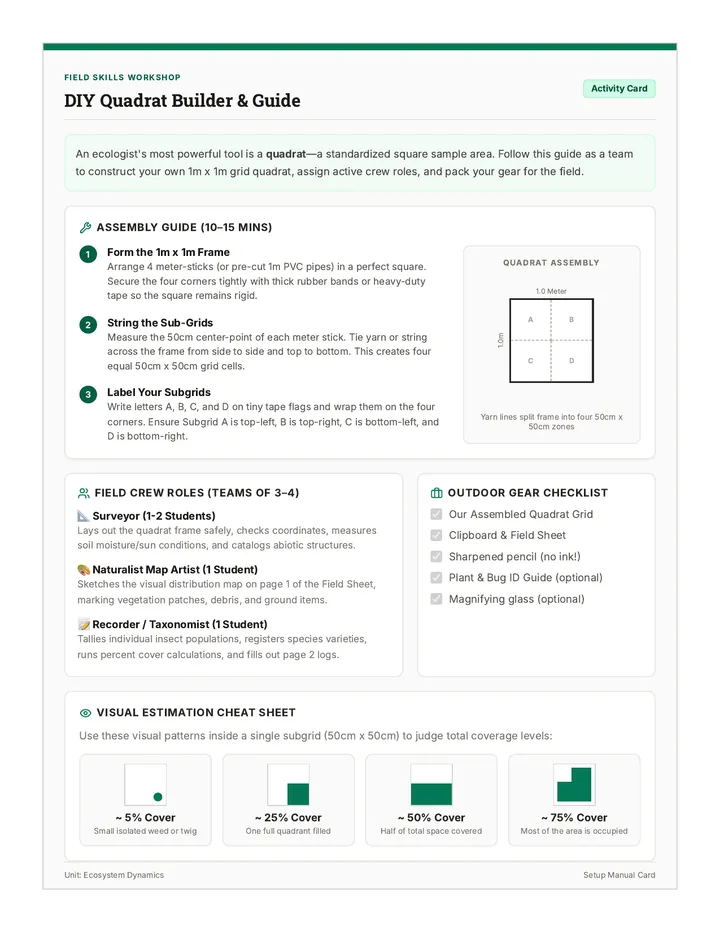

Micro Habitat Setup Activity Field Skills Workshop
DIY Quadrat Builder & Guide
Activity Card
An ecologist's most powerful tool is a quadrat —a standardized square sample area. Follow this guide as a team to construct your own 1m x 1m grid quadrat, assign active crew roles, and pack your gear for the field.
Assembly Guide (10–15 Mins)
1
Form the 1m x 1m Frame
Arrange 4 meter-sticks (or pre-cut 1m PVC pipes) in a perfect square. Secure the four corners tightly with thick rubber bands or heavy-duty tape so the square remains rigid.
2
String the Sub-Grids
Measure the 50cm center-point of each meter stick. Tie yarn or string across the frame from side to side and top to bottom. This creates four equal 50cm x 50cm grid cells.
3
Label Your Subgrids
Write letters A, B, C, and D on tiny tape flags and wrap them on the four corners. Ensure Subgrid A is top-left, B is top-right, C is bottom-left, and D is bottom-right.
Quadrat Assembly
A
B
C
D
1.0 Meter 1.0m
Yarn lines split frame into four 50cm x 50cm zones
Field Crew Roles (Teams of 3–4)
📐 Surveyor (1-2 Students)
Lays out the quadrat frame safely, checks coordinates, measures soil moisture/sun conditions, and catalogs abiotic structures.
🎨 Naturalist Map Artist (1 Student)
Sketches the visual distribution map on page 1 of the Field Sheet, marking vegetation patches, debris, and ground items.
📝 Recorder / Taxonomist (1 Student)
Tallies individual insect populations, registers species varieties, runs percent cover calculations, and fills out page 2 logs.
Outdoor Gear Checklist
Visual Estimation Cheat Sheet
Use these visual patterns inside a single subgrid (50cm x 50cm) to judge total coverage levels:
~ 5% Cover
Small isolated weed or twig
~ 25% Cover
One full quadrant filled
