Crash Dynamics Lesson Plan Physics & Engineering Grade 9 Physical Science • 90 Min
Crash Dynamics Lesson Plan
Kinetic Collisions: Momentum Transfer, Impulse & Vehicle Safety Systems
Unit: Forces & Motion
NGSS: HS-PS2-1, HS-PS2-2, HS-PS2-3
Essential Question
How do automotive engineers manipulate the relationship between momentum, impact time, and force to keep passengers alive during high-speed collisions?
Learning Objectives (SWBAT)
Calculate linear momentum (\(p = mv\)) and impulse (\(J = F_{\text{avg}}\Delta t\)) from collision kinematics.Compare impact forces between rigid barriers and collapsible crumple structures.Explain how extending collision duration (\(\Delta t\)) minimizes net deceleration force on occupants.Evaluate modern engineering safety devices (seatbelts, crumple zones, airbags) using impulse concepts.
NGSS Standards & Practices
HS-PS2-2: Use mathematical representations to support the claim that total momentum of a system is conserved when there is no net force.
HS-PS2-3: Apply scientific and engineering ideas to design, evaluate, and refine a device that minimizes force during a collision.
SEP: Constructing Explanations & Designing Solutions, Using Mathematics.
Key Mathematical Framework
Momentum
\(p = mv\)
\([\text{kg}\cdot\text{m/s}]\)
Impulse-Momentum
\(J = \Delta p = m\Delta v\)
\([\text{N}\cdot\text{s}]\)
Impact Force
\(F_{\text{avg}} = \frac{\Delta p}{\Delta t}\)
\([\text{N}]\)
Required Materials & Station Setup (Groups of 3–4)
Station Hardware:
Low-friction dynamics carts (500g base mass)
Track/ramp system with 1.2m incline
Photogates or digital high-speed phone camera timer
Force sensors or mechanical spring impact gauges
500g bar masses for mass variation trials
Collision Barrier Materials:
Rigid aluminum/wooden end-stop (baseline)
Accordion-folded cardstock (crumple zone model)
High-density modeling clay / foam buffers
Metric rulers and electronic balance (0.1g)
Vehicle Impact Activity Sheets (1 per student)
Crash Dynamics • Instructional Planning Guide Page 1 of 2
Instructional Sequence & Implementation Arc
90-Minute Block Schedule
Pacing Phase Teacher Facilitation & Student Actions 15 min Engage: The 1959 vs 2009 Test Show comparison crash test video (1959 Bel Air vs 2009 Malibu). Prompt think-pair-share: Why did the car that 'looked stronger' result in fatal passenger cabin collapse, while the crumpling car protected the dummy? Frame essential question. 20 min Explain: The Impulse-Momentum Theorem Direct instruction with Slide Deck. Derive \(J = \Delta p = F\Delta t\) from Newton's Second Law (\(F = ma = m\frac{\Delta v}{\Delta t}\)). Model sample calculation showing how doubling impact time reduces peak stopping force by 50%. 35 min Explore: Vehicle Impact Lab Students work in groups using the Vehicle Impact Activity Sheet . Release carts down inclined ramp into 3 barrier types: Rigid Wall, Elastic Spring, and Collapsible Paper Crumple Zone. Students record time (\(\Delta t\)), mass, velocity, and compute \(F_{\text{avg}}\). 12 min Elaborate: Safety Engineering Design Students synthesize data to explain modern vehicle crumple zones, breakaway engine mounts, seatbelt pretensioners, and nylon airbags. Connect to real vehicle crashworthiness data. 8 min Evaluate: Formative Debrief & Exit Students finalize calculations and complete the synthesis prompt on their activity sheets. Review expectations against the Crash Safety Assessment Rubric .
Common Misconceptions
Misconception: “Rigid, unbreakable cars are safest.”
Reality: Rigid cars stop instantaneously (\(\Delta t \approx 0\)), transmitting catastrophic G-forces directly to passenger bodies and organs.
Misconception: “Airbags act like soft pillows.”
Reality: Airbags increase stopping distance and deceleration time by milliseconds while venting gas to dissipate kinetic energy gradually.
Differentiation Strategies
Tier 1 Support (ELL / SPED): Provide formula scaffolds with visual variable triangles (\(\Delta p / F \cdot \Delta t\)). Pair with pre-measured bumper lengths and color-coded data tables.
Tier 2 Extension: Have advanced students calculate change in kinetic energy (\(\Delta KE = \frac{1}{2}mv^2\)) and quantify energy dissipated via plastic deformation of the crumple zone.
Facilitator Checkpoints & Safety Protocol
Catch Boxes: Place padded bookends or catch mats at track ends to prevent dynamic carts from colliding with the floor if barriers fail.Photogate Calibration: Position photogates immediately preceding the impact barrier (\(≤ 2\text{cm}\)) so velocity measurements accurately reflect terminal pre-impact speed.Consistent Drop Heights: Mark three standard release heights along the track (30cm, 60cm, 90cm) to keep velocity predictable across comparison trials.
Crash Dynamics • Instructional Planning Guide Page 2 of 2
Kinetic Collisions Slide Deck Crash Test Physics
PHYSICAL SCIENCE • HS-PS2
Safety Engineering • Investigation
KINETIC COLLISIONS
The Physics of Impact: Momentum, Impulse & Crumple Zones
Essential Question: How does extending time save human lives?
01 / 06
Historical Comparison
The Myth of the Rigid Steel Car
02 / 06
1950s Heavy Solid Steel
Zero Deformation
The car body barely bends. All kinetic energy transfers instantly into the passenger cabin.
Impact Time \(\approx 0.02\,\text{s}\) → Massive Fatal Force
Modern Engineered Safety Cell
Sacrificial Crumple Zones
The vehicle front buckles predictably, absorbing energy and stretching the collision interval.
Impact Time \(\approx 0.12\,\text{s}\) → Force Reduced \(>80\%\)
Core Principle: It is not the collision that kills—it is the rapid deceleration rate!
Physics Foundation
Momentum: Mass in Motion
03 / 06
Equation
\(p = mv\)
Momentum equals mass times velocity
Standard Units
\(\text{kg}\cdot\text{m/s}\)
Kilogram-meters per second
Vector Nature
→ Direction
Direction matters: rebounds create bigger \(\Delta p\)
To stop any moving vehicle: Initial Momentum \(p_{\text{initial}}\) must drop to Zero (\(p_{\text{final}} = 0\))
The Engineering Secret
Impulse & The Time Trick
04 / 06
\(J = \Delta p = F_{\text{avg}} \cdot \Delta t\)
Impulse equals change in momentum, which equals Force × Time
Short Impact Time
\(\Delta t \downarrow \implies F_{\text{avg}} \Huge\uparrow\)
Small time window means enormous, destructive peak force on passengers.
Extended Impact Time
\(\Delta t \uparrow \implies F_{\text{avg}} \Huge\downarrow\)
Longer stopping time dilutes the peak force down to survivable levels!
Rearranging: \(F_{\text{avg}} = \frac{\Delta p}{\Delta t}\) — Increase the denominator to crush the force!
Vehicle Safety Systems
Anatomy of Crash Protection
05 / 06
1. Crumple Zones
Specially engineered front rails collapse like an accordion. They absorb kinetic energy and expand \(\Delta t\) from \(20\,\text{ms}\) to over \(100\,\text{ms}\).
Triples deceleration distance

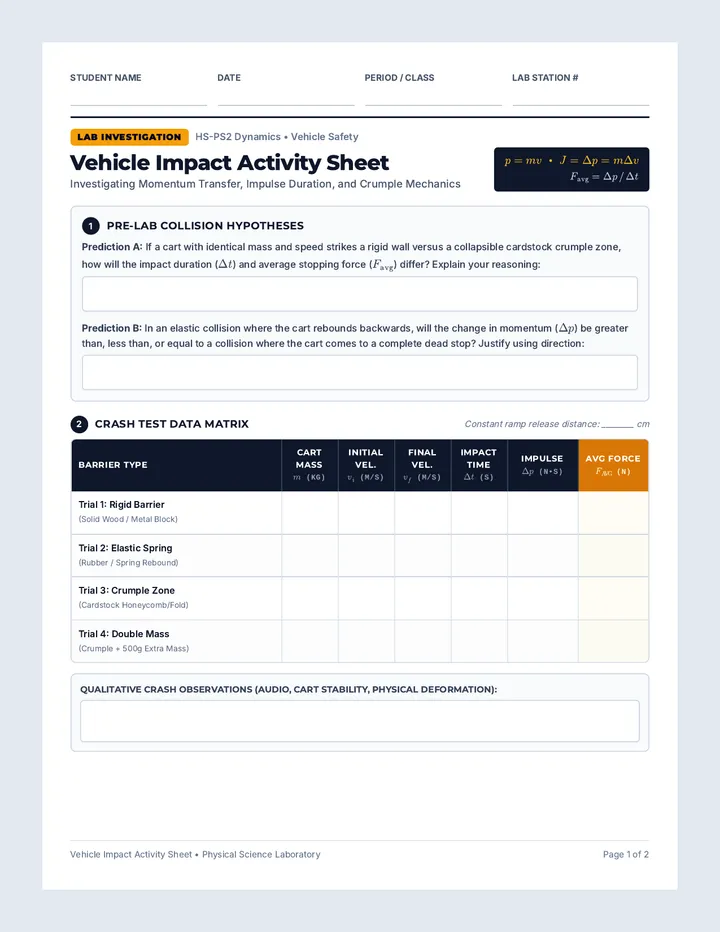

Vehicle Impact Activity Sheet Student Name
Date
Period / Class
Lab Station #
Lab Investigation HS-PS2 Dynamics • Vehicle Safety
Vehicle Impact Activity Sheet
Investigating Momentum Transfer, Impulse Duration, and Crumple Mechanics
\(p = mv\) • \(J = \Delta p = m\Delta v\)
\(F_{\text{avg}} = \Delta p \,/\, \Delta t\)
1
Pre-Lab Collision Hypotheses
Prediction A: If a cart with identical mass and speed strikes a rigid wall versus a collapsible cardstock crumple zone, how will the impact duration (\(\Delta t\)) and average stopping force (\(F_{\text{avg}}\)) differ? Explain your reasoning:
Prediction B: In an elastic collision where the cart rebounds backwards, will the change in momentum (\(\Delta p\)) be greater than, less than, or equal to a collision where the cart comes to a complete dead stop? Justify using direction:
2
Crash Test Data Matrix
Constant ramp release distance: ________ cm
| Barrier Type | Cart Mass
Qualitative Crash Observations (Audio, Cart Stability, Physical Deformation):
Vehicle Impact Activity Sheet • Physical Science Laboratory Page 1 of 2
Part 3 & 4: Quantitative Analysis & Safety Engineering Evaluation
HS-PS2-3 Evidence Formulation
3
Quantitative Work Verification
Show complete mathematical steps (formula, substituted values with units, final answer with units) for calculating \(F_{\text{avg}}\) for Trial 1 (Rigid) and Trial 3 (Crumple) :
Trial 1 (Rigid Barrier) Calculation:
Trial 3 (Crumple Zone) Calculation:
4
Safety Engineering Analysis Questions
Q1. Impact Time vs. Peak Force: How did the crumple bumper alter the duration (\(\Delta t\)) of the collision compared to the rigid barrier? By what factor or percentage did this change the calculated stopping force?
Q2. The Rebound Danger: In Trial 2 (Elastic Spring), the cart bounced backwards (\(v_f < 0\)). Why does a rebounding collision result in a higher \(\Delta p\) and greater injury risk to passengers than an inelastic stop where the vehicle crumples?

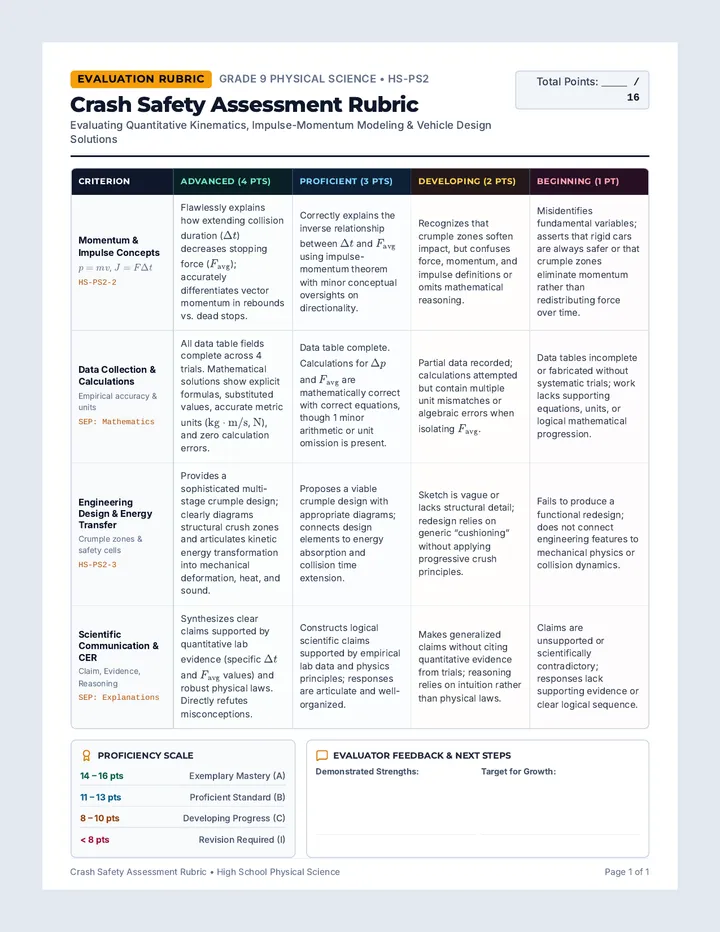

Crash Safety Assessment Rubric Evaluation Rubric Grade 9 Physical Science • HS-PS2
Crash Safety Assessment Rubric
Evaluating Quantitative Kinematics, Impulse-Momentum Modeling & Vehicle Design Solutions
Total Points: ____ / 16
Criterion Advanced (4 pts) Proficient (3 pts) Developing (2 pts) Beginning (1 pt) Momentum & Impulse Concepts \(p=mv\), \(J=F\Delta t\) HS-PS2-2 Flawlessly explains how extending collision duration (\(\Delta t\)) decreases stopping force (\(F_{\text{avg}}\)); accurately differentiates vector momentum in rebounds vs. dead stops. Correctly explains the inverse relationship between \(\Delta t\) and \(F_{\text{avg}}\) using impulse-momentum theorem with minor conceptual oversights on directionality. Recognizes that crumple zones soften impact, but confuses force, momentum, and impulse definitions or omits mathematical reasoning. Misidentifies fundamental variables; asserts that rigid cars are always safer or that crumple zones eliminate momentum rather than redistributing force over time. Data Collection & Calculations Empirical accuracy & units SEP: Mathematics All data table fields complete across 4 trials. Mathematical solutions show explicit formulas, substituted values, accurate metric units (\(\text{kg}\cdot\text{m/s}\), \(\text{N}\)), and zero calculation errors. Data table complete. Calculations for \(\Delta p\) and \(F_{\text{avg}}\) are mathematically correct with correct equations, though 1 minor arithmetic or unit omission is present. Partial data recorded; calculations attempted but contain multiple unit mismatches or algebraic errors when isolating \(F_{\text{avg}}\). Data tables incomplete or fabricated without systematic trials; work lacks supporting equations, units, or logical mathematical progression. Engineering Design & Energy Transfer Crumple zones & safety cells HS-PS2-3 Provides a sophisticated multi-stage crumple design; clearly diagrams structural crush zones and articulates kinetic energy transformation into mechanical deformation, heat, and sound. Proposes a viable crumple design with appropriate diagrams; connects design elements to energy absorption and collision time extension. Sketch is vague or lacks structural detail; redesign relies on generic “cushioning” without applying progressive crush principles. Fails to produce a functional redesign; does not connect engineering features to mechanical physics or collision dynamics. Scientific Communication & CER Claim, Evidence, Reasoning SEP: Explanations
