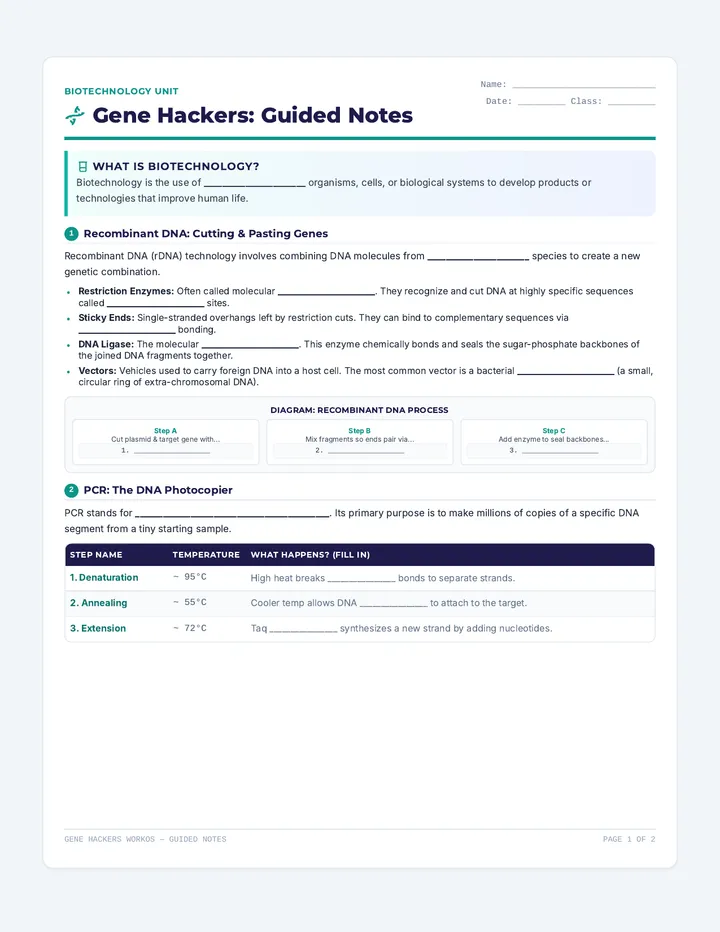

Gene Hackers Guided Notes Biotechnology Unit
Gene Hackers: Guided Notes
Name: ___________________________
Date: _________ Class: _________
What is Biotechnology?
Biotechnology is the use of ______________________ organisms, cells, or biological systems to develop products or technologies that improve human life.
1 Recombinant DNA: Cutting & Pasting Genes
Recombinant DNA (rDNA) technology involves combining DNA molecules from ______________________ species to create a new genetic combination.
Restriction Enzymes: Often called molecular ______________________ . They recognize and cut DNA at highly specific sequences called ______________________ sites.Sticky Ends: Single-stranded overhangs left by restriction cuts. They can bind to complementary sequences via ______________________ bonding.DNA Ligase: The molecular ______________________ . This enzyme chemically bonds and seals the sugar-phosphate backbones of the joined DNA fragments together.Vectors: Vehicles used to carry foreign DNA into a host cell. The most common vector is a bacterial ______________________ (a small, circular ring of extra-chromosomal DNA).
Diagram: Recombinant DNA Process
Step A
Cut plasmid & target gene with...
1. __________________
Step B
Mix fragments so ends pair via...
2. __________________
Step C
Add enzyme to seal backbones...
3. __________________
2 PCR: The DNA Photocopier
PCR stands for __________________________________________ . Its primary purpose is to make millions of copies of a specific DNA segment from a tiny starting sample.
Step Name Temperature What Happens? (Fill in) 1. Denaturation ~ 95°C High heat breaks ________________ bonds to separate strands. 2. Annealing ~ 55°C Cooler temp allows DNA ________________ to attach to the target. 3. Extension ~ 72°C Taq ________________ synthesizes a new strand by adding nucleotides.
GENE HACKERS WORKOS — GUIDED NOTES PAGE 1 OF 2
Modern Genomic Editing & Analysis
Name: ____________________
3 Gel Electrophoresis: Sorting by Size
Gel electrophoresis is used to separate DNA fragments based on their ______________________ and ______________________ .
The Charge of DNA: DNA molecules carry a strong ______________________ charge due to their phosphate groups. Therefore, when placed in an electric field, they migrate towards the positive electrode.The Matrix: The agarose gel acts as a molecular ______________________ . Smaller DNA fragments move ( faster / slower ) through the pores, while larger fragments get left behind.The Result: DNA fragments appear as distinct ______________________ on the gel, which can be stained and visualized under UV light to create a DNA fingerprint.
GEL MAP (- top, + bottom)
Well 1 Well 2
▲ Positive Electrode (+) ▲
Analyzing the Gel:
Look at the gel map on the left. The DNA band located closest to the starting wells is the ______________________ (largest/smallest) fragment. The band that traveled the furthest towards the positive electrode is the ______________________ fragment.
4 CRISPR-Cas9: The Surgical Strike
CRISPR-Cas9 is a revolutionary gene-editing technology adapted from a natural defense mechanism found in ______________________ .
1. Guide RNA (gRNA)
A sequence engineered to match and bind specifically to the target ______________________ sequence in the genome. It directs the enzyme exactly where to cut.
2. Cas9 Protein
An enzyme that acts as a molecular pair of ______________________ , cutting both strands of the target DNA once located by the gRNA.
The CRISPR Conundrum (Ethical Checkpoint)
CRISPR allows us to treat genetic disorders but also raises ethical concerns regarding germline modifications (altering embryos) which affect future generations.
State one major benefit and one potential risk of editing human germline cells:
Benefit: ____________________________________________________________________________________
Risk: _______________________________________________________________________________________
GENE HACKERS WORKOS — GUIDED NOTES PAGE 2 OF 2

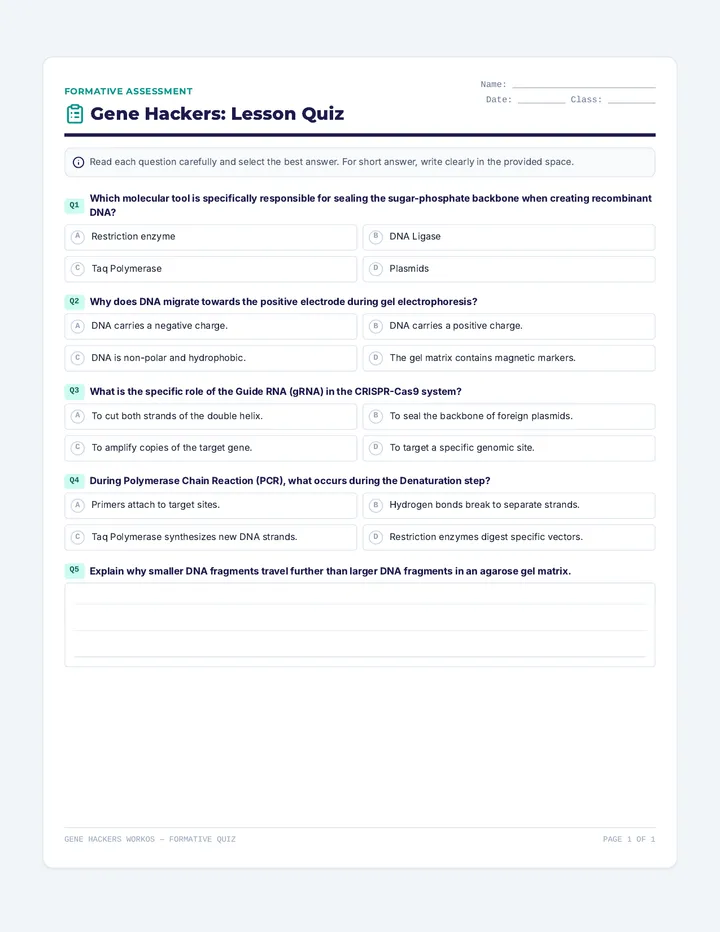

Gene Hackers Quiz Formative Assessment
Gene Hackers: Lesson Quiz
Name: ___________________________
Date: _________ Class: _________
Read each question carefully and select the best answer. For short answer, write clearly in the provided space.
Q1
Which molecular tool is specifically responsible for sealing the sugar-phosphate backbone when creating recombinant DNA?
A Restriction enzyme B DNA Ligase C Taq Polymerase D Plasmids
Q2
Why does DNA migrate towards the positive electrode during gel electrophoresis?
A DNA carries a negative charge. B DNA carries a positive charge. C DNA is non-polar and hydrophobic. D The gel matrix contains magnetic markers.
Q3
What is the specific role of the Guide RNA (gRNA) in the CRISPR-Cas9 system?
A To cut both strands of the double helix. B To seal the backbone of foreign plasmids. C To amplify copies of the target gene. D To target a specific genomic site.
Q4
During Polymerase Chain Reaction (PCR), what occurs during the Denaturation step?
A Primers attach to target sites. B Hydrogen bonds break to separate strands. C Taq Polymerase synthesizes new DNA strands. D Restriction enzymes digest specific vectors.
Q5
Explain why smaller DNA fragments travel further than larger DNA fragments in an agarose gel matrix.
GENE HACKERS WORKOS — FORMATIVE QUIZ PAGE 1 OF 1

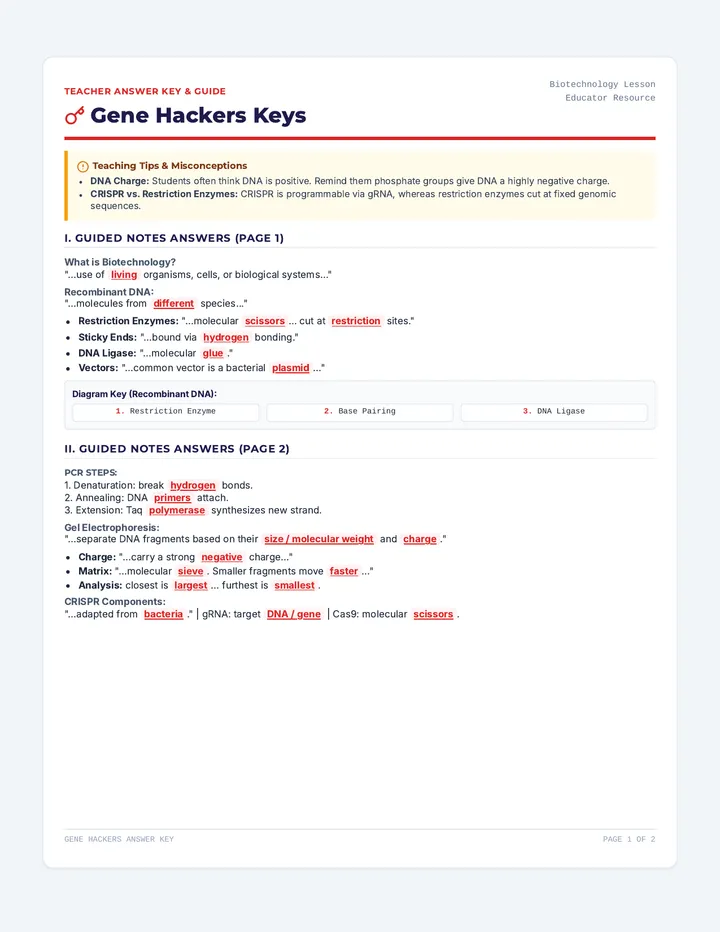

Gene Hackers Teacher Key TEACHER ANSWER KEY & GUIDE
Gene Hackers Keys
Biotechnology Lesson
Educator Resource
Teaching Tips & Misconceptions
DNA Charge: Students often think DNA is positive. Remind them phosphate groups give DNA a highly negative charge.CRISPR vs. Restriction Enzymes: CRISPR is programmable via gRNA, whereas restriction enzymes cut at fixed genomic sequences.
I. Guided Notes Answers (Page 1)
What is Biotechnology?
Recombinant DNA:
Restriction Enzymes: "...molecular scissors... cut at restriction sites."Sticky Ends: "...bound via hydrogen bonding."DNA Ligase: "...molecular glue."Vectors: "...common vector is a bacterial plasmid..."
Diagram Key (Recombinant DNA):
Restriction Enzyme
Base Pairing
DNA Ligase
II. Guided Notes Answers (Page 2)
PCR Steps: 1. Denaturation: break hydrogen bonds.
Gel Electrophoresis:
Charge: "...carry a strong negative charge..."Matrix: "...molecular sieve. Smaller fragments move faster..."Analysis: closest is largest... furthest is smallest.
CRISPR Components:
GENE HACKERS ANSWER KEY PAGE 1 OF 2
Lesson Quiz Answer Key
Question 1 Key
Correct Choice: B — DNA Ligase
Explanation: DNA Ligase acts as molecular glue, forming covalent phosphodiester bonds that physically seal the sugar-phosphate backbones of DNA strands. Restriction enzymes (A) cut DNA.
Question 2 Key
Correct Choice: A — DNA carries a negative charge.
Explanation: Phosphate groups in the DNA backbone are negatively charged. Since opposite charges attract, DNA naturally migrates away from the negative pole and toward the positive electrode.
