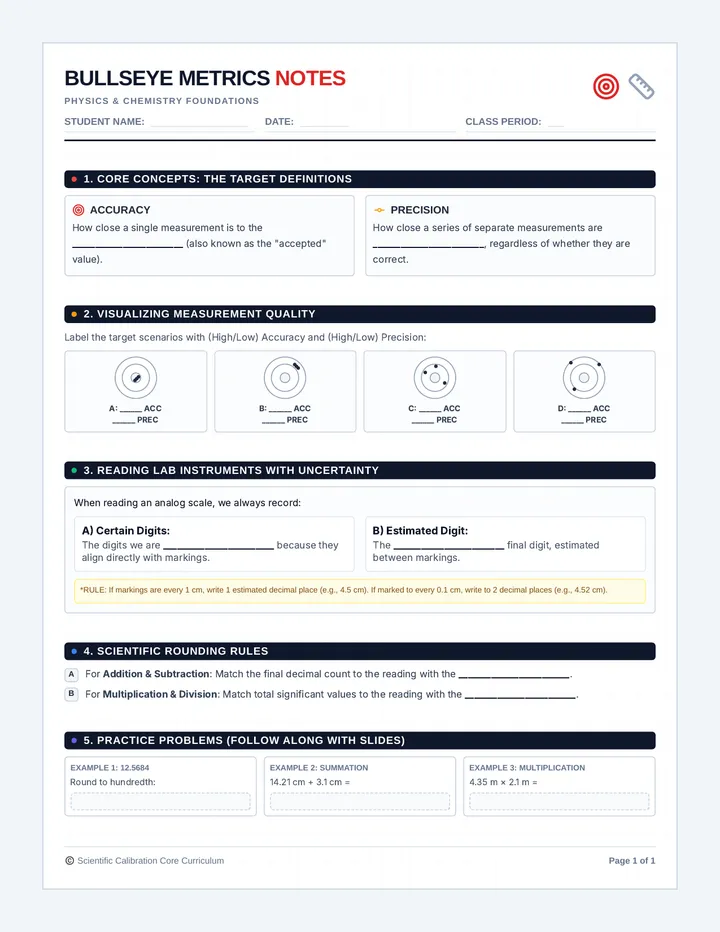

A comprehensive high school physics or chemistry-themed lesson exploring rounding rules, measurement uncertainty, and the critical differences between accuracy and precision through a high-engagement archery and measurement theme.
Calculate accuracy (Percent Error) of your AVERAGES compared to US Mint specifications (19.05 mm diameter / 1.52 mm thickness):
A) Standard Ruler Error:
Show calculation here:
B) Vernier Caliper Error:
Show calculation here:
C) Digital Caliper Error:
Show calculation here:
5. Synthesis & Error Analysis Questions
Question 1: Compare the ranges across your three instruments. Which instrument exhibited the highest level of precision? What is the physical or technical reason behind this difference?
Question 2: Suppose your digital caliper had a faulty baseline offset, reading exactly 0.50 mm too high for every single test. How would this affect (a) the accuracy and (b) the precision of your final datasets?
Question 1: An engineer measures the width of a titanium microchip component three times using a laser caliper with a resolution of 0.0001 mm. The measurements are: 1.5204 mm, 1.5202 mm, and 1.5203 mm. The actual target manufactured width of the microchip is 1.5200 mm. Calculate the percent error of the engineer's average measurement and comment on whether the process shows higher precision or accuracy.
Question 2: In a chemistry lab, a student needs exactly 12.0 mL of hydrochloric acid. She uses a graduated cylinder that has markings at every 1 mL. She records a volume of 12.05 mL. Explain why this measurement has an inappropriate level of recorded precision. How should she have written the recorded volume?
Scenario A (Water BP):
Accuracy: Low | Precision: High
Justification: Tight cluster (range 0.2 °C), but far off the true 100.0 °C.
Scenario B (Mass calibration):
Accuracy: High | Precision: High
Justification: Extreme proximity to target (average is 5.000 g) and range is extremely small (0.004 g).
Worksheet Part 3 & Part 4 Solutions
Part 3: Calculations
Q1: Calculator: 39.628 | Rounded: 39.6 cm (limited by 3.1 cm to one decimal place).
Q2: Calculator: 35.466 | Rounded: 35.5 m² (limited to 3 sig figs by 2.30 m).
Q3: Calculator: 5.12666... | Rounded: 5.13 g (retaining hundredths decimal place from inputs).
Part 4: Word Problems
Q1: Average width = 1.5203 mm. Error = [ |1.5203 - 1.5200| / 1.5200 ] × 100 = 0.0197% Error. Displays extremely high accuracy and high precision (range of 0.0002 mm).
Q2: The cylinder marks every 1 mL. This means certain digits are in the ones place (12 mL) and the single estimated digit is in the tenths place. He should record 12.1 mL (or 12.0 mL). Writing 12.05 mL implies estimation in hundredths, which is incorrect.
Exit Ticket Answer Key
Q1: Target Grouping Selection: Option C: Low Accuracy & High Precision. The shots miss the center bullseye completely (Low Accuracy) but group very close to each other (High Precision).
Q2 (Calculations):
A) 12.564 g + 3.2 g → Calculator: 15.764 → Rounded: 15.8 g (limited to 1 decimal place by 3.2 g).
B) 4.50 m × 2.0 m → Calculator: 9.0 → Rounded: 9.0 m² (limited to 2 sig figs by 2.0 m).
Q3 (Device Estimation): Yes, it violates scientific rounding rules. With markings every 0.1 cm, the researcher is certain of the tenths place and can estimate only up to the hundredths place (e.g., 14.50 cm). 14.505 cm attempts to estimate to the thousandths place, which is an illegal over-precision.
