Heat Vision Slides Physics Unit: EM Waves
Heat Vision
Mastering the Infrared Spectrum and Thermal Imaging
SLIDE 01 / 06
The Hook: Invisible Footprints
Imagine walking across a carpeted floor. To the naked eye, the floor looks exactly the same after you pass.
But to an IR sensor...
Heat transfer from your feet leaves "thermal footprints" that glow brightly against the cooler floor for minutes.
Thermal Visualization
[Demonstration: Use IR camera or show high-res thermal image]
The Physics: Blackbody Radiation
1. Absolute Zero
Every object with a temperature above absolute zero (0 Kelvin) emits EM radiation.
2. Wien's Law
As an object gets hotter, it emits shorter wavelengths. Room temp objects emit mostly Infrared.
3. IR Detection
Sensors translate these invisible wavelengths into colors we can see (False Color).
Higher Energy = Higher Frequency = Shorter Wavelength
Thermal Tech in Action
Search & Rescue
Finding body heat signatures in dense forests or dark rubble.
Building Diagnostics
Locating heat leaks, missing insulation, or electrical hotspots.
Medical Imaging
Detecting inflammation, fever, or circulatory issues via skin temperature.
Firefighting
Seeing through thick smoke to find "hot spots" behind walls.
Interpreting Thermograms
COLOR SCALE
COLD (MIN) HOT (MAX)
The Golden Rule
Color represents intensity and wavelength, NOT the actual light emitted. White/Yellow = Most intense IR. Blue/Black = Least intense.
Look for anomalies (unusually hot/cold spots)
Consider the environment (ambient temp)
Think: What is causing that heat?
Your Mission: Heat Map Hunt
Analyze the provided thermograms. Identify the heat source, the problem being solved, and the physics at play.
Analysis Sheet
Scenario Search
Thermal Explorer Teacher Guide Thermal Explorer
Teacher Guide | Lesson 1: Infrared & Thermal Imaging
PHY-EM-L1-TG
Lesson Overview
Pacing
60 Minutes
Grade Level
9th Grade Physics
Key Concept
Blackbody Radiation
Objectives
Explain that all objects above 0K emit electromagnetic radiation.
Connect temperature to wavelength using Wien's Displacement Law concepts.
Interpret false-color thermograms to identify energy anomalies.
Evaluate the impact of IR technology on search and rescue and building efficiency.
Materials
"Heat Vision" Slide Deck
"Heat Maps" Student Activity Sheet
Optional: IR Camera (FLIR) or Thermal Imaging Phone App
Internet access for thermal simulations (e.g., PhET)
Instructional Sequence
00-10m
The Hook: Thermal Footprints
Demonstrate the footprints on the carpet/floor using a thermal camera. If a camera isn't available, show a high-resolution video of this phenomenon.
Discussion Prompt: "Why does the floor stay warm where I stepped? Is the floor 'glowing' in a way we can see?"
10-25m
Physics Focus: Wien's Law & IR
Use slides to explain that "Heat" isn't a wavelength, but temperature dictates which EM wave is emitted. Focus on the idea that human bodies (98.6°F) emit strongly in the mid-IR range, which atmospheric "windows" allow us to detect from a distance.
25-50m
Activity: Thermogram Analysis
Students work through the "Heat Maps" worksheet. They will analyze three specific cases: a residential house (heat loss), a forest (search & rescue), and a mechanical circuit (preventative maintenance).
Check for Understanding: Ensure students understand that bright white = high intensity, not necessarily "visible light."
50-60m
Debrief & Exit Ticket
Invite students to suggest a NEW use for thermal imaging. How could it help in sports? Cooking? Wildlife preservation?
Common Misconceptions
"Thermal cameras see through walls"
Most thermal cameras only see surface temperature. They see a "stud" behind a wall because the stud conducts heat differently than the insulation, creating a thermal pattern on the surface of the drywall.
"Hotter = Redder"
Thermal color palettes are arbitrary. While "Ironbow" (purple-to-orange) is common, many industrial users prefer "White-Hot" or "Black-Hot" where higher temperatures are simply brighter shades of gray.
Heat Maps Activity Worksheet Heat Maps Activity
EM Waves Lesson 01 | Infrared Investigation
Name:
Date:
Part 1: The Physics of IR
Complete the statements below based on the class presentation:
1. All objects above
Kelvin emit electromagnetic radiation.
2. As an object's temperature increases , the peak wavelength it emits gets
.
3. Thermal cameras detect
waves, which are longer than visible light.
Part 2: Case Study Analysis
Image A: Residential
Bright orange around windows, dark blue on walls.
Scenario A: Energy Audit
This image shows a house during a cold winter night.
What does the bright orange around the windows indicate about the EM waves being emitted there?
Recommendation to the homeowner:
Image B: Forest
Sea of dark purple (foliage) with a small white-hot spot in the center.
Scenario B: Search & Rescue
A drone is flying over a dense forest at 2:00 AM looking for a lost hiker.
Why does the person stand out so clearly against the trees at night?
If the person was hiding under a thick wool blanket, would the drone see them? Why/Why not?
Part 3: Innovation Challenge
Wildlife biologists want to track the movements of polar bears in the snowy Arctic. How could thermal imaging help, and what challenges might they face given the environment?
Work Area: Sketch or write your response below
Light Pipes Slides Physics Unit: EM Waves
Light Pipes
Fiber Optics and the Physics of Total Internal Reflection
SLIDE 01 / 06
The Hook: Light in a Leaky Bucket
In 1841, Daniel Colladon showed light could be "trapped" inside a curved stream of water.
How is this possible?
Instead of passing through the water-air boundary, the light bounces back inside. This is the foundation of the modern internet.
Total Internal Reflection
[Demonstration: Laser pointer through a stream of water]
Refraction to Reflection
1. Refraction
Light speeds up or slows down moving between materials, causing it to bend.
2. Critical Angle
The specific angle where light bends so much it skims the surface (90° refraction).
3. Total Internal Reflection
Beyond the critical angle, light can't escape. It reflects 100% back into the material.
Must move from HIGH Index (Glass) to LOW Index (Air/Cladding)
Anatomy of a Fiber
Fiber Cable Cross-Section
The Core
High-purity glass where the light travels. High refractive index.
The Cladding
Lower refractive index layer that forces light back into the core via TIR.
Data at Light Speed
Why Fiber?
Bandwidth: Carries way more data than copper wires.Loss: Light travels for kilometers without fading.EMI: Immune to electromagnetic interference.
How it works:
Lasers turn data into pulses of light (binary 1s and 0s). These pulses bounce through thousands of miles of undersea fiber cables to reach your device.
Lab Time: The Laser Trap
Measure critical angles and demonstrate total internal reflection. Can you guide light through a curved path?
Safety First
Never look into a laser Avoid shiny reflections

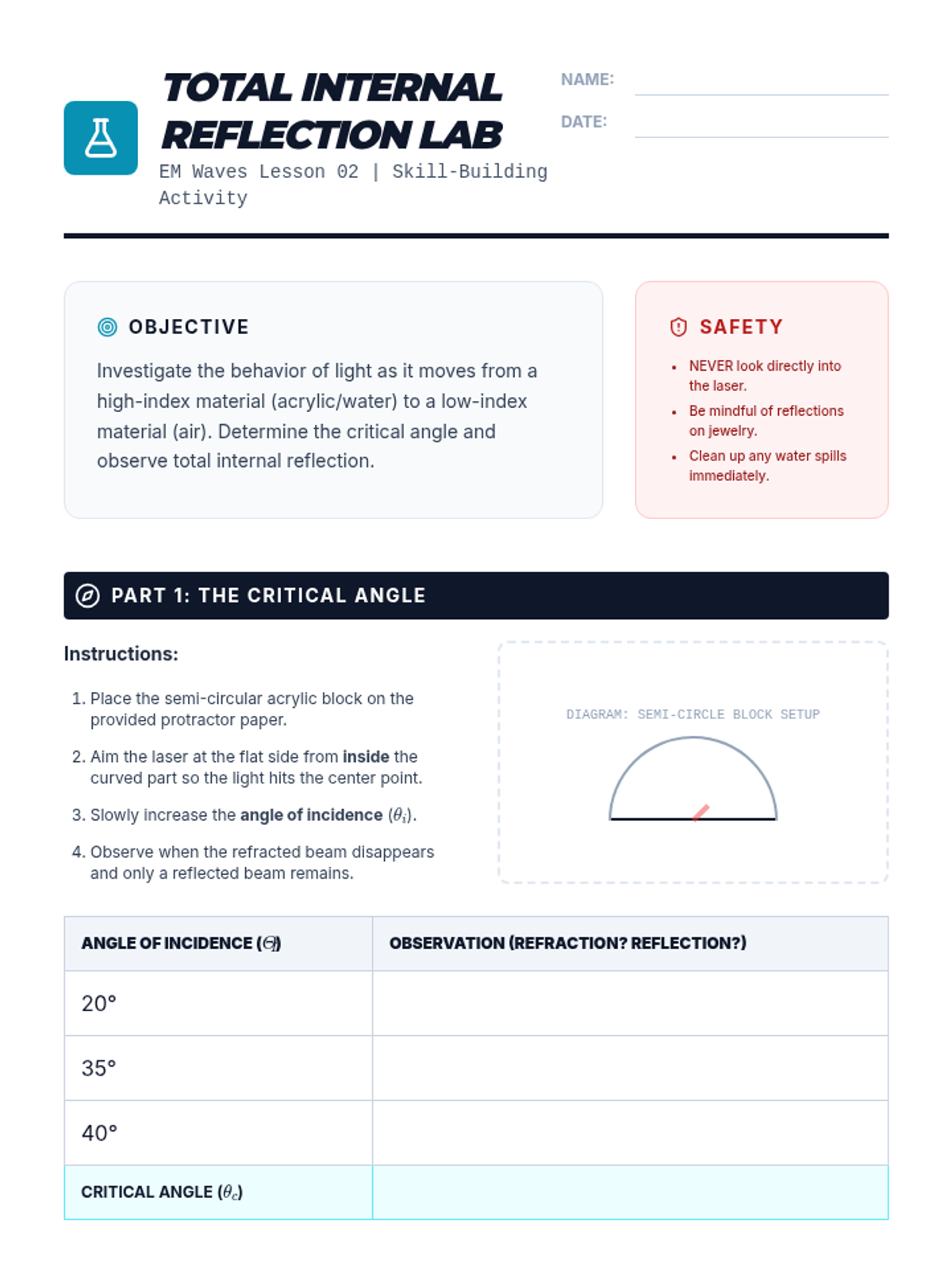

Total Internal Reflection Lab Total Internal Reflection Lab
EM Waves Lesson 02 | Skill-Building Activity
Name:
Date:
Objective
Investigate the behavior of light as it moves from a high-index material (acrylic/water) to a low-index material (air). Determine the critical angle and observe total internal reflection.
Safety
NEVER look directly into the laser.
Be mindful of reflections on jewelry.
Clean up any water spills immediately.
Part 1: The Critical Angle
Instructions:
Place the semi-circular acrylic block on the provided protractor paper.
Aim the laser at the flat side from inside the curved part so the light hits the center point.
Slowly increase the angle of incidence (\(\theta_i\)).
Observe when the refracted beam disappears and only a reflected beam remains.
DIAGRAM: SEMI-CIRCLE BLOCK SETUP
Angle of Incidence (\(\theta_i\)) Observation (Refraction? Reflection?) 20° 35° 40° CRITICAL ANGLE (\(\theta_c\))
Part 2: Light Piping
Challenge: Use the flexible acrylic rod to "transport" the laser beam around a 90-degree corner. Observe the light as it hits the walls of the rod.
Analysis: Why does the light stay inside the rod even when you bend it?
Sketch: Draw the path of the beam as it bounces through the curve below.
Work Space
Thinking Further
Undersea fiber optic cables are thousands of miles long. If the glass wasn't 100% efficient at reflecting (TIR), what would happen to the internet signal by the time it crossed the ocean?

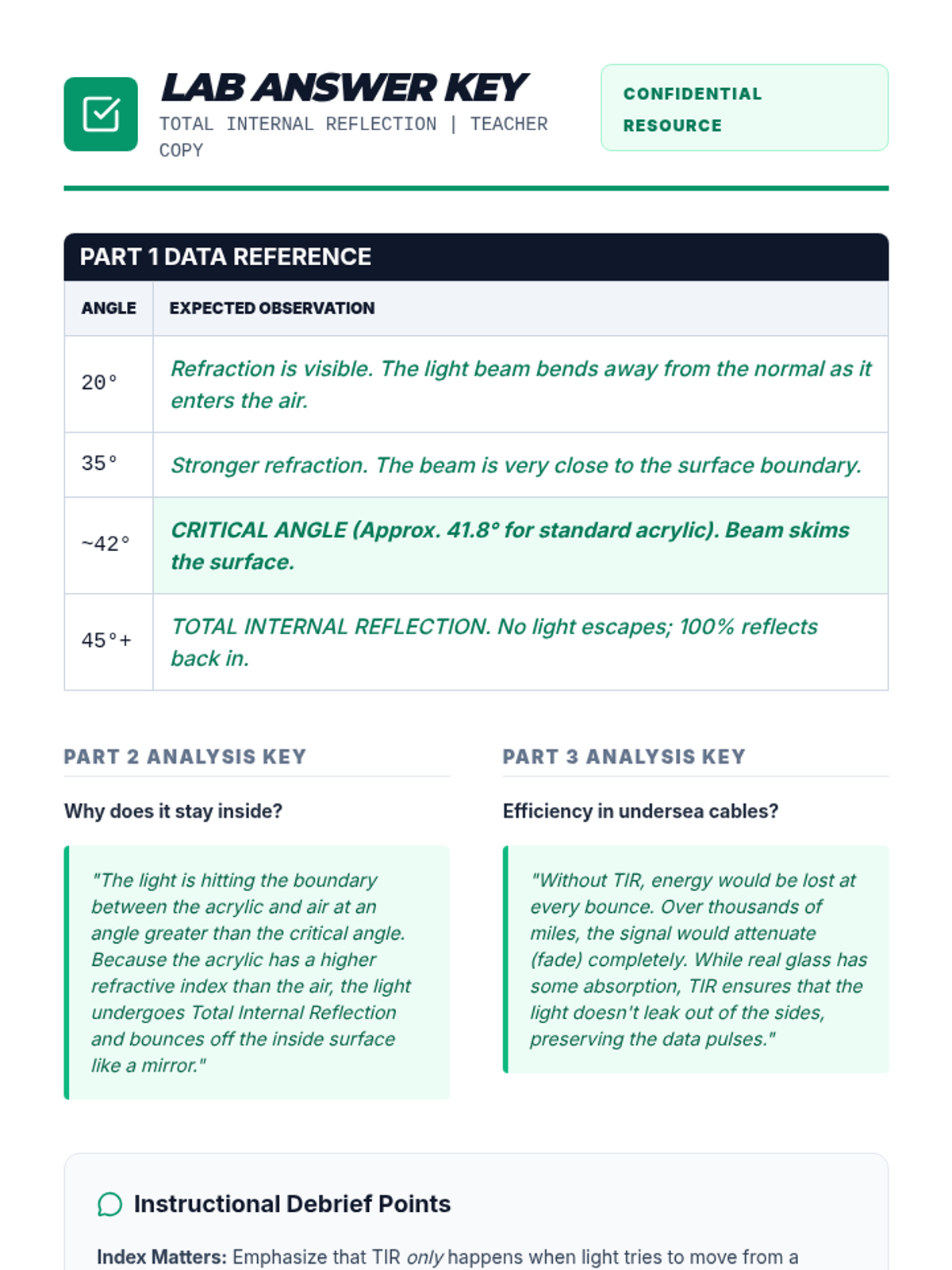

TIR Lab Answer Key Lab Answer Key
Total Internal Reflection | Teacher Copy
Confidential Resource
Part 1 Data Reference
Angle Expected Observation 20° Refraction is visible. The light beam bends away from the normal as it enters the air. 35° Stronger refraction. The beam is very close to the surface boundary. ~42° CRITICAL ANGLE (Approx. 41.8° for standard acrylic). Beam skims the surface. 45°+ TOTAL INTERNAL REFLECTION. No light escapes; 100% reflects back in.
Part 2 Analysis Key
Why does it stay inside?
"The light is hitting the boundary between the acrylic and air at an angle greater than the critical angle. Because the acrylic has a higher refractive index than the air, the light undergoes Total Internal Reflection and bounces off the inside surface like a mirror."
Part 3 Analysis Key
Efficiency in undersea cables?
"Without TIR, energy would be lost at every bounce. Over thousands of miles, the signal would attenuate (fade) completely. While real glass has some absorption, TIR ensures that the light doesn't leak out of the sides, preserving the data pulses."
Instructional Debrief Points
Index Matters: Emphasize that TIR only happens when light tries to move from a "slower" (higher index) material to a "faster" (lower index) one. It won't work going from Air to Glass.Geometric Check: Ensure students aren't confusing the critical angle with the 90° refraction angle. The critical angle is the input angle.Internet Backbone: Remind students that 99% of international data goes through these undersea fibers, not satellites. Space Eyes Slides Physics Unit: EM Waves
Space Eyes
Remote Sensing, Satellites, and Earth Observation
SLIDE 01 / 06
The Hook: Spying on a Drought
How can NASA know a farmer's crop is dying before the farmer even notices?
The Secret: NIR
Healthy plants reflect Near-Infrared (NIR) light much more strongly than stressed plants. Satellites see this "invisible glow" from hundreds of miles up.
NASA Landsat 8 Simulation
Spectral Fingerprinting
What is Remote Sensing?
01
Collecting data about an object from a distance without physical contact.
02
Using the EM Spectrum as a probe: visible light, IR, microwave, and radar.
Passive vs. Active
Passive: Detects natural radiation (like sunlight) reflected from Earth.Active: Sends its own signal (like RADAR) and measures the bounce back.
The Power of Layers
Modern satellites don't just take one "picture." They capture data in dozens of spectral bands simultaneously.
Visible
Standard photos, clouds, oceans.
Near IR
Vegetation health, soil moisture.
Shortwave IR
Minerals, fire detection, thin clouds.
Thermal IR
Surface temp, urban heat islands.
False Color Magic
Why fake the colors?
Our eyes can't see Infrared. To study it, we map the IR data to the Red , Green , or Blue channels of a screen.
Example: "Standard False Color"
NIR Band → Displayed as RED
RED Band → Displayed as GREEN
GREEN Band → Displayed as BLUE
Result:
Healthy forests look Bright Red. Cities look Blue-Gray. Water looks Black.
Mission: Satellite Sleuths
Analyze real NASA imagery to track deforestation, wildfire scars, and urban sprawl. Use your spectral key to crack the code.
Analysis
Interpretation
Satellite Sleuths Case Study Satellite Sleuths Case Study
EM Waves Lesson 03 | Remote Sensing Workshop
Name:
Introduction
In this workshop, you are an Environmental Analyst for NASA. You will interpret three satellite images to understand how human activity and natural events change the planet. You must use your knowledge of the EM spectrum to "see" what is happening beyond visible light.
Target 01: Deforestation (Mato Grosso, Brazil)
Observation: In a "Standard False Color" image (NIR=Red, Red=Green, Green=Blue), healthy rainforest appears deep crimson. You notice sharp, geometric blue-gray rectangles cutting into the crimson.
Analysis Questions:
1. What does the "deep crimson" represent in terms of vegetation health?
2. Why are the gray shapes geometric (straight lines) rather than organic?
[Insert Image: Amazon Deforestation 2024]
Target 02: Urban Heat Islands (Phoenix, AZ)
[Insert Image: Thermal IR of Phoenix]
Observation: A Thermal IR image shows the downtown area glowing bright yellow, while the surrounding desert suburbs are dark purple.
Analysis Questions:
1. Which part of the city is emitting SHORTER wavelengths of IR? Explain.
2. How might city planners use this EM data to improve living conditions?
Synthesis & Prediction
Passive vs. Active: If you wanted to measure the HEIGHT of ocean waves during a hurricane (when clouds block the view), would you use a Passive sensor or an Active (Radar) sensor? Why?
Impact: How does "Space Eyes" technology help humanity solve the problem of global food security?

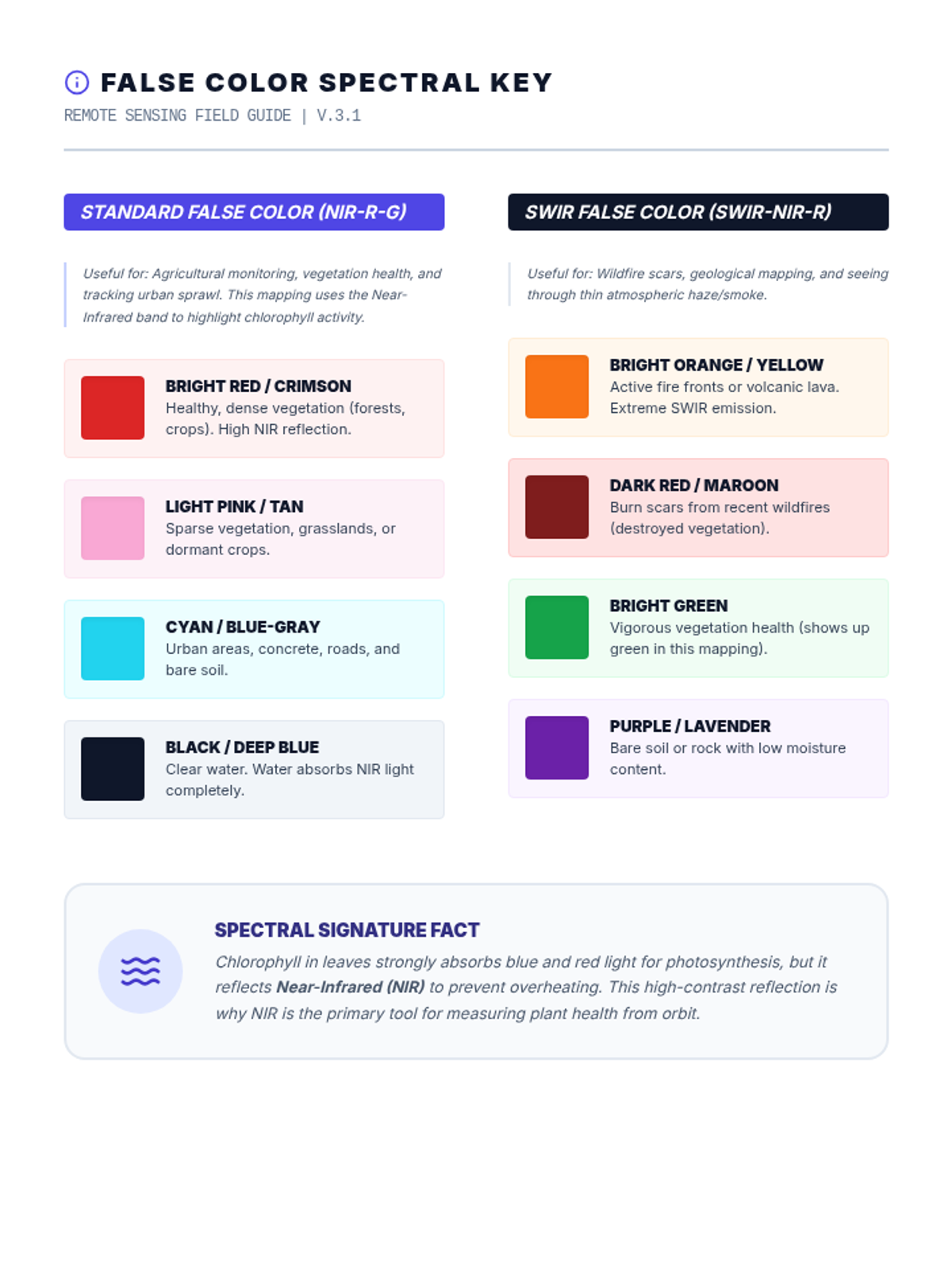

False Color Reference False Color Spectral Key
Remote Sensing Field Guide | V.3.1
Standard False Color (NIR-R-G)
Useful for: Agricultural monitoring, vegetation health, and tracking urban sprawl. This mapping uses the Near-Infrared band to highlight chlorophyll activity.
Bright Red / Crimson
Healthy, dense vegetation (forests, crops). High NIR reflection.
Light Pink / Tan
Sparse vegetation, grasslands, or dormant crops.
Cyan / Blue-Gray
Urban areas, concrete, roads, and bare soil.
Black / Deep Blue
Clear water. Water absorbs NIR light completely.
SWIR False Color (SWIR-NIR-R)
Useful for: Wildfire scars, geological mapping, and seeing through thin atmospheric haze/smoke.
Bright Orange / Yellow
Active fire fronts or volcanic lava. Extreme SWIR emission.
Dark Red / Maroon
Burn scars from recent wildfires (destroyed vegetation).
Bright Green
Vigorous vegetation health (shows up green in this mapping).
Purple / Lavender
Bare soil or rock with low moisture content.
Spectral Signature Fact
Chlorophyll in leaves strongly absorbs blue and red light for photosynthesis, but it reflects Near-Infrared (NIR) to prevent overheating. This high-contrast reflection is why NIR is the primary tool for measuring plant health from orbit.
Fast Light Slides Physics Unit: EM Waves
Fast Light
Li-Fi, Terahertz Waves, and the Future of Connectivity
SLIDE 01 / 06
The Hook: Data Bulbs
"What if every lightbulb in the world could transmit data?"
Li-Fi (Light Fidelity)
Current Wi-Fi uses radio waves. Li-Fi uses Visible Light . It can transmit data 100x faster than traditional Wi-Fi.
TRANSMITTING DATA...
Shifting Up the Spectrum
The Problem: Radio Congestion
The radio spectrum is crowded. 4G, 5G, Bluetooth, and Wi-Fi are all fighting for space in a narrow band.
"We need more lanes on the highway."
The Solution: Higher Frequency
By moving to Visible Light (Li-Fi) or Terahertz Waves (between IR and Microwave), we unlock massive amounts of unused bandwidth.
HIGHER FREQUENCY = HIGHER DATA CAPACITY
How Li-Fi Works
01
Modulation
LED bulbs flicker on and off millions of times per second (invisible to the human eye).
02
Transmission
The flicker represents binary code (1s and 0s) carried by the light wave.
03
Detection
A photodetector on your device reads the light pulses and converts them back into data.
The Trade-Offs
ADVANTAGES
Speed: Theoretical speeds of 224 Gbps.Security: Light can't pass through walls. Hackers can't "sniff" your Wi-Fi from the street.Safety: Safe for use in hospitals and planes (no EMI).
LIMITATIONS
Line of Sight: If you step into a shadow, you lose connection.Range: Limited to the room where the light is.Interference: Sunlight can "wash out" the signal outdoors.
Debate: Wi-Fi vs. Li-Fi
"Is the future of connectivity invisible radio waves, or can we build a world powered by light?"
Team Radio (Wi-Fi)
Focused on range, penetration, and reliability.
Team Light (Li-Fi)
Focused on speed, security, and bandwidth.

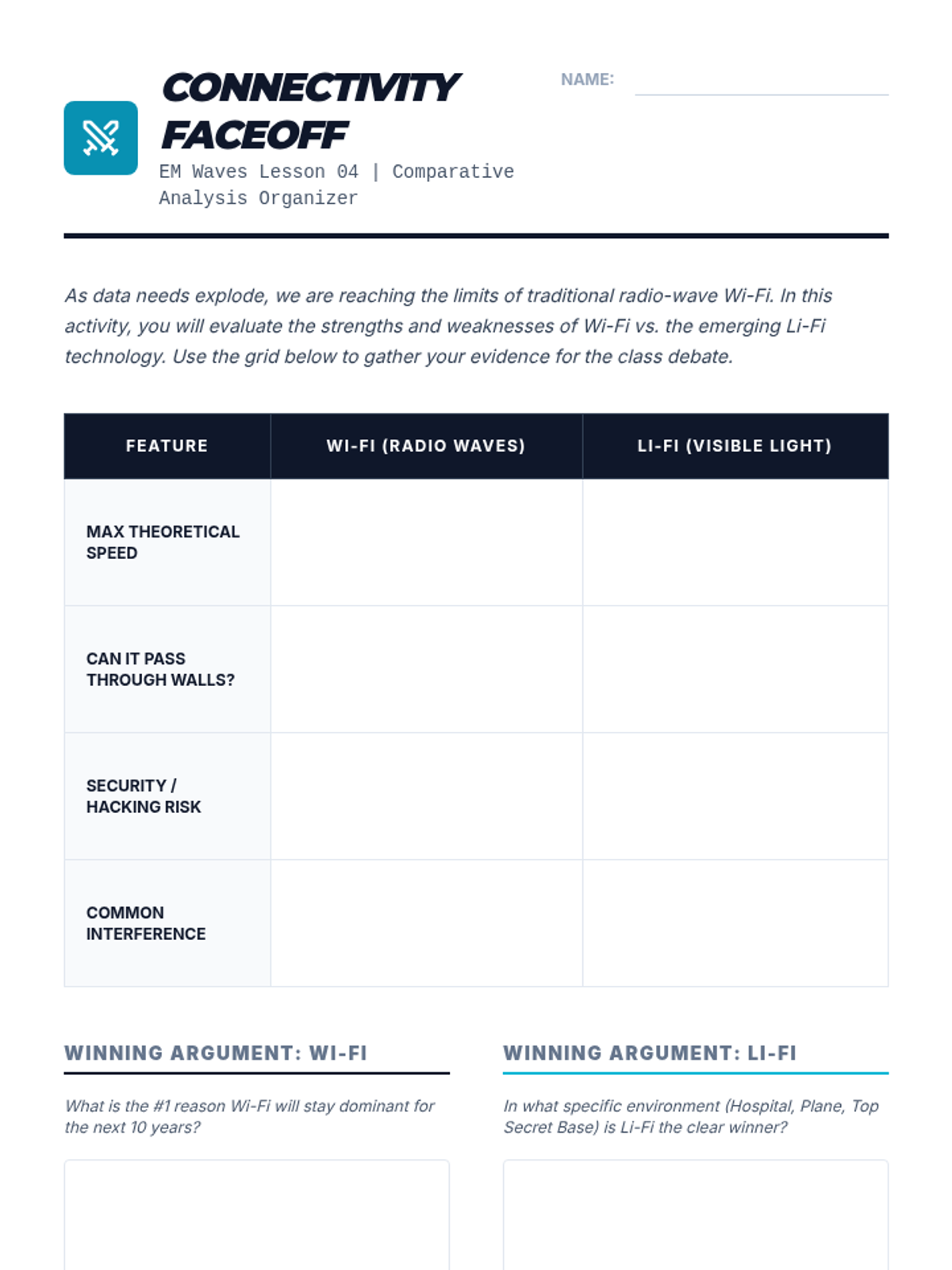

Connectivity Faceoff Organizer Connectivity Faceoff
EM Waves Lesson 04 | Comparative Analysis Organizer
Name:
As data needs explode, we are reaching the limits of traditional radio-wave Wi-Fi. In this activity, you will evaluate the strengths and weaknesses of Wi-Fi vs. the emerging Li-Fi technology. Use the grid below to gather your evidence for the class debate.
Feature Wi-Fi (Radio Waves) Li-Fi (Visible Light) Max Theoretical Speed Can it pass through walls? Security / Hacking Risk Common Interference
Winning Argument: Wi-Fi
What is the #1 reason Wi-Fi will stay dominant for the next 10 years?
Winning Argument: Li-Fi
In what specific environment (Hospital, Plane, Top Secret Base) is Li-Fi the clear winner?
Final Verdict
Do you think Li-Fi will replace Wi-Fi, or will they work together in a "hybrid" system? Justify your answer using the physics of EM wave penetration and frequency.

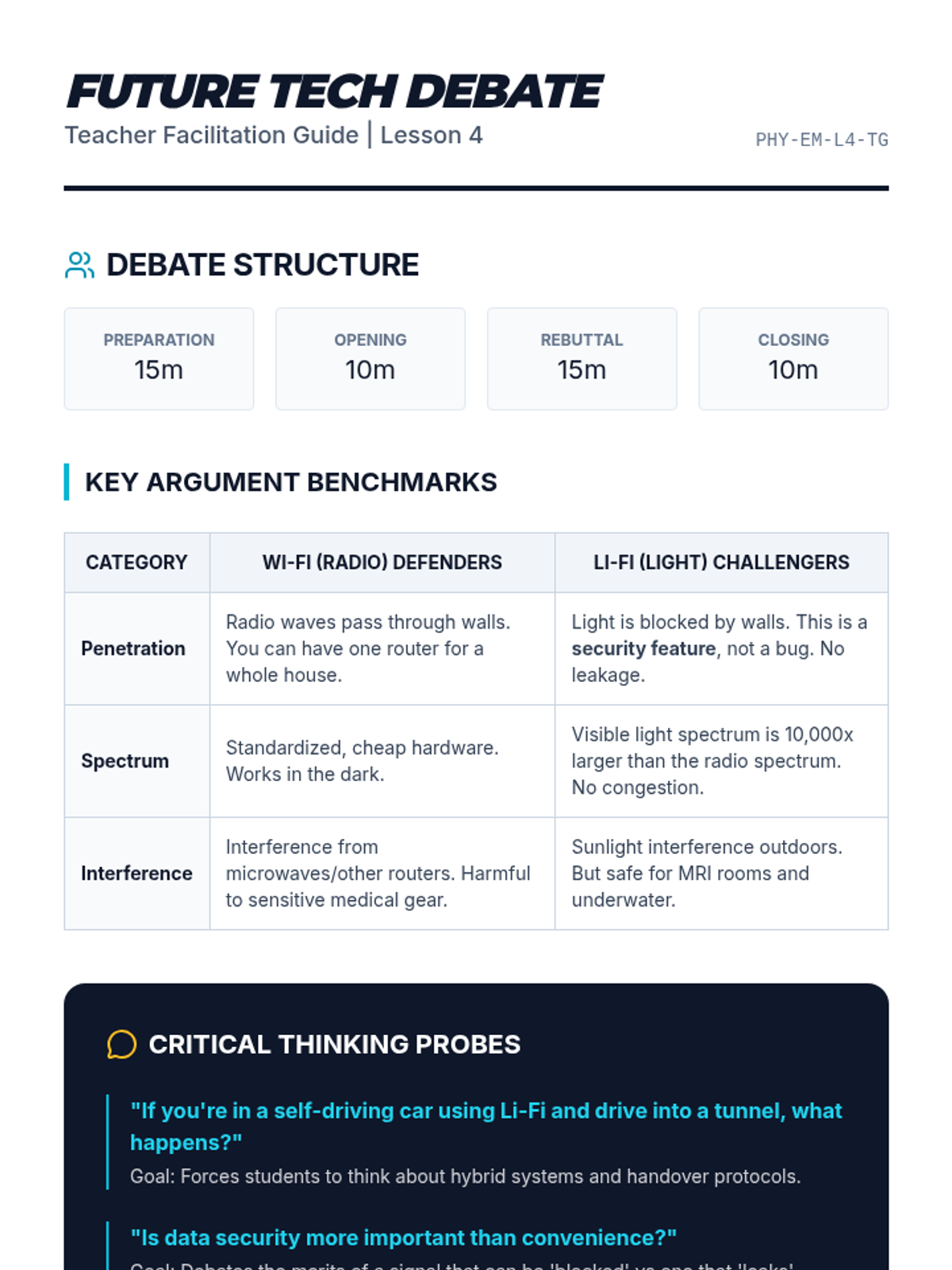

Future Tech Debate Guide Future Tech Debate
Teacher Facilitation Guide | Lesson 4
PHY-EM-L4-TG
Debate Structure
Preparation
15m
Opening
10m
Rebuttal
15m
Closing
10m
Key Argument Benchmarks
Category Wi-Fi (Radio) Defenders Li-Fi (Light) Challengers Penetration Radio waves pass through walls. You can have one router for a whole house. Light is blocked by walls. This is a security feature , not a bug. No leakage. Spectrum Standardized, cheap hardware. Works in the dark. Visible light spectrum is 10,000x larger than the radio spectrum. No congestion. Interference Interference from microwaves/other routers. Harmful to sensitive medical gear. Sunlight interference outdoors. But safe for MRI rooms and underwater.
Critical Thinking Probes
"If you're in a self-driving car using Li-Fi and drive into a tunnel, what happens?"
Goal: Forces students to think about hybrid systems and handover protocols.
"Is data security more important than convenience?"
Goal: Debates the merits of a signal that can be 'blocked' vs one that 'leaks'.
"How does frequency relate to data density? Why can a shorter wave carry more info?"
Goal: Refocuses the debate on the core physics of EM waves.
Success Criteria
Uses specific terms (frequency, bandwidth, interference).
Explains the trade-off between range and speed.
Acknowledges the limitations of their own technology.

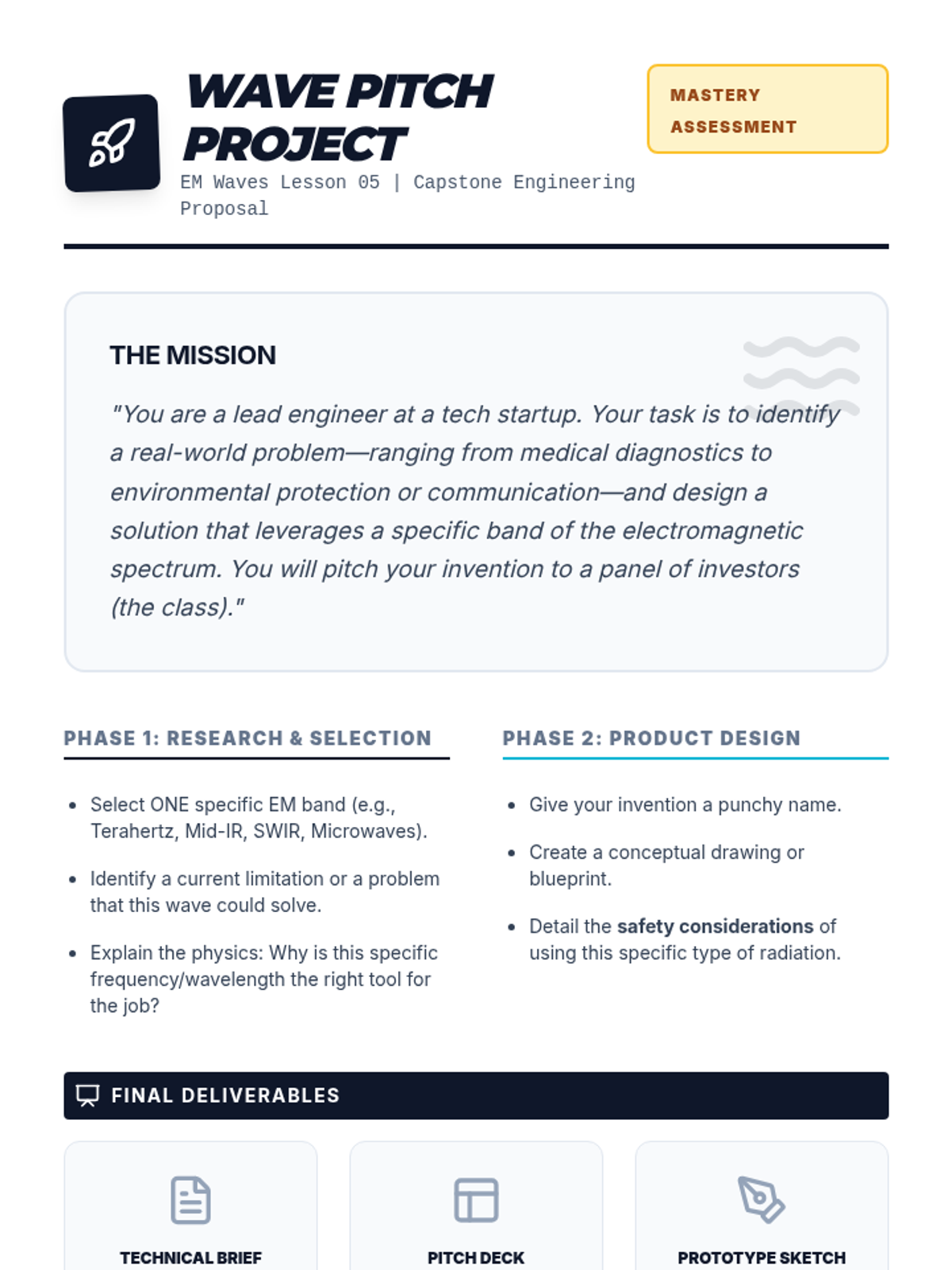

Wave Pitch Project Guide Wave Pitch Project
EM Waves Lesson 05 | Capstone Engineering Proposal
Mastery Assessment
The Mission
"You are a lead engineer at a tech startup. Your task is to identify a real-world problem—ranging from medical diagnostics to environmental protection or communication—and design a solution that leverages a specific band of the electromagnetic spectrum. You will pitch your invention to a panel of investors (the class)."
Phase 1: Research & Selection
Select ONE specific EM band (e.g., Terahertz, Mid-IR, SWIR, Microwaves).
Identify a current limitation or a problem that this wave could solve.
Explain the physics: Why is this specific frequency/wavelength the right tool for the job?
Phase 2: Product Design
Give your invention a punchy name.
Create a conceptual drawing or blueprint.
Detail the safety considerations of using this specific type of radiation.
Final Deliverables
Technical Brief
A 1-page summary of the physics and problem/solution.
Pitch Deck
A visual presentation (3-5 slides) for your "Shark Tank" pitch.
Prototype Sketch
A detailed visual showing how the wave interacts with the target.
Stuck for an idea?
Health: Can we use Terahertz waves to detect skin cancer non-invasively?
Defense: Can we use high-energy microwaves to disable drones at long range?
Space: How could a Gamma Ray sensor help find water on other planets?

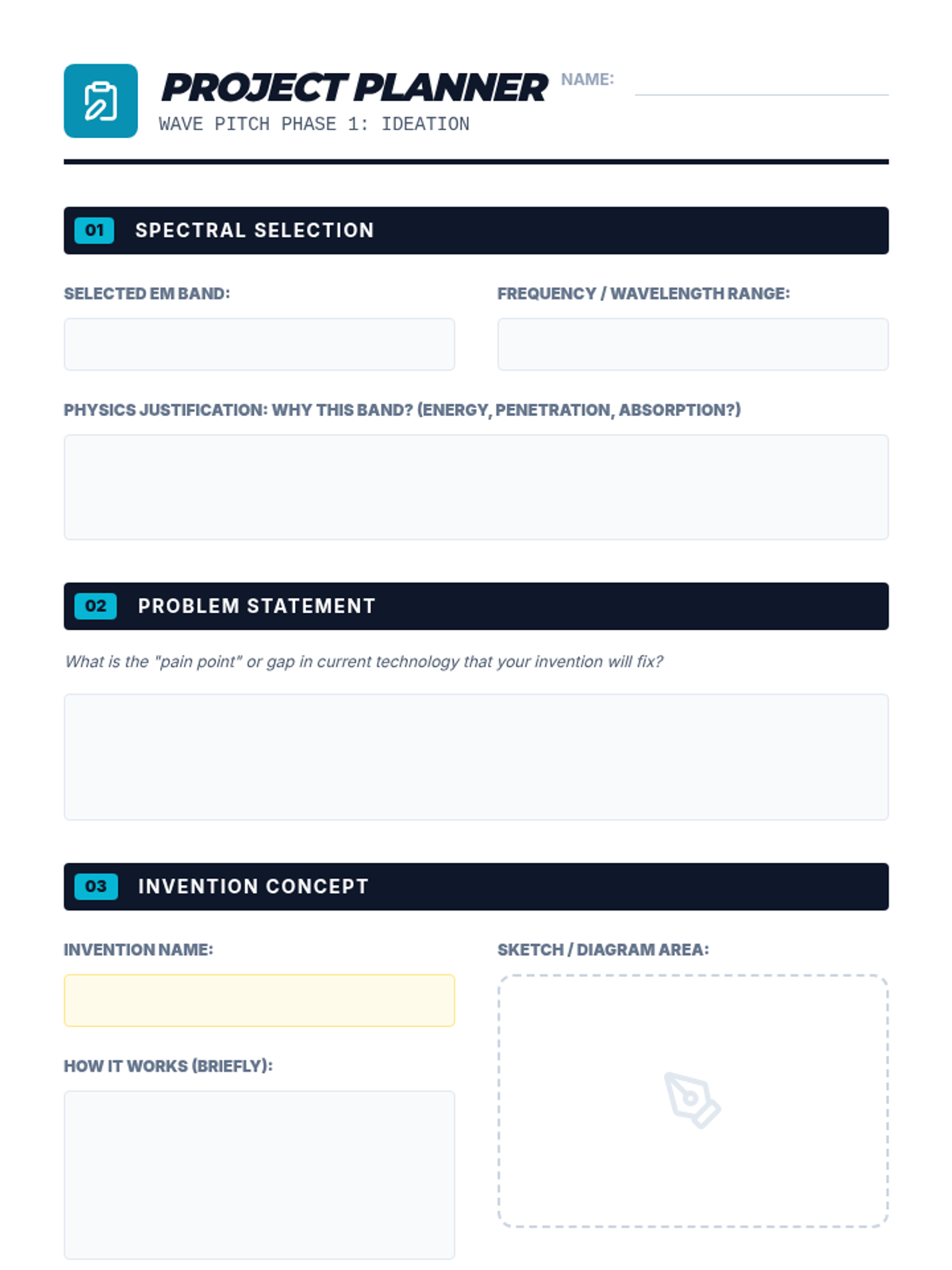

Wave Pitch Project Planner Project Planner
Wave Pitch Phase 1: Ideation
Name:
01
Spectral Selection
Selected EM Band:
Frequency / Wavelength Range:
Physics Justification: Why this band? (Energy, penetration, absorption?)
02
Problem Statement
What is the "pain point" or gap in current technology that your invention will fix?
03
Invention Concept
Invention Name:
How it works (Briefly):
Sketch / Diagram Area:
04
Impact & Safety
Potential Risk / Safety protocol:
Societal Benefit:

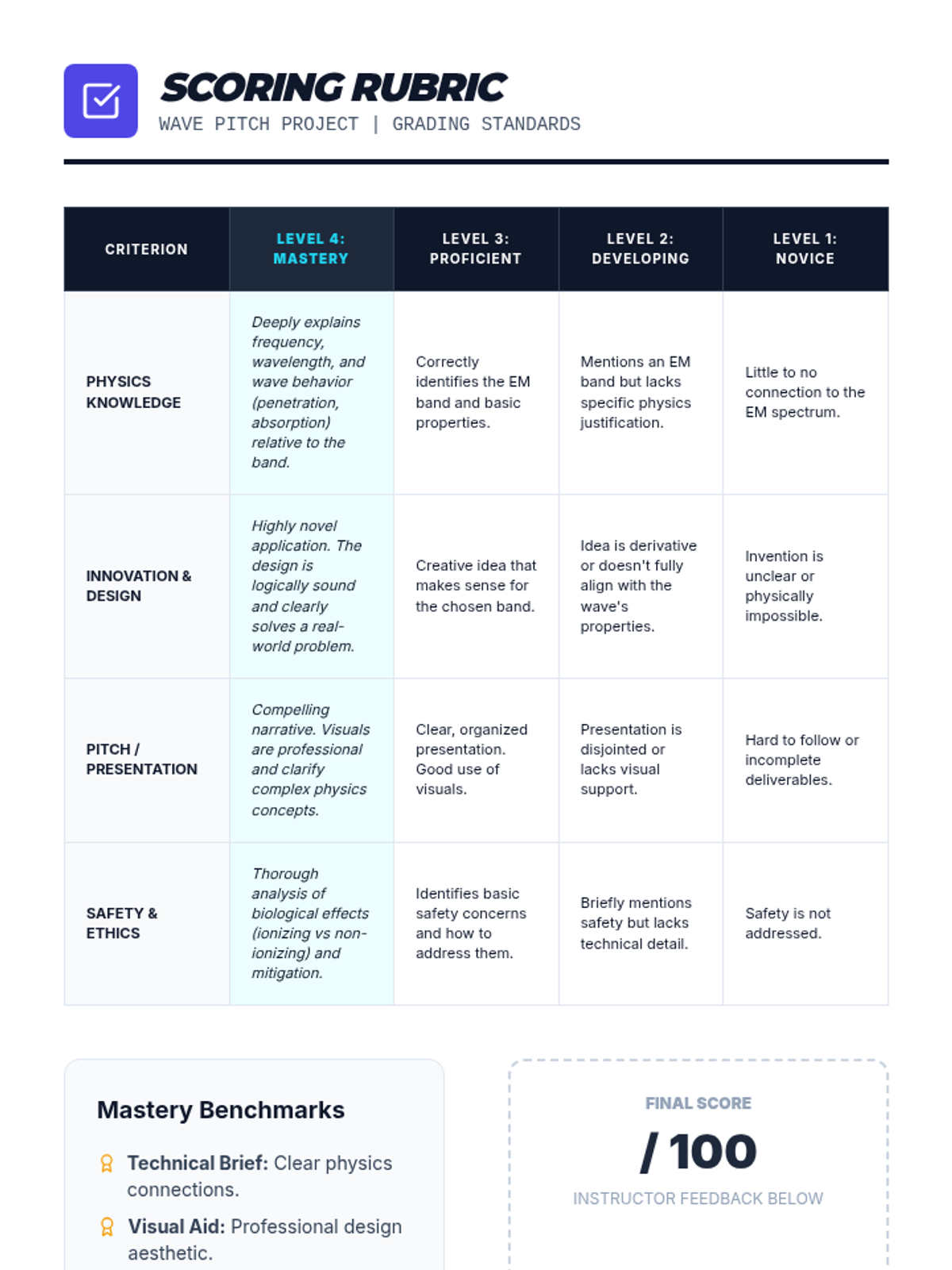

Wave Pitch Project Rubric Scoring Rubric
Wave Pitch Project | Grading Standards
Criterion Level 4: Mastery Level 3: Proficient Level 2: Developing Level 1: Novice Physics Knowledge Deeply explains frequency, wavelength, and wave behavior (penetration, absorption) relative to the band. Correctly identifies the EM band and basic properties. Mentions an EM band but lacks specific physics justification. Little to no connection to the EM spectrum. Innovation & Design Highly novel application. The design is logically sound and clearly solves a real-world problem. Creative idea that makes sense for the chosen band. Idea is derivative or doesn't fully align with the wave's properties. Invention is unclear or physically impossible. Pitch / Presentation Compelling narrative. Visuals are professional and clarify complex physics concepts. Clear, organized presentation. Good use of visuals. Presentation is disjointed or lacks visual support. Hard to follow or incomplete deliverables. Safety & Ethics Thorough analysis of biological effects (ionizing vs non-ionizing) and mitigation. Identifies basic safety concerns and how to address them. Briefly mentions safety but lacks technical detail. Safety is not addressed.
Mastery Benchmarks
Technical Brief: Clear physics connections.Visual Aid: Professional design aesthetic.Pitch: Persuasive and evidence-based.
Final Score
/ 100
Instructor Feedback below
