Sprint Biomechanics Lab Sheet Sprint Mechanics Analysis
Laboratory Assessment // Course: EXSC-310
DATE:
NAME:
Confidential Data
Objective: To identify and quantify critical biomechanical markers during the acceleration and maximum velocity phases of a 100m sprint using high-speed video capture (240fps). Focus on joint angles, ground contact time, and force application.
Phase 1: Acceleration Mechanics (0-15m)
Analysis Marker: Drive Angle
Measure the angle of the shin relative to the track surface during the first 3 steps of the drive phase.
Sketch or Attach Frame Capture Here
Step 1 Angle
Step 3 Angle
Qualitative Error Detection
Premature Upright Posture Center of mass rises too early (breaking the drive line).
Toe Drag Integrity Evidence of low heel recovery/aggressive forward projection.
Arm Swing Amplitude Exaggerated rearward drive to match lower body power.
Phase 2: Max Velocity Mechanics (40-60m)
Frontside vs Backside
Observe the foot recovery cycle. Does the heel pass above or below the opposite knee during swing phase?
Dominant Frontside
Dominant Backside
Vertical Force Table
Metric Trial 1 (L) Trial 1 (R) Ground Contact Time (ms) Flight Time (ms) Knee Height at Apex
Synthesis & Technical Correction
Identify the most significant "power leak" in the subject's mechanics and prescribe a specific corrective drill.
TECHNICAL REFERENCE GUIDE
Ideal Acceleration Profiles
During the initial 10m, the athlete should maintain a 45-degree body lean. The shin angle should be acute relative to the track to facilitate horizontal force production. High-level sprinters exhibit "triple extension" (ankle, knee, hip) at the moment of toe-off.
Vertical Force Production
Maximum velocity is limited by the amount of vertical force that can be applied to the ground in a very short duration (approx. 90ms). Elite sprinters apply 4-5x their body weight.
Common Power Leaks
Over-striding: Landing too far in front of COM, creating a braking effect.Casting: Lower leg swinging outward before contact, increasing air time unnecessarily.Excessive Rotation: Shoulders twisting side-to-side, bleeding energy away from the sagittal plane.
THE SAGITTAL DOMINANCE PRINCIPLE
Any force not directed vertically or horizontally along the line of travel is wasted physiological energy.
Calculations Workspace
Sprint Science Slides Performance Lab // Lesson 01
Sprint
Mechanics
Analyzing Acceleration, Maximum Velocity, and the Biomechanics of Elite Human Performance.
VELOCITY ANALYSIS
The Sprint Continuum
PHASE IDENTIFICATION
01. Drive
The Power Phase (0-20m)
High horizontal force
45° Body projection
Piston-like mechanics
02. Transition
The Rise (20-40m)
Gradual posture rise
Increasing cadence
Cycle development
03. Max V
The Cycle (40m+)
High vertical force
Upright posture
Frontside dominance
The Drive
Mechanics
Low Heel Recovery
Keeping the foot close to the ground ensures a faster return to force production. Look for "toe drag" in elite athletes.
Full Triple Extension
Synchronization of the ankle, knee, and hip joints to maximize horizontal displacement per stride.
ANGULAR TARGETS
Body Projection 45°
Front Shin Angle <45°
Arm Swing (Rear) 120°+
Vertical Force Production
Why sprinters don't "push" back at top speed
At maximum velocity, the limiting factor isn't how fast your legs move, but how much vertical force you can apply in minimal ground contact time.
Ground Contact
0.09s
Peak Force
5x BW
The Hammer Effect
The foot strikes the track like a hammer, utilizing elastic energy return from the Achilles tendon.
Cyclical Recovery
High knee lift and rapid heel recovery minimize the lever arm and increase angular velocity.
Ready for Analysis?
Today's lab requires identifying these markers in real-time and slow-motion. You will work in pairs to capture 100m efforts and perform a full biomechanical audit.
Capture Specs
• High Speed (240 FPS)
• Perpendicular View (Sagittal)
• Level Tripod placement
Analysis Metrics
• Shin angle @ Step 1-3
• Toe-off extension
• Ground contact duration
Sprint Mechanic Guide Teacher Facilitation Guide
Lesson 01: Sprint Mechanics Lab
Instructor Resource
Lab Overview
This lab bridges the gap between theoretical biomechanics and practical track performance. Students will utilize high-speed video capture to quantify specific mechanical markers during acceleration and maximum velocity. The goal is for students to develop an "analytical eye" for human movement and identify efficiency deficits.
Pacing Guide
Intro Slides 15m
Warm-up/Setup 15m
Data Collection 30m
Video Analysis 20m
Peer Review/Wrap 10m
Laboratory Requirements
Equipment
• Tablets/Smartphones with slow-motion (240fps)
• Tripods for stable capture
• Measuring tape (50m+) or laser measure
• Cones for marking phases (15m, 40m, 60m)
• Starting blocks (optional, but recommended)
Safety & Prep
• Full dynamic warm-up (30m) is mandatory
• Check track surface for debris or wet spots
• Limit athletes to 3-4 maximum efforts
• Ensure adequate recovery (3-5 mins) between trials
Guided Inquiry & Discussion
PROMPT 1
"Observe the transition phase between 15m and 30m. How does the center of mass move relative to the feet? Why is a 'sudden pop' upright detrimental to velocity maintenance?"
PROMPT 2
"Compare the ground contact times of two different students. Is shorter contact always better? Consider the trade-off between force application time and cadence."
PROMPT 3
"In the max velocity phase, what happens if an athlete tries to 'reach' for more ground? How does this change the braking force upon impact?"
Correction & Feedback Guide
The Myth / Error The Reality Corrective Drill "Push more at top speed" Top speed is about vertical force and elasticity, not rearward pushing. Straight-Leg Bounds (Prancing) Heel-strike landing Increases braking forces and ground contact time significantly. Wall Sprints (focus on dorsiflexion) "Reach" to increase stride length Stride length is a byproduct of force, not reaching. Reaching causes braking. Wicket Drills (Mini-Hurdles)
INTERNAL USE ONLY
SAMPLE DATA & ASSESSMENT KEY
Energy Systems Slides Performance Lab // Lesson 02
Endurance
Physiology
Bridging Lab Theory with Track Application: Energy Systems, Lactate Threshold, and the Science of Pacing.
Metabolic Assessment
The Metabolic Engine
ATP Resynthesis
Phosphagen
ATP-CP System
Duration 0 - 10s
Intensity Maximal
Immediate energy for explosive starts and short sprints. No oxygen required.
Glycolytic
Anaerobic Lactic
Duration 10s - 2m
Intensity High
Energy for 400m-800m events. Produces lactate as a byproduct.
Oxidative
Aerobic System
Duration 2m+
Intensity Low-Mod
Primary system for distance running. High efficiency, low rate of ATP production.
Lactate
Threshold (LT)
The exercise intensity at which lactate starts to accumulate in the bloodstream faster than it can be removed.
1
Aerobic Threshold (AeT)
2
Anaerobic Threshold (AnT)
Training Relevance
Pace Sustainability
"Running at threshold is the 'comfortably uncomfortable' pace where you maximize aerobic adaptations."
Clearance Rates
Improving LT allows athletes to run faster for longer by shifting the curve to the right.
Interval Mechanics
Work-to-Rest Ratios for Energy System Targeting
Targeting Aerobic Power
Targeting Anaerobic Capacity
1:3 or 1:5 Ratio e.g., 60s work / 5m rest
Intensity: Supra-maximal Focus on lactate tolerance and buffering
Blind Pace Challenge
Can you differentiate between your metabolic zones without a watch? Today you will rely on Perceived Exertion (RPE) and Heart Rate to hit specific training targets.
The Mission
Execute 3 x 400m intervals at exactly 80% effort. Your peer will record your actual split times and HR recovery.
The Data
Analyze the variance between predicted and actual pace. Correlate HR response to the intended energy system.

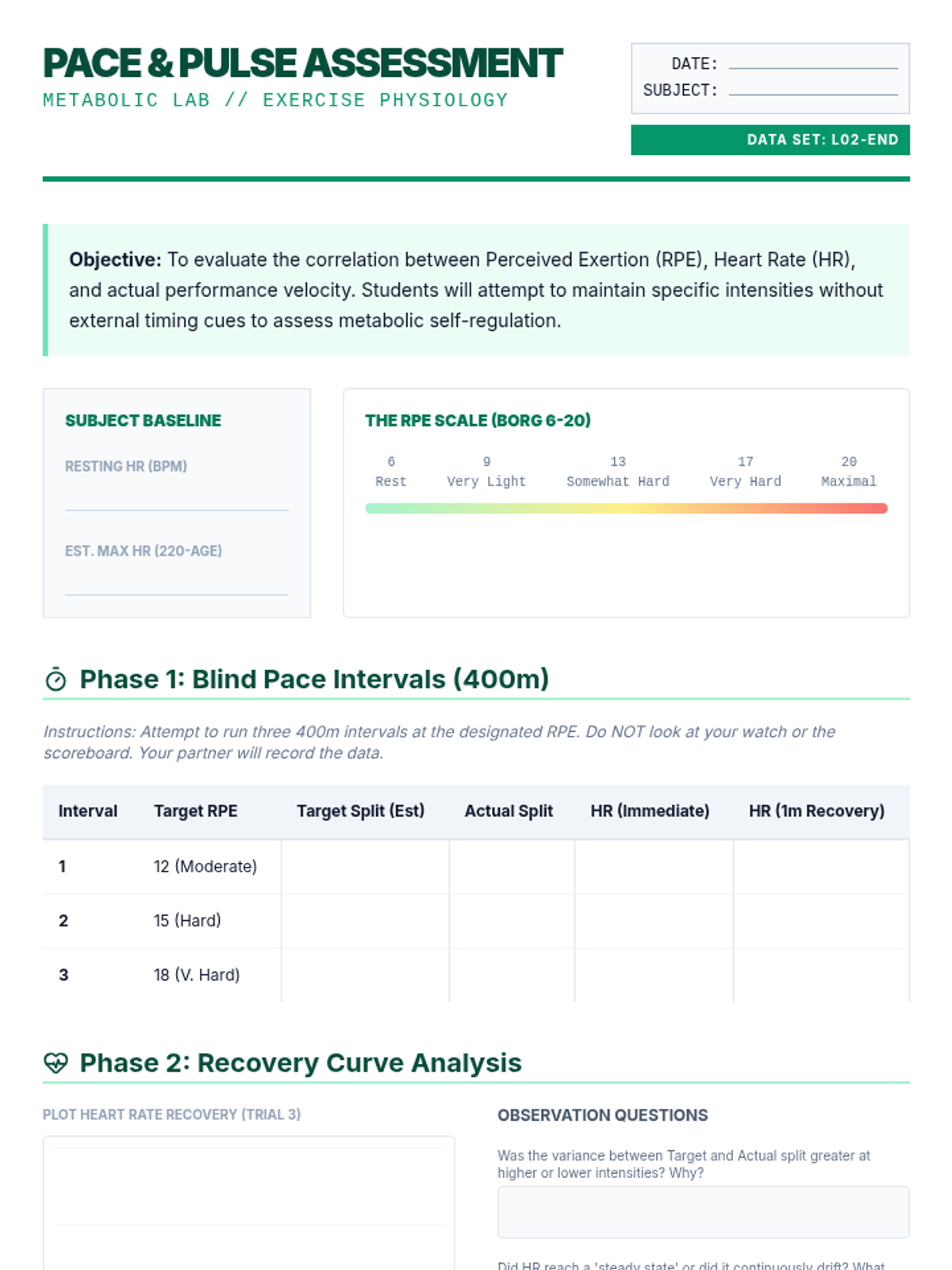

Pace and Pulse Lab Sheet Pace & Pulse Assessment
Metabolic Lab // Exercise Physiology
DATE:
SUBJECT:
Data Set: L02-END
Objective: To evaluate the correlation between Perceived Exertion (RPE), Heart Rate (HR), and actual performance velocity. Students will attempt to maintain specific intensities without external timing cues to assess metabolic self-regulation.
Subject Baseline
Resting HR (BPM)
Est. Max HR (220-age)
The RPE Scale (Borg 6-20)
6
9
13
17
20
Phase 1: Blind Pace Intervals (400m)
Instructions: Attempt to run three 400m intervals at the designated RPE. Do NOT look at your watch or the scoreboard. Your partner will record the data.
Interval Target RPE Target Split (Est) Actual Split HR (Immediate) HR (1m Recovery) 1 12 (Moderate) 2 15 (Hard) 3 18 (V. Hard)
Phase 2: Recovery Curve Analysis
Plot Heart Rate Recovery (Trial 3)
BPM vs TIME (s)
Observation Questions
Was the variance between Target and Actual split greater at higher or lower intensities? Why?
Did HR reach a 'steady state' or did it continuously drift? What does this imply about the energy system used?
Physiological Conclusion
Based on the heart rate recovery data, categorize the subject's current aerobic fitness level and recommend a specific interval duration (e.g., 800m repeats vs 200m sprints) to improve their lactate threshold.
Relay Exchange Slides Performance Lab // Lesson 03
Relay
Dynamics
The Physics of the Exchange Zone: Acceleration, Velocity Matching, and Synchronization.
Velocity Synchronization
The 30m Window
Zone Anatomy
Acceleration Zone
Outgoing runners have 30 meters (combined acceleration + exchange) to reach maximum velocity. The baton must be exchanged within this boundary.
Handicap Markers
A visual cue (check mark) on the track that tells the outgoing runner exactly when to start their acceleration based on the incoming runner's speed.
KEY DIMENSIONS
Exchange Zone 30m
Avg. 4x100m Velocity ~11m/s
Blind Exchange Stride ~2.5m
Velocity Synchronization
The Goal: Zero Deceleration
THE PASSING POINT
The exchange should occur in the final 10 meters of the zone, where both runners are at their highest possible combined velocity.
Incoming Runner
Maintaining max velocity. Must run "through" the zone, not just to the runner.
Outgoing Runner
Explosive drive from three-point or crouch start. Blind reach on signal.
4x100m (Blind)
Focus: Maximum velocity maintenance.
4x400m (Visual)
1
Runner observes incoming runner.
2
Hand take-off adjustment.
3
Fatigue management is key.
Focus: Safe, sure pass under fatigue.
The Handicap Lab
Today you will calculate the Optimal Check Mark for a pairing of runners. If the incoming runner is faster than the outgoing runner, does the mark move further back or closer to the zone?
The Variables
• Incoming runner velocity (m/s)
• Outgoing runner acceleration rate
• Human reaction time (0.15s)
The Trial
Adjust your check marks based on three trials. Aim for a pass in the final 5 meters of the zone.

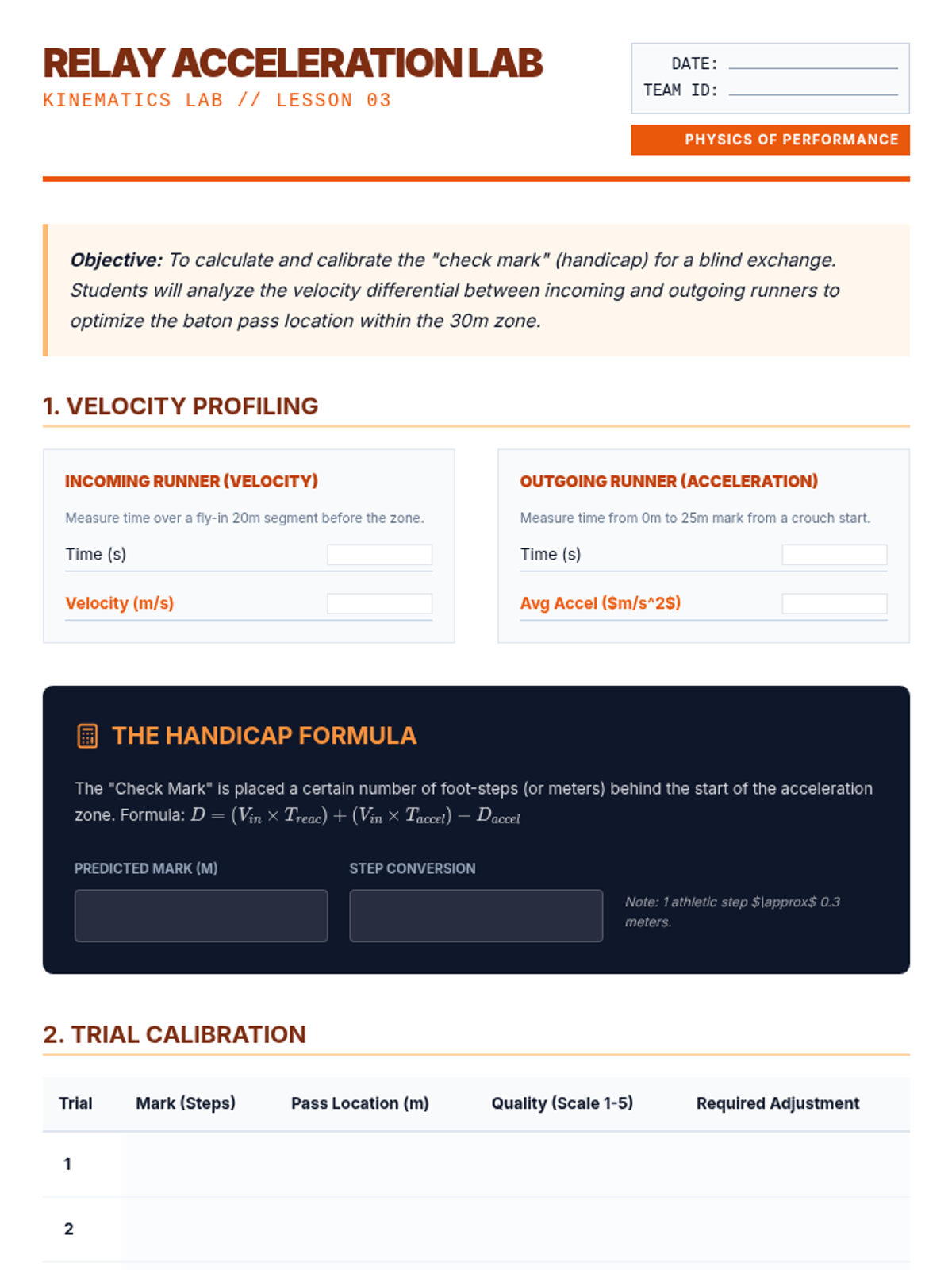

Relay Marker Lab Sheet Relay Acceleration Lab
Kinematics Lab // Lesson 03
DATE:
TEAM ID:
Physics of Performance
Objective: To calculate and calibrate the "check mark" (handicap) for a blind exchange. Students will analyze the velocity differential between incoming and outgoing runners to optimize the baton pass location within the 30m zone.
1. Velocity Profiling
Incoming Runner (Velocity)
Measure time over a fly-in 20m segment before the zone.
Time (s)
Velocity (m/s)
Outgoing Runner (Acceleration)
Measure time from 0m to 25m mark from a crouch start.
Time (s)
Avg Accel ($m/s^2$)
The Handicap Formula
The "Check Mark" is placed a certain number of foot-steps (or meters) behind the start of the acceleration zone. Formula: \(D = (V_{in} \times T_{reac}) + (V_{in} \times T_{accel}) - D_{accel}\)
Predicted Mark (m)
Step Conversion
Note: 1 athletic step $\approx$ 0.3 meters.
2. Trial Calibration
Trial Mark (Steps) Pass Location (m) Quality (Scale 1-5) Required Adjustment 1 2 3
Baton Kinematics Analysis
If the incoming runner is decelerating due to fatigue, how should the check mark be adjusted to prevent a collision or "running over" the outgoing runner?
Explain why exchanging the baton at the very end of the 30m zone is mathematically superior to exchanging at the start.
Hurdle Technical Slides Performance Lab // Lesson 04
Hurdle
Mastery
Minimizing the Parabolic Arc: The Biomechanics of Barrier Clearance and Rhythm Maintenance.
COM Manipulation
The Paradox
Horizontal vs Vertical
A hurdle is not a jump; it is a modified sprint stride.
The Goal
To minimize the vertical displacement of the Center of Mass (COM) . Every centimeter the COM rises above the necessary clearance height is wasted energy and lost horizontal velocity.
Efficiency Loss
"FLOATING" Excessive Air Time / Deceleration
"SNAPPING" Rapid Clearance / Rhythm Maintenance
The Lead Leg:
Attack & Snap
1. The Attack
The knee drives toward the barrier, not the foot. A 'long' lead leg before the hurdle causes a jump, not a stride.
2. The Snap-Down
Once the foot clears the rail, it must be actively driven back to the track. Gravity is too slow; muscle must pull.
ANGULAR TARGETS
Take-off Distance ~2.1m
Landing Distance ~1.2m
Lead Leg Angle Parallel
Take-off far, land close to maintain speed.
Trail Leg Dynamics
The "Flat" Rotation for Minimal Clearance
1
Dorsiflexion
The trail foot must be 'toes up' to avoid hitting the rail and to prepare for the first stride landing.
2
Hip Abduction
The leg moves outward and over the rail in a horizontal plane, not a vertical one.
3
High Knee Pull
The trail knee must be pulled high and forward toward the chest to initiate the next sprint stride.
The Arm Counter-Balance
The opposite arm reach helps keep the shoulders square. Side-to-side arm movement over the hurdle leads to rotational instability upon landing.
The 'Snap' Lab
Today's challenge: You will be filmed clearing a single barrier at 100% speed. We will measure your Air Time and COM Peak . Can you lower your peak by 5cm through better 'snap' mechanics?
The Metric
Velocity Lost (m/s) from 2m before hurdle to 2m after hurdle. Efficient clearance should see <10% loss.
The Visual
Side-by-side comparison of a 'float' clearance vs a 'technical' snap clearance.
Snap vs Float Lab Sheet Hurdle Efficiency Lab
Biomechanics Lab // Lesson 04
DATE:
SUBJECT:
Technical Mastery
Objective: To quantify the "vertical cost" of hurdle clearance. Students will compare a standard 'jump' (Float) clearance vs a technical 'stride' (Snap) clearance, analyzing air time and velocity loss.
1. Kinematic Capture
Filming: Side-on view (Sagittal Plane), centered on Hurdle #2. Subject clears at 100% effort.
Trial A: "The Float" (High Arc)
Take-off Distance (m)
Peak COM Height (cm)
Air Time (s)
Trial B: "The Snap" (Low Arc)
Take-off Distance (m)
Peak COM Height (cm)
Air Time (s)
2. Technical Audit
Lead Leg Check
Knee-first drive
Active snap-down
Straight toe track
Trail Leg Check
Hip abduction (flat)
Dorsiflexed foot
Forward knee pull
Calculated Efficiency
___ %
Relative to horizontal sprint velocity
Biomechanical Synthesis
Describe the effect of the "Snap" on the landing stride. Does the athlete land with their center of mass over the foot or behind the foot? Why does this matter for the next hurdle?
Quantify the velocity loss. Trial A (Float) vs Trial B (Snap). If each hurdle costs 0.05s in air time, what is the total impact over a 10-hurdle race?
Instructor Note
Ensure the "take-off" distance is at least 2 meters. If the subject takes off too close (under 1.5m), they are forced to "jump" vertically, invalidating the "Snap" trial.
Periodization Slides Performance Lab // Lesson 05
Training
Design
Periodization Strategies: Synthesizing Biomechanics and Physiology into Elite Performance Programming.
Periodization Architecture
Periodization
The Science of Timing
Systematic planning of athletic training to reach peak performance at a specific time.
Core Principle
Managing the interplay between Stress (Load) and Recovery to induce supercompensation.
MACRO
The Full Year / Olympic Cycle
MESO
Block of Training (4-6 weeks)
MICRO
The Weekly Schedule (7 days)
Anatomy of a Microcycle
Targeting Specific Qualities
High CNS
Neural Fatigue
• Max Velocity
• Plyometrics
• Max Strength
RECOVERY: 48h+
Metabolic
Energy Systems
• Intervals
• Tempo Runs
• Aerobic Base
RECOVERY: 24h
Technical
Skill Mastery
• Hurdles
• Relays
• Drill Work
RECOVERY: Variable
Recovery
Adaptation
• Mobility
• Massage
• Complete Rest
ESSENTIAL
The Taper
The reduction in training load prior to a major competition.
VOLUME
Reduces by 40-60%
INTENSITY
Remains High (Preserve Speed)
FREQUENCY
Remains High (80%+)
Progressive Overload
Increasing the stimulus (distance, speed, or weight) gradually to force the body to adapt without causing injury.
The "3:1" Rule
3 weeks of increasing load followed by 1 "deload" week of significantly reduced volume to allow for supercompensation.
Capstone Design
Your final challenge is to design a 4-Week Mesocycle for a specific athlete (Sprinter, Hurdler, or Distance Runner). You must justify every session using the biomechanical and physiological principles learned in this course.
Requirement 1
Detailed Microcycle: Minute-by-minute breakdown of a single 'High Day' vs a 'Recovery Day'.

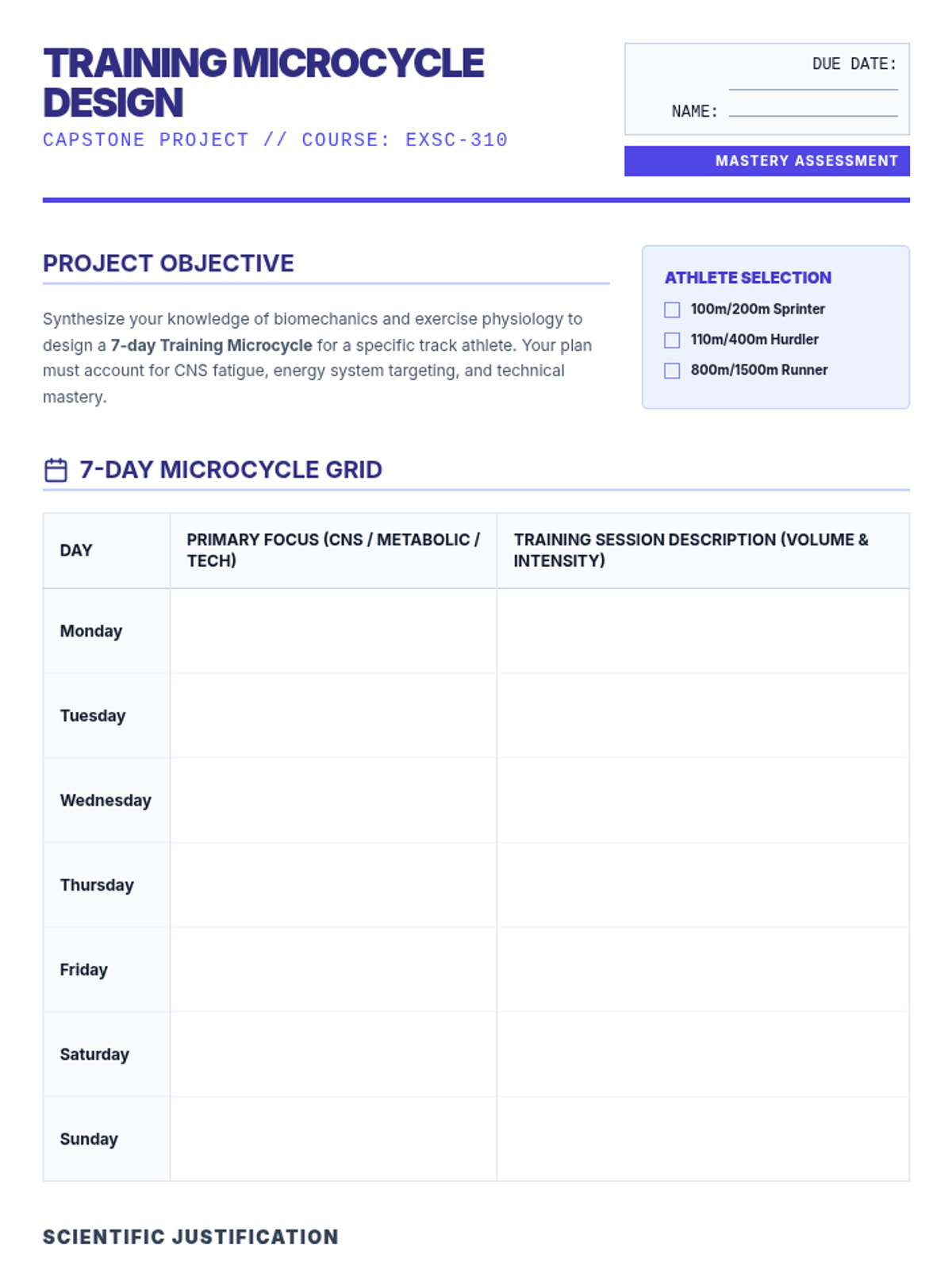

Training Microcycle Project Template Training Microcycle Design
Capstone Project // Course: EXSC-310
DUE DATE:
NAME:
Mastery Assessment
Project Objective
Synthesize your knowledge of biomechanics and exercise physiology to design a 7-day Training Microcycle for a specific track athlete. Your plan must account for CNS fatigue, energy system targeting, and technical mastery.
Athlete Selection
100m/200m Sprinter
110m/400m Hurdler
800m/1500m Runner
7-Day Microcycle Grid
Day Primary Focus (CNS / Metabolic / Tech) Training Session Description (Volume & Intensity) Monday Tuesday Wednesday Thursday Friday Saturday Sunday
Scientific Justification
1. Metabolic Energy System Focus
How does your week target the specific energy systems of your chosen athlete?
2. CNS Management & Recovery
Where are the 'High CNS' days located? How did you space them to avoid overtraining?
Deep Dive: Single Session Breakdown
Choose ONE "High Day" from your grid and provide a minute-by-minute protocol.
Warm-Up Protocol (15-20m)
Focus on dynamic mobility and activation.
Technical Drill Set (15m)
Specific to biomechanical corrections identified in labs.
The Main Set (Work)
Specify Reps, Distance, Intensity, and Rest Interval.
Cool-Down & Recovery (10m)
Focus on parasympathetic activation.
Success Checklist
Specific Work-to-Rest Ratios
Biomechanical drill selection
Intensity specified (% or RPE)
Physiological justification provided
Performance Instructor Guide Instructor Resource: Physiology Key
Lesson 02: Physiology of Endurance
Baseline Calculations
Max HR Estimation
220 - Age is standard, but the Tanaka Formula (208 - 0.7 x Age) is more accurate for fit undergraduates. Expect values between 185-200 BPM.
Resting HR Norms
Highly trained endurance athletes: 40-55 BPM. Recreationally active students: 60-75 BPM.
Blind Pace Analysis: Expected Outcomes
Most students will over-estimate their pace at lower intensities and under-estimate it at higher intensities (running faster than intended because of the high anaerobic energy available at the start).
Target Intensity HR Response (% Max) Primary Energy Pathway Moderate (RPE 12) 60-70% Oxidative (Aerobic) Hard (RPE 15) 80-90% Lactate Threshold / Mixed V. Hard (RPE 18) 95%+ Glycolytic (Anaerobic)
Recovery Interpretation
Heart Rate Recovery (HRR) in the first 60 seconds is a major fitness marker.
< 15 BPM drop: Poor recovery / Overtraining sign
15 - 30 BPM drop: Average / Moderate fitness
> 35 BPM drop: Exceptional Aerobic fitness
Discussion Lead-In
"Ask the students: Why does the heart rate continue to stay high even after you stop running? Introduce the concept of EPOC (Excess Post-exercise Oxygen Consumption) and the 'oxygen debt' created by the glycolytic system."
Relay Coaching Protocol
Lesson 03: Relay Dynamics
Instructional Sequence
01
Stationary Passes: Teach the "palm up" (overhand) vs "palm down" (underhand) receiving position. Use the overhand pass for 4x100m.
02
Slow Jog Passes: Emphasize the "UP" command. The outgoing runner should not reach until the verbal cue is given.
03
Velocity Matching: Introduce the check mark. Start with 15-20 steps behind the zone line.
Critical Error Correction
ERROR: "Looking Back"
Causes rotation, deceleration, and hand instability. Remind outgoing runner to look strictly forward.
ERROR: "Poking"
The incoming runner tries to 'poke' the baton into the hand. Instruct them to run THROUGH the hand, allowing the outgoing runner to take it.
