Euler Surface Slides Euler and Surfaces
"Topologically speaking, why is a coffee mug identical to a donut?"
The Rubber Sheet Geometry
Topology
The study of properties that remain invariant under continuous deformations .
Allowed Deformations:
Stretching & Shrinking
Twisting & Bending
Forbidden Actions:
Tearing or Puncturing
Gluing or Fusing distinct points
🍩 ↔️ ☕
A "Homeomorphism" is a continuous mapping with a continuous inverse.
The Euler Characteristic
\[ \chi = V - E + F \]
A Topological Invariant
V
Vertices (Points)
E
Edges (Lines)
F
Faces (Areas)
"No matter how you deform a convex polyhedron, this number remains exactly 2."
Genus and Holes
⚽
Genus (g) = 0
\[ \chi = 2 \]
Spheres, Cubes, Tetrahedrons
🍩
Genus (g) = 1
\[ \chi = 0 \]
Torus, Coffee Mug, Ring
General Rule: \[ \chi = 2(1 - g) \]
Topological Protection
In physics, topology allows us to define global constraints .
The "Robustness" Factor:
If a physical state depends on a topological invariant (like \(\chi\)), it cannot be destroyed by local noise, defects, or vibrations.
Stability Through Structure
"You can't change the number of holes by just wiggling the wire."
Polyhedral Puzzle Worksheet Polyhedral Puzzle
Topology and Geometric Phases • Lesson 1
Name:
Date:
Part 1: The Magic Number
For any convex polyhedron, the Euler Characteristic (\(\chi\)) is defined as \(\chi = V - E + F\). Complete the table below for the given shapes.
Polyhedron Vertices (V) Edges (E) Faces (F) \[\chi = V - E + F\] Tetrahedron 4 6 4 Cube (Hexahedron) 8 12 6 Octahedron 6 12 8 Dodecahedron 20 30 12 Icosahedron 12 30 20
Synthesize:
What do you notice about the value of \(\chi\) for all these shapes? What does this imply about their topological relationship?
Part 2: Homeomorphic or Not?
Circle the pairs of objects that are topologically equivalent (homeomorphic). For those that are NOT, explain which topological feature is different.
☕
🍩
Coffee Mug vs. Donut
YES
NO
If NO, why?
⚽
🥯
Soccer Ball vs. Bagel
YES
NO
If NO, why?
🥣
🍽️
Soup Bowl vs. Flat Plate
YES
NO
If NO, why?
🥨
🕶️
Pretzel vs. Sunglasses
YES
NO
If NO, why?
Part 3: The Genus Formula
The relationship between Euler characteristic and genus (g) (number of holes) for a closed orientable surface is given by: \[ \chi = 2(1 - g) \]
1. If a surface has a genus of 3 (like a triple-hole donut), what is its Euler Characteristic?
2. A certain object has an Euler Characteristic of -4. How many holes (genus) does it have?
3. Physics Challenge: Why might a "topological hole" be harder to destroy than a physical dent in a metal sheet?
Topological Playground Teacher Guide Teacher Facilitation Guide
Topological Playground
Lesson
01
Instructional Intent
This lesson transitions students from standard "Euclidean" thinking to "Topological" thinking. The goal is to understand that some geometric properties are global and discrete (like the number of holes) rather than local and continuous. This forms the foundation for understanding why certain physical states (like the Quantum Hall Effect) are "protected" from local disturbances.
Pacing Guide
The Hook 10m
Lecture/Slides 20m
Worksheet 20m
Debrief 10m
The Hook: The Coffee Donut
Bring a coffee mug and a donut (or a ring/washer) to class. Ask: "If these were made of incredibly stretchy clay, can I turn one into the other without tearing a hole or gluing parts together?"
Demonstrate with a lump of play-dough if possible.
Key takeaway
The "hole" in the handle of the mug is the same topological feature as the "hole" in the donut. Surfaces with 1 hole belong to the same topological class (genus 1).
Common Misconceptions
Misconception: A "hole" is just a dent.
Clarify that a topological hole must completely penetrate the object. A bowl is a sphere-equivalent (genus 0) because the "hole" doesn't go all the way through.
Misconception: Euler characteristic only applies to polyhedra.
Explain that we "triangulate" smooth surfaces (like a sphere) to calculate \(\chi\). No matter how many triangles we use, the sum remains the same.
Worksheet Answer Key
Part 1: Polyhedral Table
All convex polyhedra listed have \(\chi = 2\) .
Tetrahedron: 4 - 6 + 4 = 2
Cube: 8 - 12 + 6 = 2
...and so on.
Part 2: Homeomorphisms
Mug & Donut: YES
Soccer Ball & Bagel: NO
Ball has g=0, Bagel has g=1.
Bowl & Plate: YES
Both are g=0 and bounded by 1 edge (or can be flattened to a disk).
Pretzel & Sunglasses: NO
Pretzel (Standard) has g=3; Sunglasses (with lenses removed) have g=2.
Part 3: Calculations
1. Genus 3: \(\chi = 2(1 - 3) = -4\)
2. \(\chi = -4\): \(-4 = 2(1 - g) \implies -2 = 1 - g \implies g = 3\)
3. Physics Challenge Answer:
A physical dent is a local change that can be smoothed out by local pressure. A topological hole is a global property; to "remove" it, you must perform a non-local action (tearing the material or welding it shut). In quantum mechanics, this prevents local noise from scattering electrons in topological states.

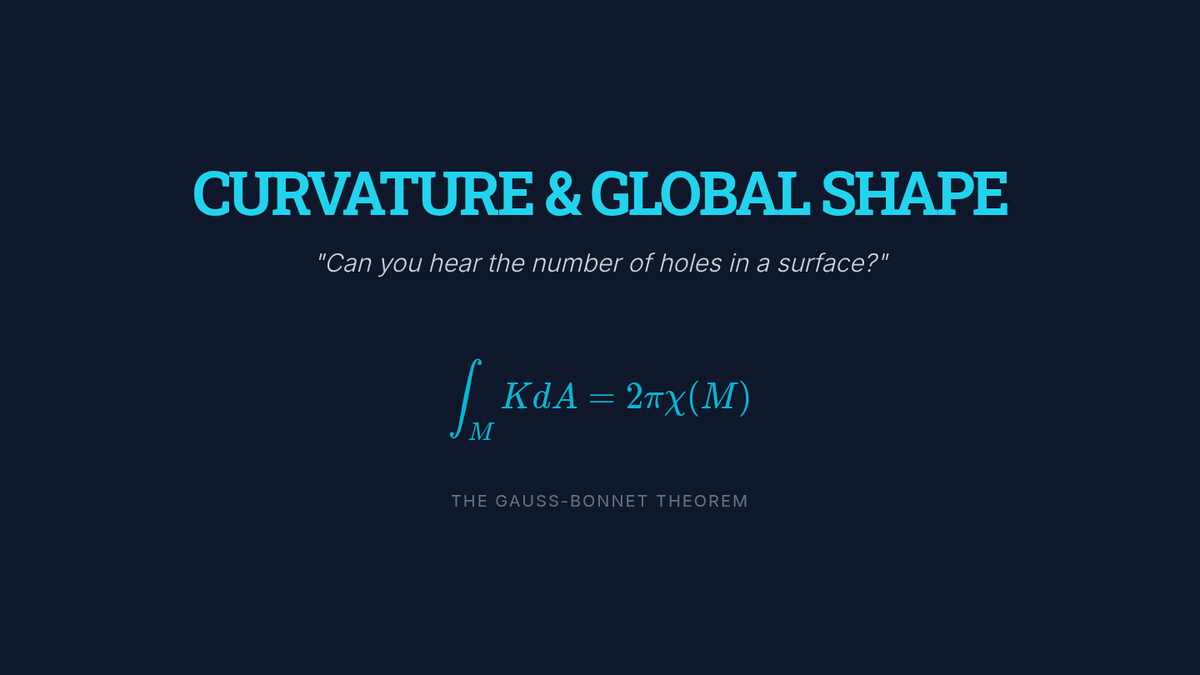

Curvature and Global Slides Curvature & Global Shape
"Can you hear the number of holes in a surface?"
\[ \int_M K dA = 2\pi\chi(M) \]
The Gauss-Bonnet Theorem
Local Curvature (K)
At any point on a surface, we define two principal curvatures (\(k_1, k_2\)). The Gaussian Curvature is their product:
\[ K = k_1 \cdot k_2 \]
Classification:
K > 0 Elliptic (Sphere)
K = 0 Flat (Cylinder/Plane)
K < 0 Hyperbolic (Saddle)
⚽ 🗼 🏇
Geometry meets Topology
Gauss-Bonnet Theorem
The total amount of curvature over a closed surface is determined strictly by its topology (number of holes).
Implication:
You can deform the surface locally however you want, but the average curvature remains constant!
Sphere (g=0)
Total Curvature = \(4\pi\)
Torus (g=1)
Total Curvature = \(0\)
Why do physicists care?
Material Properties
The way light or electrons move through a crystal depends on the "curvature" of its energy bands.
General Relativity
The Gauss-Bonnet term appears in theories of gravity in higher dimensions.
Condensed Matter
Topological invariants calculated from "Berry Curvature" lead to quantization of conductance.
Key Takeaway
Local Geometry (Curvature) integrated over the whole object reveals the Topology (Invariants).
Next time, we'll see how this applies to "knots" and "vortices" in vector fields.

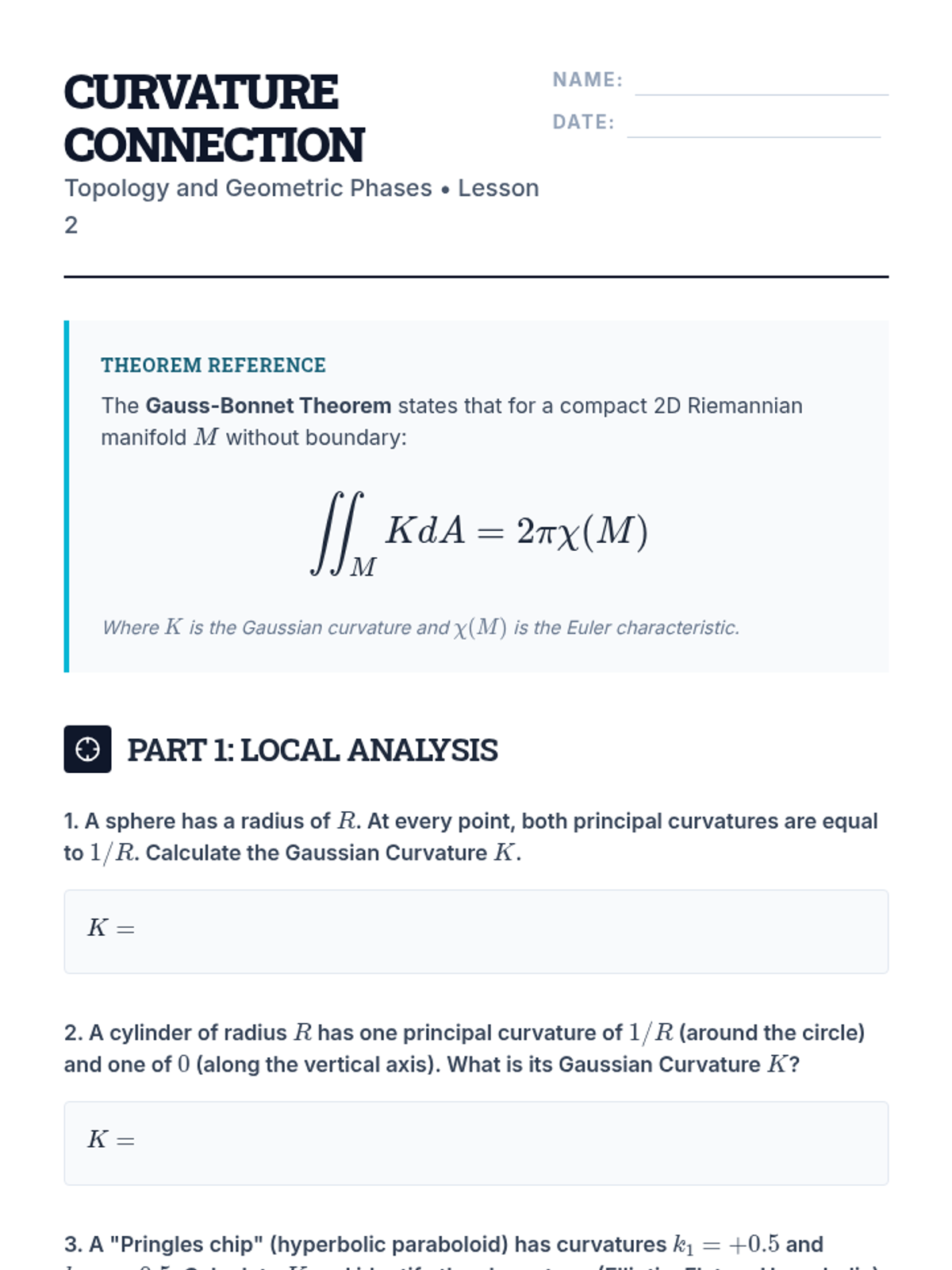

Curvature Connection Worksheet Curvature Connection
Topology and Geometric Phases • Lesson 2
Name:
Date:
Theorem Reference
The Gauss-Bonnet Theorem states that for a compact 2D Riemannian manifold \(M\) without boundary:
\[ \iint_M K dA = 2\pi \chi(M) \]
Where \(K\) is the Gaussian curvature and \(\chi(M)\) is the Euler characteristic.
Part 1: Local Analysis
1. A sphere has a radius of \(R\). At every point, both principal curvatures are equal to \(1/R\). Calculate the Gaussian Curvature \(K\).
\( K = \)
2. A cylinder of radius \(R\) has one principal curvature of \(1/R\) (around the circle) and one of \(0\) (along the vertical axis). What is its Gaussian Curvature \(K\)?
\( K = \)
3. A "Pringles chip" (hyperbolic paraboloid) has curvatures \(k_1 = +0.5\) and \(k_2 = -0.5\). Calculate \(K\) and identify the shape type (Elliptic, Flat, or Hyperbolic).
Part 2: Total Curvature
4. For a sphere of radius \(R\), the surface area is \(A = 4\pi R^2\). Use your answer from Question 1 to calculate the total curvature \(\iint K dA\). Show that the result is independent of \(R\).
5. A torus (donut) has regions of positive curvature (on the outer rim) and negative curvature (on the inner rim). According to Gauss-Bonnet, what must the total integrated curvature be? Justify your answer using the genus of the torus.
6. Conceptual: If you squeeze a soccer ball so it becomes lumpy and weirdly shaped, does the average curvature over the whole surface change? Why or why not?
Part 3: Extension
Note: If a surface has a boundary (like a sheet of paper), we must add a term for the geodesic curvature \(k_g\) along the edge.
Challenge: A flat disk has \(K = 0\) everywhere. The circumference is \(2\pi R\). If the Gauss-Bonnet theorem for a disk says \(\int_{\text{boundary}} k_g ds = 2\pi\), what must be the value of the geodesic curvature \(k_g\) for a circle of radius \(R\)?

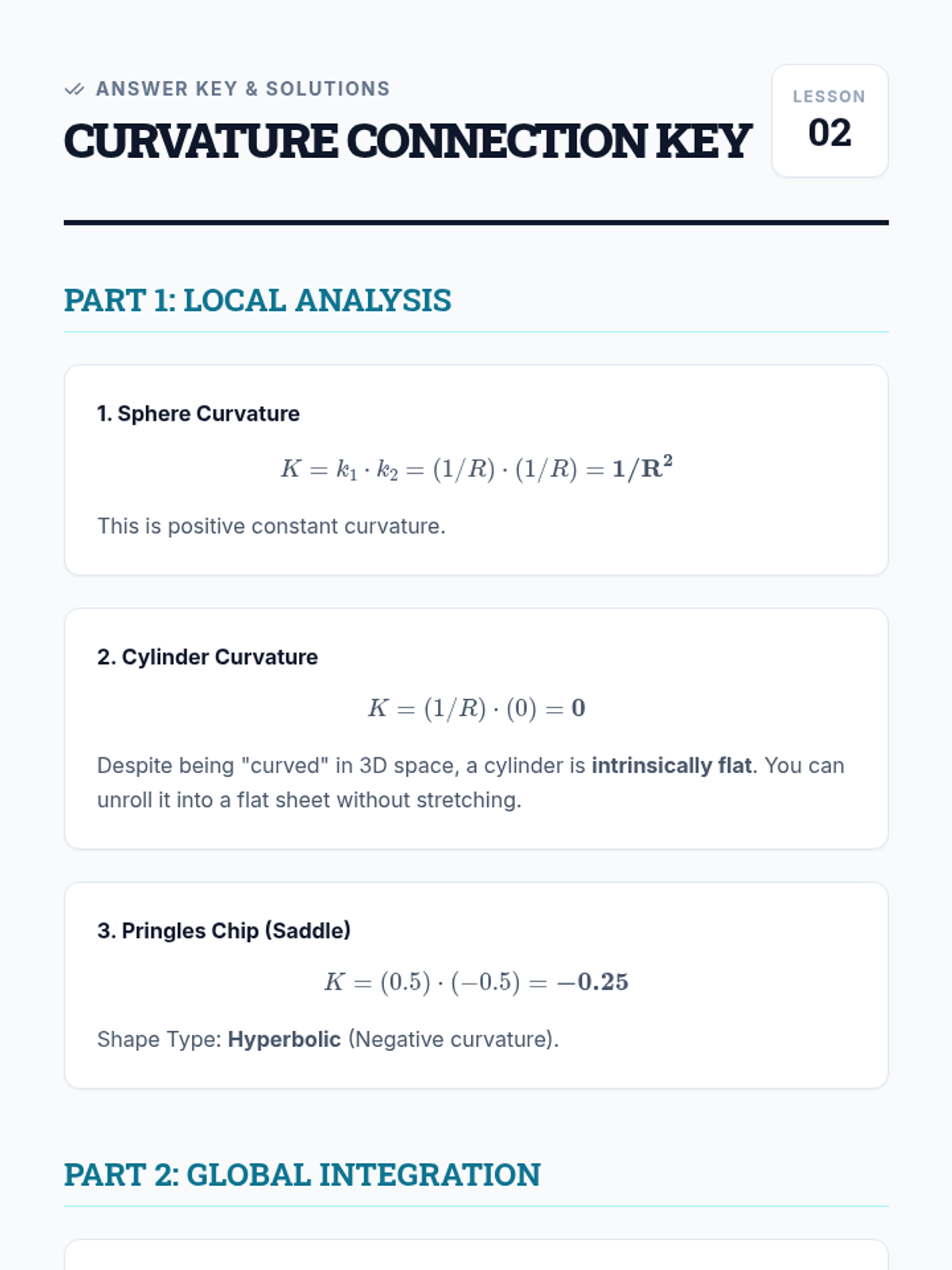

Curvature Connection Answer Key Answer Key & Solutions
Curvature Connection Key
Lesson
02
Part 1: Local Analysis
1. Sphere Curvature
\[ K = k_1 \cdot k_2 = (1/R) \cdot (1/R) = \mathbf{1/R^2} \] This is positive constant curvature.
2. Cylinder Curvature
\[ K = (1/R) \cdot (0) = \mathbf{0} \] Despite being "curved" in 3D space, a cylinder is intrinsically flat . You can unroll it into a flat sheet without stretching.
3. Pringles Chip (Saddle)
\[ K = (0.5) \cdot (-0.5) = \mathbf{-0.25} \] Shape Type: Hyperbolic (Negative curvature).
Part 2: Global Integration
4. Total Curvature of a Sphere
\[ \iint K dA = \int_M (1/R^2) dA = (1/R^2) \iint dA \] Since \(\iint dA = 4\pi R^2\): \[ (1/R^2) \cdot 4\pi R^2 = \mathbf{4\pi} \]
Note: As \(R\) cancels out, the total curvature is purely a property of the sphere's topology (\(\chi = 2\)).
5. The Torus Result
For a torus, the genus \(g = 1\). Euler Characteristic: \(\chi = 2(1 - 1) = 0\). According to Gauss-Bonnet: \[ \iint K dA = 2\pi(0) = \mathbf{0} \] The positive curvature on the outside exactly cancels the negative curvature on the inside.
6. Deformation (The Soccer Ball)
No, the average (total) curvature does not change. Because you haven't torn the material or added a hole, the Euler characteristic \(\chi\) remains 2. If you increase curvature at one point (a bump), you must decrease it elsewhere (a dimple) to keep the total at \(4\pi\).
Part 3: Challenge
Extension: Disk Geodesic Curvature
For a boundary integral \(\int k_g ds = 2\pi\), and a circle of length \(s = 2\pi R\): \[ k_g \cdot (2\pi R) = 2\pi \implies \mathbf{k_g = 1/R} \] The geodesic curvature of a circle is simply the reciprocal of its radius!

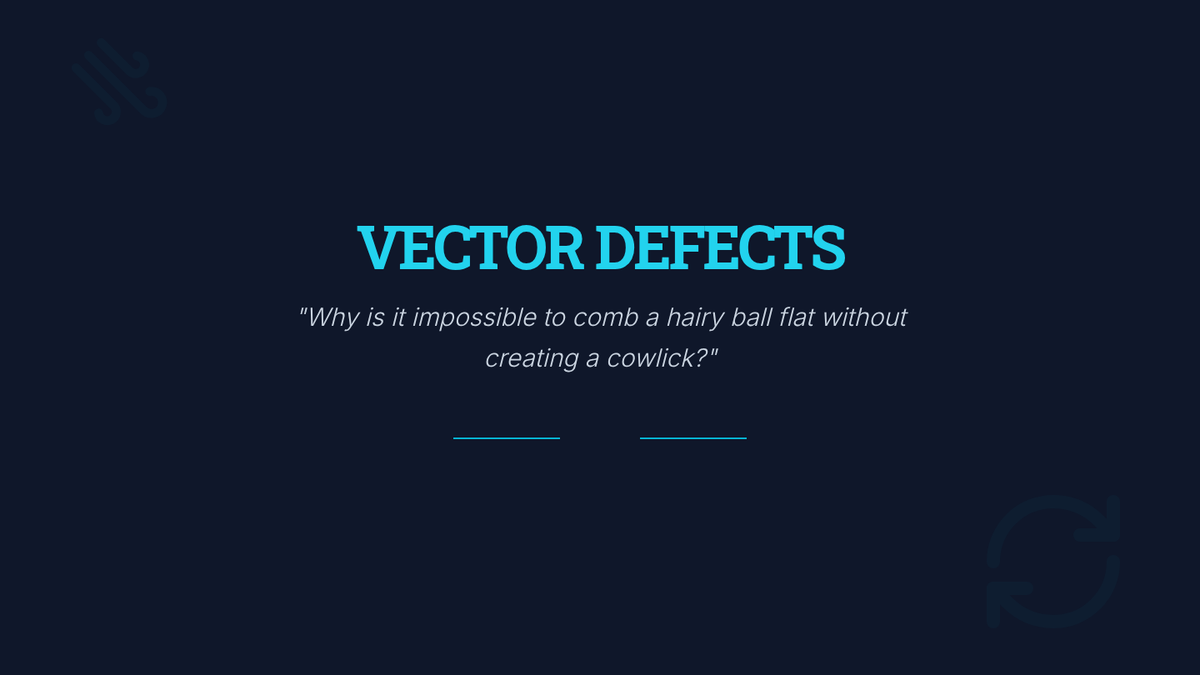

Vector Defect Slides Vector Defects
"Why is it impossible to comb a hairy ball flat without creating a cowlick?"
Poincaré-Hopf Theorem
The sum of the indices (topological charges) of all singularities in a vector field on a surface must equal the Euler characteristic of that surface.
\[ \sum \text{index}(v_i) = \chi(M) \]
🎾
The Sphere Result
Since \(\chi = 2\), any continuous vector field on a sphere must have at least one singularity (a cowlick or a vortex).
Winding Number
Source / Sink
+1
Arrows point outward or swirl in one direction.
Saddle Point
-1
Arrows approach from one axis and exit on another.
Dipole / Double
+2
Two +1 charges merged together.
Topological Defects
Vortices in Superfluids
In a superfluid, flow is quantized. You can have a "vortex" of fluid moving around a point, but the winding number must be an integer.
Magnetic Skyrmions
Swirling patterns of magnetic spin that act like individual particles. Their topology makes them extremely stable for data storage.
"Defects are protected by the whole field's geometry."
Can you delete a defect?
You cannot remove a single +1 charge. You must bring in a -1 charge to annihilate it.
+1
-1
0
This is the heart of topological stability.
Vortex Hunt Activity Worksheet Vortex Hunt
Topology and Geometric Phases • Lesson 3
Name:
Date:
Part 1: Identifying Charges
Analyze the local vector fields below. For each, imagine walking in a counter-clockwise circle around the central singularity. Determine the Winding Number (Index) by observing how many full rotations the vector makes as you complete your circle.
Sink: All arrows point inward
Pattern A: Radial Sink
Index =
Saddle: Flows in from L/R, out Top/Bottom
Pattern B: Saddle Point
Index =
Vortex: Continuous swirling
Pattern C: Pure Vortex
Index =
Uniform: All arrows parallel
Pattern D: No Singularity
Index =
Part 2: The Global Cowlick
1. According to the Poincaré-Hopf Theorem, the sum of indices on a surface \(M\) must equal \(\chi(M)\). For a standard 2-sphere (\(\chi = 2\)), what is the minimum number of singularities required if each has an index of +1?
2. Imagine a vector field on a torus (\(\chi = 0\)). You find one vortex with index +1. Does another singularity have to exist? If so, what must its index be?
The "Combing" Problem
Why can you "comb" a hairy donut (torus) perfectly flat without any cowlicks, but you cannot do the same for a hairy sphere? Explain using topology.
Part 3: Stability
4. In a magnetic thin film, a "Skyrmion" is a topological defect with winding number +1. Why can't a Skyrmion simply "fade away" or disappear due to thermal vibrations? What would have to happen for it to be removed?

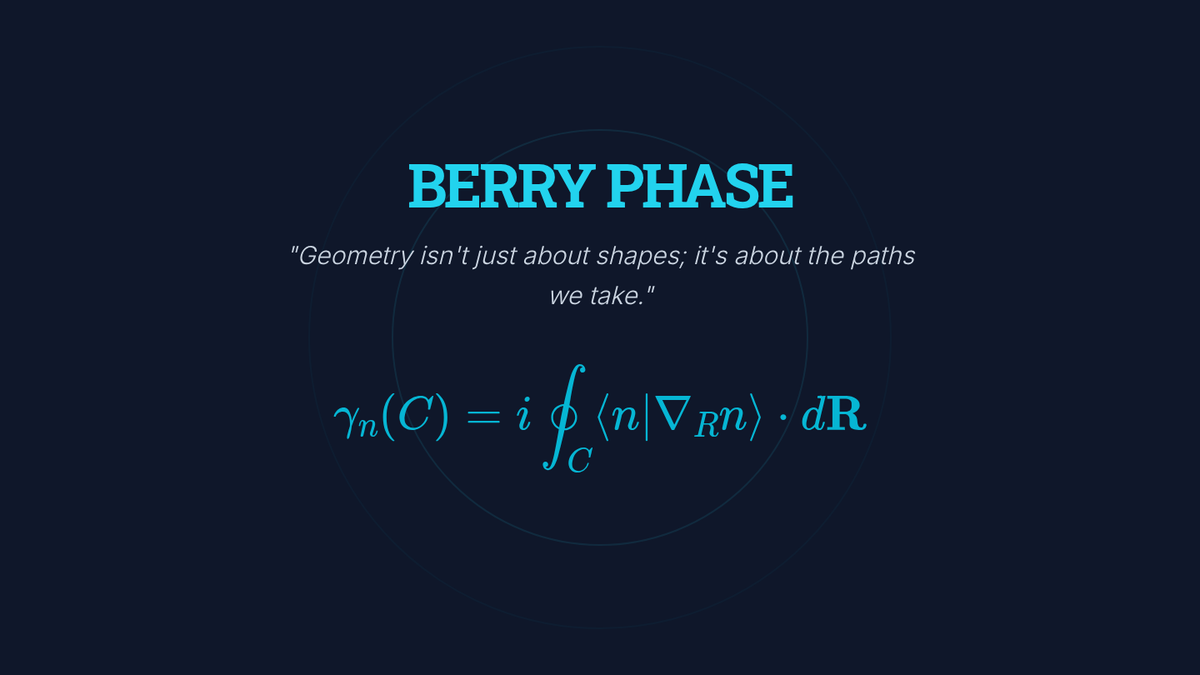

Berry Phase Slides Berry Phase
"Geometry isn't just about shapes; it's about the paths we take."
\[ \gamma_n(C) = i \oint_C \langle n | \nabla_R n \rangle \cdot d\mathbf{R} \]
Adiabatic Evolution
If a quantum system is in an eigenstate and the parameters of the Hamiltonian change slowly enough , the system stays in that same eigenstate.
The Return Journey
After completing a cyclic loop in parameter space, the state returns to its original form—but with an extra Geometric Phase .
"It's like walking around the world with a compass; when you return, the needle might point in a new direction."
Parallel Transport
The Spherical Path
1 Start at the North Pole.
2 Move to the Equator along a meridian.
3 Travel 90° along the Equator.
4 Return to the North Pole.
Rotation = 90°
The vector rotated even though we never "turned" it locally. This rotation is proportional to the solid angle enclosed.
The Aharonov-Bohm Effect
Action at a Distance?
An electron passing around a solenoid feels no magnetic field (\(\mathbf{B}=0\)), yet its phase is shifted.
\[ \Delta \phi = \frac{q}{\hbar} \oint \mathbf{A} \cdot d\mathbf{l} \]
Why it's Topological:
The phase depends only on the loop enclosing the flux.
Wiggling the path doesn't change the result.
The solenoid acts as a topological defect in space.
Phase is History
The Berry phase "records" the geometry of the path taken in parameter space. It is the quantum version of curvature integration.
Classical
Foucault Pendulum
Quantum
Berry Phase

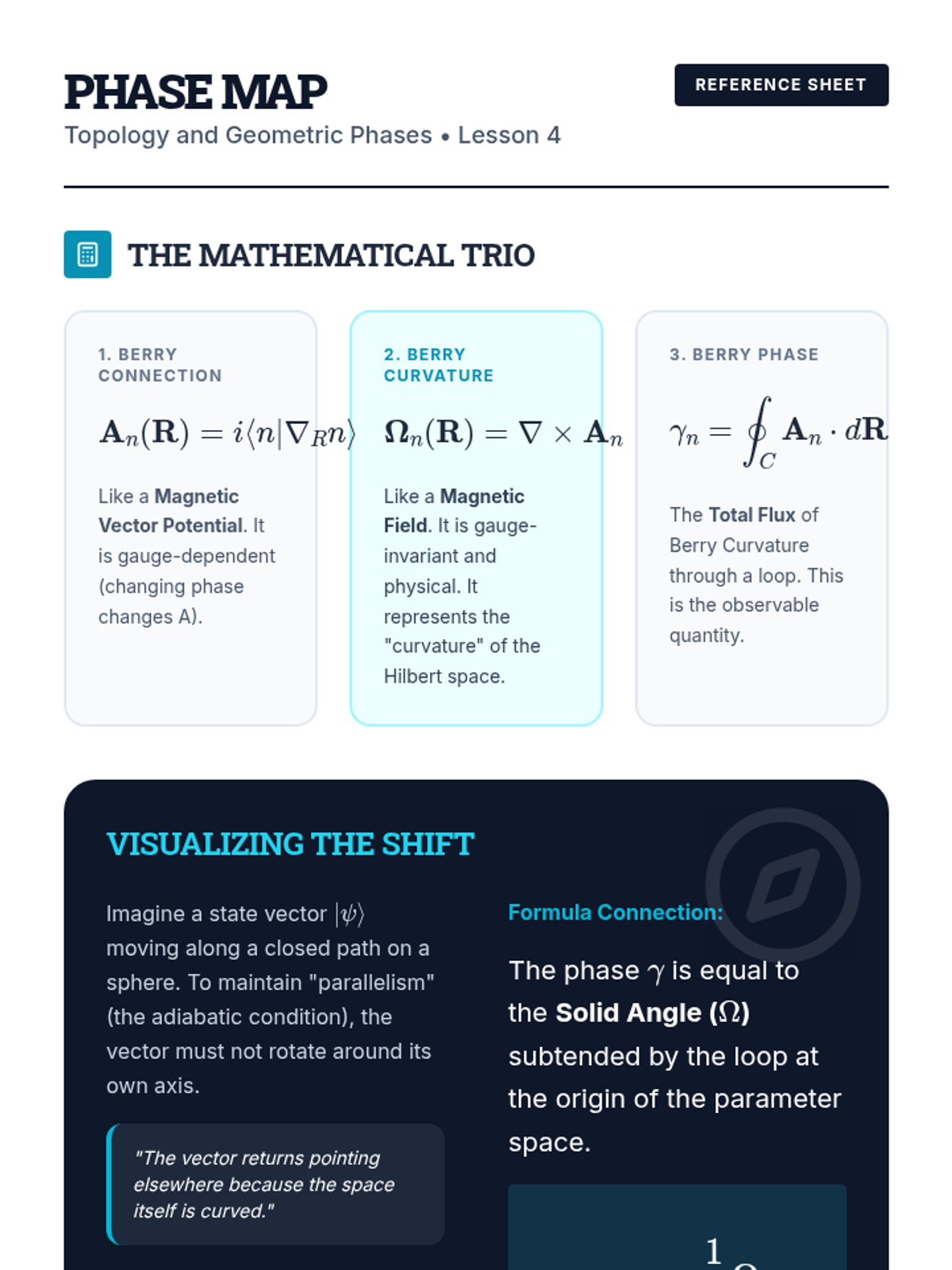

Phase Map Reference Sheet Phase Map
Topology and Geometric Phases • Lesson 4
Reference Sheet
The Mathematical Trio
1. Berry Connection
\[ \mathbf{A}_n(\mathbf{R}) = i \langle n | \nabla_R n \rangle \]
Like a Magnetic Vector Potential . It is gauge-dependent (changing phase changes A).
2. Berry Curvature
\[ \mathbf{\Omega}_n(\mathbf{R}) = \nabla \times \mathbf{A}_n \]
Like a Magnetic Field . It is gauge-invariant and physical. It represents the "curvature" of the Hilbert space.
3. Berry Phase
\[ \gamma_n = \oint_C \mathbf{A}_n \cdot d\mathbf{R} \]
The Total Flux of Berry Curvature through a loop. This is the observable quantity.
Visualizing the Shift
Imagine a state vector \( |\psi \rangle \) moving along a closed path on a sphere. To maintain "parallelism" (the adiabatic condition), the vector must not rotate around its own axis.
"The vector returns pointing elsewhere because the space itself is curved."
Formula Connection:
The phase \(\gamma\) is equal to the Solid Angle (\(\Omega\)) subtended by the loop at the origin of the parameter space.
\[ \gamma = -\frac{1}{2} \Omega \]
Comparison Table
Feature Aharonov-Bohm Effect General Berry Phase Parameter Space Physical Space (\(\mathbf{r}\)) Hamiltonian Parameters (\(\mathbf{R}\)) Vector Potential Magnetic potential \(\mathbf{A}\) Berry connection \(\mathbf{A}_n\) Field / Curvature Magnetic field \(\mathbf{B}\) Berry curvature \(\mathbf{\Omega}_n\) Physical Cause Magnetic flux enclosed Geometric path of evolution
Think About It:
If you transport a spin-1/2 particle around a loop in a magnetic field, the Berry phase is \(\pi\). This results in a minus sign (\(e^{i\pi} = -1\)). How does this explain why electrons require a 720° rotation to return to their original state?
Topological Insulator Slides Surface Secrets
"Insulator in the bulk, conductor on the edge."
The Split Personality
Bulk: Insulator
Inside the material, there is a large energy gap. Electrons cannot move. It acts like a piece of glass or plastic.
Boundary: Conductor
On the 2D surface (or 1D edge), electrons move freely. It acts like a perfect metal wire.
Why?
The band structure of the bulk is topologically different from the vacuum outside. To transition between them, the gap must close at the boundary.
The Edge State
Chern Number
An integer \(N\) that characterizes the whole energy band. It's the "genus" of the band structure.
N = 1
Topological Charge
"The number of conducting edge states is exactly equal to the change in the Chern number across the boundary."
Impenetrable Flow
Immune to Dirt
In a normal wire, impurities cause electrons to backscatter (rebound), creating resistance.
In a Topological Insulator:
Backscattering is forbidden by symmetry. The electron must go around the obstacle. Resistance is nearly zero.
The future of Quantum Computing and low-power electronics.
The Topological Arc
Shapes
Euler Characteristic
Curvature
Gauss-Bonnet
Singularities
Defects
Phases
Berry Phase
Materials
T-Insulators
"Physics is the play, but Topology provides the stage."
Edge State Explorer Case Study Edge State Explorer
Topology and Geometric Phases • Lesson 5 Case Study
Name:
Background
In 2007, researchers predicted that certain materials, like Bismuth Selenide (\(Bi_2Se_3\)) , would exhibit a new phase of matter. These materials are 3D topological insulators. Their energy bands in the "bulk" have a non-trivial Chern Number , which forces conducting states to appear on the 2D surface.
Part 1: The Gap Closure
Conduction Band
Energy Gap (\(E_g\))
Valence Band
Momentum (k)
Bulk Band Structure
1. In the "Bulk" diagram (left), the material is an insulator. Why? (Reference the Energy Gap in your answer).
2. On the Surface , a new set of states appears that cross the gap in an "X" shape (a Dirac Cone). Sketch how these states might look on the diagram to the left.
Hint: These states connect the Valence Band to the Conduction Band directly.
Part 2: Counting States
Mathematical Link
The number of gapless surface states (\(N_{edge}\)) is determined by the change in the Chern Number (\(C\)) :
\[ N_{edge} = |C_{bulk} - C_{vacuum}| \]
Since vacuum has \(C=0\), the bulk topology completely dictates the surface physics.
3. If a material has a Chern number of \(C = 2\), how many pairs of conducting channels will it have on its surface?
4. Synthesis: We have seen that topology protects these states. If we "poison" the surface of Bi2Se3 with a few atoms of random dirt, why don't the conducting states disappear?
Final Sequence Reflection
Throughout this sequence, we have moved from simple polyhedra to complex quantum phases. How has the concept of "Global vs. Local" changed your understanding of what makes a physical system stable ?

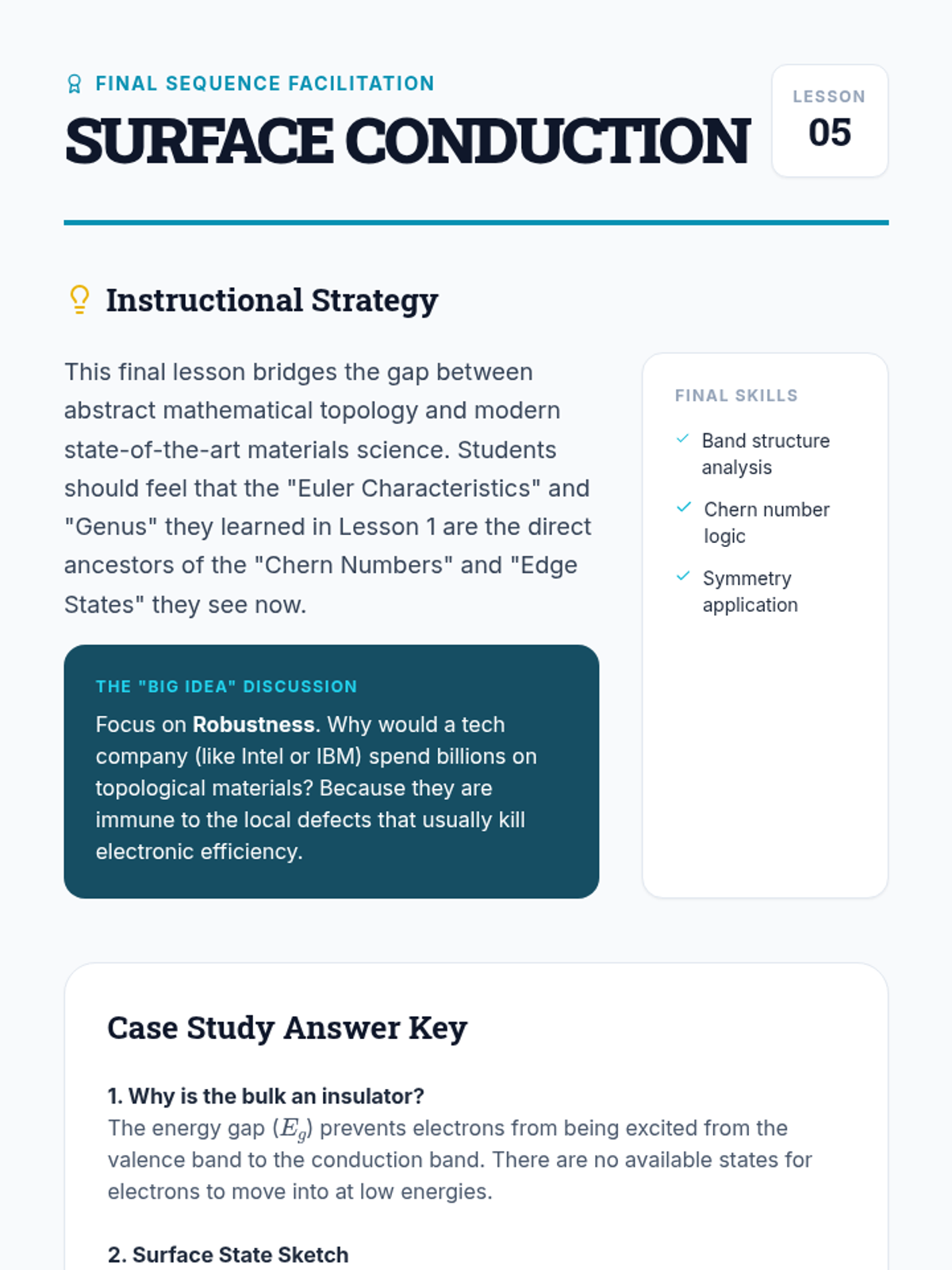

Topological Wrap-up Teacher Guide Final Sequence Facilitation
Surface Conduction
Lesson
05
Instructional Strategy
This final lesson bridges the gap between abstract mathematical topology and modern state-of-the-art materials science. Students should feel that the "Euler Characteristics" and "Genus" they learned in Lesson 1 are the direct ancestors of the "Chern Numbers" and "Edge States" they see now.
The "Big Idea" Discussion
Focus on Robustness . Why would a tech company (like Intel or IBM) spend billions on topological materials? Because they are immune to the local defects that usually kill electronic efficiency.
Final Skills
Band structure analysis
Chern number logic
Symmetry application
Case Study Answer Key
1. Why is the bulk an insulator?
The energy gap (\(E_g\)) prevents electrons from being excited from the valence band to the conduction band. There are no available states for electrons to move into at low energies.
2. Surface State Sketch
Students should draw a "V" or "X" shape that connects the top of the red valence band to the bottom of the blue conduction band. This demonstrates that there is no gap on the surface.
3. C = 2 calculation
\(N_{edge} = |2 - 0| = \mathbf{2}\). There would be two pairs of conducting channels on the surface.
4. Dirt and Symmetry
The states are topologically protected. To remove them, you would have to change the Chern number of the entire bulk crystal, which a few surface atoms cannot do. Local disorder cannot "gap out" a state that is required by global topology.
Closing the Sequence
Final Discussion Prompt
"How do global topological properties enforce constraints that local geometric deformations cannot overcome?"
Evidence for Student Mastery:
Uses terms like "Invariants", "Genus", or "Chern Number".
Explains that "tearing" is needed to change topology.
Connects "Geometry" to local shape and "Topology" to global structure.
Sample High-Level Response:
"Topology sets the 'boundaries' of what is possible. While a system can wiggle and curve locally (geometry), the presence of a hole or a non-zero Chern number forces the system to behave in a specific, quantized way that local noise cannot ignore."
