HR Diagram Slides DECODING THE H-R DIAGRAM
Investigating Stellar Evolution & Nucleosynthesis: Lesson 1
Luminosity Temperature Spectral Class
The Cosmic Map
How can a simple graph reveal the past, present, and future of billions of stars?
"The Hertzsprung-Russell diagram is the single most important tool in stellar astronomy. It allows us to read the life history of a star from just two observable traits."
Observable Trait 1: Color/Temp
Red is cool, Blue is hot. Measured in Kelvin (K).
Observable Trait 2: Luminosity
Total energy output. Usually relative to our Sun ($L_{\odot}$).
Anatomy of the H-R Diagram
1
The Main Sequence
90% of stars. Fusion of Hydrogen to Helium.
2
Giants & Supergiants
Cool but massive. Post-Main Sequence expansion.
3
White Dwarfs
Hot but tiny. The corpses of Sun-like stars.
Giants
White Dwarfs
MAIN SEQUENCE
Hot (Blue) Temperature (K) Cool (Red)
The Power of Mass
Mass is destiny.
Higher Mass = Higher Temp & Luminosity
Higher Mass = SHORTER Lifespan
Why? High-mass stars are like gas-guzzling dragsters. They have more fuel, but they burn it at a ferocious, unsustainable rate.
Luminosity-Mass Relation
\[ L \propto M^{3.5} \]
A star with 10x the mass of the Sun is over 3,000 times as bright, but it will live for 1/300th of the time!
Lab Activity: Star Clusters
You are about to receive data for the Pleiades and M67 star clusters. Your mission:
Plot
Graph Luminosity vs. Temperature for both clusters.
Analyze
Identify the "Main Sequence Turn-off" point for each.
Deduce
Determine which cluster is older based on its stars.

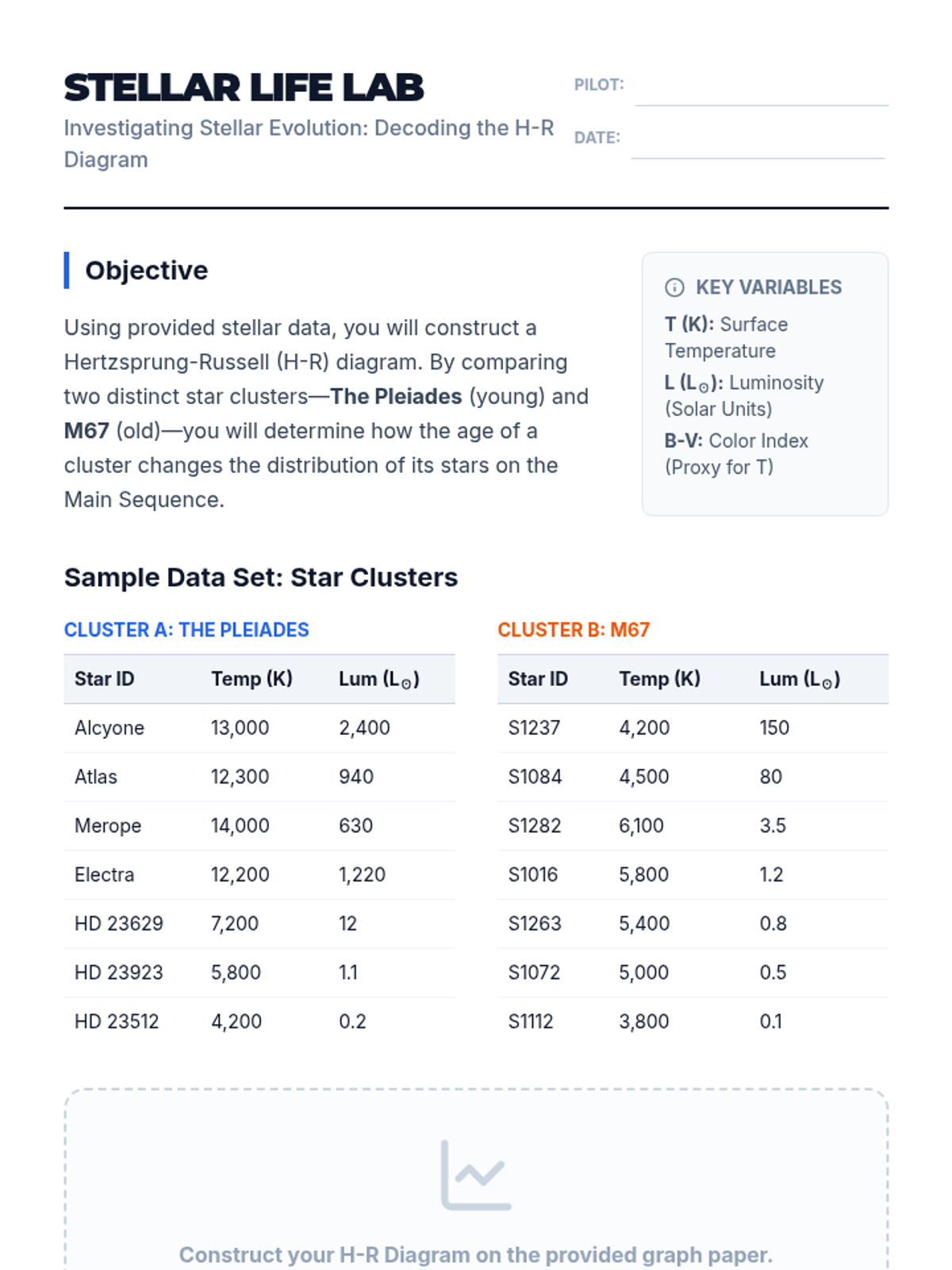

HR Diagram Lab Worksheet Stellar Life Lab
Investigating Stellar Evolution: Decoding the H-R Diagram
Pilot:
Date:
Objective
Using provided stellar data, you will construct a Hertzsprung-Russell (H-R) diagram. By comparing two distinct star clusters—The Pleiades (young) and M67 (old)—you will determine how the age of a cluster changes the distribution of its stars on the Main Sequence.
Key Variables
T (K): Surface TemperatureL (L☉): Luminosity (Solar Units)B-V: Color Index (Proxy for T)
Sample Data Set: Star Clusters
Cluster A: The Pleiades
Star ID Temp (K) Lum (L☉) Alcyone 13,000 2,400 Atlas 12,300 940 Merope 14,000 630 Electra 12,200 1,220 HD 23629 7,200 12 HD 23923 5,800 1.1 HD 23512 4,200 0.2
Cluster B: M67
Star ID Temp (K) Lum (L☉) S1237 4,200 150 S1084 4,500 80 S1282 6,100 3.5 S1016 5,800 1.2 S1263 5,400 0.8 S1072 5,000 0.5 S1112 3,800 0.1
Construct your H-R Diagram on the provided graph paper.
Y-Axis: Luminosity (Log Scale: 10-2 to 104)
X-Axis: Temperature (Descending: 20,000K to 2,000K)
Analysis & Findings
1. Mapping the Population
Which cluster has stars that still occupy the upper-left (hot and bright) portion of the Main Sequence? Why does the other cluster lack these stars?
2. The Turn-Off Point
The "Main Sequence Turn-off" is the point where stars begin to exhaust their hydrogen and move toward the giant phase. Identify the approximate temperature of the turn-off point for both clusters.
Pleiades Turn-off (K):
M67 Turn-off (K):
3. Relative Age Determination
Based on the turn-off points, which cluster is older? Justify your answer using the relationship between stellar mass, luminosity, and nuclear fuel consumption.
Astrophysics Challenge
"Star S1237 in M67 has a temperature of 4,200K but a luminosity of 150 L☉. Looking at your H-R diagram, is this star on the Main Sequence? Explain its physical state based on its position."

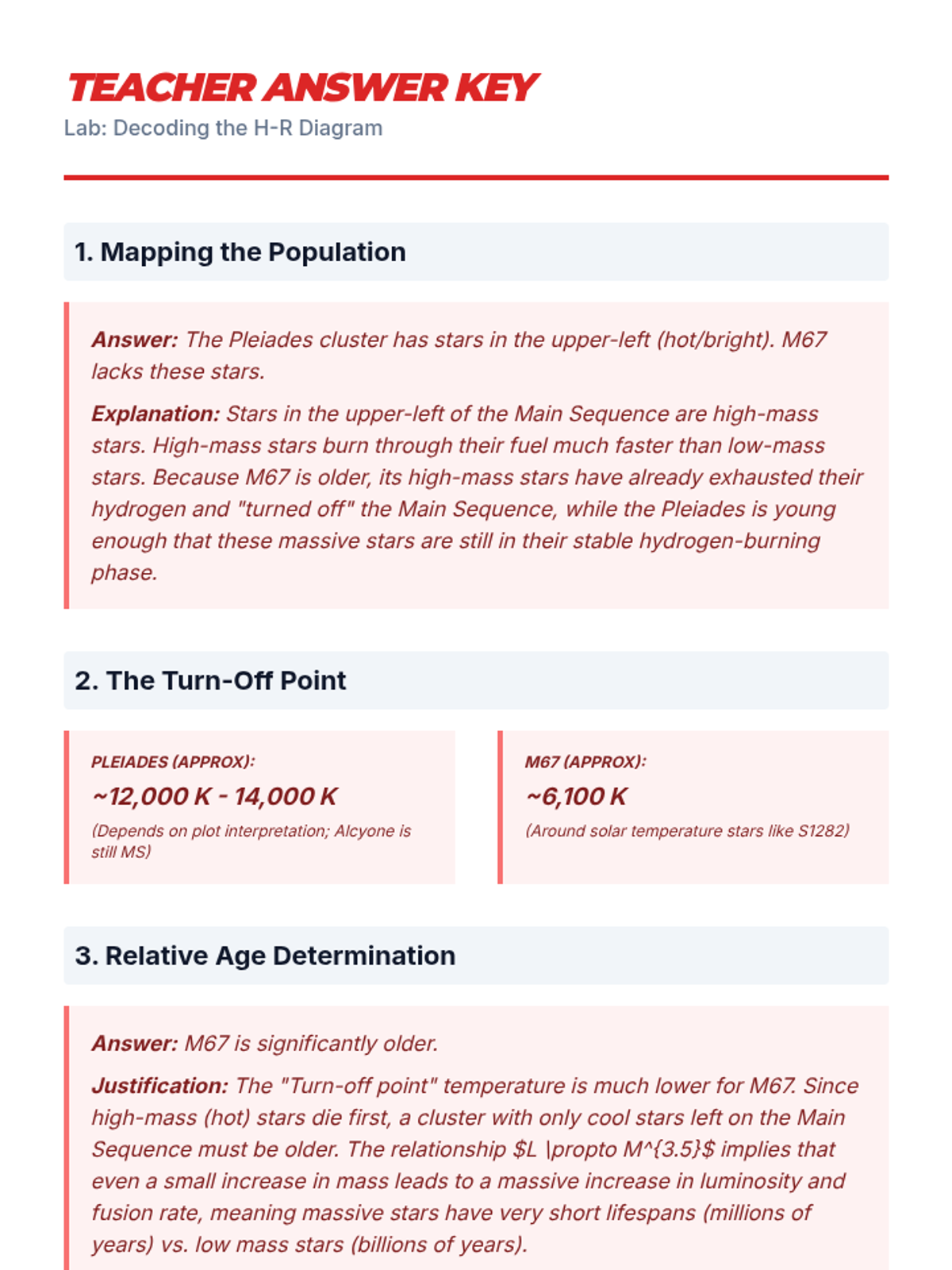

HR Diagram Lab Answer Key Teacher Answer Key
Lab: Decoding the H-R Diagram
1. Mapping the Population
Answer: The Pleiades cluster has stars in the upper-left (hot/bright). M67 lacks these stars.
Explanation: Stars in the upper-left of the Main Sequence are high-mass stars. High-mass stars burn through their fuel much faster than low-mass stars. Because M67 is older, its high-mass stars have already exhausted their hydrogen and "turned off" the Main Sequence, while the Pleiades is young enough that these massive stars are still in their stable hydrogen-burning phase.
2. The Turn-Off Point
Pleiades (approx):
~12,000 K - 14,000 K
(Depends on plot interpretation; Alcyone is still MS)
M67 (approx):
~6,100 K
(Around solar temperature stars like S1282)
3. Relative Age Determination
Answer: M67 is significantly older.
Justification: The "Turn-off point" temperature is much lower for M67. Since high-mass (hot) stars die first, a cluster with only cool stars left on the Main Sequence must be older. The relationship $L \propto M^{3.5}$ implies that even a small increase in mass leads to a massive increase in luminosity and fusion rate, meaning massive stars have very short lifespans (millions of years) vs. low mass stars (billions of years).
Astrophysics Challenge (S1237)
Position: This star is a Red Giant.
Explanation: S1237 is cool (4,200K) but extremely luminous (150 L☉). On the MS, a 4,200K star would be very dim (approx 0.1-0.2 L☉). To be that bright while being that cool, the star must have a massive surface area ($L = 4\pi R^2 \sigma T^4$). It has expanded significantly, indicating it has left the Main Sequence and is now burning helium in its core or hydrogen in a shell.
Grading Note
Students should receive full credit if their graph accurately reflects the data table and their reasoning correctly links "high mass = short life". Precise turn-off temperatures may vary slightly by a few hundred Kelvin depending on how they draw their best-fit curve.
Hydrostatic Fusion Slides HYDROSTATIC EQUILIBRIUM
Fusion, Pressure, and the Life of Main Sequence Stars
Gravity Pressure Fusion
The Controlled Explosion
The Sun is a giant NUCLEAR BOMB that has been exploding for 4.6 billion years.
Every second, it converts 600 million tons of Hydrogen into Helium.
What keeps it from blowing apart?
Gravity (In)
=
Pressure (Out)
HYDROSTATIC EQUILIBRIUM
The Engine: Proton-Proton Chain
For stars like our Sun (T < 15 million K), the P-P chain is the dominant energy source.
Step 1: \( ^1H + ^1H \rightarrow ^2H + e^+ + \nu_e \)
Step 2: \( ^2H + ^1H \rightarrow ^3He + \gamma \)
Step 3: \( ^3He + ^3He \rightarrow ^4He + 2(^1H) \)
Total Mass Out < Total Mass In. The difference? Pure Energy ($E=mc^2$).
He
+ ENERGY
The High-Mass High-Way: CNO Cycle
Carbon-Nitrogen-Oxygen Cycle
In stars with \( M > 1.3 M_{\odot} \), the core is hot enough for Carbon to act as a catalyst.
Much more temperature-sensitive.
Generates energy at a far greater rate.
Leads to massive luminosity and shorter life.
Comparison
PP Chain: \( \epsilon \propto T^4 \)
CNO Cycle: \( \epsilon \propto T^{17} \)
A tiny increase in core temperature results in a violent increase in energy production via CNO.
What if the balance breaks?
Scenario A: Core Cools
Pressure drops. Gravity takes over.
Core contracts $\rightarrow$ Heats up $\rightarrow$ Fusion increases $\rightarrow$ Balance restored.
Scenario B: Core Heats
Fusion rate spikes. Pressure increases.
Core expands $\rightarrow$ Cools down $\rightarrow$ Fusion decreases $\rightarrow$ Balance restored.
The Main Sequence is the stable stage of stellar life.

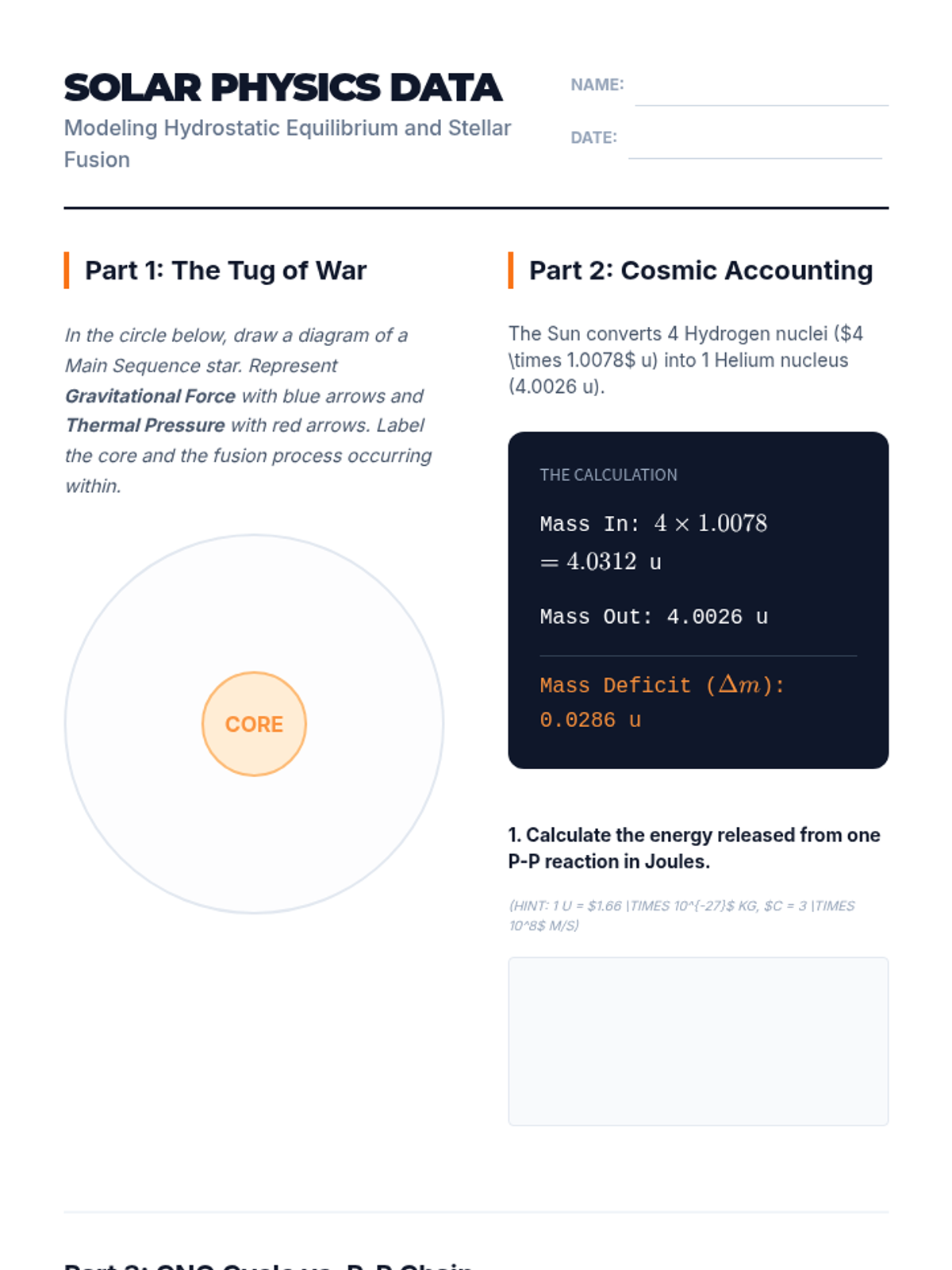

Solar Physics Worksheet Solar Physics Data
Modeling Hydrostatic Equilibrium and Stellar Fusion
Name:
Date:
Part 1: The Tug of War
In the circle below, draw a diagram of a Main Sequence star. Represent Gravitational Force with blue arrows and Thermal Pressure with red arrows. Label the core and the fusion process occurring within.
CORE
Part 2: Cosmic Accounting
The Sun converts 4 Hydrogen nuclei ($4 \times 1.0078$ u) into 1 Helium nucleus (4.0026 u).
The Calculation
Mass In: \( 4 \times 1.0078 = 4.0312 \) u
Mass Out: 4.0026 u
Mass Deficit (\(\Delta m\)): 0.0286 u
1. Calculate the energy released from one P-P reaction in Joules.
(Hint: 1 u = $1.66 \times 10^{-27}$ kg, $c = 3 \times 10^8$ m/s)
Part 3: CNO Cycle vs. P-P Chain
Comparing Cycles
Explain why high-mass stars rely on the CNO cycle rather than the P-P chain. Include the role of temperature and the Carbon catalyst.
The Solar Thermostat
If the Sun's core temperature were to suddenly increase by 5%, what would happen to the fusion rate and the star's physical radius?
Data Challenge
"The Sun's total luminosity is $3.8 \times 10^{26}$ Watts. Based on your calculation in Part 2, how many Helium nuclei are created in the Sun every single second to sustain this output?"
Red Giants Slides RED GIANTS & HELIUM
When the Fuel Runs Out: The End of Stability
Expansion Shell Burning Triple-Alpha
The Solar Apocalypse
In 5 billion years, our Sun will SWALLOW THE EARTH.
The core will shrink to the size of Earth, but the outer layers will expand to the orbit of Mars.
"The death of a star is more spectacular than its life. As the core dies, the star itself becomes a titan."
Sun Today
RED GIANT SUN
Why do they expand?
1
Fuel Exhaustion
Hydrogen runs out in the core. Fusion stops. Radiation pressure vanishes.
2
Core Collapse
Gravity crushes the core. It gets incredibly hot and dense, but no fusion is happening... yet.
3
Shell Burning
The intense heat from the core ignites Hydrogen in the surrounding shell. This "new engine" pushes the outer layers away.
The Second Act: Triple Alpha
When the core reaches 100 million K, Helium fusion begins.
\( ^4He + ^4He \rightleftharpoons ^8Be \)
3 Helium nuclei combine to create 1 Carbon nucleus. This is where the carbon in your body was born!
The Helium Flash
In low-mass stars, the onset of helium fusion is explosive and instantaneous.
Result
The star shrinks slightly and becomes stable again—burning helium on the "Horizontal Branch".
Case Study: Betelgeuse
Spectral Class
M1-2 Ia-ab (Red Supergiant)
Luminosity
126,000 \( L_{\odot} \)
Radius
~800 \( R_{\odot} \) (Jupiter's Orbit!)
Betelgeuse is at the very end of its life. It has gone through H and He burning and is now fusing heavier and heavier elements.
"When Betelgeuse dies, it will shine as bright as the full moon in our sky for weeks. We are just waiting for the core to collapse."

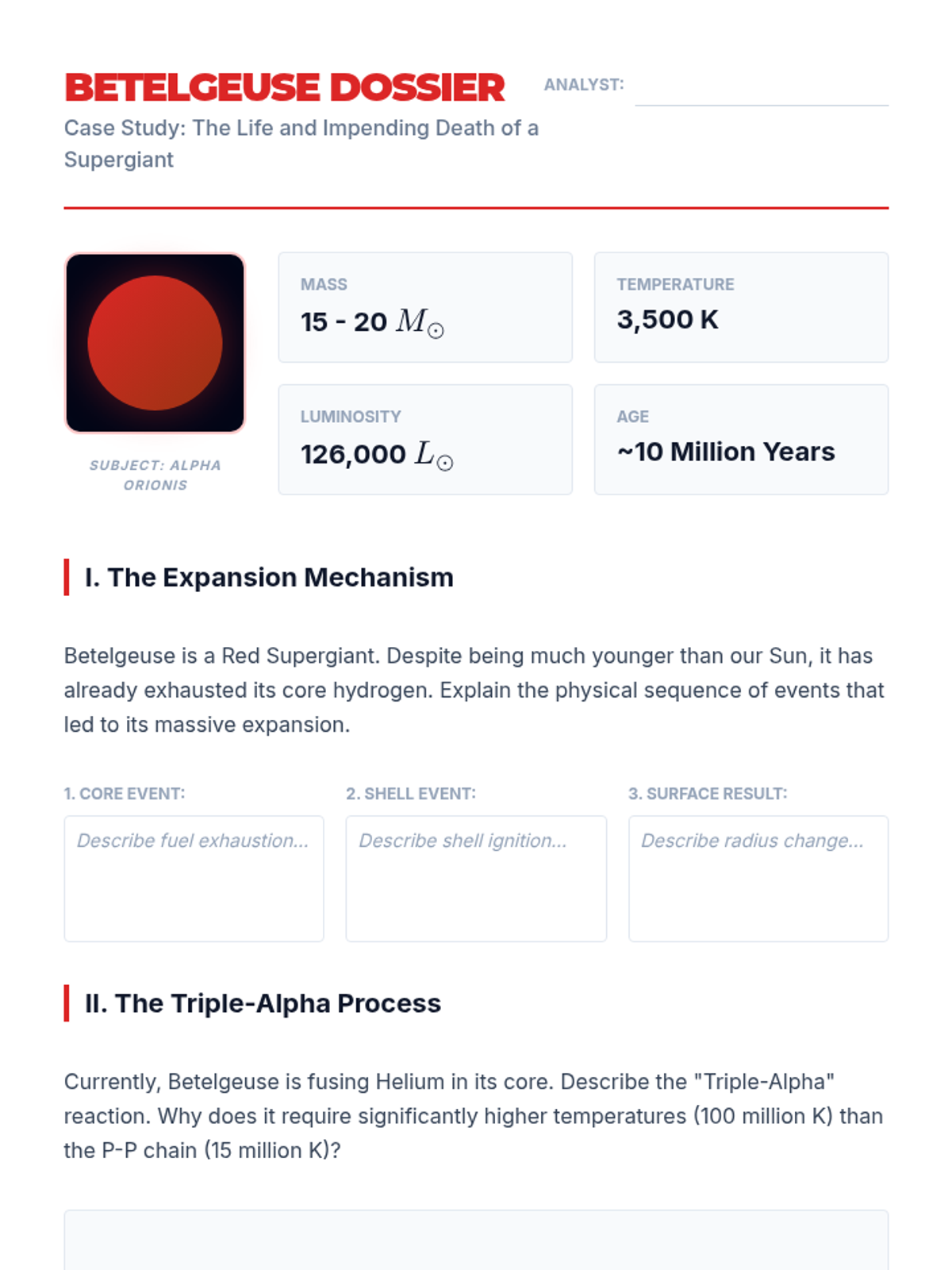

Betelgeuse Case Study Worksheet Betelgeuse Dossier
Case Study: The Life and Impending Death of a Supergiant
Analyst:
Subject: Alpha Orionis
Mass
15 - 20 \( M_{\odot} \)
Temperature
3,500 K
Luminosity
126,000 \( L_{\odot} \)
Age
~10 Million Years
I. The Expansion Mechanism
Betelgeuse is a Red Supergiant. Despite being much younger than our Sun, it has already exhausted its core hydrogen. Explain the physical sequence of events that led to its massive expansion.
1. Core Event:
Describe fuel exhaustion...
2. Shell Event:
Describe shell ignition...
3. Surface Result:
Describe radius change...
II. The Triple-Alpha Process
Currently, Betelgeuse is fusing Helium in its core. Describe the "Triple-Alpha" reaction. Why does it require significantly higher temperatures (100 million K) than the P-P chain (15 million K)?
III. Fate of the Supergiant
When Betelgeuse eventually exhausts its Helium, it will not stop. Because of its massive gravity, it will begin fusing Carbon, Neon, Oxygen, and Silicon. Look at a periodic table. What element marks the "dead end" of this fusion chain? Why can't a star fuse anything heavier than that?
Supernovae Nucleosynthesis Slides SUPERNOVAE & ALCHEMY
The Iron Catastrophe and the Origin of Elements
Core Collapse Iron Catastrophe Stellar Alchemy
The Cosmic Inheritance
The GOLD in your jewelry and the IRON in your blood were forged in the death throes of giant stars.
Big Bang nucleosynthesis only made Hydrogen and Helium. Everything else is the result of stellar processing.
"We are literally made of star-stuff."
— Carl Sagan
Pre-Supernova
H, He, C, Ne, O, Si, S
Supernova Explosion
Au, Ag, U, Pt, Pb, Hg
The Onion Star Structure
IRON
Hydrogen
Helium
Carbon/Oxygen
Silicon
The Descent to Iron
Each stage of fusion is shorter than the last.
Silicon to Iron takes only 1 DAY.
Iron is the nuclear "Dead End."
The Iron Catastrophe
Energy Deficit
Fusing elements lighter than Iron RELEASES energy (Exothermic).
Fusing Iron REQUIRES energy (Endothermic).
When the core becomes iron, the engine turns into a refrigerator. Pressure vanishes.
The Collapse (0.25 seconds)
The core collapses at 25% the speed of light. It hits a density so high that the atoms touch (Nuclear Density), and the core BOUNCES.
The Shockwave
The bounce sends a shockwave back out, meeting the collapsing outer layers and blowing them into space: Type II Supernova.
Nucleosynthesis Summary
Big Bang
H, He, some Li
Stellar Core
C through Fe
Supernovae
Heaviest Elements (Neutron Capture)
Kilonovae
Precious Metals (Au, Pt)
"Without the death of stars, there is no life."

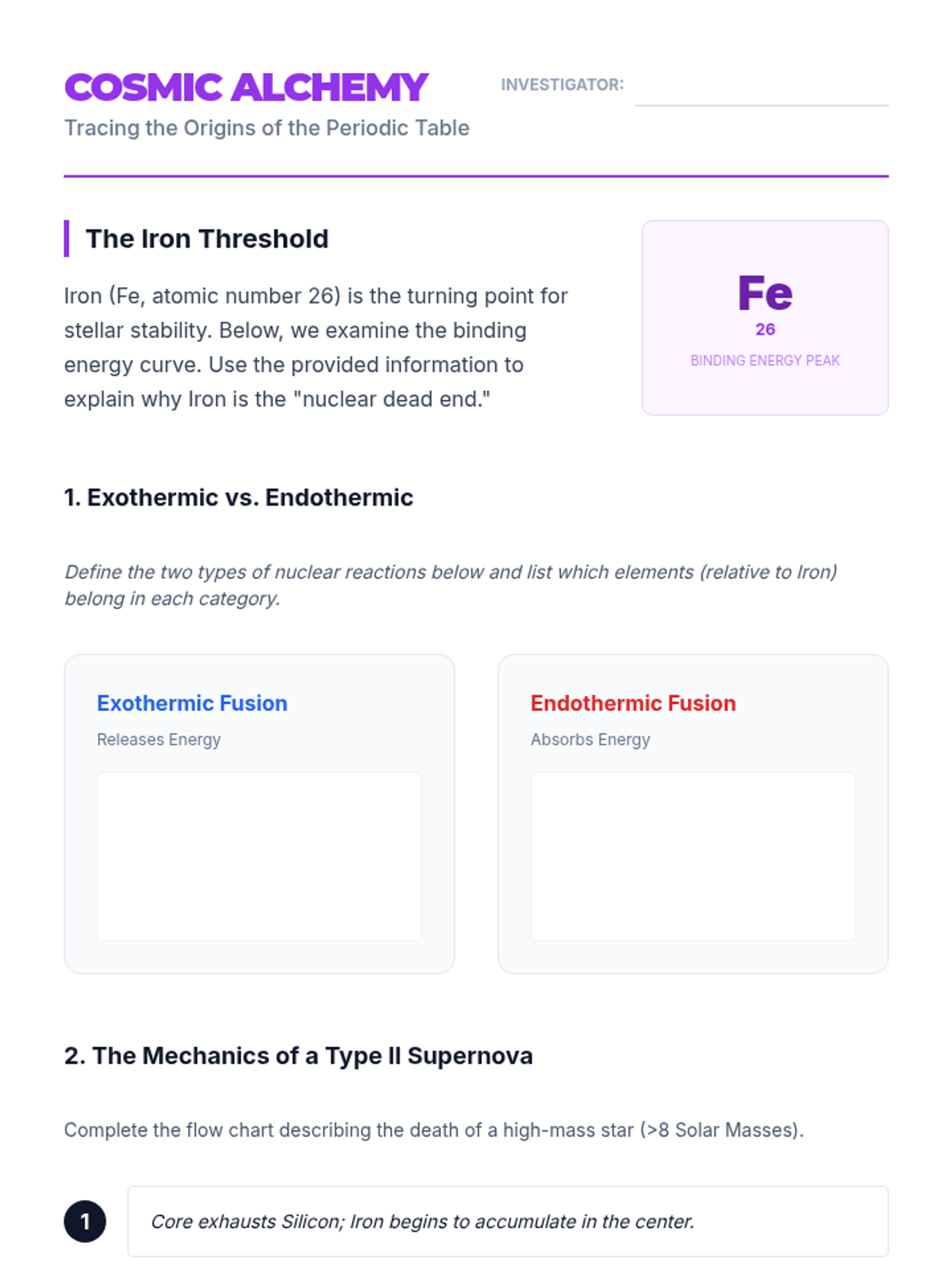

Cosmic Alchemy Worksheet Cosmic Alchemy
Tracing the Origins of the Periodic Table
Investigator:
The Iron Threshold
Iron (Fe, atomic number 26) is the turning point for stellar stability. Below, we examine the binding energy curve. Use the provided information to explain why Iron is the "nuclear dead end."
Fe
26
Binding Energy Peak
1. Exothermic vs. Endothermic
Define the two types of nuclear reactions below and list which elements (relative to Iron) belong in each category.
Exothermic Fusion
Releases Energy
Endothermic Fusion
Absorbs Energy
2. The Mechanics of a Type II Supernova
Complete the flow chart describing the death of a high-mass star (>8 Solar Masses).
1
Core exhausts Silicon; Iron begins to accumulate in the center.
2
Core reaches Chandrasekhar limit. Describe what happens to the core's pressure and volume:
3
Neutronization and "The Bounce." Describe the role of the shockwave:
Element Mapping Challenge
Identify the stellar "factory" responsible for the primary production of each element listed below. Use the legend: BB (Big Bang), MS (Main Sequence), RG (Red Giant), SN (Supernova).
Hydrogen (H)
Helium (He)
Carbon (C)
Neon (Ne)
Iron (Fe)
Gold (Au)
Uranium (U)
Lead (Pb)
Oxygen (O)
Critical Reflection
Explain the "Neutron Capture" process ($r$-process and $s$-process). Why is this process essential for creating elements like Silver and Gold, and why can it only happen during the extreme environment of a supernova?
"The atoms in your left hand probably came from a different star than the atoms in your right hand. It is truly the most poetic thing I know about physics." — Lawrence Krauss
Stellar Remnants Slides STELLAR REMNANTS
The Extreme Physics of White Dwarfs, Neutron Stars, and Black Holes
Degeneracy Event Horizon Singularity
The Density Frontier
If you crushed the Earth down to the size of a MARBLE, it would become a black hole.
A single teaspoon of a Neutron Star weighs as much as Mt. Everest (~1 billion tons).
What determines which "corpse" a star leaves behind?
Mass < 8 \( M_{\odot} \)
White Dwarf
8 < Mass < 25 \( M_{\odot} \)
Neutron Star
Mass > 25 \( M_{\odot} \)
Black Hole
White Dwarfs: Electron Degeneracy
White dwarfs don't fuse. They are supported by Electron Degeneracy Pressure.
Pauli Exclusion Principle
Two electrons cannot occupy the same state at the same time. This creates an "outward pressure" that stops gravity.
Chandrasekhar Limit: 1.44 \( M_{\odot} \). If a white dwarf exceeds this, it collapses.
Earth Size
Mass: 1.0 \( M_{\odot} \)
Neutron Stars: Pure Neutrons
The Pulsar
City-Sized Core
Mass: ~2.0 \( M_{\odot} \). Radius: ~10 km (The size of a small city!).
Extreme Spin
Conservation of angular momentum makes them spin hundreds of times per second.
Supported by Neutron Degeneracy Pressure.
Black Holes: The Ultimate Collapse
When gravity overcomes even neutron degeneracy, nothing can stop the collapse.
Schwarzschild Radius
\( R_s = \frac{2GM}{c^2} \)
For the Sun: $R_s \approx 3$ km.
The Point of No Return
Not even light can escape.
Density becomes infinite.
Time slows to a stop.
Event Horizon Lab Worksheet Event Horizon Lab
Calculating the Physics of Stellar Corpses
Name:
I. The Density Spectrum
Compare the properties of the three types of stellar remnants. Use the slide deck and your background knowledge to fill in the table.
Feature White Dwarf Neutron Star Black Hole Support Pressure Electron Degeneracy None Typical Radius ~10 km 0 (Singularity) Mass Limit 1.44 \( M_{\odot} \) ~3.0 \( M_{\odot} \) No Limit
II. The Schwarzschild Radius (\( R_s \))
The Schwarzschild radius defines the "Event Horizon" of a non-rotating black hole. If an object is crushed below this radius, light can no longer escape its gravitational pull.
\[ R_s = \frac{2GM}{c^2} \]
\( G = 6.67 \times 10^{-11} \, \text{m}^3 \text{kg}^{-1} \text{s}^{-2} \)
\( c = 3 \times 10^8 \, \text{m/s} \)
\( 1 \, M_{\odot} = 1.989 \times 10^{30} \, \text{kg} \)
\( M_{\text{earth}} = 5.97 \times 10^{24} \, \text{kg} \)
1. Solar Black Hole:
Calculate the \( R_s \) for a star with the mass of our Sun (1.0 \( M_{\odot} \)). Show your work.
2. Supermassive Black Hole:
Sagittarius A*, the black hole at the center of our galaxy, has a mass of \( 4.1 \times 10^6 \, M_{\odot} \). Calculate its event horizon radius in kilometers.
Thought Experiment
"If our Sun were to magically turn into a black hole of the exact same mass tomorrow, what would happen to the Earth's orbit? Would we be 'sucked in'? Explain using your understanding of Newtonian gravity and the Schwarzschild radius."
Stellar Evolution Assessment Worksheet Stellar Evolution Mastery
Unit Assessment: From Protostars to Black Holes
Candidate:
Score:
1. Path of the Sun (4 points)
Sketch the evolutionary track of a 1.0 \( M_{\odot} \) star on the H-R diagram below. Label the Main Sequence, the Red Giant Branch, and the final White Dwarf position.
Temperature (K)
Luminosity
Explanation of transitions:
2. Nucleosynthesis Limits (3 points)
Explain why stars can only synthesize elements up to Iron in their cores through stable fusion, and describe the specific event that allows for the creation of heavier elements like Lead or Uranium.
3. Comparative Astrophysics (3 points)
Which of the following determines the ultimate fate of a star?
Initial Color
Initial Mass
Location in Galaxy
Metallicity only
4. Schwarzschild Mechanics (5 points)
"A star with a mass of 30 \( M_{\odot} \) collapses. Its event horizon radius is calculated using \( R_s = 2GM/c^2 \)."
Explain what happens to the space-time fabric at the singularity, and describe why an outside observer would never actually see an astronaut "fall in" to the black hole.
Final Unit Assessment — Stellar Evolution and Nucleosynthesis
Stellar Evolution Assessment Answer Key Teacher Answer Key
Stellar Evolution Mastery Unit Assessment
1. Path of the Sun
Path: Start on the middle of the Main Sequence. Move up and to the right (Red Giant Branch). Finally, move down and to the far left (White Dwarf).Explanation: The star leaves the MS when core Hydrogen is exhausted. Expansion is caused by shell burning. The transition to a White Dwarf occurs after the planetary nebula phase, leaving the hot carbon/oxygen core.
2. Nucleosynthesis Limits
Stable Fusion: Iron has the highest binding energy per nucleon. Fusing iron is endothermic (absorbs energy), which removes the pressure support of the star, leading to collapse.Heavier Elements: Produced via neutron capture (r-process) during a supernova explosion or neutron star merger (kilonova), where the high neutron flux allows atoms to grow faster than they decay.
3. Multiple Choice
Correct Answer: Initial Mass. Mass determines the pressure, temperature, fusion rate, and final remnant type.
4. Schwarzschild Mechanics
Singularity: Space-time curvature becomes infinite; the laws of general relativity break down.Observation: Due to gravitational time dilation, light from the astronaut is red-shifted to infinity as they approach the horizon. To an outside observer, the astronaut appears to slow down and freeze at the horizon, never actually crossing it, while the astronaut themselves crosses the horizon normally.
Stellar Remnant Properties Table (Key)
Feature White Dwarf Neutron Star Black Hole Pressure Electron Degeneracy Neutron Degeneracy None Radius ~Earth size (~6,000 km) ~City size (10-15 km) Point/Horizon
