Force and Flexibility Slides Unit: Simple Harmonic Motion
Force and Flexibility
Investigating the linear relationship between force and displacement in elastic systems.
The Mystery Springs
On your lab benches, you have three unlabeled springs.
The Challenge:
Can you determine which spring is "stiffest" just by feel? How would you quantify that stiffness so a robot could use it to build a suspension system?
[!] We need a numerical value: The Spring Constant (k).
Defining the Relationship
"The extension of a spring is directly proportional to the force applied, provided the limit of proportionality is not exceeded."
\[ F_s = -kx \]
\( F_s \) : Restoring Force (N)
\( k \) : Spring Constant (N/m)
\( x \) : Displacement (m)
The negative sign indicates that the force always points back toward equilibrium.
Slope of an F vs. x graph = \( k \)
Lab: Finding \( k \)
1. Setup
Secure spring to a stand.
Measure initial length (\( L_0 \)).
Set up meter stick for accuracy.
2. Data Collection
Add 5 different masses (50g to 250g).
Measure extension (\( \Delta L \)) for each.
Calculate force \( F = mg \).
3. Analysis
Plot Force vs. Extension.
Linear regression for slope.
Identify the "Elastic Limit".
Safety Check: Do not over-stretch the springs!
Mystery Spring Lab Guide Spring Constant Lab
Topic: Hooke's Law & Elastic Restoring Force
NAME:
DATE:
OBJECTIVE
To experimentally determine the spring constant (\(k\)) of a helical spring by measuring the displacement caused by known forces and analyzing the resulting linear relationship.
Equipment
Ring stand & clamp
Helical spring
Mass hanger + 50g masses
Metric ruler (± 0.1 cm)
Digital balance (optional)
Procedure
1. Equilibrium: Hang the spring from the clamp. Measure its initial length (\(L_0\)) from the top coil to the bottom hook without any mass attached.
2. Incremental Loading: Add a 50g mass to the hanger. Wait for the spring to stop oscillating. Measure the new total length (\(L\)).
3. Displacement: Calculate the extension \(x = L - L_0\). Ensure you convert mass to Force (\(F_g = mg\)) using \(g = 9.8 \, \text{m/s}^2\).
4. Repetition: Repeat steps 2-3 for a total of 5 different masses (50g, 100g, 150g, 200g, 250g).
5. Uncertainty: Note any difficulties in measurement that might contribute to experimental error.
Data Collection
Mass (kg) Force, \(F_g\) (N) Total Length, \(L\) (m) Extension, \(x\) (m) 0.00 0.00 0.00
Analysis & Calculation
1. Graphing: Briefly describe the shape of your Force vs. Extension graph. Does it confirm Hooke's Law?
2. Slope Calculation:
Show your calculation for the slope (\(\Delta F / \Delta x\)). Include units.
3. Experimental Spring Constant (\(k\)):
\(k = \)
N/m
4. Error Analysis: If the first 50g mass caused a disproportionately large extension compared to the others, what might that suggest about the spring's "initial tension"?
5. Prediction: Based on your \(k\) value, how much mass would be required to stretch this spring by exactly 12.0 cm?
Force and Flexibility Teacher Guide Teacher Guide: Hooke's Law
PHYSICS 12 | LESSON 1
Instructional Context
This lesson establishes the fundamental relationship for all Simple Harmonic Motion: the linear restoring force. Students often struggle with the vector nature of \(F = -kx\). Emphasize that the force opposes displacement. This is the "Why" behind the oscillation.
Key Misconceptions
Elastic vs. Proportional: Materials can be elastic (return to shape) without being proportional (linear relationship).Unit Confusion: Students often forget to convert grams to kg and cm to m.
Lab Facilitation Tips
1
The "Zeroing" Problem
Ensure students measure from the same point every time. Suggest using the bottom of the mass hanger as the reference point to avoid parallax error.
2
Elastic Limit Warning
If a student stretches a spring and the graph starts to curve downward (towards the x-axis), they have exceeded the proportional limit. This is a great "teachable moment" for non-linear behavior.
3
Slope Interpretation
Ask: "What would the graph look like for a slinky versus a car suspension spring?" (Slinky = very shallow slope, suspension = very steep slope).
Sample Data & Answers
Typical k values
Small hobby springs: 5 - 20 N/m
Stiff industrial springs: 50 - 200+ N/m
Lab Guide Q5 Solution
If \(k = 15 \, \text{N/m}\) and \(x = 0.12 \, \text{m}\):
Discussion Prompts
"How would your graph change if we performed this lab in a pool of water? Would \(k\) change?" (Wait for students to distinguish between the spring's property and external forces).
"Why is there a negative sign in the mathematical formula, but we don't usually include it in our graph of Applied Force vs. Extension?"
Rhythm of Physics Slides Physics 12: Dynamics
The Rhythm of Physics
Deriving the equation for the period of Simple Harmonic Motion using Newton's Second Law.
The Lunar Pendulum?
Imagine a horizontal mass-spring system on Earth with a period of 2.0 seconds.
The Question:
If you take this identical system to the Moon (where \(g \approx 1.6 \, \text{m/s}^2\)), will the period be:
Longer?
Shorter?
Exactly the same?
Deriving the Period
1. Equating Forces
\( \sum F = ma \)
\( -kx = ma \)
Since restoring force is the only force.
2. SHM Identity
\( a = -\omega^2 x \)
\( -kx = m(-\omega^2 x) \)
\( k = m\omega^2 \)
Using \( \omega = \frac{2\pi}{T} \):
\[ T = 2\pi\sqrt{\frac{m}{k}} \]
The Drivers of Period
Mass (\( m \))
More mass = More inertia. It resists acceleration more, taking longer to complete a cycle.
Relationship: \( T \propto \sqrt{m} \)
Stiffness (\( k \))
Higher \(k\) = Stronger restoring force. It pulls harder, completing the cycle faster.
Relationship: \( T \propto \frac{1}{\sqrt{k}} \)
Notice: Amplitude (\( A \)) is MISSING from the equation!
Oscillation Dynamics WorksheetBase Oscillation Dynamics
Topic: Period of a Mass-Spring System
Practice Sheet
NAME:
Period Equation
\( T = 2\pi\sqrt{\frac{m}{k}} \)
\( T \): Period (s)
\( m \): Mass (kg)
\( k \): Spring Constant (N/m)
\( f = 1/T \): Frequency (Hz)
1
A 0.45 kg mass is attached to a horizontal spring with a spring constant of 85 N/m. The surface is frictionless. Calculate the period and the frequency of the resulting oscillation.
2
A technician notices that a vibrating component in a machine oscillates with a period of 0.25 seconds. If the effective mass of the component is 0.12 kg, what is the effective spring constant of its mounting?
3
A mass-spring system has a period \( T \). If the mass is quadrupled (\( 4m \)) and the spring is replaced with one that is half as stiff (\( 0.5k \)), what is the new period in terms of \( T \)?
4
Sketch the relationship between the following variables for an ideal mass-spring system. (Qualitative sketches only).
Period (\( T \)) vs. Mass (\( m \))
\( m \)
\( T \)
Period (\( T \)) vs. Amplitude (\( A \))
\( A \)
\( T \)
The Gravity Check
Suppose you have a vertical mass-spring system on Earth. If the entire apparatus is placed in an elevator accelerating upward at \( 4.9 \, \text{m/s}^2 \), explain whether the period of oscillation will increase, decrease, or stay the same. Provide a brief mathematical justification.
Oscillation Dynamics Answer Key Answer Key: Oscillation Dynamics
Instructor Resource
Unit: SHM Dynamics
1
Calculations for 0.45 kg, 85 N/m
Period (T)
\( T = 2\pi\sqrt{\frac{0.45}{85}} \)
Frequency (f)
\( f = \frac{1}{T} = \frac{1}{0.457} \)
2
Calculations for k (T = 0.25s, m = 0.12kg)
\( T = 2\pi\sqrt{\frac{m}{k}} \rightarrow T^2 = 4\pi^2\frac{m}{k} \rightarrow k = \frac{4\pi^2m}{T^2} \)
3
Proportionality Analysis
\( T_{new} = 2\pi\sqrt{\frac{4m}{0.5k}} = 2\pi\sqrt{\frac{8m}{k}} \)
4
Graph Descriptions
T vs m: A square-root curve (concave down, starting at origin).T vs A: A flat horizontal line (Period is independent of Amplitude).
The Gravity Check Answer
The period stays the same.
Justification: The derivation of the period \( T = 2\pi\sqrt{m/k} \) only depends on the mass (\(m\)) and the spring constant (\(k\)). While the accelerating elevator changes the "effective weight" or the equilibrium position of the spring, it does not change the restoring force gradient (\(k\)) nor the inertia (\(m\)). The net force still obeys \( F_{net} = -k\Delta x \), leading to the same differential equation and period.
Energy in Flux Slides Physics 12: Energy
Energy in Flux
Tracking the transformation between Kinetic and Elastic Potential Energy in oscillating systems.
Conservation in Motion
Watch as the mass moves. Note how the energy bars trade places, yet the Total Energy remains a rock-solid constant.
"In a frictionless system, the sum of Kinetic and Elastic Potential energy never changes."
KE
EPE
TOTAL
The Energy Toolkit
Elastic Potential (\(U_s\))
\[ U_s = \frac{1}{2}kx^2 \]
Energy stored by the deformation of the spring.
Kinetic Energy (\(K\))
\[ K = \frac{1}{2}mv^2 \]
Energy of the moving mass.
Total Mechanical Energy (\(E_{total}\))
\( E = \frac{1}{2}kA^2 \)
"At the maximum displacement (\(x=A\)), all energy is potential. At equilibrium (\(x=0\)), all energy is kinetic."
Crucial Snapshot Points
Equilibrium (\(x=0\))
\( U_s = 0 \)
\( K = K_{max} \)
\( v = v_{max} \)
Amplitude (\(x = \pm A\))
\( U_s = U_{max} \)
\( K = 0 \)
\( v = 0 \)
In Between (\(0 < x < A\))
\( U_s \) is increasing
\( K \) is decreasing
\( E = K + U_s \)
\( \frac{1}{2}kA^2 = \frac{1}{2}mv^2 + \frac{1}{2}kx^2 \)

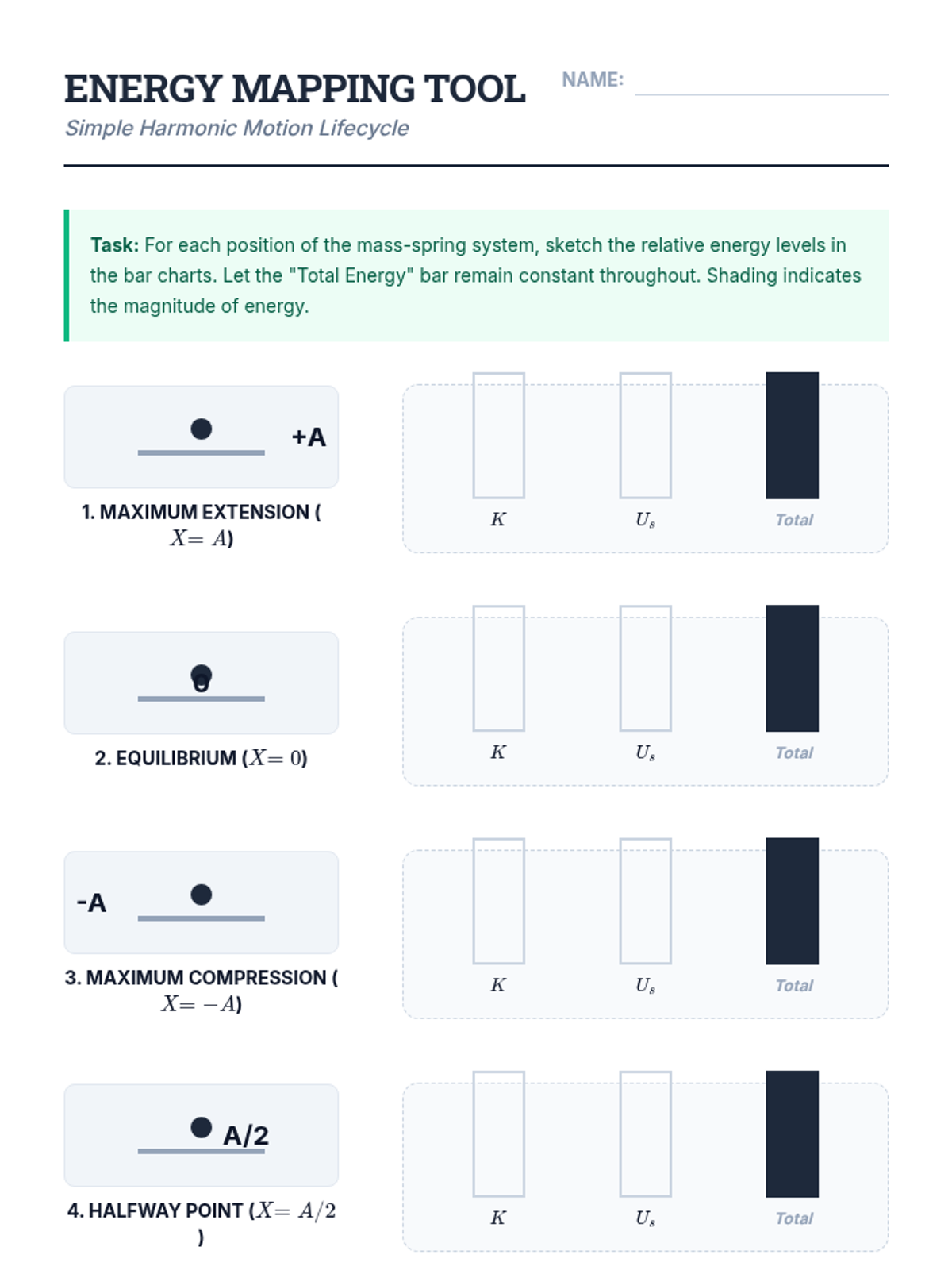

Energy Mapping Tool Organizer Energy Mapping Tool
Simple Harmonic Motion Lifecycle
NAME:
Task: For each position of the mass-spring system, sketch the relative energy levels in the bar charts. Let the "Total Energy" bar remain constant throughout. Shading indicates the magnitude of energy.
+A
1. Maximum Extension (\(x = A\))
\(K\)
\(U_s\)
Total
0
2. Equilibrium (\(x = 0\))
\(K\)
\(U_s\)
Total
-A
3. Maximum Compression (\(x = -A\))
\(K\)
\(U_s\)
Total
A/2
4. Halfway Point (\(x = A/2\))
\(K\)
\(U_s\)
Total
Predictive Analysis:
At position #4 (\(x = A/2\)), is the elastic potential energy exactly half of the total energy? Explain your answer using the mathematical formula \( U_s = \frac{1}{2}kx^2 \).

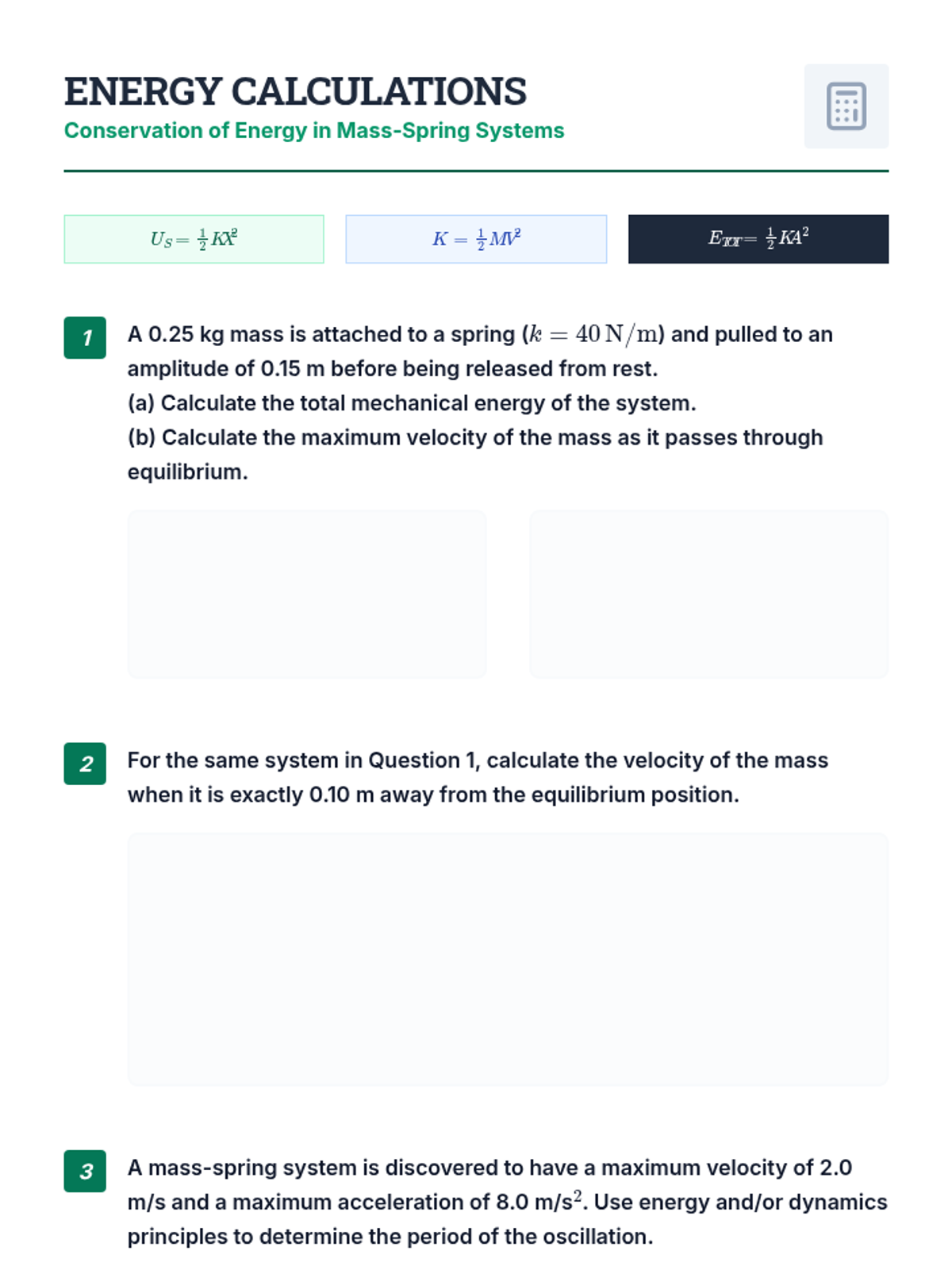

Energy Conservation Practice Worksheets Energy Calculations
Conservation of Energy in Mass-Spring Systems
\( U_s = \frac{1}{2}kx^2 \)
\( K = \frac{1}{2}mv^2 \)
\( E_{tot} = \frac{1}{2}kA^2 \)
1
A 0.25 kg mass is attached to a spring (\(k = 40 \, \text{N/m}\)) and pulled to an amplitude of 0.15 m before being released from rest.
2
For the same system in Question 1, calculate the velocity of the mass when it is exactly 0.10 m away from the equilibrium position.
3
A mass-spring system is discovered to have a maximum velocity of 2.0 m/s and a maximum acceleration of 8.0 m/s\(^2\). Use energy and/or dynamics principles to determine the period of the oscillation.
Energy Snapshot Summary
Position (\(x\)) Velocity (\(v\)) Potential (\(U_s\)) Kinetic (\(K\)) \( \pm A \) 0 Maximum 0 0 Maximum 0 Maximum \( A / \sqrt{2} \) \( v_{max} / \sqrt{2} \) \( 0.5 E_{tot} \) \( 0.5 E_{tot} \)
Gravity and Gradients Slides Physics 12: Systems
Gravity and Gradients
Comparing horizontal and vertical mass-spring systems: Does gravity change the rhythm?
The Equilibrium Shift
In a horizontal system, equilibrium is at the spring's natural length.
In a vertical system, gravity pulls the mass down, stretching the spring even when at "rest."
New Balance Point:
\( mg = k \Delta y \)
Where \( \Delta y \) is the extension due to weight.
Horizontal
Vertical
Does Period Change?
The Verdict: NO.
Gravity provides a constant downward force. This shifts the center of the oscillation, but it does not change the stiffness (\(k\)) of the spring or the inertia (\(m\)) of the mass.
\[ T = 2\pi\sqrt{\frac{m}{k}} \]
Dynamics Proof
\( \sum F = mg - k(y + \Delta y) = ma \)
\( \sum F = mg - ky - k\Delta y = ma \)
Since \(mg = k\Delta y\), they cancel out!
\( -ky = ma \)
"Oscillation rhythm depends on the spring's personality (k), not the environment's pull (g)."
The Bungee Scenario
A bungee cord acts like a spring, but only when it is stretched.
Three Critical Stages:
Free Fall: Before the cord is taut (\(a = g\)).Equilibrium: Where weight equals tension.Bottom Turnaround: Where spring force is maximum.
Common Trap: The bottom point is NOT the equilibrium point!
Can we use \( \frac{1}{2}kx^2 \) to find the lowest point?

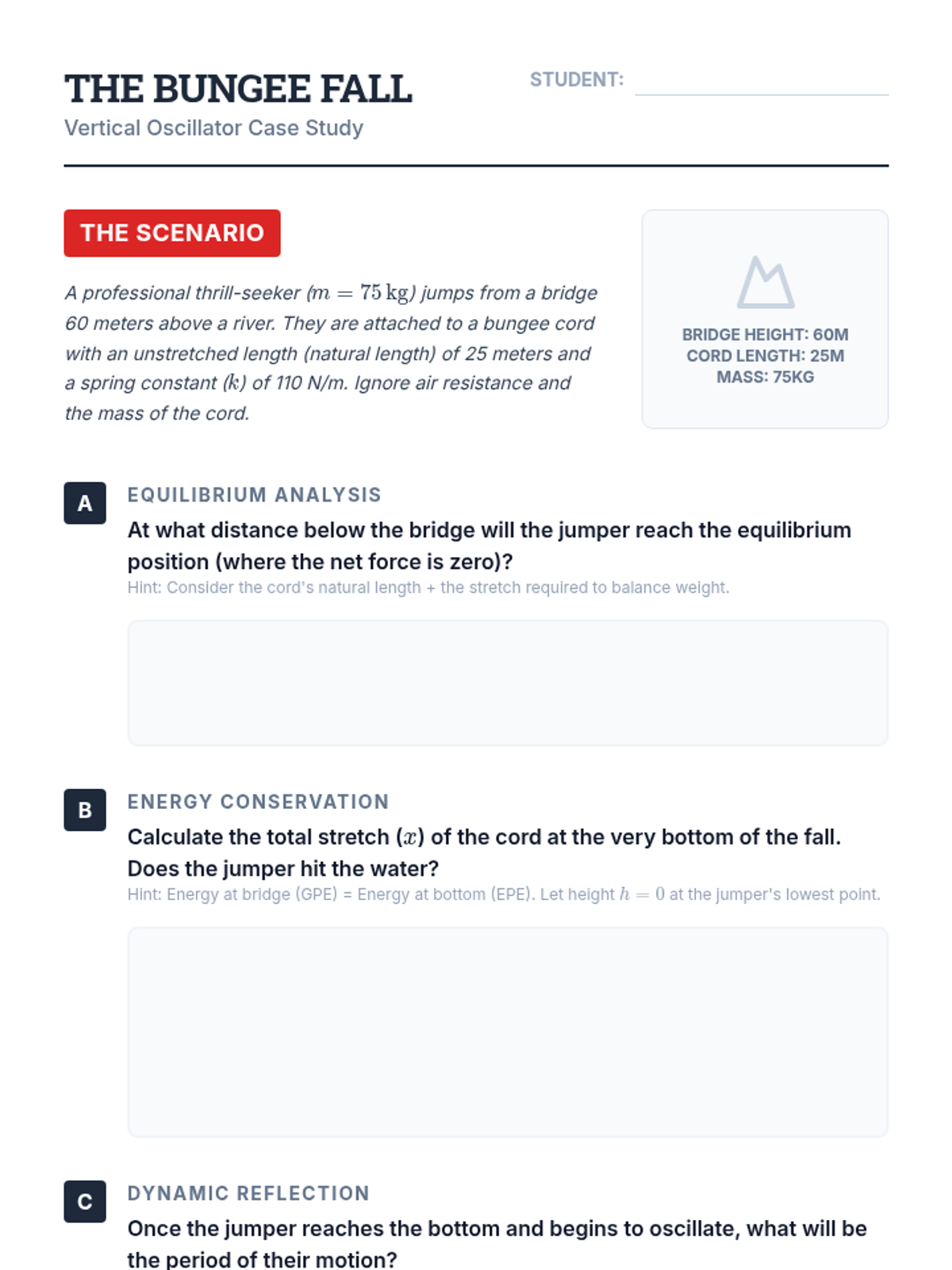

The Bungee Fall Case Study The Bungee Fall
Vertical Oscillator Case Study
STUDENT:
The Scenario
A professional thrill-seeker (\(m = 75 \, \text{kg}\)) jumps from a bridge 60 meters above a river. They are attached to a bungee cord with an unstretched length (natural length) of 25 meters and a spring constant (\(k\)) of 110 N/m. Ignore air resistance and the mass of the cord.
Bridge Height: 60m
A
Equilibrium Analysis
At what distance below the bridge will the jumper reach the equilibrium position (where the net force is zero)?
Hint: Consider the cord's natural length + the stretch required to balance weight.
B
Energy Conservation
Calculate the total stretch (\(x\)) of the cord at the very bottom of the fall. Does the jumper hit the water?
Hint: Energy at bridge (GPE) = Energy at bottom (EPE). Let height \(h = 0\) at the jumper's lowest point.
C
Dynamic Reflection
Once the jumper reaches the bottom and begins to oscillate, what will be the period of their motion?
Critical Safety Check
Explain why the jumper's maximum acceleration occurs at the very bottom of the fall. Calculate this maximum acceleration in terms of "g-force" (e.g., 3.5g). Would a person survive this jump?
Oscillator Mastery Assessment Oscillator Mastery
Final Unit Assessment: Simple Harmonic Motion
Score
/ 50
Student ID
Part 1: Concept Foundations
01
Which of the following changes would double the period of a mass-spring system?
Doubling the mass
Doubling the spring constant
Quadrupling the mass
Quadrupling the amplitude
02
In a vertical spring system, the addition of gravity:
Increases the period of oscillation.
Decreases the maximum velocity.
Changes the equilibrium position but not the period.
Makes the motion no longer simple harmonic.
Part 2: Analytical Application
3
The Hybrid System: A 0.50 kg mass is attached to two identical parallel springs, each with \(k = 100 \, \text{N/m}\).
Parallel springs effectively sum their spring constants (\(k_{eff} = k_1 + k_2\)).
(a) Calculate the period of the system.
(b) Find the energy if amplitude is 10cm.
4
Collision & Oscillation: A 0.20 kg block moving at 4.0 m/s hits and sticks to a 0.30 kg block initially at rest on a frictionless surface. The 0.30 kg block is attached to a horizontal spring with \(k = 250 \, \text{N/m}\).
Step 1: Calculate the combined velocity immediately after collision.
Step 2: Use Energy Conservation to find the resulting Amplitude of the oscillation.
Critical Thinking: The Infinite Spring
Explain what happens to the period of a mass-spring system as the spring constant \(k\) approaches infinity. Physically describe what this "infinite spring" looks like and how the mass would behave if displaced.

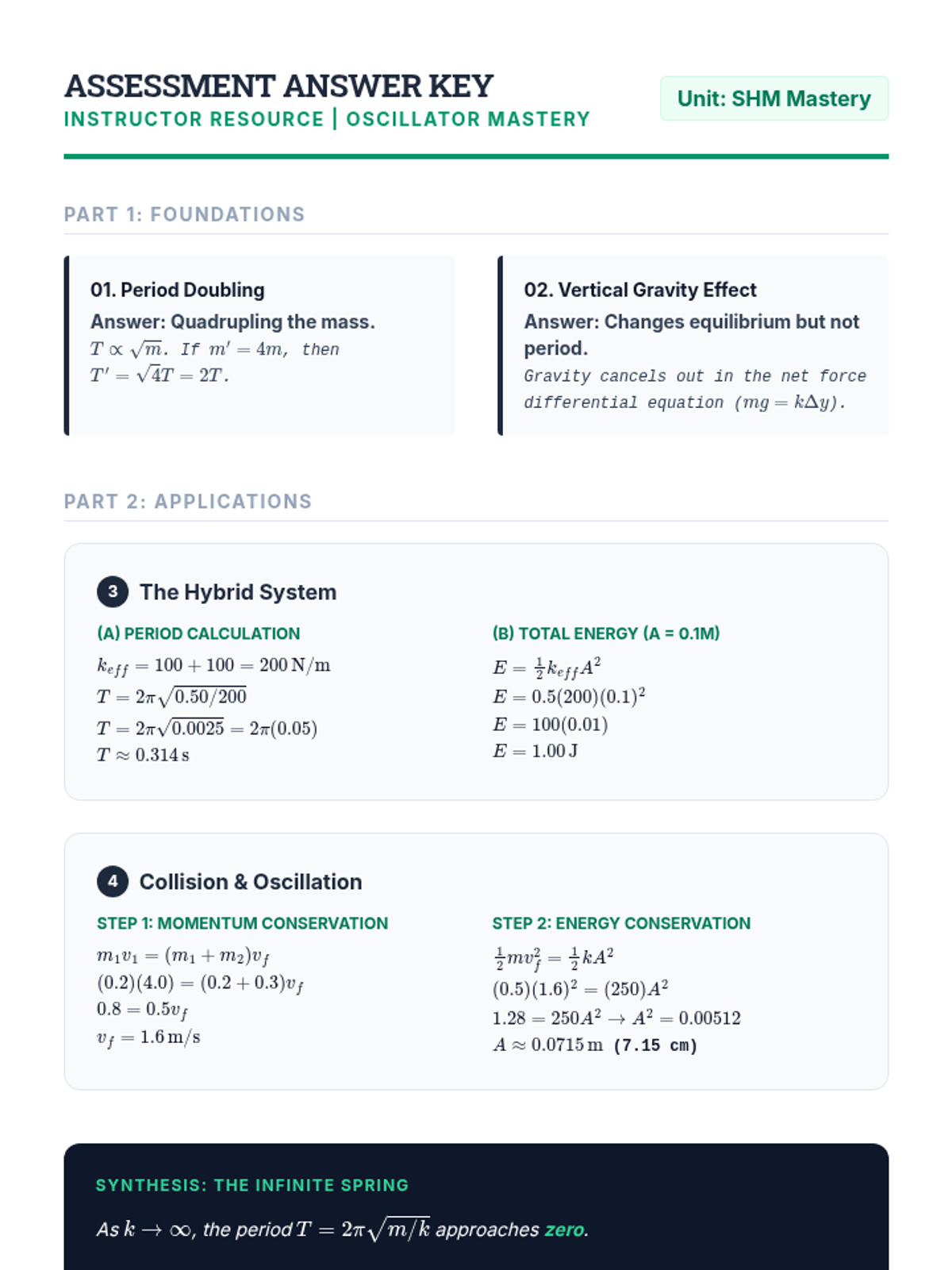

Oscillator Mastery Answer Key Assessment Answer Key
Instructor Resource | Oscillator Mastery
Unit: SHM Mastery
Part 1: Foundations
01. Period Doubling
Answer: Quadrupling the mass.
02. Vertical Gravity Effect
Answer: Changes equilibrium but not period.
Part 2: Applications
3 The Hybrid System
(a) Period Calculation
\( k_{eff} = 100 + 100 = 200 \, \text{N/m} \)
\( T = 2\pi\sqrt{0.50 / 200} \)
\( T = 2\pi\sqrt{0.0025} = 2\pi(0.05) \)
\( T \approx 0.314 \, \text{s} \)
(b) Total Energy (A = 0.1m)
\( E = \frac{1}{2}k_{eff}A^2 \)
\( E = 0.5(200)(0.1)^2 \)
\( E = 100(0.01) \)
\( E = 1.00 \, \text{J} \)
4 Collision & Oscillation
Step 1: Momentum Conservation
\( m_1v_1 = (m_1+m_2)v_f \)
\( (0.2)(4.0) = (0.2+0.3)v_f \)
\( 0.8 = 0.5v_f \)
\( v_f = 1.6 \, \text{m/s} \)
Step 2: Energy Conservation
\( \frac{1}{2}mv_f^2 = \frac{1}{2}kA^2 \)
\( (0.5)(1.6)^2 = (250)A^2 \)
\( 1.28 = 250A^2 \rightarrow A^2 = 0.00512 \)
\( A \approx 0.0715 \, \text{m} \) (7.15 cm)
Synthesis: The Infinite Spring
As \( k \rightarrow \infty \), the period \( T = 2\pi\sqrt{m/k} \) approaches zero.
Physically, an "infinite spring" is a perfectly rigid rod. Since it cannot deform, any displacement would require infinite force, and any oscillation would happen with infinite frequency. In reality, the "oscillation" would be the speed of sound through the material, as atoms transmit the vibration.

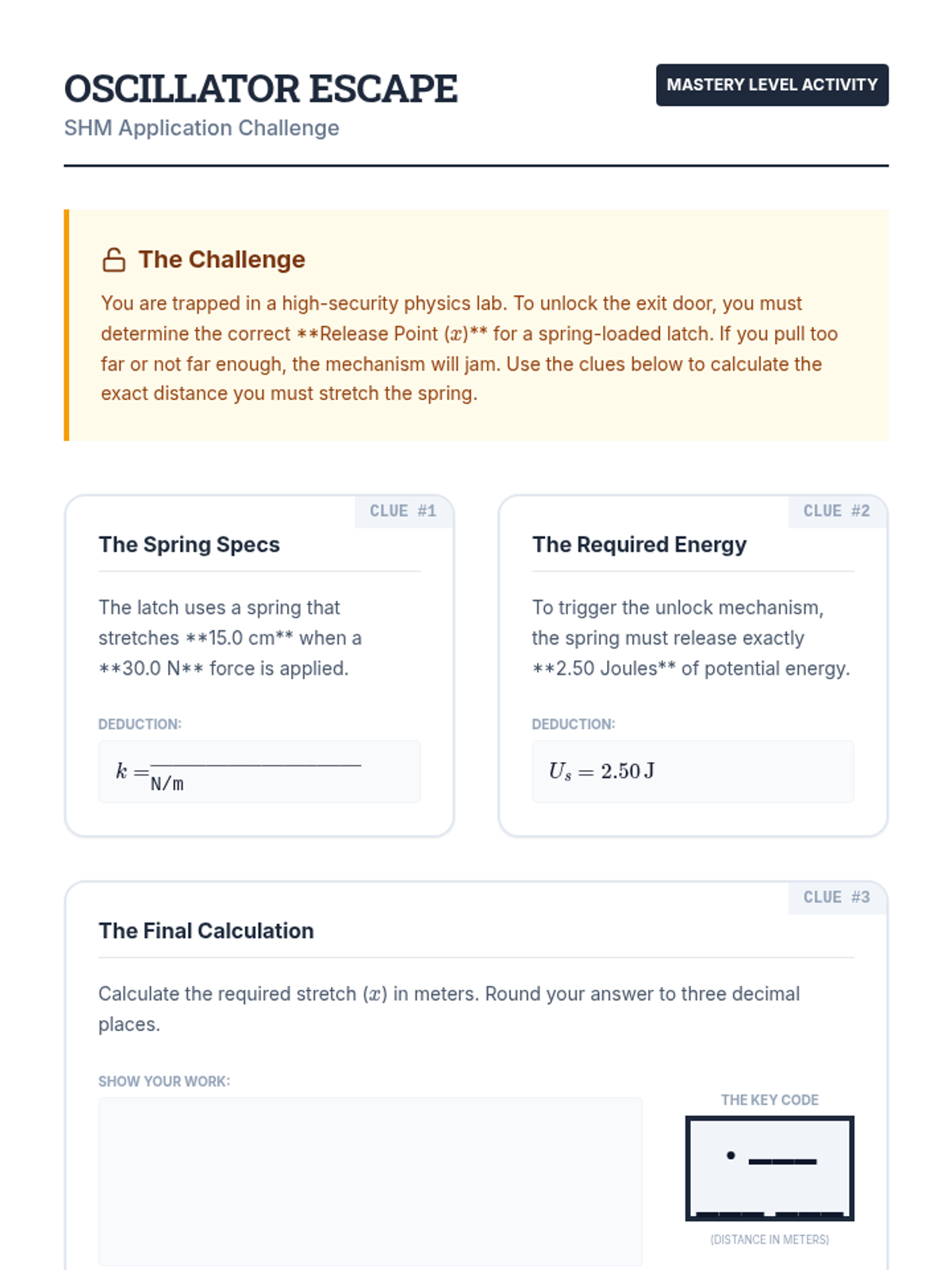

Oscillator Escape Challenge Activity Oscillator Escape
SHM Application Challenge
Mastery Level Activity
The Challenge
You are trapped in a high-security physics lab. To unlock the exit door, you must determine the correct **Release Point (\(x\))** for a spring-loaded latch. If you pull too far or not far enough, the mechanism will jam. Use the clues below to calculate the exact distance you must stretch the spring.
CLUE #1
The Spring Specs
The latch uses a spring that stretches **15.0 cm** when a **30.0 N** force is applied.
Deduction:
\( k = \) ___________________ N/m
CLUE #2
The Required Energy
To trigger the unlock mechanism, the spring must release exactly **2.50 Joules** of potential energy.
Deduction:
\( U_s = 2.50 \, \text{J} \)
CLUE #3
The Final Calculation
Calculate the required stretch (\(x\)) in meters. Round your answer to three decimal places.
Show Your Work:
The Key Code
. ___ ___ ___
(Distance in meters)
System Validation Required
Teacher signature: ___________________________
