Performance Chemistry Slides Module: Performance Chemistry
The Athlete's Engine
Fueling Speed and Recovering with Science
Energy Burn
Processing Speed
01 Energy in the Game
The Body as a Lab
Athletes need energy for every stride. This energy comes from chemical reactions happening inside their cells.
"Heat is the byproduct of an athlete working hard."
The Temperature Check
Does the reaction release heat to warm the body, or absorb it to cool an injury?
HOT
Exothermic
COLD
Endothermic
Type A: The Energy Release
EXO-thermic
Energy is released . This is how we produce Body Heat during a workout.
1
Fuel (food) reacts with Oxygen
2
Bonds break and reform
3
Excess energy leaves as HEAT
Sports Example
"Hand Warmers on the sidelines!"
Type B: The Heat Thief
ENDO-thermic
Sports Example
"Instant Cold Packs for a sprained ankle!"
Energy is absorbed . It steals heat from the body to make the reaction happen.
1
Reaction requires a massive energy boost
2
It "sucks" heat out of the air/skin
3
The pack feels FREEZING
In a Hurry?
In the Olympics, milliseconds matter. In chemistry, the speed of your "fuel processing" matters too.
The Training Question:
"How can we speed up a reaction so the athlete gets their results faster?"
RATE
The Processing Speed
Lab Time!
1 Energy Scouts
Investigate how temperature changes. Can you find the "Metabolism" reaction and the "Injury Recovery" reaction?
2 Speed Drills
"In a Hurry" Activity. Change your station choices to see which combination processes fuel the fastest!
Safety Check: Goggles On!
The Performance Enhancers
Temperature
Warm-ups work! Hotter particles move faster and hit harder.
WARM = SPEED
Surface Area
Chew your energy bar! Tiny pieces offer more "hit zones."
SMASHED = SPEED
Concentration
Pure electrolytes! More "fuel" particles in the cup means more hits.
DENSE = SPEED

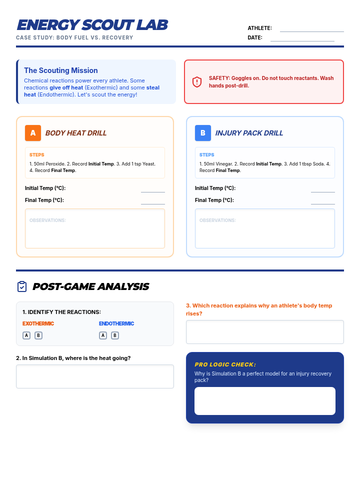

Performance Chemistry Lab Guide Energy Scout Lab
Case Study: Body Fuel vs. Recovery
ATHLETE:
DATE:
The Scouting Mission
Chemical reactions power every athlete. Some reactions give off heat (Exothermic) and some steal heat (Endothermic). Let's scout the energy!
SAFETY: Goggles on. Do not touch reactants. Wash hands post-drill.
A
Body Heat Drill
Steps
1. 50ml Peroxide. 2. Record Initial Temp . 3. Add 1 tsp Yeast. 4. Record Final Temp .
Initial Temp (°C):
Final Temp (°C):
Observations:
B
Injury Pack Drill
Steps
1. 50ml Vinegar. 2. Record Initial Temp . 3. Add 1 tbsp Soda. 4. Record Final Temp .
Initial Temp (°C):
Final Temp (°C):
Observations:
Post-Game Analysis
1. Identify the Reactions:
Exothermic
A
B
Endothermic
A
B
2. In Simulation B, where is the heat going?
3. Which reaction explains why an athlete's body temp rises?
Pro Logic Check:
Why is Simulation B a perfect model for an injury recovery pack?

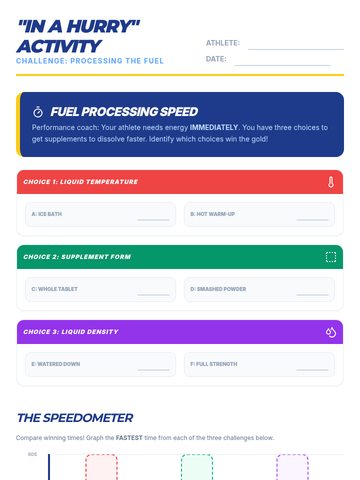

Processing Speed Activity Sheet "In a Hurry" Activity
CHALLENGE: Processing the Fuel
ATHLETE:
DATE:
Fuel Processing Speed
Performance coach: Your athlete needs energy IMMEDIATELY . You have three choices to get supplements to dissolve faster. Identify which choices win the gold!
Choice 1: Liquid Temperature
A: Ice Bath
B: Hot Warm-up
Choice 2: Supplement Form
C: Whole Tablet
D: Smashed Powder
Choice 3: Liquid Density
E: Watered Down
F: Full Strength
The Speedometer
Compare winning times! Graph the FASTEST time from each of the three challenges below.
60s
45s
30s
15s
0s
Temp Win
Form Win
Density Win
Lower bars = Faster processing time!
Coach's Post-Drill Report
1. Biggest Time Saver: Which choice gave the athlete their energy the fastest?
2. Particle Physics: Why does powdering the supplement (Option D) work best?
The Ultimate Performance Mix:
Combine all three winners. Describe the absolute fastest way to process fuel:

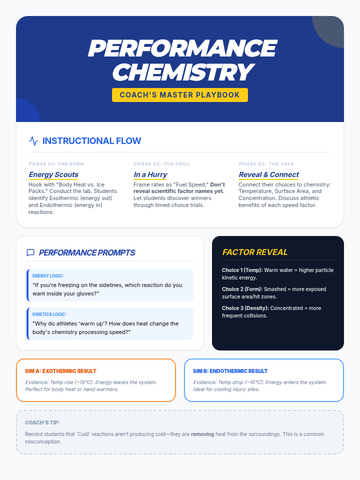

Performance Chemistry Teacher Guide Performance Chemistry
Coach's Master Playbook
Instructional Flow
Phase 01: The Burn
Energy Scouts
Hook with "Body Heat vs. Ice Packs." Conduct the lab. Students identify Exothermic (energy out) and Endothermic (energy in) reactions.
Phase 02: The Drill
In a Hurry
Frame rates as "Fuel Speed." Don't reveal scientific factor names yet. Let students discover winners through timed choice trials.
Phase 03: The Talk
Reveal & Connect
Connect their choices to chemistry: Temperature, Surface Area, and Concentration. Discuss athletic benefits of each speed factor.
Performance Prompts
Energy Logic: "If you're freezing on the sidelines, which reaction do you want inside your gloves?"
Kinetics Logic: "Why do athletes 'warm up'? How does heat change the body's chemistry processing speed?"
Factor Reveal
Choice 1 (Temp): Warm water = higher particle kinetic energy.
Choice 2 (Form): Smashed = more exposed surface area/hit zones.
Choice 3 (Density): Concentrated = more frequent collisions.
Sim A: Exothermic Result
Evidence: Temp rise (~15°C). Energy leaves the system. Perfect for body heat or hand warmers.
Sim B: Endothermic Result
Evidence: Temp drop (~10°C). Energy enters the system. Ideal for cooling injury sites.
Coach's Tip:
Remind students that 'Cold' reactions aren't producing cold—they are removing heat from the surroundings. This is a common misconception.
Bone Secrets Slides Biology Case File
Inside Information
Discovering the hidden architecture that keeps us standing.
Strength
Weight
01 The Engineering Challenge
If bones were made of solid rock , we'd be strong—but too heavy to move.
"How does nature make something incredibly strong but light enough for a bird to fly or a human to run?"
Inquiry Question
What's inside?
The Outer Guard
Compact Bone
1
Dense and heavy material.
2
The "hard shell" on the outside.
3
Protects against big impacts.
Think of it like:
"The steel pipe that holds up a skyscraper."
The Inner Mesh
Spongy Bone
Think of it like:
"The honeycomb structure of a bee hive."
1
Full of tiny holes and pores.
2
Lightweight and flexible.
3
Located at the ends of bones.
Why Both?
Shock Absorption
When you jump, the spongy bone acts like a spring, spreading the force out.
Storage Space
The holes in spongy bone are filled with bone marrow—the factory for your blood cells.
SOLID EXTERIOR
POROUS INTERIOR
=
PERFECT BONE

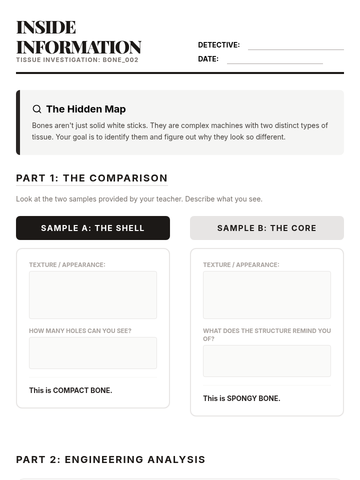

Bone Discovery Activity Sheet Inside Information
Tissue Investigation: BONE_002
Detective:
Date:
The Hidden Map
Bones aren't just solid white sticks. They are complex machines with two distinct types of tissue. Your goal is to identify them and figure out why they look so different.
Part 1: The Comparison
Look at the two samples provided by your teacher. Describe what you see.
Sample A: The Shell
Texture / Appearance:
How many holes can you see?
This is COMPACT BONE.
Sample B: The Core
Texture / Appearance:
What does the structure remind you of?
This is SPONGY BONE.
Part 2: Engineering Analysis
1. Weight Watchers: Why isn't your entire femur (thigh bone) made of solid Compact Bone?
2. Shock Absorbers: Spongy bone is found at the ends of bones. Why is it useful there during a jump?
3. Body Armor: Why is compact bone always found on the outside of the bone shaft?
The Discovery Conclusion
"Form follows function" means that the way something is built tells you exactly what it's supposed to do.
Write one sentence explaining how Compact and Spongy bone work together as a team:

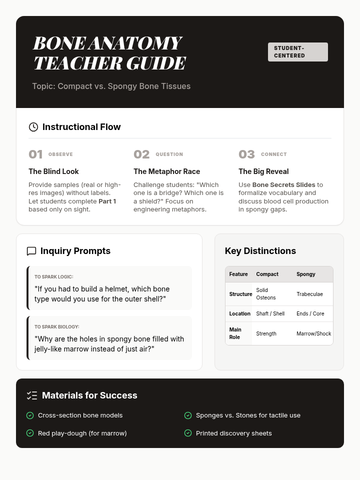

Bone Anatomy Teacher Guide Bone Anatomy Teacher Guide
Student-Centered
Topic: Compact vs. Spongy Bone Tissues
Instructional Flow
01 Observe
The Blind Look
Provide samples (real or high-res images) without labels. Let students complete Part 1 based only on sight.
02 Question
The Metaphor Race
Challenge students: "Which one is a bridge? Which one is a shield?" Focus on engineering metaphors.
03 Connect
The Big Reveal
Use Bone Secrets Slides to formalize vocabulary and discuss blood cell production in spongy gaps.
Inquiry Prompts
To spark logic: "If you had to build a helmet, which bone type would you use for the outer shell?"
To spark biology: "Why are the holes in spongy bone filled with jelly-like marrow instead of just air?"
Key Distinctions
Feature Compact Spongy Structure Solid Osteons Trabeculae Location Shaft / Shell Ends / Core Main Role Strength Marrow/Shock
Materials for Success
Cross-section bone models
Sponges vs. Stones for tactile use
Red play-dough (for marrow)
Printed discovery sheets

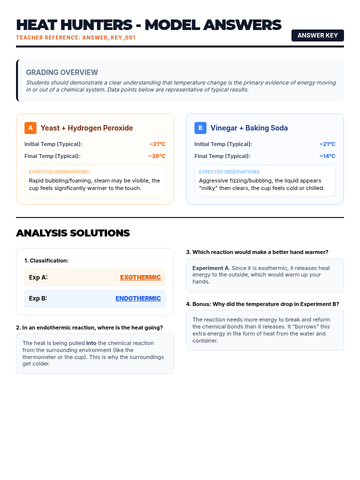

Heat Hunters Answer Key Heat Hunters - Model Answers
Teacher Reference: ANSWER_KEY_001
Answer Key
Grading Overview
Students should demonstrate a clear understanding that temperature change is the primary evidence of energy moving in or out of a chemical system. Data points below are representative of typical results.
A
Yeast + Hydrogen Peroxide
Initial Temp (Typical): ~21°C
Final Temp (Typical): ~38°C
Expected Observations: Rapid bubbling/foaming, steam may be visible, the cup feels significantly warmer to the touch.
B
Vinegar + Baking Soda
Initial Temp (Typical): ~21°C
Final Temp (Typical): ~14°C
Expected Observations: Aggressive fizzing/bubbling, the liquid appears "milky" then clears, the cup feels cold or chilled.
Analysis Solutions
1. Classification:
Exp A: Exothermic
Exp B: Endothermic
2. In an endothermic reaction, where is the heat going?
The heat is being pulled into the chemical reaction from the surrounding environment (like the thermometer or the cup). This is why the surroundings get colder.
3. Which reaction would make a better hand warmer?
Experiment A . Since it is exothermic, it releases heat energy to the outside, which would warm up your hands.
4. Bonus: Why did the temperature drop in Experiment B?
The reaction needs more energy to break and reform the chemical bonds than it releases. It "borrows" this extra energy in the form of heat from the water and container.

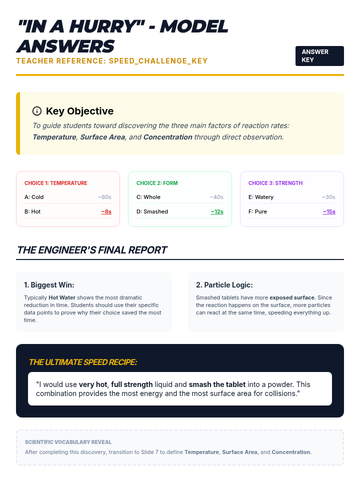

In a Hurry Answer Key "In a Hurry" - Model Answers
Teacher Reference: SPEED_CHALLENGE_KEY
Answer Key
Key Objective
To guide students toward discovering the three main factors of reaction rates: Temperature , Surface Area , and Concentration through direct observation.
Choice 1: Temperature
A: Cold ~60s
B: Hot ~8s
Choice 2: Form
C: Whole ~40s
D: Smashed ~12s
Choice 3: Strength
E: Watery ~30s
F: Pure ~15s
The Engineer's Final Report
1. Biggest Win:
Typically Hot Water shows the most dramatic reduction in time. Students should use their specific data points to prove why their choice saved the most time.
2. Particle Logic:
Smashed tablets have more exposed surface . Since the reaction happens on the surface, more particles can react at the same time, speeding everything up.
The Ultimate Speed Recipe:
"I would use very hot , full strength liquid and smash the tablet into a powder. This combination provides the most energy and the most surface area for collisions."
Scientific Vocabulary Reveal
After completing this discovery, transition to Slide 7 to define Temperature , Surface Area , and Concentration .

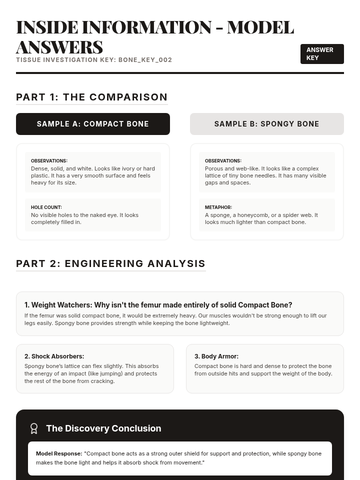

Bone Discovery Answer Key Inside Information - Model Answers
Tissue Investigation Key: BONE_KEY_002
Answer Key
Part 1: The Comparison
Sample A: Compact Bone
Observations:
Dense, solid, and white. Looks like ivory or hard plastic. It has a very smooth surface and feels heavy for its size.
Hole Count:
No visible holes to the naked eye. It looks completely filled in.
Sample B: Spongy Bone
Observations:
Porous and web-like. It looks like a complex lattice of tiny bone needles. It has many visible gaps and spaces.
Metaphor:
A sponge, a honeycomb, or a spider web. It looks much lighter than compact bone.
Part 2: Engineering Analysis
1. Weight Watchers: Why isn't the femur made entirely of solid Compact Bone?
If the femur was solid compact bone, it would be extremely heavy. Our muscles wouldn't be strong enough to lift our legs easily. Spongy bone provides strength while keeping the bone lightweight.
2. Shock Absorbers:
Spongy bone’s lattice can flex slightly. This absorbs the energy of an impact (like jumping) and protects the rest of the bone from cracking.
3. Body Armor:
Compact bone is hard and dense to protect the bone from outside hits and support the weight of the body.
The Discovery Conclusion
Model Response: "Compact bone acts as a strong outer shield for support and protection, while spongy bone makes the bone light and helps it absorb shock from movement."

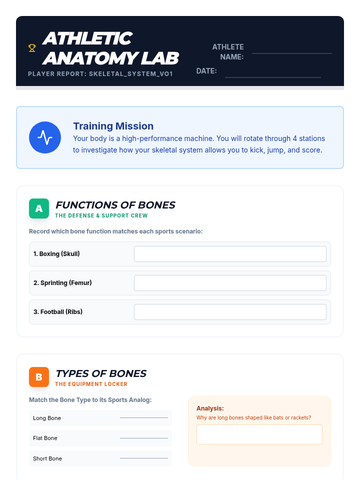

Athletic Anatomy Packet Athletic Anatomy Lab
Player Report: SKELETAL_SYSTEM_VO1
Athlete Name:
Date:
Training Mission
Your body is a high-performance machine. You will rotate through 4 stations to investigate how your skeletal system allows you to kick, jump, and score.

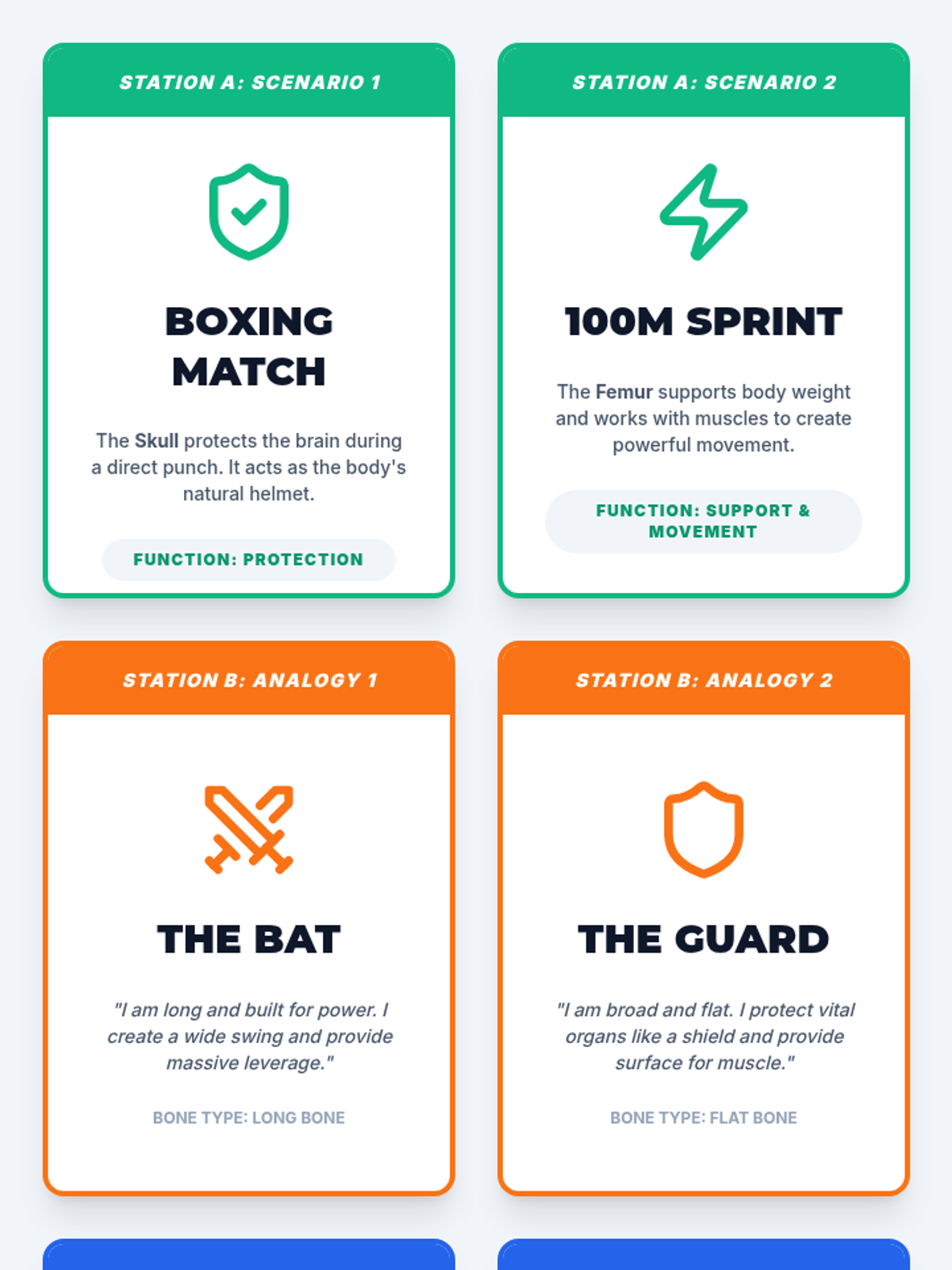

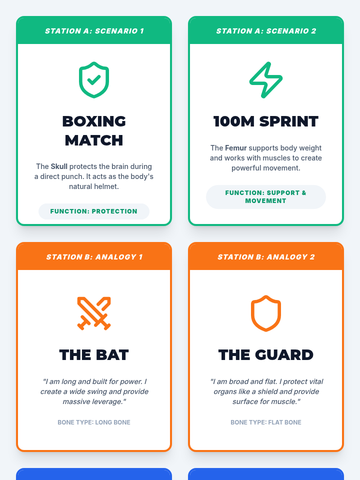

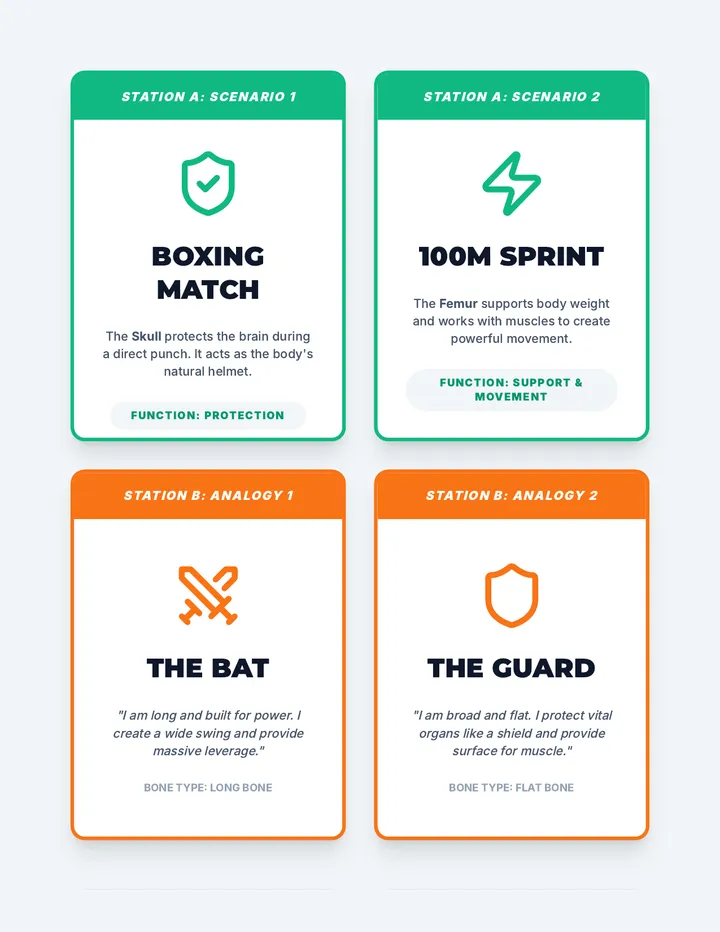

A
Functions of Bones
The Defense & Support Crew
Record which bone function matches each sports scenario:

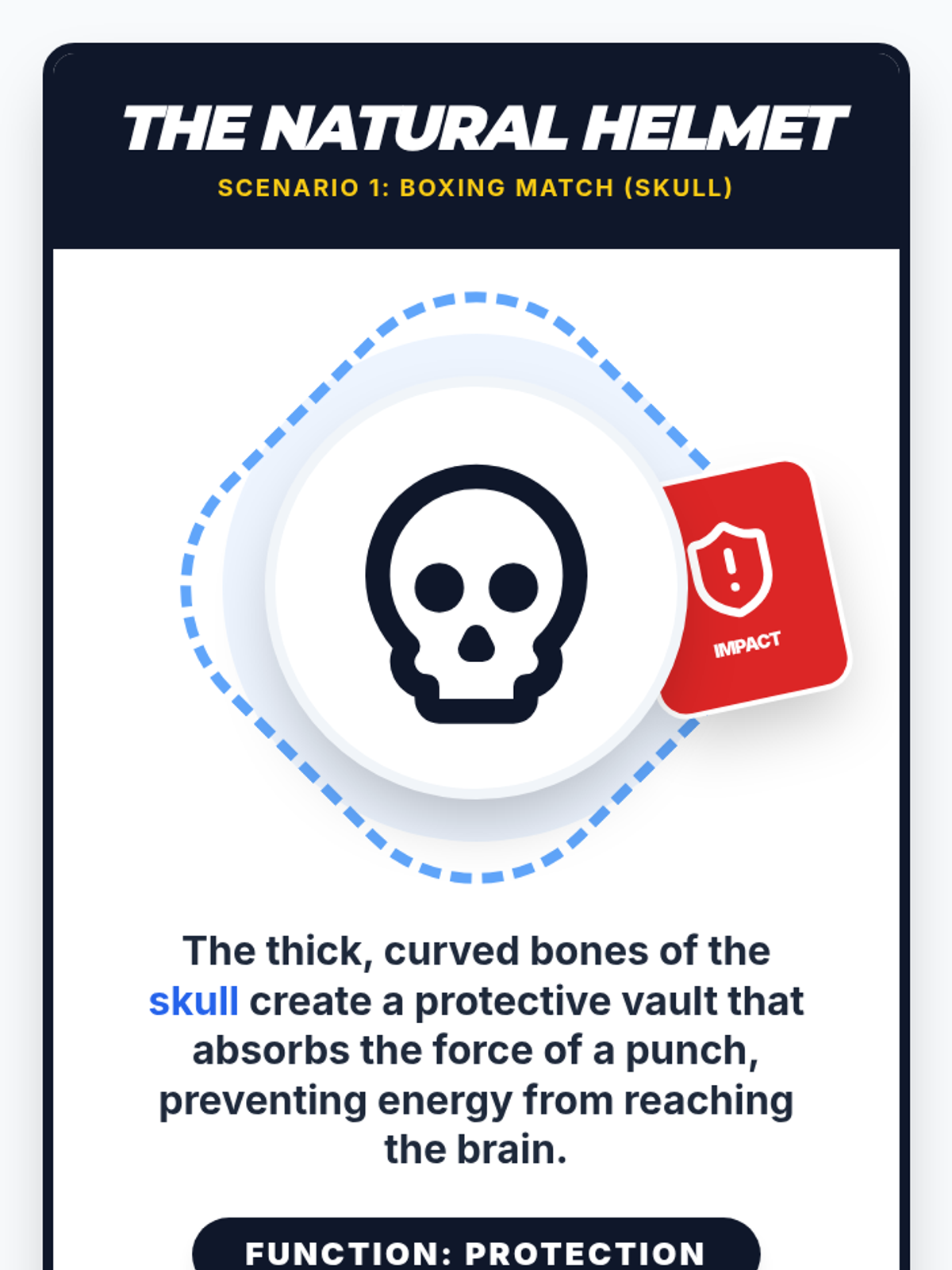

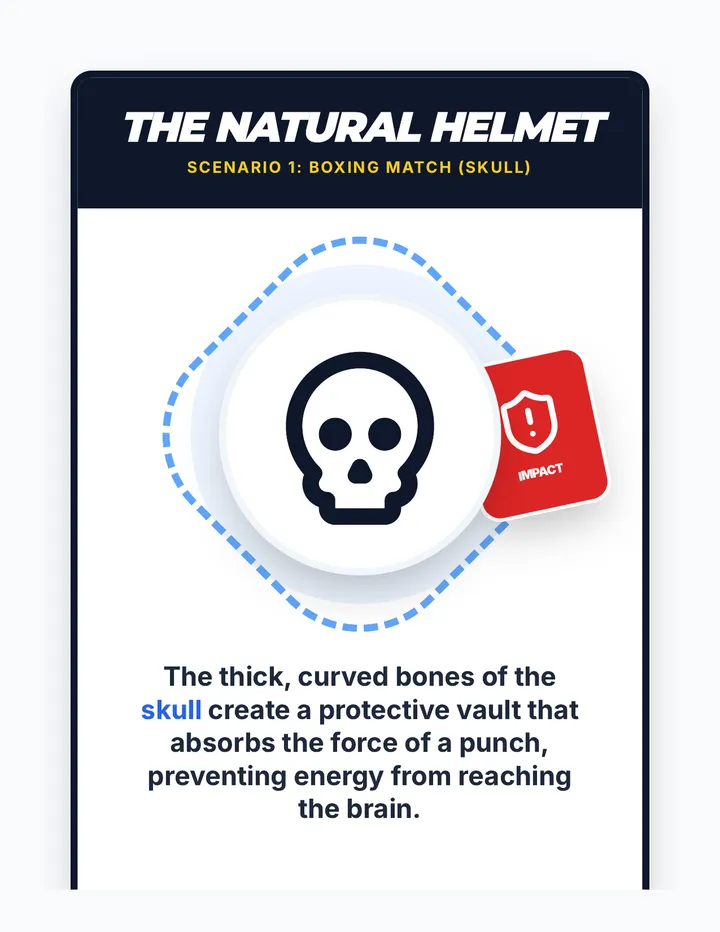

1. Boxing (Skull)
2. Sprinting (Femur)
3. Football (Ribs)
B
Types of Bones
The Equipment Locker
Match the Bone Type to its Sports Analog:
Long Bone
Flat Bone
Short Bone
Analysis:
Why are long bones shaped like bats or rackets?
C
Joint Action
The Pivot Points
Perform the drill and identify the joint type:
Drill 1: Push-Ups
Joint:
Drill 2: Throwing
Joint:
Drill 3: Neck Turn
Joint:
Drill 4: Wrist Flick
Joint:
D
Compact vs Spongy
Shock & Awe
Shock Absorber:
Steel Frame:
Which bone structure might fail from repetitive stress fractures?

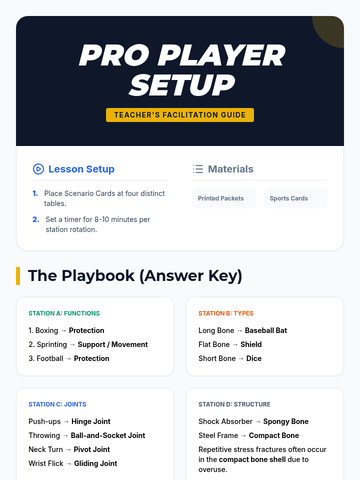

Pro Player Teacher Guide Pro Player Setup
Teacher's Facilitation Guide
Lesson Setup
Place Scenario Cards at four distinct tables.
Set a timer for 8-10 minutes per station rotation.
Materials
Printed Packets
Sports Cards
The Playbook (Answer Key)

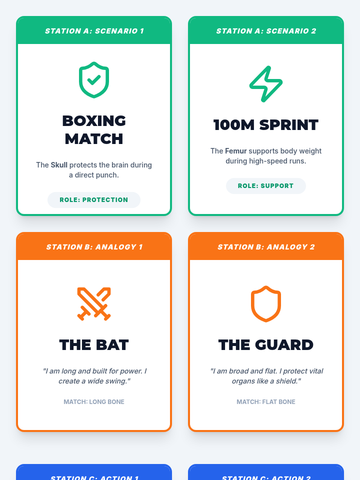

Station A: Functions
1. Boxing → Protection
2. Sprinting → Support / Movement
3. Football → Protection
Station B: Types
Long Bone → Baseball Bat
Flat Bone → Shield
Short Bone → Dice
Station C: Joints
Push-ups → Hinge Joint
Throwing → Ball-and-Socket Joint
Neck Turn → Pivot Joint
Wrist Flick → Gliding Joint
Station D: Structure
Shock Absorber → Spongy Bone
Steel Frame → Compact Bone
Repetitive stress fractures often occur in the compact bone shell due to overuse.
Final Whistle (Evaluation)
1. One bone or joint used in sports today:
2. Compact vs Spongy role in safety:
3. Sports injury and its skeletal link:
Athletic Anatomy Cards Station A: Scenario 1
BOXING MATCH
The Skull protects the brain during a direct punch.
Role: PROTECTION
Station A: Scenario 2
100m SPRINT
The Femur supports body weight during high-speed runs.
Role: SUPPORT
Station B: Analogy 1
THE BAT
"I am long and built for power. I create a wide swing."
Match: LONG BONE
Station B: Analogy 2
THE GUARD
"I am broad and flat. I protect vital organs like a shield."
Match: FLAT BONE
Station C: Action 1
THE HINGE
Move in one direction only. Think of a push-up at the elbow.
Type: HINGE JOINT
Station C: Action 2
FREESTYLE
Greatest range of motion. Circular movements like pitching.
Type: BALL-AND-SOCKET
Station D: Structure 1
SPONGY
Acting like a sponge or spring to absorb the force of a jump landing.
Role: SHOCK ABSORBER
Station D: Structure 2
COMPACT
The dense outer frame that holds up under the weight of a heavy bar.
Role: RIGID SUPPORT

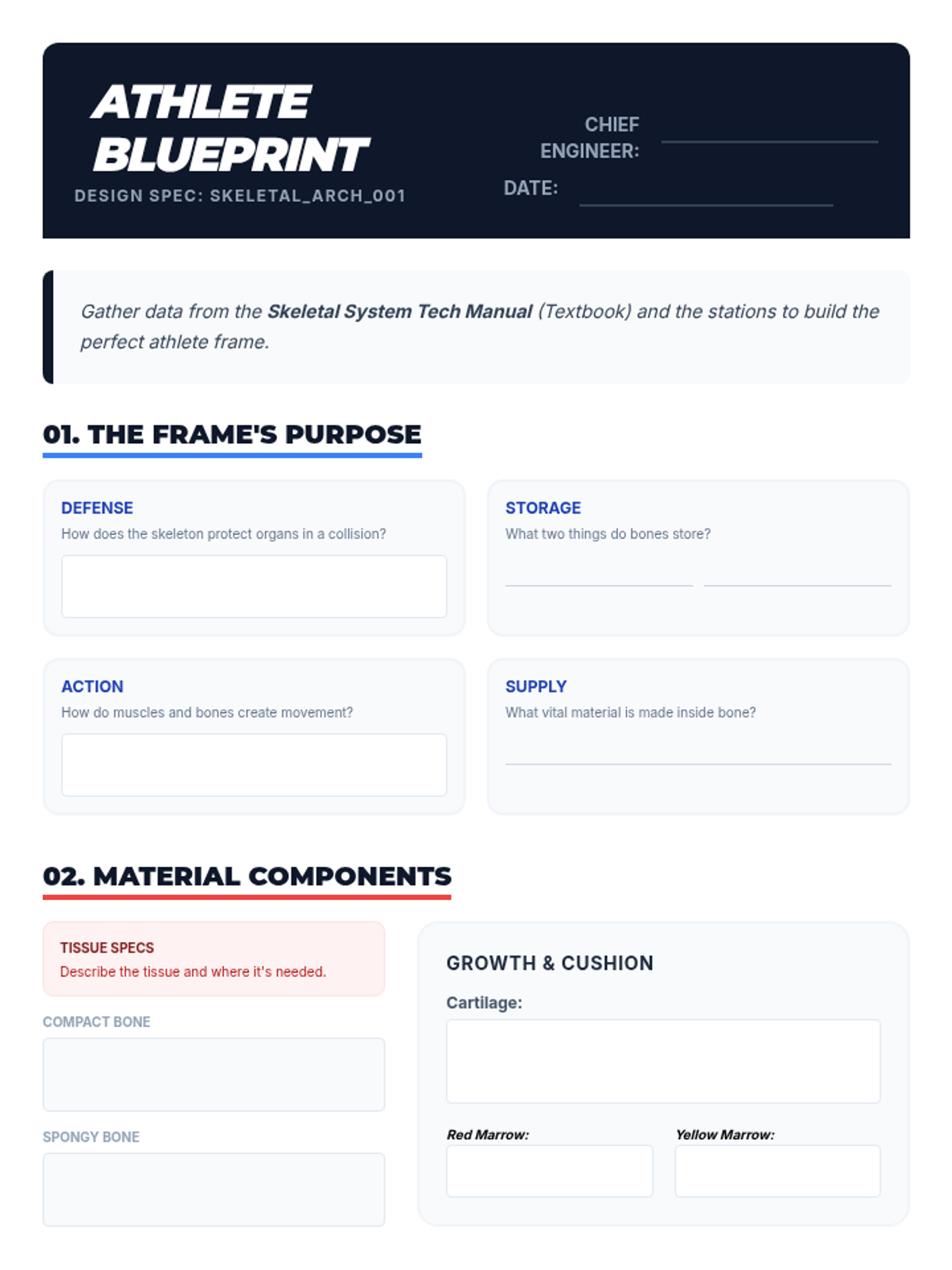

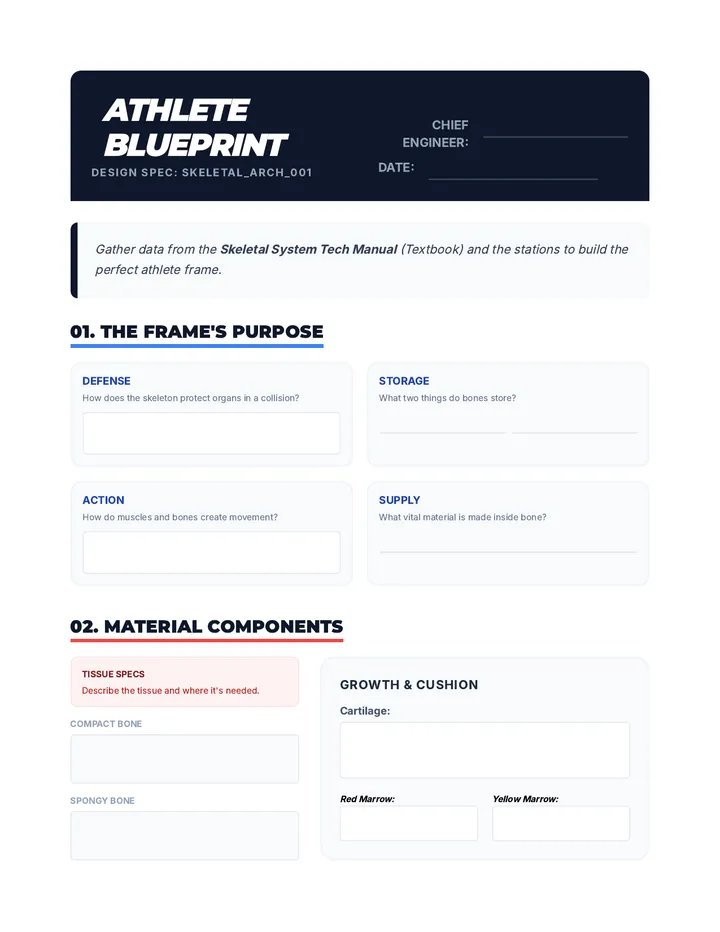

Athlete Blueprint Worksheet Athlete Blueprint
Design Spec: SKELETAL_ARCH_001
Chief Engineer:
Date:
Gather data from the Skeletal System Tech Manual (Textbook) and the stations to build the perfect athlete frame.
01. The Frame's Purpose
Defense
How does the skeleton protect organs in a collision?
Storage
What two things do bones store?
Action
How do muscles and bones create movement?
Supply
What vital material is made inside bone?
02. Material Components
Tissue Specs
Describe the tissue and where it's needed.
Compact Bone
Spongy Bone
Growth & Cushion
Cartilage:
Red Marrow:
Yellow Marrow:
03. Joint Engineering
Mechanism Motion Application Gliding Bones slide over each other Ball-and-Socket Baseball Pitch Hinge One direction only Fixed The Skull
Injury Prevention
Arthritis Analysis:
What causes joint stiffness?
Osteoporosis Risk:
How does it change bone structure?
#1 Cause of Skeletal Injury:
Pro Player Teacher Guide Pro Player Setup
Teacher's Facilitation Guide
Lesson Setup
Place cards at 4 tables.
Use music during station rotations (8 mins).
Students use the Textbook for the Blueprint.
Materials
Blueprint Worksheet
Station Cards & Equipment
The Playbook (Answer Key)
Functions & Materials
Defense: Skull (brain), Ribs (heart/lungs).Storage: Minerals (Calcium) and Fat.Cartilage: Flexible tissue at birth; replaced by bone.Marrow: Red (Blood Cells), Yellow (Fat).
Joints & Ligaments
Ball-and-Socket: Shoulder/Hip (max motion).Hinge: Elbow/Knee (one direction).Fixed: Skull joints (no movement).Ligaments: Connective tissue (Bone to Bone).
Medical / Injury Key
Arthritis: Stiffness/pain. Osteoporosis: Brittle bones. #1 Injury Cause: Too much stress/repetitive force.
Final Whistle (Evaluation)
1 Identify one bone or joint you used in a specific sports move today and explain its role.
2 How does spongy bone help an athlete during a high-impact jump?
Athletic Anatomy Cards Station A: Scenario 1
BOXING MATCH
The Skull protects the brain during a direct punch. It acts as the body's natural helmet.
Function: PROTECTION
Station A: Scenario 2
100m SPRINT
The Femur supports body weight and works with muscles to create powerful movement.
Function: SUPPORT & MOVEMENT
Station B: Analogy 1
THE BAT
"I am long and built for power. I create a wide swing and provide massive leverage."
Bone Type: LONG BONE
Station B: Analogy 2
THE GUARD
"I am broad and flat. I protect vital organs like a shield and provide surface for muscle."
Bone Type: FLAT BONE
Station C: Mechanism
THE HINGE
Move in one direction only. Think of a door opening or an elbow during a push-up .
Mechanism: HINGE JOINT
Station C: Mechanism
FREESTYLE
Allows for circular movement and the greatest range of motion. Like a baseball pitch .
Mechanism: BALL-AND-SOCKET
Station D: Structure
SPONGY
Full of gaps and lightweight. Acts as a shock absorber during a long jump landing.
Role: ABSORB IMPACT
Station D: Structure
COMPACT
Dense and rigid. Provides the strong outer frame needed for lifting heavy weights.
Role: RIGID STRENGTH
Sports Anatomy Visuals THE NATURAL HELMET
Scenario 1: Boxing Match (Skull)
IMPACT
The thick, curved bones of the skull create a protective vault that absorbs the force of a punch, preventing energy from reaching the brain.
Function: PROTECTION
THE POWER LEVER
Scenario 2: 100m Sprint (Femur)
The femur is the body's longest bone. It acts as a powerful lever, allowing muscles to generate explosive speed and carry weight.
SUPPORT
MOVEMENT
THE PROTECTIVE CAGE
Scenario 3: Football Tackle (Ribs)
The rib cage surrounds the vital organs. During a tackle, the ribs absorb the impact to keep the heart and lungs safe.
Function: PROTECTION
