Alphabet of Genetics Slides Alphabet of Genetics
Decoding the Nucleotide
The Power of Four
"How can a code with only 4 letters store more information than a computer hard drive?"
Digital Code (Binary)
0 1
Just 2 possibilities!
Genetic Code
A T C G
4 chemical building blocks.
What is a Nucleotide?
A nucleotide is the monomer (building block) of nucleic acids like DNA.
1
Phosphate Group
2
Deoxyribose Sugar
3
Nitrogenous Base
Phosphate
Sugar
Base
The Genetic Alphabet
Purines (Double Ring)
Adenine A
Guanine G
Pyrimidines (Single Ring)
Thymine T
Cytosine C
Complimentary Base Pairing
The bases don't just pick any partner. They follow strict rules discovered by Erwin Chargaff.
A
T
G
C
Mnemonic: Apples in the Tree, Cars in the Garage.
Paper Model Workshop
Today's Goals:
Identify and color the 3 parts of your nucleotide.
Assemble 4 different nucleotides (A, T, C, G).
Pair them up correctly with a classmate!
"If you can't build it, you don't understand it." — Richard Feynman
Nucleotide Builder Worksheet Nucleotide Builder
Lesson 1: The Alphabet of Genetics
Name:
Date:
Part 1: Anatomy of a Nucleotide
Label the three parts of the nucleotide diagram below using the following terms: Phosphate Group , Deoxyribose Sugar , and Nitrogenous Base .
A
B
C
A: ___________________
B: ___________________
C: ___________________
Part 2: Base Pairing Challenge
Use Chargaff's rules (A-T, C-G) to find the complementary base for each letter below.
A
G
C
T
Think About It:
If a DNA molecule is found to have 20% Adenine, what percentage of Thymine must it have? Why?
Part 3: Model Templates
Cut along the solid lines
P
Sugar
Adenine (A)
P
Sugar
Thymine (T)
P
Sugar
Guanine (G)
P
Sugar
Cytosine (C)
Build Instructions:
Color the Phosphate yellow, the Sugar blue, and each Base a different color.
Cut out the four nucleotides carefully along the dashed lines.
Find a partner and try to "pair" your bases according to the rules.
Genetic Alphabet Teacher Guide Facilitation Guide
Lesson 1: Alphabet of Genetics
Time: 50-60 mins
Learning Objectives
Identify the three components of a nucleotide: phosphate, sugar, and nitrogenous base.
Distinguish between the four nitrogenous bases (A, T, C, G).
Apply Chargaff's rules for complementary base pairing.
Synthesize the concept that DNA is a universal code across life forms.
Materials List
• Slide Deck: Alphabet of Genetics
• Worksheet: Nucleotide Builder
• Colored pencils/markers
• Scissors and tape
Lesson Procedure
00-05 MIN
The Hook: Information Storage
Display Slide 2. Ask: "How many letters in the English alphabet?" (26). "How many bits in computer code?" (2). "Nature uses only 4." Discuss how the sequence of characters is more important than the number of characters.
05-20 MIN
Direct Instruction: Nucleotide Anatomy
Use Slides 3-5 to introduce the nucleotide structure. Emphasize the "Sugar-Phosphate Backbone" as the constant part and the "Nitrogenous Base" as the variable part (the actual code).
Teaching Tip: Remind students that Purines (A, G) have two rings and Pyrimidines (T, C) have one. Use the mnemonic "CUT the PY (pie)" for Pyrimidines (C, U, T).
20-45 MIN
Workshop: Building the Alphabet
Distribute the Nucleotide Builder Worksheet . Students should complete Part 1 & 2 individually before starting the craft. Walk around to ensure students are pairing A with T and C with G during the assembly phase.
45-60 MIN
Closing & Reflection
Have students "pair up" their paper nucleotides with a neighbor. Discuss: "What would happen if the pairing rules were broken?" (Mutations, structural instability).
Common Misconceptions
The Sugar: Students often confuse "sugar" with table sugar (sucrose). Clarify that deoxyribose is a 5-carbon structural sugar.Bonding: Students may think the bases are permanently fused; explain that hydrogen bonds (Lesson 2) are like zippers.
Differentiation
Support: Provide pre-colored templates for students with fine motor challenges.Extension: Challenge students to calculate base percentages using Chargaff's rules (e.g., if A=15%, what are G, C, and T?). Helix Architecture Slides Helix Architecture
The Engineering of the Molecule
The Discovery Mystery
In 1953, James Watson and Francis Crick solved the "Secret of Life."
"We have found the secret of life!" — Francis Crick
How did they figure out the shape without a microscope powerful enough to see it?
They built physical models to test their math and chemical logic.
The Antiparallel Highway
5' → 3'
3' ← 5'
Parallel vs. Antiparallel
DNA strands run in opposite directions, like lanes on a two-way street.
One strand is oriented 5' to 3'.
The partner strand is 3' to 5'.
The Molecular "Zipper"
Bases are held together by Hydrogen Bonds. These are weak enough to "unzip" when the code needs to be read.
A & T Pair
A
T
2 Hydrogen Bonds
G & C Pair
G
C
3 Hydrogen Bonds
Project Mission: 3D Helix
Like Watson and Crick, you will build a physical model to prove your understanding of the architecture.
Must be Double Helical (twisted ladder).
Must have Antiparallel backbones.
Correct Base Pairing (colors or shapes).
Engineering Goal
Create a model that is structurally sound and scientifically accurate.

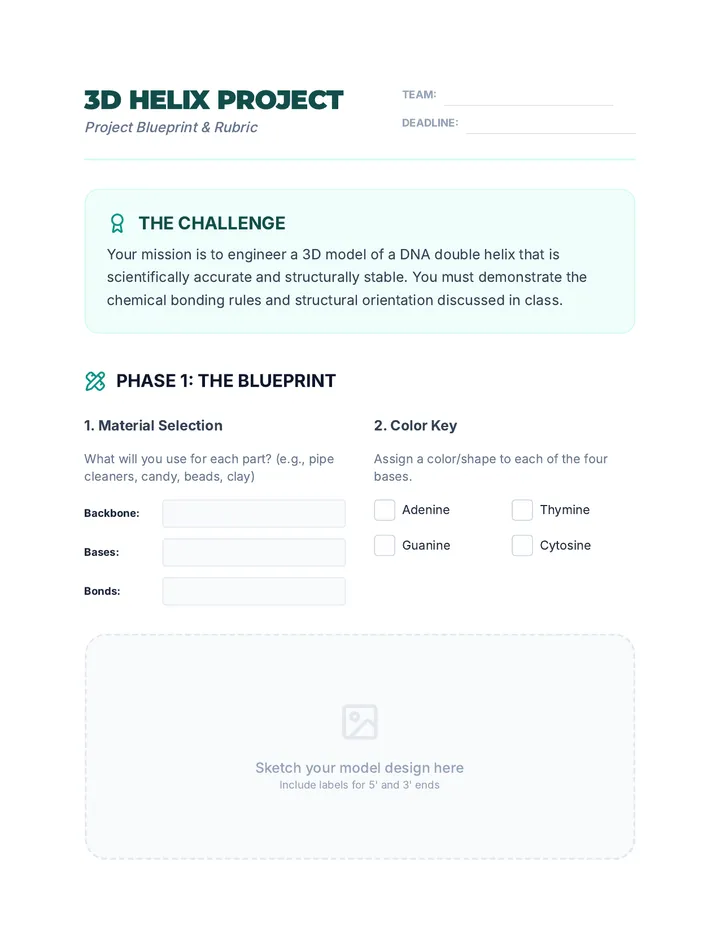

DNA Model Project Guide 3D Helix Project
Project Blueprint & Rubric
Team:
Deadline:
The Challenge
Your mission is to engineer a 3D model of a DNA double helix that is scientifically accurate and structurally stable. You must demonstrate the chemical bonding rules and structural orientation discussed in class.
Phase 1: The Blueprint
1. Material Selection
What will you use for each part? (e.g., pipe cleaners, candy, beads, clay)
Backbone:
Bases:
Bonds:
2. Color Key
Assign a color/shape to each of the four bases.
Adenine
Thymine
Guanine
Cytosine
Sketch your model design here
Include labels for 5' and 3' ends
Assessment Rubric
Criteria Advanced (10 pts) Proficient (8 pts) Basic (5 pts) Base Pairing 100% correct pairing (A-T, C-G) throughout. 1-2 errors in pairing found. Multiple errors or random pairing. Helical Shape Double helix is twisted and maintains its shape. Helix is present but somewhat loose/unstable. Flat ladder with no twist or structure. Orientation Clearly shows antiparallel 5' to 3' strands. Ends are labeled but strands are parallel. No orientation or labeling present. Bonding Visually distinguishes 2 vs 3 hydrogen bonds. Hydrogen bonds are present but uniform. No bonding represented between bases.
Molecular Comparison Slides Molecular Comparison
DNA vs. RNA
Blueprint vs. Photocopy
The DNA Vault
DNA is the Master Blueprint. It stays safe inside the nucleus "vault" where it can't be damaged.
The RNA Messenger
RNA is the Photocopy. It's a temporary copy that travels to the "construction site" (ribosome).
Why not just use the DNA directly? Discuss!
Chemical Anatomy
DNA
Sugar: Deoxyribose
Bases: A, Thymine (T) , C, G
Shape: Double Stranded
RNA
Sugar: Ribose
Bases: A, Uracil (U) , C, G
Shape: Single Stranded
Uracil: The RNA Guest
In RNA, Thymine (T) is replaced by Uracil (U) .
The New Rules:
A U
G C
U
RNA EXCLUSIVE
The RNA Work Crew
m
Messenger RNA
Carries the code from the DNA to the rest of the cell.
t
Transfer RNA
Transfers amino acids to the ribosome to build proteins.
r
Ribosomal RNA
Makes up the structure of the ribosome "factory."

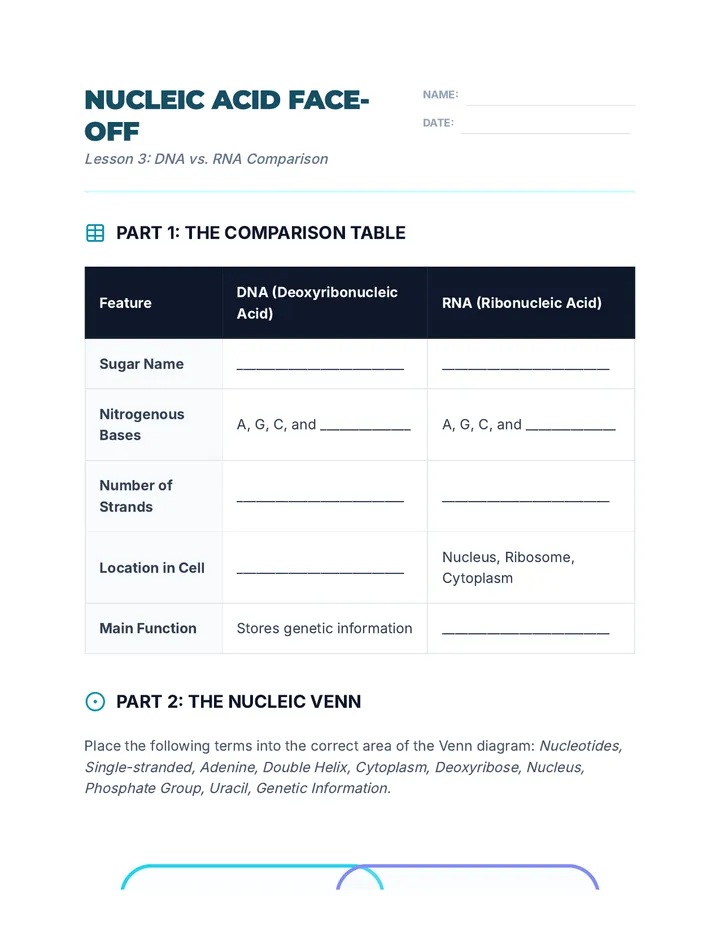

Nucleic Acid Face Off Worksheet Nucleic Acid Face-Off
Lesson 3: DNA vs. RNA Comparison
Name:
Date:
Part 1: The Comparison Table
Feature DNA (Deoxyribonucleic Acid) RNA (Ribonucleic Acid) Sugar Name __________________________ __________________________ Nitrogenous Bases A, G, C, and ______________ A, G, C, and ______________ Number of Strands __________________________ __________________________ Location in Cell __________________________ Nucleus, Ribosome, Cytoplasm Main Function Stores genetic information __________________________
Part 2: The Nucleic Venn
Place the following terms into the correct area of the Venn diagram: Nucleotides, Single-stranded, Adenine, Double Helix, Cytoplasm, Deoxyribose, Nucleus, Phosphate Group, Uracil, Genetic Information.
DNA
RNA
BOTH
Part 3: Transcribing the Message
During protein synthesis, a cell makes a "photocopy" of DNA called mRNA. Use the pairing rules for RNA (A pairs with U , C pairs with G ) to write the mRNA sequence for the DNA strand below.
DNA Strand:
TACGGTATC
mRNA Copy:

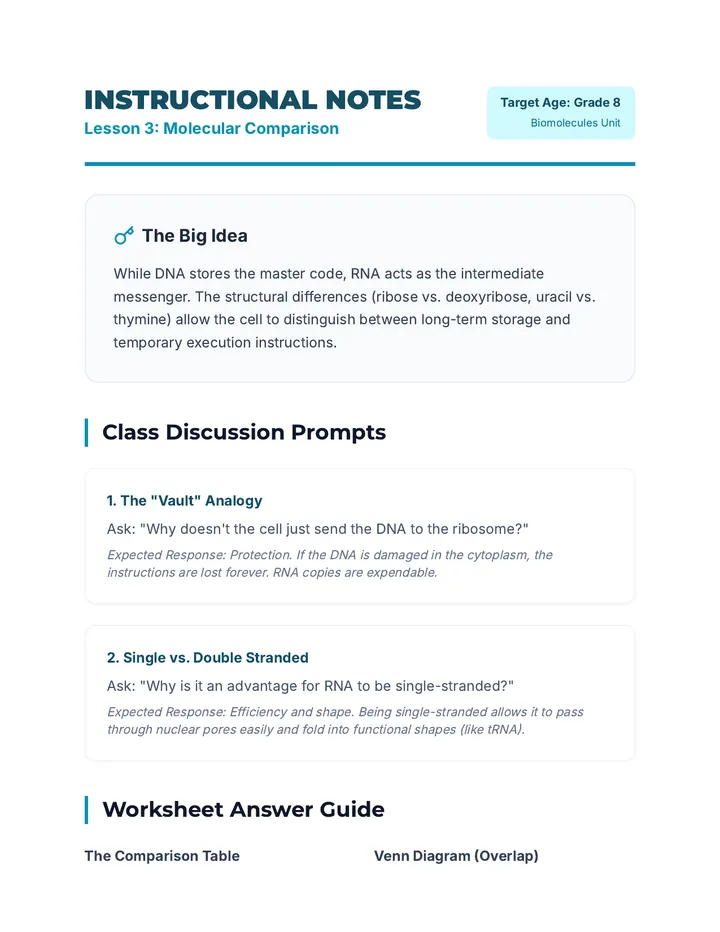

Molecular Comparison Teacher Notes Instructional Notes
Lesson 3: Molecular Comparison
Target Age: Grade 8 Biomolecules Unit
The Big Idea
While DNA stores the master code, RNA acts as the intermediate messenger. The structural differences (ribose vs. deoxyribose, uracil vs. thymine) allow the cell to distinguish between long-term storage and temporary execution instructions.
Class Discussion Prompts
1. The "Vault" Analogy
Ask: "Why doesn't the cell just send the DNA to the ribosome?"
Expected Response: Protection. If the DNA is damaged in the cytoplasm, the instructions are lost forever. RNA copies are expendable.
2. Single vs. Double Stranded
Ask: "Why is it an advantage for RNA to be single-stranded?"
Expected Response: Efficiency and shape. Being single-stranded allows it to pass through nuclear pores easily and fold into functional shapes (like tRNA).
Worksheet Answer Guide
The Comparison Table
Sugar: Deoxyribose (DNA), Ribose (RNA)Bases: Thymine (DNA), Uracil (RNA)Strands: 2 (DNA), 1 (RNA)Location: Nucleus only (DNA), Nucleus & Cytoplasm (RNA)
Venn Diagram (Overlap)
Adenine
Guanine
Cytosine
Phosphate Group
Genetic Information
Teacher Alert: Watch Out!
Students will frequently try to pair T with U . Remind them that T and U never see each other; they are two different molecules. U is the partner for A when RNA is involved. Use the phrase: "U replaces T, it doesn't pair with it."

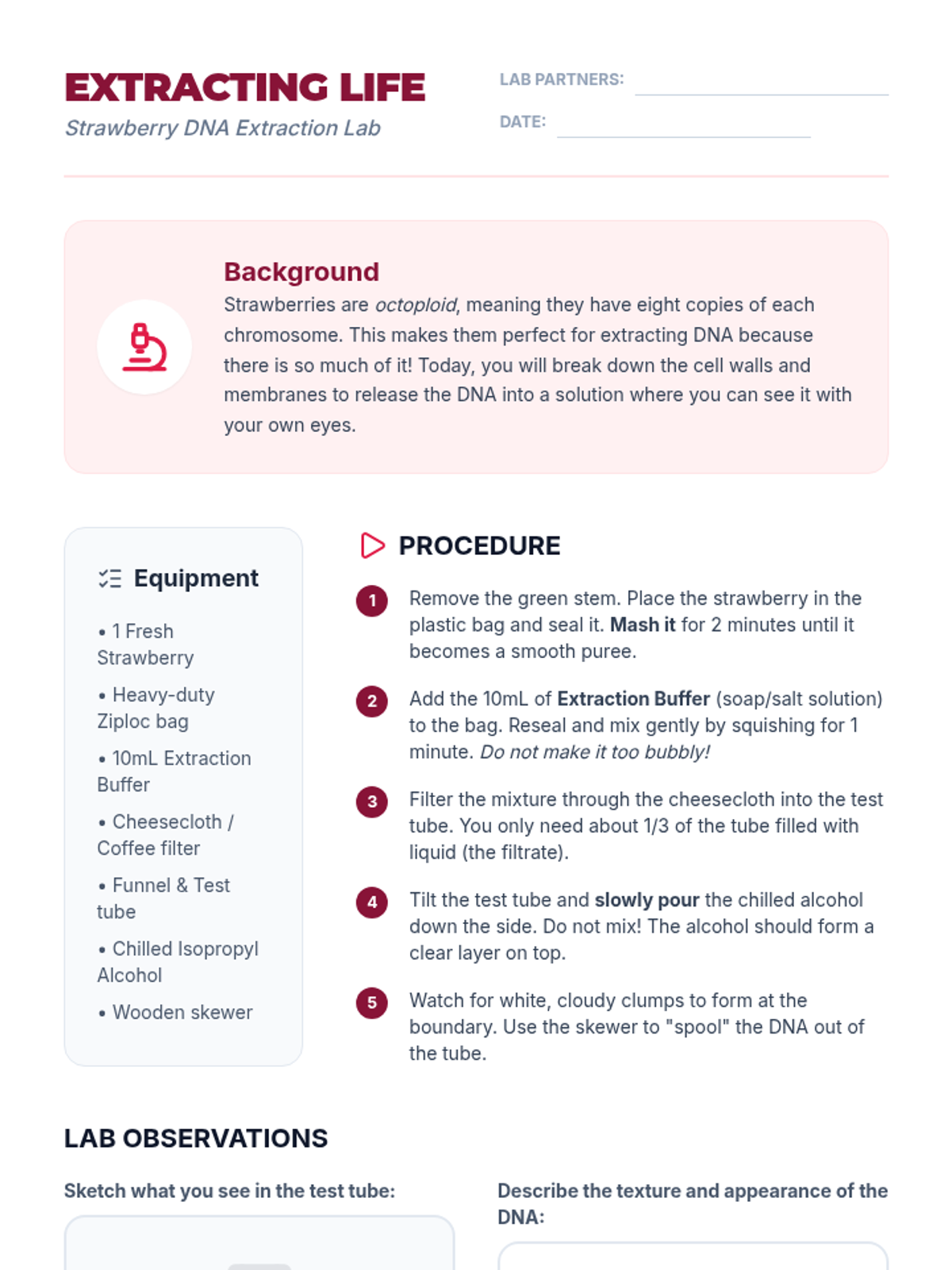

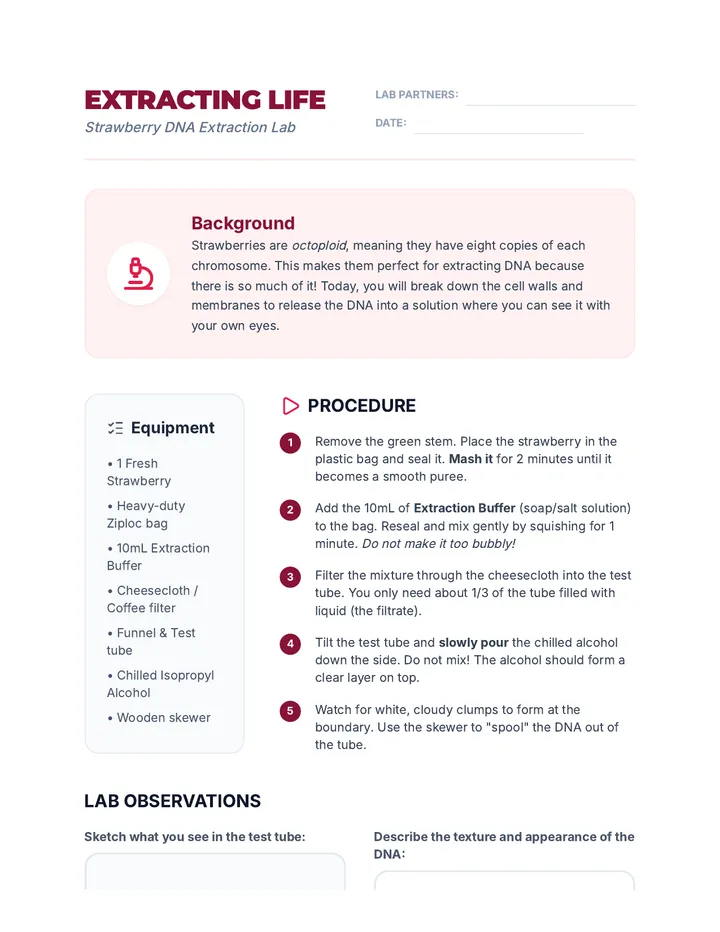

Strawberry DNA Lab Guide Extracting Life
Strawberry DNA Extraction Lab
Lab Partners:
Date:
Background
Strawberries are octoploid , meaning they have eight copies of each chromosome. This makes them perfect for extracting DNA because there is so much of it! Today, you will break down the cell walls and membranes to release the DNA into a solution where you can see it with your own eyes.
Equipment
• 1 Fresh Strawberry
• Heavy-duty Ziploc bag
• 10mL Extraction Buffer
• Cheesecloth / Coffee filter
• Funnel & Test tube
• Chilled Isopropyl Alcohol
• Wooden skewer
Procedure
1
Remove the green stem. Place the strawberry in the plastic bag and seal it. Mash it for 2 minutes until it becomes a smooth puree.
2
Add the 10mL of Extraction Buffer (soap/salt solution) to the bag. Reseal and mix gently by squishing for 1 minute. Do not make it too bubbly!
3
Filter the mixture through the cheesecloth into the test tube. You only need about 1/3 of the tube filled with liquid (the filtrate).
4
Tilt the test tube and slowly pour the chilled alcohol down the side. Do not mix! The alcohol should form a clear layer on top.
5
Watch for white, cloudy clumps to form at the boundary. Use the skewer to "spool" the DNA out of the tube.
Lab Observations
Sketch what you see in the test tube:
Describe the texture and appearance of the DNA:
Analysis & Conclusion
1. Why did we have to mash the strawberry? What physical barrier were we breaking?
2. The extraction buffer contains dish soap . Based on what you know about cells, what part of the cell does the soap break down?
3. DNA is soluble in water but insoluble in alcohol. How does this explain why the DNA "clumped" when you added the alcohol?
Central Dogma Mastery Slides Central Dogma Mastery
From Code to Character
The Central Dogma
DNA
Storage
RNA
Messenger
PROTEIN
Trait
How do we get from a chemical ladder to blue eyes or brown hair?
1. Transcription
Transcription is the process of copying DNA into a complementary mRNA message.
Happens in the Nucleus .
Uses RNA Polymerase to unzip the DNA.
Creates mRNA to leave the nucleus.
DNA: A T G C C T
RNA: U A C G G A
2. Translation
RIBOSOME
Protein Builder
Translation is reading the mRNA "code" to assemble amino acids into a protein.
Happens at the Ribosome .
Uses tRNA to bring the right amino acids.
Result: A chain of Amino Acids (a Protein).
Model Presentations
"The DNA molecule is the most beautiful molecule in the world."
What to explain in your presentation:
1
Point out your 5' and 3' ends.
2
Demonstrate your Base Pairing .
3
Explain how your code becomes a Trait .
4
Identify the Hydrogen Bonds .

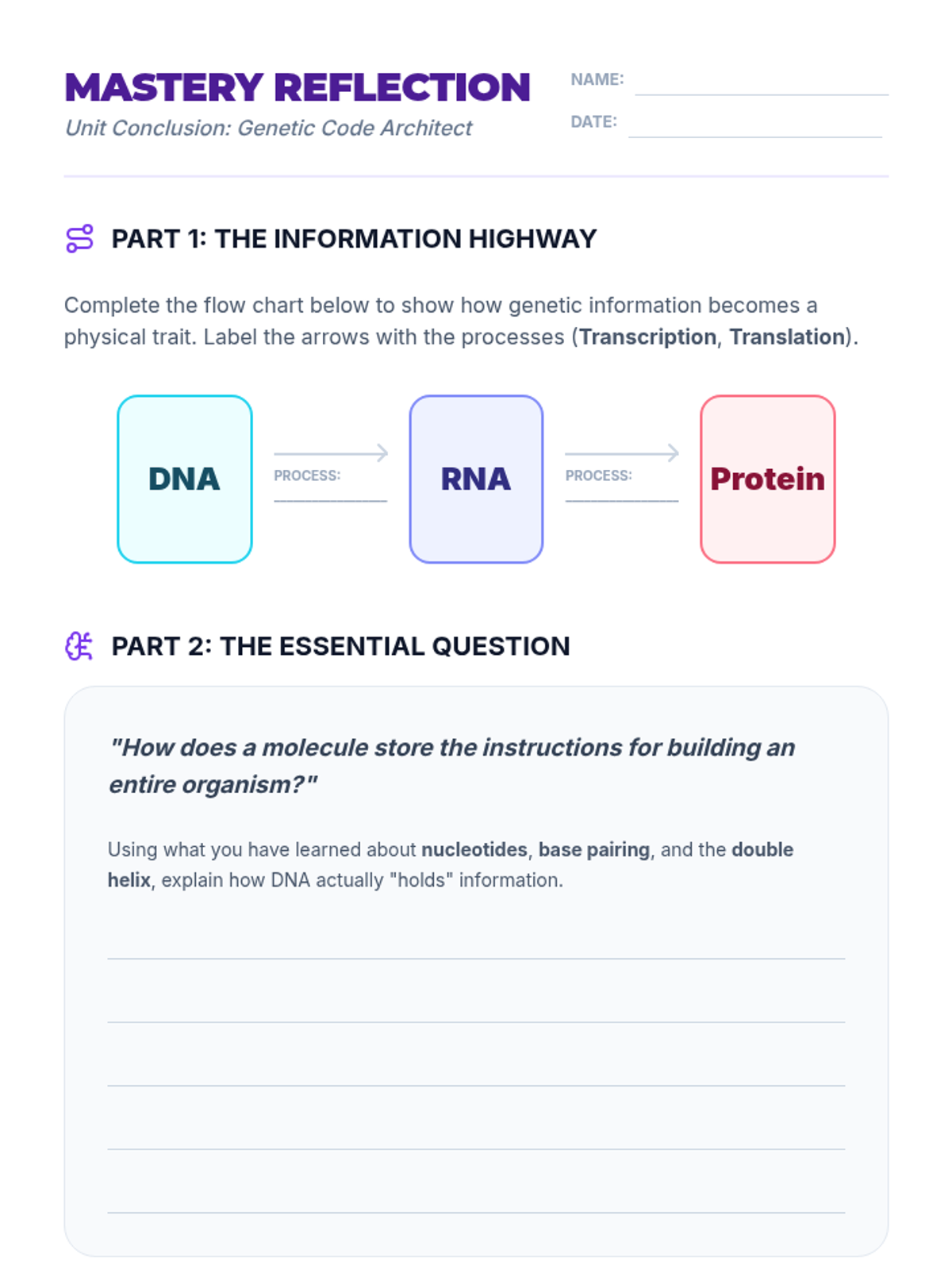

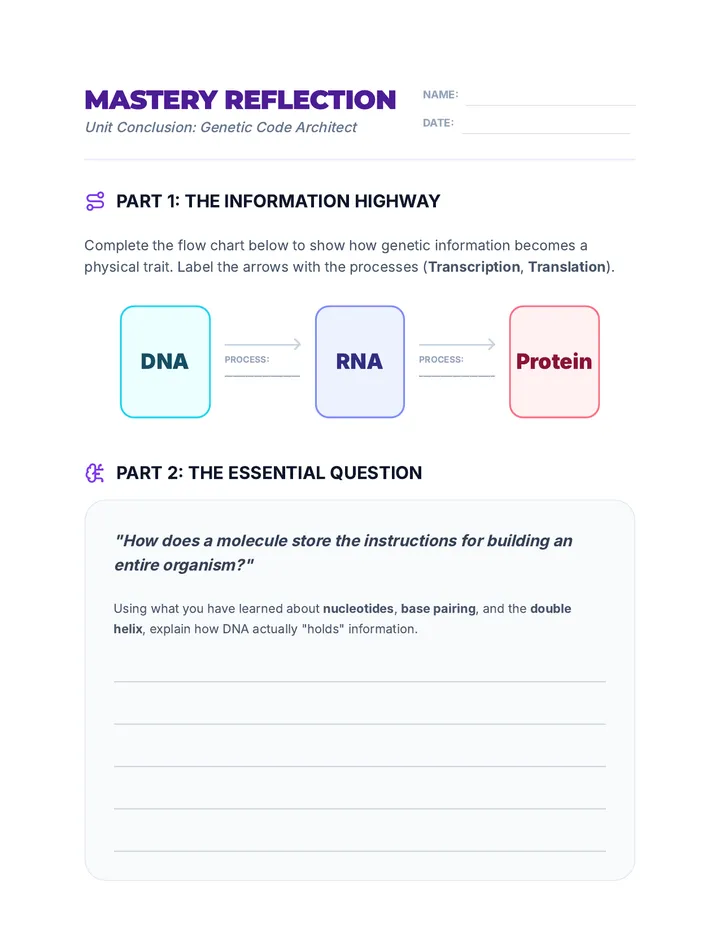

Genetic Mastery Reflection Exit Ticket Mastery Reflection
Unit Conclusion: Genetic Code Architect
Name:
Date:
Part 1: The Information Highway
Complete the flow chart below to show how genetic information becomes a physical trait. Label the arrows with the processes (Transcription , Translation ).
DNA
Process: __________________
RNA
Process: __________________
Protein
Part 2: The Essential Question
"How does a molecule store the instructions for building an entire organism?"
Using what you have learned about nucleotides , base pairing , and the double helix , explain how DNA actually "holds" information.
Part 3: Model Reflection
What was the most challenging part of engineering your 3D DNA model?
How did seeing the strawberry DNA in real life change how you think about this molecule?
Genetic Code Architect: Certified
