Hess Law Dossier Reading Hess Law Dossier
Subject: Enthalpy as a State Function
STUDENT ID:
DATE:
The Total Sum
In the world of thermochemistry, we often want to know the heat change \((\Delta H)\) of a reaction that is difficult or even impossible to measure directly in a lab. In 1840, chemist Germain Hess discovered a powerful principle: the enthalpy change of a chemical reaction is the same regardless of the path taken.
Known as Hess’s Law of Constant Heat Summation , this principle allows us to treat chemical equations like algebraic expressions. If a reaction can be broken down into a series of intermediate steps, the \(\Delta H\) for the overall reaction is simply the sum of the \(\Delta H\) values for those steps.
State Functions: Destination Matters
Hess’s Law works because enthalpy \((H)\) is a state function . A state function is a property whose value depends only on the current state of the system, not how it got there.
Analogy: Think of a mountain climber. "Distance Traveled" depends on the zig-zag path taken (not a state function). "Altitude Change" depends only on the base and the summit (a state function). Since enthalpy is like altitude, the "path" of chemical steps doesn't change the final result.
The Calculation Rules
To solve a Hess's Law puzzle, you must manipulate intermediate equations to match your target equation. Follow these two mandatory rules:
Rule 1: The Multiplier Effect
If you multiply the coefficients of a chemical equation by a factor \((n)\), you must also multiply the \(\Delta H\) by that same factor.
Rule 2: The Sign Flip
If you reverse a chemical reaction (flipping reactants and products), you must change the sign of the \(\Delta H\) (positive becomes negative, and vice-versa).
Vocabulary Registry
Enthalpy \((H)\) Thermal Blueprint
The total heat content of a system at constant pressure.
Intermediate Chemical Bridge
A substance that is produced in one step and consumed in another.
\(\Delta H_{rxn}\) Target Result
The net enthalpy change for the final chemical transformation.
Think & Jot
Why is Hess's Law essential for studying reactions like the combustion of graphite into carbon monoxide, where measuring heat directly is difficult?
Flash Check
If Reaction A has \(\Delta H = -100 \text{ kJ}\), what is the enthalpy for the reverse of Reaction A?
+100 kJ
-100 kJ
0 kJ
Document ID: UNIT-THERMO-HESS-001 // Energy in Chemical Bonds Series
Hess Pathfinders Slides Hess Pathfinders
Discovering the Additive Nature of Enthalpy
Chemistry Unit: Energy & Bonds
Pathways to the Peak
State Function
A property whose value depends only on the current state of the system, not on the path taken to get there.
Is Enthalpy (\(\Delta H\)) a State Function?
A
Direct Path
B
A
Intermediate Step
B
Hess's Law
"If a reaction is carried out in a series of steps, \(\Delta H\) for the overall reaction will be equal to the sum of the enthalpy changes for the individual steps."
\(\Delta H_{\text{total}} = \sum \Delta H_{\text{steps}}\)
Manipulation Rules
1
Flip the Switch
If you reverse a reaction, you must change the sign of \(\Delta H\).
A \(\rightarrow\) B (\(\Delta H = +100\))
B \(\rightarrow\) A (\(\Delta H = -100\))
2
Scale the Power
If you multiply coefficients, you must multiply \(\Delta H\) by the same factor.
A \(\rightarrow\) B (\(\Delta H = +100\))
2A \(\rightarrow\) 2B (\(\Delta H = +200\))
The Reaction Puzzle
1
Identify your Target Reaction.
2
Cut out your Intermediate Strips.
3
Flip or stack them until intermediates cancel out.
4
Sum the final enthalpies!
Collaborate with your partner to decode the chemical maze!
Hess Mission Worksheet Hess Mission Worksheet
Tactical Enthalpy Calculations & Step-Wise Synthesis
NAME: ________________________________
DATE: ________________________________
STRATEGY BRIEFING: THE HESS MANEUVER
REVERSE: If you flip a reaction, change the sign of \(\Delta H\) (positive becomes negative, and vice-versa).
MULTIPLY: If you multiply coefficients, multiply \(\Delta H\) by that same factor.
01
Mission: Ethane Synthesis
TARGET EQUATION:
\(C_2H_4(g) + H_2(g) \rightarrow C_2H_6(g)\)
Intermediate Data:
Original \(\Delta H\)
\(C_2H_4(g) + 3O_2(g) \rightarrow 2CO_2(g) + 2H_2O(l)\)
\(-1411 \text{ kJ/mol}\)
\(C_2H_6(g) + \frac{7}{2}O_2(g) \rightarrow 2CO_2(g) + 3H_2O(l)\)
\(-1560 \text{ kJ/mol}\)
\(H_2(g) + \frac{1}{2}O_2(g) \rightarrow H_2O(l)\)
\(-285.8 \text{ kJ/mol}\)
Analysis & Work Zone:
Check Reaction 1:
Where is \(C_2H_4\)?
Check Reaction 2:
Where is \(C_2H_6\)?
Check Reaction 3:
Where is \(H_2\)?
Sum of modified equations and final cancellation check:
Final Mission Enthalpy \(\Delta H\) =
02
Mission: Nitrogen Monoxide Production
TARGET EQUATION:
\(4NH_3(g) + 5O_2(g) \rightarrow 4NO(g) + 6H_2O(g)\)
(A) \(N_2(g) + O_2(g) \rightarrow 2NO(g)\) \(\Delta H = -180.5 \text{ kJ}\)
(B) \(N_2(g) + 3H_2(g) \rightarrow 2NH_3(g)\) \(\Delta H = -91.8 \text{ kJ}\)
(C) \(2H_2(g) + O_2(g) \rightarrow 2H_2O(g)\) \(\Delta H = -483.6 \text{ kJ}\)
Step-by-Step Reconnaissance:
Check \(NH_3\): Target requires \(4NH_3\) as a reactant. Reaction (B) has 2 on the product side. What two actions must you take on (B)?
Check \(NO\): Target requires \(4NO\) as a product. Reaction (A) provides 2 on the product side. What multiplier is needed for (A)?
Check \(H_2O\): Target requires \(6H_2O\) as a product. Reaction (C) has 2 on the product side. What multiplier is needed for (C)?
Workspace for Modified Equations & Enthalpies:
Total Enthalpy Change \(\Delta H\) =
03
Mission: Acetic Acid Formation
Intelligence Check: A "Heat of Formation" (\(\Delta H_f^\circ\)) is the energy change for making 1 mole of a substance from its elements in standard states (\(C, H_2, O_2\)).
TARGET EQUATION:
Hess Puzzle Activity Hess Pathfinders
The Reaction Puzzle Challenge
Student:
Date:
Mission Briefing
Your goal is to determine the enthalpy change (\(\Delta H\)) for a Target Reaction by manipulating a set of Intermediate Equations . Use the cut-out strips from Page 2 to physically organize your pathway.
Rule A: Flip
If you reverse a strip, flip it over and change the sign of \(\Delta H\).
Rule B: Scale
If you multiply coefficients, multiply the \(\Delta H\) by the same number.
Puzzle Alpha
Target: \(2\text{C(s)} + \text{O}_2\text{(g)} \rightarrow 2\text{CO(g)}\)
Equation Manipulation Value \(\Delta H\) (kJ) Strip #1: _________________________________________________ Strip #2: _________________________________________________ Final Enthalpy Sum: kJ
Puzzle Beta
Target: \(\text{C}_2\text{H}_4\text{(g)} + \text{H}_2\text{(g)} \rightarrow \text{C}_2\text{H}_6\text{(g)}\)
Equation Manipulation Value \(\Delta H\) (kJ) Strip #1: _________________________________________________ Strip #2: _________________________________________________ Strip #3: _________________________________________________ Final Enthalpy Sum: kJ
Equation Strip Station
Alpha Strips (Set of 2)
\(\text{C(s)} + \text{O}_2\text{(g)} \rightarrow \text{CO}_2\text{(g)}\) \(\Delta H = -393.5\text{ kJ}\)
\(2\text{CO(g)} + \text{O}_2\text{(g)} \rightarrow 2\text{CO}_2\text{(g)}\) \(\Delta H = -566.0\text{ kJ}\)
Beta Strips (Set of 3)
\(\text{C}_2\text{H}_4\text{(g)} + 3\text{O}_2\text{(g)} \rightarrow 2\text{CO}_2\text{(g)} + 2\text{H}_2\text{O(l)}\) \(\Delta H = -1411\text{ kJ}\)
\(\text{C}_2\text{H}_6\text{(g)} + \frac{7}{2}\text{O}_2\text{(g)} \rightarrow 2\text{CO}_2\text{(g)} + 3\text{H}_2\text{O(l)}\) \(\Delta H = -1560\text{ kJ}\)
\(\text{H}_2\text{(g)} + \frac{1}{2}\text{O}_2\text{(g)} \rightarrow \text{H}_2\text{O(l)}\) \(\Delta H = -286\text{ kJ}\)
Pathfinder Scratchpad Hess Mission Answer Key Hess Mission Answer Key
Teacher Intelligence Report - Full Tactical Solutions
UNIT: Energy in Chemical Bonds
LEVEL: Chemistry 12 / Honors
01
Ethane Synthesis
Keep (1): \(C_2H_4(g) + 3O_2(g) \rightarrow 2CO_2(g) + 2H_2O(l)\) \(\Delta H = -1411 \text{ kJ}\)
FLIP (2): \(2CO_2(g) + 3H_2O(l) \rightarrow C_2H_6(g) + \frac{7}{2}O_2(g)\) \(\Delta H = +1560 \text{ kJ}\)
Keep (3): \(H_2(g) + \frac{1}{2}O_2(g) \rightarrow H_2O(l)\) \(\Delta H = -285.8 \text{ kJ}\)
Verification: Oxygen counts (\(3 + 0.5\)) = \(3.5\) reactants vs \(3.5\) products. Carbon and Hydrogen balance perfectly.
FINAL SUM: \(-1411 + 1560 - 285.8 = \) -136.8 kJ/mol
02
Nitrogen Monoxide Production
MULT (A) x 2: \(2N_2(g) + 2O_2(g) \rightarrow 4NO(g)\) \(\Delta H = 2(-180.5) = -361.0 \text{ kJ}\)
FLIP & MULT (B) x 2: \(4NH_3(g) \rightarrow 2N_2(g) + 6H_2(g)\) \(\Delta H = 2(+91.8) = +183.6 \text{ kJ}\)
MULT (C) x 3: \(6H_2(g) + 3O_2(g) \rightarrow 6H_2O(g)\) \(\Delta H = 3(-483.6) = -1450.8 \text{ kJ}\)
Verification: \(2N_2\) and \(6H_2\) are cancelled intermediates. Net oxygen is \(5O_2\).
FINAL SUM: \(-361 + 183.6 - 1450.8 = \) -1628.2 kJ/mol
03
Acetic Acid Formation
FLIP (1): \(2CO_2(g) + 2H_2O(l) \rightarrow HC_2H_3O_2(l) + 2O_2(g)\) \(\Delta H = +875 \text{ kJ}\)
MULT (2) x 2: \(2C(s) + 2O_2(g) \rightarrow 2CO_2(g)\) \(\Delta H = 2(-394.51) = -789.02 \text{ kJ}\)
MULT (3) x 2: \(2H_2(g) + O_2(g) \rightarrow 2H_2O(l)\) \(\Delta H = 2(-285.8) = -571.6 \text{ kJ}\)
Standard State: This synthesizes acetic acid from \(C\), \(H_2\), and \(O_2\).
FINAL SUM: \(875 - 789.02 - 571.6 = \) -485.62 kJ/mol
04
Hydrogen Cyanide Synthesis
FLIP & DIVIDE (A) by 2: \(NH_3(g) \rightarrow 0.5N_2(g) + 1.5H_2(g)\) \(\Delta H = +45.9 \text{ kJ}\)
FLIP (B): \(CH_4(g) \rightarrow C(s) + 2H_2(g)\) \(\Delta H = +74.9 \text{ kJ}\)
DIVIDE (C) by 2: \(0.5H_2(g) + C(s) + 0.5N_2(g) \rightarrow HCN(g)\) \(\Delta H = +135.15 \text{ kJ}\)
Algebra Check: \(1.5H_2 + 2H_2\) (products) minus \(0.5H_2\) (reactant) = \(3H_2\) net product.
FINAL SUM: \(45.9 + 74.9 + 135.15 = \) +255.95 kJ/mol
Hess Practice Worksheet Hess Law Practice
Navigating Chemical Energy Pathways
Student:
Date:
1
Reverse Reaction
Switch the sign of \(\Delta H\) (positive \(\leftrightarrow\) negative)
2
Multiply Coefficients
Multiply \(\Delta H\) by that same scale factor
Q1
Target: \(2\text{H}_2\text{O}_2\text{(l)} \rightarrow 2\text{H}_2\text{O(l)} + \text{O}_2\text{(g)}\)
(1) \(\text{H}_2\text{(g)} + \text{O}_2\text{(g)} \rightarrow \text{H}_2\text{O}_2\text{(l)}\) \(\Delta H = -188\text{ kJ}\)
(2) \(\text{H}_2\text{(g)} + \frac{1}{2}\text{O}_2\text{(g)} \rightarrow \text{H}_2\text{O(l)}\) \(\Delta H = -286\text{ kJ}\)
Final \(\Delta H\): kJ
Q2
Target: \(\text{C(s)} + 2\text{H}_2\text{(g)} \rightarrow \text{CH}_4\text{(g)}\)
(1) \(\text{C(s)} + \text{O}_2\text{(g)} \rightarrow \text{CO}_2\text{(g)}\) \(\Delta H = -394\text{ kJ}\)
(2) \(\text{H}_2\text{(g)} + \frac{1}{2}\text{O}_2\text{(g)} \rightarrow \text{H}_2\text{O(l)}\) \(\Delta H = -286\text{ kJ}\)
(3) \(\text{CH}_4\text{(g)} + 2\text{O}_2\text{(g)} \rightarrow \text{CO}_2\text{(g)} + 2\text{H}_2\text{O(l)}\) \(\Delta H = -890\text{ kJ}\)
Final \(\Delta H\): kJ
Energy Connection: Cellular Respiration
In your body, the breakdown of glucose occurs in dozens of enzymatic steps (Glycolysis, Krebs Cycle) rather than one violent explosion. Based on Hess's Law, how does the total energy released in your cells compare to burning glucose all at once in a lab? Explain.
Hess Practice Answer Key Answer Key
Hess Law Practice
Teacher Resource
Solutions Verified
Q1
Target: \(2\text{H}_2\text{O}_2\text{(l)} \rightarrow 2\text{H}_2\text{O(l)} + \text{O}_2\text{(g)}\)
Step 1: Reverse Eq (1) & Multiply by 2
\(2\text{H}_2\text{O}_2\text{(l)} \rightarrow 2\text{H}_2\text{(g)} + 2\text{O}_2\text{(g)}\) \(\Delta H = +376\text{ kJ}\)
Step 2: Multiply Eq (2) by 2
\(2\text{H}_2\text{(g)} + \text{O}_2\text{(g)} \rightarrow 2\text{H}_2\text{O(l)}\) \(\Delta H = -572\text{ kJ}\)
Final \(\Delta H = -196\text{ kJ}\)
Q2
Target: \(\text{C(s)} + 2\text{H}_2\text{(g)} \rightarrow \text{CH}_4\text{(g)}\)
Step 1: Eq (1) as is
\(\text{C(s)} + \text{O}_2\text{(g)} \rightarrow \text{CO}_2\text{(g)}\) \(\Delta H = -394\text{ kJ}\)
Step 2: Multiply Eq (2) by 2
\(2\text{H}_2\text{(g)} + \text{O}_2\text{(g)} \rightarrow 2\text{H}_2\text{O(l)}\) \(\Delta H = -572\text{ kJ}\)
Step 3: Reverse Eq (3)
\(\text{CO}_2\text{(g)} + 2\text{H}_2\text{O(l)} \rightarrow \text{CH}_4\text{(g)} + 2\text{O}_2\text{(g)}\) \(\Delta H = +890\text{ kJ}\)
Final \(\Delta H = -76\text{ kJ}\)
Body Chemistry Connection
Answer: The total energy released is exactly the same. Enthalpy (\(\Delta H\)) is a state function, meaning it depends only on the starting point (glucose + oxygen) and the ending point (carbon dioxide + water). Whether the pathway is a 1-step combustion or a 100-step enzymatic process, the total enthalpy change remains constant according to Hess's Law.
Common Misconception: Students often forget to flip the sign of \(\Delta H\) when reversing an equation. Remind them that if a reaction is exothermic in one direction, it MUST be endothermic in the other.
Hess Puzzle Answer Key Activity Answer Key
Hess Pathfinders: The Reaction Puzzle
Teacher Resource
Solution Path Verified
Puzzle Alpha
Target: \(2\text{C(s)} + \text{O}_2\text{(g)} \rightarrow 2\text{CO(g)}\)
Step 1: Multiply Strip #1 by 2
\(2\text{C(s)} + 2\text{O}_2\text{(g)} \rightarrow 2\text{CO}_2\text{(g)}\)
\(\Delta H = -787.0\text{ kJ}\)
Step 2: Reverse Strip #2
\(2\text{CO}_2\text{(g)} \rightarrow 2\text{CO(g)} + \text{O}_2\text{(g)}\)
\(\Delta H = +566.0\text{ kJ}\)
Final Enthalpy Sum
(-787.0 + 566.0)
\(-221.0\text{ kJ}\)
Puzzle Beta
Target: \(\text{C}_2\text{H}_4\text{(g)} + \text{H}_2\text{(g)} \rightarrow \text{C}_2\text{H}_6\text{(g)}\)
Step 1: Use Strip #1 as is
\(\text{C}_2\text{H}_4\text{(g)} + 3\text{O}_2\text{(g)} \rightarrow 2\text{CO}_2\text{(g)} + 2\text{H}_2\text{O(l)}\)
\(\Delta H = -1411\text{ kJ}\)
Step 2: Use Strip #3 as is
\(\text{H}_2\text{(g)} + \frac{1}{2}\text{O}_2\text{(g)} \rightarrow \text{H}_2\text{O(l)}\)
\(\Delta H = -286\text{ kJ}\)
Step 3: Reverse Strip #2
\(2\text{CO}_2\text{(g)} + 3\text{H}_2\text{O(l)} \rightarrow \text{C}_2\text{H}_6\text{(g)} + \frac{7}{2}\text{O}_2\text{(g)}\)
\(\Delta H = +1560\text{ kJ}\)
Final Enthalpy Sum
(-1411 - 286 + 1560)
\(-137\text{ kJ}\)
Facilitation Notes
Encourage students to physically cross out terms on their cut-out strips once they've arranged them.
Key Insight (Beta): Help students see that \(3 + 0.5 = 3.5\) oxygen molecules on the reactant side cancels the \(3.5\) on the product side.Remind students that flipping the reaction direction means they must flip the enthalpy sign.
Baggie Reaction Lab Report Baggie Reaction Lab Report
Unit: Energy in Chemical Bonds | Investigation 01
Name:
Date:
Learning Objectives
• Identify signs that indicate a chemical reaction has taken place.
• Distinguish between reactants and products in a closed system.
• Classify a chemical reaction as exothermic or endothermic .
Background: 5 Signs of a Chemical Change
1
Color Change
2
Energy Release
3
Gas Formation
4
Precipitate
5
Odor Release
Materials List
Ziploc baggie (sealable)
1 tsp Baking Soda (Sodium Bicarbonate)
1 tsp Calcium Chloride
Plastic pipette with indicator solution
Safety goggles & gloves
Safety Protocol
Wear eye protection at all times. Do not open the baggie once the reaction has started. Handle chemicals with care and wash hands after cleanup.
Procedure
Step 1 Place 1 tsp of baking soda and 1 tsp of calcium chloride into the same bottom corner of your baggie. Keep them dry!
Step 2 Fill your plastic pipette bulb with the indicator solution. Carefully place the full pipette inside the baggie without spilling it.
Step 3 Squeeze out as much air as possible from the baggie, then seal it tightly. Ensure the seal is 100% closed.
Step 4 While holding the baggie, squeeze the pipette bulb to release the liquid. Mix all chemicals together by gently massaging the baggie corner. Record observations immediately.
Data & Observations
Physical Change Detailed Observations (What did you see, feel, or hear?) Color Change Temperature Change Gas Production Odor / Other
1. List three distinct pieces of evidence observed that confirm a chemical reaction took place:
A.
B.
C.
2. Classification: Based on your temperature observations, was this reaction EXOTHERMIC or ENDOTHERMIC? Explain your reasoning using the concept of energy transfer.

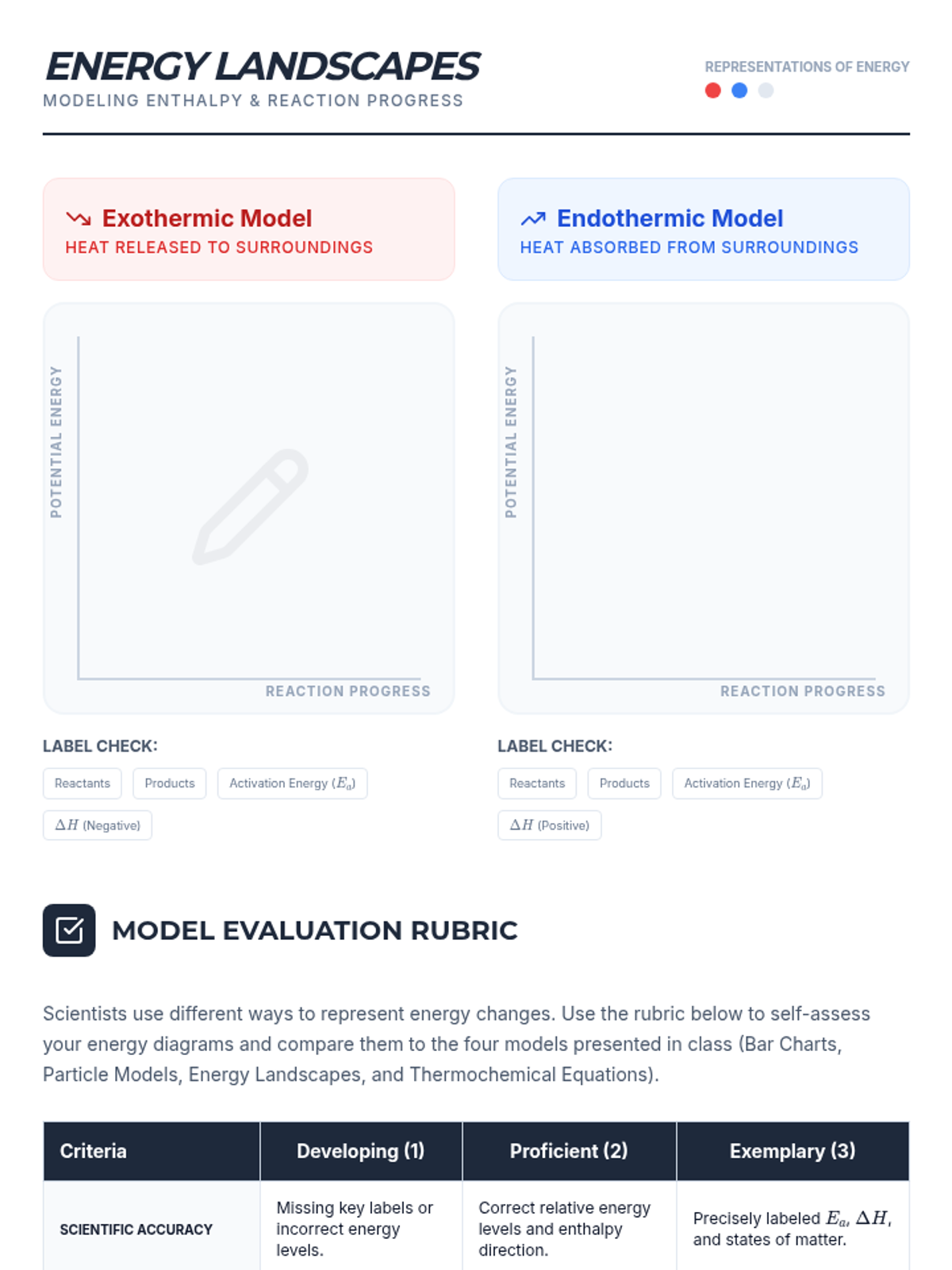

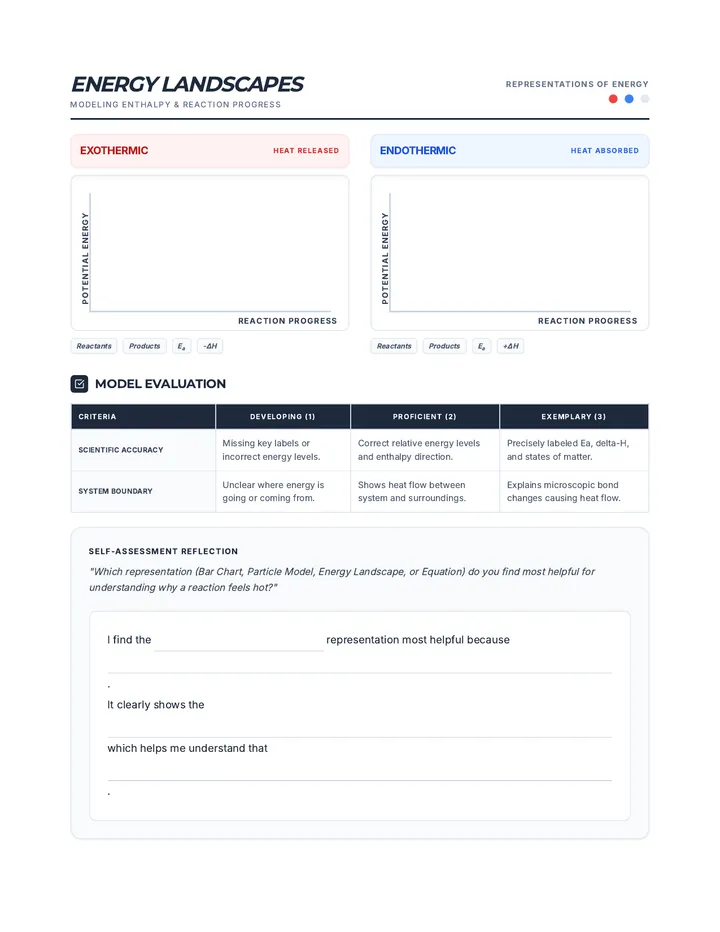

Enthalpy Models
3. Circle the graph that correctly models the energy changes in this reaction based on your findings.
Heat Tracker Worksheet HEAT TRACKER

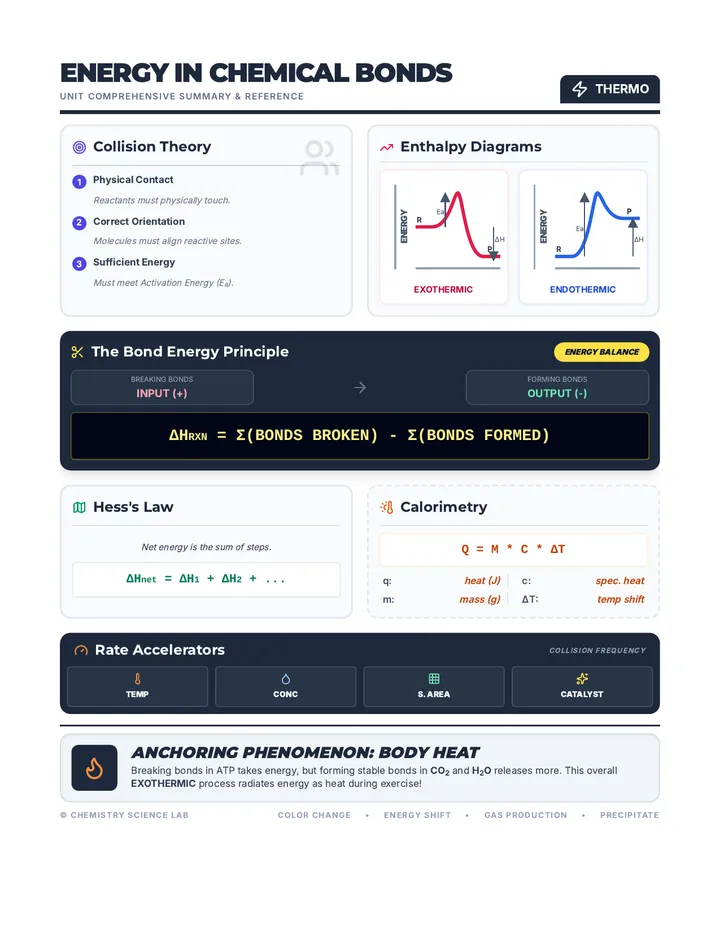

Experience 1: Energy in Chemical Bonds
Name:
Date:
The Anchoring Phenomenon
Observation Question:
"Why do you get hot when you exercise?"
I think my body gets hot because
I notice that when I exercise, the energy from moves to .
System (Internal)
Surroundings (External)
Sugar Cube Fireworks
Setup
Sugar C12H22O11 mixed with Potassium Chlorate KClO3.
Light Observation
Energy Observation
Connecting the Dots
Similarities
They are similar because...
Differences
They are different because...
Phase Shift Teacher Guide Phase Shift Secrets
Teacher's Mission Briefing: Pacing & Setup
TEKS C.13C, C.13D
Mission Objective
Students will describe and explain energy changes during phase changes by analyzing intermolecular forces (IMFs). They must use evidence to justify why Freezing is exothermic and Melting is endothermic within a 60-minute instructional block.
60-Minute Pacing Guide
00:00 - 00:08
Phase Hook: The "Ice-Cold Paradox" discussion. Why does melting ice feel cold if we are adding heat?
00:08 - 00:15
Briefing: Direct instruction on IMFs vs. Bonds. Explain the "State Function" of IMFs during phase shifts.
00:15 - 00:52
The Rotation: 4 Stations (9 minutes each). Students rotate through the activities.
00:52 - 01:00
Debrief: Exit ticket submission and final check on the exothermic/endothermic justification.
The 4 Activity Stations
1. IMF Snap-Together
Goal: Analyze Energy in Attraction
Students use magnetic building blocks. They must "pull apart" (Melting) requiring input, and "snap together" (Freezing) which releases energy/vibration.
2. Plateau Pathfinders
Goal: Heating Curve Evidence
Students analyze a heating curve of H2O. They identify why temperature stays constant during melting and where energy is directed.
3. Thermal Maps
Goal: System vs. Surroundings
Visualizing heat flow (q ). Students draw arrows for Melting (System ← Surroundings) and Freezing (System → Surroundings).
4. The Evidence Trial
Goal: Justification (CER)
Using data for enthalpy of fusion (ΔHfus), students write a formal justification for why freezing is an exothermic process.
Setup Checklist
Station 1: 6 sets of strong magnets or industrial Velcro.Station 2: Printed H2O heating curve graphs (Logic Cards).Station 4: Evidence Cards with ΔHfus data for H2O and Methanol.
Common Misconceptions
"Freezing feels cold, so it must be endothermic."
Correct: Freezing is the release of heat. The surroundings feel cold because they are losing heat TO the ice when it melts, or the air feels warmer as water freezes (latent heat release).
"IMFs are the same as chemical bonds."
Correct: Phase changes involve attractions BETWEEN molecules (IMFs), not breaking covalent or ionic bonds WITHIN them.
Thermal Phase Mastery Worksheet Thermal Phase Mastery
Analyzing Heat Flow and State Changes
Scientist:
Date:
Period:
Reference: Heating Curve of Water
100°C 0°C -50°C
A B C D E
0 800 1600 2400 3200
Heat Absorbed (kJ)
Formula Arsenal
State Change (Plateau)
q = m × H
Temp Change (Slope)
q = m × Cp × ΔT
• Hf = 333 J/g
• Hv = 2260 J/g
• Cp,liq = 4.18 J/g°C
• Cp,ice = 2.03 J/g°C
1
The Heat of Fusion (Hf )
1. What is the heat needed to melt 10.0 grams of ice at 0°C?
Mass (m)
Constant (Hf )
q = m • Hf
2. Grams of ice melted with 668 J?
3. Heat released if 100.0g freezes?
2
Sensible Heat (Temperature Shift)
4. If 10.0 grams of water are heated from 20°C to 50°C, how much heat is needed?
m
Cp
ΔT
q = mCpΔT
5. 200. grams of water is heated from 24.0°C to 100.0°C. Calculate the total heat added.
3
The Heat of Vaporization (Hv )
6. What is the heat needed to vaporize 10.0 grams of water at 100°C?
7. Grams vaporized with 6780 J?
8. Heat released if 2.0g condenses?
Critical Graph Analysis
9. What is the melting point and freezing point from the graph?
MP: ________
FP: ________
10. What is the boiling point of water from the graph?
BP: ________
11. Which segments (A-E) show ENDOTHERMIC transitions?
Segments: ________________
12. Which segments (A-E) show EXOTHERMIC transitions?
Segments: ________________
Multi-Step Synthesis Challenges
13. Calculate the heat needed to melt 100.0 g of ice and heat it to 100°C.
2 STEPS
Step 1: Melting Ice (0°C)
Step 2: Warming Liquid (0 to 100°C)
Total Calculation Sum (Joules):
14. Calculate the heat needed to convert 550. g of ice at -15.0°C to water at 10.0°C.
3 STEPS
Constants: Cp,ice = 2.03 | Hf = 333 | Cp,liq = 4.18
Step 1: Warming Ice
Phase Shift Station Guide Phase Shift Station Guide
Thermodynamics Station Rotation
Name: ___________________________
Date: ___________________________
1 IMF Snap-Together (Modeling)
Task: Test the magnetic models
Pull magnets apart (Melting) vs. Let magnets snap (Freezing).
1. When you are "Melting" (pulling molecules apart), is energy being added to the system or released? Explain.
2. Why does "Freezing" (snapping together) release energy (Exothermic)?
2 Plateau Pathfinders (Graphing)
Identify the temperature at segment B-C (Plateau): ________________ °C
Critical Analysis:
Why does the temperature stop increasing even though heat is still being added during melting?
Evidence Check:
At this plateau, energy is being used to overcome __________________________________________ (IMFs).
3 Thermal Flow Maps (Visualizing)
Draw heat flow arrows (q ) between the System and the Surroundings .
MELTING
System
FREEZING
System
Thermicity: ENDOTHERMIC
Thermicity: EXOTHERMIC
4 The Evidence Trial (Justification)
Claim: "A lake freezing in winter releases heat, slowing the drop in air temperature."
Justification (using Evidence Card data):
MELTING: System absorbs heat to OVERCOME IMFs (Endo)
FREEZING: System releases heat as IMFs FORM (Exo)
Thermal Phase Mastery Answer Key Teacher Answer Key
Thermal Phase Mastery Solutions
Mastery Key
Hf
333 J/g
Hv
2260 J/g
Cp (Liq)
4.18 J/g°C
Cp (Ice)
2.03 J/g°C
Phase 1: Fusion Calculations
1. Melt 10.0g ice:
q = (10.0 g) × (333 J/g) = 3330 J
2. Mass from 668 J:
m = 668 / 333 = 2.01 g
3. Heat from freezing 100.0g:
q = 100.0 × (-333) = -33,300 J
Phase 2: Temperature Change
4. 10.0g water (20°C to 50°C):
q = (10.0) × (4.18) × (30) = 1254 J
5. 200.g water (24.0°C to 100.0°C):
q = (200) × (4.18) × (76) = 63,536 J
Phase 3: Vaporization
6. Vaporize 10.0g water:
q = (10.0) × (2260) = 22,600 J
7. Mass from 6780 J:
m = 6780 / 2260 = 3.0 g
8. Heat from condensing 2.0g:
q = 2.0 × (-2260) = -4520 J
Phase 4: Graph Analysis
9. MP / FP:
0°C
10. Boiling Point:
100°C
11. Endothermic Segments:
A, B, C, D, E
12. Exothermic Segments:
None shown (Reverse process)
Phase 5: Synthesis Logic
13 Melt & Heat 100g water to 100°C
STEP 1: MELT 100 × 333 = 33,300 J
STEP 2: HEAT 100 × 4.18 × 100 = 41,800 J
Total Net Heat: 33,300 + 41,800 = 75,100 J
14 Convert 550g Ice (-15°C) to Water (10°C)
1. Warm Ice: 550 × 2.03 × 15 = 16,747.5 J
2. Melt: 550 × 333 = 183,150 J
3. Warm Liq: 550 × 4.18 × 10 = 22,990 J
Cumulative Energy Transition
222,887.5 J
*Rounded: 223,000 J or 2.23 × 105 J
Phase Logic Task Cards 1
Conceptual Logic
The Plateau Paradox
During segment B (Melting) on a heating curve, energy is being absorbed at a constant rate.
Why does the temperature NOT increase during this time even though heat is being added?
Identify which type of energy is increasing: Kinetic or Potential?
Thermal Logic Set
2
Graph Analysis
Heating vs. Cooling
Imagine a curve for Steam starting at 120°C cooling down to Ice at -20°C.
Vapor → Liquid
Is this specific phase transition endothermic or exothermic? Explain the heat flow.
Thermal Logic Set
3
Quick Math
Enthalpy of Fusion
Given Data
Mass = 5.0 g
Hf = 333 J/g
Calculate the heat (q ) required to melt this sample of ice at 0°C.
Thermal Logic Set
4
Microscopic View
Intermolecular Forces
During Vaporization (boiling), water molecules move from the liquid phase to the gas phase.
"We must add energy to break the bonds within the water molecule (H-O bonds) during boiling."
TRUE or FALSE?
Justify your answer.
Thermal Logic Set
5
Graph Analysis
Identifying Slopes
Time →
Which line segment represents the heating of LIQUID water?
1st Slope
1st Plateau
2nd Slope
2nd Plateau
Thermal Logic Set
6
Specific Heat
Variable Impact
Two separate samples of water (Sample A: 10g, Sample B: 50g) are both heated from 20°C to 40°C.
A
B
Which sample requires MORE energy? Why?
Thermal Logic Set
7
Quick Math
Vaporization Energy
How much heat is released when 2.0 grams of steam condenses into liquid water at 100°C?
Constant
Hv = 2260 J/g
Watch your units & sign!
Thermal Logic Set
8
Prediction
The Plateau Length
In a laboratory experiment, you heat 10g of ice until it melts. Then, you repeat the experiment with 50g of ice.
Phase Shift Slides Phase Change Thermodynamics
Phase Shift
Secrets
Analyzing IMFs to justify Energy flow in Melting and Freezing.
The Ice-Cold Paradox
"If you hold an ice cube in your hand, it feels freezing cold. This means energy is leaving your body. But if energy is entering the ice cube to make it melt..."
Why is it Endo?
Today's Investigation:
How do IMFs control energy flow?
Which way does heat (q ) actually move?
The Key Player: IMFs
Intermolecular Forces
The "glue" holding molecules together.
Melting (S → L)
Energy is required to break/overcome these attractions.
Freezing (L → S)
Energy is released when molecules snap together to form these attractions.
Mission Rotation
9:00 / Round
01
IMF Snap
Use magnets to model the energy of attraction.
02
Plateau Hunt
Find the evidence hidden in heating curves.
03
Thermal Map
Draw the heat flow (q ) for phase shifts.
04
The Trial
Justify why freezing is exothermic using data.
"Rotate when the buzzer sounds!"
Station Active
08:59
Current Task
Analyzing Evidence
Focus
System vs. Surroundings
Goal
Complete Row 1 & 2
Phase Logic Cards Phase Logic Cards
Print & Cut Material
STATION 2: The Plateau Profile
H2O Curve
Temp (°C)
Heat Added (q )
SOLID Segment B-C (MELTING) LIQUID
Technical Note:
Segment B-C: Temp is constant at 0°C. Energy is used exclusively to overcome Intermolecular Forces (hydrogen bonds).
Evidence: Water (H2O)
Enthalpy of Fusion: 6.01 kJ/mol
IMF Type & Strength: High (H-Bonding)
Citrus farmers spray water on fruit before a freeze. As it freezes, it releases latent heat, protecting the crop.
Evidence: Methanol (CH3OH)
Enthalpy of Fusion: 3.22 kJ/mol
IMF Type & Strength: Medium (Dipole-Dipole)
Methanol has weaker IMFs than H2O. It requires nearly 50% less energy to melt than solid water.
Cut along the borders to separate materials for the station rotation.
Phase Logic Recording Sheet Phase Logic Log
Task Card Recording Sheet
RESEARCHER:
DATE:
PERIOD:
Rotate through the task card stations. For each card, record your final answer or explanation in the corresponding box below. Ensure all mathematical calculations show units and appropriate signs (+/-).
01 Energy Type
02 Endo vs Exo
03 Fusion Math
04 Bond Reality
05 Segment ID
06 Mass Impact
07 Vapor Math
08 Plateau Logic
09 Vocab Match
10 Energy Tally
11 Final Temp
12 Mastery Challenge
Thermodynamics Research Division
Phase Shift Answer Key Phase Shift Secrets
TEACHER ANSWER KEY & PEDAGOGICAL NOTES
Official Key
Station 1: IMF Snap-Together
1. "Melting" (pulling molecules apart):
Energy is being added (absorbed) to the system. In the magnet model, students must do work to pull magnets apart. This energy is used to overcome the magnetic attraction (IMFs).
2. "Freezing" (snapping together):
This is Exothermic because potential energy is released as heat/vibration when the attraction is satisfied. The system moves to a lower, more stable energy state.
Station 2: Plateau Pathfinders
Plateau Temp:
0 °C
Why no temp change?
Energy is increasing Potential Energy (distance between molecules) rather than Kinetic Energy (particle speed).
Station 3: Thermal Flow Maps
MELTING
Arrow Direction: Surroundings → System
Energy is taken IN to break IMF "glue".
FREEZING
Arrow Direction: System → Surroundings
Energy is pushed OUT as IMFs form.
Station 4: The Evidence Trial
Model Justification:
"Freezing is an exothermic process because energy is released into the surroundings when intermolecular forces (hydrogen bonds) are formed. Evidence from the citrus farmer observation shows that as water freezes on the fruit, it releases 6.01 kJ/mol of heat. This 'latent heat' keeps the fruit from dropping below its freezing point, proving that heat flows out of the system during freezing."
Phase Shift Secrets Thermodynamics Unit TEKS C.13C/D Mastery
Phase Logic Answer Key Phase Logic Key
Task Card Solutions & Pedagogical Notes
Teacher Resource
Card Short Answer Card Short Answer 01 Potential Energy (Breaking IMFs) 07 -4520 J (Exothermic) 02 Exothermic (Condensation) 08 Invalid (Length depends on mass) 03 1665 Joules 09 M: Endo 04 FALSE (Break IMFs, not H-O bonds) 10 Vaporization (Bigger IMF jump) 05 2nd Slope (Liquid Range) 11 40°C 06 Sample B (Greater Mass) 12 Choice B (Hv >> CpΔT)
Pedagogical Insight: Card 04
This is a major misconception. Students often think physical phase changes break chemical covalent bonds. Remind them that boiling water produces steam (H2O molecules), not hydrogen and oxygen gas.
Pedagogical Insight: Card 10
Vaporization requires completely overcoming IMFs, whereas melting only requires "loosening" them. This explains why the boiling plateau is significantly longer than the melting plateau.
Card 11 Breakdown
ΔT = q / (m • Cp)40°C
Card 12 Breakdown
A: q = (100) • (4.18) • (100) = 41,800 J
Verified Quantitative Models
Energy in Chemical Bonds Unit • Lesson 6
Thermal Blueprint Puzzle Answer Key Instructor Master Key
Phase Change Analysis Verification
Vocabulary Results
1. Liquid to Gas
VAPORIZATION
2. Movement Energy
KINETIC
3. Distance Energy
POTENTIAL
4. Melting Term
FUSION
Schematic Solutions
Liquid Phase Warming: C
Boiling Phase (D): D
Solid Phase Warming: A
Fusion / Melting: B
Gas Phase Warming: E
Decoded Secret Word
PLATEAU
Regions of Constant Temp
Instructor Insight: Emphasize that in plateau regions (B and D), the temperature does not change because energy is used to pull particles apart (increasing Potential Energy) rather than speeding them up (Kinetic Energy). Note that boiling (D) is nearly 7 times wider than melting (B) for water, representing the significantly higher energy cost of complete particle separation.
Thermal Blueprint Puzzle Student Sheet Thermal Blueprint Puzzle
Phase Change Analysis • schematic mission
Authorized User
Date Code
Master Schematic: H2O Thermal Transitions
0 C 100 C A B C D E Heat Added → Temp ↑
Terminology Recon
1. Phase Change: Liquid to Gas
2. Energy of Speed (Slopes A, C, E)
3. Energy of Position (Plateaus B, D)
4. Technical term for melting
Blueprint Decoding
Match segments A-E to descriptions:
Liquid Phase warming
Vaporization / Boiling
Solid Phase warming
Fusion (Melting)
Master Secret Code Word
HINT: The name for the flat regions where Temperature stays constant during Phase Changes.
Thermal Protocol // Mission 04 Final Energy in Chemical Bonds
Thermal Blueprint Puzzle Answer Key Instructor Master Key
Phase Change Analysis Verification
Vocabulary Results
1. Liquid to Gas
VAPORIZATION
2. Movement Energy
KINETIC
3. Distance Energy
POTENTIAL
4. Melting Term
FUSION
Schematic Solutions
Liquid Phase Warming: C
Boiling Phase (Plateau): D
Solid Phase Warming: A
Fusion / Melting: B
Gas Phase Warming: E
Decoded Secret Word
PLATEAU
Regions of Constant Temperature
Instructor Insight: In segments B and D, temperature remains flat because energy is consumed to break intermolecular attractions (increasing Potential Energy) rather than increasing average particle velocity (Kinetic Energy). Boiling (D) is proportionally longer than melting (B) in pure H2O because full separation requires significantly more energy than loosening the lattice.

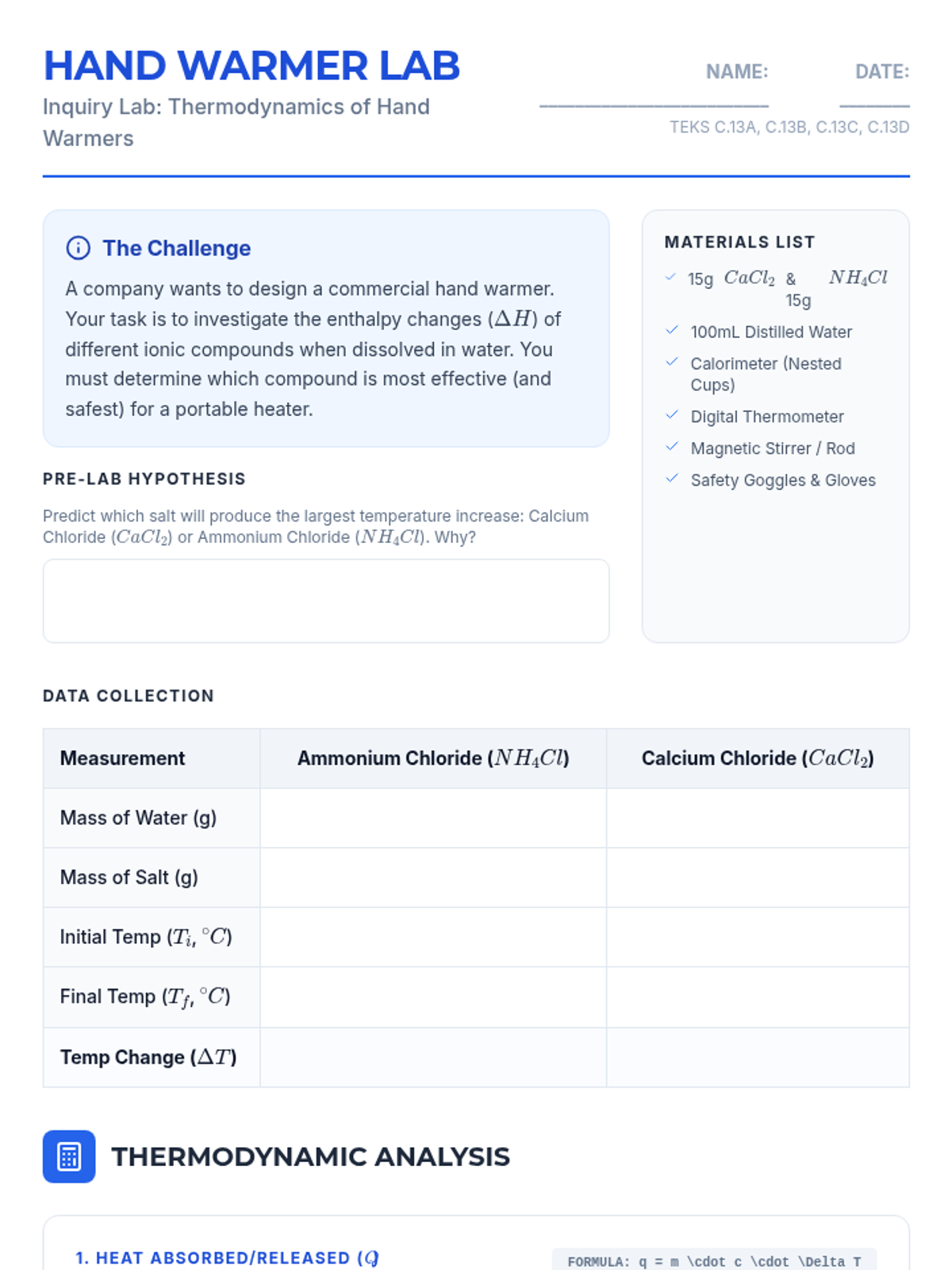

Hand Warmer Lab Report HAND WARMER LAB
Inquiry Lab: Thermodynamics
NAME: __________________________
TEKS C.13A, C.13B, C.13C, C.13D
The Challenge
Design a safe hand warmer by investigating the enthalpy changes (ΔH) of ionic compounds in water.
Pre-Lab Hypothesis
Predict the largest temperature increase: CaCl2 or NH4Cl.
I predict _________________________ because ________________________________________________________________________.
Materials
15g CaCl2
15g NH4Cl
100mL Water
Calorimeter
Thermometer
Data Collection
Measurement NH4Cl CaCl2 Mass of Water (g) Mass of Salt (g) Initial Temp (Ti, °C) Final Temp (Tf, °C) Temp Change (ΔT) ________ ________
Thermodynamic Analysis
1. Heat Absorbed/Released (q = m • c • ΔT)
c = 4.184 J/g°C
NH4Cl Calculation
q = (____g) • (4.184) • (____°C)
CaCl2 Calculation
q = (____g) • (4.184) • (____°C)
2. Conclusions
Exothermic Reaction
The salt ________________ is exothermic because the temperature __________________________________________________.
Endothermic Reaction
The salt ________________ is endothermic because the temperature __________________________________________________.
System vs Surroundings
In the exothermic reaction, heat moved from the ____________ (system) to the ____________ (surroundings).
This happened because ____________________________________________________________________________________________________________________________.
Melting Ice Answer Key Final Answer Key: Melting Ice
Master Solution Guide for Instructors
Master Key
Note: Student values will vary. This key uses sample measurements to demonstrate the correct mathematical workflow.
Sample Data Log
Measurement description Sample Trial 1 Mass of empty calorimeter (grams) 5.25 Mass of calorimeter + water (grams) 105.25 A. Isolated Mass of water (grams) 100.00 Initial Water Temp (Celsius) 25.0 Final System Temp (Celsius) 4.2 B. Temperature Change (degrees) 20.8 Mass of calorimeter + contents (grams) 131.25 C. Isolated Mass of ice (grams) 26.00
Analysis Phase I
1. Energy lost by water (Joules)
100.00g X 4.18 X 20.8C = 8,694.4 J
2. Energy used to warm melted ice (Joules)
26.00g X 4.18 X 4.2C = 456.5 J
Analysis Phase II
3. Energy used purely for MELTING (q-latent)
8,694.4 - 456.5 = 8,237.9 J
4. Joules per Gram (L)
8,237.9 / 26.00
316.8 J/g
Theoretical Value Check
The accepted value is 334 J/g . Sample data shows 5.1% error, which is common in polystyrene calorimetry.
Mission Challenge Key
Standard Problem: Cooling 500g water (22C to 5C)
Step A Demand
500 * 4.18 * 17 = 35,530 Joules
Step B Supply
334 + (4.18 * 5) = 354.9 J/g
Mass Required =
100.1
grams
Melting Ice Lab Report Final Heat of Melting Ice
Laboratory Record • Inquiry Investigation
Name
Date
Objective: Calculate how much energy (Joules) it takes to melt 1 gram of ice.
Procedure
1. Mass dry calorimeter. Record.2. Add 100 mL water. Mass again. Record.3. Measure Initial Water Temperature.4. Dab 2-3 ice cubes dry. Add to water.5. Stir. Record Lowest Final Temperature.6. Mass total contents. Record.7. Repeat for Trial 2.
Technical Standards
TEKS 1G (Models), 2C (Math)
Safety
Goggles required. Do not stir with thermometer. Glass rods only.
Data Log
Measurement description Trial 1 Trial 2 Mass of calorimeter (grams) Mass of calorimeter + water (grams) A. Isolated Mass of water (grams) Initial Water Temp (Celsius) Final System Temp (Celsius) B. Temperature Change (degrees) Mass of calorimeter + contents (grams) C. Isolated Mass of ice (grams)
Analysis: Heat Flow
1. Energy lost by water (Joules)
WATER MASS
X 4.18 X
TEMP CHANGE
=
Joules
2. Energy used to warm melted ice (Joules)
ICE MASS
X 4.18 X
FINAL TEMP
=
Joules
3. Energy used purely for MELTING
Total Lost
-
Warm Use
=
Joules
4. Joules per Gram (L)
q-latent / ice mass
5. Experimental Average
Heat of Fusion Result
Critical Mission Challenge
Calculate the grams of ice needed to cool 500g of water from 22C to 5C . Use 334 Joules per Gram as your standard value.

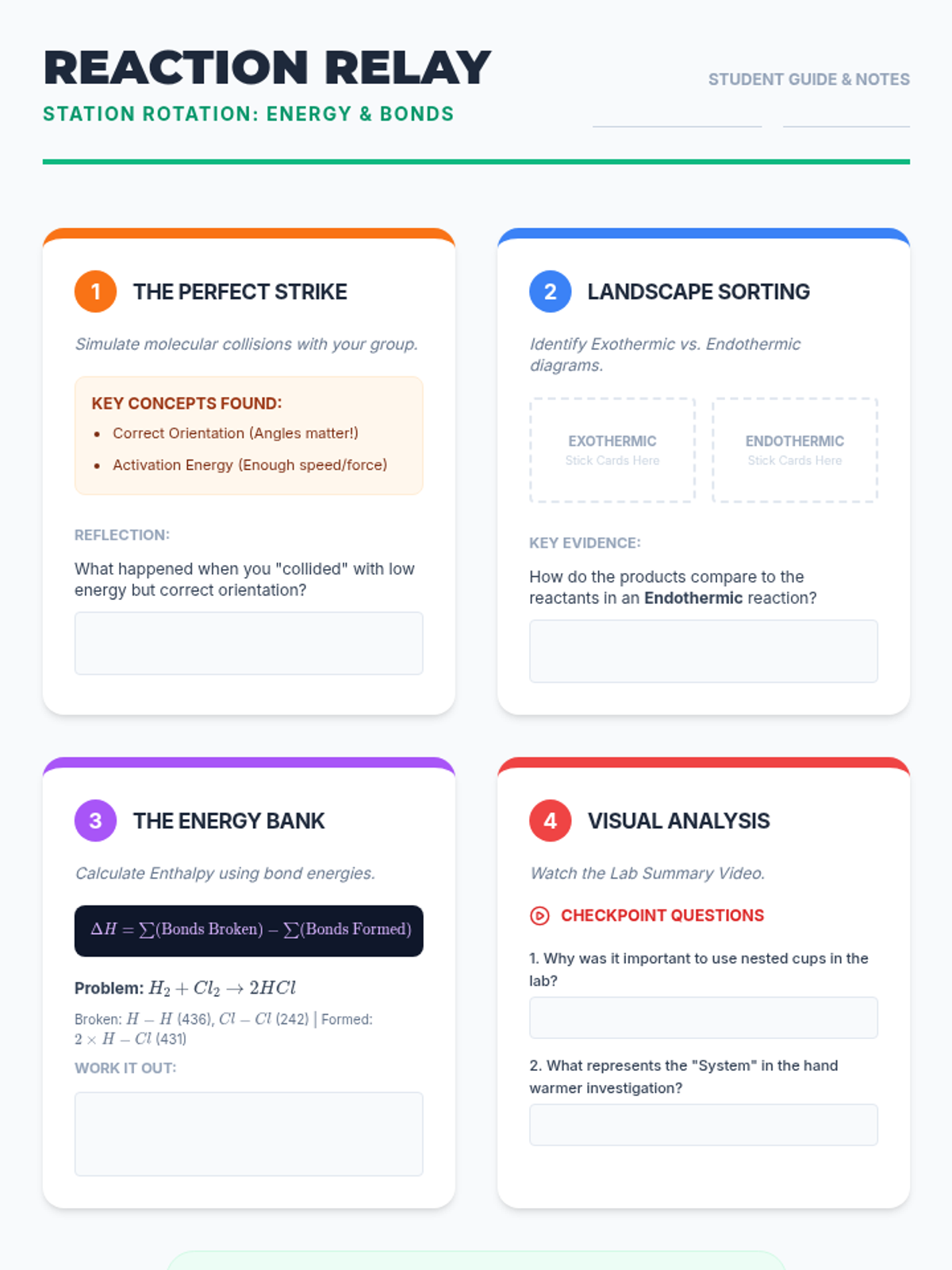

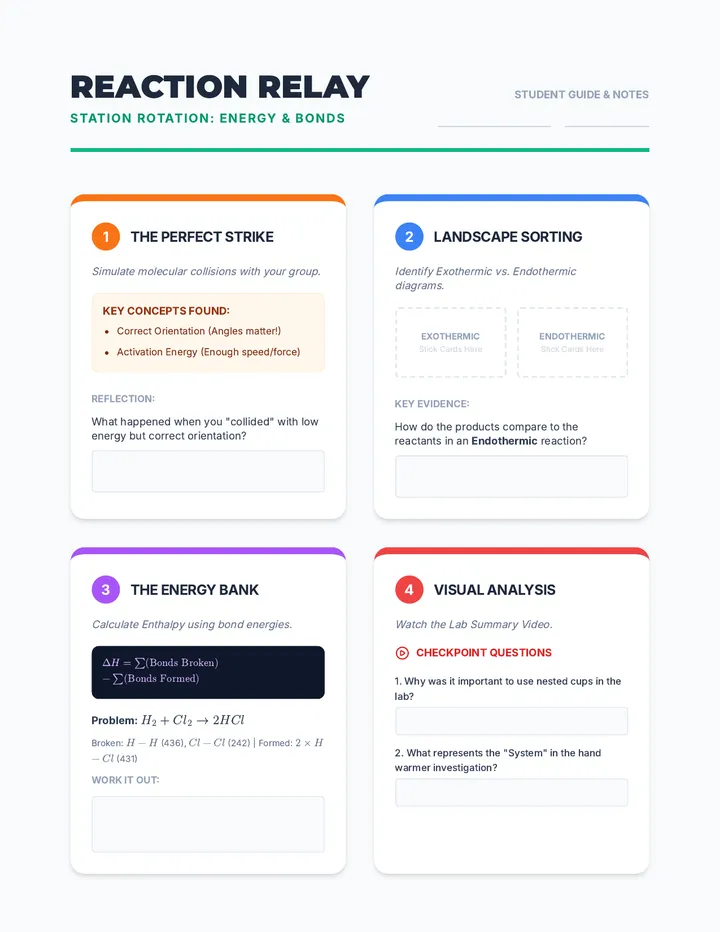

Reaction Relay Station Guide REACTION RELAY
Station Rotation: Energy & Bonds
Student Guide & Notes
1
The Perfect Strike
Simulate molecular collisions with your group.
Key Concepts Found:
Correct Orientation (Angles matter!)
Activation Energy (Enough speed/force)
Reflection:
What happened when you "collided" with low energy but correct orientation?
2
Landscape Sorting
Identify Exothermic vs. Endothermic diagrams.
EXOTHERMIC Stick Cards Here
ENDOTHERMIC Stick Cards Here
Key Evidence:
How do the products compare to the reactants in an Endothermic reaction?
3
The Energy Bank
Calculate Enthalpy using bond energies.
\(\Delta H = \sum (\text{Bonds Broken}) - \sum (\text{Bonds Formed})\)
Problem: \(H_2 + Cl_2 \rightarrow 2HCl\)
Broken: \(H-H\) (436), \(Cl-Cl\) (242) | Formed: \(2 \times H-Cl\) (431)
Work It Out:
4
Visual Analysis
Watch the Lab Summary Video.
Checkpoint Questions
1. Why was it important to use nested cups in the lab?
2. What represents the "System" in the hand warmer investigation?
Station 1
Station 2
Station 3
Station 4

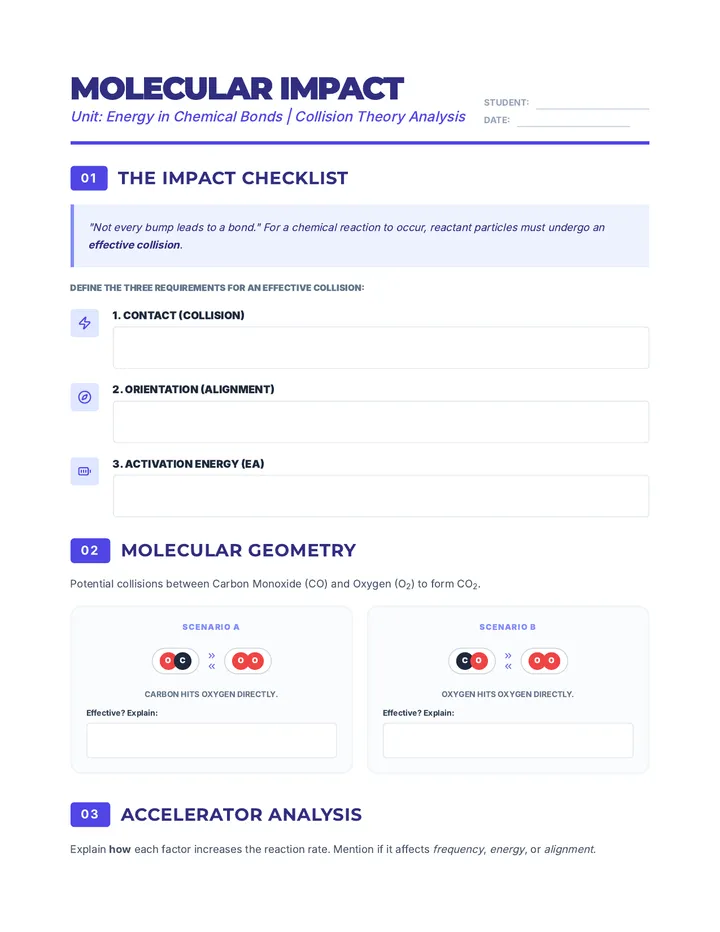

Molecular Impact Worksheet Molecular Impact
Unit: Energy in Chemical Bonds | Collision Theory Analysis
Student:
Date:
01
The Impact Checklist
"Not every bump leads to a bond." For a chemical reaction to occur, reactant particles must undergo an effective collision .
Define the three requirements for an effective collision:
1. Contact (Collision)
2. Orientation (Alignment)
3. Activation Energy (Ea)
02
Molecular Geometry
Potential collisions between Carbon Monoxide (CO) and Oxygen (O2) to form CO2.
Scenario A
O
C
O
O
Carbon hits Oxygen directly.
Effective? Explain:
Scenario B
C
O
O
O
Oxygen hits Oxygen directly.
Effective? Explain:
03
Accelerator Analysis
Explain how each factor increases the reaction rate. Mention if it affects frequency , energy , or alignment .
Temperature
Concentration
Surface Area
Catalyst
Synthesis Challenge
A large wood log burns slowly in a fireplace. However, sawdust from the same wood can create a dangerous explosion if exposed to a spark. Explain why using the concept of collision frequency.

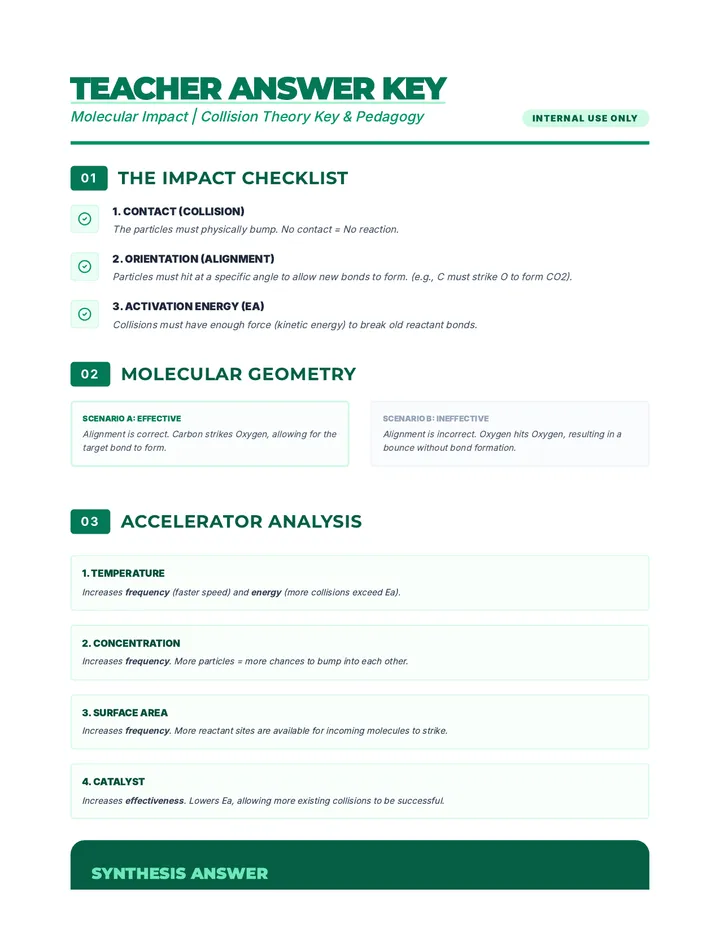

Molecular Impact Answer Key Teacher Answer Key
Molecular Impact | Collision Theory Key & Pedagogy
Internal Use Only
01
The Impact Checklist
1. Contact (Collision)
The particles must physically bump. No contact = No reaction.
2. Orientation (Alignment)
Particles must hit at a specific angle to allow new bonds to form. (e.g., C must strike O to form CO2).
3. Activation Energy (Ea)
Collisions must have enough force (kinetic energy) to break old reactant bonds.
02
Molecular Geometry
Scenario A: EFFECTIVE
Alignment is correct. Carbon strikes Oxygen, allowing for the target bond to form.
Scenario B: INEFFECTIVE
Alignment is incorrect. Oxygen hits Oxygen, resulting in a bounce without bond formation.
03
Accelerator Analysis
1. Temperature
Increases frequency (faster speed) and energy (more collisions exceed Ea).
2. Concentration
Increases frequency . More particles = more chances to bump into each other.
3. Surface Area
Increases frequency . More reactant sites are available for incoming molecules to strike.
4. Catalyst
Increases effectiveness . Lowers Ea, allowing more existing collisions to be successful.
Synthesis Answer
The sawdust has an exponentially higher surface area . This leads to a massive increase in collision frequency between wood atoms and oxygen. The energy is released almost instantly (explosion) rather than gradually (slow burn).

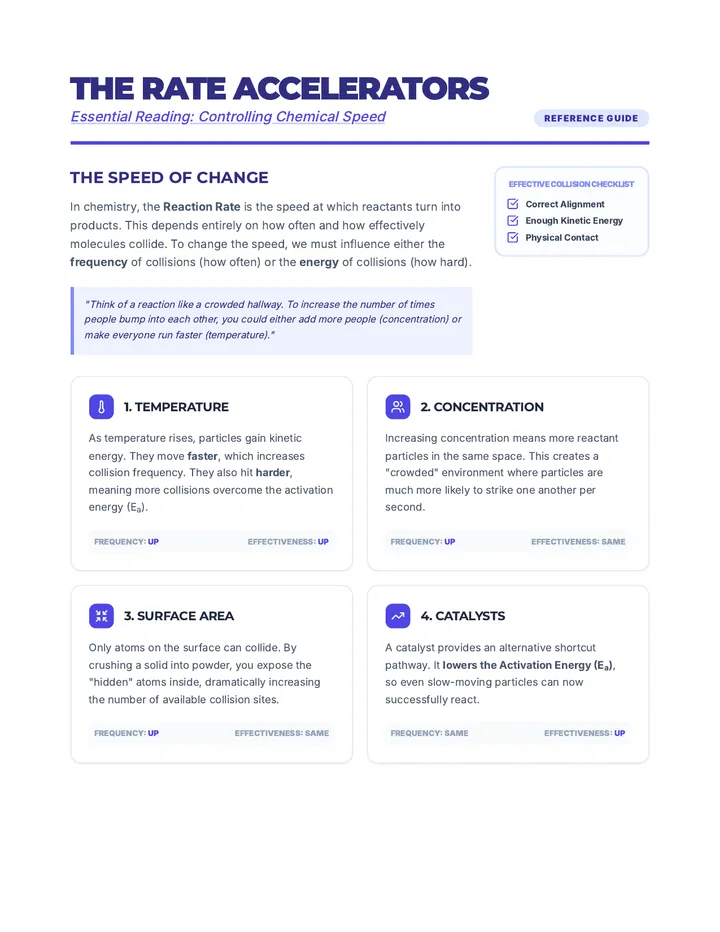

Rate Accelerators Reading The Rate Accelerators
Essential Reading: Controlling Chemical Speed
Reference Guide
The Speed of Change
In chemistry, the Reaction Rate is the speed at which reactants turn into products. This depends entirely on how often and how effectively molecules collide. To change the speed, we must influence either the frequency of collisions (how often) or the energy of collisions (how hard).
"Think of a reaction like a crowded hallway. To increase the number of times people bump into each other, you could either add more people (concentration) or make everyone run faster (temperature)."
Effective Collision Checklist
Correct Alignment
Enough Kinetic Energy
Physical Contact
1. Temperature
As temperature rises, particles gain kinetic energy. They move faster , which increases collision frequency. They also hit harder , meaning more collisions overcome the activation energy (Ea).
Frequency: UP Effectiveness: UP
2. Concentration
Increasing concentration means more reactant particles in the same space. This creates a "crowded" environment where particles are much more likely to strike one another per second.
Frequency: UP Effectiveness: SAME
3. Surface Area
Only atoms on the surface can collide. By crushing a solid into powder, you expose the "hidden" atoms inside, dramatically increasing the number of available collision sites.
Frequency: UP Effectiveness: SAME
4. Catalysts
A catalyst provides an alternative shortcut pathway. It lowers the Activation Energy (Ea) , so even slow-moving particles can now successfully react.
Frequency: SAME Effectiveness: UP
!
Key Takeaway: frequency vs effectiveness
Concentration and Surface Area only increase how often things hit. Temperature and Catalysts change how many of those hits are successful. A catalyst doesn't make molecules move faster; it just makes the "mountain" easier to climb.

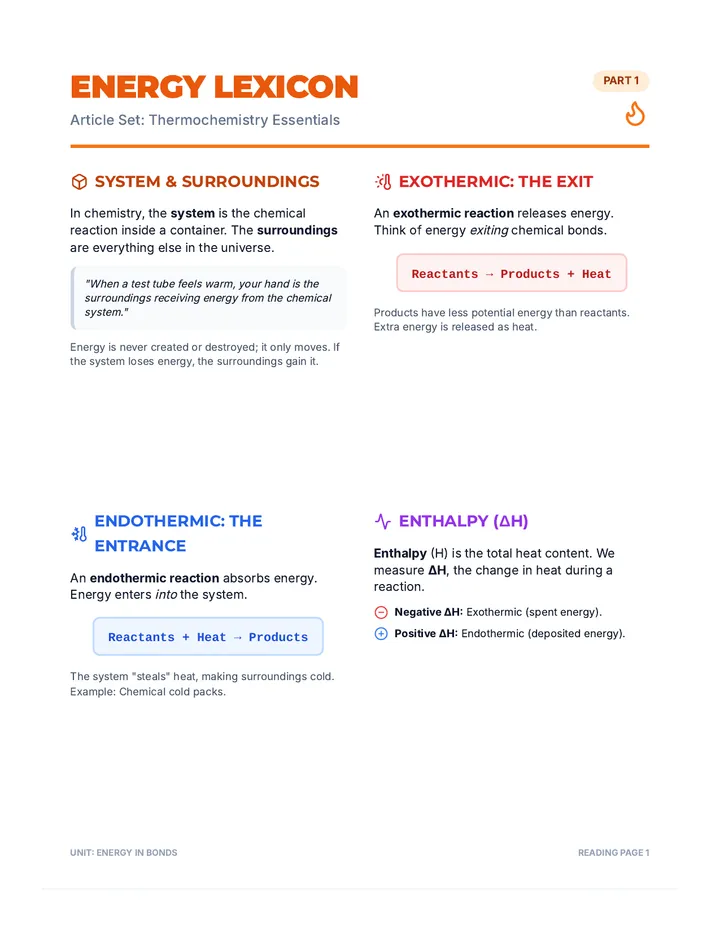

Energy Lexicon Articles Energy Lexicon
Article Set: Thermochemistry Essentials
Part 1
System & Surroundings
In chemistry, the system is the chemical reaction inside a container. The surroundings are everything else in the universe.
"When a test tube feels warm, your hand is the surroundings receiving energy from the chemical system."
Energy is never created or destroyed; it only moves. If the system loses energy, the surroundings gain it.
Exothermic: The Exit
An exothermic reaction releases energy. Think of energy exiting chemical bonds.
Reactants → Products + Heat
Products have less potential energy than reactants. Extra energy is released as heat.
Endothermic: The Entrance
An endothermic reaction absorbs energy. Energy enters into the system.
Reactants + Heat → Products
The system "steals" heat, making surroundings cold. Example: Chemical cold packs.
Enthalpy (ΔH)
Enthalpy (H) is the total heat content. We measure ΔH , the change in heat during a reaction.
Negative ΔH: Exothermic (spent energy).Positive ΔH: Endothermic (deposited energy).
Unit: Energy in Bonds Reading Page 1
Energy Lexicon
Article Set: Reaction Mechanics
Part 2
Activation Energy (Ea)
Even exothermic reactions don't just start spontaneously. A pile of wood needs a spark. This spark is the Activation Energy .
Think of it as a hill that reactants must climb. It is the minimum energy required to break existing chemical bonds. No hill climb = No reaction.
The "Energy Hill"
Collision Theory
For a reaction to work, particles must collide with:
1 Sufficient Energy: Hard enough to beat the Ea hill.
2 Proper Orientation: Right angle to connect.
Your Final Task

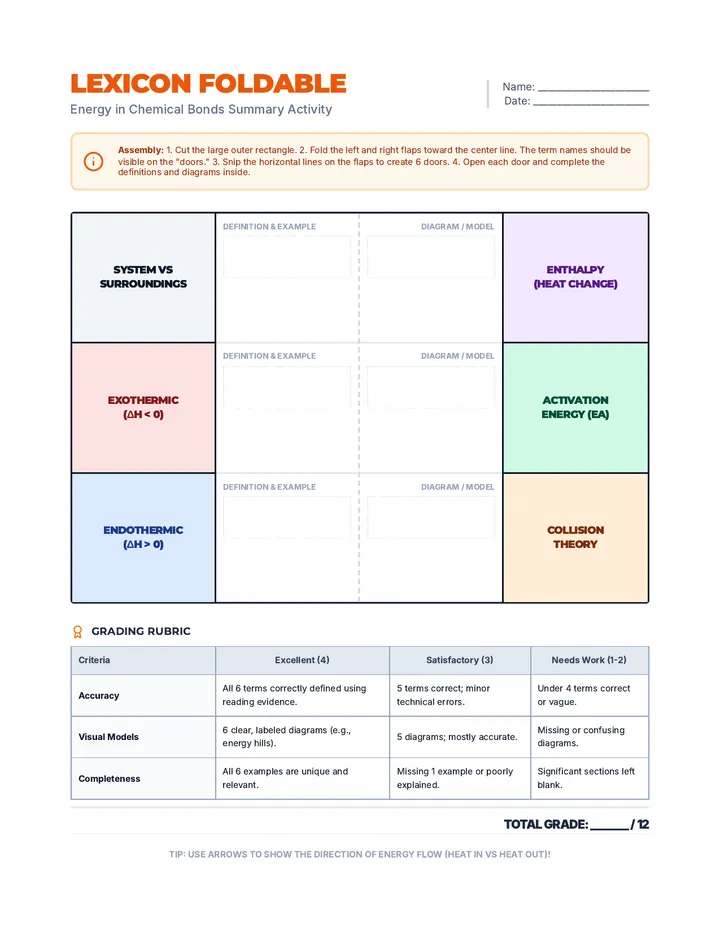

Use these articles to complete your Lexicon Foldable . A good foldable includes a clear definition, a simple diagram, and a real-world example for each term.
Review Goal
Can you explain why increasing heat increases reaction speed using Collision Theory?
Unit: Energy in Bonds Reading Page 2
Energy Landscape Models ENERGY LANDSCAPES
Modeling Enthalpy & Reaction Progress
Representations of Energy
Exothermic
Heat Released
Potential Energy
Reaction Progress
Reactants Products Ea -ΔH
Endothermic
Heat Absorbed
Potential Energy
Reaction Progress
Reactants Products Ea +ΔH
Model Evaluation
Criteria Developing (1) Proficient (2) Exemplary (3) Scientific Accuracy Missing key labels or incorrect energy levels. Correct relative energy levels and enthalpy direction. Precisely labeled Ea, delta-H, and states of matter. System Boundary Unclear where energy is going or coming from. Shows heat flow between system and surroundings. Explains microscopic bond changes causing heat flow.
Self-Assessment Reflection
"Which representation (Bar Chart, Particle Model, Energy Landscape, or Equation) do you find most helpful for understanding why a reaction feels hot?"
I find the representation most helpful because .

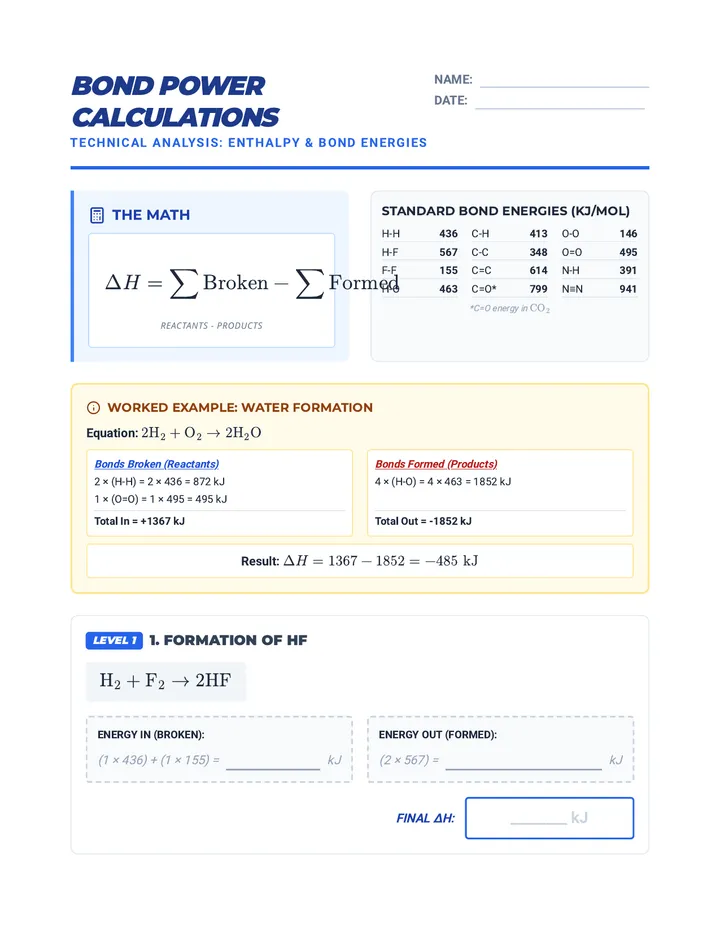

Bond Power Calculations Worksheet Bond Power Calculations
Technical Analysis: Enthalpy & Bond Energies
NAME:
DATE:
THE MATH
\[ \Delta H = \sum \text{Broken} - \sum \text{Formed} \]
Reactants - Products
Standard Bond Energies (kJ/mol)
H-H436
C-H413
O-O146
H-F567
C-C348
O=O495
F-F155
C=C614
N-H391
H-O463
C=O*799
N≡N941
*C=O energy in \(\text{CO}_2\)
WORKED EXAMPLE: WATER FORMATION
Equation: \( 2\text{H}_2 + \text{O}_2 \rightarrow 2\text{H}_2\text{O} \)
Bonds Broken (Reactants)
2 × (H-H) = 2 × 436 = 872 kJ
1 × (O=O) = 1 × 495 = 495 kJ
Total In = +1367 kJ
Bonds Formed (Products)
Result: \( \Delta H = 1367 - 1852 = -485 \text{ kJ} \)
LEVEL 1 1. FORMATION OF HF
\( \text{H}_2 + \text{F}_2 \rightarrow 2\text{HF} \)
ENERGY IN (BROKEN):
(1 × 436) + (1 × 155) =
kJ
ENERGY OUT (FORMED):
(2 × 567) =
kJ
FINAL ΔH:
________ kJ
LEVEL 2 2. COMBUSTION OF METHANE
Equation: \( \text{CH}_4 + 2\text{O}_2 \rightarrow \text{CO}_2 + 2\text{H}_2\text{O} \)
REACTANT BONDS # ENERGY C - H bonds 4 1652 O = O bonds 2 2 × 495 = ____
TOTAL IN: ____________ kJ
PRODUCT BONDS # ENERGY C = O bonds 2 1598 H - O bonds 4 4 × 463 = ____
TOTAL OUT: ____________ kJ
FINAL ENTHALPY (ΔH):
________ - ________ = ________ kJ
LEVEL 3 3. AMMONIA SYNTHESIS
Calculate the enthalpy for: \( \text{N}_2 + 3\text{H}_2 \rightarrow 2\text{NH}_3 \)
Reactants (+)
Products (-)

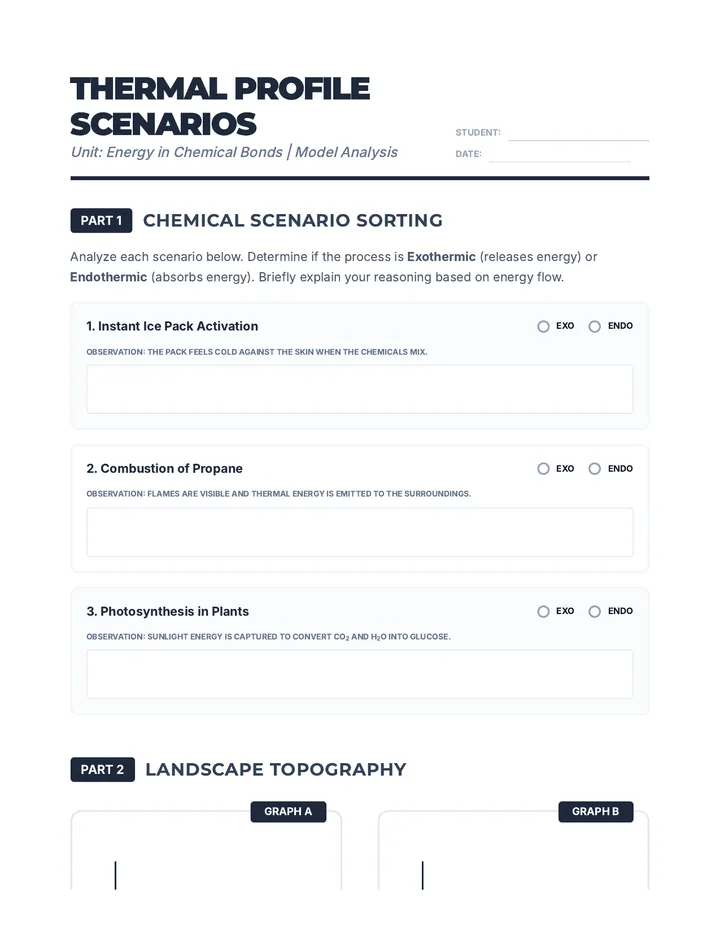

Thermal Profile Scenarios Worksheet Thermal Profile Scenarios
Unit: Energy in Chemical Bonds | Model Analysis
Student:
Date:
PART 1
Chemical Scenario Sorting
Analyze each scenario below. Determine if the process is Exothermic (releases energy) or Endothermic (absorbs energy). Briefly explain your reasoning based on energy flow.
1. Instant Ice Pack Activation
Exo
Endo
Observation: The pack feels cold against the skin when the chemicals mix.
2. Combustion of Propane
Exo
Endo
Observation: Flames are visible and thermal energy is emitted to the surroundings.
3. Photosynthesis in Plants
Exo
Endo
Observation: Sunlight energy is captured to convert CO2 and H2O into glucose.
PART 2
Landscape Topography
Graph A
Potential Energy
R
P
Change (ΔH):
(+)
(-)
Reaction Type:
Explain how you know:
Graph B
R
P
Change (ΔH):
(+)
(-)
Reaction Type:
Explain how you know:
PART 3
Modeling Challenge
Scenario: Iron Oxidation (Hand Warmer)
Equation: 4Fe + 3O2 → 2Fe2O3 + 1625 kJ
Energy Potential
Submission Checklist:
Label R and P
Draw Ea (hump)
Draw ΔH arrow
Reflection:
Why is this reaction used for warmth?

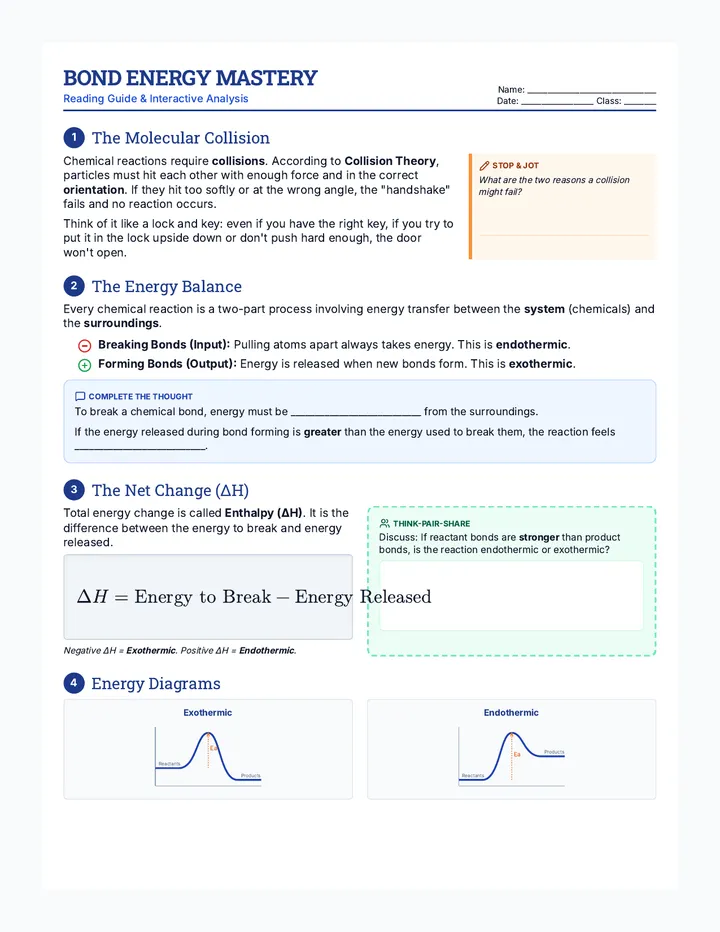

Energy Bonds Reading Guide Bond Energy Mastery
Reading Guide & Interactive Analysis
Name: ________________________________
Date: __________________ Class: ________
1
The Molecular Collision
Chemical reactions require collisions . According to Collision Theory , particles must hit each other with enough force and in the correct orientation . If they hit too softly or at the wrong angle, the "handshake" fails and no reaction occurs.
Think of it like a lock and key: even if you have the right key, if you try to put it in the lock upside down or don't push hard enough, the door won't open.
Stop & Jot
What are the two reasons a collision might fail?
2
The Energy Balance
Every chemical reaction is a two-part process involving energy transfer between the system (chemicals) and the surroundings .
Breaking Bonds (Input): Pulling atoms apart always takes energy. This is endothermic .Forming Bonds (Output): Energy is released when new bonds form. This is exothermic .
Complete the thought
To break a chemical bond, energy must be ___________________________ from the surroundings.
If the energy released during bond forming is greater than the energy used to break them, the reaction feels ___________________________.
3
The Net Change (ΔH)
Total energy change is called Enthalpy (ΔH) . It is the difference between the energy to break and energy released.
\[ \Delta H = \text{Energy to Break} - \text{Energy Released} \]
Negative ΔH = Exothermic . Positive ΔH = Endothermic .
Think-Pair-Share
Discuss: If reactant bonds are stronger than product bonds, is the reaction endothermic or exothermic?
4
Energy Diagrams
Exothermic
Ea Reactants Products
Endothermic
Ea Reactants Products
Energy Practice Zone
1. Guided Step-by-Step
Guided
Breaking bonds: 500 kJ/mol . Forming bonds: 750 kJ/mol .
FormulaΔH = Brk - Frm
Math500 - 750
Final**-250 kJ/mol**
Energy Lexicon Foldable Lexicon Foldable
Energy in Chemical Bonds Summary Activity
Name: _______________________
Assembly: 1. Cut the large outer rectangle. 2. Fold the left and right flaps toward the center line. The term names should be visible on the "doors." 3. Snip the horizontal lines on the flaps to create 6 doors. 4. Open each door and complete the definitions and diagrams inside.
System vs
Exothermic
Endothermic
Definition & Example
Definition & Example
Definition & Example
Diagram / Model
Diagram / Model
Diagram / Model
Enthalpy
Activation
Collision
Grading Rubric
Criteria Excellent (4) Satisfactory (3) Needs Work (1-2) Accuracy All 6 terms correctly defined using reading evidence. 5 terms correct; minor technical errors. Under 4 terms correct or vague. Visual Models 6 clear, labeled diagrams (e.g., energy hills). 5 diagrams; mostly accurate. Missing or confusing diagrams. Completeness All 6 examples are unique and relevant. Missing 1 example or poorly explained. Significant sections left blank.
Total Grade: _______ / 12
Tip: Use arrows to show the direction of energy flow (Heat In vs Heat Out)!

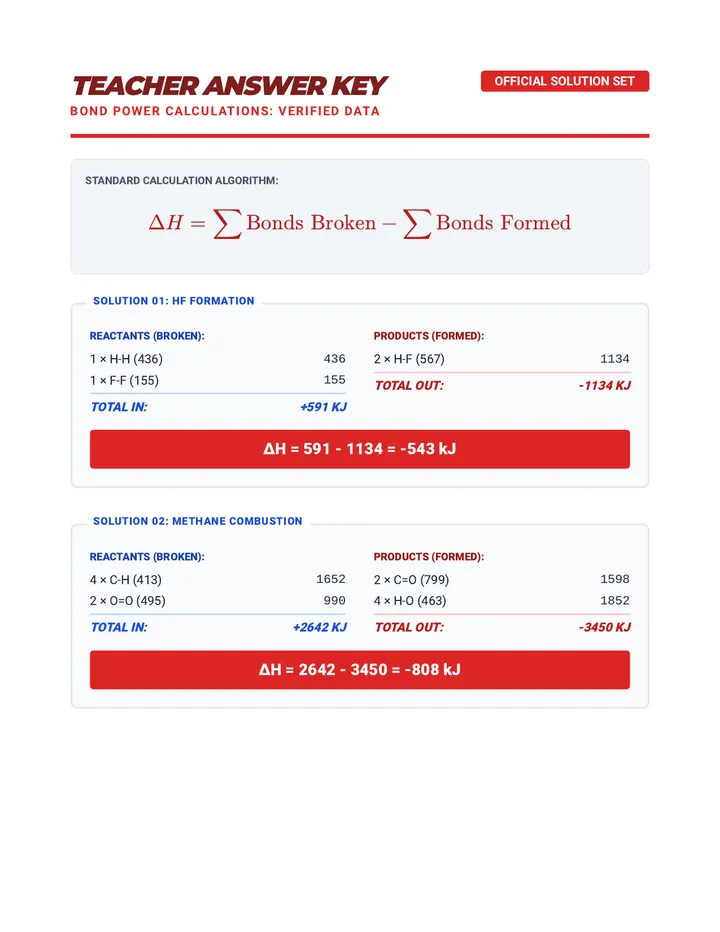

Bond Power Calculations Answer Key Teacher Answer Key
Bond Power Calculations: Verified Data
Official Solution Set
Standard Calculation Algorithm:
\[ \Delta H = \sum \text{Bonds Broken} - \sum \text{Bonds Formed} \]
Solution 01: HF Formation
Reactants (Broken):
1 × H-H (436)436
1 × F-F (155)155
Total In:+591 kJ
Products (Formed):
2 × H-F (567)1134
Total Out:-1134 kJ
ΔH = 591 - 1134 = -543 kJ
Solution 02: Methane Combustion
Reactants (Broken):
4 × C-H (413)1652
2 × O=O (495)990
Total In:+2642 kJ
Products (Formed):
2 × C=O (799)1598
4 × H-O (463)1852
Total Out:-3450 kJ
ΔH = 2642 - 3450 = -808 kJ
Instruction Strategy
Coefficient Check: Remind students that coefficients (like 2H₂) multiply the entire bond count of that molecule.Structural Visualization: Use Lewis structures to help students identify multiple bonds (e.g., N≡N has 3 bonds to break).Enthalpy Sign: Reinforce that negative results are Exothermic (heat released) and positive are Endothermic (heat absorbed).
Master Solution Key • Part II
03. Ammonia Synthesis (\(\text{N}_2 + 3\text{H}_2 \rightarrow 2\text{NH}_3\))
IN: 1(941) + 3(436) = +2249 kJ
OUT: 6(391) = -2346 kJ
ΔH = 2249 - 2346 = -97 kJ
04. Ethene Hydrogenation (\(\text{C}_2\text{H}_4 + \text{H}_2 \rightarrow \text{C}_2\text{H}_6\))
IN: 1(614) + 4(413) + 436 = +2702 kJ
OUT: 1(348) + 6(413) = -2826 kJ
ΔH = 2702 - 2826 = -124 kJ
05. H2O2 Decomposition (\(2\text{H}_2\text{O}_2 \rightarrow 2\text{H}_2\text{O} + \text{O}_2\))
IN: 2[2(463)+146] = +2144 kJ
OUT: 4(463) + 495 = -2347 kJ
ΔH = 2144 - 2347 = -203 kJ
06. Propane Advanced Calculation
Reactant Bonds Broken
2 × C-C (348)696
8 × C-H (413)3304
5 × O=O (495)2475
TOTAL+6475 kJ
Product Bonds Formed
6 × C=O (799)4794
8 × H-O (463)3704
TOTAL-8498 kJ
ΔH = 6475 - 8498 = -2023 kJ
Quality Verified Standards Alignment

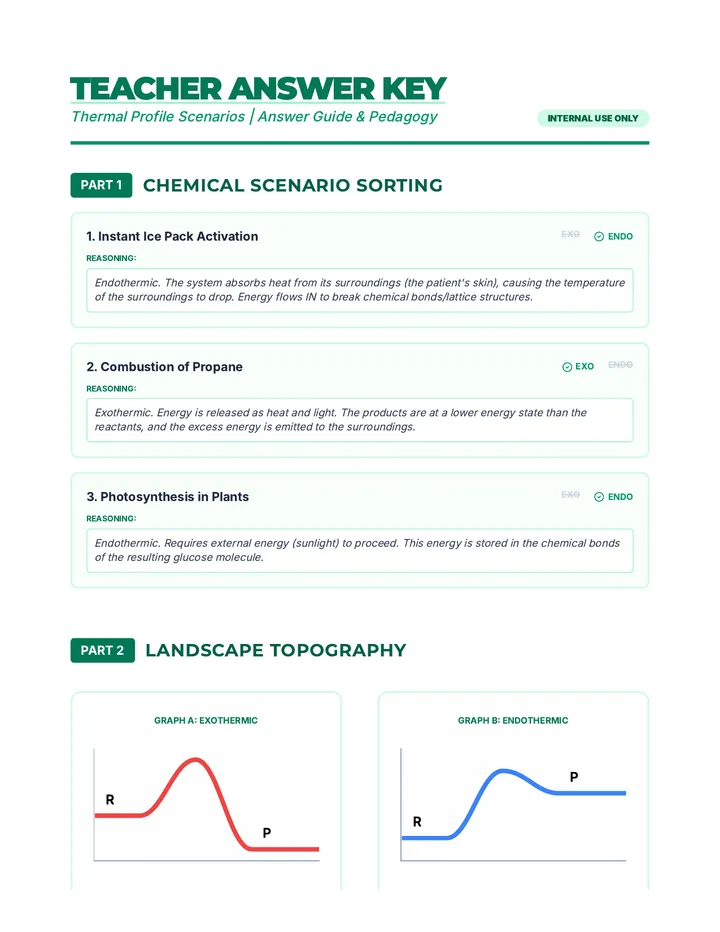

Thermal Profile Scenarios Answer Key Teacher Answer Key
Thermal Profile Scenarios | Answer Guide & Pedagogy
Internal Use Only
PART 1
Chemical Scenario Sorting
1. Instant Ice Pack Activation
Exo Endo
Reasoning:
Endothermic. The system absorbs heat from its surroundings (the patient's skin), causing the temperature of the surroundings to drop. Energy flows IN to break chemical bonds/lattice structures.
2. Combustion of Propane
Exo Endo
Reasoning:
Exothermic. Energy is released as heat and light. The products are at a lower energy state than the reactants, and the excess energy is emitted to the surroundings.
3. Photosynthesis in Plants
Exo Endo
Reasoning:
Endothermic. Requires external energy (sunlight) to proceed. This energy is stored in the chemical bonds of the resulting glucose molecule.
PART 2
Landscape Topography
Graph A: Exothermic
R P
ΔH: Negative (-)
Type: Exothermic
"Downhill" energy profile. Final products have less potential energy than reactants.
Graph B: Endothermic
R P
ΔH: Positive (+)
Type: Endothermic
"Uphill" energy profile. System absorbed energy from surroundings.
PART 3
Modeling Challenge
R (Reactants) P (Products) Ea ΔH < 0
Pedagogy Tip:
Ensure students notice the "+ 1625 kJ" is on the product side, meaning the energy is released. This requires the products (P) to be at a lower energy level than reactants (R).
Expected Reflection:
"The reaction is exothermic, meaning it releases thermal energy. This energy transfer warms the user's hands."

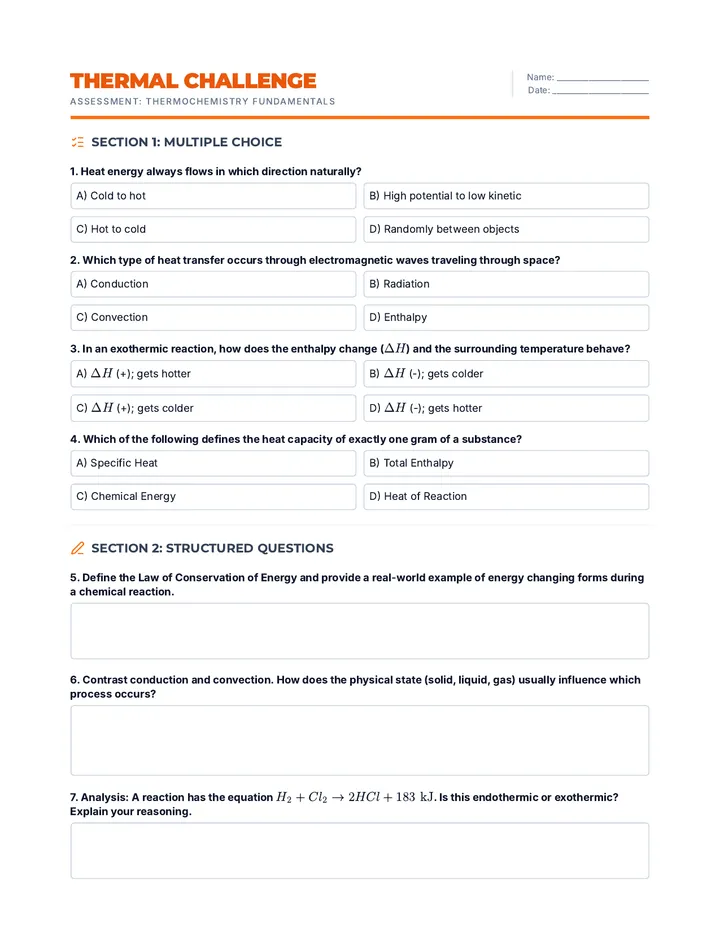

Thermal Challenge Worksheet Thermal Challenge
Assessment: Thermochemistry Fundamentals
Name: _______________________
Section 1: Multiple Choice
1. Heat energy always flows in which direction naturally?
A) Cold to hot
B) High potential to low kinetic
C) Hot to cold
D) Randomly between objects
2. Which type of heat transfer occurs through electromagnetic waves traveling through space?
A) Conduction
B) Radiation
C) Convection
D) Enthalpy
3. In an exothermic reaction, how does the enthalpy change (\(\Delta H\)) and the surrounding temperature behave?
A) \(\Delta H\) (+); gets hotter
B) \(\Delta H\) (-); gets colder
C) \(\Delta H\) (+); gets colder
D) \(\Delta H\) (-); gets hotter
4. Which of the following defines the heat capacity of exactly one gram of a substance?
A) Specific Heat
B) Total Enthalpy
C) Chemical Energy
D) Heat of Reaction
Section 2: Structured Questions
5. Define the Law of Conservation of Energy and provide a real-world example of energy changing forms during a chemical reaction.
6. Contrast conduction and convection. How does the physical state (solid, liquid, gas) usually influence which process occurs?
7. Analysis: A reaction has the equation \(H_2 + Cl_2 \rightarrow 2HCl + 183\text{ kJ}\). Is this endothermic or exothermic? Explain your reasoning.
Unit: Energy in Bonds Page 1 of 2
Thermodynamic Math
Section 3: Calculations & Diagram Analysis
The \(q = m \cdot C \cdot \Delta T\) Zone
Water (C) = \(4.18\text{ J/g}\cdot\text{K}\)
8. Calculate the heat (\(q\)) required to raise the temperature of \(50.0\text{ g}\) of water by \(15.0^\circ\text{C}\). Show all work (Formula, Substitution, and Units).
9. If a substance has a high specific heat, does it change temperature easily? Explain using the relationship between \(C\) and \(\Delta T\).
Energy Model Analysis
Reaction Progress Potential Energy
10. Label the diagram using arrows and text for each of the following:
Reactants & Products
Activation Energy (\(E_a\))
Enthalpy Change (\(\Delta H\))
11. Is this reaction exothermic or endothermic? Explain your reasoning.
Unit: Energy in Bonds Page 2 of 2

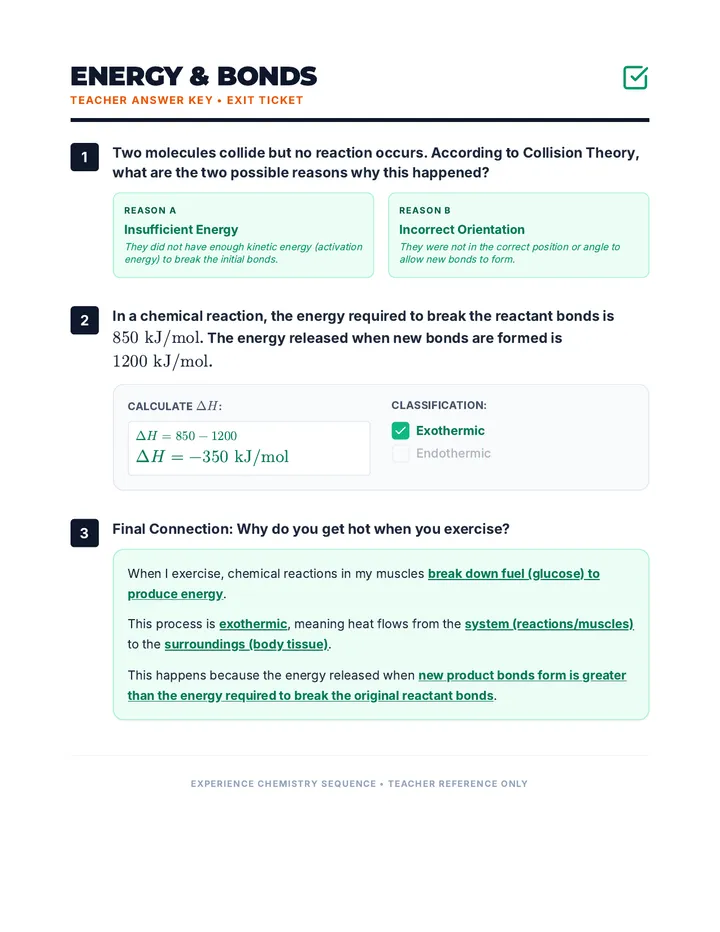

Energy Bonds Exit Ticket Answer Key Energy & Bonds
Teacher Answer Key • Exit Ticket
1
Two molecules collide but no reaction occurs. According to Collision Theory, what are the two possible reasons why this happened?
Reason A
Insufficient Energy
They did not have enough kinetic energy (activation energy) to break the initial bonds.
Reason B
Incorrect Orientation
They were not in the correct position or angle to allow new bonds to form.
2
In a chemical reaction, the energy required to break the reactant bonds is \(850\text{ kJ/mol}\). The energy released when new bonds are formed is \(1200\text{ kJ/mol}\).
Calculate \(\Delta H\):
\(\Delta H = 850 - 1200\)
\(\Delta H = -350\text{ kJ/mol}\)
Classification:
Exothermic
Endothermic
3
Final Connection: Why do you get hot when you exercise?
When I exercise, chemical reactions in my muscles break down fuel (glucose) to produce energy.
This process is exothermic, meaning heat flows from the system (reactions/muscles) to the surroundings (body tissue).
This happens because the energy released when new product bonds form is greater than the energy required to break the original reactant bonds.
Experience Chemistry Sequence • Teacher Reference Only

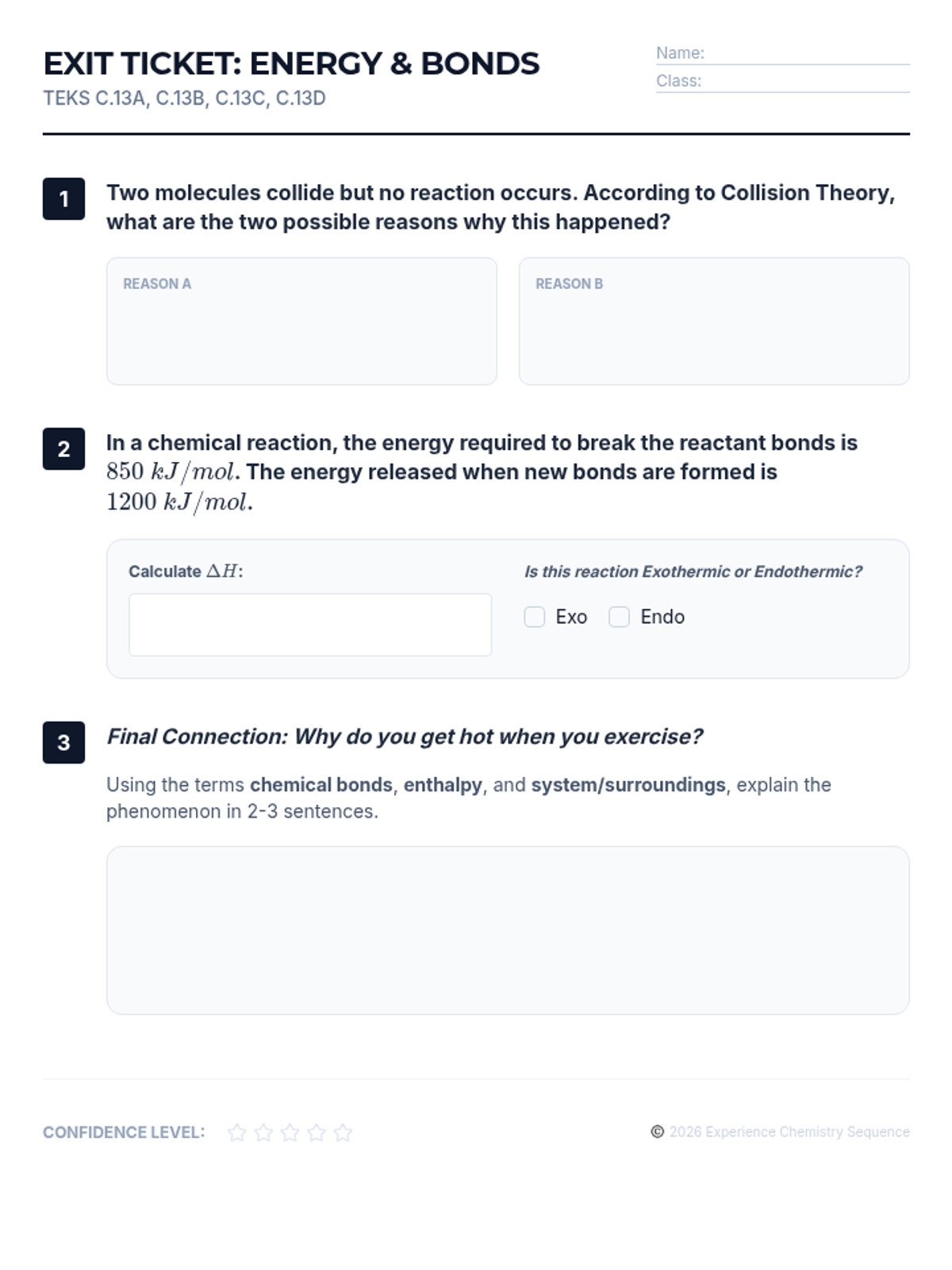

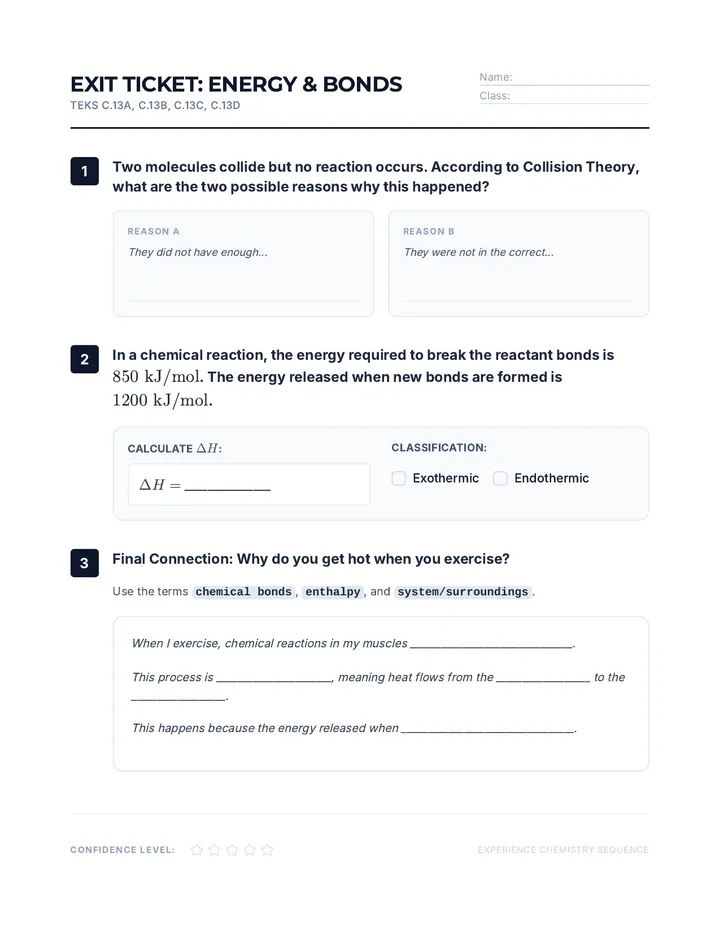

Energy Bonds Exit Ticket EXIT TICKET: ENERGY & BONDS
TEKS C.13A, C.13B, C.13C, C.13D
Name:
Class:
1
Two molecules collide but no reaction occurs. According to Collision Theory, what are the two possible reasons why this happened?
Reason A
They did not have enough...
Reason B
They were not in the correct...
2
In a chemical reaction, the energy required to break the reactant bonds is \(850\text{ kJ/mol}\). The energy released when new bonds are formed is \(1200\text{ kJ/mol}\).
Calculate \(\Delta H\):
\(\Delta H = \) _______________
Classification:
Exothermic
Endothermic
3
Final Connection: Why do you get hot when you exercise?
Use the terms chemical bonds, enthalpy, and system/surroundings.
When I exercise, chemical reactions in my muscles _______________________________.
This process is ______________________, meaning heat flows from the __________________ to the __________________.
This happens because the energy released when _________________________________.
Confidence Level:
Experience Chemistry Sequence

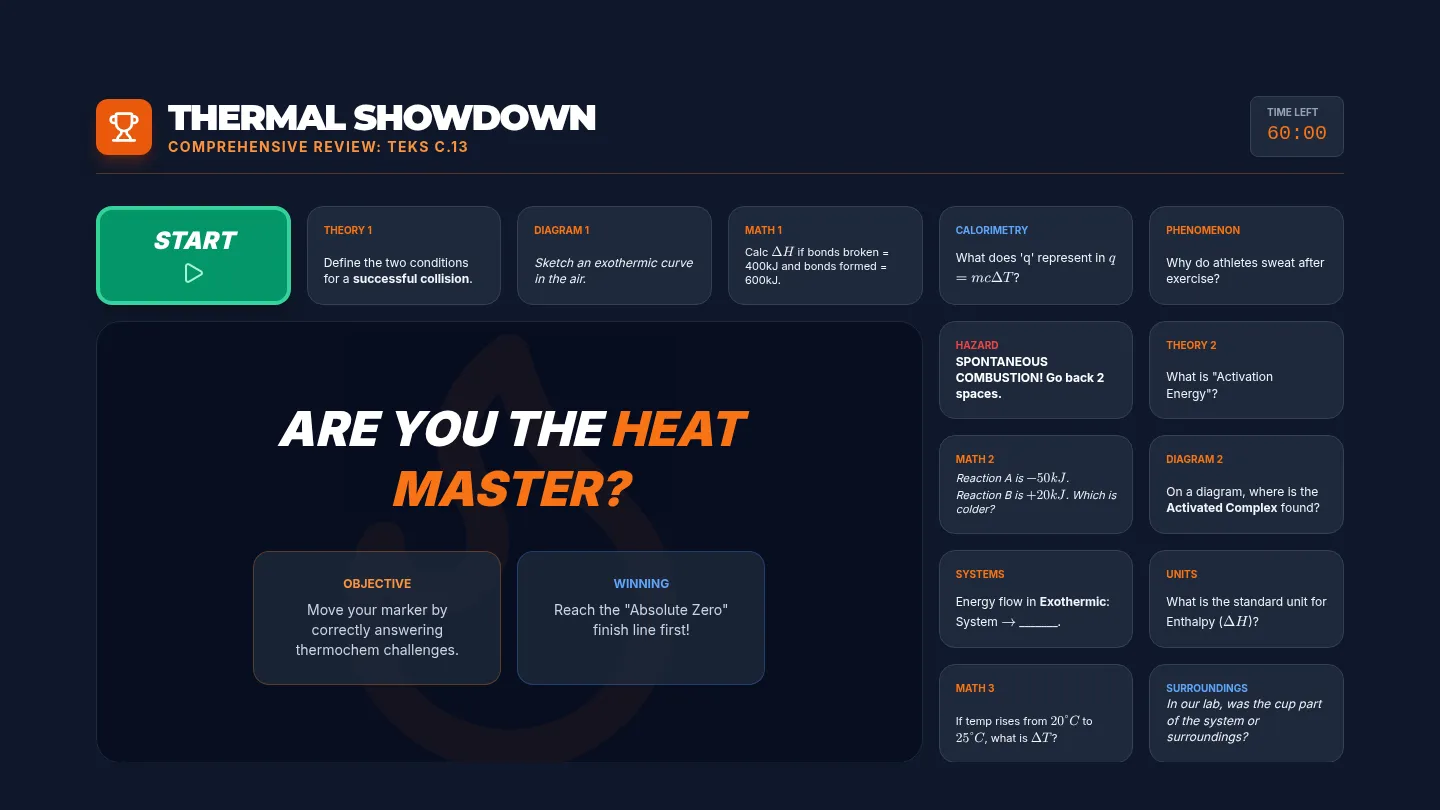

Thermal Showdown Game Board Presentation THERMAL SHOWDOWN
Comprehensive Review: TEKS C.13
Time Left
60:00
START
Theory 1
Define the two conditions for a successful collision .
Diagram 1
Sketch an exothermic curve in the air.
Math 1
Calc \(\Delta H\) if bonds broken = 400kJ and bonds formed = 600kJ.
Calorimetry
What does 'q' represent in \(q=mc\Delta T\)?
Phenomenon
Why do athletes sweat after exercise?
ARE YOU THE HEAT MASTER?
Objective
Move your marker by correctly answering thermochem challenges.
Winning
Reach the "Absolute Zero" finish line first!
Hazard
SPONTANEOUS COMBUSTION! Go back 2 spaces.
Theory 2
What is "Activation Energy"?
Math 2
Reaction A is \(-50kJ\). Reaction B is \(+20kJ\). Which is colder?
Diagram 2
On a diagram, where is the Activated Complex found?
Systems
Energy flow in Exothermic : System \(\rightarrow\) _______.
Units
What is the standard unit for Enthalpy (\(\Delta H\))?
Math 3
If temp rises from \(20^\circ C\) to \(25^\circ C\), what is \(\Delta T\)?
Surroundings
In our lab, was the cup part of the system or surroundings?
Theory 3
Why does increasing concentration speed up reactions?
ABSOLUTE ZERO
FINISH
Teams: 4 TEKS: C.13A-D
"Chemistry: The study of change... and the energy that drives it."
Bond Energy Infographic Summary Energy in Chemical Bonds
Unit Comprehensive Summary & Reference
Thermo
Collision Theory
1
Physical Contact Reactants must physically touch.
2
Correct Orientation Molecules must align reactive sites.
3
Sufficient Energy Must meet Activation Energy (Ea).
Enthalpy Diagrams
Energy
R P Ea ΔH
Exothermic
Energy
R P Ea ΔH
Endothermic
The Bond Energy Principle
Energy Balance
Breaking Bonds
Input (+)
Forming Bonds
Output (-)
ΔHrxn = Σ(Bonds Broken) - Σ(Bonds Formed)
Hess's Law
Net energy is the sum of steps.
ΔHnet = ΔH1 + ΔH2 + ...
Calorimetry
q = m * c * ΔT
q: heat (J)
c: spec. heat
m: mass (g)
ΔT: temp shift
Rate Accelerators
Collision Frequency
Temp
Conc
S. Area
Catalyst
Anchoring Phenomenon: Body Heat
Breaking bonds in ATP takes energy, but forming stable bonds in CO2 and H2O releases more. This overall EXOTHERMIC process radiates energy as heat during exercise!
© Chemistry Science Lab
Color Change • Energy Shift • Gas Production • Precipitate
Energy Map Worksheet Review Energy Map Worksheet
Infographic Synthesis & Review
Name: ________________________________________________
Date: _________________________________________________
Instructions: Use the Bond Energy Infographic Summary as your technical reference to complete the challenges below. Ensure all sketches and calculations are clear and accurate.
Part 1: The Three Requirements
Identify the three conditions required for a reaction to occur according to Collision Theory and explain their importance.
1. Physical Contact
2. Correct Orientation
3. Sufficient Energy
Part 2: Energy Landscape Modeling
A reaction has an activation energy (Ea) of 50 kJ and a net enthalpy change (ΔH) of +30 kJ. Sketch the diagram and label R (Reactants), P (Products), Ea , and ΔH .
Energy Reaction Progress
Reaction Class:
Exothermic
Endothermic
Reasoning:
Part 3: Mathematical Toolkit
Identify which formula from the infographic you would use to solve each technical scenario. Write the formula in the box provided.
Scenario A
A lab tech needs to calculate the specific heat of an unknown metal based on temperature change in a calorimeter.
Target Formula
Scenario B
You are given three intermediate reaction steps and asked to calculate the net enthalpy change for the total reaction.
Target Formula
Scenario C
A molecular model shows 4 C-H bonds breaking and 2 O=O bonds breaking. You must find the total energy balance.
Target Formula
Part 4: The Heat of Life (Anchoring Phenomenon)
Using the "Anchoring Phenomenon" section of the infographic, explain how the balance between breaking bonds in ATP and forming bonds in CO2 and H2O results in your body releasing thermal energy during physical activity.
© Chemistry Science Lab
Unit: Energy in Chemical Bonds • Lesson: Thermal Showdown
Thermal Challenge Answer Key Thermal Challenge
Teacher Answer Key • Lexicon Series
Section 1: Multiple Choice
1. Heat energy flow: C) Hot to cold
2. Electromagnetic waves: B) Radiation
3. Exothermic behavior: D) \(\Delta H\) (-); gets hotter
4. Heat capacity of 1g: A) Specific Heat
Section 2: Structured Questions
5. Law of Conservation of Energy:
Energy cannot be created or destroyed, only transformed. Example: Chemical potential energy in bonds is transformed into thermal energy (heat) in exothermic reactions.
6. Conduction vs Convection:
Conduction occurs via direct contact (solids). Convection occurs via movement of fluids (liquids/gases). Solids are better conductors because atoms are close-packed.
7. Analysis of Equation:
Exothermic. The 183 kJ is listed on the product side (right side), indicating that energy is being released during the reaction.
Section 3: Calculations & Diagrams
8. Calculation (\(q = m \cdot C \cdot \Delta T\)):
\(q = (50.0\text{ g}) \cdot (4.18\text{ J/g}\cdot\text{K}) \cdot (15.0\text{ K})\)
9. High Specific Heat:
No, it does not change temperature easily. A high specific heat (\(C\)) means more energy is required to change the temperature of the substance by 1 degree.
10 & 11. Diagram Analysis:
Exothermic. The reactants start at a higher potential energy level than the products end at. The difference (\(\Delta H\)) is released as heat.
Answer Key • Chemistry: Energy in Bonds • For Teacher Review Only
Energy Map Answer Key Energy Map Answer Key
Teacher Reference Guide
Official Key
Part 1: The Three Requirements
1. Physical Contact
Reactant molecules must physically collide/touch for a reaction to begin.
2. Correct Orientation
Molecules must be aligned so that reactive sites collide with enough precision to break/form bonds.
3. Sufficient Energy
Collisions must meet or exceed the Activation Energy (Ea) to successfully transition to products.
Part 2: Energy Landscape Modeling
R P Ea ΔH
Reaction Class:
Exothermic
Endothermic
Reasoning:
The value of ΔH is positive (+30 kJ) . In endothermic reactions, the system absorbs energy from surroundings, resulting in products having higher potential energy than reactants.
Part 3: Mathematical Toolkit
Scenario A
Specific heat / calorimeter calculation.
q = m * c * ΔT
Scenario B
Intermediate steps summed to total.
ΔHnet = ΔH1 + ΔH2 + ...
Scenario C
Subtracting formed from broken bonds.
ΔH = Σ(Broken) − Σ(Formed)
Part 4: Synthesis Key (Anchoring Phenomenon)
Core Answer Requirements:
Identify that breaking bonds in ATP (adenosine triphosphate) requires an initial input of energy.
Explain that forming bonds in the waste products (CO2 and H2O) releases a much larger amount of energy.
Conclude that the net process is EXOTHERMIC , meaning excess energy is radiated out of the system as body heat (thermal energy).
© Chemistry Science Lab
Unit: Energy in Chemical Bonds • Lesson: Thermal Showdown
Thermochemistry Study Guide Worksheet Thermochemistry Study Guide
Unit Review: Energy in Chemical Bonds
Name: ___________________________
Date: ___________________________
Section 1: Collision Rules
Guided Example
How do you know if a collision works?
Think of it like bumper cars. To react, molecules must hit with enough speed (Energy) and at the right angle (Orientation). This forms a temporary, high-energy transition state called an activated complex.
01. Based on collision theory, which THREE things are needed for a successful reaction?
Molecules must hit with the correct orientation (angle)
Molecules must form a stable, permanent intermediate
Molecules must hit with enough Activation Energy (Ea)
Molecules must form a short-lived activated complex
Section 2: Energy Graphs
Guided Example
The "Hill" Logic:
• UPHILL: The products are HIGHER than the reactants. Energy is absorbed (+ Delta H).
• DOWNHILL: The products are LOWER than the reactants. Energy is released (- Delta H).
02. Analyze the reaction graph below:
Reactants: 50 kJ
Products: 150 kJ
Enthalpy (H)
1. Reaction Type (Exo / Endo):
2. Delta H Value (kJ):
03. In an Exothermic reaction, the energy term belongs on the:
Reactant Side (Left)
Product Side (Right)
Section 3: Equations and Math
Guided Example
Energy Value Rules:
If you REVERSE a reaction, flip the sign (+ to -). If you MULTIPLY the molecules, multiply the energy by the same amount.
04. If forming 1 mole of water is -285.8 kJ, find Delta H for this reaction:
2 H2O(liquid) → 2 H2(gas) + O2(gas)
-571.6 kJ
+571.6 kJ
05. Which value represents the GREATEST amount of energy being RELEASED?
Delta H = -84.0 kJ
Delta H = -182.6 kJ
Delta H = -91.8 kJ
Delta H = -571.6 kJ
06. Burning 1 mole of Butane releases 2876 kJ. How much energy is produced by 4.00 moles?
Calculation Workspace
11,504 kJ
2,876 kJ
Section 4: Heat and Materials
Guided Example
What is Specific Heat (c)?
Think of it as temperature resistance. Metals have LOW resistance (Low c), so they heat up fast. Water has HIGH resistance (High c), so it stays cool even in the sun.
07. Material Heat Table:
Thermochemistry Study Guide Answer Key Instructor Guide
Thermochemistry Study Guide Answer Key
Solution Dossier (1-16)
Mission 01: Collision Requirements
Correct Answers:
• Molecules must hit with correct orientation (angle)
• Molecules must hit with enough Activation Energy (Ea)
• Molecules must form a short-lived activated complex
Scaffolded Logic:
Collisions fail if particles bounce off (low energy) or graze each other (wrong angle). The "complex" is a state of transition, which is by definition temporary/short-lived, never permanent.
Mission 02: Graph Analysis
Type:
Endothermic
Delta H:
+100 kJ
Step-by-Step Logic:
1. Formula: Delta H = Final Energy minus Initial Energy.
Mission 03: Equation Term
Answer: Product Side (Right)
Conceptual Logic:
Exothermic means energy "Exits" the system. Like smoke from a fire, heat is an output (product) of the reaction.
Mission 04: Reverse Math
Result: +571.6 kJ
Worked Sequence:
Step A: Start with formation (-285.8 kJ).
Mission 05: Magnitude Review
Answer: Delta H = -571.6 kJ
Logic Defense:
Magnitude refers to the absolute amount. "Released" energy implies Exothermic (negative Delta H). 571.6 is the highest value of heat produced in the set.
Mission 06: Molar Scaling
Answer: 11,504 kJ
Equation Logic:
(2876 kJ / 1 mol) x 4.00 mol = 11,504 kJ
Mission 07: Table Logic
Answer: WOOD (c = 1.70)
Strategy: Materials with higher specific heats are "stubborn." They absorb more energy before their temperature moves up. Even with high heat input, wood's temp moves slower than iron.
Mission 08: Conduction Rule
Answer: They have LOW specific heats
Logic: Low resistance to heat means they heat up instantly, which is why metals conduct energy so effectively.
Mission 09: Equilibrium Logic
Answer: FROM 40C TO 10C
Termination Logic:
Flow stops when both objects reach the same temperature (Thermal Equilibrium).
Mission 10: System/Surroundings Gap
