Field Boundary Slides Electromagnetic Fields in Matter
Lesson 1: Macroscopic Maxwell & Boundary Conditions
The Microscopic Challenge
At the atomic scale, fields fluctuate wildly due to individual electrons and nuclei.
\(\nabla \cdot \mathbf{e} = \frac{\eta}{\epsilon_0}\)
Lowercase indicates microscopic fluctuating quantities.
We need a spatial averaging process to reach macroscopic observables.
Averaging Volume \(V\)
Gaussian Pillbox / Averaging Sphere
Macroscopic Definitions
Bound Charges & Polarization
Polarization \(\mathbf{P}\) is the volume density of electric dipole moments.
\(\rho_b = -\nabla \cdot \mathbf{P}\)
Auxiliary Fields
Accounting for media effects explicitly through \(\mathbf{D}\) and \(\mathbf{H}\).
\(\mathbf{D} = \epsilon_0 \mathbf{E} + \mathbf{P}\)
Maxwell's Equations in Matter: \(\nabla \cdot \mathbf{D} = \rho_f\) and \(\nabla \times \mathbf{H} = \mathbf{J}_f + \frac{\partial \mathbf{D}}{\partial t}\)
Boundary Conditions
The fields undergo discontinuities at interfaces based on local source distributions.
1
Normal D: Jumps by surface charge \(\sigma_f\).
2
Tangential E: Always continuous.
3
Normal B: Always continuous.
4
Tangential H: Jumps by surface current \(\mathbf{K}_f\).
Mathematical Form
\((\mathbf{D}_2 - \mathbf{D}_1) \cdot \hat{\mathbf{n}} = \sigma_f\)
\(\hat{\mathbf{n}} \times (\mathbf{E}_2 - \mathbf{E}_1) = 0\)
\((\mathbf{B}_2 - \mathbf{B}_1) \cdot \hat{\mathbf{n}} = 0\)
\(\hat{\mathbf{n}} \times (\mathbf{H}_2 - \mathbf{H}_1) = \mathbf{K}_f\)
The "Infinite Conductivity" Case
"What happens to a wave when it hits a surface with infinite conductivity (\(\sigma \to \infty\))?"
Interior Conditions
Inside an ideal conductor, \(\mathbf{E} = 0\) and \(\mathbf{B} = 0\) for time-harmonic fields.
Surface Response
Surface charges and currents must rearrange instantaneously to cancel the incident field.
Result: Total reflection. No penetration.
Boundary Guide Teacher Guide Field Boundary Facilitation Guide
Lesson 1: Electromagnetic Fields in Matter and Boundary Conditions
GRADUATE LEVEL
PHYSICS: EM WAVES
Lesson Overview
This lesson bridges the gap between the microscopic Maxwell equations (vacuum fields) and the macroscopic formulations used in materials science. Students will explore how the spatial averaging of microscopic charge distributions leads to the polarization (\(\mathbf{P}\)) and magnetization (\(\mathbf{M}\)) vectors, and subsequently the auxiliary fields \(\mathbf{D}\) and \(\mathbf{H}\). The core output is the derivation and application of the four electromagnetic boundary conditions.
Key Skills
Averaging fluctuating microscopic fields
Deriving Maxwell equations in matter
Applying pillbox/loop integrals
Handling surface charge/current
Facilitation Notes
The Hook: The Infinite Wall (5-10 mins)
Prompt: "Imagine an electromagnetic wave hitting a wall of silver. Now imagine we increase the conductivity of that silver to infinity. What physically changes at the boundary?"
Guide students to realize that for \(\sigma \to \infty\), any non-zero electric field would cause an infinite current. Thus, the field inside must be zero, forcing the boundary conditions to do all the work in reflecting the wave.
Direct Instruction: Micro to Macro (20 mins)
Define the averaging volume \(V\) (much larger than atoms, much smaller than wavelength).
Derive \(\rho_b = -\nabla \cdot \mathbf{P}\) using the divergence theorem on a collection of dipoles.
Introduce \(\mathbf{D} = \epsilon_0 \mathbf{E} + \mathbf{P}\) as a tool to ignore bound charge in the source term.
Workshop: The Pillbox & The Loop (30 mins)
Have students work through the "Boundary Derivation Worksheet".
Common Pitfall:
Students often forget that \(\sigma_f\) (free surface charge) and \(\mathbf{K}_f\) (free surface current) are the only terms in the macroscopic BCs. Polarization effects are built into \(\mathbf{D}\).
Discussion Starters
Deep Theory
"If the microscopic field \(\mathbf{e}\) is the 'true' physical field, why do we treat \(\mathbf{E}\) and \(\mathbf{D}\) as physically meaningful?"
Application
"In what scenarios would the microscopic fluctuations actually matter? (Hint: X-ray diffraction, very high frequencies near atomic resonance)."
Field Boundary Facilitation Guide • Advanced Electromagnetics • Lesson 1 of 5
Boundary Derivation Worksheet Boundary Conditions Derivation
Lesson 1: Workshop & Skill-Building
Name:
Date:
Task 1
Relating P to Bound Charge
Consider a dielectric medium with polarization \(\mathbf{P}(\mathbf{r})\). Using a microscopic model of discrete dipoles \(\mathbf{p}_i\), show that the total charge density \(\rho\) can be written as \(\rho_f + \rho_b\), where \(\rho_b = -\nabla \cdot \mathbf{P}\).
Task 2
Normal Components of D and B
Apply Gauss's Law in matter (\(\oint \mathbf{D} \cdot d\mathbf{a} = Q_{f,enc}\)) and the magnetic divergence law (\(\oint \mathbf{B} \cdot d\mathbf{a} = 0\)) to an infinitesimal pillbox spanning the interface between Medium 1 and Medium 2.
Normal D Boundary Condition
Normal B Boundary Condition
Task 3
Tangential Components of E and H
Consider a rectangular loop of width \(w\) and height \(h\) across the interface. In the limit \(h \to 0\), use Faraday's Law and Ampere's Law in matter to derive the tangential jump conditions.
Tangential E Boundary Condition
Tangential H Boundary Condition
Critical Thinking
The Perfectly Conducting Interface
Suppose Medium 2 is an ideal conductor (\(\sigma \to \infty\)). For a time-harmonic wave incident from vacuum (Medium 1), explain why the surface current \(\mathbf{K}_f\) must satisfy:
\(\mathbf{K}_f = \hat{\mathbf{n}} \times \mathbf{H}_1\)
Conductor Propagation Slides Waves in Conductors
Lesson 2: Attenuation & Skin Depth
The Complex Wavevector
In a linear conductor with conductivity \(\sigma\), the wave equation for \(\mathbf{E}\) becomes:
\(\nabla^2 \mathbf{E} - \mu \epsilon \frac{\partial^2 \mathbf{E}}{\partial t^2} - \mu \sigma \frac{\partial \mathbf{E}}{\partial t} = 0\)
Assuming \(e^{i(\tilde{k}z - \omega t)}\), we define a complex wavevector \(\tilde{k} = k + i\kappa\).
Physical Significance
The real part \(k\) determines the wavelength and phase velocity .
The imaginary part \(\kappa\) determines the attenuation (decay) of the amplitude.
Skin Depth (\(\delta\))
\(\delta = \frac{1}{\kappa}\)
Definition
The skin depth is the distance over which the wave amplitude falls to \(1/e\) (\(\approx 37\%\)) of its surface value.
For a good conductor (\(\sigma \gg \omega \epsilon\)):
The Material Regime
Good Conductors
Copper, Gold, Seawater (LF)
\(\sigma \gg \omega \epsilon\)
Wave is heavily attenuated
Phase lags E-field by \(45^\circ\)
Poor Conductors
Distilled Water, Dry Soil, Plasmas (HF)
\(\sigma \ll \omega \epsilon\)
Behaves like a lossy dielectric
Attenuation is frequency-independent
Hook: The Submarine Problem
"Why do submarines need to trail kilometers-long antennas to communicate while submerged?"
Seawater Physics
Seawater (\(\sigma \approx 4\) S/m) is a good conductor. At standard radio frequencies (MHz), \(\delta\) is only a few millimeters.
The Solution
Use ELF (3-30 Hz) or VLF (3-30 kHz). Lower \(\omega\) increases \(\delta\) to dozens of meters, allowing penetration.

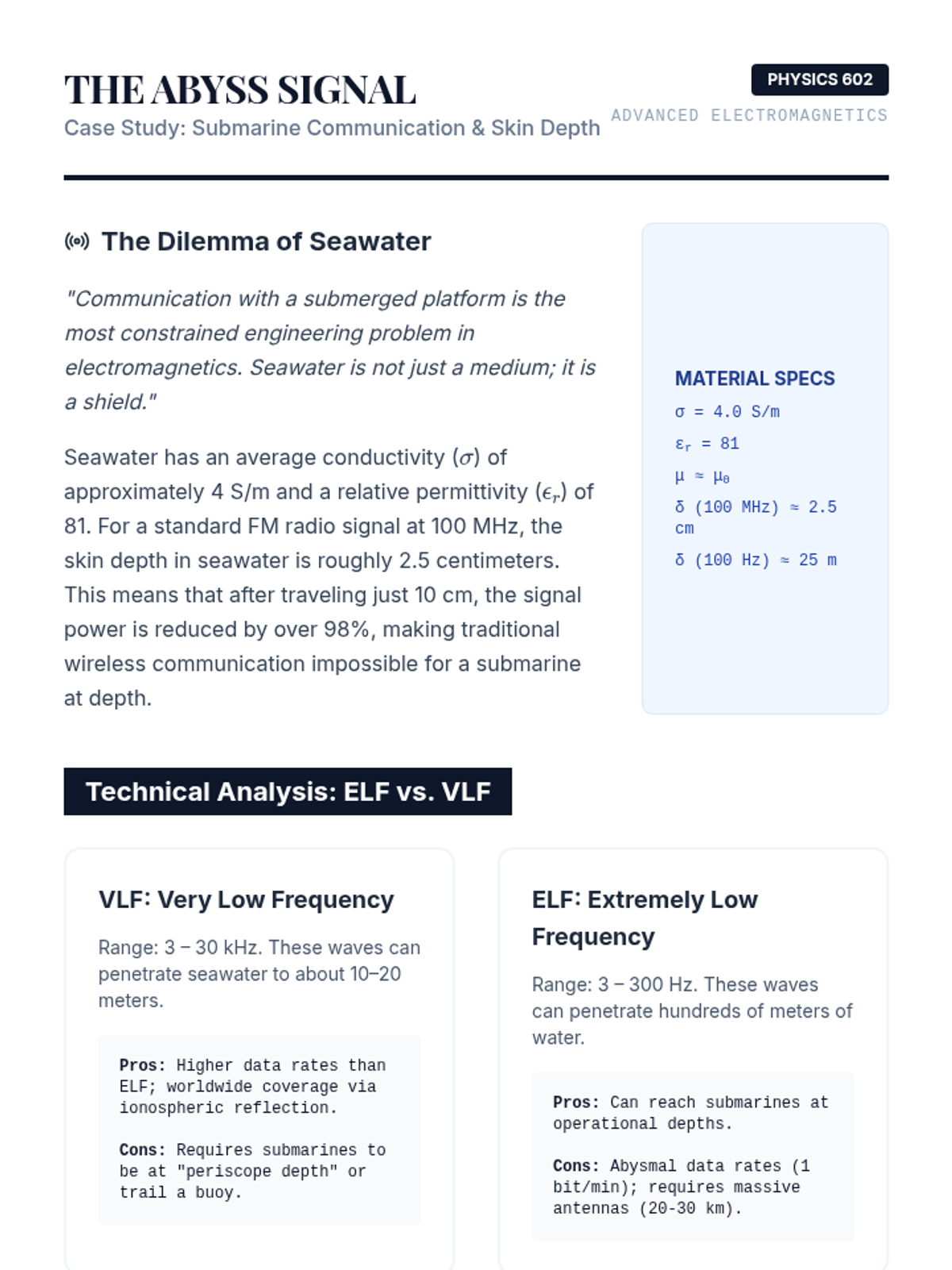

Abyss Signal Case Study The Abyss Signal
Case Study: Submarine Communication & Skin Depth
PHYSICS 602
Advanced Electromagnetics
The Dilemma of Seawater
"Communication with a submerged platform is the most constrained engineering problem in electromagnetics. Seawater is not just a medium; it is a shield."
Seawater has an average conductivity (\(\sigma\)) of approximately 4 S/m and a relative permittivity (\(\epsilon_r\)) of 81. For a standard FM radio signal at 100 MHz, the skin depth in seawater is roughly 2.5 centimeters. This means that after traveling just 10 cm, the signal power is reduced by over 98%, making traditional wireless communication impossible for a submarine at depth.
Material Specs
σ = 4.0 S/m
εr = 81
μ ≈ μ0
δ (100 MHz) ≈ 2.5 cm
δ (100 Hz) ≈ 25 m
Technical Analysis: ELF vs. VLF
VLF: Very Low Frequency
Range: 3 – 30 kHz. These waves can penetrate seawater to about 10–20 meters.
Pros: Higher data rates than ELF; worldwide coverage via ionospheric reflection.
Cons: Requires submarines to be at "periscope depth" or trail a buoy.
ELF: Extremely Low Frequency
Range: 3 – 300 Hz. These waves can penetrate hundreds of meters of water.
Pros: Can reach submarines at operational depths.
Cons: Abysmal data rates (1 bit/min); requires massive antennas (20-30 km).
Engineering Reflection
1. Why does the data rate drop so significantly as frequency decreases? Link this to the Shannon-Hartley theorem if possible.
2. In the case of ELF antennas (like Project Sanguine), they are buried in the ground in areas with low-conductivity rock (granite). Why is low ground conductivity essential for launching the wave into the ionosphere?
3. Modern subs use blue-green lasers for communication. What does this imply about the "conductivity" or "transparency" of seawater at optical frequencies vs. radio frequencies?
Skin Depth Problem Set Problem Set: Conductor Propagation
NAME: ____________________________
Complex Wavevector
\(\tilde{k} = k + i\kappa\)
Skin Depth
\(\delta = 1/\kappa\)
Good Conductor
\(\sigma \gg \omega \epsilon\)
1
The General Case
For a medium with permittivity \(\epsilon\), permeability \(\mu\), and conductivity \(\sigma\), the complex wavevector is given by \(\tilde{k} = \omega \sqrt{\mu \epsilon + i \frac{\mu \sigma}{\omega}}\). Show that in the "good conductor" limit, the real and imaginary parts of \(\tilde{k}\) are approximately equal.
SHOW YOUR WORK
2
RF Shielding: Copper vs. Foil
Calculate the skin depth \(\delta\) of copper (\(\sigma = 5.96 \times 10^7\) S/m) at 2.4 GHz (Wi-Fi frequency). If an EMI shield requires at least 10 skin depths of thickness to be effective, how thick should the copper layer be in micrometers?
CALCULATION SPACE
3
Attenuation Constants
A wave traveling in a lossy dielectric experiences a power loss of 3 dB per meter. Determine the attenuation constant \(\kappa\) and the skin depth \(\delta\). (Recall: \(dB = 10 \log_{10}(P/P_0)\) and \(P \propto |E|^2\)).
SHOW YOUR WORK
4
Reflection at a Conductor
The complex refractive index is \(\tilde{n} = \frac{c}{\omega}\tilde{k} = n + i\beta\). Using the normal incidence reflection coefficient \(R = \left| \frac{\tilde{n}-1}{\tilde{n}+1} \right|^2\), prove that for a perfect conductor (\(\sigma \to \infty\)), the reflectivity \(R = 1\).
Dispersion Models Slides Dispersion & Causality
Lesson 3: The Lorentz & Drude Models
The Lorentz Oscillator Model
Electrons in a dielectric are modeled as particles bound to nuclei by a spring-like force with damping.
\(m \frac{d^2 \mathbf{x}}{dt^2} + m \gamma \frac{d \mathbf{x}}{dt} + m \omega_0^2 \mathbf{x} = -e \mathbf{E}\)
Where \(\omega_0\) is the natural resonance frequency and \(\gamma\) is the damping constant.
e-
Displacement \(\mathbf{x}\) leads to Polarization \(\mathbf{P}\)
Complex Permittivity \(\epsilon(\omega)\)
\(\epsilon(\omega) = \epsilon_0 \left( 1 + \frac{Ne^2}{m\epsilon_0} \sum_j \frac{f_j}{\omega_j^2 - \omega^2 - i\omega \gamma_j} \right)\)
Real Part (\(\epsilon'\))
Determines the refractive index . Shows normal dispersion (increase with \(\omega\)) except near resonance.
Imaginary Part (\(\epsilon''\))
Determines the absorption . Peaked at the resonance frequency \(\omega_j\).
The Drude Model
For free electrons (metals), there is no restoring force (\(\omega_0 = 0\)).
Dielectric Function
\(\epsilon(\omega) = \epsilon_0 \left( 1 - \frac{\omega_p^2}{\omega^2 + i\omega \gamma} \right)\)
where \(\omega_p\) is the Plasma Frequency.
Below \(\omega_p\): \(\epsilon\) is mostly negative. Waves are evanescent (total reflection).
Above \(\omega_p\): Metal becomes transparent (UV range for most metals).
Causality & Kramers-Kronig
The polarization at time \(t\) depends only on the electric field at times \(t' \le t\).
This temporal causality implies a deep connection between dispersion and absorption.
KK Relations
\(\epsilon'(\omega) = 1 + \frac{2}{\pi} \mathcal{P} \int_0^\infty \frac{\omega' \epsilon''(\omega')}{\omega'^2 - \omega^2} d\omega'\)
\(\epsilon''(\omega) = -\frac{2\omega}{\pi} \mathcal{P} \int_0^\infty \frac{\epsilon'(\omega') - 1}{\omega'^2 - \omega^2} d\omega'\)

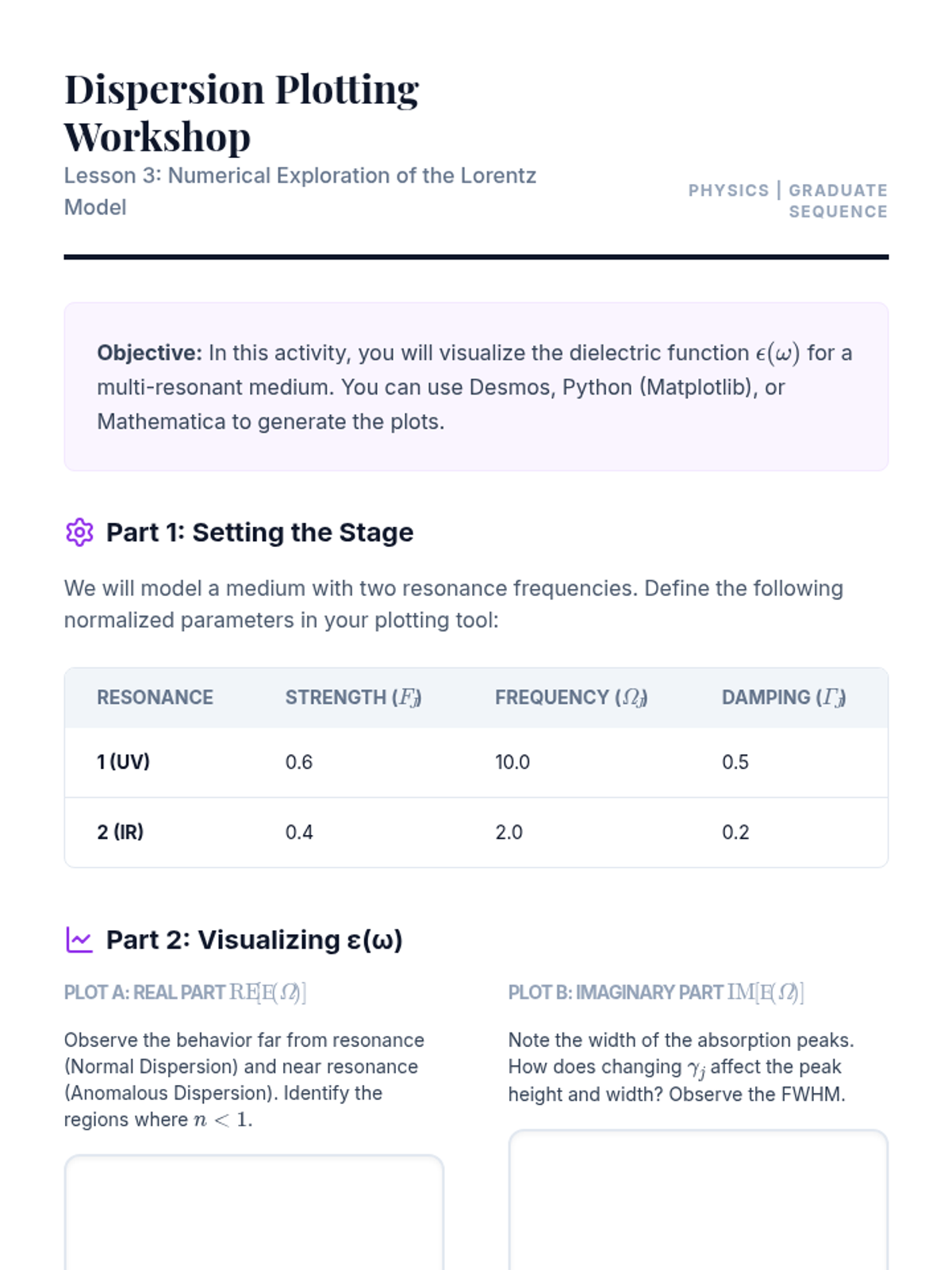

Dispersion Plotting Lab Dispersion Plotting Workshop
Lesson 3: Numerical Exploration of the Lorentz Model
Physics | Graduate Sequence
Objective: In this activity, you will visualize the dielectric function \(\epsilon(\omega)\) for a multi-resonant medium. You can use Desmos, Python (Matplotlib), or Mathematica to generate the plots.
Part 1: Setting the Stage
We will model a medium with two resonance frequencies. Define the following normalized parameters in your plotting tool:
Resonance Strength (\(f_j\)) Frequency (\(\omega_j\)) Damping (\(\gamma_j\)) 1 (UV) 0.6 10.0 0.5 2 (IR) 0.4 2.0 0.2
Part 2: Visualizing ε(ω)
Plot A: Real Part \(\text{Re}[\epsilon(\omega)]\)
Observe the behavior far from resonance (Normal Dispersion) and near resonance (Anomalous Dispersion). Identify the regions where \(n < 1\).
SKETCH YOUR RESULT HERE
Plot B: Imaginary Part \(\text{Im}[\epsilon(\omega)]\)
Note the width of the absorption peaks. How does changing \(\gamma_j\) affect the peak height and width? Observe the FWHM.
SKETCH YOUR RESULT HERE
Synthesis & Analysis
1. The "Anomalous" Region
In the frequency range where \(d\text{Re}[\epsilon]/d\omega < 0\), the phase velocity can exceed the speed of light. Does this violate relativity? Explain in terms of signal propagation.
2. The Drude Limit
Set \(\omega_j \to 0\) for resonance 2 in your model. Describe the change in the low-frequency behavior of \(\epsilon'\) and \(\epsilon''\). How does this relate to static conductivity?
3. Sum Rule Verification
Integrate your absorption peaks (\(\epsilon''\)) numerically. Does the total area relate to the oscillator strengths \(f_j\)? State the sum rule you are testing.

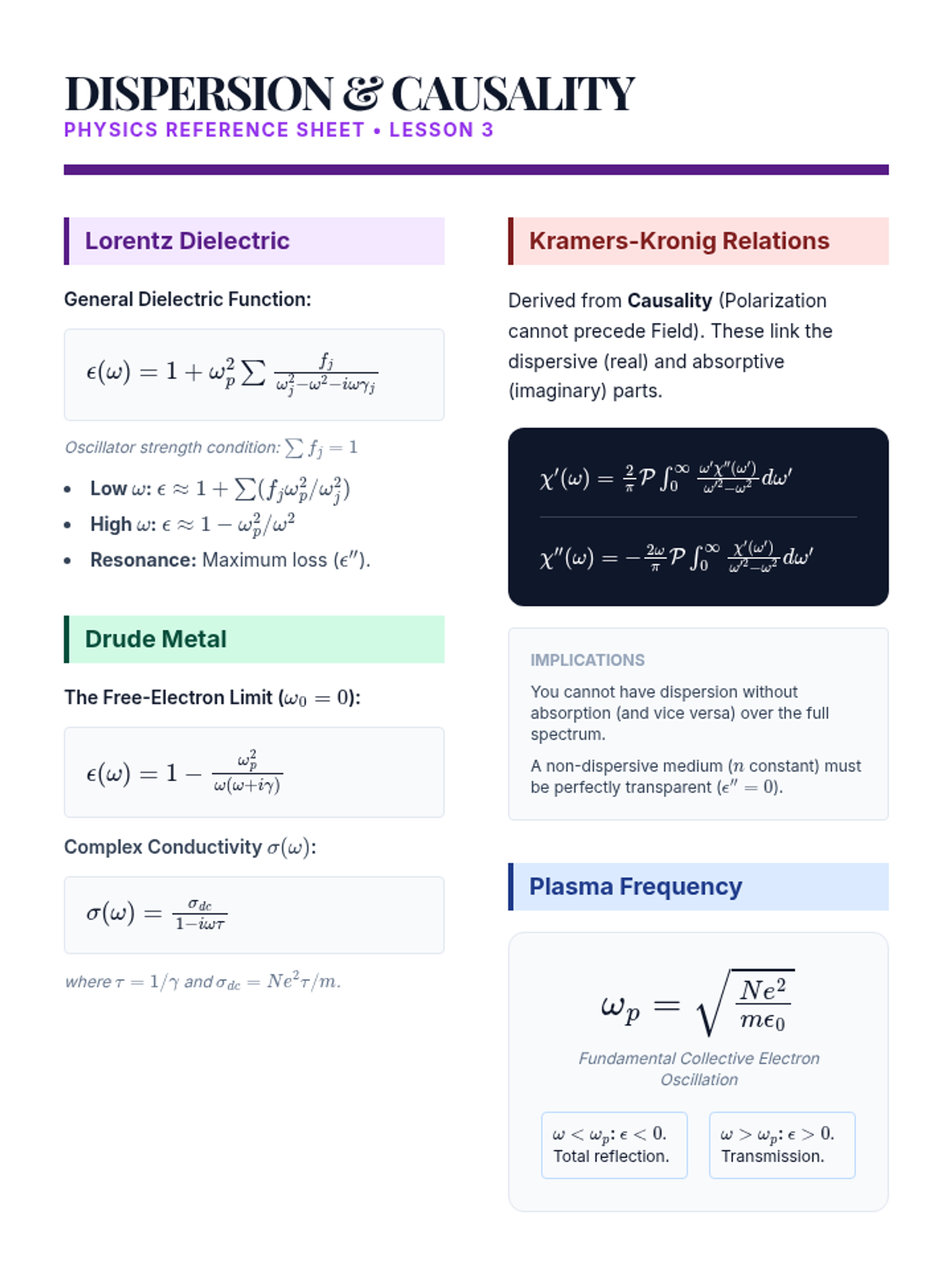

Dispersion Reference Sheet Dispersion & Causality
PHYSICS REFERENCE SHEET • LESSON 3
Lorentz Dielectric
General Dielectric Function:
\(\epsilon(\omega) = 1 + \omega_p^2 \sum \frac{f_j}{\omega_j^2 - \omega^2 - i\omega \gamma_j}\)
Oscillator strength condition: \(\sum f_j = 1\)
Low \(\omega\): \(\epsilon \approx 1 + \sum (f_j \omega_p^2/\omega_j^2)\)High \(\omega\): \(\epsilon \approx 1 - \omega_p^2/\omega^2\)Resonance: Maximum loss (\(\epsilon''\)).
Drude Metal
The Free-Electron Limit (\(\omega_0 = 0\)):
\(\epsilon(\omega) = 1 - \frac{\omega_p^2}{\omega(\omega + i\gamma)}\)
Complex Conductivity \(\sigma(\omega)\):
\(\sigma(\omega) = \frac{\sigma_{dc}}{1 - i\omega\tau}\)
where \(\tau = 1/\gamma\) and \(\sigma_{dc} = Ne^2\tau/m\).
Kramers-Kronig Relations
Derived from Causality (Polarization cannot precede Field). These link the dispersive (real) and absorptive (imaginary) parts.
\(\chi'(\omega) = \frac{2}{\pi} \mathcal{P} \int_0^\infty \frac{\omega' \chi''(\omega')}{\omega'^2 - \omega^2} d\omega'\)
\(\chi''(\omega) = -\frac{2\omega}{\pi} \mathcal{P} \int_0^\infty \frac{\chi'(\omega')}{\omega'^2 - \omega^2} d\omega'\)
Implications
You cannot have dispersion without absorption (and vice versa) over the full spectrum.
A non-dispersive medium (\(n\) constant) must be perfectly transparent (\(\epsilon''=0\)).
Plasma Frequency
\(\omega_p = \sqrt{\frac{Ne^2}{m\epsilon_0}}\)
Fundamental Collective Electron Oscillation
\(\omega < \omega_p\): \(\epsilon < 0\). Total reflection.
\(\omega > \omega_p\): \(\epsilon > 0\). Transmission.
PRO TIP: The Lorentz model is the microscopic basis for the refractive index formula \(n(\lambda) = 1 + A/(B - 1/\lambda^2)\) (Sellmeier Equation).
Fresnel Equation Slides Fresnel Equations
Lesson 4: Reflection & Polarization
Polarization Modes
TE (s-polarization)
Transverse Electric: The \(\mathbf{E}\) field is perpendicular to the plane of incidence.
E out
TM (p-polarization)
Transverse Magnetic: The \(\mathbf{E}\) field lies within the plane of incidence.
E in plane
Derivation Roadmap
1
Match Tangential E : \(E_{0,I} + E_{0,R} = E_{0,T}\) (for TE)
2
Match Tangential H : Use \(\mathbf{H} = \frac{1}{\mu\omega}(\mathbf{k} \times \mathbf{E})\)
3
Apply Snell's Law to eliminate \(\theta_T\)
Special Phenomena
Brewster Angle
The angle \(\theta_B\) at which the reflection coefficient for TM polarization is zero.
\(\tan \theta_B = \frac{n_2}{n_1}\)
Total Internal Reflection
When \(n_1 > n_2\), there exists a critical angle \(\theta_c\) beyond which 100% reflection occurs.
\(\sin \theta_c = \frac{n_2}{n_1}\)
Hook: Why the Glare?
"We simulate why you can see into a lake clearly at noon but only see glare at sunset."
At large incidence angles (sunset), both reflection coefficients \(r_s\) and \(r_p\) approach 1.
At near-normal incidence (noon), reflectivity for water is only \(\approx 2\%\).
Fresnel Derivation Workshop TM Mode Derivation
Workshop: Rigorous Fresnel Derivation
Lesson 4 Workshop
EM_WAVES_GRAD_04
1. Boundary Setup
Consider a plane wave incident on a flat interface at \(z=0\). The incidence medium has index \(n_1\) and the transmission medium has index \(n_2\). For TM polarization , the \(\mathbf{B}\) field is in the \(y\)-direction (perpendicular to the plane of incidence \(x\)-\(z\)).
DIAGRAM SPACE: INCIDENT, REFLECTED, TRANSMITTED VECTORS
Step A: Write the field expressions
Assume incident amplitude \(E_{0,I}\). Use the relation \(B = \frac{n}{c}E\). Write the tangential \(\mathbf{E}\) and \(\mathbf{H}\) components for all three waves.
Step B: Apply Boundary Conditions
Match \(E_x\) and \(H_y\) at \(z=0\). Assume \(\mu_1 = \mu_2 = \mu_0\).
Step C: Solve for Reflection Coefficient \(r_p = E_{0,R} / E_{0,I}\)
Eliminate \(E_{0,T}\) and use Snell's Law to simplify. Target form: the ratio of impedances.
Verification: The Brewster Angle
Set your derived numerator for \(r_p\) to zero. Show that this leads to the condition:
\(\tan \theta_B = \frac{n_2}{n_1}\)

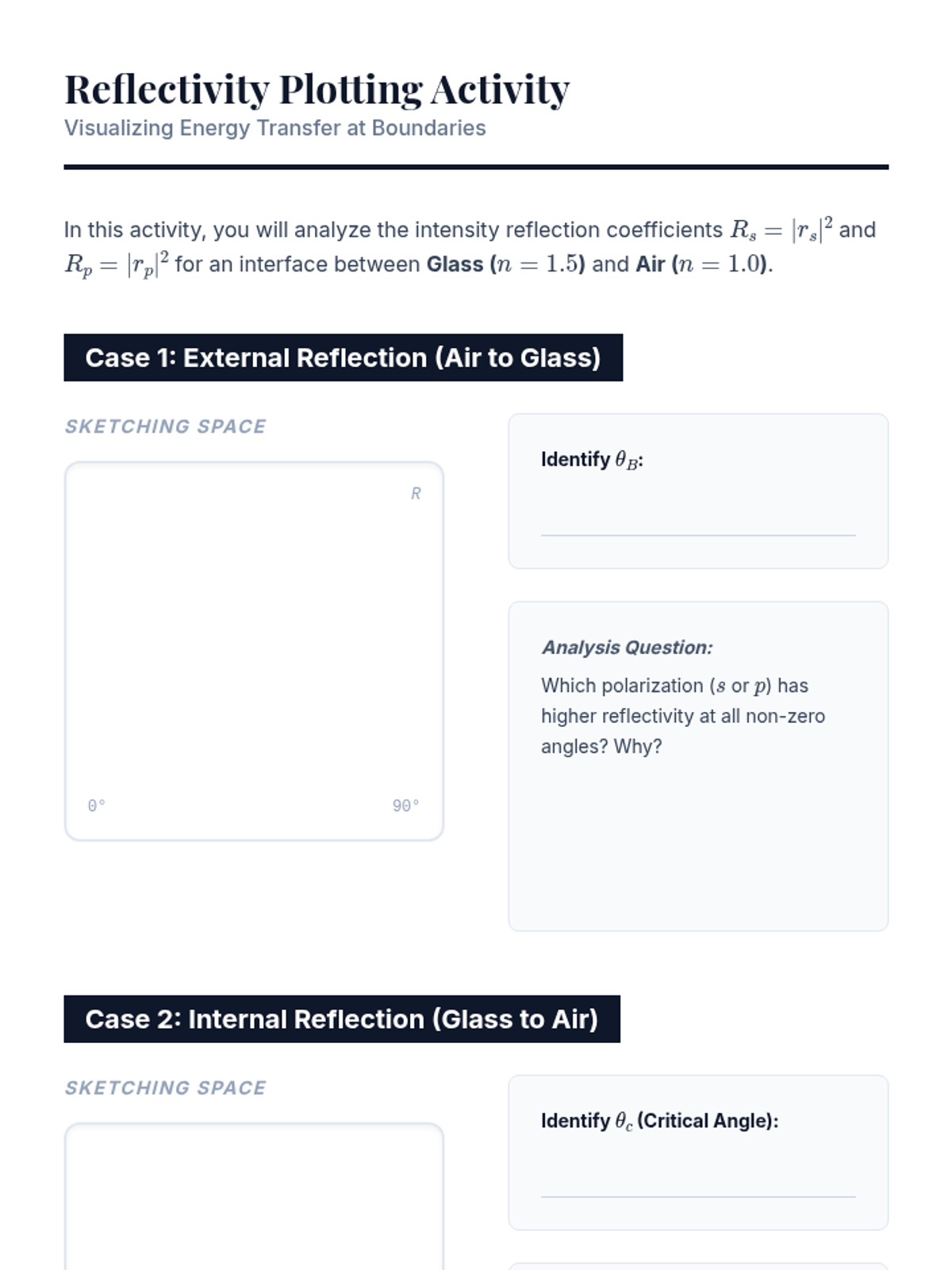

Reflection Coefficient Activity Reflectivity Plotting Activity
Visualizing Energy Transfer at Boundaries
In this activity, you will analyze the intensity reflection coefficients \(R_s = |r_s|^2\) and \(R_p = |r_p|^2\) for an interface between Glass (\(n=1.5\)) and Air (\(n=1.0\)) .
Case 1: External Reflection (Air to Glass)
Sketching Space
0°
90°
R
Identify \(\theta_B\):
Analysis Question:
Which polarization (\(s\) or \(p\)) has higher reflectivity at all non-zero angles? Why?
Case 2: Internal Reflection (Glass to Air)
Sketching Space
Identify \(\theta_c\) (Critical Angle):
Analysis Question:
What happens to the reflected phase when \(\theta > \theta_c\)? Reference your derivation from the workshop.
Plasma Waves Slides Waves in Plasmas
Lesson 5: Cutoffs & The Ionosphere
The Fourth State
A plasma is an ionized gas where electrons are stripped from nuclei, behaving as a collection of free charges.
Key Characteristic:
Quasi-neutrality but high electrical conductivity.
Charged Particle Soup
The Plasma Frequency (\(\omega_p\))
Consider a slab of electrons displaced from ions. The restoring force leads to oscillation at:
\(\omega_p = \sqrt{\frac{n_e e^2}{m_e \epsilon_0}}\)
Physical Meaning
The natural frequency of collective electron oscillations. It defines the "Cutoff" for wave propagation.
Dielectric View
\(\epsilon(\omega) = \epsilon_0 \left( 1 - \frac{\omega_p^2}{\omega^2} \right)\)
Propagation Regime
\(\omega < \omega_p\)
\(\epsilon < 0 \implies k\) is imaginary. Waves are evanescent . The plasma acts as a mirror.
\(\omega > \omega_p\)
\(\epsilon > 0 \implies k\) is real. Waves propagate . The plasma is transparent.
Dispersion Relation
\(k = \frac{\sqrt{\omega^2 - \omega_p^2}}{c}\)
High-pass filter behavior.
Hook: Mirror in the Sky
"How does the ionosphere act as a mirror for AM radio waves but a window for GPS signals?"
AM Radio (~1 MHz)
\(\omega < \omega_p\) of the F-layer. Waves reflect, allowing over-the-horizon communication.
GPS (~1.5 GHz)
\(\omega \gg \omega_p\). Waves pass straight through the ionosphere to satellites.

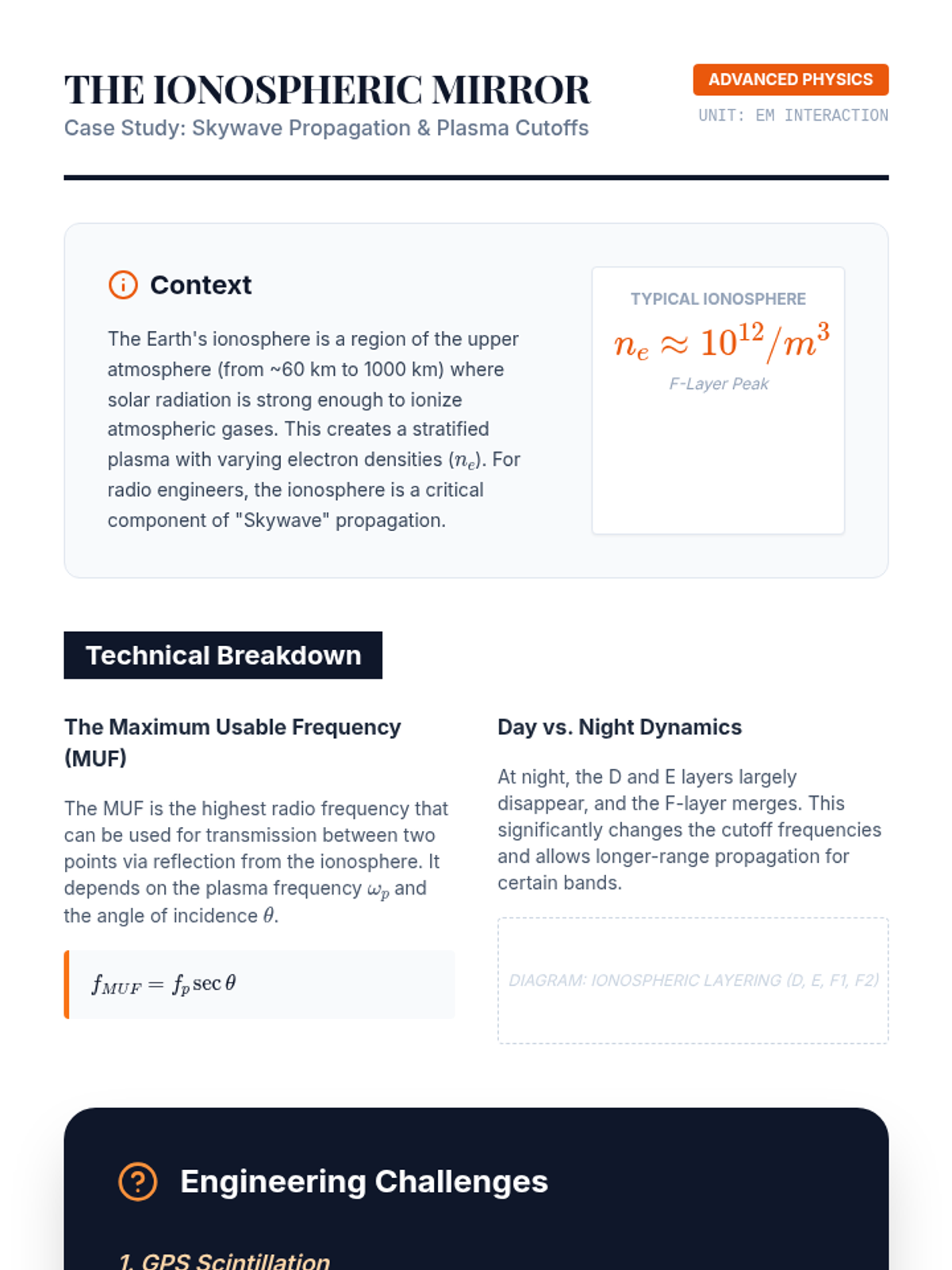

Ionosphere Case Study The Ionospheric Mirror
Case Study: Skywave Propagation & Plasma Cutoffs
ADVANCED PHYSICS
UNIT: EM INTERACTION
Context
The Earth's ionosphere is a region of the upper atmosphere (from ~60 km to 1000 km) where solar radiation is strong enough to ionize atmospheric gases. This creates a stratified plasma with varying electron densities (\(n_e\)). For radio engineers, the ionosphere is a critical component of "Skywave" propagation.
Typical Ionosphere
\(n_e \approx 10^{12} / m^3\)
F-Layer Peak
Technical Breakdown
The Maximum Usable Frequency (MUF)
The MUF is the highest radio frequency that can be used for transmission between two points via reflection from the ionosphere. It depends on the plasma frequency \(\omega_p\) and the angle of incidence \(\theta\).
\(f_{MUF} = f_p \sec \theta\)
Day vs. Night Dynamics
At night, the D and E layers largely disappear, and the F-layer merges. This significantly changes the cutoff frequencies and allows longer-range propagation for certain bands.
DIAGRAM: IONOSPHERIC LAYERING (D, E, F1, F2)
Engineering Challenges
1. GPS Scintillation
GPS signals (1.575 GHz) are well above the ionospheric plasma frequency. However, small-scale irregularities in electron density cause "scintillation" (rapid fluctuations in amplitude and phase). Why does a high-frequency wave still experience phase delays in a plasma even if it is not reflected?
2. The "Radio Silence" Problem
During re-entry, spacecraft experience a telemetry blackout for several minutes. This is caused by a "plasma sheath" forming around the vehicle. Estimate the electron density required to block a 10 GHz communication signal.
3. Faraday Rotation
The ionosphere is anisotropic due to the Earth's magnetic field. This causes the plane of polarization of a wave to rotate as it travels. How does this affect the design of satellite antennas (linear vs. circular polarization)?

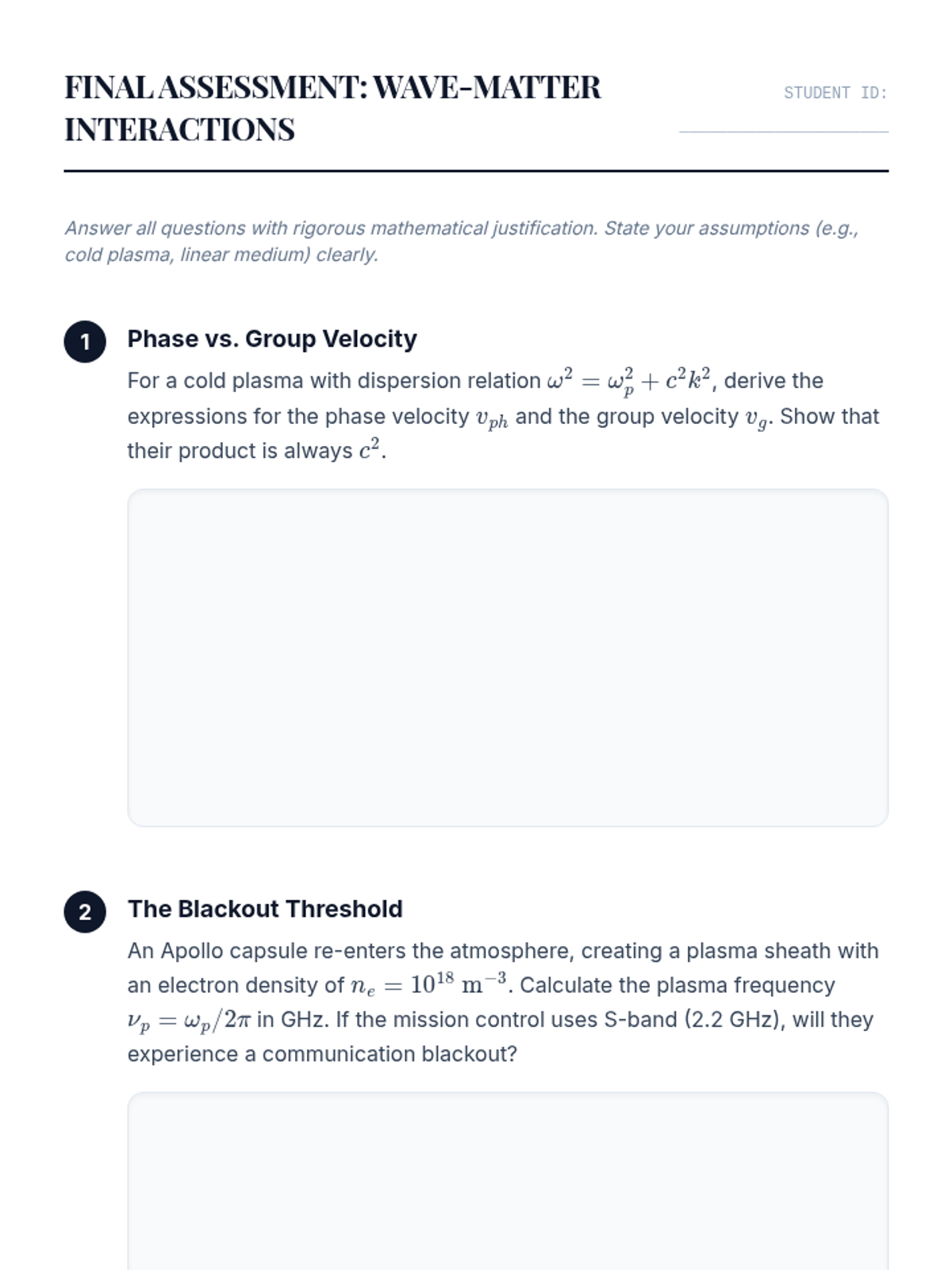

Plasma Physics Assessment Final Assessment: Wave-Matter Interactions
STUDENT ID: ______________________
Answer all questions with rigorous mathematical justification. State your assumptions (e.g., cold plasma, linear medium) clearly.
1
Phase vs. Group Velocity
For a cold plasma with dispersion relation \(\omega^2 = \omega_p^2 + c^2 k^2\), derive the expressions for the phase velocity \(v_{ph}\) and the group velocity \(v_g\). Show that their product is always \(c^2\).
2
The Blackout Threshold
An Apollo capsule re-enters the atmosphere, creating a plasma sheath with an electron density of \(n_e = 10^{18} \text{ m}^{-3}\). Calculate the plasma frequency \(\nu_p = \omega_p / 2\pi\) in GHz. If the mission control uses S-band (2.2 GHz), will they experience a communication blackout?
3
The Drude-Lorentz Connection
Mathematically demonstrate how the Lorentz model for a dielectric reduces to the Drude model for a plasma in the limit of zero restoring force (\(\omega_0 \to 0\)). What physical parameter in the Drude model corresponds to the damping constant \(\gamma\) in the Lorentz model?
4
Total Reflection
A wave is incident normally from vacuum onto a plasma with \(\omega < \omega_p\). Using the Fresnel equation for normal incidence (\(r = \frac{n-1}{n+1}\)), show that the reflectivity \(R = |r|^2\) is exactly 1. (Hint: The refractive index is purely imaginary).
