Atomic Blueprint Slides DEPT OF MATERIALS
ATOMIC BLUEPRINT
Linking Microscopic Structure to Macroscopic Reality
Atomic Scale
Engineering Scale
The Kitchen Dilemma
The Pan
Made of Iron (Fe) or Copper (Cu) . It gets hot fast and stays strong even in the fire.
The Handle
Made of Plastic or Wood . It stays cool while the pan burns.
WHY? The secret is in the atoms.
Density: How Tight is the Crowd?
High Density
Atoms are packed like sardines. Huge mass in a tiny space.
Example: Lead, Gold
Low Density
Atoms are spaced out. Lightweight and floaty.
Example: Helium, Aluminum
Conductivity: The Electron Highway
Conductors (Metals)
Metals have "loose" valence electrons . They act like a sea of charge that can move easily when pushed.
"Imagine a crowded room where everyone is playing hot potato. The potato (electron) moves everywhere instantly!"
Insulators (Non-metals)
Non-metals hold onto their electrons tightly. No movement = no current.
"Now imagine everyone is hugging their potato. It stays put."
Malleability: Bending Without Breaking
When you hit a metal, the atoms slide over each other without letting go. This is because of the metallic bond.
Ductile: Can be pulled into wires.Malleable: Can be hammered into sheets. Macro Micro Worksheet Matter Maker Lab Report
Topic: Macro-Properties & Atomic Structure
Name: __________________________
Date: __________________________
1. PROPERTY DEFINITIONS
Match the macroscopic property to its microscopic cause.
Density : Atoms are packed tightly together with very little space between them.
Conductivity : Valence electrons are "loose" and can move freely between atoms.
Malleability : Atomic layers can slide over one another without the bonds breaking.
2. ENGINEERING ANALYSIS
Analyze the objects below. Which element's property makes them work?
Copper Wiring
Engineers use Copper (Cu) inside power cords.
Primary Property Required:
Atomic Why?
Aluminum Foil
Aluminum (Al) is pressed into incredibly thin sheets.
Primary Property Required:
Atomic Why?
3. THE PARTICLE PREDICTOR
Below are two mystery elements. Based on their atomic diagrams, predict their properties.
Element X
Prediction:
Will this element be heavy or light for its size? Why?
Element Y
Electrons locked!
Prediction:
Will this element be a good conductor? Why?
End of Page 1
Property Pro Teacher Guide Teacher Facilitation Guide
Structure Meets Function
LESSON OBJECTIVES
Identify properties of metals: conductivity, malleability, high density.
Explain why metals conduct using the "sea of electrons" model.
Connect atomic packing to macroscopic density.
GUIDED DISCUSSION PROMPTS
The Kitchen Hook:
"If we made the pan out of wood, what would happen to our dinner? If we made the handle out of copper, what would happen to our hands?"
Goal: Get students to articulate that materials are chosen for specific jobs based on their properties.
The Invisible Ocean:
"Think of metal atoms as islands in an ocean of moving electrons. If I push one electron at the shore, does it affect the whole ocean?"
Goal: Visualize the movement of charge in conductors.
KEY MISCONCEPTIONS
Misconception:
Density is just how "heavy" an object is.
Correction:
Density is mass per volume . A giant bag of feathers is heavy, but not dense.
Misconception:
Conductivity only refers to electricity.
Correction:
Conductivity applies to both Heat and Electricity in metals due to the same electron movement.
QUICK ASSESSMENT
Ask students to draw a picture of "Conducting Atoms" vs "Insulating Atoms" on a sticky note. Look for:
Conductors: "Loose" electrons shown outside the shells.Insulators: Electrons shown tightly grouped around the nucleus. Tech Takedown Slides TECH TAKEDOWN
The Periodic Table inside your pocket.
The Pocket Factory
A smartphone contains over 60 different elements . That's more than half the naturally occurring Periodic Table!
60+
Elements
Display
Indium, Tin, Oxygen
Battery
Lithium, Cobalt, Carbon
Electronics
Silicon, Gold, Copper
The "Heavy Lifters": Transition Metals
Located in the center of the table (Groups 3-12). They are the ultimate engineers' choice.
Hard & Durable
High melting points and structural strength.
Highly Conductive
Perfect for the tiny circuits in a CPU.
Spotlight: Tantalum (Ta)
Highly resistant to corrosion. Used in capacitors to store power in phones.
Ta
Atomic Number
73
The "Rare Earths"
Lanthanides
Neodymium (Nd)
Creates incredibly strong, tiny magnets used in your phone's speaker and microphone.
Europium (Eu)
The reason your screen is so vibrant. It’s used to produce the bright red colors on the display.
"Rare" doesn't mean hard to find, it means hard to extract and process!
Si
Silicon: The Brain of Tech
What is a Semiconductor?
It’s a Metalloid . It doesn’t conduct as well as a metal, but it doesn’t block as well as an insulator.
The Magic Switch
Because it's in-between, we can control when it allows electricity to pass. This "On/Off" behavior is the basis of all computer code (1s and 0s).
ON
OFF

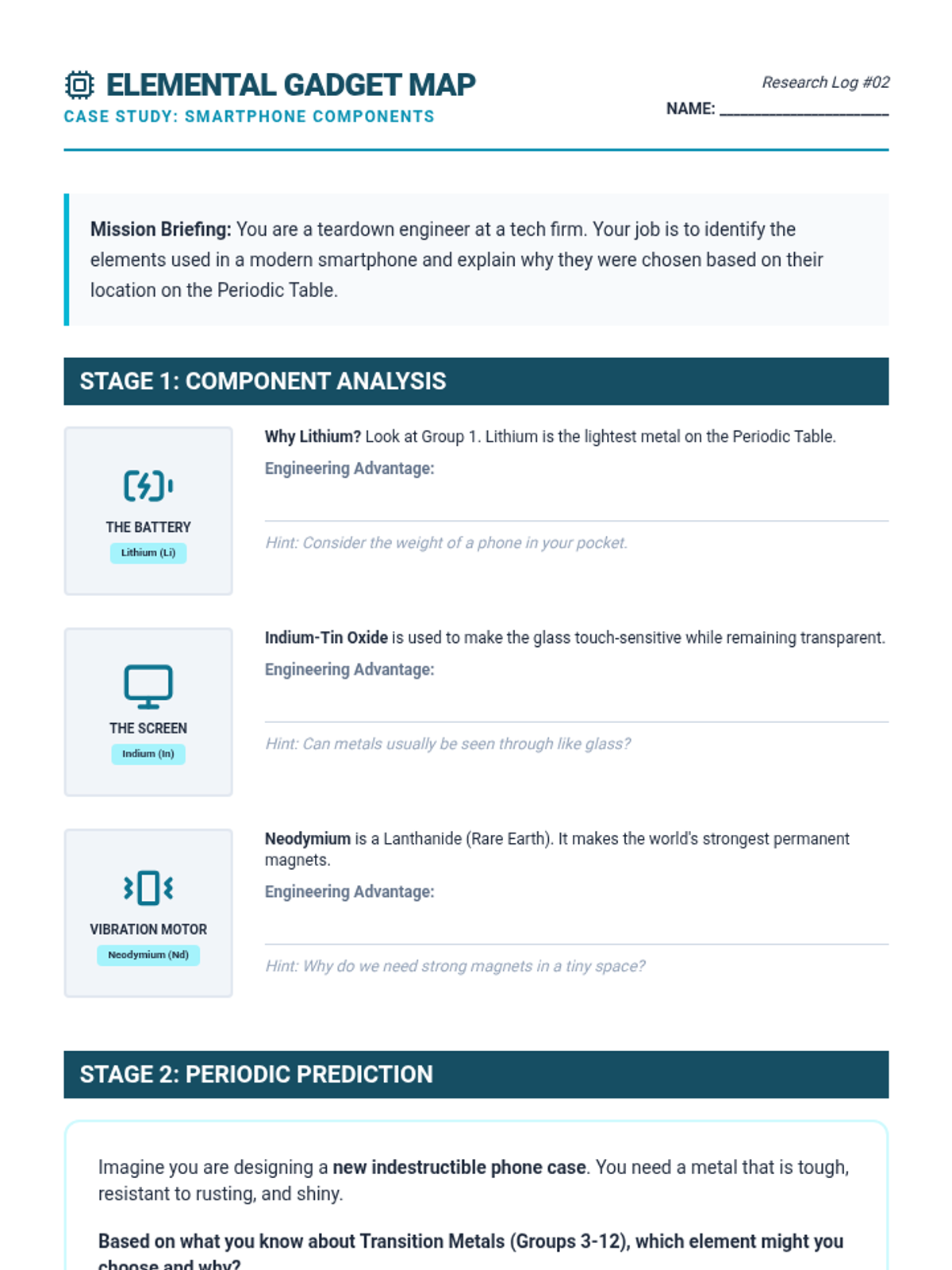

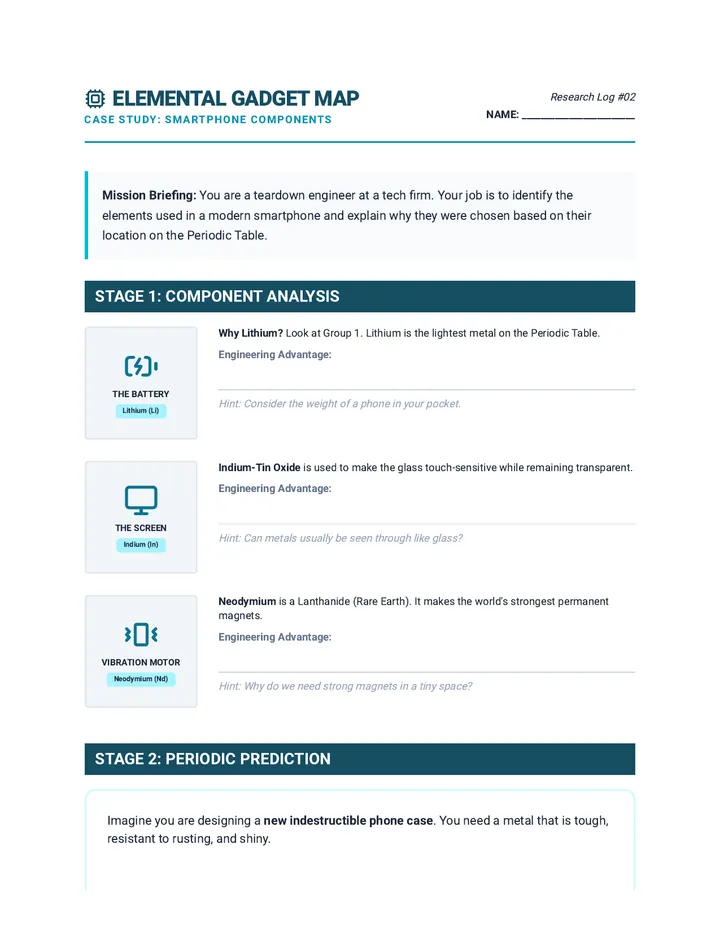

Gadget Element Hunt ELEMENTAL GADGET MAP
Case Study: Smartphone Components
Research Log #02
NAME: ________________________
Mission Briefing: You are a teardown engineer at a tech firm. Your job is to identify the elements used in a modern smartphone and explain why they were chosen based on their location on the Periodic Table.
STAGE 1: COMPONENT ANALYSIS
THE BATTERY
Lithium (Li)
Why Lithium? Look at Group 1. Lithium is the lightest metal on the Periodic Table.
Engineering Advantage:
Hint: Consider the weight of a phone in your pocket.
THE SCREEN
Indium (In)
Indium-Tin Oxide is used to make the glass touch-sensitive while remaining transparent.
Engineering Advantage:
Hint: Can metals usually be seen through like glass?
VIBRATION MOTOR
Neodymium (Nd)
Neodymium is a Lanthanide (Rare Earth). It makes the world's strongest permanent magnets.
Engineering Advantage:
Hint: Why do we need strong magnets in a tiny space?
STAGE 2: PERIODIC PREDICTION
Imagine you are designing a new indestructible phone case . You need a metal that is tough, resistant to rusting, and shiny.
Based on what you know about Transition Metals (Groups 3-12), which element might you choose and why?
Element Name:
Group Number:
Justify your choice with two properties:
© ELEMENTAL ENGINEERING LABS | FOR CLASSROOM USE ONLY | TECH MODULE 2

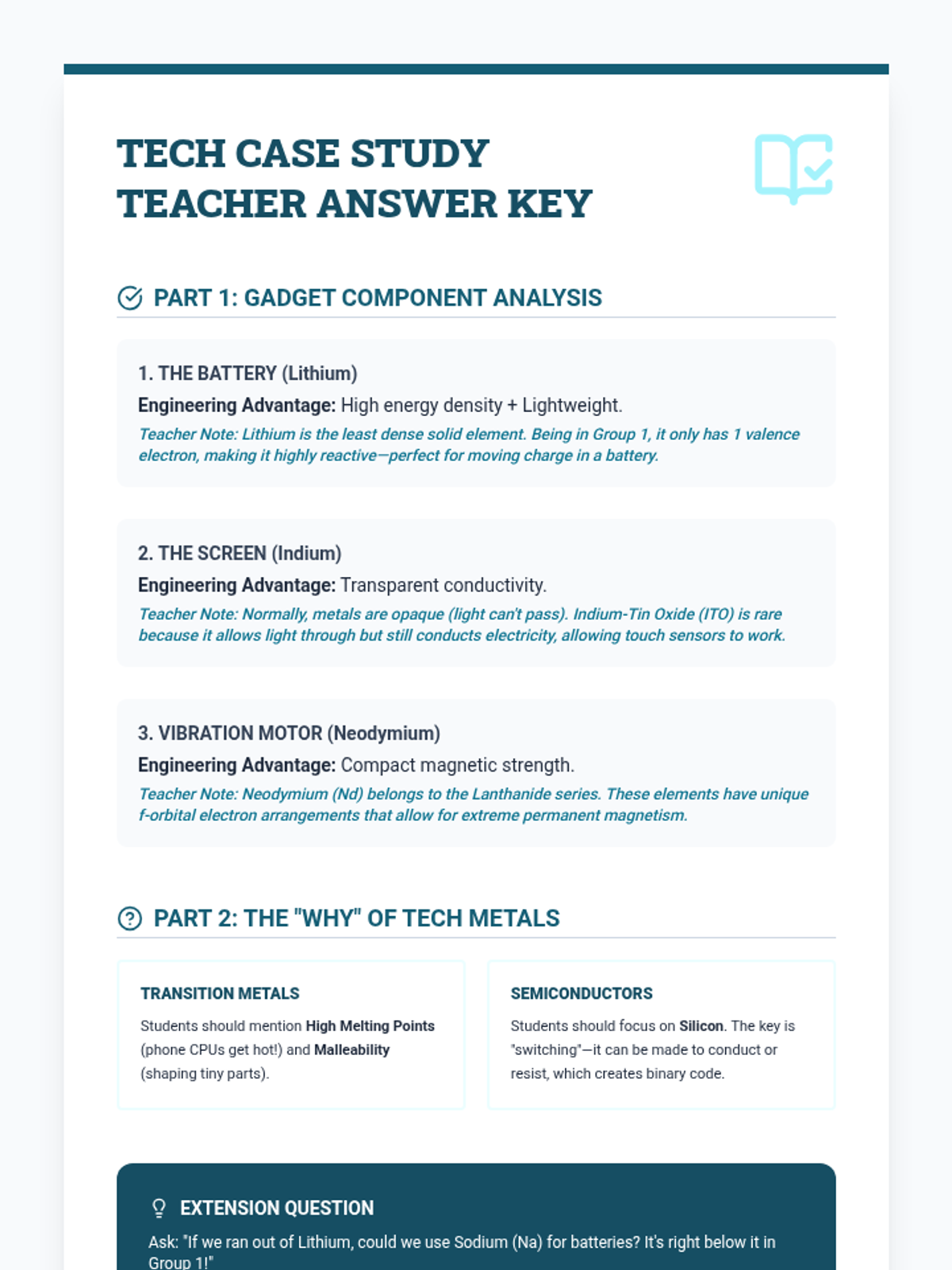

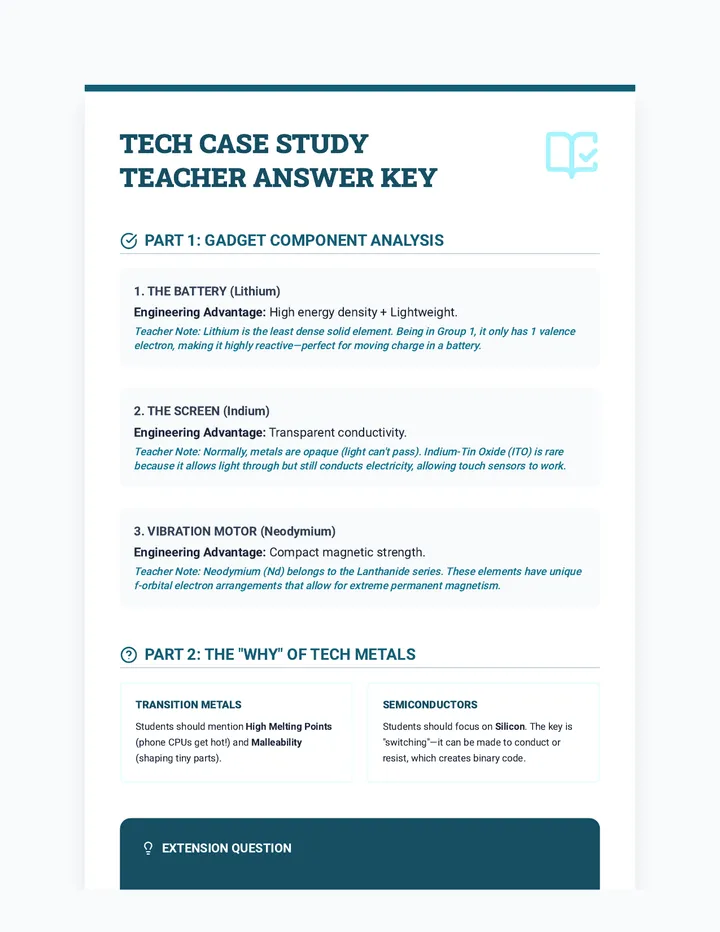

Tech Metal Key Tech Case Study
Teacher Answer Key
PART 1: GADGET COMPONENT ANALYSIS
1. THE BATTERY (Lithium)
Engineering Advantage: High energy density + Lightweight.
Teacher Note: Lithium is the least dense solid element. Being in Group 1, it only has 1 valence electron, making it highly reactive—perfect for moving charge in a battery.
2. THE SCREEN (Indium)
Engineering Advantage: Transparent conductivity.
Teacher Note: Normally, metals are opaque (light can't pass). Indium-Tin Oxide (ITO) is rare because it allows light through but still conducts electricity, allowing touch sensors to work.
3. VIBRATION MOTOR (Neodymium)
Engineering Advantage: Compact magnetic strength.
Teacher Note: Neodymium (Nd) belongs to the Lanthanide series. These elements have unique f-orbital electron arrangements that allow for extreme permanent magnetism.
PART 2: THE "WHY" OF TECH METALS
Transition Metals
Students should mention High Melting Points (phone CPUs get hot!) and Malleability (shaping tiny parts).
Semiconductors
Students should focus on Silicon . The key is "switching"—it can be made to conduct or resist, which creates binary code.
Extension Question
Ask: "If we ran out of Lithium, could we use Sodium (Na) for batteries? It's right below it in Group 1!"
Answer: Technically yes, but Sodium is much heavier (denser) and even more reactive/dangerous. Engineers are currently researching Sodium-ion batteries as a backup!
Carbon Chameleon Slides CARBON CHAMELEON
The Element of Life
Same Element, Two Worlds
Diamond
The hardest natural material on Earth. Transparent and sparkling.
100% Carbon
Graphite
Soft, slippery, and gray. Found in your pencil "lead."
100% Carbon
Carbon is the ultimate builder.
C
The Magic Number: 4
Carbon has 4 valence electrons . This means it can form four strong bonds at once.
"Think of Carbon as the LEGO brick that has studs on all sides. It can connect in any direction."
Chains
Rings
Branches
Sheets
The Ingredients of YOU: CHNOPS
C
Carbon
The Backbone
H
Hydrogen
Water & Energy
N
Nitrogen
Muscle & DNA
O
Oxygen
Breath of Life
P
Phosphorus
Cell Power (ATP)
S
Sulfur
Protein Shape
From Nature to Factory
Polymers
"Poly" (Many) + "Mer" (Parts). These are long, giant molecules made of carbon chains.
Engineers use carbon's bonding power to create Synthetic Materials :
Nylon & Polyester
Polyethylene (Plastic bags)
Kevlar (Bulletproof vests)

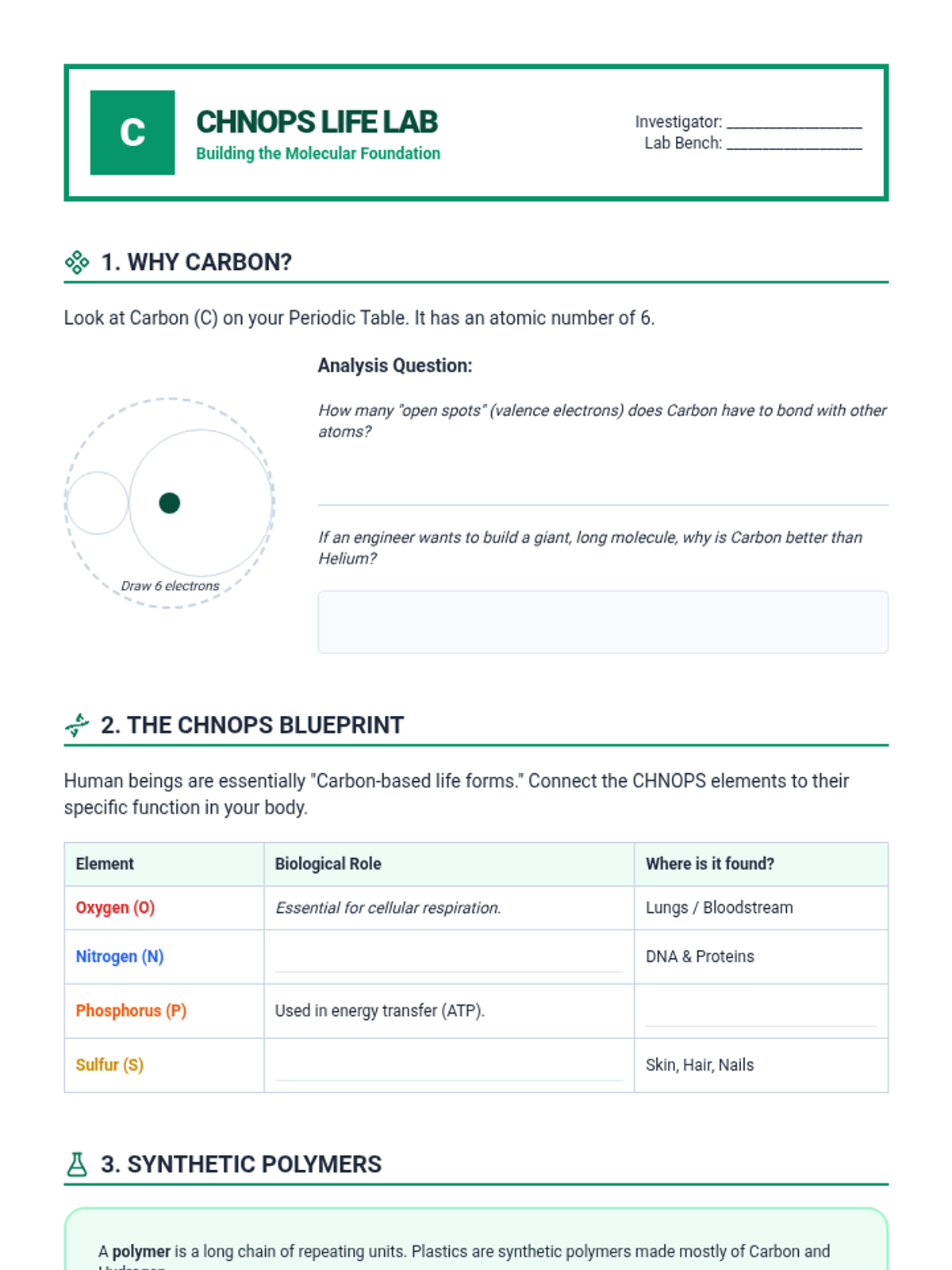

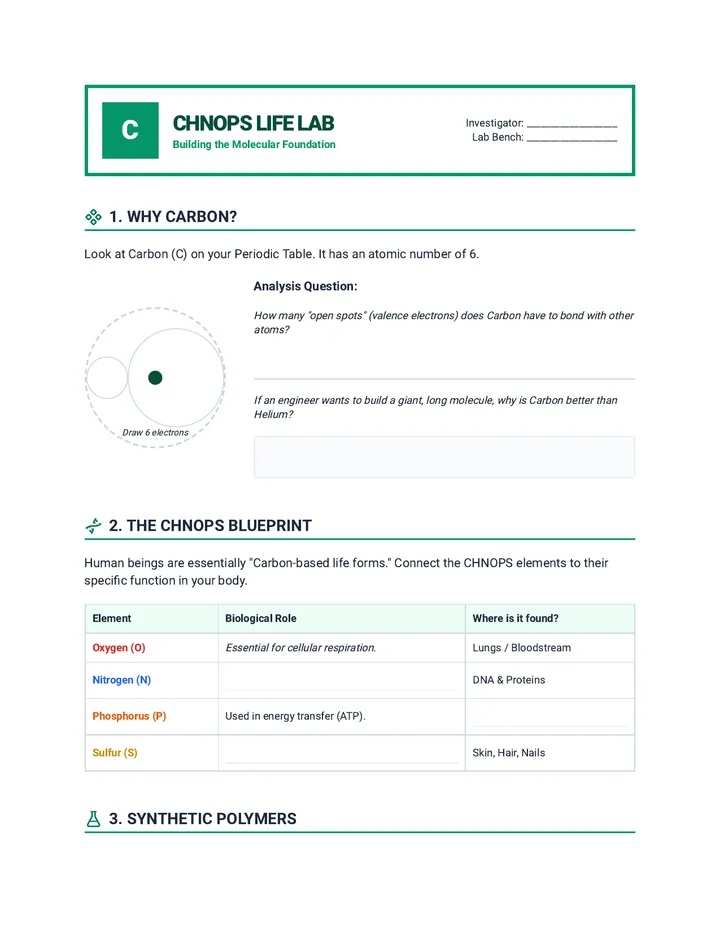

CHNOPS Life Lab C
CHNOPS Life Lab
Building the Molecular Foundation
Investigator: ___________________
Lab Bench: ___________________
1. WHY CARBON?
Look at Carbon (C) on your Periodic Table. It has an atomic number of 6.
Draw 6 electrons
Analysis Question:
How many "open spots" (valence electrons) does Carbon have to bond with other atoms?
If an engineer wants to build a giant, long molecule, why is Carbon better than Helium?
2. THE CHNOPS BLUEPRINT
Human beings are essentially "Carbon-based life forms." Connect the CHNOPS elements to their specific function in your body.
Element Biological Role Where is it found? Oxygen (O) Essential for cellular respiration. Lungs / Bloodstream Nitrogen (N) DNA & Proteins Phosphorus (P) Used in energy transfer (ATP).
|
| Sulfur (S) |
| Skin, Hair, Nails |
3. SYNTHETIC POLYMERS
A polymer is a long chain of repeating units. Plastics are synthetic polymers made mostly of Carbon and Hydrogen.
Monomer (Single Unit)
Polymer (The Chain)
Why would an engineer choose a Carbon-based polymer (plastic) for a water bottle instead of glass or metal?

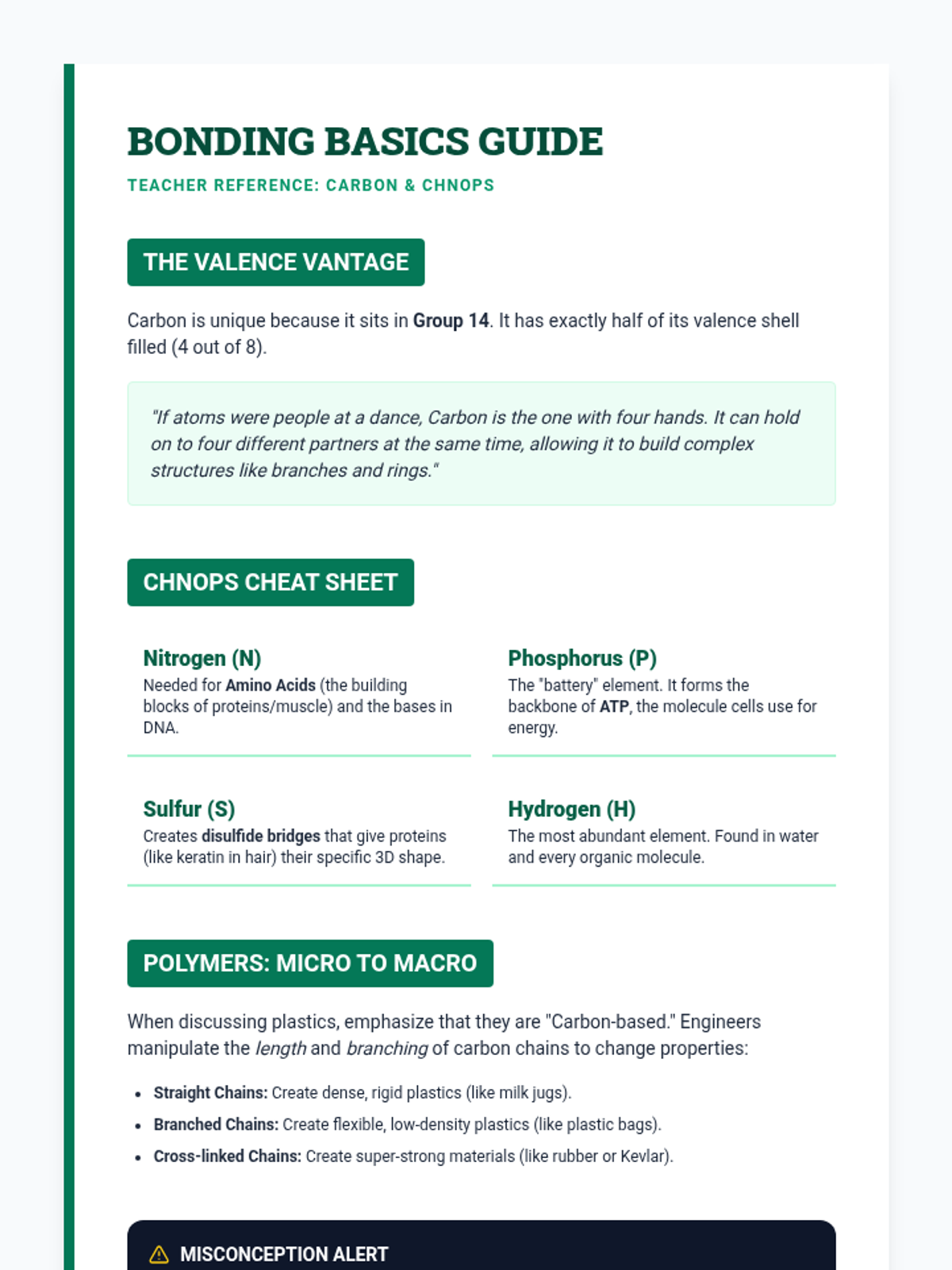

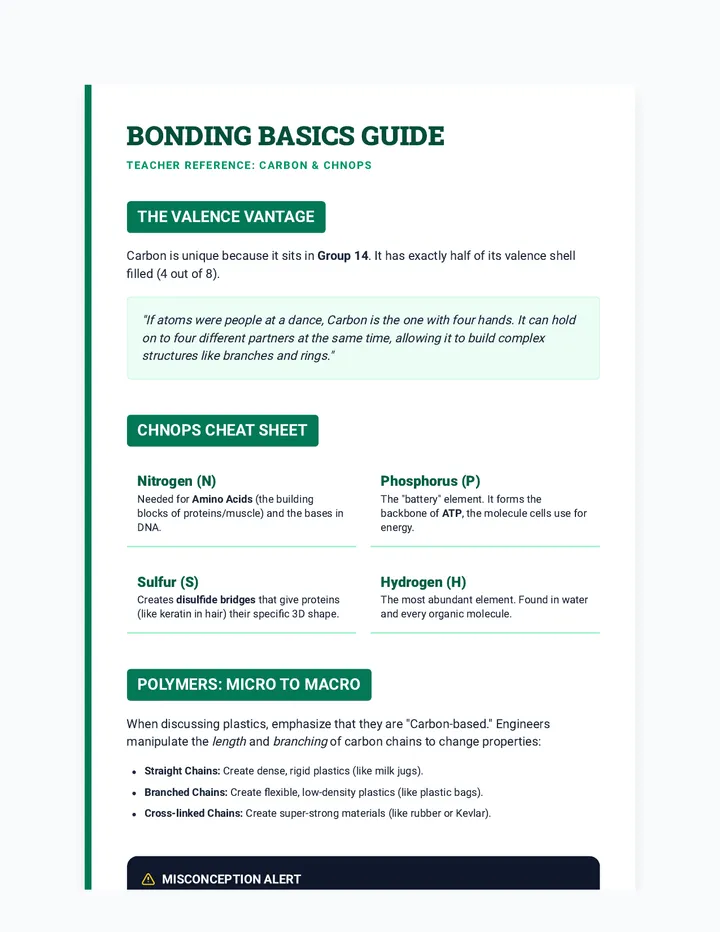

Bonding Basics Guide Bonding Basics Guide
Teacher Reference: Carbon & CHNOPS
THE VALENCE VANTAGE
Carbon is unique because it sits in Group 14 . It has exactly half of its valence shell filled (4 out of 8).
"If atoms were people at a dance, Carbon is the one with four hands. It can hold on to four different partners at the same time, allowing it to build complex structures like branches and rings."
CHNOPS CHEAT SHEET
Nitrogen (N)
Needed for Amino Acids (the building blocks of proteins/muscle) and the bases in DNA.
Phosphorus (P)
The "battery" element. It forms the backbone of ATP , the molecule cells use for energy.
Sulfur (S)
Creates disulfide bridges that give proteins (like keratin in hair) their specific 3D shape.
Hydrogen (H)
The most abundant element. Found in water and every organic molecule.
POLYMERS: MICRO TO MACRO
When discussing plastics, emphasize that they are "Carbon-based." Engineers manipulate the length and branching of carbon chains to change properties:
Straight Chains: Create dense, rigid plastics (like milk jugs).Branched Chains: Create flexible, low-density plastics (like plastic bags).Cross-linked Chains: Create super-strong materials (like rubber or Kevlar).
MISCONCEPTION ALERT
Students often think "organic" means "natural" or "healthy." In science, Organic simply means any molecule that contains Carbon-Hydrogen bonds . Gasoline and plastic are technically "organic" in chemical terms!
Mission Materials Slides MISSION MATERIALS
Engineering Challenge v1.0
OBJECTIVE: Select the right element or die trying.
Scenario A: The Venus Lander
The Conditions:
• Temperature: 462°C (864°F)
• Surface Pressure: 92x Earth's
• Atmosphere: Sulfuric Acid clouds
"If you pick a metal with a low melting point, your million-dollar probe turns into a puddle in seconds."
Your Task:
Find a Transition Metal with a melting point above 500°C and resistance to corrosion (acid).
Scenario B: The Olympic Frame
The Requirements:
Requirement 1: Ultra-Low Density
The rider must go fast uphill. Grams matter.
Requirement 2: High Strength
The frame cannot snap during a 40mph sprint.
>> SEARCHING GROUPS 1, 2, and 13...
Engineering Cheat Sheet
Metals
Generally found on the Left and Center . Good for strength and conduction.
Metalloids
On the Stair-step . Good for sensors and electronics.
Non-metals
On the Right . Good for insulation and chemical stability.
Trend Alert:
Melting points often PEAK in the middle of the Transition Metals!
Alloys: The Engineer's Mix
Sometimes one element isn't enough. An Alloy is a mixture of elements (usually metals) to create super-properties.
Famous Mixes:
Steel: Iron + Carbon (Strength)Bronze: Copper + Tin (Hardness)Solder: Tin + Lead (Low melting point)
Prepare for your Challenge!

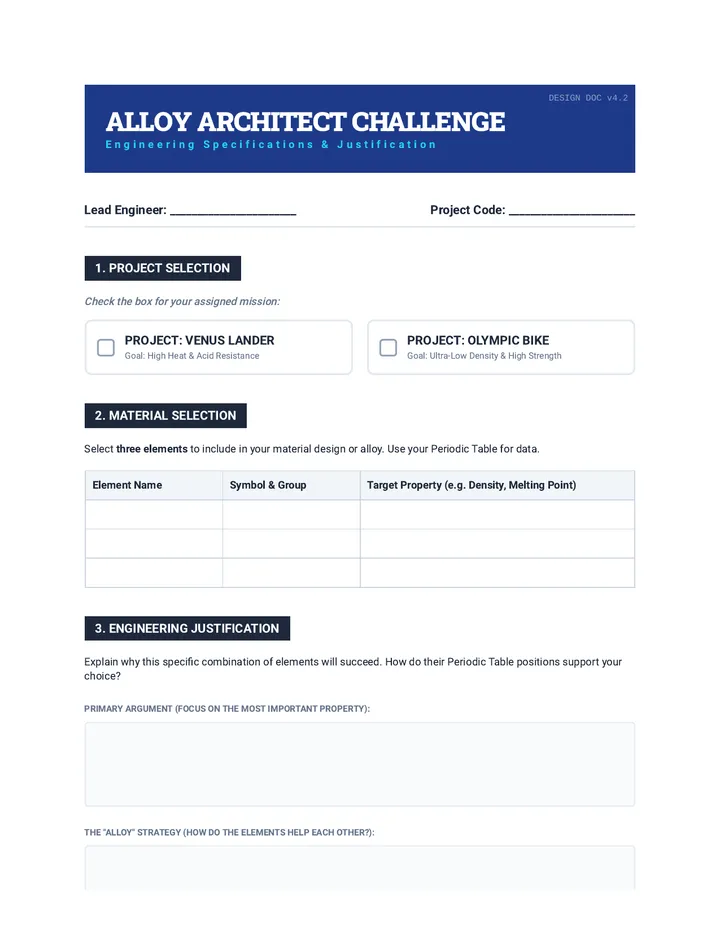

Alloy Architect Challenge DESIGN DOC v4.2
Alloy Architect Challenge
Engineering Specifications & Justification
Lead Engineer: _______________________ Project Code: _______________________
1. PROJECT SELECTION
Check the box for your assigned mission:
PROJECT: VENUS LANDER
Goal: High Heat & Acid Resistance
PROJECT: OLYMPIC BIKE
Goal: Ultra-Low Density & High Strength
2. MATERIAL SELECTION
Select three elements to include in your material design or alloy. Use your Periodic Table for data.
Element Name Symbol & Group Target Property (e.g. Density, Melting Point)
3. ENGINEERING JUSTIFICATION
Explain why this specific combination of elements will succeed. How do their Periodic Table positions support your choice?
Primary Argument (Focus on the most important property):
The "Alloy" Strategy (How do the elements help each other?):
4. COMPONENT SCHEMATIC
Sketch your component and label where each element is used.
Blueprint Sketch Area
CONFIDENTIAL | DEPT OF ELEMENTAL ENGINEERING | PROPERTY OF THE RESEARCH LAB

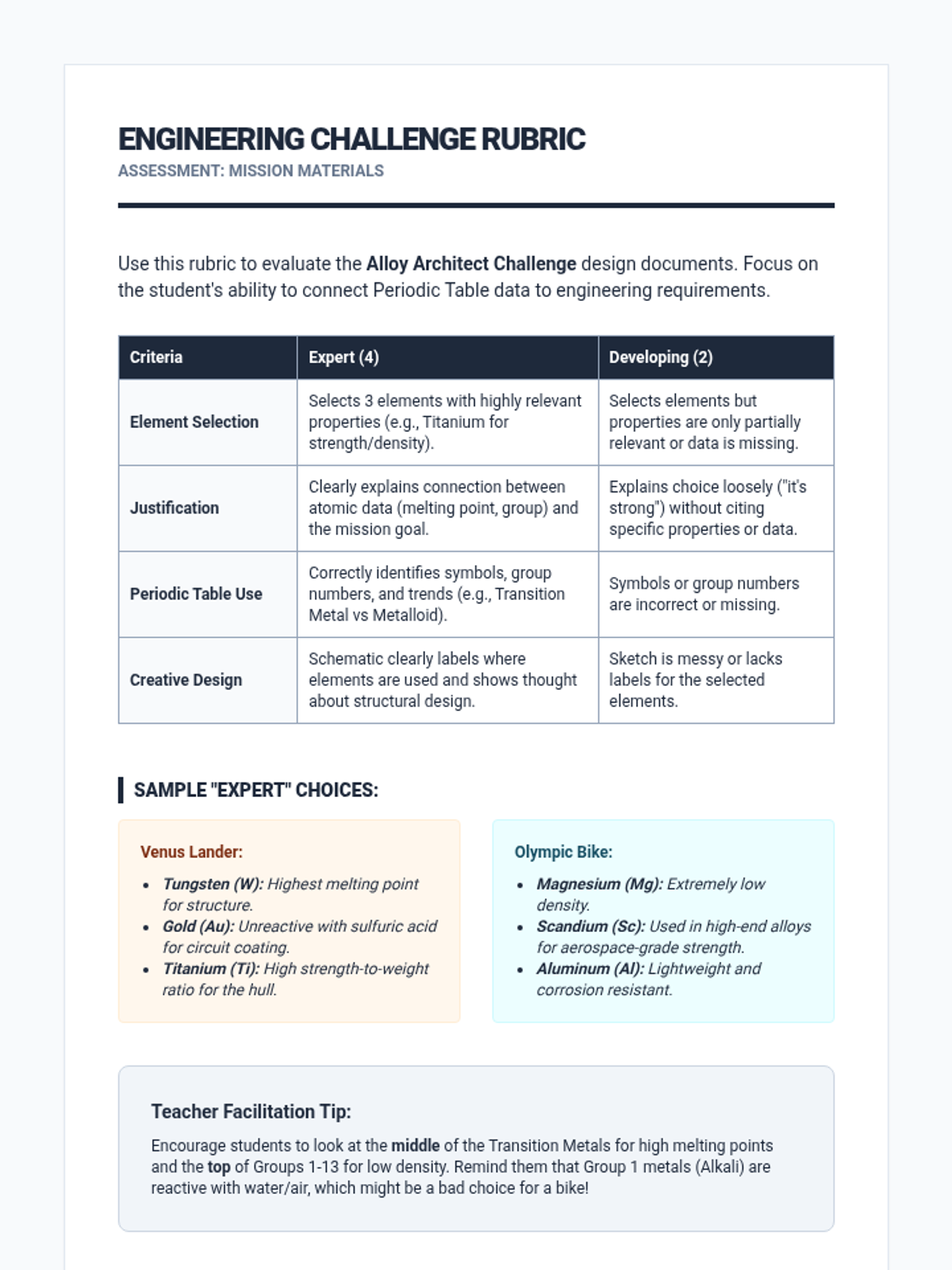

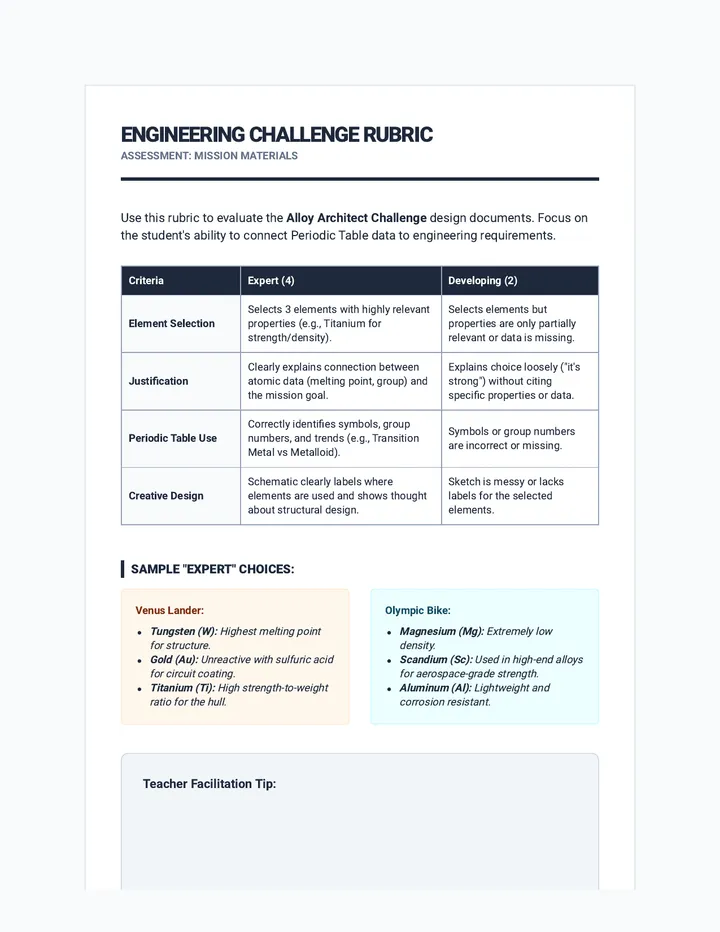

Mission Control Rubric Engineering Challenge Rubric
Assessment: Mission Materials
Use this rubric to evaluate the Alloy Architect Challenge design documents. Focus on the student's ability to connect Periodic Table data to engineering requirements.
Criteria Expert (4) Developing (2) Element Selection Selects 3 elements with highly relevant properties (e.g., Titanium for strength/density). Selects elements but properties are only partially relevant or data is missing. Justification Clearly explains connection between atomic data (melting point, group) and the mission goal. Explains choice loosely ("it's strong") without citing specific properties or data. Periodic Table Use Correctly identifies symbols, group numbers, and trends (e.g., Transition Metal vs Metalloid). Symbols or group numbers are incorrect or missing. Creative Design Schematic clearly labels where elements are used and shows thought about structural design. Sketch is messy or lacks labels for the selected elements.
Sample "Expert" Choices:
Venus Lander:
Tungsten (W): Highest melting point for structure.Gold (Au): Unreactive with sulfuric acid for circuit coating.Titanium (Ti): High strength-to-weight ratio for the hull.
Olympic Bike:
Magnesium (Mg): Extremely low density.Scandium (Sc): Used in high-end alloys for aerospace-grade strength.Aluminum (Al): Lightweight and corrosion resistant.
Teacher Facilitation Tip:
Encourage students to look at the middle of the Transition Metals for high melting points and the top of Groups 1-13 for low density. Remind them that Group 1 metals (Alkali) are reactive with water/air, which might be a bad choice for a bike!
Element Frontier Slides THE FRONTIER
Atomic # > 92
Synthetic Elements & The Future of Matter
Synthetic Materials
What are they?
Elements that do not occur naturally on Earth. They are Man-Made in particle accelerators.
Example: Americium (Am) - Found in your smoke detector!
Most synthetic elements (the very heavy ones) are Radioactive and only last for fractions of a second.
Instability
The nucleus is so large it flies apart almost instantly.
Observation
Scientists study them to understand the forces of the universe.
The Helium Crisis
We are running out.
Helium (He) is the 2nd most abundant element in the Universe , but it is rare on Earth . It escapes into space because it's so light.
Why we need it:
Cooling MRI magnets
Rocket engine testing
Deep sea diving tanks
He
Party balloons or Life-saving medicine?
The Ethical Element
"How do we decide who gets to use the limited atoms we have left on Earth?"
Local Needs
Mining elements like Cobalt often damages the environment and uses child labor. Is the new iPhone worth it?
Space Mining
Should we mine asteroids for Gold and Platinum? Who owns the elements in space?
The Next Chapter
You are the next generation of Material Engineers.
Superconductors
Nanomaterials
Bio-plastics
SESSION TERMINATED // PERIODIC KNOWLEDGE UPLOAD COMPLETE

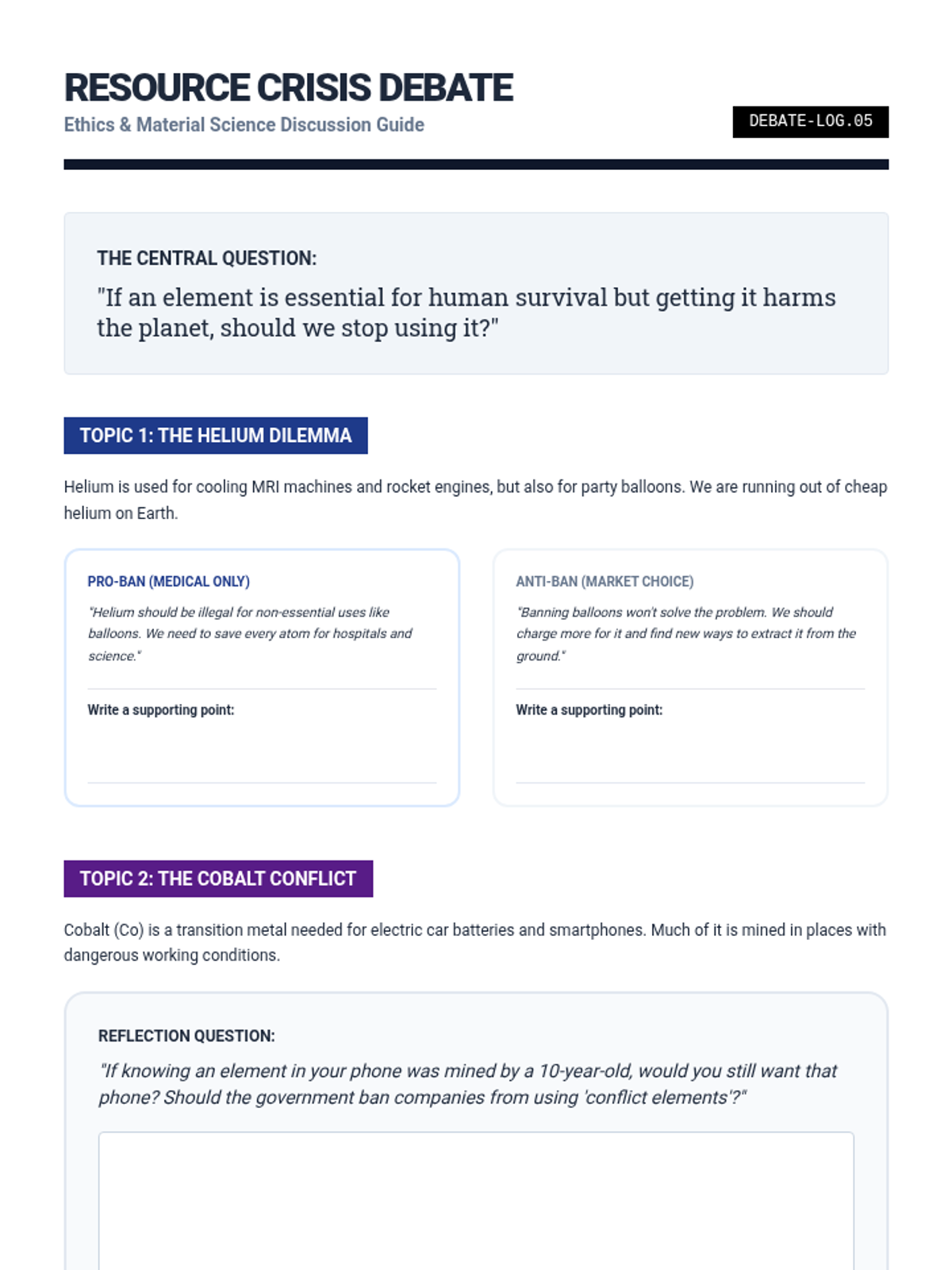

Helium Crisis Debate Worksheet Resource Crisis Debate
Ethics & Material Science Discussion Guide
DEBATE-LOG.05
The Central Question:
"If an element is essential for human survival but getting it harms the planet, should we stop using it?"
Topic 1: The Helium Dilemma
Helium is used for cooling MRI machines and rocket engines, but also for party balloons. We are running out of cheap helium on Earth.
PRO-BAN (Medical Only)
"Helium should be illegal for non-essential uses like balloons. We need to save every atom for hospitals and science."
Write a supporting point:
ANTI-BAN (Market Choice)
"Banning balloons won't solve the problem. We should charge more for it and find new ways to extract it from the ground."
Write a supporting point:
Topic 2: The Cobalt Conflict
Cobalt (Co) is a transition metal needed for electric car batteries and smartphones. Much of it is mined in places with dangerous working conditions.
Reflection Question:
"If knowing an element in your phone was mined by a 10-year-old, would you still want that phone? Should the government ban companies from using 'conflict elements'?"
Topic 3: Synthesizing Solutions
What if we could "print" the atoms we need? Scientists are working on synthetic alternatives for rare elements.
RECYCLE
Extracting elements from old electronics.
SYNTHESIZE
Creating man-made replacements in labs.
EXTRACT
Mining asteroids or other planets.
FINAL LESSON COMPLETE | SCIENCE & SOCIETY UNIT | MODULE 5

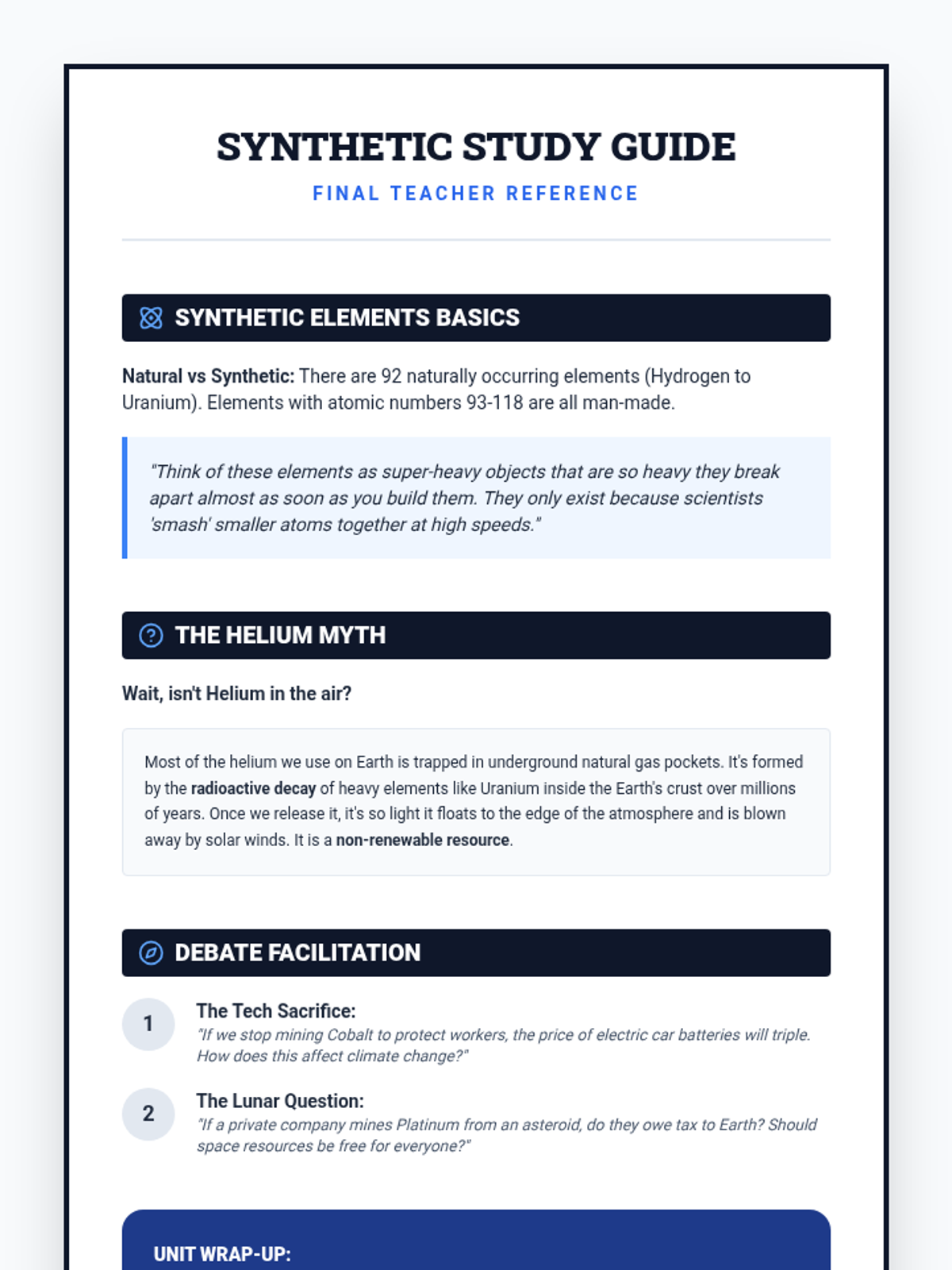

Future Elements Guide Synthetic Study Guide
Final Teacher Reference
SYNTHETIC ELEMENTS BASICS
Natural vs Synthetic: There are 92 naturally occurring elements (Hydrogen to Uranium). Elements with atomic numbers 93-118 are all man-made.
"Think of these elements as super-heavy objects that are so heavy they break apart almost as soon as you build them. They only exist because scientists 'smash' smaller atoms together at high speeds."
THE HELIUM MYTH
Wait, isn't Helium in the air?
Most of the helium we use on Earth is trapped in underground natural gas pockets. It's formed by the radioactive decay of heavy elements like Uranium inside the Earth's crust over millions of years. Once we release it, it's so light it floats to the edge of the atmosphere and is blown away by solar winds. It is a non-renewable resource .
DEBATE FACILITATION
1
The Tech Sacrifice:
"If we stop mining Cobalt to protect workers, the price of electric car batteries will triple. How does this affect climate change?"
2
The Lunar Question:
"If a private company mines Platinum from an asteroid, do they owe tax to Earth? Should space resources be free for everyone?"
Unit Wrap-Up:
Connect this back to Lesson 1. The Structure of these rare elements gives them their Function . Our modern world is built on the specific properties of the Periodic Table. Protecting these resources is the next engineering challenge.
