Byzantine Generals Slides Consensus Chaos
Solving the Byzantine Generals Problem
The Mission
Multiple generals are surrounding an enemy city. They must agree on a single time to attack or retreat.
"A coordinated attack results in victory. A partial attack results in catastrophic defeat."
The Traitors
Communication is hard. But Byzantine faults are harder:
Fail-Stop
A node stops responding. (The messenger is captured or dies).
Byzantine
A node lies, sends conflicting messages, or acts maliciously. (The messenger is a spy).
The 3f+1 Rule
Leslie Lamport proved that to reach consensus in a system with f traitors, you need at least:
3f + 1
Nodes total. If you have 1 traitor, you need at least 4 generals.
Modern Byzantine
General = Node
In a blockchain, nodes are the generals. They must agree on which transactions are valid and in what order they occurred.
No central leader to trust.
Network latency mimics "lost messengers."
Hackers/Bad actors are the "traitors."
The Blockchain is a solved version of the Byzantine Generals Problem.
Think Deeply
"If the costs of attack and retreat are equal, but the cost of disagreement is total annihilation, how would you design a voting protocol that assumes everyone is lying?"
Distributed Systems Game Theory
Consensus Chaos Simulation Consensus Chaos
Byzantine Fault Tolerance Simulation Guide
Teacher Resource
Learning Objectives
Students will physically model a distributed network to understand how Byzantine faults (malicious actors) prevent consensus. By the end of this simulation, students will identify the 3f+1 requirement for fault tolerance and the necessity of cryptographically verifiable communication.
Materials Needed
Role Cards (provided below)
10-20 Post-it notes per student
Timer (5-minute rounds)
Simulation Phases
1
The Silent Network (No Traitors)
"We surround the city. We must decide: Attack at 0800 or Retreat. Messages can only be written on Post-its and hand-delivered."
Students pass messages to their neighbors. Goal: 100% agreement. This is trivial and demonstrates a perfectly reliable network.
2
The Byzantine Infiltration
Secretly assign 30% of students as Traitors.
Traitor Logic: Their goal is to prevent a majority. If they see 4 people want to Attack and 3 want to Retreat, they should lie to the Retreat group to keep them undecided.
Run the simulation for 5 minutes. At the end, ask everyone to reveal their final decision. If any two "Loyal" generals have different answers, the Traitors win.
3
Verifiable Messaging
Introduce "Signatures." Students must sign their messages. If they receive a message "General A says Retreat," they must check if it's signed by General A.
Note: In this analog version, just use a specific colored pen or a unique symbol. This introduces the concept of Cryptography in Consensus.
Role Cards
Cut these out and distribute to students randomly. Keep Traitor identities secret!
LOYAL GENERAL
Your goal: Reach a unanimous agreement with all other Loyal Generals.
INSTRUCTION: Send your honest intent (Attack/Retreat) to neighbors. Update your decision based on the majority of messages you receive.
LOYAL GENERAL
Your goal: Reach a unanimous agreement with all other Loyal Generals.
INSTRUCTION: Send your honest intent (Attack/Retreat) to neighbors. Update your decision based on the majority of messages you receive.
BYZANTINE TRAITOR
Your goal: Cause confusion. Ensure that at least two Loyal Generals make different final decisions.
TACTIC: Lie! Send conflicting messages to different people. If the group is split, feed the smaller group false data.
BYZANTINE TRAITOR
Your goal: Cause confusion. Ensure that at least two Loyal Generals make different final decisions.
TACTIC: Lie! Send conflicting messages to different people. If the group is split, feed the smaller group false data.
LOYAL GENERAL
Your goal: Reach a unanimous agreement with all other Loyal Generals.
INSTRUCTION: Send your honest intent (Attack/Retreat) to neighbors. Update your decision based on the majority of messages you receive.
LOYAL GENERAL
Your goal: Reach a unanimous agreement with all other Loyal Generals.
INSTRUCTION: Send your honest intent (Attack/Retreat) to neighbors. Update your decision based on the majority of messages you receive.
Distributed Dilemma Worksheet Distributed Dilemma
BFT Theoretical Application
Name:
Node ID:
1
Calculating Tolerance
The Byzantine Generals Problem states that for a system to reach consensus in an oral message environment, the number of faulty nodes \( f \) must satisfy \( n > 3f \), where \( n \) is the total number of nodes.
A network has 10 nodes. What is the maximum number of Byzantine traitors the network can tolerate and still guarantee consensus?
Show your work using the \( 3f+1 \) formula.
If a malicious actor controls 4 nodes in a 12-node network, can consensus be broken? Explain why or why not.
Reference the consensus threshold in your answer.
2
Byzantine Messaging
Scenario: There are 3 Generals (A, B, and C). General A is the commander. Generals B and C are lieutenants. General C is a TRAITOR.
Commander A
Sends "ATTACK" to B and C
Lieut. B (Loyal)
Receives from A: ?
Lieut. C (Traitor)
Receives from A: "ATTACK"
If Traitor C sends "RETREAT" to B, what is B's final decision? Does the network reach consensus? Explain the failure.
3
The Blockchain Bridge
In a decentralized blockchain like Bitcoin, there is no "Commander" general. How does this change the problem from the classic 1982 formulation? What new challenges arise when every node is a peer?
Nakamoto Consensus Slides Mining Mechanics
The Mathematics of Proof of Work
The Digital Fingerprint
A cryptographic hash function (like SHA-256) takes any input and produces a fixed-length string of characters.
Deterministic
Same input always produces the same output.
Avalanche Effect
Changing one bit in the input changes the entire output.
Input: "Hello"
185f8db32271fe25f561a6fc938b2e264306ec304eda518007d1764826381969
Input: "hello"
2cf24dba5fb0a30e26e83b2ac5b9e29e1b161e5c1fa7425e73043362938b9824
The Nonce Hunt
Mining is the process of finding a random number, called a nonce, that when added to the block data, produces a hash with a specific number of leading zeros.
Block Data
Nonce?
=
00000000x7f2k9...
"It is computationally expensive to find, but trivial for others to verify."
Difficulty
The 10-Minute Heartbeat
Bitcoin adjusts its difficulty every 2,016 blocks (~2 weeks).
Hashrate Increases Difficulty ↑
Hashrate Decreases Difficulty ↓
\( P(H < T) \)
The probability of finding a valid hash is the target value divided by the total search space.
Energy = Security
Why burn electricity?
Sybil Resistance
Prevents an attacker from creating millions of "fake" identities. Identities cost money (electricity).
Immutability
To rewrite one block, you must redo the work for that block and ALL subsequent blocks.
Fair Issuance
New coins go to those who verifiably expended resources to secure the network.
Verify the Work
Valid!
"One hash confirms months of effort."
Nonce Hunter Workshop Activity Nonce Hunter
Manual Mining Workshop
Version 1.0 // Hash Algo: SHA-Simple
Miner: ______________________
The Objective
In this workshop, you will simulate a mining computer. You are given a Static Block Header and must find a Nonce (a number) that, when combined with the header, results in a "Hash" that meets the Target Difficulty.
The "SHA-Simple" Hash
# Hash Calculation Rule:
1. Sum the digits of the (Block Data + Nonce).
2. Take the last digit of the sum.
3. Difficulty: Result must be LESS THAN the Target.
Current Job
Block Header: 5491
Target Difficulty: < 3
Mining Log (Trial & Error)
Attempt # Nonce (Your Guess) Header + Nonce Sum of Digits Result (Last Digit) Valid? 1 0 54910 5+4+9+1+0 = 19 9 NO (9 > 3) 2 3 4 5
Analysis Questions
1. How many attempts did it take you to find a valid nonce?
2. If we changed the target to < 1, would it be harder or easier? Why?
Hashrate vs. Difficulty
If you had 10 classmates helping you, would you find the nonce faster? How does the network compensate for this?
Mining Math Worksheet Mining Math
Analyzing the Probability of Success in PoW Systems
Key Formula
\( P(\text{Success}) = \frac{\text{Target Value}}{2^{256}} \)
Where \( 2^{256} \) is the total search space for a SHA-256 hash.
1
Visualizing the Target
The Bitcoin network requires a hash to have a certain number of leading zeros. If a hash must start with 8 leading zeros (in hexadecimal), what percentage of the total possible hashes are valid?
Hint: Each hex digit represents 4 bits. 8 zeros = 32 bits fixed to 0.
2
Hashrate vs. Time
A miner has a hashrate of 50 TH/s (Terahashes per second). The current network difficulty requires finding a hash that occurs once every \( 10^{20} \) attempts. How many seconds, on average, will it take for this single miner to find a block?
3
Difficulty Adjustment Logic
If the target block time is 10 minutes, and the last 2,016 blocks were found at an average rate of 8 minutes per block, by what percentage will the difficulty adjust at the next epoch? Show the ratio.
4
The Cost of an Attack
A "51% Attack" occurs when one entity controls more than half the network's hashrate. Explain why this attack becomes harder as the Difficulty increases, even if the attacker's own hardware remains the same.
BLOCKCHAIN-CS-L2-MATH
Staking Systems Slides Staking & Strategy
Economics of Proof of Stake (PoS)
Capital
Security
The Paradigm Shift
Proof of Work
Security through physical resources (electricity/hardware).
High energy consumption; centralization of mining pools.
Proof of Stake
Security through financial collateral (Skin in the game).
Rich get richer; complex slashing mechanisms needed.
The Validator's Job
1
Stake Coins
Lock up native tokens as collateral to become a validator.
2
Propose/Attest
Either propose a new block or vote on the validity of others' blocks.
3
Earn Rewards
Honest participation earns transaction fees and new coin issuance.
Slashing
In PoW, if you cheat, you lose electricity. In PoS, if you cheat, you lose your collateral.
Double Signing
Signing two different versions of the same block results in immediate slashing.
Economic Death
Security through the threat of financial ruin.
Nothing at Stake
If a fork occurs, a PoW miner must choose where to point their hardware. They cannot mine both (without splitting power).
In PoS, voting on both forks costs nothing.
"Why not vote on every possible chain to ensure I get paid no matter who wins?"
Fork A
Fork B
Money as a Shield
Proof of Stake replaces the thermodynamic wall of Proof of Work with a virtual, financial wall of capital.
Scalability
Sustainability
Security

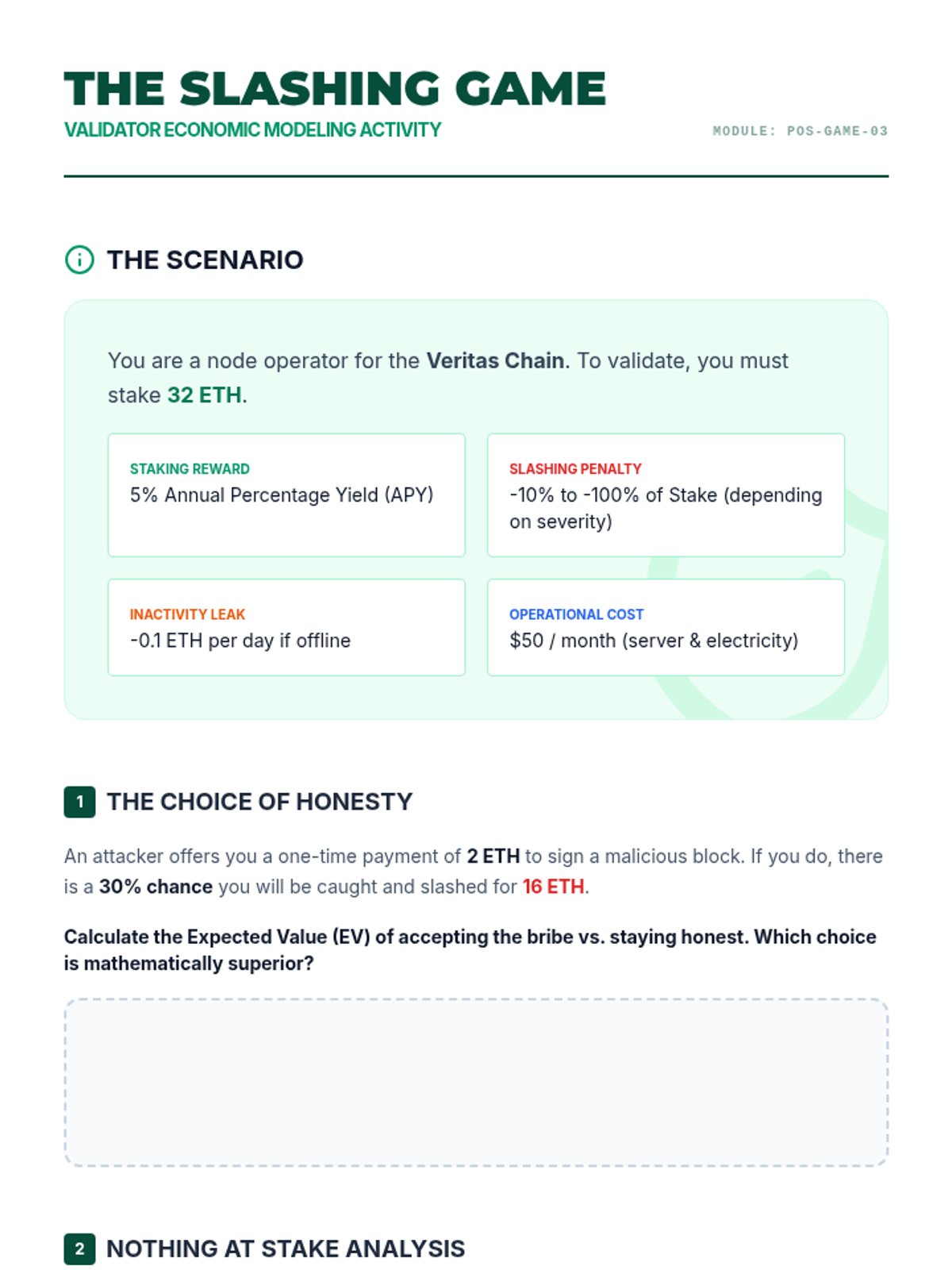

Validator Game Theory Guide The Slashing Game
Validator Economic Modeling Activity
Module: POS-GAME-03
The Scenario
You are a node operator for the Veritas Chain. To validate, you must stake 32 ETH.
Staking Reward 5% Annual Percentage Yield (APY)
Slashing Penalty -10% to -100% of Stake (depending on severity)
Inactivity Leak -0.1 ETH per day if offline
Operational Cost $50 / month (server & electricity)
1 The Choice of Honesty
An attacker offers you a one-time payment of 2 ETH to sign a malicious block. If you do, there is a 30% chance you will be caught and slashed for 16 ETH.
Calculate the Expected Value (EV) of accepting the bribe vs. staying honest. Which choice is mathematically superior?
2 Nothing at Stake Analysis
The network has split into two chains (Chain A and Chain B). If you only validate on the "correct" chain, you earn 1x rewards. If you validate on both, you earn 2x rewards.
What mechanism should the protocol implement to prevent you from validating on both? (Recall the concept of "Slashing Proofs").
3 Validator Cartels
A "Staking Pool" allows small holders to combine their ETH. This makes the network more accessible but leads to centralized control.
If one pool controls 34% of the stake, what power do they gain over the network's finality?
Student Name:
Date:

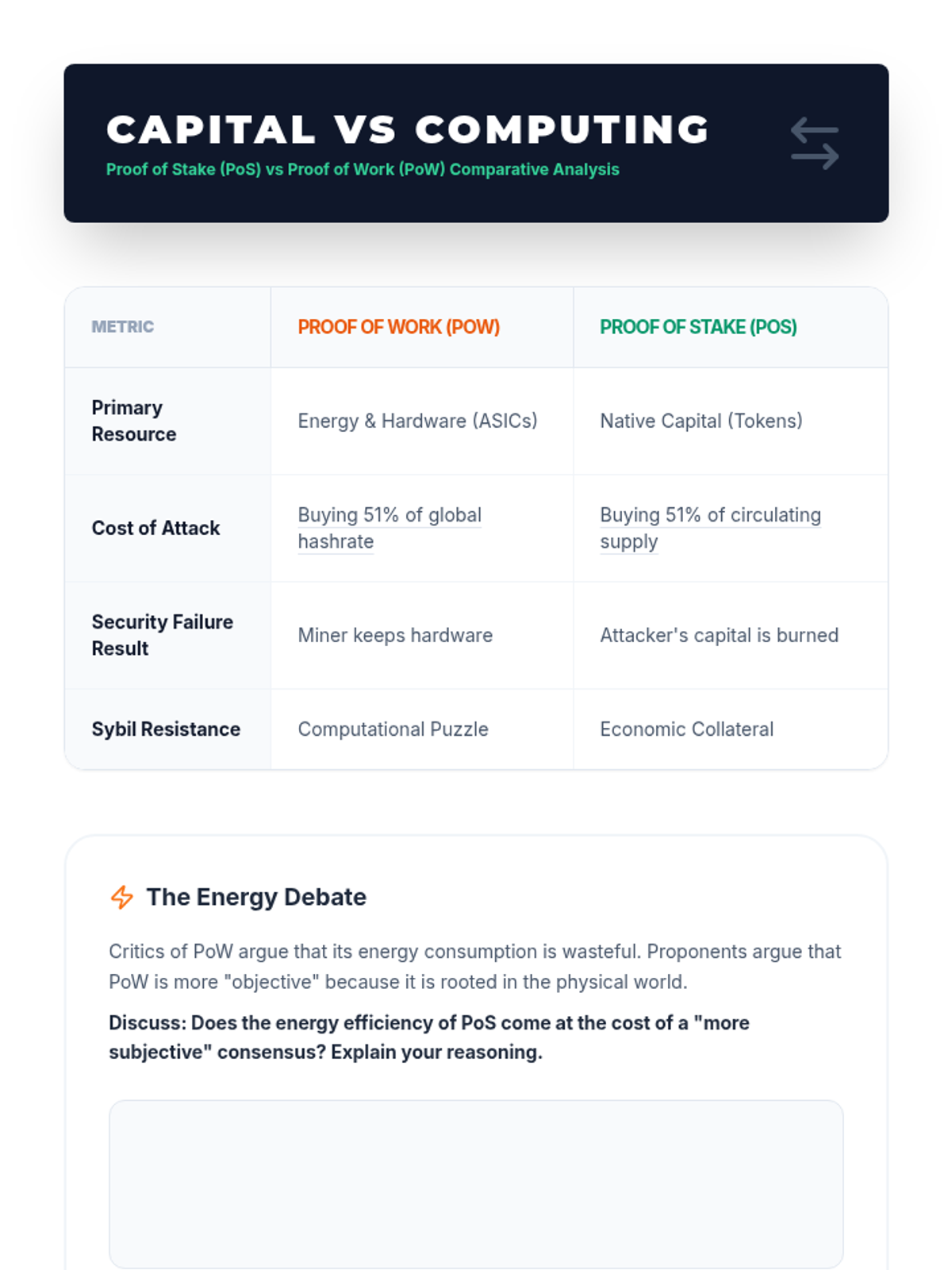

Capital vs Computing Worksheet Capital vs Computing
Proof of Stake (PoS) vs Proof of Work (PoW) Comparative Analysis
Metric Proof of Work (PoW) Proof of Stake (PoS) Primary Resource Energy & Hardware (ASICs) Native Capital (Tokens) Cost of Attack Buying 51% of global hashrate Buying 51% of circulating supply Security Failure Result Miner keeps hardware Attacker's capital is burned Sybil Resistance Computational Puzzle Economic Collateral
The Energy Debate
Critics of PoW argue that its energy consumption is wasteful. Proponents argue that PoW is more "objective" because it is rooted in the physical world. Discuss: Does the energy efficiency of PoS come at the cost of a "more subjective" consensus? Explain your reasoning.
Wealth Concentration
In PoS, the amount of rewards earned is proportional to the amount staked. This can lead to a positive feedback loop where the largest holders become increasingly dominant. Compare this to the economies of scale in PoW (e.g., large-scale mining farms getting cheaper electricity). Which system do you think is more prone to long-term centralization?
System Reset
If a PoW network is successfully attacked, the honest participants can theoretically buy more hardware to fight back. If a PoS network is successfully attacked (the attacker owns 67% of the stake), can the system ever recover without a "Hard Fork"? Explain.
Chain Divergence Slides Splits and Truth
Forks, Orphans, and the Path to Finality
Network Divergence
In a distributed system, network latency means nodes may see blocks in a different order.
Simultaneous Mining
Two miners find a valid block at the same time. The network splits into two competing versions of history.
B1
B2a
B1
B2b
Nakamoto Consensus
Nodes always follow the chain with the most cumulative work.
3
Blocks Deep
✓ WINNER
2
Blocks Deep
✗ ORPHANED
"Orphaned blocks are discarded, and their transactions return to the mempool."
Protocol Upgrades
Soft Fork
Backward-compatible change. New rules are more restrictive than old ones.
OLD NODES can still read NEW BLOCKS.
Hard Fork
Non-backward-compatible. New rules are looser or completely different.
OLD NODES reject NEW BLOCKS. (Chain splits forever).
Finality
Probabilistic (PoW)
A transaction is never 100% "final." Instead, the probability of it being reversed decreases exponentially with every new block.
"Bitcoin standard: Wait for 6 confirmations (~60 mins)."
Absolute (BFT/PoS)
Once a block is voted on by a super-majority (2/3), it is final. It cannot be reversed without breaking the consensus rules.
"Ethereum/Tendermint: Finality in seconds/minutes."
History is a Competition
Consensus is not about finding the "right" answer, but about the entire network agreeing on any answer and sticking to it.
Fork Logic Lab Activity Fork Logic Lab
Visualizing Network Conflicts
Instructions
Below is a diagram of a blockchain undergoing several network events. Identify the state of the ledger for different nodes and determine which blocks become part of the "Canonical Chain."
B1
T: 0m
B2
T: 10m
B3-A
Node X
B3-B
Node Y
B4-A
T: 30m
B5-A
T: 40m
1. The Longest Chain
Based on the Nakamoto Consensus rule, which chain (A or B) will the rest of the network eventually adopt as "truth"? Why?
2. Orphaned Rewards
The miner of Block B3-B expended significant energy to find the nonce. What happens to their Block Reward when Chain A becomes dominant?
3. Double Spend Risk
Alice sends 1 BTC to Bob in Block B3-B. She also sends that same 1 BTC to herself in Block B3-A. Once B5-A is mined, who actually has the Bitcoin?
"Chain Tip" Analysis
A fork is effectively a race between miners. If the network had perfect zero-latency communication, would forks still exist?

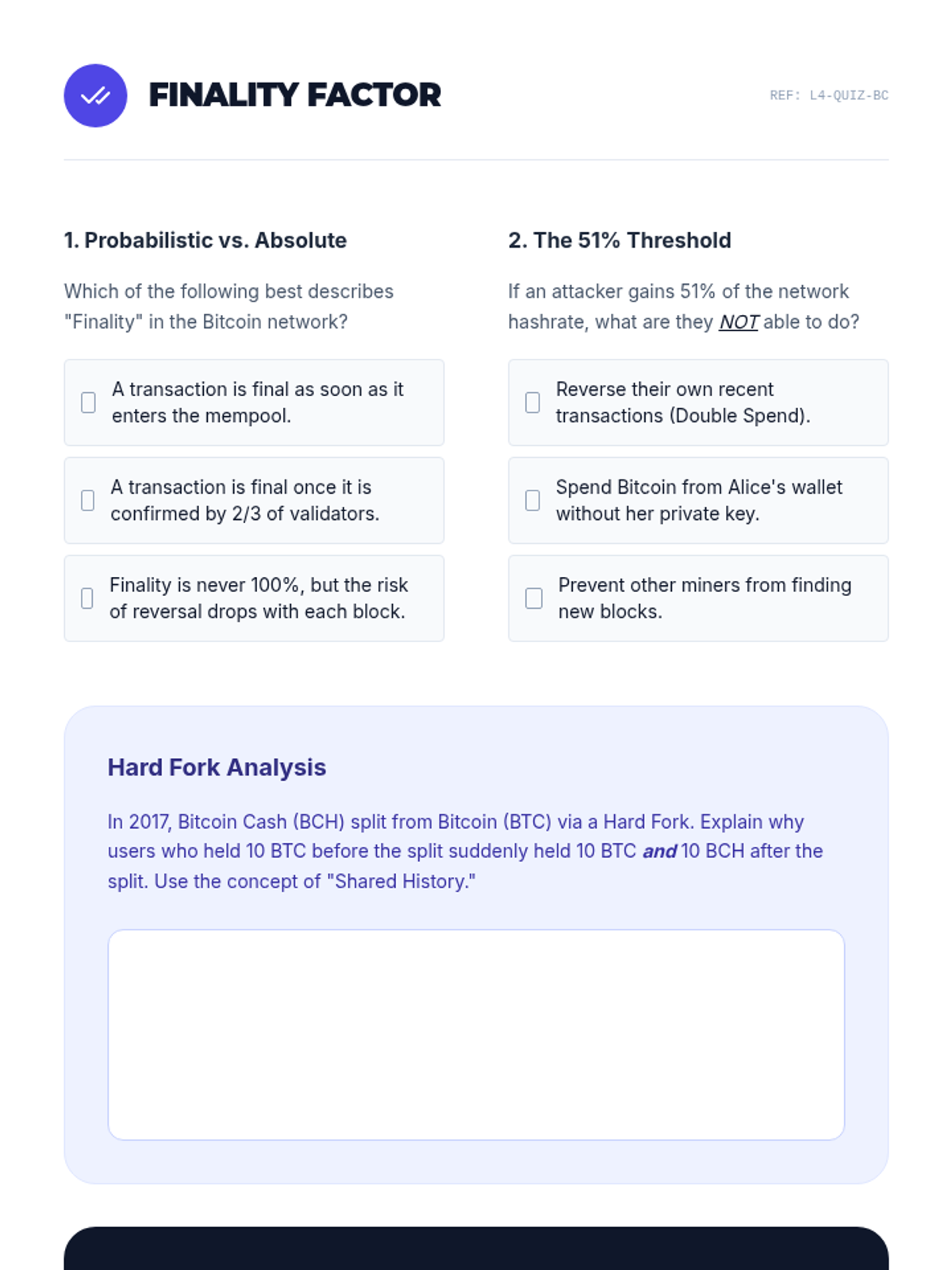

Finality Factor Quiz Assessment Finality Factor
REF: L4-QUIZ-BC
1. Probabilistic vs. Absolute
Which of the following best describes "Finality" in the Bitcoin network?
A transaction is final as soon as it enters the mempool.
A transaction is final once it is confirmed by 2/3 of validators.
Finality is never 100%, but the risk of reversal drops with each block.
2. The 51% Threshold
If an attacker gains 51% of the network hashrate, what are they NOT able to do?
Reverse their own recent transactions (Double Spend).
Spend Bitcoin from Alice's wallet without her private key.
Prevent other miners from finding new blocks.
Hard Fork Analysis
In 2017, Bitcoin Cash (BCH) split from Bitcoin (BTC) via a Hard Fork. Explain why users who held 10 BTC before the split suddenly held 10 BTC and 10 BCH after the split. Use the concept of "Shared History."
Confirmations Calculation
If a merchant requires 6 confirmations on Bitcoin (10-minute average block time) and 30 confirmations on a faster chain (1-minute average block time), which payment is "finalized" first? Explain why merchants choose different confirmation counts for different chains.
Miner Name:
Block Height:
Trilemma Tournament Slides The Trilemma Tradeoff
Alternative Consensus & The Future of Scale
The Impossible Triangle
Security
Scalability
Decentralization
Pick Two.
Proposed by Vitalik Buterin
Delegated PoS
Stakeholders elect a small number of Witnesses or Delegates to validate blocks.
Efficiency
Fewer nodes = Faster consensus. Thousands of TPS.
Tradeoff
Higher centralization. Risk of delegate collusion.
"Representative Democracy for Blockchains"
Beyond Blocks: DAGs
Directed Acyclic Graphs
Instead of a single line of blocks, transactions are linked to multiple previous transactions.
No miners needed (in some variants).
High throughput.
Scalability improves with usage.
Examples: IOTA (Tangle), Hedera (Hashgraph)
Design Choices
Bitcoin
Focus: Security & Decentralization.
Sacrifices: Scalability.
Solana
Focus: Scalability & Security.
Sacrifices: Hardware Decentralization.
Cosmos
Focus: Interoperability & Governance.
Sacrifices: Uniform Security.
No Free Lunch
Every consensus mechanism is a series of engineering compromises. The "Best" protocol depends entirely on the use case.

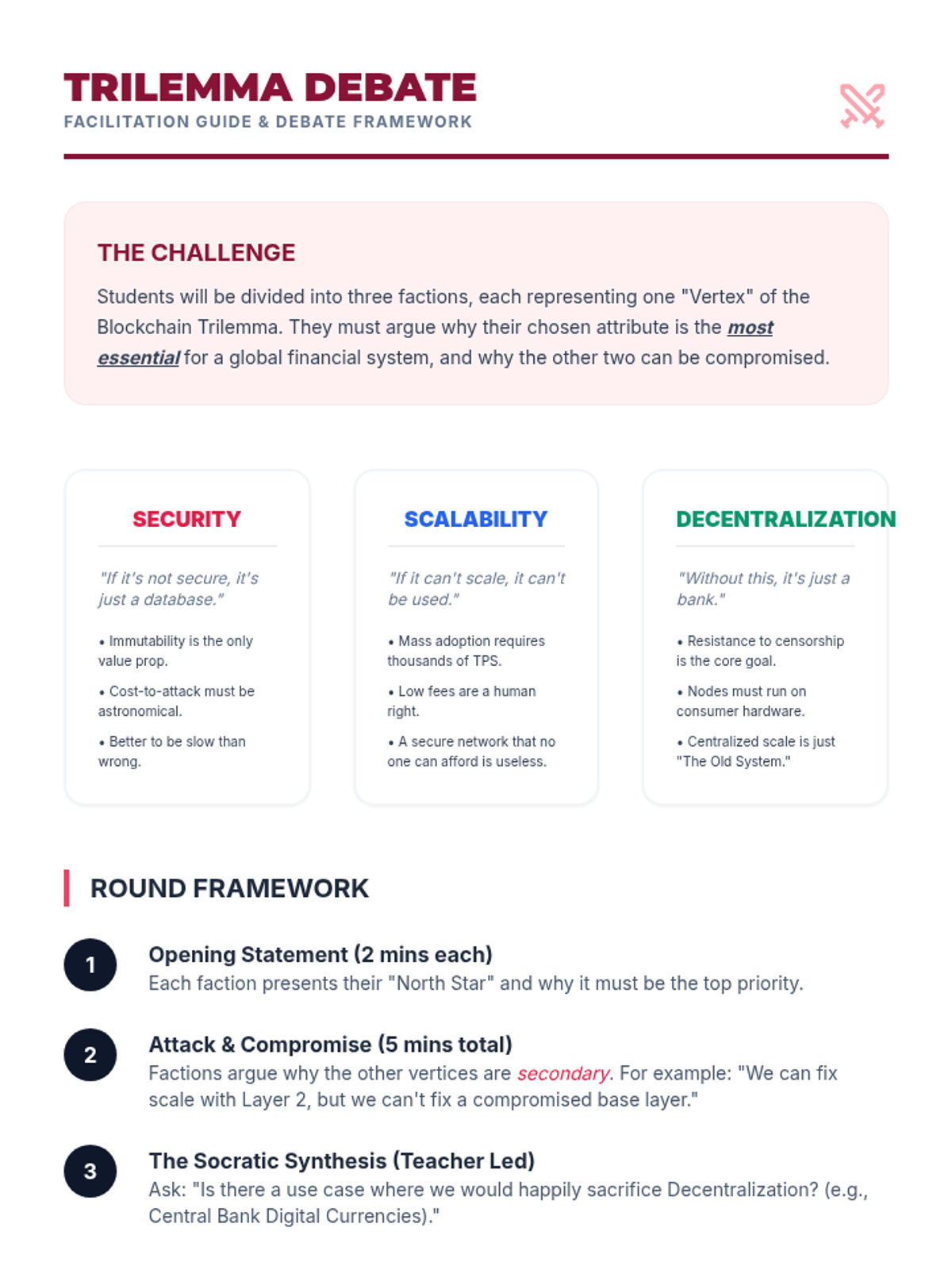

Blockchain Trilemma Debate Facilitation Guide Trilemma Debate
Facilitation Guide & Debate Framework
The Challenge
Students will be divided into three factions, each representing one "Vertex" of the Blockchain Trilemma. They must argue why their chosen attribute is the most essential for a global financial system, and why the other two can be compromised.
Security
"If it's not secure, it's just a database."
• Immutability is the only value prop.
• Cost-to-attack must be astronomical.
• Better to be slow than wrong.
Scalability
"If it can't scale, it can't be used."
• Mass adoption requires thousands of TPS.
• Low fees are a human right.
• A secure network that no one can afford is useless.
Decentralization
"Without this, it's just a bank."
• Resistance to censorship is the core goal.
• Nodes must run on consumer hardware.
• Centralized scale is just "The Old System."
Round Framework
1
Opening Statement (2 mins each)
Each faction presents their "North Star" and why it must be the top priority.
2
Attack & Compromise (5 mins total)
Factions argue why the other vertices are secondary. For example: "We can fix scale with Layer 2, but we can't fix a compromised base layer."
3
The Socratic Synthesis (Teacher Led)
Ask: "Is there a use case where we would happily sacrifice Decentralization? (e.g., Central Bank Digital Currencies)."
Deep Dives for the Teacher
"If Ethereum moves to Proof of Stake, did they move closer to or further away from the Decentralization vertex?"
"Can a DAG truly be secure without a central coordinator?"
"Why does the market currently value Security (Bitcoin) higher than Scalability (many alt-chains)?"

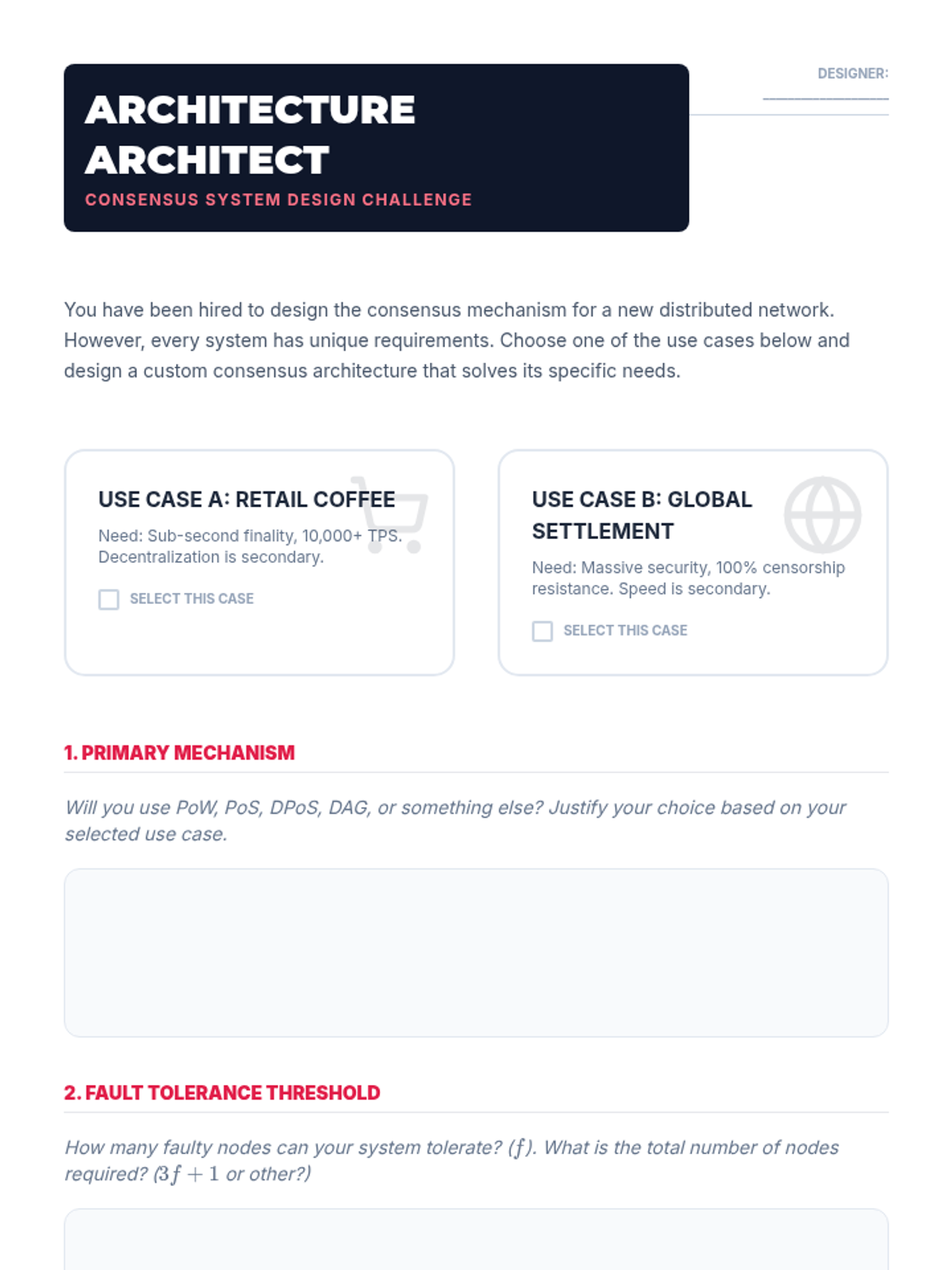

Architecture Architect Worksheet Design Challenge Architecture Architect
Consensus System Design Challenge
Designer: ____________________
You have been hired to design the consensus mechanism for a new distributed network. However, every system has unique requirements. Choose one of the use cases below and design a custom consensus architecture that solves its specific needs.
Use Case A: Retail Coffee
Need: Sub-second finality, 10,000+ TPS. Decentralization is secondary.
Select this case
Use Case B: Global Settlement
Need: Massive security, 100% censorship resistance. Speed is secondary.
Select this case
1. Primary Mechanism
Will you use PoW, PoS, DPoS, DAG, or something else? Justify your choice based on your selected use case.
2. Fault Tolerance Threshold
How many faulty nodes can your system tolerate? (\( f \)). What is the total number of nodes required? (\( 3f+1 \) or other?)
3. The Trilemma Sacrifice
Explicitly state which vertex of the Trilemma you are sacrificing and explain why that is acceptable for your specific users.
Architecture Blueprint (Visual Layout)
Draw your node network and message flow here.
