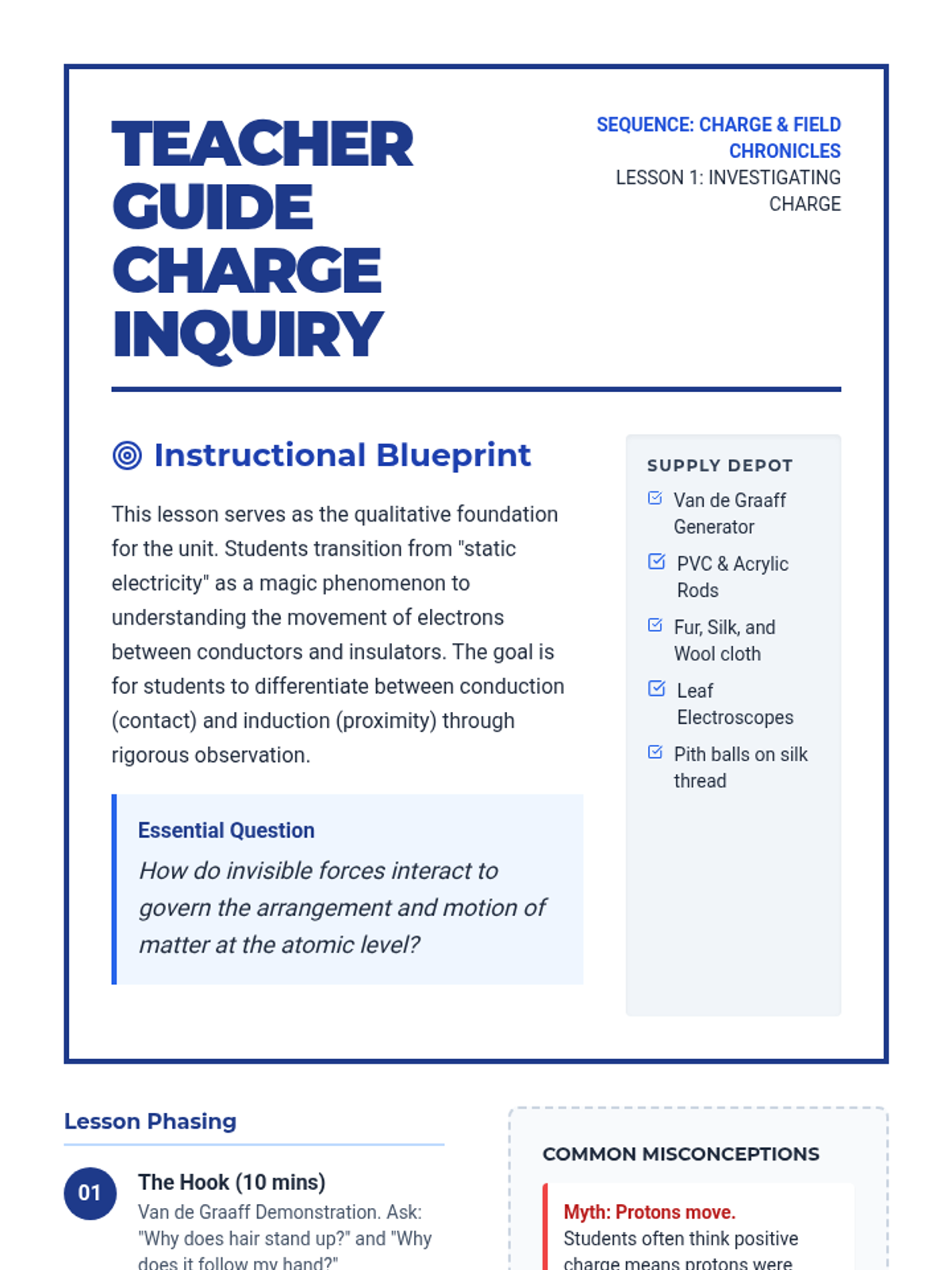

Charge Inquiry Teacher Guide Teacher Guide
Charge Inquiry
SEQUENCE: CHARGE & FIELD CHRONICLES
LESSON 1: INVESTIGATING CHARGE
Instructional Blueprint
This lesson serves as the qualitative foundation for the unit. Students transition from "static electricity" as a magic phenomenon to understanding the movement of electrons between conductors and insulators. The goal is for students to differentiate between conduction (contact) and induction (proximity) through rigorous observation.
Essential Question
How do invisible forces interact to govern the arrangement and motion of matter at the atomic level?
Supply Depot
Van de Graaff Generator
PVC & Acrylic Rods
Fur, Silk, and Wool cloth
Leaf Electroscopes
Pith balls on silk thread
Lesson Phasing
01
The Hook (10 mins)
Van de Graaff Demonstration. Ask: "Why does hair stand up?" and "Why does it follow my hand?"
02
Inquiry Stations (30 mins)
Rotating through charging by friction, conduction, and induction. Students record observations on their guides.
03
Synthesize & Diagram (20 mins)
Teacher-led discussion on electron flow. Students draw charge distributions on "blank" electroscopes.
Common Misconceptions
Myth: Protons move.
Students often think positive charge means protons were added. Correct this early: only electrons move in solid conductors.
Myth: Induction is permanent contact.
Students confuse induction with conduction. Remind them: induction is "social distancing" for charges—influence without touch.
Station Specifications
Station 1: Friction & Triboelectricity
Objective: Determine which materials "grab" electrons more effectively.
Facilitation Note: Provide the Triboelectric Series chart. Have students predict if the PVC will be (+) or (-) before testing with the pith ball.
PVC + Fur → PVC is (-)
Station 2: Conduction (Contact)
Objective: Observe charge transfer through touch and the resulting repulsion.
Teacher Prompt: "When the rod touches the electroscope leaves, why do they stay apart even after you remove the rod?"
Answer: Electrons were transferred. Both leaves now have the same net charge and repel each other.
Station 3: Induction & Grounding
Objective: Create a permanent charge on an object WITHOUT touching it with the source.
The "Magic" Step: While the charged rod is near the electroscope (not touching), have the student touch the metal plate with their finger. Then remove the finger, THEN remove the rod. The electroscope will remain charged. Ask them to explain the "escape" of electrons through their body (the ground).
Debrief Questions
Why does a neutral object get attracted to both a positive and negative rod? (Polarization)
In a conductor, where do the excess charges reside? (Surface/Edges)
If you had a metal rod and a plastic rod, which would be easier to charge by friction while holding it in your bare hand? Why?
Shocking Science Slides Lesson 1
Shocking
Science
Why does your hair stand up? Why does a balloon stick to a wall? Today, we visualize the invisible dance of electrons.
#Electrostatics #Inquiry
The Fundamental Rule
Electric Charge (\(q\))
Protons: Positive (\(+\)) - Stuck in nucleus!Electrons: Negative (\(-\)) - The travelers!
"Likes Repel, Opposites Attract"
-
Attraction
-
-
Repulsion
Material Properties
Conductors
Charges (electrons) move freely throughout the material. They spread out to the surface.
Metals
Tap Water
Ionic Solutions
Graphite
Insulators
Charges stay where they are put. They do not flow through the bulk of the material.
Rubber
Plastic
Glass
Dry Air
How do things get charged?
Friction
"Stealing" electrons by rubbing different materials together.
Conduction
Charging by contact . Charge flows from one to another.
Induction
Charging without touching . Charge is redistributed by proximity.
Grounding: The Earth is the ultimate electron drain!

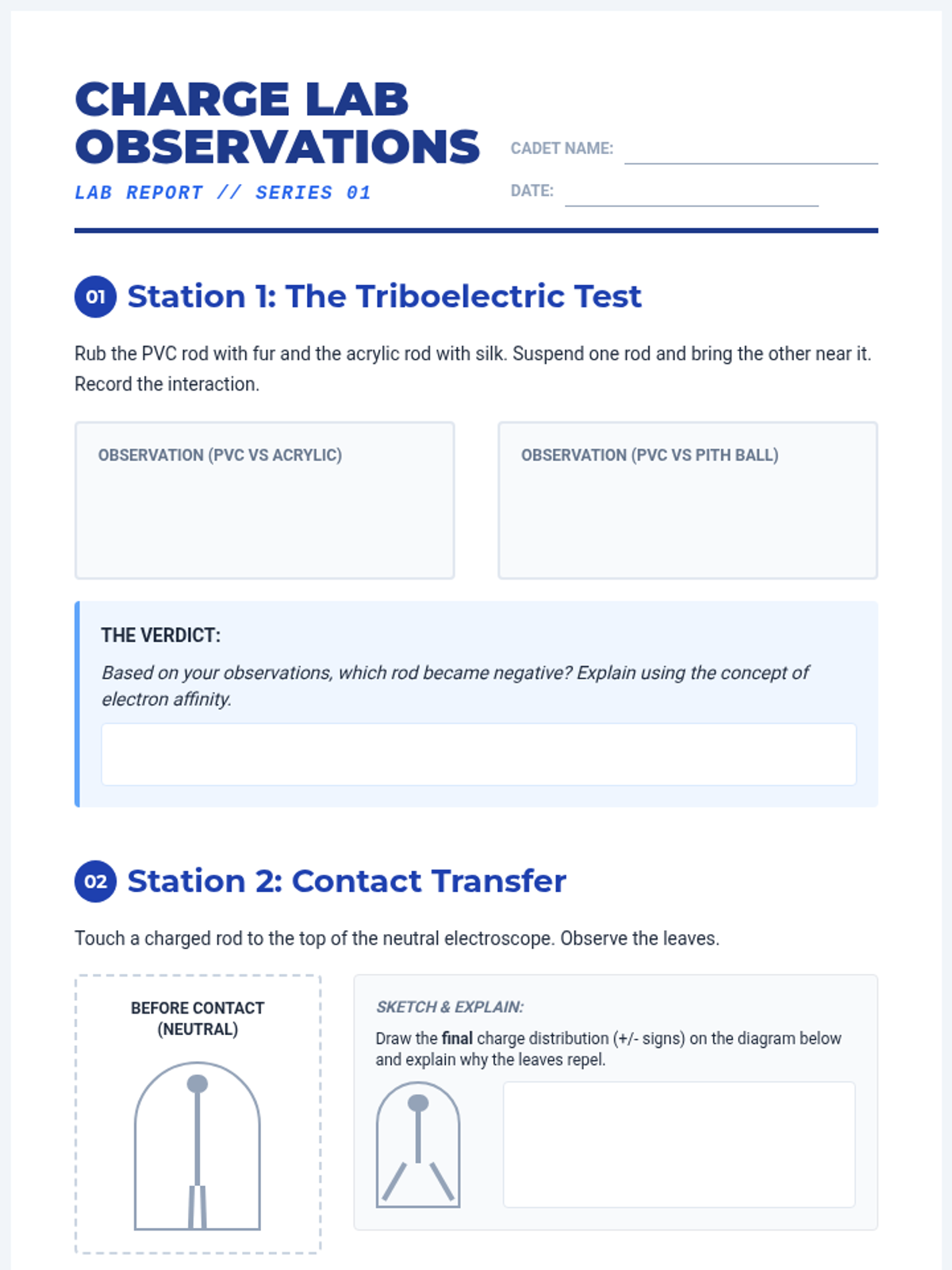

Charge Lab Exploration Guide Charge Lab
Observations
Lab Report // Series 01
Cadet Name:
Date:
01 Station 1: The Triboelectric Test
Rub the PVC rod with fur and the acrylic rod with silk. Suspend one rod and bring the other near it. Record the interaction.
Observation (PVC vs Acrylic)
Observation (PVC vs Pith Ball)
The Verdict:
Based on your observations, which rod became negative? Explain using the concept of electron affinity.
02 Station 2: Contact Transfer
Touch a charged rod to the top of the neutral electroscope. Observe the leaves.
Before Contact
Sketch & Explain:
Draw the final charge distribution (+/- signs) on the diagram below and explain why the leaves repel.
03 Station 3: The Induction Trick
1. Bring rod near (no touch). 2. Touch plate with finger. 3. Remove finger. 4. Remove rod.
Detailed Sequence Analysis
Step Electron Movement Leaf Status Rod Near Plate Finger Touches Plate Rod Removed
04 The Neutral Attraction Paradox
A neutral aluminum soda can is placed on its side. You bring a negative rod near it. The can rolls toward the rod. Why?
Draw the Charge Distribution on the Can
ROD (-)
Explain Polarization
Summary: Charging is always about the movement of electrons. Charge is conserved!
L01-STU-GUIDE-REV0
Coulombs Law Slides Deck Lesson 2
The Power
of Pull
Transitioning from "how" to "how much." Quantifying the invisible dance of electrostatic forces.
Gravity vs. Electricity
Gravity
\[ F_g = G \frac{m_1 m_2}{r^2} \]
Weak, but infinite reach. Only attracts.
Electrostatics
\[ F_e = k \frac{q_1 q_2}{r^2} \]
Incredibly strong! Attracts AND repels.
The Comparison
In a hydrogen atom:
Electric Force \(8.2 \times 10^{-8}\) N
Gravity Force \(3.6 \times 10^{-47}\) N
Electricity is \(10^{39}\) times stronger!
The Anatomy of the Law
\(q\)
Charge
Measured in Coulombs (C) . Remember: 1 C is a MASSIVE amount of charge. Usually we use \(\mu C\) (\(10^{-6}\)).
\(r\)
Distance
Distance between centers. Notice it's squared (\(r^2\)). If distance doubles, force drops by 4!
\(k\)
The Constant
\(9.0 \times 10^9\)
The Vector Strategy
Net force is the vector sum of all individual forces.
3-Step Process:
Find magnitude for each pair using \(k\frac{q_1q_2}{r^2}\).
Identify direction based on signs (Attract vs Repel).
Add components (\(F_x\) and \(F_y\)) to find the Resultant.
Sample Configuration
-
Calculate force on the middle charge!

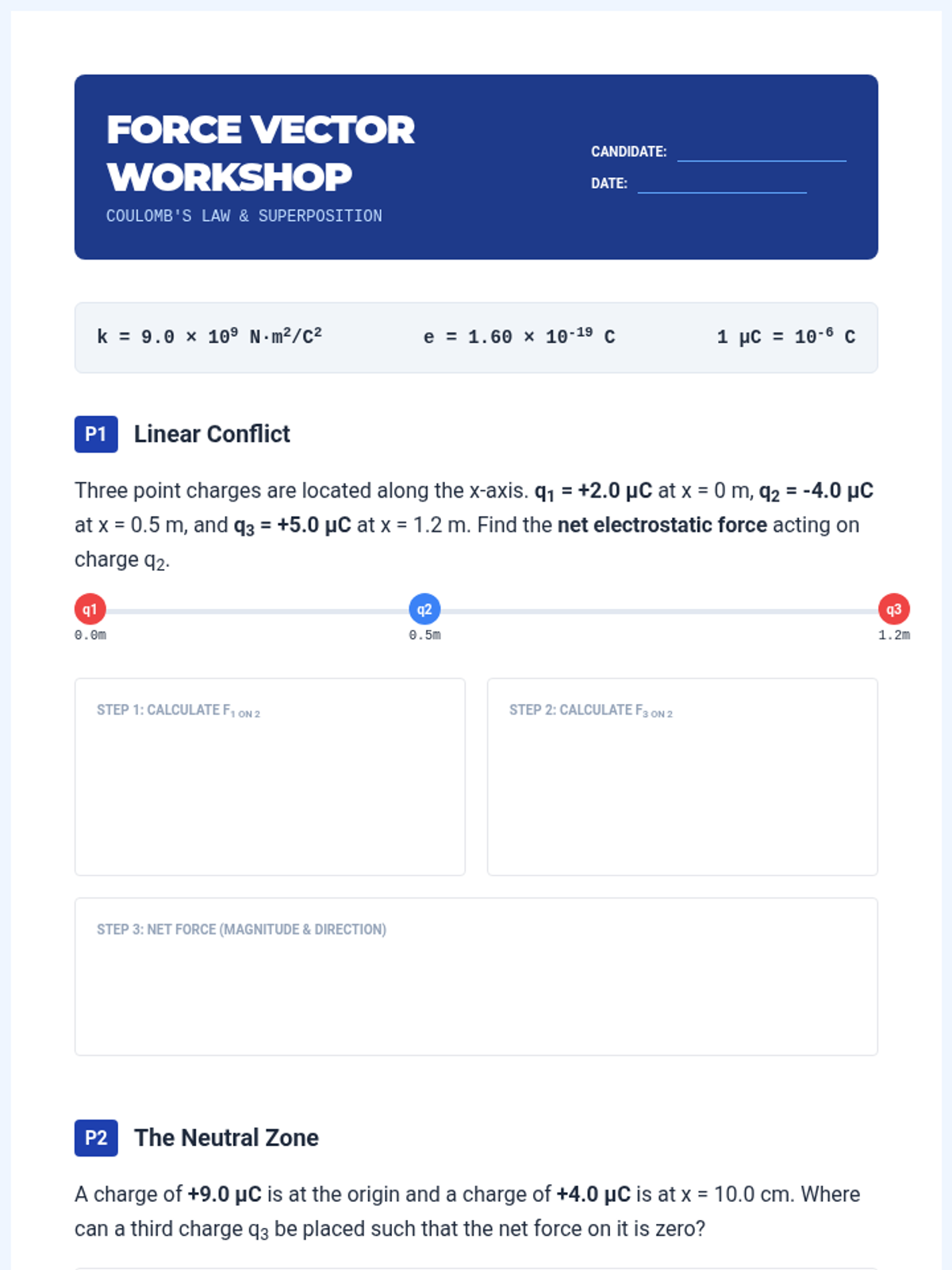

Force Vector Workshop Worksheet Force Vector Workshop
COULOMB'S LAW & SUPERPOSITION
Candidate:
Date:
k = 9.0 × 109 N·m2/C2
e = 1.60 × 10-19 C
1 μC = 10-6 C
P1
Linear Conflict
Three point charges are located along the x-axis. q1 = +2.0 μC at x = 0 m, q2 = -4.0 μC at x = 0.5 m, and q3 = +5.0 μC at x = 1.2 m. Find the net electrostatic force acting on charge q2.
q1
q2
q3
0.0m
0.5m
1.2m
Step 1: Calculate F1 on 2
Step 2: Calculate F3 on 2
Step 3: Net Force (Magnitude & Direction)
P2
The Neutral Zone
A charge of +9.0 μC is at the origin and a charge of +4.0 μC is at x = 10.0 cm. Where can a third charge q3 be placed such that the net force on it is zero?
Show algebraic setup and solution
2D Configuration Challenge
P3
Triangular Tension
Three charges are at the corners of an equilateral triangle with side length s = 15.0 cm .magnitude and direction of the net force on charge qC.
C
A
B
15cm
Geometric Layout
Free Body Diagram for C
Component Analysis (\(\Sigma F_x, \Sigma F_y\))
Final Vector Summation (Magnitude & Angle)
Concept Check
If all three charges in Problem 3 were doubled (2x), how many times greater would the net force on qC become? Why?

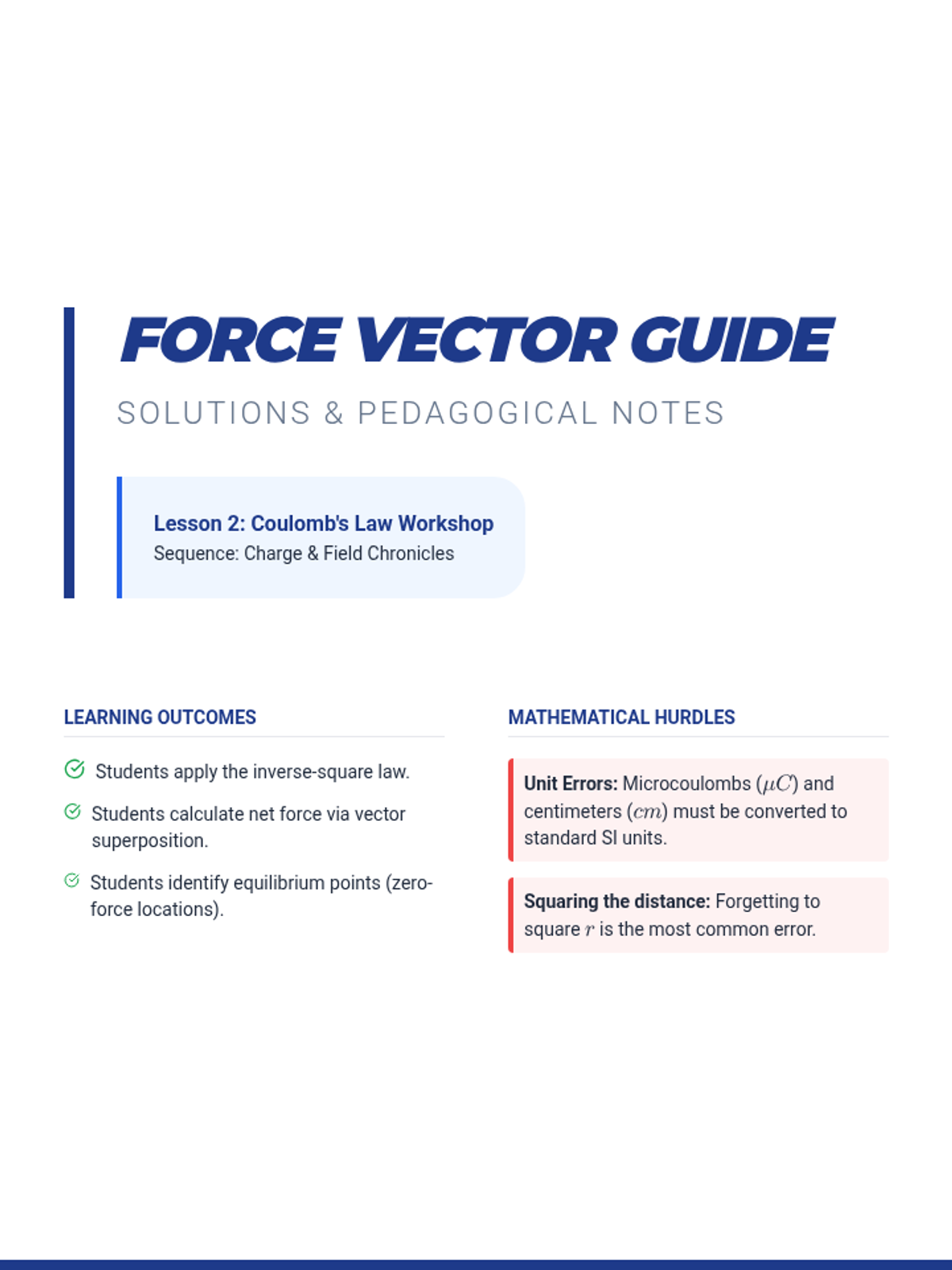

Force Vector Answer Key Guide Force Vector Guide
Solutions & Pedagogical Notes
Lesson 2: Coulomb's Law Workshop
Sequence: Charge & Field Chronicles
Learning Outcomes
Students apply the inverse-square law.
Students calculate net force via vector superposition.
Students identify equilibrium points (zero-force locations).
Mathematical Hurdles
Unit Errors: Microcoulombs (\(\mu C\)) and centimeters (\(cm\)) must be converted to standard SI units.Squaring the distance: Forgetting to square \(r\) is the most common error.
Problem 1: Linear Conflict Solution
Step 1: F1 on 2 (Attraction to the left)
\[ F_{1,2} = \frac{(9 \times 10^9)(2 \times 10^{-6})(4 \times 10^{-6})}{(0.5)^2} = 0.288 \text{ N} \]
→ Direction: Negative x-axis (-0.288 N)
Step 2: F3 on 2 (Attraction to the right)
\[ F_{3,2} = \frac{(9 \times 10^9)(4 \times 10^{-6})(5 \times 10^{-6})}{(1.2 - 0.5)^2} = \frac{0.18}{0.49} \approx 0.367 \text{ N} \]
→ Direction: Positive x-axis (+0.367 N)
Net Force: \( +0.367 - 0.288 = +0.079 \text{ N} \)
Result: 0.079 N to the RIGHT.
Problem 2: Neutral Zone Logic
To find where \(F_{net} = 0\), set the forces equal to each other. Since both source charges are positive, the equilibrium point MUST be between them.
\[ \frac{k(9 \mu C)q_3}{x^2} = \frac{k(4 \mu C)q_3}{(10-x)^2} \] \[ \frac{9}{x^2} = \frac{4}{(10-x)^2} \implies \text{Take square root of both sides!} \] \[ \frac{3}{x} = \frac{2}{10-x} \implies 30 - 3x = 2x \implies 5x = 30 \implies x = 6.0 \text{ cm} \]
TEACHER TIP: Encourage taking the square root of both sides to avoid the quadratic formula!
Electric Field Mapping Slides Lesson 3
Force
Fields
From action-at-a-distance to the field concept . Mapping the invisible aura of electric charge.
The Concept Shift
Old View (Coulomb)
Charge A pushes Charge B instantly through empty space. No explanation of how the "push" travels.
New View (Faraday)
Charge A modifies the space around it. Charge B feels the local "stress" or "field" at its own position.
Definition
\( \vec{E} = \frac{\vec{F}_{on\ q_o}}{q_o} \)
"The electric field is the force per unit charge exerted on a small test charge."
Unit: N/C
Rules of the Map
1. Direction
Lines point away from (+) and toward (-). Always follow the path of a positive test charge.
2. Density
Where lines are closer together , the field is stronger . Farther apart = weaker.
3. The Golden Rule
Electric field lines NEVER cross.
-
The Dipole Configuration
Parallel Plate Excellence
When two metal plates are charged oppositely, the field between them is Uniform .
Same magnitude at every point.
Parallel, equally spaced lines.
-
Ideal Uniform Field
Field Line Drafting Activity Worksheet Field Line
Drafting
Modeling Charge Interactions
UNIT: ELECTROSTATICS
LAB: VISUAL MODELING
Drafting Protocols
Use 8 lines per \(\pm q\) of charge (e.g., a \(+2q\) charge should have 16 lines).
Lines must be symmetric around the point charge.
Lines never cross. Curves must be smooth.
Arrows MUST show direction: Away from (+), Toward (-).
Case A: Isolated Dipole (\(+q\) and \(-q\))
-
Sketch field lines above
Case B: Repulsive Pair (\(+q\) and \(+q\))
Sketch field lines above
Case C: Unequal Charges (\(+2q\) and \(-q\))
+2q
-q
Hint: Twice as many lines emerge from the left charge!
Case D: Oppositely Charged Plates
Sketch uniform field lines between
Quantitative Field Analysis
Using the field definition \( \vec{E} = \frac{kQ}{r^2} \), solve the following vector field problems.
1. Magnitude & Direction: What is the magnitude and direction of the electric field at a point 35.0 cm to the right of a -4.50 μC point charge?
2. The Null Point: A charge \(q_1 = +5.0 \mu C\) is at \(x = 0\) and \(q_2 = -10.0 \mu C\) is at \(x = 1.0 m\). At what point (other than infinity) is the total electric field zero ?
HINT: Is the field zero between them, or to the outside? Think about the directions of the vectors.
Name:
PAGE 02 // FIELD DRAFTING ACTIVITY
Visual Modeling Guide Teacher Resource Field Master
Key Guide
Teacher Modeling Resource
LESSON 3: MAPPING ELECTRIC FIELDS
Drafting Solutions
Dipole (\(+q\) / \(-q\))
Lines exit (+) and enter (-) in smooth curves. Central line is straight. Total lines conserved. Lines never touch.
Repulsive (\(+q\) / \(+q\))
Lines exit both charges. They curve away from each other toward infinity. The midpoint between charges has E = 0 .
Unequal (\(+2q\) / \(-q\))
16 lines leave the \(+2q\); 8 lines enter the \(-q\). The remaining 8 lines from the \(+2q\) must go to infinity.
Teaching Tips
The Test Charge: Remind students that arrows ALWAYS show the path a positive test charge would take.
Superposition: Visually explain that the "curving" of lines is the result of adding the two individual field vectors at every point.
Simulate it! If time allows, use the PhET "Charges and Fields" sim to verify their hand-drawn models.
Quantitative Solutions
Problem 1: Point Field
E = k|Q| / r²
E = (9e9)(4.5e-6) / (0.35)²
E = 40500 / 0.1225
E = 3.31 × 10⁵ N/C
Direction: Left (toward the - charge)
Problem 2: The Null Point
Null point must be to the left of q₁ (outside the charges, near the smaller charge).
k(5)/x² = k(10)/(1+x)²
1/x² = 2/(1+x)² → (1+x)² = 2x²
1 + x = \(\sqrt{2}\)x → 1 = 0.414x
x = 2.41 m to the left of the origin.
Potential and Voltage Slides Lesson 4
Voltage
Pressure
Why do charges move? Defining Electric Potential as the energy driver of the universe.
The Energy Landscape
Gravity
Mass moves from High Altitude to Low Altitude .
PE = mgh
Electricity
Charge moves from High Potential to Low Potential .
PE = qV
Crucial Equation
\( V = \frac{PE_e}{q} \)
Potential (\(V\)) is just "Electric Potential Energy per unit Charge."
Unit: Volt (V)
1 Volt = 1 Joule / 1 Coulomb
Work & Voltage
Moving a charge against the field requires WORK.
Uniform Field Equation
\( \Delta V = -Ed \)
Work = \(\Delta PE = q \Delta V = qEd\)
Scalar vs Vector
Electric Field (\(E\))
VECTOR
Magnitude & Direction
Potential (\(V\))
SCALAR
Just a number (J/C)
"Calculating voltage is easy because you don't have to worry about angles—just add them up!"
The Power Line Paradox
Why can a bird sit on a 50,000 Volt wire and be perfectly safe?
Key Fact:
"Current only flows when there is a Potential DIFFERENCE (\(\Delta V\))."
Both feet @ 50kV
\(\Delta V = 0\)
The bird's whole body is at 50,000V, so no charge flows through the bird. But if they touch the ground? Zap.
Potential and Energy Practice Worksheet Energy & Potential
VOLTAGE & WORK ANALYSIS
Physicist Name:
I. Conceptual Landscape
1. Potential Difference
If a positive charge moves with the direction of the electric field lines, does its electric potential energy increase or decrease? Explain using the gravity analogy.
2. Scalar Advantage
Why is it mathematically simpler to calculate total Electric Potential (\(V\)) from multiple charges than it is to calculate the total Electric Field (\(\vec{E}\))?
II. The Parallel Plate Problem
An electron (\(q = -1.6 \times 10^{-19} C\)) is accelerated from rest between two parallel plates separated by 2.0 cm . The potential difference between the plates is 500 V .
A. Calculate Field Strength (E)
E = \(\Delta V / d\)
B. Calculate Force on Electron (F)
F = qE
C. Calculate Work Done / Kinetic Energy
How much kinetic energy (in Joules) does the electron gain as it reaches the positive plate? (Hint: \(W = q \Delta V\))
III. Scalar Superposition
Find the total electric potential (\(V\)) at point P, which is at the origin (0,0).
P
Potential from Q1 (\(V_1 = kQ_1 / r_1\))
Potential from Q2 (\(V_2 = kQ_2 / r_2\))
Total Potential at Point P (\(V_{tot} = V_1 + V_2\))
Vtot = __________________ V
IV. Discussion Question
If you placed a neutral neutron at point P, would it experience a force? If you placed a stationary proton at point P, which way would it move? Explain using the concept of potential gradient.
Potential Discussion Solution Guide Voltage Solutions
Discussion & Problem Guide // Lesson 4
The Parallel Plate Solution
A. Field Strength (E)
\[ E = \frac{500V}{0.02m} \]
\( 2.5 \times 10^4 \text{ V/m (or N/C)} \)
B. Force (F)
\[ F = (1.6e-19)(2.5e4) \]
\( 4.0 \times 10^{-15} \text{ N} \)
C. Work/Kinetic Energy
\[ W = q \Delta V \]
\[ W = (1.6e-19)(500) \]
\( 8.0 \times 10^{-17} \text{ J} \)
Scalar Superposition Solution
Potential from \(q_1\) (\(+3 \mu C\) at 0.5m) \( V_1 = \frac{(9e9)(3e-6)}{0.5} = +54,000 \text{ V} \)
Potential from \(q_2\) (\(-5 \mu C\) at 0.2m) \( V_2 = \frac{(9e9)(-5e-6)}{0.2} = -225,000 \text{ V} \)
Total Potential \( -171,000 \text{ V} \)
IV. Discussion Strategy
Neutron at P?
No force. Force requires charge (\(F=qE\)). While there is a field and potential at P, there is no interaction with a neutral particle.
Proton at P?
The proton would move toward the negative potential (toward \(q_2\)). Positive charges naturally "roll down" the potential hill toward negative values.
Equipotential Lab Slides Lesson 5: Lab Day
Voltage
Maps
Creating a topographic map of the electric field. Mapping Equipotential Surfaces .
Electricity is a Mountain
Topographic Map
Lines represent Equal Altitude . No work is done moving along a contour line because your PE doesn't change.
Constant Gravitational PE
Equipotential Map
Lines represent Equal Voltage . No work is done moving a charge along these lines.
Constant Electric PE
The Golden Connection
"Electric Field lines are ALWAYS perpendicular to Equipotential lines."
Mapping the Field
The Procedure
Apply a voltage (e.g., 6V) across two points on conductive paper.
Use a Voltmeter probe to find points of the same voltage (e.g., find all the 4.0V points).
Mark these points and connect them to form a "contour" line.
Repeat for other voltages (1V, 2V, 3V, 5V).
The Resulting Map
Blue Dashed = Equipotentials
After mapping the voltage lines, you will deduce the electric field lines by drawing them perpendicular to your contours.

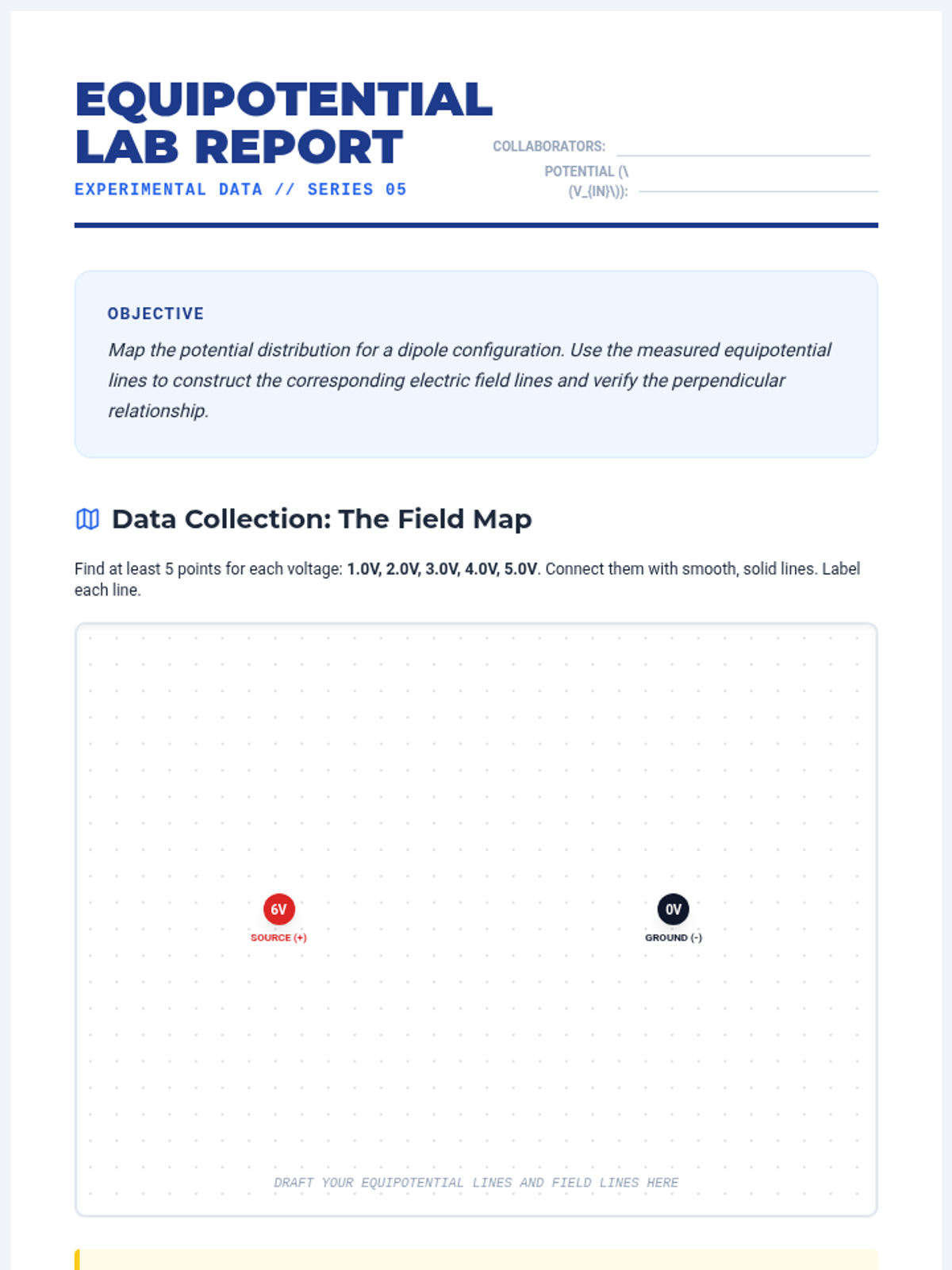

Equipotential Lab Report Guide Equipotential
Lab Report
Experimental Data // Series 05
Collaborators:
Potential (\(V_{in}\)):
Objective
Map the potential distribution for a dipole configuration. Use the measured equipotential lines to construct the corresponding electric field lines and verify the perpendicular relationship.
Data Collection: The Field Map
Find at least 5 points for each voltage: 1.0V, 2.0V, 3.0V, 4.0V, 5.0V . Connect them with smooth, solid lines. Label each line.
6V
SOURCE (+)
0V
GROUND (-)
DRAFT YOUR EQUIPOTENTIAL LINES AND FIELD LINES HERE
Constructing Field Lines:
After drawing your voltage lines, use a different color to draw at least 6 electric field lines. Remember to include arrows and ensure they cross the voltage lines at right angles (\(90^\circ\)).
Post-Lab Synthesis
1. Gradient Analysis: Where was the electric field the strongest on your map? How did you know this from the visual spacing of the equipotential lines?
2. The Work Paradox: If you move a test charge from one 3.0V point to another 3.0V point following a very curvy, complex path, how much work is done? Justify your answer using the definition of potential.
3. Topographic Reasoning: Imagine your map is a physical mountain. What would the electrodes represent? What would happen to a marble (representing a positive charge) if you placed it at the 5.0V line and let go?
Experimental Uncertainty
Identify two potential sources of error in your measurements (e.g., probe contact, conductive paper uniformity) and explain how they might have affected the "smoothness" of your field lines.
LAB REPORT // PHYSICS 12 // MODULE: ELECTROSTATICS

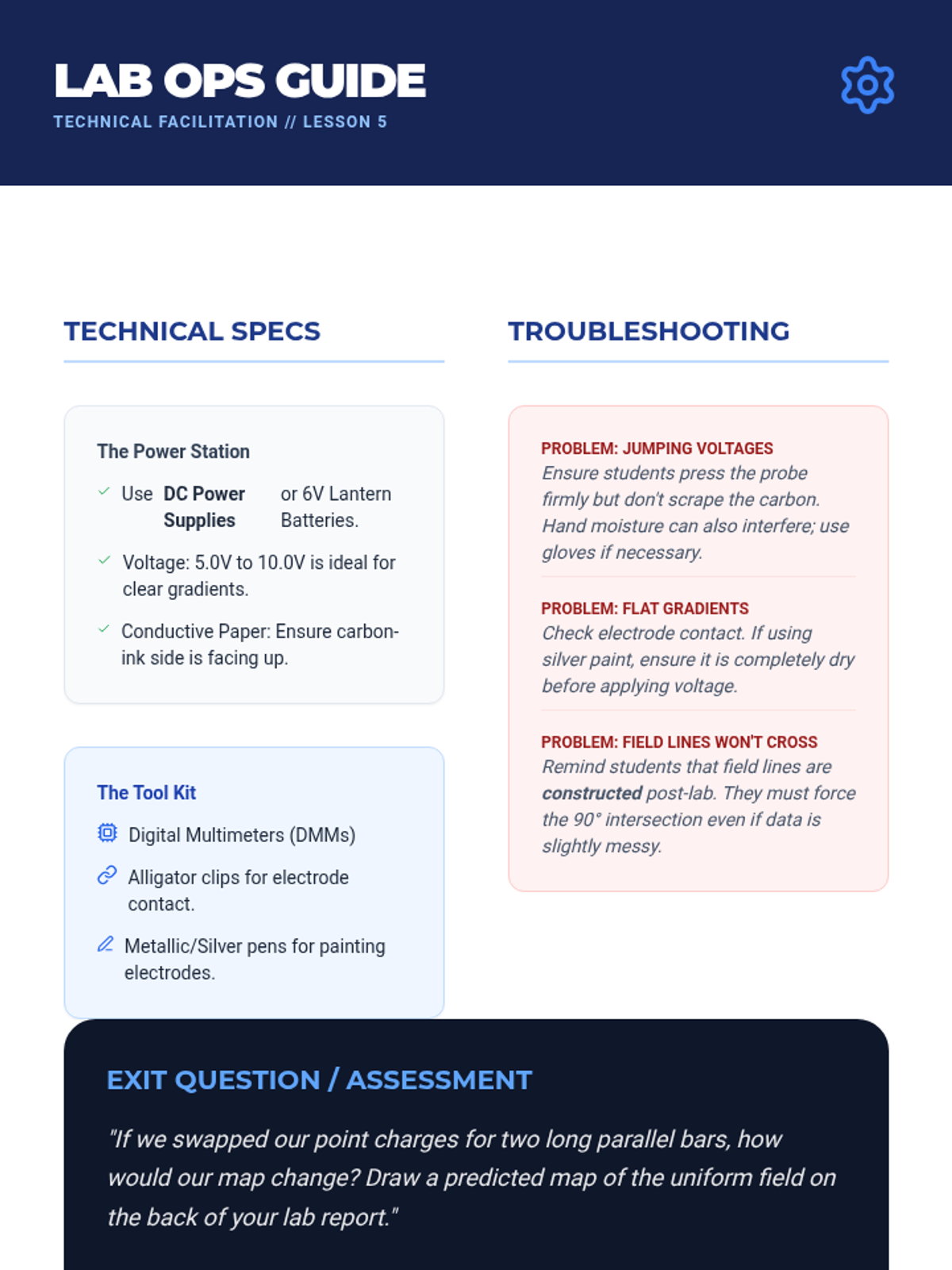

Equipotential Lab Setup Teacher Guide Lab Ops Guide
Technical Facilitation // Lesson 5
Technical Specs
The Power Station
Use DC Power Supplies or 6V Lantern Batteries.
Voltage: 5.0V to 10.0V is ideal for clear gradients.
Conductive Paper: Ensure carbon-ink side is facing up.
The Tool Kit
Digital Multimeters (DMMs)
Alligator clips for electrode contact.
Metallic/Silver pens for painting electrodes.
Troubleshooting
Problem: Jumping Voltages
Ensure students press the probe firmly but don't scrape the carbon. Hand moisture can also interfere; use gloves if necessary.
Problem: Flat Gradients
Check electrode contact. If using silver paint, ensure it is completely dry before applying voltage.
Problem: Field lines won't cross
Remind students that field lines are constructed post-lab. They must force the 90° intersection even if data is slightly messy.
Exit Question / Assessment
"If we swapped our point charges for two long parallel bars, how would our map change? Draw a predicted map of the uniform field on the back of your lab report."
