Atomic Evolution Slides ATOMIC EVOLUTION
The History of the Invisible
PROJECT: ATOM-V1
Infinite Cutting?
If you keep cutting a piece of paper in half forever, will you eventually reach a piece that cannot be cut?
"By convention sweet is sweet, by convention bitter is bitter, by convention color is color; but in reality there are only atoms and the void."
— Democritus (c. 400 BCE)
1. Dalton's Solid Sphere
Early 1800s
Atoms are solid, indivisible spheres.
Elements have unique types of atoms.
Atoms rearrange in chemical reactions.
2. Thomson's Plum Pudding
1897
-
-
-
-
JJ Thomson discovered the Electron!
"The atom is a positive sphere with negative electrons stuck in it like plums in a pudding."
Rutherford's Big Surprise
The Setup:
Shooting positive particles at thin gold foil.
The Result:
Most passed through, but some bounced straight back.
"It was as if you fired a shell at a piece of tissue paper and it came back and hit you."
3. Rutherford's Nuclear Model
1911
Atoms are mostly EMPTY SPACE.
Dense, positive NUCLEUS at the center.
Electrons orbit randomly.
4. Bohr's Planetary Model
1913
Energy Levels
Electrons move in fixed circular paths called Shells or Energy Levels.
n=1 n=2 n=3
5. Modern Electron Cloud
1926 - Present
Electrons don't have exact paths. We only know the probability of where they are.
The "Cloud" is denser where electrons are more likely to be found.
Schrödinger and Heisenberg proved the uncertainty of position.
Model Recap
Dalton
Sphere
-
Thomson
Pudding
Rutherford
Nuclear
Bohr
Planetary
Schrödinger
Cloud
Atomic Timeline Teacher Guide Atomic Timeline
Teacher Facilitation Guide
Lesson 1.1
History & Models
LESSON OVERVIEW
This lesson introduces the concept of scientific models through the lens of atomic history. Students will see how new evidence (like the discovery of the electron or the nucleus) forces scientists to revise and improve their models.
KEY OBJECTIVES
Differentiate between the five major atomic models.
Explain why scientific models change over time.
Identify the key discovery for each historical model.
Instructional Pacing
00-05m
The Hook: Infinite Cutting
Present the paper-cutting riddle. Allow students to debate if matter is continuous or made of discrete "units." Use this to introduce Democritus and the word atomos (indivisible).
05-15m
Solid Spheres & Discovered Electrons
Contrast Dalton's simple billiard ball with Thomson's "Plum Pudding."
Discussion Prompt:
"If the atom was just a solid ball, how could tiny negative pieces (electrons) come out of it? Why did Dalton's model have to change?"
15-30m
The Gold Foil Drama
Use the "tissue paper vs. cannonball" analogy from Rutherford. Emphasize that atoms are 99.9% empty space.
Visual Analogy:
If an atom were the size of a football stadium, the nucleus would be a marble on the 50-yard line, and the rest is empty space.
30-45m
Shells to Clouds
Explain Bohr's shells as "floors in a building." Transition to the Modern Cloud by explaining that we can't see exactly where the "runners" are, just the "track" they are on.
Common Misconceptions
Misconception
"Atoms are solid throughout, like rocks."
Correction
Atoms are mostly empty space. Use the stadium analogy repeatedly.
Misconception
"The Bohr model is exactly what atoms look like."
Correction
The Bohr model is a *useful visualization* for bonding, but the Cloud model is more scientifically accurate.
Materials Needed
Atomic Evolution Slides
Model Metamorphosis Worksheet
Sheet of Gold Foil (optional demo)
Model Metamorphosis Worksheet MODEL METAMORPHOSIS
Refining the Atomic Blueprint
Student Name
Class Period
"Science is a series of mistakes, but they are mistakes which it is useful to make, because they lead little by little to the truth." — Jules Verne
1 Sketching the History
Draw a simple representation of each atomic model in the circles below and label the key feature discovered.
Solid Sphere
Key Feature...
Plum Pudding
Key Feature...
Nuclear Model
Key Feature...
Planetary Model
Key Feature...
Quantum Cloud
Key Feature...
2 Analysis & Synthesis
The Catalyst for Change:
Rutherford expected his alpha particles to go straight through the gold foil. Explain what actually happened and why it changed our view of the atom forever.
Compare & Contrast:
How are Bohr's shells different from the Modern Electron Cloud?
Scientific Evolution:
Why do scientists bother changing models instead of just saying "we don't know yet"?
3 Term Identification
The indivisible building block of matter.
Dense, center part of an atom.
Negatively charged particle.
Region where electrons are likely found.
Nucleus Identity Slides ATOMIC IDENTITY
The Power of the Nucleus
The Nucleus
The dense, central core of the atom.
Protons
• Positive Charge (+)
• 1 Atomic Mass Unit (AMU)
• Determines Identity
Neutrons
• Neutral Charge (0)
• 1 Atomic Mass Unit (AMU)
• Determines Stability
The Universal ID
Every element has a unique number of protons.
1 H Hydrogen
1 Proton
79 Au Gold
79 Protons
"Change the protons, change the element!"
Calculating Mass
Mass = Protons + Neutrons
6
Protons
6
Neutrons
12 AMU
Carbon Atom
The "Neutron Nuance"
Isotopes
Isotopes are atoms of the same element that have different numbers of neutrons.
Key Facts:
• Same atomic number
• Different mass number
• Same chemical properties
Carbon-12 6p, 6n
Carbon-13 6p, 7n
Carbon-14 6p, 8n
Quick Check!
You have 8 Protons
What is the element?
6 Protons + 8 Neutrons
What is the Mass?
Add 1 Proton
Does the ID change?
Nucleus Lab Guide Nucleus Lab
Facilitation Guide
Lesson 2.1
Atomic Identity
Lab Objective
Students will use physical manipulatives (poker chips, beads, or colored paper) to build "nuclei." They will discover that changing the number of protons fundamentally changes the element, while changing neutrons only changes the weight.
Setup Needs
Red (Protons)
Grey/White (Neutrons)
Periodic Tables
Lab Sequence
1
The Identity Lock
Ask students to put 3 red chips in their "nucleus" zone. Using the Periodic Table, they identify it as Lithium.
The Switch: "Now add one more red chip. What are you now?" (Beryllium). Reinforce that the proton is the identity.
2
The Mass Mystery (Isotopes)
Instruct students to reset to 6 red chips (Carbon). Have half the class add 6 grey chips and the other half add 7 grey chips.
Discussion: "Are you still Carbon? Yes. Are you the same weight? No. You are isotopes!"
3
Mass Calculation Challenge
Give students a target Mass Number (e.g., 14) and an element (e.g., Nitrogen). They must work backward to determine the correct number of neutrons needed to build that specific isotope.
Check for Understanding
Question 1
"If I find an atom with 11 protons, what must it be?" (Sodium - Always!)
Question 2
"Does adding a neutron change the atom's charge?" (No, neutrons are neutral.)
Question 3
"What happens to the atomic mass if we remove a proton but add a neutron?" (Mass stays the same, but identity changes!)
Pro-Tip for Differentiation
For advanced students, introduce the concept of "Binding Energy" or why the nucleus doesn't fly apart (Strong Nuclear Force). For students who struggle, use a "Passport" analogy: Protons are the photo ID; Neutrons are just extra luggage weight.
Nucleus Blueprint Activity NUCLEUS BLUEPRINT
Identification & Mass Analysis Report
Subject ID
Station #
TASK 01: COMPONENT CALCULATION
Use your periodic table to complete the missing technical data for the atomic nuclei below.
Element Name Protons Neutrons Mass Number Symbol Helium-4 2 4 He Carbon-12 6 12 C Oxygen-18 8 10 O 11 12 23 Gold-197 118 197 Au
Task 02: Isotope Investigation
Model Comparison
Imagine two atoms: Atom A has 6 protons and 6 neutrons. Atom B has 6 protons and 8 neutrons.
Identity = Atomic Number
Task 03: The Identification Lab
A scientist discovers a mysterious atom in a meteorite. The atom has a mass of 56 and contains 30 neutrons.
Proton Count:
Element Name:
Spark Seekers Slides SPARK SEEKERS
Electrons & Net Charge
The Doorknob Spark
You shuffle across the carpet, reach for the knob, and—ZAP!
Static electricity is caused by the movement of Electrons—the tiny, mobile, negative particles of the atom.
The Outer Edge
Electron Profile
-
Charge: Negative (-1)
Mass: Effectively 0 AMU
Location: Electron Cloud
Scale Check
If a Proton were a Bowling Ball...
...an Electron would be a Grain of Sand.
The Tug of War
3
PROTONS (+)
3
ELECTRONS (-)
Net Charge = 0 (Neutral)
Meet the Ions
Charged Atoms
Cation
Positive Charge
Happens when an atom LOSES electrons.
More p+ than e-
Anion
Negative Charge
Happens when an atom GAINS electrons.
More e- than p+
Charge Calculation
A
11 Protons, 10 Electrons
Charge = ?
B
17 Protons, 18 Electrons
Charge = ?
The Golden Rule:
(p+) - (e-) =

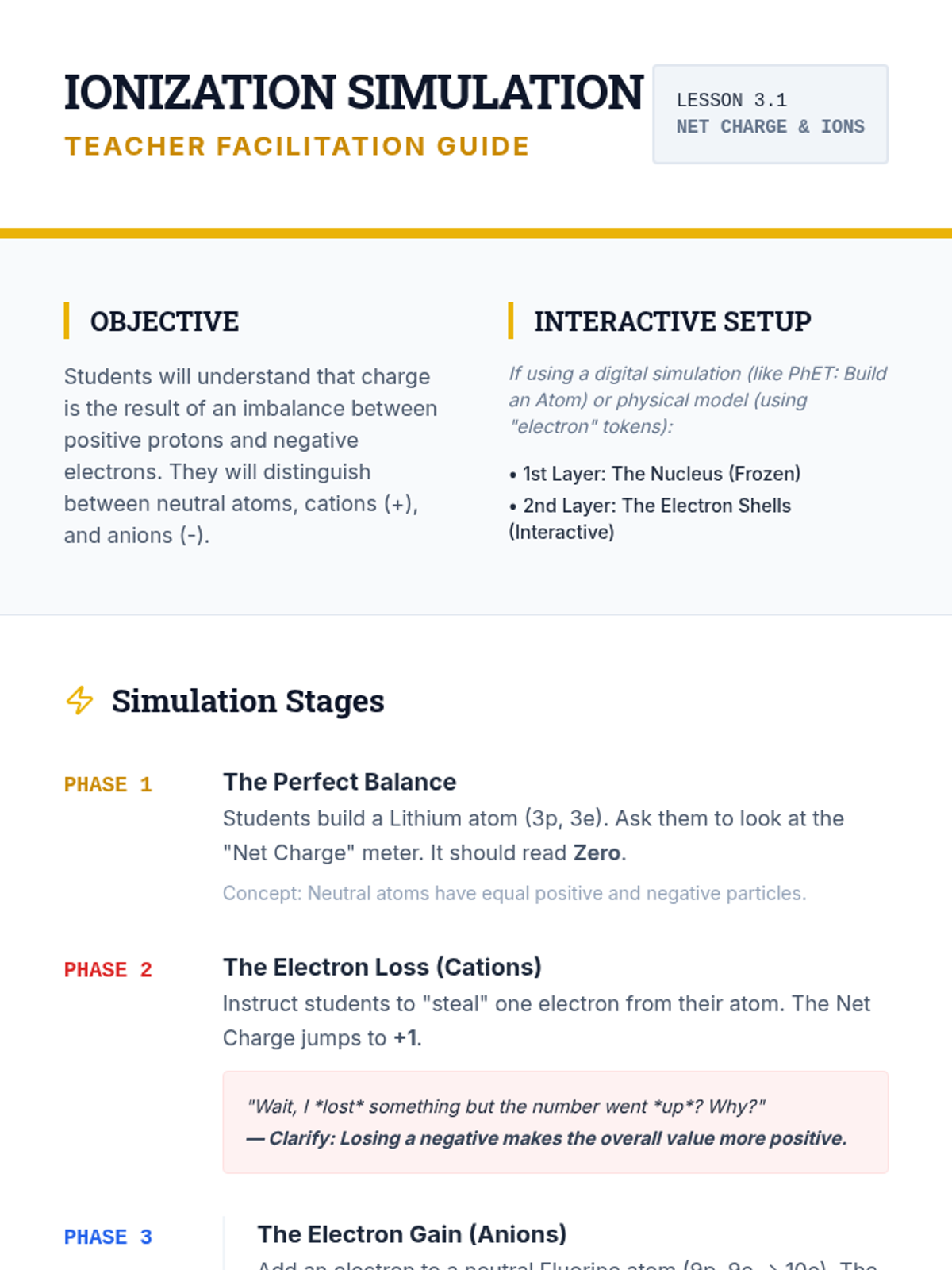

Ion Simulation Guide Ionization Simulation
Teacher Facilitation Guide
Lesson 3.1
Net Charge & Ions
Objective
Students will understand that charge is the result of an imbalance between positive protons and negative electrons. They will distinguish between neutral atoms, cations (+), and anions (-).
Interactive Setup
If using a digital simulation (like PhET: Build an Atom) or physical model (using "electron" tokens):
• 1st Layer: The Nucleus (Frozen)
• 2nd Layer: The Electron Shells (Interactive)
Simulation Stages
PHASE 1
The Perfect Balance
Students build a Lithium atom (3p, 3e). Ask them to look at the "Net Charge" meter. It should read Zero.
Concept: Neutral atoms have equal positive and negative particles.
PHASE 2
The Electron Loss (Cations)
Instruct students to "steal" one electron from their atom. The Net Charge jumps to +1.
"Wait, I *lost* something but the number went *up*? Why?" — Clarify: Losing a negative makes the overall value more positive.
PHASE 3
The Electron Gain (Anions)
Add an electron to a neutral Fluorine atom (9p, 9e -> 10e). The Charge is now -1.
Analogy: Adding more "unhappy negative thoughts" to a balanced mind makes the mood negative.
The Identification Trap
Ask: "Can I make a positive Lithium ion by adding a proton?"
Correct Answer: NO! If you add a proton, it isn't Lithium anymore. It's Beryllium. Ions are only made by changing electrons.
<table class="w-full text-sm"><tbody><tr class="font-bold text-slate-400 uppercase tracking-widest border-b border-slate-200"><td class="pb-2">Action</td><td class="pb-2">Particle Change</td><td class="pb-2">Resulting Charge</td></tr><tr><td class="py-3 font-bold">Create Cation</td><td class="py-3">Lose Electron</td><td class="py-3 text-red-600 font-bold">Positive (+)</td></tr><tr><td class="py-3 font-bold">Create Anion</td><td class="py-3">Gain Electron</td><td class="py-3 text-blue-600 font-bold">Negative (-)</td></tr></tbody></table>Spark Seekers Worksheet Field Report: Spark Seekers

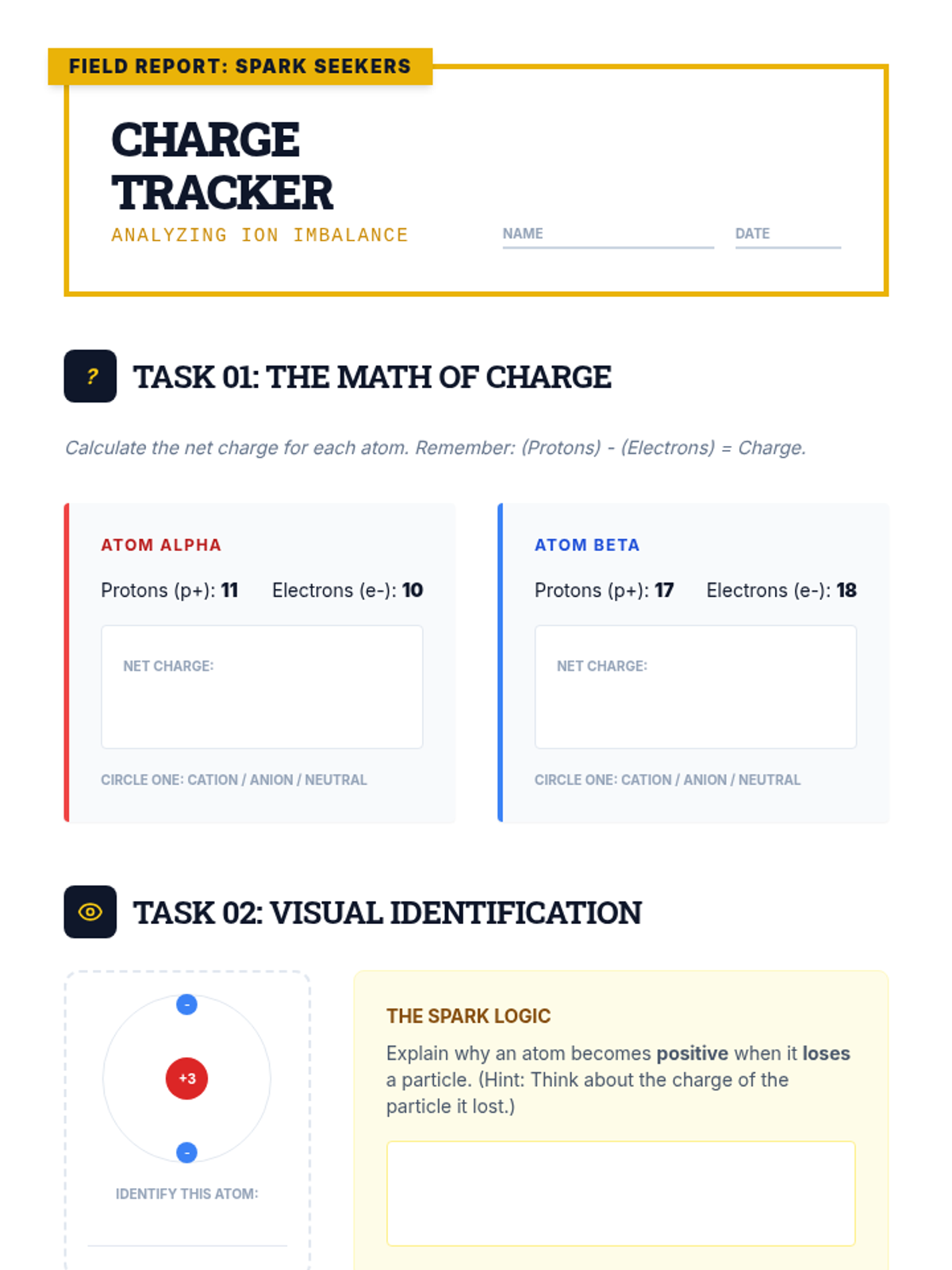

CHARGE TRACKER
Analyzing Ion Imbalance
Name
Date
?
Task 01: The Math of Charge
Calculate the net charge for each atom. Remember: (Protons) - (Electrons) = Charge.
Atom Alpha
Protons (p+): 11 Electrons (e-): 10
Net Charge:
Circle one: CATION / ANION / NEUTRAL
Atom Beta
Protons (p+): 17 Electrons (e-): 18
Net Charge:
Circle one: CATION / ANION / NEUTRAL
Task 02: Visual Identification
+3
-
-
Identify this Atom:
The Spark Logic
Explain why an atom becomes positive when it loses a particle. (Hint: Think about the charge of the particle it lost.)
M
Task 03: Subatomic Mastery
Element Protons Electrons Net Charge Ion Type Sodium (Na) 11 +1 Cation Fluorine (F) 9 10 Magnesium (Mg) 10 +2 Cation 16 18
Atomic Architect Slides ATOMIC ARCHITECT
Final Model Synthesis
p+
n0
e-
The Mission
As a Lead Atomic Architect, you must design a complete, accurate model of your assigned element.
Required Specs:
• Correct Nucleus Composition
• Accurate Shell Placement
• Proper Net Charge & Mass
Rules of Construction
01
The Nucleus
Protons and Neutrons must be tightly packed in the center. Don't let them float away!
02
The Shells
2-8-8 Rule:
Max 2 on 1st shell, max 8 on the 2nd and 3rd.
03
The Balance
Double check your p+ vs e-. Is your architect plan neutral or an ion?
Blueprint: Sodium (Na)
Specifications
Atomic Number 11
Protons 11
Neutrons 12
Electrons 11
Mass 23
11p+ 12n
Let's Build!
Check your Architect Design Sheet for your assigned element.
Construction in Progress

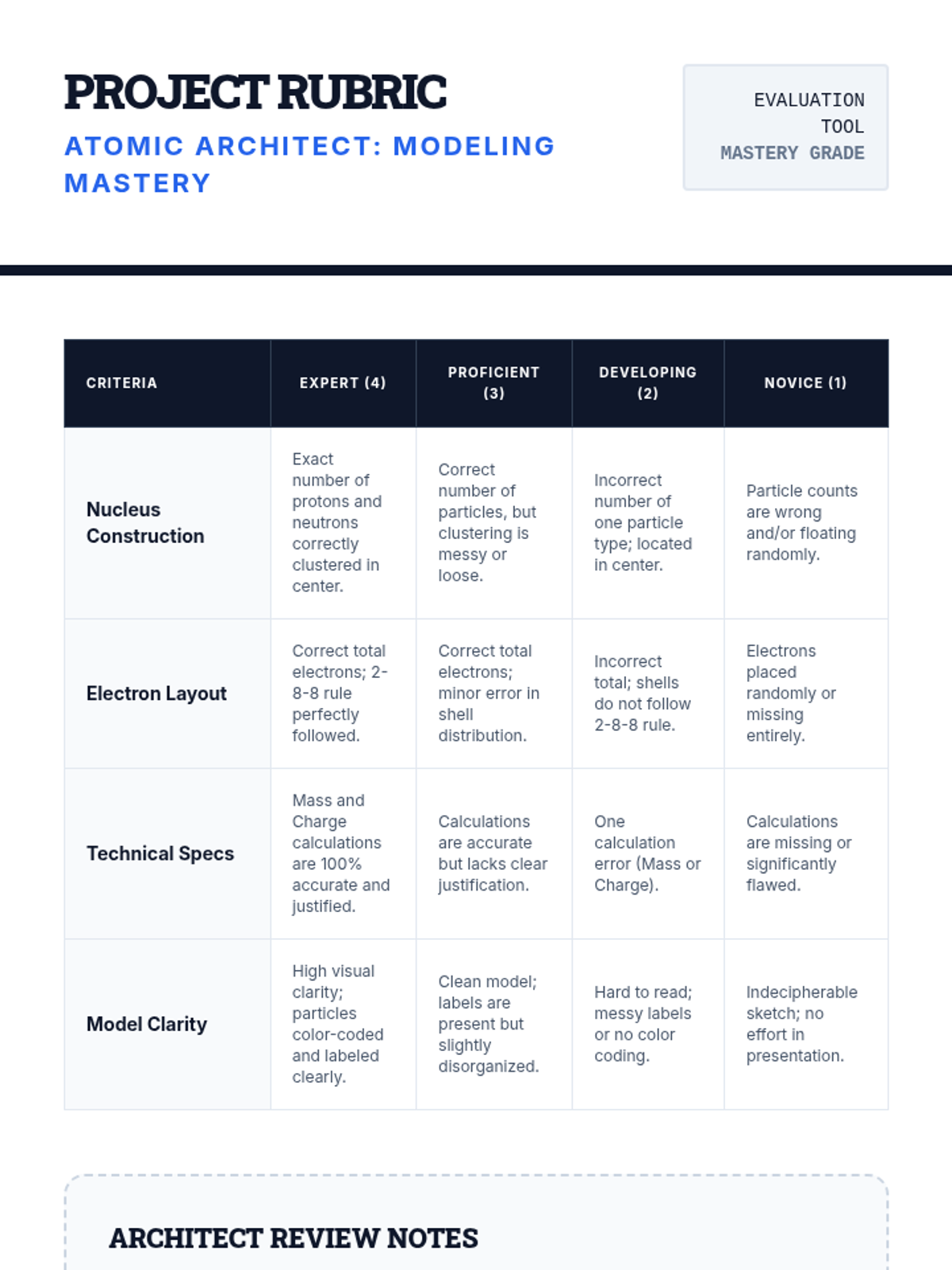

Atomic Architect Rubric PROJECT RUBRIC
Atomic Architect: Modeling Mastery
Evaluation Tool
Mastery Grade
Criteria Expert (4) Proficient (3) Developing (2) Novice (1) Nucleus Construction Exact number of protons and neutrons correctly clustered in center. Correct number of particles, but clustering is messy or loose. Incorrect number of one particle type; located in center. Particle counts are wrong and/or floating randomly. Electron Layout Correct total electrons; 2-8-8 rule perfectly followed. Correct total electrons; minor error in shell distribution. Incorrect total; shells do not follow 2-8-8 rule. Electrons placed randomly or missing entirely. Technical Specs Mass and Charge calculations are 100% accurate and justified. Calculations are accurate but lacks clear justification. One calculation error (Mass or Charge). Calculations are missing or significantly flawed. Model Clarity High visual clarity; particles color-coded and labeled clearly. Clean model; labels are present but slightly disorganized. Hard to read; messy labels or no color coding. Indecipherable sketch; no effort in presentation.
Architect Review Notes
Strengths in Design:
Structural Revisions Needed:
Final Rating:
/16
Reviewer Signature
Grading Guidance
Look for the "Justification" on the student sheet. A student may have a correct model but if they cannot explain *why* Sodium has 11 protons or *how* they found 12 neutrons, they have not yet reached Mastery. Focus feedback on the link between the Periodic Table and the model.
Atomic Blueprint Design Sheet ATOMIC BLUEPRINT
Official Architect Specification
Project ID: ATOM-S1-2026
Status: IN REVIEW
Architect Name:
Assigned Element:
Section A: Schematic
Sketch Model Here
Proton
Neutron
Electron
Section B: Specs
Atomic Number:
p+ Count:
n0 Count:
Mass Number:
Justification: p + n = Mass
Net Charge:
Justification: p - e = Charge
Architect Certification
Describe how you determined the number of electron shells and how many electrons were placed in the outer-most shell.
Isotope Mystery Slides The Isotope Mystery
WHY THE DECIMALS?
The Mass Mystery
If Carbon has 6 protons and 6 neutrons, its mass is 12. So why does the periodic table say 12.011?
Nature rarely gives us whole numbers.
Review: What are Isotopes?
Same...
Element / Identity
Atomic Number (p+)
Different...
Number of Neutrons
Atomic Mass
Natural Abundance
The % Mix
In nature, most elements are a mixture of their isotopes.
"If you grabbed 1,000 Carbon atoms, 989 would be Carbon-12, and 11 would be Carbon-13."
C-12 (98.9%)
C-13 (1.1%)
Weighted Average
The Analogy
Think about your grade. If Homework is 10% and Tests are 90%, which one pulls your grade more?
"The most common isotope pulls the average toward itself!"
The Math
(\(Mass_1 \times \%_1\)) + (\(Mass_2 \times \%_2\))
Result = Average Atomic Mass
Reading the Map
17
Cl
35.45
Chlorine-35 and Chlorine-37 exist in nature.

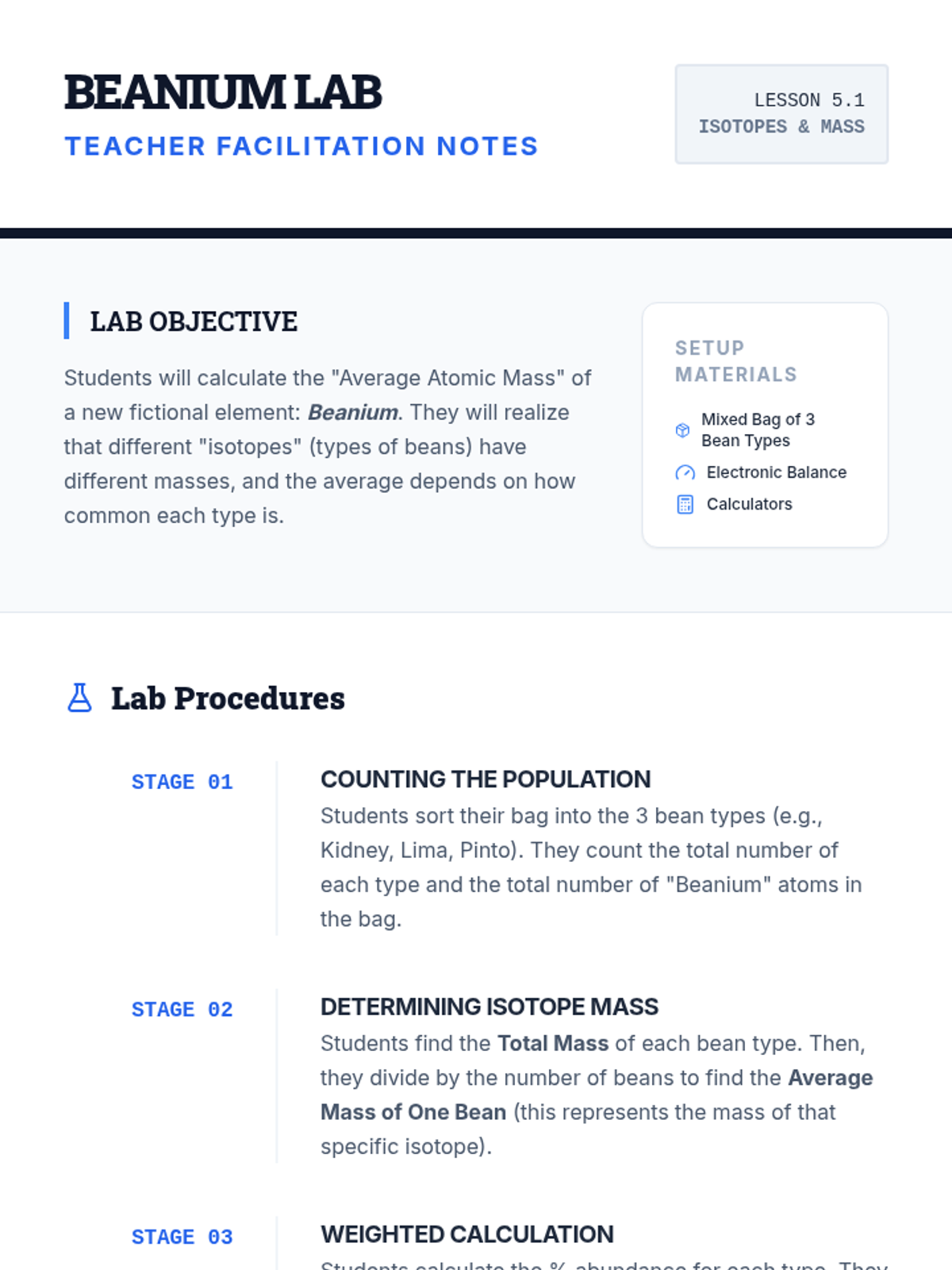

Beanium Lab Guide BEANIUM LAB
Teacher Facilitation Notes
Lesson 5.1
Isotopes & Mass
Lab Objective
Students will calculate the "Average Atomic Mass" of a new fictional element: Beanium. They will realize that different "isotopes" (types of beans) have different masses, and the average depends on how common each type is.
Setup Materials
Mixed Bag of 3 Bean Types
Electronic Balance
Calculators
Lab Procedures
STAGE 01
Counting the Population
Students sort their bag into the 3 bean types (e.g., Kidney, Lima, Pinto). They count the total number of each type and the total number of "Beanium" atoms in the bag.
STAGE 02
Determining Isotope Mass
Students find the Total Mass of each bean type. Then, they divide by the number of beans to find the Average Mass of One Bean (this represents the mass of that specific isotope).
STAGE 03
Weighted Calculation
Students calculate the % abundance for each type. They then perform the weighted average math:
(Mass1 x %1) + (Mass2 x %2) + (Mass3 x %3)
Post-Lab Discussion
"If I added 50 more Lima beans to your bag, would your average atomic mass go up or down? Why?"
The Point: It's not just about what exists; it's about what is most abundant. This is why Carbon's mass is 12.011 (Carbon-12 is 99% abundant) instead of 12.5.
Troubleshooting the Math
The Decimal Trap
Students often forget to move the decimal when using percentages (e.g., 95% is 0.95). Remind them to divide the percentage by 100 before multiplying!
The Reality Check
If the calculated average is higher than their heaviest bean or lower than their lightest bean, they have made a calculation error.

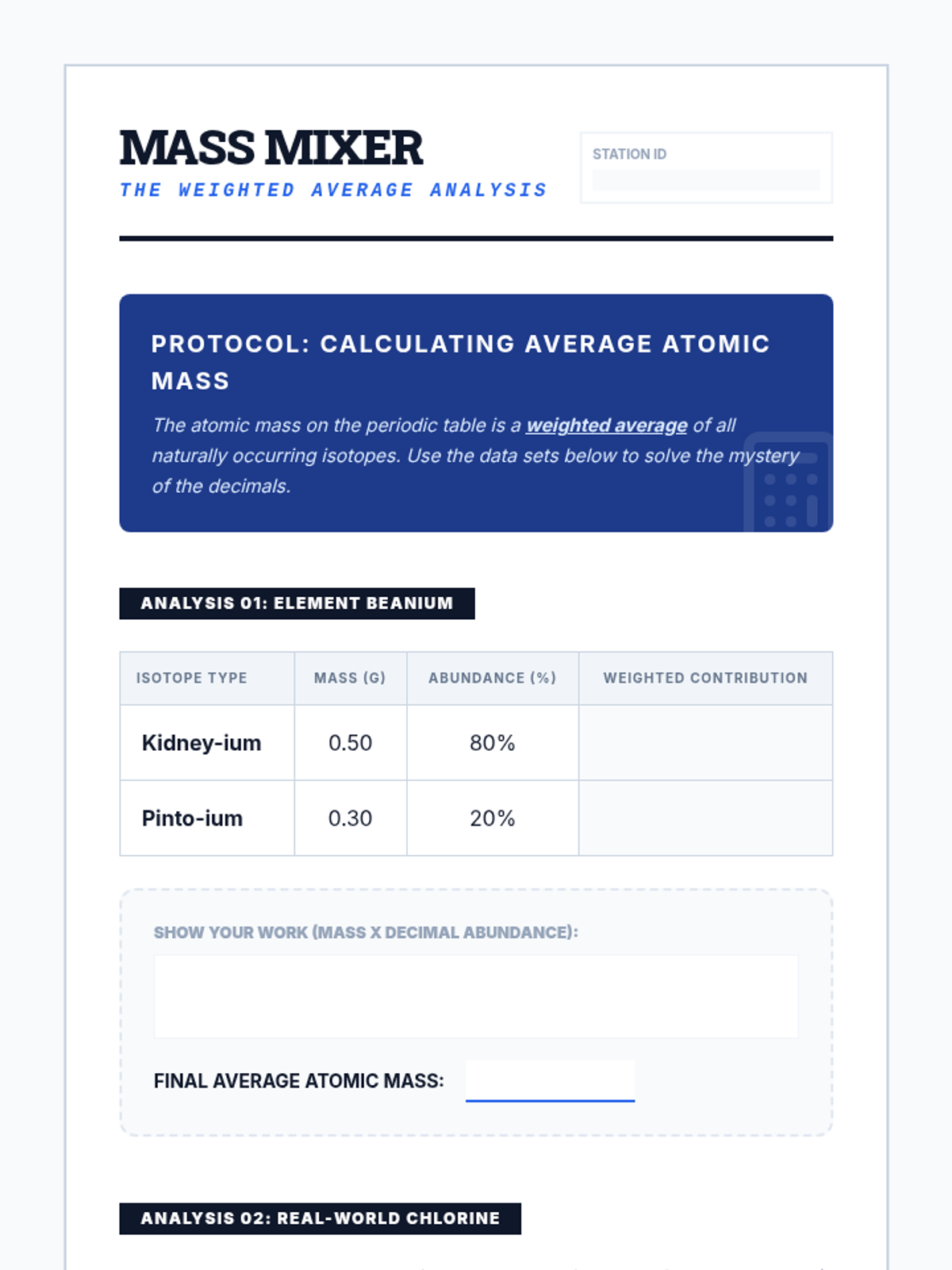

Mass Mixer Worksheet MASS MIXER
The Weighted Average Analysis
Station ID
Protocol: Calculating Average Atomic Mass
The atomic mass on the periodic table is a weighted average of all naturally occurring isotopes. Use the data sets below to solve the mystery of the decimals.
Analysis 01: Element Beanium
Isotope Type Mass (g) Abundance (%) Weighted Contribution Kidney-ium 0.50 80% Pinto-ium 0.30 20%
Show Your Work (Mass x Decimal Abundance):
Final Average Atomic Mass:
Analysis 02: Real-World Chlorine
Chlorine has two major isotopes: Cl-35 (mass 34.97, 75.78%) and Cl-37 (mass 36.97, 24.22%).
Calculation Field:
Average Mass:
The Logic Check
The actual atomic mass of Chlorine is 35.45. Why is this number much closer to 35 than to 37?
Challenge: Mystery Element X
Element X has two isotopes: X-10 and X-12. If the Average Atomic Mass is 10.1, which isotope is more abundant in nature? (Circle one and explain)
X-10
X-12
