Growth Mechanics Slides Growth Mechanics
Formalizing Asymptotic Notation
The Efficiency Paradox
"An algorithm that takes 100 years to run on \(n=100\) inputs can still be theoretically 'more efficient' than one that takes 1 second."
How do we reconcile this? We focus on scalability.
We care about the rate of growth as \(n \to \infty\), not constant factors or small inputs.
Big O Notation: \(O(g(n))\)
The Asymptotic Upper Bound
Formal Definition
\(f(n) = O(g(n))\) if there exist constants \(c > 0\) and \(n_0 \ge 1\) such that:
\(0 \le f(n) \le c \cdot g(n)\)
for all \(n \ge n_0\)
Describes the worst-case scenario growth.
Ignores lower-order terms and coefficients.
\(n^2 + 100n = O(n^2)\)
Big Omega Notation: \(\Omega(g(n))\)
The Asymptotic Lower Bound
Formal Definition
\(f(n) = \Omega(g(n))\) if there exist constants \(c > 0\) and \(n_0 \ge 1\) such that:
\(0 \le c \cdot g(n) \le f(n)\)
for all \(n \ge n_0\)
Describes the best-case scenario or baseline performance.
Guarantees an algorithm will take at least a certain time.
Used to establish optimality of problems.
Big Theta Notation: \(\Theta(g(n))\)
The Asymptotic Tight Bound
\(f(n) = \Theta(g(n))\) if and only if:
\(f(n) = O(g(n))\) AND \(f(n) = \Omega(g(n))\)
Essentially: \(c_1 \cdot g(n) \le f(n) \le c_2 \cdot g(n)\) for all \(n \ge n_0\).
Theta notation is the "Gold Standard" of algorithm analysis because it precisely characterizes the growth rate.
Strict Bounds: \(o\) and \(\omega\)
Little o: \(o(g(n))\)
Analogue to less than (\(<\)).
\(\lim_{n \to \infty} \frac{f(n)}{g(n)} = 0\)
Example: \(n = o(n^2)\)
Little \(\omega\): \(\omega(g(n))\)
Analogue to greater than (\(>\)).
\(\lim_{n \to \infty} \frac{f(n)}{g(n)} = \infty\)
Example: \(n^2 = \omega(n)\)
Hierarchy of Growth Rates
1
lg n
n
n lg n
n^2
2^n
n!
Lower growth rate \(\implies\) better performance on large inputs.

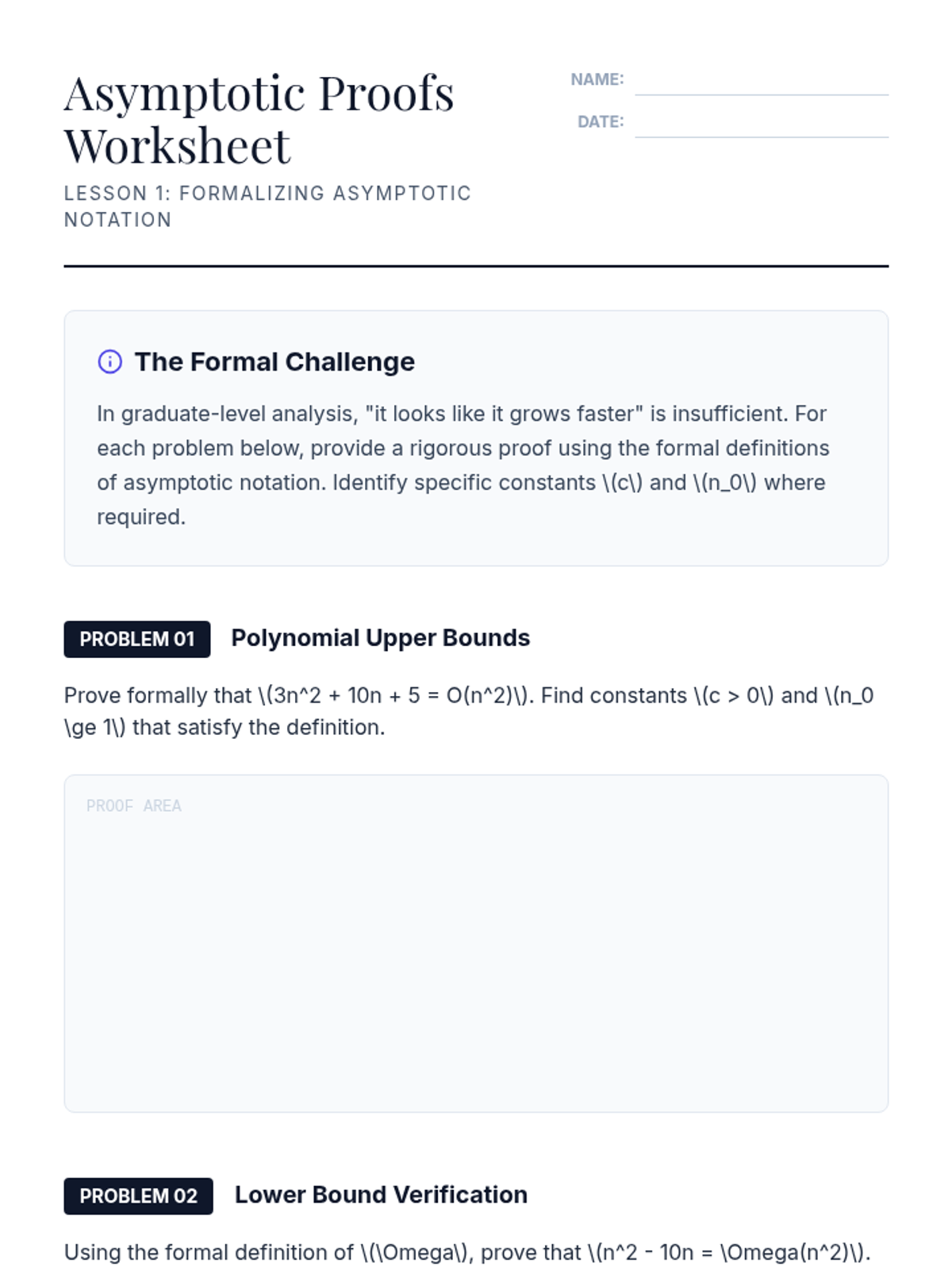

Asymptotic Proofs Worksheet Asymptotic Proofs Worksheet
Lesson 1: Formalizing Asymptotic Notation
NAME:
DATE:
The Formal Challenge
In graduate-level analysis, "it looks like it grows faster" is insufficient. For each problem below, provide a rigorous proof using the formal definitions of asymptotic notation. Identify specific constants \(c\) and \(n_0\) where required.
PROBLEM 01
Polynomial Upper Bounds
Prove formally that \(3n^2 + 10n + 5 = O(n^2)\). Find constants \(c > 0\) and \(n_0 \ge 1\) that satisfy the definition.
PROOF AREA
PROBLEM 02
Lower Bound Verification
Using the formal definition of \(\Omega\), prove that \(n^2 - 10n = \Omega(n^2)\). Be careful with the lower bound constant \(c\) as the \(10n\) term is negative.
PROOF AREA
PROBLEM 03
Tight Bound Necessity
Prove that \(n \lg n \neq \Theta(n)\). You may use either a contradiction involving constants or the limit definition.
PROOF AREA
PROBLEM 04
Limit Definitions
Use the limit definition to show that for any constant \(k > 0\), \(\lg n = o(n^k)\). (Hint: Use L'Hôpital's Rule).
PROOF AREA
The Transitivity Proof
Suppose \(f(n) = O(g(n))\) and \(g(n) = O(h(n))\). Prove that \(f(n) = O(h(h))\). This demonstrates the transitive property of Big O notation.
PROOF AREA

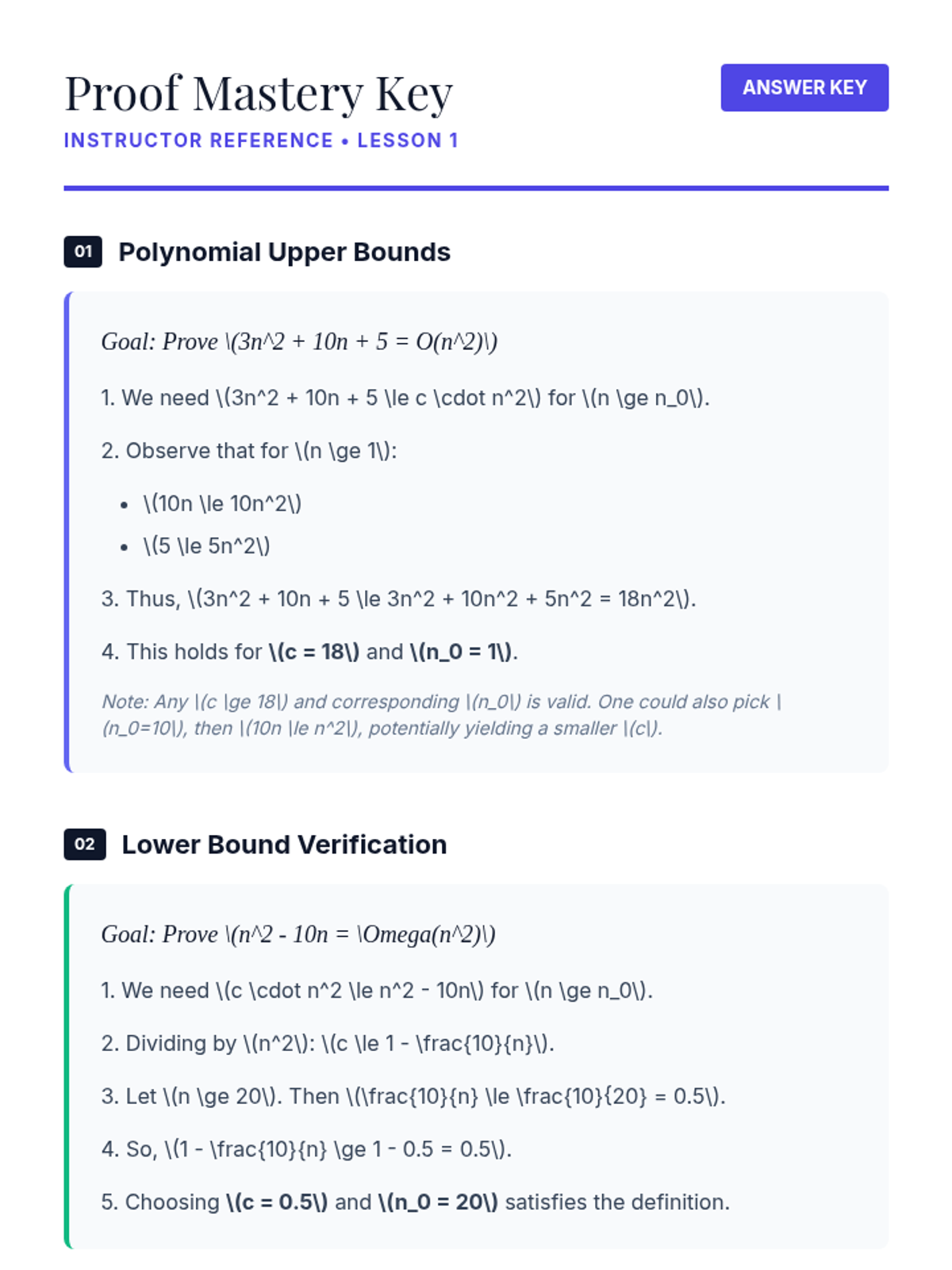

Proof Mastery Key Proof Mastery Key
Instructor Reference • Lesson 1
ANSWER KEY
01
Polynomial Upper Bounds
Goal: Prove \(3n^2 + 10n + 5 = O(n^2)\)
1. We need \(3n^2 + 10n + 5 \le c \cdot n^2\) for \(n \ge n_0\).
2. Observe that for \(n \ge 1\):
\(10n \le 10n^2\)
\(5 \le 5n^2\)
3. Thus, \(3n^2 + 10n + 5 \le 3n^2 + 10n^2 + 5n^2 = 18n^2\).
4. This holds for \(c = 18\) and \(n_0 = 1\).
Note: Any \(c \ge 18\) and corresponding \(n_0\) is valid. One could also pick \(n_0=10\), then \(10n \le n^2\), potentially yielding a smaller \(c\).
02
Lower Bound Verification
Goal: Prove \(n^2 - 10n = \Omega(n^2)\)
1. We need \(c \cdot n^2 \le n^2 - 10n\) for \(n \ge n_0\).
2. Dividing by \(n^2\): \(c \le 1 - \frac{10}{n}\).
3. Let \(n \ge 20\). Then \(\frac{10}{n} \le \frac{10}{20} = 0.5\).
4. So, \(1 - \frac{10}{n} \ge 1 - 0.5 = 0.5\).
5. Choosing \(c = 0.5\) and \(n_0 = 20\) satisfies the definition.
03
Tight Bound Necessity
Goal: Prove \(n \lg n \neq \Theta(n)\)
1. Assume \(n \lg n = \Theta(n)\). Then \(n \lg n = O(n)\).
2. This implies \(\exists c > 0, n_0 \ge 1\) s.t. \(n \lg n \le c \cdot n\) for \(n \ge n_0\).
3. Dividing by \(n\): \(\lg n \le c\).
4. However, \(\lg n\) is an increasing function that grows without bound (\(\lim_{n \to \infty} \lg n = \infty\)).
5. No constant \(c\) can bound \(\lg n\) for all \(n \ge n_0\). Contradiction.
04
Limit Definitions
Goal: Show \(\lg n = o(n^k)\) for \(k > 0\)
1. Evaluate \(\lim_{n \to \infty} \frac{\lg n}{n^k}\).
2. This is an \(\frac{\infty}{\infty}\) form. Apply L'Hôpital's Rule:
\(\lim_{n \to \infty} \frac{\frac{d}{dn} (\frac{\ln n}{\ln 2})}{\frac{d}{dn} (n^k)} = \lim_{n \to \infty} \frac{1 / (n \ln 2)}{k \cdot n^{k-1}}\)
3. Simplify:
\(\lim_{n \to \infty} \frac{1}{(k \ln 2) n^k}\)
4. Since \(k > 0\), the denominator goes to \(\infty\), so the limit is 0.
5. By definition, \(\lg n = o(n^k)\).
05
The Transitivity Proof
1. \(f(n) = O(g(n)) \implies f(n) \le c_1 g(n)\) for \(n \ge n_1\).
2. \(g(n) = O(h(n)) \implies g(n) \le c_2 h(n)\) for \(n \ge n_2\).
3. Substitute (2) into (1): \(f(n) \le c_1 (c_2 h(n))\) for \(n \ge \max(n_1, n_2)\).
4. Let \(c_3 = c_1 c_2\) and \(n_3 = \max(n_1, n_2)\).
Recurrence Decomposition Slides Recurrence Decomposition
Cracking Divide and Conquer
Recursive Workloads
Divide and conquer algorithms partition problems into sub-problems, leading to recurrence relations like:
\(T(n) = a T(n/b) + f(n)\)
\(a\)
Number of subproblems
\(n/b\)
Size of each subproblem
\(f(n)\)
Work outside recursion (divide/combine)
Method 1: Substitution
The "Guess and Prove" Approach
THE STEP-BY-STEP
Guess the form of the solution.
Use mathematical induction to find constants.
Prove that the solution works for all \(n\).
PRO-TIP
If the induction proof "almost" works but is off by a constant, subtract a lower-order term from your guess!
Method 2: Recursion Trees
Visualizing Work Distribution
f(n)
f(n/b)
f(n/b)
...
...
...
...
Total Work = Sum of work at each level \(\times\) number of levels.
Identify Level Sums
Calculate the work done at a generic depth \(i\).
Determine Tree Height
The depth until subproblems reach size 1 (base case).
Geometric Series
Sums often take the form of geometric or arithmetic progressions.
Method 3: The Master Theorem
The Cookbook Solution for \(T(n) = a T(n/b) + n^d\)
Case 1
Work is concentrated at the leaves.
\(T(n) = \Theta(n^{\log_b a})\)
Case 2
Work is evenly split across levels.
\(T(n) = \Theta(n^{\log_b a} \lg n)\)
Case 3
Work is concentrated at the root.
\(T(n) = \Theta(f(n))\)
Requirement: \(f(n)\) must be polynomially larger or smaller than \(n^{\log_b a}\) for cases 1 and 3.
The "Non-Master" Zone
The Master Theorem does NOT apply when:
\(a\) is not constant
e.g., \(T(n) = n T(n/2) + n\)
Gap is not polynomial
e.g., \(T(n) = 2 T(n/2) + n \lg n\)
\(f(n)\) is not positive
The theory assumes work is non-negative.

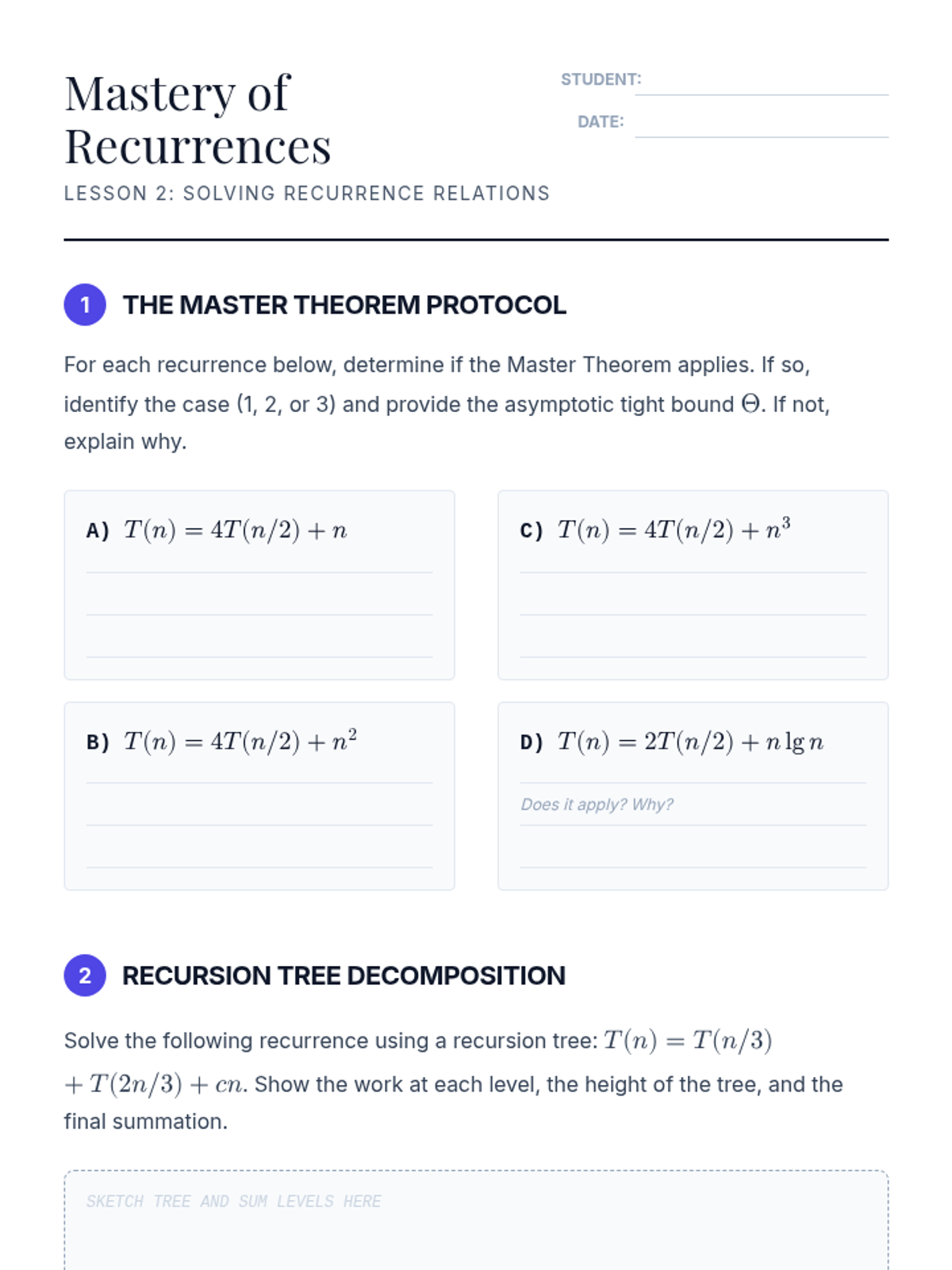

Mastery of Recurrences Worksheet Mastery of Recurrences
Lesson 2: Solving Recurrence Relations
STUDENT:
DATE:
1
The Master Theorem Protocol
For each recurrence below, determine if the Master Theorem applies. If so, identify the case (1, 2, or 3) and provide the asymptotic tight bound \(\Theta\). If not, explain why.
A) \(T(n) = 4T(n/2) + n\)
B) \(T(n) = 4T(n/2) + n^2\)
C) \(T(n) = 4T(n/2) + n^3\)
D) \(T(n) = 2T(n/2) + n \lg n\)
Does it apply? Why?
2
Recursion Tree Decomposition
Solve the following recurrence using a recursion tree: \(T(n) = T(n/3) + T(2n/3) + cn\). Show the work at each level, the height of the tree, and the final summation.
SKETCH TREE AND SUM LEVELS HERE
3
Rigorous Substitution
Use the substitution method to prove that the solution to \(T(n) = 2T(\lfloor n/2 \rfloor) + n\) is \(O(n \lg n)\). Specifically, show that \(T(n) \le c n \lg n\) for an appropriate constant \(c\).
PROOF AREA (INDUCTION STEP)
Hint: Handle the base cases carefully and ensure your inductive step yields the exact form of your guess.
4
Advanced: Changing Variables
Solve the recurrence \(T(n) = 2T(\sqrt{n}) + \lg n\) by changing variables. Let \(m = \lg n\) and redefine the function in terms of \(m\).
TRANSFORMATION AREA

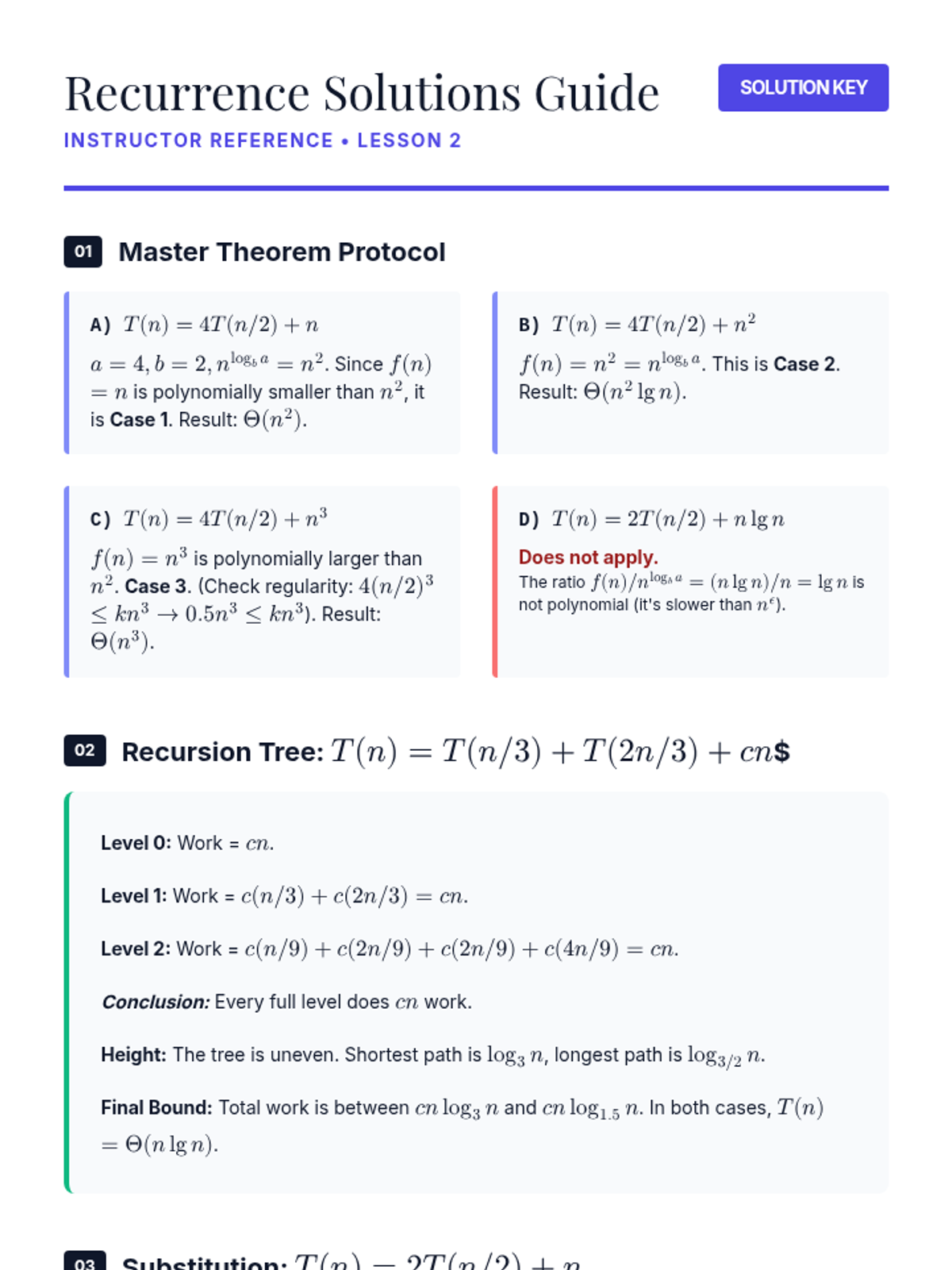

Recurrence Solutions Guide Recurrence Solutions Guide
Instructor Reference • Lesson 2
Solution Key
01
Master Theorem Protocol
A) \(T(n) = 4T(n/2) + n\)
\(a=4, b=2, n^{\log_b a} = n^2\). Since \(f(n) = n\) is polynomially smaller than \(n^2\), it is Case 1. Result: \(\Theta(n^2)\).
B) \(T(n) = 4T(n/2) + n^2\)
\(f(n) = n^2 = n^{\log_b a}\). This is Case 2. Result: \(\Theta(n^2 \lg n)\).
C) \(T(n) = 4T(n/2) + n^3\)
\(f(n) = n^3\) is polynomially larger than \(n^2\). Case 3. (Check regularity: \(4(n/2)^3 \le k n^3 \to 0.5 n^3 \le k n^3\)). Result: \(\Theta(n^3)\).
D) \(T(n) = 2T(n/2) + n \lg n\)
Does not apply.
The ratio \(f(n)/n^{\log_b a} = (n \lg n)/n = \lg n\) is not polynomial (it's slower than \(n^\epsilon\)).
02
Recursion Tree: \(T(n) = T(n/3) + T(2n/3) + cn\)$
Level 0: Work = \(cn\).
Level 1: Work = \(c(n/3) + c(2n/3) = cn\).
Level 2: Work = \(c(n/9) + c(2n/9) + c(2n/9) + c(4n/9) = cn\).
Conclusion: Every full level does \(cn\) work.
Height: The tree is uneven. Shortest path is \(\log_3 n\), longest path is \(\log_{3/2} n\).
Final Bound: Total work is between \(cn \log_3 n\) and \(cn \log_{1.5} n\). In both cases, \(T(n) = \Theta(n \lg n)\).
03
Substitution: \(T(n) = 2T(n/2) + n\)
Assume \(T(n) \le cn \lg n\). Inductive Step:
\(T(n) \le 2(c \frac{n}{2} \lg \frac{n}{2}) + n\)
We need \(cn \lg n - cn + n \le cn \lg n\). This holds if \(cn \ge n\), i.e., \(c \ge 1\).
04
Variable Change: \(T(n) = 2T(\sqrt{n}) + \lg n\)
Let \(m = \lg n\). Then \(n = 2^m\).
\(T(2^m) = 2T(2^{m/2}) + m\).
Let \(S(m) = T(2^m)\). Now we have: \(S(m) = 2S(m/2) + m\).
This is Case 2 of the Master Theorem for \(S(m)\): \(S(m) = \Theta(m \lg m)\).
Back-substitute: \(T(n) = \Theta(\lg n \cdot \lg(\lg n))\).
Amortized Insights Slides Amortized Insights
Beyond the Worst-Case Horizon
Total Cost vs. Per-Op Cost
Worst-case analysis can be too pessimistic for algorithms that perform expensive operations occasionally but cheap ones most of the time.
The Definition
Amortized analysis averages the time required to perform a sequence of data-structure operations over all the operations performed.
Crucial Distinction: Unlike probabilistic analysis, amortized analysis does not involve probability. It is a guaranteed average over a sequence.
Method 1: Aggregate Analysis
Show that for any sequence of \(n\) operations, the total time \(T(n)\) is bounded.
\(\text{Cost per op} = \frac{T(n)}{n}\)
Case: Dynamic Array Resize
Most insertions take \(O(1)\).
Resizing (doubling) takes \(O(k)\) where \(k\) is current size.
Total resize work: \(1+2+4+...+n \approx 2n = O(n)\).
Amortized cost: \(O(n)/n = O(1)\).
Method 2: Accounting (Banker's) Method
Assign "charges" to each operation. Some operations are overcharged to save credit for future expensive operations.
The Golden Rule
The total credit in the bank must never be negative at any point in the sequence.
Accumulate Credit
Pay for the spikes later.
Method 3: The Potential Method
A Physics-Inspired Formalism
Define a potential function \(\Phi(D)\) that maps a data structure state \(D\) to a real number.
Amortized Cost Formula
\(\hat{c}_i = c_i + \Phi(D_i) - \Phi(D_{i-1})\)
Amortized Cost = Actual Cost + Change in Potential
If potential increases, we "store" work. If it decreases, we use that "potential energy" to pay for actual work.
Designing \(\Phi(D)\)
Valid Functions
\(\Phi(D_0) = 0\) (usually)
\(\Phi(D_i) \ge \Phi(D_0)\) for all \(i\)
Captures the "messiness" of state
Example Intuition
In a dynamic array, the potential should represent how "full" the array is.
\(\Phi(D) = 2 \cdot (\text{elements}) - (\text{capacity})\)
When size = capacity, \(\Phi = n\). After doubling, capacity = 2n, so \(\Phi = 2n - 2n = 0\). This drop pays for the resize!

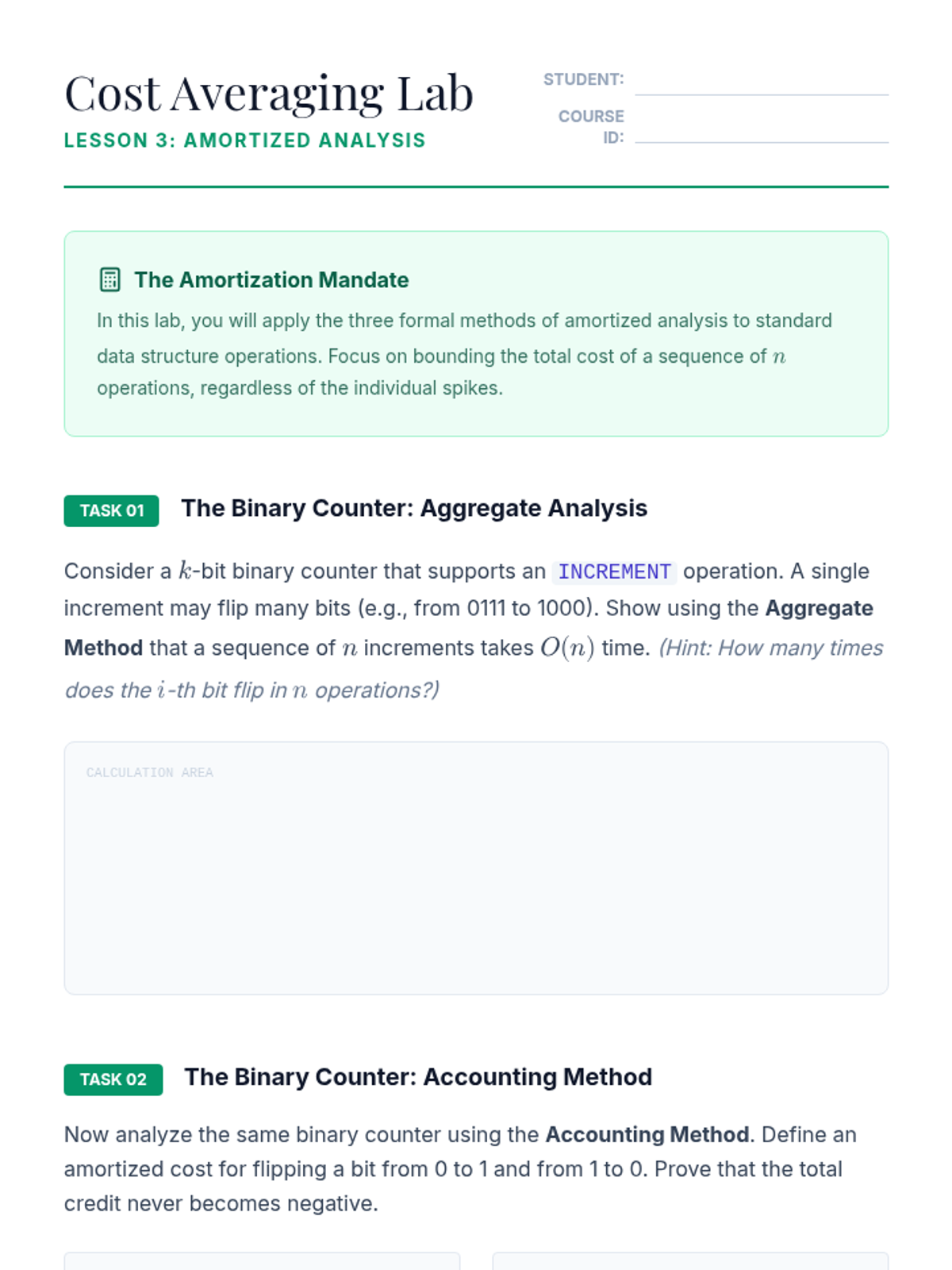

Cost Averaging Lab Worksheet Cost Averaging Lab
Lesson 3: Amortized Analysis
STUDENT:
COURSE ID:
The Amortization Mandate
In this lab, you will apply the three formal methods of amortized analysis to standard data structure operations. Focus on bounding the total cost of a sequence of \(n\) operations, regardless of the individual spikes.
TASK 01
The Binary Counter: Aggregate Analysis
Consider a \(k\)-bit binary counter that supports an INCREMENT operation. A single increment may flip many bits (e.g., from 0111 to 1000). Show using the Aggregate Method that a sequence of \(n\) increments takes \(O(n)\) time. (Hint: How many times does the \(i\)-th bit flip in \(n\) operations?)
CALCULATION AREA
TASK 02
The Binary Counter: Accounting Method
Now analyze the same binary counter using the Accounting Method. Define an amortized cost for flipping a bit from 0 to 1 and from 1 to 0. Prove that the total credit never becomes negative.
Amortized Charge (0 → 1)
Amortized Charge (1 → 0)
INVARIANT PROOF AREA
TASK 03
Stack with Multi-Pop: Potential Method
A stack supports PUSH (\(O(1)\)), POP (\(O(1)\)), and MULTI-POP(k) which pops \(k\) elements or until the stack is empty (\(O(k)\)). Define a potential function \(\Phi(S)\) where \(S\) is the stack. Use it to prove the amortized cost of all operations is \(O(1)\).
Potential Function Definition
\(\Phi(S) = \)
Amortized Cost of PUSH
SHOW WORK
Amortized Cost of MULTI-POP(k)
SHOW WORK
The Selection Logic
In what specific scenario would the Potential Method be objectively superior to the Accounting Method for analysis? Provide an example or a theoretical justification based on the formalisms.

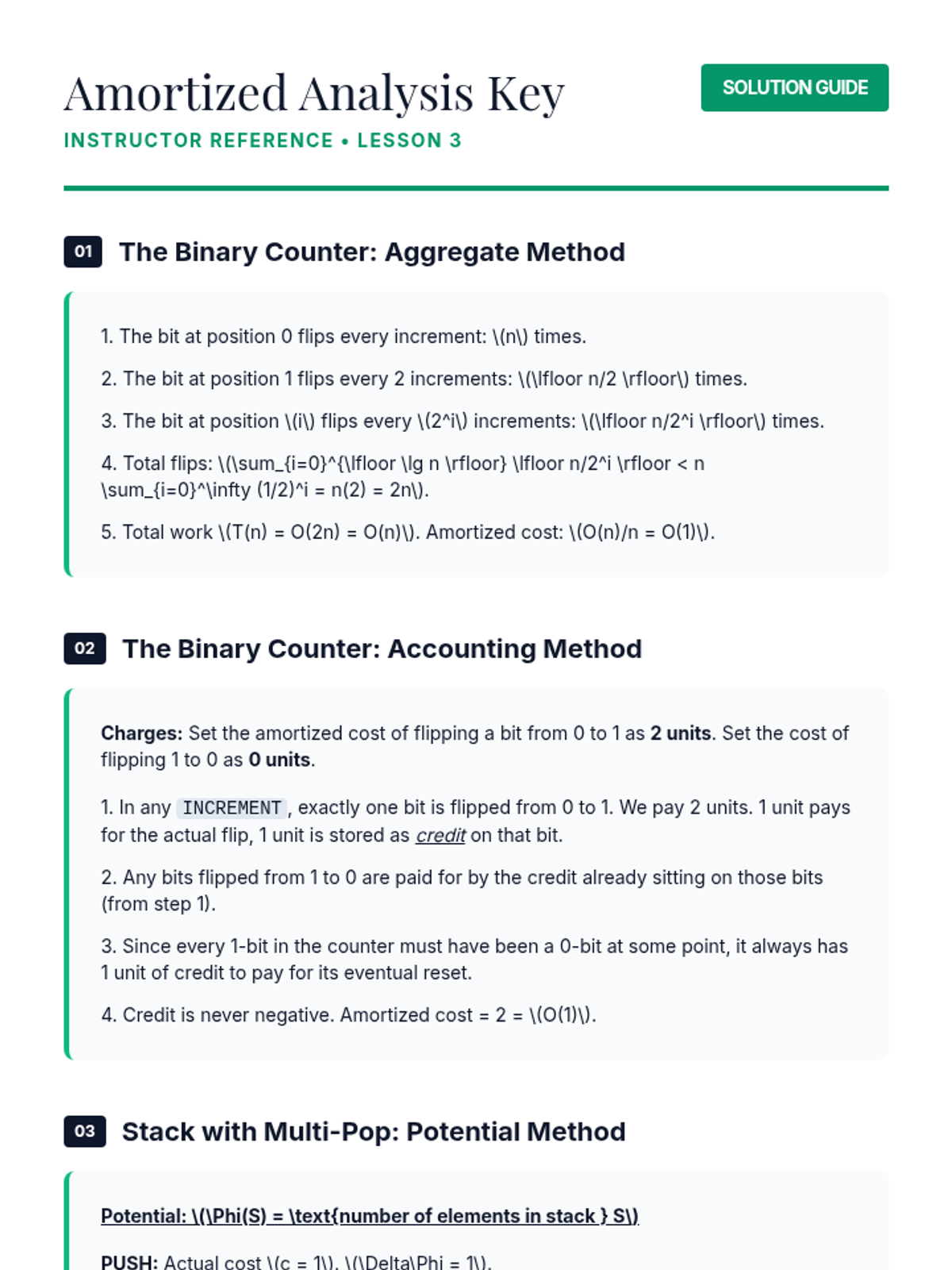

Amortized Analysis Key Amortized Analysis Key
Instructor Reference • Lesson 3
Solution Guide
01
The Binary Counter: Aggregate Method
1. The bit at position 0 flips every increment: \(n\) times.
2. The bit at position 1 flips every 2 increments: \(\lfloor n/2 \rfloor\) times.
3. The bit at position \(i\) flips every \(2^i\) increments: \(\lfloor n/2^i \rfloor\) times.
4. Total flips: \(\sum_{i=0}^{\lfloor \lg n \rfloor} \lfloor n/2^i \rfloor < n \sum_{i=0}^\infty (1/2)^i = n(2) = 2n\).
5. Total work \(T(n) = O(2n) = O(n)\). Amortized cost: \(O(n)/n = O(1)\).
02
The Binary Counter: Accounting Method
Charges: Set the amortized cost of flipping a bit from 0 to 1 as 2 units. Set the cost of flipping 1 to 0 as 0 units.
1. In any INCREMENT, exactly one bit is flipped from 0 to 1. We pay 2 units. 1 unit pays for the actual flip, 1 unit is stored as credit on that bit.
2. Any bits flipped from 1 to 0 are paid for by the credit already sitting on those bits (from step 1).
3. Since every 1-bit in the counter must have been a 0-bit at some point, it always has 1 unit of credit to pay for its eventual reset.
4. Credit is never negative. Amortized cost = 2 = \(O(1)\).
03
Stack with Multi-Pop: Potential Method
Potential: \(\Phi(S) = \text{number of elements in stack } S\)
PUSH: Actual cost \(c = 1\). \(\Delta\Phi = 1\).
MULTI-POP(k): Let \(k' = \min(k, |S|)\). Actual cost \(c = k'\). \(\Delta\Phi = -k'\).
Note: Even though the actual cost \(k'\) is high, the drop in potential perfectly cancels it out.
04
Superiority of Potential Method
"The Potential Method is superior when the data structure's state is easily quantifiable but the credit distribution (Accounting Method) is complex to track. For example, in Splay Trees, the potential function based on node ranks automatically handles complex rotations across the entire tree, which would be extremely tedious to track using individual credit assignments on nodes."
Randomized Logic Slides Randomized Logic
The Power of Expected Runtimes
Defeating the Adversary
In deterministic algorithms, a malicious user can provide a worst-case input that causes slow performance every time.
Example: Standard Quicksort on a sorted array (\(O(n^2)\)).
The Random Solution
By making random choices inside the algorithm, the runtime depends on the random bits, not just the input.
\(E[\text{Runtime}] = O(n \lg n)\)
Guaranteed regardless of the input distribution.
Indicator Random Variables (IRVs)
The primary tool for probabilistic analysis.
An indicator random variable \(X_A\) associated with event \(A\) is defined as:
\[ X_A = I\{A\} = \begin{cases} 1 & \text{if } A \text{ occurs} \\ 0 & \text{if } A \text{ does not occur} \end{cases} \]
\(E[X_A] = P(A)\)
Linearity of Expectation
"The expectation of a sum is the sum of the expectations."
\(E[\sum X_i] = \sum E[X_i]\)
This holds even if the random variables \(X_i\) are dependent!
This is why we can sum up the probabilities of individual comparisons in Quicksort.
Case Study: The Hiring Problem
Interview \(n\) candidates. Hire a candidate only if they are better than everyone interviewed so far.
Question:
What is the expected number of hires?
Analysis
Let \(X_i = 1\) if candidate \(i\) is hired.
\(P(X_i = 1) = 1/i\) (They are the best of the first \(i\)).
\(E[X] = \sum_{i=1}^n E[X_i] = \sum_{i=1}^n 1/i\)
\(E[X] = \ln n + O(1)\)
Expected hires is logarithmic.
Randomized Quicksort Bounds
The total work depends on the number of comparisons. Let \(X_{ij} = 1\) if elements \(i\) and \(j\) are compared.
Expected Comparisons = \(\sum_{i < j} P(X_{ij} = 1)\)
\(P(X_{ij}=1) = \frac{2}{j-i+1}\)
Probability that \(i\) or \(j\) is chosen as pivot before any element between them.
Total Sum \(\approx 2n \ln n\)
Which leads directly to \(O(n \lg n)\).

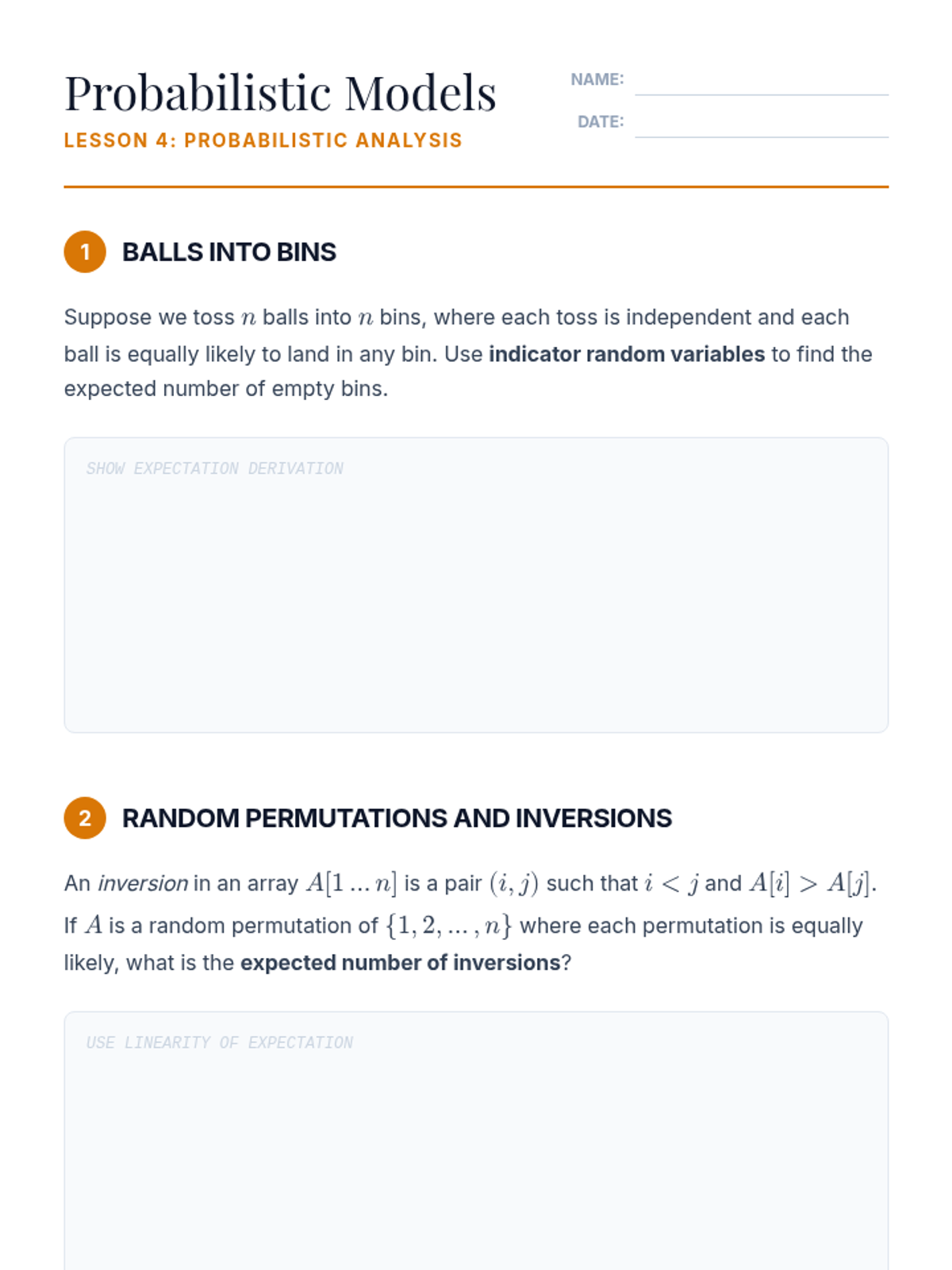

Probabilistic Models Worksheet Probabilistic Models
Lesson 4: Probabilistic Analysis
NAME:
DATE:
1
Balls into Bins
Suppose we toss \(n\) balls into \(n\) bins, where each toss is independent and each ball is equally likely to land in any bin. Use indicator random variables to find the expected number of empty bins.
Show expectation derivation
2
Random Permutations and Inversions
An inversion in an array \(A[1 \dots n]\) is a pair \((i, j)\) such that \(i < j\) and \(A[i] > A[j]\). If \(A\) is a random permutation of \(\{1, 2, \dots, n\}\) where each permutation is equally likely, what is the expected number of inversions?
Use Linearity of Expectation
3
The Quicksort Harmonic
In the analysis of Randomized Quicksort, we let \(X_{ij}\) be the indicator that elements \(z_i\) and \(z_j\) are compared. We know: \[ P(X_{ij} = 1) = \frac{2}{j - i + 1} \] Express the total expected number of comparisons \(E[X] = \sum_{i=1}^{n-1} \sum_{j=i+1}^n \frac{2}{j - i + 1}\) in terms of the Harmonic Number \(H_n\).
Algebraic summation area
4
Selection vs. Sort
Briefly explain why the expected runtime of RANDOMIZED-SELECT (finding the \(k\)-th smallest element) is \(O(n)\), whereas Quicksort is \(O(n \lg n)\). How does the indicator analysis differ for these two algorithms?
Theoretical justification

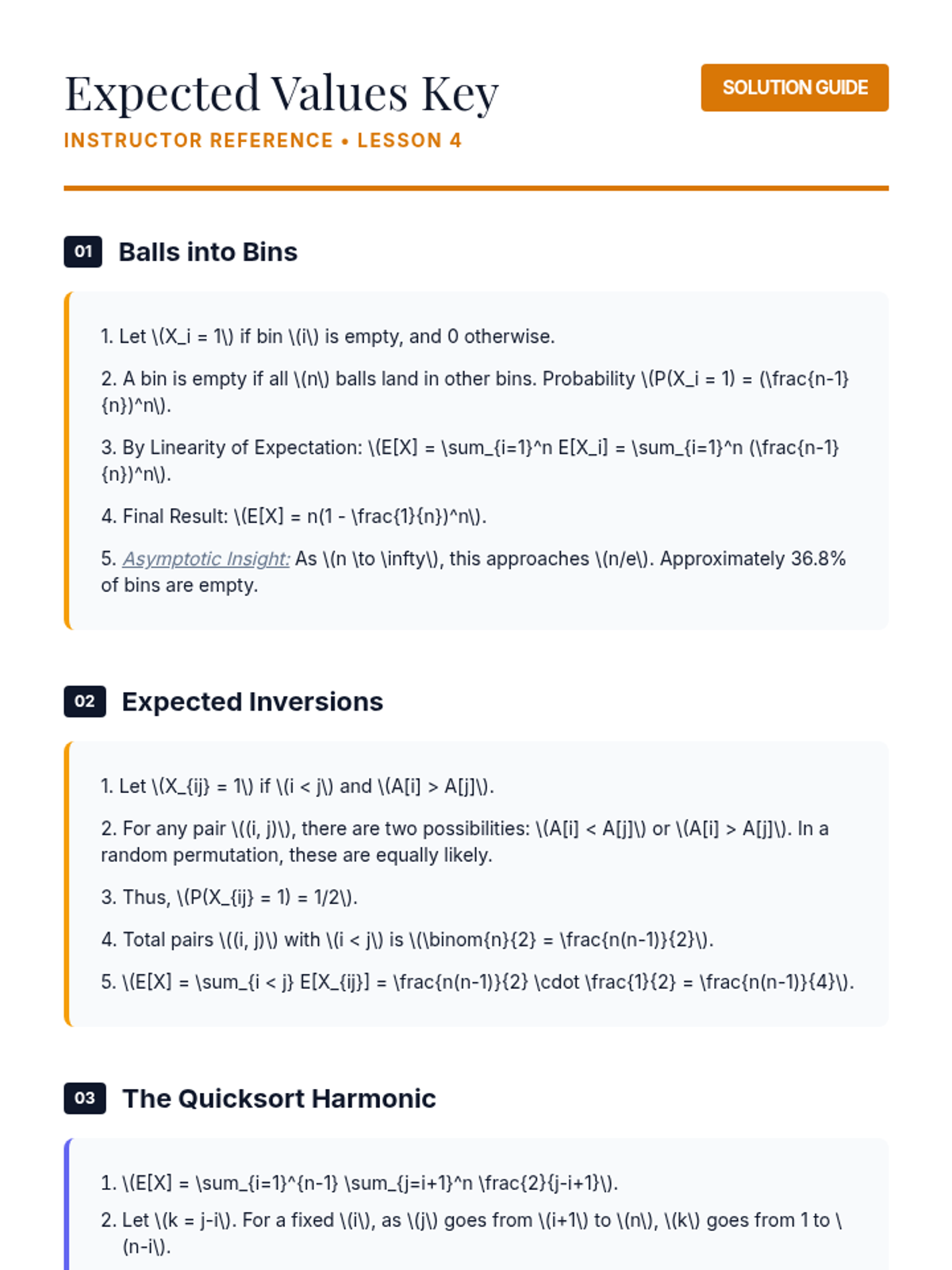

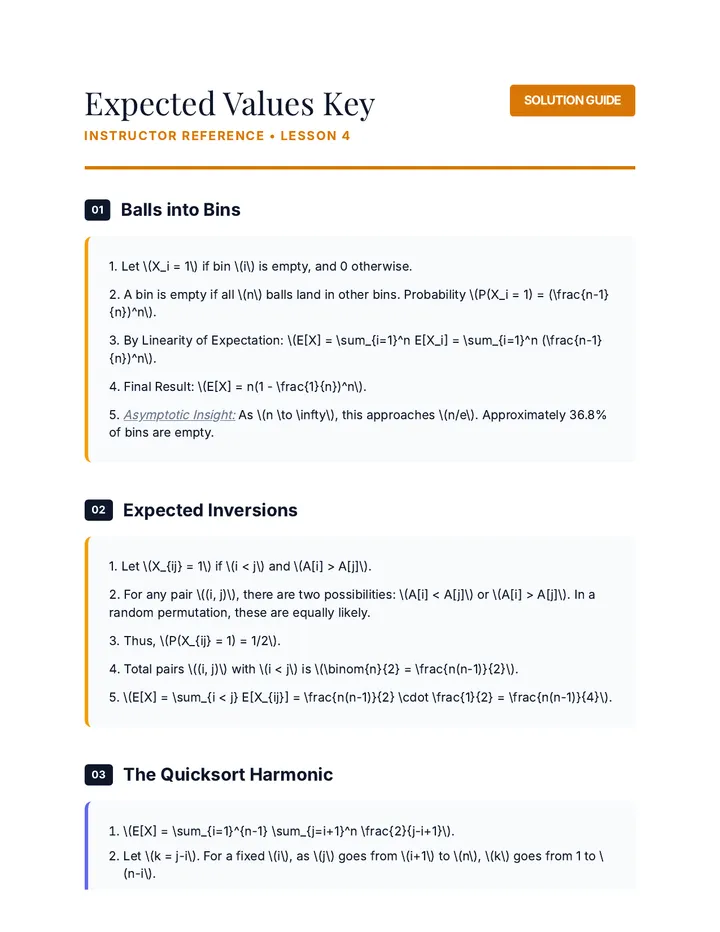

Expected Values Key Expected Values Key
Instructor Reference • Lesson 4
Solution Guide
01
Balls into Bins
1. Let \(X_i = 1\) if bin \(i\) is empty, and 0 otherwise.
2. A bin is empty if all \(n\) balls land in other bins. Probability \(P(X_i = 1) = (\frac{n-1}{n})^n\).
3. By Linearity of Expectation: \(E[X] = \sum_{i=1}^n E[X_i] = \sum_{i=1}^n (\frac{n-1}{n})^n\).
4. Final Result: \(E[X] = n(1 - \frac{1}{n})^n\).
5. Asymptotic Insight: As \(n \to \infty\), this approaches \(n/e\). Approximately 36.8% of bins are empty.
02
Expected Inversions
1. Let \(X_{ij} = 1\) if \(i < j\) and \(A[i] > A[j]\).
2. For any pair \((i, j)\), there are two possibilities: \(A[i] < A[j]\) or \(A[i] > A[j]\). In a random permutation, these are equally likely.
3. Thus, \(P(X_{ij} = 1) = 1/2\).
4. Total pairs \((i, j)\) with \(i < j\) is \(\binom{n}{2} = \frac{n(n-1)}{2}\).
5. \(E[X] = \sum_{i < j} E[X_{ij}] = \frac{n(n-1)}{2} \cdot \frac{1}{2} = \frac{n(n-1)}{4}\).
03
The Quicksort Harmonic
\(E[X] = \sum_{i=1}^{n-1} \sum_{j=i+1}^n \frac{2}{j-i+1}\).
Let \(k = j-i\). For a fixed \(i\), as \(j\) goes from \(i+1\) to \(n\), \(k\) goes from 1 to \(n-i\).
Sum becomes \(\sum_{i=1}^{n-1} \sum_{k=1}^{n-i} \frac{2}{k+1}\).
This is roughly \(\sum_{i=1}^{n} 2(H_{n-i+1} - 1)\).
Evaluating the double sum leads to \(2n \ln n + O(n)\).
04
Selection vs. Sort Analysis
"In Quicksort, we recurse on both sides of the pivot, leading to a recurrence \(T(n) = 2T(n/2) + n\) (on average), which yields \(n \lg n\). In Randomized Selection, we only recurse on one side of the pivot (the side containing the \(k\)-th element), leading to \(T(n) = T(n/2) + n\) (on average). By the Master Theorem, this is Case 3, resulting in \(O(n)\). The IRV analysis for selection only considers elements on the active path of the recursion tree, not the entire tree."
Absolute Limits Slides Absolute Limits
The Theoretical Frontiers of Computing
Provable Impossibility
Can we prove that no algorithm can solve a problem faster than a certain bound?
This is independent of hardware or clever programming—it is about the information required to resolve the answer.
The Decision Tree Model
For comparison-based problems, we model the algorithm as a tree where each internal node is a comparison and each leaf is a potential output.
The \(\Omega(n \lg n)\) Barrier
1. OUTPUTS
There are \(n!\) possible permutations of an input array.
2. LEAVES
A decision tree must have at least \(n!\) leaves to reach every possible answer.
3. HEIGHT
A binary tree with \(L\) leaves must have height \(h \ge \lg L\).
"Sorting takes at least \(\lg(n!)\) comparisons."
\(\lg(n!) \ge n \lg n - 1.44n = \Omega(n \lg n)\)
By Stirling's Approximation
P, NP, and the Verification Trap
Class P
Problems solvable in polynomial time by a deterministic Turing machine.
"The Efficiently Solvable"
Class NP
Problems whose solutions can be verified in polynomial time.
"The Efficiently Verifiable"
The Big Question: Does P = NP?
NP-Completeness: The Hardest Problems
A problem \(B\) is NP-complete if:
1
\(B\) is in NP.
2
Every problem in NP can be reduced to \(B\) in polynomial time.
"If you solve an NP-complete problem in polynomial time, you prove P=NP and solve every problem in NP instantly."
Polynomial-Time Reductions
Problem A
Unsolved
Reduction Function \(f\)
POLYNOMIAL
Problem B
Solved / Known Hard
"To show A is at least as hard as B, reduce B to A. If you can solve A, you can use that solver to solve B."

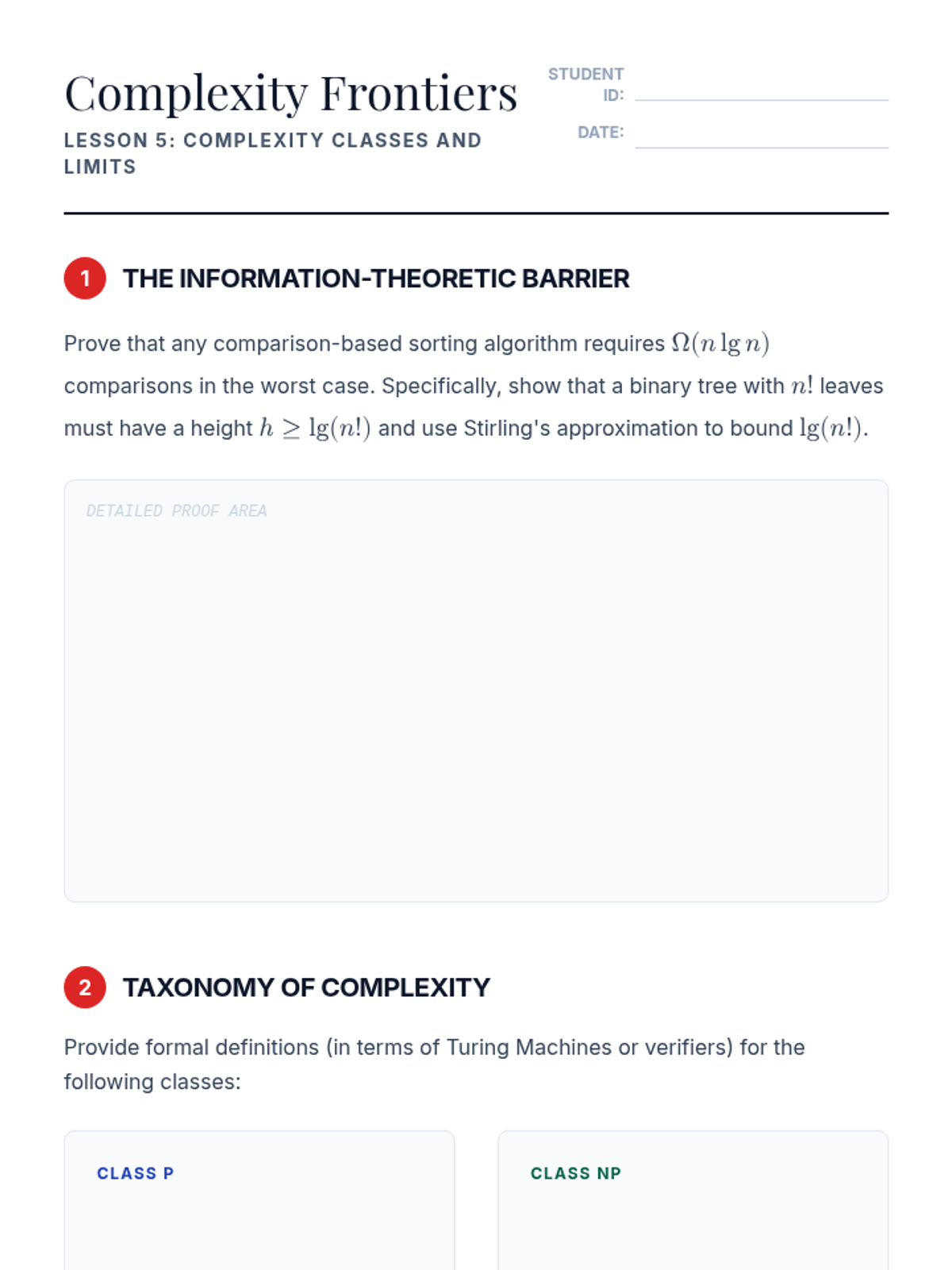

Complexity Frontiers Worksheet Complexity Frontiers
Lesson 5: Complexity Classes and Limits
STUDENT ID:
DATE:
1
The Information-Theoretic Barrier
Prove that any comparison-based sorting algorithm requires \(\Omega(n \lg n)\) comparisons in the worst case. Specifically, show that a binary tree with \(n!\) leaves must have a height \(h \ge \lg(n!)\) and use Stirling's approximation to bound \(\lg(n!)\).
Detailed proof area
2
Taxonomy of Complexity
Provide formal definitions (in terms of Turing Machines or verifiers) for the following classes:
Class P
Class NP
NP-Hard
NP-Complete
3
The Mechanics of Reductions
Suppose we know that problem \(L_1\) is NP-complete. We want to show that problem \(L_2\) is also NP-complete. Describe the two steps required to prove this. In which "direction" does the polynomial-time reduction \(f\) go?
Reduction logic area
Critical Thinking:
If we found an \(O(n^{100})\) algorithm for the Traveling Salesperson Problem (an NP-complete problem), what would that imply about every problem in NP? Would it imply that \(P = NP\)?
4
Beyond Comparison
Why does Counting Sort manage to sort in \(O(n + k)\) time, seemingly breaking the \(\Omega(n \lg n)\) lower bound? What assumption of the lower bound proof does it violate?
Violation analysis

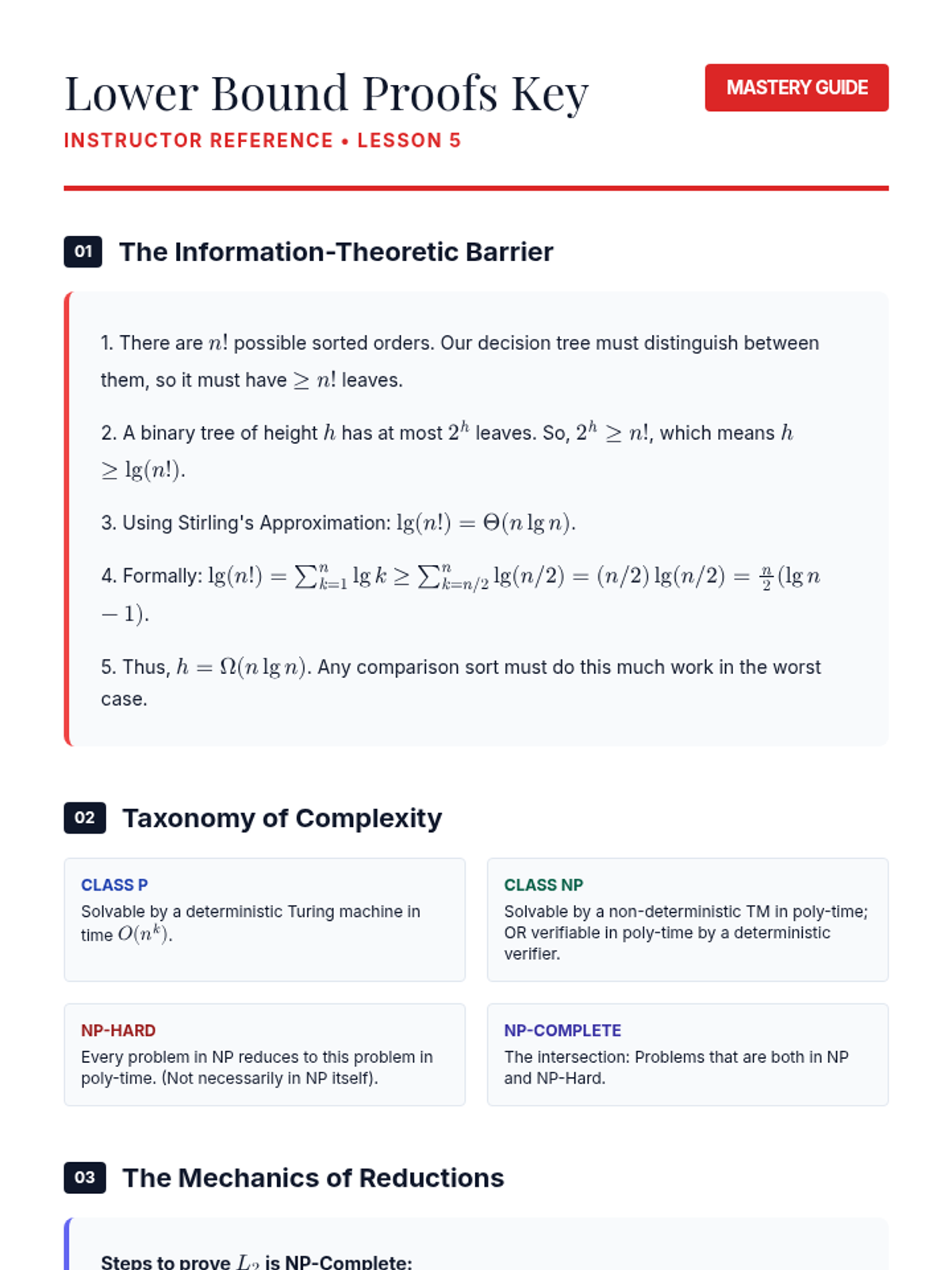

Lower Bound Proofs Key Lower Bound Proofs Key
Instructor Reference • Lesson 5
Mastery Guide
01
The Information-Theoretic Barrier
1. There are \(n!\) possible sorted orders. Our decision tree must distinguish between them, so it must have \(\ge n!\) leaves.
2. A binary tree of height \(h\) has at most \(2^h\) leaves. So, \(2^h \ge n!\), which means \(h \ge \lg(n!)\).
3. Using Stirling's Approximation: \(\lg(n!) = \Theta(n \lg n)\).
4. Formally: \(\lg(n!) = \sum_{k=1}^n \lg k \ge \sum_{k=n/2}^n \lg(n/2) = (n/2) \lg(n/2) = \frac{n}{2} (\lg n - 1)\).
5. Thus, \(h = \Omega(n \lg n)\). Any comparison sort must do this much work in the worst case.
02
Taxonomy of Complexity
Class P
Solvable by a deterministic Turing machine in time \(O(n^k)\).
Class NP
Solvable by a non-deterministic TM in poly-time; OR verifiable in poly-time by a deterministic verifier.
NP-Hard
Every problem in NP reduces to this problem in poly-time. (Not necessarily in NP itself).
NP-Complete
The intersection: Problems that are both in NP and NP-Hard.
03
The Mechanics of Reductions
Steps to prove \(L_2\) is NP-Complete:
Show \(L_2 \in NP\) (verification).
Show \(L_1 \le_P L_2\) (reduction from a known NPC problem).
Critical Thinking Answer:
If TSP has a poly-time algorithm, then P = NP. Since every NP problem reduces to TSP, we can solve any NP problem by reducing it to TSP and running the \(O(n^{100})\) solver. Yes, \(n^{100}\) is polynomial.
04
Beyond Comparison
Counting Sort violates the Comparison-Only assumption. It uses the values of the keys as indices into an array (direct addressing). The lower bound proof only applies to algorithms that gain information solely through comparisons (\(x \le y\)).
