Sun Power Slides UNIT: CELL LIFE Lesson 1
Photosynthesis Unlocked
The Sun Catchers
How plants capture starlight, harness carbon, and run the world's most efficient solar kitchen.
Middle School Biology
Section 1: Solar Machinery
Slide 1 of 7
How Do Organisms Get Energy?
CELL LIFE
Auto-
Autotrophs
"Self-Feeders"
Organisms that manufacture their own food using sunlight, water, and gases.
Examples: Plants, Algae, Cyanobacteria
Hetero-
Heterotrophs
"Other-Feeders"
Organisms that must consume other living or organic matter to obtain energy.
Examples: Animals, Fungi, Most Bacteria
Discussion Point: Which category do humans fall into?
Slide 2 of 7
The Chloroplast: Solar Kitchen
CELLULAR STRUCTURES
Inside a Chloroplast
Outer Membrane
Thylakoid Stack (Granum)
Where sunlight is captured
Stroma (Fluid)
Chloroplasts are specialized organelles found only in plant cells and algae.
1
Double Membrane
Provides structure and isolates chemical reactions.
2
Thylakoids & Chlorophyll
Disc-like sacs containing **chlorophyll**—the pigment that absorbs violet-blue and red light while reflecting green light.
3
Stroma
The thick fluid surrounding the thylakoid stacks where chemical sugars are assembled.
Key Term: **Chlorophyll** is the light-absorbing pigment molecule!
Slide 3 of 7
The Kitchen's Ingredients (Reactants)
PHOTOSYNTHESIS INPUTS
Water (\(H_2O\))
Absorbed by the plant's root system from the surrounding soil.
Enters: Roots
Carbon Dioxide (\(CO_2\))
Captured from the atmosphere through tiny openings on leaves called **stomata**.
Enters: Stomata (Leaves)
Sunlight
Electromagnetic light energy captured by chlorophyll inside thylakoid discs.
Enters: Chlorophyll
Vocabulary alert: **Stomata** are microscopic leaf pores!
Slide 4 of 7
The Master Recipe: Chemical Equation
CHEMICAL FORMULA
\[ 6\text{CO}_2 + 6\text{H}_2\text{O} \xrightarrow{\text{Sunlight}} \text{C}_6\text{H}_{12}\text{O}_6 + 6\text{O}_2 \]
Carbon Dioxide 6 Molecules
Water 6 Molecules
Glucose (Sugar) 1 Molecule
Oxygen 6 Molecules
Mass Conservation: Notice how the number of carbon, hydrogen, and oxygen atoms is exactly balanced on both sides of the arrow!
Tip: Count the carbons! 6 on the left, 6 on the right!
Slide 5 of 7
The Kitchen's Output (Products)
PHOTOSYNTHESIS OUTPUTS
Glucose (\(C_6H_{12}O_6\))
The target product of photosynthesis! A chemical sugar plant tissues use for structure, growth, and cellular storage.
Stored as heavy starch in roots
Forms structural cellulose
ENERGY FOR THE PLANT
Oxygen (\(O_2\))
A waste product from the plant's perspective! Released through the leaf stomata back into the air for breathing organisms.
Split from water reactant
Crucial for animal respiration
RELEASED TO THE ATMOSPHERE
Takeaway: Plants make food for themselves, and release oxygen for us!
Slide 6 of 7
Summing It Up: The Great Cycle
GLOBAL BALANCE
Photosynthesis Summary
Plants convert light, gas, and water into sugars to support food chains and generate Earth's atmospheric oxygen.
The Cellular Respiration Connection
Animals take in oxygen and glucose to produce carbon dioxide and water—the exact ingredients plants require!
The Continuous Loop
Photosynthesis (Plants)
Cellular Respiration (Animals/Plants)
Both cycles work together to sustain life on our planet.
Get ready! Next up: Let's fill out your Guided Notes booklet!
Slide 7 of 7

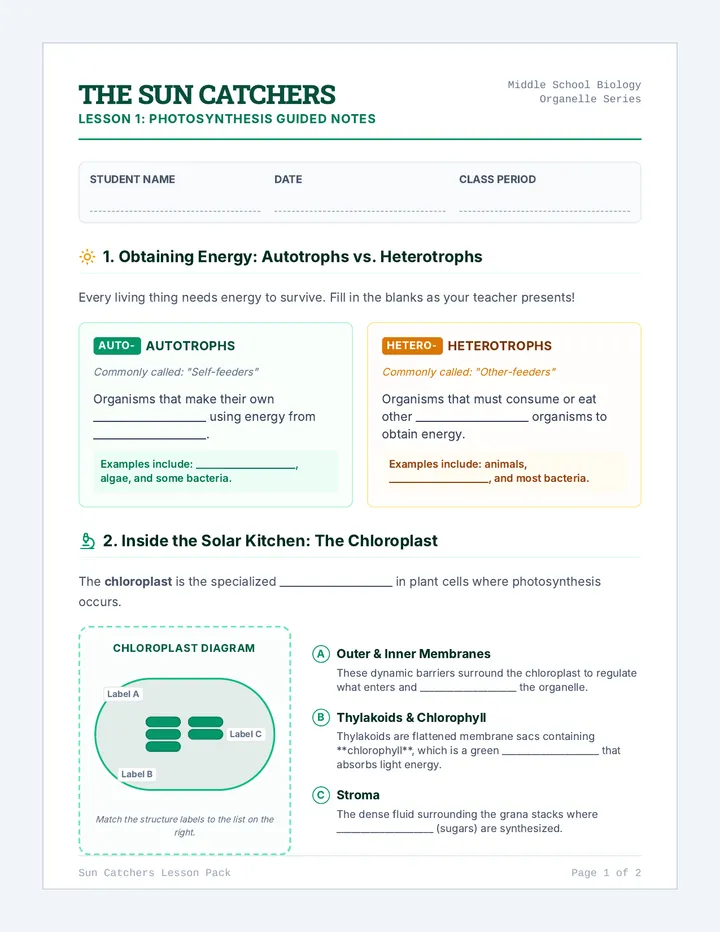

Sun Power Guided Notes THE SUN CATCHERS
Lesson 1: Photosynthesis Guided Notes
Middle School Biology
Organelle Series
Student Name
Date
Class Period
1. Obtaining Energy: Autotrophs vs. Heterotrophs
Every living thing needs energy to survive. Fill in the blanks as your teacher presents!
Auto- Autotrophs
Commonly called: "Self-feeders"
Organisms that make their own ____________________ using energy from ____________________.
Examples include: ____________________, algae, and some bacteria.
Hetero- Heterotrophs
Commonly called: "Other-feeders"
Organisms that must consume or eat other ____________________ organisms to obtain energy.
Examples include: animals, ____________________, and most bacteria.
2. Inside the Solar Kitchen: The Chloroplast
The chloroplast is the specialized ____________________ in plant cells where photosynthesis occurs.
CHLOROPLAST DIAGRAM
Label A Label B Label C
Match the structure labels to the list on the right.
A Outer & Inner Membranes
These dynamic barriers surround the chloroplast to regulate what enters and ____________________ the organelle.
B Thylakoids & Chlorophyll
Thylakoids are flattened membrane sacs containing **chlorophyll**, which is a green ____________________ that absorbs light energy.
C Stroma
The dense fluid surrounding the grana stacks where ____________________ (sugars) are synthesized.
Sun Catchers Lesson Pack Page 1 of 2
PART II: THE KITCHEN IN ACTION Class Date: _________________
3. The Kitchen's Ingredients (Reactants)
How do the necessary reactants find their way into the plant's chloroplasts?
Water (\(H_2O\))
Absorbed by the plant's ____________________ and transported up the stem.
Carbon Dioxide (\(CO_2\))
Enters the plant's leaves through microscopic pores called ____________________.
Sunlight
Captured directly by the green ____________________ pigment in the thylakoid.
4. The Master Recipe: Chemical Equation
Fill in the coefficients and molecules for the balanced chemical equation of photosynthesis:
____ \(CO_2\)
____ \(H_2O\)
Sunlight
\(C_6H_{12}O_6\) Glucose
____ \(O_2\)
5. The Output (Products)

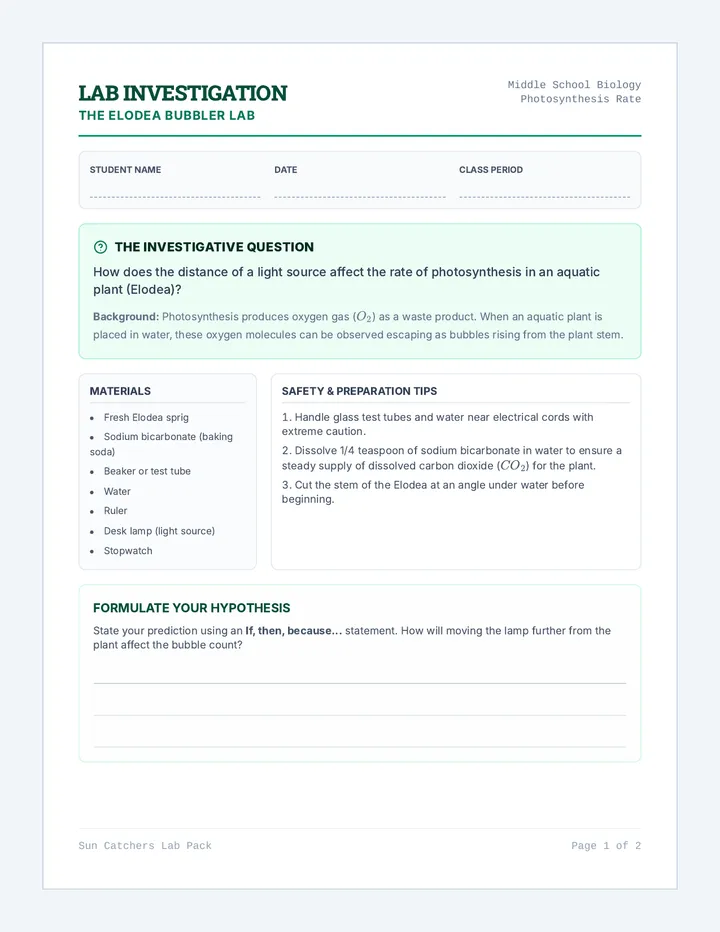

Elodea Bubbler Lab Handout LAB INVESTIGATION
The Elodea Bubbler Lab
Middle School Biology
Photosynthesis Rate
Student Name
Date
Class Period
The Investigative Question
How does the distance of a light source affect the rate of photosynthesis in an aquatic plant (Elodea)?
Background: Photosynthesis produces oxygen gas (\(O_2\)) as a waste product. When an aquatic plant is placed in water, these oxygen molecules can be observed escaping as bubbles rising from the plant stem.
Materials
Fresh Elodea sprig
Sodium bicarbonate (baking soda)
Beaker or test tube
Water
Ruler
Desk lamp (light source)
Stopwatch
Safety & Preparation Tips
Handle glass test tubes and water near electrical cords with extreme caution.
Dissolve 1/4 teaspoon of sodium bicarbonate in water to ensure a steady supply of dissolved carbon dioxide (\(CO_2\)) for the plant.
Cut the stem of the Elodea at an angle under water before beginning.
Formulate Your Hypothesis
State your prediction using an If, then, because... statement. How will moving the lamp further from the plant affect the bubble count?
Sun Catchers Lab Pack Page 1 of 2
PART II: EXPERIMENT & DATA Team Members: _________________________
Procedure
Place the cut Elodea sprig (stem pointing up) inside the water filled with sodium bicarbonate.
Place the beaker 10 cm away from the lamp. Let the plant adjust for 2 minutes.
Start the timer. Count every single bubble that escapes from the cut stem for 1 minute .
Record the count in Trial 1. Repeat for Trial 2, then calculate the average.
Move the beaker to 20 cm and then 30 cm , repeating steps 3 and 4 each time.
Collected Data Table
Light Distance (cm) Bubbles / Min (Trial 1) Bubbles / Min (Trial 2) Average Bubbles / Min 10 cm 20 cm 30 cm
Post-Lab Analysis
1. Based on your data, how does the distance of light affect the rate of photosynthesis?

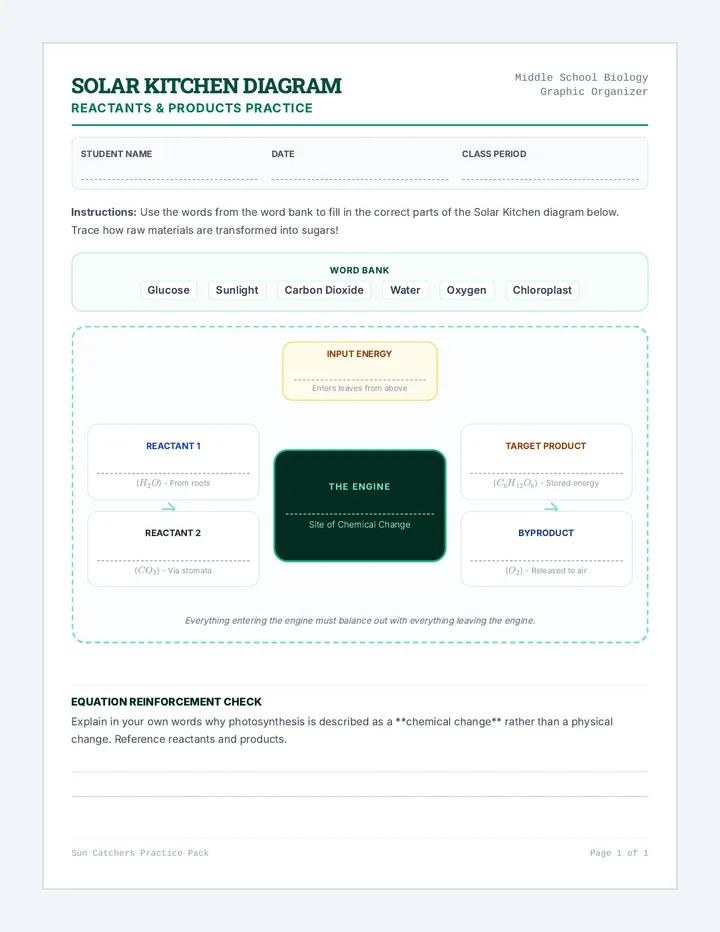

Chemical Kitchen Worksheet SOLAR KITCHEN DIAGRAM
Reactants & Products Practice
Middle School Biology
Graphic Organizer
Student Name
Date
Class Period
Instructions: Use the words from the word bank to fill in the correct parts of the Solar Kitchen diagram below. Trace how raw materials are transformed into sugars!
Word Bank
Glucose Sunlight Carbon Dioxide Water Oxygen Chloroplast
Input Energy
Enters leaves from above
Reactant 1
(\(H_2O\)) - From roots
Reactant 2
(\(CO_2\)) - Via stomata
The Engine
Site of Chemical Change
Target Product
(\(C_6H_{12}O_6\)) - Stored energy
Byproduct
(\(O_2\)) - Released to air
Everything entering the engine must balance out with everything leaving the engine.
Equation Reinforcement Check
Explain in your own words why photosynthesis is described as a **chemical change** rather than a physical change. Reference reactants and products.
Sun Catchers Practice Pack Page 1 of 1

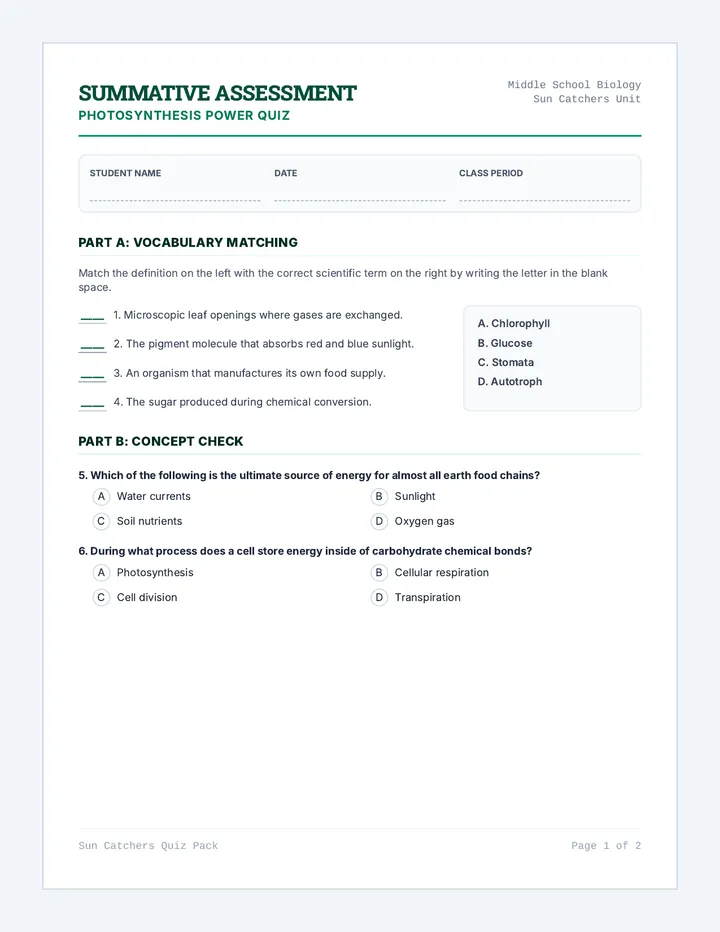

Photosynthesis Power Quiz SUMMATIVE ASSESSMENT
Photosynthesis Power Quiz
Middle School Biology
Sun Catchers Unit
Student Name
Date
Class Period
Part A: Vocabulary Matching
Match the definition on the left with the correct scientific term on the right by writing the letter in the blank space.
____
1. Microscopic leaf openings where gases are exchanged.
____
2. The pigment molecule that absorbs red and blue sunlight.
____
3. An organism that manufactures its own food supply.
____
4. The sugar produced during chemical conversion.
A. Chlorophyll
B. Glucose
C. Stomata
D. Autotroph
Part B: Concept Check
5. Which of the following is the ultimate source of energy for almost all earth food chains?
A Water currents
B Sunlight
C Soil nutrients
D Oxygen gas
6. During what process does a cell store energy inside of carbohydrate chemical bonds?
A Photosynthesis
B Cellular respiration
C Cell division
D Transpiration
Sun Catchers Quiz Pack Page 1 of 2
PART III: SYNTHESIS & CHEMISTRY Class Period: _________
Part C: The Chemistry of Sugar Making
7. Complete the balanced chemical equation for photosynthesis. Fill in both the coefficients (numbers) and the chemical formula names below:
___ \(CO_2\)
___ \(H_2O\)
Light
\(C_6H_{12}O_6\) Glucose
___ \(O_2\)
Part D: Critical Thinking & Explanations
8. Why is chlorophyll green? Explain how chlorophyll interacts with different wavelengths of light (colors) from the sun.
9. A student puts a water plant inside a dark cupboard for 72 hours. What will happen to the plant's production of oxygen? Why?
Sun Catchers Quiz Pack Page 2 of 2
Sun Catchers Teacher Guide TEACHER GUIDE & KEYS
Sun Catchers Instructional Support
Middle School Biology
Pacing & Pedagogy
Lesson Overview
This lesson introduces the cellular engine of autotrophs—the chloroplast. Students will explore how photosynthetic organelles capture light energy to build glucose, releasing gaseous oxygen as a metabolic byproduct.
Common Student Misconceptions
Misconception 1: "Plants only do photosynthesis, animals only do respiration" Correction: Plants perform both cycles! They synthesize sugars via chloroplasts, and then metabolize those sugars using mitochondria.Misconception 2: "Plants get their dry mass from soil nutrients" Correction: The vast majority of a plant's physical matter comes from carbon dioxide gas in the air, converted to organic wood and tissue!
Suggested Lesson Pacing (90 Min Block)
Pacing Activity Description Material Reference 00 - 15 min Engage: Ask "Where does dry wood come from?" Launch Slides 1-2. Sun Power Slides 15 - 35 min Instruction: Walk through chloroplast anatomy & chemical formulas. Sun Power Guided Notes 35 - 75 min Investigation: Conduct Elodea bubble trials under varying distance. Elodea Bubbler Lab 75 - 90 min Consolidate: Formative diagram practice & exit ticket / quiz check. Power Quiz / Practice
Classroom Discussion Prompts
"If light is the energy that drives this chemical change, how might a plant survive in a thick canopy forest? What adaptations might it have?" (Answer: broader leaves, higher chloroplast density, climbing vines).
Sun Catchers Teacher Guide Page 1 of 2
PART II: COMPREHENSIVE ANSWER KEY Class Year: 2026
1. Guided Notes Fill-In Keys
Autotrophs: make own food from sunlightHeterotrophs: eat other living organismsChloroplast: green organellePigment: chlorophyll absorbs violet/redStomata: tiny pores/openingsStroma: fluid where sugars are made
2. Elodea Bubbler Lab Expectations
