Relative Dating Slides ROCK RECORD REVEALED
Lesson 1: Principles of Relative Dating
THE CRIME SCENE
Inquiry Hook
You walk into the kitchen and see a smashed layer cake on the floor.
There is a chocolate layer, a vanilla layer, and strawberry frosting.
A single blue candle is stuck through all layers.
A fork mark cuts across the frosting and the top layer.
Challenge:
In your notebooks, list the order of events from first to last. How do you know?
🎂
🍴
🕯️
Evidence Photo #001
LAW OF SUPERPOSITION
The fundamental rule of rock history.
The Rule
In an undisturbed sequence of sedimentary rocks, each layer is older than the one above it and younger than the one below it.
Why?
Sediment settles from water or air due to gravity. The first batch of sand must be on the ground before the next batch can fall on top of it.
Layer D (Youngest)
Layer C
Layer B
Layer A (Oldest)
Fig 1.1: Undisturbed Strata
Laying it Down
Horizontality & Lateral Continuity
Original Horizontality
Layers of sediment are generally deposited in a horizontal position. If we see folded or tilted layers, we know they were moved after they were deposited.
Lateral Continuity
Sedimentary layers extend in all directions until they thin out or reach the edge of the basin. This allows us to correlate layers even if a valley has eroded a gap between them.
NORMAL DEPOSITION
TILTED AFTERWARDS
Events must happen in sequence.
CROSS-CUTTING RELATIONSHIPS
The "Who Cut Whom?" Rule
"If a fault or magma intrusion cuts through rock layers, the fault or intrusion must be younger than the rocks it cuts."
Think of it like a piece of paper. You can't cut the paper with scissors until the paper already exists!
Layer A Layer B Layer C Intrusion D
Order: A → B → C → D
LAW OF INCLUSIONS
Rocks within rocks.
The Concept
An inclusion is a piece of one rock unit that is contained within another.
The rock providing the inclusion must be older than the rock containing it.
Rock B (Host)
Inclusions of Rock A
Rock A is older than Rock B.
Analogy: If you find chocolate chips in a cookie, the chocolate chips had to exist before the dough was baked around them.
UNCONFORMITIES
Missing Time!
An unconformity represents a long period during which deposition ceased, erosion removed previously formed rocks, and then deposition resumed.
Step 1
Deposition of layers.
Step 2
Uplift and Erosion.
Step 3
Subsidence and new deposition.
"The pages were torn out of the book of Earth's history."
THE GEOLOGIC JIGSAW
Put it all together.
When analyzing a complex outcrop, always look for:
1 Bottom-most layers first (Superposition).
2 Did it get tilted? (Horizontality).
3 What cuts through what? (Cross-cutting).
4 Are there "mystery chunks" inside? (Inclusions).
5 Is something missing? (Unconformities).
Ready to Practice?
Open your "Layer Logic" Worksheets.
Layer Logic Worksheet Layer Logic Worksheet
Earth Archive Chronicles // Field Dispatch 01
Name:
Date:
Field Instructions
Apply the principles of relative dating (Superposition, Original Horizontality, Cross-Cutting Relationships, and Inclusions) to determine the sequence of geological events for the diagrams below. List the events from OLDEST to YOUNGEST .
Outcrop Alpha
Siltstone (S) Shale (H) Sandstone (A) Limestone (L)
1. Sequence of Events
(List letters from Oldest to Youngest)
1 (Oldest):
2:
3:
4 (Youngest):
Evidence principle used:
Outcrop Beta
Layer X Layer Y Layer Z Fault F Dike D
2. Outcrop Beta Timeline
List the 5 events (Layers X, Y, Z, Dike D, Fault F)
1:
2:
3:
4:
5:
Justify your placement of Fault F:
The Grand Canyon Challenge
P Q R S T Intrusion M Unconformity U
Sequence events P, Q, R, S, T, M, U:
1:
2:
3:
4:
5:
6:
7:
Critical Thinking:
What evidence suggests that Intrusion M is older than Layer S?
Layer Logic Answer Key Answer Key
Teacher Resource // Layer Logic Worksheet
Lesson 1
Stratigraphic Interpretation
1. Outcrop Alpha
Sequence (Oldest to Youngest)
1. Siltstone (S)
2. Shale (H)
3. Sandstone (A)
4. Limestone (L)
Evidence Principle:
Law of Superposition: In an undisturbed sequence, the oldest rocks are at the bottom and the youngest are at the top.
2. Outcrop Beta
Sequence (Oldest to Youngest)
1. Layer X (Oldest)
2. Layer Y
3. Layer Z
4. Dike D
5. Fault F (Youngest)
Justification for Fault F:
Principle of Cross-Cutting Relationships: Fault F cuts through all three rock layers AND Dike D. Therefore, the layers and the dike must have existed before the faulting occurred.
Note: Dike D cuts X, Y, and Z but is broken by Fault F, placing it between the layers and the fault in time.
3. The Grand Canyon Challenge
Full Sequence
1. P (Oldest Layer)
2. Q
3. R
4. M (Intrusion)
5. U (Unconformity/Erosion)
6. S
7. T (Youngest Layer)
Evidence for M vs S:
Intrusion M is truncated (cut off) by the erosional surface of Unconformity U. Layer S is deposited directly on top of this erosional surface. Therefore, M must have been intruded, then eroded, before S was ever deposited.
Teacher Note: This is a "Angular Unconformity." The tilting of P, Q, and R happened after R but before U.
Pedagogical Note
Check if students are confusing "Inclusions" with "Intrusions." In Problem 3, M is an intrusion. If there were pieces of M found inside S, those would be inclusions. Ensure students recognize that the Unconformity (U) is itself an "event" in the sequence representing a gap in the physical record.
Index Fossil Slides FOSSIL FINGERPRINTS
Lesson 2: Biostratigraphic Correlation
THE TORN STORY
Inquiry Hook
Imagine a book where the pages have been ripped out and scattered across three different rooms.
Room A: Has pages 1, 4, 7, and 12.Room B: Has pages 3, 4, 5, and 8.Room C: Has pages 12, 13, and 15.
The Detective Work:
How can you use the overlapping pages (like page 4 or page 12) to put the entire story back in order across all three rooms?
"...and then the dragon woke up." (Page 4)
"Chapter 2: The Cave" (Page 3)
"...left the village forever." (Page 12)
Fossils are the 'page numbers' of rock layers.
PRINCIPLE OF FAUNAL SUCCESSION
William Smith's Big Breakthrough (1790s)
"Fossil organisms succeed one another in a definite and determinable order. Therefore, any time period can be recognized by its fossil content."
Predictability
Life evolves through time. Once a species goes extinct, it never reappears in higher (younger) layers.
Universality
If you find a T. rex fossil, you know you are looking at the Late Cretaceous period, no matter where you are on Earth.
🦖
🐚
🦐
🦴
STRATIGRAPHIC SEQUENCE
WHAT MAKES A "GOOD" INDEX FOSSIL?
Not all fossils are created equal.
Short Existence
The species must have existed for only a short period of geologic time.
"Pinpoints the age"
Widespread
Must be found over a wide geographic area (multiple continents).
"Links distant locations"
Distinctive
Must be easy to identify and distinguish from other species.
"No mistaken identity"
Correlation
Building a Global Timeline
By matching rock layers with the same index fossils, geologists can prove that layers at Site A are the same age as layers at Site B—even if they are 1,000 miles apart.
"We don't need to see the whole 'book' at every site. We just need enough 'pages' (fossils) to link them together into one story."
🐚 🦐 🦴 🐢 🐚 🦐 Site A Site B
MISSION: FOSSIL MATCHMAKER
You are being dispatched to three remote drilling sites. Your goal: use index fossils to link the core samples and build a master timeline for the region.

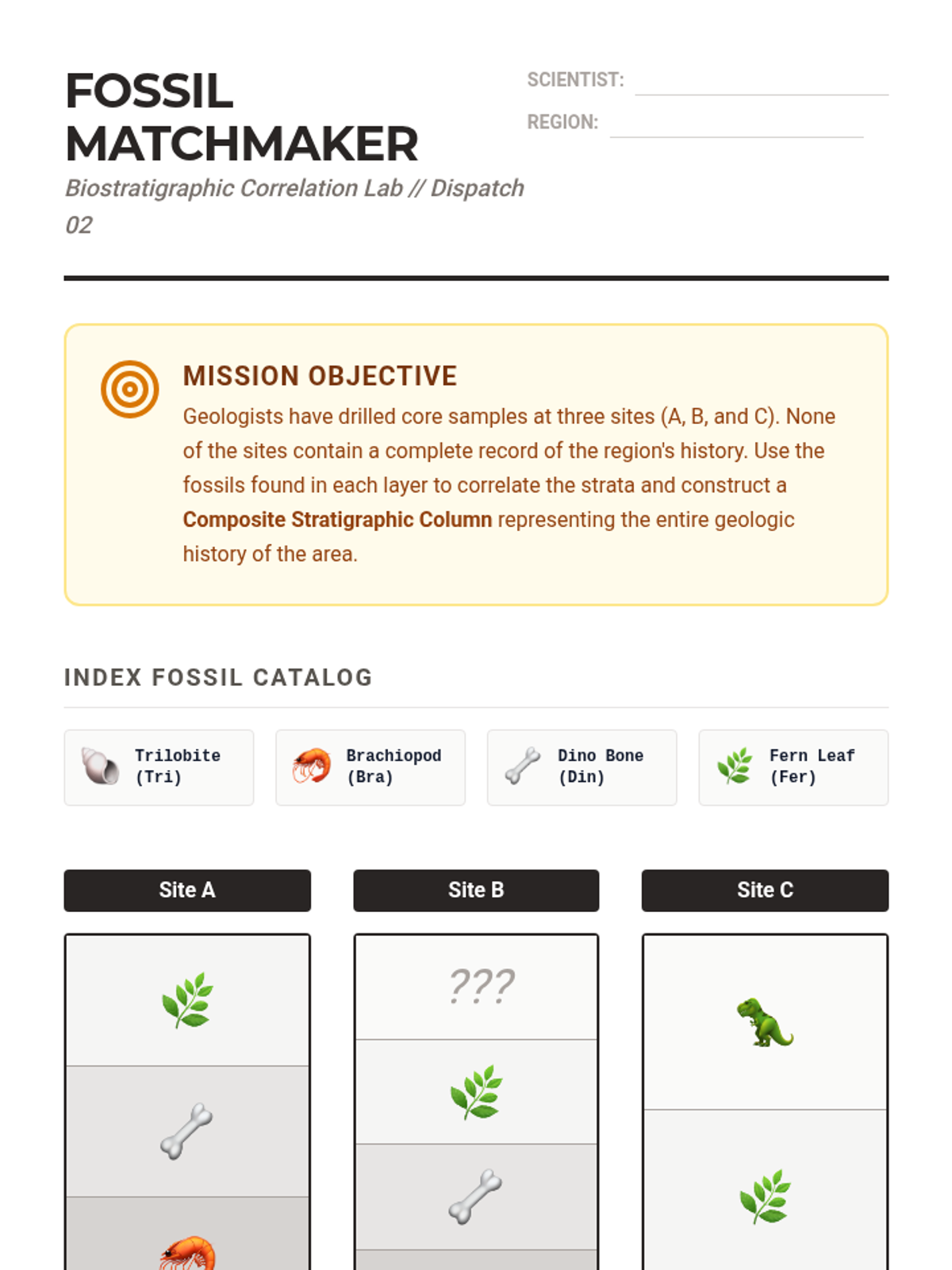

Fossil Matchmaker Worksheet Fossil Matchmaker
Biostratigraphic Correlation Lab // Dispatch 02
Scientist:
Region:
Mission Objective
Geologists have drilled core samples at three sites (A, B, and C). None of the sites contain a complete record of the region's history. Use the fossils found in each layer to correlate the strata and construct a Composite Stratigraphic Column representing the entire geologic history of the area.
Index Fossil Catalog
🐚 Trilobite (Tri)
🦐 Brachiopod (Bra)
🦴 Dino Bone (Din)
🌿 Fern Leaf (Fer)
Site A
🌿
🦴
🦐
🐚
Site B
???
🌿
🦴
🦐
🌋
Note: Red line = Volcanic Ash layer
Site C
🦖
🌿
🦴
Task 1: Drawing Connections
Using a ruler, draw straight lines between the three columns connecting identical fossil layers. Use a different color for each fossil type if possible.
Task 2: Composite Column Construction
Draw the final, complete sequence of life in this region based on all three sites combined. (Hint: Look for the youngest and oldest layers across all sites) .
YOUNGEST
OLDEST
Layer 1 (Top) Layer 2 Layer 3 Layer 4 Layer 5 Layer 6 (Base)
Analysis Question
Site B contains a Volcanic Ash layer at the very bottom. Volcanic ash is an excellent marker for correlation. Why do you think volcanic ash is often more useful than a fossil for dating a specific event?
Task 3: Missing Records
Which site has the least complete rock record? What evidence supports your choice?

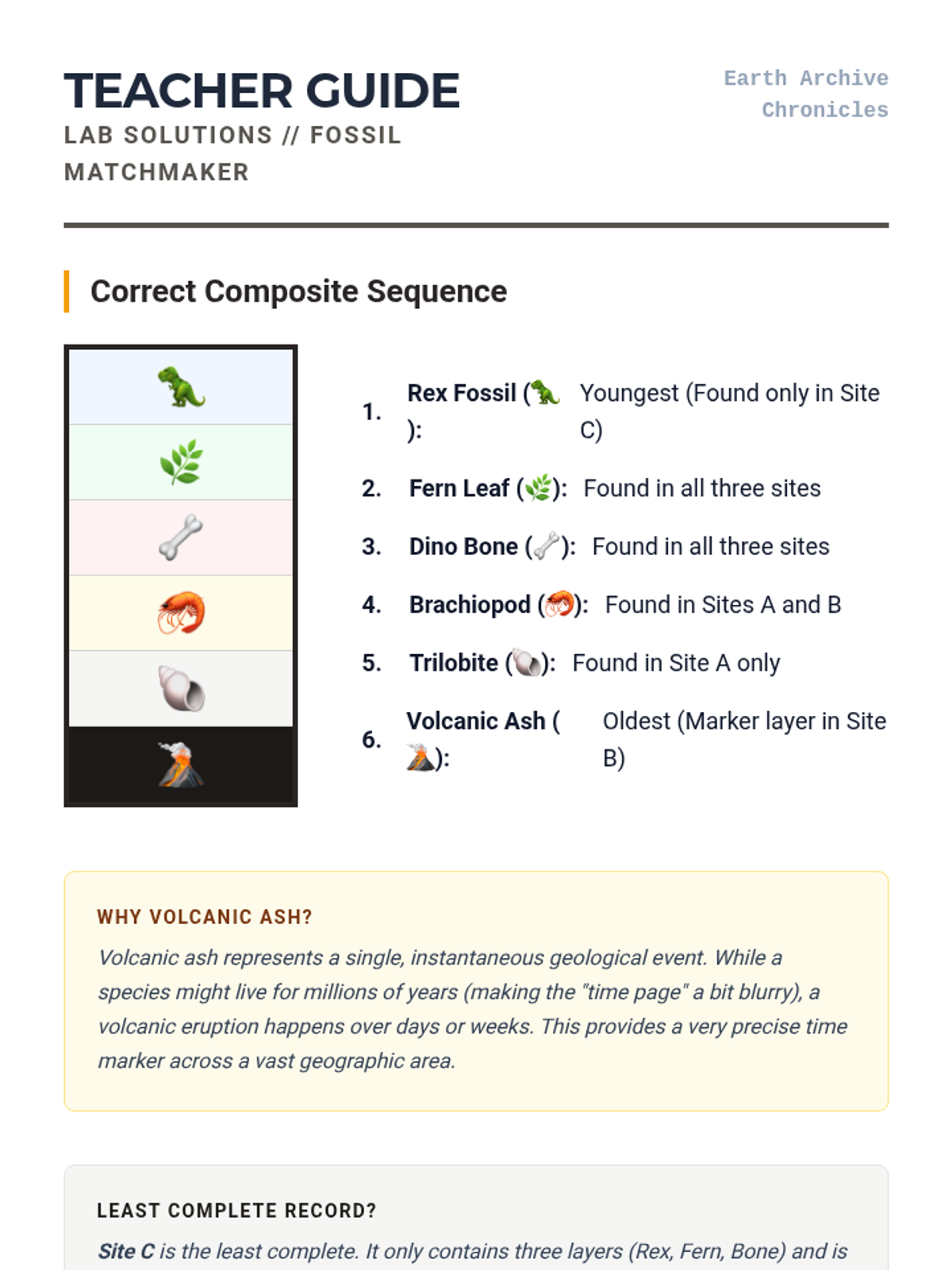

Fossil Matchmaker Teacher Guide Teacher Guide
Lab Solutions // Fossil Matchmaker
Earth Archive Chronicles
Correct Composite Sequence
🦖
🌿
🦴
🦐
🐚
🌋
Rex Fossil (🦖): Youngest (Found only in Site C)
Fern Leaf (🌿): Found in all three sites
Dino Bone (🦴): Found in all three sites
Brachiopod (🦐): Found in Sites A and B
Trilobite (🐚): Found in Site A only
Volcanic Ash (🌋): Oldest (Marker layer in Site B)
Why Volcanic Ash?
Volcanic ash represents a single, instantaneous geological event. While a species might live for millions of years (making the "time page" a bit blurry), a volcanic eruption happens over days or weeks. This provides a very precise time marker across a vast geographic area.
Least Complete Record?
Site C is the least complete. It only contains three layers (Rex, Fern, Bone) and is missing the older Brachiopod, Trilobite, and Ash layers found in Sites A and B. This suggests either these layers were never deposited here or they were eroded away (unconformity).
Facilitation Notes
Common Pitfall:
Students often try to stack all the layers from Site A on top of Site B. Remind them to look for overlaps. If two sites both have the Fern fossil, those layers represent the same time period and should be aligned, not stacked.
Extension Idea:
Ask students what might happen if the same fossil appeared in Layer 1 and Layer 4 of the same site. (Answer: That organism would NOT be a good index fossil because its temporal existence was too long).
Radiometric Dating Slides THE ATOMIC CLOCK
Lesson 3: Radiometric & Absolute Dating
THE SEALED BOX
Inquiry Hook
A scientist sealed a box containing 1,000 blue marbles. These marbles are special: every hour, exactly half of the blue marbles turn red.
You open the box and find:
125 Blue Marbles (Parent)
875 Red Marbles (Daughter)
How many hours ago was the box sealed?
In nature, certain atoms act exactly like these marbles.
UNSTABLE ATOMS
Radioactive Isotopes
The Process
Some isotopes have unstable nuclei. To become stable, they spontaneously break apart or "decay," releasing energy and particles.
PARENT
The original, unstable radioactive isotope.
DAUGHTER
The stable product resulting from decay.
DECAY IS RANDOM
We can't predict when one atom will decay, but we can predict when half of a large group will.
Half-Life (t1/2)
The constant beat of the atomic clock.
A half-life is the time required for one-half of the nuclei in a sample of radioactive isotope to decay.
The Mathematical Beauty:
Each half-life is a constant length of time for a specific isotope, regardless of temperature, pressure, or chemical state.
Example: Carbon-14 half-life = 5,730 years. Uranium-238 half-life = 4.5 billion years.
DECAY FRACTION
HL Parent Daughter 0 100% 0% 1 50% 50% 2 25% 75% 3 12.5% 87.5%
GRAPHING TIME
Exponential Decay Curve
100% Parent Decay Curve Time (Half-Lives)
Notice that the line never reaches zero.
As long as there are atoms, half of them will always remain after each cycle. This allows us to date objects that are billions of years old!
Total Age = # of Half-Lives × HL length
LAB: RADIOACTIVE PENNIES
We can't watch atoms decay for a billion years. Instead, we'll use 100 pennies to simulate the random process of nuclear decay.
Heads = Still Radioactive (Parent)

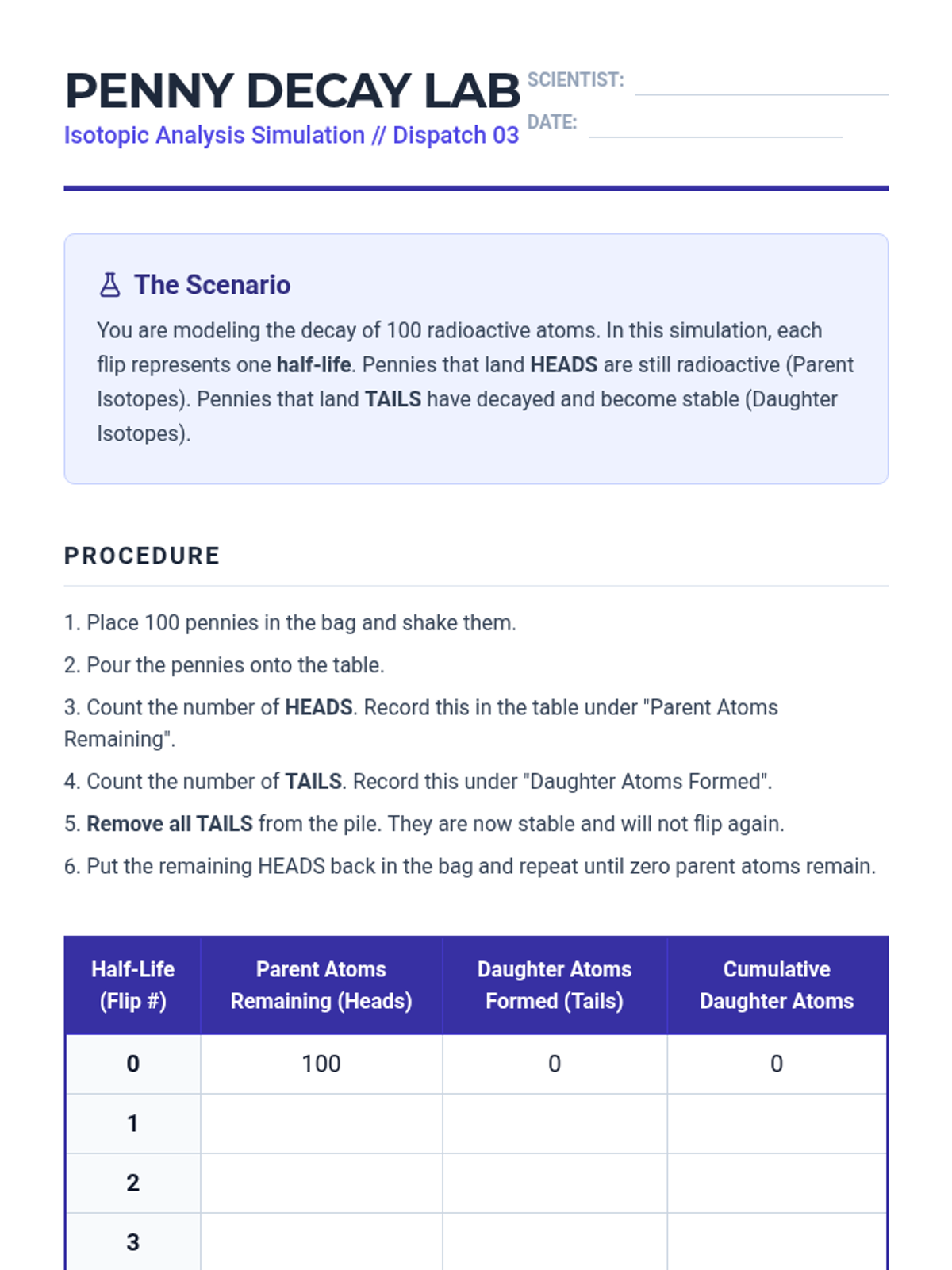

Half-Life Lab Sheet Penny Decay Lab
Isotopic Analysis Simulation // Dispatch 03
Scientist:
Date:
The Scenario
You are modeling the decay of 100 radioactive atoms. In this simulation, each flip represents one half-life . Pennies that land HEADS are still radioactive (Parent Isotopes). Pennies that land TAILS have decayed and become stable (Daughter Isotopes).
Procedure
Place 100 pennies in the bag and shake them.
Pour the pennies onto the table.
Count the number of HEADS . Record this in the table under "Parent Atoms Remaining".
Count the number of TAILS . Record this under "Daughter Atoms Formed".
Remove all TAILS from the pile. They are now stable and will not flip again.Put the remaining HEADS back in the bag and repeat until zero parent atoms remain.
Half-Life (Flip #) Parent Atoms Remaining (Heads) Daughter Atoms Formed (Tails) Cumulative Daughter Atoms 0 100 0 0 1 2 3 4 5 6 7
Graph Your Results
Parent Atoms Remaining
Time (Number of Half-Lives)
0102030405060708090100
012345678
Graph Instructions:
1. Plot the "Parent Atoms Remaining" for each half-life.
2. Connect the dots with a smooth curve .
3. Does your graph look like a straight line or a curve?
Analysis
1. After 3 half-lives, what percentage of the parent isotope should theoretically remain? How close was your actual data?
2. If each "flip" represented 5,000 years, and you found a rock with only 12.5% of the parent isotope left, how old is the rock?
3. Why is it impossible to date a sample that is older than 10 half-lives using that specific isotope?

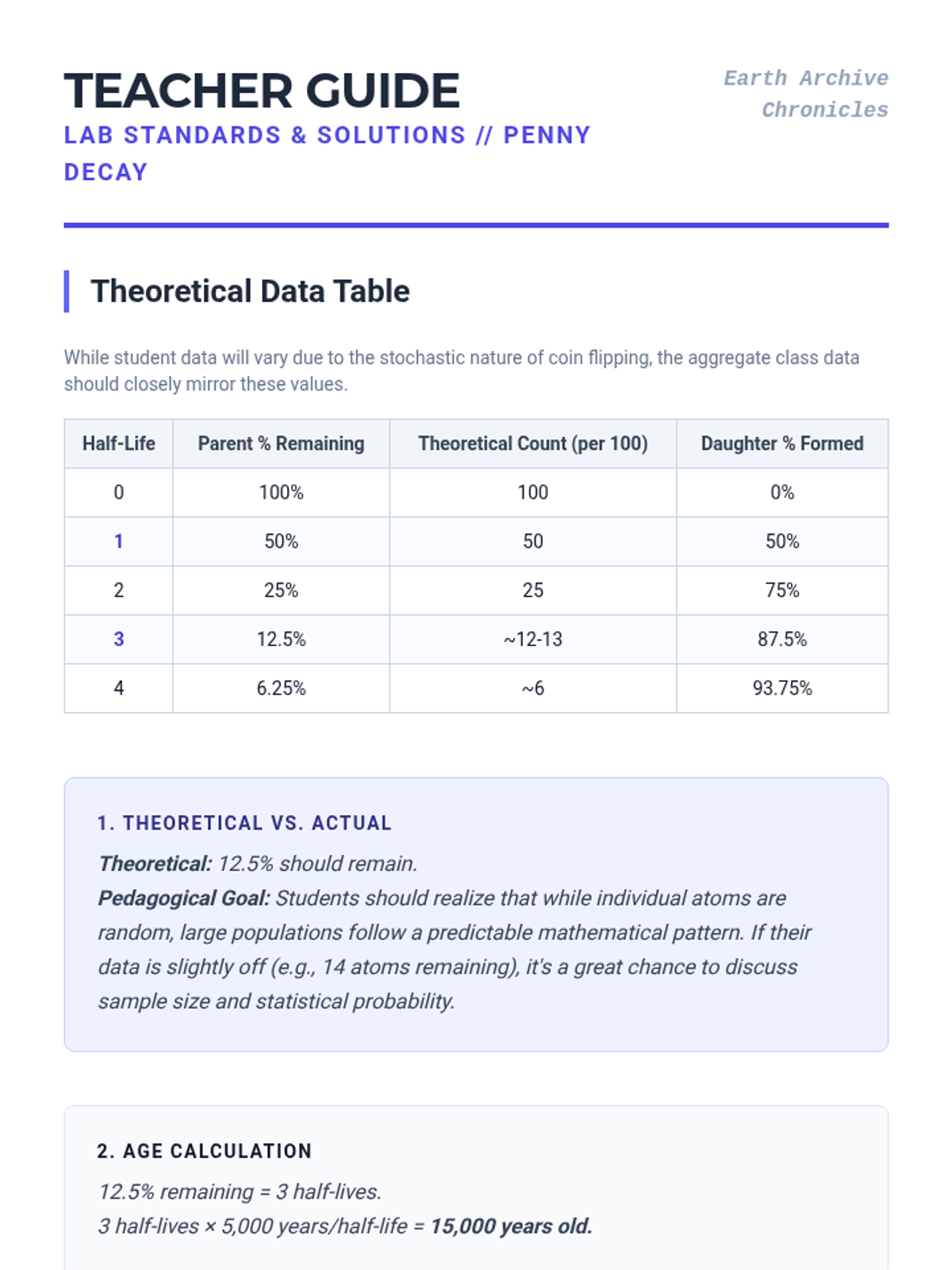

Half-Life Lab Answer Key Teacher Guide
Lab Standards & Solutions // Penny Decay
Earth Archive Chronicles
Theoretical Data Table
While student data will vary due to the stochastic nature of coin flipping, the aggregate class data should closely mirror these values.
Half-Life Parent % Remaining Theoretical Count (per 100) Daughter % Formed 0 100% 100 0% 1 50% 50 50% 2 25% 25 75% 3 12.5% ~12-13 87.5% 4 6.25% ~6 93.75%
1. Theoretical vs. Actual
Theoretical: 12.5% should remain.Pedagogical Goal: Students should realize that while individual atoms are random, large populations follow a predictable mathematical pattern. If their data is slightly off (e.g., 14 atoms remaining), it's a great chance to discuss sample size and statistical probability.
2. Age Calculation
12.5% remaining = 3 half-lives.15,000 years old.
3. The 10 Half-Life Limit
After 10 half-lives, the amount of parent isotope remaining is less than 0.1% of the original sample (\(1/2^{10} \approx 0.00097\)). At this point, the signal-to-noise ratio is too high for current laboratory equipment to accurately distinguish between the remaining parent isotope and background contamination or measurement error.
Key Misconception
Students often think atoms "die" or disappear. Emphasize that matter is conserved; the Parent atom simply transforms into the Daughter atom. The total number of atoms in the bag stays 100.
Math Connection
For advanced students, introduce the formula \( N = N_0(0.5)^n \), where \( n \) is the number of half-lives. This links their geological data directly to their algebra curriculum.
Unconformity Slides The Missing Chapters
Lesson 4: Unconformities & Gaps in Time
THE TORN DIARY
Inquiry Hook
You find an old diary. One page says "Monday: Started the long journey." The very next page says "Friday: Finally arrived at the castle, exhausted."
What do you know for sure?
Something happened between Monday and Friday.
The pages for Tuesday, Wednesday, and Thursday are missing.
"Rocks are the diary of Earth. Unconformities are the ripped-out pages."
THE BIG THREE
Identifying the Gaps
ANGULAR
Tilted or folded sedimentary rocks are overlain by younger, horizontal strata.
DISCONFORMITY
A gap in time between parallel layers of sedimentary rock. Hardest to spot!
NONCONFORMITY
Crystalline Rock
Younger sedimentary rocks rest on top of older metamorphic or igneous rocks.
HOW IT HAPPENS
The Unconformity Cycle
1
Deposition
Layers form underwater in a quiet environment.
2
Uplift
Tectonic forces push the land up out of the water.
3
Erosion
The ripping stage.
Wind and water remove the top layers.
4
Subsidence
Land sinks back down. New layers form on top of the old scar.
THE GREAT UNCONFORMITY
In the Grand Canyon, there is a gap between 500-million-year-old rock and 1.2-billion-year-old rock.
Over 700 Million Years of Earth's history are simply... gone.
"Where did the rock go? It was washed into the sea as sediment."
A Global Mystery
This gap appears all over the world. It suggests a global-scale event of massive erosion before the Cambrian explosion of life.
GAP DETECTIVE
Time to practice spotting the missing chapters. Grab your "Gap Detective" worksheets and look for the red squiggly lines—that's where history was erased.
IDENTIFY
EXPLAIN

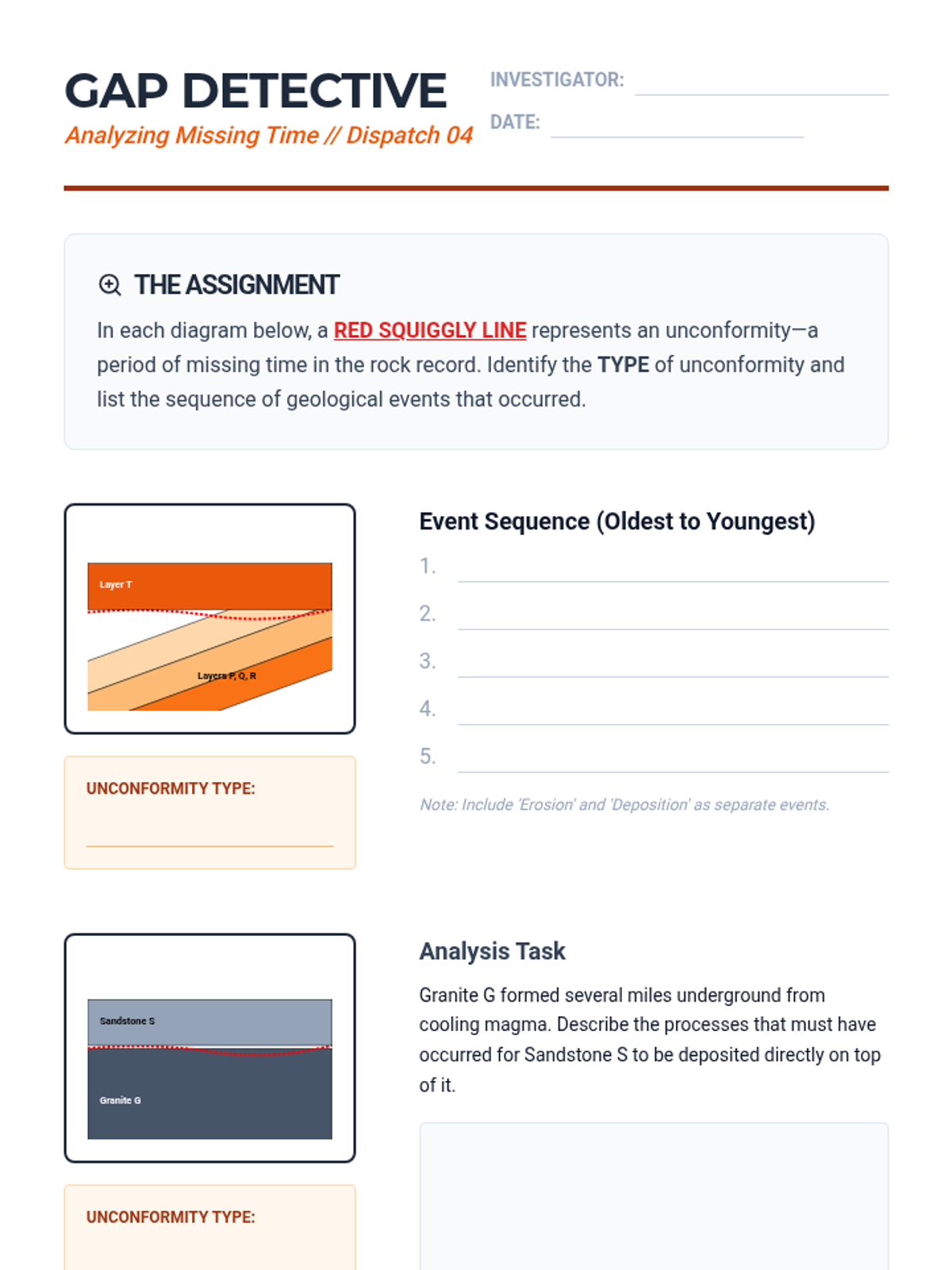

Gap Detective Worksheet Gap Detective
Analyzing Missing Time // Dispatch 04
Investigator:
Date:
The Assignment
In each diagram below, a red squiggly line represents an unconformity—a period of missing time in the rock record. Identify the TYPE of unconformity and list the sequence of geological events that occurred.
Layer T Layers P, Q, R
Unconformity Type:
Event Sequence (Oldest to Youngest)
Note: Include 'Erosion' and 'Deposition' as separate events.
Granite G Sandstone S
Unconformity Type:
Analysis Task
Granite G formed several miles underground from cooling magma. Describe the processes that must have occurred for Sandstone S to be deposited directly on top of it.
The Disconformity Challenge
Layer A Layer B Layer D ??
In this outcrop, geologists found that Layer B contains 400-million-year-old fossils, but Layer D contains 200-million-year-old fossils. There is no Layer C.
1. Why is this called a Disconformity?
2. What happened to "Layer C"? Give two possibilities. Gap Detective Answer Key Answer Key
Lab Solutions // Gap Detective
Earth Archive Chronicles
Case 1: Angular Unconformity
Correct Sequence
1. Deposition of Layers P, Q, R (Oldest)
2. Tilting (Tectonic Uplift)
3. Erosion (Ripping the surface)
4. Subsidence (Sinking)
5. Deposition of Layer T (Youngest)
Why Angular?
The underlying layers (P, Q, R) are tilted at an angle, while the top layer (T) is horizontal. This proves tectonic activity happened before the erosion.
Case 2: Nonconformity
The Process Explanation:
1. Granite G formed from magma deep underground (Intrusion).
Key Insight: Granite is plutonic; for it to meet a sedimentary rock, an enormous amount of "missing time" (erosion) must have occurred.
Case 3: The Disconformity Challenge
1. Why is it a Disconformity?
Because the layers are parallel (horizontal) both above and below the unconformity. There is no tilting, just a gap in time.
2. What happened to Layer C?
Possibility A: Non-deposition . Layer C was never formed because the area was dry land during that 200-million-year gap.
Possibility B: Erosion . Layer C was deposited, but later eroded away completely before Layer D formed.
Teacher Note
Disconformities are often identified by the presence of a "fossil gap" or an irregular, wavy erosional surface between parallel layers. This is why absolute dating or index fossils are so critical—without them, you might think B and D formed right after one another!
Synthesis Slides PROJECT EARTH HISTORY
Culminating Synthesis Workshop
THE MISSION
Active Briefing
"We've hit a major stratigraphic anomaly at the new drilling site. We have three core samples, two fossil beds, and one igneous intrusion. The board needs a Final Geologic Report before the end of the shift."
You are the lead consultant for Chronos Energy Corp . Your reputation—and the company's multi-million dollar investment—depends on your accuracy.
DELIVERABLES:
1. Regional Composite Column
2. Isotopic Age Calculations
3. Annotated Geologic Timeline
THE TOOLBOX
Integrating Relative and Absolute Dating
Relative Sequence
Use Steno's laws to build the "Scaffold" of events. Determine which units were folded, eroded, or faulted first.
Qualitative Logical Order
Biostratigraphy
Link Site A to Site B. Fill in the "missing time" gaps using index fossils to correlate distant layers.
Correlation Connection
Radiometric Data
Attach specific numbers to the timeline. Calculate the exact age of intrusions and ash layers to "bracket" the age of other rocks.
Quantitative Precision
THE BRACKETING METHOD
Dating Sedimentary Rocks Indirectly
Most sedimentary rocks cannot be dated using radiometric methods (the grains inside are older than the layer itself).
The Solution:
Find igneous rocks (intrusions/ash) above and below the sedimentary layer. The sedimentary rock's age must be between those two dates.
Ash Layer (40 Ma) Intrusion (120 Ma) Sandstone X Age of X: Between 40 and 120 Ma
READY FOR DEPLOYMENT?
Analysis Steps:
1. Solve relative sequence at each site.
2. Use fossils to align the three sites.
3. Calculate years for all radiometric samples.
4. Finalize the regional timeline.
Technical Tip:
"Remember, faults and intrusions are events! Don't just list rock layers. List the forces that shaped them."

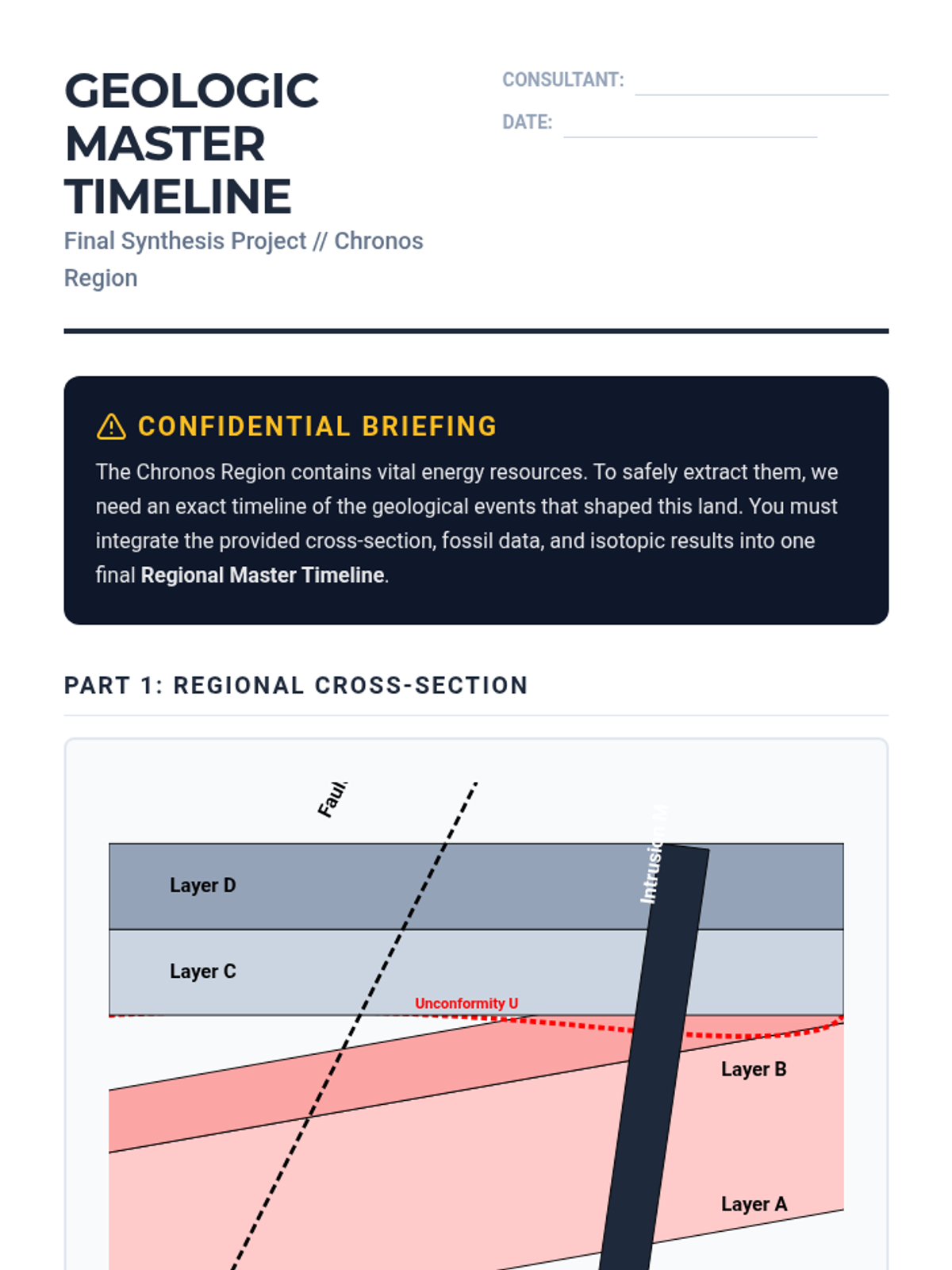

Synthesis Project Sheet Geologic Master Timeline
Final Synthesis Project // Chronos Region
Consultant:
Date:
Confidential Briefing
The Chronos Region contains vital energy resources. To safely extract them, we need an exact timeline of the geological events that shaped this land. You must integrate the provided cross-section, fossil data, and isotopic results into one final Regional Master Timeline .
Part 1: Regional Cross-Section
Layer A Layer B Layer C Layer D Intrusion M Fault F Unconformity U
Biostratigraphy Data
Rock Unit Index Fossil Found Layer A Olenellus trilobite (540 Ma)Layer B Paradoxides trilobite (510 Ma)Layer C Mucrospirifer brachiopod (380 Ma)
Radiometric Lab Results
Sample ID: Intrusion M
Isotope: Uranium-235Half-Life: 700 Million YearsParent Remaining: 70.7% (Approx. 0.5 Half-lives)Calculated Age: 350 Million Years
Final Geologic Report
Task 1: Sequence logic
List the 7 events (A, B, C, D, M, F, U) from OLDEST to YOUNGEST. Use the space below to provide the letter sequence and a brief 1-sentence justification for the position of Fault F .
Sequence: __________________________________________________
Task 2: The Timeline
Combine your relative sequence with the Fossil/Radiometric data. Assign an approximate age or age-range to each unit.
Event Estimated Age (Ma) Dating Method Used Layer D Intrusion M 350 Ma Radiometric Dating Fault F Layer C Unconformity U --- --- Layer B Layer A
Task 3: Executive Summary
Summarize the geologic history of this region. What was the most significant event that caused "missing time" in the record?

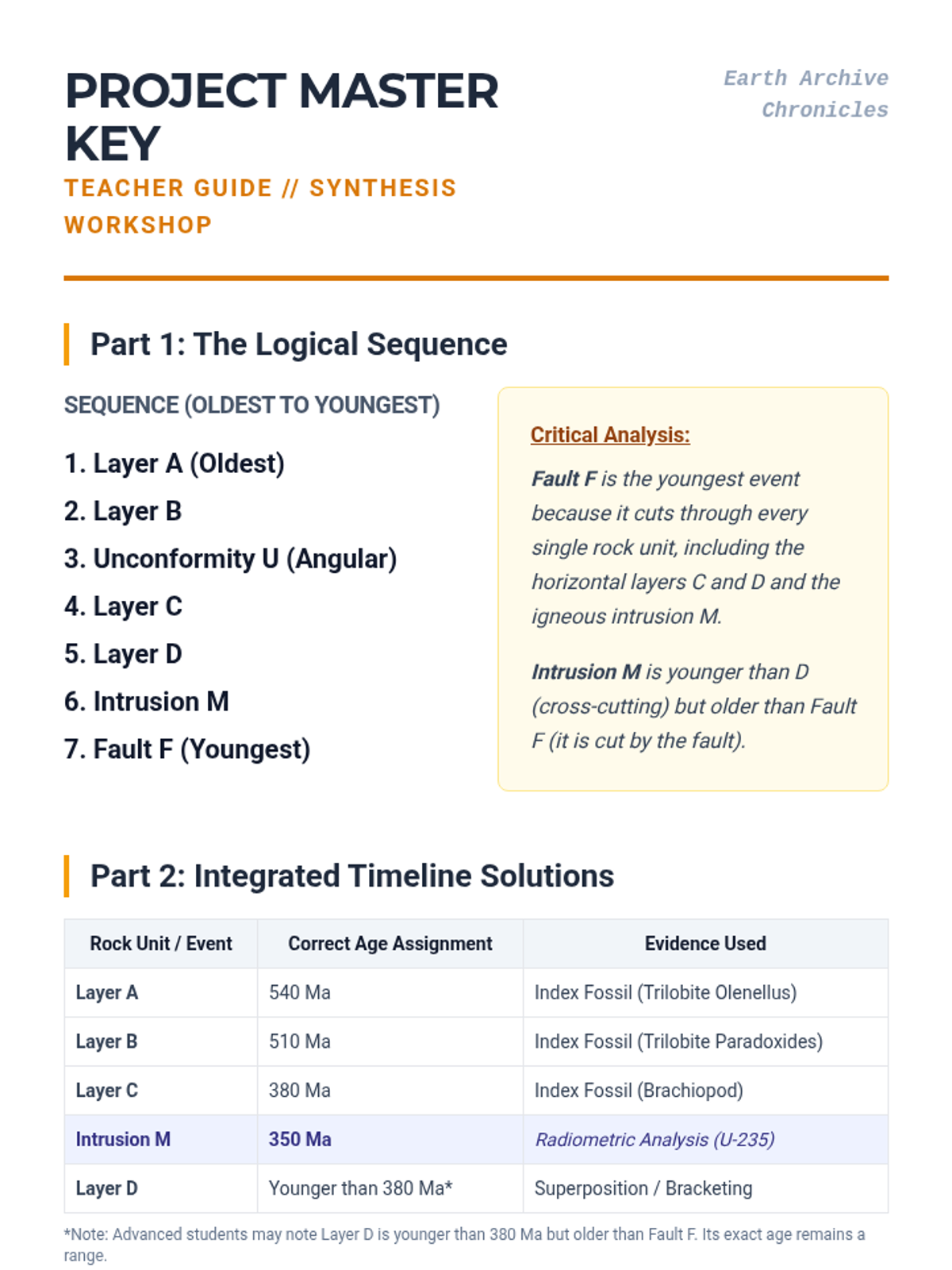

Synthesis Project Answer Key Project Master Key
Teacher Guide // Synthesis Workshop
Earth Archive Chronicles
Part 1: The Logical Sequence
Sequence (Oldest to Youngest)
1. Layer A (Oldest)
2. Layer B
3. Unconformity U (Angular)
4. Layer C
5. Layer D
6. Intrusion M
7. Fault F (Youngest)
Critical Analysis:
Fault F is the youngest event because it cuts through every single rock unit, including the horizontal layers C and D and the igneous intrusion M.
Intrusion M is younger than D (cross-cutting) but older than Fault F (it is cut by the fault).
Part 2: Integrated Timeline Solutions
Rock Unit / Event Correct Age Assignment Evidence Used Layer A 540 Ma Index Fossil (Trilobite Olenellus) Layer B 510 Ma Index Fossil (Trilobite Paradoxides) Layer C 380 Ma Index Fossil (Brachiopod) Intrusion M 350 Ma Radiometric Analysis (U-235) Layer D Younger than 380 Ma* Superposition / Bracketing
*Note: Advanced students may note Layer D is younger than 380 Ma but older than Fault F. Its exact age remains a range.
Scoring Rubric
Exceeds (4)
Sequence is 100% correct. Calculations are precise. Executive summary uses professional terminology (e.g., 'angular unconformity', 'cross-cutting') correctly.
Meets (3)
Sequence has 1 error at most. Timeline reflects fossil data. Summary explains the concept of missing time accurately.
Approaching (2)
Multiple errors in sequencing. Fossil data ignored. Summary describes rock types but not the sequence of events.
Pedagogical Mastery Tip:
The most common error is placing Fault F before Intrusion M. Challenge students to look closely at the point where they cross. If the fault breaks the intrusion, the fault must be younger. This is the heart of geological detective work.
