Metal Mania Slides Chemistry Unit: Metallic Bonding
METAL MANIA
Physical Properties of Metals vs. Non-Metals
The Breaker Lab
Can you predict how a material will react to force? Today, we test the limits of matter.
Test for Luster (Shiny vs. Dull)
Test for Malleability (Bend vs. Break)
Test for Conductivity (Current flow)
Safety First!
"Goggles are non-negotiable when materials are under pressure."
Metallic Vocabulary
Luster
The ability of a surface to reflect light. Is it metallic-shiny or earth-dull?
Malleability
The ability to be hammered or pressed into thin sheets without cracking.
Ductility
The ability to be drawn or pulled out into a thin wire. Vital for electronics!
The Great Divide
Property Metals Non-Metals State at RT Solid (except Hg) Gases or Brittle Solids Conductivity Excellent Poor (Insulators) Appearance Shiny / Luster Dull / Matte Response to Force Malleable / Ductile Brittle (Shatters)
Why the difference?
If a diamond is harder than a copper wire, why does the diamond shatter while the copper just bends?
Record your hypothesis in your lab notebook.

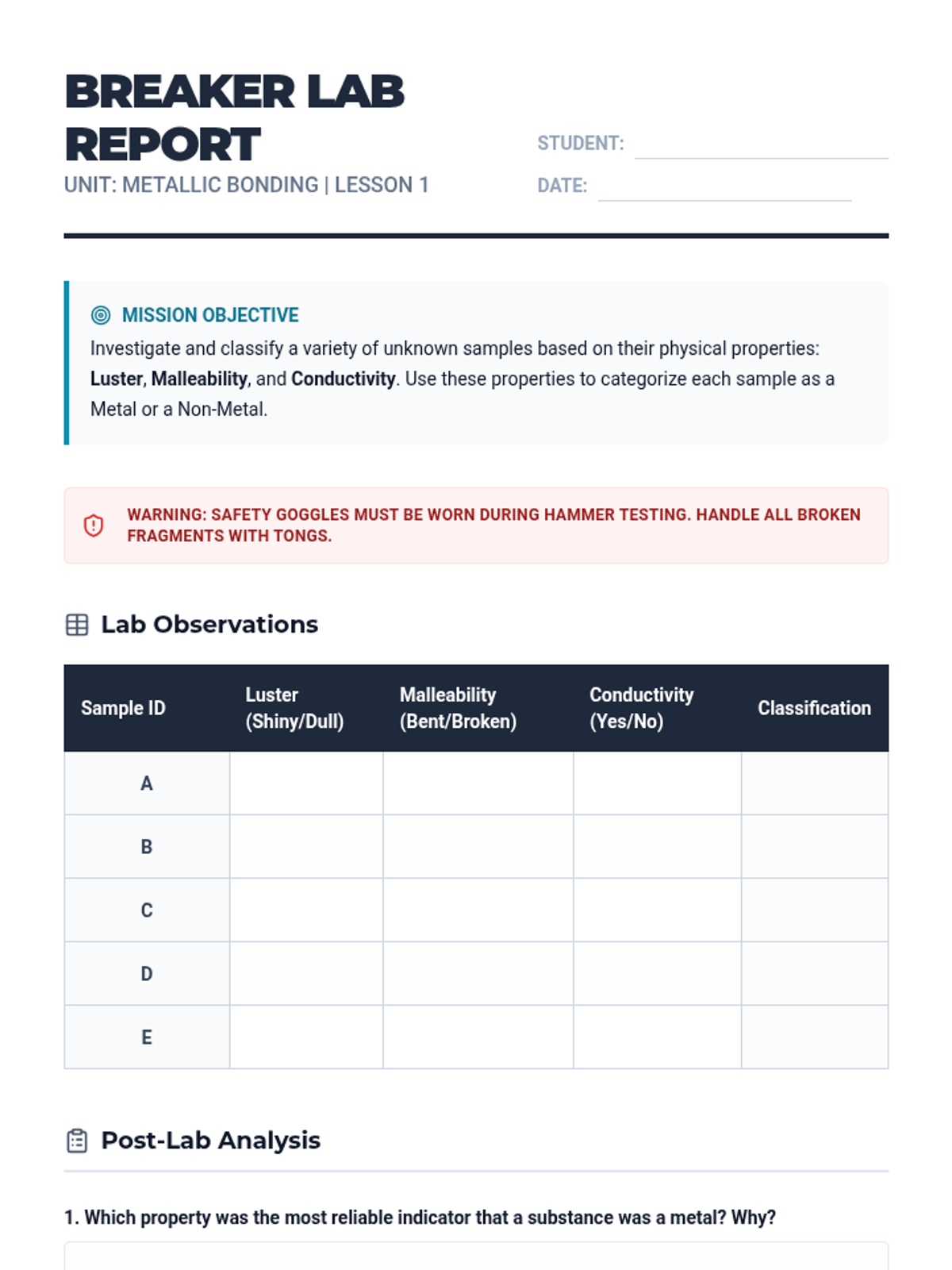

Breaker Lab Report Breaker Lab Report
UNIT: METALLIC BONDING | LESSON 1
Student:
Date:
Mission Objective
Investigate and classify a variety of unknown samples based on their physical properties: Luster , Malleability , and Conductivity . Use these properties to categorize each sample as a Metal or a Non-Metal.
Warning: Safety goggles must be worn during hammer testing. Handle all broken fragments with tongs.
Lab Observations
Sample ID Luster (Shiny/Dull) Malleability (Bent/Broken) Conductivity (Yes/No) Classification A B C D E
Post-Lab Analysis
1. Which property was the most reliable indicator that a substance was a metal? Why?
2. Explain the difference between being "hard" and being "malleable." Use one of your samples as an example.
3. Visual Evidence: Sketch what happened to Sample A and Sample B when struck with the hammer.
Sample A (Metal)
Sample B (Non-Metal)
4. Big Picture: Based on your observations, what defines a "metal" in terms of its mechanical behavior?
Metal Detective Guide Metal Detective Guide

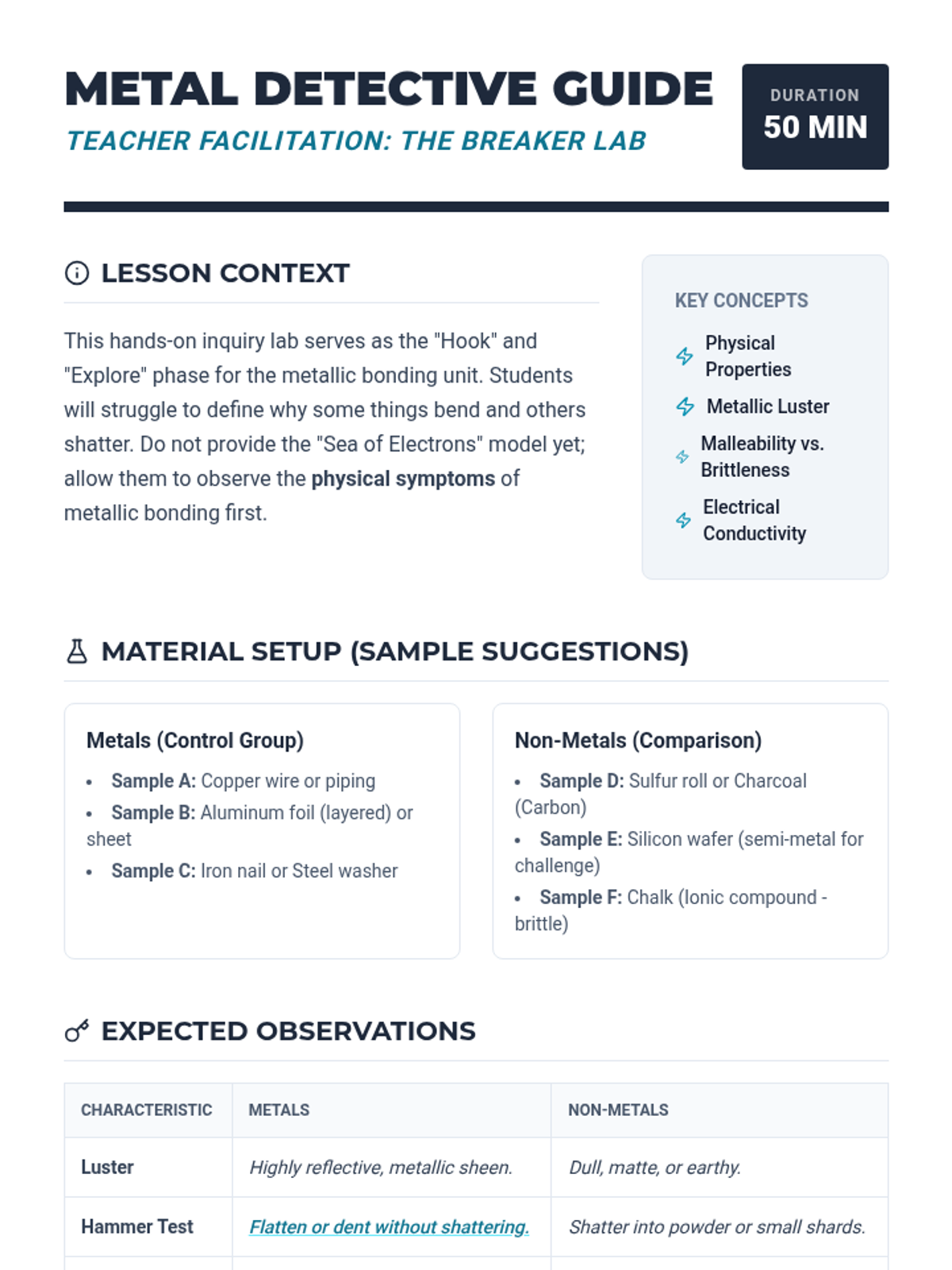

Teacher Facilitation: The Breaker Lab
Duration
50 MIN
Lesson Context
This hands-on inquiry lab serves as the "Hook" and "Explore" phase for the metallic bonding unit. Students will struggle to define why some things bend and others shatter. Do not provide the "Sea of Electrons" model yet; allow them to observe the physical symptoms of metallic bonding first.
Key Concepts
Physical Properties
Metallic Luster
Malleability vs. Brittleness
Electrical Conductivity
Material Setup (Sample Suggestions)
Metals (Control Group)
Sample A: Copper wire or pipingSample B: Aluminum foil (layered) or sheetSample C: Iron nail or Steel washer
Non-Metals (Comparison)
Sample D: Sulfur roll or Charcoal (Carbon)Sample E: Silicon wafer (semi-metal for challenge)Sample F: Chalk (Ionic compound - brittle)
Expected Observations
Characteristic Metals Non-Metals Luster Highly reflective, metallic sheen. Dull, matte, or earthy. Hammer Test Flatten or dent without shattering. Shatter into powder or small shards. Conductivity High (Multimeter beep/LED light). Low/None (Insulator).
Facilitation & Questioning
The "Malleability" Nuance
Students often confuse hardness with brittleness . Remind them that a diamond is very hard but brittle (it shatters if hit), whereas lead is soft but malleable (it bends). Challenge them to find a "soft metal" like lead or tin that still exhibits metallic bonding characteristics.
Questions to circulate
"What happens to the internal structure of the metal when the hammer hits it? Does it stay together or fall apart?"
"If electricity can flow through the metal, what does that tell you about the movement of particles inside?"
Misconception Alert
Many students believe non-metals are always gases. Ensure you provide solid non-metals (Sulfur, Charcoal) to prove they are brittle solids at room temperature.
Sea of Sparks Slides Theoretical Model
The Electron Sea
Why Metals Conduct Electricity
The Mystery of Conductivity
In Lesson 1, we saw that metals allow electricity to flow. But how?
"Electricity is the movement of charge. For something to conduct, it must have mobile charged particles ."
Comparing Bonds
I
Ionic: Electrons are transferred . Stuck in a rigid grid.
C
Covalent: Electrons are shared in pairs. Locked between atoms.
M
Metallic: Electrons are... ???
Delocalized Electrons
The "Sea" Concept
Metal atoms release their outer (valence) electrons to the whole structure.
Cations: Positive metal ions stay in fixed positions.Delocalized Electrons: Valence electrons move freely around all the ions.
Valence electrons swarm around the positive core.
Conductivity = Mobility
(-) TERMINAL
(+) TERMINAL
When a battery is connected, the delocalized electrons all shift toward the positive end. Because they aren't bound to one atom, they flow through the metal like water through a pipe .
Checkpoint
If we "turn off" the electricity, where do the electrons go?
A
They return to their original atom and stay there.
B
They leave the metal and evaporate into the air.
C
They continue to move randomly through the whole metal sea.

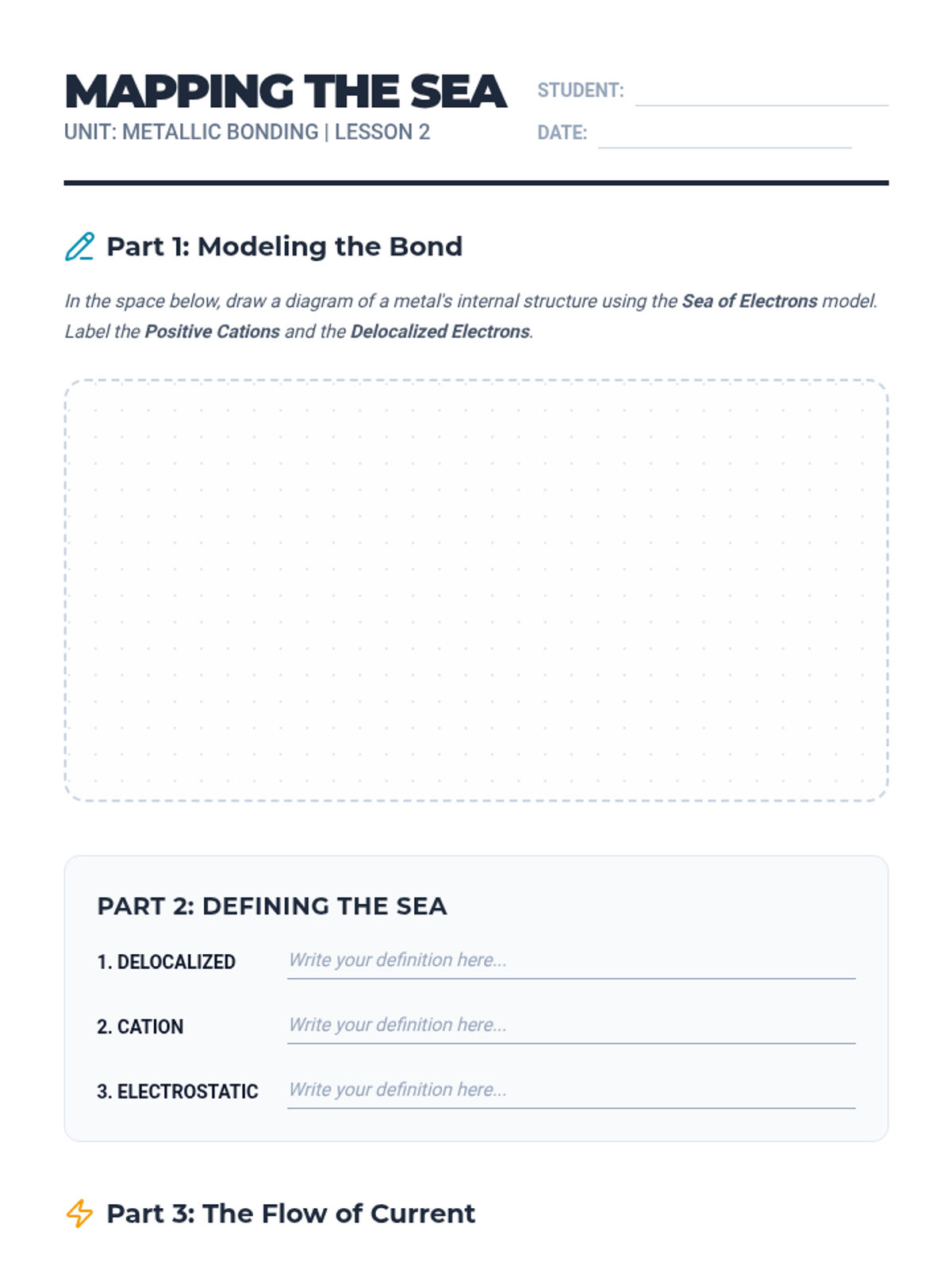

Mapping the Sea Activity Mapping the Sea
UNIT: METALLIC BONDING | LESSON 2
Student:
Date:
Part 1: Modeling the Bond
In the space below, draw a diagram of a metal's internal structure using the Sea of Electrons model. Label the Positive Cations and the Delocalized Electrons .
Part 2: Defining the Sea
1. DELOCALIZED
Write your definition here...
2. CATION
Write your definition here...
3. ELECTROSTATIC
Write your definition here...
Part 3: The Flow of Current
Why can electricity move through a copper wire, but NOT through a glass rod or a piece of chalk?
Explain the analogy: "Electrons moving through a metal are like water flowing through a pipe." What represents the water? What represents the pipe?
Think Deeper: In your diagram from Part 1, how would the electrons change their movement if we connected a battery to the metal?
Bent Not Broken Slides Mechanical Properties
Bent Not Broken
How the Electron Sea Handles Force
Force & Structure
"What happens inside a material when we hit it?"
Malleability
Flattening into sheets without cracking.
Ductility
Drawing into wires without snapping.
The Material Clash
Most crystals (like salt) are brittle . One hit, and they explode into dust. Metals just... adjust.
Ionic
Metallic
The Sliding Sea
In a metal, the delocalized electrons act like a "lubricant" or "flexible glue" between the positive ions.
When hit, rows of ions can slide past each other.
The electron sea flows with them, keeping the bond intact.
No bonds are actually broken—they just relocate!
Crystal Plane Slippage
Why Salt Shatters
Ionic Bond
Rigid alternating charges (+ - + -). When you hit it, rows shift. Suddenly, positive is next to positive!
REPULSION = SHATTER
Metallic Bond
Positive ions in a neutral sea . When rows shift, the sea surrounds them instantly.
ADAPTATION = BEND
Your Turn: Clay vs. Bricks
If a Lego tower represents an ionic crystal, and a lump of modeling clay represents a metal...
Predict: Which one can survive a 10lb weight without falling apart?

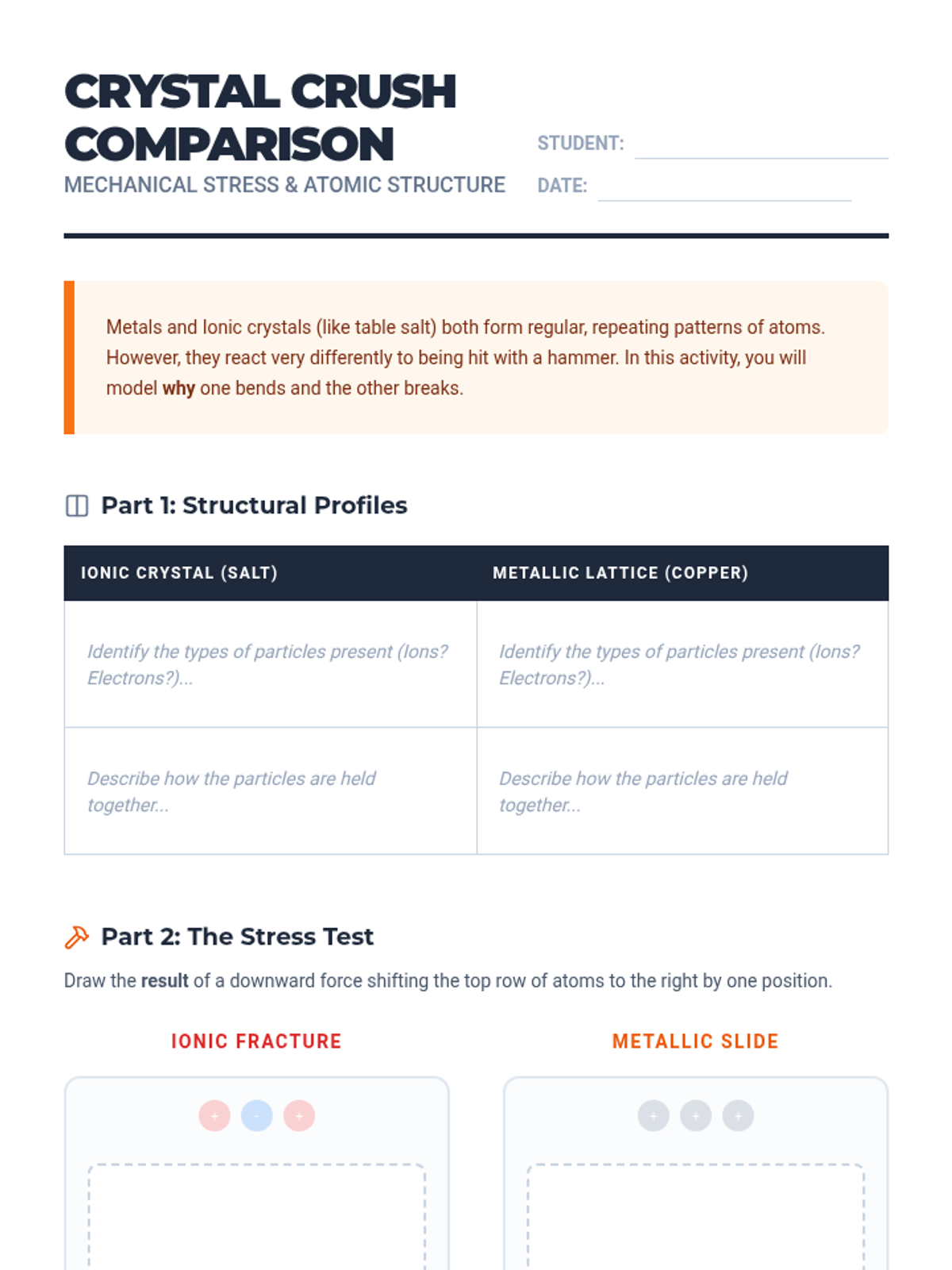

Crystal Crush Comparison Crystal Crush Comparison
Mechanical Stress & Atomic Structure
Student:
Date:
Metals and Ionic crystals (like table salt) both form regular, repeating patterns of atoms. However, they react very differently to being hit with a hammer. In this activity, you will model why one bends and the other breaks.
Part 1: Structural Profiles
Ionic Crystal (Salt) Metallic Lattice (Copper) Identify the types of particles present (Ions? Electrons?)... Identify the types of particles present (Ions? Electrons?)... Describe how the particles are held together... Describe how the particles are held together...
Part 2: The Stress Test
Draw the result of a downward force shifting the top row of atoms to the right by one position.
Ionic Fracture
-
Hint: What happens when two like charges (+ and +) are pushed together?
Metallic Slide
Hint: How does the "sea" of electrons keep the atoms bonded while they move?
Part 3: Why it Matters
Modern cars have "crumple zones"—parts of the metal frame designed to bend and deform during a crash. Based on what you've learned today, why would it be extremely dangerous if these zones were made of a brittle ionic crystal (like ceramic)?
Alloy Architect Slides Engineering Chemistry
Alloy Architects
Optimizing the Lattice for Strength
The Problem with Purity
"Pure Gold is too soft for a ring. Pure Iron is too soft for a skyscraper."
In a pure metal, all the atoms are the same size . This makes it easy for layers to slide past each other (Malleability).
The Solution:
Add "impurities" on purpose.
Pure Lattice: Easy Slide
Substitutional Alloys
The Swap Out
Atoms of similar size replace some of the original metal atoms in the lattice.
Example: BRASS
Copper + Zinc Result: Tougher and more corrosion-resistant than pure copper.
Interstitial Alloys
The Space Filler
Tiny atoms (like Carbon) fill the small gaps between larger metal atoms.
Example: STEEL
Iron + Carbon Result: The tiny Carbon atoms act like "speed bumps," making it much harder for layers to slide. Maximum Strength!
Material Trade-offs
Steel Frame
Extremely strong and durable. Heavy. Harder to shape.
Aluminum Alloy
Lightweight. Slightly less durable. Easier to manufacture.
If you were racing in the Tour de France, which alloy would you pick? Why?

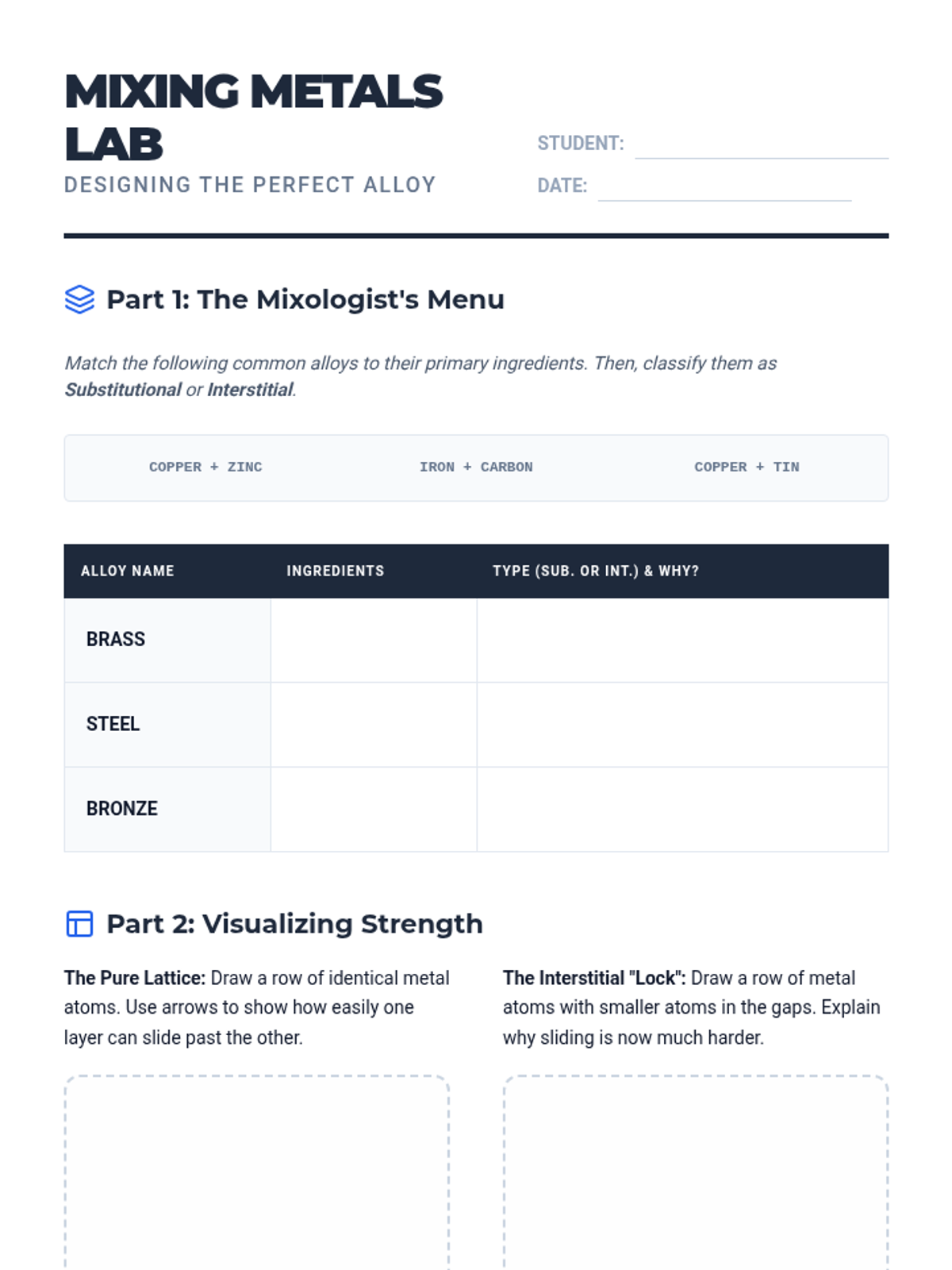

Mixing Metals Lab Mixing Metals Lab
Designing the Perfect Alloy
Student:
Date:
Part 1: The Mixologist's Menu
Match the following common alloys to their primary ingredients. Then, classify them as Substitutional or Interstitial .
Copper + Zinc
Iron + Carbon
Copper + Tin
Alloy Name Ingredients Type (Sub. or Int.) & Why? BRASS STEEL BRONZE
Part 2: Visualizing Strength
The Pure Lattice: Draw a row of identical metal atoms. Use arrows to show how easily one layer can slide past the other.
The Interstitial "Lock": Draw a row of metal atoms with smaller atoms in the gaps. Explain why sliding is now much harder.
Part 3: Architect's Decision
1. "Alnico" is an alloy of Aluminum, Nickel, and Cobalt. These atoms are all roughly the same size. Based on this, predict what type of alloy structure Alnico forms. Justify your answer.
2. Pure gold is very soft (24k). Jewelry is often made of 14k gold, which is a mixture of gold and copper/silver. Why is 14k gold a better choice for an everyday wedding ring than pure 24k gold? Use the word "Lattice" in your answer.
Metal Mission Slides Classified
Mission Briefing
Material Mission
Solving Engineering Failures with Chemical Bonding
Case Study: The Fracture
The Incident
A newly built bridge support snapped during a minor earthquake. 14,000 tons of steel collapsed. Initial reports show the metal didn't bend—it shattered like glass.
The Suspect
The supplier accidentally used a high-carbon alloy meant for surgical tools, not structural supports.
Your Task
Analyze the chemical structure of the failed material and propose a replacement alloy that balances Strength and Malleability .
Engineering Constraints
Environment
Saltwater exposure. Must be corrosion resistant .
Load
Support 10,000 cars/day. High tensile strength needed.
Seismic
Earthquake zone. Must have some ductility to bend without snapping.
Selection Matrix
Option Pros Cons Pure Iron Ductile, Cheaper Rusts easily, Weak Stainless Steel Rust-proof, Strong Expensive, Lower Ductility Mild Steel Good Balance, Tough Needs Coating (Paint)
Report to Command
You must present your final material choice and justify it using the Electron Sea Model .
Draw the Lattice
Explain Strength
Explain Ductility

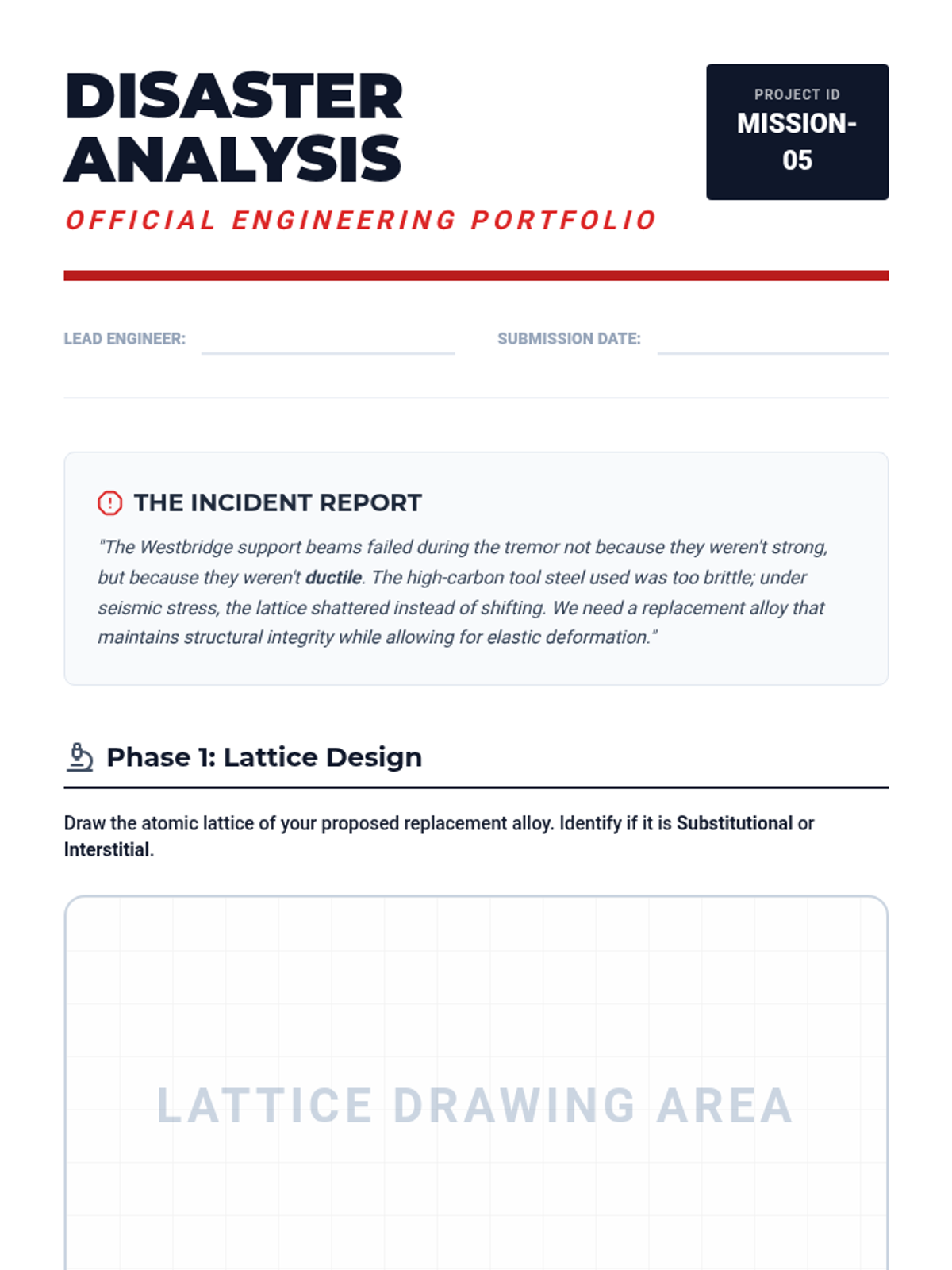

Disaster Solution Portfolio Disaster Analysis
Official Engineering Portfolio
Project ID
MISSION-05
Lead Engineer:
Submission Date:
The Incident Report
"The Westbridge support beams failed during the tremor not because they weren't strong, but because they weren't ductile . The high-carbon tool steel used was too brittle; under seismic stress, the lattice shattered instead of shifting. We need a replacement alloy that maintains structural integrity while allowing for elastic deformation."
Phase 1: Lattice Design
Draw the atomic lattice of your proposed replacement alloy. Identify if it is Substitutional or Interstitial .
Lattice Drawing Area
Substitutional
Interstitial
Phase 2: Technical Justification
1. Mechanical Behavior (The Hammer Test)
How does your chosen structure prevent the shattering observed in the failure? Explain using the concept of sliding layers and the electron sea.
2. Environmental Durability (Corrosion)
If this bridge is over saltwater, what elements would you add to your alloy to prevent rust? Why do these elements help?
3. Trade-off Analysis
Every engineering choice has a downside (Cost, Weight, etc.). What is the primary drawback of your chosen alloy, and why is it still the best choice for this bridge?
Authorized Signature
Sign here for approval
Status
PENDING REVIEW

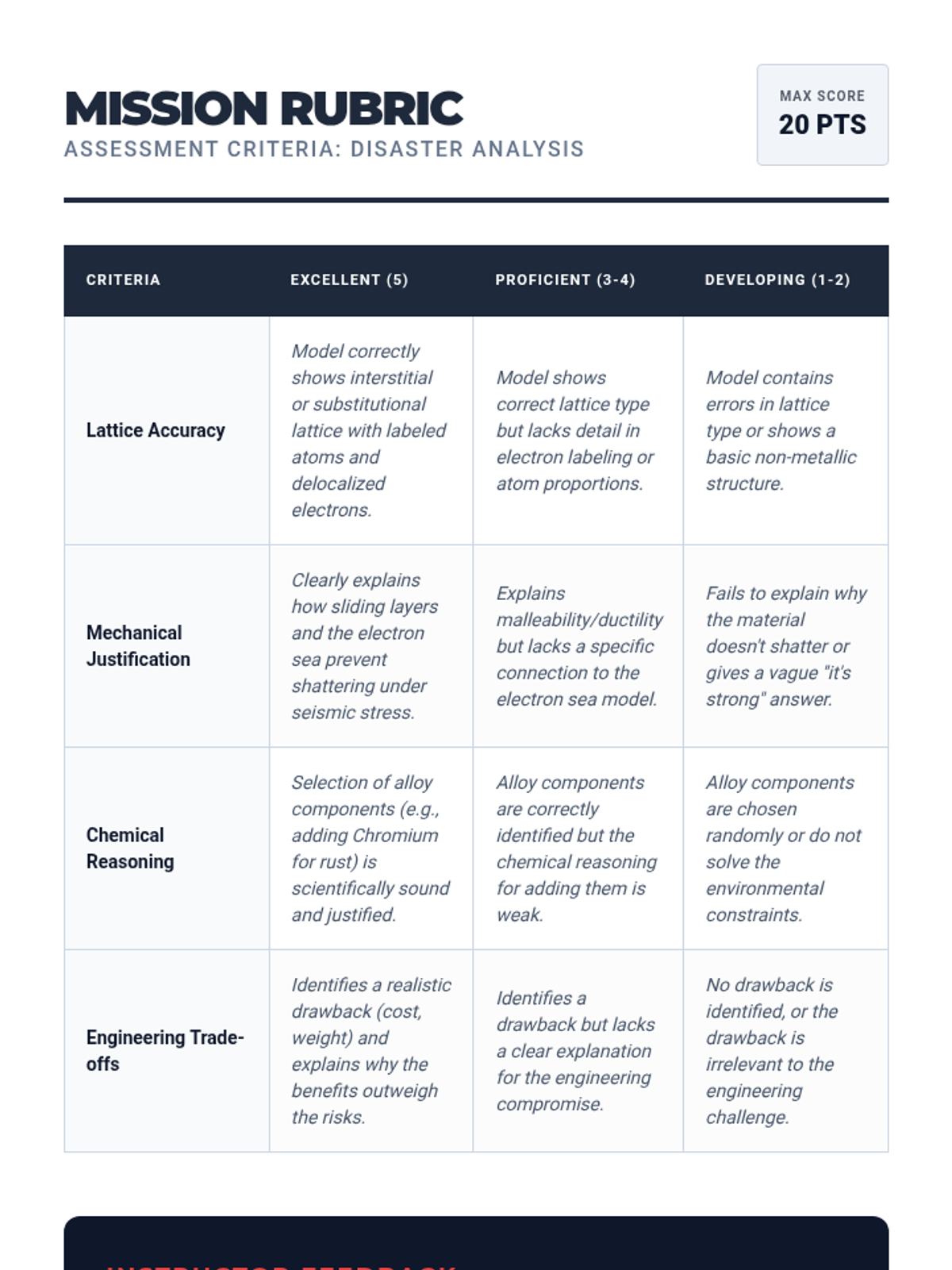

Engineering Design Rubric Mission Rubric
Assessment Criteria: Disaster Analysis
Max Score
20 PTS
Criteria Excellent (5) Proficient (3-4) Developing (1-2) Lattice Accuracy Model correctly shows interstitial or substitutional lattice with labeled atoms and delocalized electrons. Model shows correct lattice type but lacks detail in electron labeling or atom proportions. Model contains errors in lattice type or shows a basic non-metallic structure. Mechanical Justification Clearly explains how sliding layers and the electron sea prevent shattering under seismic stress. Explains malleability/ductility but lacks a specific connection to the electron sea model. Fails to explain why the material doesn't shatter or gives a vague "it's strong" answer. Chemical Reasoning Selection of alloy components (e.g., adding Chromium for rust) is scientifically sound and justified. Alloy components are correctly identified but the chemical reasoning for adding them is weak. Alloy components are chosen randomly or do not solve the environmental constraints. Engineering Trade-offs Identifies a realistic drawback (cost, weight) and explains why the benefits outweigh the risks. Identifies a drawback but lacks a clear explanation for the engineering compromise. No drawback is identified, or the drawback is irrelevant to the engineering challenge.
Instructor Feedback
Strengths:
Areas for Growth:
Final Grade:
/ 20
