Spin Cycle Slides Industrial Physics Series
Spin Cycle
Physics
Mastering centrifugation and density-based separation in modern industry.
Lesson 01
The Bucket Challenge
If you spin a bucket of water fast enough overhead, the water stays inside.
Critical Question:
How does this same physics allow a doctor to analyze your blood or a dairy to separate cream from milk?
Inertia & Force
The Physics of the Spin
Centripetal Force
A force that acts on a body moving in a circular path and is directed toward the center around which the body is moving.
\[ a_c = \frac{v^2}{r} \]
Where \(v\) is velocity and \(r\) is the radius of the circle.
1
Simulating Gravity
High-speed rotation creates an "effective gravity" much stronger than 9.8 m/s².
2
Sedimentation Speed
In a normal glass, dense particles take hours to sink. In a centrifuge, it takes seconds.
Density Drives the Split
Erythrocytes (Dense)
Plasma (Less Dense)
Increasing Density
Medical
Blood component isolation for lab testing.
Food Processing
Separating cream from milk or pulp from juice.
Wastewater
Removing sludge from purified water.
Activity: The Micro-Centrifuge
Materials
Test tubes with "Synthetic Blood"
Yarn/String (30cm per tube)
Heavy-duty tape (Duct tape)
Safety Goggles (MANDATORY)
The Process
Secure your tube to the string with duct tape (double check!).
Spin the tube in a vertical circle for 2 minutes at a constant speed.
Measure the thickness of the separated layers.
Calculate the Centripetal Acceleration your sample experienced.
Centrifuge Lab Report Centrifuge Lab Report
Spin Cycle Physics • Lesson 01
Name:
Date:
Objective
In this lab, you will simulate the industrial process of centrifugation using a hand-powered model. You will apply the principles of centripetal acceleration to separate a synthetic blood mixture and calculate the magnitude of the force required to achieve separation.
Hypothesis
How do you expect the speed of rotation to affect the clarity and thickness of the separated layers?
Observations & Measurements
Measurement Value (include units) Radius of Rotation (\(r\)) Time for 10 Rotations (\(t_{10}\)) Calculated Period (\(T = t_{10}/10\)) Thickness of Dense Layer (Red) Thickness of Light Layer (Yellow)
Show Your Work: Centripetal Acceleration (\(a_c = \frac{v^2}{r}\))
Hint: First find velocity \(v = \frac{2\pi r}{T}\)
Critical Analysis
1. Why did the dense "cells" move to the bottom of the tube (the furthest point from the center) rather than the light "plasma"? Use the term inertia in your answer.
2. Industrial scale centrifuges can reach speeds of 20,000 RPM. What are the physical risks of scaling up this technique for massive industrial waste vats? Consider materials, heat, and structural integrity.
Industrial Trade-Off Challenge
Separating isotopes for nuclear power requires thousands of centrifuges. Why is this more difficult and expensive than separating blood components?
Physics of Industrial Separation • Lab Module 1.1
Magnet Mania Slides Industrial Physics Series
Magnetic
Sorting Mania
Designing high-speed separation systems for recycling and mining.
Lesson 02
The 5-Second Challenge
You have a pile of 10,000 items: mixed shredded aluminum, steel, and plastic.
The Problem:
How do you separate them in 5 seconds without touching a single piece?
Global Waste Management
Atomic Physics of Magnetism
Fe
Ferrous Metals
Contain Iron. Unpaired electrons in their atoms create a net magnetic field that aligns with external magnets.
Steel, Cast Iron, Wrought Iron
Al
Non-Ferrous
Aluminum, Copper, Plastic. Their electron configurations do not allow for long-range magnetic ordering.
Aluminum Cans, Glass, Polymers
Advanced Tech: Eddy Currents
How it works:
A rapidly spinning magnetic rotor creates a changing magnetic field. This induces small "eddy currents" in non-ferrous metals like aluminum.
These currents create their own magnetic field that repels the rotor. Aluminum "jumps" off the belt!
Input
Mixed Waste
Process
Eddy Rotor
Result
Al Separation
Lenz's Law in Action
Mission: Sorting Facility Alpha
The Task
Design a conveyor belt system that separates 3 materials (Steel, Aluminum, Plastic) into separate bins using only magnets and gravity.
Variable 1
Belt Speed (m/s)
Variable 2
Magnet Strength (Tesla)
Variable 3
Gap Height (mm)
Grab your Sorter Design Worksheet and start sketching!

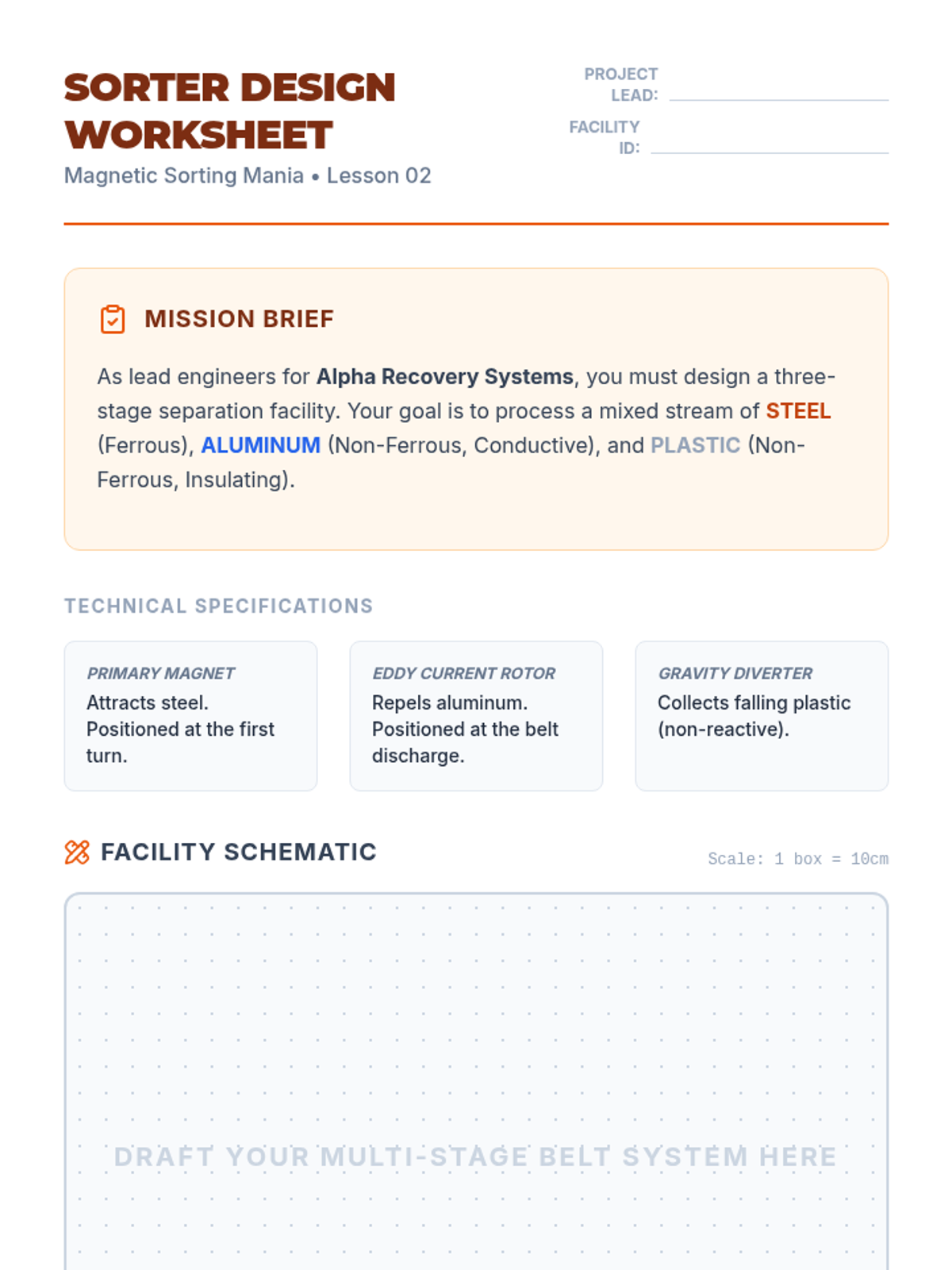

Sorter Design Worksheet Sorter Design Worksheet
Magnetic Sorting Mania • Lesson 02
Project Lead:
Facility ID:
Mission Brief
As lead engineers for Alpha Recovery Systems, you must design a three-stage separation facility. Your goal is to process a mixed stream of Steel (Ferrous), Aluminum (Non-Ferrous, Conductive), and Plastic (Non-Ferrous, Insulating).
Technical Specifications
Primary Magnet
Attracts steel. Positioned at the first turn.
Eddy Current Rotor
Repels aluminum. Positioned at the belt discharge.
Gravity Diverter
Collects falling plastic (non-reactive).
Facility Schematic
Scale: 1 box = 10cm
Draft Your Multi-Stage Belt System Here
Bin 1: Steel
Bin 2: Aluminum
Bin 3: Plastic
Engineering Justification
1. The Drop Sequence: Why is it physically more efficient to remove the steel first using an overhead magnet rather than trying to separate it at the same time as the aluminum?
2. Physics of Repulsion: Explain why the Aluminum "jumps" further than the plastic at the end of the belt. Refer to Lenz's Law and induced currents.
Optimization Challenge
If your conveyor belt moves at 5.0 m/s, your magnets must be stronger than at 1.0 m/s. Why? Explain the relationship between velocity, time, and magnetic force.
Facility Manager Approval
"I have reviewed the physics and safety protocols for this magnetic separation line."
Spill Solution Slides Industrial Physics Series
Oil Spill
Solutions
Evaluating the physics and ecology of large-scale marine separation.
Lesson 03
The 2010 Disaster
The Deepwater Horizon spill released 134 million gallons of oil into the Gulf of Mexico.
The Physics Question:
Why doesn't the oil just mix with the water? And why is it so hard to get it back out once it spreads?
Molecular Interplay
Like Dissolves Like
Water: Polar
H2O molecules have positive and negative ends. They "stick" to each other through hydrogen bonding.
Oil: Non-Polar
Hydrocarbons have no charge separation. They cannot bond with water, leading to Immiscibility.
Density Factor
Seawater ~1,025 kg/m³
Crude Oil ~800–970 kg/m³
Result: Oil floats, creating a surface slick that covers thousands of square miles.
Three Lines of Defense
1. Skimming
Mechanical separation. Boats use rotating drums or vacuums to "peel" the oil off the surface.
Low Eco Impact
2. Absorbents
Materials like boom pads or hair that "soak up" oil through capillary action and surface tension.
Medium Efficiency
3. Dispersants
Chemicals that break oil into tiny droplets, moving it from the surface into the water column.
High Toxicity?
Activity: The Mini-Spill
Simulation Setup
Fill tray with water (The Ocean).
Add 20ml of oil + 1 drop of dye.
Phase 1: Skim using a spoon.
Phase 2: Use cotton balls/sponge.
Phase 3: Add soap (The Dispersant).
The Evaluation
You must record the Efficiency (how much oil was removed) vs. the Impact (how clear is the water now?).
Open your Cleanup Performance Log

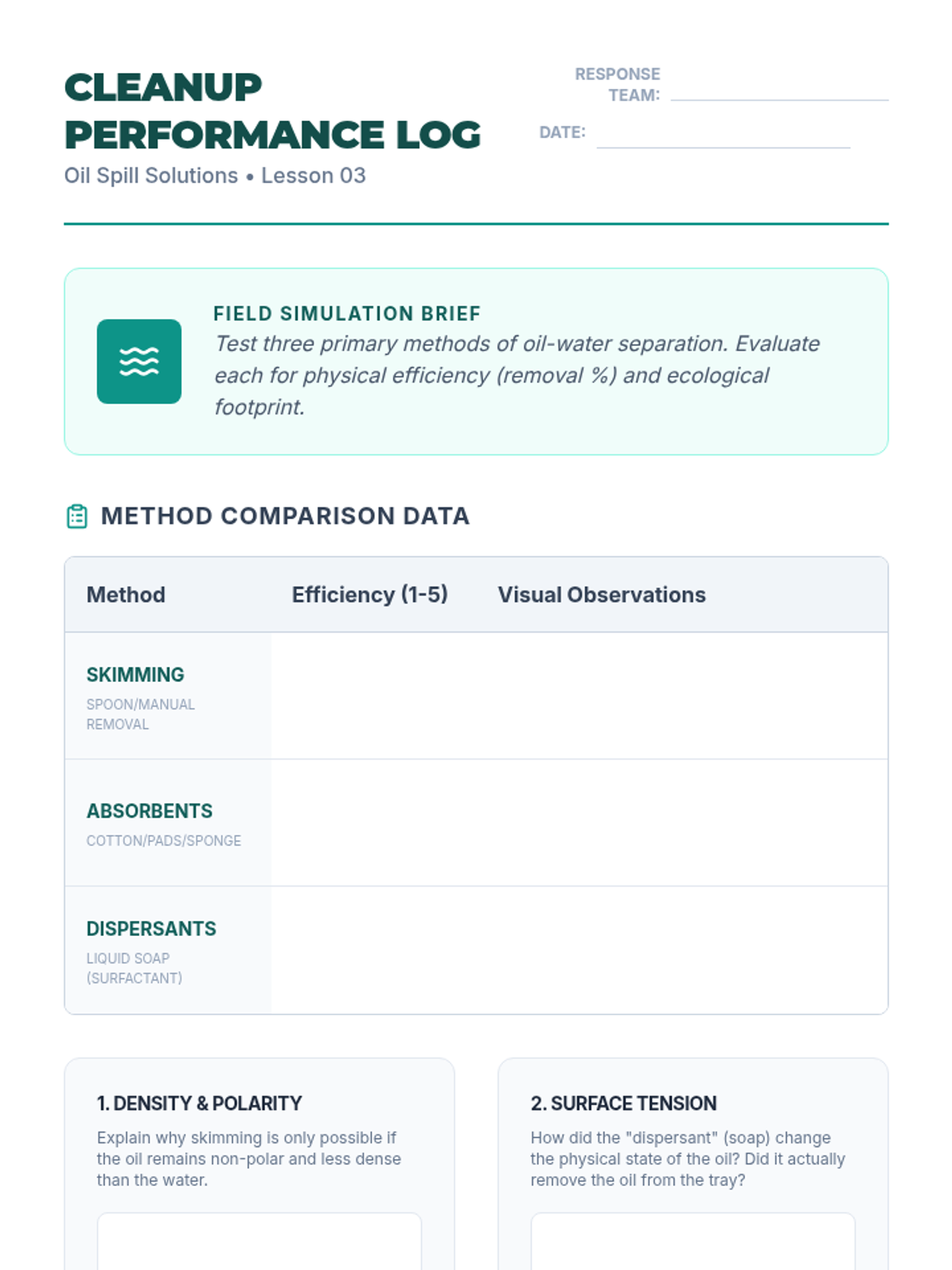

Cleanup Performance Log Cleanup Performance Log
Oil Spill Solutions • Lesson 03
Response Team:
Date:
Field Simulation Brief
Test three primary methods of oil-water separation. Evaluate each for physical efficiency (removal %) and ecological footprint.
Method Comparison Data
Method Efficiency (1-5) Visual Observations Skimming Spoon/Manual Removal
| | |
| Absorbents
Cotton/Pads/Sponge
| | |
| Dispersants
Liquid Soap (Surfactant)
| | |
1. Density & Polarity
Explain why skimming is only possible if the oil remains non-polar and less dense than the water.
2. Surface Tension
How did the "dispersant" (soap) change the physical state of the oil? Did it actually remove the oil from the tray?
Ecological Footprint Analysis
The Trade-Off
Dispersants remove the visible slick (protecting birds) but send the oil to the sea floor (killing fish/coral). Which is better?
3. Propose a hybrid cleanup strategy for a 1-million gallon spill near a coral reef. Which method would you lead with and why?
Critical Thinking: Industrial Scaling
In your simulation, the "ocean" was still. In the actual Gulf of Mexico, there are 4-foot waves and 15-knot winds. How would mechanical skimming change in efficiency when moving from a calm tray to a rough ocean?
Oil-Water Separation Matrix • Environmental Physics Unit
Desalination Depth Slides Industrial Physics Series
The Desalination
Dilemma
Analyzing the physics of high-pressure membranes and thermal separation.
Lesson 04
Water, Water Everywhere...
The Earth's surface is 71% water, but only 0.5% is available fresh water.
The Problem:
Why don't we just drink the ocean? What is the physical barrier keeping us from massive-scale water separation?
97%
of Earth's water is Saline
Method 1: Thermal Distillation
Phase Change Physics
By heating saltwater to 100°C, water molecules gain enough kinetic energy to enter the gas phase. Salt remains as a solid (non-volatile).
Condensation
Pure water vapor is then cooled and condensed back into liquid.
The High Cost of Heat
Heating 1 liter of water requires 4.184 Joules per degree Celsius.
Enormous Energy Debt
Distillation is efficient but physically expensive in terms of power plants and fuel.
Method 2: Reverse Osmosis
Force Over Heat
Instead of boiling, we use Mechanical Pressure to force water through a semi-permeable membrane.
Pressure Required: 800+ PSI
That's 50x higher than typical car tire pressure!
The Membrane
A microscopic mesh that allows H2O (polar, small) through but blocks Salt ions (Na+, Cl-) which are larger when hydrated.
No Phase Change
Energy Efficient
Desalination Battle: RO vs. Thermal
Reverse Osmosis
Lower energy consumption
Compact modular design
Membranes clog (Fouling)
Requires high-tech chemicals
Thermal Distillation
Extremely high purity
Simple, rugged technology
Massive fuel/energy usage
Huge carbon footprint
Grab your Case Study: The Desalination Dilemma

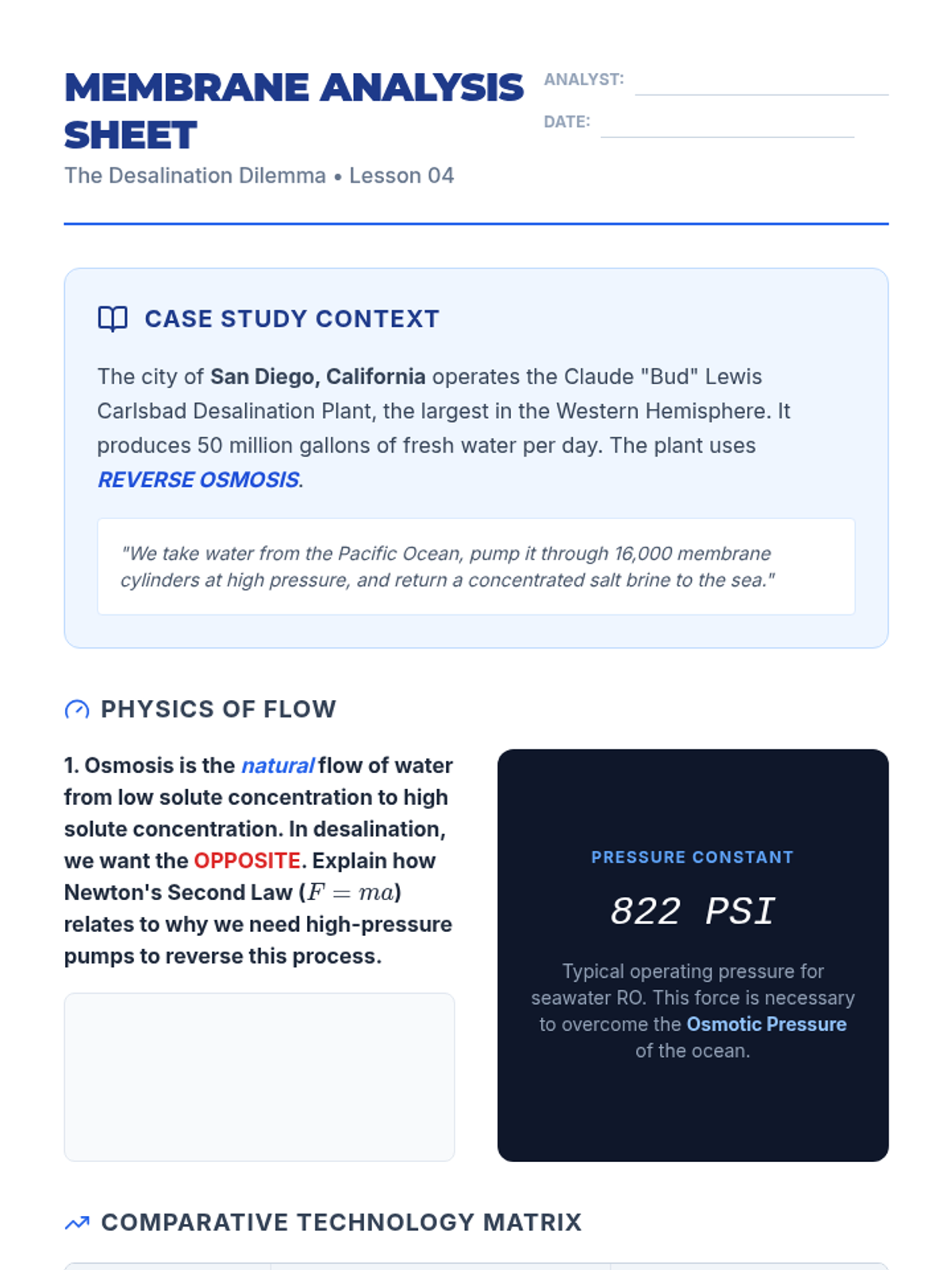

Membrane Analysis Sheet Membrane Analysis Sheet
The Desalination Dilemma • Lesson 04
Analyst:
Date:
Case Study Context
The city of San Diego, California operates the Claude "Bud" Lewis Carlsbad Desalination Plant, the largest in the Western Hemisphere. It produces 50 million gallons of fresh water per day. The plant uses Reverse Osmosis.
"We take water from the Pacific Ocean, pump it through 16,000 membrane cylinders at high pressure, and return a concentrated salt brine to the sea."
Physics of Flow
1. Osmosis is the natural flow of water from low solute concentration to high solute concentration. In desalination, we want the opposite. Explain how Newton's Second Law (\(F=ma\)) relates to why we need high-pressure pumps to reverse this process.
Pressure Constant
822 PSI
Typical operating pressure for seawater RO. This force is necessary to overcome the Osmotic Pressure of the ocean.
Comparative Technology Matrix
Criterion Thermal Distillation Reverse Osmosis Primary Energy Source Physical Barrier Used Waste Product
The Brine Problem
Technical Challenge: Concentration Gradient
For every 100 gallons of seawater taken in, only 50 gallons become fresh water. The remaining 50 gallons are twice as salty (Brine) as the original ocean water. When this heavy, dense brine is pumped back into the ocean, it sinks to the bottom.
As a physics consultant, how would you design a discharge system that ensures the brine mixes quickly with the rest of the ocean rather than just forming a "dead zone" on the sea floor?
The Dilemma Conclusion
Is desalination a sustainable solution for global water shortages, or is the "Physics Debt" (Energy + Brine) too high?
Certified Analysis
Membrane Physics & Environmental Impact • Unit 4 Analysis
Remediation Strategy Slides Capstone Simulation
Remediation
Master Plan
Synthesis of Physics & Environmental Engineering.
Lesson 05
The Midnight Call
An abandoned industrial site has been discovered. A massive underground tank has leaked a Toxic Slurry into the local reservoir.
Your Mission:
The EPA arrives in 72 hours. You must propose a multi-stage separation sequence to clean the site using the physics techniques we've studied.
Facility Remediation
Analyze the "Slurry"
Motor Oil
Non-polar, low density. Floating on the surface.
Steel Shavings
Ferrous solid. Sinking to the bottom.
Fine Silt
Micro-particles suspended in water. Very slow settling.
Salt (NaCl)
Dissolved ionic solute. Not visible to the eye.
The Remediation Toolbox
Spin Physics
Centrifugation
Atomic Physics
Magnetic Sorting
Polarity Physics
Oil Skimming
Pressure Physics
Reverse Osmosis
The Catch:
You only have a budget of $1.2 Million.
- Every step costs money.
- Energy consumption costs money.
- Choosing the wrong order wastes money.
Proposal Phase
You will present your plan to the "City Council" (The Class).
1
Sketch the Process Flow
2
Justify the Order (Physics)
3
Estimate Total Cost
"Efficiency is not just about clearing the mixture; it's about doing it with the least amount of energy and waste."

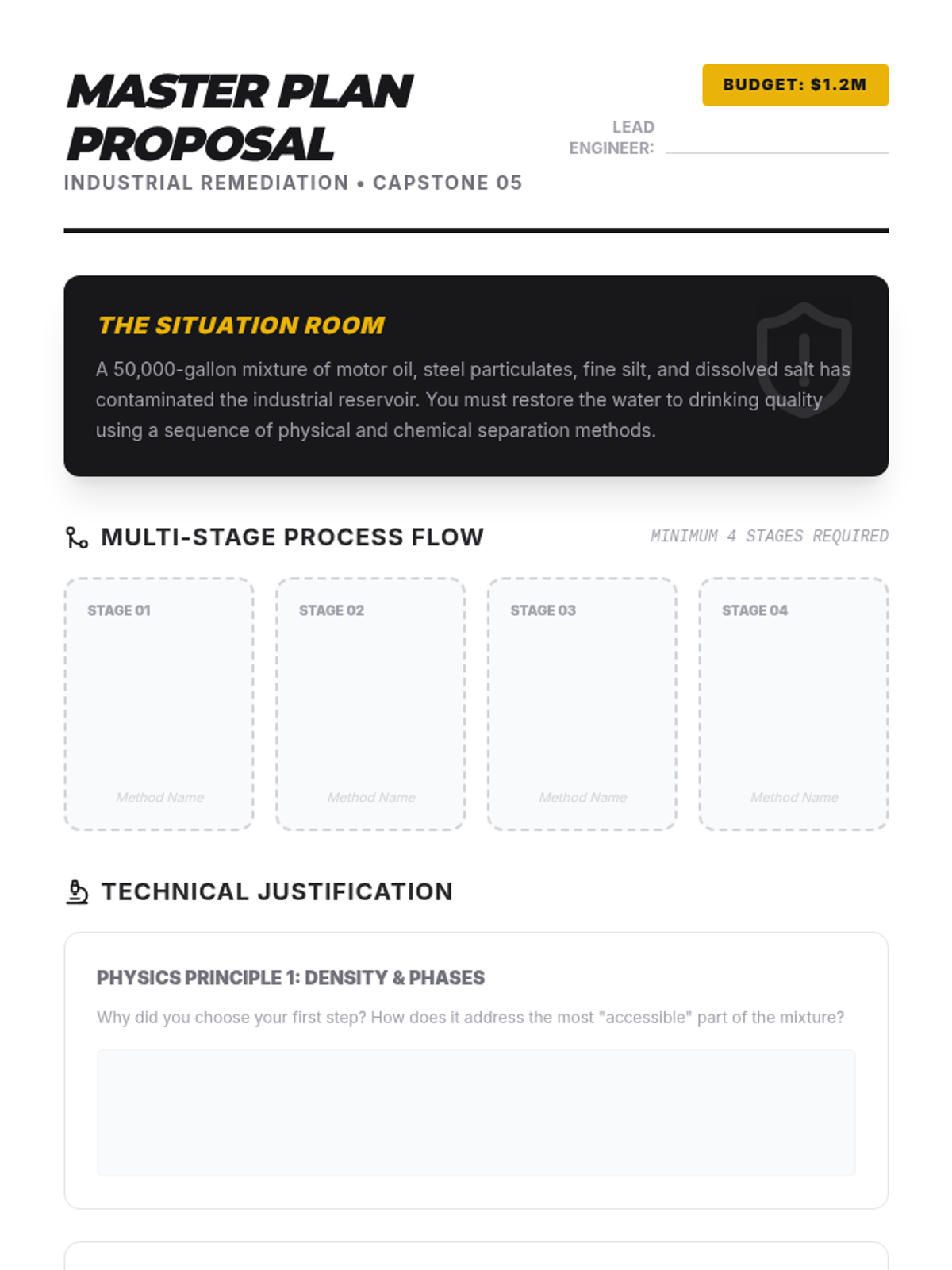

Master Plan Proposal Template Master Plan Proposal
Industrial Remediation • Capstone 05
Budget: $1.2M
Lead Engineer:
The Situation Room
A 50,000-gallon mixture of motor oil, steel particulates, fine silt, and dissolved salt has contaminated the industrial reservoir. You must restore the water to drinking quality using a sequence of physical and chemical separation methods.
Multi-Stage Process Flow
Minimum 4 stages required
Stage 01
Method Name
Stage 02
Method Name
Stage 03
Method Name
Stage 04
Method Name
Technical Justification
Physics Principle 1: Density & Phases
Why did you choose your first step? How does it address the most "accessible" part of the mixture?
Physics Principle 2: Energy & Scale
Explain the trade-off between speed and energy in your second or third stage (e.g., Centrifugation vs. Gravity Settling).
Economic & Ecological Impact
Budget Allocation
Primary Stage $_______
Secondary Stage $_______
Tertiary Stage $_______
Final Desalination $_______
TOTAL ESTIMATE $_______
Environmental Scorecard
Predict the clarity of the water and the chemical safety of the reservoir after your plan is complete.
Official Submission
"I certify that this remediation plan follows the laws of physics and prioritizes both budget and ecosystem health."
Project Lead Signature Security Clearance ID
Remediation Master Plan • Final Physics Synthesis • V.1.0
