Alkali Reactivity Log Alkali Reactivity
Field Guide Observation Log
Observer:
Date:
Essential Question
Why does Group 1 reactivity increase as we move down the column, and how does this relate to atomic structure?
Observation I: Water Reactivity Case Study
Observe the reactions of Lithium, Sodium, and Potassium in water. Record your observations regarding the intensity, speed, and any byproduct (flame, gas, sound).
Lithium (Li)
Sodium (Na)
Potassium (K)
Predictive Modeling
Based on the trend above, describe what you expect to happen when Cesium (Cs) touches water:
Analysis: Structure & Function
Draw a Bohr model representing the valence shell of Lithium (n=2) vs. Potassium (n=4) . Show the distance between the nucleus and the valence electron.
Lithium Bohr Model
Potassium Bohr Model
Vocabulary Check
Atomic Radius
Ionization Energy
Shielding Effect
Synthesis Task
Explain the causal relationship between Group 1 reactivity and the atomic size. Why is it "easier" for larger alkali metals to react violently than smaller ones?
Refining the Model: Ionization Energy Data
Element First I.E. (kJ/mol) Atomic Radius (pm) Lithium 520 152 Sodium 496 186 Potassium 419 227 Rubidium 403 248
Source: NIST Physical Measurement Laboratory
Alkali Metals Slides Group 1: The Alkali Metals
Violence, Size, and Stability in the First Column
Li Na K Rb Cs Fr
The Reactivity Trend
Witness what happens when we go down the column.
Embedded media
Think-Pair-Share:
As the atomic number increases, what do you notice about the speed and intensity of the reaction?
Atomic Anatomy
Li
A lonely electron looking for an exit...
Distance = Decreased Control
Coulombic Attraction
The nucleus is a magnet. The farther away the electron (more shells), the weaker the "pull" the nucleus has on that valence electron.
Shielding Effect
Inner electrons "block" the positive pull of the nucleus, making it even easier for the outer electron to fly off.
Lithium (Small Radius) → Francium (Massive Radius)
High Ionization Energy → Low Ionization Energy
Lower Energy = Easier Reaction = BIGGER EXPLOSION
Key Takeaways
Group 1 metals are highly reactive due to 1 valence electron.
Reactivity increases as you move down the group.
Larger atoms have lower ionization energy (electrons are further away).
Shielding makes valence electrons less "attached" to the nucleus.
"Chemistry is the study of matter, but reactivity is the study of electrons trying to escape their home."

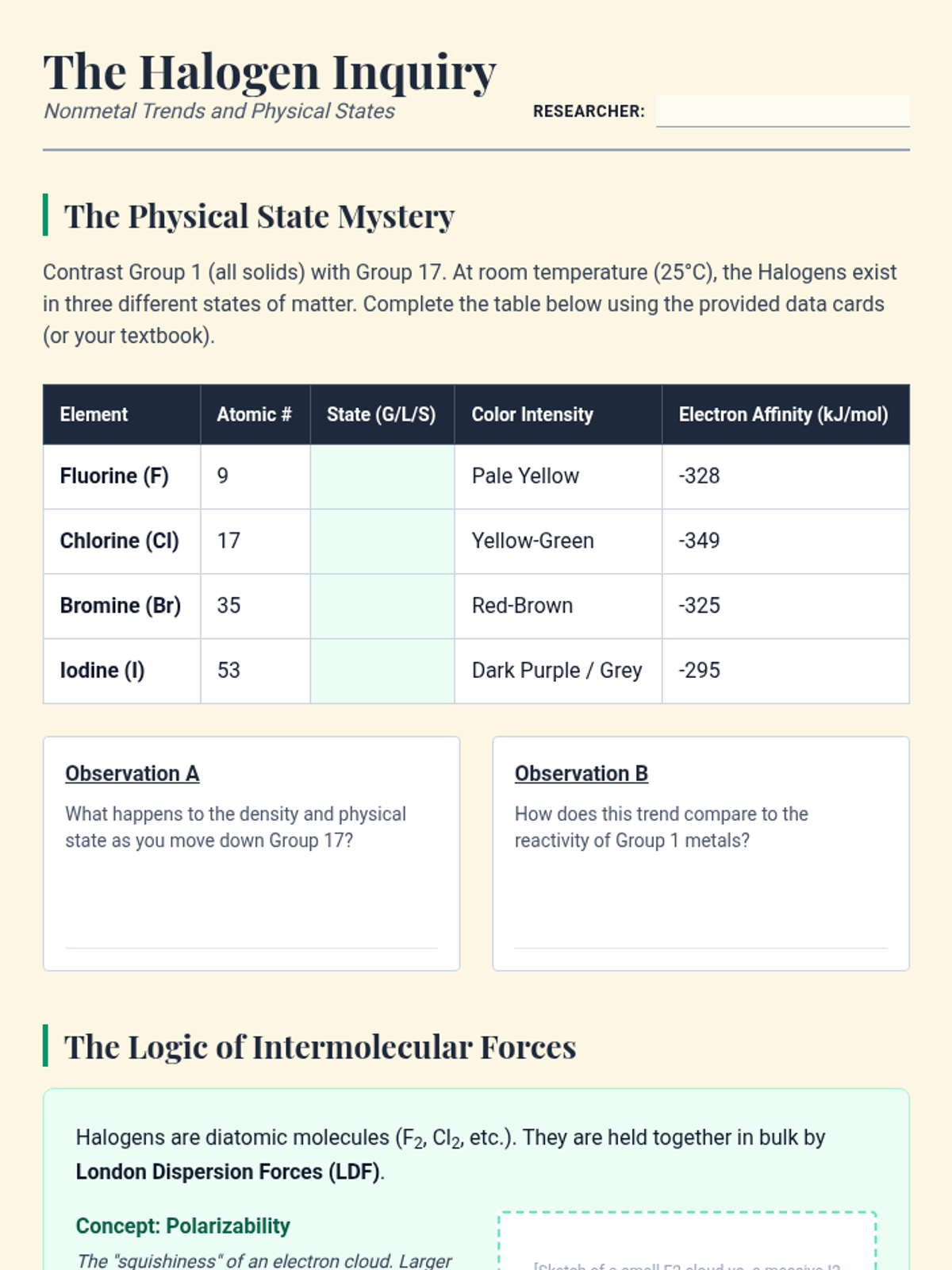

Halogen Inquiry Worksheet The Halogen Inquiry
Nonmetal Trends and Physical States
Researcher:
The Physical State Mystery
Contrast Group 1 (all solids) with Group 17. At room temperature (25°C), the Halogens exist in three different states of matter. Complete the table below using the provided data cards (or your textbook).
Element Atomic # State (G/L/S) Color Intensity Electron Affinity (kJ/mol) Fluorine (F) 9 Pale Yellow -328 Chlorine (Cl) 17 Yellow-Green -349 Bromine (Br) 35 Red-Brown -325 Iodine (I) 53 Dark Purple / Grey -295
Observation A
What happens to the density and physical state as you move down Group 17?
Observation B
How does this trend compare to the reactivity of Group 1 metals?
The Logic of Intermolecular Forces
Halogens are diatomic molecules (F2, Cl2, etc.). They are held together in bulk by London Dispersion Forces (LDF) .
Concept: Polarizability
The "squishiness" of an electron cloud. Larger clouds (more electrons) are more easily distorted, creating stronger temporary dipoles.
[Sketch of a small F2 cloud vs. a massive I2 cloud]
Critical Thinking Questions
1. Why is Iodine a solid at room temperature while Fluorine is a gas? Use the term "London Dispersion Forces" and "Electron Cloud" in your answer.
2. Reactivity trend: Unlike Group 1, Halogen reactivity decreases as you go down the group. Why does a smaller atom like Fluorine "want" an extra electron more than a larger atom like Iodine?
Experimental Connection: Displacement
If you mix Chlorine water (Cl2) with Potassium Bromide (KBr), a reaction occurs because Chlorine is "stronger" (more reactive) than Bromine and will kick it out.
Predict: What would happen if you mixed Iodine (I2) with Potassium Chloride (KCl)?
Halogen Trends Slides F Cl Br I
Group 17: The Halogens
The Salt Formers
The Physical Paradox
Why does the state of matter change as we go down the group?
"Halogen" = Greek for "Salt-Producing"
F2 Gas
Extremely Reactive
Cl2 Gas
Very Reactive
Br2 Liquid
Moderately Reactive
I2 Solid
Least Reactive
Polarizability & LDF
As the number of electrons increases, the electron cloud becomes larger and more "squishy" (polarizable).
London Dispersion Forces
Temporary dipoles created by shifting electron clouds. More electrons = Stronger forces.
Boiling Points
Stronger intermolecular forces require more energy to break, raising the boiling point from Gas → Liquid → Solid.
Small / Hard cloud (F2)
Large / Squishy cloud (I2)
Larger clouds distort easily, creating "stickier" molecules.
The Hunger for Electrons
Unlike Alkali metals (who want to lose ), Halogens want to gain one electron to reach a full valence shell (s2p5 → s2p6).
The Distance Effect (Inverted)
In small atoms (Fluorine), the incoming electron is much closer to the positive nucleus. The attraction is massive .
In large atoms (Iodine), the nucleus is shielded by many layers. The "pull" on an extra electron is much weaker.
Fluorine
"The most electronegative element in existence."
Iodine
Large, shielded, and less hungry.
Halogen Displacement
A more reactive halogen will displace a less reactive halide from a solution.
Cl2 + 2KBr
2KCl + Br2
REACTION!
I2 + 2KCl
No Reaction
FAIL
In Group 17, the bullies are at the top.

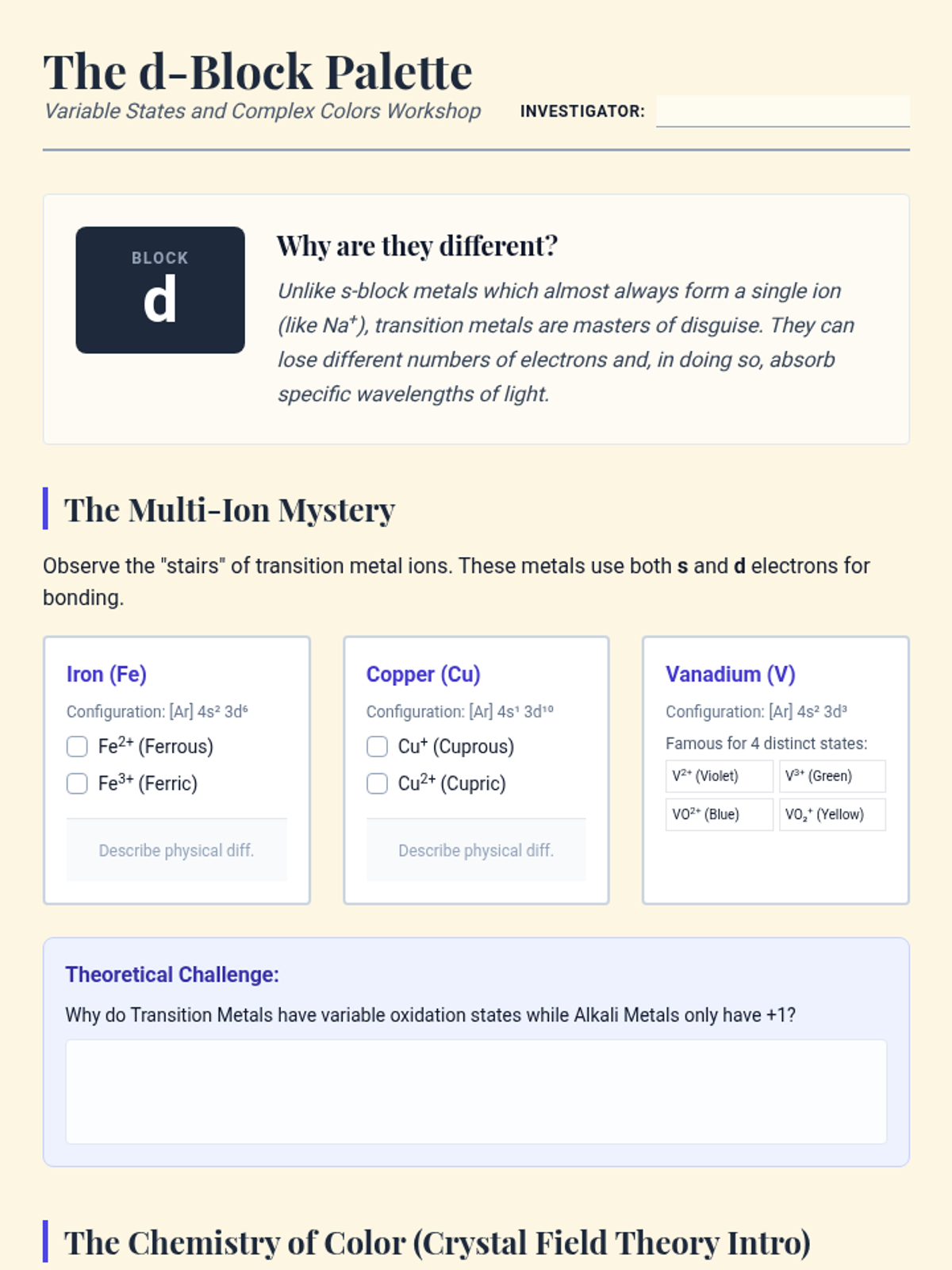

Transition Metal Palette Workshop The d-Block Palette
Variable States and Complex Colors Workshop
Investigator:
Block d
Why are they different?
Unlike s-block metals which almost always form a single ion (like Na+), transition metals are masters of disguise. They can lose different numbers of electrons and, in doing so, absorb specific wavelengths of light.
The Multi-Ion Mystery
Observe the "stairs" of transition metal ions. These metals use both s and d electrons for bonding.
Iron (Fe)
Configuration: [Ar] 4s² 3d⁶
Fe2+ (Ferrous)
Fe3+ (Ferric)
Describe physical diff.
Copper (Cu)
Configuration: [Ar] 4s¹ 3d¹⁰
Cu+ (Cuprous)
Cu2+ (Cupric)
Describe physical diff.
Vanadium (V)
Configuration: [Ar] 4s² 3d³
Famous for 4 distinct states:
V2+ (Violet)
V3+ (Green)
VO2+ (Blue)
VO₂+ (Yellow)
Theoretical Challenge:
Why do Transition Metals have variable oxidation states while Alkali Metals only have +1?
The Chemistry of Color (Crystal Field Theory Intro)
In a transition metal ion, the d-orbitals can "split" into two different energy levels when ligands (like water or chlorine) surround them.
Orbitals Splitting Diagram
When an electron jumps between these levels, it absorbs light!
Color Matching Task
If a compound absorbs yellow light, what color does it appear to our eyes? (Hint: Use the color wheel!)
Magnetism Check
Many transition metals are paramagnetic. What does it mean for an orbital to be unpaired , and how does this lead to magnetism?
Synthesis: The "Workhorse" Metals
Transition metals are often used as catalysts (like Pt in cars or Fe in your blood). Why does the ability to have variable oxidation states make them perfect for moving electrons around in a reaction?
Transition Metals Slides Deck Transition Metals
The d-Block Palette and Variable Ions
Sc
Ti
V
Cr
Mn
Fe
The Chameleon Element
One element, four oxidation states, four vibrant colors.
V2+
Violet
V3+
Green
VO2+
Blue
VO2+
Yellow
What's the Secret?
1
Partially Filled d-Shell
Transition metals have 3d orbitals that can hold up to 10 electrons.
2
Variable Loss
They can lose s-electrons AND some d-electrons without becoming unstable.
3
Energy Levels
The 4s and 3d levels are very close in energy, allowing for multiple stable ions.
Atomic Level Visualization
4s
3d
"The closeness of 4s and 3d is the key to variety."
How Color is Born
Orbital Splitting
When other molecules (ligands) get close to the metal, they repel the d-electrons, splitting the 5 orbitals into two groups: High Energy and Low Energy .
∆E = Light Absorbed
Complementary Colors
Absorb Yellow → See Purple
We see the color that is NOT absorbed.
Transition Metal Summary
Multiple oxidation states due to s & d electron loss.
Colored compounds result from d-orbital splitting.
Paramagnetism: Unpaired electrons create magnetic fields.
Critical industrial catalysts (Pt, Pd, Fe, Ni).
"The world is colorful because of the d-block."
End of Lesson 3

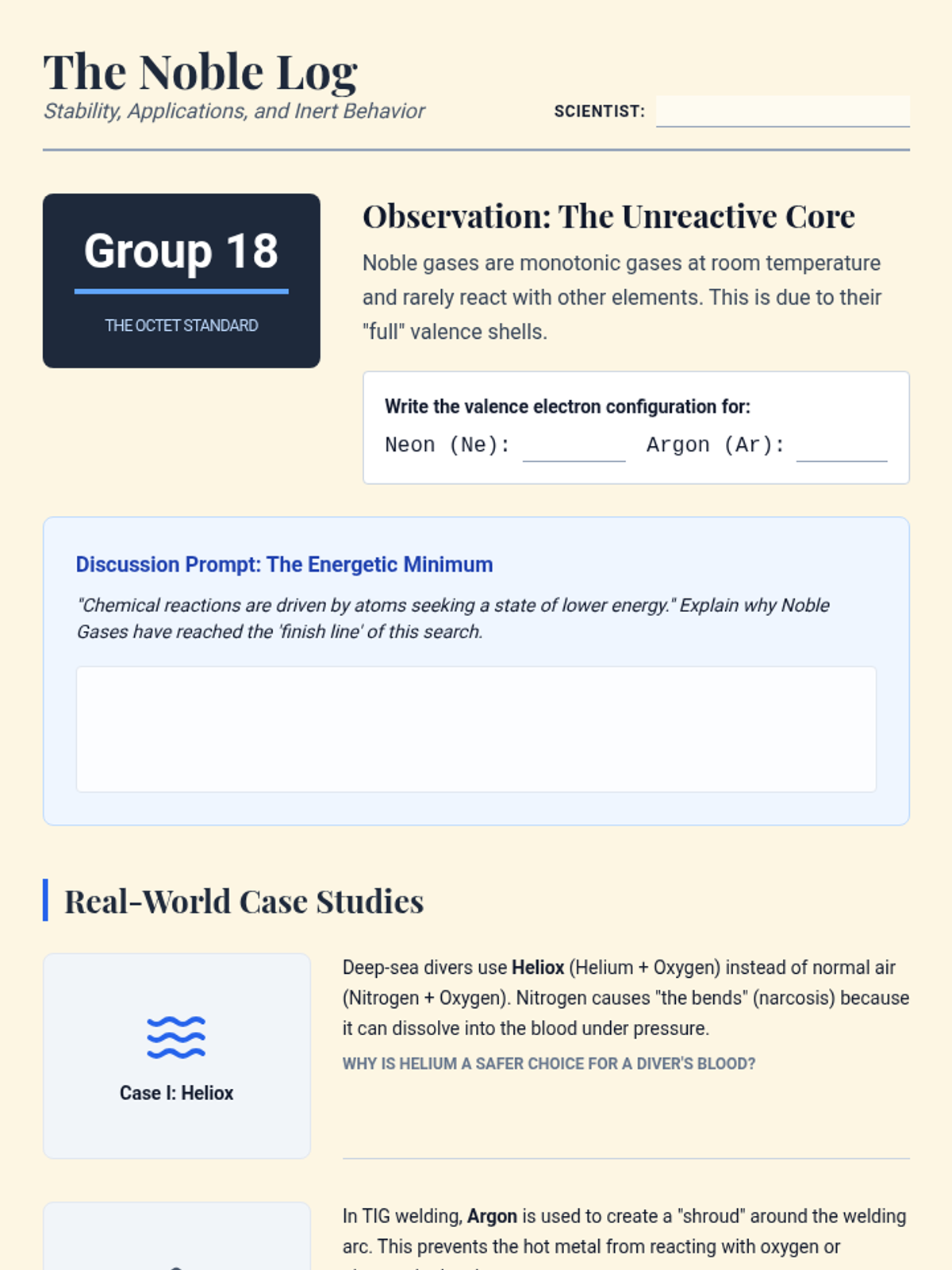

Noble Gas Stability Guide Exit Ticket The Noble Log
Stability, Applications, and Inert Behavior
Scientist:
Group 18
The Octet Standard
Observation: The Unreactive Core
Noble gases are monotonic gases at room temperature and rarely react with other elements. This is due to their "full" valence shells.
Write the valence electron configuration for:
Neon (Ne):
Argon (Ar):
Discussion Prompt: The Energetic Minimum
"Chemical reactions are driven by atoms seeking a state of lower energy." Explain why Noble Gases have reached the 'finish line' of this search.
Real-World Case Studies
Case I: Heliox
Deep-sea divers use Heliox (Helium + Oxygen) instead of normal air (Nitrogen + Oxygen). Nitrogen causes "the bends" (narcosis) because it can dissolve into the blood under pressure.
Why is Helium a safer choice for a diver's blood?
Case II: Shielding Gas
In TIG welding, Argon is used to create a "shroud" around the welding arc. This prevents the hot metal from reacting with oxygen or nitrogen in the air.
Why would we use Argon instead of a cheaper gas like Carbon Dioxide?
The Exception
Cracking the Shell: XeF₄
In 1962, Neil Bartlett proved that Noble Gases weren't 100% "inert" by creating Xenon Tetrafluoride. Looking at the Periodic Table, why is Xenon the easiest noble gas to force into a reaction compared to Neon ?
Exit Ticket: Stability
Class: Physics-Chem Period: ____
In 3 sentences, explain the relationship between a "Full Octet" and the concept of chemical stability. Use Neon as your example.
Elemental Families Unit - Lesson 4
Teacher Initials
Noble Gases Slides Deck Group 18: The Noble Gases
The Kings of Stability
He
Ne
Ar
Kr
Xe
Rn
The Diver's Breath
Why breathe Helium instead of Air?
Nitrogen Narcosis
At high pressures, Nitrogen (78% of air) dissolves into blood and acts like an anesthetic. This is dangerous at 100+ feet deep.
The Heliox Solution
Helium is inert . It doesn't react with the body or dissolve the same way, keeping the diver's mind clear.
Inert = Safe
"Non-reactive behavior saves lives in extreme environments."
The Energy "Valley"
Atoms react to reach the lowest possible energy state. For most atoms, this is a Full Octet (ns2np6) .
Why Noble Gases are "Rich"
They already have 8 valence electrons. They don't need to gain, lose, or share. They are "energy-satisfied."
Ne
Are they REALLY inert?
The Bartlett Breakout
In 1962, chemists forced Xenon to react with Fluorine.
Why Xenon and not Neon? Xenon is huge. Its valence electrons are so far from the nucleus that they can be "stolen" by extremely electronegative elements like Fluorine.
Ne
IMPOSSIBLE
Xe
POSSIBLE
Noble Summary
Valence shells are full (ns2np6).
High ionization energy; low reactivity.
Used in lighting (neon signs) and as shielding gas (argon).
Larger noble gases (Xe) can form compounds under extreme stress.

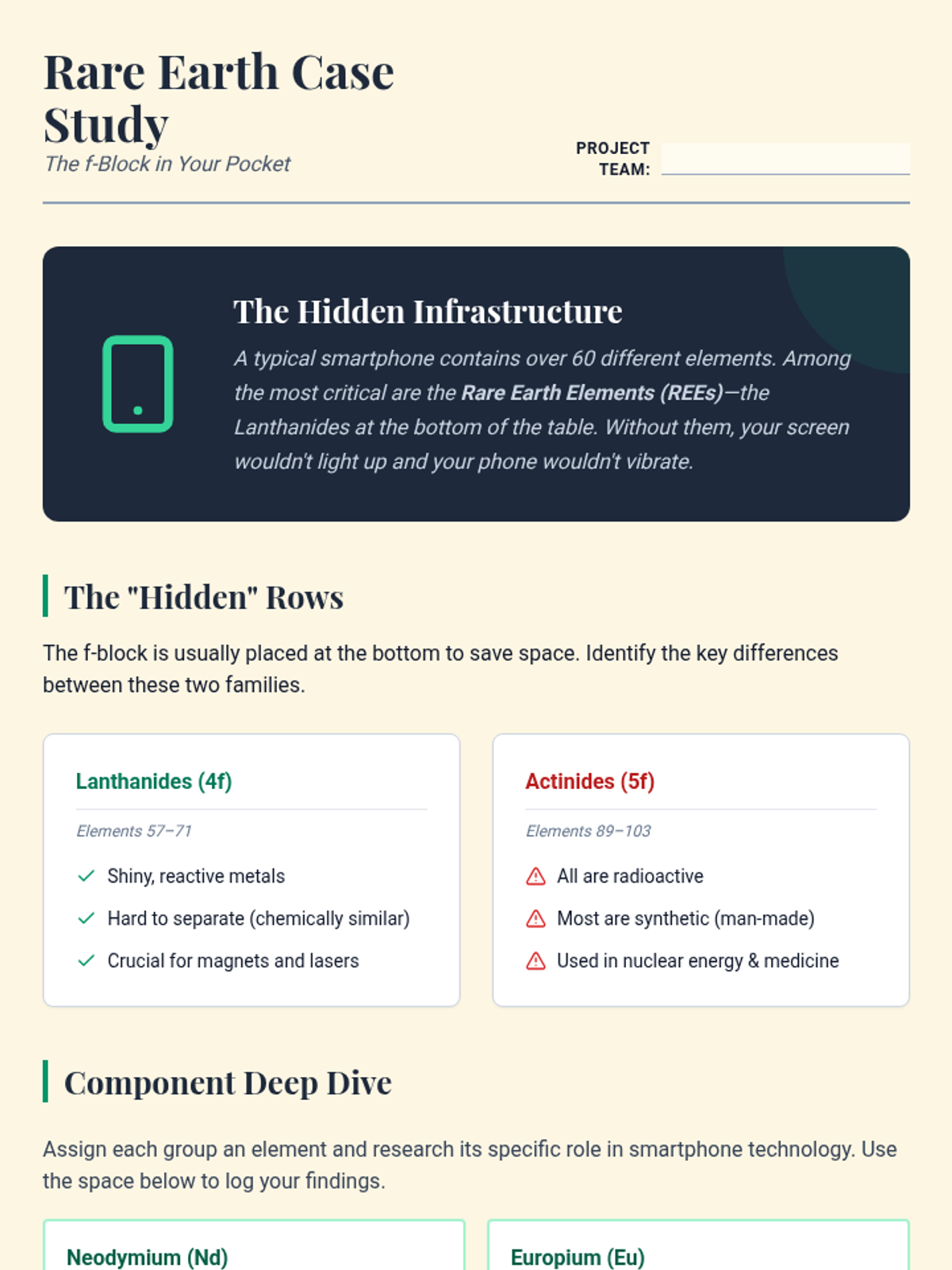

Rare Earth Smartphone Case Study Project Rare Earth Case Study
The f-Block in Your Pocket
Project Team:
The Hidden Infrastructure
A typical smartphone contains over 60 different elements. Among the most critical are the Rare Earth Elements (REEs) —the Lanthanides at the bottom of the table. Without them, your screen wouldn't light up and your phone wouldn't vibrate.
The "Hidden" Rows
The f-block is usually placed at the bottom to save space. Identify the key differences between these two families.
Lanthanides (4f)
Elements 57–71
Shiny, reactive metals
Hard to separate (chemically similar)
Crucial for magnets and lasers
Actinides (5f)
Elements 89–103
All are radioactive
Most are synthetic (man-made)
Used in nuclear energy & medicine
Component Deep Dive
Assign each group an element and research its specific role in smartphone technology. Use the space below to log your findings.
Neodymium (Nd)
Used in: Speakers & Vibration Motor
Why? Neodymium magnets are the strongest permanent magnets known. They allow for tiny, high-performance speakers.
Europium (Eu)
Used in: Screen Phosphors
Why? It provides the vibrant red colors on your LED or OLED display.
Your Element Atomic Number Primary Function
Ethics & Geography
Rare earth elements aren't actually "rare" in the crust, but they are hard to mine without environmental damage. 90% of production currently happens in one country.
1. Why are these elements so difficult to separate from one another?
2. What are the risks of depending on a single global source for tech?
Mini-Project: The Tech Waste Crisis
Most smartphones are replaced every 2-3 years. If we don't recycle them, we lose these precious f-block elements forever in landfills.
Task: Designing a Solution
Briefly outline a plan to increase REE recycling in your community. Who are the stakeholders?
Chemistry & Society Connection Element Families: Unit Finale
Rare Earth Elements Slides Deck The Rare Earths
The f-Block and Modern Technology
Lanthanides
Actinides
The Pocket Supercomputer
How many elements are in your hand right now?
A smartphone requires 60+ elements . The most critical ones are hidden in those bottom two rows of the periodic table.
Screen: Europium, Terbium, Yttrium
Sound: Neodymium, Praseodymium
Battery: Lanthanum
f-block
Foundation of the Future
Lanthanides (4f)
Often called "Rare Earths" (not actually rare, just hard to isolate).
Crucial for "High-Tech" (Lasers, fiber optics, EV motors).
Chemically very similar, making mining and separation a nightmare.
Actinides (5f)
Radioactive: All elements are unstable and decay.Synthetic: Most elements after Uranium are man-made.Nuclear: Uranium and Plutonium power our world and weapons.
Why are they "Bottom Dwellers"?
Effective Shielding
The f-orbitals are "buried" deep within the atom's structure.
Lanthanide Contraction:
As you move across the f-block, the atoms actually get significantly smaller than expected because f-electrons are poor at shielding the nucleus's pull.
f
Orbitals buried beneath the surface
The Modern Dilemma
Mining Impact
Refining REEs produces toxic and radioactive waste. Many mines lack environmental standards.
Geopolitics
One or two countries control the vast majority of the world's supply. This creates massive tech risks.
"The Periodic Table isn't just a poster. It's the blueprint for the global economy."
End of Unit
