Electric Potential Slides Electric Potential
Part 1: The Energy Landscape and Power Generation
PHYSICS UNIT 4: THE GRID
Essential Questions
The Potential
How does electric potential define the "energy landscape" that pushes electrons through a circuit?
The Generator
How is mechanical energy transformed into a high-potential state that fuels the power grid?
1. What is Electric Potential?
Electric Potential (\(V\))
The amount of Electric Potential Energy per unit of charge at a specific location.
V
Unit: Volts (J/C)
1 Volt = 1 Joule of energy per 1 Coulomb of charge.
Key Insight
"Think of it as 'electrical pressure.' The higher the potential, the more energy is waiting to do work."
High Potential
Low Potential
-
Energy stored in a potential difference (Voltage)
The Topography of Power
Visualizing the "Energy Landscape"
The Gravitational Analogy
Electric Potential = Height
Standing at the top of a hill gives you high gravitational potential. The "height" is your stored energy.
Potential Difference = Slope
Charges roll from high potential to low potential. The difference in potential (\(\Delta V\)) is what causes the flow.
High Potential
Creating the Potential
How the grid gets its "Pressure"
The Mechanism
Generators use Electromagnetic Induction. A rotating magnet moves electrons in a wire, creating a "pile-up" of charge.
The Grid State
This mechanical action creates a Potential Difference between the power plant and your home.
Transmission Voltage
500,000 V
The Result
High potential (voltage) allows energy to travel long distances with minimal loss. It is the "source" waiting to be tapped.
Potential Difference (\(\Delta V\))
Why the 'Difference' matters more than the 'Amount'
Current doesn't flow because there is potential; it flows because there is a difference in potential between two points.
The Bird on a Wire
A bird can sit on a high-voltage wire (500,000 V) and be perfectly safe. Why? Because both of its feet are at the same potential. There is no potential difference across its body, so no current flows.
Point A
High V
Point B
Low V
Flow = \(\Delta V\)
Energy is Transformed
In a power plant, Kinetic Energy from the environment (wind, water, heat) is transformed into Electrical Potential Energy.
Voltage isn't the flow—it's the potential for flow.
Chemical Spark Reading Field Guide: Source 01
Chemical Spark
Inside the Portable Potential Machine
01 The Energy Vault
Every electrical system needs a starting point—a place where energy is pushed into the wires. While power plants use giant spinning magnets, a battery is a self-contained chemical engine. It doesn't actually "store" electricity like a bucket holds water; instead, it stores potential in the form of unstable chemicals waiting to react.
Think of a battery as a chemical seesaw. On one side, we have atoms that want to get rid of electrons; on the other, we have atoms that are desperate to grab them. As long as they are separated, nothing happens. But the moment you connect a circuit, the "push" begins.
Internal Schematic v1.0
Cathode
Electrolyte Barrier
Anode
Potential Difference
"The Electrical Hill"
02 The Three Pillars of Power
The Anode
This is the negative (-) terminal. The chemicals here are "electron-rich" and are undergoing an oxidation reaction, meaning they are losing electrons.
Exiting Electrons
The Cathode
The positive (+) terminal. This side is hungry for electrons. It undergoes reduction , pulling electrons back into the chemical structure.
Entering Electrons
The Electrolyte
The medium (liquid or paste) between them. It allows ions to move back and forth but blocks electrons from taking a shortcut through the center.
The Chemical Gate
03 The Pressure of Voltage
Why do electrons move? It's all about Voltage (Electric Potential). Because the Anode is crowded with electrons and the Cathode is empty, there is a massive "pressure" difference between the two ends.
"Think of the Anode as a high-pressure tank and the Cathode as a vacuum. The electrolyte acts like a wall. The only way for the 'pressure' to equalize is for the electrons to travel through your wire, lightbulb, or motor to get to the other side."
Once the chemicals at the Anode run out of electrons to give, the reaction stops. The potential difference hits zero, the "hill" levels out, and your battery is officially dead .
Flow Visualization
Battery (Pump)
Load (Work)
Electron Path
Key Insight
The battery doesn't create electrons; it provides the Potential Difference required to push the electrons that are already inside the wires!
Static to Spark Notes Static to Spark
Guided Notes: Electric Potential & Energy Transformation
Name:
Date:
1. The Energy Landscape
Electric Potential (\(V\)) is defined as __________________________________________________________________________ ________________________________________________________________________________________________________________.
The Unit of Potential
The unit of potential is the Volt (V).
1 Volt = 1 ______________ / 1 ______________
The Analogy
Potential is like ________________ in a gravitational field.
Electric Field is like the ________________ of the hill.
Visualizing the Hill
In the space below, sketch the "Potential Hill" around a positive charge. Label "High Potential" and "Low Potential."
2. Creating the Potential (Generators)
Mechanical energy is converted to electrical energy through Electromagnetic Induction . This creates a potential difference (voltage) for the grid.
Primary Energy
(Wind, Water, Steam)
Mechanical Action
Spinning
Generator
Creates Potential Difference
Grid Potential
Voltage
3. Thinking Like an Engineer
Why must power plants generate extremely high voltages (like 500,000 V) for transmission over long distances? (Think about the "hill" analogy).
Complete this statement: "A generator doesn't make electrons, it ______________ them to a higher ________________________________________."
Battery Blueprint Worksheet Swapped Battery Blueprint
Internal Mechanics Analysis
Name:
Date:
Part 1: The Three Pillars
1
Anode (-)
Primary Function:
2
Cathode (+)
Primary Function:
3
Electrolyte
Primary Function:
Part 2: Circuit Dynamics
Schematic Sketchpad
Task: Draw a simple battery connected to a lightbulb. Use arrows to show the direction electrons travel and label the Anode and Cathode.
1. The "Push" Factor
The reading mentions "Voltage Pressure." In your own words, what creates this pressure inside the battery?
2. The Ionic Shortcut
Why is it critical that the Electrolyte blocks electrons from taking a "shortcut" through the center of the battery?
Part 3: Potential & Power
! Critical Thinking: The "Dead" State
When a battery is "dead," the text says the "hill levels out." Explain what has happened to the chemicals at the Anode and Cathode to cause this state.
Rechargeable Logic
Some batteries can be recharged. Based on what you know about the Anode and Cathode, what do you think an external charger is doing to the chemicals inside?
Energy Storage vs. Potential
The text clarifies that batteries don't store "buckets of electricity." Why is it more accurate to say they store Chemical Potential?
Field Engineer Prompt: Next time you see a 9V battery, notice the terminals. One is shaped like a "cup" (Female) and one is shaped like a "plug" (Male). Why do you think engineers designed them differently?
Potential Peaks Activity Revised Potential Peaks
Differentiating V, U, and ΔV
Base Camp:
Expedition Date:
Mission Briefing
In physics, we often confuse the "height" of the energy landscape with the "energy" held by an object. Use this topographic map of Potential Peak to untangle these concepts.
V = Electric Potential (The Height)
U = Potential Energy (The Burden)
ΔV = Potential Difference (The Drop)
The Expedition Rule
"Potential is a property of the location. Energy is a property of the charge."
A
The Summit
V = 100 V
B
Base Camp
V = 10 V
C
The Ridge
V = 10 V
Climber 1
Charge: +1 C
Climber 2
Charge: +5 C
High Potential
Low Potential
Equipotential Line
1 Property of the Location (V)
Both Climbers are currently standing at Point B (Base Camp) . What is the electric potential (\(V\)) for each climber? Note: Potential is determined ONLY by where you stand.
Climber 1 (at Point B):
V = _______________
Climber 2 (at Point B):
V = _______________
2
The Burden of Energy (U)
Electric Potential Energy (\(U\)) is the total energy "stored" in the charge at its location. It is calculated as: \(U = q \cdot V\)
MISSION: Calculate the Potential Energy for both climbers if they move to the Summit (Point A, \(V=100V\)):
Climber 1 (+1 C)
Equation: \(U = (q) \cdot (V)\)
Show calculation here
Climber 2 (+5 C)
Equation: \(U = (q) \cdot (V)\)
Show calculation here
Critical Checkpoint
Even though Point A is the same height (potential) for everyone, why is Climber 2's potential energy so much higher? (Write 1-2 sentences).
3
The Drop (ΔV)
The Potential Difference (\(\Delta V\)) is the vertical drop between two points. This is what drives charges to flow through a circuit.
Calculate the Potential Difference (\(\Delta V\)) between Points A and B:
Summit (A)
100 V
Base Camp (B)
10 V
ΔV (Voltage)
The Move: A → B
A positive charge "rolls" down from Point A to Point B. Does it lose or gain energy?
Daily Grid Dashboard Slides Daily Grid
SYSTEM STATUS: ONLINE
03.03.2026
DAY 01 of 10
Entry Protocol
Grab the Static to Spark Guided Notes from the bin.
Clear your desk of everything except a pencil.
On the back of your notes, sketch what you think a "field" looks like.
Essential Question
"How does energy travel from a spinning turbine to the lightbulb in your room?"
The Agenda
Field Force Visuals
Generator Breakdown
Energy Transformation Mapping
Exit Ticket: The Spark
Required Components
Potential Concept Check MCQ The Scalar Map
Check for Understanding: Electric Potential (V)
Name:
Date:
Concept
"Potential is the Pressure"
V
Energy Link
U = qV
1
According to the lecture, what is the best way to describe Electric Potential (\(V\)) at a specific point in space?
A physical force that pushes and pulls on objects.
An abstract number associated with a location in space.
A vector quantity that always points toward the source charge.
The total amount of work done to move a source charge.
2
The unit for Electric Potential is the Volt. What does one Volt physically represent?
One Newton of force exerted on a single electron.
One Coulomb of charge moving at one meter per second.
One Joule of energy per every one Coulomb of charge.
The total distance energy travels divided by the charge amount.
3
If the Electric Potential (\(V\)) at an empty point in space is 100 Volts, and you place a +3.0 Coulomb charge at that point:
How much Potential Energy (\(U\)) will the charge have?
33.3 Joules
103 Joules
300 Joules
Zero Joules
4
In the formula \(V = k \frac{Q}{r}\), which charge should be used for the value of \(Q\)?
The "test charge" that is placed at the point in space.
The "source charge" that is creating the potential landscape.
The sum of all charges currently existing in the universe.
5
What is technically the difference between "Electric Potential" and "Voltage"?
They are exactly the same thing; there is no difference.
Voltage is a vector, while Electric Potential is a scalar.
Voltage specifically refers to the difference in potential between two points.
Potential is measured in Joules, while Voltage is measured in Newtons.
Reflection: The Name Game
The speaker says "Electric Potential" was a poor choice of naming. Why?
Potential Peaks Answer Key Potential Peaks Key
Teacher Reference & Solutions
Official Solutions
Learning Objectives
Distinguish between potential (location) and energy (object).
Apply the scalar relationship \(U = qV\).
Calculate potential difference (\(\Delta V\)) between states.
Map mechanical work to circuit voltage origins.
Page 1
1 Property of the Location (V)
Climber 1 (at B):
V = 10 V
Climber 2 (at B):
V = 10 V
Teacher Note: Students often try to multiply by the charge here. Emphasize that potential is the "height" of the ground, which doesn't change regardless of who stands on it.
Page 2
2 The Burden of Energy (U)
Climber 1 (+1 C) at A:
\(U = (+1 C) \cdot (100 V)\)
Climber 2 (+5 C) at A:
\(U = (+5 C) \cdot (100 V)\)
Critical Checkpoint Answer:
Even though the height (potential) is the same, Potential Energy depends on the magnitude of the charge . It takes 5x more work to lift a +5C charge to the summit than a +1C charge.
3 The Drop (ΔV)
Summit - Base
100 - 10
Result
90 V
A → B Energy Change:
Loses Energy
B → C Difference:
0 V
Equipotential Walk
Expedition Debrief Key
1. A Battery Match: C
2. An Electron Match: B
3. Voltage Match: A
Potential Peaks Activity Revised V2 Potential Peaks
Differentiating V, U, and ΔV
Base Camp:
Expedition Date:
Mission Briefing
In physics, we often confuse the "height" of the energy landscape with the "energy" held by an object. Use this topographic map of Potential Peak to untangle these concepts.
V = Electric Potential (The Height)
U = Potential Energy (The Burden)
ΔV = Potential Difference (The Drop)
Calculating Potential (V)
\(V = \frac{kQ}{r}\)
Potential at a distance (r) from a charge (Q)
A
The Summit
V = 100 V
B
Base Camp (Point B)
V = 10 V
C
The Ridge
V = 10 V
Climber 1
Charge: +1 C
Climber 2
Charge: +5 C
High Potential
Low Potential
Equipotential Line
1 Property of the Location (V)
Both Climbers are currently standing at Point B (Base Camp) . Looking at the map above, what is the electric potential (\(V\)) for each climber? Note: Potential is determined ONLY by the location's height.
Climber 1 (at Point B):
V = _______________
Climber 2 (at Point B):
V = _______________
2
The Burden of Energy (U)
Electric Potential Energy (\(U\)) is the total energy "stored" in the charge at its location. It is calculated as: \(U = q \cdot V\)
MISSION: Calculate the Potential Energy for both climbers if they move to the Summit (Point A, \(V=100V\)):
Climber 1 (+1 C)
Equation: \(U = (q) \cdot (V)\)
Show calculation here
Climber 2 (+5 C)
Equation: \(U = (q) \cdot (V)\)
Show calculation here
Critical Checkpoint
Even though Point A is the same height (potential) for everyone, why is Climber 2's potential energy so much higher? (Write 1-2 sentences).
3
The Drop (ΔV)
The Potential Difference (\(\Delta V\)) is the vertical drop between two points. This is what drives charges to flow through a circuit.
Calculate the Potential Difference (\(\Delta V\)) between Points A and B:
Summit (A)
100 V
Base Camp (B)
10 V
ΔV (Voltage)
Potential Concept Check MCQ Final The Scalar Map
Check for Understanding: Electric Potential (V)
Name:
Date:
Concept
"Potential is the Pressure"
V
Energy Link
U = qV
1
According to the lecture, what is the best way to describe Electric Potential (\(V\)) at a specific point in space?
A) A physical force that pushes and pulls on objects.
B) An abstract number associated with a location in space.
C) A vector quantity that always points toward the source charge.
D) The total amount of work done to move a source charge.
2
The unit for Electric Potential is the Volt. What does one Volt physically represent?
A) One Newton of force exerted on a single electron.
B) One Coulomb of charge moving at one meter per second.
C) One Joule of energy per every one Coulomb of charge.
D) The total distance energy travels divided by the charge amount.
3
If the Electric Potential (\(V\)) at an empty point in space is 100 Volts, and you place a +3.0 Coulomb charge at that point:
How much Potential Energy (\(U\)) will the charge have?
A) 33.3 Joules
B) 103 Joules
C) 300 Joules
D) Zero Joules
4
In the formula \(V = k \frac{Q}{r}\), which charge should be used for the value of \(Q\)?
A) The "test charge" that is placed at the point in space.
B) The "source charge" that is creating the potential landscape.
C) The sum of all charges currently existing in the universe.
5
What is technically the difference between "Electric Potential" and "Voltage"?
A) They are exactly the same thing; there is no difference.
B) Voltage is a vector, while Electric Potential is a scalar.
C) Voltage refers to the difference in potential between two points.
D) Potential is measured in Joules, while Voltage is measured in Newtons.
Reflection: The Name Game
The speaker says "Electric Potential" was a poor choice of naming. Why? Explain the potential for confusion between this and other energy terms.
Potential Peaks Activity Final Swapped Potential Peaks
Differentiating V, U, and ΔV
Base Camp:
Expedition Date:
Mission Briefing
Welcome to the expedition! In physics, Potential (V) is the height of the energy landscape, while Potential Energy (U) is the burden carried by the charge. Use the elevations below to navigate the peak.
V = Potential (Location Height)
U = Potential Energy (Burden on Charge)
ΔV = Potential Difference (The Drop)
Expedition Formulas
Field Potential
\(V = \frac{kQ}{r}\)
Core Definition
\(V = \frac{U}{q}\)
Unit: 1 Volt (V) = 1 Joule / 1 Coulomb
A
Point A (Summit)
V = 100 V
B
Point B (Base Camp)
Potential
10 V
C
Point C (Ridge)
V = 10 V
Climber 1
Charge: +1 C
Climber 2
Charge: +5 C
High Potential
Low Potential
Equipotential Line
1 Mission: Elevation Scan
Look at Point B on the topographic map. In electrical terms, potential (V) is the elevation of the energy field. What is the potential (V) at the Base Camp for each climber?
Climber 1 (at Point B):
V = _______________
Climber 2 (at Point B):
V = _______________
2
The Burden of Energy (U)
Potential Energy (U) is the total "energy load" a charge carries. It is the product of the charge (\(q\)) and the potential (\(V\)) at its location. \(U = q \cdot V\)
Mission: Calculate the energy (U) for both climbers at the Summit (Point A, V = 100V):
Climber 1 (+1 C)
Substitute and solve:
Climber 2 (+5 C)
Substitute and solve:
Expedition Logic
"Potential is a property of the peak (location). Potential Energy is a property of the climber (object)." Why does Climber 2 have more energy at the same spot?
3
The Drop (ΔV)
Voltage, or Potential Difference (\(\Delta V\)) , is the vertical drop from one potential to another. This is what drives electrons down a wire.
Mission: Calculate the Voltage (ΔV) between the Summit and Base Camp:
Point A
100 V
Point B
Power Parade Slides Power Parade
The Technical Vocabulary Showcase
The Mission
Standardize the Grid
Today, we calibrate our collective understanding. To build the future grid, we must all speak the same technical language.
Validate the Logic
Review the analogies and diagrams of your peers. Ensure every circuit and potential hill is logically sound.
Gallery Walk Protocol
01
Deploy
Move silently through the Word Wall. Stop at posters you didn't create.
02
Inspect
Identify the **Analogy** and the **Technical Definition**. Is it accurate?
03
Log
Use your Gallery Passport to record key takeaways and peer feedback.
Timer: 3 Minutes Per Station
The Quality Audit
Technical Precision
Does the poster use the correct units (Volts, Joules/Coulomb)? Is the physics sound?
Analogy Strength
Does the analogy (e.g., hill, pump, highway) actually help explain the term?
Visual Impact
Is the text readable from across the room? Does the design demand attention?
Feedback Loop
Give a "Glow"
"The analogy of ________ makes the concept of ________ easy to visualize because..."
Offer a "Grow"
"To make this even stronger, consider adding ________ to the technical diagram."
Grid Synthesis
Choose two terms that were created by different teams.
Term A
Term B
The Challenge Question
How does **Term A** depend on or influence **Term B** in a real-world power grid?
Grid Glossary Guide Grid Glossary
Vocabulary Architecture Project
Mission Protocol
The Mission
To manage a complex electrical grid, engineers must speak a common language. Your task is to design a high-visibility Word Wall Poster for one of our core "Power Terms." This isn't just a definition; it's a technical schematic that helps your teammates visualize how energy flows.
Poster Requirements:
Term Name: Must be the largest, boldest text on the page.Standard Definition: Use the formal physics definition."In Other Words": A translation into plain English (how would you explain it to a 10-year-old?).Grid Analogy: A drawing or diagram connecting the term to a physical object (water tower, battery, wire, etc.).Units/Variable: Include the symbol (e.g., \(V\)) and the unit (e.g., Volts).
Target Terms
01. Electric Potential
02. Voltage
03. Potential Diff (\(\Delta V\))
04. Joule (J)
05. Coulomb (C)
06. Source Charge
07. Test Charge
08. Equipotential
09. Superposition
10. Scalar Quantity
Drafting Workshop
Your Assigned Term
Formal Definition (from slides/text)
Unit & Symbol
The "Plain English" Version
Analogy Sketchpad (Quick Thumbnail)
Accuracy /5
Clarity /5
Visual Impact /5
DOC_ID: GLOSSARY_GUIDE_V1
Power Parade Passport Worksheet Power Parade Passport
Technical Vocabulary Audit Log
Inspector:
Date:
Protocol: Move through the gallery and select four posters to audit. Look for technical precision in the definition and the logical strength of the analogy used.
Station 01
Term:
Analogy:
Technical Audit:
Station 02
Term:
Analogy:
Technical Audit:
Station 03
Term:
Analogy:
Technical Audit:
Station 04
Term:
Analogy:
Technical Audit:
Grid Synthesis Challenge
Select two terms from your audit above. Explain the relationship between them within the context of the power grid.
Term A
Term B
Synthesis Argument:
Grid Word Wall Templates Grid System Component
REF_ID: 2026_VOCAB_SPEC
[TERM NAME GOES HERE]
Technical Specification
Analogy / Visual Model
Plain English Translation
Unit & Symbol
Property of Municipal Power Grid Academy
ESSENTIAL TERM
Critical Grid Concept Awareness
[TERM NAME]
Visual Logic / Analogy
Official Data
Plain English
Metric & ID
[V, J, C...]
Grid Glossary Slides Unit Component 1.2
The Language
of Power
Building the technical lexicon for the modern electrical grid.
GRID ACADEMY
SYSTEM_VER_03.05
Why "Power
Words"?
Standardization
Engineers must use identical terms to prevent catastrophic grid failures.
Conceptual Layers
Many electrical terms sound the same but mean very different things.
"Electric potential is the energy landscape. Voltage is the cliff height. Without the right words, we're just guessing in the dark."
— Chief Grid Architect
The Essential Lexicon
Electric Potential \(V\)
Voltage \(V\)
Potential Difference \(\Delta V\)
Joule \(J\)
Coulomb \(C\)
Source Charge \(Q\)
Test Charge \(q\)
Equipotential
Poster
Anatomy
Your posters must communicate at a glance. High visibility is the goal.
Bold Title (Read from 10ft)
Visual Analogy (The "Aha!")
Plain English Translation
VOLTAGE [V]
Analogy Area
Technical Spec
In Other Words...
Launch Mission
Grab a Project Guide and a Template .
Step 1 Draft
Step 2 Review
Step 3 Publish
Ohmic Flow Slides Ohmic Flow
Understanding Current (I), Voltage (V), and Resistance (R) in the Modern Grid.
LESSON 2
The Electrical Trinity
Voltage (V)
"The Pressure"
The Electric Potential Difference that pushes charge through the circuit.
Unit: Volts (V)
Current (I)
"The Flow"
The Rate of Flow of electric charge past a point.
Unit: Amperes (A)
Resistance (R)
"The Friction"
The Opposition to the flow of electric current.
Unit: Ohms (Ω)
Ohm's Law
The fundamental rule of circuit analysis
V = I × R
V
Solve for Pressure
I = V / R
Solve for Flow
R = V / I
Solve for Friction
Measuring the Grid
TOOL: MULTIMETER
1
Voltage
Measure Across a component (Parallel connection).
2
Current
Measure Through a component (Series connection - Break the circuit!).
Safety Warning
Never measure current by touching leads directly to battery terminals. You will blow the fuse!

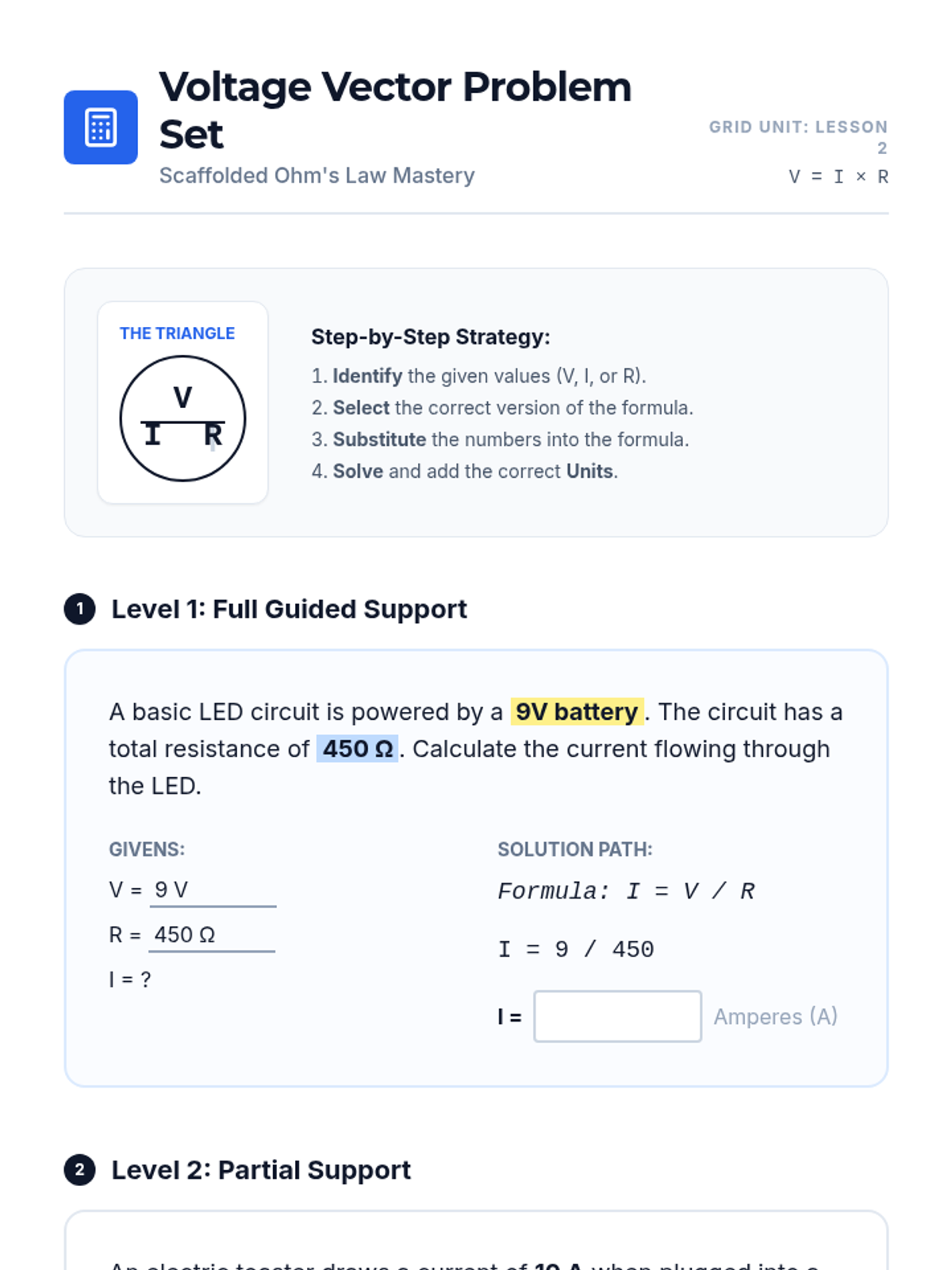

Voltage Vector Problem Set Voltage Vector Problem Set
Scaffolded Ohm's Law Mastery
Grid Unit: Lesson 2
V = I × R
The Triangle
V I | R
Step-by-Step Strategy:
Identify the given values (V, I, or R).Select the correct version of the formula.Substitute the numbers into the formula.Solve and add the correct Units .
1
Level 1: Full Guided Support
A basic LED circuit is powered by a 9V battery. The circuit has a total resistance of 450 Ω. Calculate the current flowing through the LED.
Givens:
Solution Path:
Formula: I = V / R
I = 9 / 450
I =
Amperes (A)
2
Level 2: Partial Support
An electric toaster draws a current of 10 A when plugged into a standard 120 V outlet. What is the resistance of the heating element in the toaster?
Identify Variables:
Current (I):
Voltage (V):
Formula & Solve:
Write formula here...
3
Level 3: Grid Specialist (Independent)
A smartphone charger has a resistance of 22 Ω. If the charger is designed to draw 0.5 A of current, what is the required input voltage?
Final Answer:
Ohmic Audit Answer Key Teacher Resource
Answer Key: Ohm's Law & Energy Audit
Grid Unit
Confidential Key

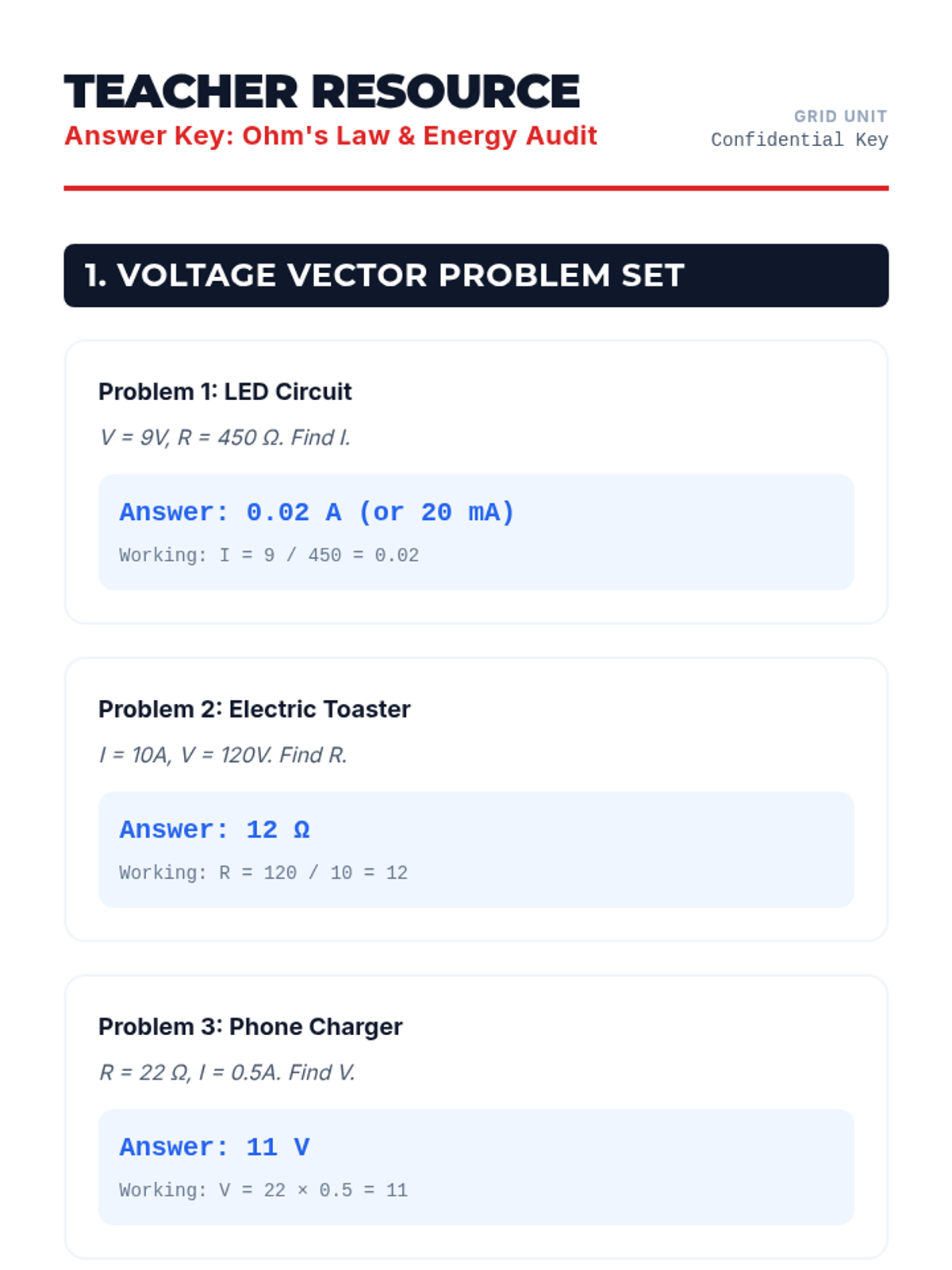

1. Voltage Vector Problem Set
Problem 1: LED Circuit
V = 9V, R = 450 Ω. Find I.
Answer: 0.02 A (or 20 mA)
Working: I = 9 / 450 = 0.02
Problem 2: Electric Toaster
I = 10A, V = 120V. Find R.
Answer: 12 Ω
Working: R = 120 / 10 = 12
Problem 3: Phone Charger
R = 22 Ω, I = 0.5A. Find V.
Answer: 11 V
Working: V = 22 × 0.5 = 11
2. Energy Audit Table
Appliance (V=120V) Current (I) Power (P = V × I) Microwave 9.2 A 1104 Watts LED TV 0.5 A 60 Watts Gaming PC 3.75 A 450 Watts Refrigerator 6.5 A 780 Watts
Reflective Question Key Point:
"The hair dryer has much lower resistance than the light bulb. Since they both share the same voltage (120V), the lower resistance of the dryer allows significantly more current to flow (Ohm's Law: I=V/R), which results in higher power consumption (P=VI)."
Superposition Slides The Superposition Principle
Mapping the Collective Potential
QUANTITATIVE PHYSICS Grid Lesson 2
The Scalar Advantage
Electric Potential (\(V\)) is a Scalar quantity. This means it has magnitude but no direction.
The Rule:
\(V_{net} = V_1 + V_2 + V_3 + \dots\)
Just add the numbers! No vectors, no sine/cosine, just simple addition.
Simple Addition
Positives add energy; Negatives subtract energy.
Independent Sources
Each charge creates its own potential hill or valley.
The Calculating Tool
Potential at a point
\(V = k \frac{q}{r}\)
k
Coulomb's Constant
\(8.99 \times 10^9\)
q
Charge (C)
Include the sign!
r
Distance (m)
Never Squared!
Visualizing the Total Field
Test Point
1
Calculate the potential (\(V\)) from each charge individually as if others don't exist.
2
Add them together algebraically.
"Positive charges make hills; Negatives make pits. Superposition tells us the final altitude."
Activity: Potential Mapping
You are an energy scout. You must find the total electrical potential at various survey points around a cluster of point charges.
Mission 1
Calculate the center potential for a Square formation.
Mission 2
Locate the "Zero-Zone" between opposing charges.

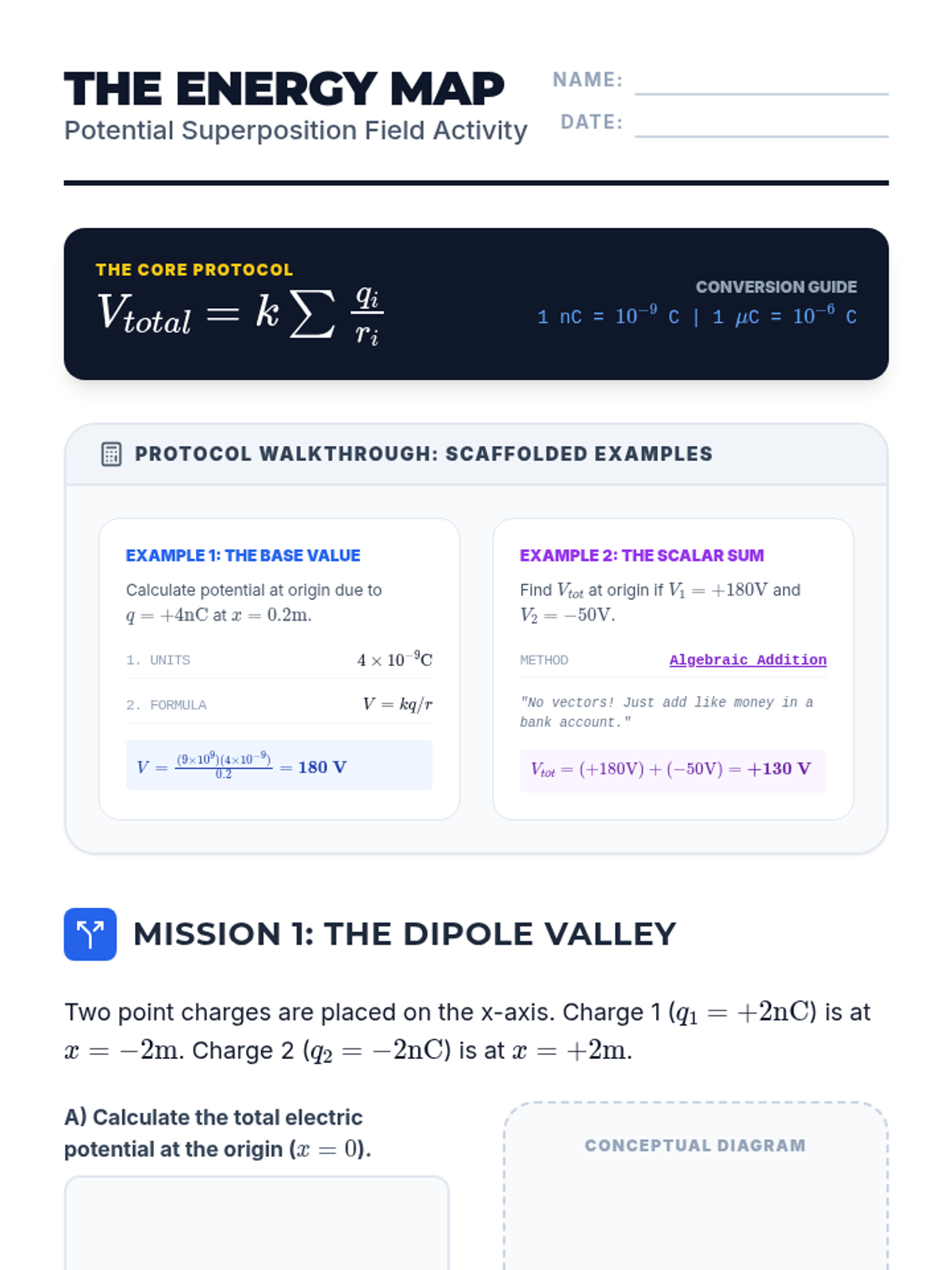

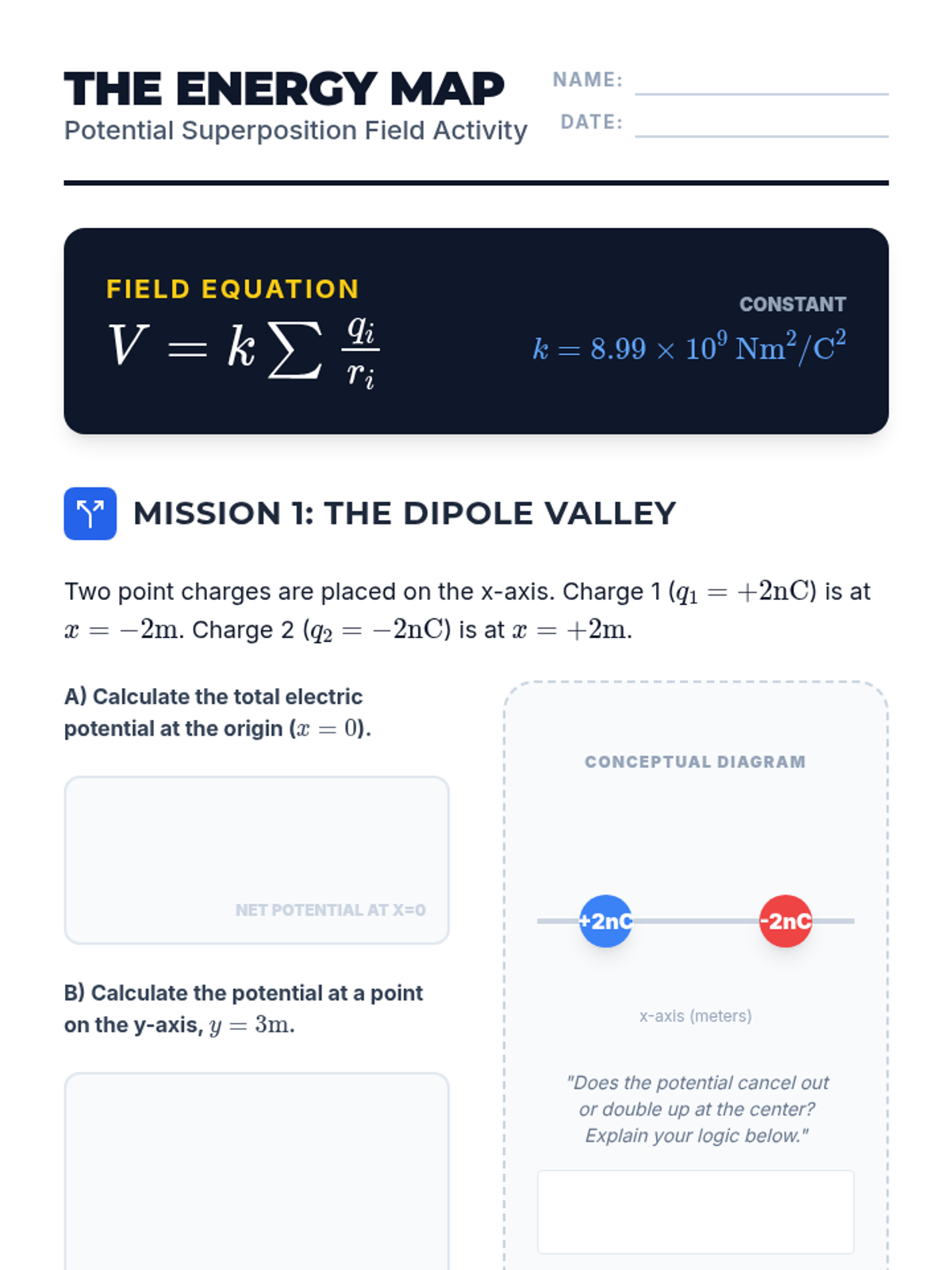

Potential Mapping Activity Swapped The Energy Map
Potential Superposition Field Activity
Name:
Date:
The Core Protocol
\(V_{total} = k \sum \frac{q_i}{r_i}\)
Conversion Guide
1 nC = \(10^{-9}\) C | 1 \(\mu\)C = \(10^{-6}\) C
Protocol Walkthrough: Scaffolded Examples
Example 1: The Base Value
Calculate potential at origin due to \(q = +4\text{nC}\) at \(x = 0.2\text{m}\).
1. Units \(4 \times 10^{-9} \text{C}\)
2. Formula \(V = kq/r\)
\(V = \frac{(9 \times 10^9)(4 \times 10^{-9})}{0.2} = \mathbf{180 \text{ V}}\)
Example 2: The Scalar Sum
Find \(V_{tot}\) at origin if \(V_1 = +180\text{V}\) and \(V_2 = -50\text{V}\).
Method Algebraic Addition
"No vectors! Just add like money in a bank account."
\(V_{tot} = (+180\text{V}) + (-50\text{V}) = \mathbf{+130 \text{ V}}\)
Mission 1: The Dipole Valley
Two point charges are placed on the x-axis. Charge 1 (\(q_1 = +2\text{nC}\)) is at \(x = -2\text{m}\). Charge 2 (\(q_2 = -2\text{nC}\)) is at \(x = +2\text{m}\).
A) Calculate the total electric potential at the origin (\(x = 0\)).
Net Potential at x=0
B) Calculate the potential at a point on the y-axis, \(y = 3\text{m}\).
Net Potential at (0,3)
Conceptual Diagram
+2nC
-2nC
x-axis (meters)
"Does the potential cancel out or double up at the center? Explain your logic below."
Mission 2: The Square Formation
Four identical positive point charges (\(q = +5\mu\text{C}\)) are placed at the corners of a square with a side length of \(L = 2\text{m}\).
+q
+q
+q
+q
POINT P
L = 2m
A) Geometry Check:
What is the distance (\(r\)) from any corner to the exact center of the square?
Show r calculation (Pythagorean Theorem)
B) Single Potential:
What is the potential (\(V\)) at the center due to just one corner charge?
Calculate V for one charge
C) The Superposition Action
Using the Principle of Superposition, determine the total net potential at the center of the square.
Total Center Potential (\(V_{tot}\))
Energy Engineer Reflection
If one of these four charges was changed to a Negative Charge (\(q = -5\mu\text{C}\)), how would that affect the total potential at the center? Explain using the logic from Example 2.
Potential Mapping Activity Swapped The Energy Map
Potential Superposition Field Activity
Name:
Date:
Field Equation
\(V = k \sum \frac{q_i}{r_i}\)
Constant
\(k = 8.99 \times 10^9 \text{ Nm}^2/\text{C}^2\)
Mission 1: The Dipole Valley
Two point charges are placed on the x-axis. Charge 1 (\(q_1 = +2\text{nC}\)) is at \(x = -2\text{m}\). Charge 2 (\(q_2 = -2\text{nC}\)) is at \(x = +2\text{m}\).
A) Calculate the total electric potential at the origin (\(x = 0\)).
Net Potential at x=0
B) Calculate the potential at a point on the y-axis, \(y = 3\text{m}\).
Net Potential at (0,3)
Conceptual Diagram
+2nC
-2nC
x-axis (meters)
"Does the potential cancel out or double up at the center? Explain your logic below."
Mission 2: The Square Formation
Four identical positive point charges (\(q = +5\mu\text{C}\)) are placed at the corners of a square with a side length of \(L = 2\text{m}\).
+q
+q
+q
+q
CENTER
L = 2m
A) Geometry Check:
What is the distance (\(r\)) from any corner to the exact center of the square?
Show r calculation:
B) Single Potential:
What is the potential (\(V\)) at the center due to just one corner charge?
V = kq/r =
C) The Superposition Action
Using the Principle of Superposition, determine the total potential at the center of the square.
Total Center Potential (V)
Energy Engineer Reflection
If one of these four charges was changed to a Negative Charge (\(q = -5\mu\text{C}\)), how would that affect the total potential at the center? Explain with math or words.

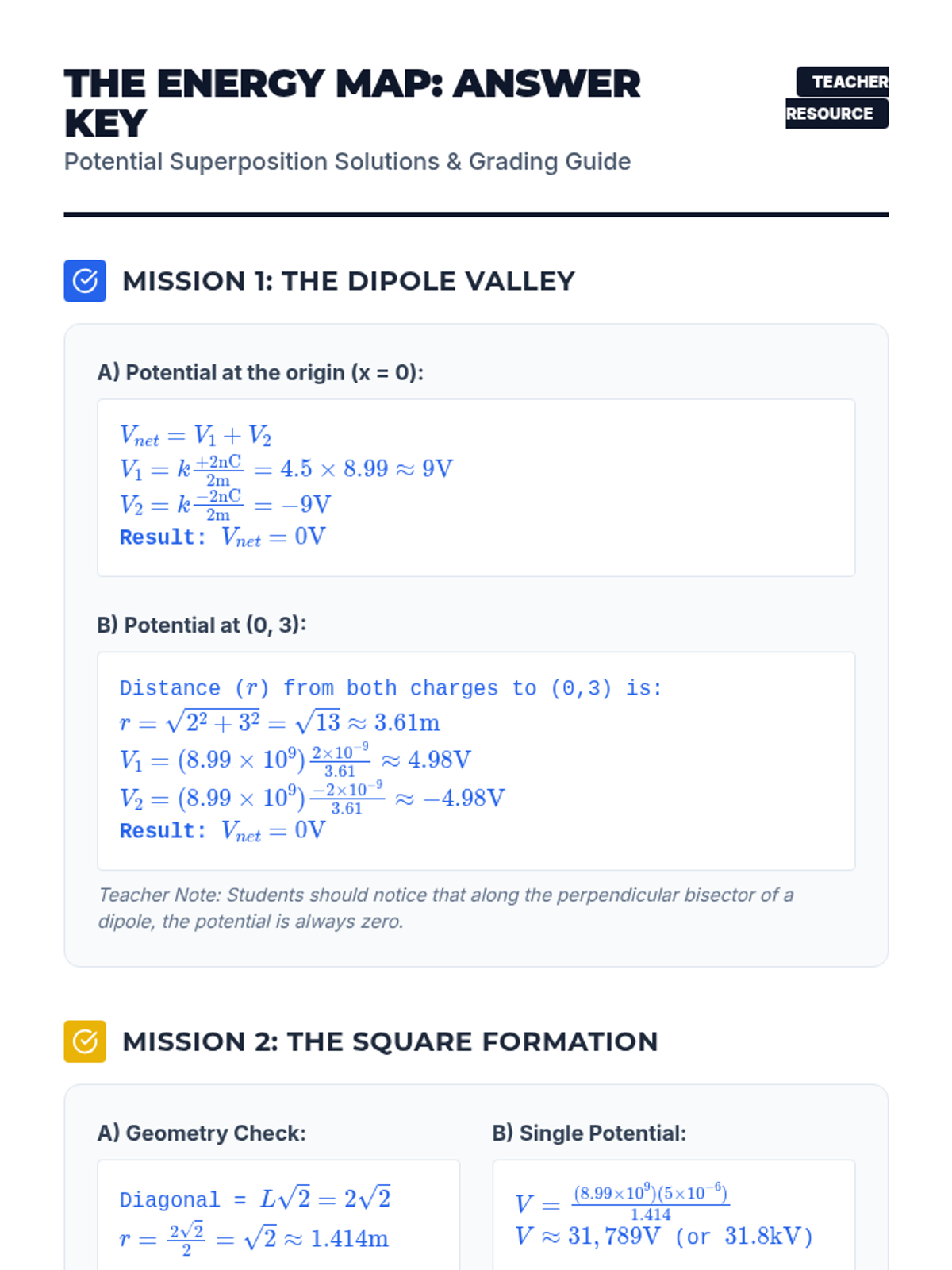

Energy Map Answer Key The Energy Map: Answer Key
Potential Superposition Solutions & Grading Guide
Teacher Resource
Mission 1: The Dipole Valley
A) Potential at the origin (x = 0):
\(V_{net} = V_1 + V_2\)
B) Potential at (0, 3):
Distance (\(r\)) from both charges to (0,3) is: \(r = \sqrt{2^2 + 3^2} = \sqrt{13} \approx 3.61\text{m}\)
Teacher Note: Students should notice that along the perpendicular bisector of a dipole, the potential is always zero.
Mission 2: The Square Formation
A) Geometry Check:
Diagonal = \(L\sqrt{2} = 2\sqrt{2}\)
B) Single Potential:
\(V = \frac{(8.99 \times 10^9)(5 \times 10^{-6})}{1.414}\)
C) The Superposition Action:
\(V_{net} = V_1 + V_2 + V_3 + V_4 = 4 \times V_{single}\)
Reflection Key
"The total potential would decrease significantly. Instead of \(4V\), we would have \(V + V + V - V = 2V\). The negative charge acts as a 'energy sink' or 'pit' that cancels out the positive work of one of the other charges. The new potential would be exactly half of the original (approx. \(63.6\text{kV}\))."
Grading Points
Mission 1 Setup: 20 pts
Mission 1 Calculation: 20 pts
Square Geometry: 20 pts
Square Final V: 20 pts
Reflection: 20 pts

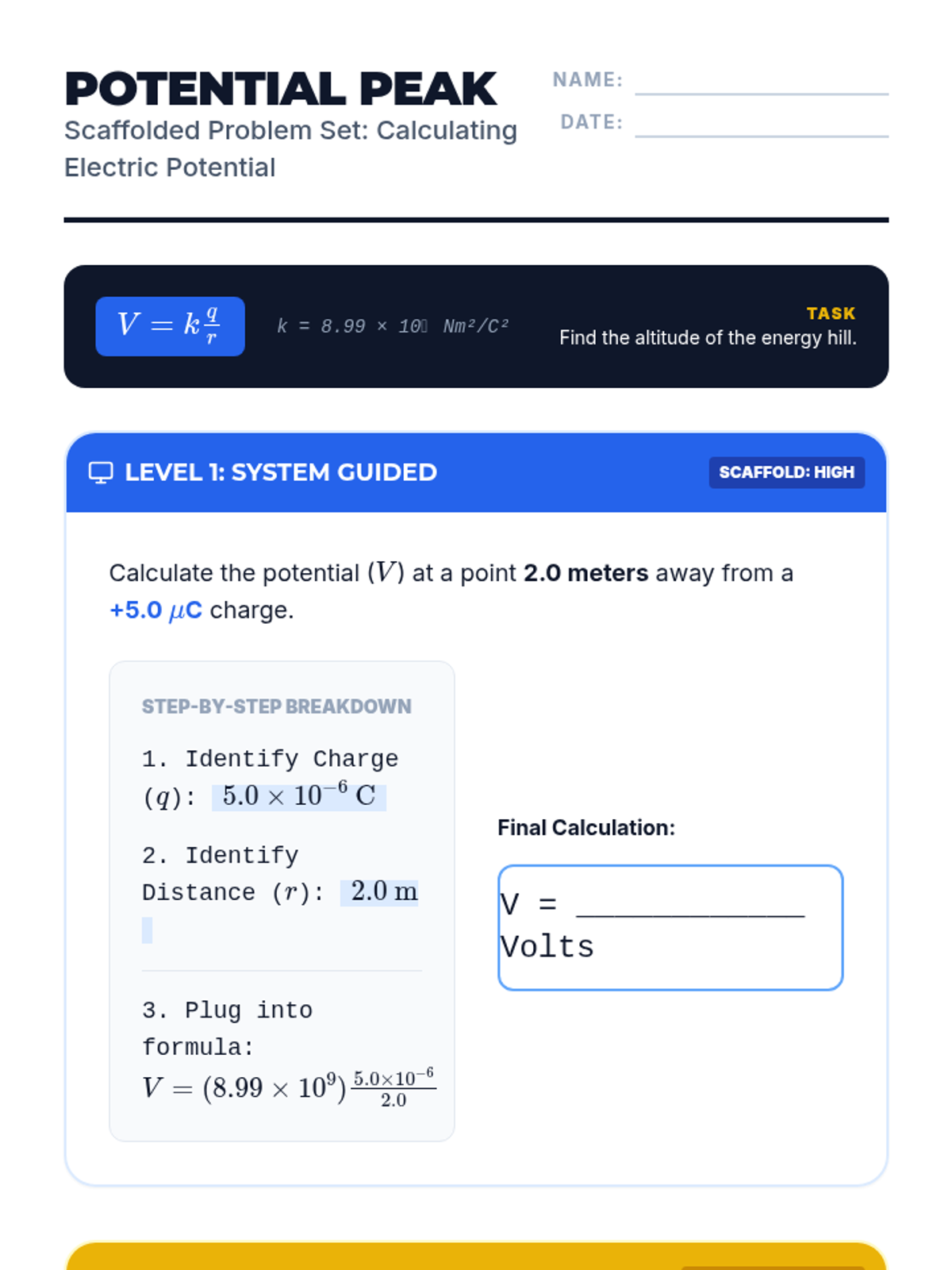

Potential Peak Problem Set Potential Peak
Scaffolded Problem Set: Calculating Electric Potential
Name:
Date:
\(V = k \frac{q}{r}\)
k = 8.99 × 10⁹ Nm²/C²
Task
Find the altitude of the energy hill.
Level 1: System Guided
SCAFFOLD: HIGH
Calculate the potential (\(V\)) at a point 2.0 meters away from a +5.0 \(\mu\)C charge.
Step-by-Step Breakdown
1. Identify Charge (\(q\)): \(5.0 \times 10^{-6}\text{ C}\)
2. Identify Distance (\(r\)): \(2.0\text{ m}\)
3. Plug into formula:
Final Calculation:
V = ____________ Volts
Level 2: User Assisted
SCAFFOLD: MEDIUM
A sensor is placed 0.50 meters from a negative charge of -3.0 \(\mu\)C. Determine the potential.
Extract Data:
q = __________ C
r = __________ m
Hint
Include the negative sign in your calculation. Potential can be negative (an "energy pit").
Show Work:
Level 3: Manual Entry
SCAFFOLD: NONE
Problem: An engineer is testing the potential near a high-voltage point source. If the potential at 4.0 meters is exactly 22,500 Volts, what is the magnitude of the charge creating the field?
Difficulty
Workspace: Sketch, Setup, and Algebra
System Ready \(\rightarrow\)
Final Result (q)
_________________
Post-Peak Verification
Check your units: Did you use Meters for distance and Coulombs for charge? Did the sign of the potential match the sign of the charge?
Circuit Architecture Slides Circuit Architectures
Designing the Path: Series vs. Parallel Configurations
UNIT 4 Design Phase
The Two Primary Paths
Series
"One Path for All"
Current (I) is the same everywhere.
Total R = R1 + R2 + R3...
One break stops the whole circuit.
Parallel
"Multiple Independent Paths"
Voltage (V) is the same across all paths.
Total R decreases as you add paths.
One break only stops that path.
Visualizing Resistance
Series = One Lane
Like cars waiting at 3 toll booths in a row. You MUST slow down for every single one. Resistance adds up.
Parallel = More Lanes
Like adding more toll booths to a wide highway. Even if the toll booths are slow, adding lanes makes traffic faster. Total resistance drops.
Prototyping Protocol
Power Off
Never modify a circuit with the battery connected. Safety first!
Identify Nodes
On a breadboard, vertical columns are linked. Check your paths!
No Shorts
Ensure positive and negative wires never touch directly without a load.
Safety Goggles Required for Lab Activity

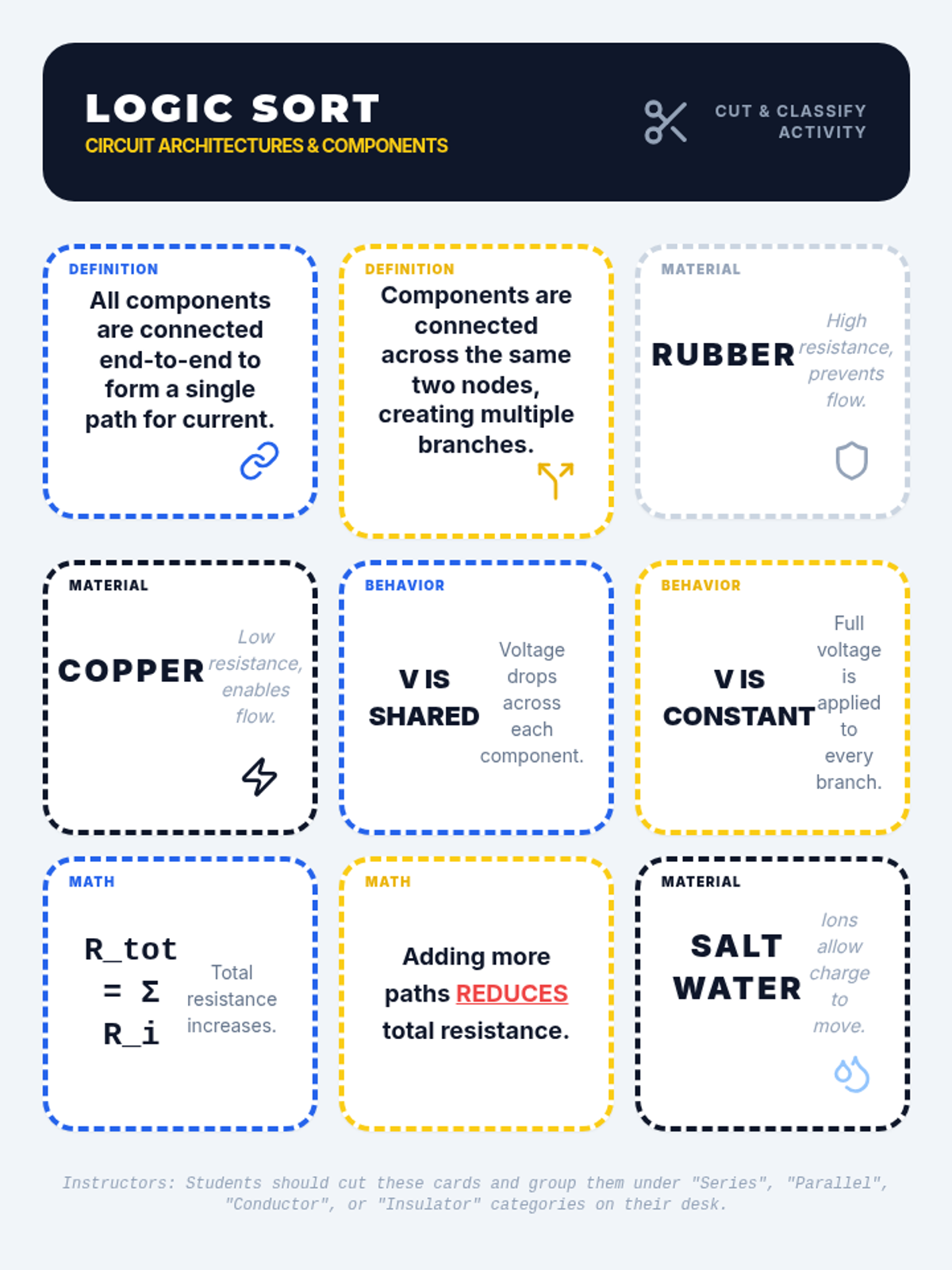

Circuit Logic Card Sort Logic Sort
Circuit Architectures & Components
Cut & Classify
DEFINITION
All components are connected end-to-end to form a single path for current.
DEFINITION
Components are connected across the same two nodes, creating multiple branches.
MATERIAL
Rubber
High resistance, prevents flow.
MATERIAL
Copper
Low resistance, enables flow.
BEHAVIOR
V is shared
Voltage drops across each component.
BEHAVIOR
V is constant
Full voltage is applied to every branch.
MATH
R_tot = Σ R_i
Total resistance increases.
MATH
Adding more paths reduces total resistance.
MATERIAL
Salt Water
Ions allow charge to move.
Instructors: Students should cut these cards and group them under "Series", "Parallel", "Conductor", or "Insulator" categories on their desk.

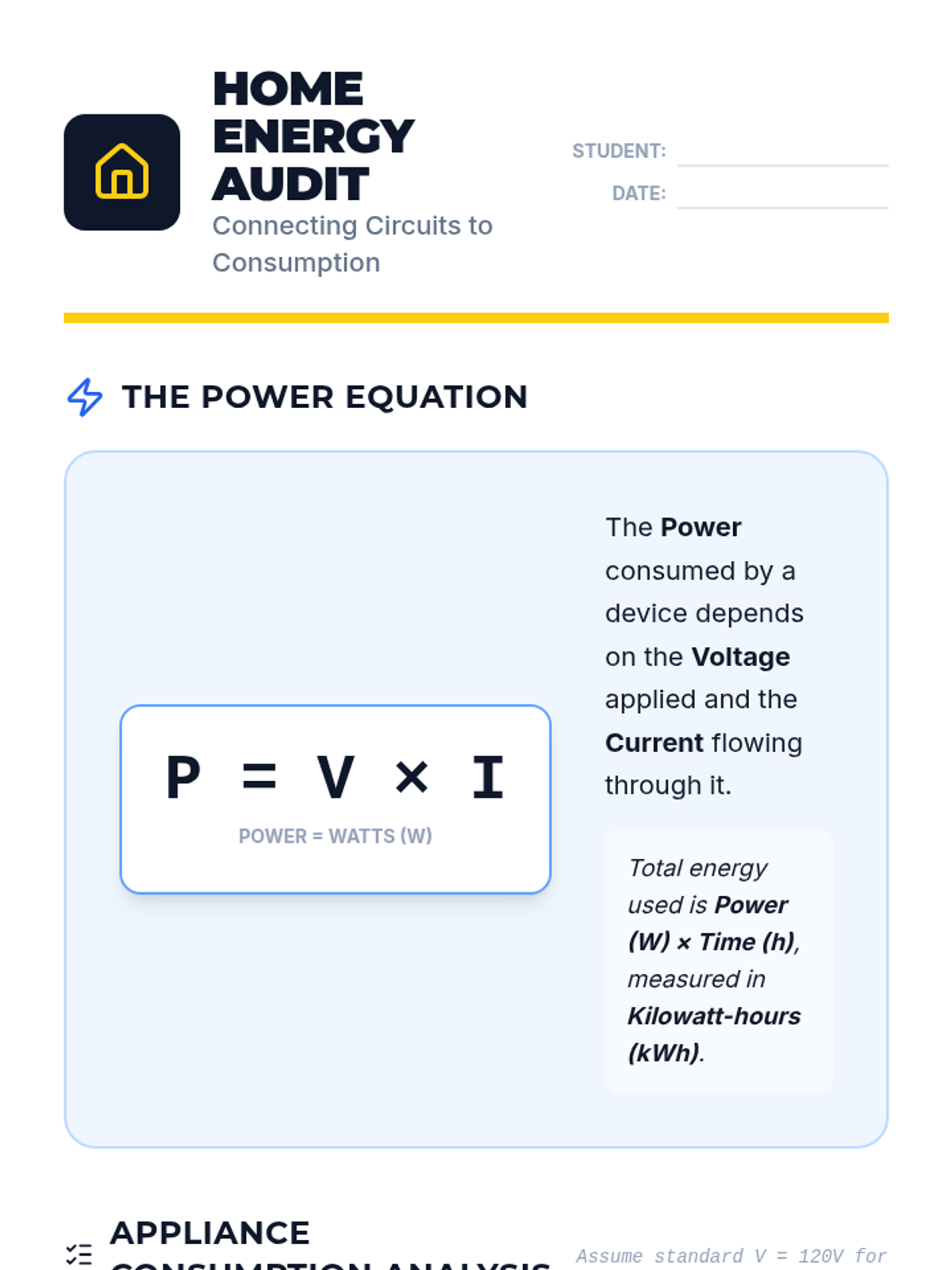

Energy Audit Worksheet Home Energy Audit
Connecting Circuits to Consumption
Student:
Date:
The Power Equation
P = V × I
Power = Watts (W)
The Power consumed by a device depends on the Voltage applied and the Current flowing through it.
Total energy used is Power (W) × Time (h) , measured in Kilowatt-hours (kWh) .
Appliance Consumption Analysis
Assume standard V = 120V for all items.
Appliance Current (I) Power (Watts) Calculations Microwave 9.2 A ________________ W 120V × 9.2A LED TV 0.5 A ________________ W Gaming PC 3.75 A ________________ W Refrigerator 6.5 A ________________ W
The Efficiency Challenge
Modern homes use Parallel Circuits for all appliances. If you turn on a hair dryer (high power) in the same bathroom as an LED light bulb (low power), why does the hair dryer use so much more energy even though they are both plugged into 120V outlets?

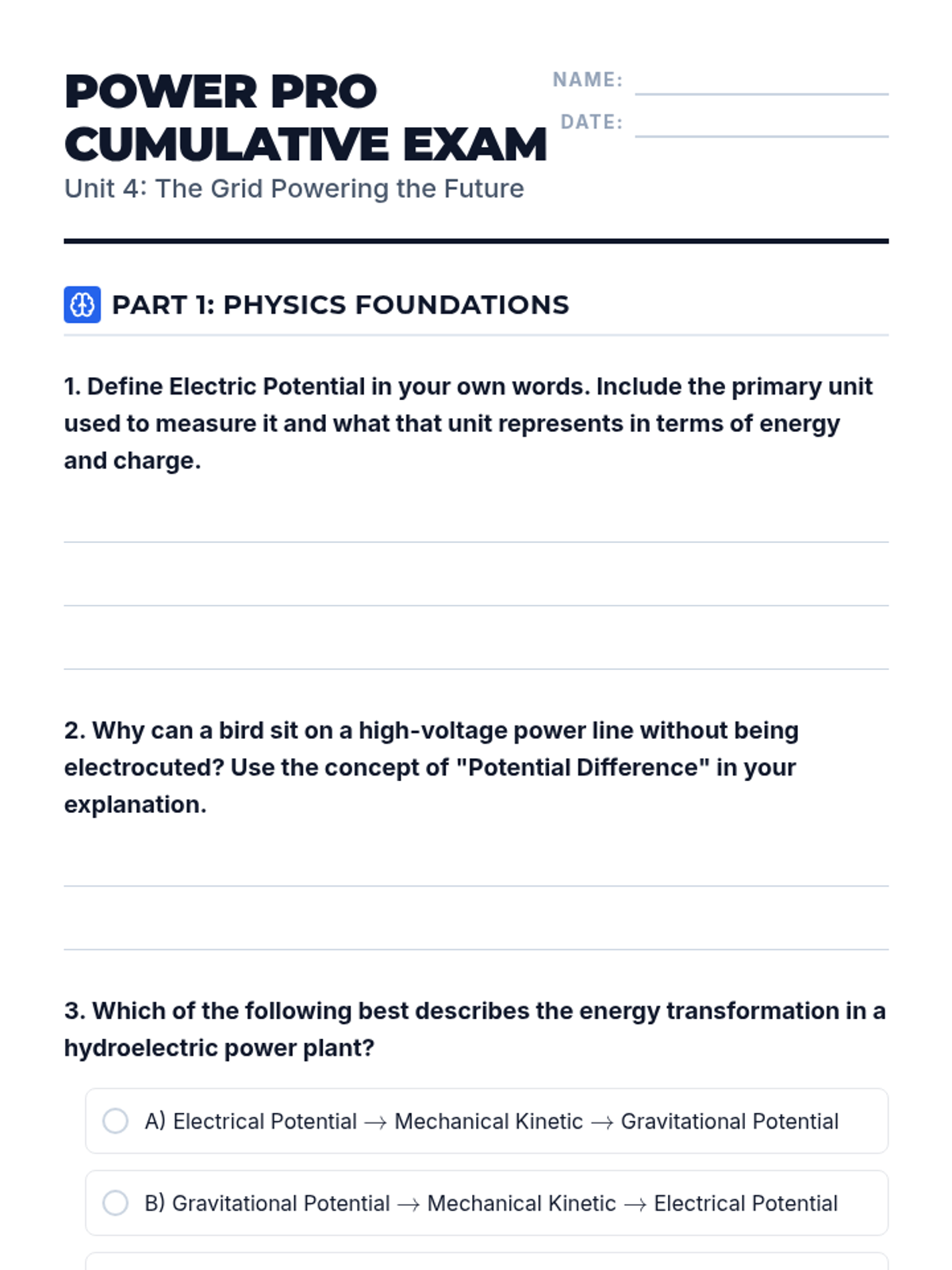

Power Pro Cumulative Exam Swapped Power Pro Cumulative Exam
Unit 4: The Grid Powering the Future
Name:
Date:
Part 1: Physics Foundations
1. Define Electric Potential in your own words. Include the primary unit used to measure it and what that unit represents in terms of energy and charge.
2. Why can a bird sit on a high-voltage power line without being electrocuted? Use the concept of "Potential Difference" in your explanation.
3. Which of the following best describes the energy transformation in a hydroelectric power plant?
A) Electrical Potential \(\rightarrow\) Mechanical Kinetic \(\rightarrow\) Gravitational Potential
B) Gravitational Potential \(\rightarrow\) Mechanical Kinetic \(\rightarrow\) Electrical Potential
C) Chemical Potential \(\rightarrow\) Thermal Energy \(\rightarrow\) Electrical Potential
D) Mechanical Kinetic \(\rightarrow\) Magnetic Potential \(\rightarrow\) Thermal Energy
Part 2: Circuit Analysis
4. Calculate the unknown value in each scenario below. Show your work and include units.
Scenario A
Voltage = 12V, Resistance = 4\(\Omega\)
Current (I) = __________
Scenario B
Current = 2A, Resistance = 110\(\Omega\)
Voltage (V) = __________
5. Compare Series and Parallel circuits. If one bulb burns out in a string of holiday lights and the entire string goes dark, what type of circuit architecture is being used? Explain why this happens.
6. Total Resistance Calculation:
You have three resistors: 10\(\Omega\), 20\(\Omega\), and 30\(\Omega\). Calculate the total resistance if they are wired in Series .
7. Voltage in Parallel:
If a 9V battery is connected to three resistors in Parallel , what is the voltage across the third resistor? Explain your reasoning.
Part 3: Power & Grid Design
8. Power Calculation (\(P = V \times I\)):
An appliance in your home runs on 120V and draws 5A of current. How many Watts of power does it consume? If it runs for 10 hours, how many kilowatt-hours (kWh) of energy is used?
Power (W) Work:
Energy (kWh) Work:
9. Efficiency Challenge:
No machine is 100% efficient. In an electrical grid, some energy is lost as heat during transmission. Explain why power companies "step up" the voltage to extremely high levels (500,000V+) for long-distance travel.
Design Challenge
You are designing a security system for a house. You want a single switch to turn on three separate alarms. However, if one alarm is damaged by an intruder, you want the other two to keep ringing.

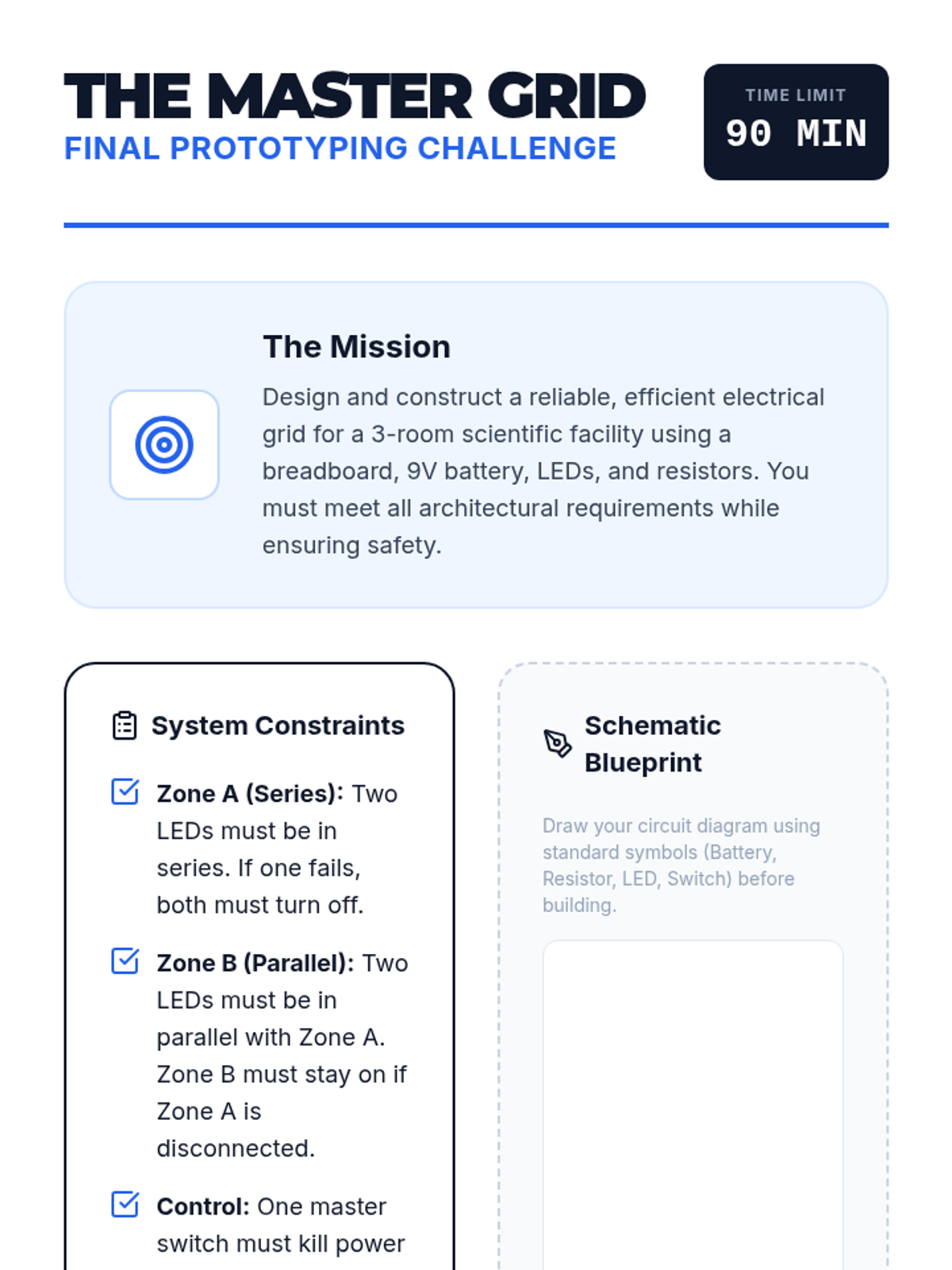

Grid Design Challenge Activity The Master Grid
Final Prototyping Challenge
Time Limit
90 MIN
The Mission
Design and construct a reliable, efficient electrical grid for a 3-room scientific facility using a breadboard, 9V battery, LEDs, and resistors. You must meet all architectural requirements while ensuring safety.
System Constraints
Zone A (Series): Two LEDs must be in series. If one fails, both must turn off.Zone B (Parallel): Two LEDs must be in parallel with Zone A. Zone B must stay on if Zone A is disconnected.Control: One master switch must kill power to the entire grid.Protection: Every LED path must have a resistor to prevent burnout.
Schematic Blueprint
Draw your circuit diagram using standard symbols (Battery, Resistor, LED, Switch) before building.
System Performance Audit
Metric Measured Value Calculation / Units Total Battery Voltage (V_total) ________________ Volts (V) Total System Current (I_total) ________________ Amperes (A) Total Power Consumed (P) ________________ P = V × I (Watts)
Post-Design Reflection
If you added another LED in Parallel to your current system, what would happen to the total resistance and the total current? Justify your answer using Ohm's Law.

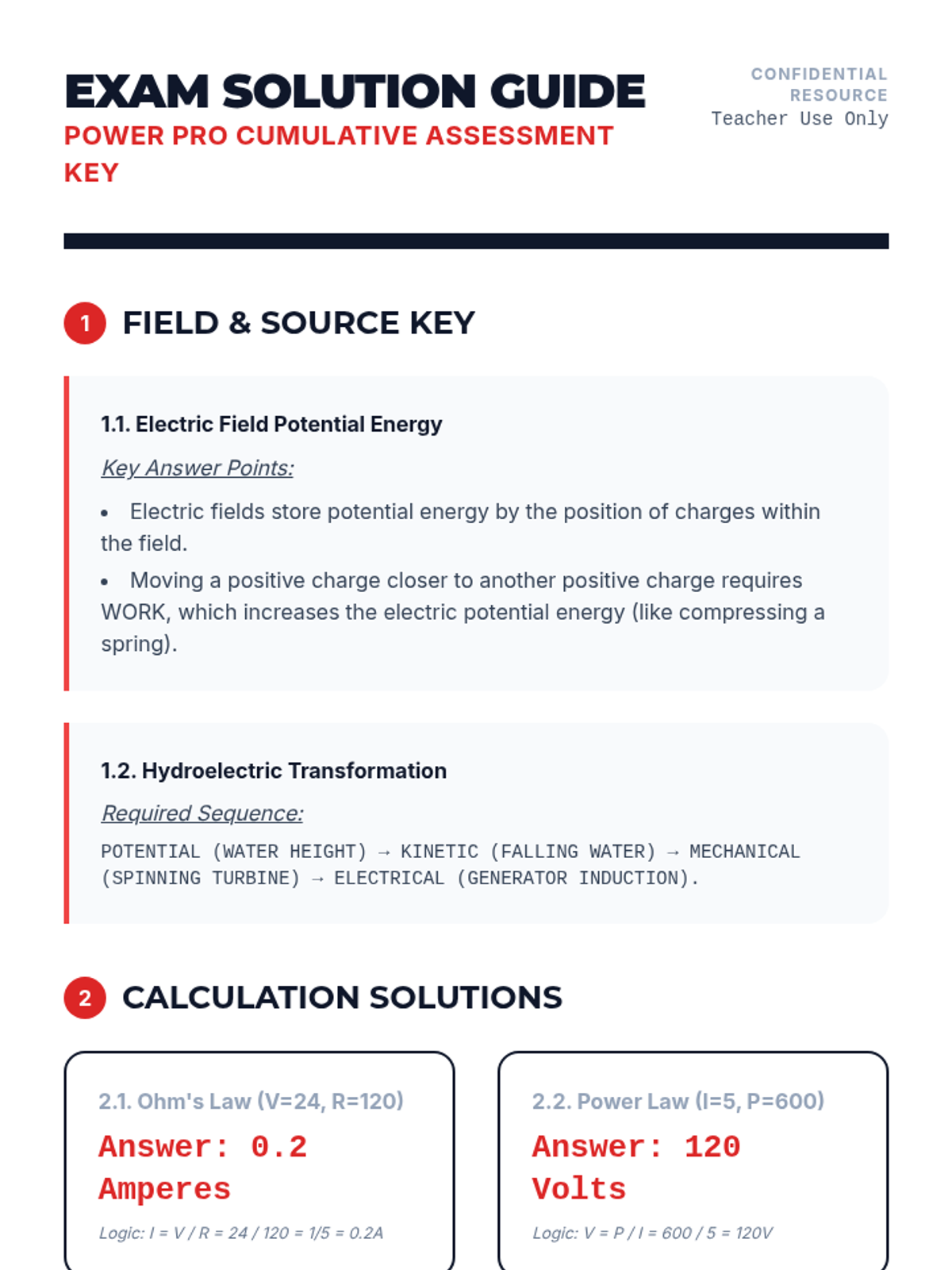

Power Pro Exam Answer Key Exam Solution Guide
Power Pro Cumulative Assessment Key
Confidential Resource
Teacher Use Only
1
Field & Source Key
1.1. Electric Field Potential Energy
Key Answer Points:
Electric fields store potential energy by the position of charges within the field.
Moving a positive charge closer to another positive charge requires WORK, which increases the electric potential energy (like compressing a spring).
1.2. Hydroelectric Transformation
Required Sequence:
Potential (Water height) → Kinetic (Falling water) → Mechanical (Spinning Turbine) → Electrical (Generator Induction).
2
Calculation Solutions
2.1. Ohm's Law (V=24, R=120)
Answer: 0.2 Amperes
Logic: I = V / R = 24 / 120 = 1/5 = 0.2A
2.2. Power Law (I=5, P=600)
Answer: 120 Volts
Logic: V = P / I = 600 / 5 = 120V
3
Multiple Choice Answers
3.1. Parallel Resistance B
3.2. Series Circuit Rule C
Explanation 3.1: Adding branches reduces total resistance because you are providing more 'lanes' for traffic.
4. Reflection Rubric Points
Redundancy: Parallel allows individual devices to stay on if one fails or is switched off.Constant Voltage: Every device in parallel receives the full 120V from the source, ensuring full power performance.
