RNA Imposter Slides The RNA Imposter
Contrasting DNA and RNA Structure
Spot the Difference
Molecule A
Double Helix
• Bases: A, T, C, G
• Sugar: Deoxyribose
Molecule B
Single Strand
• Bases: A, U, C, G
• Sugar: Ribose
One is a vault, the other is a messenger. Which is which?
The Genetic Comparison
1. The Sugar
DNA uses Deoxyribose (lacks oxygen).
RNA uses Ribose (has oxygen).
2. The Strands
DNA is Double-Stranded (Stable Helix).
RNA is Single-Stranded (Flexible).
3. The Bases
DNA has Thymine (T) .
RNA replaces it with Uracil (U) .
Why RNA?
Mobility
DNA is too bulky and valuable to leave the nucleus. RNA is a lightweight copy that can travel to the ribosome "factory."
Control
RNA can be broken down easily. This allows the cell to stop making a protein once it has enough, like an expiring coupon.
Think-Pair-Share
"If RNA is single-stranded and less stable, why doesn't the cell just use DNA for everything?"
Think: 30s
Pair: 1m
Share: 2m
Molecular Comparison Worksheet Molecular Comparison Lab
Dossier: Nucleic Acid Identification
Name: ____________________________
Date: _____________________________
1
Identification Challenge
Observe the two molecular snippets below. Identify which is DNA and which is RNA based on their visible characteristics.
Snippet A
Observation:
Identity:
Snippet B
Observation:
Identity:
2
Feature Matrix
Feature DNA (Deoxyribonucleic Acid) RNA (Ribonucleic Acid) Sugar Molecule Nitrogenous Bases A, G, C, and _________ A, G, C, and _________ Number of Strands Primary Location
3
Analysis Questions
1. Why is DNA's double-stranded structure beneficial for long-term storage of genetic information compared to RNA?
2. Uracil is chemically similar to Thymine but requires less energy to produce. Why might this be an advantage for RNA, which the cell makes in large quantities?
3. If a scientist found a nucleic acid with 23% Uracil, 23% Adenine, 27% Cytosine, and 27% Guanine, which molecule did they likely find? Explain.
DNA RNA Master Key Teacher Guide TEACHER GUIDE
Lesson 1: The RNA Imposter
Time Frame 50 Min
Instructional Flow
00-10
The Hook (Slide 2)
Students identify "Snippet A" vs "Snippet B". Use the "Find the Imposter" framing to engage them in pattern recognition.
10-25
Direct Instruction (Slides 3-4)
Focus on the 3 Main Differences. Use mnemonic devices: D NA is D ouble, R NA is R ibose.
25-45
Practice (Worksheet)
Students complete the Comparison Lab. Circulate to check for the common misconception that RNA is "broken" DNA.
45-50
Exit Ticket (Discussion)
Think-Pair-Share on the evolutionary advantage of having both stable (DNA) and temporary (RNA) molecules.
Misconception Alert
The "T for Transcription" Trap: Students often think T is in RNA because transcription starts with T. Emphasize U racil = U n-vaulted (RNA is out of the vault).
Key Master
SUGARS
DNA: Deoxyribose (Stable)
RNA: Ribose (Reactive/Temporary)
STRANDS
DNA: Double Helix (Stored Information)
RNA: Single Strand (Mobile Messenger)
BASES
DNA: A-T / C-G
RNA: A-U / C-G (U replaces T)
Critical Thinking Sample Answers:
Stability: The double helix protects the bases from damage. Having two strands allows for easy repair (using the other as a template).Energy: RNA is made in vast amounts. Using a "cheaper" base (Uracil) saves the cell significant energy over its lifespan.Identify: RNA. The presence of Uracil (U) is the definitive marker. It is likely single-stranded as A and U percentages match, but the single-strand nature makes it mRNA. Transcription Slides Message from the Nucleus
Simulating Transcription
The Vault & The Scribe
The Nucleus is a high-security library containing the only original copy of the blueprints (DNA).
You can't take the book out, but you can copy the information onto a small notepad (mRNA).
DNA mRNA
The 3-Step Process
1. Unzip
The DNA double helix unzips at a specific gene site.
2. Pair
RNA Polymerase adds RNA bases that match the DNA template.
A → U
3. Exit
The completed mRNA strand detaches and leaves the nucleus.
Transcription Check
DNA TEMPLATE:
T A C G G C A T T
mRNA STRAND:
_ _ _ _ _ _ _ _ _
Trans-cription
"Trans" (across) + "Script" (writing).
We are staying in the same language (nucleic acids) but moving it to a new script (RNA).

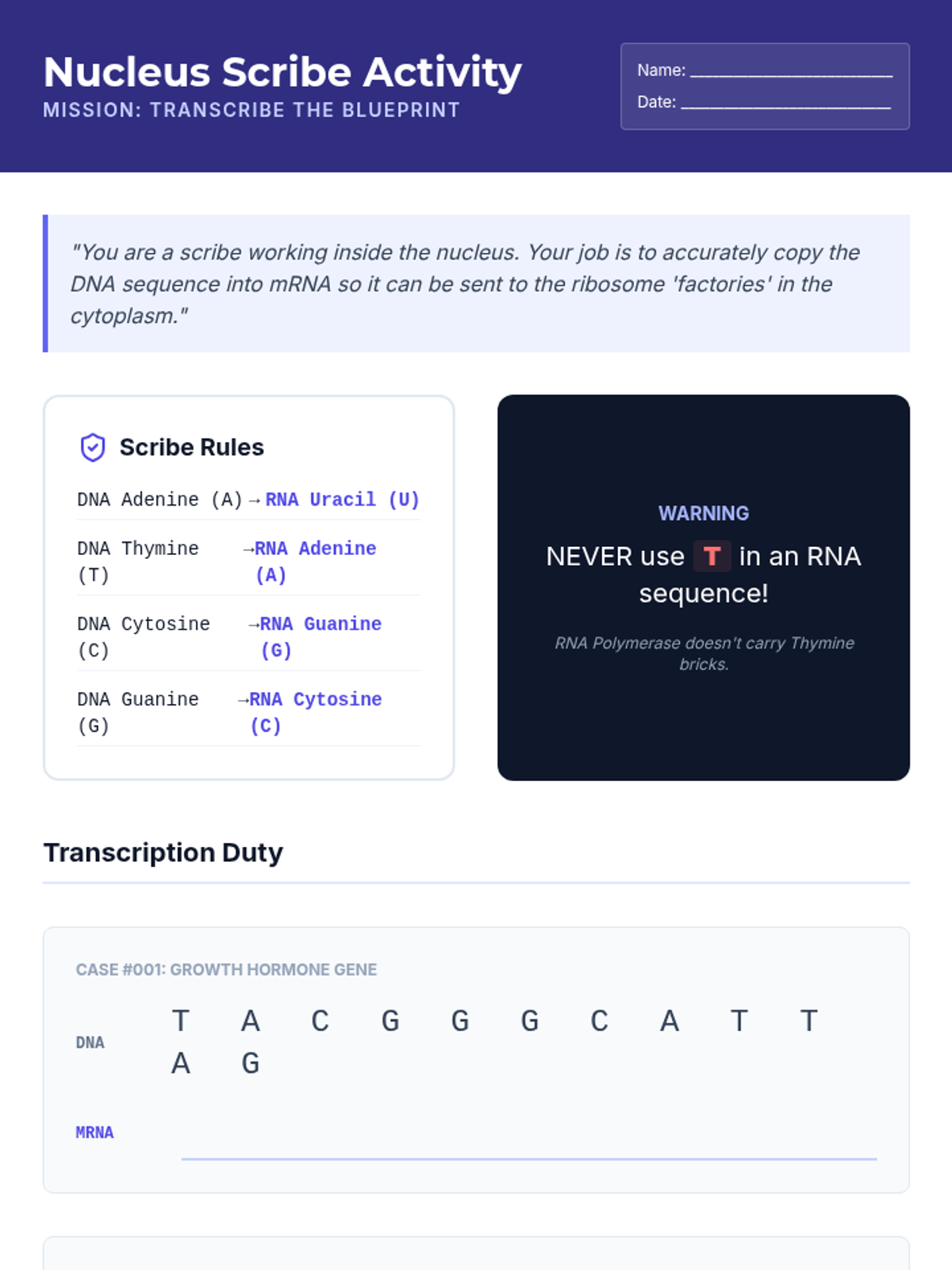

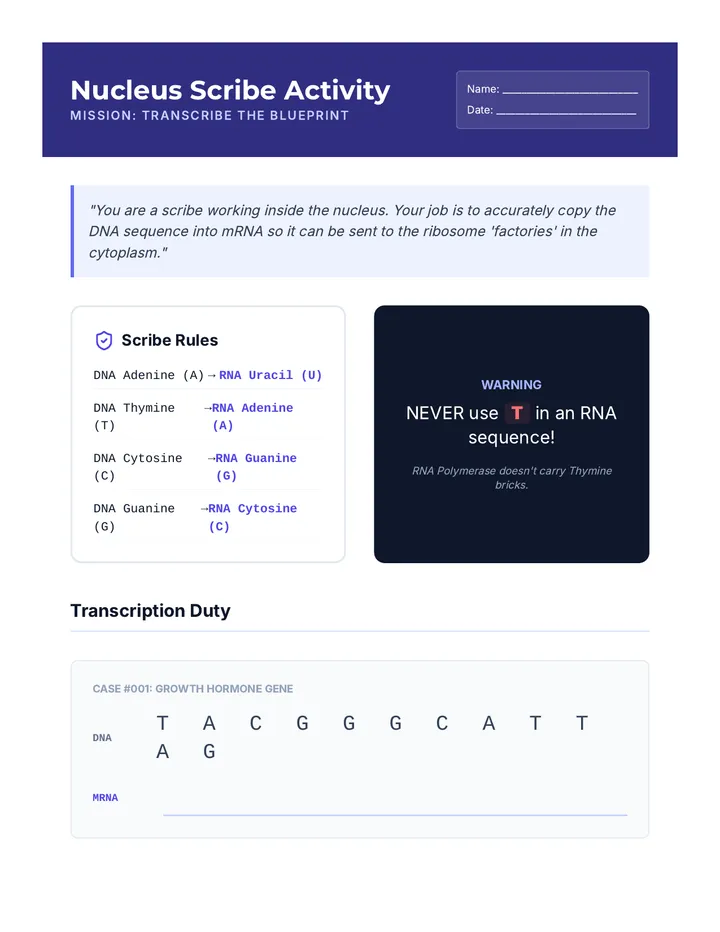

Nucleus Scribe Activity Worksheet Nucleus Scribe Activity
Mission: Transcribe the Blueprint
Name: ____________________________
Date: _____________________________
"You are a scribe working inside the nucleus. Your job is to accurately copy the DNA sequence into mRNA so it can be sent to the ribosome 'factories' in the cytoplasm."
Scribe Rules
DNA Adenine (A) → RNA Uracil (U)
DNA Thymine (T) → RNA Adenine (A)
DNA Cytosine (C) → RNA Guanine (G)
DNA Guanine (G) → RNA Cytosine (C)
Warning
NEVER use T in an RNA sequence!
RNA Polymerase doesn't carry Thymine bricks.
Transcription Duty
Case #001: Growth Hormone Gene
DNA
T A C G G G C A T T A G
mRNA
Case #002: Insulin Gene Segment
DNA
C C G A T A T T C G G A
mRNA
Case #003: Hemoglobin Gene Segment
DNA
A T G C T G A G T C C A
mRNA
Scribe Reflection
1. If the DNA sequence was "AAA", what would the mRNA sequence be? Why is it NOT "TTT"?
2. An error occurred in Case #002 where a Cytosine was copied as a Uracil. What might happen to the protein later?

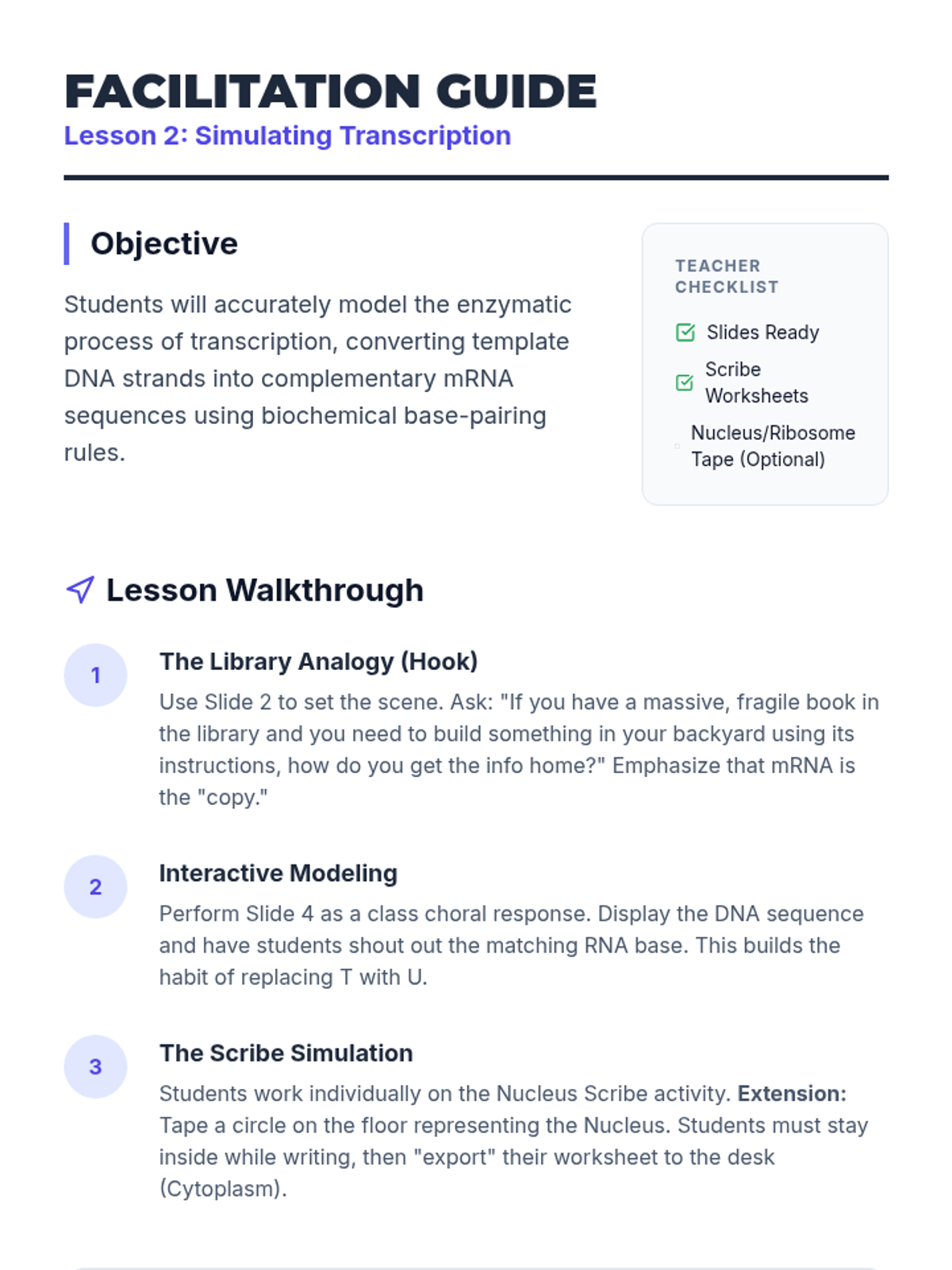

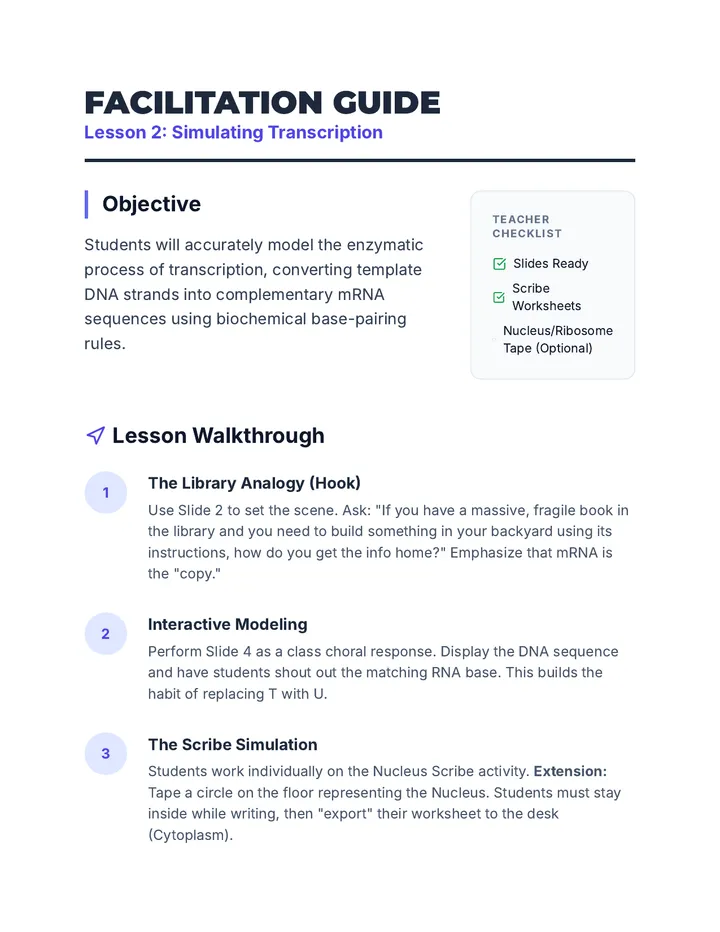

Transcription Facilitation Guide Teacher Resource Facilitation Guide
Lesson 2: Simulating Transcription
Objective
Students will accurately model the enzymatic process of transcription, converting template DNA strands into complementary mRNA sequences using biochemical base-pairing rules.
Teacher Checklist
Slides Ready
Scribe Worksheets
Nucleus/Ribosome Tape (Optional)
Lesson Walkthrough
1
The Library Analogy (Hook)
Use Slide 2 to set the scene. Ask: "If you have a massive, fragile book in the library and you need to build something in your backyard using its instructions, how do you get the info home?" Emphasize that mRNA is the "copy."
2
Interactive Modeling
Perform Slide 4 as a class choral response. Display the DNA sequence and have students shout out the matching RNA base. This builds the habit of replacing T with U.
3
The Scribe Simulation
Students work individually on the Nucleus Scribe activity. Extension: Tape a circle on the floor representing the Nucleus. Students must stay inside while writing, then "export" their worksheet to the desk (Cytoplasm).
Master Key: Nucleus Scribe
Case #001: Growth Hormone
A U G C C C G U A A U C
Case #002: Insulin
G G C U A U A A G C C U
Case #003: Hemoglobin
U A C G A C U C A G G U
Discussion Keys:
Q1: mRNA = UUU. RNA doesn't have Thymine (T); Adenine (A) always pairs with Uracil (U).Q2: A mutation in transcription (if it were permanent) would lead to the wrong amino acid being added, potentially ruining the protein's function. Codon Cipher Slides The Codon Cipher
Decoding mRNA into Amino Acids
Coded Message
AUG GCG UUU
Decoded Result
MET - ALA - PHE
What is a Codon?
A Codon is a group of three nucleotides that act as a single "word."
Each "word" tells the cell which amino acid to add to the protein chain next.
The Genetic Keys
Circular Chart
Read from the center outward . Find the 1st letter, then move to the 2nd and 3rd ring.
Square Table
Find the row (1st letter), the column (2nd letter), and the small row (3rd letter).
Punctuation Matters
AUG
The "START" Signal
Every protein recipe begins with this codon (Methionine).
UAA, UAG, UGA
The "STOP" Signals
These tell the cell the protein is finished. Like a period at the end of a sentence.
The Degenerate Code
"There are 64 possible codons, but only 20 amino acids."
This means multiple codons can code for the same amino acid! This helps protect us from mutations.

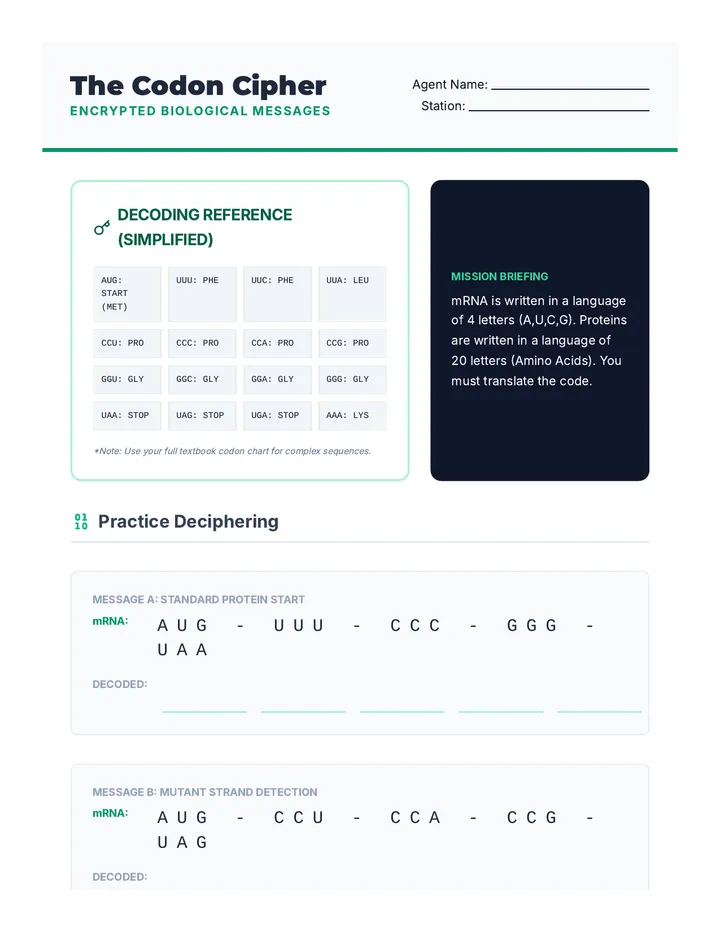

Codon Cipher Practice Worksheet The Codon Cipher
Encrypted Biological Messages
Agent Name: ____________________________
Station: ________________________________
Decoding Reference (Simplified)
AUG: START (MET)
UUU: PHE
UUC: PHE
UUA: LEU
CCU: PRO
CCC: PRO
CCA: PRO
CCG: PRO
GGU: GLY
GGC: GLY
GGA: GLY
GGG: GLY
UAA: STOP
UAG: STOP
UGA: STOP
AAA: LYS
*Note: Use your full textbook codon chart for complex sequences.
Mission Briefing
mRNA is written in a language of 4 letters (A,U,C,G). Proteins are written in a language of 20 letters (Amino Acids). You must translate the code.
Practice Deciphering
Message A: Standard Protein Start
mRNA:
AUG - UUU - CCC - GGG - UAA
Decoded:
Message B: Mutant Strand Detection
mRNA:
AUG - CCU - CCA - CCG - UAG
Decoded:
Post-Mission Debrief
1. Look at Message B. What do you notice about the amino acids in the middle of the chain? Why did this happen?
2. Redundancy check: Give another mRNA codon that would also result in the amino acid Glycine (GLY).
3. Why is it important that a protein has a "START" and "STOP" codon?

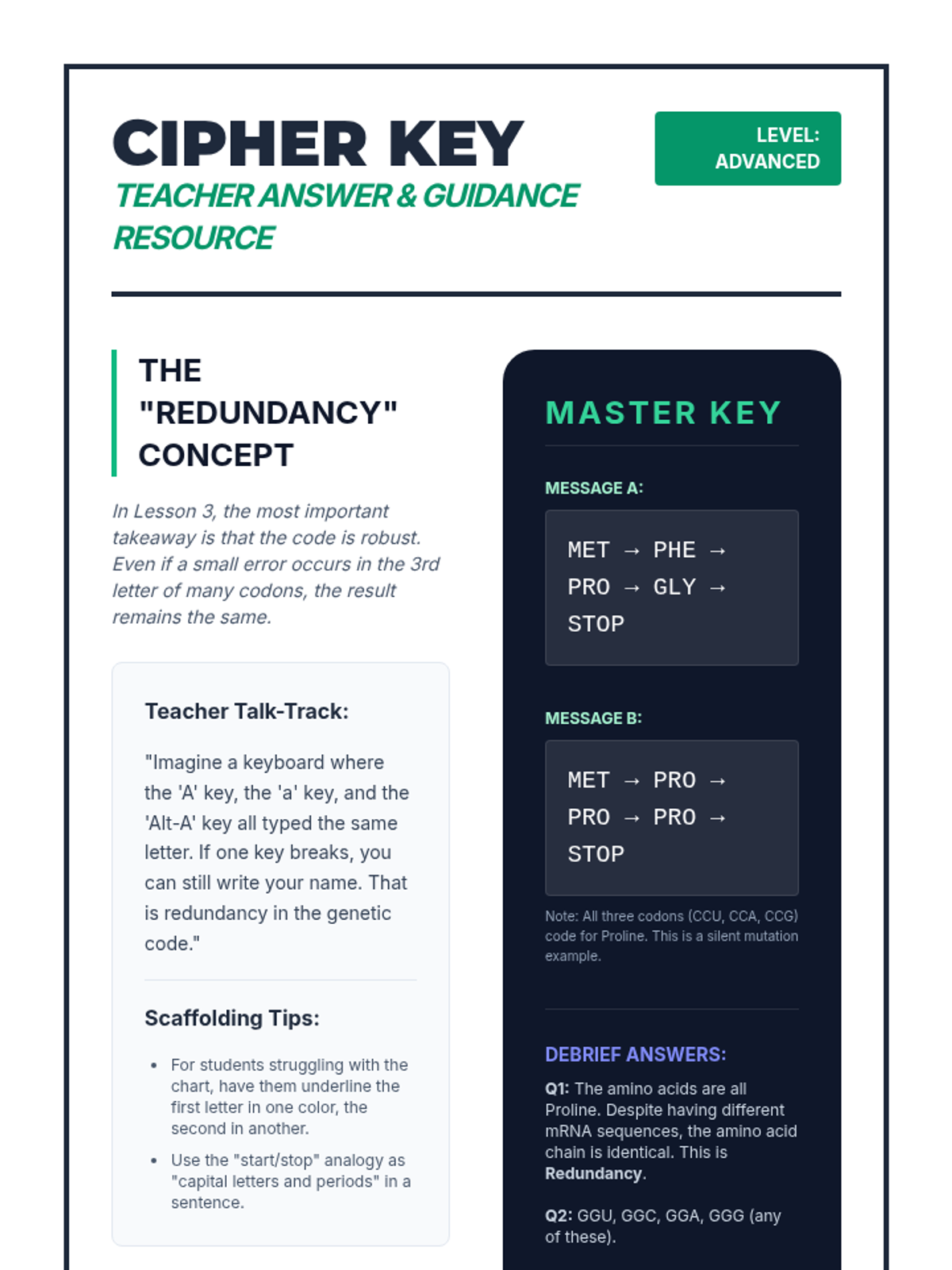

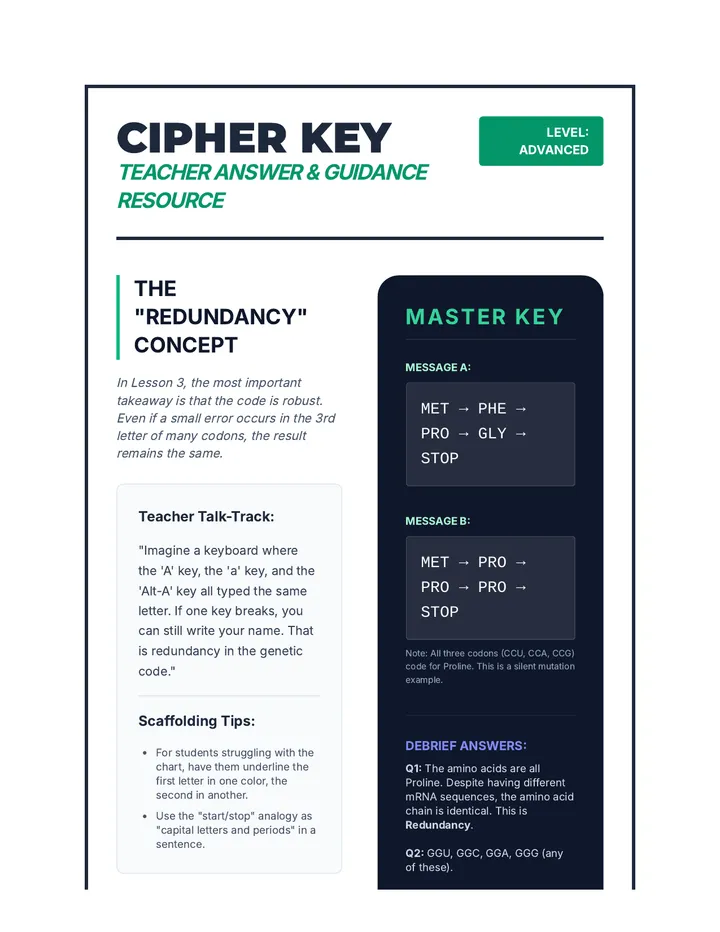

Secret Message Key Teacher Resource CIPHER KEY
Teacher Answer & Guidance Resource
LEVEL: ADVANCED
The "Redundancy" Concept
In Lesson 3, the most important takeaway is that the code is robust. Even if a small error occurs in the 3rd letter of many codons, the result remains the same.
Teacher Talk-Track:
"Imagine a keyboard where the 'A' key, the 'a' key, and the 'Alt-A' key all typed the same letter. If one key breaks, you can still write your name. That is redundancy in the genetic code."
Scaffolding Tips:
For students struggling with the chart, have them underline the first letter in one color, the second in another.
Use the "start/stop" analogy as "capital letters and periods" in a sentence.
Master Key
Message A:
MET → PHE → PRO → GLY → STOP
Message B:
MET → PRO → PRO → PRO → STOP
Note: All three codons (CCU, CCA, CCG) code for Proline. This is a silent mutation example.
Debrief Answers:
Q1: The amino acids are all Proline. Despite having different mRNA sequences, the amino acid chain is identical. This is Redundancy .Q2: GGU, GGC, GGA, GGG (any of these).Q3: Start codons tell the ribosome where to begin reading so the frame is correct. Stop codons tell the ribosome to release the chain so it can go fold into a protein. Translation Slides Protein Assembly Line
Translation: From Language to Life
Trans-lation
In Transcription, we stayed in Nucleic Acid language (DNA → RNA).
Now, we are translating into a NEW language : Amino Acids (Proteins).
English Spanish
RNA Protein
The Assembly Crew
1. The Ribosome
The factory where everything meets. It "reads" the mRNA.
2. mRNA
The blueprint card that moves through the factory line.
3. tRNA
The "truck" carrying amino acids. It has an anticodon .
The tRNA "Anti-Codon"
UAC
tRNA Anticodon
mRNA Codon
AUG
"The anticodon must match the codon perfectly for the amino acid to be delivered."
Polypeptide Chain
As the ribosome moves along the mRNA, amino acids are linked together by peptide bonds .
A protein is born.

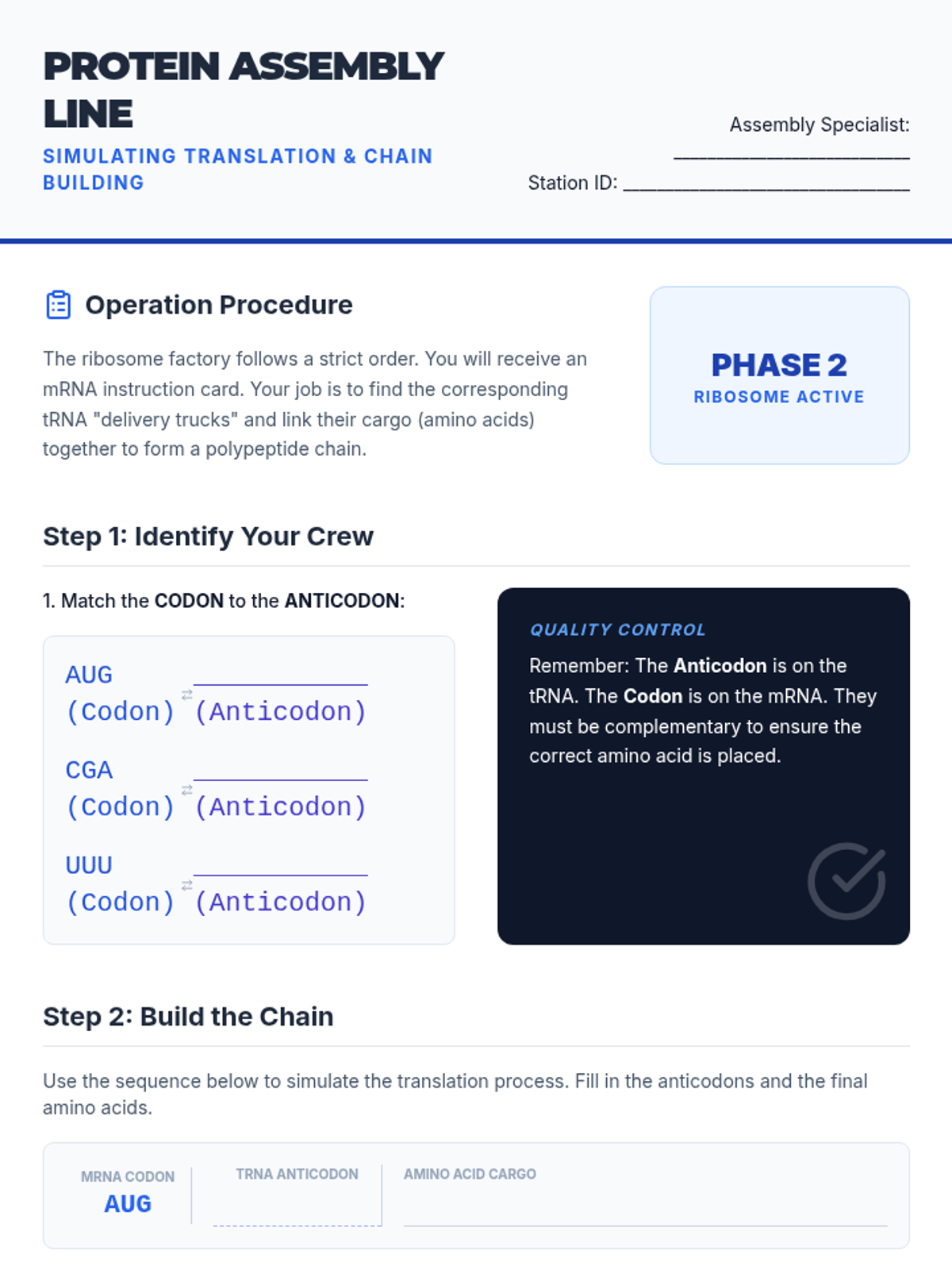

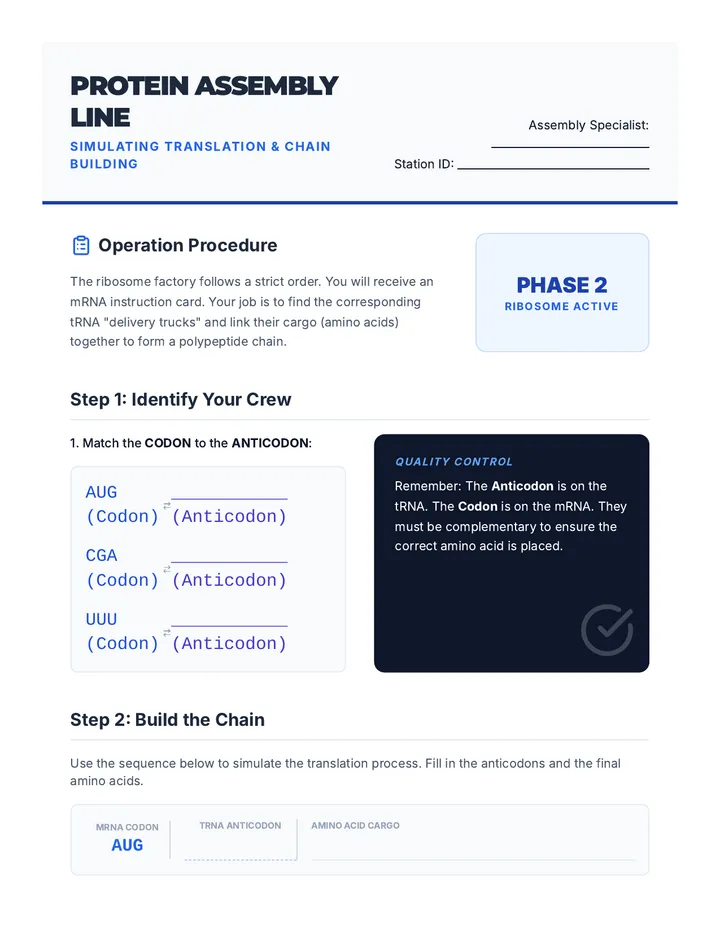

Protein Assembly Simulation Worksheet Protein Assembly Line
Simulating Translation & Chain Building
Assembly Specialist: ____________________________
Station ID: __________________________________
Operation Procedure
The ribosome factory follows a strict order. You will receive an mRNA instruction card. Your job is to find the corresponding tRNA "delivery trucks" and link their cargo (amino acids) together to form a polypeptide chain.
Phase 2 Ribosome Active
Step 1: Identify Your Crew
1. Match the CODON to the ANTICODON :
AUG (Codon) ___________ (Anticodon)
CGA (Codon) ___________ (Anticodon)
UUU (Codon) ___________ (Anticodon)
Quality Control
Remember: The Anticodon is on the tRNA. The Codon is on the mRNA. They must be complementary to ensure the correct amino acid is placed.
Step 2: Build the Chain
Use the sequence below to simulate the translation process. Fill in the anticodons and the final amino acids.
mRNA Codon
AUG
tRNA Anticodon
Amino Acid Cargo
mRNA Codon
CCG
tRNA Anticodon
Amino Acid Cargo
mRNA Codon
AAA
tRNA Anticodon
Amino Acid Cargo
mRNA Codon
UAG
tRNA Anticodon
Amino Acid Cargo

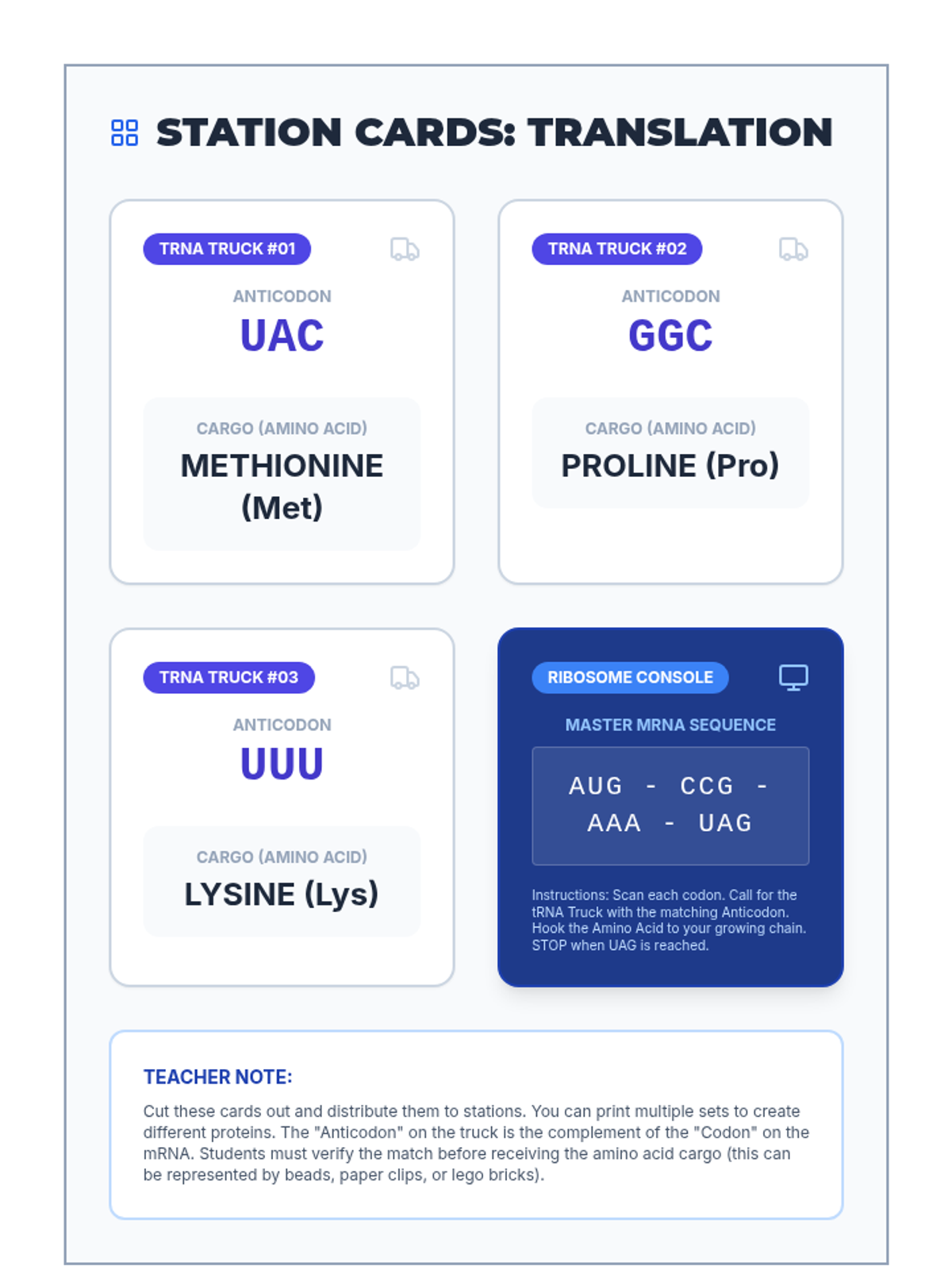

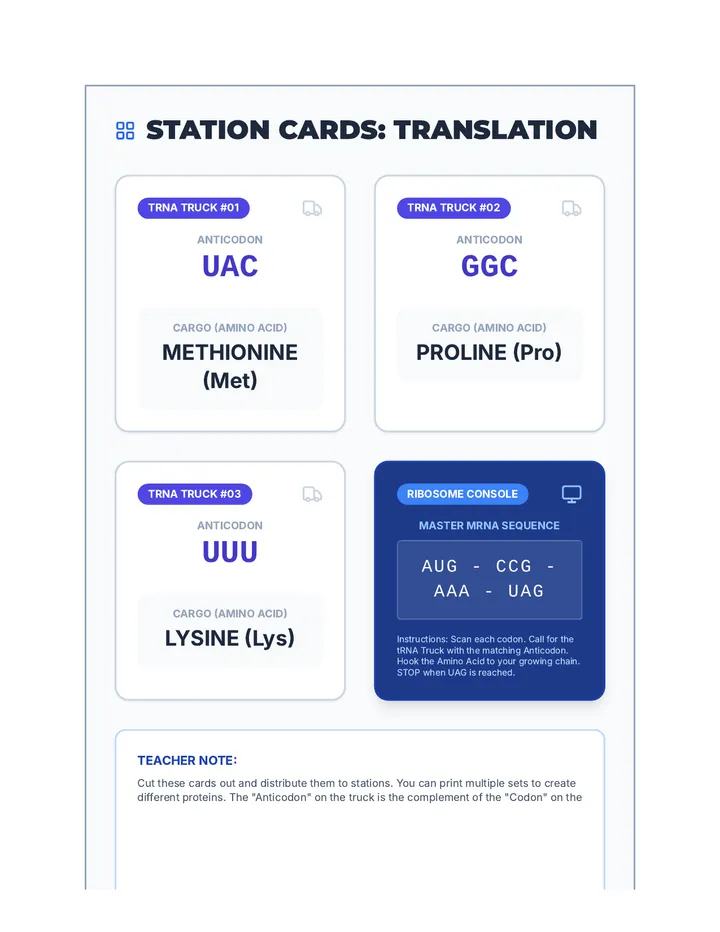

Ribosome Station Cards Activity Resource STATION CARDS: TRANSLATION
tRNA Truck #01
Anticodon
UAC
Cargo (Amino Acid)
METHIONINE (Met)
tRNA Truck #02
Anticodon
GGC
Cargo (Amino Acid)
PROLINE (Pro)
tRNA Truck #03
Anticodon
UUU
Cargo (Amino Acid)
LYSINE (Lys)
Ribosome Console
Master mRNA Sequence
AUG - CCG - AAA - UAG
Instructions: Scan each codon. Call for the tRNA Truck with the matching Anticodon. Hook the Amino Acid to your growing chain. STOP when UAG is reached.
Teacher Note:
Cut these cards out and distribute them to stations. You can print multiple sets to create different proteins. The "Anticodon" on the truck is the complement of the "Codon" on the mRNA. Students must verify the match before receiving the amino acid cargo (this can be represented by beads, paper clips, or lego bricks).
Genes to Traits Slides Blueprint to Build
Connecting Genes to Traits
The Chain Folds
A protein is not just a list of amino acids. It is a 3D machine .
The sequence of amino acids causes the chain to fold into a specific shape.
Functional Protein Shape
Shape = Job
Hemoglobin
Round and "pocketed" to grab and carry oxygen molecules through the blood.
Collagen
Long and braided like a rope to provide strength to your skin and bones.
The Central Dogma
DNA
The Code
Protein
The Machine
Trait
The Physical Result
"Your eye color, your height, and your hair texture are all just the result of specific proteins working in your cells."
What if one letter changes?
If the DNA code changes, the protein shape might change. If the shape changes, it can't do its job.
Sickle Cell Anemia
A single base change makes hemoglobin sticky and misshapen.

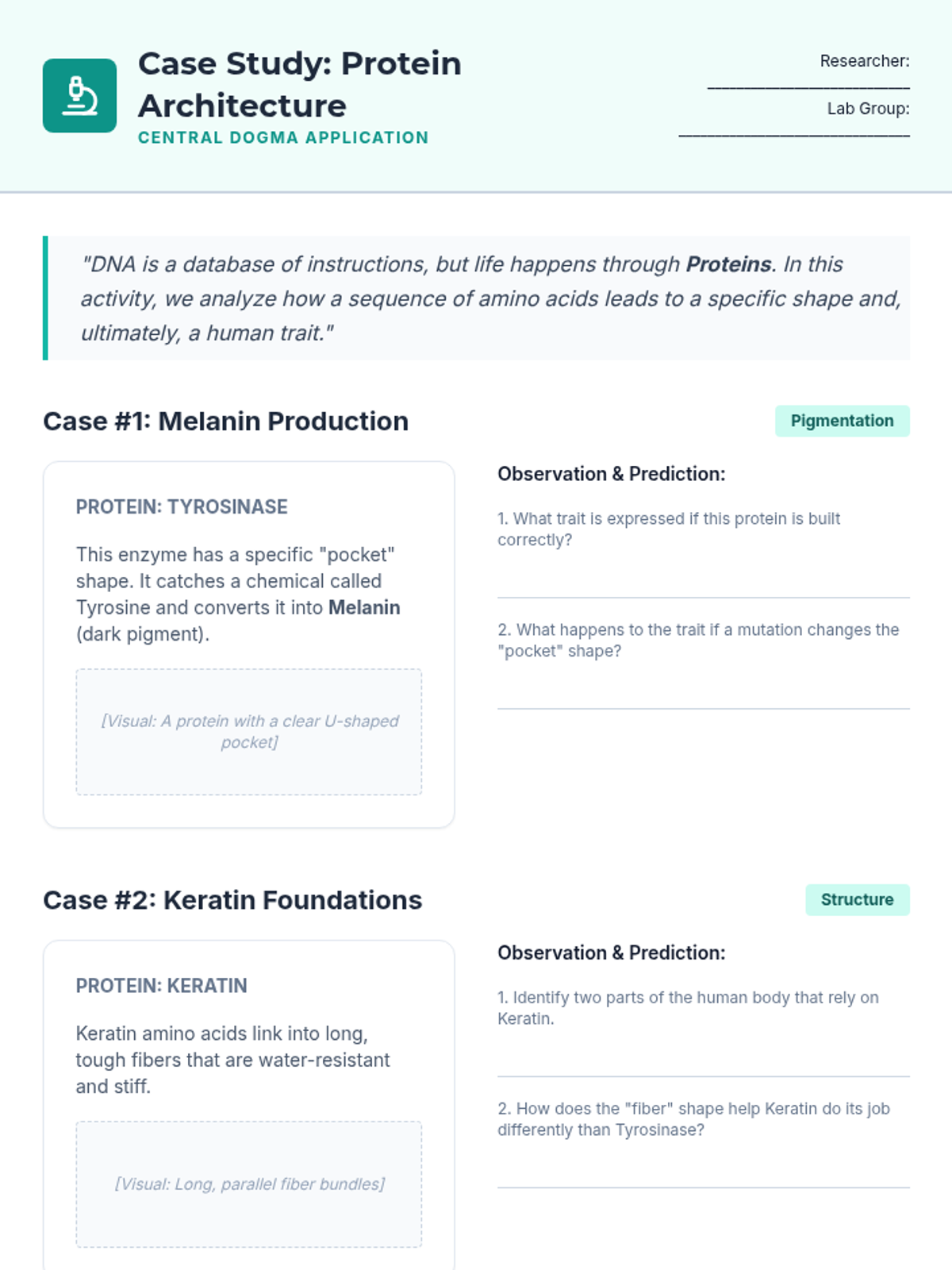

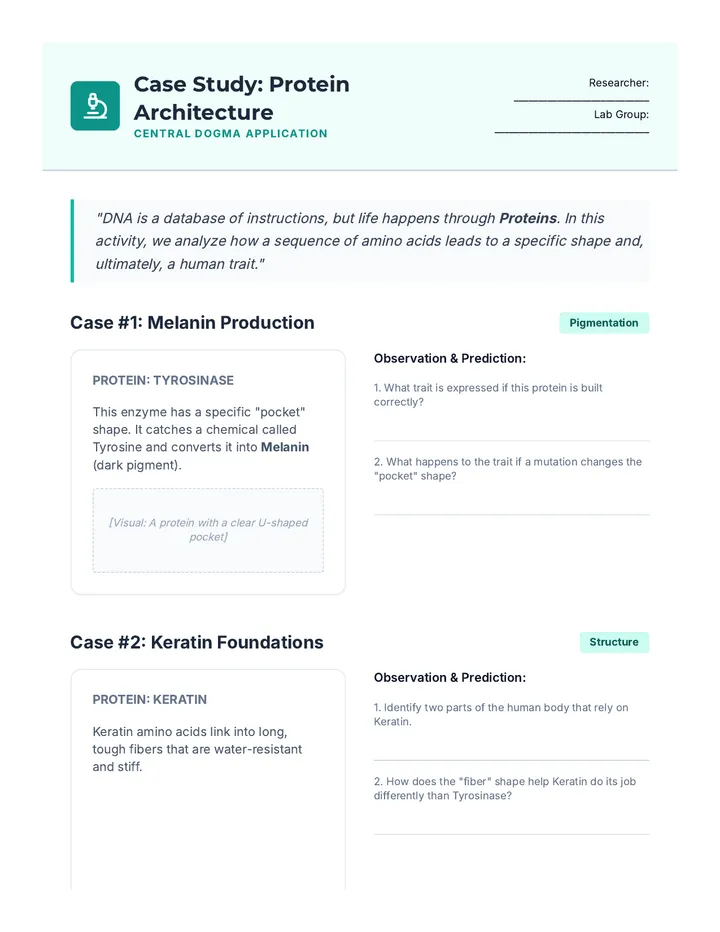

Folding and Function Case Study Worksheet Case Study: Protein Architecture
Central Dogma Application
Researcher: ____________________________
Lab Group: ________________________________
"DNA is a database of instructions, but life happens through Proteins . In this activity, we analyze how a sequence of amino acids leads to a specific shape and, ultimately, a human trait."
Case #1: Melanin Production
Pigmentation
Protein: Tyrosinase
This enzyme has a specific "pocket" shape. It catches a chemical called Tyrosine and converts it into Melanin (dark pigment).
[Visual: A protein with a clear U-shaped pocket]
Observation & Prediction:
1. What trait is expressed if this protein is built correctly?
2. What happens to the trait if a mutation changes the "pocket" shape?
Case #2: Keratin Foundations
Structure
Protein: Keratin
Keratin amino acids link into long, tough fibers that are water-resistant and stiff.
[Visual: Long, parallel fiber bundles]
Observation & Prediction:
1. Identify two parts of the human body that rely on Keratin.
2. How does the "fiber" shape help Keratin do its job differently than Tyrosinase?
Synthesis Challenge
Summarize the entire sequence of events from a gene in the nucleus to a trait you can see.
DNA (Nucleus)
mRNA
Protein (Shape)
TRAIT

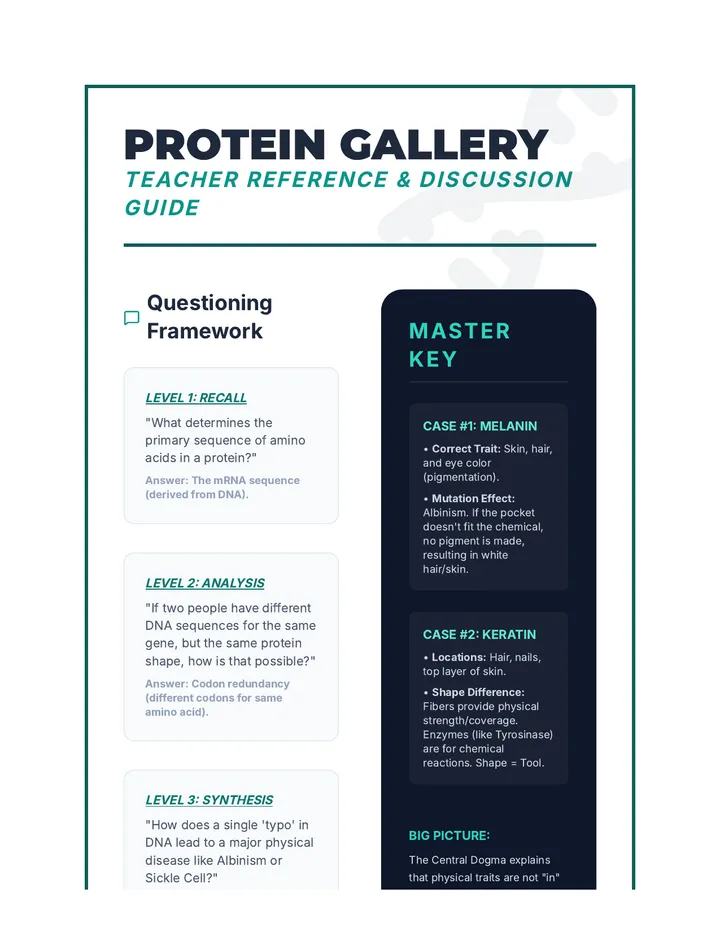

Protein Gallery Guide Teacher Resource PROTEIN GALLERY
Teacher Reference & Discussion Guide
Questioning Framework
Level 1: Recall
"What determines the primary sequence of amino acids in a protein?"
Answer: The mRNA sequence (derived from DNA).
Level 2: Analysis
"If two people have different DNA sequences for the same gene, but the same protein shape, how is that possible?"
Answer: Codon redundancy (different codons for same amino acid).
Level 3: Synthesis
"How does a single 'typo' in DNA lead to a major physical disease like Albinism or Sickle Cell?"
Answer: DNA change → RNA change → Amino acid change → Folding change → Function loss.
Master Key
CASE #1: MELANIN
• Correct Trait: Skin, hair, and eye color (pigmentation).
• Mutation Effect: Albinism. If the pocket doesn't fit the chemical, no pigment is made, resulting in white hair/skin.
CASE #2: KERATIN
• Locations: Hair, nails, top layer of skin.
• Shape Difference: Fibers provide physical strength/coverage. Enzymes (like Tyrosinase) are for chemical reactions. Shape = Tool.
Big Picture:
The Central Dogma explains that physical traits are not "in" the DNA. They are built by proteins, which are programmed by DNA. DNA is the software; Protein is the hardware.
