Orbital Mechanics Modeling

Lesson 1: State Space Representation | Advanced Dynamics

Student:

Date:

The Satellite Problem

Consider a satellite of mass \(m\) orbiting a planet in a simplified 1D radial model. The motion is governed by gravity and a radial thruster providing force \(u(t)\). The governing differential equation for the altitude \(r(t)\) is:

\[ m\ddot{r} + \frac{G M m}{r^2} = u(t) \]

Assume small perturbations \(\delta r\) around a circular orbit of radius \(R_0\), such that we can linearize the system.

1

Vector Formulation

Define your state vector \(\mathbf{x}\) and its time derivative \(\dot{\mathbf{x}}\). Use \(x_1 = r\) and \(x_2 = \dot{r}\).

State Vector \(\mathbf{x}\)

Derivative Vector \(\dot{\mathbf{x}}\)

2

System Dynamics

Express the system in the standard linear form \(\dot{\mathbf{x}} = \mathbf{Ax} + \mathbf{Bu}\). Assume a linearized gravity term around \(R_0\): \(g(r) \approx g(R_0) + \frac{\partial g}{\partial r}\big|_{R_0}(r - R_0)\).

Derive the System Matrix \(\mathbf{A}\) and Input Matrix \(\mathbf{B}\)

3

Phase Space Trajectory

Sketch the expected trajectory in the \(r\)-\(\dot{r}\) phase plane for a scenario where the thruster is off (\(u=0\)) and the satellite starts with an initial altitude higher than its stable equilibrium, with zero initial radial velocity.

Altitude (\(r\))

Radial Velocity (\(\dot{r}\))

Analysis Questions:

1. Does the state vector \(\mathbf{x}\) converge to a point, a limit cycle, or diverge? Justify based on physical intuition.

2. How would the introduction of atmospheric drag (a term proportional to \(-\dot{r}\)) change the "flow" of the vector field?

Advanced Projection

If we measure altitude through a radar system with a delay \(\tau\), such that our output is \(y(t) = r(t-\tau)\), can this be represented in the standard \(\mathbf{y} = \mathbf{Cx} + \mathbf{Du}\) form? Why or why not?

Dynamic Systems and State Space Vectors

State Space Representation

Eigenstructure and Modal Analysis

Vector Fields and Stability

Controllability and Observability Vectors

Lyapunov Functions and Global Stability

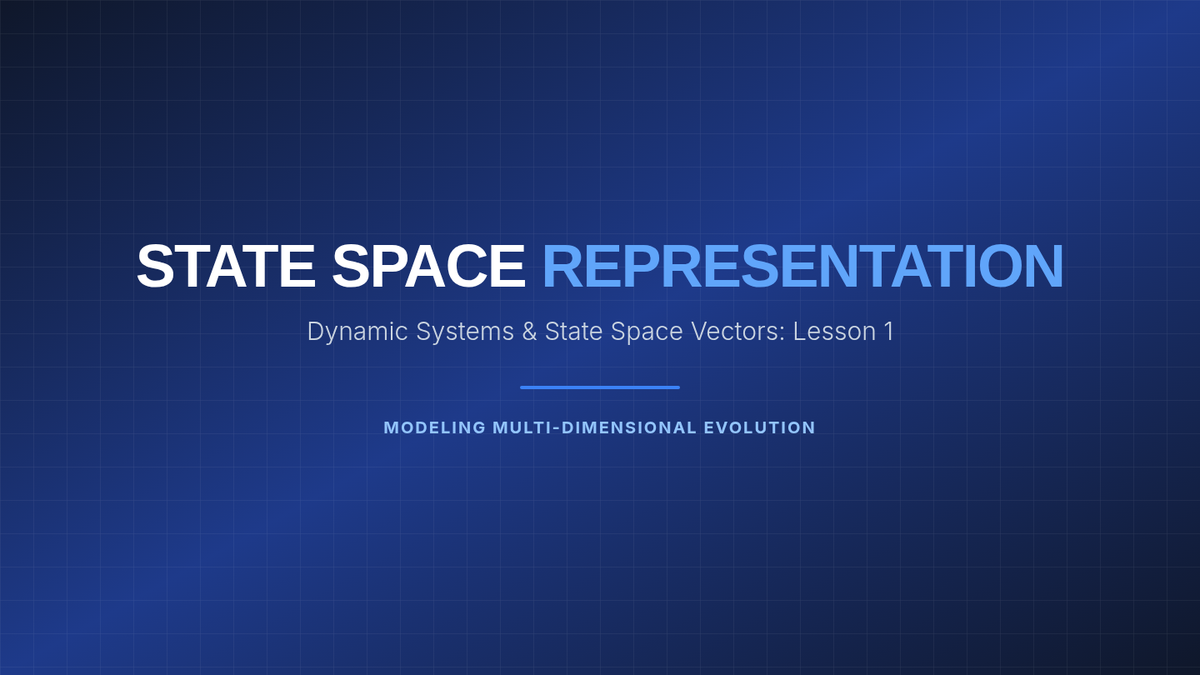

State Space Representation Slides

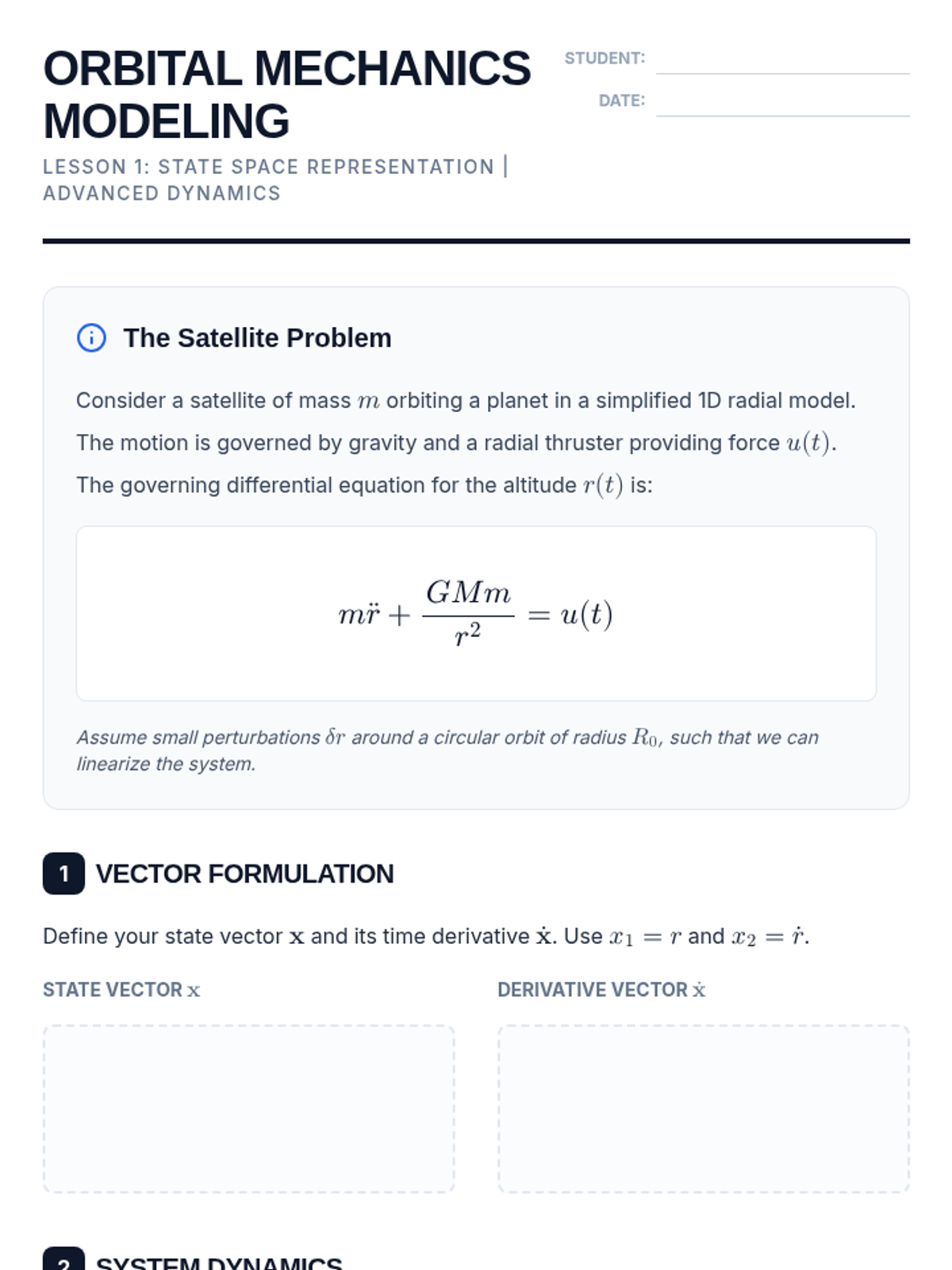

Orbital Mechanics Modeling Worksheet

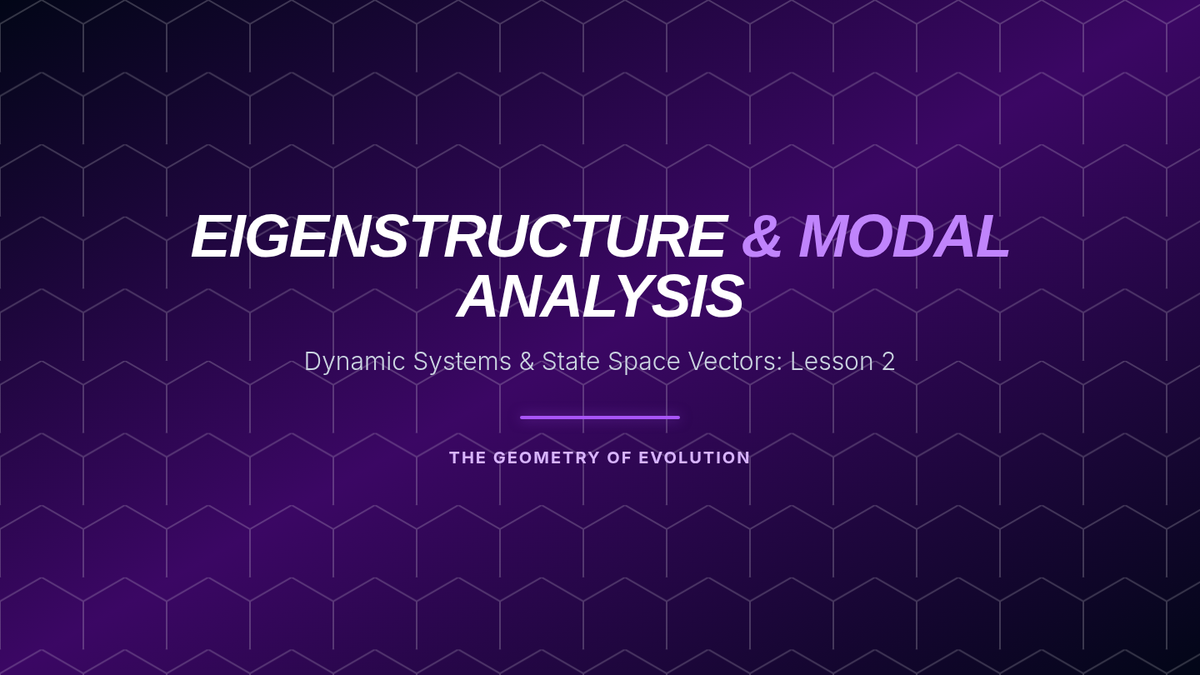

Eigenstructure Modal Slides

Vibration Modes Modal Analysis Activity

Vector Fields Stability Slides

Jacobian Linearization Case Study

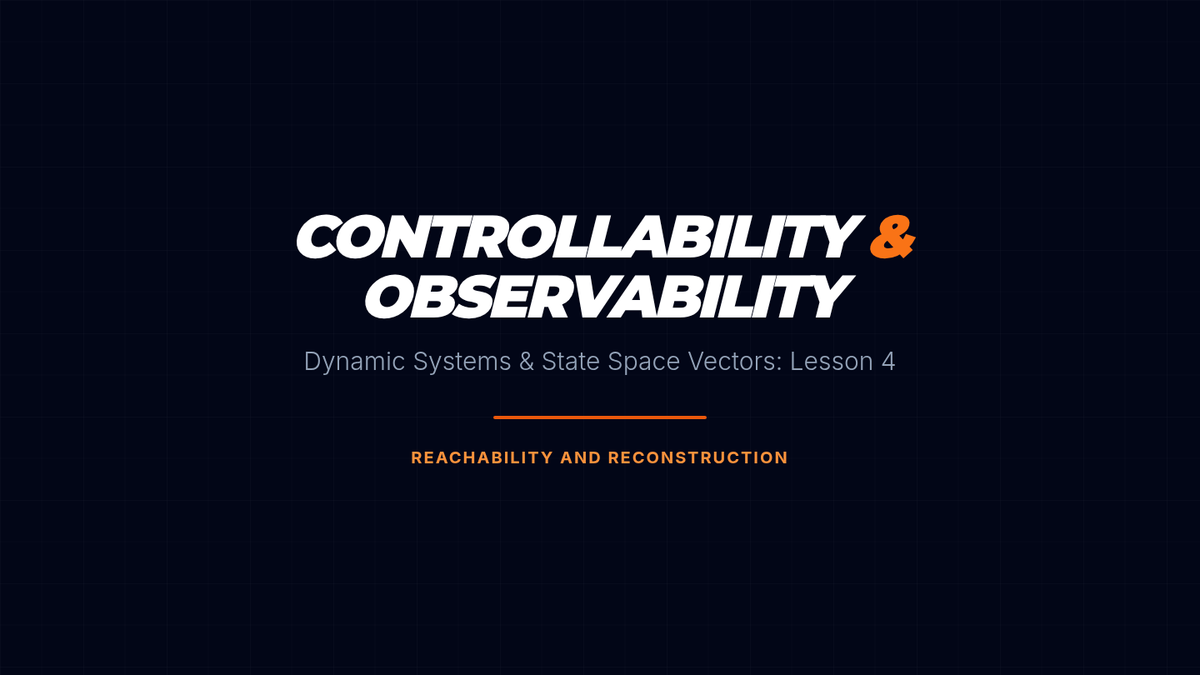

Controllability Observability Slides

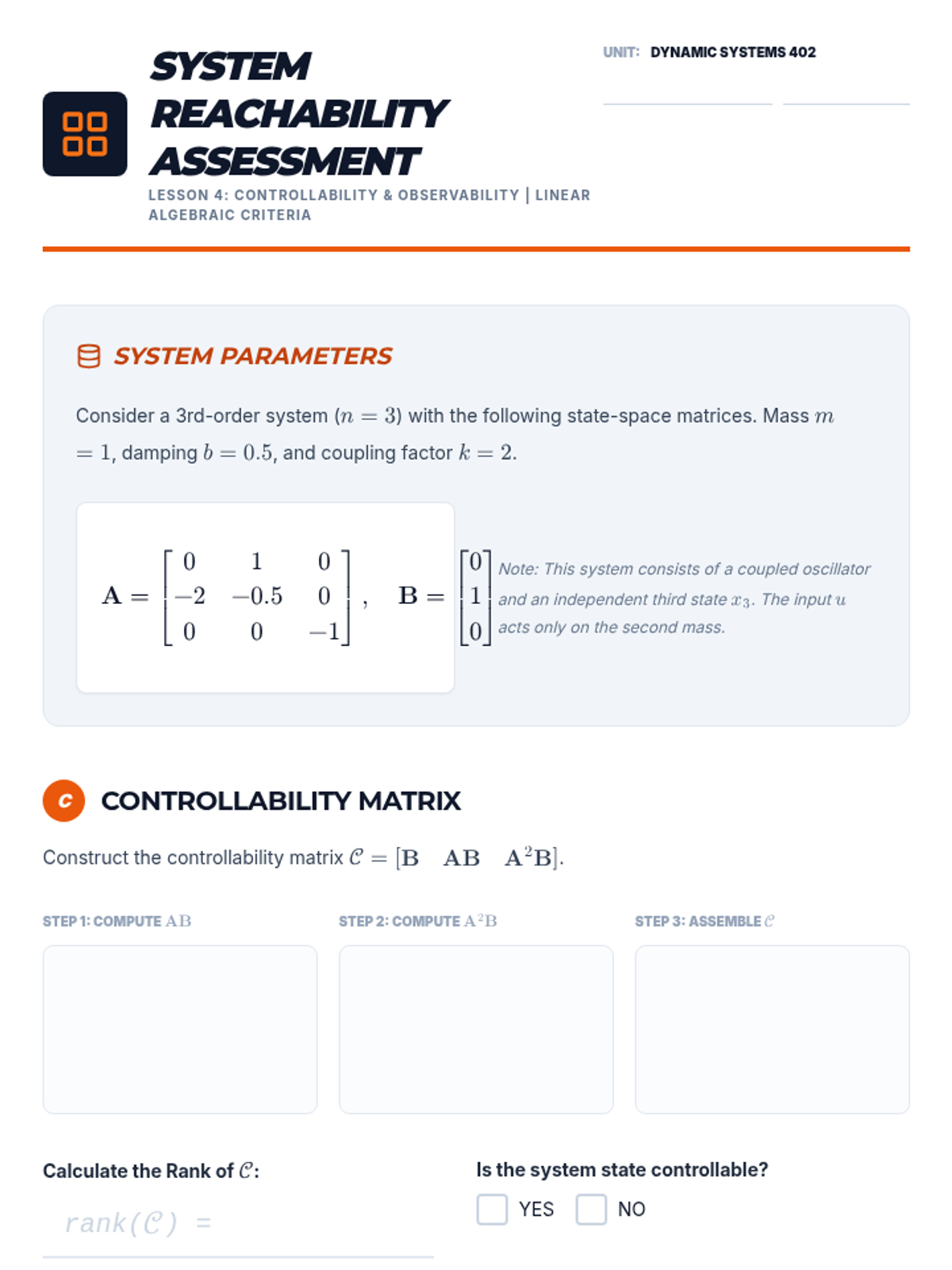

Controllability Rank Activity

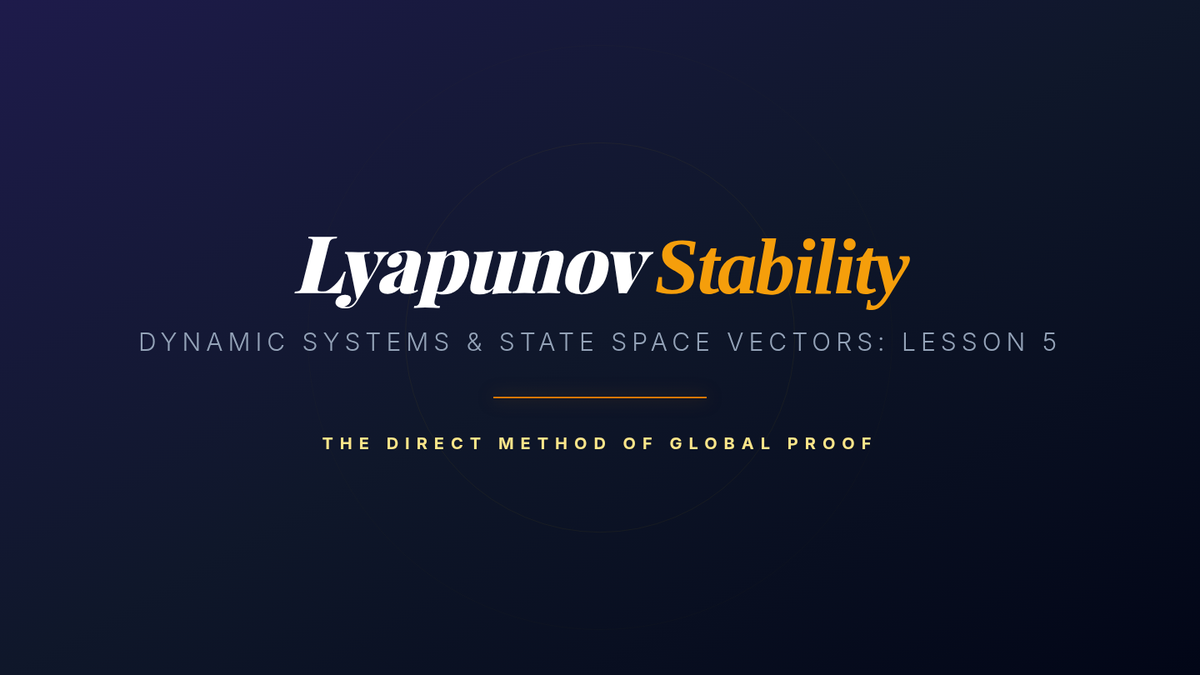

Lyapunov Functions Stability Slides

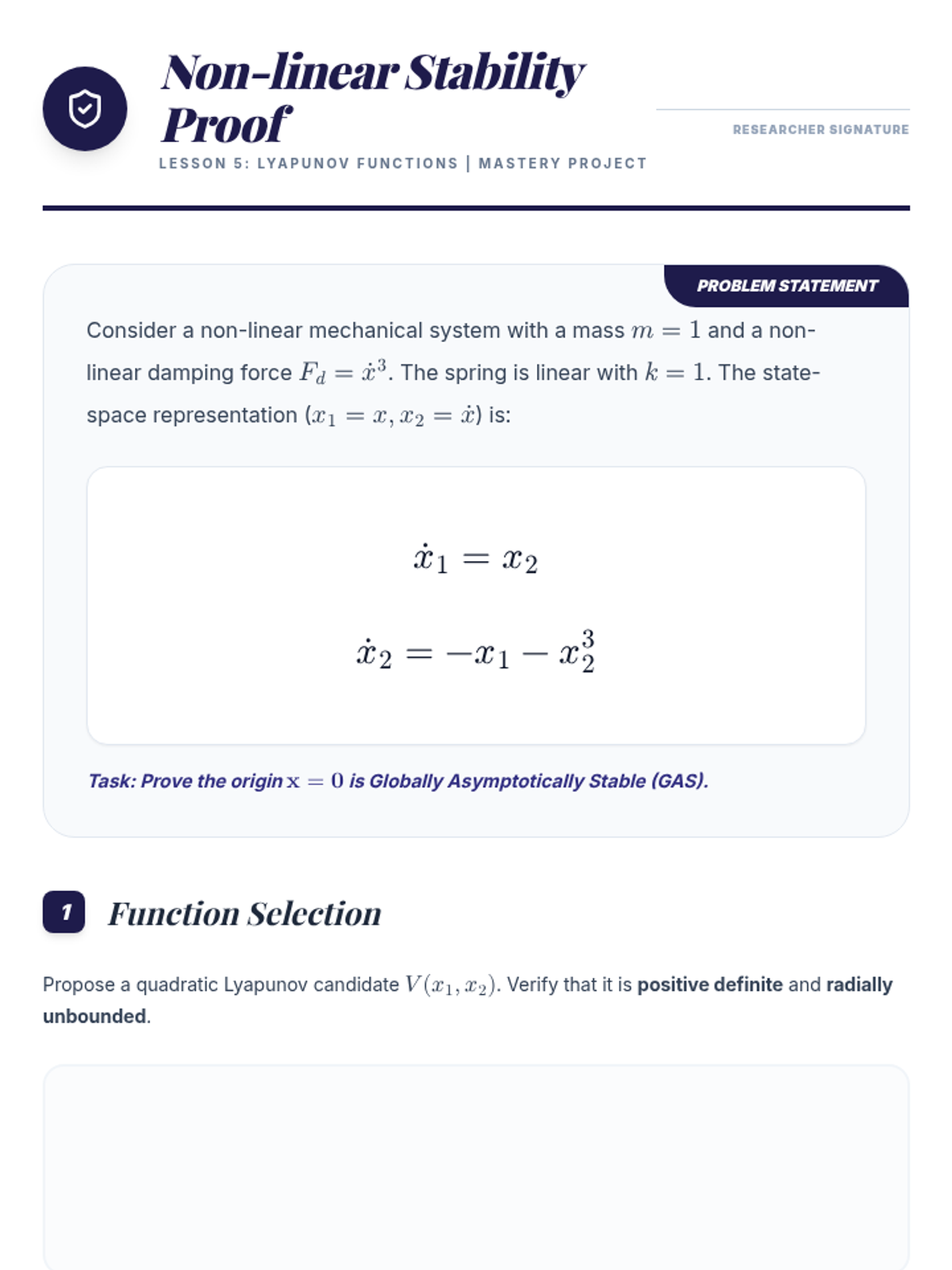

Global Stability Proof Project
