Phase Change Mechanics Slides PHASE CHANGE
MECHANICS
Lesson 01: Evaporation vs. Boiling
THERMAL REALITY CHECK
OBSERVE AND DIFFERENTIATE
SCENARIO A
A shallow salt lake in the desert slowly disappears over three months, leaving behind a crust of white minerals. No visible bubbles are seen.
SCENARIO B
A pot of water on a laboratory hot plate reaches 100°C. Large bubbles form at the bottom and rise rapidly to the surface, releasing steam.
What is the fundamental difference in energy and mechanics between these two events?
EVAPORATION VS. BOILING
FEATURE EVAPORATION BOILING LOCATION Surface of the liquid only Throughout the entire liquid TEMPERATURE Occurs at any temperature Occurs at a specific Boiling Point SPEED Slow process Rapid process BUBBLES? No bubbles form Bubbles form within
PARTICLE PERSPECTIVE
THE PHYSICS OF ESCAPING
EVAPORATION
Only high-kinetic energy particles at the surface have enough energy to overcome intermolecular forces and escape into the gas phase.
BOILING
Vapor pressure equals atmospheric pressure. Vapor can now form in "pockets" (bubbles) anywhere in the liquid, not just at the surface.
LAW OF MASS CONSERVATION
In a thermal separation, mass is neither created nor destroyed. The total mass of the mixture before separation must equal the sum of the masses of the components after separation.
MassMixture = MassSolute + MassSolvent
*In today's lab, we will recover the solute but "lose" the solvent to the atmosphere.
LAB MISSION: SOLID RECOVERY
1
Prepare a standard saltwater solution of known mass.
2
Use thermal energy to evaporate the solvent (water).
3
Quantify the recovered solute and calculate percentage mass.
Goggles required: Hot liquids may splash during final stages of evaporation!
Salt Recovery Worksheet SALT RECOVERY WORKSHOP
UNIT: THERMAL SEPARATION | LESSON 01
NAME:
DATE:
OBJECTIVE
Apply thermal energy to a liquid-solid mixture (saltwater) to separate the components via evaporation. Quantify the recovered solute and verify the Law of Conservation of Mass in a "lossy" system.
SAFETY
• ANSI Z87.1 Goggles at all times.
• Use tongs for hot glassware.
• Beware of "salt-spitting" near dry-point.
MATERIALS
100mL Beaker
Hot Plate
Electronic Balance
Glass Stir Rod
Tongs
Saltwater Solution
PROCEDURE
Mass the empty, dry beaker and record in Data Table.
Add approx. 40mL of solution to the beaker; mass again.
Place beaker on hot plate; heat until boiling begins.
Reduce heat as water level drops to avoid splattering.
Evaporate to dryness. Cool beaker, then take final mass.
LAB DATA LOG
MEASUREMENT VALUE (GRAMS) Mass of Empty Beaker (M1) Mass of Beaker + Solution (M2) Mass of Beaker + Dry Salt (M3)
CALCULATIONS (SHOW WORK)
1. MASS OF TOTAL SOLUTION (M2 - M1)
2. MASS OF RECOVERED SALT (M3 - M1)
3. MASS OF WATER EVAPORATED (M2 - M3)
4. PERCENT MASS OF SALT ( [Salt / Solution] × 100 )
ANALYSIS & OBSERVATIONS
1. At what point did you observe boiling vs. evaporation? Describe the physical difference in particle movement at these two stages.
2. Using the Law of Conservation of Mass, explain what happened to the total mass of your initial mixture. Is it "lost"?
3. Why is this technique (open-air evaporation) unsuitable if we wanted to recover the water as well as the salt?
DESIGN CHALLENGE PREVIEW
Imagine you are stranded on a desert island. You have saltwater, a fire, and a pot with a lid. Sketch or describe how you might trap the escaping water vapor to create a freshwater source.
Phase Change Mechanics Teacher Guide TEACHER GUIDE
Phase Change Mechanics
L-01
LESSON OVERVIEW
This lesson sets the foundation for distillation by focusing on the transition from liquid to gas. Students often confuse evaporation with boiling; this workshop clarifies the distinction through observation and quantitative analysis. The focus is on the Physical Property of Phase Transition .
Lab Prep & Solutions
Stock Solution
Dissolve 50g of NaCl (Kosher salt works best to avoid anti-caking cloudiness) in 1L of distilled water. This yields a 5% (m/v) solution.
Equipment Check
Ensure hot plates are functioning. Goggles are mandatory as salt solution "spits" violently when it reaches the dry point.
Pacing (60 min)
Hook / Slides 15 min
Lab Setup/Massing 10 min
Evaporation 20 min
Calculations/Cleanup 15 min
Misconception Alert
Students often think the salt "disappears" or "dissolves away" during evaporation. Emphasize that the water changes state while the salt remains because it lacks the energy to phase change at these temperatures.
FACILITATION GUIDE
GUIDING QUESTIONS
Wait, where did the steam go? (Connect to atmosphere as an open system).Why did we turn the heat down at the end? (Prevention of sample loss via kinetic splashing).Is this a physical or chemical change? (Physical - we are separating components of a mixture without changing their identity).
EXPECTED RESULTS (based on 5% solution)
Initial mass (40mL): ~40-42gRecovered salt: ~2.0g% Composition: ~4.8% to 5.2%Source of Error: Loss of salt through splashing ("spitting") or residual moisture in beaker (incomplete drying).
DIFFERENTIATION STRATEGIES
FOR SUPPORT
Provide pre-labeled data tables with mass formulas (e.g., M2-M1) already written in the header. Allow students to use a digital balance with "Tare" function to simplify subtraction.
FOR EXTENSION
Challenge students to calculate the Molarity of the solution if they know the formula for salt is NaCl (Molar mass = 58.44 g/mol). Discuss why density of saltwater is >1.0 g/mL.
Simple Distillation Slides THE ART OF
DISTILLATION
Lesson 02: Simple Separation
Survival Physics
"You are stranded on a desert island. You have plenty of saltwater, a pot, and some plastic sheeting. You are dying of thirst."
HOW DO YOU GET DRINKABLE WATER?
The Problem
Evaporation alone just leaves salt behind. You need to capture the vapor.
The Solution
Distillation: Phase Change 1 (Liquid → Gas) + Phase Change 2 (Gas → Liquid).
THE SETUP
KEY COMPONENTS
Boiling Flask (Heat source)
Thermometer (Monitoring BP)
Condenser (Cooling zone)
Receiving Flask (Pure distillate)
Physics Logic
We separate by boiling point. The substance with the lower boiling point turns into vapor first, moves to the condenser, cools back into a liquid, and is collected.
"Distillation = Boiling + Condensing"
THE TEMPERATURE PLATEAU
Boiling Point (100°C)
PLATEAU PHASE
Why does the temperature stay constant while boiling?
Latent Heat
Energy is being used to break intermolecular bonds, not to increase temperature.
LAB CRITICALS
Safety
• Check joints for tight seals.
• Never heat a closed system (it's a bomb).
• Boiling chips prevent "bumping".
Success Metric
• Clear distillate (no blue food coloring).
• Visible temp plateau at 100°C.
• High recovery percentage of water.
Simple Distillation Log Worksheet DISTILLATION APPARATUS LOG
Workshop 02: Simple Distillation & Plateaus
STATION:
CREW:
PRE-FLIGHT APPARATUS CHECK
Boiling Flask + Boiling Chips Still-head (Adapter) Condenser (Check Seals) Thermometer (Bulb at exit) Cooling Water (In-Bottom/Out-Top) Receiving Graduated Cylinder
WARNING: NEVER HEAT A CLOSED SYSTEM. ENSURE THE VENT AT THE RECEIVING END IS OPEN.
TEMPERATURE LOG
TIME (MIN) TEMP (°C) OBSERVATIONS 0 Start heat 2 4 6 8 10 12 14 16 18 20
FIRST DROP EVENT
TIME OF FIRST DROP:
TEMPERATURE AT FIRST DROP:
COLOR OF DISTILLATE:
YIELD DATA
INITIAL VOLUME (mL):
RECOVERED VOLUME (mL):
*Note: Distillation is a purification process. We are testing the separation of water from food coloring and salt.
POST-LAB ANALYSIS
1. Graphing the Plateau: In the space below, sketch a quick temperature vs. time graph based on your data. Label the Boiling Point plateau.
Temperature (°C)
Time (min)
2. Based on your temperature data, did the mixture boil at exactly 100°C? If not, what factors might explain the deviation (impurities, altitude, thermometer error)?
3. Explain the role of the condenser. Why is it vital that the cooling water flows against the direction of the vapor (counter-current exchange)?
Conclusion: The Phase Change
Summarize how simple distillation uses the physical property of Boiling Point to separate a solid-liquid mixture.
Simple Distillation Teacher Guide Key TEACHER KEY & GUIDE
Simple Distillation Lab
L-02 Workshop
Critical Safety Alerts
NO CLOSED SYSTEMS
Always ensure the receiving end of the apparatus is open to the atmosphere. Heating a closed system causes pressure buildup and eventual explosion of glassware.
Water Flow Direction
Cooling water must enter from the bottom (lower end) of the condenser and exit from the top . This ensures the condenser jacket is completely filled with water, maximizing cooling efficiency.
Solution Prep
Distillation Mix: 500mL water + 50g NaCl + 5 drops Blue Food Coloring.
Why blue? It provides a stark visual contrast. The blue color (solute) will stay in the boiling flask, while the distillate (pure water) will be crystal clear.
Boiling Chips: Essential for smooth boiling. Without them, "bumping" (sudden large bubble formation) can throw liquid into the condenser, contaminating the distillate.
ANSWER KEY: POST-LAB ANALYSIS
1. Graphing the Plateau
Expect a steep rise from room temperature (~20°C) to 100°C. The graph should flatten out (plateau) at 100°C for the duration of the distillation. This demonstrates that thermal energy is being consumed by the phase change (heat of vaporization) rather than increasing kinetic energy/temperature.
2. Deviation from 100°C
Common factors: Altitude (Boiling point is lower at higher altitudes due to lower atmospheric pressure), Impurity (Elevation of boiling point by solutes), or Thermometer Calibration . In this lab, the salt usually causes a slight elevation (e.g., 101-102°C).
3. Role of the Condenser
The condenser removes thermal energy from the vapor, forcing it to return to a liquid state. Counter-current flow (water in at the bottom) ensures that the coldest water is in contact with the coolest vapor at the end of the condenser, maintaining a constant temperature gradient and preventing vapor "blow-through".
Lab Troubleshooting
Blue Distillate?
This means "bumping" occurred. The liquid boiled too violently and splashed into the condenser. Solution: Add more boiling chips or reduce heat intensity.
No First Drop?
Steam might be escaping. Solution: Check for leaks at the joints. Ensure the thermometer bulb is positioned correctly at the opening of the condenser side-arm.
Low Yield?
Common in student setups due to vapor loss.
Fractional Distillation Slides THE VAPOR
EQUILIBRIUM
Lesson 03: Fractional Distillation
THE HOOK
CASE STUDY
"Heads and Tails"
In alcohol production, you have a mixture of water, Ethanol (BP: 78°C), and Methanol (BP: 65°C).
Methanol is toxic and causes blindness.
The Problem:
Ethanol and Methanol have boiling points only 13°C apart. Simple distillation won't separate them cleanly. Both will vaporize together.
We need more fractions.
Beyond Simple
THE COLUMN
We add a fractionating column filled with glass beads or copper mesh. This provides a huge surface area for vapor to condense and re-evaporate multiple times.
"One fractional distillation is like doing hundreds of simple distillations in a row."
REFLUX & REDISTILLATION
DECIPHERING THE CURVE
Vapor-Liquid Equilibrium
At any given temperature, the vapor above a boiling mixture is richer in the component with the lower boiling point.
If 50/50 A & B (BPA < BPB)
ENRICHMENT STEP
Composition (% A)
Temperature
WHY DOES THIS MATTER?
ENERGY
Separating isotopes for nuclear power reactors.
REFINING
Turning crude oil into gasoline and jet fuel.
PHARMA
Purifying solvents for high-precision medicine.
Master the curve, master the industry.

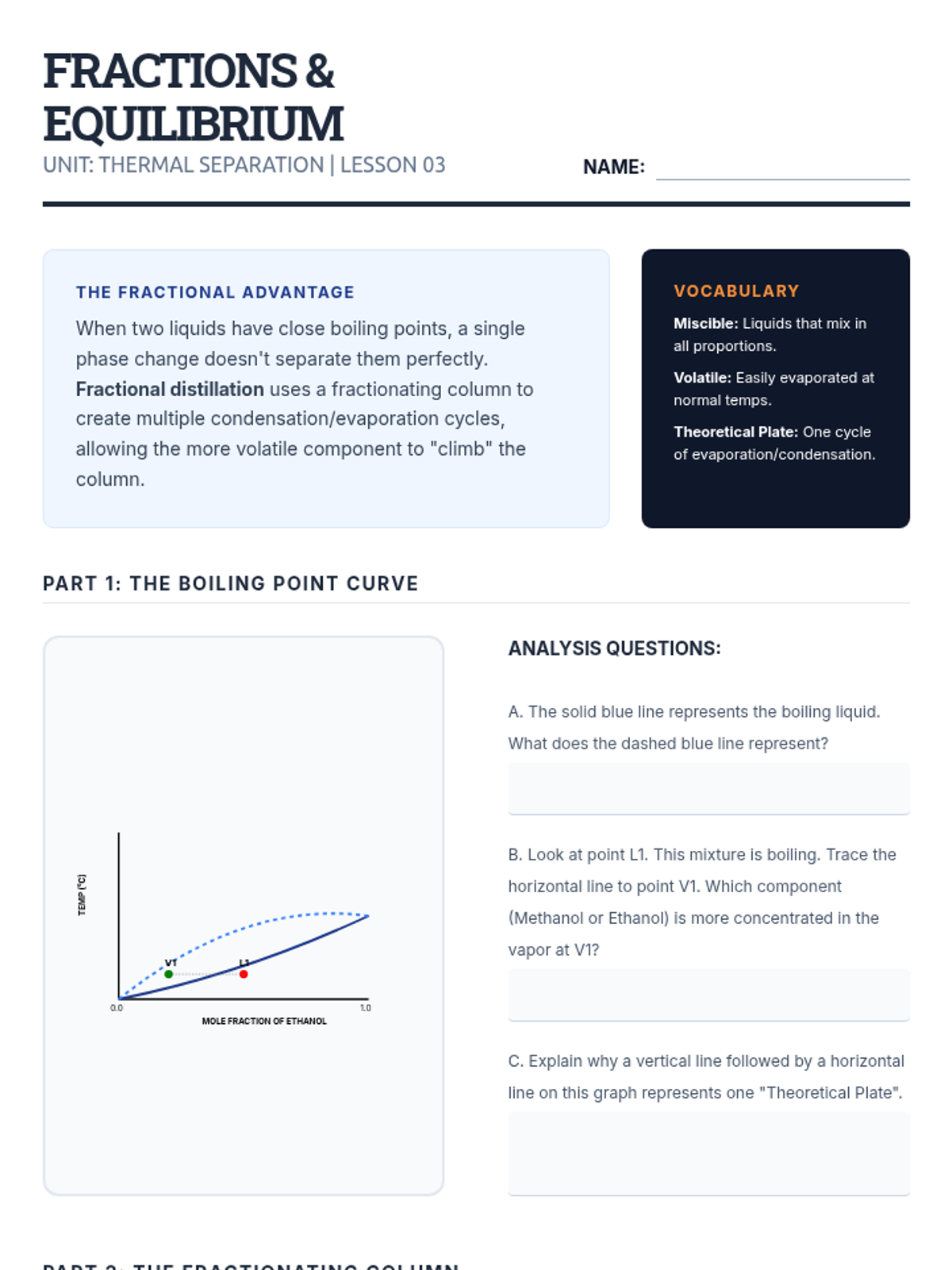

Fractional Equilibrium Worksheet FRACTIONS & EQUILIBRIUM
UNIT: THERMAL SEPARATION | LESSON 03
NAME:
The Fractional Advantage
When two liquids have close boiling points, a single phase change doesn't separate them perfectly. Fractional distillation uses a fractionating column to create multiple condensation/evaporation cycles, allowing the more volatile component to "climb" the column.
Vocabulary
Miscible: Liquids that mix in all proportions.Volatile: Easily evaporated at normal temps.Theoretical Plate: One cycle of evaporation/condensation.
PART 1: THE BOILING POINT CURVE
L1 V1 Mole Fraction of Ethanol Temp (°C) 0.0 1.0
Analysis Questions:
A. The solid blue line represents the boiling liquid. What does the dashed blue line represent?
B. Look at point L1. This mixture is boiling. Trace the horizontal line to point V1. Which component (Methanol or Ethanol) is more concentrated in the vapor at V1?
C. Explain why a vertical line followed by a horizontal line on this graph represents one "Theoretical Plate".
PART 2: THE FRACTIONATING COLUMN
1. Why are fractionating columns often filled with glass beads or copper wool instead of being empty? How does this physical property assist separation?
2. In a fractionating column, where is the temperature highest? Where is it lowest? Explain why this gradient is necessary.
PREDICTION TASK
Imagine you are separating a mixture of Pentane (BP: 36°C) and Hexane (BP: 69°C). If your column has 5 theoretical plates, will your final distillate be 100% Pentane? Why or why not? Consider the limits of equilibrium.

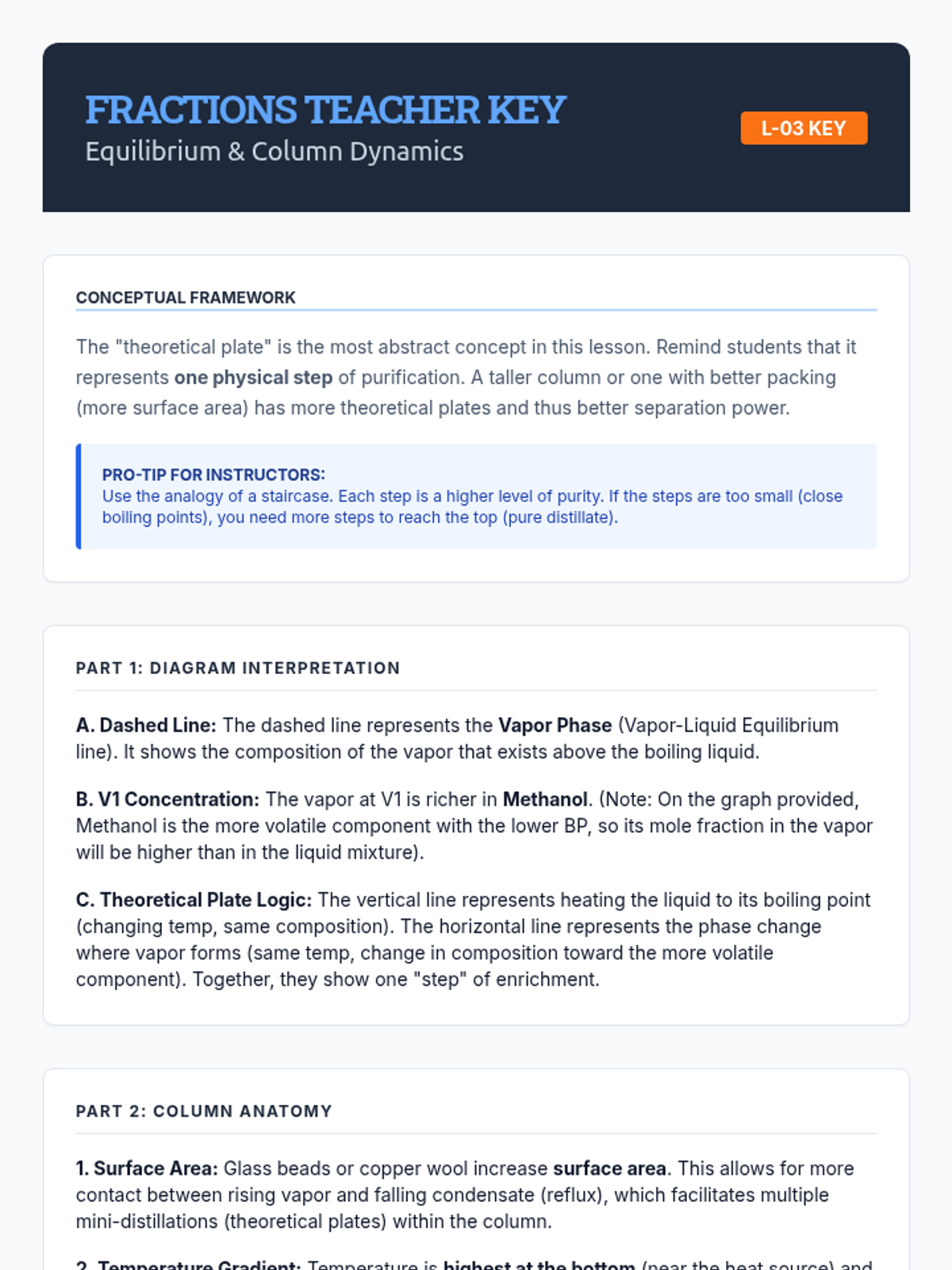

Fractional Equilibrium Teacher Key FRACTIONS TEACHER KEY
Equilibrium & Column Dynamics
L-03 KEY
Conceptual Framework
The "theoretical plate" is the most abstract concept in this lesson. Remind students that it represents one physical step of purification. A taller column or one with better packing (more surface area) has more theoretical plates and thus better separation power.
Pro-Tip for Instructors:
Use the analogy of a staircase. Each step is a higher level of purity. If the steps are too small (close boiling points), you need more steps to reach the top (pure distillate).
Part 1: Diagram Interpretation
A. Dashed Line: The dashed line represents the Vapor Phase (Vapor-Liquid Equilibrium line). It shows the composition of the vapor that exists above the boiling liquid.
B. V1 Concentration: The vapor at V1 is richer in Methanol . (Note: On the graph provided, Methanol is the more volatile component with the lower BP, so its mole fraction in the vapor will be higher than in the liquid mixture).
C. Theoretical Plate Logic: The vertical line represents heating the liquid to its boiling point (changing temp, same composition). The horizontal line represents the phase change where vapor forms (same temp, change in composition toward the more volatile component). Together, they show one "step" of enrichment.
Part 2: Column Anatomy
1. Surface Area: Glass beads or copper wool increase surface area . This allows for more contact between rising vapor and falling condensate (reflux), which facilitates multiple mini-distillations (theoretical plates) within the column.
2. Temperature Gradient: Temperature is highest at the bottom (near the heat source) and lowest at the top . This gradient ensures that only the most volatile component (lowest BP) remains a gas at the top to exit into the condenser, while less volatile components condense and fall back down.
Prediction Task
The final distillate will be very pure Pentane but rarely 100%. In practice, there is always a tiny fraction of the other component due to vapor-liquid equilibrium and entrainment. However, for 10th-grade purposes, "nearly 100%" or "pure" is an acceptable answer if they explain the enrichment process.
Crude Oil Refining Slides REFINERY
PHYSICS
Lesson 04: The Industrial Column
THE FEEDSTOCK
Crude Oil
A complex mixture of thousands of different hydrocarbons (carbon + hydrogen).
C
H
The Problem:
In its raw state, crude oil is useless. To make it useful, we must separate it into "fractions" based on chain length and boiling point .
Physics Rule:
"Longer Carbon Chains = Stronger IMF = Higher Boiling Point"
THE TOWER OF POWER
20°C
200°C
400°C
REFINERY GAS (Small chains, low BP)
GASOLINE / PETROL
KEROSENE (Jet Fuel)
DIESEL / FUEL OIL
BITUMEN (Asphalt for roads)
THERMAL GRADIENTS
WHY IS THE TOP COLD?
Crude oil is heated to 400°C and pumped in at the bottom.
The Ascent:
• Vapors rise up the tower.
• The tower gets colder as you go higher.
• When a vapor hits a "tray" that is colder than its BP, it condenses and is piped off.
HEAT = SEPARATION POWER
The Refining Rule
Where would you find Lubricating Oil?
TOP
BOTTOM
Hint: It is a thick, viscous liquid with a boiling point around 300°C.

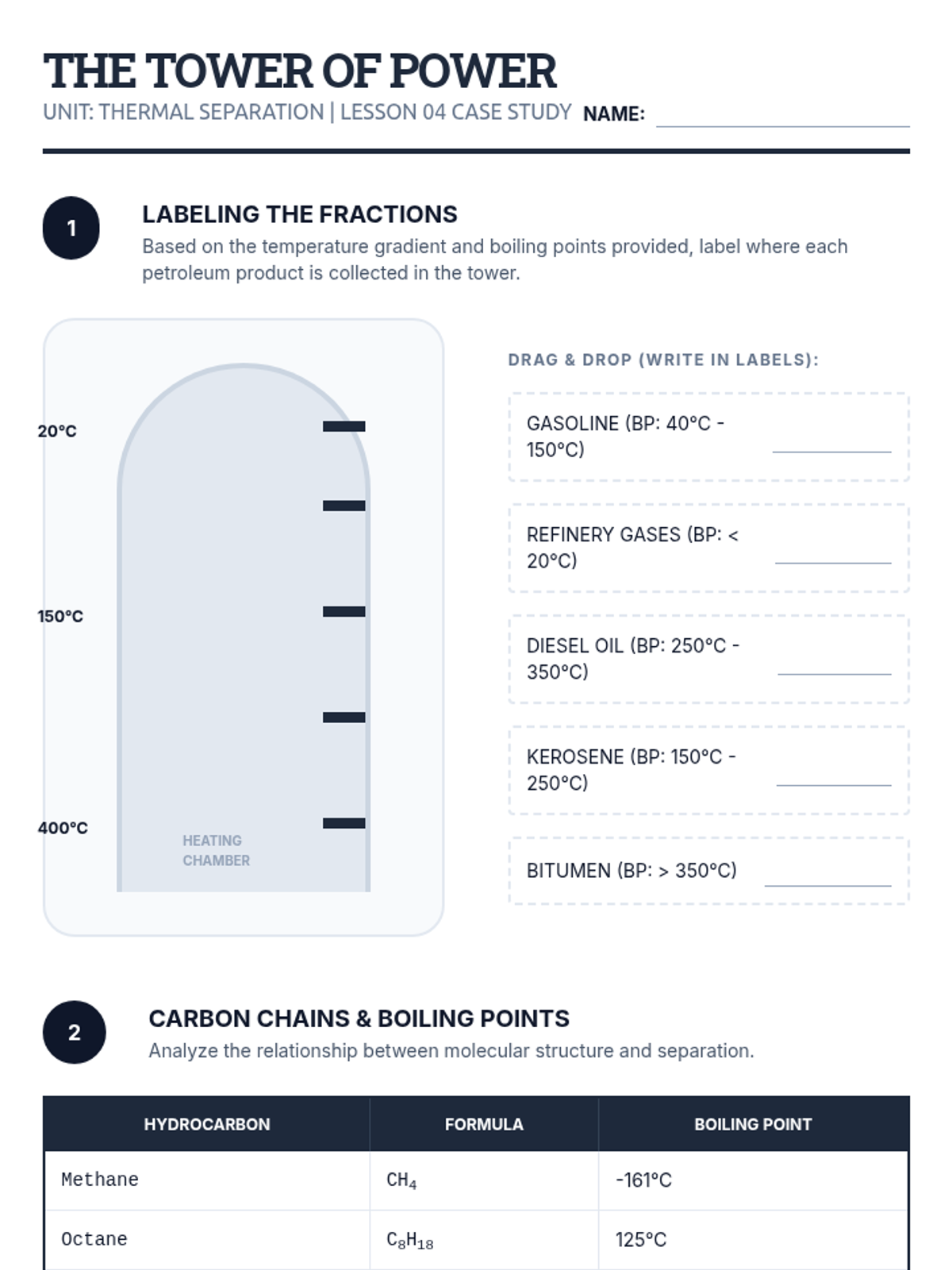

Refining Case Study Worksheet THE TOWER OF POWER
UNIT: THERMAL SEPARATION | LESSON 04 CASE STUDY
NAME:
1
Labeling the Fractions
Based on the temperature gradient and boiling points provided, label where each petroleum product is collected in the tower.
20°C
150°C
400°C
Heating Chamber
DRAG & DROP (Write in labels):
GASOLINE (BP: 40°C - 150°C)
REFINERY GASES (BP: < 20°C)
DIESEL OIL (BP: 250°C - 350°C)
KEROSENE (BP: 150°C - 250°C)
BITUMEN (BP: > 350°C)
2
Carbon Chains & boiling points
Analyze the relationship between molecular structure and separation.
Hydrocarbon Formula Boiling Point Methane CH4 -161°C Octane C8H18 125°C Icosane C20H42 343°C
A. As the number of carbon atoms in the chain increases, what happens to the boiling point? Explain this in terms of intermolecular forces (van der Waals forces).
B. Which of the three hydrocarbons above would be collected at the very bottom of the fractionating tower? Why?
3
The Cost of Separation
Refining crude oil requires heating millions of barrels to 400°C daily.
Critical Thinking:
If we want to reduce the carbon footprint of a refinery, we must address the Thermal Energy input. Suggest one way a refinery might reuse heat that is currently "lost" at the top of the tower to save energy.
Efficiency and Yield Slides THE BOTTOM LINE
Lesson 05: Efficiency & Yield
The Price of Purity
Desalination vs. River Treatment
Turning 1 liter of seawater into drinking water via distillation uses 100x more energy than treating river water with filters.
Why? The Heat of Vaporization.
In physics and engineering, we don't just care if a separation works . We care if it is efficient .
Key Metrics:
• Percent Yield (Quantity)
• Energy Efficiency (Cost)
• Purity (Quality)
Percent Yield
Actual Mass Recovered
Theoretical Mass Initial
× 100
The Calculation
"Theoretical" is what the math says you should have. "Actual" is what you actually put on the scale.
THE GAP ANALYSIS
Vapor Loss
Leaking joints or insufficient cooling means vapor escapes into the room instead of condensing.
Hold-up Volume
Liquid remains stuck to the sides of the condenser or boiling flask. It never reaches the collector.
Incomplete Drying
If recovering a solid, residual water makes the mass seem higher than theoretical (Yield > 100%).
Circular Systems
Modern refineries use Heat Exchangers . The hot vapor leaving the column is used to pre-heat the cold crude oil coming in.
HOT VAPOR
COLD FEED
Efficiency is the hallmark of great engineering.
Efficiency Audit Worksheet THE EFFICIENCY AUDIT
UNIT: THERMAL SEPARATION | LESSON 05
NAME:
QUANTITY: PERCENT YIELD
SCENARIO A: Salt Recovery
A student starts with a saltwater solution containing exactly 5.40g of salt. After evaporation, the mass of the dry salt in the beaker is 4.92g .
CALCULATION (SHOW WORK):
Percent Yield:
_______ %
SCENARIO B: Alcohol Distillation
In a simple distillation of 100mL of a 10% ethanol solution, the theoretical volume of pure ethanol is 10.0mL . The actual volume collected in the graduated cylinder is 8.7mL .
CALCULATION (SHOW WORK):
Percent Yield:
_______ %
DIAGNOSTICS: SOURCE OF ERROR
For each situation below, identify the likely source of error and state whether the yield would be HIGHER or LOWER than theoretical.
1. A student notices steam escaping from a loose joint in the distillation still-head.
Direction:
Higher / Lower
Explanation:
2. The beaker used for salt recovery was still slightly warm and damp when the final mass was taken.
Direction:
Higher / Lower
Explanation:
3. During boiling, the liquid "bumped" violently, splashing some of the original mixture into the condenser.
Direction:
Higher / Lower
Explanation:
ECONOMICS: ENERGY AUDIT
Distillation is a "heat-intensive" process. In a large scale refinery, heating the crude oil to 400°C costs millions of dollars per day in natural gas.
A. Explain the concept of "Heat of Vaporization" and why it makes distillation more expensive than mechanical separation (like filtration).
B. Design a "green" refinery: How could a refinery use the cold climate of the Arctic to improve the efficiency of their condenser systems?

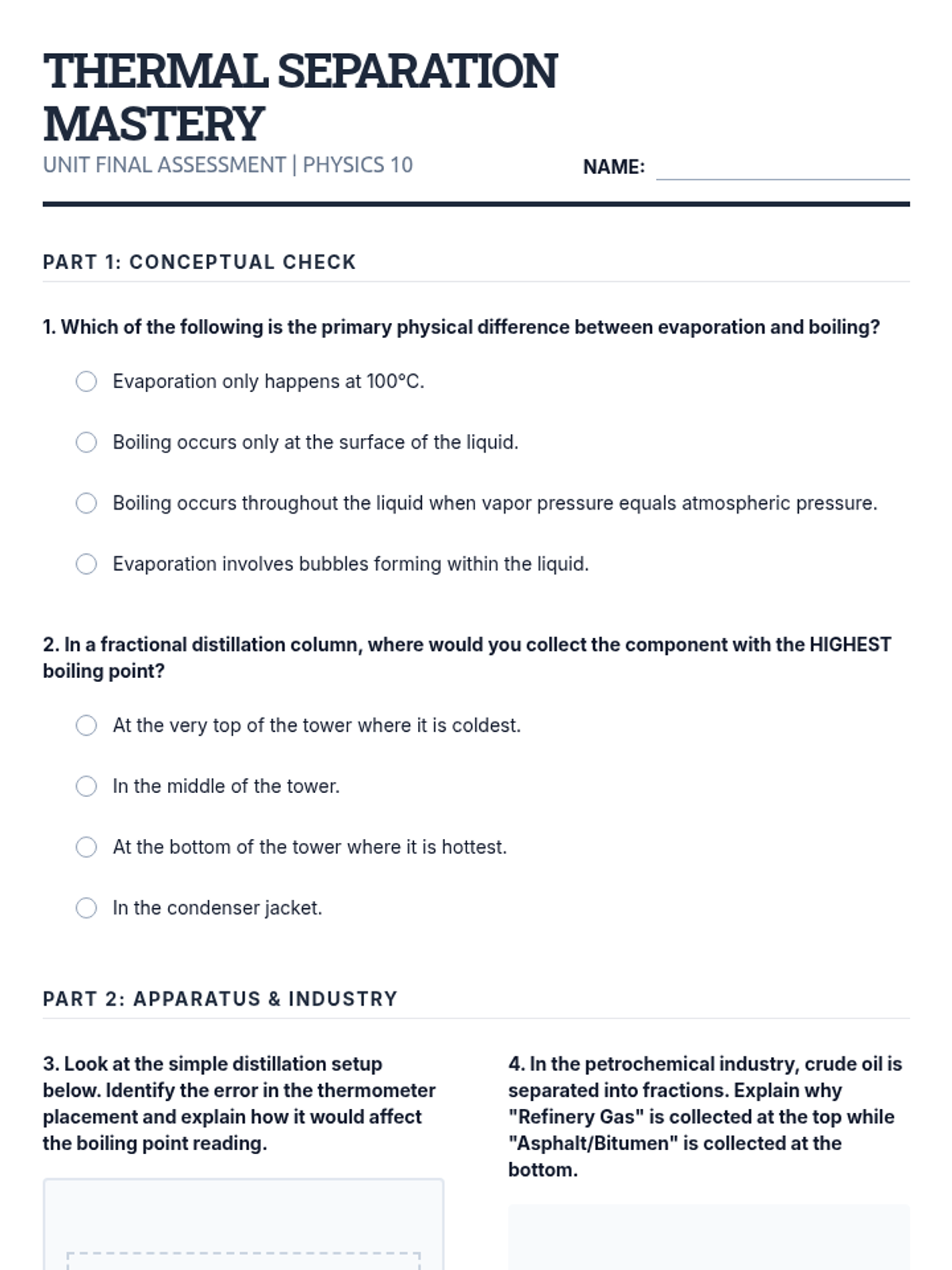

Thermal Separation Mastery Quiz THERMAL SEPARATION MASTERY
UNIT FINAL ASSESSMENT | PHYSICS 10
NAME:
PART 1: CONCEPTUAL CHECK
1. Which of the following is the primary physical difference between evaporation and boiling?
Evaporation only happens at 100°C.
Boiling occurs only at the surface of the liquid.
Boiling occurs throughout the liquid when vapor pressure equals atmospheric pressure.
Evaporation involves bubbles forming within the liquid.
2. In a fractional distillation column, where would you collect the component with the HIGHEST boiling point?
At the very top of the tower where it is coldest.
In the middle of the tower.
At the bottom of the tower where it is hottest.
In the condenser jacket.
PART 2: APPARATUS & INDUSTRY
3. Look at the simple distillation setup below. Identify the error in the thermometer placement and explain how it would affect the boiling point reading.
[Diagram: Thermometer bulb is placed deep inside the boiling liquid instead of at the still-head opening]
4. In the petrochemical industry, crude oil is separated into fractions. Explain why "Refinery Gas" is collected at the top while "Asphalt/Bitumen" is collected at the bottom.
PART 3: QUANTITATIVE REASONING
5. A chemistry student performs a fractional distillation of a 50mL mixture of water and ethanol.
Initial volume of ethanol in mixture: 22.5 mL
Volume of ethanol actually recovered: 19.8 mL
A. Calculate the Percent Yield of ethanol.
B. Suggest one physical reason why the yield is not 100%.
"Physics is the study of how the world is put together. Engineering is the study of how to take it apart and make it better."
