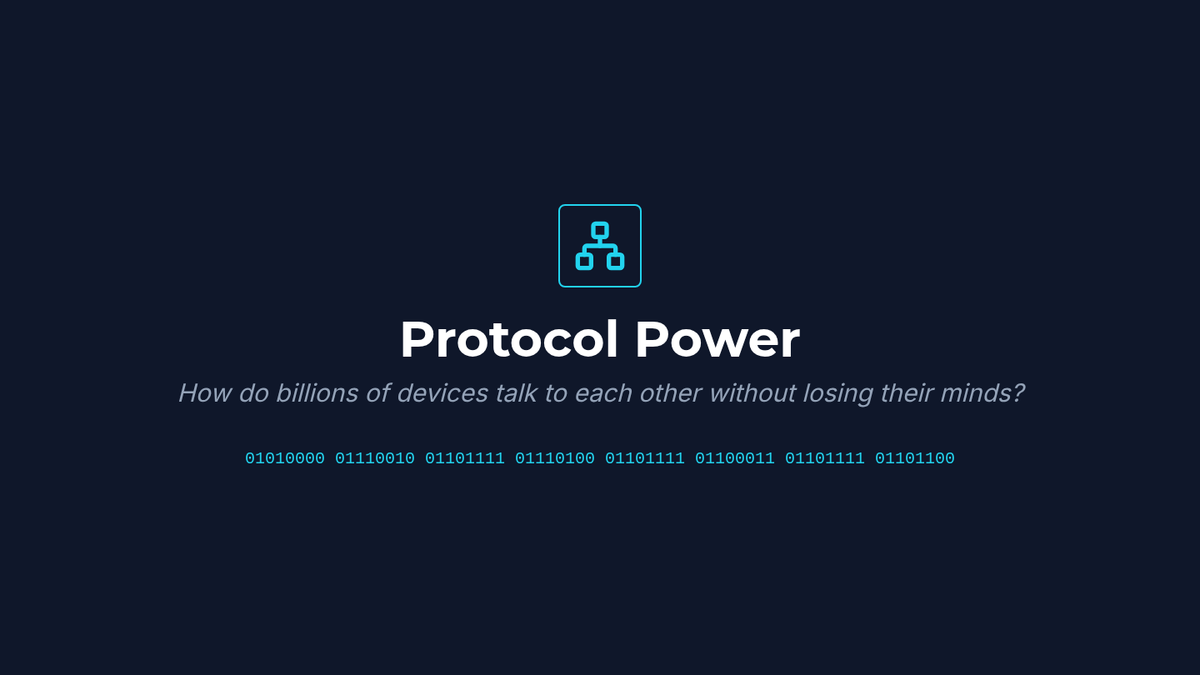

Protocol Power Slides Protocol Power
How do billions of devices talk to each other without losing their minds?
01010000 01110010 01101111 01110100 01101111 01100011 01101111 01101100
The Tower of Babel Problem
Imagine trying to order a pizza, but:
You speak only English.
The shop speaks only Morse Code.
The delivery driver speaks only Binary.
What happens to your dinner?
Communication Breakdown
Protocol: Defined
A protocol is a set of formal rules describing how to transmit or exchange data across a network.
Sender
Must follow the rules
The Rules
Standards everyone knows
Receiver
Decodes by the same rules
You Use These Every Day
HTTP / HTTPS
Hypertext Transfer Protocol
The language of web browsers and servers. It defines how web pages are requested and delivered.
https://www.example.com
IP
Internet Protocol
The fundamental protocol for sending and receiving data packets based on their destination addresses.
192.168.1.1
Why Standardization Matters
Interoperability
Different brands of hardware (Apple, Dell, Sony) can all talk to each other effortlessly.
Scalability
The internet can grow from a few computers to billions because the rules stay the same.
Security
Standardized rules allow for collective improvement and vulnerability patching.
The TCP/IP "Stack"
Application Layer
HTTP, FTP, SMTP (Human interaction)
Transport Layer
TCP, UDP (Connecting apps)
Internet Layer
IP (Routing packets)
Network Access Layer
Ethernet, Wi-Fi (Physical transmission)

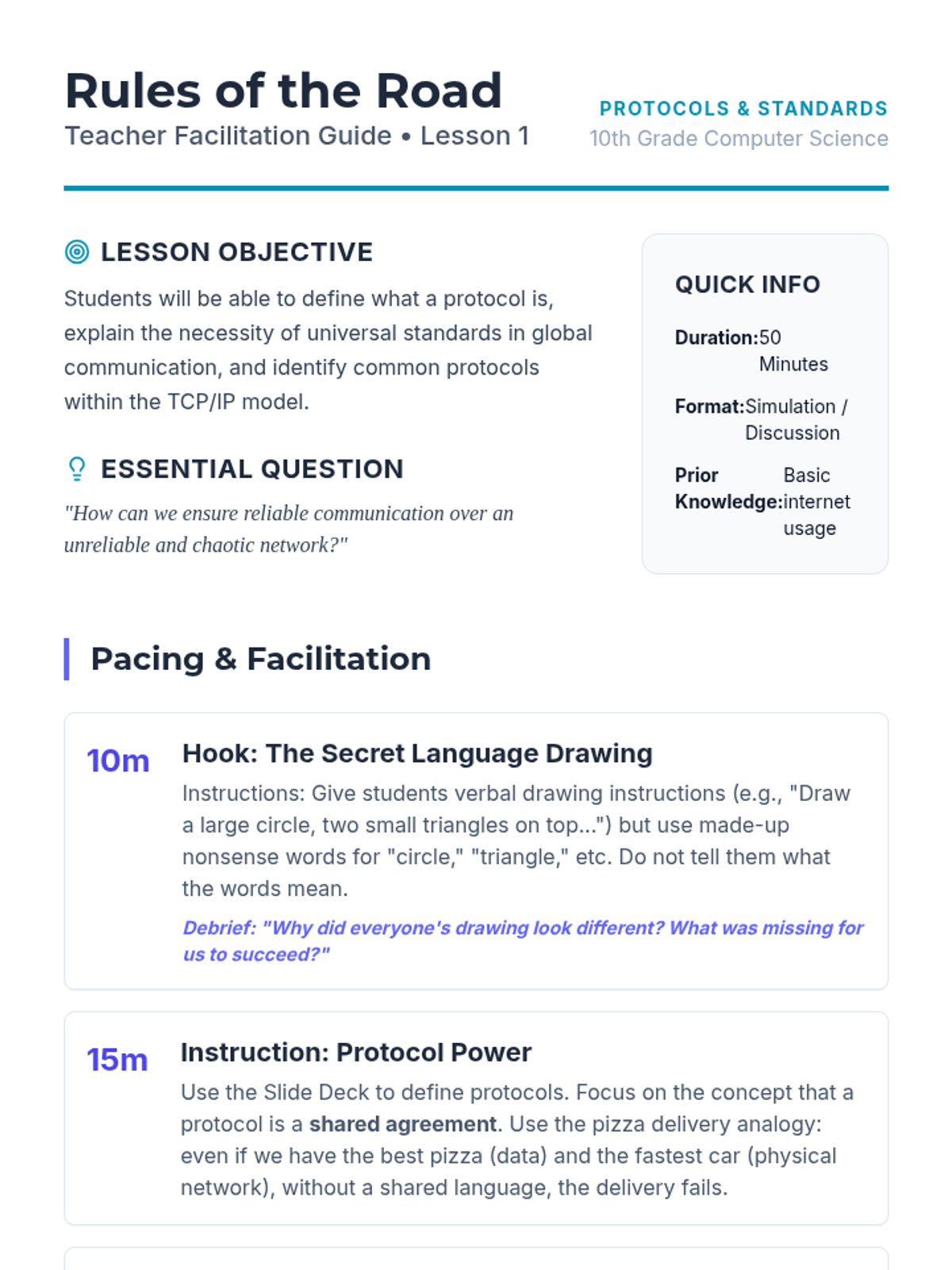

Rules of the Road Teacher Guide Rules of the Road
Teacher Facilitation Guide • Lesson 1
Protocols & Standards
10th Grade Computer Science
Lesson Objective
Students will be able to define what a protocol is, explain the necessity of universal standards in global communication, and identify common protocols within the TCP/IP model.
Essential Question
"How can we ensure reliable communication over an unreliable and chaotic network?"
Quick Info
Duration: 50 Minutes
Format: Simulation / Discussion
Prior Knowledge: Basic internet usage
Pacing & Facilitation
10m
Hook: The Secret Language Drawing
Instructions: Give students verbal drawing instructions (e.g., "Draw a large circle, two small triangles on top...") but use made-up nonsense words for "circle," "triangle," etc. Do not tell them what the words mean.
Debrief: "Why did everyone's drawing look different? What was missing for us to succeed?"
15m
Instruction: Protocol Power
Use the Slide Deck to define protocols. Focus on the concept that a protocol is a shared agreement . Use the pizza delivery analogy: even if we have the best pizza (data) and the fastest car (physical network), without a shared language, the delivery fails.
15m
Activity: Building the Protocol
Students work in groups to create their own "Data Transfer Protocol" for sending a simple image (like a smiley face) using only light signals or taps. They must document their rules before trying to transmit.
10m
Exit Ticket: The TCP/IP Connection
Distribute the Secret Language Activity sheet. Students match real-world protocols to their layers and explain why standards like IPv4 or HTTP are necessary.
Differentiation
Support: Provide a "Protocol Word Bank" for the Exit Ticket.Extension: Challenge advanced students to research the transition from IPv4 to IPv6 and why a new "standard" was needed.
Pro-Tips
Emphasize that "Internet" is actually "Inter-network"—connecting different smaller networks.
Use the physical hardware in the room (cables, routers) as visual aids when discussing the Network Access Layer.

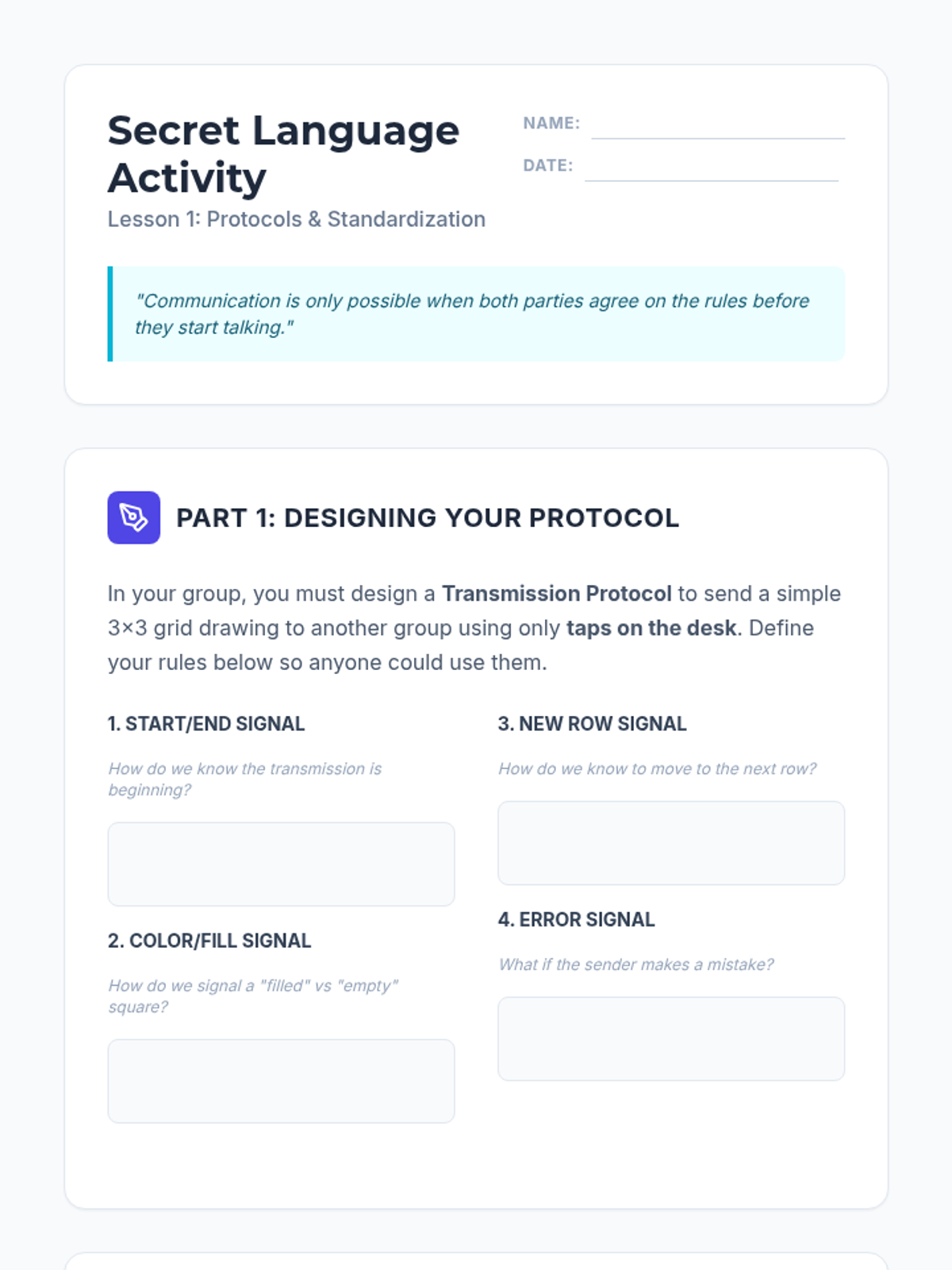

Secret Language Activity Worksheet Secret Language Activity
Lesson 1: Protocols & Standardization
Name:
Date:
"Communication is only possible when both parties agree on the rules before they start talking."
Part 1: Designing Your Protocol
In your group, you must design a Transmission Protocol to send a simple 3x3 grid drawing to another group using only taps on the desk . Define your rules below so anyone could use them.
1. Start/End Signal
How do we know the transmission is beginning?
2. Color/Fill Signal
How do we signal a "filled" vs "empty" square?
3. New Row Signal
How do we know to move to the next row?
4. Error Signal
What if the sender makes a mistake?
Part 2: The TCP/IP Standard
Match the real-world protocol to its correct layer and description. Draw a line or write the letter.
1. Application Layer
2. Transport Layer
3. Internet Layer
IP
HTTP
TCP
(A) Responsible for end-to-end communication, error checking, and data sequencing.
(B) Handles address identification and routing packets across different networks.
(C) Provides network services directly to user applications (web browsing, email).
Reflection Question:
Why is it important that every computer in the world uses the same TCP/IP standard instead of companies making their own?

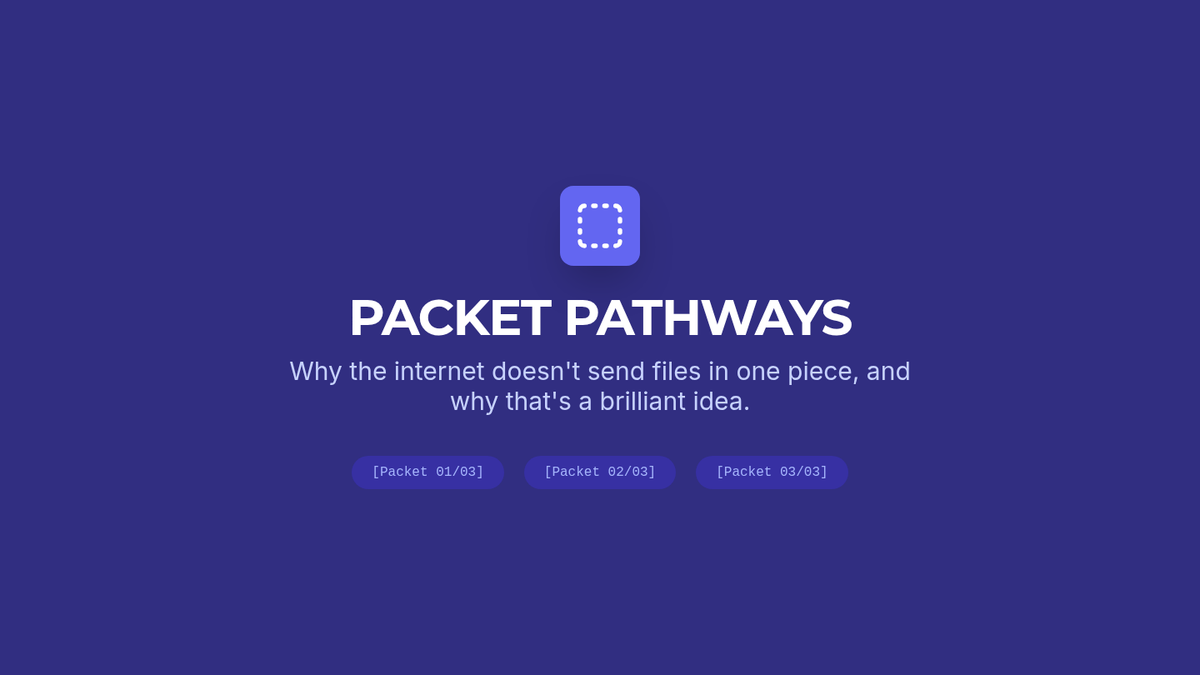

Packet Pathways Slides Packet Pathways
Why the internet doesn't send files in one piece, and why that's a brilliant idea.
[Packet 01/03]
[Packet 02/03]
[Packet 03/03]
The Snail Mail Puzzle
You want to mail a 1,000 piece puzzle to a friend, but you only have standard envelopes.
The Solution:
Break it into small chunks (packets).
Number each piece (sequencing).
Send them all at once via different routes.
#3
#1
#5
#2
#6
#4
Packet Switching
A method of grouping data into packets that are transmitted over a digital network.
Sequential Delivery? No.
Packets don't follow each other like a train. They find the best path available at that exact millisecond.
Dynamic Routing
If one path is blocked or slow, packets "switch" to another route automatically.
Anatomy of a Packet
Header
The Envelope
• Source IP
• Dest IP
• Packet #
Payload
The Letter
01101001 01100010...
Trailer
The Seal
Efficiency and Resilience
Bandwidth Sharing
Multiple users can use the same wires at once because no one "holds the line" with a massive file.
Fault Tolerance
If a packet is lost, the receiver just asks for that one specific piece again, not the whole 4GB movie.
"Error detected in Packet #42.

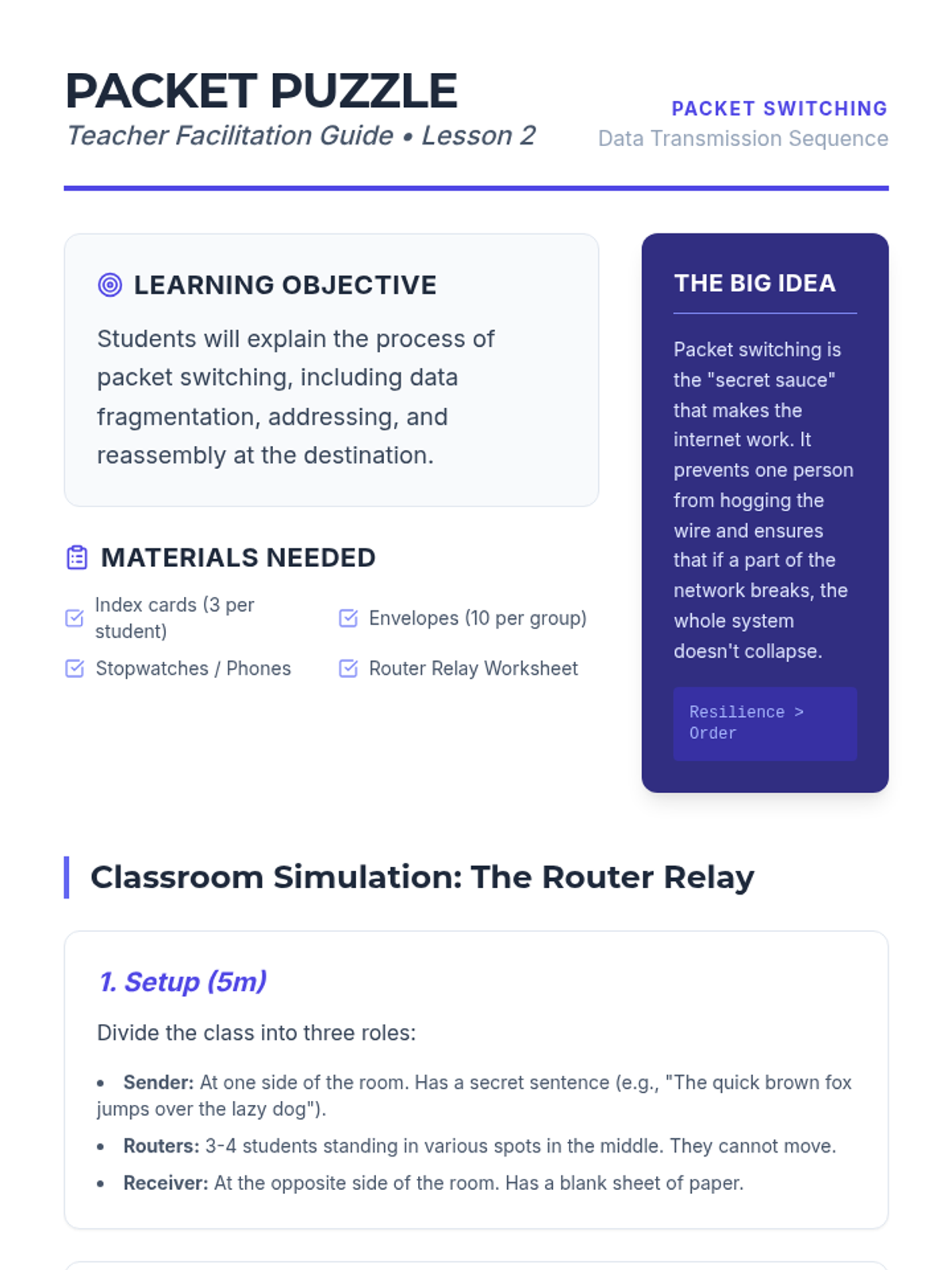

Packet Puzzle Teacher Guide Packet Puzzle
Teacher Facilitation Guide • Lesson 2
Packet Switching
Data Transmission Sequence
Learning Objective
Students will explain the process of packet switching, including data fragmentation, addressing, and reassembly at the destination.
Materials Needed
Index cards (3 per student)
Envelopes (10 per group)
Stopwatches / Phones
Router Relay Worksheet
The Big Idea
Packet switching is the "secret sauce" that makes the internet work. It prevents one person from hogging the wire and ensures that if a part of the network breaks, the whole system doesn't collapse.
Resilience > Order
Classroom Simulation: The Router Relay
1. Setup (5m)
Divide the class into three roles:
Sender: At one side of the room. Has a secret sentence (e.g., "The quick brown fox jumps over the lazy dog").Routers: 3-4 students standing in various spots in the middle. They cannot move.Receiver: At the opposite side of the room. Has a blank sheet of paper.
2. Execution (15m)
The Sender must break the sentence into "packets" (index cards) containing 1-2 words each. They must write a Sequence Number on each card (1/10, 2/10, etc.).
The Rule:
"Routers can only pass one card at a time. If they have more than one card, they must hold them in a 'buffer' and wait for the path to clear."
The Twist: After 3 minutes, declare "Router B has a power outage!" That student must stop passing cards. The sender and other routers must find a new path.
3. Debrief (10m)
Common Pitfalls
Students forgetting numbers:
Remind them that without sequence numbers, a photo would look like static and a song would sound like noise.
Bottlenecks:
If all cards go to one router, it creates "latency." Use this to explain why internet speed varies during peak hours.

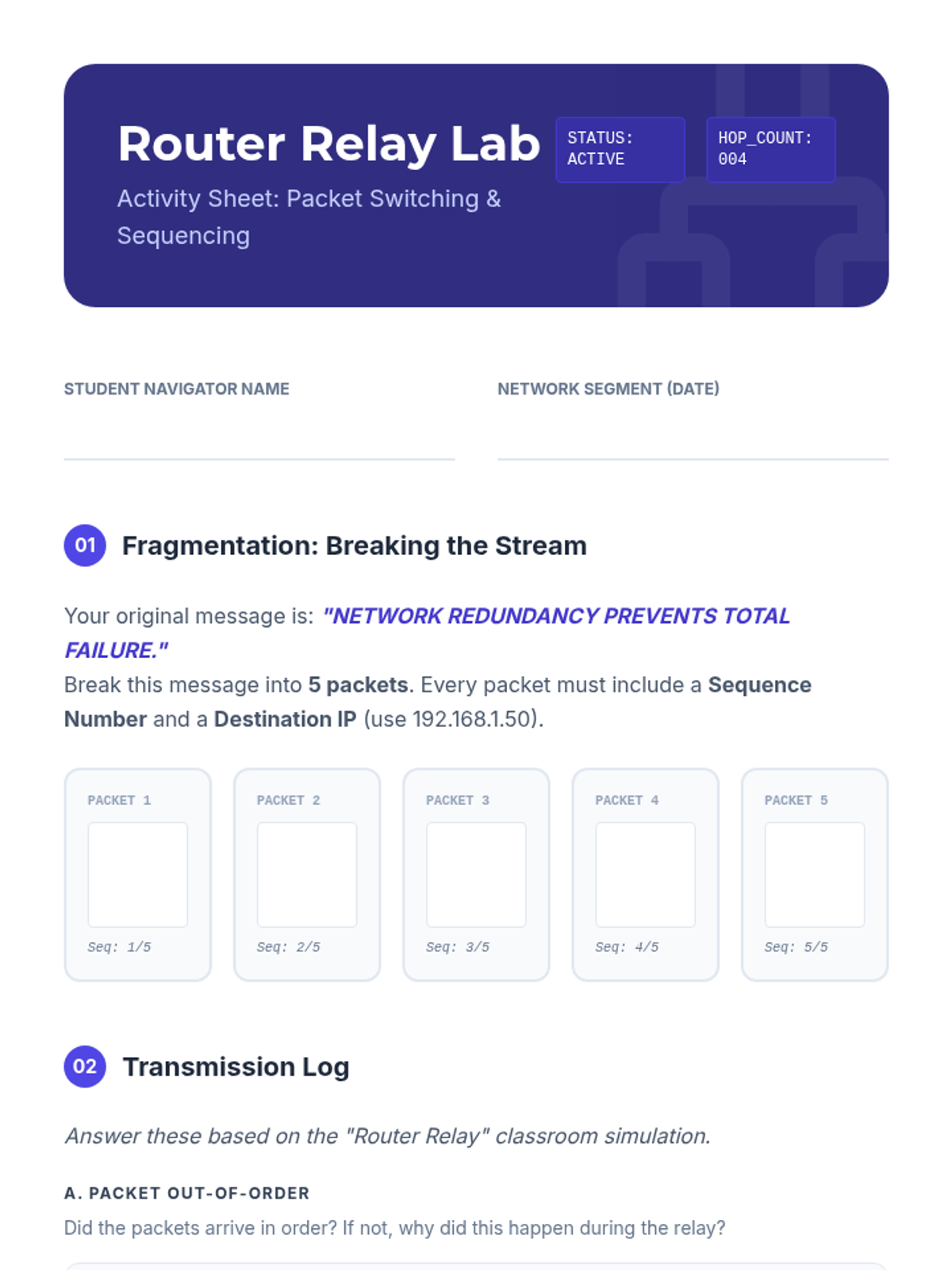

Router Relay Worksheet Router Relay Lab
Activity Sheet: Packet Switching & Sequencing
STATUS: ACTIVE
HOP_COUNT: 004
Student Navigator Name
Network Segment (Date)
01 Fragmentation: Breaking the Stream
Your original message is: "NETWORK REDUNDANCY PREVENTS TOTAL FAILURE." 5 packets . Every packet must include a Sequence Number and a Destination IP (use 192.168.1.50).
PACKET 1
Seq: 1/5
PACKET 2
Seq: 2/5
PACKET 3
Seq: 3/5
PACKET 4
Seq: 4/5
PACKET 5
Seq: 5/5
02 Transmission Log
Answer these based on the "Router Relay" classroom simulation.
A. Packet Out-of-Order
Did the packets arrive in order? If not, why did this happen during the relay?
B. Fault Tolerance
When a router (student) was 'removed' from the network, how did the sender react? How is this like the real internet?
03 Vocabulary Check
Latency
The delay before a transfer of data begins following an instruction.
Sequencing
The process of reordering packets at the destination using numbers.
// CHALLENGE QUESTION
If Packet #3 is lost in a real network, does the sender resend the entire 5-packet message? Explain why.
Addressing the Web Slides Addressing the Web
Finding every computer in the world, one bit at a time.
192.168.1.1 | 2001:0db8:85a3:0000:0000:8a2e:0370:7334
The Digital Mailing Address
Just like your house needs an address for the mail carrier, every device on the internet needs a unique identifier.
IP = Internet Protocol Address
It tells routers exactly where a packet of data should go.
74.125.224.72
IPv4: 32 Bits of Glory
192
11000000
168
10101000
1
00000001
255
11111111
The Limit:
~4.3 Billion possible addresses.
Is that enough for every person, phone, fridge, and car in 2026?
NOPE.
IPv6: The Giant Expansion
Address Length
128 Bits
Total Capacity
340 Undecillion
(That's 340 followed by 36 zeros)
Example Address:
2001:0db8:85a3:0000:0000:8a2e:0370:7334
IPv6 uses Hexadecimal (0-9 and A-F) to keep addresses manageable.
Hierarchical Addressing
Network ID
Identifies your specific internet network (like your school or neighborhood).
Host ID
Identifies the specific device (phone, laptop) on that network.
"Just like a ZIP code tells you the city, and the house number tells you the door."

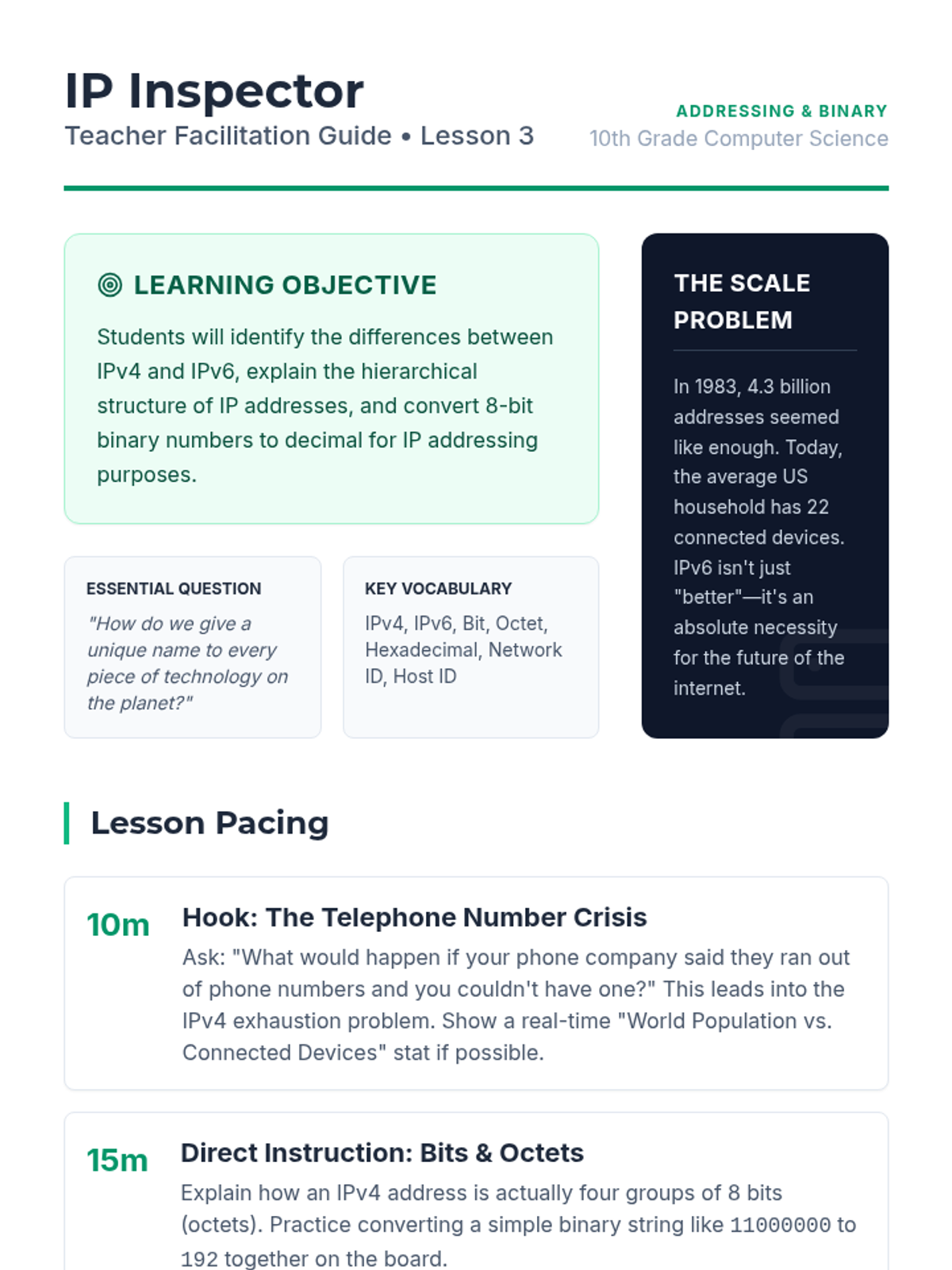

IP Inspector Teacher Guide IP Inspector
Teacher Facilitation Guide • Lesson 3
Addressing & Binary
10th Grade Computer Science
Learning Objective
Students will identify the differences between IPv4 and IPv6, explain the hierarchical structure of IP addresses, and convert 8-bit binary numbers to decimal for IP addressing purposes.
Essential Question
"How do we give a unique name to every piece of technology on the planet?"
Key Vocabulary
IPv4, IPv6, Bit, Octet, Hexadecimal, Network ID, Host ID
The Scale Problem
In 1983, 4.3 billion addresses seemed like enough. Today, the average US household has 22 connected devices. IPv6 isn't just "better"—it's an absolute necessity for the future of the internet.
Lesson Pacing
10m
Hook: The Telephone Number Crisis
Ask: "What would happen if your phone company said they ran out of phone numbers and you couldn't have one?" This leads into the IPv4 exhaustion problem. Show a real-time "World Population vs. Connected Devices" stat if possible.
15m
Direct Instruction: Bits & Octets
Explain how an IPv4 address is actually four groups of 8 bits (octets). Practice converting a simple binary string like 11000000 to 192 together on the board.
20m
Skill Workshop: Binary Bits Worksheet
Students complete the practice worksheet. Circulate and check for common math errors in the binary-to-decimal conversion (e.g., forgetting the 128 place value).
5m
Closing: Find Your Own IP
Have students (if tech is available) type "What is my IP" into Google. Point out if it's an IPv4 or IPv6 format.
Teaching Hack
When teaching binary conversion, draw 8 boxes on the board with the values 128, 64, 32, 16, 8, 4, 2, 1. It’s a visual "converter" that students can use as a template for every problem.

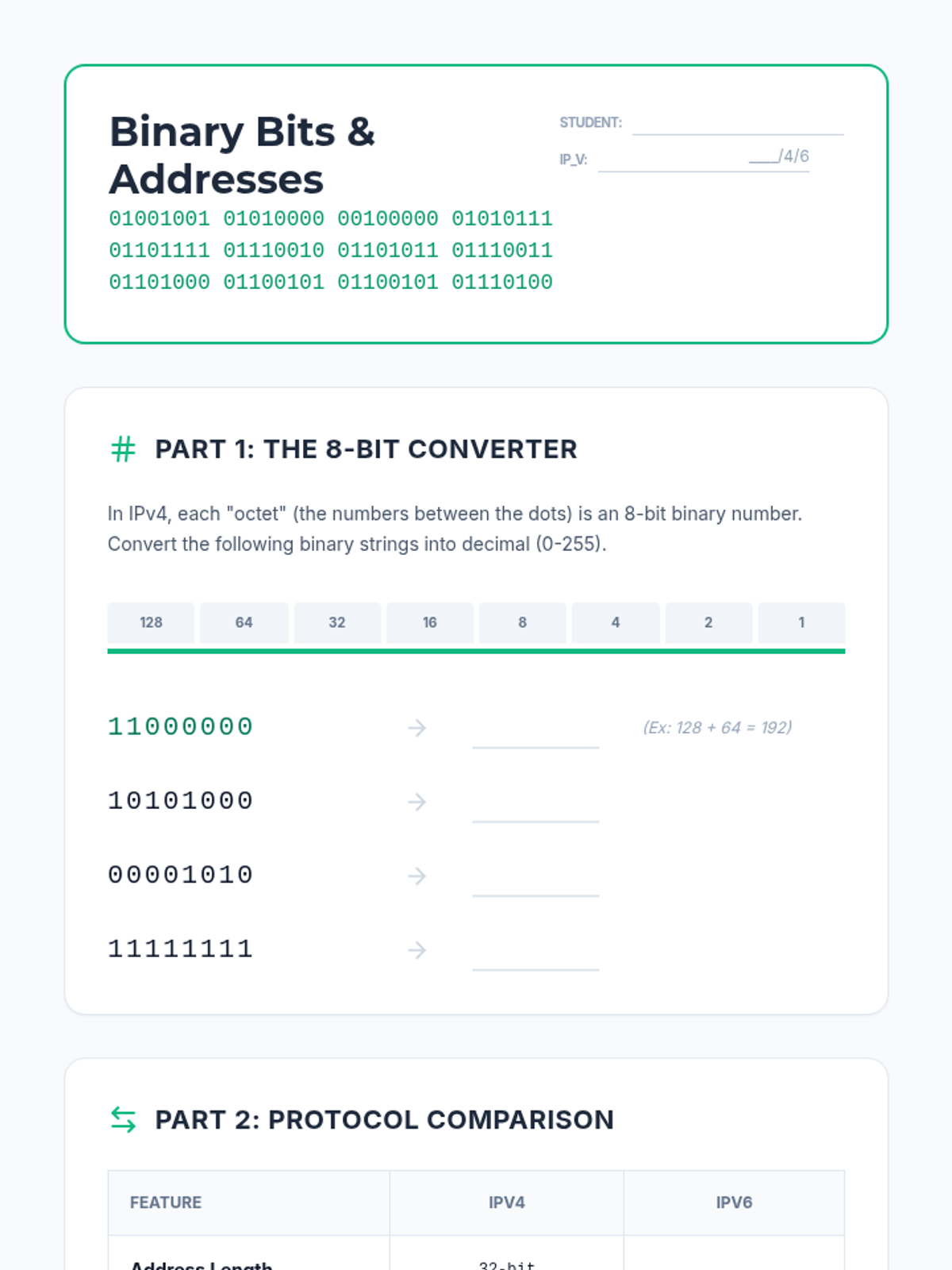

Binary Bits Worksheet Binary Bits & Addresses
01001001 01010000 00100000 01010111 01101111 01110010 01101011 01110011 01101000 01100101 01100101 01110100
Student:
IP_V:
____/4/6
Part 1: The 8-Bit Converter
In IPv4, each "octet" (the numbers between the dots) is an 8-bit binary number. Convert the following binary strings into decimal (0-255).
128
64
32
16
8
4
2
1
11000000
(Ex: 128 + 64 = 192)
10101000
00001010
11111111
Part 2: Protocol Comparison
Feature IPv4 IPv6 Address Length 32-bit Number Format Hexadecimal Total Addresses ~4.3 Billion
Hierarchy Hunt
An IP address like 172.16.254.1 is split into two parts. In this specific network, the first three octets (172.16.254) are the Network ID .
Identify the Host ID:
.____
Explanation:
If the Network ID is like a ZIP code, what is the Host ID like?

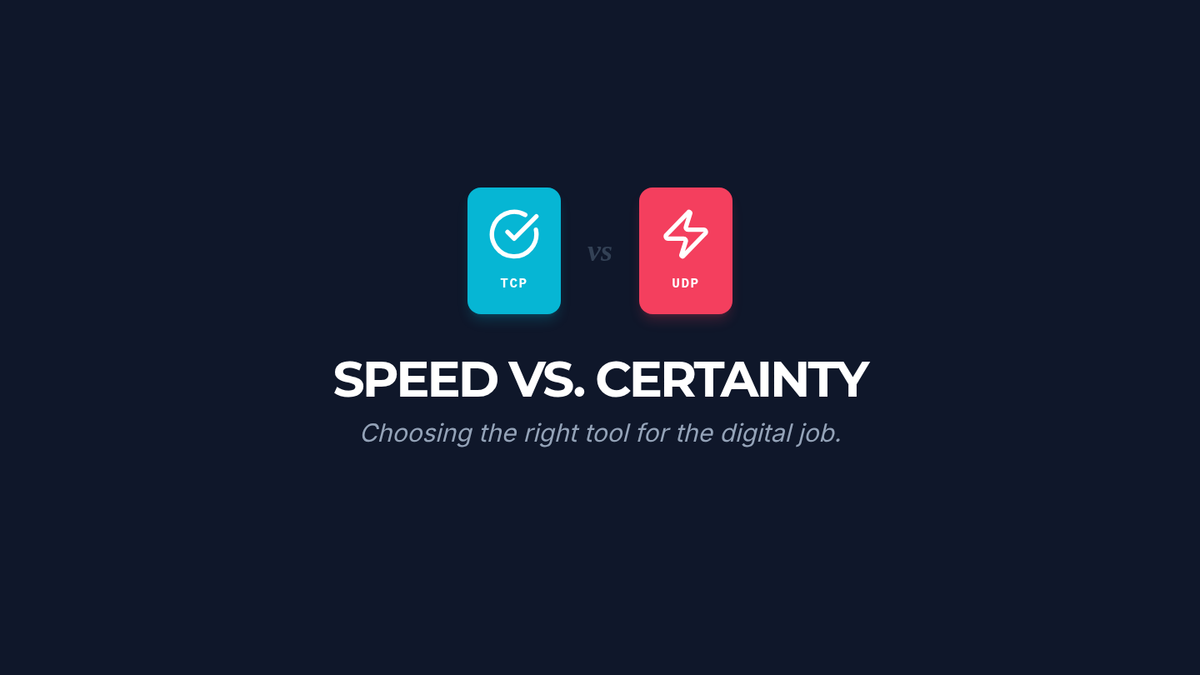

Speed vs Certainty Slides TCP
vs
UDP
Speed vs. Certainty
Choosing the right tool for the digital job.
The Transport Layer
While the Internet Layer (IP) moves the packets, the Transport Layer decides how they should be handled.
"Do we need every single bit to be perfect, or do we just need them to arrive fast?"
Transport Layer
TCP: Transmission Control Protocol
"The Handshake"
Establish connection first.
Acknowledge every packet.
Resend if lost.
Put packets in order.
RELIABILITY IS KING
Best For:
Email
Files
Websites
"If one character of your email is wrong, the whole message changes. TCP makes sure that never happens."
UDP: User Datagram Protocol
Best For:
Streaming
Gaming
VoIP
"In a live game, if a packet is late, it's useless. You don't want to see where the enemy was 5 seconds ago!"
"Fire and Forget"
No handshake required.
No acknowledgement.
No re-sending lost packets.
Continuous stream.
SPEED IS EVERYTHING
The Verdict
TCP
Like a Certified Mail Letter . You get a receipt, it's safe, but it takes more paperwork and time.
UDP
Like a Mega-Phone . You shout the message out. Some people might miss a word, but everyone hears it instantly.

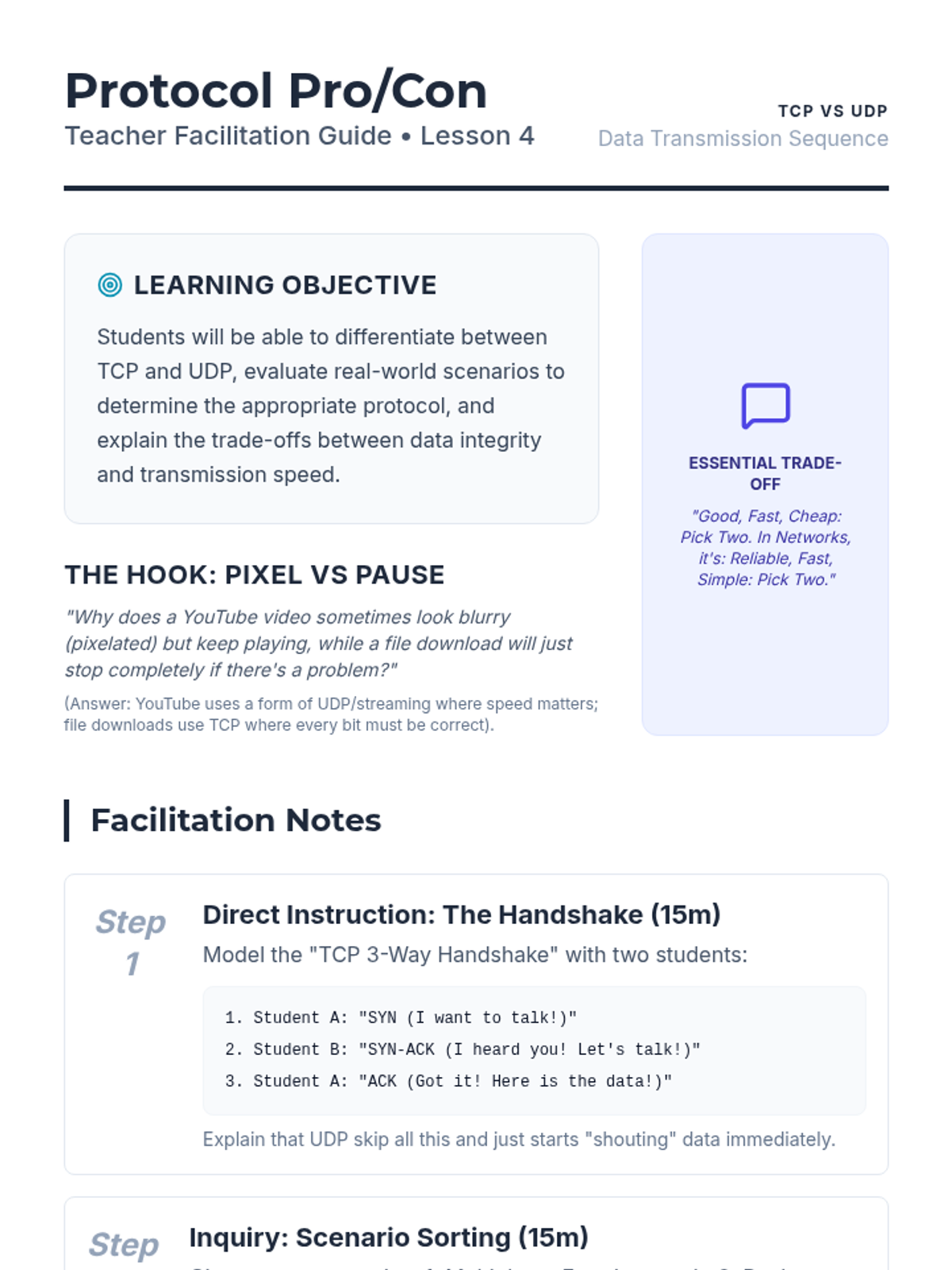

Protocol Pro Con Teacher Guide Protocol Pro/Con
Teacher Facilitation Guide • Lesson 4
TCP vs UDP
Data Transmission Sequence
Learning Objective
Students will be able to differentiate between TCP and UDP, evaluate real-world scenarios to determine the appropriate protocol, and explain the trade-offs between data integrity and transmission speed.
The Hook: Pixel vs Pause
"Why does a YouTube video sometimes look blurry (pixelated) but keep playing, while a file download will just stop completely if there's a problem?"
(Answer: YouTube uses a form of UDP/streaming where speed matters; file downloads use TCP where every bit must be correct).
Essential Trade-off
"Good, Fast, Cheap: Pick Two. In Networks, it's: Reliable, Fast, Simple: Pick Two."
Facilitation Notes
Step 1
Direct Instruction: The Handshake (15m)
Model the "TCP 3-Way Handshake" with two students:
1. Student A: "SYN (I want to talk!)"
2. Student B: "SYN-ACK (I heard you! Let's talk!)"
3. Student A: "ACK (Got it! Here is the data!)"
Explain that UDP skip all this and just starts "shouting" data immediately.
Step 2
Inquiry: Scenario Sorting (15m)
Give groups scenarios: 1. Multiplayer Fortnite match, 2. Bank transfer, 3. Netflix Movie, 4. Sending a Text. Ask them to pick TCP or UDP and justify their choice based on "Cost of Loss" vs "Cost of Delay".
Step 3
Workshop: Transport Trials (20m)
Hand out the Transport Trials Worksheet. This includes a case study on "Video Conferencing"—a hybrid use case that sparks great debate.
Answer Key Highlights
Scenario: Live Gaming
Protocol: UDP
Why? Low latency is critical. Re-sending a "player moved" packet from 1 second ago is useless because the game state has already changed.
Scenario: Bank Transfer
Protocol: TCP
Why? Reliability is absolute. Losing a single "zero" or a "decimal point" is catastrophic for financial data.

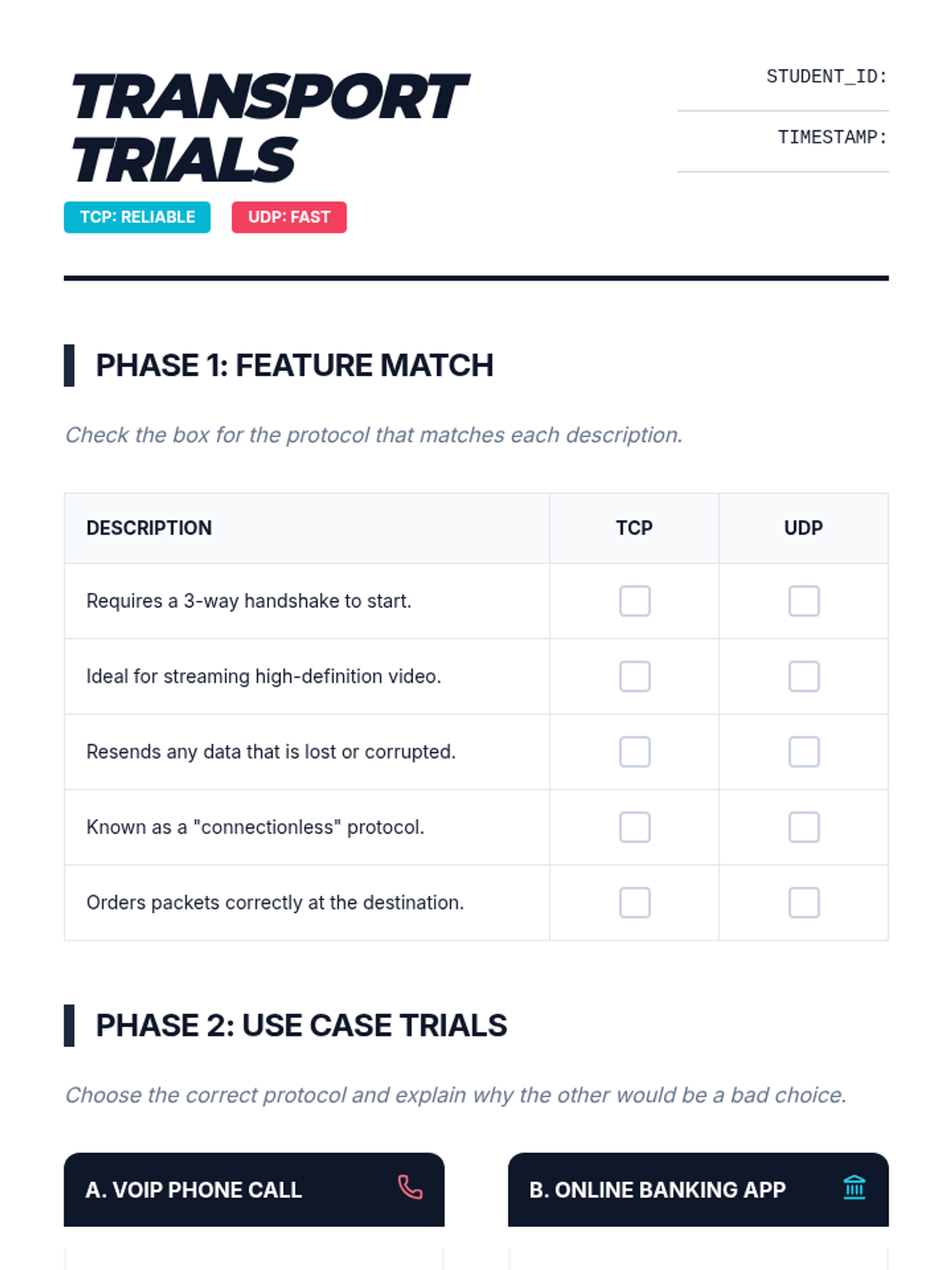

Transport Trials Worksheet Transport Trials
TCP: RELIABLE UDP: FAST
STUDENT_ID:
TIMESTAMP:
Phase 1: Feature Match
Check the box for the protocol that matches each description.
Description TCP UDP Requires a 3-way handshake to start.
|
| Ideal for streaming high-definition video. |
|
|
| Resends any data that is lost or corrupted. |
|
|
| Known as a "connectionless" protocol. |
|
|
| Orders packets correctly at the destination. |
|
|
Phase 2: Use Case Trials
Choose the correct protocol and explain why the other would be a bad choice.
A. VOIP PHONE CALL
Best Protocol: __________
The "Why":
B. ONLINE BANKING APP
Best Protocol: __________
The "Why":
Critical Thinking: The Buffer
When using TCP to stream a movie on a slow connection, you often see a spinning wheel that says "Buffering...". Explain what the computer is doing during this time in terms of packets and sequencing.
Dynamic Delivery Slides Dynamic Delivery
How the internet survives when things go wrong.
The Traffic Controller
A Router is a computing device that connects networks and directs packets along the most efficient path.
"The shortest path isn't always the fastest path."
Path A (2 hops) Congested
Path B (4 hops) Clear
Routers choose Path B because it's actually faster!
The Power of Redundancy
Fault Tolerance
The ability of a system to continue operating even if some components fail.
Error: Router_04 Offline. Rerouting...
Why do we have multiple cables?
If a shark bites a submarine cable...
If a backhoe cuts a fiber line...
If a data center loses power...
The Web survives.
Packets just find a different way around.
Static vs. Dynamic Routing
Static Routing
"Always take the highway. If the highway is closed, sit and wait."
Fixed paths
No intelligence
Dynamic Routing
"Check traffic every second. If there's an accident, take the back roads automatically."
Adaptive paths
Real-time efficiency
The Internet's Core Philosophy
DECENTRALIZATION
No single person or computer "runs" the internet. Because every router makes its own smart choices, the system as a whole is unbreakable.

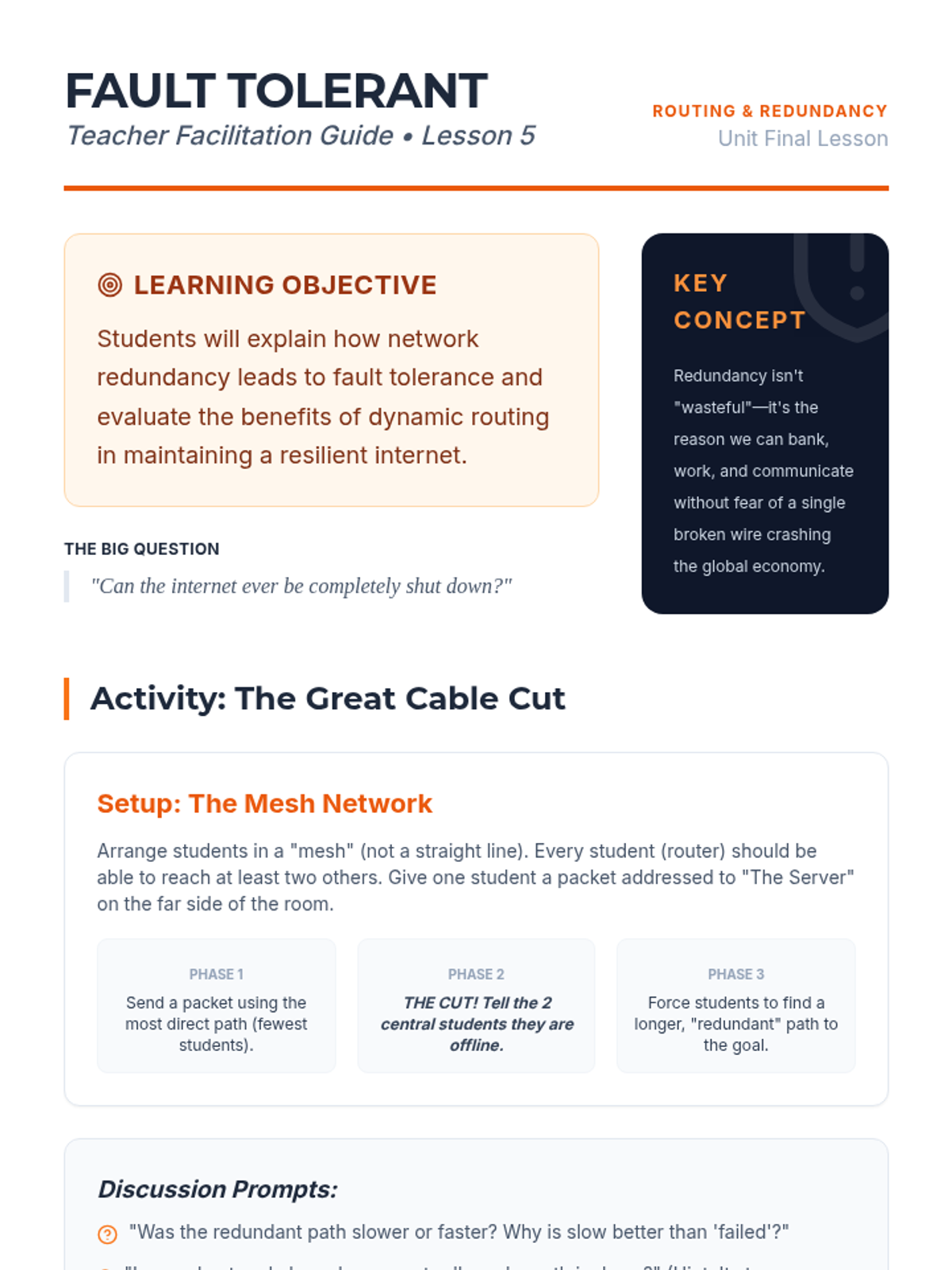

Fault Tolerant Teacher Guide Fault Tolerant
Teacher Facilitation Guide • Lesson 5
Routing & Redundancy
Unit Final Lesson
Learning Objective
Students will explain how network redundancy leads to fault tolerance and evaluate the benefits of dynamic routing in maintaining a resilient internet.
The Big Question
"Can the internet ever be completely shut down?"
Key Concept
Redundancy isn't "wasteful"—it's the reason we can bank, work, and communicate without fear of a single broken wire crashing the global economy.
Activity: The Great Cable Cut
Setup: The Mesh Network
Arrange students in a "mesh" (not a straight line). Every student (router) should be able to reach at least two others. Give one student a packet addressed to "The Server" on the far side of the room.
Phase 1
Send a packet using the most direct path (fewest students).
Phase 2
THE CUT! Tell the 2 central students they are offline.
Phase 3
Force students to find a longer, "redundant" path to the goal.
Discussion Prompts:
"Was the redundant path slower or faster? Why is slow better than 'failed'?"
"In a real network, how does a router 'know' a path is down?" (Hint: It stops receiving protocol heartbeats).
Vocabulary Check
Ensure students can distinguish between Redundancy (extra paths) and Fault Tolerance (the result of having those paths).
End of Unit Reflection
By today, students should see the internet not as a "thing," but as a collective agreement to follow rules (protocols) and cooperate to move data.

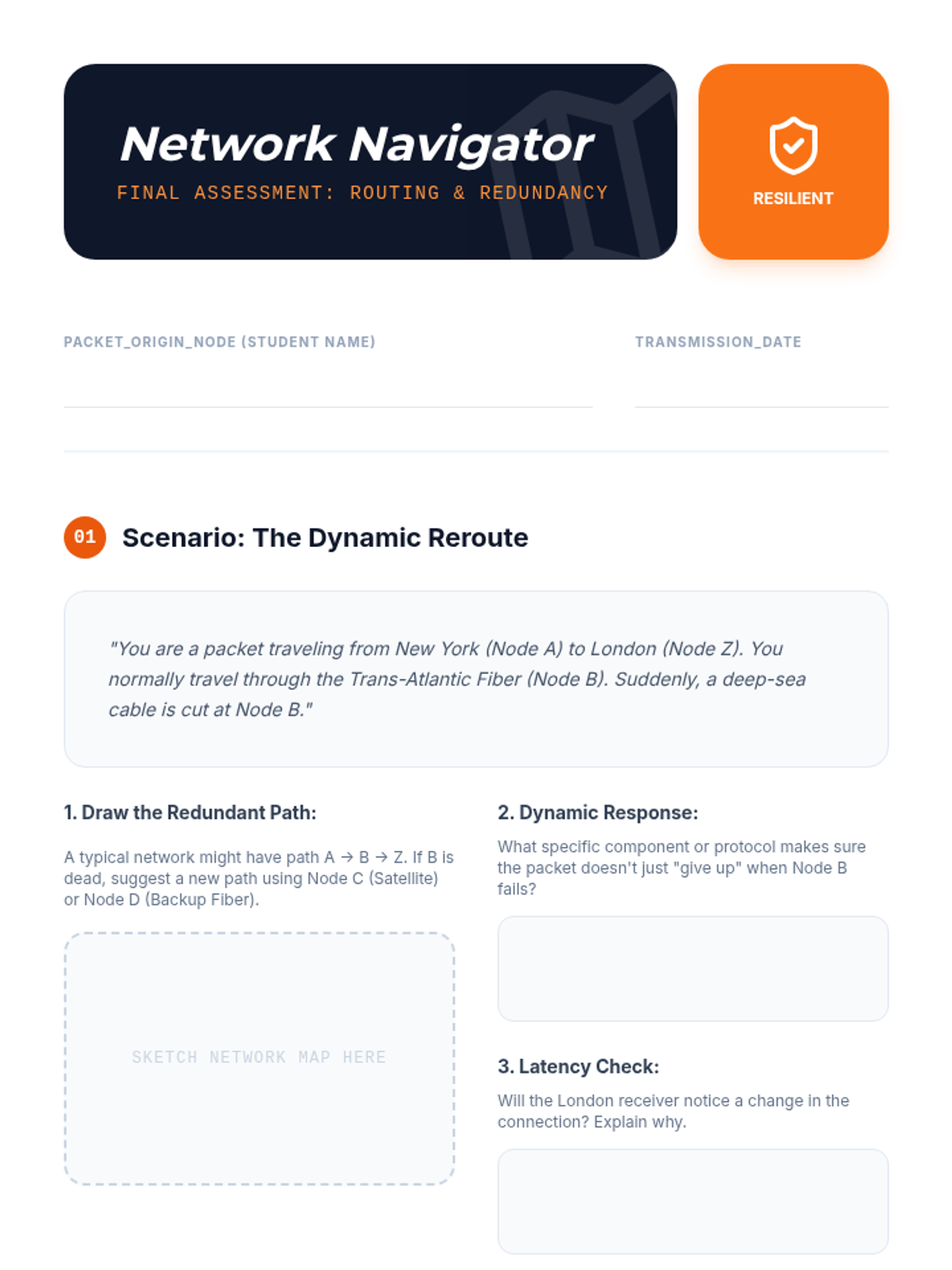

Network Navigator Worksheet Network Navigator
FINAL ASSESSMENT: ROUTING & REDUNDANCY
Resilient
Packet_Origin_Node (Student Name)
Transmission_Date
01 Scenario: The Dynamic Reroute
"You are a packet traveling from New York (Node A) to London (Node Z). You normally travel through the Trans-Atlantic Fiber (Node B). Suddenly, a deep-sea cable is cut at Node B."
1. Draw the Redundant Path:
A typical network might have path A -> B -> Z. If B is dead, suggest a new path using Node C (Satellite) or Node D (Backup Fiber).
Sketch network map here
2. Dynamic Response:
What specific component or protocol makes sure the packet doesn't just "give up" when Node B fails?
3. Latency Check:
Will the London receiver notice a change in the connection? Explain why.
02 Terms of Transmission
Fault Tolerance
Provide a real-world example of fault tolerance outside of computers.
Redundancy
How many paths are needed for a network to be considered redundant?
Essential Question Reflection
"How can we ensure reliable communication over an unreliable and chaotic network?"
