Subatomic Blueprint Slides Physical Science: Physics
Subatomic Blueprints
Building the invisible building blocks of everything.
PROJECT: ATOM-BUILDER
The Infinite Cut
REF // 01-A
"If you take a bar of pure gold and cut it in half... then half again... and half again... would it eventually stop being gold?"
The word Atom comes from the Greek word Atomos, meaning "uncuttable."
Today's Mission:
Identify the three parts that make up this 'uncuttable' particle.
The Subatomic Trio
Proton
Positive Charge (+)
Located in the Nucleus
Determines the Identity of the element
0
Neutron
Neutral Charge (0)
Located in the Nucleus
Adds mass but no charge
-
Electron
Negative Charge (-)
Moves in the Cloud/Shells
Involved in chemical bonding
The Identity Rule
Protons = DNA
If you change the number of protons, you change the element itself.
Adding a neutron makes it heavier (Isotope).
Adding an electron changes the charge (Ion).
P
-
Building Time!
1
Open the Atom Builder simulation or use your manipulative kits.
2
Start with 1 proton. Record what element you have created.
3
Add neutrons and electrons to see how "Stability" and "Net Charge" change.
Use your "Subatomic Blueprint Log" to track your findings!
Subatomic Blueprint Log Worksheet Subatomic Blueprint Log
Atom-Builder Lab Exercise
Name:
Date:
PART 1: PARTICLE IDENTIFICATION
PROTON
Charge: +1
Location: Nucleus
NEUTRON
Charge: 0
Location: Nucleus
ELECTRON
Charge: -1
Location: Cloud / Shells
PART 2: ATOM CONSTRUCTION LOG
As you use the simulation/manipulatives, record the properties of the atoms you build.
Trial Protons Neutrons Electrons Element Name Net Charge 01 02 03 04 05
PART 3: ANALYSIS
1. What specific particle MUST you change to turn Hydrogen into Helium?
2. What happens to the Net Charge if you have more electrons than protons?
3. If an atom has 3 protons, 4 neutrons, and 3 electrons, is it "Neutral" or "Stable"? Explain your evidence from the simulation.
Particle Lab Teacher Guide Subatomic Lab Guide
Teacher Support Resource
Overview
Students explore the "Identity Rule" of atoms: protons determine the element, while neutrons and electrons modify mass and charge. This is a discovery-based lesson.
Pacing
Hook/Intro 10 min
Lab Exploration 25 min
Analysis / Debrief 15 min
Recommended Labs
Digital: PhET "Build an Atom" SimulationPhysical: Colored pom-poms or beads on a bullseye mat.
Key Discussion Questions
If I have a pile of carbon atoms and I magically take one proton out of every nucleus, what do I have now?
Answer: Boron. Emphasize that identity is strictly tied to the proton count.
Can an atom have more electrons than protons? What would we call that?
Answer: Yes, it would be an Ion with a negative charge. It doesn't change the element type, just the charge.
Common Misconceptions
Misconception 1
"The number of neutrons must always match the number of protons."
Correction:
Show students Lithium (3p, 4n) to prove they can differ and still be stable.
Misconception 2
"Electrons are found inside the nucleus."
Correction:
Use the "Cloud" metaphor. The nucleus is the heavy center; electrons are the light orbiters.
Differentiation
Support: Provide a checklist of the first 10 elements with their proton counts to use as a "map."
Extension: Challenge students to find an atom that is stable with 0 neutrons (Hydrogen-1) and ask why this might be possible.
Atomic Math Slides Atomic Math
Decoding the weight of the universe.
LES-02 // SKILL BUILDER
The Mystery of the Decimal
6
C
12.011
How can you have 0.011 of a particle?
Is there such a thing as a partial proton or half a neutron?
Spoiler: No! Atoms come in "whole numbers." Today, we learn the difference between Mass Number and Average Atomic Mass .
The Two Atomic Keys
Atomic Number
Z = # of Protons
The Element's Identity
Always a whole number
Mass Number
A = Protons + Neutrons
The weight of ONE specific atom
Only counts the nucleus
Atomic Algebra
MASS - PROTONS = NEUTRONS
Example: Carbon
12 - 6 = 6
Example: Oxygen
16 - 8 = 8
Example: Gold
197 - 79 = 118
Ready for the Workshop?
Grab your Periodic Table. We are going to calculate the neutron count for the elements that build your body.
START WORKSHOP

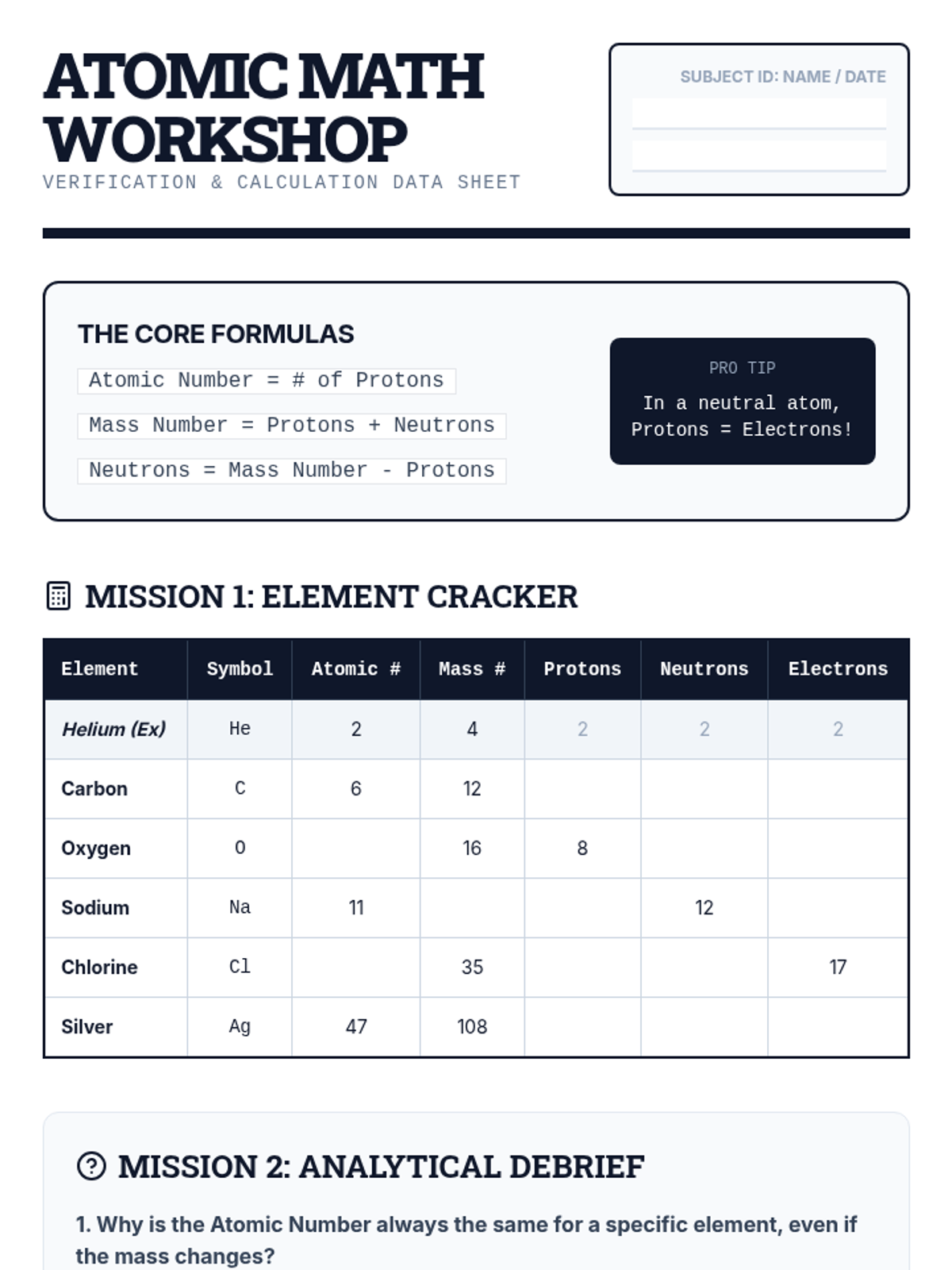

Atomic Math Workshop Worksheet ATOMIC MATH WORKSHOP
Verification & Calculation Data Sheet
Subject ID: Name / Date
The Core Formulas
Atomic Number = # of Protons
Mass Number = Protons + Neutrons
Neutrons = Mass Number - Protons
PRO TIP
In a neutral atom, Protons = Electrons!
MISSION 1: ELEMENT CRACKER
Element Symbol Atomic # Mass # Protons Neutrons Electrons Helium (Ex) He 2 4 2 2 2 Carbon C 6 12 Oxygen O 16 8 Sodium Na 11 12 Chlorine Cl 35 17 Silver Ag 47 108
MISSION 2: ANALYTICAL DEBRIEF
1. Why is the Atomic Number always the same for a specific element, even if the mass changes?
2. If an element has 20 protons and 20 neutrons, what is its Mass Number? Which element is it?
3. CHALLENGE: If a Nitrogen atom has a negative charge (-1), how many electrons does it have? Explain your math.
ID // DATA-MATH-WS-8

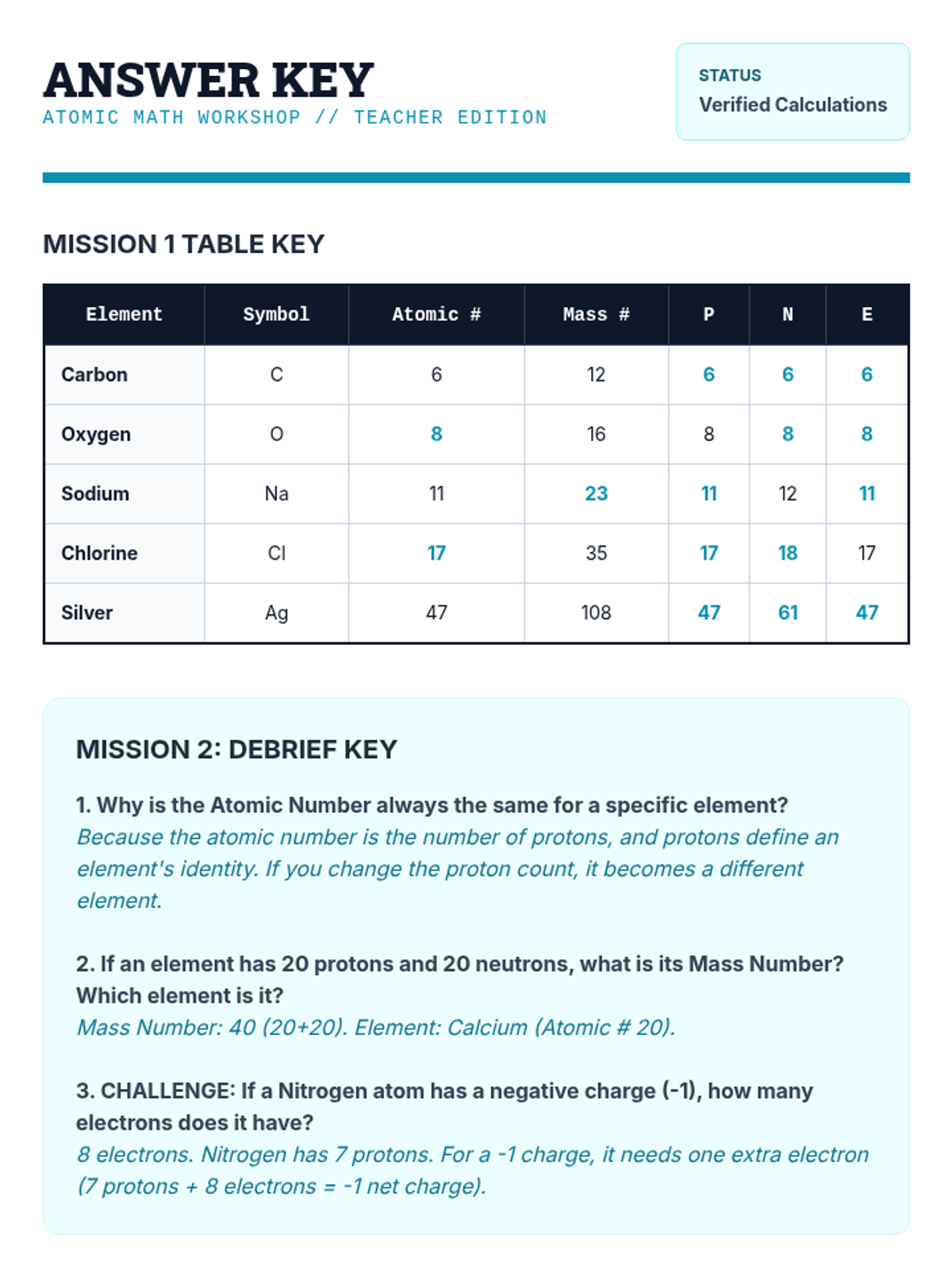

Atomic Math Answer Key ANSWER KEY
Atomic Math Workshop // Teacher Edition
Status
Verified Calculations
Mission 1 Table Key
Element Symbol Atomic # Mass # P N E Carbon C 6 12 6 6 6 Oxygen O 8 16 8 8 8 Sodium Na 11 23 11 12 11 Chlorine Cl 17 35 17 18 17 Silver Ag 47 108 47 61 47
Mission 2: Debrief Key
1. Why is the Atomic Number always the same for a specific element?
Because the atomic number is the number of protons, and protons define an element's identity. If you change the proton count, it becomes a different element.
2. If an element has 20 protons and 20 neutrons, what is its Mass Number? Which element is it?
Mass Number: 40 (20+20). Element: Calcium (Atomic # 20).
3. CHALLENGE: If a Nitrogen atom has a negative charge (-1), how many electrons does it have?
8 electrons. Nitrogen has 7 protons. For a -1 charge, it needs one extra electron (7 protons + 8 electrons = -1 net charge).
Atomic Stadium Slides The Atomic Stadium
Rules for the Electron Spectators.
Bohr Model Rules (2-8-8)
The Seat Rules
CORE
Rule 1: Front Row First
Electrons always fill the shells closest to the nucleus first.
Rule 2: Capacity Limits
Each shell has a maximum 'seating' limit. Once a shell is full, electrons move to the next level.
The 2-8-8 Logic
2
First Shell
Only holds 2 electrons.
8
Second Shell
Holds up to 8 electrons.
8
Third Shell
Holds up to 8 (for the first 18 elements).
The VIPs: Valence Electrons
The Valence Electrons are the ones in the outermost shell.
Why do they matter?
They determine reactivity.
They are the "hands" that grab other atoms to form bonds.
CHLORINE (17 e-)
Outer Shell: 7 Electrons
Stadium Mapping
It's time to map the electrons for the first 18 elements on your worksheet. Remember: Fill from the inside out!

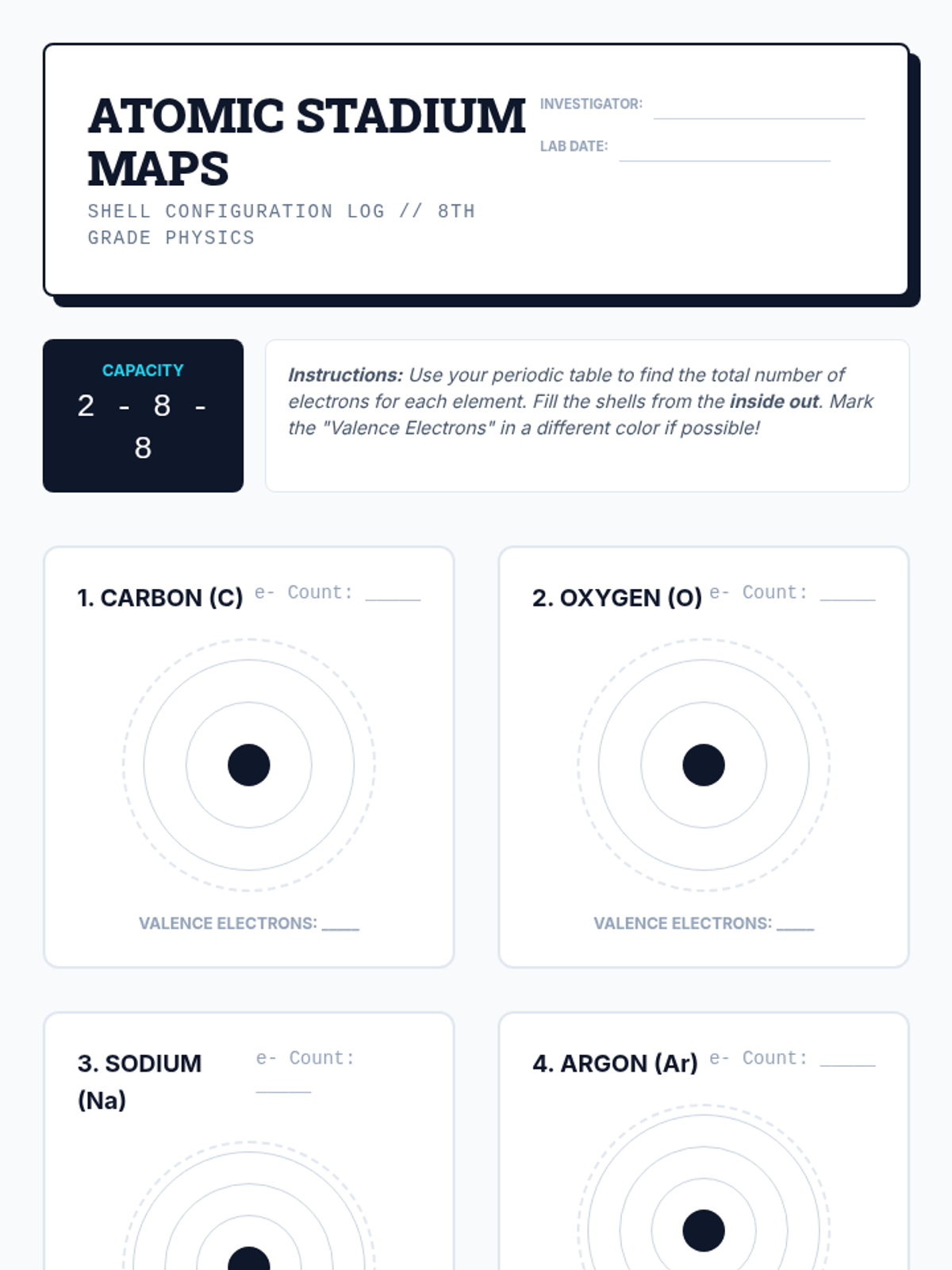

Bohr Model Maps Worksheet Atomic Stadium Maps
SHELL CONFIGURATION LOG // 8TH GRADE PHYSICS
Investigator:
Lab Date:
Capacity
2 - 8 - 8
Instructions: Use your periodic table to find the total number of electrons for each element. Fill the shells from the inside out . Mark the "Valence Electrons" in a different color if possible!
1. CARBON (C)
e- Count: _____
Valence Electrons: _____
2. OXYGEN (O)
e- Count: _____
Valence Electrons: _____
3. SODIUM (Na)
e- Count: _____
Valence Electrons: _____
4. ARGON (Ar)
e- Count: _____
Valence Electrons: _____
REACTION PREDICTION
Look at your models for Sodium and Argon. Which one do you think is MORE likely to interact with another atom? Why? (Hint: Think about full vs. non-full outer shells).
Atomic Twins Slides Lesson 04: Isotopes
Atomic Twins
Same name, different weight.
What is an Isotope?
Atoms of the same element that have a different number of neutrons.
Same # of Protons
Same Chemical Identity
Different Mass
C-12
6P + 6N
C-14
6P + 8N
Isotope Profiles: Carbon
Carbon-12
Stable
The "Standard" carbon found in your DNA and every living thing.
Abundance: 98.9%
Carbon-14
Radioactive
The "Heavy" carbon used by scientists to date ancient fossils and artifacts.
Abundance: <0.001%
The "Average" Mystery
Why is Carbon's mass 12.011 and not just 12?
Think of it like a classroom grade average:
12
Many (99%)
14
Few (<1%)
=
12.011
Weighted Average
Isotope Hunt
You are about to receive "Atomic Twin Cards." Use your investigative skills to identify which twins belong to the same element.
Isotope Identity Sorting Activity ISOTOPE IDENTITY SORT
Classification Mission // Lesson 04
ID: TWIN-SORT-V1
Your Mission: Below are cards for different atoms. Some are "Atomic Twins" (Isotopes). Atoms are twins if they have the same number of Protons but a different number of Neutrons . Sort them into pairs by writing their Element Name in the space provided.
ATOM-A
Composition Protons: 1
Mass Specs Neutrons: 0
ATOM-B
Composition Protons: 6
Mass Specs Neutrons: 6
ATOM-C
Composition Protons: 1
Mass Specs Neutrons: 1
ATOM-D
Composition Protons: 6
Mass Specs Neutrons: 8
ATOM-E
Composition Protons: 8
Mass Specs Neutrons: 8
ATOM-F
Composition Protons: 8
Mass Specs Neutrons: 10
Classification Report
Pair 1: Atoms _____ and _____ are isotopes of:
Pair 2: Atoms _____ and _____ are isotopes of:
Pair 3: Atoms _____ and _____ are isotopes of:
Reflect: If Atom B and Atom D are isotopes, which one will have the higher Mass Number? Explain why.
Tile Decoder Slides Tile Decoder
Mastering the language of the Periodic Table.
System.Decode(Final)
The Element Tile Anatomy
26
Fe
Iron
55.845
Atomic Number
Symbol
Atomic Mass
Decoding Mission:
Atomic Number = Protons & Electrons
Rounded Mass - Atomic Number = Neutrons
"The Periodic Table is a map. If you can read the tile, you can see the invisible atom."
Review: The Charge Rule
✔
Neutral Atom
Protons = Electrons
±
Ion (Charged)
Protons ≠ Electrons
Your Final Mission
The Profile Challenge
You will be assigned 3 elements. You must create a "Data Sheet" for each including their subatomic counts and a hand-drawn Bohr Model.
Tools Allowed:
Periodic Table + Calculator + Brain.
Quick Review: Decoding
[Insert Decoding Tutorial Video Here]

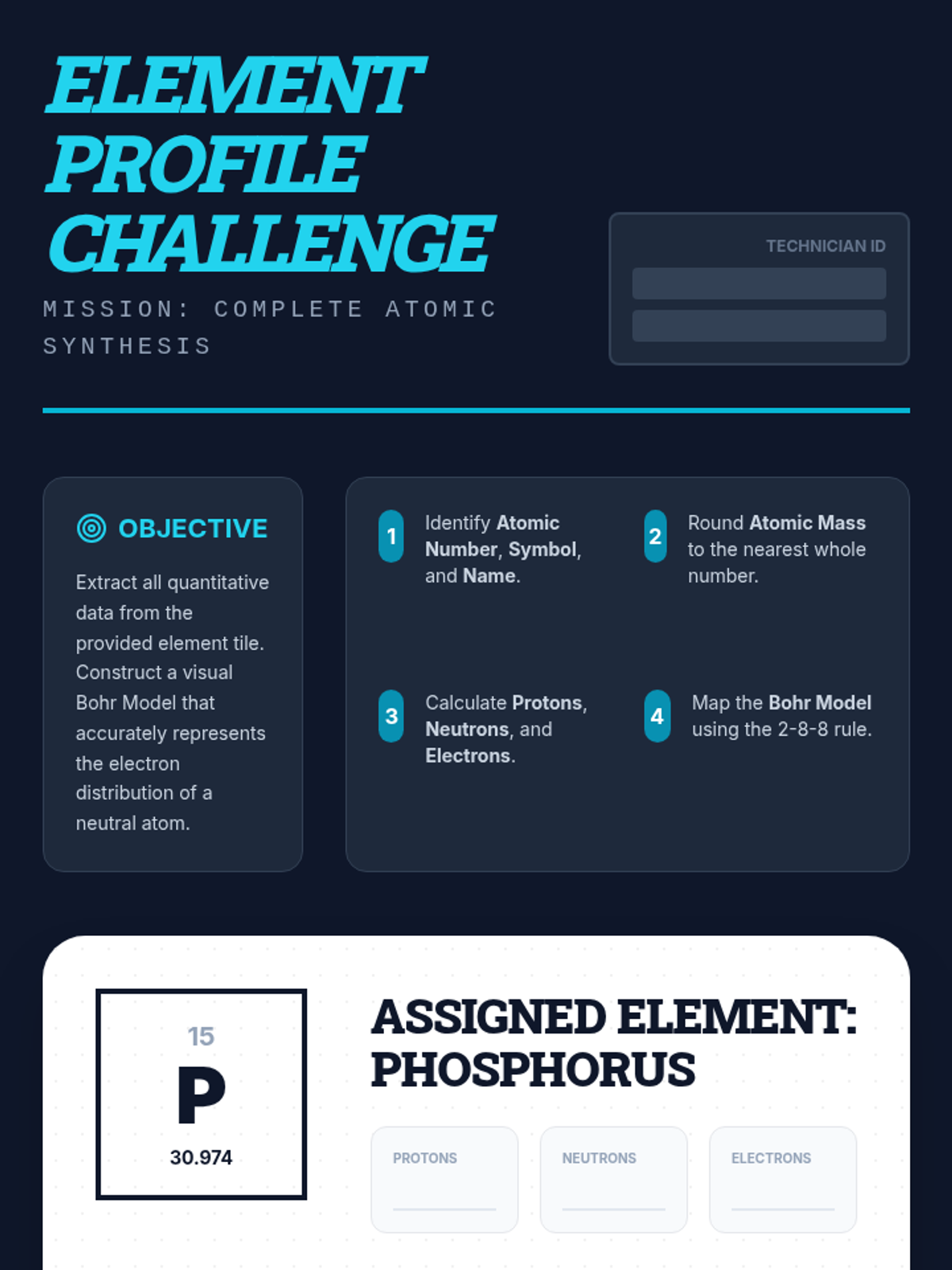

Element Profile Challenge Project Element Profile Challenge
MISSION: COMPLETE ATOMIC SYNTHESIS
Technician ID
OBJECTIVE
Extract all quantitative data from the provided element tile. Construct a visual Bohr Model that accurately represents the electron distribution of a neutral atom.
1
Identify Atomic Number , Symbol , and Name .
2
Round Atomic Mass to the nearest whole number.
3
Calculate Protons , Neutrons , and Electrons .
4
Map the Bohr Model using the 2-8-8 rule.
15
P
30.974
Assigned Element: Phosphorus
Protons
Neutrons
Electrons
Bohr Model Visualization
15P / ?N
Technical Analysis
1. How many valence electrons does Phosphorus have?
2. Based on its electron count, is Phosphorus in Period 2 or Period 3? Explain.
3. If this atom gained 3 electrons to fill its outer shell, what would its charge be?
SPEC: PHYSICAL-8-P
SEQ: 005-CULMINATING

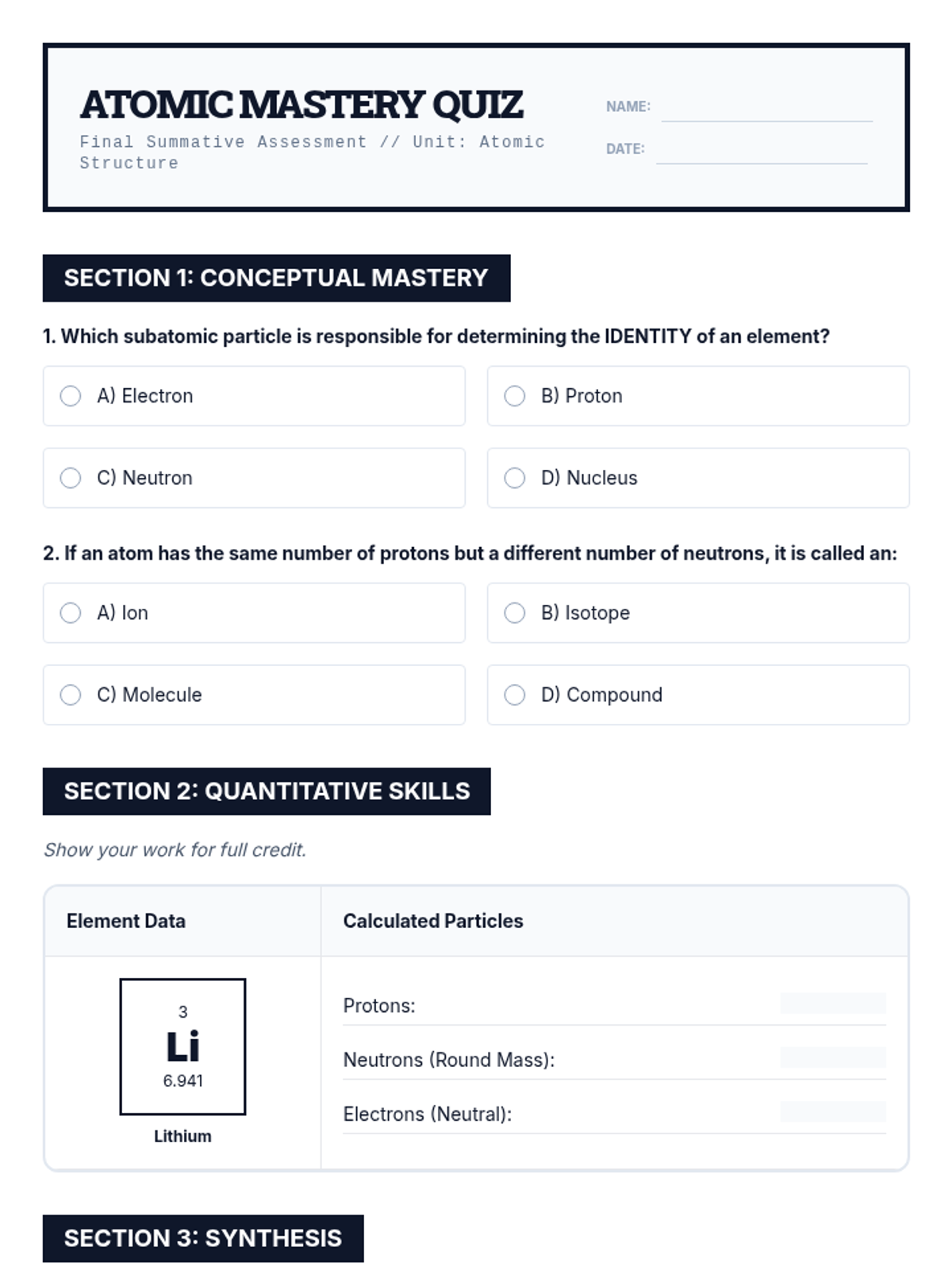

Atomic Mastery Quiz Assessment Atomic Mastery Quiz
Final Summative Assessment // Unit: Atomic Structure
NAME:
DATE:
SECTION 1: CONCEPTUAL MASTERY
1. Which subatomic particle is responsible for determining the IDENTITY of an element?
A) Electron
B) Proton
C) Neutron
D) Nucleus
2. If an atom has the same number of protons but a different number of neutrons, it is called an:
A) Ion
B) Isotope
C) Molecule
D) Compound
SECTION 2: QUANTITATIVE SKILLS
Show your work for full credit.
Element Data Calculated Particles 3
Li
6.941
Lithium
|
Protons:
Neutrons (Round Mass):
Electrons (Neutral):
|
SECTION 3: SYNTHESIS
3. Explain why most atoms on the periodic table have an Atomic Mass that is a decimal number (like 6.941) instead of a whole number.
4. Draw a Bohr Model for Beryllium (Atomic # 4). Clearly label the location of the electrons in each shell.
