Binary Audit Slides The Binary Systems Audit
Mastering the foundation of chemical communication: Ionic and Covalent nomenclature.
Speed Review
Mastery Level
Audit Objectives
Why are we performing this system check?
01
Identify Knowledge Gaps
Pinpoint exactly where naming conventions (Type I, II, or III) get tangled in your processing.
02
Develop Fluency
Achieve "low-latency" communication. Chemists don't pause to think about Roman numerals; they just speak.
The Binary Decision Matrix
TYPE I IONIC
Fixed Charge Cations
Group 1, 2, Ag, Zn, Al + Non-metal. No Roman numerals needed.
NaCl, MgBr2
TYPE II Ionic
Variable Charge Cations
Transition metals. Roman numerals represent the cation charge.
FeCl3, SnO2
TYPE III COVALENT
Non-metal Pairings
Uses Greek prefixes (mono, di, tri). Never use prefixes for ions!
CO2, P2O5
Ion Speed Dating
You are either a Cation or an Anion .30 seconds to name your child!
1. Find a partner of the opposite charge.
The "Audit Fail" List
Trap #1: The Over-Prefix
Using Greek prefixes for ionic compounds.
Dimagnesium dichloride Magnesium chloride
Trap #2: Roman Redundancy
Putting Roman numerals where they don't belong (Group 1 & 2).
Sodium (I) Chloride Sodium Chloride
Trap #3: The Covalent Cation
Treating P2O5 like an ionic compound.
Phosphorus oxide Diphosphorus pentoxide
Master Check!
If it starts with a metal, check the charges. If it's all non-metals, start the prefixes.
Binary Systems Worksheet Binary Audit
Chemical Inventory Review
DATE: ________
ID: ________
Restricted Access // Class 12 Chem
Protocol Instructions
Perform a comprehensive audit of the following chemical substances. For each entry, identify the **Compound Type** (I: Fixed Ionic, II: Variable Ionic, III: Covalent), provide the missing **Chemical Formula**, or assign the correct **IUPAC Name**.
TYPE (I, II, III)
CHEMICAL FORMULA
IUPAC NOMENCLATURE
01
Li3N
02
Iron (III) Oxide
03
SF6
04
Tetraphosphorus decoxide
05
PbO2
06
Tin (II) sulfide
07
Ag2S
08
Silicon tetrabromide
09
Mn2O7
10
Copper (I) phosphide
Audit Analysis: The Type II Threshold
Explain the systematic process you used to determine if a Roman numeral was required for entries #05 and #07. Why does silver (Ag) break the general trend of transition metals in this context?
AUDITOR SIGNATURE
SYSTEM STATUS: OPTIMIZED
Binary Audit Teacher Guide Teacher Guide
Lesson 1: The Binary Systems Audit
Lesson Overview
This lesson serves as a diagnostic and remediation tool. Grade 12 students often forget the nuances of Type II ionic naming (specifically Roman numerals) and mix up covalent prefixes with ionic charges. The goal is rapid-fire accuracy.
Activity: Ion Speed Dating
Prep: Cut out cards with cations (with charges) and anions (with charges). Ensure you have a mix of Type I and Type II metals.
Execution:
Students move around the room. On your signal (whistle or bell), they find a partner.
Partners MUST have opposite charges (one cation, one anion).
They have 30 seconds to:
Determine the formula (criss-cross method or balance).
Speak the name out loud correctly.
If they finish, they swap cards and find a new partner for the next round.
Worksheet Answer Key: Binary Audit
# Type Formula IUPAC Name 01 I Li3N Lithium nitride 02 II Fe2O3 Iron (III) oxide 03 III SF6 Sulfur hexafluoride 04 III P4O10 Tetraphosphorus decoxide 05 II PbO2 Lead (IV) oxide 06 II SnS Tin (II) sulfide 07 I Ag2S Silver sulfide 08 III SiBr4 Silicon tetrabromide 09 II Mn2O7 Manganese (VII) oxide 10 II Cu3P Copper (I) phosphide
Teaching Tips
Common Misconception
Students often see "PbO2" and think it is Lead (II) because of the subscript 2. Remind them to check the anion's total charge first (Oxygen is -2 x 2 = -4 total, so Pb must be +4).
Extension
For advanced students, introduce "pseudo-binary" compounds like Ammonium chloride (NH4Cl) to see if they can identify the ionic nature despite being all non-metals.
Polyatomic Mastery Slides Polyatomic Ion Mastery
Cracking the Oxyanion Code: Patterns over Memorization.
Pattern Detection
The "Ate" Anchor
Most nomenclature confusion comes from trying to memorize every ion. Instead, memorize the **-ate** anchor and use logic to derive the rest.
NITROGEN
NO3-
Nitrate
SULFUR
SO42-
Sulfate
CHLORINE
ClO3-
Chlorate
The Oxygen Staircase
PER- ____ -ATE
[Anchor] + 1 Oxygen ClO4- (Perchlorate)
____ -ATE
THE ANCHOR ClO3- (Chlorate)
____ -ITE
[Anchor] - 1 Oxygen ClO2- (Chlorite)
HYPO- ____ -ITE
[Anchor] - 2 Oxygens ClO- (Hypochlorite)
Charge NEVER changes throughout the staircase!
The Periodic Cheat Code
Elements in the **same group** form the **same patterns**.
If you know Chlorate is ClO3-...
Predict This!
If Tellurium (Te) is under Selenium (Se) which is under Sulfur (S)...
TeO32-
What is the name of this ion?
The Alien Chemistry Lab
You are visiting Planet X. Their periodic table has elements like **Zognium (Zg)** and **Blipite (Bl)**.
You are given the formulas for their "Ate" ions.
Begin Skill-Building Workshop

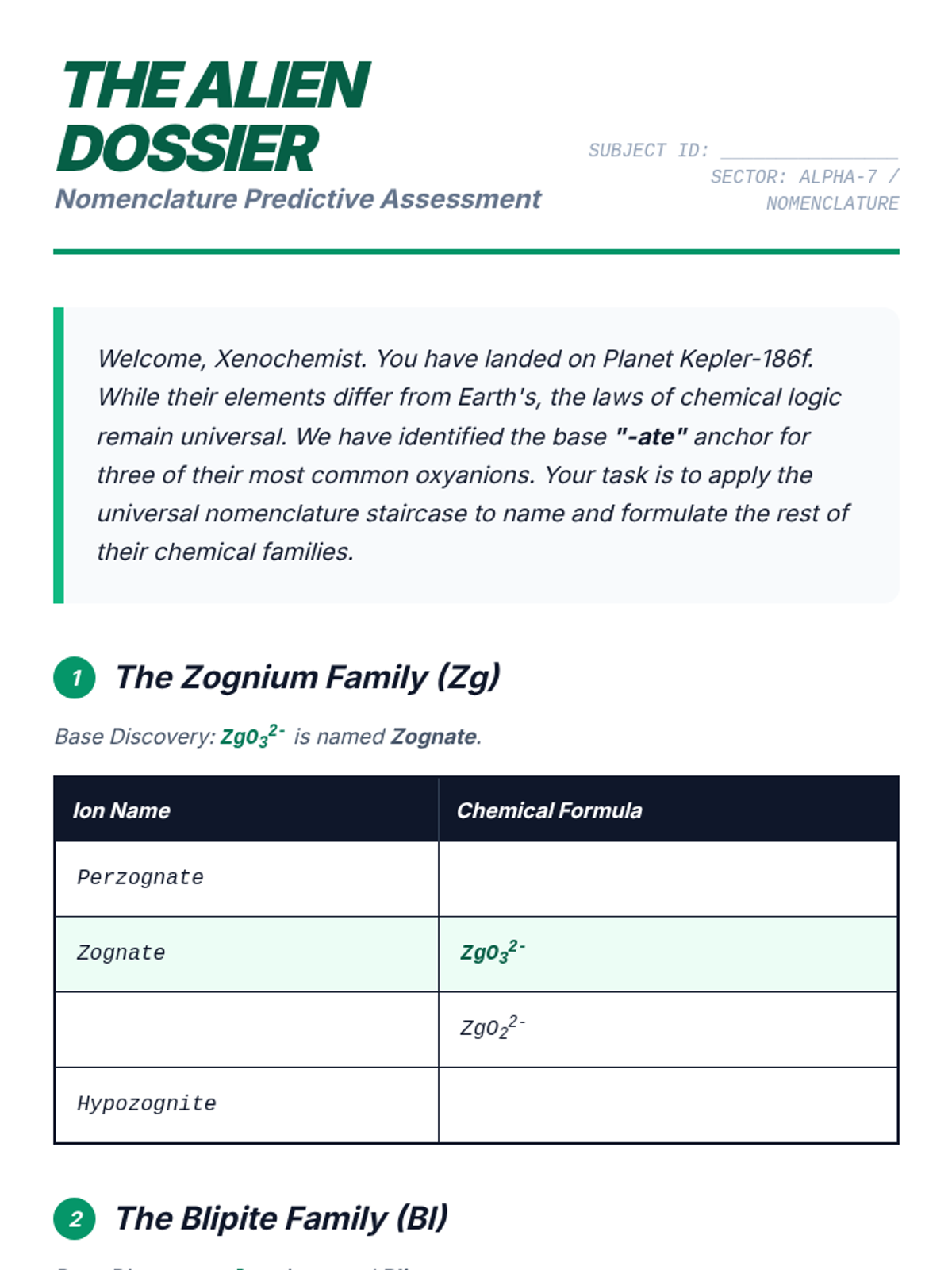

Alien Oxyanion Worksheet The Alien Dossier
Nomenclature Predictive Assessment
SUBJECT ID: ________________
Welcome, Xenochemist. You have landed on Planet Kepler-186f. While their elements differ from Earth's, the laws of chemical logic remain universal. We have identified the base "-ate" anchor for three of their most common oxyanions. Your task is to apply the universal nomenclature staircase to name and formulate the rest of their chemical families.
1
The Zognium Family (Zg)
Base Discovery: ZgO32- is named Zognate .
Ion Name Chemical Formula Perzognate Zognate ZgO32- ZgO22- Hypozognite
2
The Blipite Family (Bl)
Base Discovery: BlO4- is named Blipate .
Ion Name Chemical Formula BlO5- Blipate BlO4- Blipite Hypoblipite
3
Group Recognition Challenge
Alien elements **Xor (Xr)** and **Yip (Yp)** are in the same group.Xorite with the formula XrO2-.
Predict the name and formula for the ion YpO3-.
Verified by: ____________________
STAMP: [CHEM_MASTER_V1]

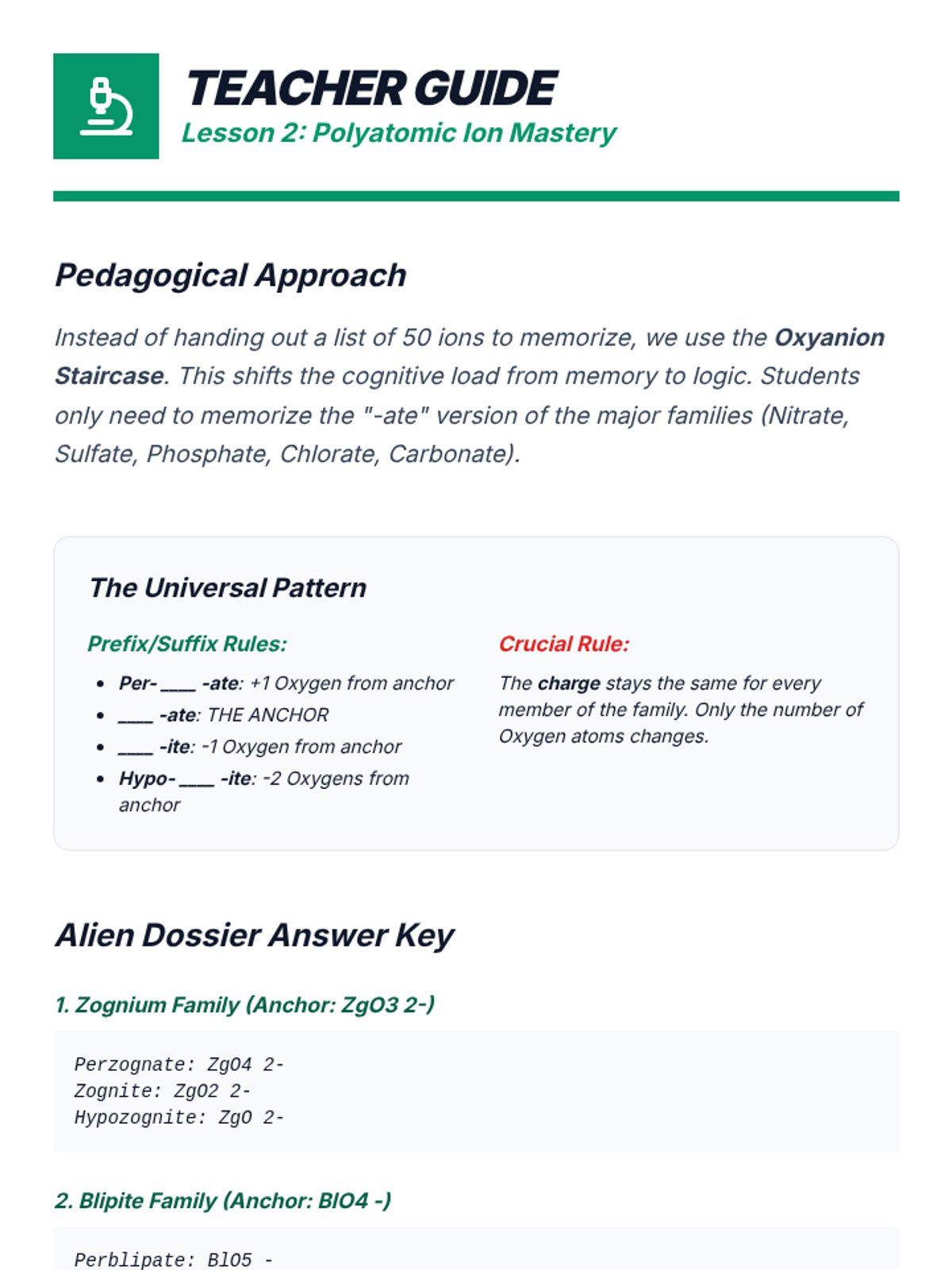

Polyatomic Mastery Teacher Guide Teacher Guide
Lesson 2: Polyatomic Ion Mastery
Pedagogical Approach
Instead of handing out a list of 50 ions to memorize, we use the Oxyanion Staircase . This shifts the cognitive load from memory to logic. Students only need to memorize the "-ate" version of the major families (Nitrate, Sulfate, Phosphate, Chlorate, Carbonate).
The Universal Pattern
Prefix/Suffix Rules:
Per- ____ -ate : +1 Oxygen from anchor____ -ate : THE ANCHOR____ -ite : -1 Oxygen from anchorHypo- ____ -ite : -2 Oxygens from anchor
Crucial Rule:
The charge stays the same for every member of the family. Only the number of Oxygen atoms changes.
Alien Dossier Answer Key
1. Zognium Family (Anchor: ZgO3 2-)
Perzognate: ZgO4 2-
Zognite: ZgO2 2-
Hypozognite: ZgO 2-
2. Blipite Family (Anchor: BlO4 -)
Perblipate: BlO5 -
Blipite: BlO3 -
Hypoblipite: BlO2 -
3. Group Recognition
YpO3 - is Yippate .
Logic: XrO2 - is Xorite (-ite). Since they are in the same group, the "ite" for Yp would be YpO2 -. Therefore, the "ate" (one more oxygen) is YpO3 -.
Instructional Nuance
Remind students that while the Oxygen staircase is universal, the Anchor (the number of oxygens in the -ate ion) varies. Sulfate has 4, while Nitrate has 3. This is the only part that requires focused memorization.
Acid Base Slides Acids & Bases
Nomenclature and the "Acid Rain" Challenge.
Binary vs. Oxyacids
Naming the Burn
Binary Acids
Hydrogen + One other element.
Hydro- [root] -ic Acid
HCl = Hydrochloric Acid
Oxyacids
Hydrogen + Polyatomic Ion.
No "Hydro-" prefix!
-ate → -ic Acid
The Secret Decoder Ring
"I ATE something IC-ky."
"That ITE is danger-OUS."
The Acid Rain Challenge
Pollutants like Sulfur Dioxide (SO2) and Nitrogen Dioxide (NO2) react with water vapor in the atmosphere.
If you analyze a rain sample and find Nitrite ions and Sulfate ions, what acids are you actually being rained on by?
pH < 4.2
Quick Check
H2Se(aq)
Name this binary acid.
H3PO3(aq)
Name this oxyacid.

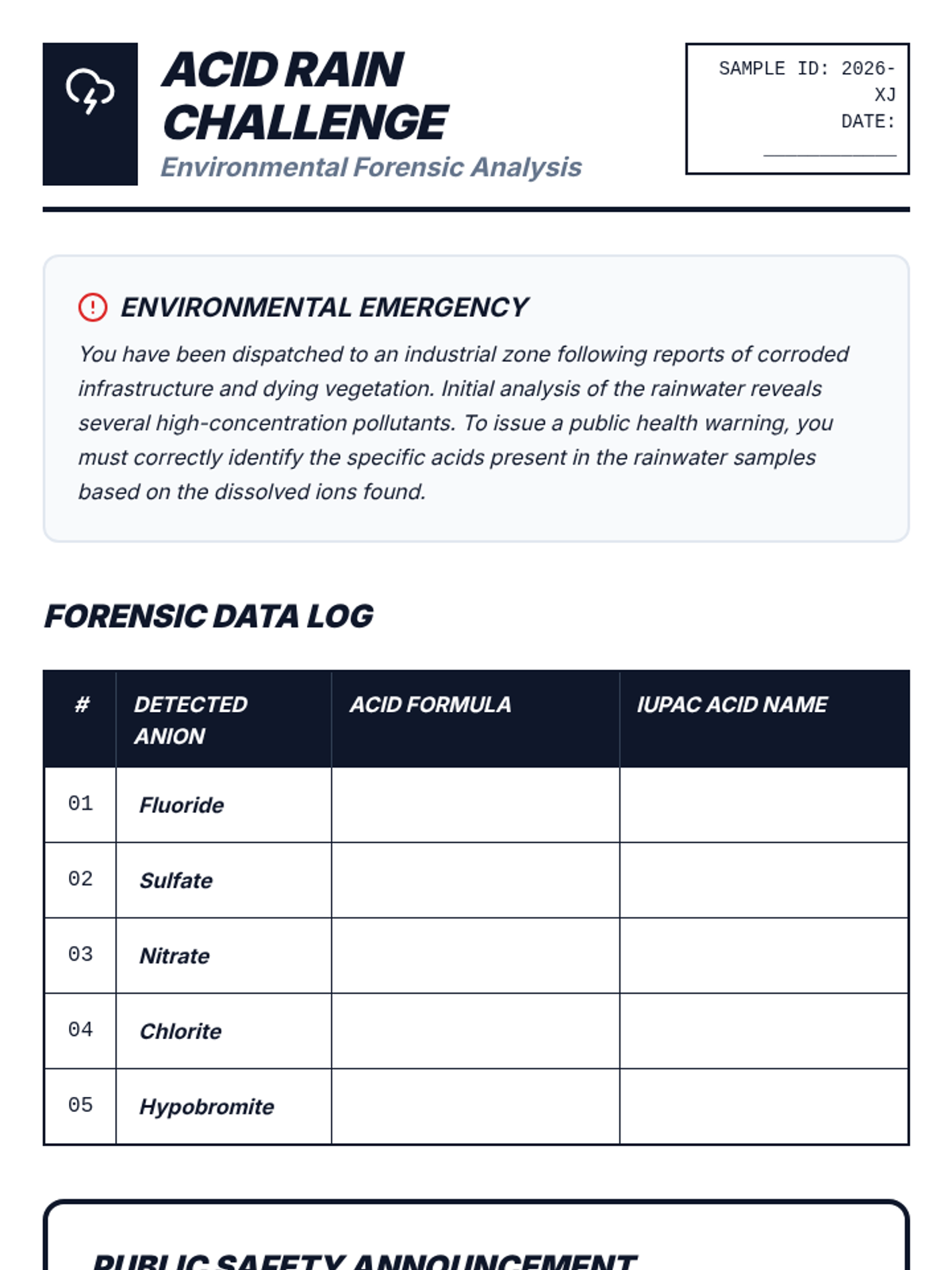

Acid Rain Challenge Worksheet Acid Rain Challenge
Environmental Forensic Analysis
SAMPLE ID: 2026-XJ
Environmental Emergency
You have been dispatched to an industrial zone following reports of corroded infrastructure and dying vegetation. Initial analysis of the rainwater reveals several high-concentration pollutants. To issue a public health warning, you must correctly identify the specific acids present in the rainwater samples based on the dissolved ions found.
Forensic Data Log
DETECTED ANION
ACID FORMULA
IUPAC ACID NAME
01
Fluoride
02
Sulfate
03
Nitrate
04
Chlorite
05
Hypobromite
Public Safety Announcement
Draft a one-sentence summary for the local news identifying the most dangerous acid present and explaining why its name follows the specific nomenclature rule you used.
HAZMAT CLEARANCE: CLASS 4
HEAD CHEMIST SIGNATURE

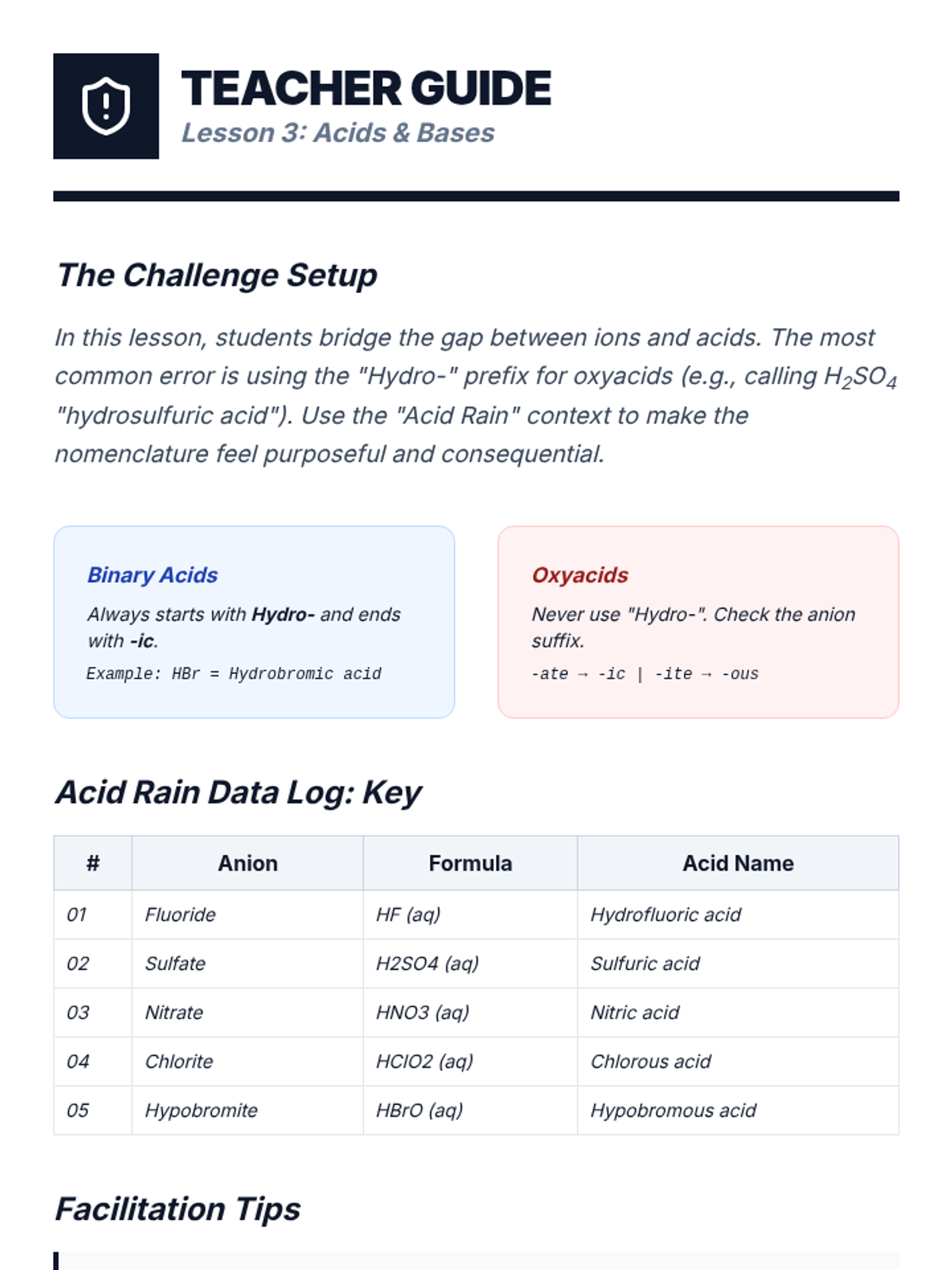

Acid Base Teacher Guide Teacher Guide
Lesson 3: Acids & Bases
The Challenge Setup
In this lesson, students bridge the gap between ions and acids. The most common error is using the "Hydro-" prefix for oxyacids (e.g., calling H2SO4 "hydrosulfuric acid"). Use the "Acid Rain" context to make the nomenclature feel purposeful and consequential.
Binary Acids
Always starts with Hydro- and ends with -ic .
Example: HBr = Hydrobromic acid
Oxyacids
Never use "Hydro-". Check the anion suffix.
-ate → -ic | -ite → -ous
Acid Rain Data Log: Key
# Anion Formula Acid Name 01 Fluoride HF (aq) Hydrofluoric acid 02 Sulfate H2SO4 (aq) Sulfuric acid 03 Nitrate HNO3 (aq) Nitric acid 04 Chlorite HClO2 (aq) Chlorous acid 05 Hypobromite HBrO (aq) Hypobromous acid
Facilitation Tips
Aqueous State: Remind students that these names only apply when the substance is in an aqueous (aq) state. Otherwise, HCl is simply hydrogen chloride gas.
Sulfur/Phosphorus: Point out the "extra" syllables in Sulfur ic and Phosphor ic acids compared to their anions. This is a common point of spelling confusion.
Hydrate Slides Hydrates
Water-Locked Salts & Their Nomenclature.
Hydrated vs. Anhydrous
Crystal Lattice Water
A **hydrate** is an ionic compound that has a specific number of water molecules trapped within its crystal structure.
They aren't "wet" in the traditional sense; the water is part of the solid structure!
CuSO4 • 5H2O
Heating drives the water out, leaving the Anhydrous Salt .
The Naming Protocol
PART 1 Ionic Name
Use standard ionic rules (Type I or II).
PART 2 Prefix + Hydrate
Use Greek prefixes for the number of water molecules.
Copper(II) sulfate pentahydrate
Hydrate Multipliers
1Mono-
2Di-
3Tri-
4Tetra-
5Penta-
6Hexa-
7Hepta-
8Octa-
9Nona-
10Deca-
Common Trap: Don't forget the **dot** in the formula! It is NOT a multiplication sign; it represents the structural association of water.
Solving for X
To find the name of an unknown hydrate, we heat it until all water is gone.
1. Calculate moles of Anhydrous Salt .Water lost.
Quick Challenge
If 1 mole of Cobalt (II) chloride is associated with 6 moles of water...
What is the name?

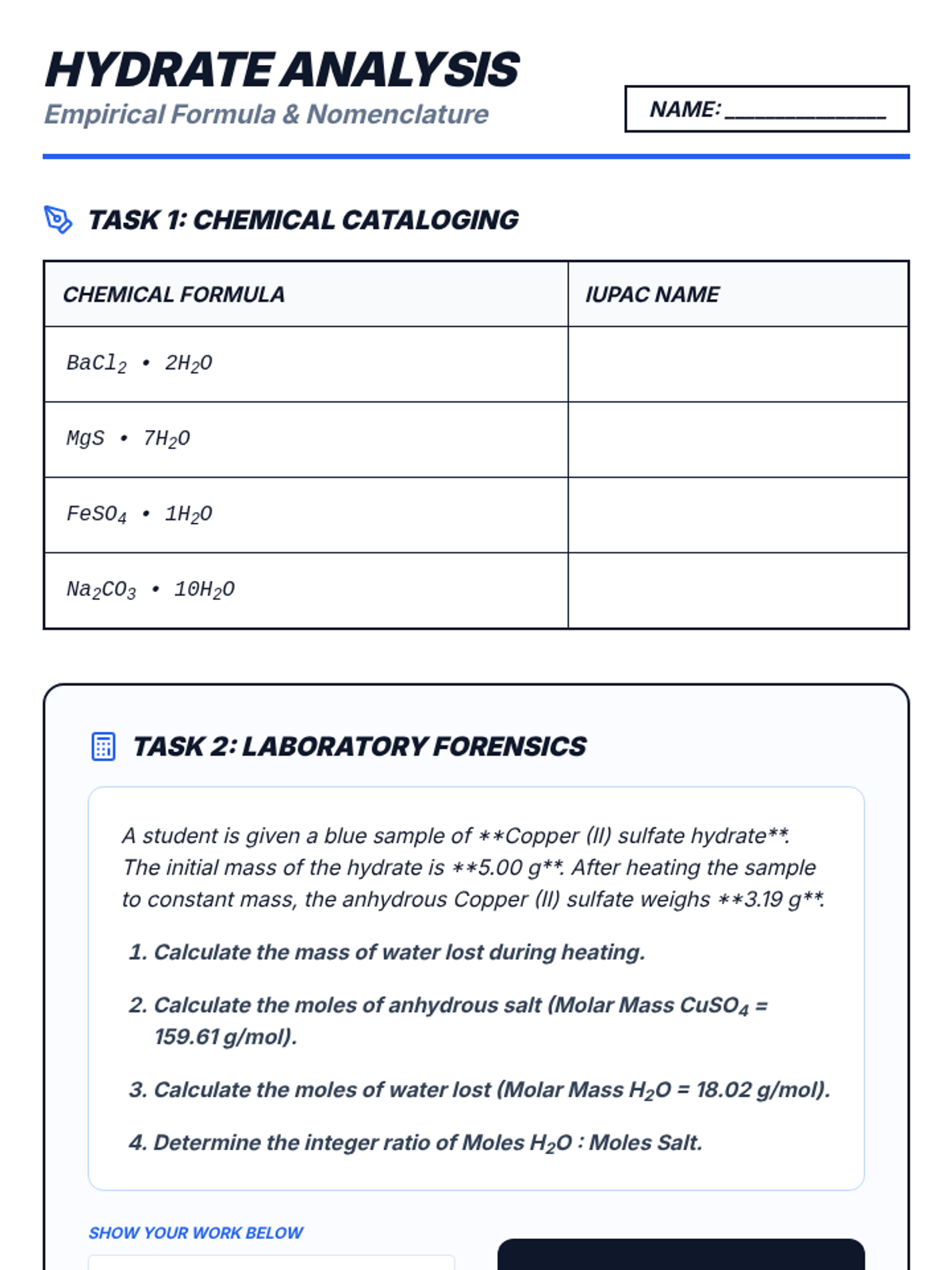

Hydrate Calculation Worksheet Hydrate Analysis
Empirical Formula & Nomenclature
NAME: ________________
Task 1: Chemical Cataloging
CHEMICAL FORMULA IUPAC NAME BaCl2 • 2H2O MgS • 7H2O FeSO4 • 1H2O Na2CO3 • 10H2O
Task 2: Laboratory Forensics
A student is given a blue sample of **Copper (II) sulfate hydrate**. The initial mass of the hydrate is **5.00 g**. After heating the sample to constant mass, the anhydrous Copper (II) sulfate weighs **3.19 g**.
Calculate the mass of water lost during heating.
Calculate the moles of anhydrous salt (Molar Mass CuSO4 = 159.61 g/mol).
Calculate the moles of water lost (Molar Mass H2O = 18.02 g/mol).
Determine the integer ratio of Moles H2O : Moles Salt.
Show Your Work Below
Final Conclusion
FULL FORMULA
IUPAC NAME
Hydrate Teacher Guide Teacher Guide
Lesson 4: Hydrates & Anhydrous Salts
Content Strategy
Hydrates provide a perfect opportunity to mix nomenclature with stoichiometry. Students must realize that the water is structurally bound, not just a mixture. The "dot" in the formula is a shorthand for this association.
Task 1: Nomenclature Key
Formula Name BaCl2 • 2H2O Barium chloride dihydrate MgS • 7H2O Magnesium sulfide heptahydrate FeSO4 • 1H2O Iron (II) sulfate monohydrate Na2CO3 • 10H2O Sodium carbonate decahydrate
Task 2: Calculation Key
1. Mass of Water: 5.00g - 3.19g = 1.81g
2. Moles CuSO4: 3.19g / 159.61 g/mol = 0.0200 mol
3. Moles H2O: 1.81g / 18.02 g/mol = 0.1004 mol
4. Ratio: 0.1004 / 0.0200 = 5.02 → 5
Formula: CuSO4 • 5H2O
Name: Copper (II) sulfate pentahydrate
Common Error: Students may use the total mass (5.00g) to calculate salt moles. Remind them that the 5.00g includes water; only the 3.19g represents the actual salt.
Escape Room Slides FeCl3
CuSO4
H2SO4
Li3N
ClO3-
NH4OH
LAB LOCKDOWN
The Final Nomenclature Challenge
System Breach
The ventilation system has detected an unidentified vapor. The safety shutters have engaged.
To override the lockdown, you must translate the chemical sequence programmed into the mainframe.
Rules: No outside notes. Speed and precision are your only allies.
Time Limit: 25 Mins
Puzzle Level 1: The Gatekeeper
Binary compounds form the base of the code. One tiny typo results in a system reset.
Copper(II) Nitride
Diphosphorus trioxide
Puzzle Level 2: The Oxyanion Bridge
The pattern is the key. Hypo, per, ite, ate. Follow the staircase to cross.
Fe(ClO4)3
Final Override Code
Combine the first letter of every name in your packet to form the passcode.
One failure locks the system permanently.
Escape Room Puzzle Packet PUZZLE PACKET
Operation: Nomenclature Synthesis
SYSTEM TIME: 25:00
Translate each chemical formula or name below. The **first letter** of each translated answer (the IUPAC name or the chemical symbol of the first element in the formula) will contribute to the 6-letter override code.
PUZZLE 01 TYPE: BINARY IONIC
AgCl
IUPAC NAME
PUZZLE 02 TYPE: OXYACID
H2SO4
IUPAC NAME
PUZZLE 03 TYPE: COVALENT
CO
IUPAC NAME
PUZZLE 04 TYPE: HYDRATE
LiCl • 1H2O
IUPAC NAME
PUZZLE 05 TYPE: OXYANION
IO3-
IUPAC NAME
PUZZLE 06 TYPE: BINARY ACID
H2Se(aq)
IUPAC NAME

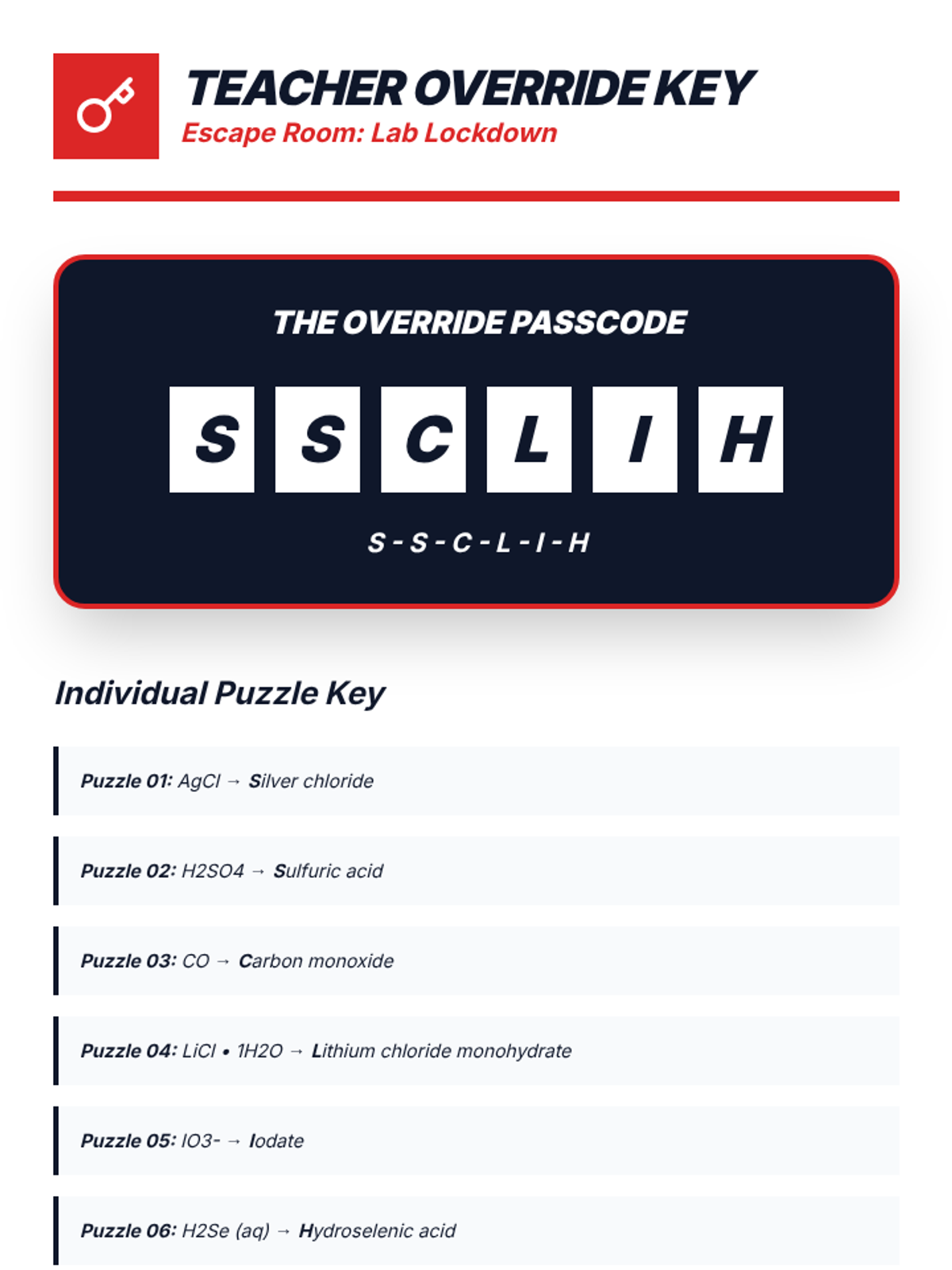

Override PASSCODE Escape Room Teacher Key Teacher Override Key
Escape Room: Lab Lockdown
THE OVERRIDE PASSCODE
S
S
C
L
I
H
S - S - C - L - I - H
Individual Puzzle Key
Puzzle 01: AgCl → S ilver chloride
Puzzle 02: H2SO4 → S ulfuric acid
Puzzle 03: CO → C arbon monoxide
Puzzle 04: LiCl • 1H2O → L ithium chloride monohydrate
Puzzle 05: IO3- → I odate
Puzzle 06: H2Se (aq) → H ydroselenic acid
Tip: If students get stuck on Puzzle 04, remind them to check the Greek prefixes. For Puzzle 06, remind them that H2Se is a binary acid (Hydro...ic).
