Observing Macroscopic Properties Slides Acid or Base?
Lesson 1: Observing Macroscopic Properties
Acid
Base
The Mystery Liquid
Two clear, odorless liquids are sitting on a lab bench. They look identical.
How can we tell them apart?
Look at them? (Both clear)
Smell them? (Safe? Not usually!)
Taste them? (NEVER in the lab!)
Liquid A
Liquid B
Macroscopic Properties
Properties we can observe with our senses and simple laboratory tools.
Greek: "Makros" (Large)
Color
Texture
Reactivity
Conductivity
Common Acids
🍋
Citric Acid
Found in lemons and oranges. Tastes sour.
🥤
Carbonic Acid
Found in soda. Created by dissolved CO2.
🔋
Sulfuric Acid
Found in car batteries. Highly reactive.
General Properties:
Taste: Sour (think lemons)
Reactivity: Reacts with metals to produce Hydrogen gas (bubbles!)
Indicator: Turns Blue litmus paper RED
Common Bases
🧼
Soap
Feels slippery. Basic properties help clean oils.
🥦
Vegetables
Broccoli and spinach have slight basic properties. Taste bitter.
🧪
Ammonia
Common cleaner. Strong smell and very basic.
General Properties:
Taste: Bitter (think dark chocolate or kale)
Touch: Feels slippery or soapy
Indicator: Turns Red litmus paper BLUE
Lab Rotation Mission
Identify 6 mystery substances by testing their macroscopic properties at 4 different stations.
Station A: Litmus
Check for color change.
Station B: Metals
React with Mg or Zn.
Station C: Conductivity
Do they conduct power?
Station D: Texture
Safe "rub" test (dilute).

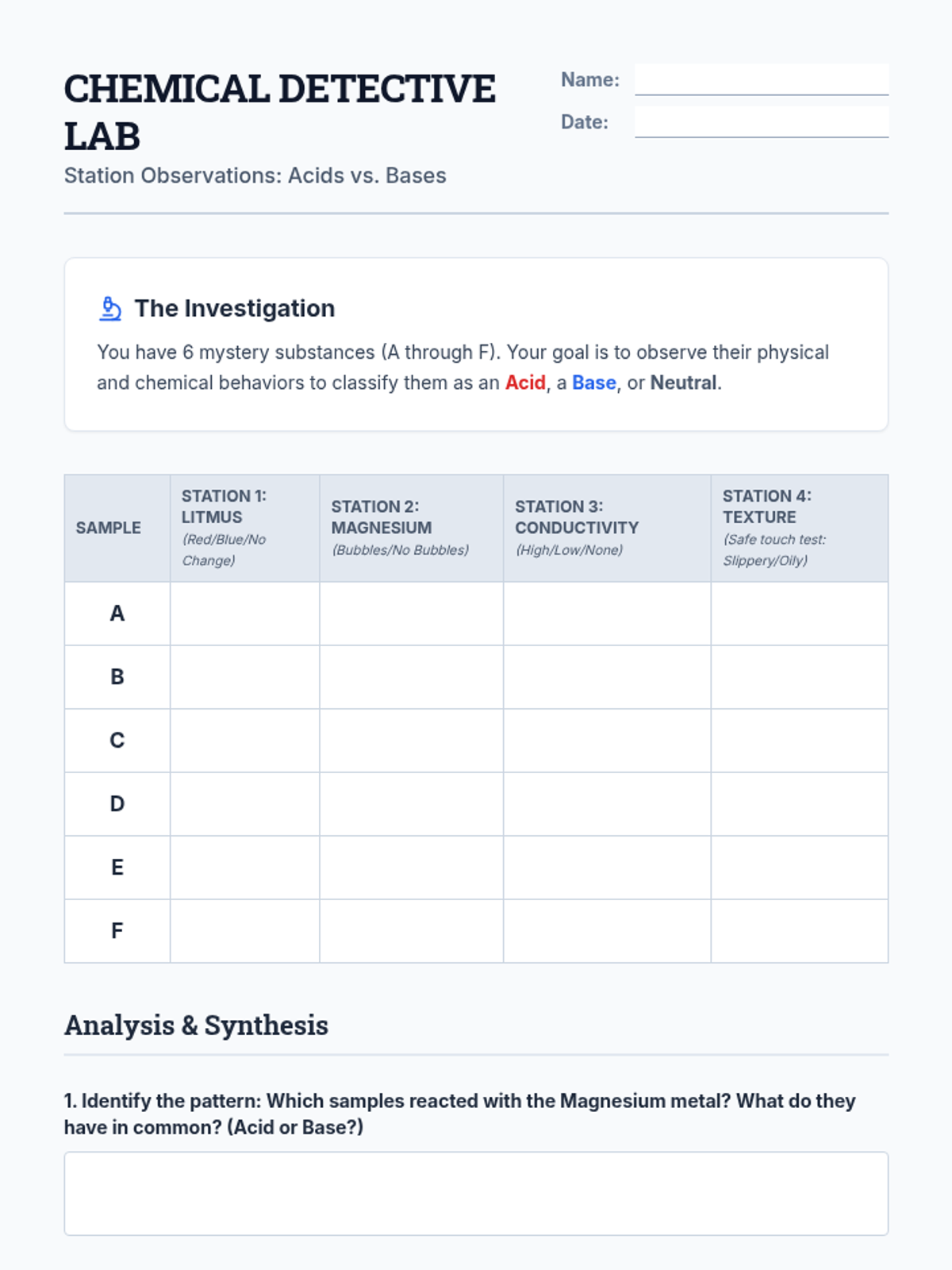

Chemical Detective Worksheet Chemical Detective Lab
Station Observations: Acids vs. Bases
Name:
Date:
The Investigation
You have 6 mystery substances (A through F). Your goal is to observe their physical and chemical behaviors to classify them as an Acid, a Base, or Neutral.
| Sample | Station 1: Litmus
Analysis & Synthesis
1. Identify the pattern: Which samples reacted with the Magnesium metal? What do they have in common? (Acid or Base?)
2. Contrast the touch test: How did the bases feel compared to the acids? Explain why this might be a useful property for cleaning products.
3. The Litmus Rule: Using your data, create a "rule" for using litmus paper to identify substances.
Acids turn litmus paper:
Bases turn litmus paper:
4. Final Classifications: Based on all your observations, classify each sample.
A:
B:
C:
D:
E:
F:

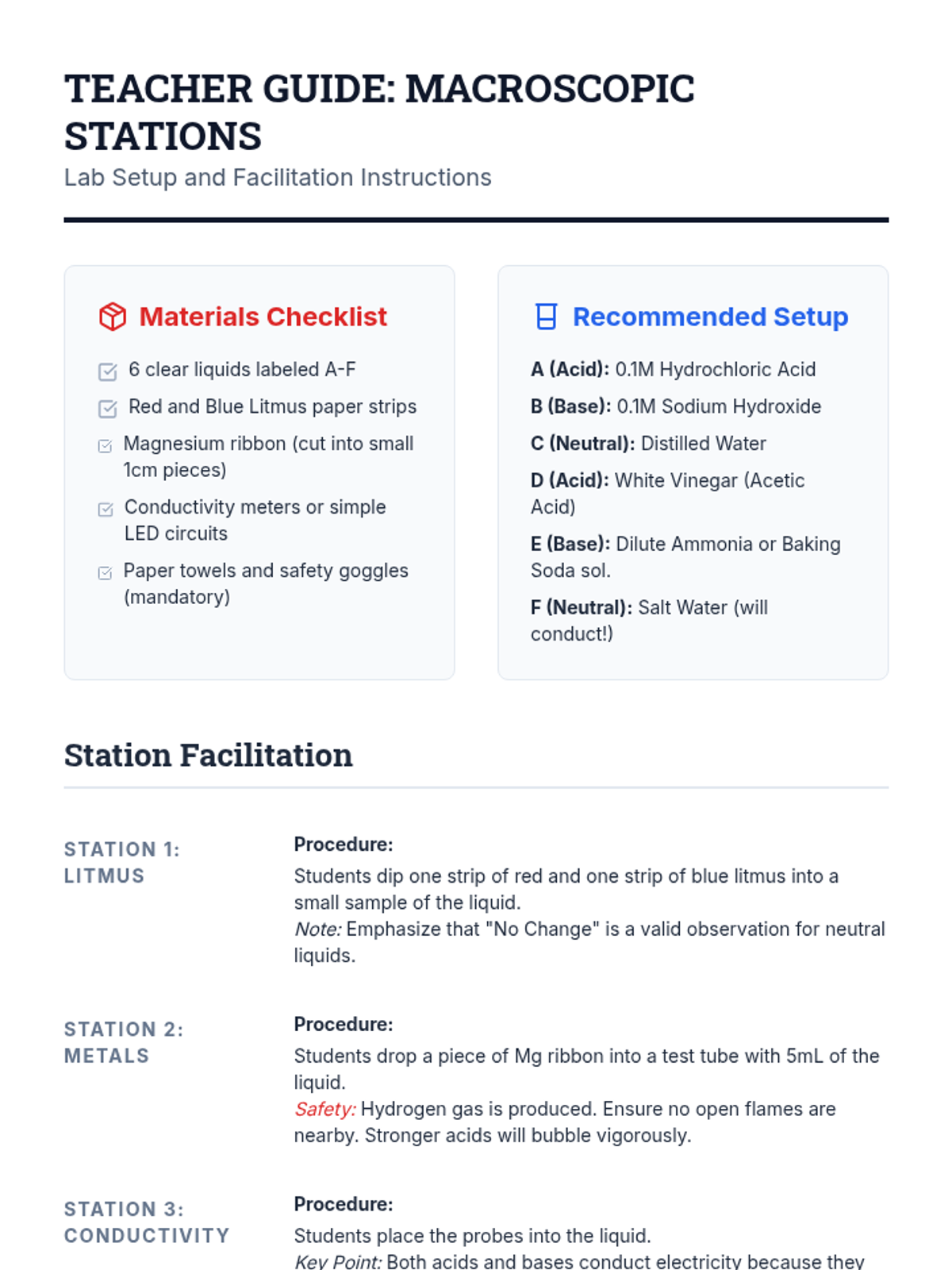

Macroscopic Stations Guide Teacher Guide: Macroscopic Stations
Lab Setup and Facilitation Instructions
Materials Checklist
6 clear liquids labeled A-F
Red and Blue Litmus paper strips
Magnesium ribbon (cut into small 1cm pieces)
Conductivity meters or simple LED circuits
Paper towels and safety goggles (mandatory)
Recommended Setup
A (Acid): 0.1M Hydrochloric Acid
B (Base): 0.1M Sodium Hydroxide
C (Neutral): Distilled Water
D (Acid): White Vinegar (Acetic Acid)
E (Base): Dilute Ammonia or Baking Soda sol.
F (Neutral): Salt Water (will conduct!)
Station Facilitation
Station 1: Litmus
Procedure:
Students dip one strip of red and one strip of blue litmus into a small sample of the liquid.
Station 2: Metals
Procedure:
Students drop a piece of Mg ribbon into a test tube with 5mL of the liquid.
Station 3: Conductivity
Procedure:
Students place the probes into the liquid.
Station 4: Texture
Procedure:
Students rub a drop between their gloved fingers.
Discussion & Debrief
Check for Understanding:
"Why did Sample F conduct electricity but not turn the litmus paper blue or red?" (It's an ionic salt, not an acid or base).
Connecting to Real Life:
"Where have you felt that 'slippery' texture before? (Soap, bleach). What does that tell you about those cleaners?"
Arrhenius Definitions Slides Arrhenius Acids & Bases
The Microscopic Reality
Beyond the Senses
Macroscopic (What we saw):
Bubbling with metal, sour taste, red litmus.
Microscopic (What's happening):
What specific atoms or ions make a substance behave this way?
Svante Arrhenius (1887)
Proposed that acids and bases are defined by the ions they produce when dissolved in water.
Arrhenius Acid
A substance that dissociates in water to produce Hydrogen ions (H⁺).
Chemical Equation Pattern:
\[ \text{HA} \xrightarrow{\text{H}_2\text{O}} \text{H}^+ + \text{A}^- \]
Example: HCl → H⁺ + Cl⁻
Arrhenius Base
A substance that dissociates in water to produce Hydroxide ions (OH⁻).
Chemical Equation Pattern:
\[ \text{XOH} \xrightarrow{\text{H}_2\text{O}} \text{X}^+ + \text{OH}^- \]
Example: NaOH → Na⁺ + OH⁻
Wait... Naked Protons?
An H⁺ ion is just a single proton. It is too reactive to exist alone in water.
It hitches a ride on a water molecule to form the Hydronium Ion (H₃O⁺).
H⁺ + H₂O → H₃O⁺
In chemistry, we use [H⁺] and [H₃O⁺] interchangeably!
Acid, Base, or Salt?
Identify these based on their dissociation products:
HBr → H⁺ + Br⁻ ?
KOH → K⁺ + OH⁻ ?
NaCl → Na⁺ + Cl⁻ ?
Ca(OH)₂ → Ca²⁺ + 2OH⁻ ?

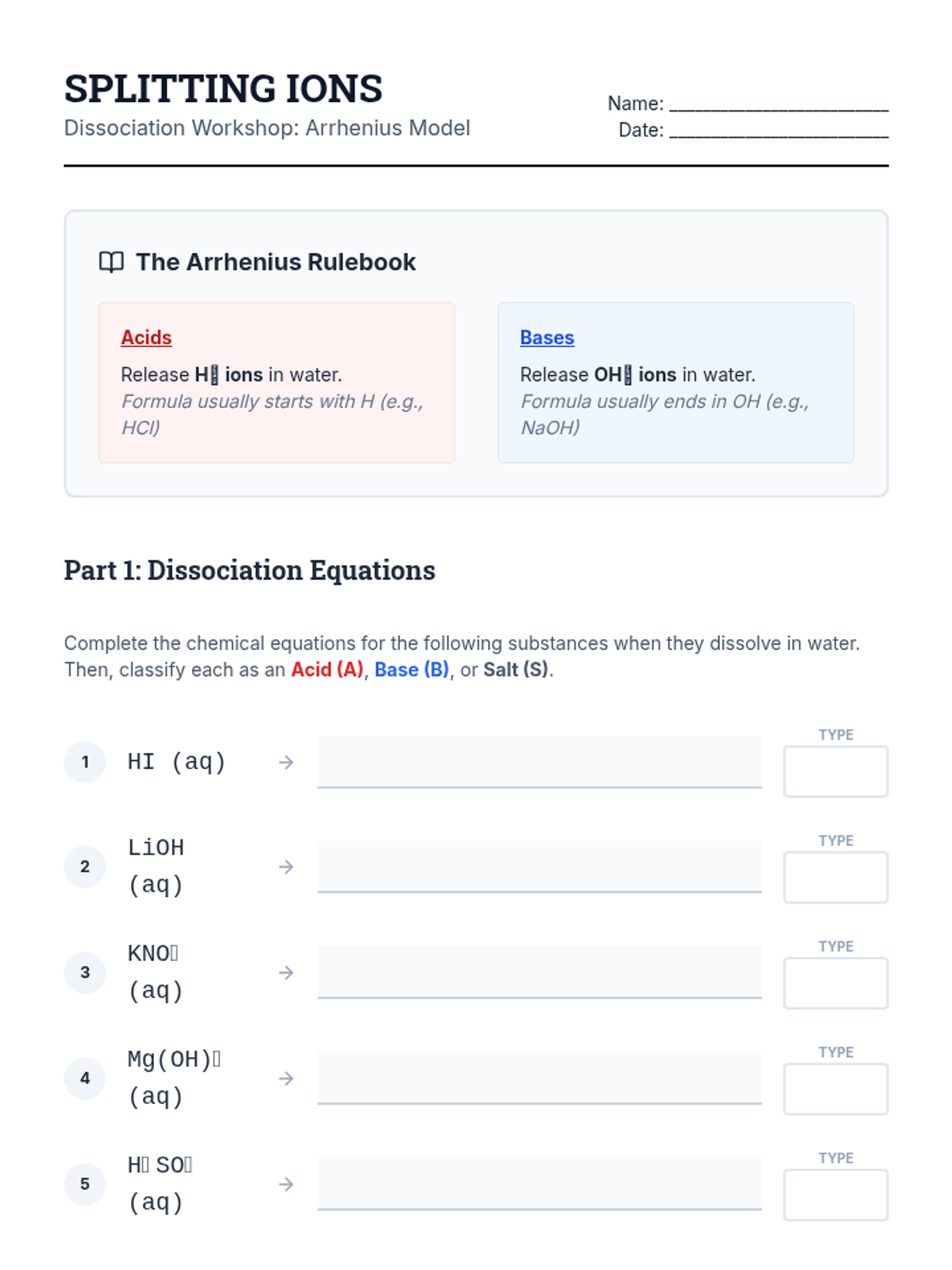

Dissociation Workshop Worksheet Splitting Ions
Dissociation Workshop: Arrhenius Model
Name: __________________________
Date: __________________________
The Arrhenius Rulebook
Acids
Release H⁺ ions in water.
Formula usually starts with H (e.g., HCl)
Bases
Release OH⁻ ions in water.
Formula usually ends in OH (e.g., NaOH)
Part 1: Dissociation Equations
Complete the chemical equations for the following substances when they dissolve in water. Then, classify each as an Acid (A), Base (B), or Salt (S).
1
HI (aq)
Type
2
LiOH (aq)
Type
3
KNO₃ (aq)
Type
4
Mg(OH)₂ (aq)
Type
5
H₂SO₄ (aq)
Type
Part 2: Particle Diagrams
In the beakers below, draw the resulting ions when the substance is added to water. Use circles for ions and label them (e.g., \( \text{H}^+ \), \( \text{Cl}^- \)). Draw at least 3 pairs for each.
Sample A: Nitric Acid (\( \text{HNO}_3 \))
Sample B: Barium Hydroxide (\( \text{Ba(OH)}_2 \))
Part 3: Critical Thinking
Why can we not classify Ammonia (\( \text{NH}_3 \)) as an Arrhenius base just by looking at its formula, even though it turns litmus paper blue? (Hint: Does it have an OH in the formula?)
pH Scale Math Slides The pH Scale
Power of Hydrogen & Logarithmic Math
The Definition
Level: 9th Grade Math
pH stands for "power of Hydrogen".
It measures the concentration of Hydrogen ions \( [H^+] \) in a solution.
pH = -log[H⁺]
A Balanced World
The scale runs from 0 (Acidic) to 14 (Basic), with 7 being Neutral.
The Logarithmic Secret
The pH scale is logarithmic. This means every "1" change on the scale is a 10x difference in strength.
pH 3 → pH 2 10 times more acidic
pH 4 → pH 2 100 times more acidic
pH 5 → pH 2 1,000 times more acidic
10x
Math Technique: "The Shortcut"
If the concentration is \( 1 \times 10^{-x} \), the pH is simply x.
If [H⁺] is...
\( 1 \times 10^{-4} \text{ M} \)
pH = 4
If [H⁺] is...
\( 0.0001 \text{ M} \)
(Move decimal 4 places)
pH = 4
Try it: What is the pH if \( [H^+] = 1 \times 10^{-9} \)?
The Relationship
The Golden Rule
pH + pOH = 14
If pH is 3...
pOH = 11
If pOH is 4...
pH = 10
If pH is 7...
pOH = 7
Quickfire Round
\( [H^+] = 1 \times 10^{-2} \text{ M} \) pH = ?
\( [H^+] = 0.00001 \text{ M} \) pH = ?
pH = 5 pOH = ?
Challenge Question
Which is more acidic?
Hint: Convert everything to pH first!

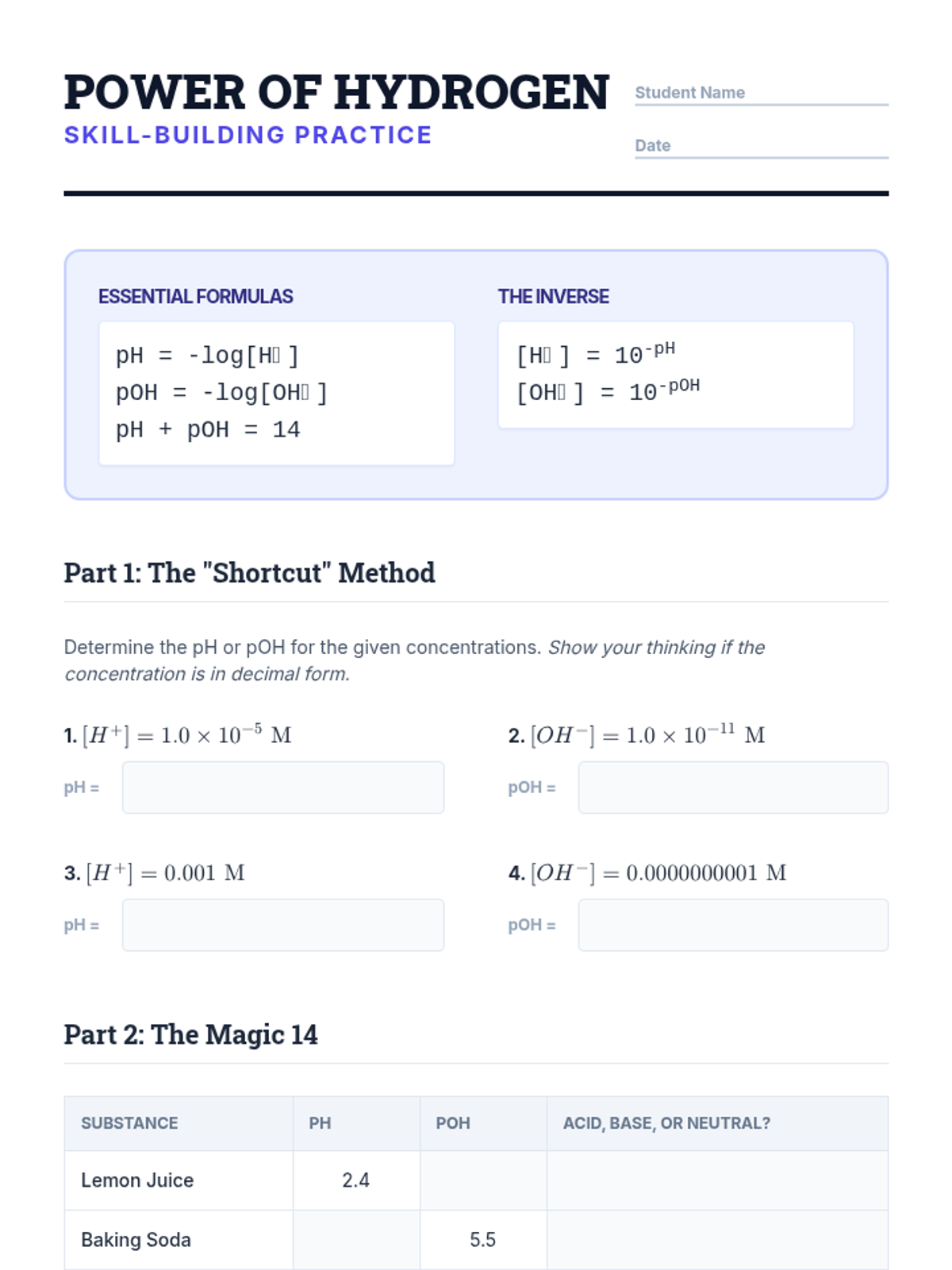

pH Math Mastery Worksheet Power of Hydrogen
Skill-Building Practice
Student Name
Date
Essential Formulas
pH = -log[H⁺]
The Inverse
[H⁺] = 10-pH
Part 1: The "Shortcut" Method
Determine the pH or pOH for the given concentrations. Show your thinking if the concentration is in decimal form.
1. \( [H^+] = 1.0 \times 10^{-5} \text{ M} \)
pH =
2. \( [OH^-] = 1.0 \times 10^{-11} \text{ M} \)
pOH =
3. \( [H^+] = 0.001 \text{ M} \)
pH =
4. \( [OH^-] = 0.0000000001 \text{ M} \)
pOH =
Part 2: The Magic 14
Substance pH pOH Acid, Base, or Neutral? Lemon Juice 2.4 Baking Soda 5.5 Distilled Water 7.0 Liquid Bleach 1.0
Part 3: Critical Scaling
Scenario: You have a beaker of Vinegar at pH 3.0. You add a buffer that changes the pH to pH 1.0.
A) Did the concentration of Hydrogen ions increase or decrease?
B) By how many times did the concentration change?

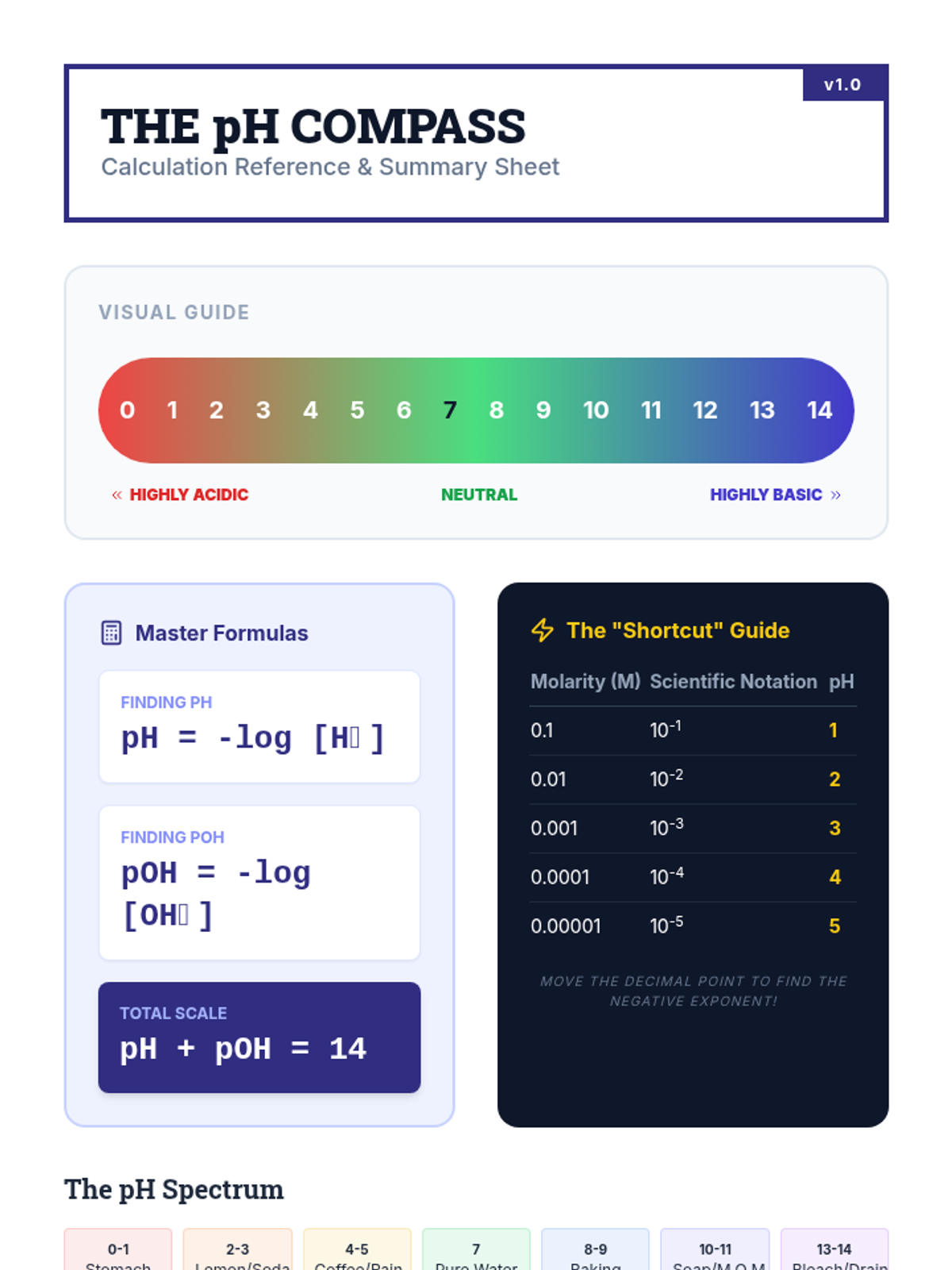

pH Compass Reference Sheet v1.0
THE pH COMPASS
Calculation Reference & Summary Sheet
Visual Guide
01234567891011121314
Highly Acidic
Neutral
Highly Basic
Master Formulas
Finding pH
pH = -log [H⁺]
Finding pOH
pOH = -log [OH⁻]
Total Scale
pH + pOH = 14
The "Shortcut" Guide
Molarity (M) Scientific Notation pH 0.1 10-1 1 0.01 10-2 2 0.001 10-3 3 0.0001 10-4 4 0.00001 10-5 5
Move the decimal point to find the negative exponent!
The pH Spectrum
0-1
Stomach Acid
2-3
Lemon/Soda
4-5
Coffee/Rain
7
Pure Water
8-9
Baking Soda
10-11
Soap/M.O.M.
13-14
Bleach/Drain
Indicator Magic Slides Indicator Magic
Revealing the Hidden pH
The Chemical "Eye"
An Indicator is a weak acid or base that changes color based on the pH of the solution it is in.
"It's like a mood ring for chemistry!"
Acidic Environment
Basic Environment
Phenolphthalein (PHTH)
The Binary Switch
PHTH is the most common indicator for strong base titrations.
Clear
pH < 8.2 (Acid/Neutral)
pH > 10 (Basic)
Fuchsia Glow
The Rainbow of Red Cabbage
Anthocyanins in red cabbage change through the entire pH spectrum.
pH 2
pH 4
pH 7
pH 9
pH 12
pH 14
Universal Indicator works exactly the same way (mix of chemicals)!
Picking Your Indicator
Scientists pick an indicator that changes color exactly at the Equivalence Point of their reaction.
Litmus: Broad Acid/Base check
Bromothymol Blue: Near Neutral
PHTH: Transition to Strong Base
End Point vs. Equivalence Point
The End Point is when you SEE the color change!

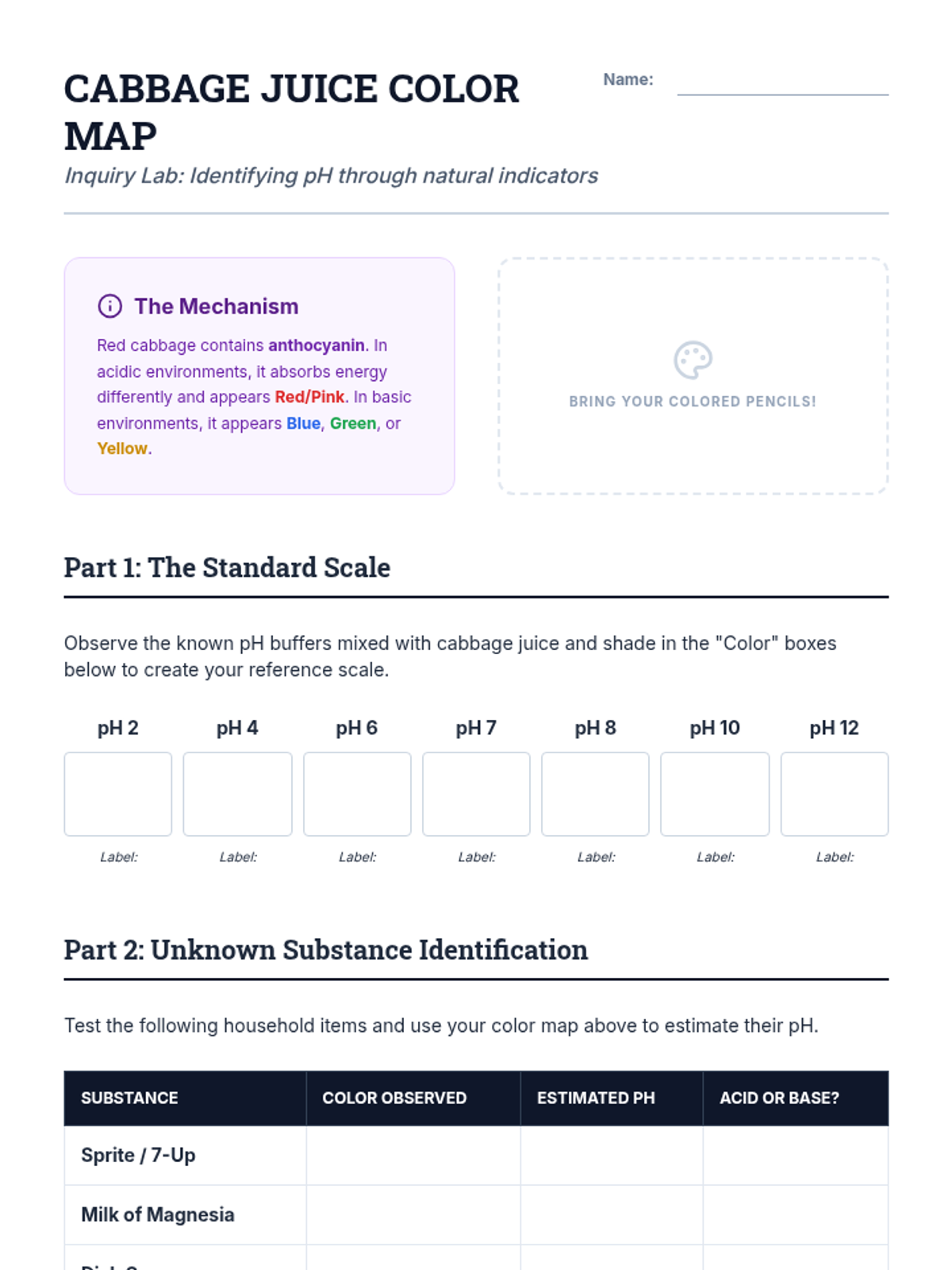

Cabbage Juice Color Map Lab Cabbage Juice Color Map
Inquiry Lab: Identifying pH through natural indicators
Name:
The Mechanism
Red cabbage contains anthocyanin. In acidic environments, it absorbs energy differently and appears Red/Pink. In basic environments, it appears Blue, Green, or Yellow.
Bring your colored pencils!
Part 1: The Standard Scale
Observe the known pH buffers mixed with cabbage juice and shade in the "Color" boxes below to create your reference scale.
pH 2
Label:
pH 4
Label:
pH 6
Label:
pH 7
Label:
pH 8
Label:
pH 10
Label:
pH 12
Label:
Part 2: Unknown Substance Identification
Test the following household items and use your color map above to estimate their pH.
Substance Color Observed Estimated pH Acid or Base? Sprite / 7-Up Milk of Magnesia Dish Soap Apple Juice Antacid (Crushed)
Post-Lab Analysis
Why is cabbage juice considered a "Universal" indicator while Litmus paper is not?
Ion Mastery Slides Ion Mastery
Precision Calculations
Reversing the Log
If we know the pH, how do we find the exact concentration?
[H⁺] = 10-pH
Example: pH = 4.0
[H⁺] = 10-4 M
0.0001 M
The Kw Relationship
Constant Value at 25°C
[H⁺] × [OH⁻] = 1.0 × 10-14
"As one goes up, the other MUST go down to keep the product constant."
Inverse Relationship
The Master Strategy
1
Identify Given
Is it pH, pOH, [H⁺], or [OH⁻]?
2
Choose Formula
Log or Inverse Log?
3
Calculate
Use the shortcut or a calculator for decimals.
4
Common Sense Check
If pH is 2, [H⁺] should be much larger than [OH⁻]!
[H⁺]
[OH⁻]
pH
pOH
-log
10-x
pH + pOH = 14
The Universal Map of Ion Math

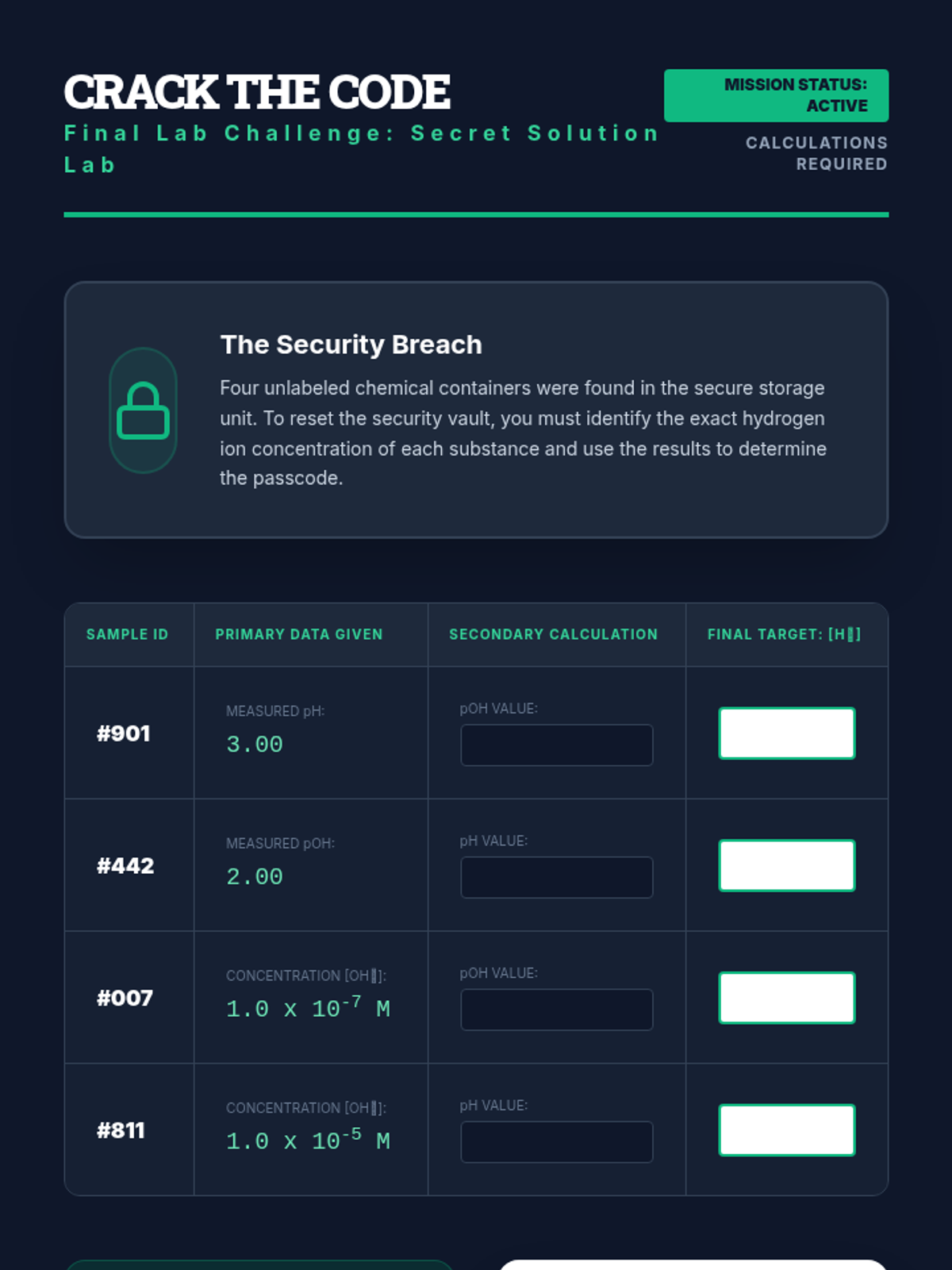

Crack the Code Challenge Assessment CRACK THE CODE
Final Lab Challenge: Secret Solution Lab
MISSION STATUS: ACTIVE
Calculations Required
The Security Breach
Four unlabeled chemical containers were found in the secure storage unit. To reset the security vault, you must identify the exact hydrogen ion concentration of each substance and use the results to determine the passcode.
Sample ID Primary Data Given Secondary Calculation Final Target: [H⁺] #901 MEASURED pH:
3.00
|
pOH VALUE:
|
|
| #442 |
MEASURED pOH:
2.00
|
pH VALUE:
|
|
| #007 |
CONCENTRATION [OH⁻]:
1.0 x 10-7 M
|
pOH VALUE:
|
|
| #811 |
CONCENTRATION [OH⁻]:
1.0 x 10-5 M
|
pH VALUE:
|
|
The Logic Vault
To find the passcode, sum the absolute value of the exponents from the final [H⁺] concentrations.
Ex: If [H⁺] is 10-5, use "5".
Final Passcode:
Agent Identity (Name):
VERIFY-ID: PH-SCALE-9000-X

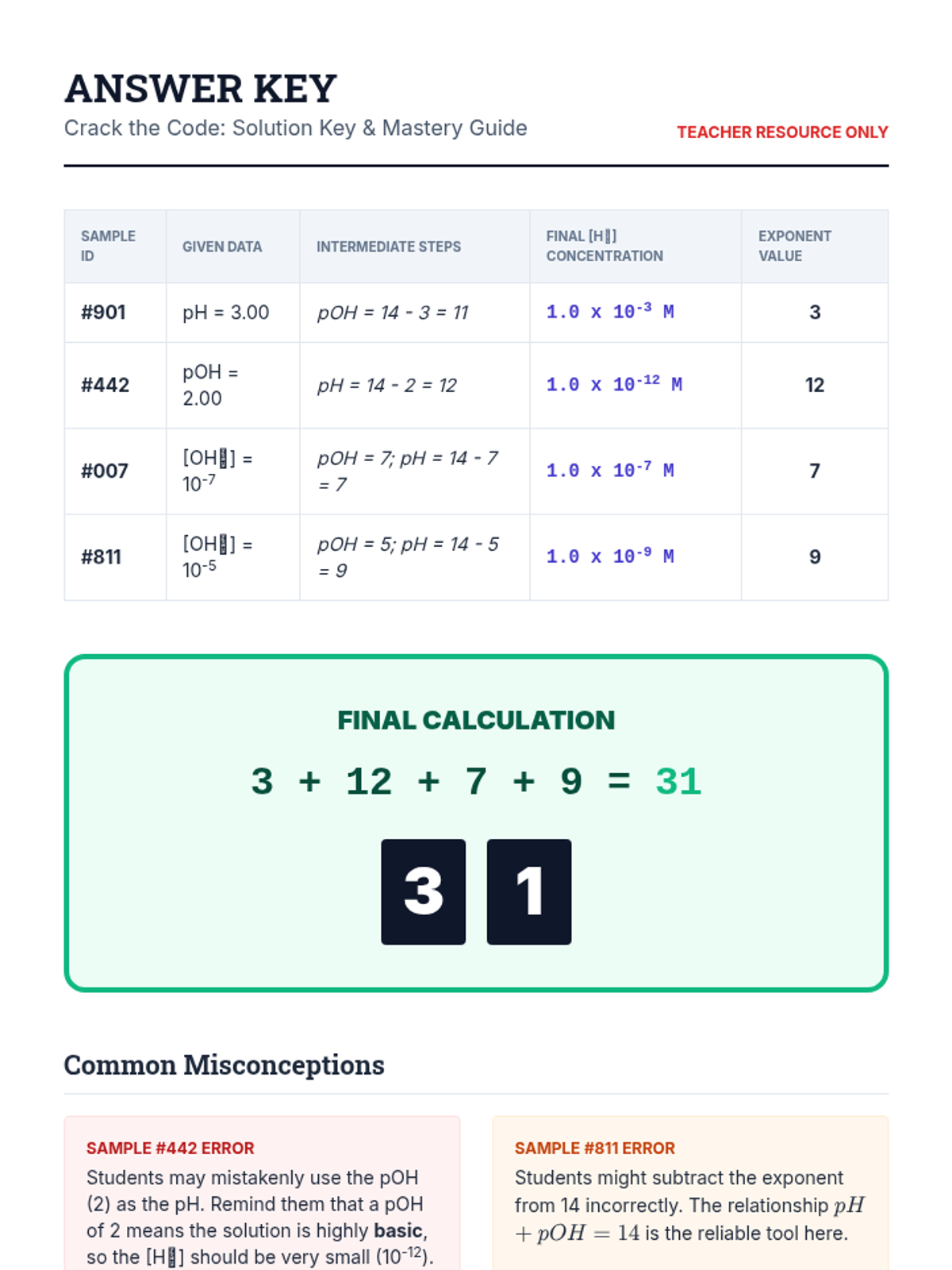

Crack the Code Answer Key Answer Key
Crack the Code: Solution Key & Mastery Guide
Teacher Resource Only
Sample ID Given Data Intermediate Steps Final [H⁺] Concentration Exponent Value #901 pH = 3.00 pOH = 14 - 3 = 11 1.0 x 10-3 M 3 #442 pOH = 2.00 pH = 14 - 2 = 12 1.0 x 10-12 M 12 #007 [OH⁻] = 10-7 pOH = 7; pH = 14 - 7 = 7 1.0 x 10-7 M 7 #811 [OH⁻] = 10-5 pOH = 5; pH = 14 - 5 = 9 1.0 x 10-9 M 9
Final Calculation
3 + 12 + 7 + 9 = 31
3
1
Common Misconceptions
Sample #442 Error
Students may mistakenly use the pOH (2) as the pH. Remind them that a pOH of 2 means the solution is highly basic, so the [H⁺] should be very small (10-12).
Sample #811 Error
Students might subtract the exponent from 14 incorrectly. The relationship \( pH + pOH = 14 \) is the reliable tool here.
