Melting Stone Slides Melting Stone
The Chemistry of Acid Rain
The Hook: Vanishing Faces
1908 Statue
Sharp features, clear details in the stone.
1969 Statue
Features are blurred, "melting" look.
"It looks like someone poured water on a sugar sculpture... but this is solid stone. What is happening?"
Where does it start?
Fossil fuel combustion (coal and oil) releases invisible gases into our atmosphere:
SO₂
NOₓ
Synthesis in the Sky
Once in the air, these oxides react with water vapor (\(H_2O\)) and oxygen (\(O_2\)).
Path 1: Sulfuric Acid
2SO₂ + O₂ + 2H₂O → 2H₂SO₄
Sulfur Dioxide + Oxygen + Water = Sulfuric Acid
Path 2: Nitric Acid
4NO₂ + O₂ + 2H₂O → 4HNO₃
Nitrogen Dioxide + Oxygen + Water = Nitric Acid
Why does the stone melt?
Most historical statues are made of Limestone or Marble (\(CaCO_3\)).
When acid rain hits them, a Neutralization Reaction occurs that turns the solid stone into soluble salts and gas.
The Chemical Attack: CaCO₃ + H₂SO₄ → CaSO₄ + H₂O + CO₂
Reaction Products:
Calcium Sulfate: Soft, crumbly salt that washes away in rain.Water: harmless, but carries the salt away.Carbon Dioxide: Fizzing gas bubbles!
Think Like a Chemist
If we stopped all coal burning tomorrow, would the statues stop "melting" immediately? Why or why not?
What other materials might be at risk besides limestone? (Think about metals and cars!)

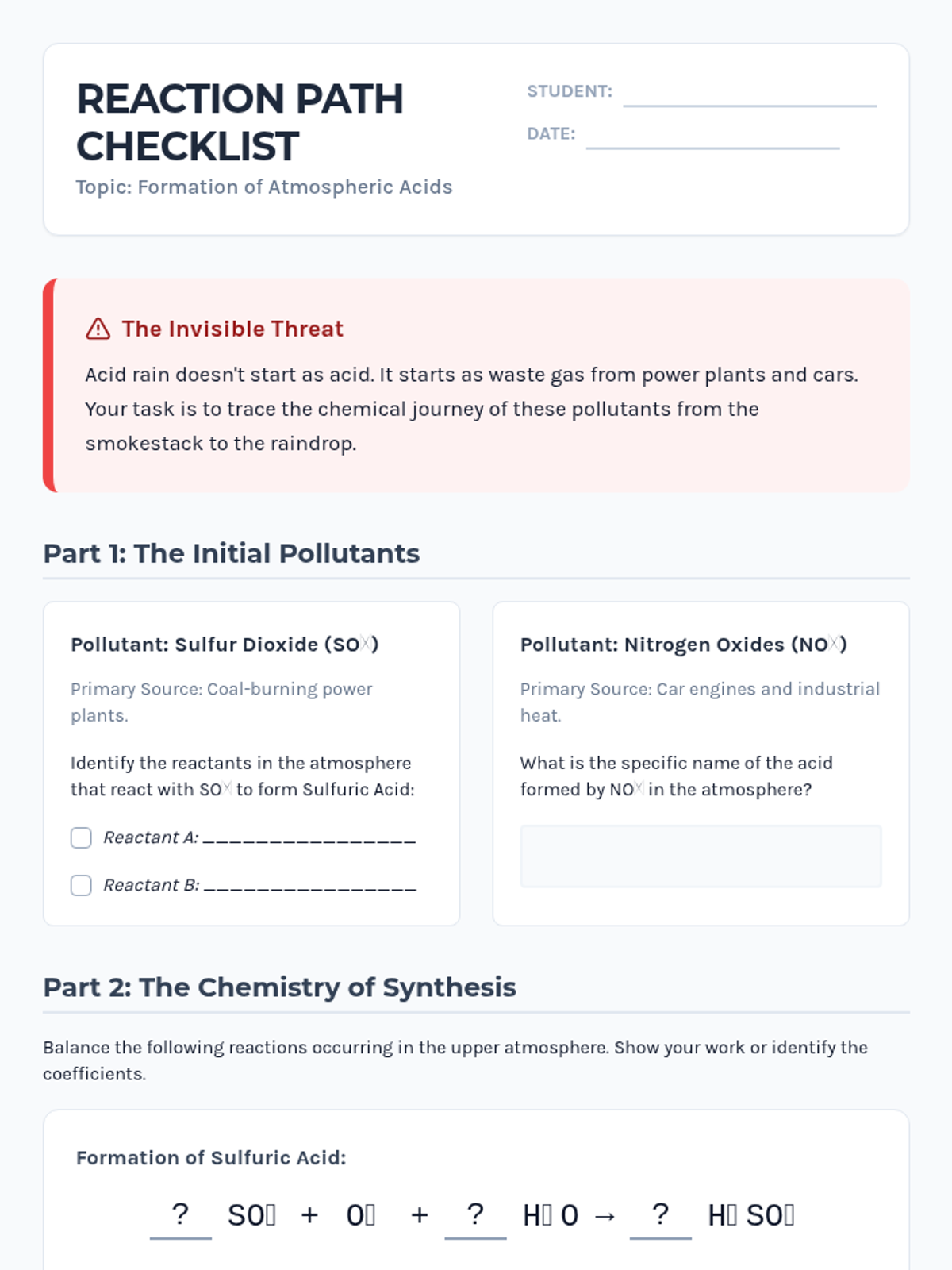

Reaction Path Checklist Worksheet Reaction Path Checklist
Topic: Formation of Atmospheric Acids
Student:
Date:
The Invisible Threat
Acid rain doesn't start as acid. It starts as waste gas from power plants and cars. Your task is to trace the chemical journey of these pollutants from the smokestack to the raindrop.
Part 1: The Initial Pollutants
Pollutant: Sulfur Dioxide (SO₂)
Primary Source: Coal-burning power plants.
Identify the reactants in the atmosphere that react with SO₂ to form Sulfuric Acid:
Reactant A: ________________
Reactant B: ________________
Pollutant: Nitrogen Oxides (NOₓ)
Primary Source: Car engines and industrial heat.
What is the specific name of the acid formed by NO₂ in the atmosphere?
Part 2: The Chemistry of Synthesis
Balance the following reactions occurring in the upper atmosphere. Show your work or identify the coefficients.
Formation of Sulfuric Acid:
? SO₂ + O₂ + ? H₂O → ? H₂SO₄
Formation of Nitric Acid:
? NO₂ + O₂ + ? H₂O → ? HNO₃
Part 3: The Destruction Mechanism
Explain the "Stone Melting" reaction. How does the acid rain (\(H_2SO_4\)) interact with the calcium carbonate (\(CaCO_3\)) of a statue? Write the word equation and the symbolic equation below.
Word Equation
Balanced Chemical Equation
Deep Analysis
If acid rain has a pH of 4.2 and normal rain has a pH of 5.6, how many times more acidic is the acid rain? (Remember: the pH scale is logarithmic!)

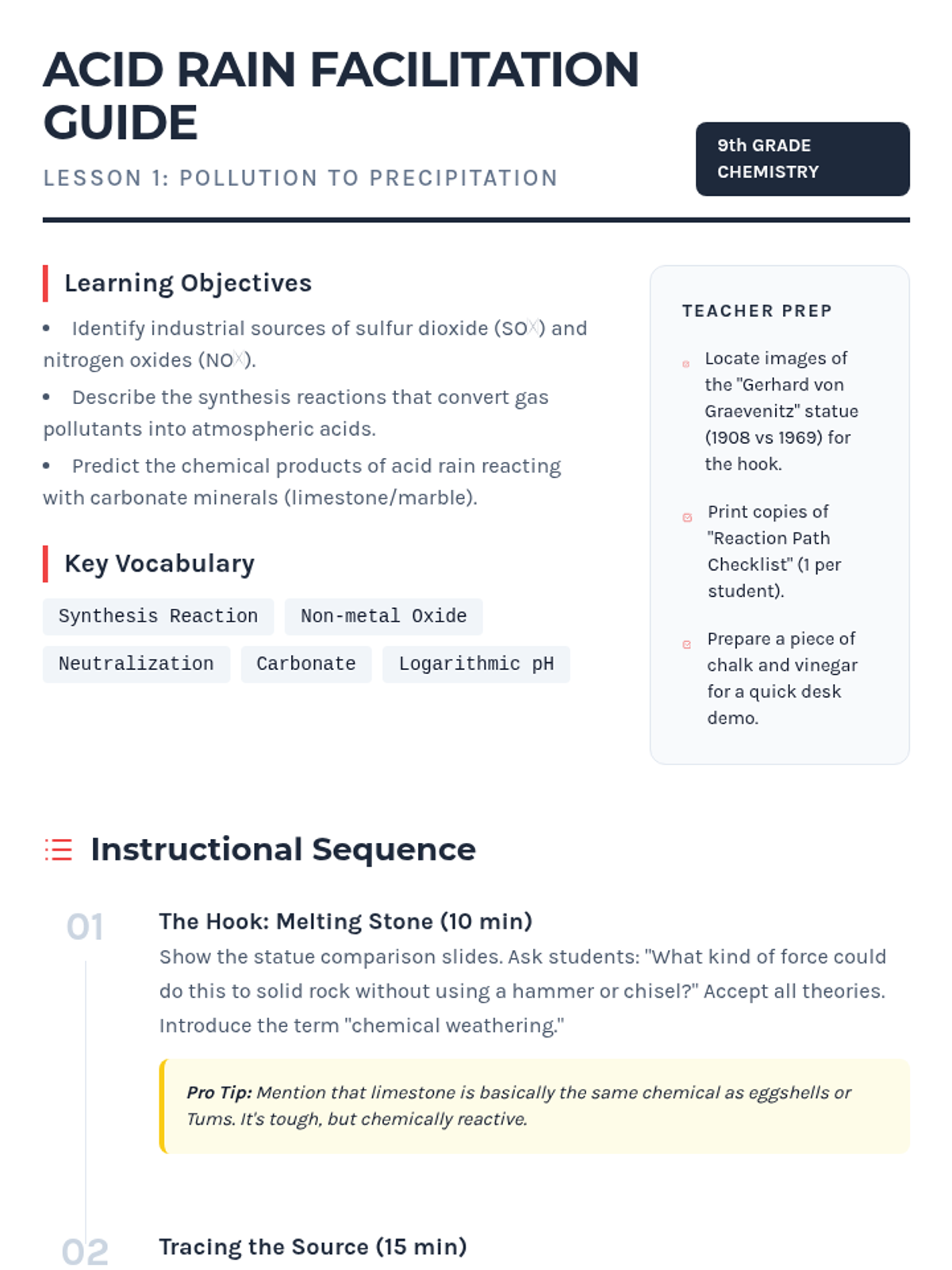

Acid Rain Facilitation Guide Acid Rain Facilitation Guide
Lesson 1: Pollution to Precipitation
9th GRADE CHEMISTRY
Learning Objectives
Identify industrial sources of sulfur dioxide (SO₂) and nitrogen oxides (NOₓ).
Describe the synthesis reactions that convert gas pollutants into atmospheric acids.
Predict the chemical products of acid rain reacting with carbonate minerals (limestone/marble).
Key Vocabulary
Synthesis Reaction Non-metal Oxide Neutralization Carbonate Logarithmic pH
Teacher Prep
Locate images of the "Gerhard von Graevenitz" statue (1908 vs 1969) for the hook.
Print copies of "Reaction Path Checklist" (1 per student).
Prepare a piece of chalk and vinegar for a quick desk demo.
Instructional Sequence
01
The Hook: Melting Stone (10 min)
Show the statue comparison slides. Ask students: "What kind of force could do this to solid rock without using a hammer or chisel?" Accept all theories. Introduce the term "chemical weathering."
Pro Tip: Mention that limestone is basically the same chemical as eggshells or Tums. It's tough, but chemically reactive.
02
Tracing the Source (15 min)
Present the industrial sources (factories and cars). Highlight that these gases are invisible but highly reactive. Explain that non-metal oxides react with water to form acidic solutions.
03
Balancing Reactions (20 min)
Distribute the worksheet. Guide students through balancing the SO₂ to H₂SO₄ reaction. Let them try the NO₂ reaction independently. Walk around to check for stoichiometry errors.
Common Misconceptions
"Acid rain burns skin": Clarify that acid rain is only slightly more acidic than coffee or soda; it doesn't melt humans, but it destroys ecosystems and minerals over long periods."All rain is neutral": Normal rain is actually slightly acidic (pH ~5.6) due to natural CO₂, not pollution.
Differentiation
Support: Provide pre-balanced equations for students struggling with stoichiometry and focus on word equations.Extension: Have advanced students research the "Scrubber" technology in smokestacks and write the chemical reaction for how calcium oxide (lime) removes SO₂. Soil Stress Lab Guide Lab Protocol #02

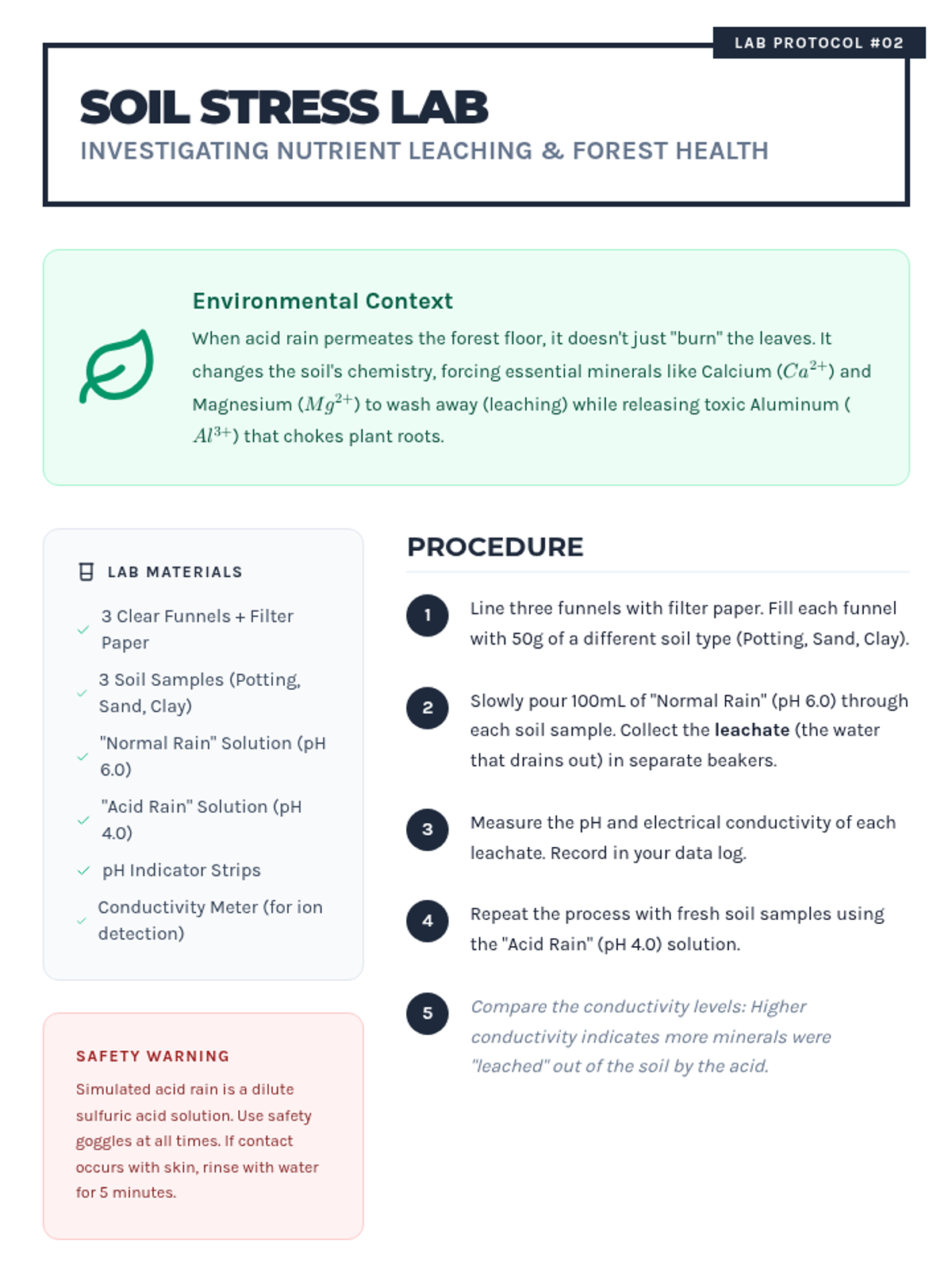

Soil Stress Lab
Investigating Nutrient Leaching & Forest Health
Environmental Context
When acid rain permeates the forest floor, it doesn't just "burn" the leaves. It changes the soil's chemistry, forcing essential minerals like Calcium (\(Ca^{2+}\)) and Magnesium (\(Mg^{2+}\)) to wash away (leaching) while releasing toxic Aluminum (\(Al^{3+}\)) that chokes plant roots.
Lab Materials
3 Clear Funnels + Filter Paper
3 Soil Samples (Potting, Sand, Clay)
"Normal Rain" Solution (pH 6.0)
"Acid Rain" Solution (pH 4.0)
pH Indicator Strips
Conductivity Meter (for ion detection)
Safety Warning
Simulated acid rain is a dilute sulfuric acid solution. Use safety goggles at all times. If contact occurs with skin, rinse with water for 5 minutes.
Procedure
1
Line three funnels with filter paper. Fill each funnel with 50g of a different soil type (Potting, Sand, Clay).
2
Slowly pour 100mL of "Normal Rain" (pH 6.0) through each soil sample. Collect the leachate (the water that drains out) in separate beakers.
3
Measure the pH and electrical conductivity of each leachate. Record in your data log.
4
Repeat the process with fresh soil samples using the "Acid Rain" (pH 4.0) solution.
5
Compare the conductivity levels: Higher conductivity indicates more minerals were "leached" out of the soil by the acid.
Data Analysis Predictions
Which soil type do you predict will be most affected by acid rain? Explain your reasoning.
If conductivity increases after acid rain treatment, what does that tell us about the nutrients in the soil?

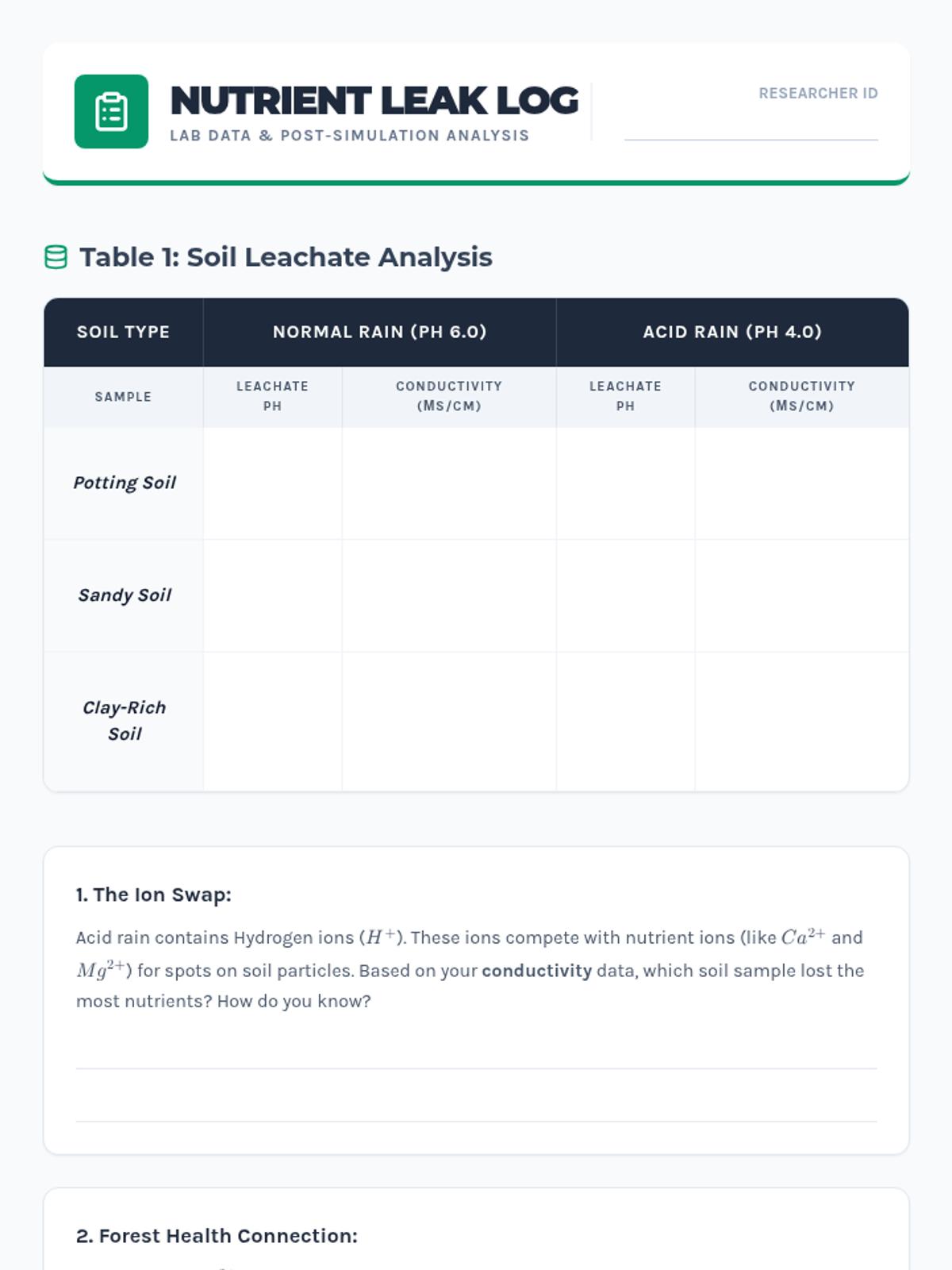

Nutrient Leak Log Worksheet Nutrient Leak Log
Lab Data & Post-Simulation Analysis
Researcher ID
Table 1: Soil Leachate Analysis
Soil Type Normal Rain (pH 6.0) Acid Rain (pH 4.0) Sample Leachate pH Conductivity (μS/cm) --- --- --- Potting Soil Sandy Soil Clay-Rich Soil
1. The Ion Swap:
Acid rain contains Hydrogen ions (\(H^+\)). These ions compete with nutrient ions (like \(Ca^{2+}\) and \(Mg^{2+}\)) for spots on soil particles. Based on your conductivity data, which soil sample lost the most nutrients? How do you know?
2. Forest Health Connection:
Magnesium (\(Mg^{2+}\)) is the central atom in the chlorophyll molecule. If a forest is experiencing heavy nutrient leaching due to acid rain, what physical changes would you expect to see in the trees' leaves?
3. Aluminum Toxicity:
Low pH in soil also makes Aluminum (\(Al^{3+}\)) more soluble, which is toxic to roots. Describe the "Double Whammy" effect: How is acid rain attacking the plant from two different angles simultaneously?
Shell Shock Slides Shell Shock
Ocean Acidification & Marine Chemistry
The Sky to Sea Connection
The ocean is a massive Carbon Sink. It absorbs about 30% of the \(CO_2\) we release into the atmosphere.
The Chemical Reaction:
CO₂ + H₂O → H₂CO₃
Carbon Dioxide + Water → Carbonic Acid
More \(CO_2\) in the air means more acid in the water.
Why do Shells Care?
The Building Blocks
Marine animals like clams, oysters, and corals build their shells using Calcium Carbonate (\(CaCO_3\)).
The Acid Attack
As the ocean becomes more acidic, Hydrogen ions (\(H^+\)) react with carbonate, making it harder for animals to build shells.
The Dissolution
In very acidic conditions, existing shells can actually start to dissolve back into the water.
CaCO₃ + 2H⁺ → Ca²⁺ + CO₂ + H₂O
Modeling the Crisis
"Watch the shell fizz: Modeling acidification in real time."
The Lab Setup:
• Sea Shell (or Chalk)
• Strong Acid (Vinegar)
• Neutral (Distilled Water)
• Time and Observation
Vinegar is acetic acid (pH ~2.5). While the ocean isn't this acidic, it allows us to see the reaction at high speed.
Beyond the Shell
Small organisms at the base of the food web, like Pteropods (sea butterflies), are most at risk.
"If the sea butterflies vanish, the salmon, whales, and entire fishing industries are in trouble."
Systemic Ecosystem Collapse
Is it reversible?
If we stopped emitting \(CO_2\) today, how long would it take for the ocean's pH to return to pre-industrial levels? What factors might slow this down?

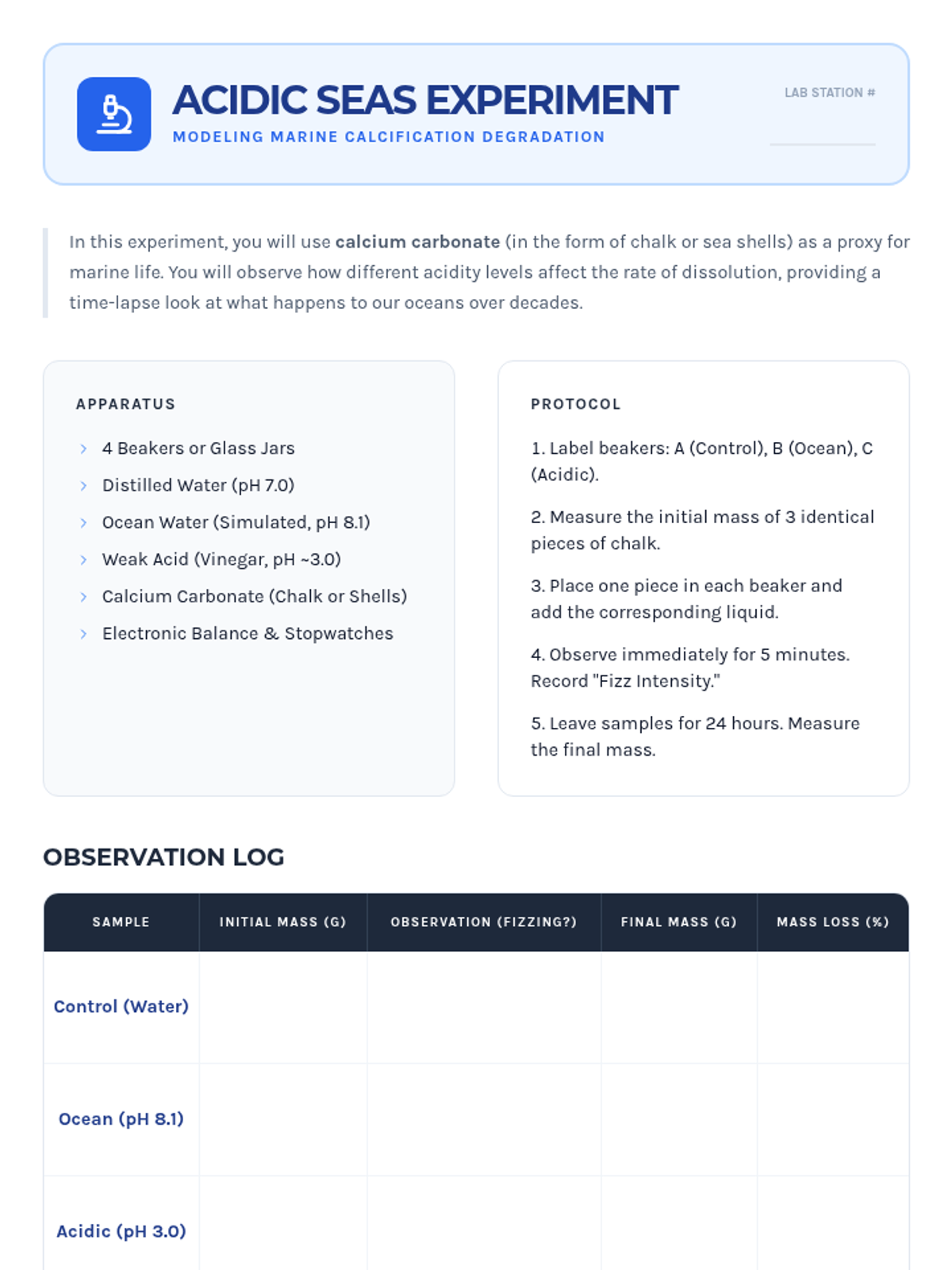

Acidic Seas Experiment Guide Acidic Seas Experiment
Modeling Marine Calcification Degradation
Lab Station #
In this experiment, you will use calcium carbonate (in the form of chalk or sea shells) as a proxy for marine life. You will observe how different acidity levels affect the rate of dissolution, providing a time-lapse look at what happens to our oceans over decades.
Apparatus
4 Beakers or Glass Jars
Distilled Water (pH 7.0)
Ocean Water (Simulated, pH 8.1)
Weak Acid (Vinegar, pH ~3.0)
Calcium Carbonate (Chalk or Shells)
Electronic Balance & Stopwatches
Protocol
Label beakers: A (Control), B (Ocean), C (Acidic).
Measure the initial mass of 3 identical pieces of chalk.
Place one piece in each beaker and add the corresponding liquid.
Observe immediately for 5 minutes. Record "Fizz Intensity."
Leave samples for 24 hours. Measure the final mass.
Observation Log
Sample Initial Mass (g) Observation (Fizzing?) Final Mass (g) Mass Loss (%) Control (Water) Ocean (pH 8.1) Acidic (pH 3.0)
1. Chemical Evidence:
Fizzing indicates a chemical reaction. What gas is being released as the chalk "dissolves"? Write the chemical formula.
2. Scaling the Model:
If the ocean's pH drops from 8.1 to 7.8 over the next 100 years, how would you expect your "Ocean" sample's mass to change compared to your observations today?
Buffer Shield Slides The Buffer Shield
How Nature Resists pH Change
The Mystery of the Twin Lakes
A
Granite Lake
Located in a granite basin. After 10 years of acid rain, the fish died and the water turned crystal clear (dead).
Resilience: LOW
B
Limestone Lake
Located 10 miles away in a limestone basin. Despite the same acid rain, the fish survived and the pH stayed stable.
Resilience: HIGH
WHAT IS THE DIFFERENCE?
What is a Buffer?
A Buffer is a chemical system that resists changes in pH when an acid or base is added.
The Chemical Mechanism:
Buffers contain a weak acid and its conjugate base. They "soak up" extra \(H^+\) ions like a chemical sponge.
Sponge pH 7.0 → 7.0
The Limestone Hero
When acid rain (\(H^+\)) enters a lake with a limestone (\(CaCO_3\)) bed, the carbonate ions react with the acid before the pH can drop.
The Buffer Reaction:
H⁺ + CO₃²⁻ → HCO₃⁻
Acid + Carbonate → Bicarbonate
The harmful \(H^+\) ions are "locked up" in the harmless bicarbonate (\(HCO_3^-\)) ion.
Geological Shielding
Limestone/Marble: High Buffering Capacity.Granite/Basalt: Low/Zero Buffering Capacity.
The Limit: Buffer Capacity
"Even a shield can break."
Buffer Capacity is the amount of acid or base a system can neutralize before the pH starts to change significantly.
Steady State
The buffer "absorbs" the acid. pH stays constant.
Breakthrough Point
The buffer is exhausted. pH drops rapidly (Crash).
Ecosystem Strategy
If you were an environmental engineer, would you recommend building a protected nature reserve on a granite-based landscape or a limestone-based landscape? Why?
Consider both natural resilience and future climate change impacts.

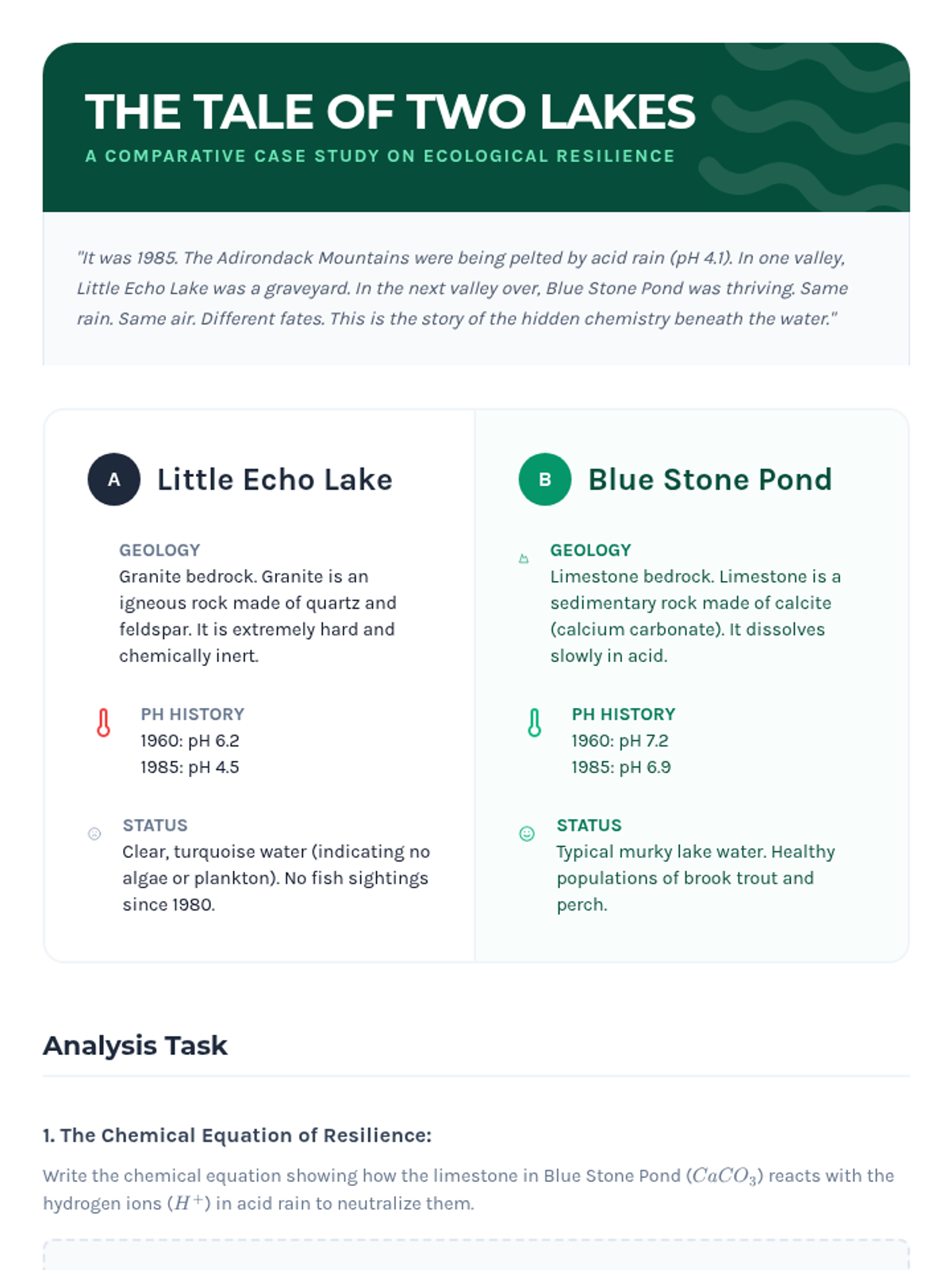

Tale of Two Lakes Handout The Tale of Two Lakes
A Comparative Case Study on Ecological Resilience
"It was 1985. The Adirondack Mountains were being pelted by acid rain (pH 4.1). In one valley, Little Echo Lake was a graveyard. In the next valley over, Blue Stone Pond was thriving. Same rain. Same air. Different fates. This is the story of the hidden chemistry beneath the water."
A
Little Echo Lake
Geology
Granite bedrock. Granite is an igneous rock made of quartz and feldspar. It is extremely hard and chemically inert.
PH History
1960: pH 6.2
Status
Clear, turquoise water (indicating no algae or plankton). No fish sightings since 1980.
B
Blue Stone Pond
Geology
Limestone bedrock. Limestone is a sedimentary rock made of calcite (calcium carbonate). It dissolves slowly in acid.
PH History
1960: pH 7.2
Status
Typical murky lake water. Healthy populations of brook trout and perch.
Analysis Task
1. The Chemical Equation of Resilience:
Write the chemical equation showing how the limestone in Blue Stone Pond (\(CaCO_3\)) reacts with the hydrogen ions (\(H^+\)) in acid rain to neutralize them.
2. The "Buffer" Definition:
In your own words, explain why Blue Stone Pond is considered a "buffered" system while Little Echo Lake is not. Use the term "capacity" in your answer.
3. Predicting the Future:
If acid rain continues at the same rate for another 100 years, will Blue Stone Pond eventually "crash" and become like Little Echo Lake? Justify your answer using chemical principles.

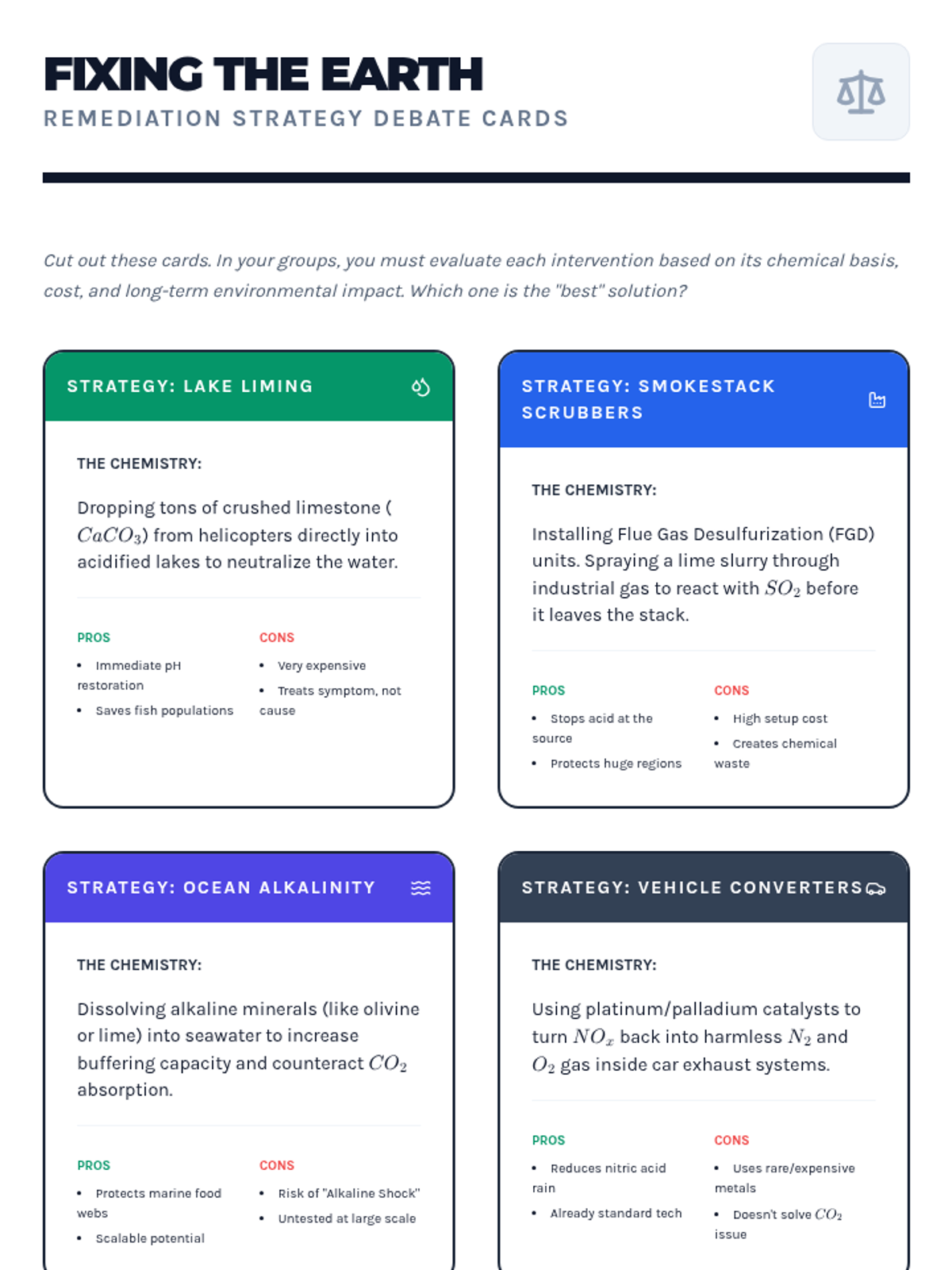

Fixing the Earth Debate Cards Fixing the Earth
Remediation Strategy Debate Cards
Cut out these cards. In your groups, you must evaluate each intervention based on its chemical basis, cost, and long-term environmental impact. Which one is the "best" solution?
Strategy: Lake Liming
The Chemistry:
Dropping tons of crushed limestone (\(CaCO_3\)) from helicopters directly into acidified lakes to neutralize the water.
Pros
Immediate pH restoration
Saves fish populations
Cons
Very expensive
Treats symptom, not cause
Strategy: Smokestack Scrubbers
The Chemistry:
Installing Flue Gas Desulfurization (FGD) units. Spraying a lime slurry through industrial gas to react with \(SO_2\) before it leaves the stack.
Pros
Stops acid at the source
Protects huge regions
Cons
High setup cost
Creates chemical waste
Strategy: Ocean Alkalinity
The Chemistry:
Dissolving alkaline minerals (like olivine or lime) into seawater to increase buffering capacity and counteract \(CO_2\) absorption.
Pros
Protects marine food webs
Scalable potential
Cons
Risk of "Alkaline Shock"
Untested at large scale
Strategy: Vehicle Converters
The Chemistry:
Using platinum/palladium catalysts to turn \(NO_x\) back into harmless \(N_2\) and \(O_2\) gas inside car exhaust systems.
Pros
Reduces nitric acid rain
Already standard tech
Cons
Uses rare/expensive metals
Doesn't solve \(CO_2\) issue
Debate Challenge
Your group has a $10 Billion "Save the Ecosystem" Grant. You cannot afford everything. Rank the strategies above from 1 (Highest Priority) to 4 (Lowest Priority). Be prepared to defend your choice using the chemical reaction involved in each strategy.
Rank 1
Rank 2
Rank 3
Rank 4

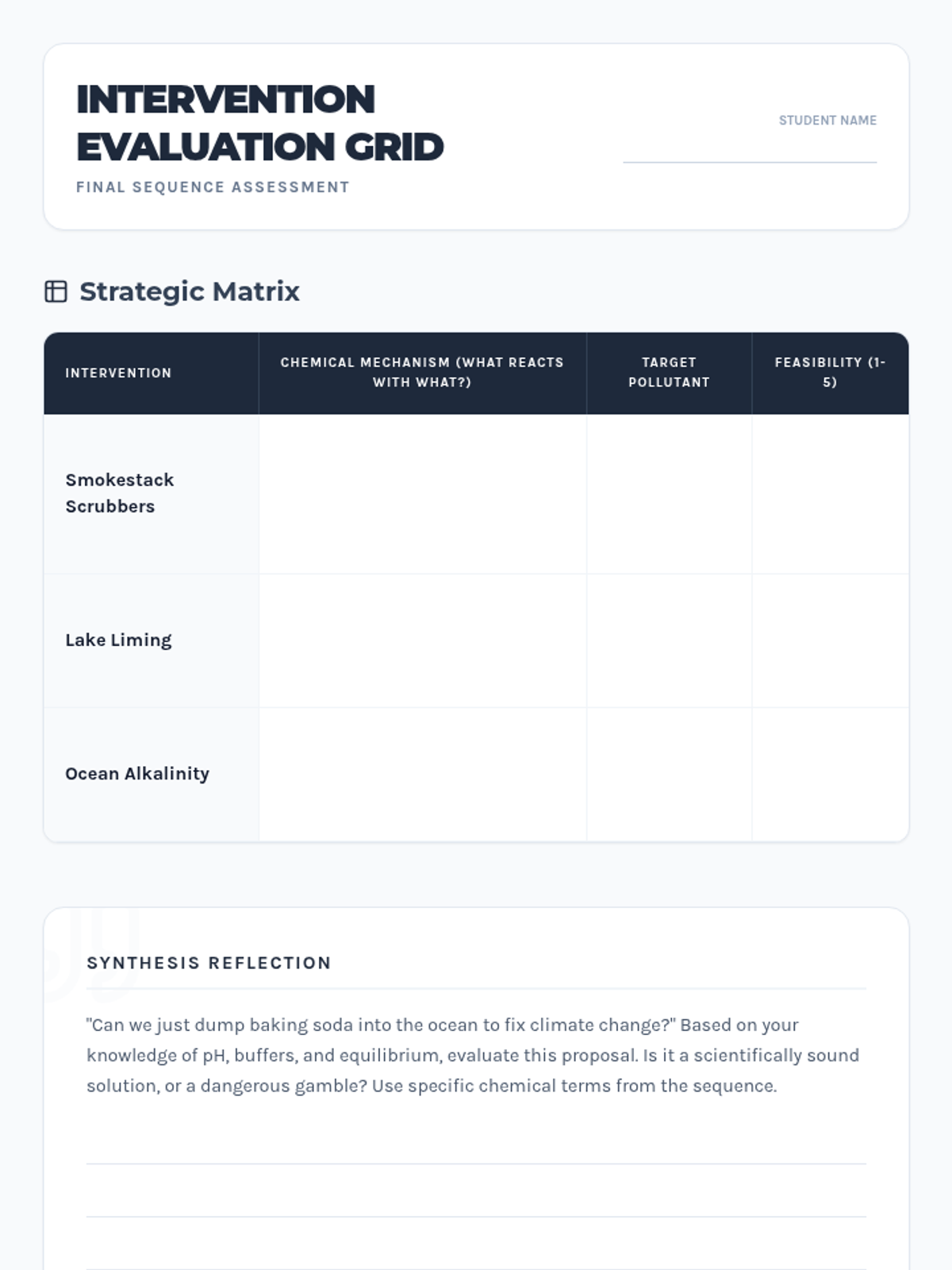

Intervention Evaluation Grid Worksheet Intervention Evaluation Grid
Final Sequence Assessment
Student Name
Strategic Matrix
Intervention Chemical Mechanism (What reacts with what?) Target Pollutant Feasibility (1-5) Smokestack Scrubbers Lake Liming Ocean Alkalinity
Synthesis Reflection
"Can we just dump baking soda into the ocean to fix climate change?" Based on your knowledge of pH, buffers, and equilibrium, evaluate this proposal. Is it a scientifically sound solution, or a dangerous gamble? Use specific chemical terms from the sequence.
Essential Question Check-In
How do changes in pH affect the delicate balance of biological and environmental systems?

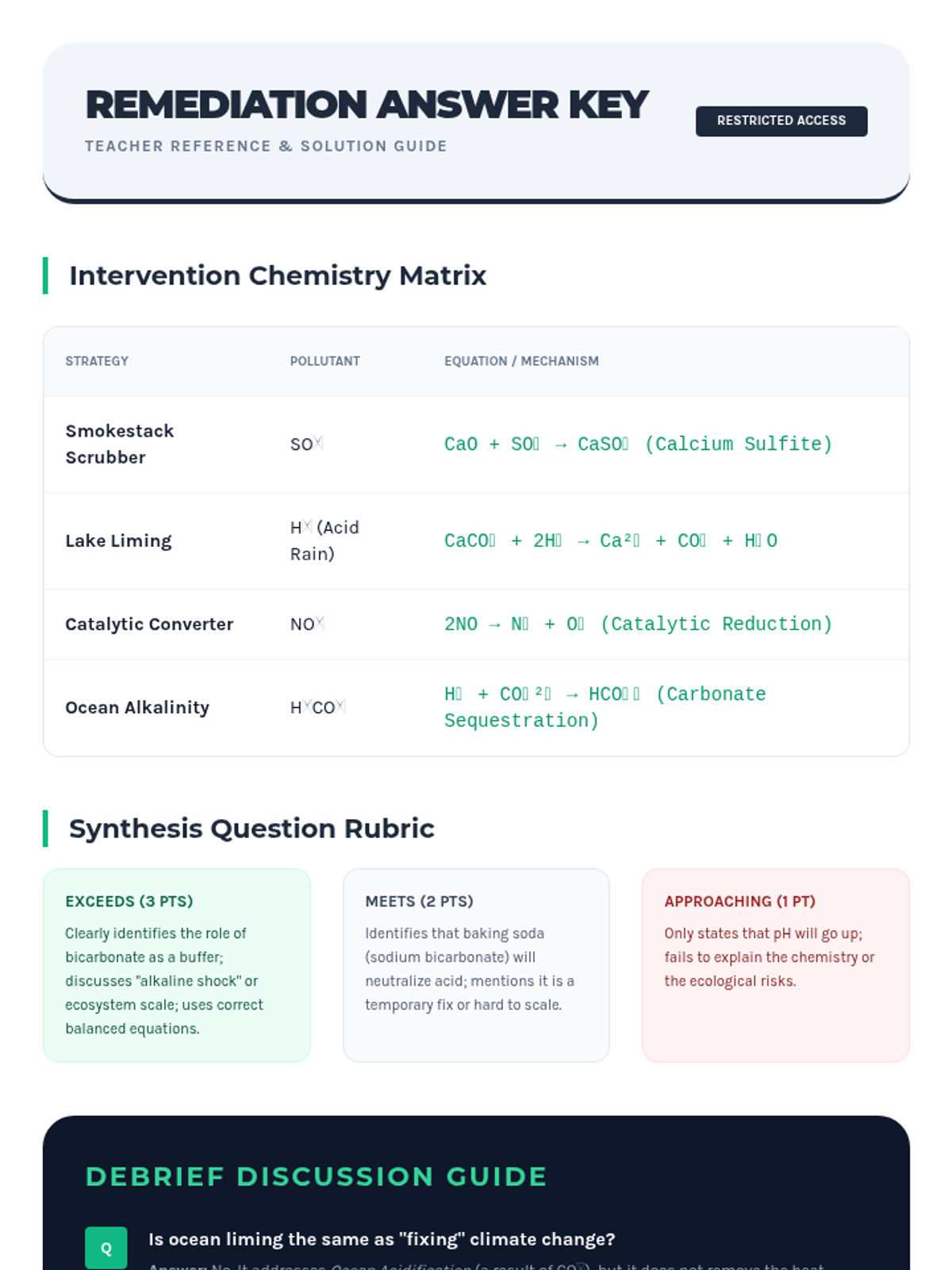

Remediation Answer Key Remediation Answer Key
Teacher Reference & Solution Guide
Restricted Access
Intervention Chemistry Matrix
Strategy Pollutant Equation / Mechanism Smokestack Scrubber SO₂ CaO + SO₂ → CaSO₃ (Calcium Sulfite) Lake Liming H⁺ (Acid Rain) CaCO₃ + 2H⁺ → Ca²⁺ + CO₂ + H₂O Catalytic Converter NOₓ 2NO → N₂ + O₂ (Catalytic Reduction) Ocean Alkalinity H₂CO₃ H⁺ + CO₃²⁻ → HCO₃⁻ (Carbonate Sequestration)
Synthesis Question Rubric
Exceeds (3 pts)
Clearly identifies the role of bicarbonate as a buffer; discusses "alkaline shock" or ecosystem scale; uses correct balanced equations.
Meets (2 pts)
Identifies that baking soda (sodium bicarbonate) will neutralize acid; mentions it is a temporary fix or hard to scale.
Approaching (1 pt)
Only states that pH will go up; fails to explain the chemistry or the ecological risks.
Debrief Discussion Guide
Q
Is ocean liming the same as "fixing" climate change?
Answer: No. It addresses Ocean Acidification (a result of CO₂), but it does not remove the heat-trapping effect of CO₂ in the atmosphere. It is a "bandage" for the sea, not a "cure" for global warming.
Q
Why do we use "Lime" in almost all these strategies?
Answer: Calcium oxide (Lime) and Calcium carbonate (Limestone) are abundant, relatively cheap, and behave as strong buffers or neutralizers across multiple types of acid-base environmental problems.
