Harmony in Motion Reading Guide
Name: ________________________________ Date: ________________
Class: ________________
Harmony in Motion
Foundations of Simple Harmonic Motion
Ref: PHY-7.1.A.2
Page 1 of 9
Introduction to Periodic Motion
Motion that repeats itself at regular intervals is called periodic motion. However, physics pays special attention to a specific subset called Simple Harmonic Motion (SHM). SHM isn't just any bounce or swing—it is a precise mathematical cycle governed by a linear restoring force.
The Equilibrium Position
An equilibrium position is a location at which the net force exerted on an object or system is exactly zero. Think of this as the "rest state." When an object is at equilibrium, it has no tendency to move. Motion only occurs when the object is displaced from this point, creating a force that wants to bring it back.
Defining the Restoring Force
By definition, a restoring force is a force exerted in a direction opposite to the object’s displacement from its equilibrium position.
"If you push it away, it pulls back. If you pull it away, it pushes back."
Hooke's Law
Linearity and Proportionality
Page 2 of 9
Simple harmonic motion results when the magnitude of the restoring force is directly proportional to that object’s displacement from its equilibrium position. This linear relationship is known as Hooke's Law.
The Governing Equation
\[ F_s = -kx \]
k
The spring constant (or stiffness). It describes how many Newtons of force are required to stretch the system by one meter (N/m).
x
The displacement. This is the vector distance from the equilibrium position (\( x = 0 \)).
Linear Springs
A linear spring follows Hooke's Law perfectly. If you pull it twice as far, it pulls back with exactly twice the force. This perfect predictability allows for the "simple" in Simple Harmonic Motion.
Non-Linear Springs
Materials like bungee cords or rubber bands are often non-linear. They might get disproportionately stiffer as they stretch. While they still oscillate, they do not exhibit SHM.
Visualizing SHM
Force and Displacement Diagrams
Page 3 of 9
The Mass-Spring System
The diagram below illustrates a mass displaced from equilibrium. Note the relationship between the displacement vector (x) and the force vector (Fs).
m Equilibrium (x = 0) x Fs
The Restoring Force Fs always points back toward the dashed Equilibrium Line, making it opposite to the direction of Displacement x.
The Force-Displacement Graph
Simple Harmonic Motion: Part 04
Page 4 of 9
Displacement (m)
Restoring Force (N)
Slope = k Elastic Limit
Interpreting the Graph
The graph of force versus displacement for a simple harmonic oscillator is a straight line. This linear slope provides two vital pieces of information:
1. The Stiffness (k)
The steepness of the line represents the spring constant. A steeper slope means a larger \( k \), indicating a stiffer system.
2. The Elastic Limit
If the material is stretched too far, the atoms pull apart and the graph curves. At this point, the motion is no longer "Simple" Harmonic.

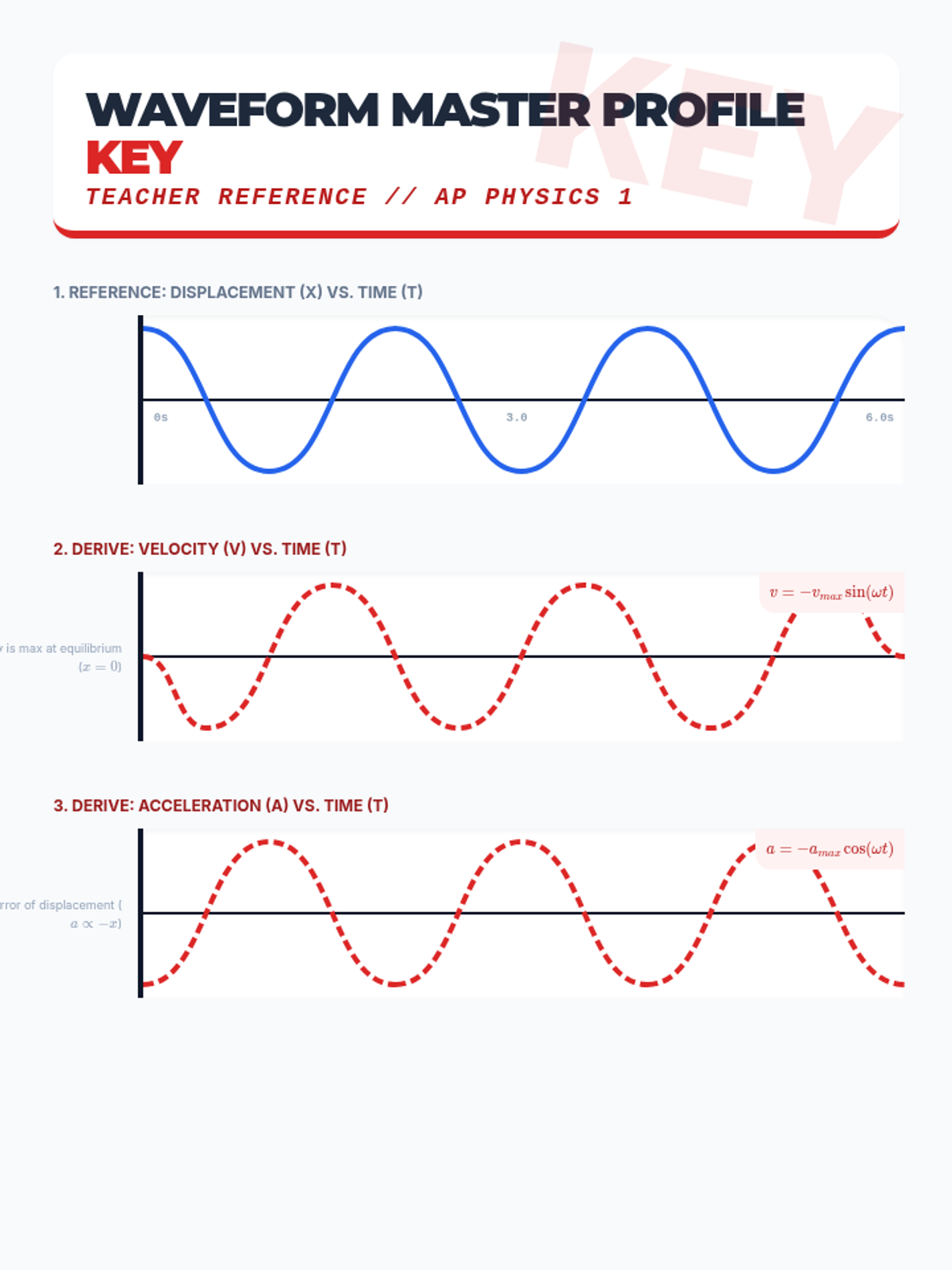

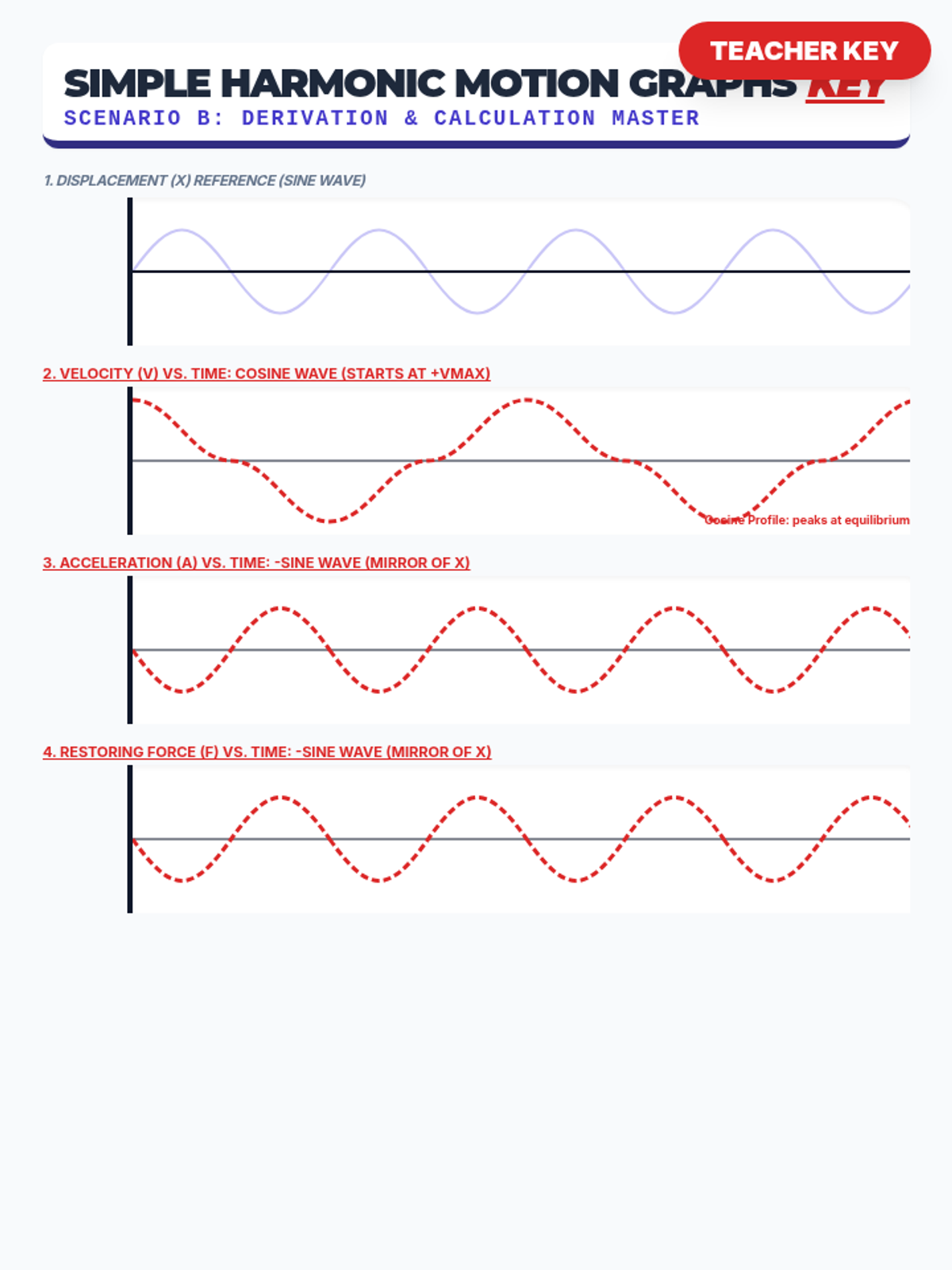

Timing the Cycle
Simple Harmonic Motion: Part 05
Page 5 of 9
Period (T)
The Period is the total time it takes for an object to complete one full cycle. For a pendulum, this is the time to swing from the left, all the way to the right, and back to the left again.
Unit: Seconds (s)
Frequency (f)
The Frequency is the number of cycles the object completes in one second. A high-frequency system vibrates very quickly.
Unit: Hertz (Hz)
The Inverse Relationship
\[ f = \frac{1}{T} \]
\[ T = \frac{1}{f} \]
If a system takes longer to complete a cycle (larger Period), it will complete fewer cycles per second (smaller Frequency).
Energy in SHM
Simple Harmonic Motion: Part 06
Page 6 of 9
In an ideal harmonic oscillator, total energy is constant. It cycles between Potential and Kinetic forms like a perfect seesaw.
PE
Potential Energy
\[ U_s = \frac{1}{2}kx^2 \]
Maximized At:
The endpoints (Amplitude). This is where the spring is most stretched or squeezed.
KE
Kinetic Energy
\[ K = \frac{1}{2}mv^2 \]
Maximized At:
The Equilibrium position. This is where the object zips through the center at max speed.
The Speed Paradox
Simple Harmonic Motion: Part 07
Page 7 of 9
A Question of Forces
At the equilibrium position (\( x = 0 \)), the restoring force is zero. If there is no force acting on the object, why doesn't it just stop?
The answer is INERTIA.
By the time the mass reaches the center, every bit of potential energy has turned into kinetic energy. The object is moving at its maximum speed. Even though the "push" has stopped, its momentum carries it right past the center, causing it to overshoot and begin compressing the spring in the other direction.
Endpoints
v = 0
Max Force
Heading In
v ↑
Force ↓
Equilibrium
v = max
Force = 0
Overshooting
v ↓
Force ↑
The Simple Pendulum
Simple Harmonic Motion: Part 08
Page 8 of 9
A pendulum's motion is curved, but it can be modeled as SHM for small angular displacements. Gravity pulls down, but the component of gravity that pulls the bob toward center is \( F_{rest} = -mg \sin \theta \).
θ m mg Frest
Small Angle Approximation "For angles under \( 15^\circ \), \( \sin \theta \approx \theta \). This ensures the restoring force is proportional to the displacement (\( x \)), fulfilling the SHM requirement."
System Comparison
Simple Harmonic Motion: Part 09
Page 9 of 9
| System | Period Equation (T) | Slows Down With... | Speeds Up With... |
|---|
| Simple Pendulum | \( 2\pi \sqrt{L/g} \) | Longer Length (L): Increases path distance. | Higher Gravity (g): Provides a stronger snap back. |
| Mass-Spring | \( 2\pi \sqrt{m/k} \) | Higher Mass (m): Increases system inertia. | Higher Stiffness (k): Stronger restoring response. |
Critical Observation
Mass has no effect on a pendulum.
Gravity pulls harder on heavy objects, but heavy objects are harder to move. These two factors cancel out perfectly in a simple pendulum system.
Critical Observation
Gravity has no effect on a spring.
The period is determined entirely by internal properties: mass and stiffness. A spring clock will keep perfect time on Earth, the Moon, or in zero-gravity.
Review Checklist
SHM requires F ∝ -x
Equilibrium means Fnet = 0
Period is independent of Amplitude
Energy cycles between PE and KE
Harmonic Insights Worksheet
Name: ________________________________ Date: ________________
Class: ________________
Harmonic Insights
Conceptual Review: Simple Harmonic Motion
Worksheet ID: SHM-CONCEPT-01
1. According to the definition of Simple Harmonic Motion, what happens to the magnitude of the restoring force if the displacement from equilibrium is doubled? Explain the relationship.
2. At the equilibrium position, the net force on the object is zero. Does this mean the object stops moving at this point? Why or why not?
3. A mass-spring system is oscillating on a frictionless horizontal table. If the mass of the object is quadrupled (\(4m\)), how will the period of oscillation change? (Use the equation to justify your answer).
4. An astronaut takes a simple pendulum and a mass-spring system to the Moon, where gravity is much weaker than on Earth. Which system's period will change, and which will stay the same? Explain.
5. Why is the "Small Angle Approximation" (\( \theta < 15^\circ \)) necessary for a simple pendulum to be considered a Simple Harmonic Oscillator?
6. If the frequency of an oscillator is increased from 2 Hz to 10 Hz, what is the new Period of the system?
7. Describe the energy transformations that occur as a mass-spring system moves from its maximum positive displacement (\( +A \)) to its maximum negative displacement (\( -A \)).
8. You have two pendulums: one with a heavy lead bob and one with a light wooden bob. Both have strings of equal length. If you release them from the same small angle, which one will complete 10 swings first? Why?
9. Looking at a Hooke's Law graph (Force vs. Displacement), what physical property of the system does the slope of the line represent? What does it mean if the slope is very steep?
10. A student claims that pulling a spring twice as far back will make it take longer to oscillate because it has a "longer path to travel." Use the concepts of SHM to disprove this claim.

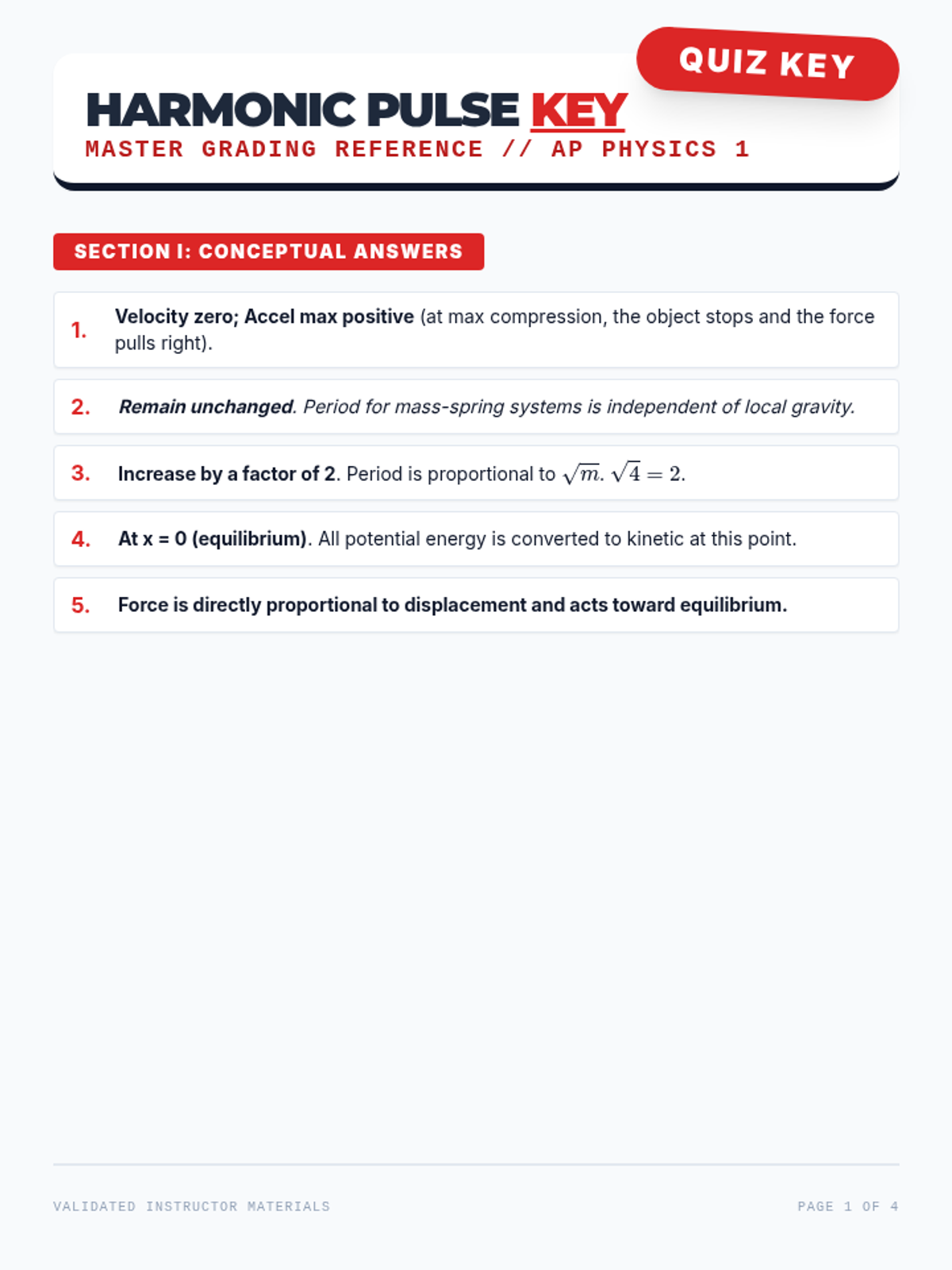

Harmonic Insights Key Teacher Resource
Teacher Answer Key
Harmonic Insights: Conceptual Review
Reference: SHM-CONCEPT-01-KEY
1. Restoring Force vs. Displacement
The force will also double. SHM requires a linear relationship where \( F \propto -x \). If displacement doubles, the magnitude of the restoring force must also double to maintain proportionality.
2. Movement at Equilibrium
No, the object does not stop. Although the force is zero, the object has its maximum kinetic energy and momentum at this point. Inertia carries it through equilibrium until a restoring force builds up in the opposite direction.
3. Mass Change in Spring System
The period will double. Since \( T = 2\pi\sqrt{m/k} \), increasing the mass by a factor of 4 results in \( \sqrt{4} = 2 \) times the period.
4. Effect of Gravity (Moon)
The pendulum's period will increase (run slower) because its period depends on gravity (\( T \propto 1/\sqrt{g} \)). The mass-spring system's period will stay the same, as its formula (\( T = 2\pi\sqrt{m/k} \)) does not include a gravity term.
5. Small Angle Approximation
The actual restoring force is proportional to \( \sin \theta \), which is non-linear. Only at small angles is \( \sin \theta \approx \theta \). This approximation ensures the force is proportional to displacement, fulfilling the requirement for SHM.
6. Period Calculation
T = 1 / f = 1 / 10 = 0.1 seconds.
7. Energy Transformations
At \( +A \), energy is 100% Elastic Potential. As it moves toward equilibrium (\( x=0 \)), PE transforms into Kinetic Energy. At equilibrium, energy is 100% KE. As it moves toward \( -A \), KE transforms back into Elastic Potential.
8. Pendulum Mass Independence
They will finish at the same time. The mass of the bob does not affect the period or frequency of a simple pendulum (\( T = 2\pi\sqrt{L/g} \)).
9. Hooke's Law Graph Slope
The slope represents the spring constant (\( k \)). A steeper slope means a larger \( k \), indicating a stiffer spring that requires more force to displace.
10. Amplitude vs. Period
Although the path is longer, the restoring force (and thus acceleration) is also greater at higher amplitudes (\( F = -kx \)). These two factors perfectly cancel each other out, making the period independent of amplitude in an ideal SHM system.
