Slope Intercept Slides
Algebra 1 • Linear Relationships
Connecting Concept to Formula
Cracking the Code of
\(y = mx + b\)
You already know rate of change and starting values. Now, let's assemble the master rule for every linear relation.
\(m\)
Slope • Rate of Change
How fast the pattern climbs or falls
\(b\)
y-Intercept • Initial Value
Where the relation starts at \(x = 0\)
What You Already Know
Activation
Concept 1 \(m\)
Rate of Change (Slope)
The steady amount the output changes for every single step forward in \(x\).
On a Graph: \(\frac{\text{Rise}}{\text{Run}}\) (steepness)
In a Table: \(\frac{\Delta y}{\Delta x}\) (unit rate)
→ Tells us direction and steepness
Concept 2 \(b\)
The Starting Value
The output value right at the beginning—before any changes happen (\(x = 0\)).
On a Graph: Where line hits the y-axis \((0, b)\)
In a Table: The \(y\)-value directly paired with \(x = 0\)
→ Pins the line down in space
Linear equations do not create new math—they simply glue your rate of change and start value together!
Anatomy of the Formula
Slope-Intercept Form
\(y\) = \(m\) \(x\) + \(b\)
\(y\)
Total Output
Dependent variable; the final result.
\(m\)
Multiplier (Slope)
Rate of change; multiplies by each input step.
\(x\)
Input Quantity
Independent variable (e.g., hours, steps).
\(b\)
Base / Start
y-intercept; added once at the starting line.
Sentence Frame: "Total = (Rate × Inputs) + Starting Value"
Example 1
Graph • Positive Slope
Class Walkthrough
x y +1 +2 (0, 4) Line climbs from left to right
Step 1: Locate the Start (\(b\))
Where does the line cross the vertical \(y\)-axis?
→ At \((0, 4)\), so \(b = +4\)
Step 2: Find the Rate of Change (\(m\))
Pick two exact grid points: rise over run?
→ Up \(2\), right \(1\) \(= \frac{+2}{+1}\), so \(m = +2\)
Slope-Intercept Equation: \(y = 2x + 4\)
Notice: Rate is positive \(+2\), line climbs uphill Proportional? No (does not pass through origin)
Example 2
Table • Negative Slope
Class Walkthrough
Values in Table
| \(x\) | \(y\) | Change |
|---|
| 0 | 4 | Start Value! |
| 1 | 2 | \(-2\) |
| 2 | 0 | \(-2\) |
| 3 | -2 | \(-2\) |
↓ Values decrease by 2 every time \(x\) grows by 1
Step 1: Check row \(x = 0\)
When input is zero, what is \(y\)?
→ Pair is \((0, 4)\), so initial value \(b = 4\)
Step 2: Calculate Rate \(\frac{\Delta y}{\Delta x}\)
As \(x\) increases by \(+1\), what does \(y\) do?
→ \(y\) decreases by \(2\): \(\frac{-2}{+1}\), so slope \(m = -2\)
Slope-Intercept Equation: \(y = -2x + 4\)
Compare with Example 1: Same start (\(b=4\)), but opposite slope sign! Watch signs carefully!
Special Cases • Proportional & Zero Slope
Crucial Distinctions
Case A \(b = 0\)
Proportional Relationship
Starts at zero! The line passes directly through origin \((0,0)\).
Equation: \(y = 2x + 0 \implies \mathbf{y = 2x}\)
Notice there is no constant number added or subtracted.
Only ONE family in our activity will be proportional!
Case B \(m = 0\)
Zero Slope (Flat Line)
No change happens! The output never goes up and never goes down.
Equation: \(y = 0x + 4 \implies \mathbf{y = 4}\)
Horizontal line! Every \(y\)-value is frozen at 4.
Rate is zero; it does not climb or fall at all.
Next Up: Linear Families Match Activity Look out for similar numbers (+2, -2, +4, -4)! Analyze rates & starts carefully.

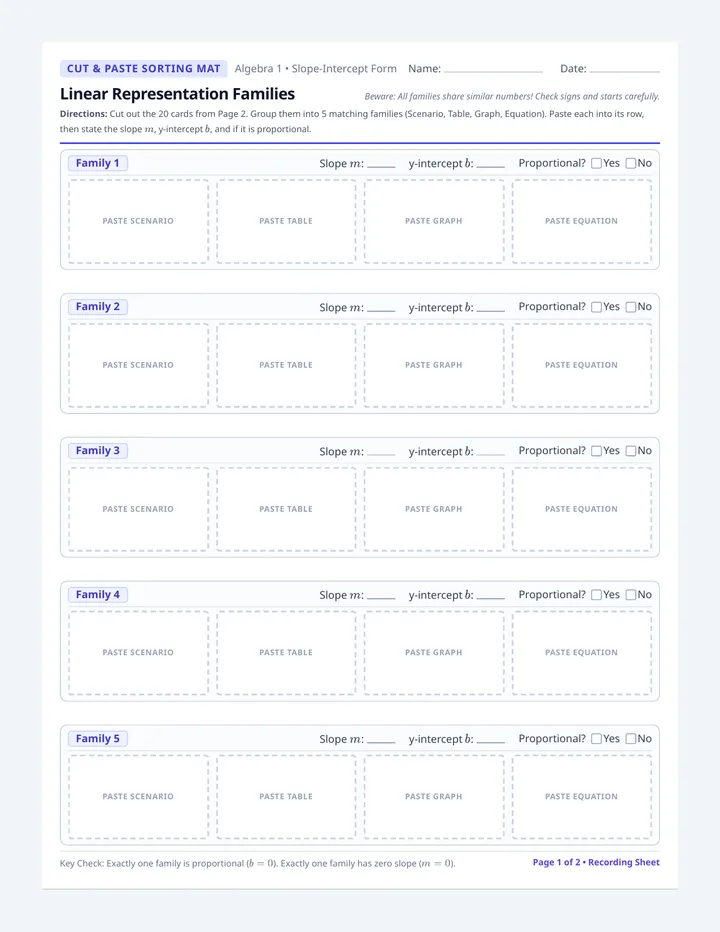

Linear Families Match Activity
Cut & Paste Sorting Mat Algebra 1 • Slope-Intercept Form
Name: Date:
Linear Representation Families
Beware: All families share similar numbers! Check signs and starts carefully.
Directions: Cut out the 20 cards from Page 2. Group them into 5 matching families (Scenario, Table, Graph, Equation). Paste each into its row, then state the slope \(m\), y-intercept \(b\), and if it is proportional.
Family 1
Slope \(m\): y-intercept \(b\): Proportional? Yes No
Paste Scenario
Paste Table
Paste Graph
Paste Equation
Family 2
Slope \(m\): y-intercept \(b\): Proportional? Yes No
Paste Scenario
Paste Table
Paste Graph
Paste Equation
Family 3
Slope \(m\): y-intercept \(b\): Proportional? Yes No
Paste Scenario
Paste Table
Paste Graph
Paste Equation
Family 4
Slope \(m\): y-intercept \(b\): Proportional? Yes No
Paste Scenario
Paste Table
Paste Graph
Paste Equation
Family 5
Slope \(m\): y-intercept \(b\): Proportional? Yes No
Paste Scenario
Paste Table
Paste Graph
Paste Equation
Key Check: Exactly one family is proportional (\(b = 0\)). Exactly one family has zero slope (\(m = 0\)). Page 1 of 2 • Recording Sheet
Representation Cutout Cards
Carefully cut out each of the 20 cards along the dotted lines. Cards are scrambled!
Page 2 of 2 • Cut Sheet
Scenario Card
A baker starts the morning with 4 loaves already on the shelf, then bakes 2 loaves each hour.
Tile #1
Table Card
Tile #2
Graph Card Tile #3
Passes \((0,0)\)
Equation Card
\(y = -2x + 4\)
Tile #4
Table Card

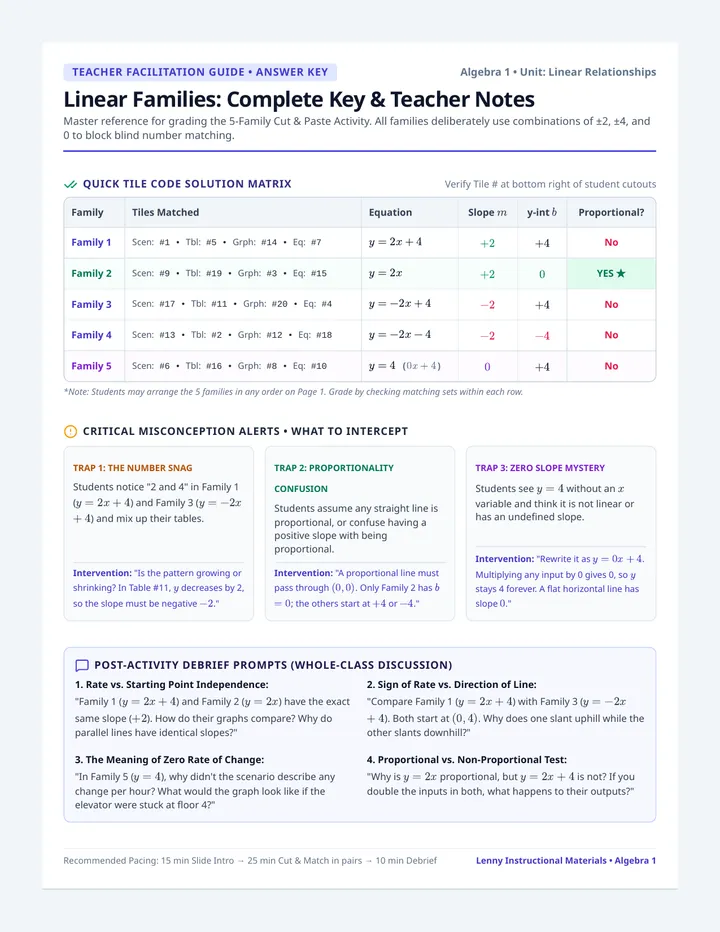

Linear Families Answer Key
Teacher Facilitation Guide • Answer Key Algebra 1 • Unit: Linear Relationships
Linear Families: Complete Key & Teacher Notes
Master reference for grading the 5-Family Cut & Paste Activity. All families deliberately use combinations of ±2, ±4, and 0 to block blind number matching.
Quick Tile Code Solution Matrix
Verify Tile # at bottom right of student cutouts
| Family | Tiles Matched | Equation | Slope \(m\) | y-int \(b\) | Proportional? |
|---|
| Family 1 | Scen: #1 • Tbl: #5 • Grph: #14 • Eq: #7 | \(y = 2x + 4\) | \(+2\) | \(+4\) | No |
| Family 2 | Scen: #9 • Tbl: #19 • Grph: #3 • Eq: #15 | \(y = 2x\) | \(+2\) | \(0\) | YES ★ |
| Family 3 | Scen: #17 • Tbl: #11 • Grph: #20 • Eq: #4 | \(y = -2x + 4\) | \(-2\) | \(+4\) | No |
| Family 4 | Scen: #13 • Tbl: #2 • Grph: #12 • Eq: #18 | \(y = -2x - 4\) | \(-2\) | \(-4\) | No |
| Family 5 | Scen: #6 • Tbl: #16 • Grph: #8 • Eq: #10 | \(y = 4\) (\(0x+4\)) | \(0\) | \(+4\) | No |
*Note: Students may arrange the 5 families in any order on Page 1. Grade by checking matching sets within each row.
Critical Misconception Alerts • What to Intercept
Trap 1: The Number Snag
Students notice "2 and 4" in Family 1 (\(y=2x+4\)) and Family 3 (\(y=-2x+4\)) and mix up their tables.
Intervention: "Is the pattern growing or shrinking? In Table #11, \(y\) decreases by 2, so the slope must be negative \(-2\)."
Trap 2: Proportionality Confusion
Students assume any straight line is proportional, or confuse having a positive slope with being proportional.
Intervention: "A proportional line must pass through \((0,0)\). Only Family 2 has \(b=0\); the others start at \(+4\) or \(-4\)."
Trap 3: Zero Slope Mystery
Students see \(y = 4\) without an \(x\) variable and think it is not linear or has an undefined slope.
Intervention: "Rewrite it as \(y = 0x + 4\). Multiplying any input by 0 gives 0, so \(y\) stays 4 forever. A flat horizontal line has slope \(0\)."
Post-Activity Debrief Prompts (Whole-Class Discussion)
