Cusps and Curves Slides Cusps and Curves
Visualizing Rational Exponents in Calculus
The Bird in the Origin
Why does the graph of \( f(x) = x^{2/3} \) look like a bird flying, forming a sharp point?
"In Calculus, we care about smoothness. This 'sharp point' is our first encounter with a cusp ."
Graph of \( y = x^{2/3} \)
Anatomy of \( x^{m/n} \)
The Numerator (\(m\))
Controls the Power .
Even \(m\): Symmetry (Even Function)
Odd \(m\): Anti-symmetry (Odd Function)
The Denominator (\(n\))
Controls the Root .
Even \(n\): Restricted Domain (\(x \ge 0\))
Odd \(n\): All Real Numbers Domain
The Calculus Perspective
The Cusp
A sharp point where the derivative approaches \( \infty \) from one side and \( -\infty \) from the other.
Example: \( x^{2/3} \)
Vertical Tangent
The graph is continuous and "smooth," but the tangent line is vertical (slope is undefined).
Example: \( x^{1/3} \)
Visualizing Slopes
As \(x \to 0\), what happens to the slope?
Your Turn: The Blueprint
Use the "Rational Explorer" worksheet to predict and plot the behavior of complex power functions.
\( x^{3/2} \)
Cusp or Tangent?
\( x^{5/3} \)
Smooth or Sharp?
\( x^{1/2} \)
Domain limits?
Rational Explorer Worksheet Rational Explorer
Blueprint for Calculus
NAME:
DATE:
Mission Objective
Analyze the analytical and graphical behavior of functions with rational exponents. Identify domain restrictions, symmetry, and differentiate between smooth curves, vertical tangents, and cusps.
Part 1: The Root Constraint
Determine the domain and range for each function below. Consider if the denominator of the exponent implies an even or odd root.
1. \( f(x) = x^{3/2} \)
DOMAIN
RANGE
2. \( g(x) = x^{2/3} \)
DOMAIN
RANGE
Part 2: Identifying Critical Features
Evaluate the behavior of the following functions at \( x = 0 \). Predict if the graph exhibits a Cusp , a Vertical Tangent , or a Smooth Local Minimum/Maximum .
\( h(x) = x^{1/3} \)
Prediction:
Why?
\( k(x) = x^{4/3} \)
Prediction:
Why?
\( m(x) = x^{2/5} \)
Prediction:
Why?
Part 3: Visual Verification
Sketch the graph of \( f(x) = x^{2/3} \) and \( g(x) = x^{4/3} \) on the same axes. Label the cusp and explain how the power affects the curvature.
OBSERVATIONS & ANALYSIS
Blueprint Teacher Guide Teacher Guide & Answer Keys
Rational Exponents Blueprint
Pedagogical Strategy
This sequence is designed for undergraduate students as a bridge between high-school algebra and university-level calculus. The focus is on analytical properties —not just calculation.
Key Misconceptions
• Students often forget that \( \sqrt{x} \) has a restricted domain.
• Confusion between \( x^{2/3} \) (even power, odd root) and \( x^{3/2} \) (odd power, even root).
• Mistaking "rationalizing" as a denominator-only technique.
Differentiation Tips
• Use Desmos or GeoGebra to overlay graphs in Lesson 1.
• Provide "Scaffolded Rewriting" for students struggling with negative fractions in Lesson 2.
Lesson 1: Rational Explorer Keys
Part 1: Domains
1. \( x^{3/2} \): Domain \( [0, \infty) \), Range \( [0, \infty) \). (Even root constraint)
2. \( x^{2/3} \): Domain \( (-\infty, \infty) \), Range \( [0, \infty) \). (Odd root, squared term is always positive)
Part 2: Features
\( x^{1/3} \): Vertical Tangent at \( x=0 \). Slope \( \frac{1}{3x^{2/3}} \to \infty \).
\( x^{4/3} \): Smooth local minimum. Power \( > 1 \) ensures derivative exists and is zero at origin.
\( x^{2/5} \): Cusp. Slopes approach \( \infty \) and \( -\infty \).
Lesson 2: Rewriting Workshop Keys
Problem Correct Form (\( k \cdot x^n \)) 1. \( \sqrt{x} \) \( x^{1/2} \) 3. \( \sqrt[4]{x^5} \) \( x^{5/4} \) 6. \( 1/\sqrt{x} \) \( x^{-1/2} \) 8. \( 1/(2x^3) \) \( \frac{1}{2}x^{-3} \) Boss 1. \( \frac{5}{3\sqrt{x^7}} \) \( \frac{5}{3}x^{-7/2} \) Boss 2. \( \frac{\sqrt{x} \cdot x^2}{x^5} \) \( x^{-2.5} \) or \( x^{-5/2} \)
Lesson 3: Conjugate Combat Keys
The Master Solution for \( f(x) = \sqrt{x} \):
1. Multiply numerator/denominator by \( \sqrt{x+h} + \sqrt{x} \).
Rewriting Workshop Slides The Rewriting Workshop
Algebraic Tools for Calculus Success
Calculus is 90% Algebra
In Calculus, we love the Power Rule . It allows us to differentiate any function of the form \( x^n \).
\[ \frac{d}{dx} x^n = n x^{n-1} \]
The Problem:
How do we use this rule on:
\( \frac{1}{\sqrt{x}} \)
\( \sqrt[3]{x^5} \)
\( \frac{2}{3x^2} \)
Tool #1: Radical Conversion
\[ \sqrt[n]{x^m} = x^{m/n} \]
m
The Power (Numerator) stays on top.
n
The Root (Denominator) goes to the bottom.
Pro Tip: "Roots go underground (the denominator)."
Tool #2: Moving Up
\[ \frac{1}{x^n} = x^{-n} \]
To use the Power Rule, the variable must be in the numerator .
Example: \( \frac{1}{x^5} \to x^{-5} \)
Example: \( \frac{1}{\sqrt{x}} \to x^{-1/2} \)
Level 3: Complex Combinations
Rewrite for the Power Rule:
\( \frac{2}{3\sqrt[4]{x^3}} \)
\( \frac{2}{3}x^{-3/4} \)
"Keep coefficients separated from the variable base!"
Rewriting Practice Worksheet The Rewriting Workshop
Pre-Calculus Drill
NAME:
DATE:
The Power Rule Requirement
To find the derivative using the power rule, expressions must be in the form \( k \cdot x^n \).
Part 1: Radical Conversion
Rewrite each radical expression as a single power \( x^n \).
1. \( \sqrt{x} \)
2. \( \sqrt[3]{x^2} \)
3. \( \sqrt[4]{x^5} \)
4. \( (\sqrt[5]{x})^3 \)
Part 2: Elevating Denominators
Rewrite each fraction using negative exponents.
5. \( \frac{1}{x^4} \)
6. \( \frac{1}{\sqrt{x}} \)
7. \( \frac{1}{\sqrt[3]{x^5}} \)
8. \( \frac{1}{2x^3} \)
Part 3: Calculus Preparation Workshop
Complete the full conversion for these complex expressions. Separate the coefficient from the variable.
Expression
\( \frac{5}{3\sqrt{x^7}} \)
Rewritten as \( k \cdot x^n \)
Expression
\( \frac{\sqrt{x} \cdot x^2}{x^5} \)
Rewritten as \( k \cdot x^n \)
Expression
\( \frac{4}{7\sqrt[3]{x}} \)
Rewritten as \( k \cdot x^n \)
Expression
\( \sqrt{\frac{1}{x^9}} \)
Rewritten as \( k \cdot x^n \)
Conjugate Combat Slides Conjugate Combat
Breaking the Deadlock of \( 0/0 \)
The Calculus "Deadlock"
To find the exact slope (derivative) of \( f(x) = \sqrt{x} \), we use the Difference Quotient :
\[ \lim_{h \to 0} \frac{\sqrt{x+h} - \sqrt{x}}{h} \]
The 0/0 Trap
If you plug in \( h = 0 \) right now, you get \( \frac{0}{0} \). This is Indeterminate .
"We need a way to 'unstick' the algebra."
The Secret Weapon: The Conjugate
What is it?
The same terms, but with the opposite sign in the middle.
\( \sqrt{a} - \sqrt{b} \) \( \sqrt{a} + \sqrt{b} \)
\( 3 + \sqrt{x} \) \( 3 - \sqrt{x} \)
Why it works:
\[ (A-B)(A+B) = A^2 - B^2 \]
The middle terms cancel out, and the radicals disappear!
Rationalizing the Numerator
\[ \frac{\sqrt{x+h} - \sqrt{x}}{h} \cdot \frac{\sqrt{x+h} + \sqrt{x}}{\sqrt{x+h} + \sqrt{x}} \]
Step 1: The Numerator
\( (\sqrt{x+h})^2 - (\sqrt{x})^2 \)
\( = (x+h) - x = h \)
Step 2: The Denominator
Do NOT distribute!
\( h(\sqrt{x+h} + \sqrt{x}) \)
Victory over Zero
After rationalizing, the \( h \) in the numerator cancels with the \( h \) in the denominator.
\[ \lim_{h \to 0} \frac{1}{\sqrt{x+h} + \sqrt{x}} = \frac{1}{2\sqrt{x}} \]
The deadlock is broken. The derivative is found.

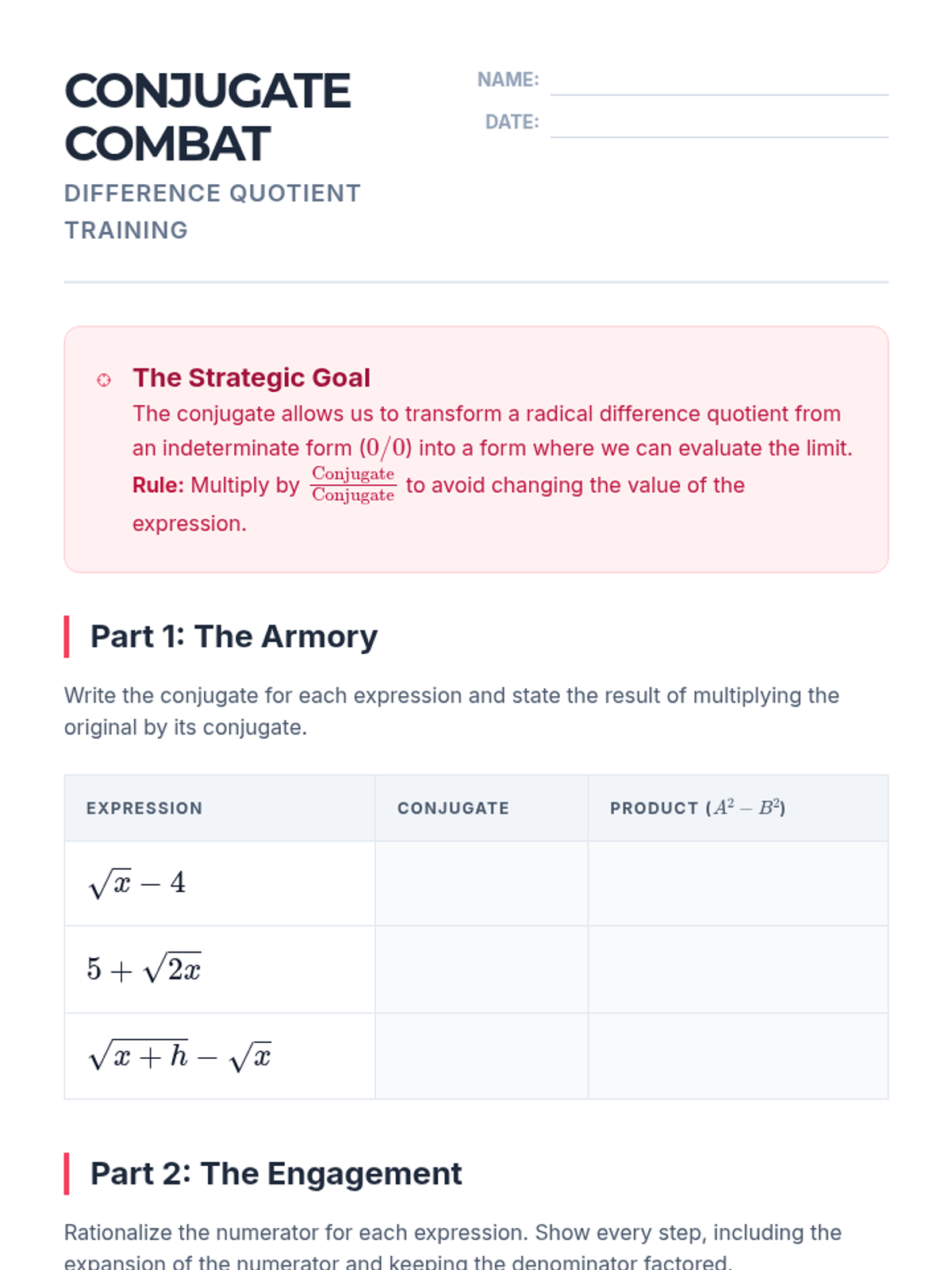

Conjugate Combat Worksheet Conjugate Combat
Difference Quotient Training
NAME:
DATE:
The Strategic Goal
The conjugate allows us to transform a radical difference quotient from an indeterminate form (\( 0/0 \)) into a form where we can evaluate the limit. Rule: Multiply by \( \frac{\text{Conjugate}}{\text{Conjugate}} \) to avoid changing the value of the expression.
Part 1: The Armory
Write the conjugate for each expression and state the result of multiplying the original by its conjugate.
Expression Conjugate Product (\( A^2 - B^2 \)) \( \sqrt{x} - 4 \) \( 5 + \sqrt{2x} \) \( \sqrt{x+h} - \sqrt{x} \)
Part 2: The Engagement
Rationalize the numerator for each expression. Show every step, including the expansion of the numerator and keeping the denominator factored.
1. \( \frac{\sqrt{x+9} - 3}{x} \)
FINAL SIMPLIFIED FORM:
2. \( \frac{\sqrt{x+h} - \sqrt{x}}{h} \)
FINAL SIMPLIFIED FORM:
Part 3: Evaluate the Limit
Use your result from Problem 2 to evaluate the following limit as \( h \to 0 \). Explain what this result represents in the context of the function \( f(x) = \sqrt{x} \).
\[ \lim_{h \to 0} \frac{\sqrt{x+h} - \sqrt{x}}{h} = \text{?}\]
Limit Thresholds Slides Limit Thresholds
Rational Exponents at the Edge
The Mystery of \( x^{1/x} \)
As \( x \) gets larger and larger, what happens to the function \( f(x) = x^{1/x} \)?
If \( x = 10 \), \( f(x) \approx 1.25 \)
If \( x = 100 \), \( f(x) \approx 1.047 \)
If \( x = 1000 \), \( f(x) \approx 1.006 \)
The Paradox:
"The base wants to go to infinity, but the exponent wants to go to zero."
\[ \lim_{x \to \infty} x^{1/x} = 1 \]
The Continuity Challenge
Even Denominators
Functions like \( x^{1/2} \) or \( x^{3/4} \) are one-sided at \( x=0 \).
\[ \lim_{x \to 0^-} x^{1/2} = \text{DNE} \]
Odd Denominators
Functions like \( x^{1/3} \) or \( x^{2/5} \) are continuous everywhere.
\[ \lim_{x \to 0} x^{1/3} = 0 \]
Limits at Infinity: Power Hierarchy
When \( x \to \infty \), the highest power dominates.
\[ \lim_{x \to \infty} \frac{x^{2/3} + 5}{x^{1/2} - 1} \]
Analysis
Numerator power: \( 2/3 \approx 0.67 \)
Since \( 2/3 > 1/2 \)...
Limit = \( \infty \)
The Continuity Checklist
1
Is the root even? Check for \( x \ge 0 \).
2
Is the exponent negative? Watch for VAs at \( x=0 \).
3
Compare powers for limits at infinity.

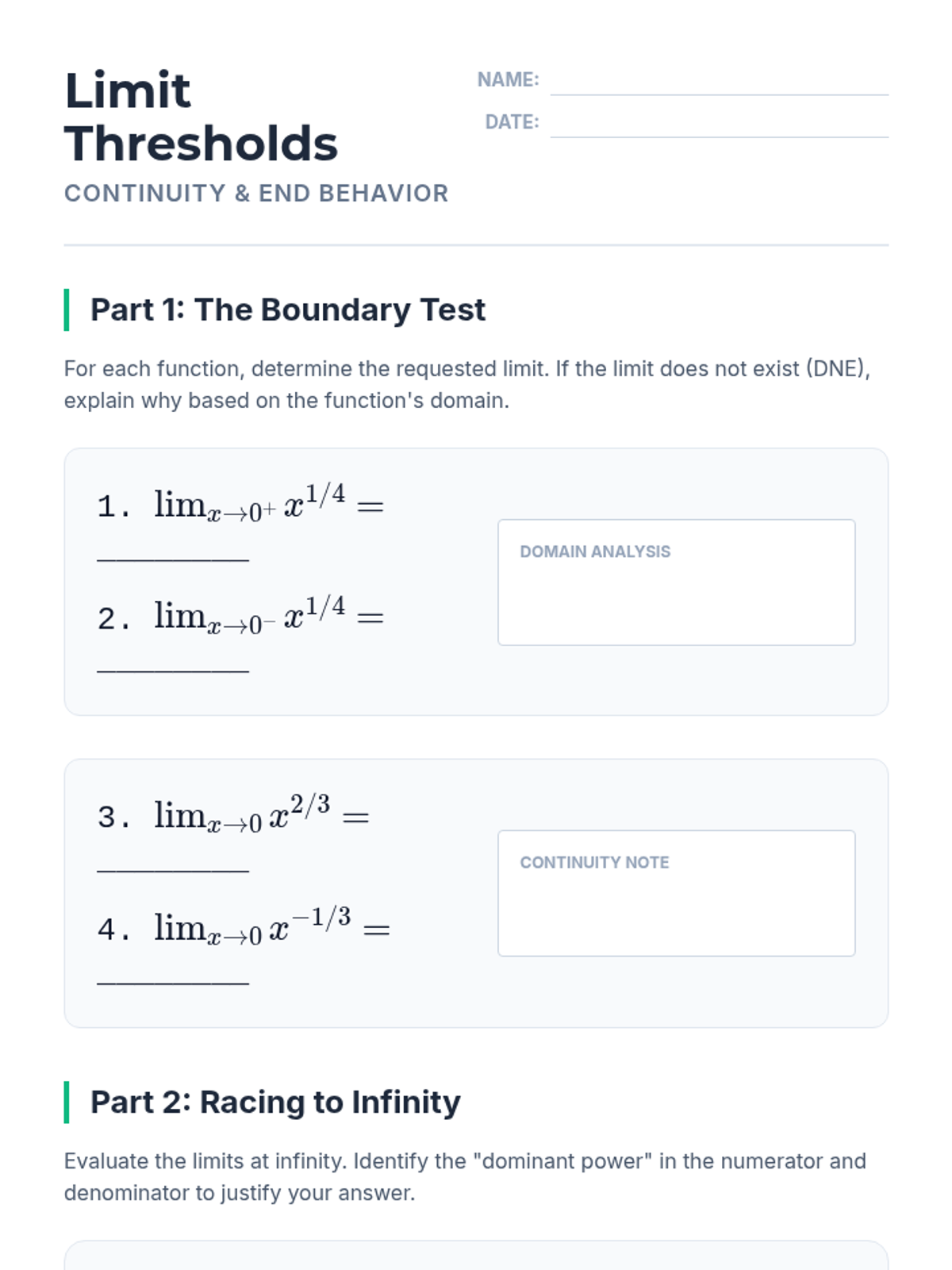

Limit Thresholds Worksheet Limit Thresholds
Continuity & End Behavior
NAME:
DATE:
Part 1: The Boundary Test
For each function, determine the requested limit. If the limit does not exist (DNE), explain why based on the function's domain.
1. \( \lim_{x \to 0^+} x^{1/4} = \) ________
2. \( \lim_{x \to 0^-} x^{1/4} = \) ________
DOMAIN ANALYSIS
3. \( \lim_{x \to 0} x^{2/3} = \) ________
4. \( \lim_{x \to 0} x^{-1/3} = \) ________
CONTINUITY NOTE
Part 2: Racing to Infinity
Evaluate the limits at infinity. Identify the "dominant power" in the numerator and denominator to justify your answer.
\[ \lim_{x \to \infty} \frac{4x^{3/2} + 2x}{x^2 - 7} \]
Dominant Power Analysis:
Limit Result:
\[ \lim_{x \to \infty} \frac{\sqrt{9x^3 + 1}}{x^{1.5}} \]
Dominant Power Analysis:
Limit Result:
\[ \lim_{x \to \infty} \frac{x^{2/5} + x^{1/5}}{2x^{2/5} - 100} \]
Dominant Power Analysis:
Limit Result:
Part 3: The Critical Point Analysis
Consider the function \( f(x) = (x-2)^{2/3} \). Discuss the continuity and limit behavior at \( x = 2 \). How does the rational exponent specifically determine if there is a cusp or vertical tangent?
Infinite Race Slides The Infinite Race
Who wins at the finish line of infinity?
The Starting Blocks
In a short race (small \( x \)), fractional exponents often look like they are winning.
At \( x = 0.5 \):
Linear: \( x \) 0.50
Power: \( x^{1/2} \) 0.71
Winner: \( x^{1/2} \)
"Early growth is deceptive."
The Long Run Asymptotics
Slowdown Zone
For \( 0 < p < 1 \), the function \( x^p \) has a decreasing rate of change.
Example: Root functions grow, but they grow "tired" as they go.
The Power Hierarchy:
\[ x^n \text{ wins if } n > m \]
Even a tiny difference in the exponent changes the outcome at infinity.
The Race of the Titans
\( x^{1.0001} \) vs \( x \)
At \( x = 1,000,000 \), the difference is negligible. But as \( x \to \infty \)...
Growth is Absolute
The larger exponent always dominates eventually.
\[ \lim_{x \to \infty} \frac{x^{1.0001}}{x} = \infty \]
Race Results
Slow Starters
\( x^p \)
\( p > 1 \)
Wins at Infinity
The Linear Bench
\( x^1 \)
Standard
The Baseline
Early Sprint
\( x^p \)
\( 0 < p < 1 \)
Loses at Infinity

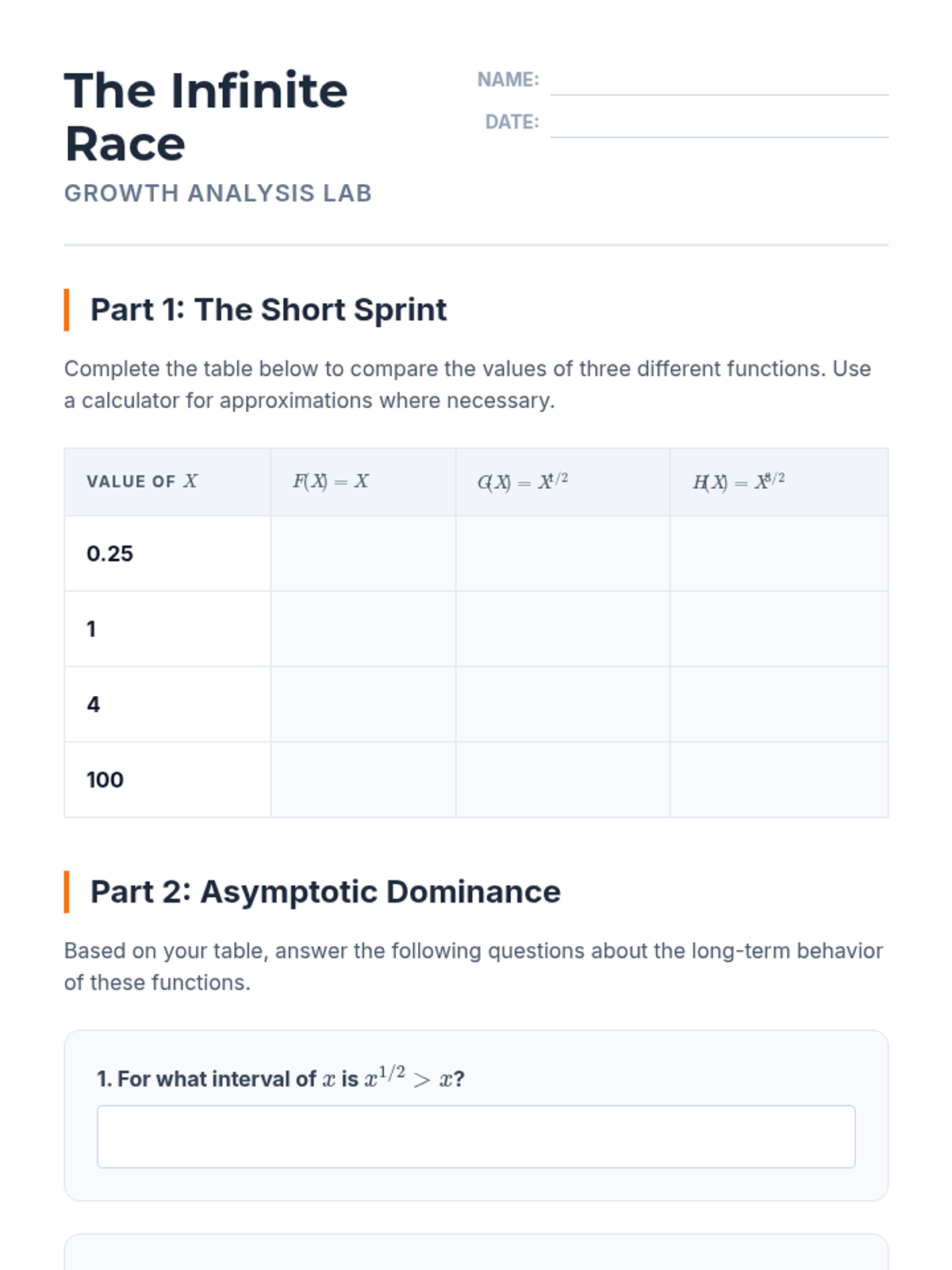

Infinite Race Worksheet The Infinite Race
Growth Analysis Lab
NAME:
DATE:
Part 1: The Short Sprint
Complete the table below to compare the values of three different functions. Use a calculator for approximations where necessary.
Value of \( x \) \( f(x) = x \) \( g(x) = x^{1/2} \) \( h(x) = x^{3/2} \) 0.25 1 4 100
Part 2: Asymptotic Dominance
Based on your table, answer the following questions about the long-term behavior of these functions.
1. For what interval of \( x \) is \( x^{1/2} > x \)?
2. As \( x \to \infty \), which function grows the fastest? Justify using exponents.
3. Evaluate \( \lim_{x \to \infty} \frac{x^{1/2} + 500}{x} \). Explain what this result says about the "race" between these two functions.
Part 3: The Slowdown
Compare the rates of change (slopes) of \( f(x) = x \) and \( g(x) = \sqrt{x} \).
Linear: \( f(x) = x \)
The slope is always constant. What is the value of the slope?
Root: \( g(x) = \sqrt{x} \)
Using the Power Rule, the derivative is \( \frac{1}{2\sqrt{x}} \). What happens to this slope as \( x \to \infty \)?
Visualization Task
Sketch both functions on the coordinate plane below. Clearly label the point where they cross and indicate which one is "above" for very large \( x \).
