Expansion Logic Worksheet Expansion Logic
Formal Homothety & Dilation Proving Grounds
Name: __________________________
Date: __________________________
Formal Definition
Let \( C \) be a point in the plane (the center of dilation ) and \( k \neq 0 \) be a real number (the scale factor ). A homothety \( h_{C,k} \) maps every point \( P \) to a point \( P' \) such that: \[ \vec{CP'} = k \vec{CP} \] In coordinate form, if \( C = (x_0, y_0) \), then \( h_{C,k}(x,y) = (x_0 + k(x-x_0), y_0 + k(y-y_0)) \).
1 The Parallel Invariant
Prove that a homothety \( h_{C,k} \) maps any line \( L \) not passing through \( C \) to a line \( L' \) that is parallel to \( L \).
2 Finding the Origin
Given the figure below containing segment \( AB \) and its image \( A'B' \), construct the center of dilation \( C \) and determine the scale factor \( k \) to two decimal places.
A B A' B'
Coordinates of C:
Scale Factor (k):
3 Composition of Homotheties
Let \( h_{C_1, k_1} \) and \( h_{C_2, k_2} \) be two homotheties with different centers. Under what condition is their composition \( h_{C_2, k_2} \circ h_{C_1, k_1} \) another homothety? What happens if \( k_1 k_2 = 1 \)? Provide a formal justification.
Critical Thinking
"Dilations are the only transformations that preserve shape but not size." Critique this statement. Consider transformations like shear mapping or non-uniform scaling. How does the formal definition of homothety exclude these other cases?
Projection Power Slides Lesson 01: Geometry of Scale
Projection Power
Unlocking the formal properties of Homothety and the Center of Dilation.
FRACTAL HORIZONS UNIT 1
The Flashlight Hook
Imagine shining a flashlight on a small cutout triangle to cast a shadow on a far wall.
Are the triangle and shadow "the same shape"?
Where is the "Source" of the change?
How do we quantify the "Stretch"?
C P P'
Formal Definition
"A homothety \( h_{C,k} \) is a transformation that fixes point \( C \) and maps every point \( P \) to \( P' \) such that..."
\[ \vec{CP'} = k \vec{CP} \]
Variable: C
The Center of Dilation . The only invariant point (unless \( k=1 \)).
Variable: k
The Ratio (Scale Factor). Can be positive or negative.
Theorem: Parallel Invariance
PROPOSITION 1.1
A homothety \( h_{C,k} \) maps any line \( L \) to a line \( L' \) such that:
L' \parallel L
Proof Logic:
1
Pick two points \( A, B \) on line \( L \).
2
Show \( \vec{A'B'} = k \vec{AB} \) using vector subtraction.
3
Conclude vectors are linearly dependent (parallel).
C A B Line L A' B' Line L'
The Challenge: Double Dilation
What happens when you apply two homotheties in sequence? \[ H = h_{C_2, k_2} \circ h_{C_1, k_1} \]
Case A: \( k_1 k_2 \neq 1 \)
The result is a homothety with a new center \( C_3 \) lying on the line \( C_1 C_2 \).
Case B: \( k_1 k_2 = 1 \)
The result is a translation . The scale factor "cancels out," leaving only a shift in position.
"Dilations and translations together form the group of homotheties-translations ."
Dilation Master Guide Dilation Master Guide
Lesson 1: Homothety & The Center of Dilation
Teacher Resource
Instructional Objectives
• Define homothety formally using vector notation and coordinate mappings.
• Prove that homotheties preserve collinearity and parallelism.
• Analyze the algebraic structure of the composition of two dilations.
Key Misconception
Students often assume the center of dilation must be the origin. Push them to define mappings relative to an arbitrary \( C = (x_0, y_0) \).
Pacing & Facilitation
1. The Hook (10 mins)
Slide 2: The Flashlight Hook
Ask: "If we move the flashlight further away, does the shape of the shadow change, or just its size?" Use this to intuit the Fixed Point property of the center \( C \).
2. Formalization (15 mins)
Slide 3: Formal Definition
Transition from the physical intuition to the vector equation \( \vec{CP'} = k \vec{CP} \). Teacher Tip: Ask students to rewrite this as \( P' = C + k(P - C) \). This highlights the "Start at C, move k-times the distance to P" logic.
3. Proving Parallelism (20 mins)
Slide 4 / Worksheet Task 1
Walk through the vector proof. If \( A \) and \( B \) are on line \( L \), then the direction vector is \( \vec{AB} = B - A \). The image vector is \( A'B' = B' - A' = (C + k(B-C)) - (C + k(A-C)) = k(B-A) = k\vec{AB} \). Since the direction vectors are multiples, the lines are parallel.
4. Composition Mastery (15 mins)
Worksheet Task 3
This is the highest-level challenge. If \( k_1 k_2 = 1 \), the dilation factors effectively "cancel," but unless the centers are the same, they leave a leftover displacement vector (Translation).
Discussion & Solution Keys
Construction Answer (Worksheet 2)
To find \( C \), draw lines \( AA' \) and \( BB' \). Their intersection is \( C \). In the diagram provided: \( C = (100, 50) \). The scale factor \( k = \frac{A'B'}{AB} = 2.00 \).
Composition Conditions (Worksheet 3)
If \( k_1 k_2 \neq 1 \), the composition is a homothety with ratio \( k_1 k_2 \). The new center \( C_3 \) satisfies: \( C_3 = \frac{k_2(1-k_1)C_1 + (1-k_2)C_2}{1-k_1 k_2} \). If \( k_1 k_2 = 1 \), it is a translation by the vector \( (1-k_2)(C_2 - C_1) \).
Deep Inquiry Questions
"Why do we exclude k = 0 from the definition of homothety?"
Answer: If k=0, every point maps to C. The transformation is no longer a bijection (invertible map) and it collapses all dimensions, losing the property of similarity.
Total Transformation Slides Lesson 02: The Similarity Decomposition
Total Transformation
Proving that Similarity = Isometry + Homothety.
FRACTAL HORIZONS UNIT 2
The Map Paradox
Consider two maps of London: one at 1:10,000 and another at 1:50,000.
"Are they just 'similar', or is there a sequence of operations that perfectly overlays one onto the other?"
Rotation (Fixing Orientation)
Translation (Aligning Centers)
Dilation (Scaling Dimensions)
The Fundamental Theorem
THEOREM 2.1
Every similarity \( S \) with ratio \( k > 0 \) can be uniquely expressed as the composition:
S = I \circ h_{C,k}
Term 1: I
An Isometry (Rigid Motion). Preserves distance: Rotation, Translation, or Reflection.
Term 2: \( h_{C,k} \)
A Homothety . Scales distance by factor \( k \).
Applying to Triangles: AAA
If \( \triangle ABC \) and \( \triangle DEF \) have equal angles, we can construct the similarity explicitly:
Step 1
Dilate \( \triangle ABC \) by \( k = \frac{DE}{AB} \) centered at \( A \) to get \( \triangle AB'C' \).
Step 2
Use SAS Isometry to show \( \triangle AB'C' \cong \triangle DEF \).
Step 3
Conclusion: A similarity transformation maps one to the other.
A B C B' C' D E F
The Geometry of Algebra
Refining the Definition:
"A similarity is a function \( f: \mathbb{R}^2 \to \mathbb{R}^2 \) such that for all points \( X, Y \), there exists a constant \( k > 0 \) where:"
d(f(X), f(Y)) = k \cdot d(X, Y)
Global scaling
No distortion
Preserves Angles

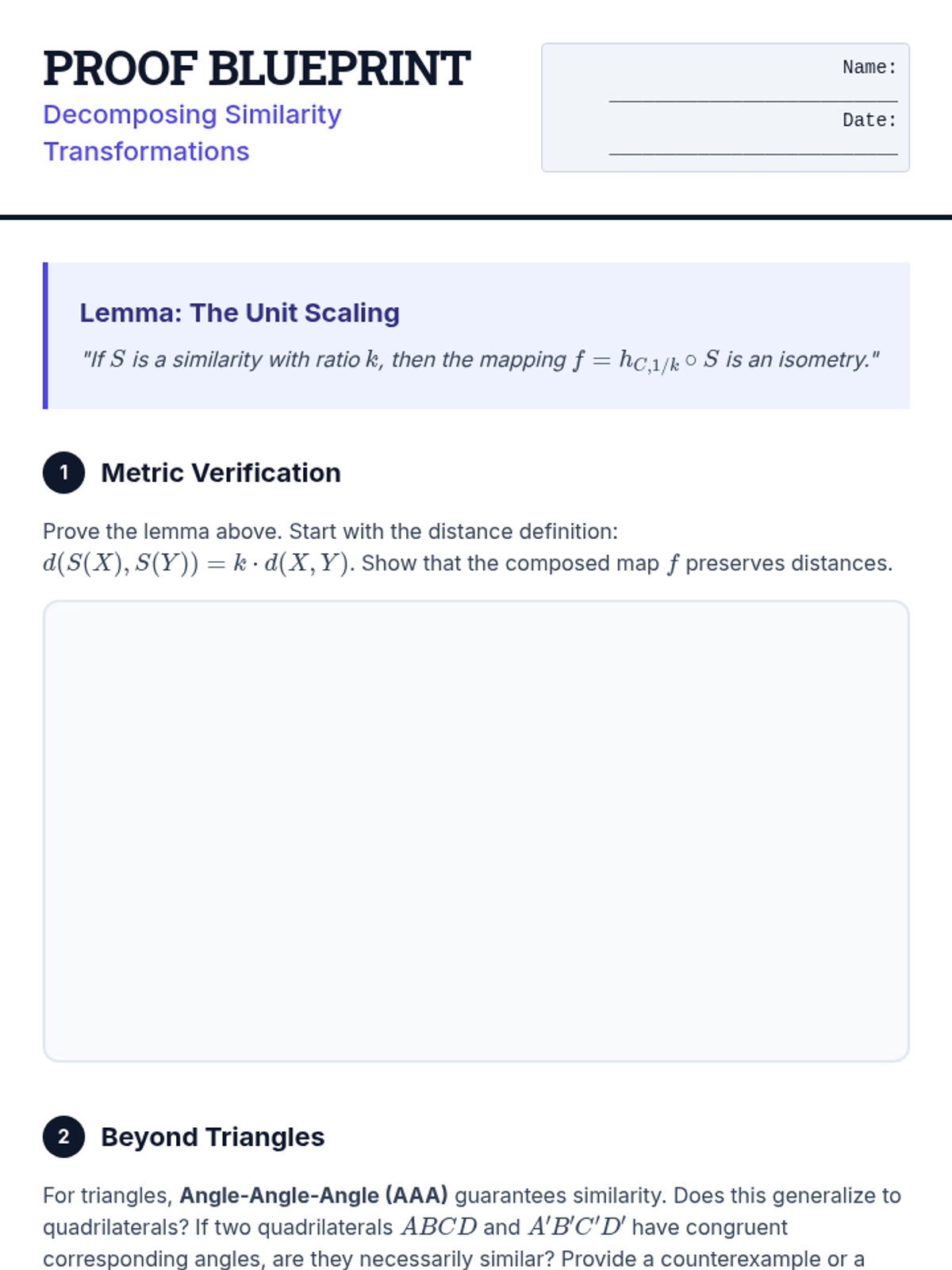

Proof Blueprint Worksheet Proof Blueprint
Decomposing Similarity Transformations
Name: __________________________
Date: __________________________
Lemma: The Unit Scaling
"If \( S \) is a similarity with ratio \( k \), then the mapping \( f = h_{C,1/k} \circ S \) is an isometry."
1 Metric Verification
Prove the lemma above. Start with the distance definition: \( d(S(X), S(Y)) = k \cdot d(X, Y) \). Show that the composed map \( f \) preserves distances.
2 Beyond Triangles
For triangles, Angle-Angle-Angle (AAA) guarantees similarity. Does this generalize to quadrilaterals? If two quadrilaterals \( ABCD \) and \( A'B'C'D' \) have congruent corresponding angles, are they necessarily similar? Provide a counterexample or a formal justification for your answer.
3 Explicit Construction of f
Given two similar triangles \( T_1 \) and \( T_2 \) below, describe the exact sequence of transformations (Translation, Rotation, Reflection, Dilation) required to map \( T_1 \) onto \( T_2 \). You must specify the center of dilation and the angle of rotation.
A(2,2) B(4,2) C(2,4) T1 A' B' C' T2
Step 1: Homothety
Step 2: Isometry (Rigid Motion)
Final Map Definition \( S(x,y) \):
Topological Inquiry
If we allow the scale factor \( k \) to be a function of position \( k(P) \), do we still have similarity? What geometric properties are preserved if the scaling is local rather than global? Relate this to the concept of conformal mappings in complex analysis.
Scaling Giants Slides Lesson 03: Dimensional Analysis
Scaling Giants
Why King Kong's bones would shatter: The Square-Cube Law.
FRACTAL HORIZONS UNIT 3
The Biomechanical Hook
If you scale an animal up by a factor of k = 10...
k
Length/Height
Increases 10x
k²
Bone Strength (Area)
Increases 100x
k³
Weight (Volume)
Increases 1000x
SYSTEM COLLAPSE
"Mass increases far faster than the strength to support it."
STRENGTH (k²) MASS (k³)
The Area Scaling Theorem
Dim = 2
If a similarity \( S \) maps a region \( R \) to \( R' \), then the area \( A \) satisfies:
Area(R') = k^2 \cdot Area(R)
Analytic Proof Sketch:
By decomposition, \( S = I \circ h_{O,k} \). Isometries preserve area. For the homothety, the Jacobian determinant \( |\det(Dh)| = k^2 \). Applying the change of variables formula for integrals: \[ \int_{R'} dA = \int_R |\det(Dh)| dA = k^2 \text{Area}(R) \]
1x1 3x3 = 9 Units
The Allometric Equation
In biology, metabolic rate \( P \) doesn't scale perfectly with volume. Max Kleiber discovered:
P \propto M^{3/4}
Kleiber's Law
If organisms were perfectly self-similar geometric cubes, we would expect \( P \propto M^{2/3} \). The "extra" dimension comes from the fractal-like efficiency of vascular networks.
Predictive Modeling:
If a mouse is 1000x lighter than a human, its metabolic rate per unit mass is significantly higher.
Surface-area-to-volume ratio dictates heat loss. Small things cool down instantly.
Structural limits: Gravity dominates at large scales; surface tension dominates at small scales.
Final Synthesis Inquiry
"A cylindrical bridge is scaled up by a factor of \( k \). If the materials remain the same, will the bridge support its own weight?"
Hint: Stress = Force / Area. Force \(\propto k^3\). Area \(\propto k^2\).

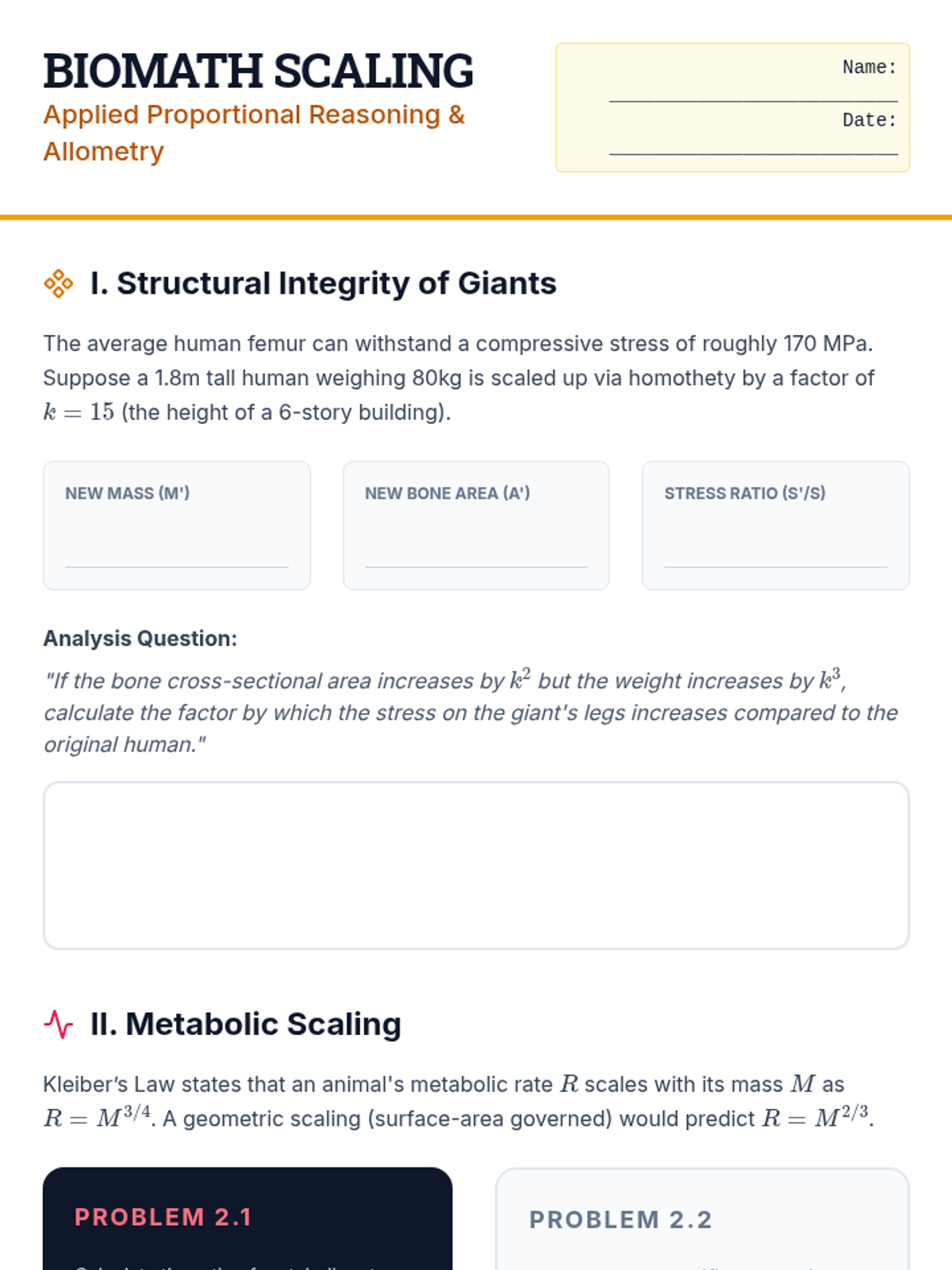

BioMath Scaling Problem Set BioMath Scaling
Applied Proportional Reasoning & Allometry
Name: __________________________
Date: __________________________
I. Structural Integrity of Giants
The average human femur can withstand a compressive stress of roughly 170 MPa. Suppose a 1.8m tall human weighing 80kg is scaled up via homothety by a factor of \( k = 15 \) (the height of a 6-story building).
New Mass (m')
New Bone Area (A')
Stress Ratio (s'/s)
Analysis Question:
"If the bone cross-sectional area increases by \( k^2 \) but the weight increases by \( k^3 \), calculate the factor by which the stress on the giant's legs increases compared to the original human."
II. Metabolic Scaling
Kleiber’s Law states that an animal's metabolic rate \( R \) scales with its mass \( M \) as \( R = M^{3/4} \). A geometric scaling (surface-area governed) would predict \( R = M^{2/3} \).
Problem 2.1
Calculate the ratio of metabolic rates between an elephant (5000 kg) and a dog (20 kg) using both the geometric (2/3) and Kleiber (3/4) models. Which model predicts a higher metabolic cost for the elephant?
Problem 2.2
Determine the specific metabolic rate (Rate per unit mass, \( R/M \)) for both models. As an animal gets larger, does its cells' work increase or decrease? Explain using the derivatives of the functions.
III. Scaling a Cantilever Bridge
Consider a cantilever beam of length \( L \), width \( w \), and height \( h \). The maximum deflection \( \delta \) under its own weight is given by: \[ \delta = \frac{3 \rho g L^4}{2 E h^2} \] where \( \rho \) is density and \( E \) is Young's Modulus.
The Scenario:
An engineer builds a perfect 1:10 scale model of a bridge. The model bridge functions perfectly. When the full-scale bridge is built using the exact same materials , it collapses immediately.
Task: Use the formula above to calculate how much more the full-scale bridge deflects (relative to its own size) compared to the model.
Calculation Space
Synthesis: The Dimensionality of Life
"Isometry is a geometric ideal, but biology is allometric. If a human were truly similar at all ages, a baby's head would be the size of its torso. Explain why non-uniform scaling is a biological necessity for survival and heat regulation."
Infinite Loop Slides Lesson 04: The Limit of Similarity
Infinite Loop
Contraction Mappings and the Chaos Game.
FRACTAL HORIZONS UNIT 4
The Contraction Rule
What happens when we apply similarity transformations where the scale factor k < 1?
Definition: Contraction Mapping
A map \( f: X \to X \) is a contraction if: \[ d(f(x), f(y)) \le k \cdot d(x, y) \] where \( 0 \le k < 1 \).
Banach Fixed Point Theorem: In a complete metric space, every contraction mapping has exactly one unique fixed point.
Set X f(X) Fixed Point P
The Chaos Game Algorithm
ALGORITHM 4.1
1
Pick 3 vertices of an equilateral triangle.
2
Start at any random point \( P \).
3
Roll a die. Move \( P \) halfway to the chosen vertex.
4
Repeat for \( n \to \infty \) iterations.
Emergent Complexity
Sierpinski Triangle: The IFS Attractor
The IFS Mathematical Engine
An Iterated Function System is a finite set of contraction mappings \( \{w_1, w_2, \dots, w_n\} \).
The Hutchison Operator:
W(A) = \bigcup_{i=1}^n w_i(A)
The attractor \( K \) is the unique compact set such that \( W(K) = K \). It is the set that is composed of scaled copies of itself.
Sierpinski Maps:
\( w_1(x) = \frac{1}{2}x \)
\( w_2(x) = \frac{1}{2}x + (\frac{1}{2}, 0) \)
\( w_3(x) = \frac{1}{2}x + (\frac{1}{4}, \frac{\sqrt{3}}{4}) \)
Each map shrinks the entire plane by 50% and shifts it to a corner of the master triangle.
Algorithmic Botany
IFS transformations aren't just for triangles. The Barnsley Fern is generated using only 4 affine similarity transformations.
Self-Similarity
The frond is a scaled copy of the whole fern.
Compression
Infinite complexity stored in 16 numerical parameters.
Nature's Code
Modeling clouds, coastlines, and circulatory systems.

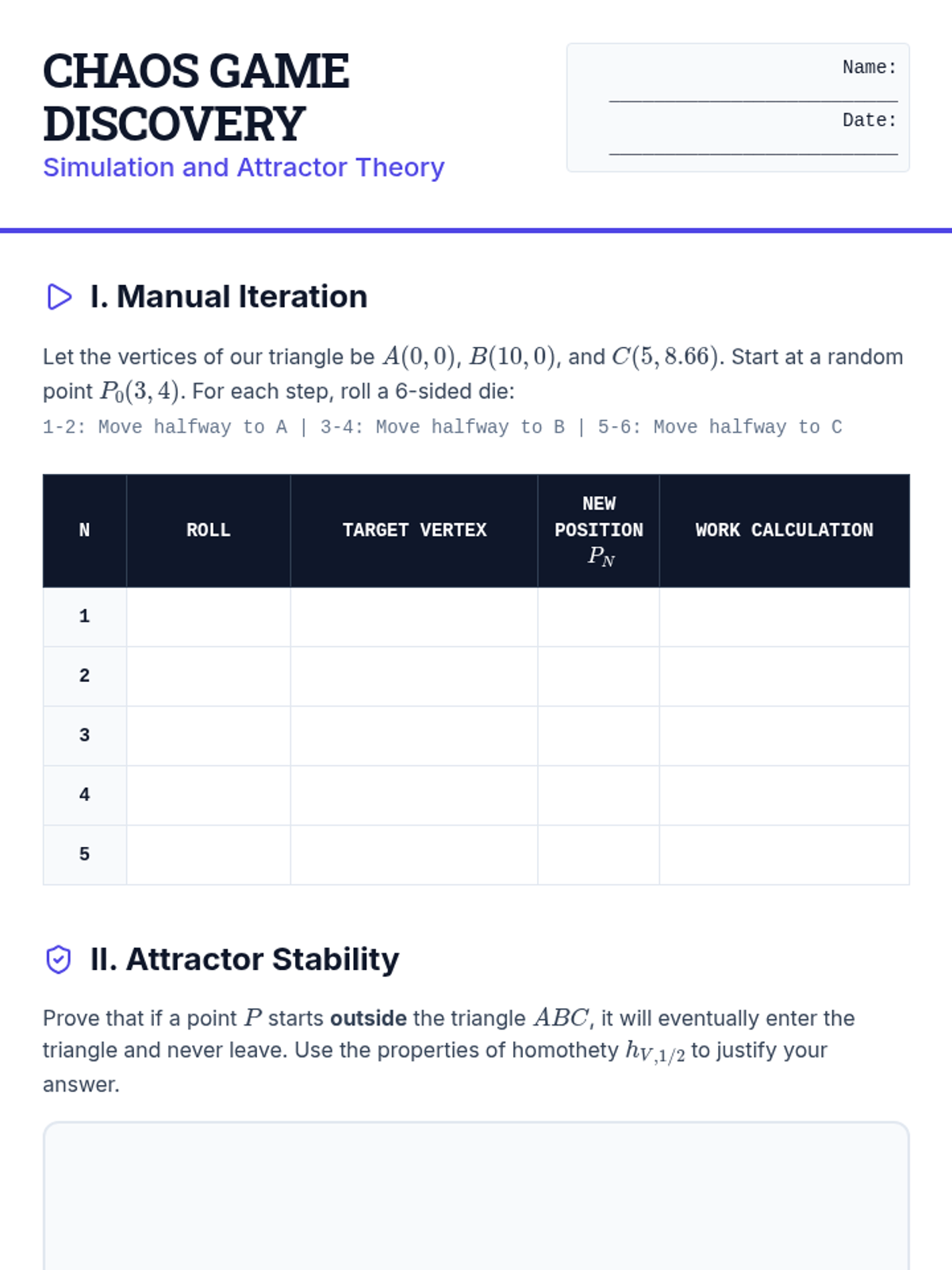

Chaos Game Discovery Worksheet Chaos Game Discovery
Simulation and Attractor Theory
Name: __________________________
Date: __________________________
I. Manual Iteration
Let the vertices of our triangle be \( A(0,0) \), \( B(10,0) \), and \( C(5, 8.66) \). Start at a random point \( P_0(3, 4) \). For each step, roll a 6-sided die:
n Roll Target Vertex New Position \( P_n \) Work Calculation 1 2 3 4 5
II. Attractor Stability
Prove that if a point \( P \) starts outside the triangle \( ABC \), it will eventually enter the triangle and never leave. Use the properties of homothety \( h_{V, 1/2} \) to justify your answer.
III. Programming Similarity
Below is a pseudocode snippet for the Chaos Game. It currently generates a Sierpinski Triangle. Modify the code (or describe the mathematical change) to generate a Sierpinski Carpet (a square with a missing middle square).
# Current: Triangle
vertices = [(0,0), (1,0), (0.5, 0.86)]
P = random_point()
for i in range(10000):
v = random_choice(vertices)
P = midpoint(P, v)
plot(P)
Required Adjustments:
Number of Vertices:
Scaling Factor (instead of midpoint):
"Wait! Why doesn't a square with 4 corners and the midpoint rule work?"
IV. Synthesis: The Hausdorff Pre-Inquiry
The Sierpinski Triangle is made of 3 smaller copies of itself, each scaled by 1/2. A square is made of 4 smaller copies, each scaled by 1/2. A line segment is made of 2 smaller copies, each scaled by 1/2.
Hypothesize: What is the mathematical relationship between the number of copies , the scale factor , and the dimension of the object?
Between Dimensions Slides Lesson 05: Non-Integer Reality
Between Dimensions
Calculating the Hausdorff Dimension of Infinite Similarity.
FRACTAL HORIZONS FINAL MODULE
The Coastline Paradox
"How long is the coastline of Great Britain?"
Lewis Fry Richardson observed that as the measurement ruler \( \epsilon \) gets smaller, the measured length \( L(\epsilon) \) increases without bound .
\[ L(\epsilon) \propto \epsilon^{1-D} \]
If the coastline were a 1D line, \( D=1 \) and length would be constant. If it were a 2D area, it would be zero. The coastline exists between 1 and 2.
Koch Curve: D \(\approx\) 1.26

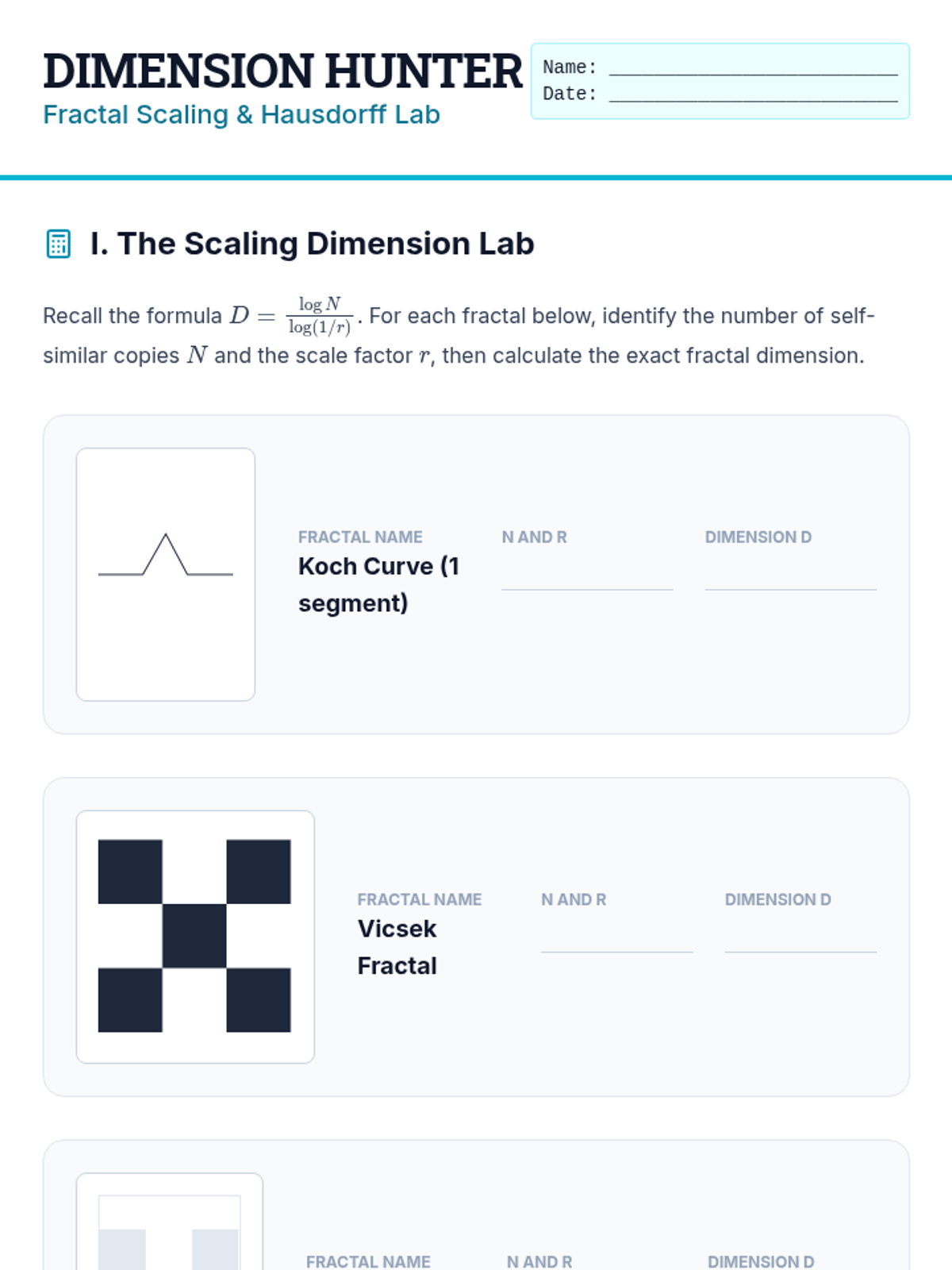

The Similarity Dimension
Metric 5.1
For a set composed of N copies of itself, each scaled by factor r:
D = \frac{\log N}{\log(1/r)}
Line
N=2, r=1/2
D = 1
Square
N=4, r=1/2
D = 2
Sierpinski
N=3, r=1/2
D \(\approx\) 1.58
The Hausdorff Measure
Why doesn't Area work for fractals? For a d-dimensional set, the Hausdorff s-measure \( \mathcal{H}^s \) reveals the truth.
The Critical Value:
If \( s > D \), then \( \mathcal{H}^s(X) = 0 \)
If \( s < D \), then \( \mathcal{H}^s(X) = \infty \)
s H^s D Infinite measure Zero measure
"Dimension is the singular threshold where measure is finite and non-zero."
The Fractal Horizon
Similarity is not just about triangles. It is the fundamental law of nature's infinite complexity, bridging the gap between Euclidean rigidities and the messy, beautiful reality of the universe.
Course Complete: Geometric Mastery
Dimension Hunter Lab Worksheet Dimension Hunter
Fractal Scaling & Hausdorff Lab
Name: __________________________
Date: __________________________
I. The Scaling Dimension Lab
Recall the formula \( D = \frac{\log N}{\log(1/r)} \). For each fractal below, identify the number of self-similar copies \( N \) and the scale factor \( r \), then calculate the exact fractal dimension.
Fractal Name
Koch Curve (1 segment)
N and r
Dimension D
Fractal Name
Vicsek Fractal
N and r
Dimension D
Repeated Gap
Fractal Name
Cantor Dust (3D Slice)
N and r
Dimension D
II. The Hausdorff Singularity
Consider the Sierpinski Triangle \( K \) with dimension \( D = \frac{\log 3}{\log 2} \approx 1.585 \). Mathematically, we know that: \[ \mathcal{H}^s(K) = \begin{cases} \infty & s < 1.585 \\ 1 & s = 1.585 \\ 0 & s > 1.585 \end{cases} \]
Conceptual Challenge:
"If you tried to paint the Sierpinski Triangle with 2D paint (area), you would need 0 liters of paint. If you tried to measure it with a 1D string, you would need an infinite amount of string. Explain, in your own words, what this implies about the density of points in a fractal compared to a standard Euclidean plane."
III. Coastal Analysis
The coastline of Norway is measured to have a fractal dimension of roughly \( D = 1.52 \). The coastline of South Africa is measured at \( D = 1.02 \).
Comparison:
Which coastline is more "jagged" or "complex"? How does the higher dimension value reflect the physical geography of the region (e.g., fjords vs. straight beaches)?
Limit Calculation:
If you reduce your ruler size by a factor of 10, by what factor does the measured length of the Norwegian coastline increase? (Use \( L \propto \epsilon^{1-D} \))
End of Sequence: Fractal Horizons Lab Certified
Between Dimensions Slides Lesson 05: Non-Integer Reality
Between Dimensions
Calculating the Hausdorff Dimension of Infinite Similarity.
FRACTAL HORIZONS FINAL MODULE
The Coastline Paradox
"How long is the coastline of Great Britain?"
Lewis Fry Richardson observed that as the measurement ruler \( \epsilon \) gets smaller, the measured length \( L(\epsilon) \) increases without bound .
\[ L(\epsilon) \propto \epsilon^{1-D} \]
If the coastline were a 1D line, \( D=1 \) and length would be constant. If it were a 2D area, it would be zero. The coastline exists between 1 and 2.
Koch Curve: D \(\approx\) 1.26
The Similarity Dimension
Metric 5.1
For a set composed of N copies of itself, each scaled by factor r:
D = \frac{\log N}{\log(1/r)}
Line
N=2, r=1/2
D = 1
Square
N=4, r=1/2
D = 2
Sierpinski
N=3, r=1/2
D \(\approx\) 1.58
The Hausdorff Measure
Why doesn't Area work for fractals? For a d-dimensional set, the Hausdorff s-measure \( \mathcal{H}^s \) reveals the truth.
The Critical Value:
If \( s > D \), then \( \mathcal{H}^s(X) = 0 \)
If \( s < D \), then \( \mathcal{H}^s(X) = \infty \)
s H^s D Infinite measure Zero measure
"Dimension is the singular threshold where measure is finite and non-zero."
The Fractal Horizon
Similarity is not just about triangles. It is the fundamental law of nature's infinite complexity, bridging the gap between Euclidean rigidities and the messy, beautiful reality of the universe.
Course Complete: Geometric Mastery
Dimension Hunter Lab Worksheet Dimension Hunter
Fractal Scaling & Hausdorff Lab
Name: __________________________
Date: __________________________
I. The Scaling Dimension Lab
Recall the formula \( D = \frac{\log N}{\log(1/r)} \). For each fractal below, identify the number of self-similar copies \( N \) and the scale factor \( r \), then calculate the exact fractal dimension.
Fractal Name
Koch Curve (1 segment)
N and r
Dimension D
Fractal Name
Vicsek Fractal
N and r
Dimension D
Repeated Gap
Fractal Name
Cantor Dust (3D Slice)
N and r
Dimension D
II. The Hausdorff Singularity
Consider the Sierpinski Triangle \( K \) with dimension \( D = \frac{\log 3}{\log 2} \approx 1.585 \). Mathematically, we know that: \[ \mathcal{H}^s(K) = \begin{cases} \infty & s < 1.585 \\ 1 & s = 1.585 \\ 0 & s > 1.585 \end{cases} \]
Conceptual Challenge:
"If you tried to paint the Sierpinski Triangle with 2D paint (area), you would need 0 liters of paint. If you tried to measure it with a 1D string, you would need an infinite amount of string. Explain, in your own words, what this implies about the density of points in a fractal compared to a standard Euclidean plane."
III. Coastal Analysis
The coastline of Norway is measured to have a fractal dimension of roughly \( D = 1.52 \). The coastline of South Africa is measured at \( D = 1.02 \).
Comparison:
Which coastline is more "jagged" or "complex"? How does the higher dimension value reflect the physical geography of the region (e.g., fjords vs. straight beaches)?
Limit Calculation:
If you reduce your ruler size by a factor of 10, by what factor does the measured length of the Norwegian coastline increase? (Use \( L \propto \epsilon^{1-D} \))
End of Sequence: Fractal Horizons Lab Certified
Fractal Horizons Final Key Final Key & Assessment Guide
Lesson 5: Fractal Dimension & Hausdorff Measure
Teacher Resource
Solution Key: Dimension Hunter Lab
Section I: Scaling Dimensions
1. Koch Curve: \( N=4 \), \( r=1/3 \). D = log(4)/log(3) \approx 1.2619
2. Vicsek Fractal: \( N=5 \), \( r=1/3 \). D = log(5)/log(3) \approx 1.4649
3. Cantor Dust (3D Slice): \( N=2 \), \( r=1/3 \). D = log(2)/log(3) \approx 0.6309
Section II: Hausdorff Synthesis
Teacher Evaluation Note: Look for the concept of "Holes" or "Empty Space."
"The point density of a fractal is higher than a line but 'thinner' than a plane. While a plane is filled with an uncountably infinite number of points that have 'width' and 'height', a fractal has infinitely many points but they are so sparse that they fail to occupy any actual area (Area=0)."
Section III: Coastal Analysis
Jaggedness: Norway is significantly more complex/jagged (\( D=1.52 \)). It essentially occupies more "space" in the plane than the South African coast (\( D=1.02 \)), which is nearly a straight 1D line.
Ruler Calculation: Let \( \epsilon_2 = \epsilon_1 / 10 \). Using \( L \propto \epsilon^{1-D} \): Ratio \( = (1/10)^{1-1.52} = 10^{0.52} \approx 3.31 \). The measured length increases by a factor of 3.31 when the ruler is 10x smaller.
Sequence Reflection
This sequence began with the most rigid definition of geometry (Homothety) and ended with the most fluid (Fractals). The primary pedagogical goal was to show that Similarity is the bridge. The same laws that allow us to solve for \( x \) in a triangle also allow us to measure the complexity of a lightning bolt or a human lung.
Checked for Undergraduate Rigor
Vector Notation Verified
