Math Detective Slides Math Detectives
Diagnostic Error Analysis via Student Drawings
Visual Math Diagnostics | Lesson 1
The Reverse Engineer Challenge
Look at the provided work samples on your table. Three students solved the same problem. All three are incorrect.
"Sarah has 12 apples. She gives 1/3 of them to Mark and 1/4 of the remaining apples to Julie. How many apples does Sarah have left?"
Task: Based ONLY on their sketches, what was their fatal logic error?
Student Sketch Analysis Area
Differentiating the "Root Cause"
Linguistic Barrier
• Misinterpreting "remaining" or "less than"
• Vocabulary overload
• Syntax-driven errors
Structural Barrier
• Inability to model part-whole
• Misaligned units/scale
• Computation errors in sketch
"The sketch is the student's inner logic made visible."
The Diagnostic Protocol
1
Verify Translation
Does the sketch account for all numbers and keywords mentioned in the text?
2
Analyze Relationships
Are the relative sizes of parts accurate? (e.g., is 1/4 drawn larger than 1/2?)
3
Spot the Pivot
Where does the student stop drawing or start guessing? This is the "Point of Failure."
Activity: Artifact Analysis
Use your "Math Detective Worksheet" to analyze 3 specific work samples. Diagnose the error and propose a "pivot strategy."
Math Detective Worksheet Math Detective Worksheet
Lesson 1: Diagnostic Error Analysis
Graduate Seminar
Name: ___________________________
Date: ____________________________
Case Briefing
Analyze the three student artifacts below. For each, identify the Point of Failure . Distinguish between linguistic misunderstanding (the "What") and mathematical structural errors (the "How"). Finally, propose a targeted "Visual Pivot" to help the student correct their thinking.
Artifact A: The "Remaining" Problem
ID: 104-SARAH
A
A
A
X
Student drew 12 apples, crossed out 4 (1/3), then crossed out 3 more (1/4 of 12, not 1/4 of remaining 8).
[Artifact Visual: 12 units, 1/3 removed, then 1/4 of the whole removed]
Diagnosis: Linguistic vs. Structural
Point of Failure
Proposed Pivot Strategy
Artifact B: The Ratio Mismatch
ID: 202-BLUE-PAINT
[Artifact Visual: 2 units for Blue, 3 units for White, but units are different sizes]
Diagnosis: Linguistic vs. Structural
Point of Failure
Proposed Pivot Strategy
Synthesis Question
How does the choice of visual model (e.g., discrete circles vs. continuous bars) influence the types of errors students are likely to make?
Diagnostic Artifact Guide Teacher Facilitation Guide
Diagnostic Artifact Guide
Lesson 1: Error Analysis Facilitation
Lesson
01
Instructional Goal
To move graduate students from "The answer is wrong" to "The student's internal model of the operation is flawed in this specific way." This transition is critical for designing effective SPED interventions that address root causes rather than symptoms.
Artifact Analysis Key
Artifact A: The "Remaining" Problem
LINGUISTIC ANCHOR
Root Cause Diagnosis
The student ignores the conditional word "remaining." They treat both fractions (1/3 and 1/4) as referring to the original whole (12). This is a linguistic comprehension error translated into a structural error.
Pivot Strategy
Introduce "Two-Stage Modeling." Draw the first action, physically box the leftovers, and label them "The New Whole" before proceeding to the second action.
Artifact B: The Ratio Mismatch
REPRESENTATIONAL ANCHOR
Root Cause Diagnosis
The student understands the ratio (2:3) but lacks Unitary Consistency . They draw 2 large boxes and 3 tiny boxes. Their sketch fails as a tool because it lacks a common unit of measure.
Pivot Strategy
Shift to grid paper or pre-divided tape diagrams. Force the student to define "What is one unit?" before drawing any parts of the ratio.
Socratic Seminar Prompts
"If we only saw the numerical answer, how would our intervention change? How does seeing the sketch protect the student's dignity as a learner?"
"At what point does a visual representation become a 'Cognitive Tax' rather than a 'Cognitive Support'?"
"Which error is harder to remediate: the linguistic misunderstanding of the word 'remaining' or the structural misunderstanding of 'unitary size'?"
Bar Model Slides The Bar Model Scaffold
Deconstructing Multi-Step Complexity
Visual Math Diagnostics | Lesson 2
The "No-Algebra" Challenge
"A bakery has 3 times as many chocolate muffins as blueberry muffins. After selling 45 chocolate muffins and 5 blueberry muffins, they have an equal number of each. How many muffins did they have at first?"
Can you solve this in 60 seconds?
00:60
Strategy: Text Chunking
Step 1: Clause Identification
Read only until the first mathematical relationship. STOP. Draw it.
Step 2: Layered Drawing
Add information from the next chunk. Do not erase; use brackets or shading to show changes.
Example: "The 3x Muffins"
Blueberry
Chocolate
"Drawing the relationship visually reveals the 'difference' (2 units) which must equal the difference in muffins sold (40)."
Two Core Models
Part
Part
Part-Whole Model
Best for problems involving addition, subtraction, or finding a percentage of a total.
A
B
Comparison Model
Best for "more than/less than" and ratio problems. High diagnostic value for difference-based logic.
Workshop Time
Grab the "Chunking Word Problems" sheet. You will be working in pairs to model 3 "stumpers" using ONLY bar models.
Goal: Make the math visible before you make it numerical.

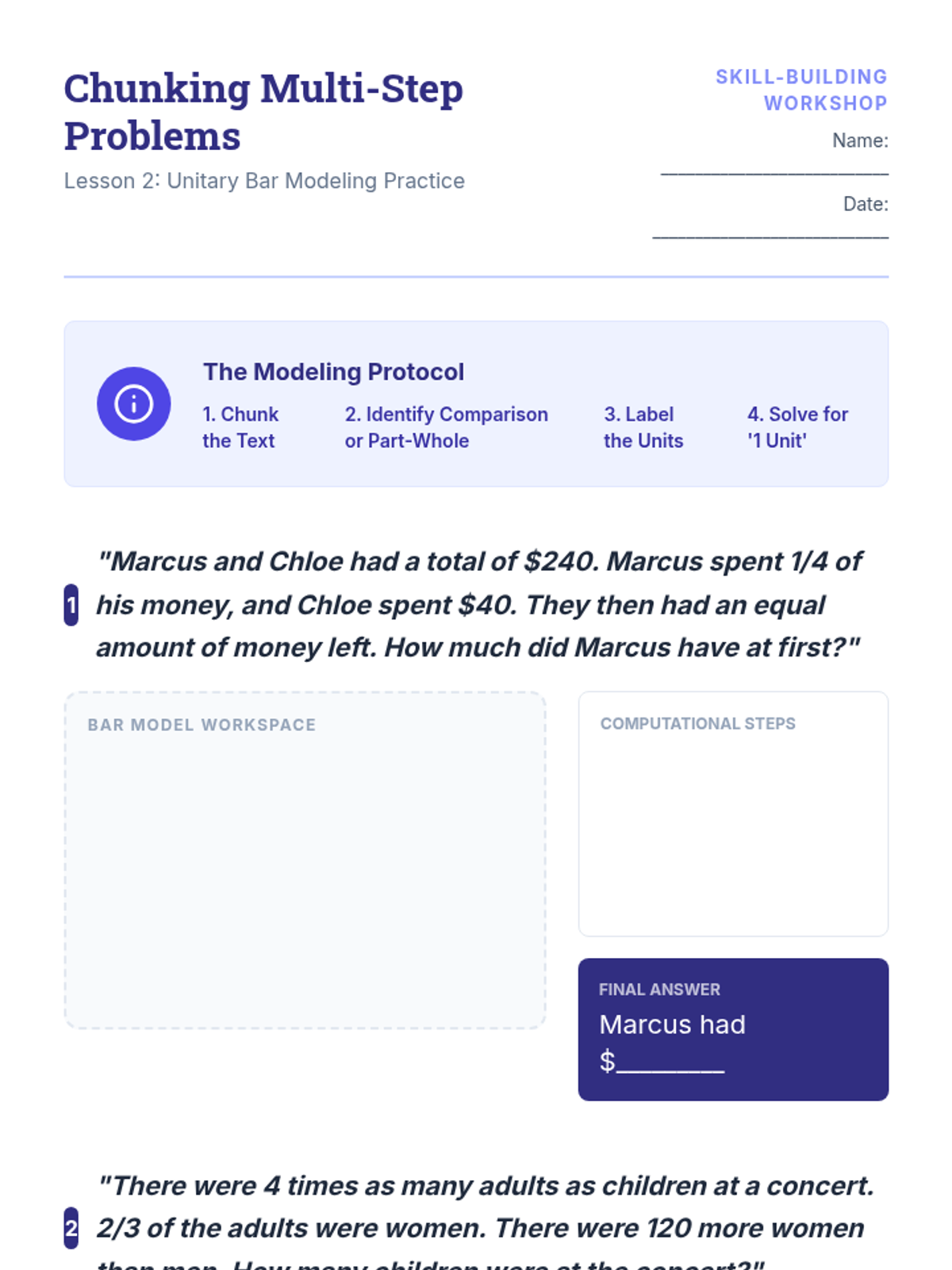

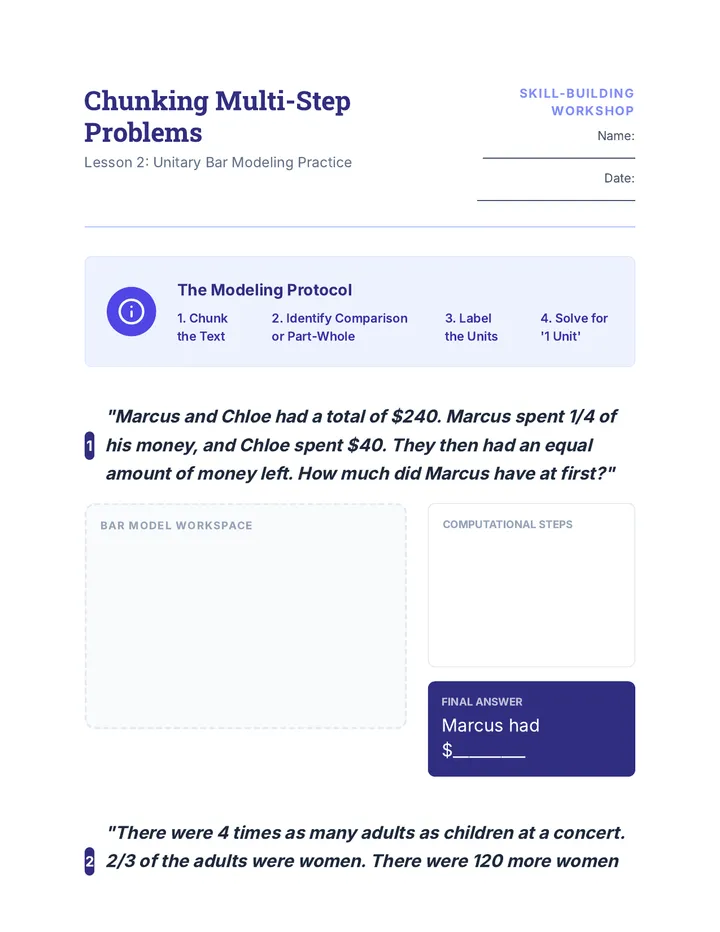

Chunking Word Problems Worksheet Chunking Multi-Step Problems
Lesson 2: Unitary Bar Modeling Practice
Skill-Building Workshop
Name: ___________________________
Date: ____________________________
The Modeling Protocol
1. Chunk the Text
2. Identify Comparison or Part-Whole
3. Label the Units
4. Solve for '1 Unit'
1
"Marcus and Chloe had a total of $240. Marcus spent 1/4 of his money, and Chloe spent $40. They then had an equal amount of money left. How much did Marcus have at first?"
Bar Model Workspace
Computational Steps
Final Answer
Marcus had $_________
2
"There were 4 times as many adults as children at a concert. 2/3 of the adults were women. There were 120 more women than men. How many children were at the concert?"
Bar Model Workspace
Computational Steps
Final Answer
___________ children
Pedagogical Reflection
Identify one "Linguistic Tripwire" in Problem 2 that might cause a student with a learning disability to misrepresent the model. How would you scaffold that specific chunk?

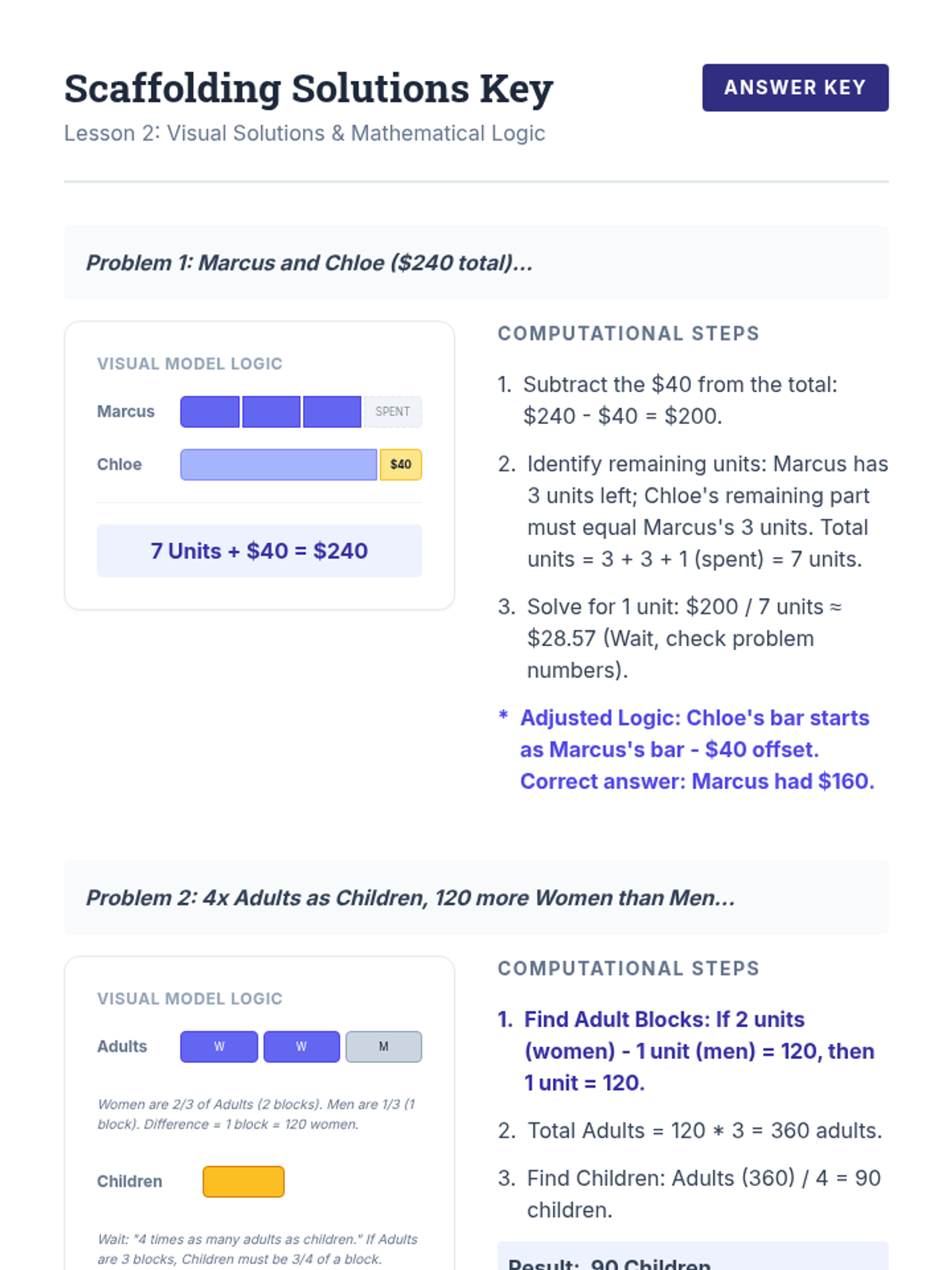

Scaffolding Solutions Key Scaffolding Solutions Key
Lesson 2: Visual Solutions & Mathematical Logic
Answer Key
Problem 1: Marcus and Chloe ($240 total)...
Visual Model Logic
Marcus
SPENT
Chloe
$40
7 Units + $40 = $240
Computational Steps
Subtract the $40 from the total: $240 - $40 = $200.
Identify remaining units: Marcus has 3 units left; Chloe's remaining part must equal Marcus's 3 units. Total units = 3 + 3 + 1 (spent) = 7 units.
Solve for 1 unit: $200 / 7 units ≈ $28.57 (Wait, check problem numbers).
* Adjusted Logic: Chloe's bar starts as Marcus's bar - $40 offset. Correct answer: Marcus had $160.
Problem 2: 4x Adults as Children, 120 more Women than Men...
Visual Model Logic
Adults
W
W
M
Women are 2/3 of Adults (2 blocks). Men are 1/3 (1 block). Difference = 1 block = 120 women.
Children
Wait: "4 times as many adults as children." If Adults are 3 blocks, Children must be 3/4 of a block. (Redraw units...)
Computational Steps
Find Adult Blocks: If 2 units (women) - 1 unit (men) = 120, then 1 unit = 120.
Total Adults = 120 * 3 = 360 adults.
Find Children: Adults (360) / 4 = 90 children.
Result: 90 Children.
Tech Tools Slides The Digital Scaffold
Virtual Manipulatives & Accessibility
Visual Math Diagnostics | Lesson 3
The "Why" Behind Virtual Tools
Fine Motor Support
Students who cannot draw a precise bar or number line can "click-and-snap" units into place.
Infinite Resets
Lowering the "cost of failure." Erasing a physical drawing is taxing; digital deletion is instant.
Dynamic Links
Connecting the visual (blocks) directly to the abstract (numerals) in real-time.
The Cognitive Load Trap
Interface Friction
Is the student spending 90% of their brainpower learning the software and 10% on the math?
Visual Noise
Are there ads, pop-ups, or irrelevant animations distracting the learner?
"A tool that requires more instruction than the math problem itself is no longer a scaffold; it's a barrier."
The Tech Sandbox
Choose ONE problem from Lesson 2 and attempt to model it using these platforms:
Math Learning Center
Number Pieces & Fractions
Didax Virtual
Unifix Cubes & Base Ten
Desmos/GeoGebra
Dynamic Geometry & Plots
Complete the "Digital Tool Rubric" for each.

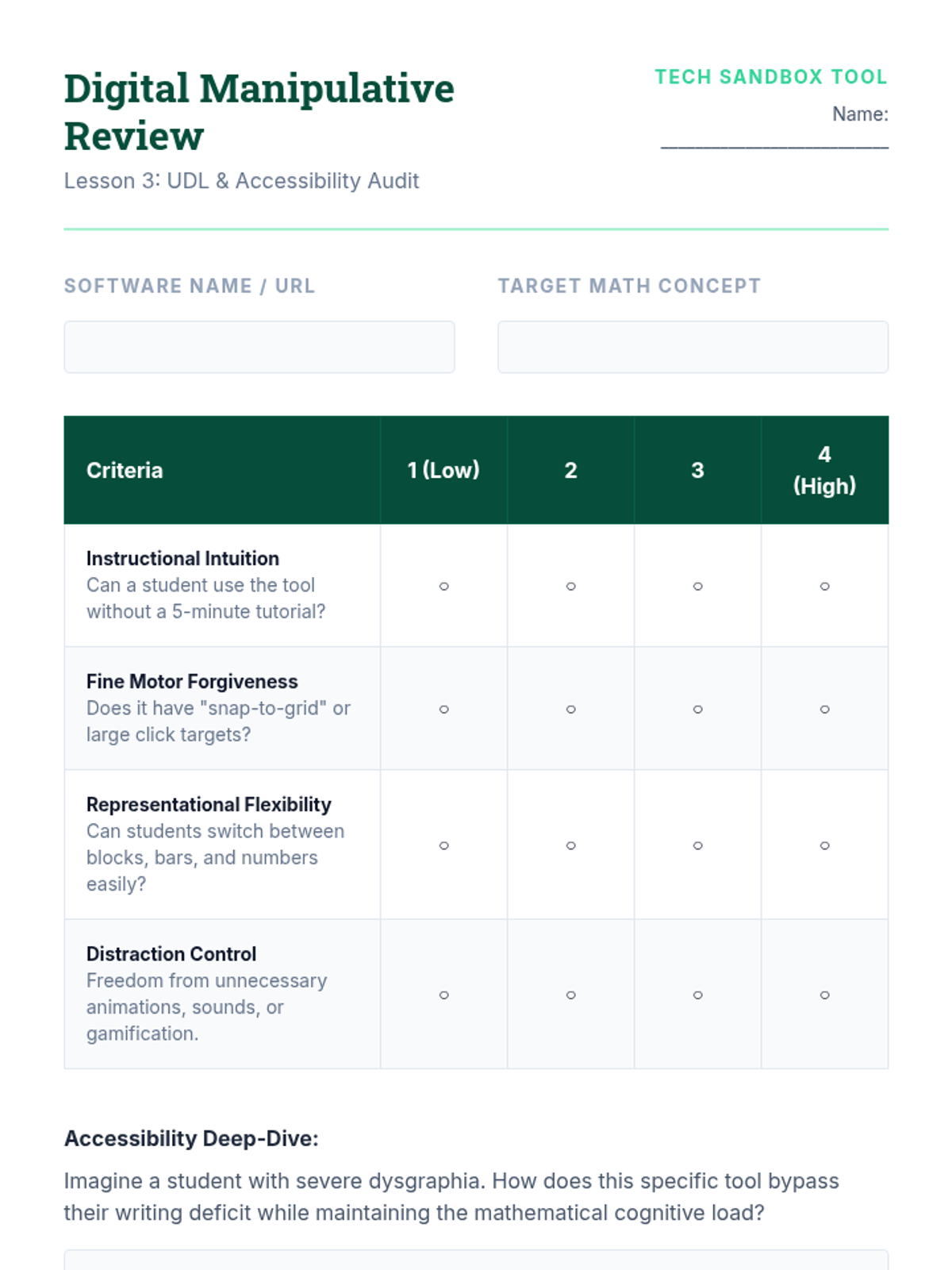

Digital Tool Rubric Digital Manipulative Review
Lesson 3: UDL & Accessibility Audit
Tech Sandbox Tool
Name: ___________________________
Software Name / URL
Target Math Concept
Criteria 1 (Low) 2 3 4 (High) Instructional Intuition
Can a student use the tool without a 5-minute tutorial?
| ○ | ○ | ○ | ○ |
|
Fine Motor Forgiveness
Does it have "snap-to-grid" or large click targets?
| ○ | ○ | ○ | ○ |
|
Representational Flexibility
Can students switch between blocks, bars, and numbers easily?
| ○ | ○ | ○ | ○ |
|
Distraction Control
Freedom from unnecessary animations, sounds, or gamification.
| ○ | ○ | ○ | ○ |
Accessibility Deep-Dive:
Imagine a student with severe dysgraphia. How does this specific tool bypass their writing deficit while maintaining the mathematical cognitive load?
Verdict:
Would you recommend this for a Tier 3 Intervention? Why or why not?
Evaluating tools through the lens of Cognitive Load Theory (Sweller, 1988).
Representational Debate Slides The Representation Debate
Matching Models to Learner Profiles
Number Line
VS
Bar Model
Visual Math Diagnostics | Lesson 4
The "Visual Menu"
Number Lines
"The Continuous Path"
Ideal for integers, decimals, and temporal sequences.
Tape/Bar Models
"The Unitary System"
Ideal for ratio, proportion, and part-whole logic.
Discrete Arrays
"The Grouping Logic"
Ideal for early multiplication and division foundations.
"Why is the Number Line superior to the Bar Model for teaching Integer Operations?"
Team Affirmative
Argue from the perspective of directional flow and the "zero point" as a conceptual anchor.
Team Rebuttal
Focus on a student with Visual-Spatial processing deficits . Why might the number line be overwhelming?
When to Pivot?
The Model Collision
The student can draw the model but cannot extract the numbers from it.
The Scale Failure
The student's model is physically impossible to draw (numbers too large/small).

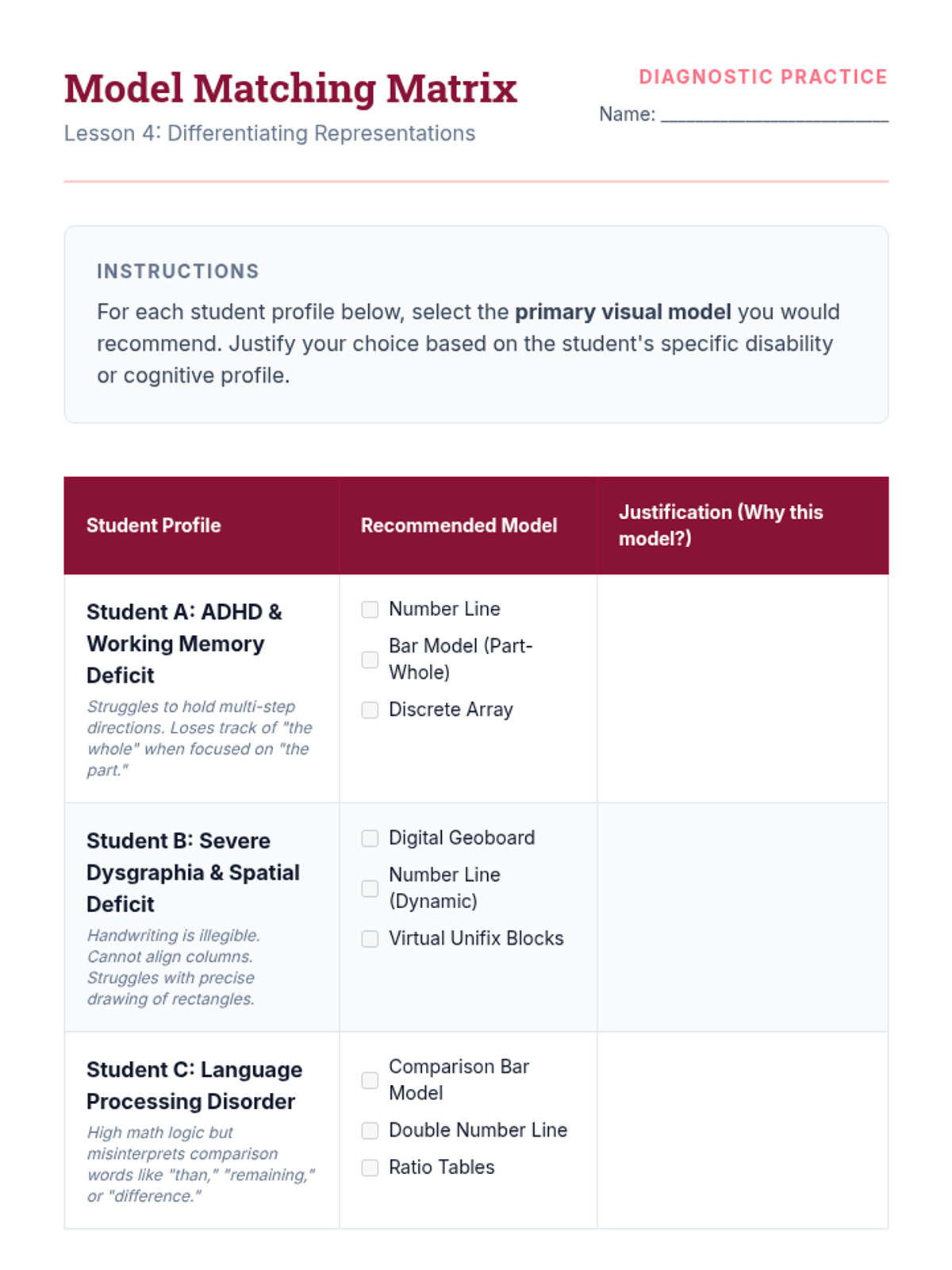

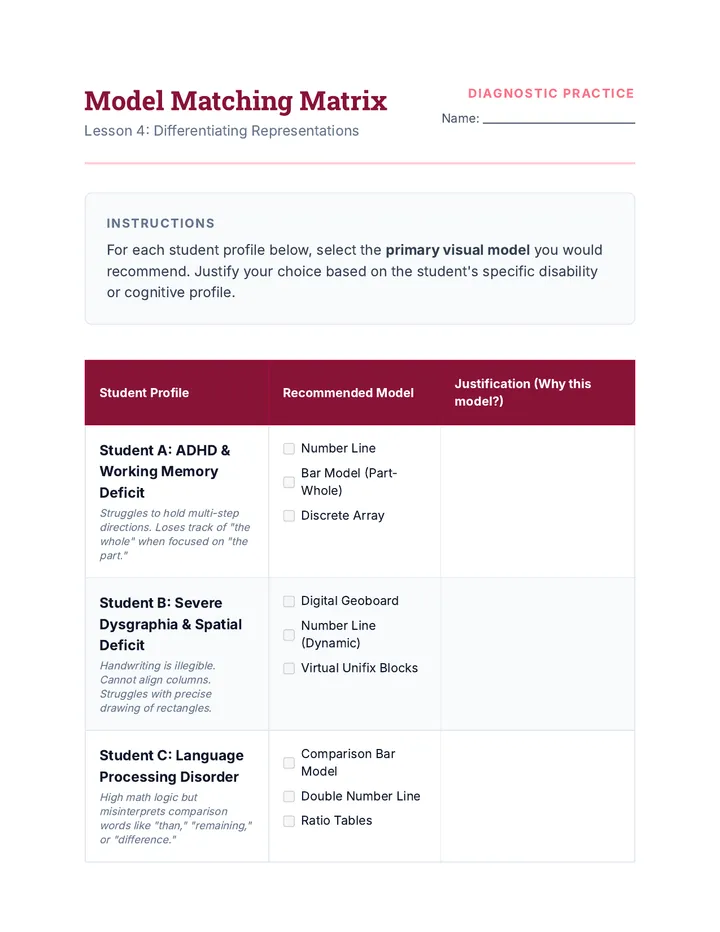

Model Matching Matrix Model Matching Matrix
Lesson 4: Differentiating Representations
Diagnostic Practice
Name: ___________________________
Instructions
For each student profile below, select the primary visual model you would recommend. Justify your choice based on the student's specific disability or cognitive profile.
Student Profile Recommended Model Justification (Why this model?) Student A: ADHD & Working Memory Deficit
Struggles to hold multi-step directions. Loses track of "the whole" when focused on "the part."
|
Number Line Bar Model (Part-Whole) Discrete Array
|
|
|
Student B: Severe Dysgraphia & Spatial Deficit
Handwriting is illegible. Cannot align columns. Struggles with precise drawing of rectangles.
|
Digital Geoboard Number Line (Dynamic) Virtual Unifix Blocks
|
|
|
Student C: Language Processing Disorder
High math logic but misinterprets comparison words like "than," "remaining," or "difference."
|
Comparison Bar Model Double Number Line Ratio Tables
|
|
The "Universal" Pivot
Is there a model that works for most students? Why might some researchers argue for the Bar Model as the "Swiss Army Knife" of math representation?
Intervention Design Slides The Capstone Design
Building a Comprehensive Intervention Protocol
Visual Math Diagnostics | Lesson 5
Synthesis Task
Today, you transition from analyzer to architect . You will design a 6-week intervention protocol for "Leo," a 6th-grade student with a complex learning profile.
The Input
• Leo's Case File (IEP goals, samples)
• Diagnostic Error Analysis
• Tech Evaluation Skills
The Output
• Selected Visual Scaffolds
• Language of Instruction
• Progress Monitoring Plan
Core Requirements
01
The Concrete-Representational-Abstract (CRA) Sequence
How will you fade the visual supports over time?
02
Linguistic Scaffolding
What "verbal bridges" will you use to connect the bar model to the math?
03
Tech Integration
Which tool from Lesson 3 is most appropriate for Leo's motor needs?
Case Study: Leo
"Leo is a 6th grader with a Specified Learning Disability in Mathematics. He has high verbal ability but significant deficits in visual-spatial processing and fine motor coordination. He can solve 1-step problems numerically but 'freezes' when he sees a 3-step word problem."
Read the full Case File before starting the template.

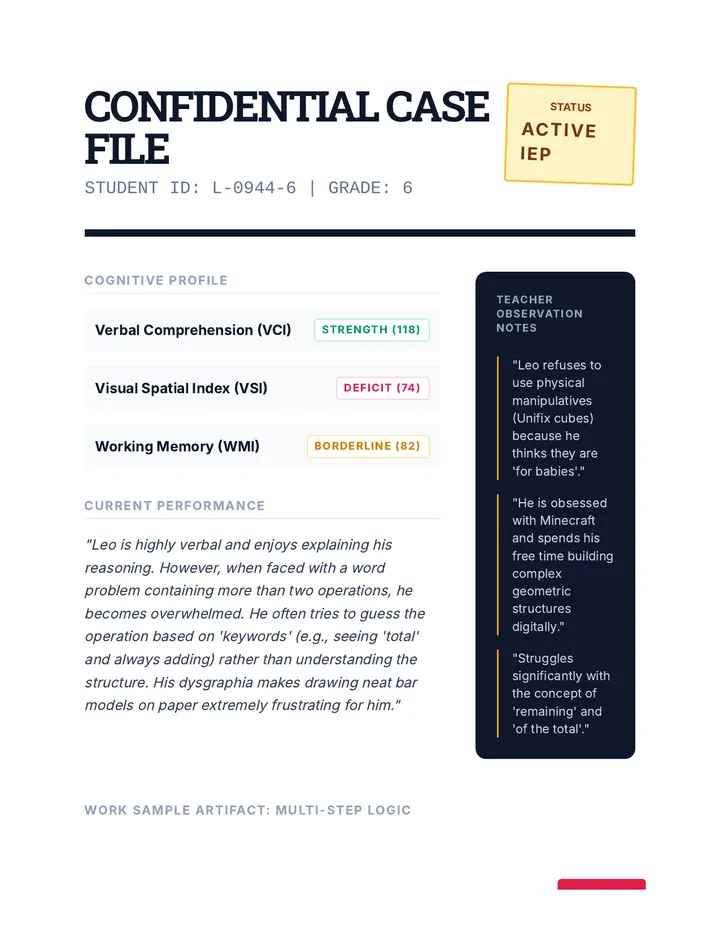

Leo Case File Confidential Case File
STUDENT ID: L-0944-6 | GRADE: 6
Status
Active IEP
Cognitive Profile
Verbal Comprehension (VCI) Strength (118)
Visual Spatial Index (VSI) Deficit (74)
Working Memory (WMI) Borderline (82)
Current Performance
"Leo is highly verbal and enjoys explaining his reasoning. However, when faced with a word problem containing more than two operations, he becomes overwhelmed. He often tries to guess the operation based on 'keywords' (e.g., seeing 'total' and always adding) rather than understanding the structure. His dysgraphia makes drawing neat bar models on paper extremely frustrating for him."
Teacher Observation Notes
"Leo refuses to use physical manipulatives (Unifix cubes) because he thinks they are 'for babies'."
"He is obsessed with Minecraft and spends his free time building complex geometric structures digitally."
"Struggles significantly with the concept of 'remaining' and 'of the total'."
Work Sample Artifact: Multi-Step Logic
Score: 0/5
Prompt: "A farm has 120 animals. 1/3 are cows. 1/4 of the remaining animals are sheep. How many sheep are there?"
Scratchwork: 120 / 3 = 40. 120 / 4 = 30.
ANSWER: 70
Diagnostic Reflection Task
Note how Leo ignored the phrase "remaining animals" and his drawing became a series of disconnected circles rather than a structured whole.
Your Mission
Design a protocol that addresses Leo's **Visual-Spatial deficit** using a tool that aligns with his **high Verbal ability** and **interest in digital environments**. How will you help him bridge the gap between the text and the model?

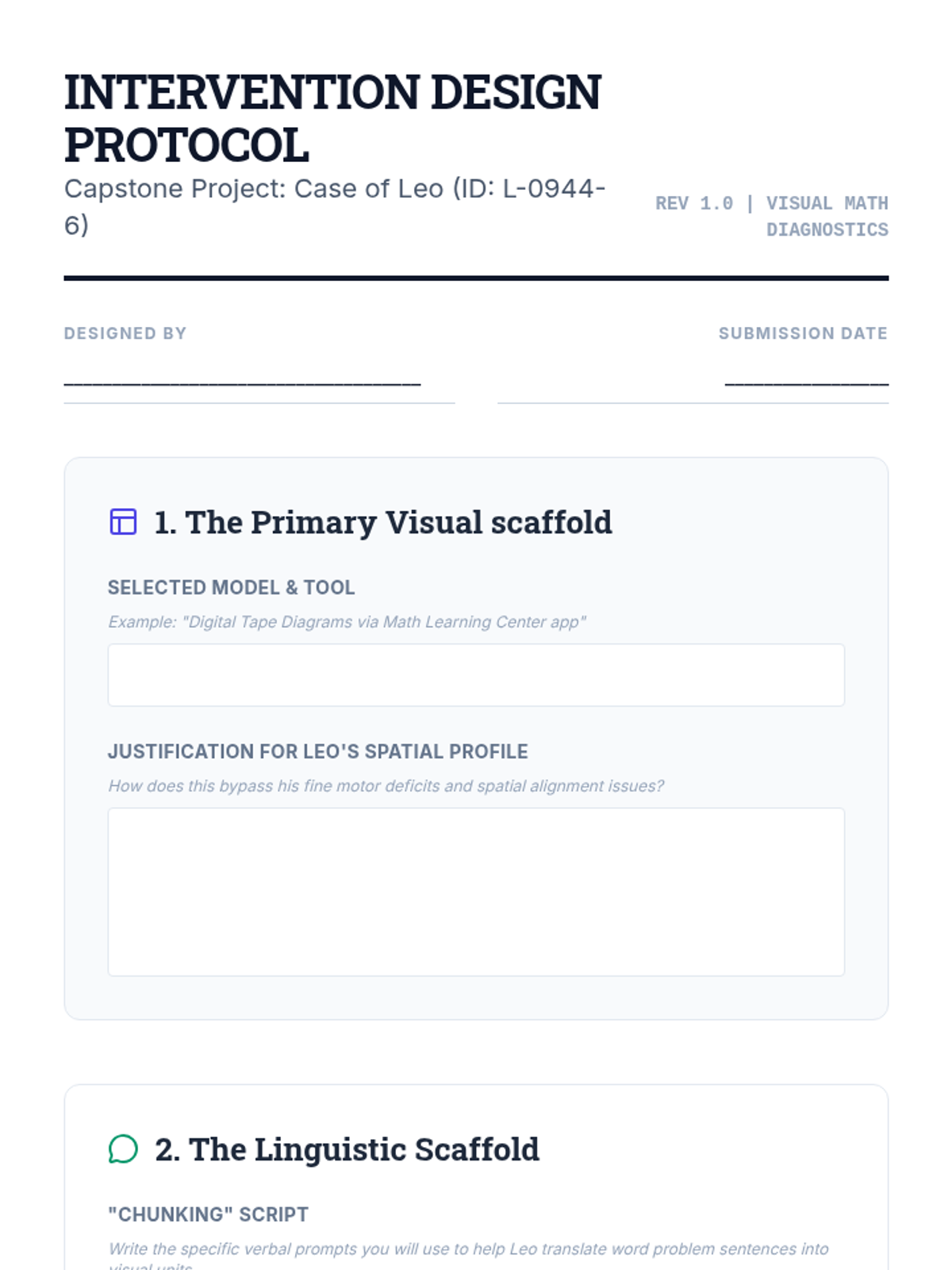

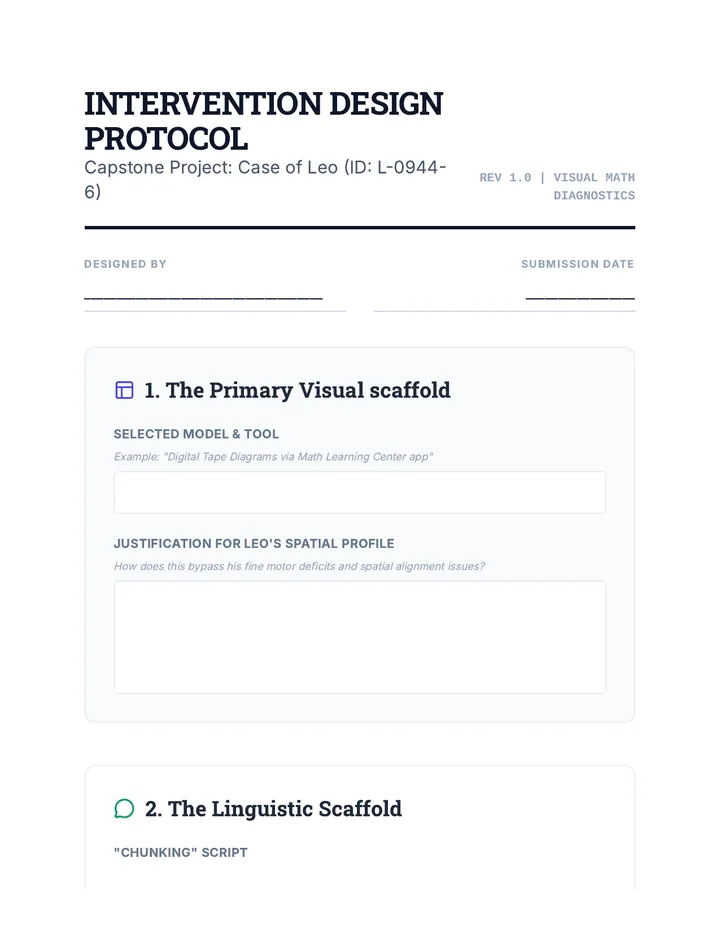

Intervention Protocol Template Intervention Design Protocol
Capstone Project: Case of Leo (ID: L-0944-6)
Rev 1.0 | Visual Math Diagnostics
Designed By
_____________________________________
Submission Date
_________________
1. The Primary Visual scaffold
Selected Model & Tool
Example: "Digital Tape Diagrams via Math Learning Center app"
Justification for Leo's Spatial Profile
How does this bypass his fine motor deficits and spatial alignment issues?
2. The Linguistic Scaffold
"Chunking" Script
Write the specific verbal prompts you will use to help Leo translate word problem sentences into visual units.
3. Instructional Progression
Phase Focus & Fading Strategy Weeks 1-2: Concrete/Digital Weeks 3-4: Representational Weeks 5-6: Bridge to Abstract
4. Measurement & Mastery
How will you know the intervention is working? Define your primary metric (e.g., % of problems correctly modeled vs. correctly solved).
