Radian Revolution Slides Unit 1: Foundations
Radian
Revolution
Defining the natural unit of circular geometry and the transition to collegiate mathematics.
Lesson 1.1
The Arbitrary 360
Why do we use 360 degrees for a full circle?
Ancient Babylonian sexagesimal system (Base-60).
Approximation of days in a solar year (365.25).
Highly composite: divisible by 2, 3, 4, 5, 6, 8, 9, 10, 12, 15, 18, 20...
The Problem
"Degrees are like measuring distance in 'steps'—they depend on who is walking. We need a unit that is intrinsic to the circle itself."
The Radian Ratio
r s = r θ = 1 rad
Formal Definition
θ = s / r
A radian is the measure of a central angle that subtends an arc equal in length to the radius of the circle.
Notice: Length / Length = Dimensionless. This is why radians "disappear" in formulas!
Conversion Logic
The Golden Ratio:
180°
π rad
=
1
"Unity fractions allow us to convert without losing meaning."
Example: 45° to Radians
45° × (π rad / 180°) = π / 4 rad
Example: 2π/3 rad to Degrees
(2π / 3) × (180° / π) = 120°
The Calculus Payoff
Derivative of Sin(x)
In calculus, we will find that:
\(\frac{d}{dx} \sin(x) = \cos(x)\)
*This is ONLY true if x is in radians.*
If we used Degrees...
The chain rule would produce a messy scaling factor:
\(\frac{d}{dx} \sin(x^\circ) = \frac{\pi}{180} \cos(x^\circ)\)
Natural units make the math "clean."
NEXT: PROVING ARC LENGTH \(s = r\theta\)
Radian Discovery Worksheet Radian Discovery
SUB-UNIT: CIRCLE LOGIC // LESSON 1.1 EXPLORATION
NAME: ____________________
DATE: __________
Objective
Derive the definition of a radian through measurement and ratio, establishing a dimensionless basis for circular geometry.
1
Conceptual Inquiry
Suppose you have a circle with a radius \(r\). You take a flexible piece of string exactly length \(r\) and lay it along the edge of the circle to form an arc. The angle formed at the center of the circle is defined as one radian.
[ SKETCH AREA: 1 RADIAN ]
Sketch a circle, label the radius \(r\), and mark an arc length \(s\) such that \(s = r\). Shaded the resulting sector.
1.1. In your own words, why does the actual value of \(r\) (e.g., 5cm vs. 10m) not change the size of the angle formed by one radian?
1.2. How many "radius-length strings" do you estimate would fit around the entire circumference of the circle?
2
The Pi Derivation
Recall the formula for Circumference: \(C = 2\pi r\). Since a radian is defined by the ratio of arc length to radius (\(\theta = \frac{s}{r}\)), let us calculate the angle for a full rotation.
\(\theta_{full} = \frac{C}{r} = \frac{2\pi r}{r} = \)
(Simplify to find total radians)
Relationship Summary:
Full Circle = \(2\pi\) rad = 360°
Half Circle = \(\pi\) rad = 180°
Quarter Circle = \(\frac{\pi}{2}\) rad = 90°
Prove that 1 radian is approximately 57.3° using the fact that \(\pi \text{ rad} = 180^\circ\):
3
Applied Fluency
Degree Measure Conversion Work (Show Ratio) Radian (Exact \(\pi\)) 30° 225° ? \(\frac{5\pi}{3}\)
Dimensionless Paradox:
Explain why multiplying a radius in meters by an angle in radians results in a distance in meters, rather than "meter-radians".
Conversion Key Teacher Answer Key
Radian Roots // Lesson 1.1
Confidential
Part 1: Conceptual Inquiry
1.1 Invariant Nature of Radians:
"Because the radian is a ratio (\(s/r\)), as the circle grows, both the arc length and the radius grow proportionally. If \(r\) doubles, the arc length corresponding to that same central angle also doubles, keeping the ratio \(s/r\) constant. It measures the 'fraction' of the circle's curvature, not an absolute length."
1.2 Estimation:
Students should estimate around 6 (exactly \(2\pi \approx 6.28\)).
Part 2: The Pi Derivation
Equation Completion:
\(\theta_{full} = \frac{C}{r} = \frac{2\pi r}{r} = 2\pi\)
Proof Approximation:
\(\pi \text{ rad} = 180^\circ \implies 1 \text{ rad} = \frac{180^\circ}{\pi} \approx 57.2957...^\circ \approx 57.3^\circ\)
Part 3: Applied Fluency (Table)
Degree Work Radian (Exact) 30° \(30 \times \frac{\pi}{180}\) \(\pi/6\) 225° \(225 \times \frac{\pi}{180}\) \(5\pi/4\) 300° \(\frac{5\pi}{3} \times \frac{180}{\pi}\) \(5\pi/3\)
The Paradox Explanation
"Radians are defined as \(\frac{\text{Length}}{\text{Length}}\) (arc length over radius). Consequently, the units cancel out (e.g., meters/meters), making the radian a dimensionless pure number. In dimensional analysis, the radian acts like '1'. Thus, \((\text{meters}) \times (\text{radians}) = \text{meters}\). This is a critical property for the physics of rotational motion."
Circle Logic Sequence Instructional Guide 1.1
Arc Length Slides Unit 2: Derivations
Arc
Length Logic
Deriving \(s = r\theta\) through proportional reasoning and exploring rotational distance.
Lesson 1.2
Proportional Reasoning
The arc length \(s\) is a fraction of the total circumference \(C\).
s
C
=
θ
2π
"Arc is to Circumference as Angle is to Rotation"
Step 1: Substitute \(C = 2\pi r\)
\(\frac{s}{2\pi r} = \frac{\theta}{2\pi}\)
Step 2: Solve for \(s\)
\(s = r\theta\)
Note: This derivation proves that the radian formula is "uncluttered" by extra constants.
The Complexity Tax
In Radians
\(s = r\theta\)
Pure relationship.
Easy to differentiate.
Physics-standard.
In Degrees
\(s = \frac{\pi r \theta^\circ}{180}\)
Scaling factors required.
Prone to arithmetic error.
Obscures geometric meaning.
Linear Motion from Rotation
r = 15"
Rotates 3 rad
A tire with a radius of 15 inches rotates through an angle of 3 radians. How far does the car travel?
\(s = (15) \times (3)\)
\(s = 45 \text{ inches}\)
Simple Multiplication vs. Fractional Algebra

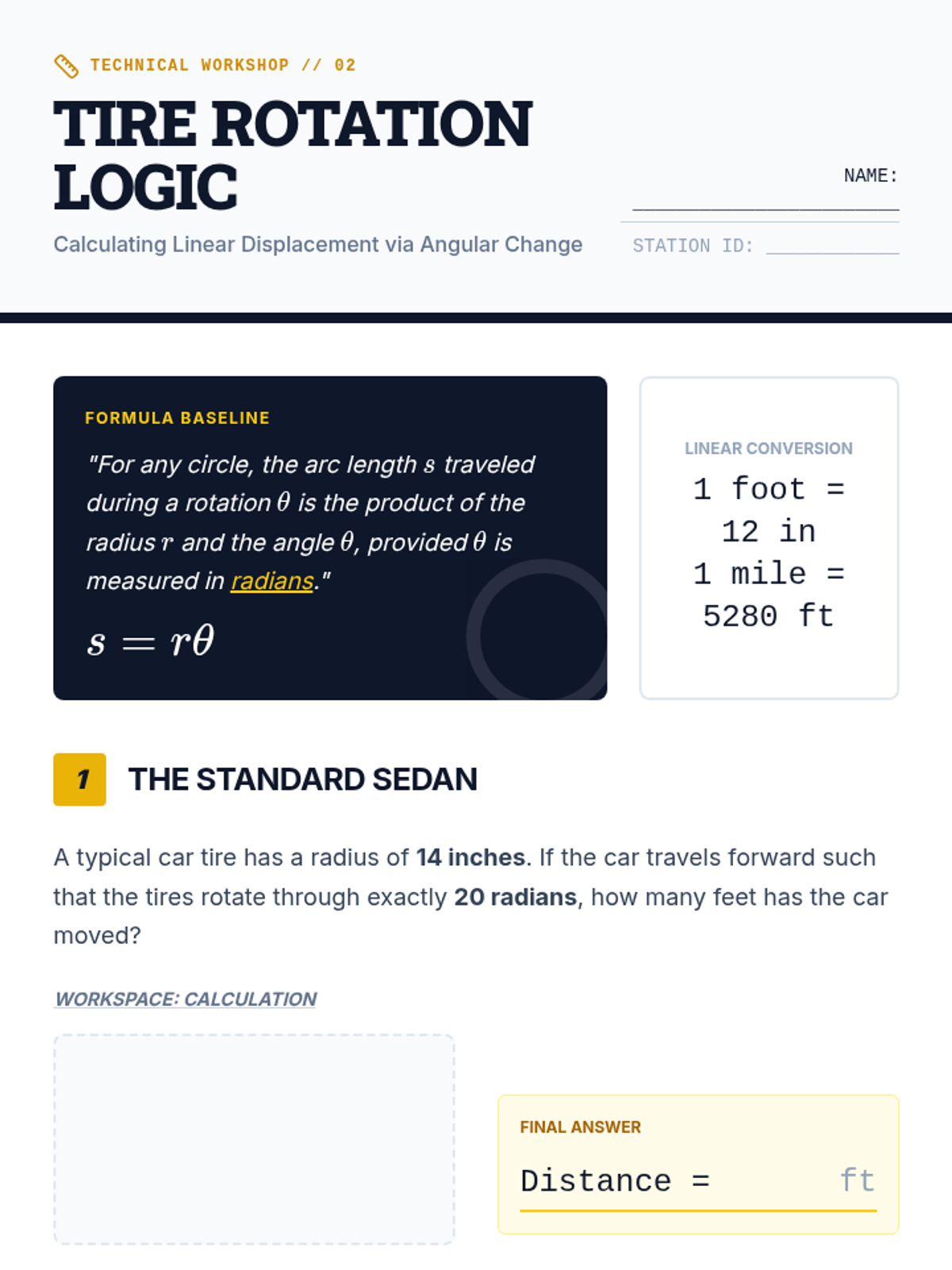

Tire Rotation Workshop Technical Workshop // 02
Tire Rotation Logic
Calculating Linear Displacement via Angular Change
NAME: ________________________
STATION ID: ____________
Formula Baseline
"For any circle, the arc length \(s\) traveled during a rotation \(\theta\) is the product of the radius \(r\) and the angle \(\theta\), provided \(\theta\) is measured in radians."
\(s = r\theta\)
Linear Conversion
1 foot = 12 in
1 mile = 5280 ft
1
The Standard Sedan
A typical car tire has a radius of 14 inches. If the car travels forward such that the tires rotate through exactly 20 radians, how many feet has the car moved?
Workspace: Calculation
Final Answer
Distance = ft
2
The High-Performance Hub
A bicycle wheel (radius = 33 cm) undergoes 15 full revolutions. Calculate the total linear distance traveled in meters. (Recall: \(1 \text{ rev} = 2\pi \text{ rad}\)).
Workspace: Show Conversion Steps
Revolutions vs Radians
Why is \(2\pi\) the conversion factor for a single revolution?
3
Angular Velocity Connection
If the car in Problem 1 covers that distance in exactly 2 seconds, what is its average linear speed in feet per second?

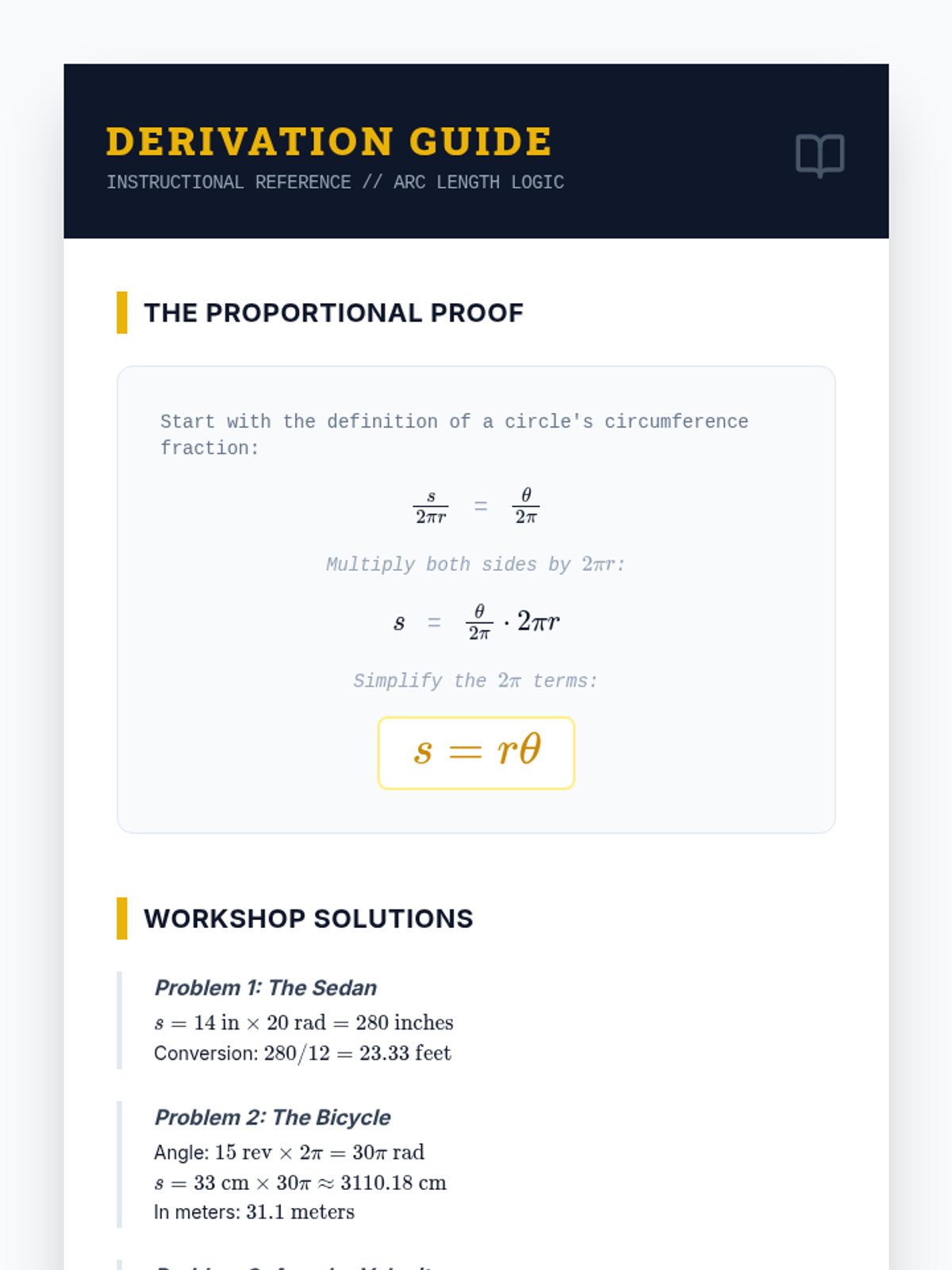

Formula Derivation Guide Derivation Guide
INSTRUCTIONAL REFERENCE // ARC LENGTH LOGIC
The Proportional Proof
Start with the definition of a circle's circumference fraction:
\(\frac{s}{2\pi r}\) = \(\frac{\theta}{2\pi}\)
Multiply both sides by \(2\pi r\):
\(s\) = \(\frac{\theta}{2\pi} \cdot 2\pi r\)
Simplify the \(2\pi\) terms:
\(s = r\theta\)
Workshop Solutions
Problem 1: The Sedan
\(s = 14 \text{ in} \times 20 \text{ rad} = 280 \text{ inches}\)
Problem 2: The Bicycle
Angle: \(15 \text{ rev} \times 2\pi = 30\pi \text{ rad}\)
Problem 3: Angular Velocity
\(v = s / t = 23.33 \text{ ft} / 2 \text{ s} = 11.67 \text{ ft/s}\)
Teaching Intuition
Emphasize that the "rad" unit is essentially a placeholder for "arc/radius". When students multiply \(r\) (cm) by \(\theta\) (rad), the result is \(r\theta\) (cm).
Common Pitfall: Students often forget to convert revolutions to radians before using the \(s=r\theta\) formula. Always check for units first.
Unit 2: Circular Measure Document ID: REF-L1.2-04
Sector Area Slides Unit 3: Spatial Analysis
Sector
Space
Connecting the geometry of circular slices to the area of triangles and the foundation of polar integration.
Lesson 1.3
From Part to Whole
The area of a sector \(A\) is a fraction of the total area \(\pi r^2\).
A
\(\pi r^2\)
=
θ
2\(\pi\)
"Ratio of areas = Ratio of angles"
Solving for Area \(A\):
\(A = \frac{\theta}{2\pi} \cdot \pi r^2\)
Simplified Form:
\(A = \frac{1}{2} r^2 \theta\)
Note: π disappears naturally through cancellation.
Geometric Intuition
base = arc (s) height = radius (r)
Think of a sector as a triangle with a curved base.
Area of a Triangle:
A = ½ × base × height
Substitution:
Base = arc length (\(s = r\theta\))
Height = radius (\(r\))
A = ½ (rθ) (r) = ½ r² θ
Applied Analysis
You have a 16-inch diameter pizza. You cut a slice with a central angle of 45°. What is the area of the slice?
Step 1: Radius = 8 in.
Step 2: \(\theta = 45^\circ = \pi/4\) rad.
Step 3: Solve.
\(A = \frac{1}{2} (8)^2 (\frac{\pi}{4})\)
\(A = 8\pi \approx 25.1 \text{ in}^2\)
What happens to the area if we double the radius but halve the angle?

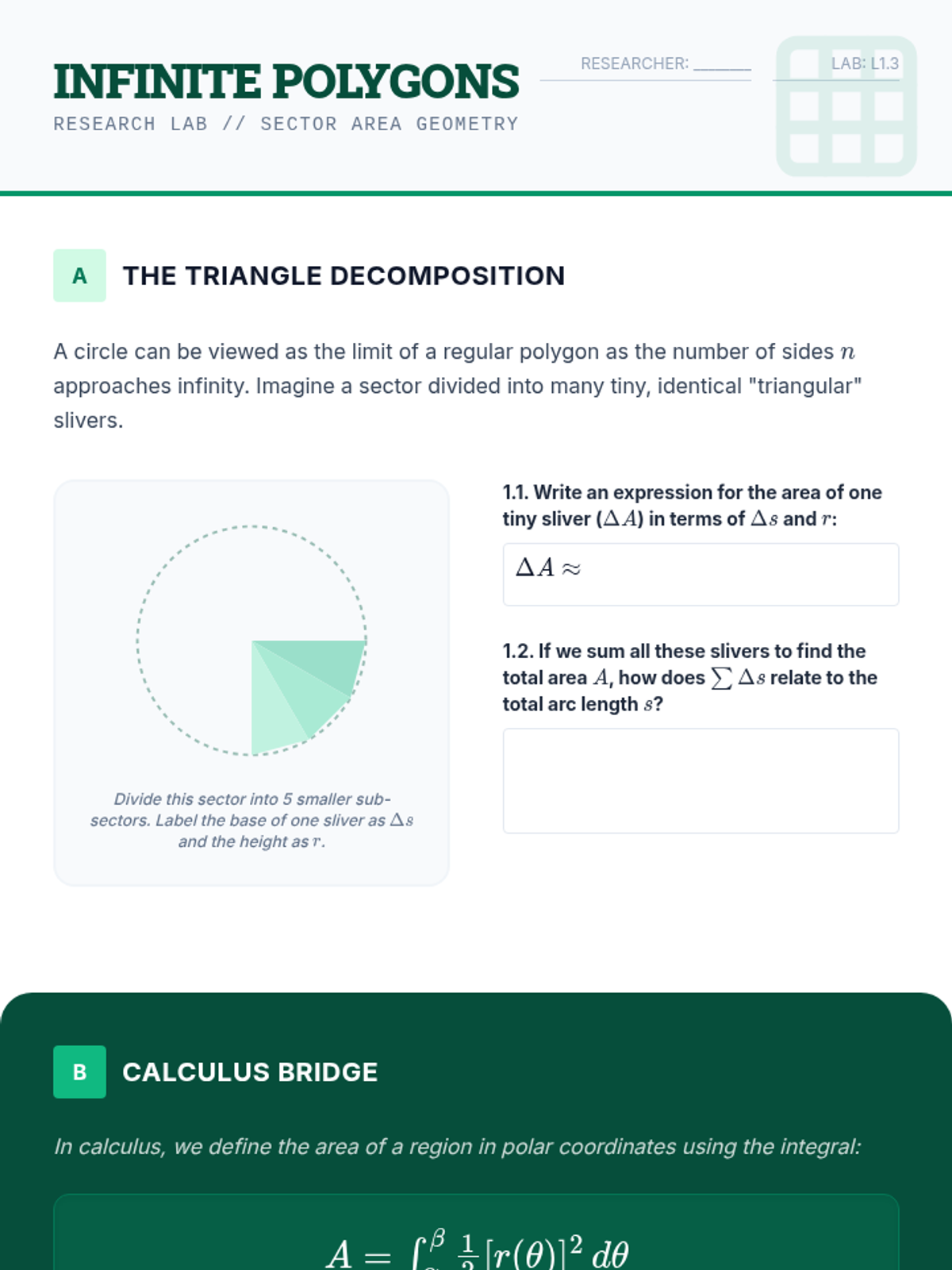

Infinite Polygons Activity Infinite Polygons
RESEARCH LAB // SECTOR AREA GEOMETRY
RESEARCHER: ________
LAB: L1.3
A
The Triangle Decomposition
A circle can be viewed as the limit of a regular polygon as the number of sides \(n\) approaches infinity. Imagine a sector divided into many tiny, identical "triangular" slivers.
Divide this sector into 5 smaller sub-sectors. Label the base of one sliver as \(\Delta s\) and the height as \(r\).
1.1. Write an expression for the area of one tiny sliver (\(\Delta A\)) in terms of \(\Delta s\) and \(r\):
\(\Delta A \approx \)
1.2. If we sum all these slivers to find the total area \(A\), how does \(\sum \Delta s\) relate to the total arc length \(s\)?
B
Calculus Bridge
In calculus, we define the area of a region in polar coordinates using the integral:
\(A = \int_{\alpha}^{\beta} \frac{1}{2} [r(\theta)]^2 \, d\theta\)
Explain how our derived formula \(A = \frac{1}{2} r^2 \theta\) is a specific case of this integral where \(r\) is constant.
Mastery Check
Find the area of a sector with a radius of 6 cm and a central angle of 2.5 radians.
Area =
C
The Scale Factor
Calculate the area of a sector with radius \(R\) and angle \(60^\circ\) using both systems. Which is more efficient?
Degree System
\(A = \frac{60}{360} \cdot \pi R^2 = \dots\)
Radian System
\(A = \frac{1}{2} R^2 (\frac{\pi}{3}) = \dots\)
"Reflect: How does the constant \(\frac{1}{2}\) in the area formula relate to the same constant in the Kinetic Energy formula (\(\frac{1}{2}mv^2\)) or the Area of a Triangle? Is there a deeper connection?"

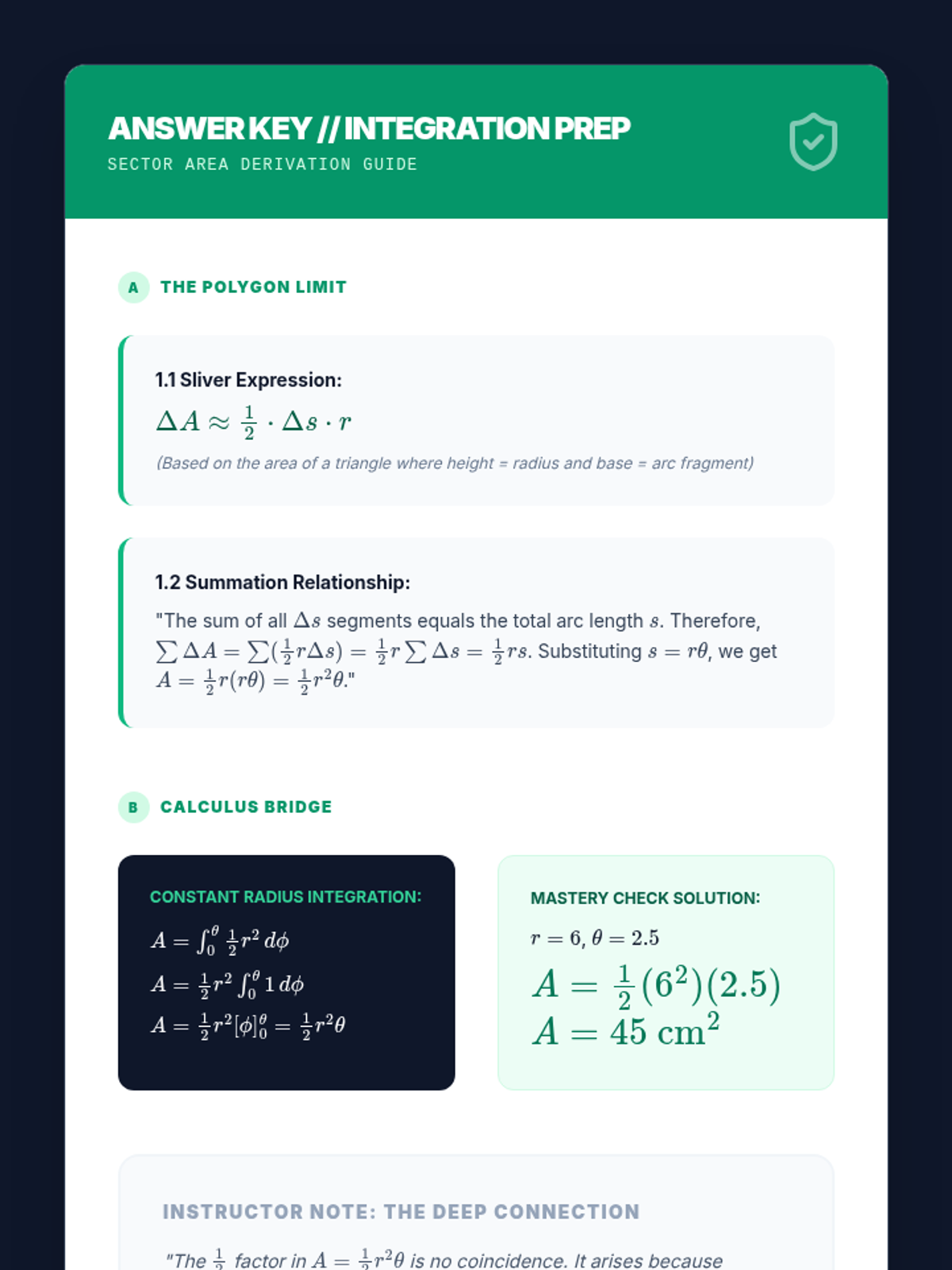

Integration Prep Key Answer Key // Integration Prep
Sector Area Derivation Guide
A The Polygon Limit
1.1 Sliver Expression:
\(\Delta A \approx \frac{1}{2} \cdot \Delta s \cdot r\)
(Based on the area of a triangle where height = radius and base = arc fragment)
1.2 Summation Relationship:
"The sum of all \(\Delta s\) segments equals the total arc length \(s\). Therefore, \(\sum \Delta A = \sum (\frac{1}{2} r \Delta s) = \frac{1}{2} r \sum \Delta s = \frac{1}{2} r s\). Substituting \(s = r\theta\), we get \(A = \frac{1}{2} r(r\theta) = \frac{1}{2} r^2 \theta\)."
B Calculus Bridge
Constant Radius Integration:
\(A = \int_{0}^{\theta} \frac{1}{2} r^2 \, d\phi\)
\(A = \frac{1}{2} r^2 \int_{0}^{\theta} 1 \, d\phi\)
\(A = \frac{1}{2} r^2 [\phi]_0^\theta = \frac{1}{2} r^2 \theta\)
Mastery Check Solution:
\(r = 6\), \(\theta = 2.5\)
\(A = \frac{1}{2} (6^2)(2.5)\)
\(A = 45 \text{ cm}^2\)
Instructor Note: The Deep Connection
"The \(\frac{1}{2}\) factor in \(A = \frac{1}{2} r^2 \theta\) is no coincidence. It arises because circular area is the 'integral' of the boundary (circumference). Just as \(\int x \, dx = \frac{1}{2}x^2\), the area is the accumulation of arc lengths at increasing radii. This lesson should explicitly prepare students for the fundamental theorem of calculus applied to geometry."
Circle Logic // Sequence 1.0 // Lesson 1.3 Keys
Precision Matters Slides Unit 4: Case Studies
Precision
Pitfalls
The catastrophic consequences of unit confusion and rounding errors in engineering and science.
Lesson 1.4
The Most Dangerous Error
The Scenario
An engineer inputs "30" into a Sine function.
Calculated as Degrees: 0.5
Calculated as Radians: -0.988
A mistake in unit mode results in an 197% discrepancy.
In high-precision fields like aerospace or civil engineering, this is the difference between a successful mission and a total structural collapse.
"Reality doesn't care about your calculator's settings."
The $125M Mistake
CASE STUDY // 1999
The Mars Climate Orbiter crashed because one team used English units (Pounds-force) and another used Metric units (Newtons).
Similar Risk in Geometry:
Assuming \(\theta\) in \(s=r\theta\) is degrees.
Rounding \(\pi\) to 3.14 too early in a chain of calculations.
Mission Failure
Result: Atmospheric Entry at wrong angle.
Best Practices
Keep Constants
Never replace \(\pi\) or \(\sqrt{2}\) with decimals until the final step.
Unit Sanity Checks
Does your result have the right dimensions? Length? Area? Dimensionless?
Calculator Mode
Explicitly check RAD vs DEG status before every trigonometry problem.

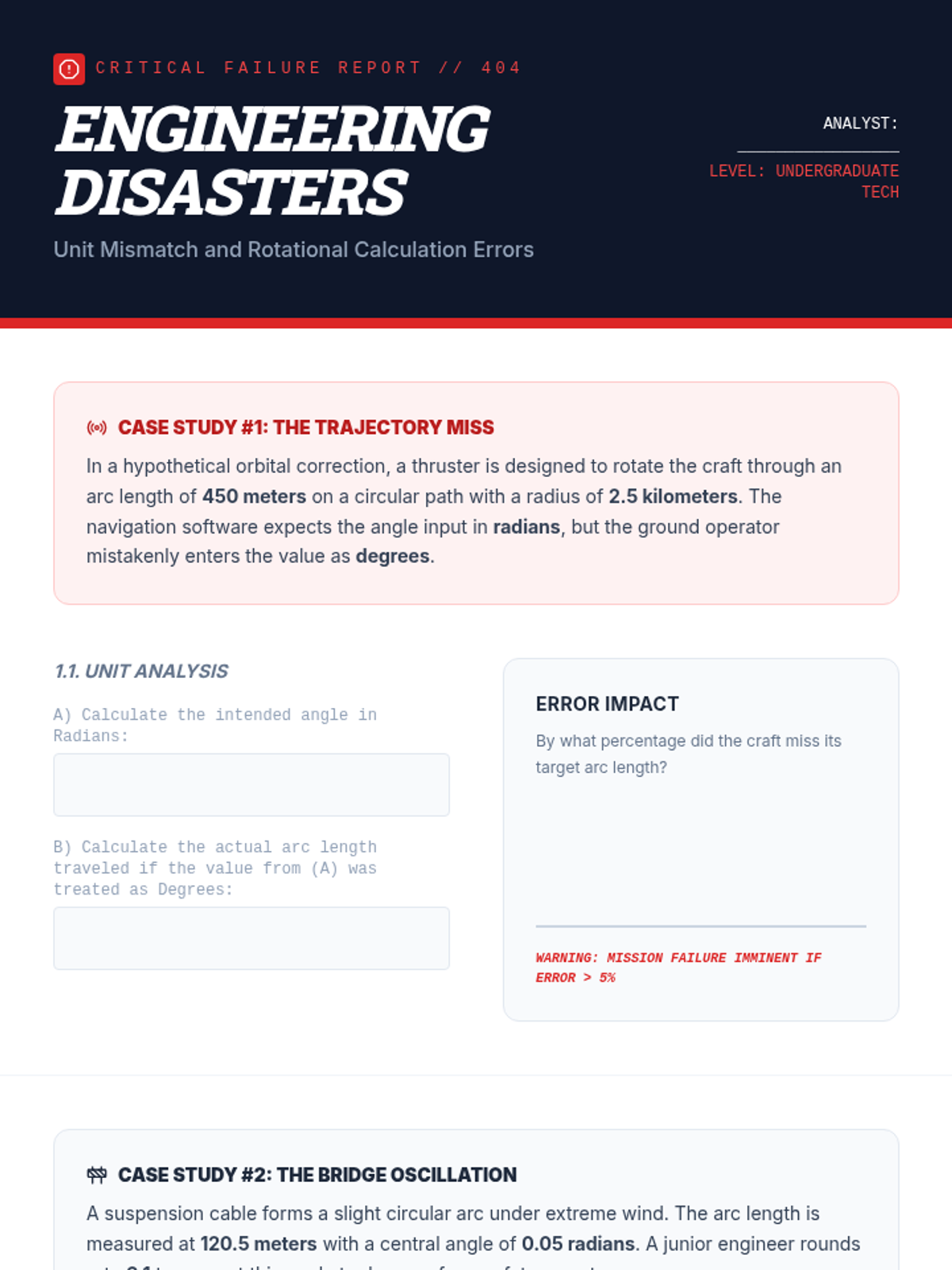

Engineering Disasters Case Study Critical Failure Report // 404
Engineering Disasters
Unit Mismatch and Rotational Calculation Errors
ANALYST: _________________
LEVEL: UNDERGRADUATE TECH
Case Study #1: The Trajectory Miss
In a hypothetical orbital correction, a thruster is designed to rotate the craft through an arc length of 450 meters on a circular path with a radius of 2.5 kilometers. The navigation software expects the angle input in radians, but the ground operator mistakenly enters the value as degrees.
1.1. Unit Analysis
A) Calculate the intended angle in Radians:
B) Calculate the actual arc length traveled if the value from (A) was treated as Degrees:
Error Impact
By what percentage did the craft miss its target arc length?
WARNING: MISSION FAILURE IMMINENT IF ERROR > 5%
Case Study #2: The Bridge Oscillation
A suspension cable forms a slight circular arc under extreme wind. The arc length is measured at 120.5 meters with a central angle of 0.05 radians. A junior engineer rounds \(\pi\) to 3.1 to convert this angle to degrees for a safety report.
2.1. True Radius
\(r = \)
2.2. The Rounding Consequence
Calculate the difference in degrees between using \(\pi \approx 3.1\) and \(\pi \approx 3.14159\).
Reflection: The Ethics of Precision
In collegiate engineering, we often say "Close enough is not enough." Why is it more dangerous to round a constant like \(\pi\) at the beginning of a multi-step problem than at the very end?
Report ID: UNIT-ERROR-RAD-DEG-01 FOR EDUCATIONAL USE ONLY

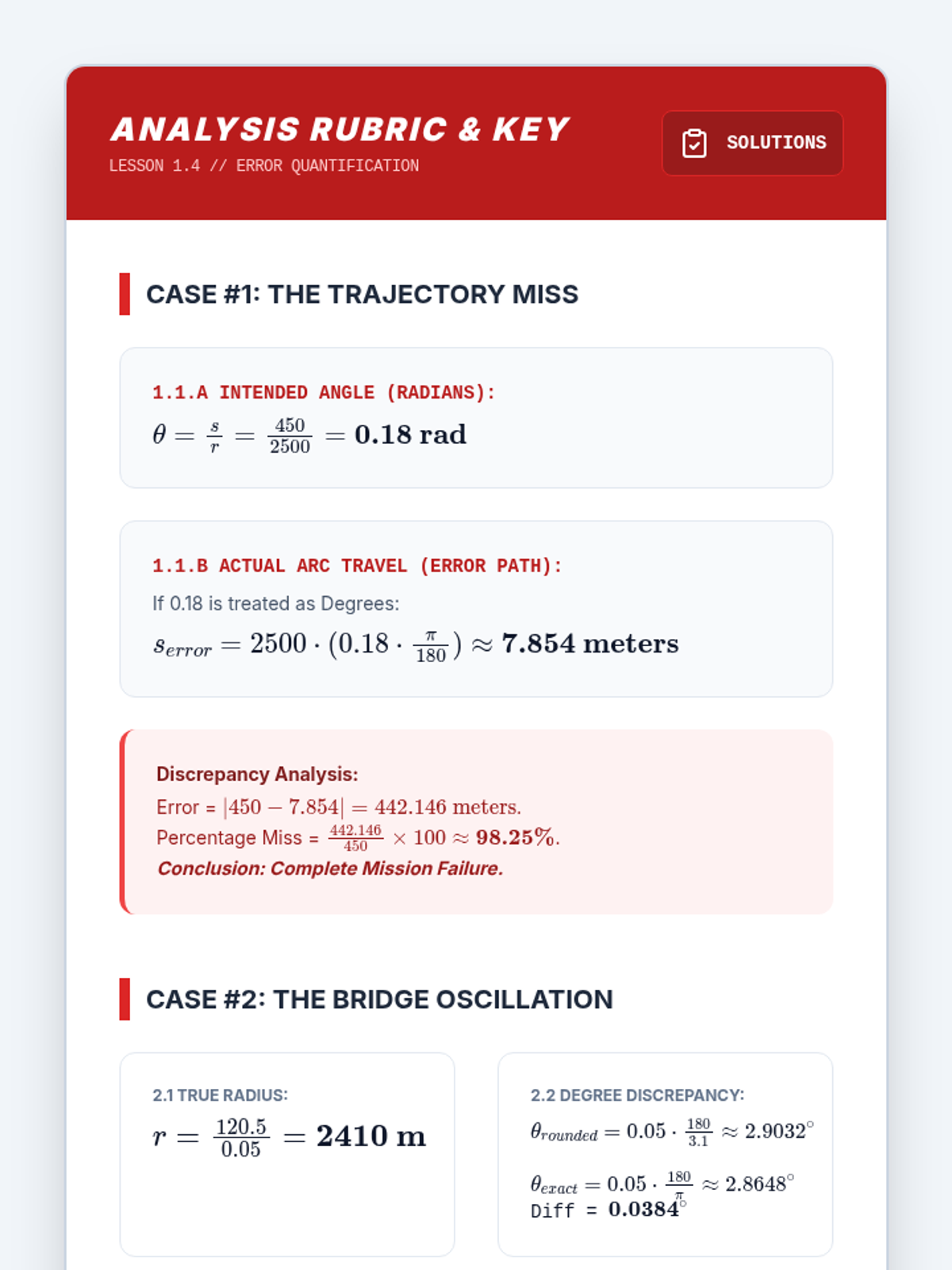

Analysis Rubric Analysis Rubric & Key
Lesson 1.4 // Error Quantification
SOLUTIONS
Case #1: The Trajectory Miss
1.1.A Intended Angle (Radians):
\(\theta = \frac{s}{r} = \frac{450}{2500} = \mathbf{0.18 \text{ rad}}\)
1.1.B Actual Arc Travel (Error Path):
If 0.18 is treated as Degrees:
\(s_{error} = 2500 \cdot (0.18 \cdot \frac{\pi}{180}) \approx \mathbf{7.854 \text{ meters}}\)
Discrepancy Analysis:
Error = \(|450 - 7.854| = 442.146 \text{ meters}\).
Case #2: The Bridge Oscillation
2.1 True Radius:
\(r = \frac{120.5}{0.05} = \mathbf{2410 \text{ m}}\)
2.2 Degree Discrepancy:
\(\theta_{rounded} = 0.05 \cdot \frac{180}{3.1} \approx 2.9032^\circ\)
Instructor Grading Rubric
Skill Area Exceeds Expectations (100%) Developing (70%) Dimensionality Correctly identifies arc length as distance and theta as ratio. Confuses radius and arc in calculation. Precision Maintains 4+ decimal places throughout work. Rounds intermediate steps to 1 or 2 places. Analysis Articulates that errors propagate exponentially in systems. Only provides the numerical answer.
AUTHENTIC ASSESSMENT // CIRCLE LOGIC SEQUENCE // M4-KEY
Proof Masterclass Slides Unit 5: Mastery
Mastery
Proofs
Formal geometric proof and the optimization of circular sectors.
Lesson 1.5
The Two-Radian Paradox
Problem: Given a sector with a fixed perimeter \(P\), what central angle \(\theta\) maximizes the area \(A\)?
Perimeter Equation:
\(P = 2r + r\theta\)
The Reveal
Through substitution and derivation, we find that the area is maximized when:
\(\theta = 2 \text{ rad}\)
Wait... the angle is always 2, regardless of the perimeter size? Let's prove it.
The Proof Architecture
Step 1: Express \(r\) in terms of \(P, \theta\)
\(r = \frac{P}{2+\theta}\)
Step 2: Substitute into Area Formula
\(A = \frac{1}{2} (\frac{P}{2+\theta})^2 \theta\)
Step 3: Optimization
Take the derivative \(\frac{dA}{d\theta}\) and set to zero. Solving for \(\theta\) yields the critical point at exactly 2 radians.
Q.E.D.
Sequence Mastery
We have journeyed from the arbitrary 360 to the dimensionless radian, derived the laws of arcs and sectors, and witnessed the necessity of precision.
Circle Logic Complete Ready for Polar Calculus

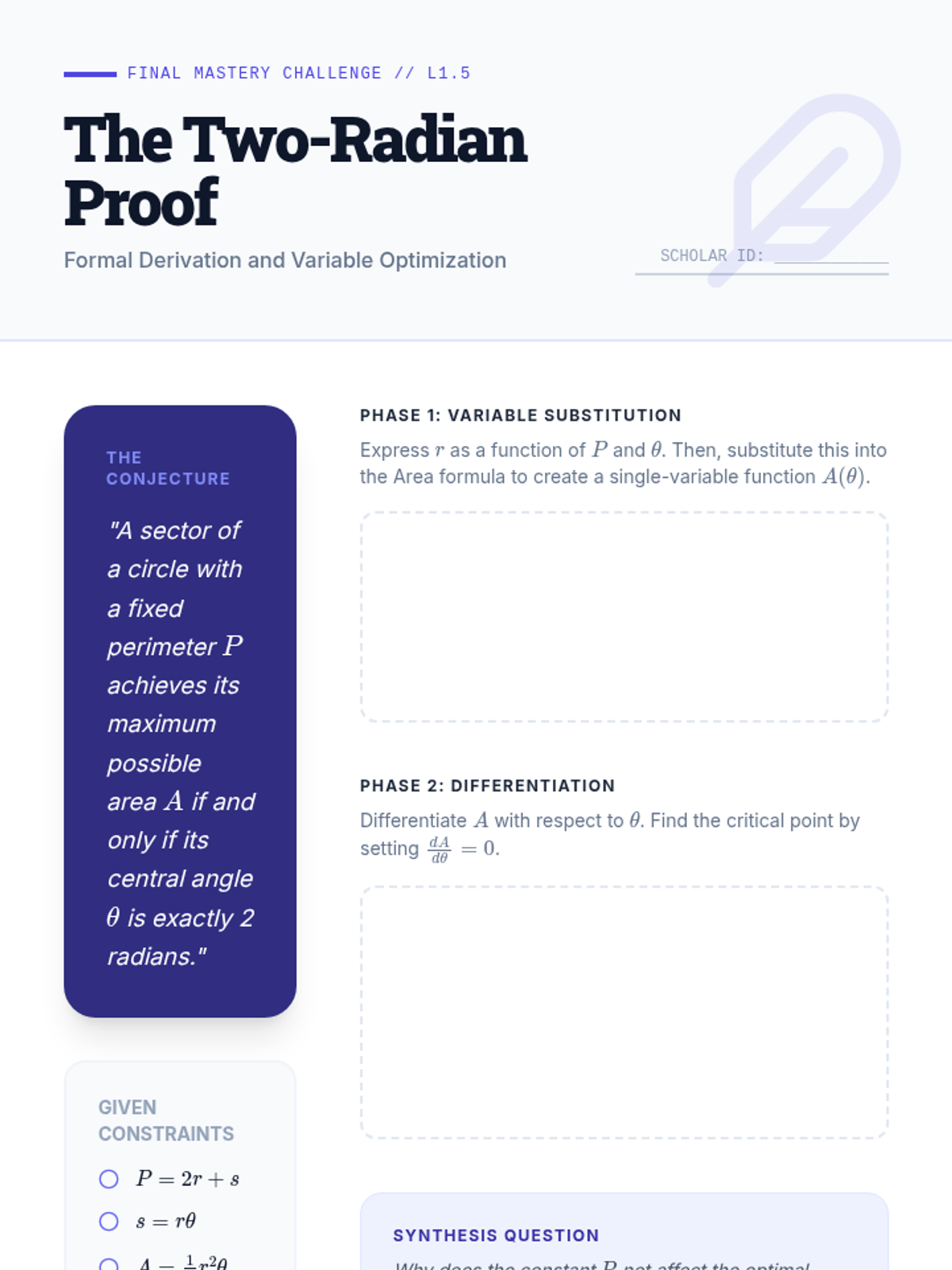

The Two Radian Proof Challenge Final Mastery Challenge // L1.5
The Two-Radian Proof
Formal Derivation and Variable Optimization
SCHOLAR ID: ____________
The Conjecture
"A sector of a circle with a fixed perimeter \(P\) achieves its maximum possible area \(A\) if and only if its central angle \(\theta\) is exactly 2 radians."
Given Constraints
\(P = 2r + s\)
\(s = r\theta\)
\(A = \frac{1}{2} r^2 \theta\)
Phase 1: Variable Substitution
Express \(r\) as a function of \(P\) and \(\theta\). Then, substitute this into the Area formula to create a single-variable function \(A(\theta)\).
Phase 2: Differentiation
Differentiate \(A\) with respect to \(\theta\). Find the critical point by setting \(\frac{dA}{d\theta} = 0\).
Synthesis Question
Why does the constant \(P\) not affect the optimal value of \(\theta\)? What does this suggest about the "shape" of the optimal sector?
Course: Advanced Geometric Logic // Section 101
Sequence Completion
Total Derivations Verified

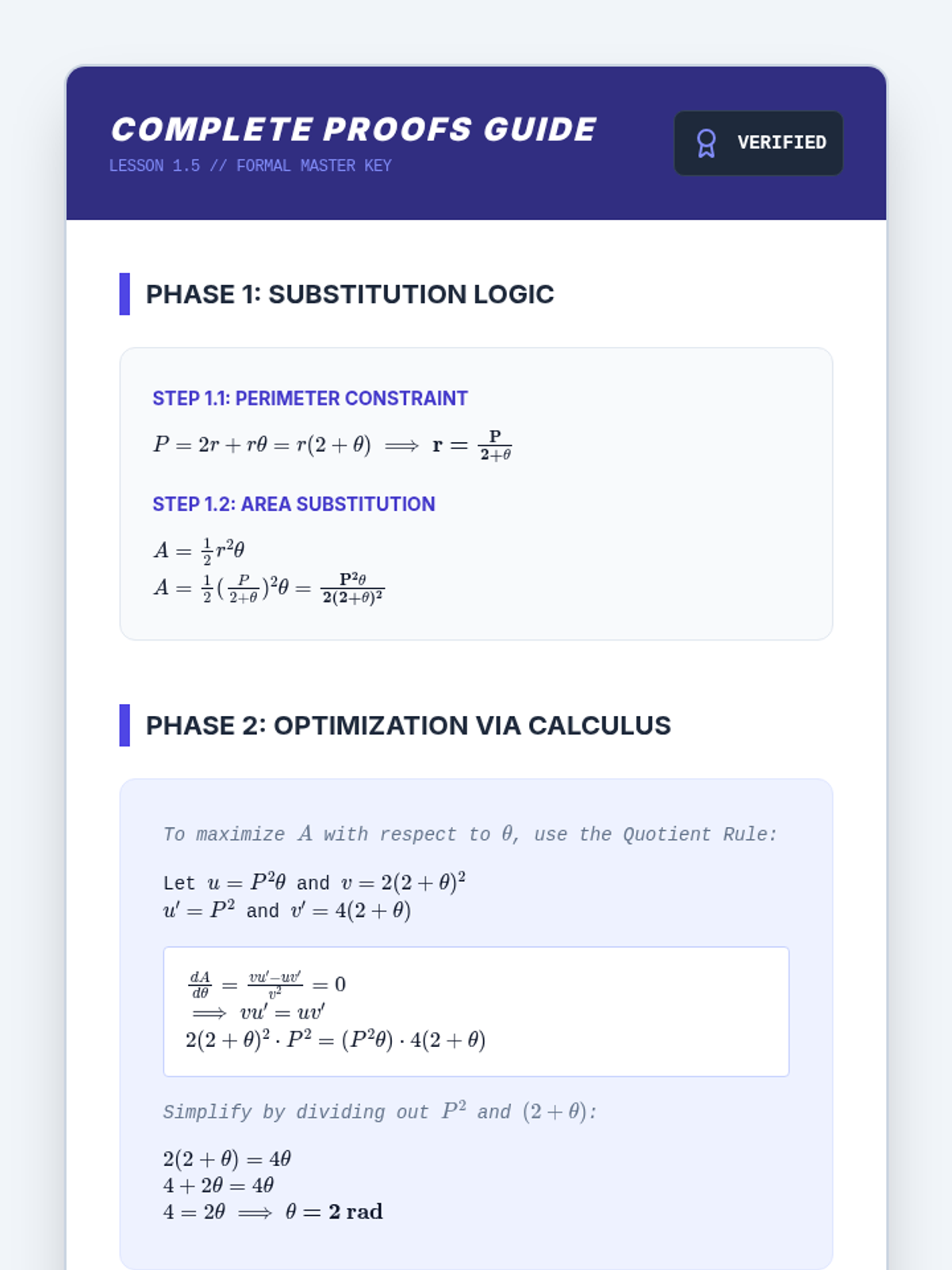

Complete Proofs Guide Complete Proofs Guide
Lesson 1.5 // Formal Master Key
VERIFIED
Phase 1: Substitution Logic
Step 1.1: Perimeter Constraint
\(P = 2r + r\theta = r(2 + \theta) \implies \mathbf{r = \frac{P}{2 + \theta}}\)
Step 1.2: Area Substitution
\(A = \frac{1}{2} r^2 \theta\)
\(A = \frac{1}{2} (\frac{P}{2 + \theta})^2 \theta = \mathbf{\frac{P^2 \theta}{2(2 + \theta)^2}}\)
Phase 2: Optimization via Calculus
To maximize \(A\) with respect to \(\theta\), use the Quotient Rule:
Let \(u = P^2 \theta\) and \(v = 2(2 + \theta)^2\)
\(u' = P^2\) and \(v' = 4(2 + \theta)\)
\(\frac{dA}{d\theta} = \frac{v u' - u v'}{v^2} = 0\)
\(\implies v u' = u v'\)
\(2(2 + \theta)^2 \cdot P^2 = (P^2 \theta) \cdot 4(2 + \theta)\)
Simplify by dividing out \(P^2\) and \((2 + \theta)\):
\(2(2 + \theta) = 4\theta\)
\(4 + 2\theta = 4\theta\)
\(4 = 2\theta \implies \mathbf{\theta = 2 \text{ rad}}\)
Synthesis Key
"The constant \(P\) cancels out because the optimal proportion of a shape is independent of its scale. Just as a square is always the optimal rectangle regardless of area, a sector with \(\theta = 2\) is the unique 'optimal slice'. This suggests that for maximum efficiency of material (perimeter) to space (area), the arc length must exactly equal twice the radius (\(s = 2r\))."
SEQUENCE FINALE // MASTER KEY // CIRCLE LOGIC 1.5
