Volume Blueprint Slides Unit 8: Spatial Geometry
Prism Volume
Mastery
Synthesizing area methods to solve complex volume problems in triangular prisms.
Standard
Pythagorean
Equilateral
Heron's
Warm-up: Which Method?
Identify the most efficient area method for each base triangle.
5 Minutes
5 in ? 13 in
CASE A
Missing Leg
8 cm (all sides)
CASE B
Equilateral
9 ft 11 ft 10 ft
CASE C
Three Sides
Quick Refresh: Video Review
Pay attention to the 4 diagram starts and specific formulas used.
5 Minutes
Embedded media
Timestamp Guide
0:00 - Standard Area (\(V = Bh\))
2:11 - Pythagorean Missing Height
4:22 - Equilateral Formula
6:26 - Heron's Formula (SSS)
Key Discussion
"At 3:00, why can't we just calculate the area yet? What are we missing?"
"Look at the Heron's segment: why don't we just use one of the sides as the height?"
Circuit Training Stations
1
Identify
Visit each station around the room. Analyze the given dimensions to choose your area method.
2
Record
Mark your method on the response sheet. Show all work for both Base Area (\(B\)) and Volume (\(V\)).
3
Simplify
Give exact answers (with \(\pi\) or \(\sqrt{}\)) unless the card asks for a decimal approximation.
Watch Out!
Don't confuse triangle height (\(h\)) with prism height (\(H\)). They are different dimensions!
Rotation every 5 minutes
Debrief & Vote
Look back at your response sheet. Which station or area method felt the most challenging today?
Standard
Straightforward
Pythagorean
Extra Step
Equilateral
Formula Memory
Heron's
Computation Heavy
"Synthesis is the ability to choose the right tool for the job."

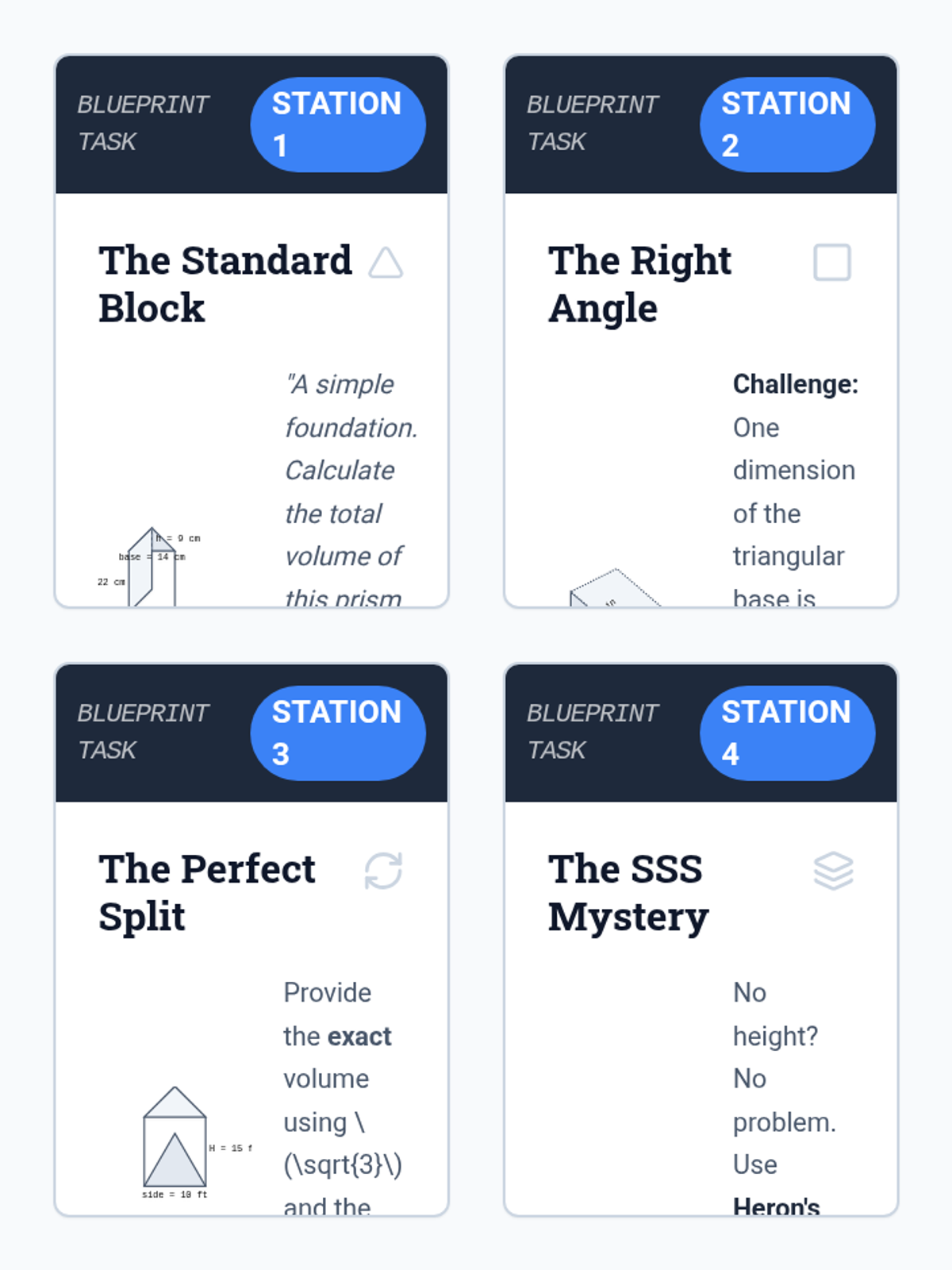

Prism Power Stations Blueprint Task STATION 1
The Standard Block
h = 9 cm base = 14 cm H = 22 cm
"A simple foundation. Calculate the total volume of this prism using the standard area formula."
Blueprint Task STATION 2
The Right Angle
8 in 17 in H = 25 in
Challenge: One dimension of the triangular base is missing.
Hint: Don't forget your ancient Greek philosophers.
Blueprint Task STATION 3
The Perfect Split
side = 10 ft H = 15 ft Equilateral Triangle
Provide the exact volume using \(\sqrt{3}\) and the decimal approximation (nearest tenth).
Blueprint Task STATION 4
The SSS Mystery
14 m 13 m 15 m H = 20 m
No height? No problem. Use Heron's Formula to find the area of the base first.
Area = \(\sqrt{s(s-a)(s-b)(s-c)}\)
Blueprint Task STATION 5
Reverse Engineering
The Volume of this prism is 600 ft³.
If the base is an equilateral triangle with a side length of 4 ft, what is the height of the prism (H)?
Work backward from the formula \(V = Bh\). Round to two decimal places.
Blueprint Task STATION 6
The Tent Problem
A camping tent is in the shape of a triangular prism. The front opening (base triangle) has side lengths of 5 ft, 12 ft, and 13 ft.
If the tent is 8 ft long (prism height), how much air space is inside?
"Wait... check those side lengths carefully. Is there a shortcut here?"

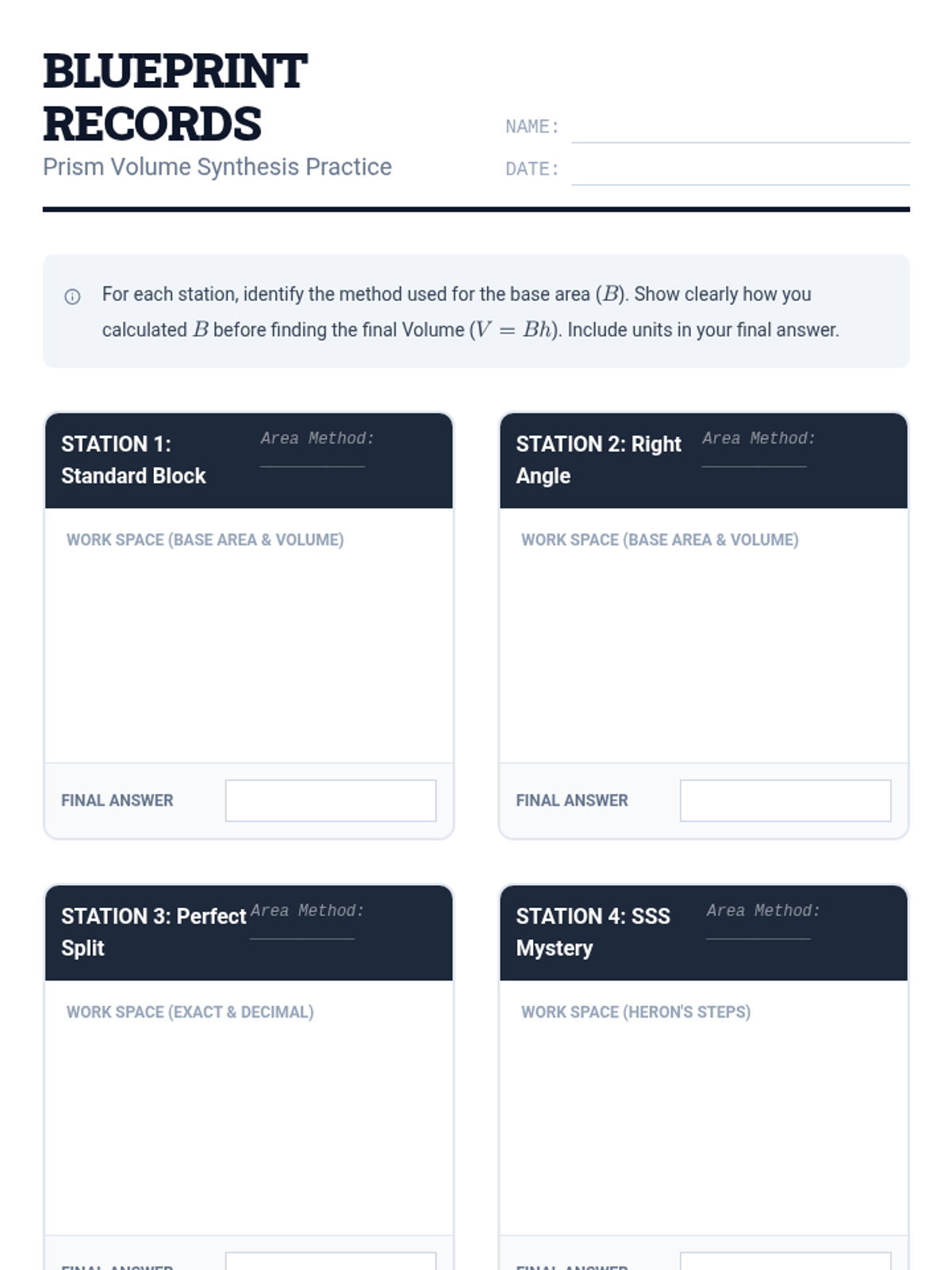

Blueprint Records Worksheet Blueprint Records
Prism Volume Synthesis Practice
Name:
Date:
For each station, identify the method used for the base area (\(B\)). Show clearly how you calculated \(B\) before finding the final Volume (\(V = Bh\)). Include units in your final answer.
STATION 1: Standard Block Area Method: ___________
WORK SPACE (BASE AREA & VOLUME)
Final Answer
STATION 2: Right Angle Area Method: ___________
WORK SPACE (BASE AREA & VOLUME)
Final Answer
STATION 3: Perfect Split Area Method: ___________
WORK SPACE (EXACT & DECIMAL)
Final Answer
STATION 4: SSS Mystery Area Method: ___________
WORK SPACE (HERON'S STEPS)
Final Answer
STATION 5: Reverse Engineering Unknown: Height (H)
WORK SPACE
Final Answer
STATION 6: Tent Problem Area Method: ___________
WORK SPACE
Final Answer
Reflection & Discussion
1. Which area method (Standard, Pythagorean, Equilateral, or Heron's) do you find most difficult to apply accurately? Why?
2. If you were designing a prism for a building, which triangular base would be easiest to work with for a construction team?

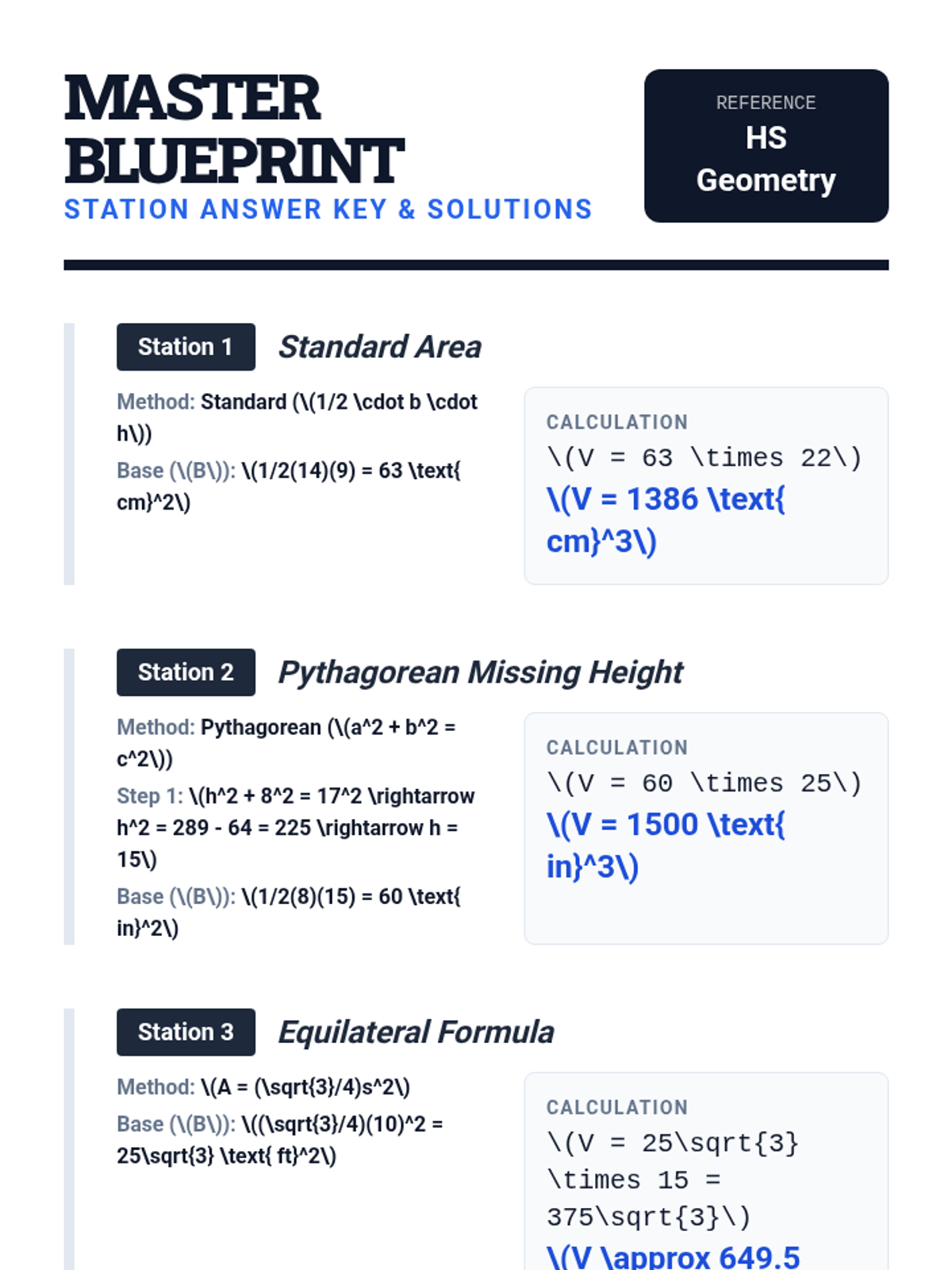

Master Blueprint Answer Key Master Blueprint
Station Answer Key & Solutions
Reference
HS Geometry
Station 1
Standard Area
Method: Standard (\(1/2 \cdot b \cdot h\))
Base (\(B\)): \(1/2(14)(9) = 63 \text{ cm}^2\)
Calculation
\(V = 63 \times 22\)
\(V = 1386 \text{ cm}^3\)
Station 2
Pythagorean Missing Height
Method: Pythagorean (\(a^2 + b^2 = c^2\))
Step 1: \(h^2 + 8^2 = 17^2 \rightarrow h^2 = 289 - 64 = 225 \rightarrow h = 15\)
Base (\(B\)): \(1/2(8)(15) = 60 \text{ in}^2\)
Calculation
\(V = 60 \times 25\)
\(V = 1500 \text{ in}^3\)
Station 3
Equilateral Formula
Method: \(A = (\sqrt{3}/4)s^2\)
Base (\(B\)): \((\sqrt{3}/4)(10)^2 = 25\sqrt{3} \text{ ft}^2\)
Calculation
\(V = 25\sqrt{3} \times 15 = 375\sqrt{3}\)
\(V \approx 649.5 \text{ ft}^3\)
Station 4
Heron's Formula (SSS)
Method: Heron's
\(s = (13+14+15)/2 = 21\)
\(B = \sqrt{21(21-13)(21-14)(21-15)} = \sqrt{21(8)(7)(6)} = \sqrt{7056} = 84 \text{ m}^2\)
Calculation
\(V = 84 \times 20\)
\(V = 1680 \text{ m}^3\)
Station 5
Reverse Engineering
Knowns: \(V=600\), \(s=4\)
Base Area: \(B = (\sqrt{3}/4)(4)^2 = 4\sqrt{3} \approx 6.928\)
Calculation
\(H = 600 / 6.928\)
\(H \approx 86.60 \text{ ft}\)
Station 6
The Shortcut Tent
Method: Right Triangle (5-12-13 triple)
Base: \(1/2(5)(12) = 30 \text{ ft}^2\)
Note: Pythagorean triple 5, 12, 13 identifies this as a right triangle. Heron's works but takes longer.
Calculation
\(V = 30 \times 8\)
\(V = 240 \text{ ft}^3\)

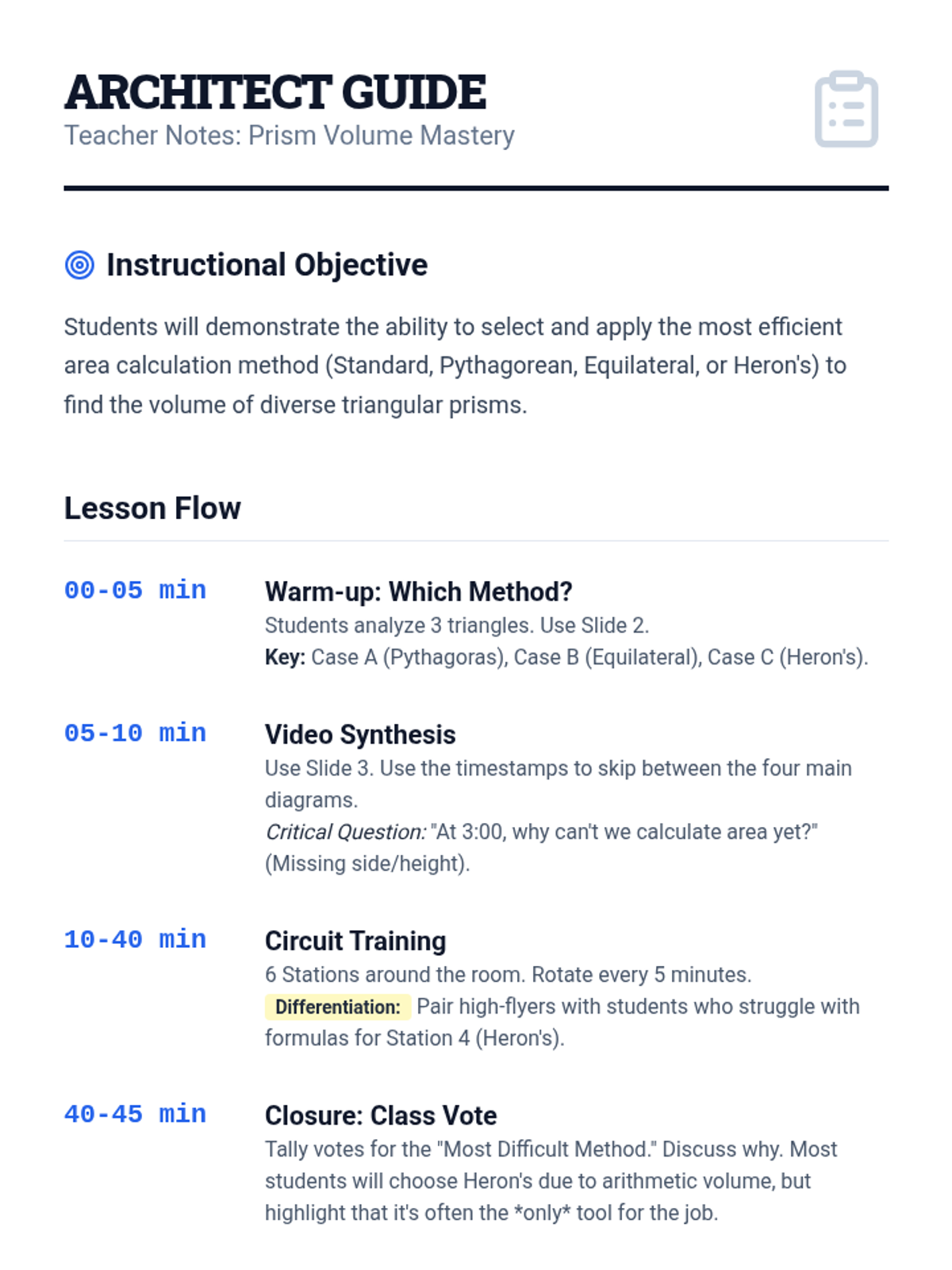

Architect Guide Teacher Notes Architect Guide
Teacher Notes: Prism Volume Mastery
Instructional Objective
Students will demonstrate the ability to select and apply the most efficient area calculation method (Standard, Pythagorean, Equilateral, or Heron's) to find the volume of diverse triangular prisms.
Lesson Flow
00-05 min
Warm-up: Which Method?
Students analyze 3 triangles. Use Slide 2.
05-10 min
Video Synthesis
Use Slide 3. Use the timestamps to skip between the four main diagrams.
10-40 min
Circuit Training
6 Stations around the room. Rotate every 5 minutes.
40-45 min
Closure: Class Vote
Tally votes for the "Most Difficult Method." Discuss why. Most students will choose Heron's due to arithmetic volume, but highlight that it's often the *only* tool for the job.
Field Hazards (Misconceptions)
Mixing Heights: Students using the triangle's altitude as the prism's length (H). Remind them: \(B\) is for the *flat* base, \(H\) is for the *depth*.
Heron's Semi-Perimeter: Forgetting to divide the perimeter by 2 (\(s\)).
Unit Errors: Mixing linear units in Heron's formula before taking the final root. Ensure they keep units squared until the volume step.
Station Strategy
Station 5 (The Pivot)
Forces students to work backward from a known volume. This tests their algebraic manipulation of the Equilateral formula.
Station 6 (The Trick)
"Is there a shortcut?"
Encourage students to check for Pythagorean triples (5, 12, 13) before launching into Heron's Formula.
