Slope in the Wild Reading
Applied Engineering & Textual Analysis Indiana 8.AF.6 • 8.RN.2.1 • 8.RN.3.3
The Architecture of Incline
How Rate of Change and Initial Value Govern Our Built World
FIELD DISPATCH: #08-CIVIL
To most middle school students, slope feels like an abstract mathematical exercise—a fraction labeled m scrawled on a dry-erase board, calculated by counting grids on graph paper. Yet to a civil engineer, an urban planner, or an architectural designer, slope is anything but theoretical. In the physical realm, slope is the direct mathematical negotiation between gravity, human biomechanics, and safety.
Every road you travel, every sidewalk you traverse, and every building entrance you step onto is strictly governed by a linear relationship: a predictable connection between horizontal distance (run) and vertical elevation (rise). When engineers write equations in slope-intercept form (y = mx + b) to describe these structures, they rely on two indispensable values: the rate of change (m), which defines the steepness and direction of incline, and the initial value or y-intercept (b), which establishes the baseline reference elevation where construction begins.
The Mathematical Blueprint: Slope-Intercept Form (y = mx + b)
Rate of Change (Slope, m): m = Δy / Δx = Rise / Run
Indicates how many units the surface ascends or descends for each single unit of horizontal forward distance.
Initial Value (y-Intercept, b): y-Intercept = Initial Value at x = 0
The physical elevation coordinate when horizontal displacement equals zero, such as a curb or ground foundation.
1
Case Study 1: The Americans with Disabilities Act (ADA) Standard
In 1990, the United States Congress codified civil rights for individuals with disabilities into federal law through the Americans with Disabilities Act. Architectural guidelines mandated strict parameters for public access ramps. Biomechanical research demonstrated that an unassisted wheelchair user exerts significant physical exertion pushing against gravity on any incline steeper than an 8.33% slope. Consequently, federal standards established a mandatory maximum slope of 1:12.
In geometric terms, a 1:12 ratio means that for every 1 inch of vertical rise, the ramp must provide at least 12 inches of horizontal run. If a municipal library entrance is built atop a masonry landing that stands 30 inches above the sidewalk grade, how long must the ramp be?
Engineering Blueprint: ADA Incline Equation Slope m = 1/12
Slope-Intercept Form y = (1/12)x x = run (in), y = rise (in)
Target Elevation y = 30 inches Threshold entrance elevation
Required Run x = 360 in = 30 ft Horizontal path length
If an existing concrete apron already elevates the ramp's departure point by 6 inches (b = 6), the linear equation in slope-intercept form becomes y = (1/12)x + 6. To reach the 30-inch entrance landing, the ramp requires 30 = (1/12)x + 6 → (1/12)x = 24 → x = 288 inches (24 feet) of horizontal distance.
Reading Lens (8.RN.2.1): Notice how the author connects mathematical formulas to legal civil rights statutes. In your activity sheet, you will cite the exact sentence explaining why the 1:12 slope was chosen based on human biology.
Field Dispatch 08-CIVIL • Technical Reading • Page 1 of 3 Linear Relationships in Civil Systems
Transportation Infrastructure & Mechanical Physics Indiana 8.AF.6 • 8.RN.2.1
Case Study 2: Mountain Passes and Highway Grade
The Physics of Descent, Road Slope Percentages, and Escape Lanes
FIELD DISPATCH: #08-CIVIL
Drivers traversing mountainous territory frequently encounter cautionary diamond warning signs displaying a truck tilted downward alongside the warning: “CAUTION: 6% GRADE NEXT 5 MILES”. In civil and transportation engineering, the slope of a roadway is officially referred to as its grade, which is simply mathematical slope expressed as a percentage.
A 6% downgrade indicates that the highway descends vertically by 6 feet for every 100 feet of forward horizontal distance traveled. Because this motion represents a downward descent, its mathematical rate of change is negative: m = -6/100 = -0.06. When scaled up to highway distances, where 1 mile equals 5,280 feet, this constant rate of change forces vehicles to drop 316.8 feet of vertical elevation for every linear mile driven (-0.06 × 5,280 = -316.8 ft/mi).
Engineering Blueprint: Highway Descent Equation Grade = -6% (-316.8 ft/mi)
Initial Value (x = 0) b = 4,200 ft Starting summit elevation
Slope-Intercept Form y = -316.8x + 4200 x = miles, y = elevation (ft)
Valley Checkpoint (x = 10) y = 1,032 ft Elevation after 10 miles
As a heavy commercial tractor-trailer carrying 80,000 pounds descends, the constant negative rate of change converts gravitational potential energy directly into accelerating kinetic motion.
Mechanical Energy & Runaway Truck Escape Ramps
When a truck driver relies solely on friction brakes down an extended negative grade, the brake pads reach temperatures surpassing 600 degrees Fahrenheit, causing mechanical brake fade or catastrophic failure. To prevent deadly high-speed collisions, highway engineers design runaway truck ramps.
These escape lanes branch off steep downhill curves and reverse the slope dramatically, using an aggressive positive slope of +15% to +25% (rising 15 to 25 vertical feet for every 100 feet of run). Filled with beds of loose pea gravel, these ramps harness both gravitational deceleration and rolling resistance, safely absorbing millions of foot-pounds of momentum and bringing vehicles to a complete stop without operational brakes.
Reading Lens (8.RN.2.1): Note the mathematical contrast between the downhill road (a negative slope of -6%) and the emergency escape ramp (a positive slope of +15% to +25%). In your activity, you will explain how engineers use opposite rates of change to manage kinetic energy.
Field Dispatch 08-CIVIL • Technical Reading • Page 2 of 3 Linear Relationships in Civil Systems
Hydraulic Engineering & Surface Geometry Indiana 8.AF.6 • 8.RN.3.2 • 8.RN.3.3
Case Study 3: Roof Pitch and Stormwater Drainage
Managing Water Runoff, Snow Loads, and Roadway Hydroplaning
FIELD DISPATCH: #08-CIVIL
3
Roof Pitch and Structural Snow Loading
In architecture and building construction, the slope of a roof is described as its “pitch”. Instead of a percentage, carpenters express pitch as the number of vertical inches a rafter rises for every 12 inches of horizontal run (e.g., a “4/12 pitch” or an “8/12 pitch”). This ratio represents the exact mathematical slope: an 8/12 pitch has a rate of change of m = 8/12 = 2/3.
In northern climates subject to heavy blizzards, choosing the correct slope is essential for structural preservation. A flat roof allows heavy snow to accumulate, exerting thousands of pounds of static pressure. By designing roofs with a steeper rate of change (m ≥ 8/12), gravity naturally sheds snowpacks before their weight can cause roof rafters to buckle or collapse.
Road Cross-Slopes and Hydroplaning Prevention
A highway that appears flat to an everyday motorist is actually sculpted with intentional, precise linear inclines. Municipal civil engineers crown the centerline of roads with a deliberate cross-slope—a lateral tilt that drops at a rate of 2% (approximately 1/4 inch of vertical drop per horizontal foot) from the centerline toward the shoulders.
This constant negative rate of change prevents water from ponding on travel lanes. Without this subtle slope, thin sheets of standing water would cause tires to lose contact with asphalt—a deadly phenomenon known as hydroplaning. The cross-slope directs runoff into stormwater catch basins, protecting drivers at 65 miles per hour.
Technical Lexicon (Indiana ELA 8.RN.3.3)
Rate of Change (Slope, m): The ratio comparing vertical change to horizontal change. Negative indicates descent; positive indicates ascent.
Initial Value (y-intercept, b): The starting elevation coordinate when horizontal displacement equals zero.
Grade (%): Slope expressed as a percentage ((rise / run) × 100), standard in transportation engineering.
Cross-Slope: A transverse slope perpendicular to traffic flow engineered to induce gravity-driven runoff drainage.
Text Structure Analysis (8.RN.3.2): How does the author organize the three case studies—moving from pedestrian ramps to mountain descents to stormwater drainage? Explain how this structural progression supports the central idea that slope-intercept equations govern human safety across all civil infrastructure.
Field Dispatch 08-CIVIL • Technical Reading • Page 3 of 3 Linear Relationships in Civil Systems

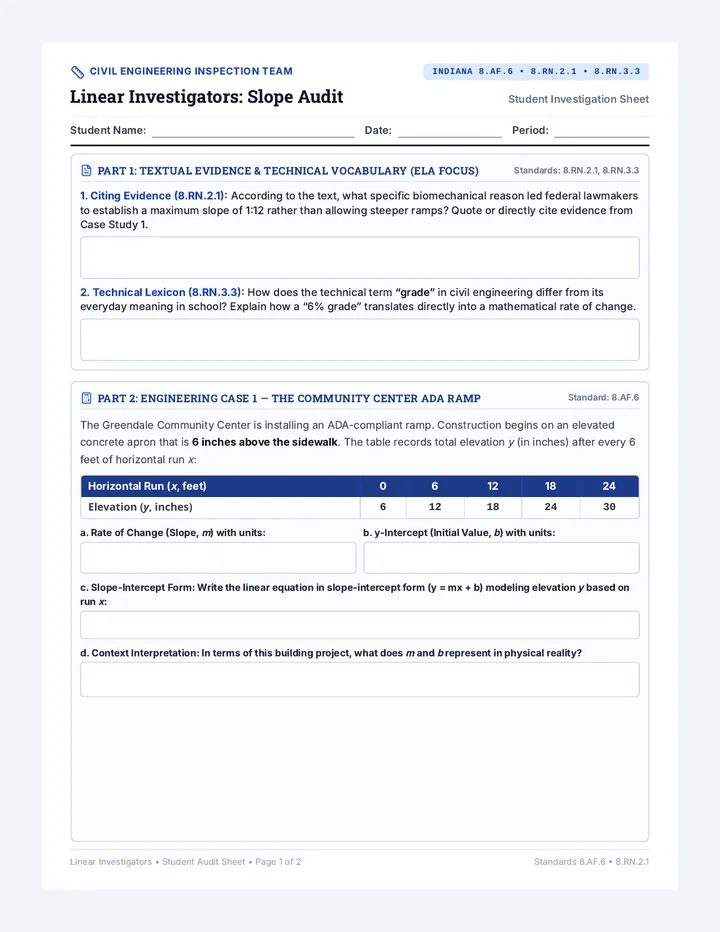

Linear Investigators Activity Sheet
Civil Engineering Inspection Team Indiana 8.AF.6 • 8.RN.2.1 • 8.RN.3.3
Linear Investigators: Slope Audit
Student Investigation Sheet
Student Name:
Date:
Period:
Part 1: Textual Evidence & Technical Vocabulary (ELA Focus)
Standards: 8.RN.2.1, 8.RN.3.3
1. Citing Evidence (8.RN.2.1): According to the text, what specific biomechanical reason led federal lawmakers to establish a maximum slope of 1:12 rather than allowing steeper ramps? Quote or directly cite evidence from Case Study 1.
2. Technical Lexicon (8.RN.3.3): How does the technical term “grade” in civil engineering differ from its everyday meaning in school? Explain how a “6% grade” translates directly into a mathematical rate of change.
Part 2: Engineering Case 1 — The Community Center ADA Ramp
Standard: 8.AF.6
The Greendale Community Center is installing an ADA-compliant ramp. Construction begins on an elevated concrete apron that is 6 inches above the sidewalk. The table records total elevation y (in inches) after every 6 feet of horizontal run x:
| Horizontal Run (x, feet) | 0 | 6 | 12 | 18 | 24 |
|---|
| Elevation (y, inches) | 6 | 12 | 18 | 24 | 30 |
a. Rate of Change (Slope, m) with units:
b. y-Intercept (Initial Value, b) with units:
c. Slope-Intercept Form: Write the linear equation in slope-intercept form (y = mx + b) modeling elevation y based on run x:
d. Context Interpretation: In terms of this building project, what does m and b represent in physical reality?
Linear Investigators • Student Audit Sheet • Page 1 of 2 Standards 8.AF.6 • 8.RN.2.1
Technical Audit: Part 3 & Part 4 EVALUATION PROTOCOL
Part 3: Engineering Case 2 — Mountain Highway Descent Model
Standard: 8.AF.6
Highway 135 descends from an alpine pass. A surveying crew records two elevation checkpoints along the downhill route: Checkpoint 1 at mile 0 is at 3,600 feet elevation (0, 3600); Checkpoint 2 at mile 5 is at 2,280 feet elevation (5, 2280).
a. Calculate Rate of Change: m = (y₂ - y₁) / (x₂ - x₁)
b. Identify y-Intercept (b) & Slope-Intercept Equation (y = mx + b):

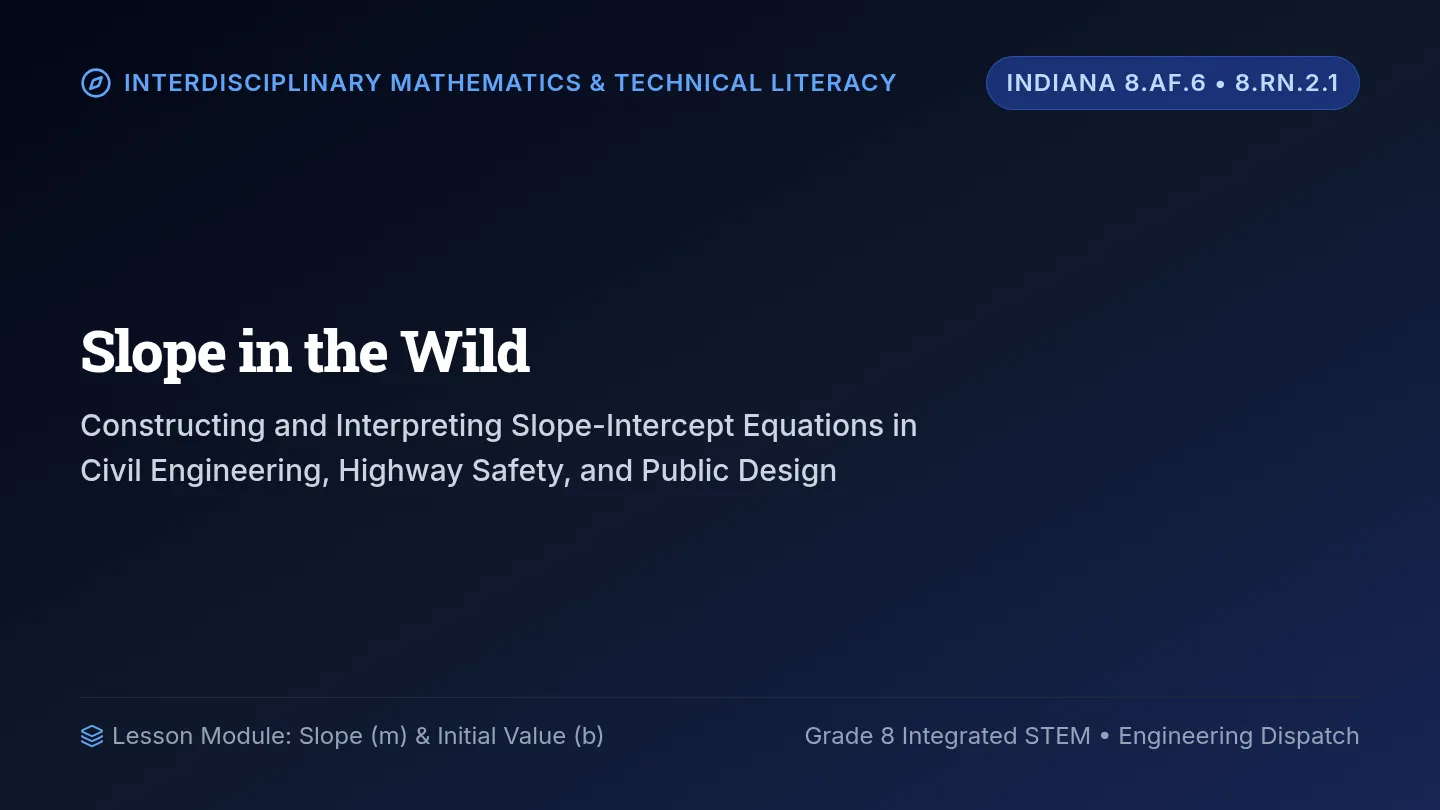

Slope Connections Slides
Interdisciplinary Mathematics & Technical Literacy Indiana 8.AF.6 • 8.RN.2.1
Slope in the Wild
Constructing and Interpreting Slope-Intercept Equations in Civil Engineering, Highway Safety, and Public Design
Lesson Module: Slope (m) & Initial Value (b) Grade 8 Integrated STEM • Engineering Dispatch
Real-World Framing
Why Slope Is a Matter of Human Safety
ADA Ramps
Federal law limits public ramps to a 1:12 maximum slope so wheelchair users can safely ascend without tipping.
m ≤ 1/12 (8.33% grade)
Highway Passes
A 6% downgrade drops 316.8 ft per mile. Overheating brakes need steep escape ramps (+15% to +25%).
m = -0.06 (descent rate)
Water Drainage
Road crowns feature a deliberate 2% cross-slope that channels rainwater to curbs, preventing hydroplaning.
m = 0.02 (cross-gradient)
Mathematical slope is not just an equation—it is a physical blueprint for safety.
Mathematical Structure (8.AF.6)
Deconstructing y = mx + b in the Physical World
Rate of Change (Slope, m)
Slope m = Δy / Δx = Elevation Change / Run
• Positive slope: Ramp ascending toward a doorway.
• Negative slope: Highway descending from a mountain summit.
• Meaning: Elevation change per single horizontal unit.
y-Intercept (Initial Value, b)
y-Intercept b = Initial Value (at x = 0)
• Starting Foundation: Elevation at position x = 0.
• Curb Threshold: Starting 6 inches above sidewalk grade.
• Summit Height: Truck starting descent at 3,600 ft altitude.
Standard: Indiana 8.AF.6 • Slope-Intercept Form y = mx + b
ELA Standard 8.RN.2.1 • Textual Analysis
Reading Like a Civil Forensic Inspector
1. Cite Exact Quantitative Claims (8.RN.2.1)
Cite specific biomechanical evidence: “an unassisted wheelchair user exerts significant physical exertion pushing against gravity on any incline steeper than an 8.33% slope.”
2. Decode Domain-Specific Vocabulary (8.RN.3.3)
Learn technical meanings: “grade” (percentage slope), “pitch” (rise per 12 inches run), and “cross-slope” (lateral crown drainage).

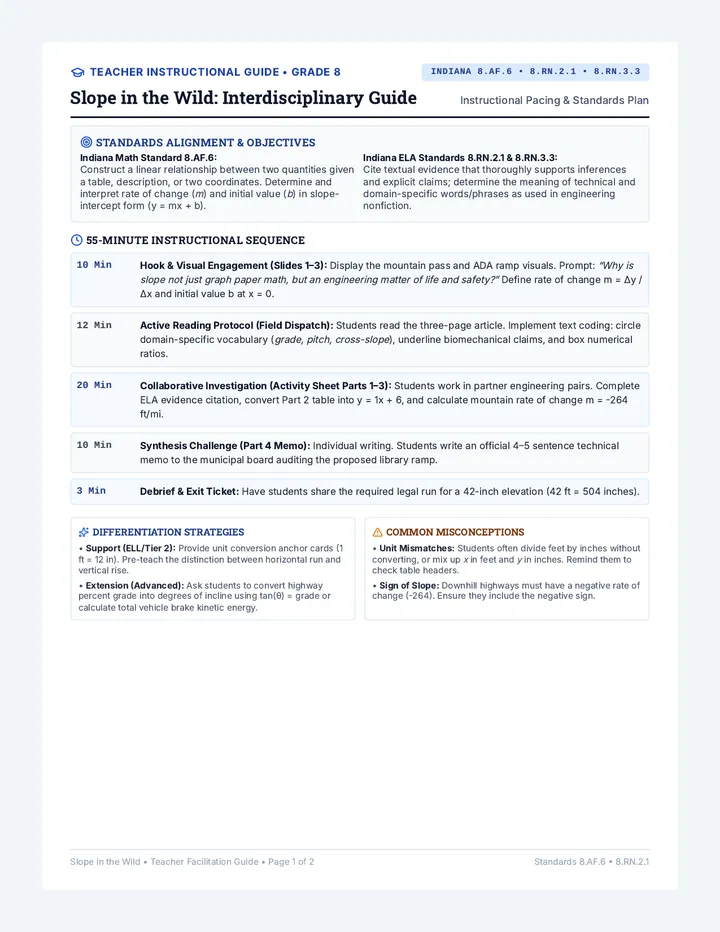

Slope Investigators Teacher Guide
Teacher Instructional Guide • Grade 8 Indiana 8.AF.6 • 8.RN.2.1 • 8.RN.3.3
Slope in the Wild: Interdisciplinary Guide
Instructional Pacing & Standards Plan
Standards Alignment & Objectives
Indiana Math Standard 8.AF.6: Construct a linear relationship between two quantities given a table, description, or two coordinates. Determine and interpret rate of change (m) and initial value (b) in slope-intercept form (y = mx + b).
Indiana ELA Standards 8.RN.2.1 & 8.RN.3.3: Cite textual evidence that thoroughly supports inferences and explicit claims; determine the meaning of technical and domain-specific words/phrases as used in engineering nonfiction.
55-Minute Instructional Sequence
10 Min
Hook & Visual Engagement (Slides 1–3): Display the mountain pass and ADA ramp visuals. Prompt: “Why is slope not just graph paper math, but an engineering matter of life and safety?” Define rate of change m = Δy / Δx and initial value b at x = 0.
12 Min
Active Reading Protocol (Field Dispatch): Students read the three-page article. Implement text coding: circle domain-specific vocabulary (grade, pitch, cross-slope), underline biomechanical claims, and box numerical ratios.
20 Min
Collaborative Investigation (Activity Sheet Parts 1–3): Students work in partner engineering pairs. Complete ELA evidence citation, convert Part 2 table into y = 1x + 6, and calculate mountain rate of change m = -264 ft/mi.
10 Min
Synthesis Challenge (Part 4 Memo): Individual writing. Students write an official 4–5 sentence technical memo to the municipal board auditing the proposed library ramp.
3 Min
Debrief & Exit Ticket: Have students share the required legal run for a 42-inch elevation (42 ft = 504 inches).
Differentiation Strategies
- • Support (ELL/Tier 2): Provide unit conversion anchor cards (1 ft = 12 in). Pre-teach the distinction between horizontal run and vertical rise.
- • Extension (Advanced): Ask students to convert highway percent grade into degrees of incline using tan(θ) = grade or calculate total vehicle brake kinetic energy.
Common Misconceptions
- • Unit Mismatches: Students often divide feet by inches without converting, or mix up x in feet and y in inches. Remind them to check table headers.
