Quad Quest Slides Geometry Workshop • Grade 8
Blueprint Masterclass
Mixed Practice • Sides, Angles & Combined Clues
Quad Quest: Draw Any 4-Sided Shape
Learn how to turn side lengths, angle clues, and geometric secrets into accurate quadrilateral blueprints.
Count Grid Units Read Angle Clues Check \(360^\circ\) Sum
Slide 1 of 6
The 4-Sided Lineup
All Angles Sum to \(360^\circ\)
Parallelogram
2 Pairs //
Opposite sides are parallel & equal length.
Rectangle
Four \(90^\circ\)
Opposite sides equal with 4 right square corners.
Rhombus
4 Equal Sides
All 4 sides are equal; corners are slanted.
Square
Equal & \(90^\circ\)
Both a rectangle and a rhombus combined!
Trapezoid
1 Pair //
Has exactly one pair of parallel sides (bases).
Kite
Adjacent =
Two pairs of neighboring sides are equal.
Look for parallel arrows \(>\) and side tick marks \(|\) on your blueprint! Slide 2 of 6
Strategy 1: Drawing from Side Clues
Step-by-Step Blueprint
1
Lock in the Base First
Start on a straight grid line. Count your grid units horizontally from left to right.
2
Check Side Relationships
Are opposite sides equal? (Rectangle/Parallelogram) Or are all 4 equal? (Rhombus/Square)
3
Count Rise & Run for Slants
For slanted sides, count across and up by the exact same amount on both sides to keep lines parallel!
Worked Example Sides: 6 and 4
Base = 6 units Top = 6 units Slant = 4 Slant = 4
Pro-Tip: If the bottom side goes 6 boxes right, the top side MUST also go 6 boxes right!
Tick marks \(|\) on opposite sides show they have equal length. Slide 3 of 6
Strategy 2: Drawing from Angle Clues
Angle Anatomy
Right Angle
\(90^\circ\)
Square corner. Follows the horizontal and vertical grid lines perfectly.
Found in: Rectangles, Squares
Acute Angle
< \(90^\circ\)
Sharp corner. Pinches inward. Common in rhombuses and parallelograms.
\(60^\circ\)
Acute means "sharp"
Obtuse Angle
> \(90^\circ\)
Wide open corner. Leans outward. Balances with an acute neighbor.
\(120^\circ\)
Obtuse means "wide"
The Consecutive Angle Rule: Neighboring angles between parallel lines add to \(180^\circ\) !
\(60^\circ + 120^\circ = 180^\circ\)
If you know one angle in a parallelogram, you can calculate all four! Slide 4 of 6
Strategy 3: Cracking Combined Clues
Detective Mode
Case File #1 Mystery Clue Combo
Clue 1: Sides Two sides = 5 units, two sides = 3 units
Clue 2: Angles All angles are strictly \(90^\circ\)
Shape Identity RECTANGLE!
Case File #2 Mystery Clue Combo
Clue 1: Sides All 4 side lengths are equal to 5 units
Clue 2: Angles One angle is \(60^\circ\), no \(90^\circ\) corners
Shape Identity RHOMBUS!
Read all clues before drawing to make sure your shape matches every requirement. Slide 5 of 6
Your Blueprint Inspection Checklist
Ready for Worksheet
1. Did you close the shape?
Every quadrilateral has exactly 4 vertices (corners) and 4 connected line segments.
2. Did you count grid units?
Double check lengths by counting spaces between dots, not the dots themselves!
3. Are parallel lines matched?
If the bottom line is flat, the opposite line must be flat and equal length.
4. Name your masterpiece!
Write the specific quadrilateral family name right below your drawing.
Time to Draw: Grab your worksheet and ruler!
Let's Build!
Good luck, blueprint architects! Slide 2 revised • Slide 6 of 6

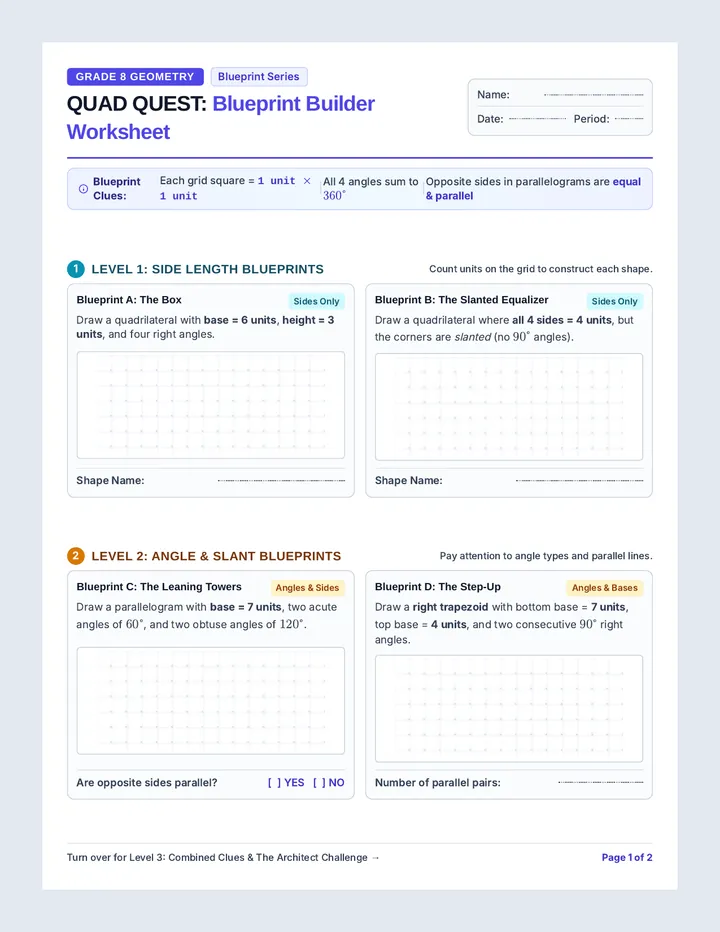

Quad Quest Worksheet Grade 8 Geometry Blueprint Series
QUAD QUEST: Blueprint Builder Worksheet
Name:
Date: Period:
Blueprint Clues:
Each grid square = 1 unit \(\times\) 1 unit | All 4 angles sum to \(360^\circ\) | Opposite sides in parallelograms are equal & parallel
1
Level 1: Side Length Blueprints
Count units on the grid to construct each shape.
Blueprint A: The Box Sides Only
Draw a quadrilateral with base = 6 units , height = 3 units , and four right angles.
Shape Name:
Blueprint B: The Slanted Equalizer Sides Only
Draw a quadrilateral where all 4 sides = 4 units , but the corners are slanted (no \(90^\circ\) angles).
Shape Name:
2
Level 2: Angle & Slant Blueprints
Pay attention to angle types and parallel lines.
Blueprint C: The Leaning Towers Angles & Sides
Draw a parallelogram with base = 7 units , two acute angles of \(60^\circ\) , and two obtuse angles of \(120^\circ\) .
Are opposite sides parallel? [ ] YES [ ] NO
Blueprint D: The Step-Up Angles & Bases
Draw a right trapezoid with bottom base = 7 units , top base = 4 units , and two consecutive \(90^\circ\) right angles.
Number of parallel pairs:
Turn over for Level 3: Combined Clues & The Architect Challenge → Page 1 of 2
Level 3 & 4
QUAD QUEST: Advanced Detective & Architect
Keep ruler steady!
3
Level 3: Combined Clues Detective
Combine side lengths AND angle traits!
Case #1: The Flying Diamond Adjacent Pairs
• Top two adjacent sides = 3 units each
• Bottom two adjacent sides = 5 units each
• Exactly 1 line of vertical symmetry (NO parallel sides)
Quad Identity:
Case #2: The Forty-Fiver Opposite Slants
• Base = 5 units , Opposite top side = 5 units
• Slanted left angle = \(45^\circ\) (diagonal slant of 3 up, 3 right)
• Opposite obtuse angles = \(135^\circ\)
Quad Quest Answer Key Teacher Resource Answer Key & Guide

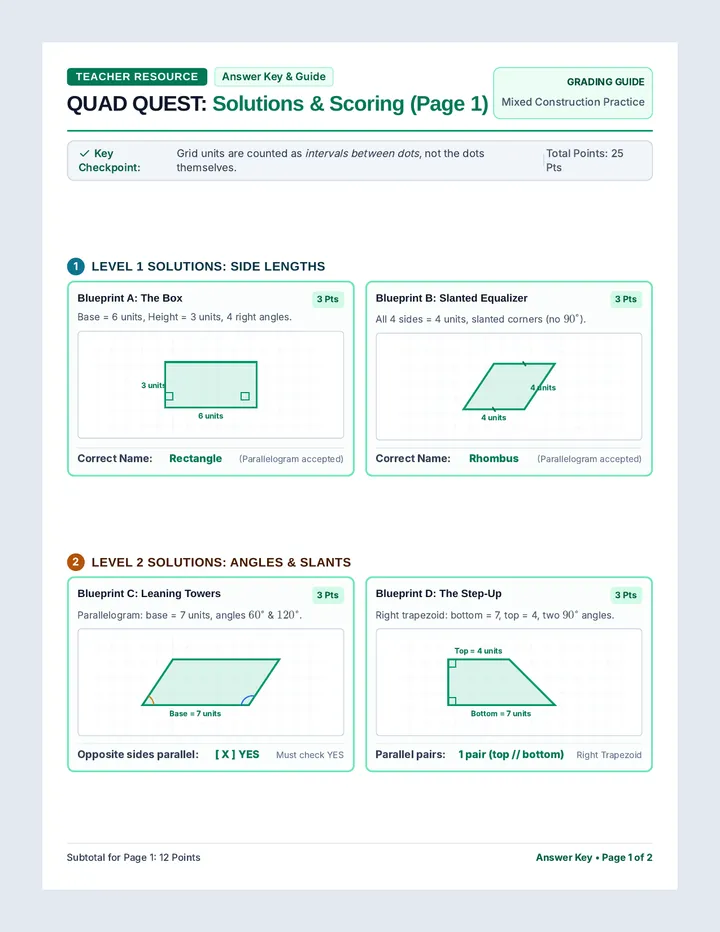

QUAD QUEST: Solutions & Scoring (Page 1)
Grading Guide Mixed Construction Practice
Key Checkpoint: Grid units are counted as intervals between dots , not the dots themselves. | Total Points: 25 Pts
1
Level 1 Solutions: Side Lengths
Blueprint A: The Box 3 Pts
Base = 6 units, Height = 3 units, 4 right angles.
6 units 3 units
Correct Name: Rectangle (Parallelogram accepted)
Blueprint B: Slanted Equalizer 3 Pts
All 4 sides = 4 units, slanted corners (no \(90^\circ\)).
4 units 4 units
Correct Name: Rhombus (Parallelogram accepted)
2
Level 2 Solutions: Angles & Slants
Blueprint C: Leaning Towers 3 Pts
Parallelogram: base = 7 units, angles \(60^\circ\) & \(120^\circ\).
\(60^\circ\) \(120^\circ\) Base = 7 units
Opposite sides parallel: [ X ] YES Must check YES
Blueprint D: The Step-Up 3 Pts
Right trapezoid: bottom = 7, top = 4, two \(90^\circ\) angles.
Bottom = 7 units Top = 4 units
Parallel pairs: 1 pair (top // bottom) Right Trapezoid
Subtotal for Page 1: 12 Points Answer Key • Page 1 of 2
Teacher Resource
QUAD QUEST: Solutions & Scoring (Page 2)
Combined Clues & Custom Build
3
Level 3 Solutions: Combined Clues
Case #1: The Flying Diamond 4 Pts
Adjacent sides 3 and 5, 1 vertical symmetry axis.
3 u 3 u 5 u 5 u
Identity: KITE 2 pairs adjacent equal
Case #2: The Forty-Fiver 4 Pts
Opposite sides 5, slanted angles \(45^\circ\) & \(135^\circ\).
\(45^\circ\) \(135^\circ\) Base = 5 units
Identity: PARALLELOGRAM Opposite \(\angle\)s \(45^\circ, 135^\circ\)
Level 4: Architect Build Rubric (5 Points) Student Created Shape
Accurate Drawing (2 pts)
Shape has exactly 4 closed straight sides that align neatly with dot grid coordinates.
Consistent Clues (2 pts)
The 3 clues accurately describe the student's drawing (lengths, angle types, parallel pairs).
Correct Label (1 pt)
The quadrilateral family name correctly matches the drawn shape and clues provided.
Common Misconceptions & How to Guide Struggling Students:
Dot Counting Error: Students count 5 dots for a 4-unit side. Remind them: Count hops/spaces from dot to dot, like counting steps on a ruler.
