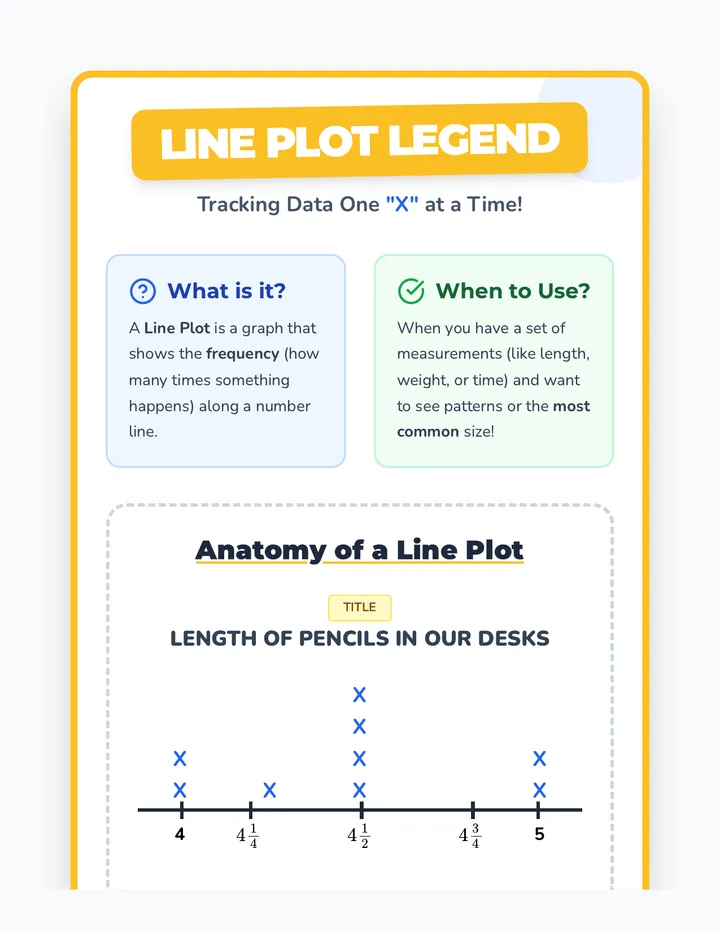

Line Plot Legend Anchor ChartLine Plot Legend Tracking Data One "X" at a Time! What is it? A Line Plot is a graph that shows the frequency (how many times something happens) along a number line. When to Use? When you have a set of measurements (like length, weight, or time) and want to see patterns or the most common size! Anatomy of a Line Plot TITLE Length of Pencils in Our Desks X X X X X X X X X 4 \(4 \frac{1}{4}\) \(4 \frac{1}{2}\) \(4 \frac{3}{4}\) 5 DATA POINTS (X) One X for every piece of data. SCALE Equal intervals (halves, fourths, eighths). LABEL Units (Inches, Centimeters, Cups). Length (Inches) 1 How to Build It Gather your data (the numbers). Find the smallest and largest values. Draw a number line and mark the scale. Place an 'X' above each value for every data point. Pro Tips! Line up your 'X's to see heights easily! Double check your fractional markers. Every 'X' counts as 1 item in the set. If there's no data for a spot, leave it blank!

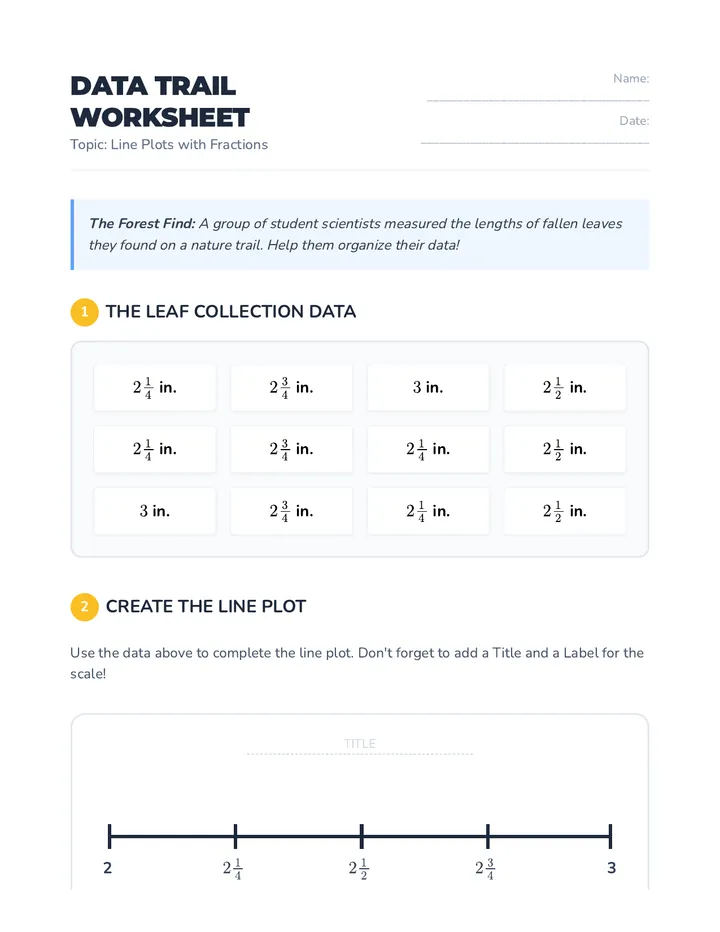

Data Trail WorksheetData Trail Worksheet Topic: Line Plots with Fractions Name: ____________________________________ Date: _____________________________________ The Forest Find: A group of student scientists measured the lengths of fallen leaves they found on a nature trail. Help them organize their data! 1 The Leaf Collection Data \(2 \frac{1}{4}\) in. \(2 \frac{3}{4}\) in. \(3\) in. \(2 \frac{1}{2}\) in. \(2 \frac{1}{4}\) in. \(2 \frac{3}{4}\) in. \(2 \frac{1}{4}\) in. \(2 \frac{1}{2}\) in. \(3\) in. \(2 \frac{3}{4}\) in. \(2 \frac{1}{4}\) in. \(2 \frac{1}{2}\) in. 2 Create the Line Plot Use the data above to complete the line plot. Don't forget to add a Title and a Label for the scale! TITLE 2 \(2 \frac{1}{4}\) \(2 \frac{1}{2}\) \(2 \frac{3}{4}\) 3 LABEL 3 Analyze the Results 1. How many leaves were exactly \(2 \frac{3}{4}\) inches long? 2. What was the most common leaf length found on the trail? 3. What is the difference in length between the longest leaf and the shortest leaf in the collection? Show your work: Answer: 4. How many total leaves did the students measure for their collection? 5. If the students found two more leaves that were each \(2 \frac{1}{2}\) inches long, how would that change the line plot? Describe what the new "X" column would look like.

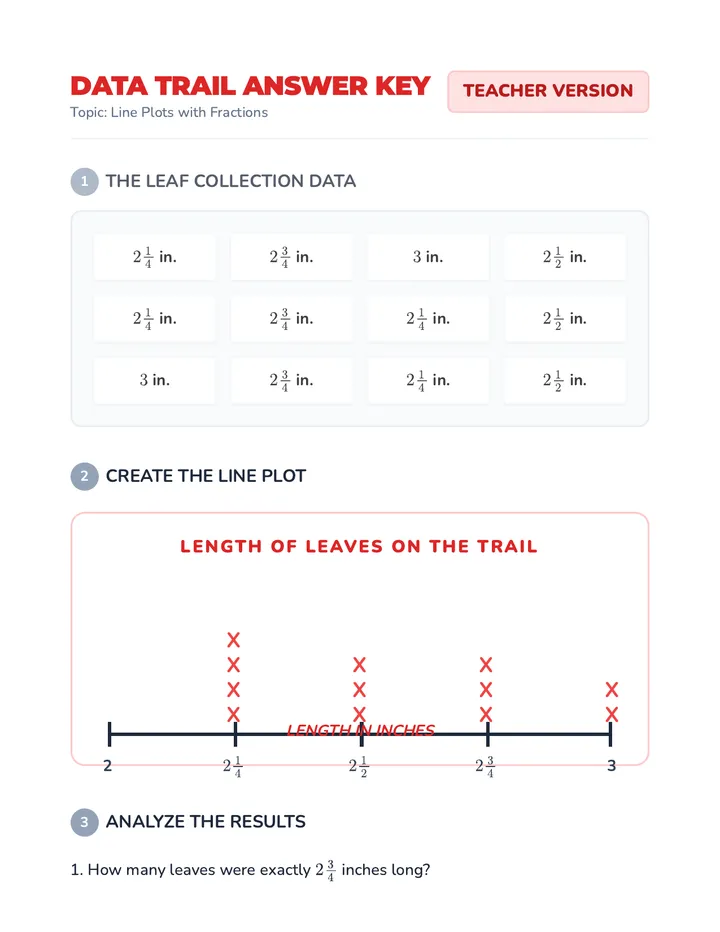

Data Trail Answer KeyData Trail ANSWER KEY Topic: Line Plots with Fractions TEACHER VERSION 1 The Leaf Collection Data \(2 \frac{1}{4}\) in. \(2 \frac{3}{4}\) in. \(3\) in. \(2 \frac{1}{2}\) in. \(2 \frac{1}{4}\) in. \(2 \frac{3}{4}\) in. \(2 \frac{1}{4}\) in. \(2 \frac{1}{2}\) in. \(3\) in. \(2 \frac{3}{4}\) in. \(2 \frac{1}{4}\) in. \(2 \frac{1}{2}\) in. 2 Create the Line Plot Length of Leaves on the Trail X X X X X X X X X X X X 2 \(2 \frac{1}{4}\) \(2 \frac{1}{2}\) \(2 \frac{3}{4}\) 3 Length in Inches 3 Analyze the Results 1. How many leaves were exactly \(2 \frac{3}{4}\) inches long? 3 leaves 2. What was the most common leaf length found on the trail? \(2 \frac{1}{4}\) inches 3. What is the difference in length between the longest leaf and the shortest leaf in the collection? Work: \(3 - 2 \frac{1}{4} = \frac{3}{4}\) Answer: \(\frac{3}{4}\) inch 4. How many total leaves did the students measure for their collection? 12 leaves 5. If the students found two more leaves that were each \(2 \frac{1}{2}\) inches long, how would that change the line plot? Sample Answer: The column for \(2 \frac{1}{2}\) would now have 5 "X" markers instead of 3. It would become the tallest column, meaning \(2 \frac{1}{2}\) inches would become the new "most common" leaf length.
Line Plot Intro SlidesMath Investigators Data Detectives Mastering the art of the Line Plot Analyze Visualize Interpret What is it? A Line Plot is a graph that shows the frequency (how many times something happens) along a number line. Perfect for organizing measurements like length, weight, and volume! X X X Wait... how many Xs? Each "X" represents ONE piece of data! 4 Steps to Plotting Success 01 GATHER Collect your data points (the numbers). 02 SCALE Find the range and mark your number line. 03 LABEL Give it a Title and name the units! 04 PLOT Place an "X" above the value for each item. Let's Try It Together! We found 8 different lengths of ribbon for a craft project. \( \frac{1}{2} \) \( \frac{1}{4} \) \( \frac{1}{2} \) \( 1 \) \( \frac{3}{4} \) \( \frac{1}{2} \) \( \frac{1}{4} \) \( \frac{1}{2} \) Detective Questions Analyze Mode 1 Most Common? Look for the tallest stack of "X"s. 2 The Difference? Subtract the smallest value from the largest. 3 Total Items? Count every single "X" on the chart. Pro Case Tip Always check your fractional units first. Are you counting in halves? Fourths? Eighths? "I measure twice and plot once!"
