Decimal Blueprint Anchor Chart Standard Alignment Procedure
Decimal Blueprint
Precision Mathematical Engineering • Grade 5-6
Rule #1 Align Decimals
The Plumb Line Concept
In building, a plumb line hangs perfectly straight down to ensure walls don't tilt. In math, your decimal points must act as a plumb line. If they skew, the whole building collapses!
01
1
Drop Plumb Line
Write the numbers so that their decimal points are stacked in a perfect vertical line.
9.4 + 2.75 → Stacked vertically
02
2
Fill the Voids
Place placeholder zeros in any empty spaces at the end so all columns are completely filled.
9.40 + 2.75 ‹ Added zero helper!
03
3
Construct
Add or subtract columns from right to left. Regroup (carry or borrow) exactly like whole numbers.
Add/Sub normally • Regroup if needed
04
4
Lock Foundation
Bring the decimal point straight down into your answer line to lock it in place.
The result line aligns perfectly!
CAD Alignment View
Precision Grid Analysis
Case 01: Addition (14.8 + 3.25)
T
O
.
t
h
1
4
.
8
0
3
.
2
5
1
8
.
0
5
• Placeholder zero filled the hundredths gap.
• Decimals aligned vertically in Column 3.
• Regrouped 10 tenths to make 1 whole.
Case 02: Subtraction (7.2 - 4.56)
T
O
.
t
h
7
.
2
0
-
4
.
5
6
2
.
6
4
• CRITICAL: You MUST place the placeholder zero!
• Regrouped: Borrowed 1 tenth from the 2 tenths to turn 0 hundredths into 10.
Inspection Warning: Common Pitfalls
Right-Justifying: Stacking 5.2 and 1.84 by aligning the right edges. This is illegal! Decimals must align.
Phantom Subtraction: Thinking that "empty space" minus 6 is 6 (e.g., 5.2 - 1.86 = 3.46). No! You must insert a placeholder zero: 10 - 6 = 4.
BLUEPRINT REF: ANCHOR-CHART-01
DEPT OF DESIGN-BUILD MATH
SHEET 1 OF 1

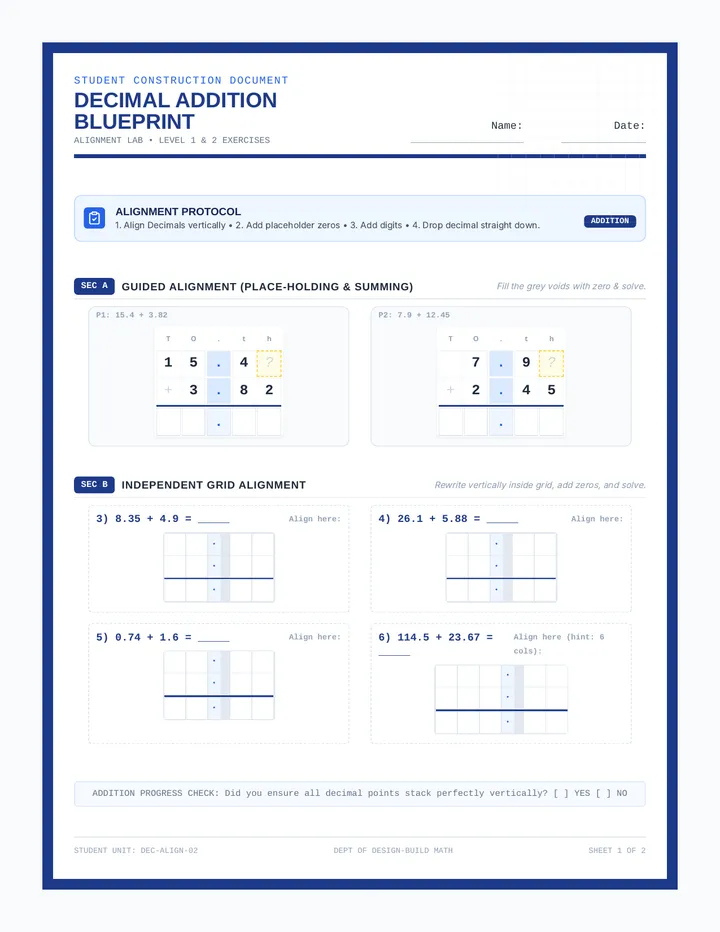

Decimal Blueprint Practice Worksheet Student Construction Document
Decimal Addition Blueprint
ALIGNMENT LAB • LEVEL 1 & 2 EXERCISES
Name: Date:
ALIGNMENT PROTOCOL
1. Align Decimals vertically • 2. Add placeholder zeros • 3. Add digits • 4. Drop decimal straight down.
ADDITION
SEC A
Guided Alignment (Place-holding & Summing)
Fill the grey voids with zero & solve.
P1: 15.4 + 3.82
T
O
.
t
h
1
5
.
4
?
3
.
8
2
.
P2: 7.9 + 12.45
T
O
.
t
h
7
.
9
?
2
.
4
5
.
SEC B
Independent Grid Alignment
Rewrite vertically inside grid, add zeros, and solve.
8.35 + 4.9 = _____ Align here:
.
.
.
26.1 + 5.88 = _____ Align here:
.
.
.
0.74 + 1.6 = _____ Align here:
.
.
.
114.5 + 23.67 = _____ Align here (hint: 6 cols):
.
.
.
ADDITION PROGRESS CHECK: Did you ensure all decimal points stack perfectly vertically? [ ] YES [ ] NO
STUDENT UNIT: DEC-ALIGN-02
DEPT OF DESIGN-BUILD MATH
SHEET 1 OF 2
Student Construction Document
Decimal Subtraction Blueprint
ALIGNMENT LAB • LEVEL 3 EXERCISES
Name: Date:
SUBTRACTION CAUTION
Never assume blank minus a digit equals that digit! Write a placeholder zero on top, then regroup (borrow) as needed.
SEC C
The Regrouping Danger Zone
Place zero in highlighted box. Borrow & subtract.
P7: 8.4 - 3.26
T
O
.
t

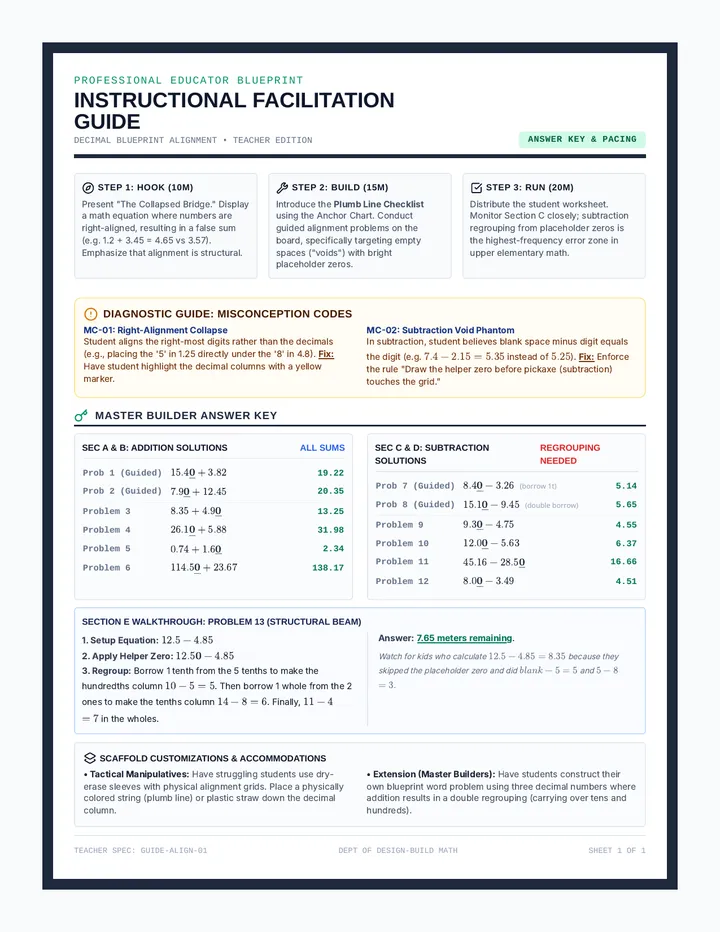

Decimal Blueprint Teacher Guide Professional Educator Blueprint
Instructional Facilitation Guide
DECIMAL BLUEPRINT ALIGNMENT • TEACHER EDITION
Answer Key & Pacing
Step 1: Hook (10m)
Present "The Collapsed Bridge." Display a math equation where numbers are right-aligned, resulting in a false sum (e.g. 1.2 + 3.45 = 4.65 vs 3.57). Emphasize that alignment is structural.
Step 2: Build (15m)
Introduce the Plumb Line Checklist using the Anchor Chart. Conduct guided alignment problems on the board, specifically targeting empty spaces ("voids") with bright placeholder zeros.
Step 3: Run (20m)
Distribute the student worksheet. Monitor Section C closely; subtraction regrouping from placeholder zeros is the highest-frequency error zone in upper elementary math.
Diagnostic Guide: Misconception Codes
MC-01: Right-Alignment Collapse Student aligns the right-most digits rather than the decimals (e.g., placing the '5' in 1.25 directly under the '8' in 4.8). Fix: Have student highlight the decimal columns with a yellow marker.
MC-02: Subtraction Void Phantom In subtraction, student believes blank space minus digit equals the digit (e.g. \(7.4 - 2.15 = 5.35\) instead of \(5.25\)). Fix: Enforce the rule "Draw the helper zero before pickaxe (subtraction) touches the grid."
Master Builder Answer Key
SEC A & B: ADDITION SOLUTIONS All Sums
<table class="w-full text-[10px] font-mono leading-relaxed"><tbody><tr><td class="font-bold text-slate-500 w-1/3">Prob 1 (Guided)</td><td>\(15.4\underline{\mathbf{0}} + 3.82\)</td><td class="text-right font-bold text-emerald-700">19.22</td></tr><tr><td class="font-bold text-slate-500">Prob 2 (Guided)</td><td>\(7.9\underline{\mathbf{0}} + 12.45\)</td><td class="text-right font-bold text-emerald-700">20.35</td></tr><tr class="border-t border-slate-100"><td class="font-bold text-slate-500">Problem 3</td><td>\(8.35 + 4.9\underline{\mathbf{0}}\)</td><td class="text-right font-bold text-emerald-700">13.25</td></tr><tr><td class="font-bold text-slate-500">Problem 4</td><td>\(26.1\underline{\mathbf{0}} + 5.88\)</td><td class="text-right font-bold text-emerald-700">31.98</td></tr><tr><td class="font-bold text-slate-500">Problem 5</td><td>\(0.74 + 1.6\underline{\mathbf{0}}\)</td><td class="text-right font-bold text-emerald-700">2.34</td></tr><tr><td class="font-bold text-slate-500">Problem 6</td><td>\(114.5\underline{\mathbf{0}} + 23.67\)</td><td class="text-right font-bold text-emerald-700">138.17</td></tr></tbody></table>
SEC C & D: SUBTRACTION SOLUTIONS Regrouping Needed
<table class="w-full text-[10px] font-mono leading-relaxed"><tbody><tr><td class="font-bold text-slate-500 w-1/3">Prob 7 (Guided)</td><td>\(8.4\underline{\mathbf{0}} - 3.26\) <span class="text-[8px] text-slate-400 font-sans">(borrow 1t)</span></td><td class="text-right font-bold text-emerald-700">5.14</td></tr><tr><td class="font-bold text-slate-500">Prob 8 (Guided)</td><td>\(15.1\underline{\mathbf{0}} - 9.45\) <span class="text-[8px] text-slate-400 font-sans">(double borrow)</span></td><td class="text-right font-bold text-emerald-700">5.65</td></tr><tr class="border-t border-slate-100"><td class="font-bold text-slate-500">Problem 9</td><td>\(9.3\underline{\mathbf{0}} - 4.75\)</td><td class="text-right font-bold text-emerald-700">4.55</td></tr><tr><td class="font-bold text-slate-500">Problem 10</td><td>\(12.0\underline{\mathbf{0}} - 5.63\)</td><td class="text-right font-bold text-emerald-700">6.37</td></tr><tr><td class="font-bold text-slate-500">Problem 11</td><td>\(45.16 - 28.5\underline{\mathbf{0}}\)</td><td class="text-right font-bold text-emerald-700">16.66</td></tr><tr><td class="font-bold text-slate-500">Problem 12</td><td>\(8.0\underline{\mathbf{0}} - 3.49\)</td><td class="text-right font-bold text-emerald-700">4.51</td></tr></tbody></table>

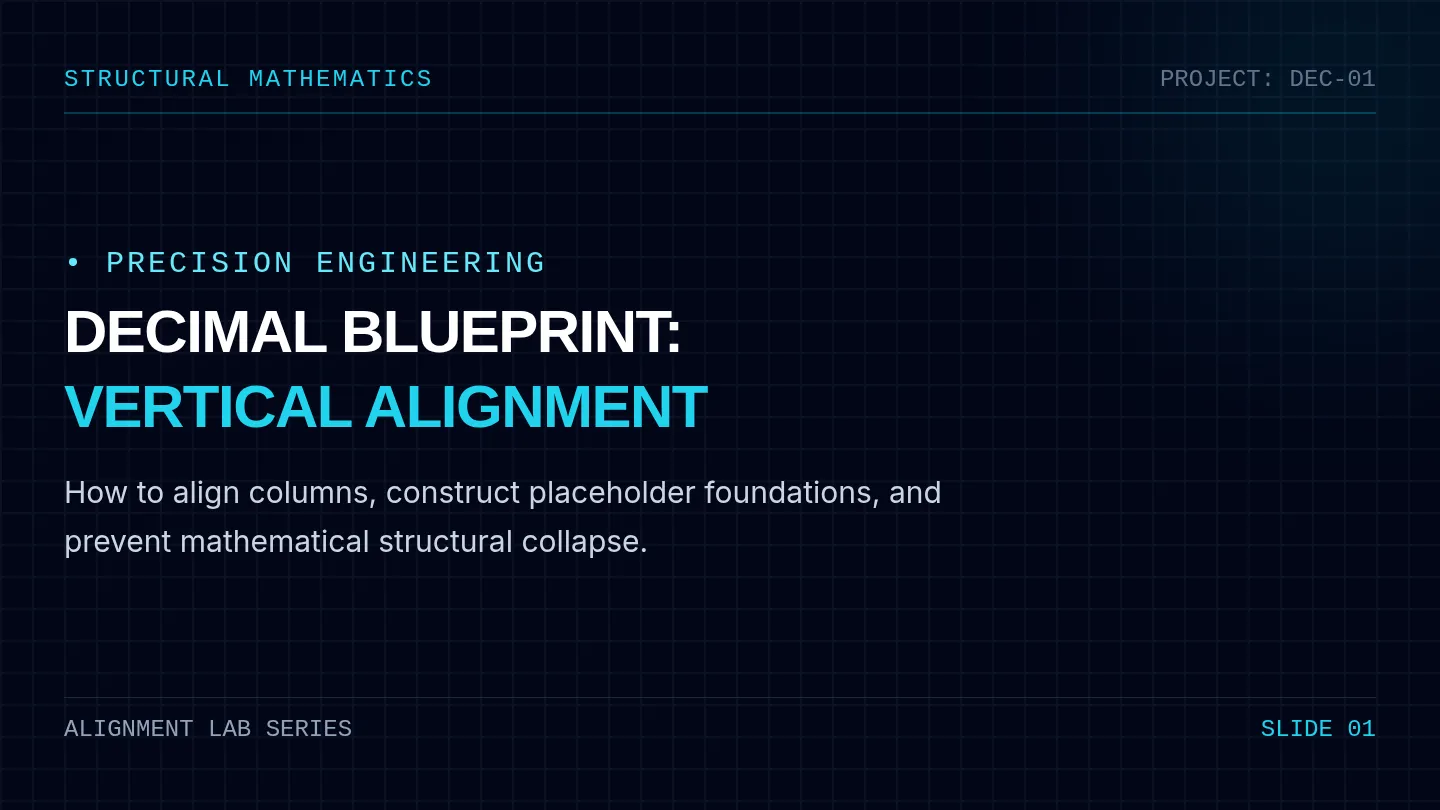

Decimal Blueprint Slides Structural Mathematics PROJECT: DEC-01
• PRECISION ENGINEERING
Decimal Blueprint:
Vertical Alignment
How to align columns, construct placeholder foundations, and prevent mathematical structural collapse.
ALIGNMENT LAB SERIES SLIDE 01
The Plumb Line Concept WHY ALIGNMENT MATTERS
The Plumb Line
In architecture, a plumb line ensures walls hang perfectly straight down.
If your decimal points drift to the left or right, the mathematical columns collapse, resulting in massive place-value errors!
× INSECURE BUILD
12.4
+ 3.56
16.0?
Decimals are not stacked! Wholes added directly to tenths.
ALIGNMENT LAB SERIES SLIDE 02
Operational Steps THE 4 BLUEPRINT LAWS
01
Drop Plumb Line
Stack decimal points vertically before writing digits.
02
Fill the Voids
Place zero placeholders in any empty ending spaces.
03
Construct Sum
Add or subtract right to left. Regroup exactly like whole numbers.
04
Lock Foundation
Bring the decimal straight down into the answer line.
ALIGNMENT LAB SERIES SLIDE 03
Modeling Addition CASE WORK: 14.8 + 3.25
• CASE WORK
Adding Unbalanced Decimals
How do we construct the sum of 14.8 and 3.25?
The number 14.8 only has 1 decimal place, but 3.25 has 2. We must pad with a zero so all columns align!
T
O
.
t
h
1
4
.
8
0
3
.
2
5
1
8
.
0
5
ALIGNMENT LAB SERIES SLIDE 04
High-Frequency Danger Zone SUBTRACTION MYTHS
Subtraction: 7.2 - 4.56
Many builders make a fatal subtraction error: they assume empty spaces are "free" and drop the 6 straight down.
The False sum: \(7.2 - 4.56 \neq 3.36\)! Empty minus 6 is NOT 6!
T
O
.
t
h
7
.
1 borrow
